MSC SOTIRIA III
9259393 | 5LCO2 | 9259393 by ********* Last update: Wed Apr 24 2024

General Info

Ship Name:MSC SOTIRIA III
IMO Code:9259393
Call Sign:5LCO2
Line Operator:9259393
Class Name for Sister Ships:KOTA GANTENG
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,707

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

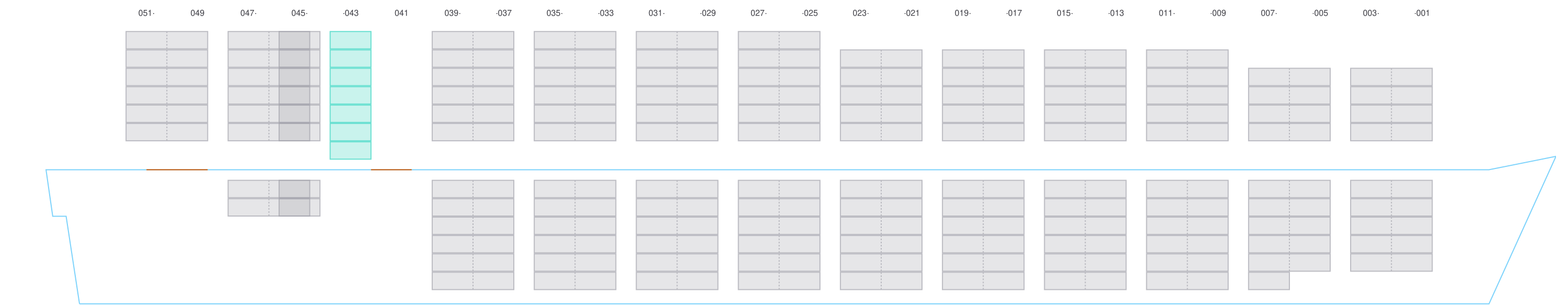

Side View

Side view of MSC SOTIRIA III

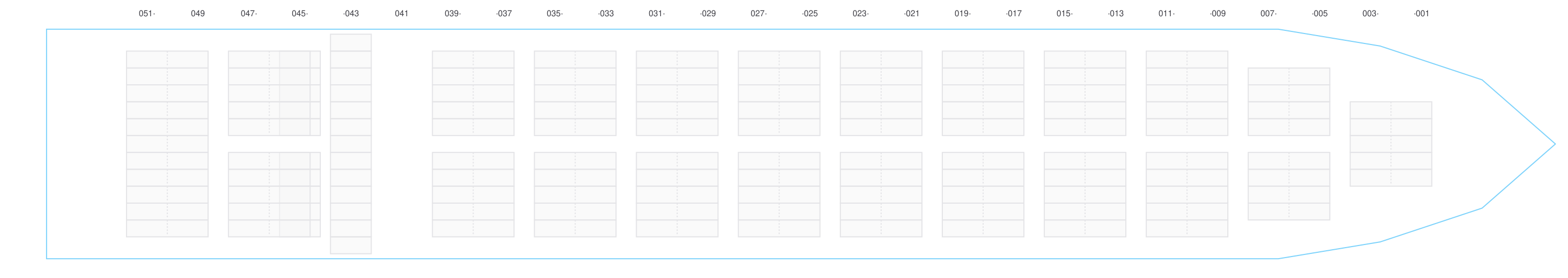

Hatch-Covers View

Deck view of MSC SOTIRIA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

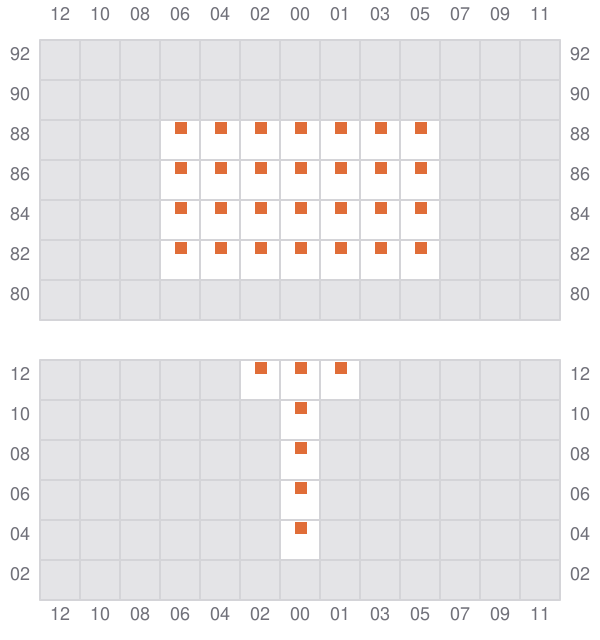

Bay 001 view and slots of MSC SOTIRIA III

003 (002)

  • ←

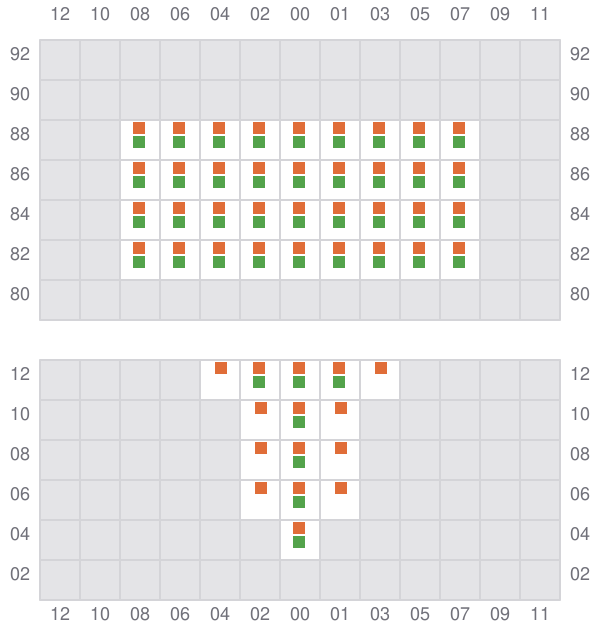

Bay 003 view and slots of MSC SOTIRIA III

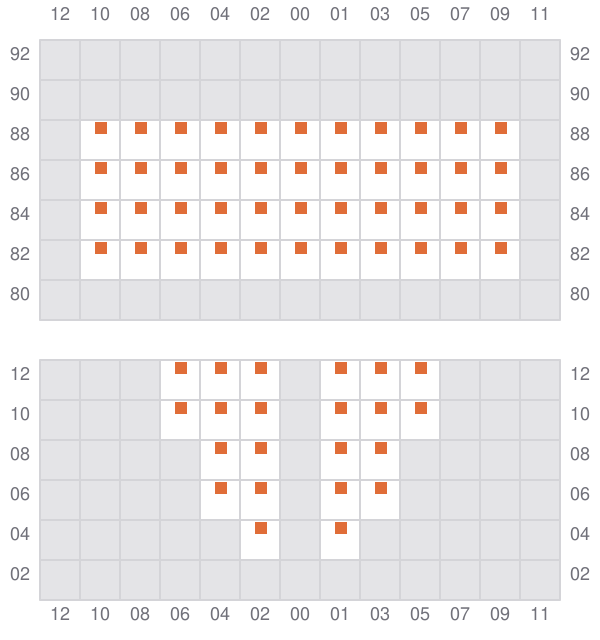

005

  • →
Bay 005 view and slots of MSC SOTIRIA III

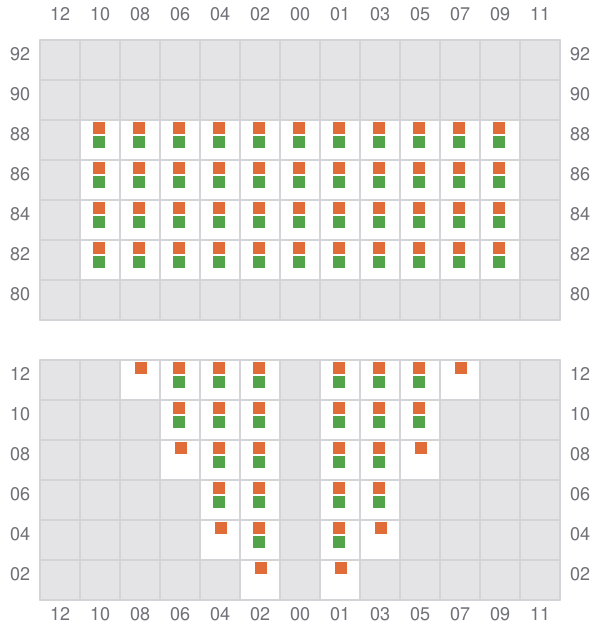

007 (006)

  • ←
Bay 007 view and slots of MSC SOTIRIA III

009

  • →

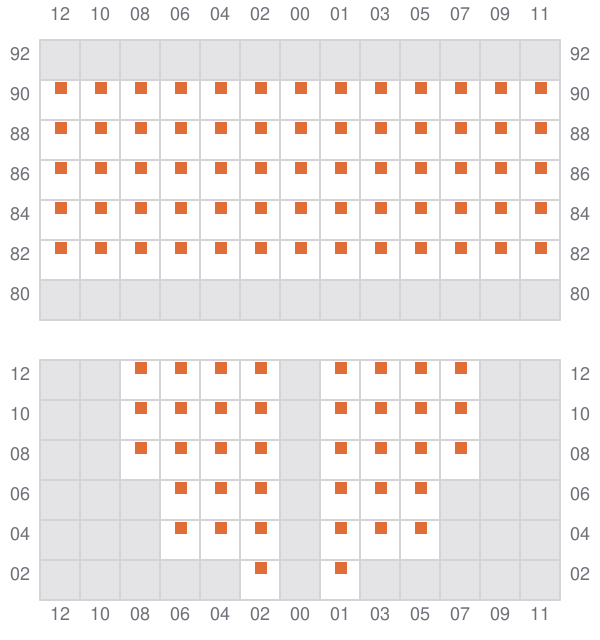

Bay 009 view and slots of MSC SOTIRIA III

011 (010)

  • ←

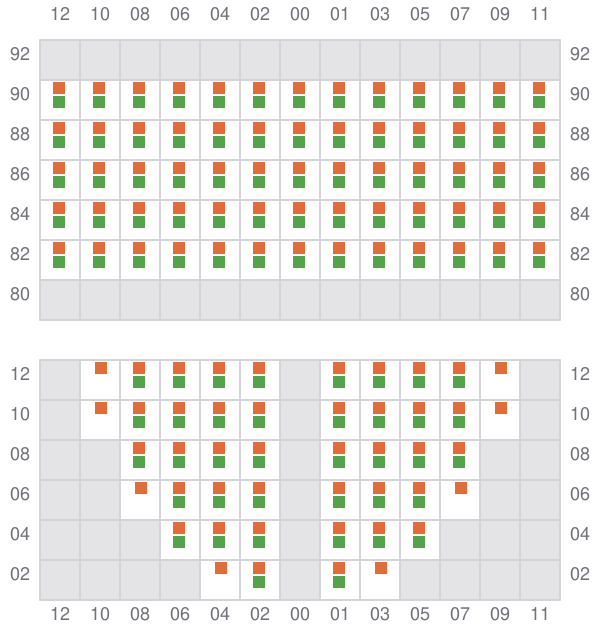

Bay 011 view and slots of MSC SOTIRIA III

013

  • →
Bay 013 view and slots of MSC SOTIRIA III

015 (014)

  • ←

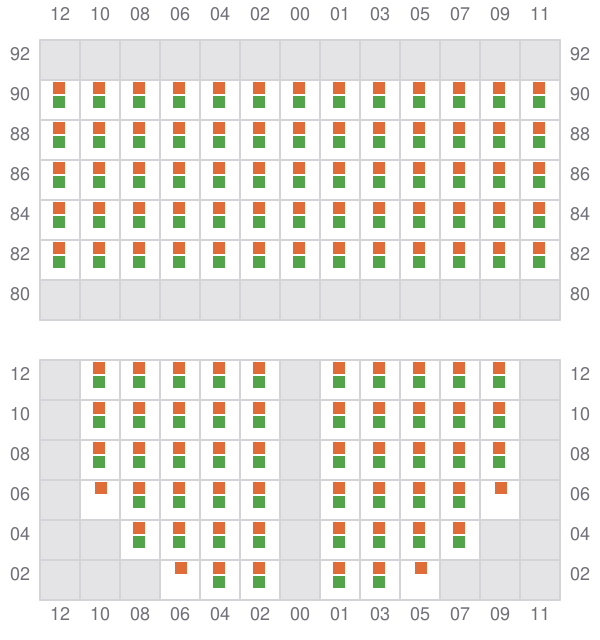

Bay 015 view and slots of MSC SOTIRIA III

017

  • →

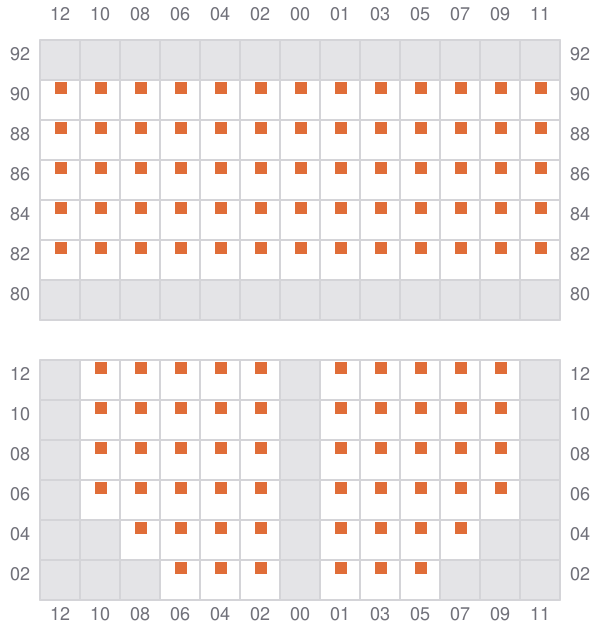

Bay 017 view and slots of MSC SOTIRIA III

019 (018)

  • ←

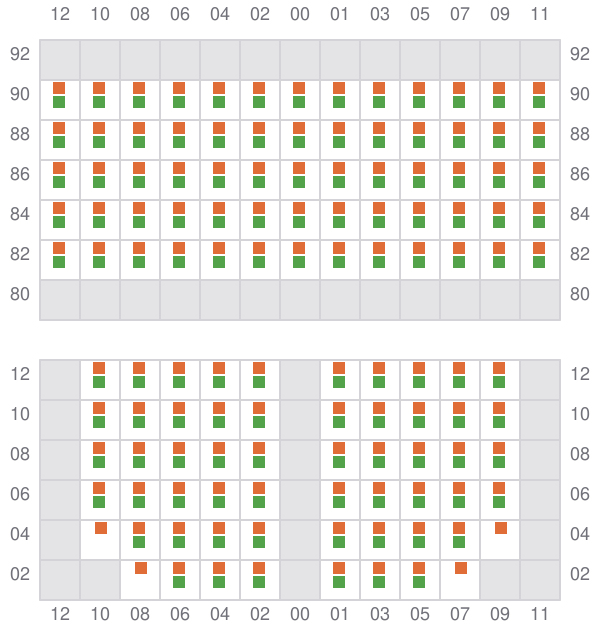

Bay 019 view and slots of MSC SOTIRIA III

021

  • →

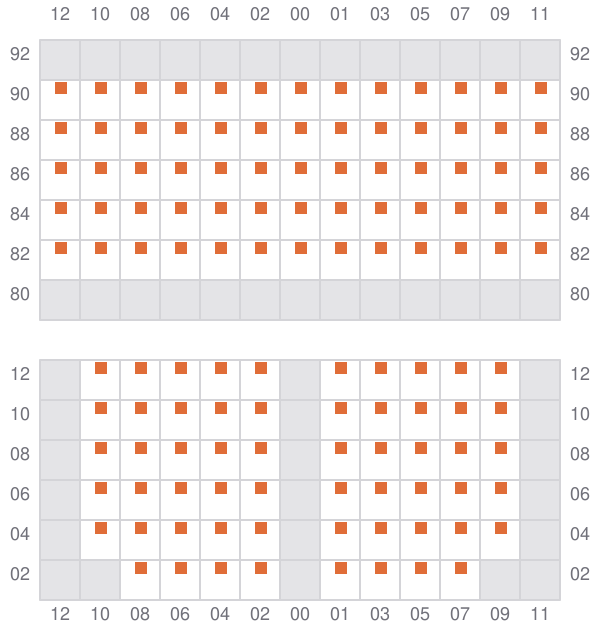

Bay 021 view and slots of MSC SOTIRIA III

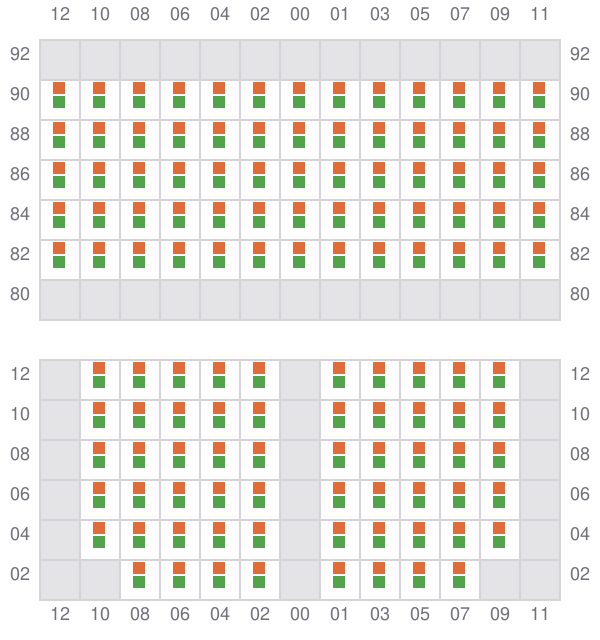

023 (022)

  • ←
Bay 023 view and slots of MSC SOTIRIA III

025

  • →
Bay 025 view and slots of MSC SOTIRIA III

027 (026)

  • ←

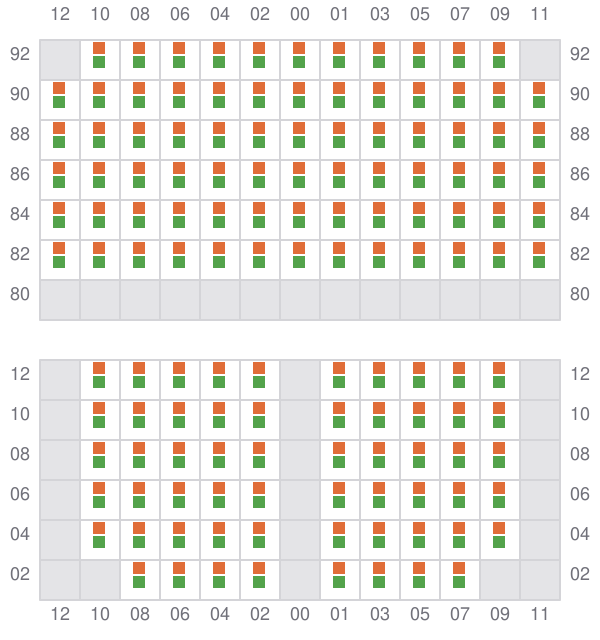

Bay 027 view and slots of MSC SOTIRIA III

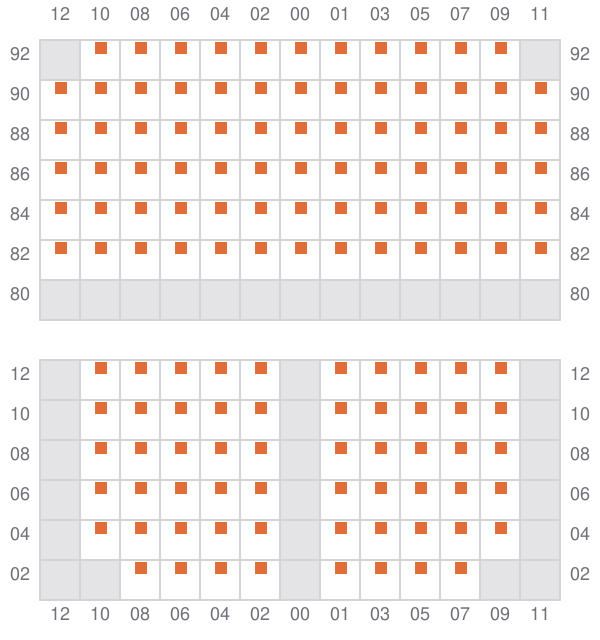

029

  • →
Bay 029 view and slots of MSC SOTIRIA III

031 (030)

  • ←
Bay 031 view and slots of MSC SOTIRIA III

033

  • →
Bay 033 view and slots of MSC SOTIRIA III

035 (034)

  • ←

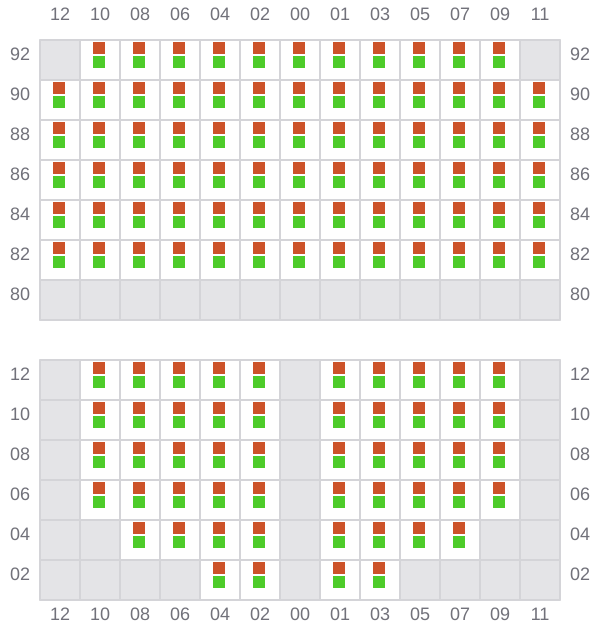

Bay 035 view and slots of MSC SOTIRIA III

037

  • →

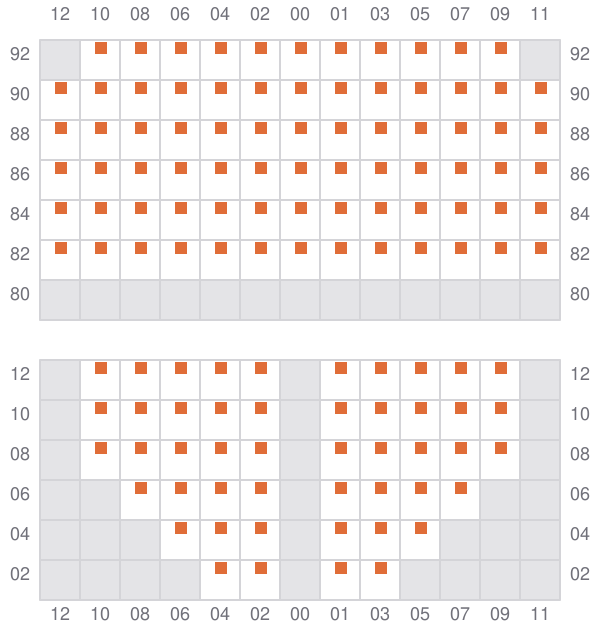

Bay 037 view and slots of MSC SOTIRIA III

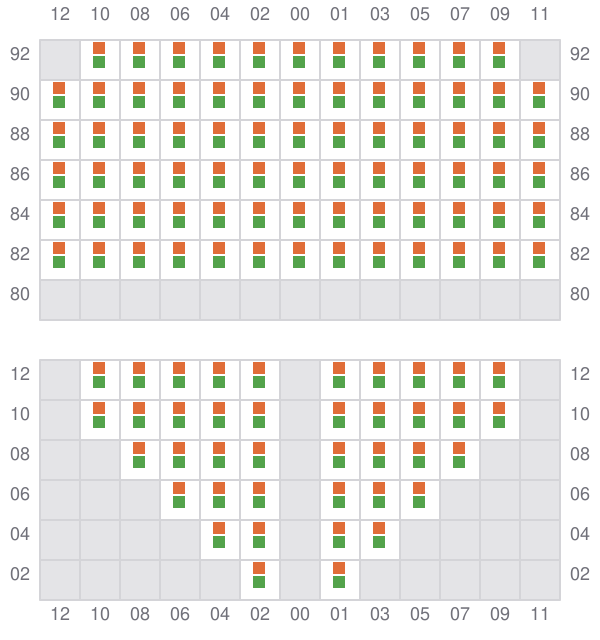

039 (038)

  • ←
Bay 039 view and slots of MSC SOTIRIA III

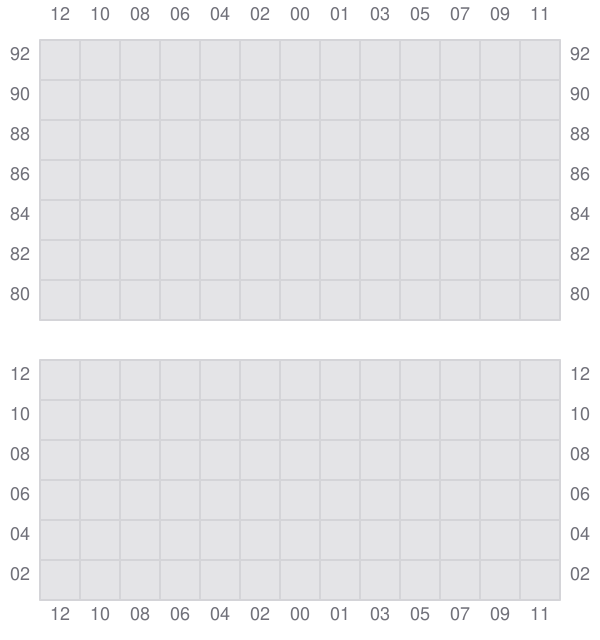

041

Bay 041 view and slots of MSC SOTIRIA III

043

  • → / ?

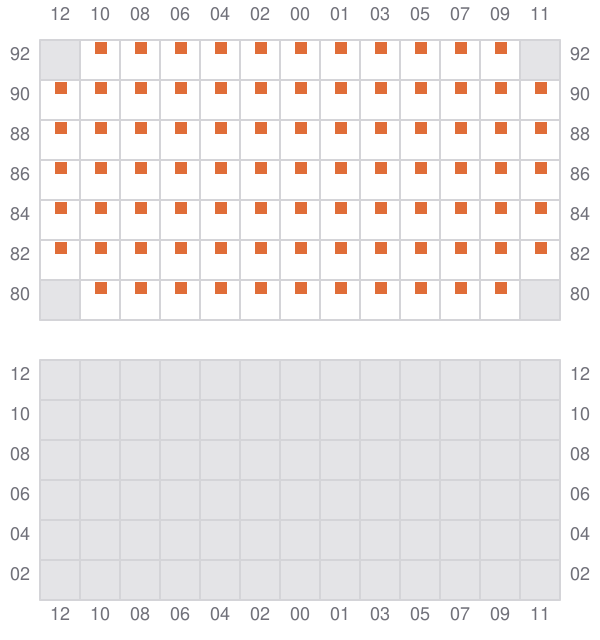

Bay 043 view and slots of MSC SOTIRIA III

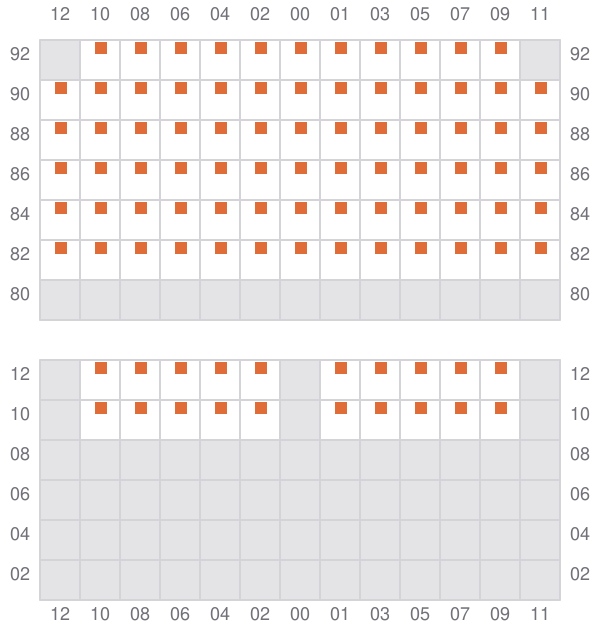

045

  • ←
Bay 045 view and slots of MSC SOTIRIA III

047 (046)

  • ←

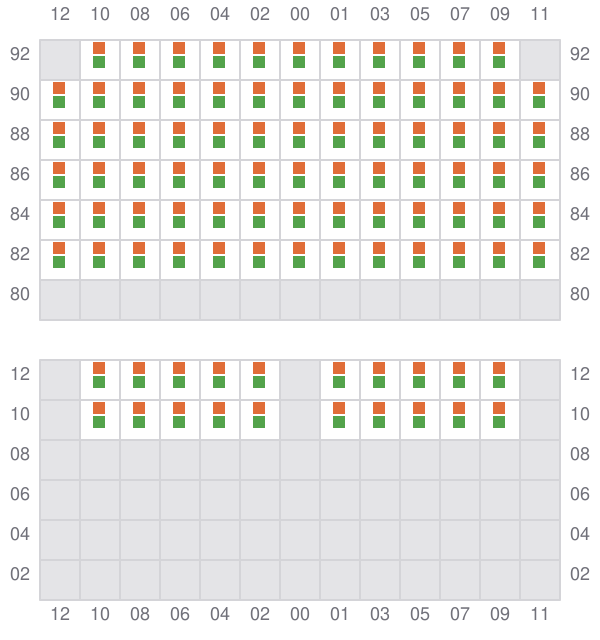

Bay 047 view and slots of MSC SOTIRIA III

049

Bay 049 view and slots of MSC SOTIRIA III

051 (050)

  • ← / ?

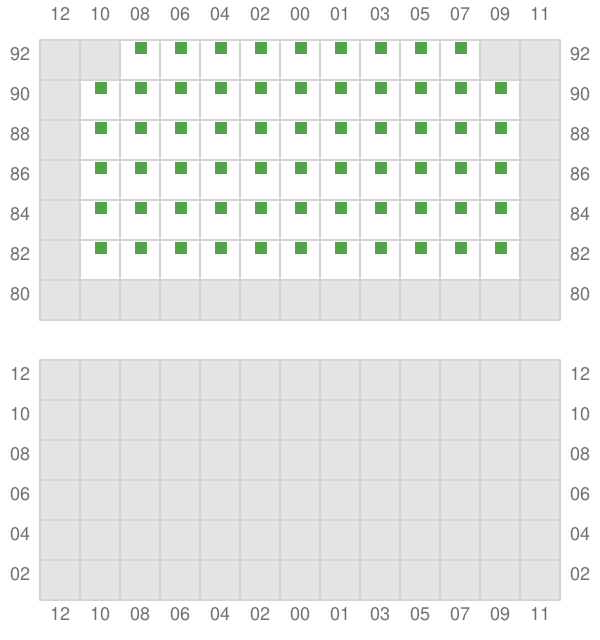

Bay 051 view and slots of MSC SOTIRIA III
