MSC SPRING III
9316359 | A8JY8 | 9316359 by ********* Last update: Mon May 20 2024

General Info

Ship Name:MSC SPRING III
IMO Code:9316359
Call Sign:A8JY8
Line Operator:9316359
Class Name for Sister Ships:PASSATSPRING
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

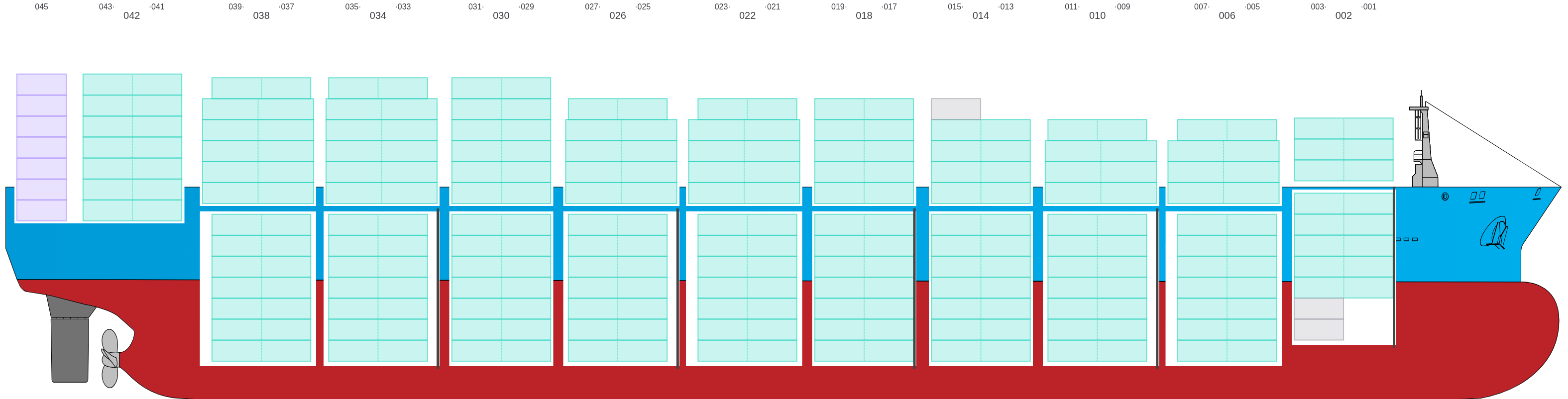

Side View

Side view of MSC SPRING III

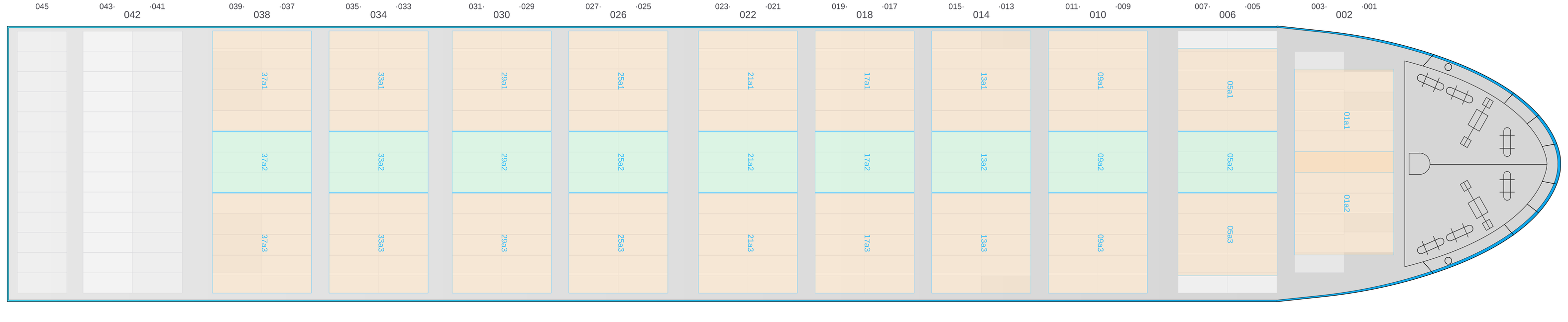

Hatch-Covers View

Deck view of MSC SPRING III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

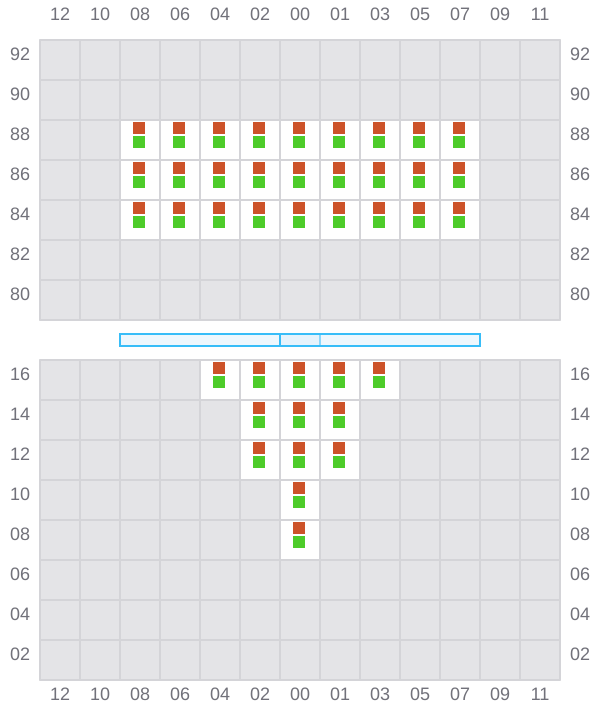

001 (002)

  • →
Bay 001 view and slots of MSC SPRING III

003

  • ←

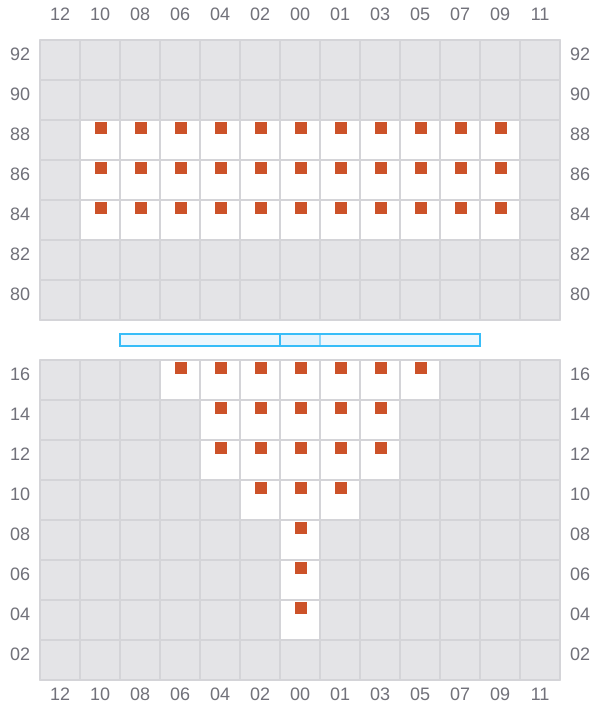

Bay 003 view and slots of MSC SPRING III

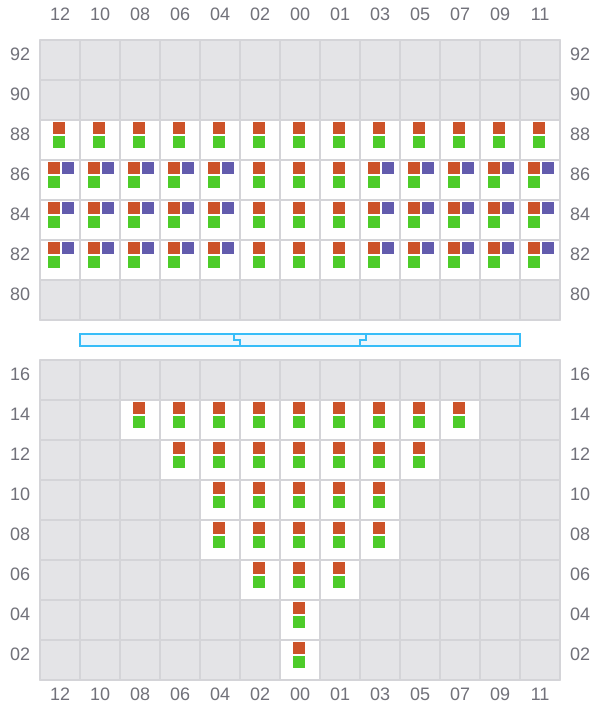

005 (006)

  • →
Bay 005 view and slots of MSC SPRING III

007

  • ←
  • → / ?

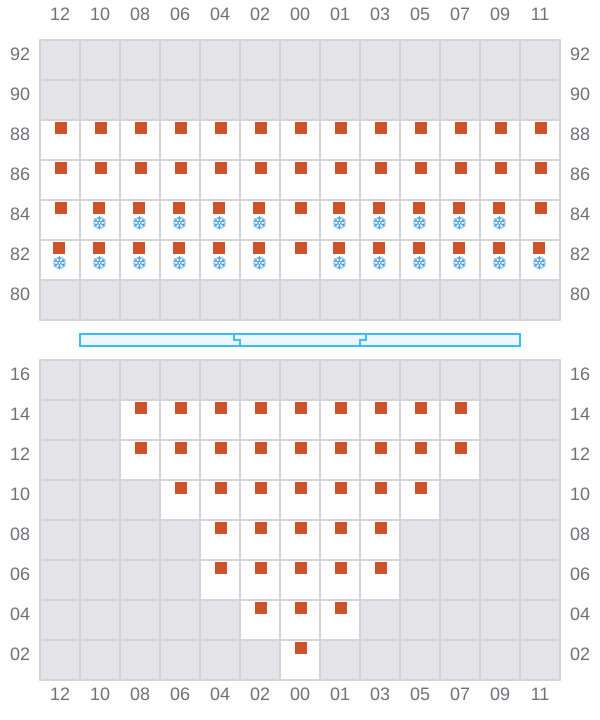

Bay 007 view and slots of MSC SPRING III

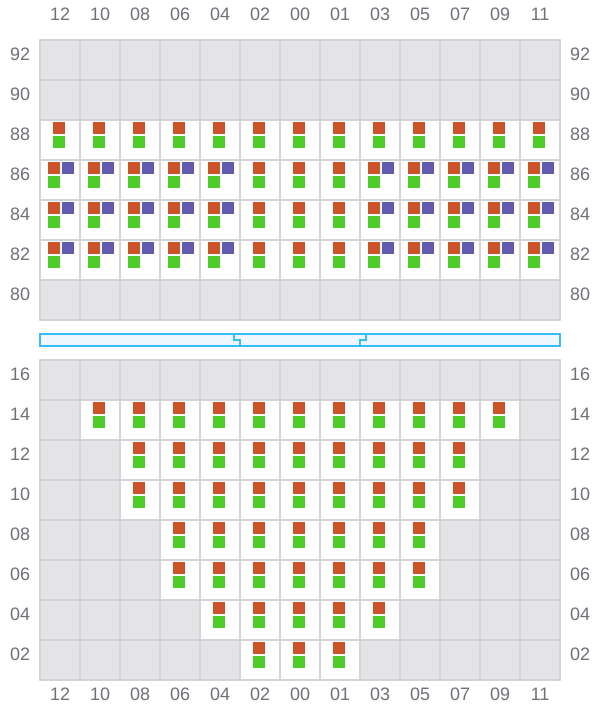

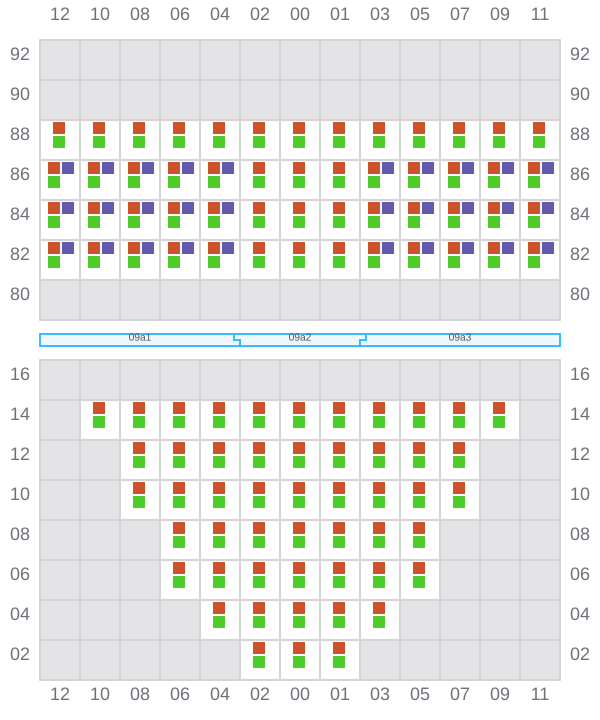

009 (010)

  • →

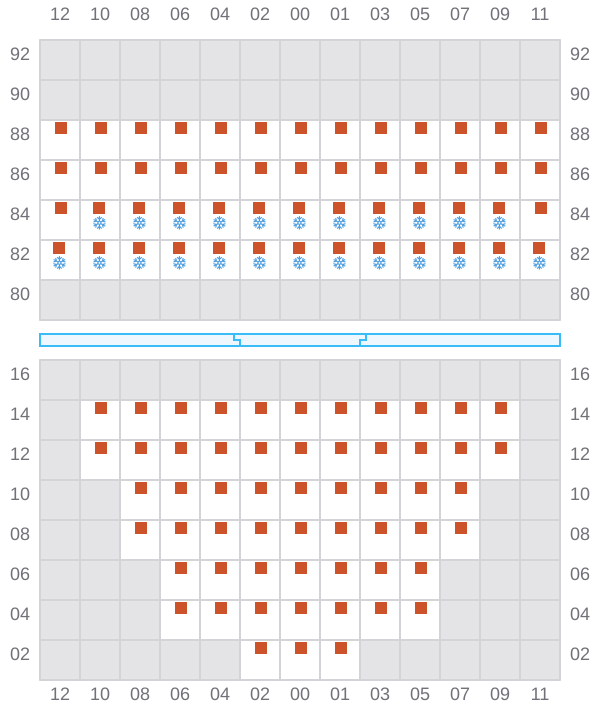

Bay 009 view and slots of MSC SPRING III

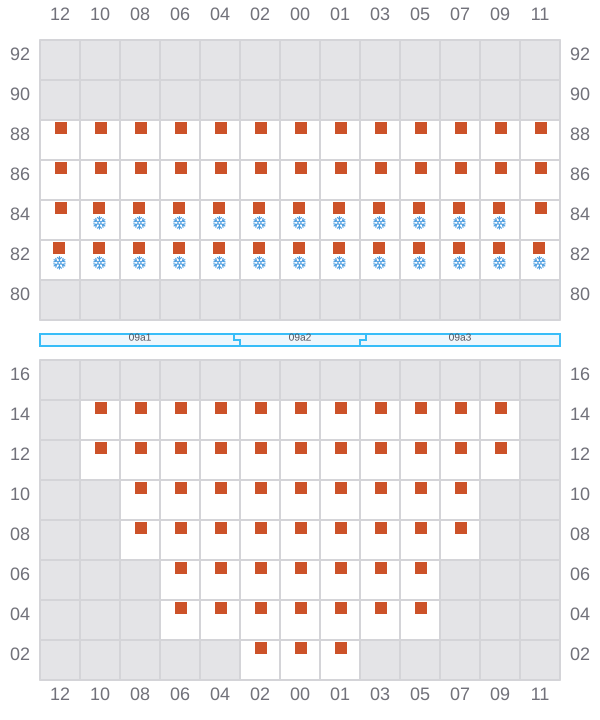

011

  • ←
  • → / ?
Bay 011 view and slots of MSC SPRING III

013 (014)

  • →
  • ← / ?

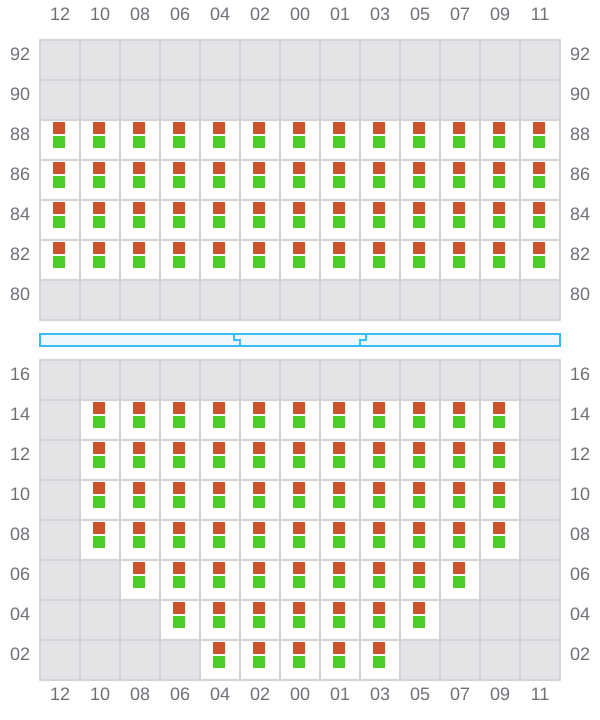

Bay 013 view and slots of MSC SPRING III

015

  • ←
  • → / ?

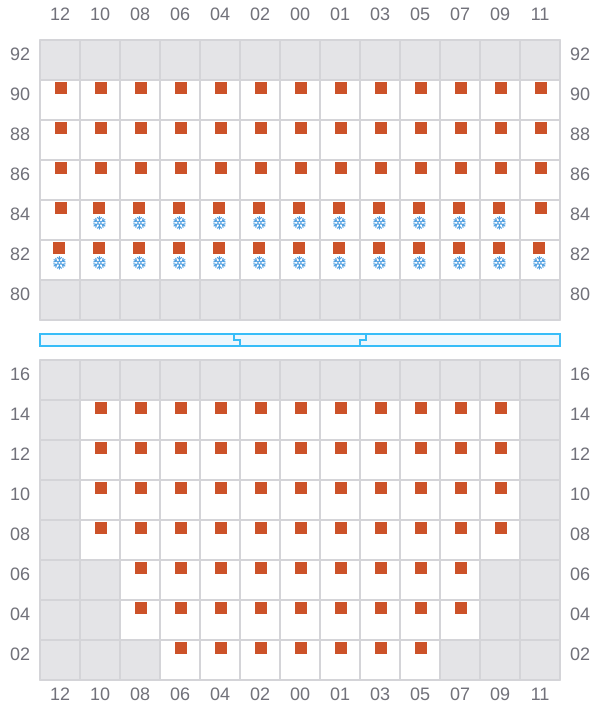

Bay 015 view and slots of MSC SPRING III

017 (018)

  • →
Bay 017 view and slots of MSC SPRING III

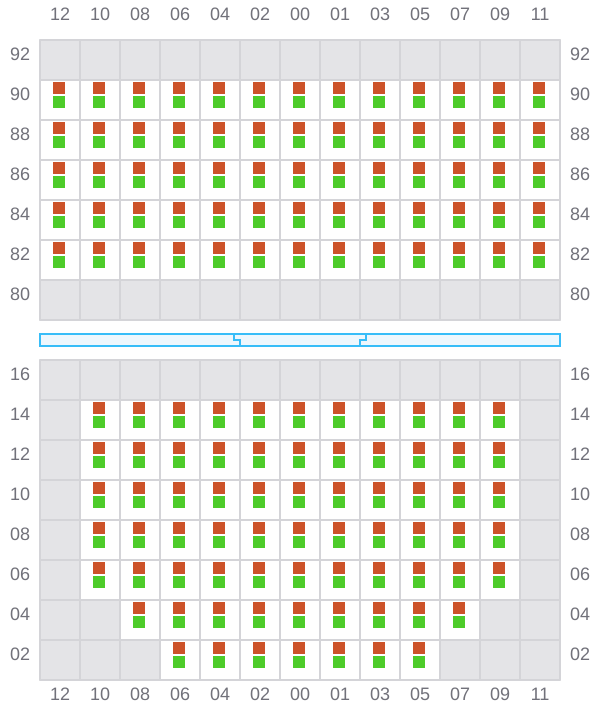

019

  • ←
  • →

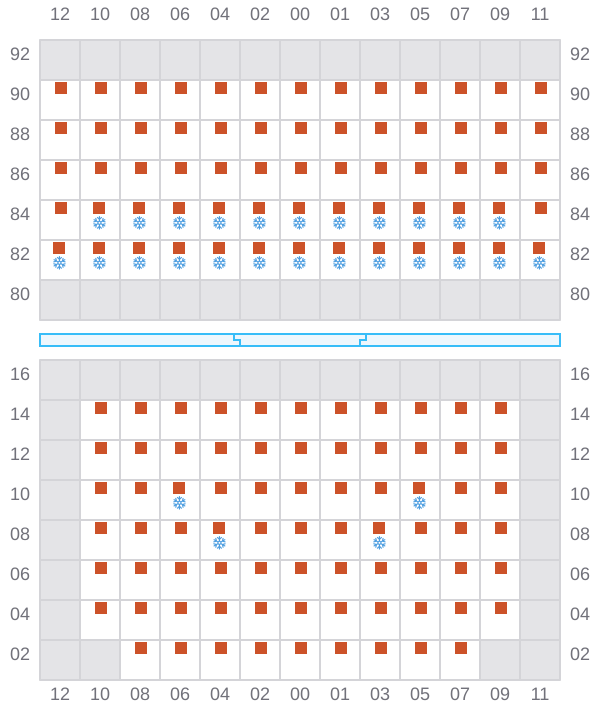

Bay 019 view and slots of MSC SPRING III

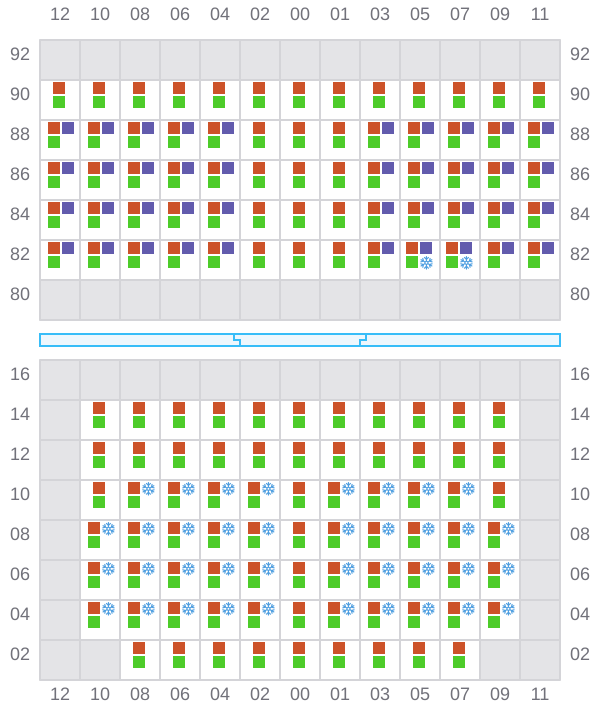

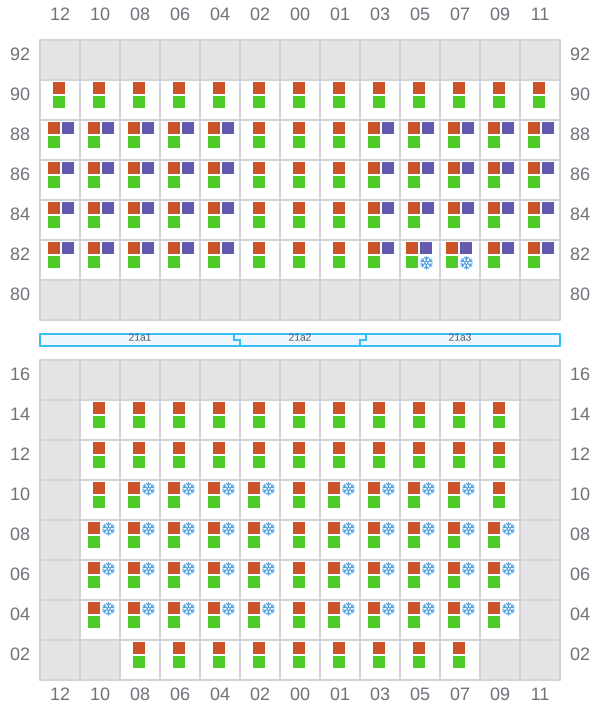

021 (022)

  • →
  • ←
Bay 021 view and slots of MSC SPRING III

023

  • ←
  • → / ?

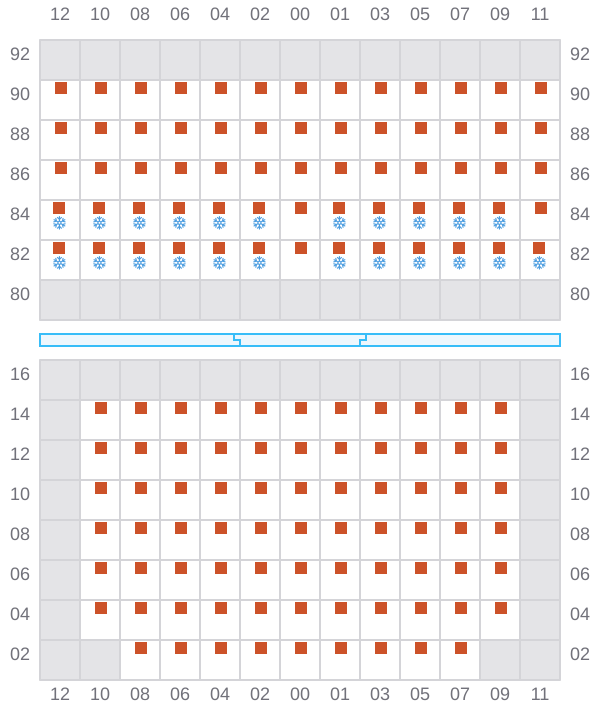

Bay 023 view and slots of MSC SPRING III

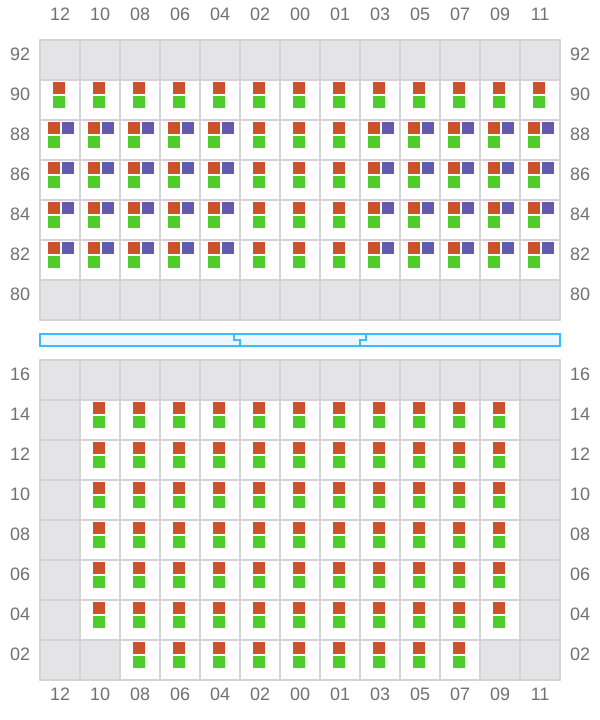

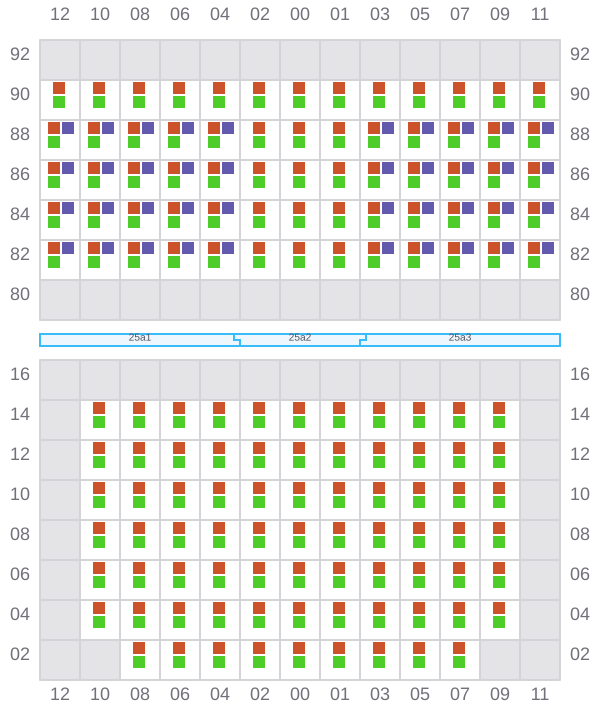

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MSC SPRING III

027

  • ←
  • →

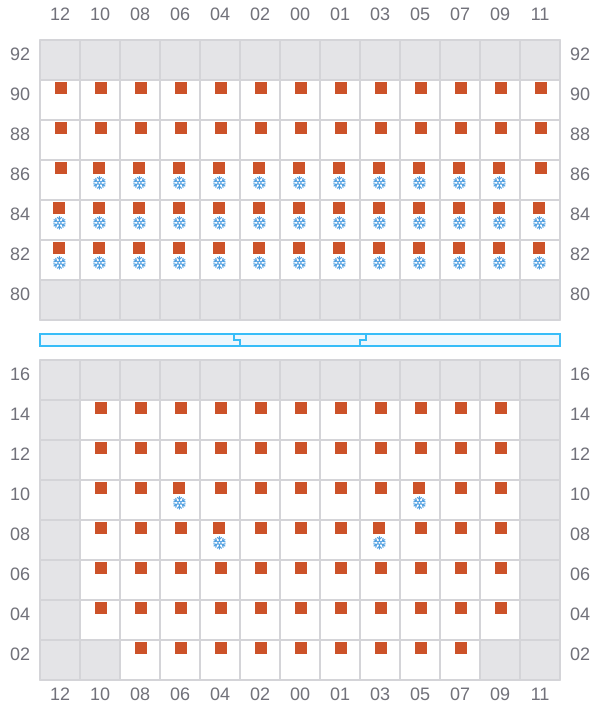

Bay 027 view and slots of MSC SPRING III

029 (030)

  • →
  • ←

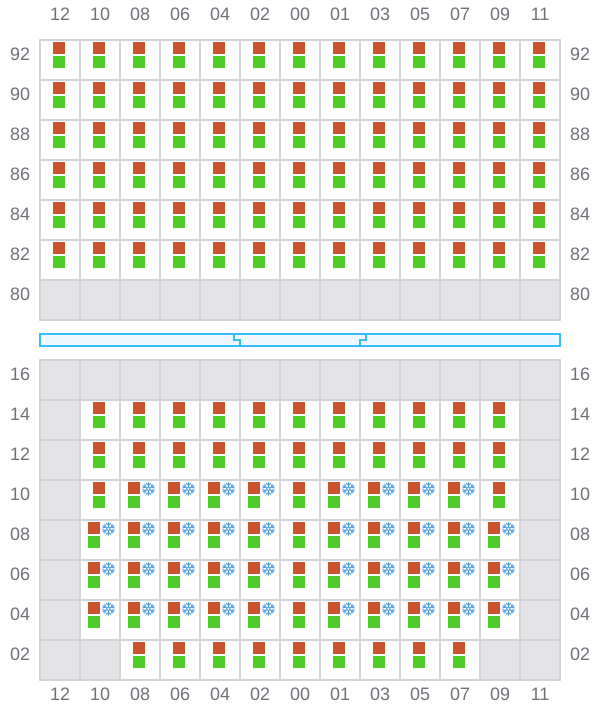

Bay 029 view and slots of MSC SPRING III

031

  • ←
  • → / ?

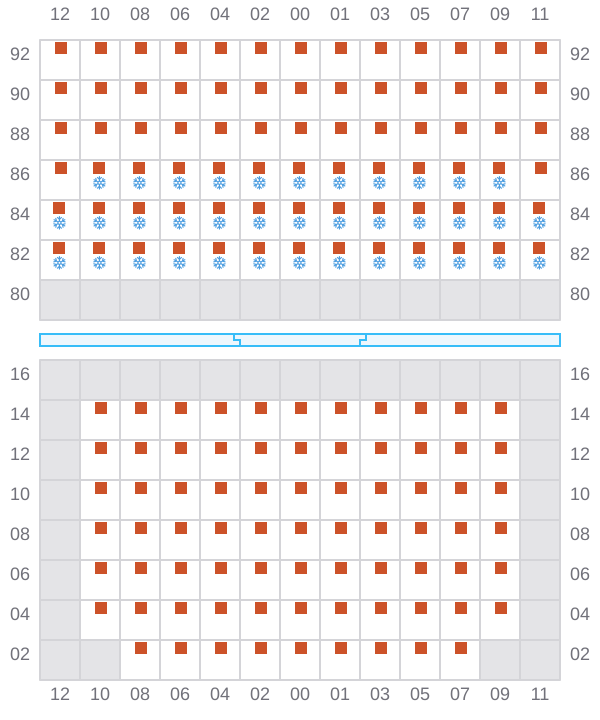

Bay 031 view and slots of MSC SPRING III

033 (034)

  • →

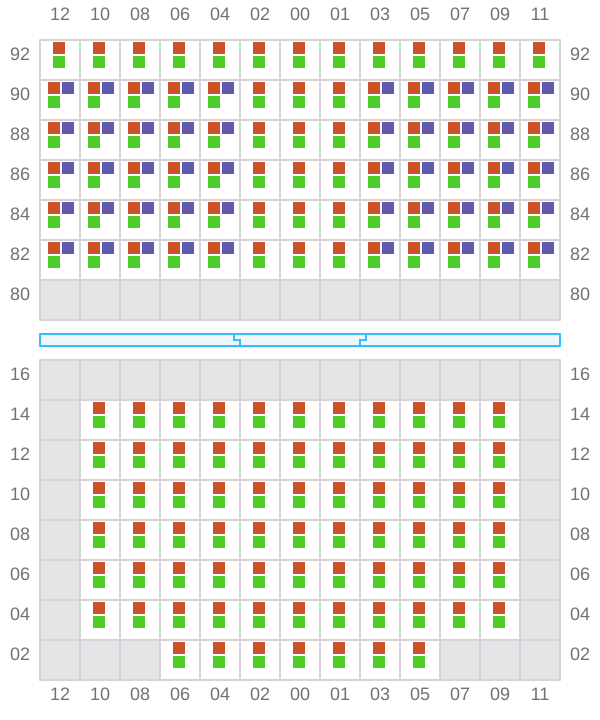

Bay 033 view and slots of MSC SPRING III

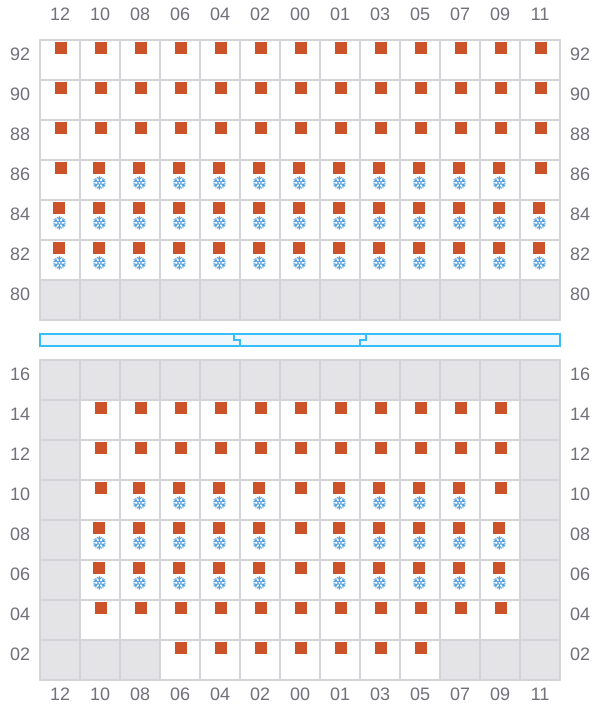

035

  • ←
  • →
Bay 035 view and slots of MSC SPRING III

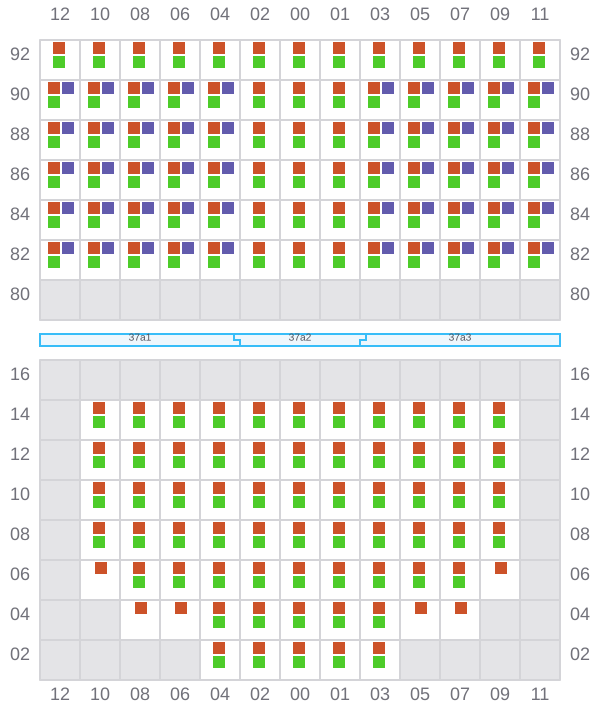

037 (038)

  • →
  • ? / ←

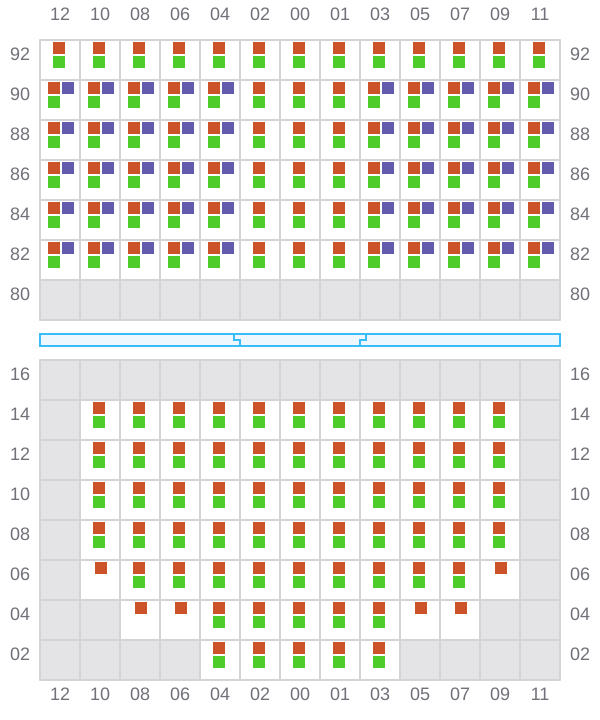

Bay 037 view and slots of MSC SPRING III

039

  • ←
  • →

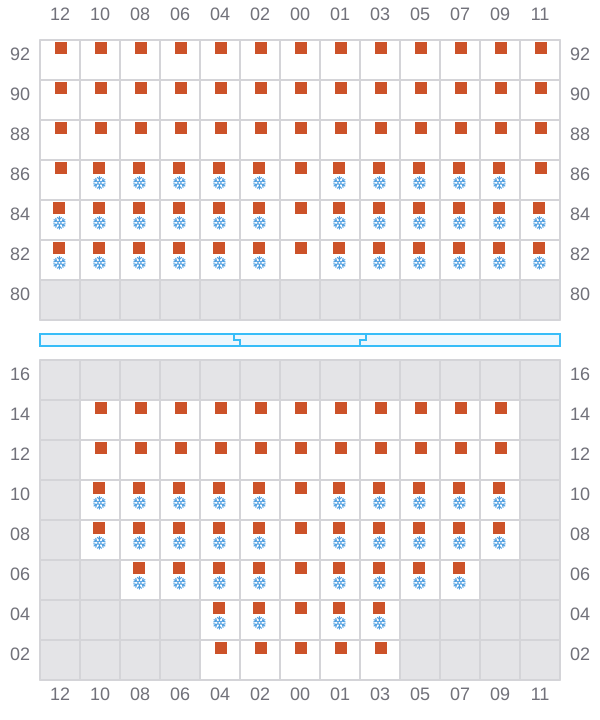

Bay 039 view and slots of MSC SPRING III

041 (042)

  • → / ?
  • → / ?

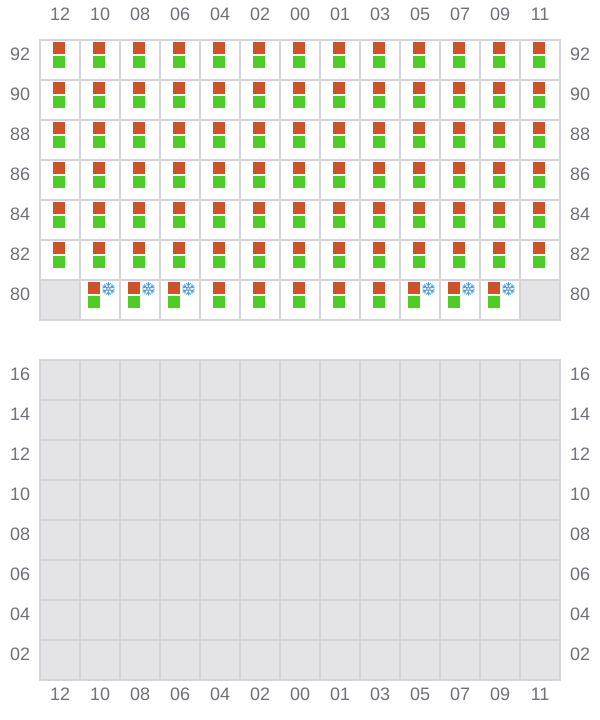

Bay 041 view and slots of MSC SPRING III

043

  • ← / ?
  • → / ?

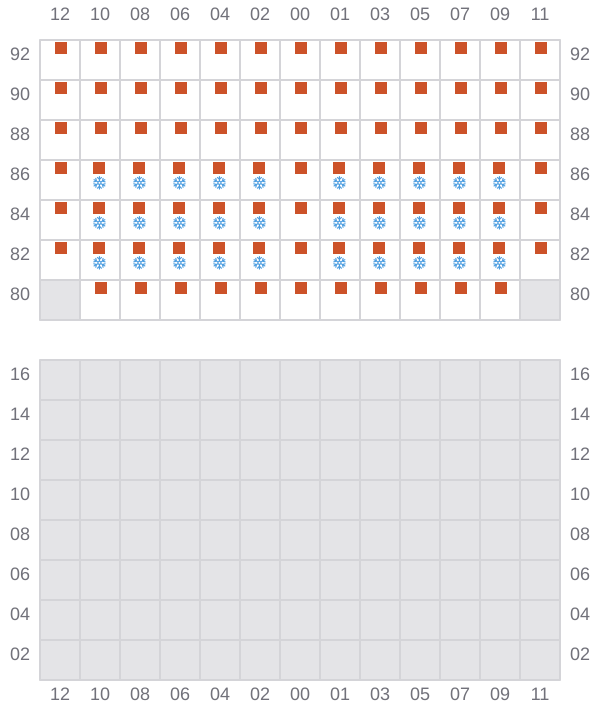

Bay 043 view and slots of MSC SPRING III

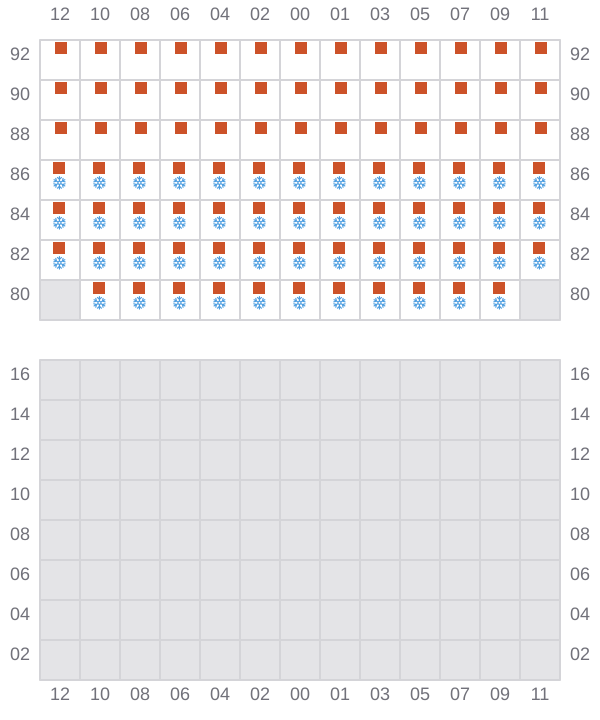

045

  • ← / ?
Bay 045 view and slots of MSC SPRING III
