MSC SURABAYA VIII
9330068 | 5LLE2 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MSC SURABAYA VIII
IMO Code:9330068
Call Sign:5LLE2
Line Operator:MSK
Class Name for Sister Ships:STA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,887

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

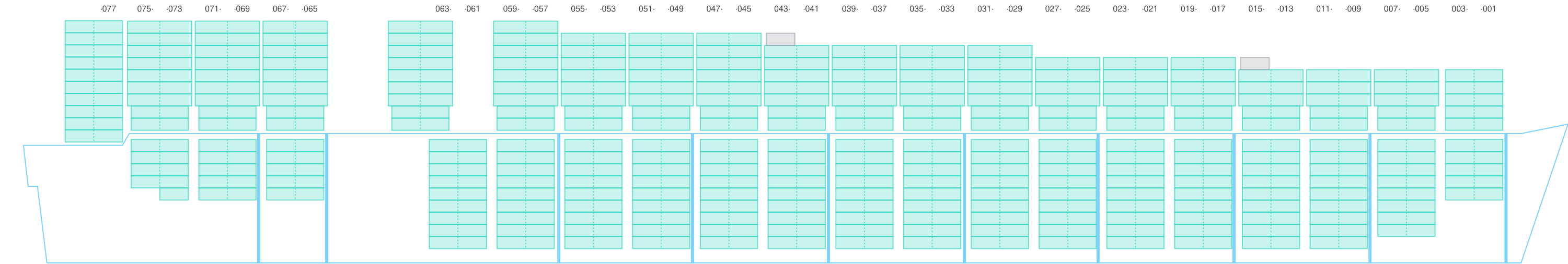

Side View

Side view of MSC SURABAYA VIII

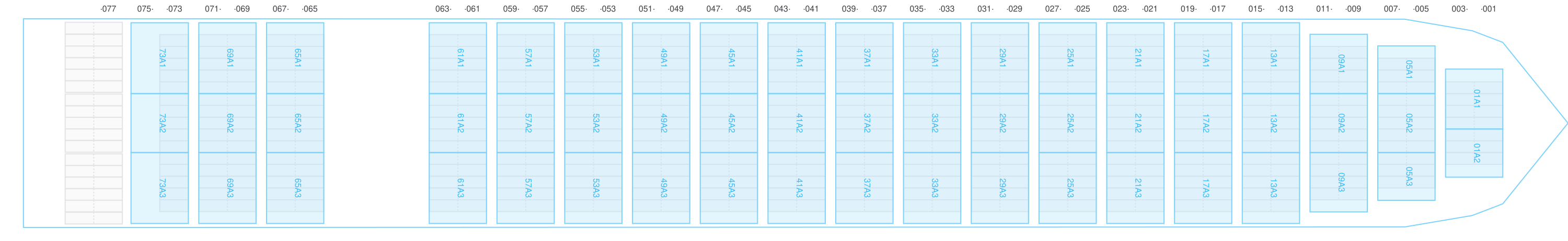

Hatch-Covers View

Deck view of MSC SURABAYA VIII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

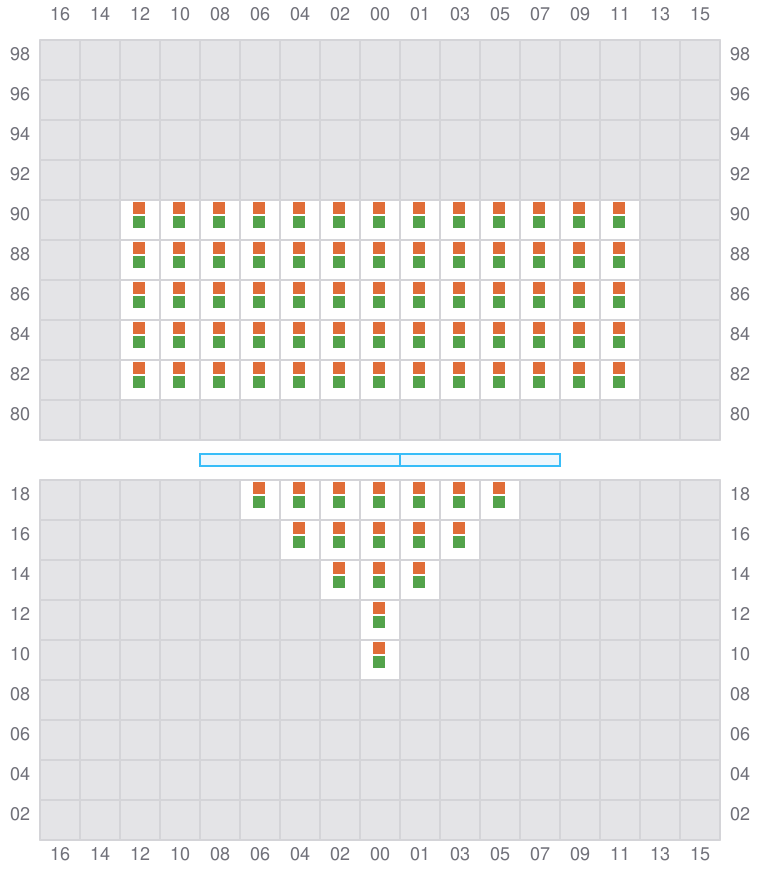

Bay 001 view and slots of MSC SURABAYA VIII

003

  • ←

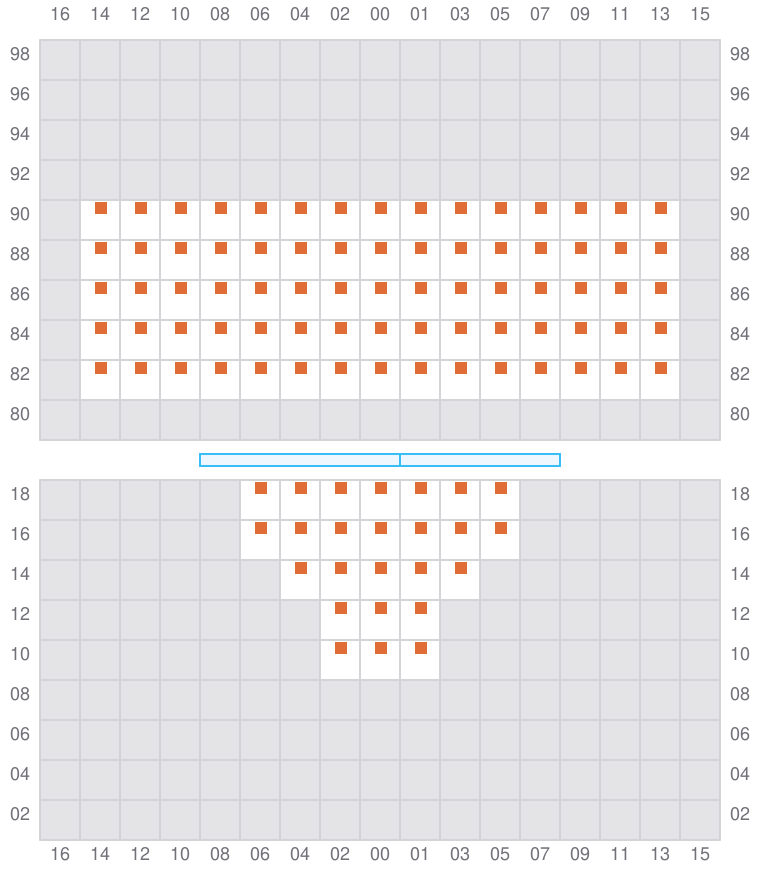

Bay 003 view and slots of MSC SURABAYA VIII

005 (006)

  • →

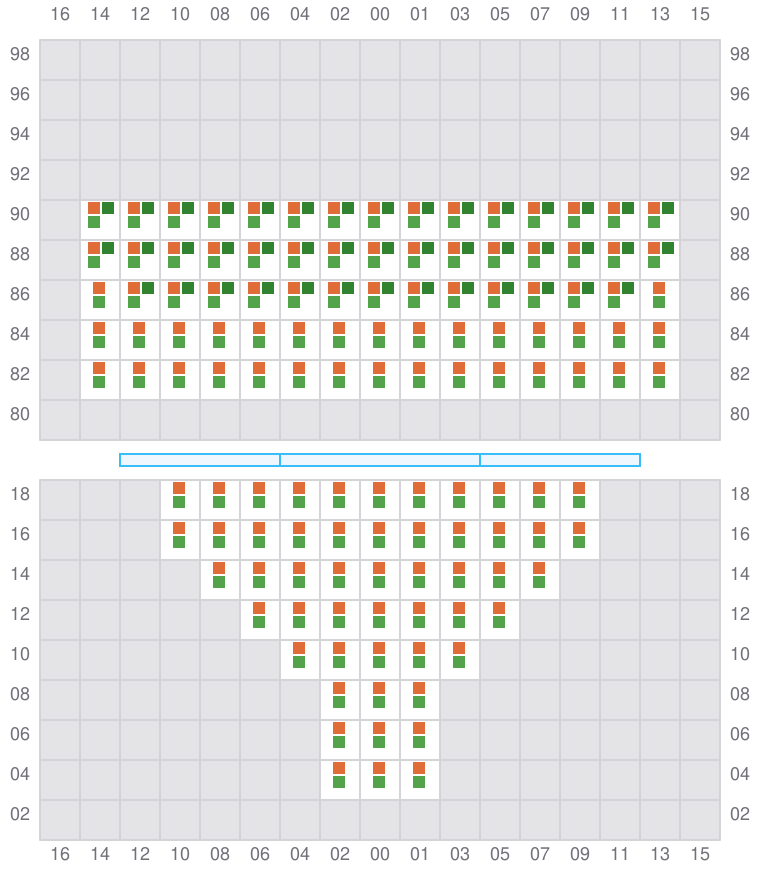

Bay 005 view and slots of MSC SURABAYA VIII

007

  • ←

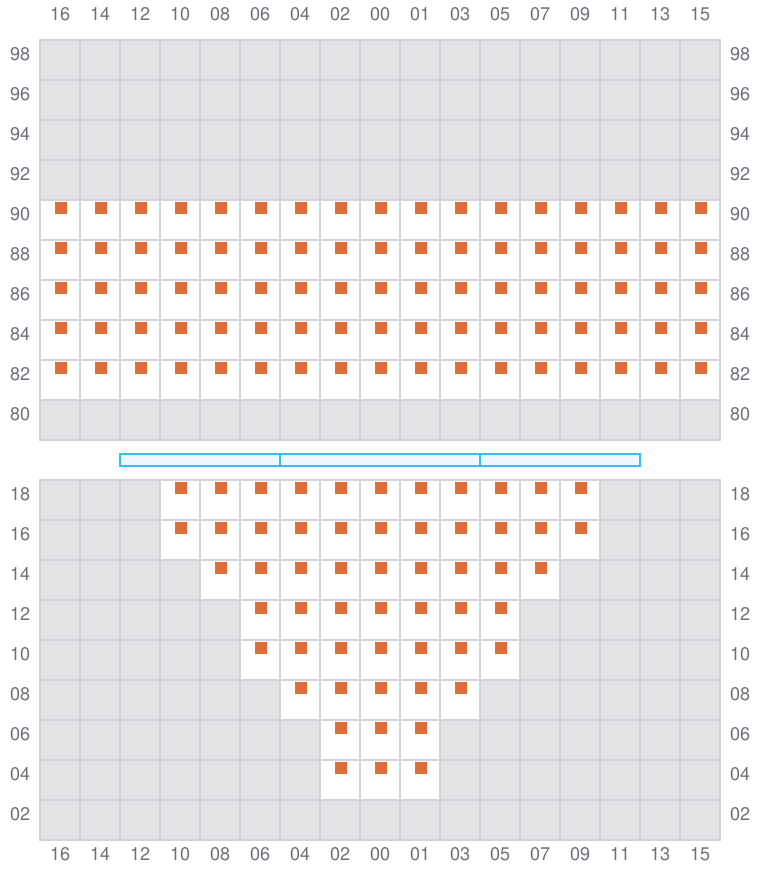

Bay 007 view and slots of MSC SURABAYA VIII

009 (010)

  • →

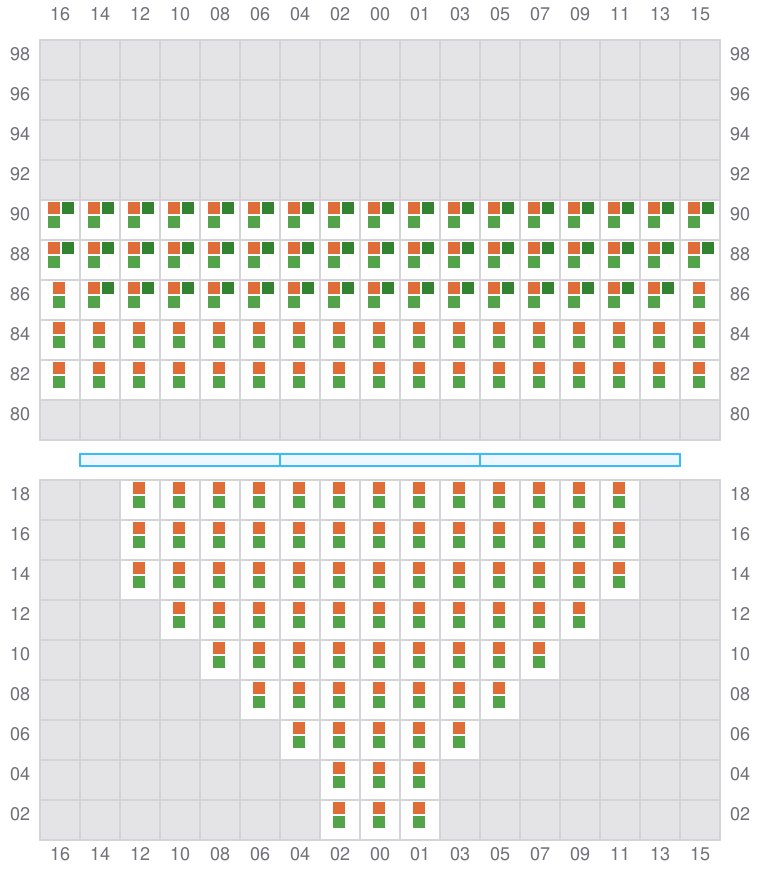

Bay 009 view and slots of MSC SURABAYA VIII

011

  • ←
  • → / ?

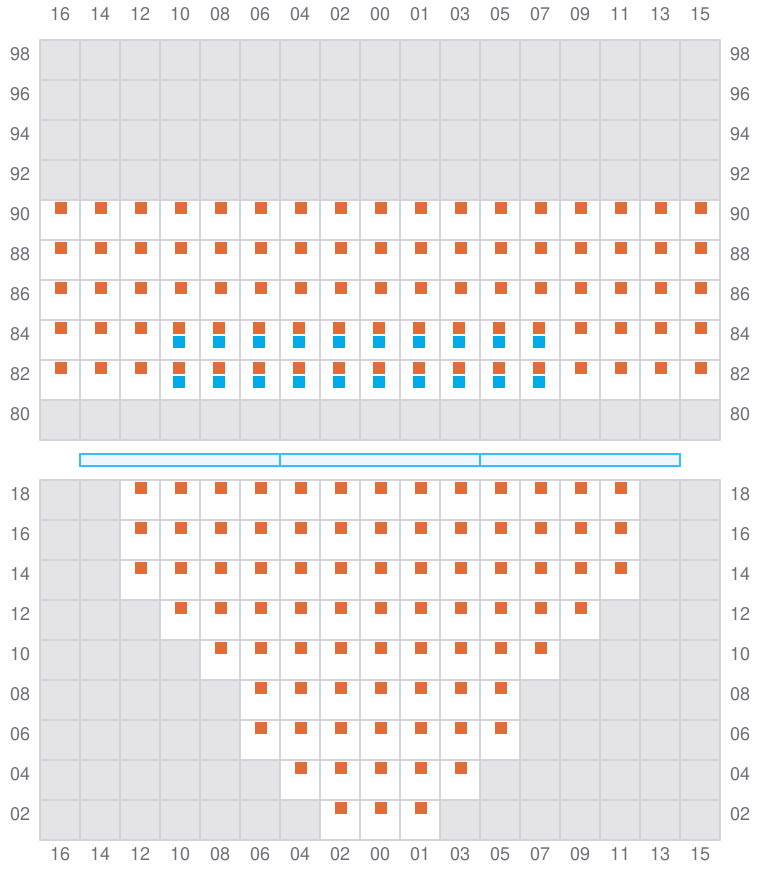

Bay 011 view and slots of MSC SURABAYA VIII

013 (014)

  • →

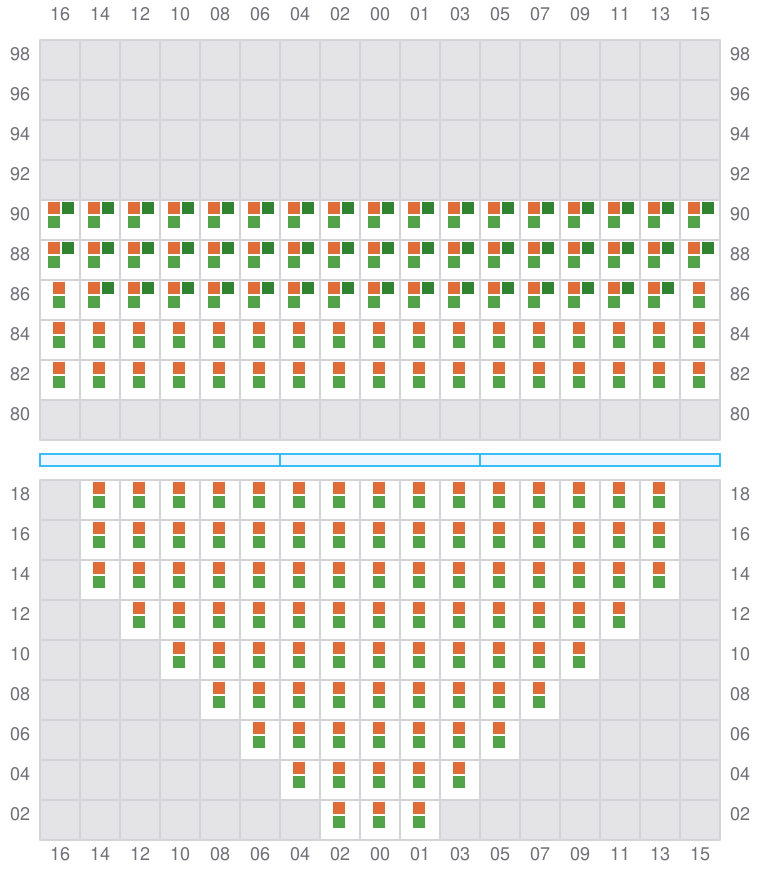

Bay 013 view and slots of MSC SURABAYA VIII

015

  • ←
  • → / ?

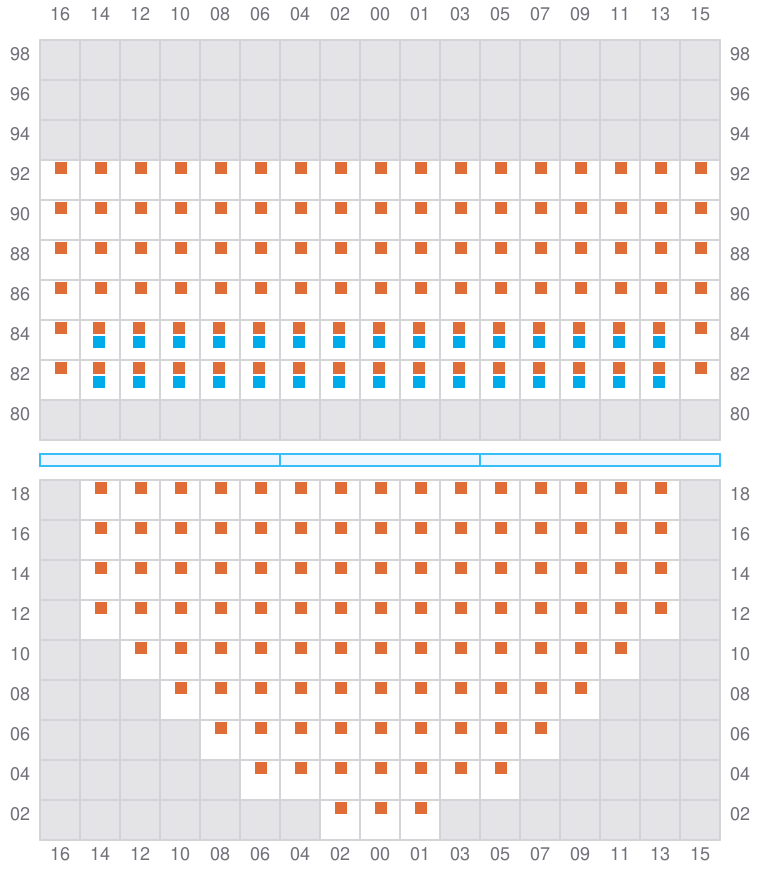

Bay 015 view and slots of MSC SURABAYA VIII

017 (018)

  • →

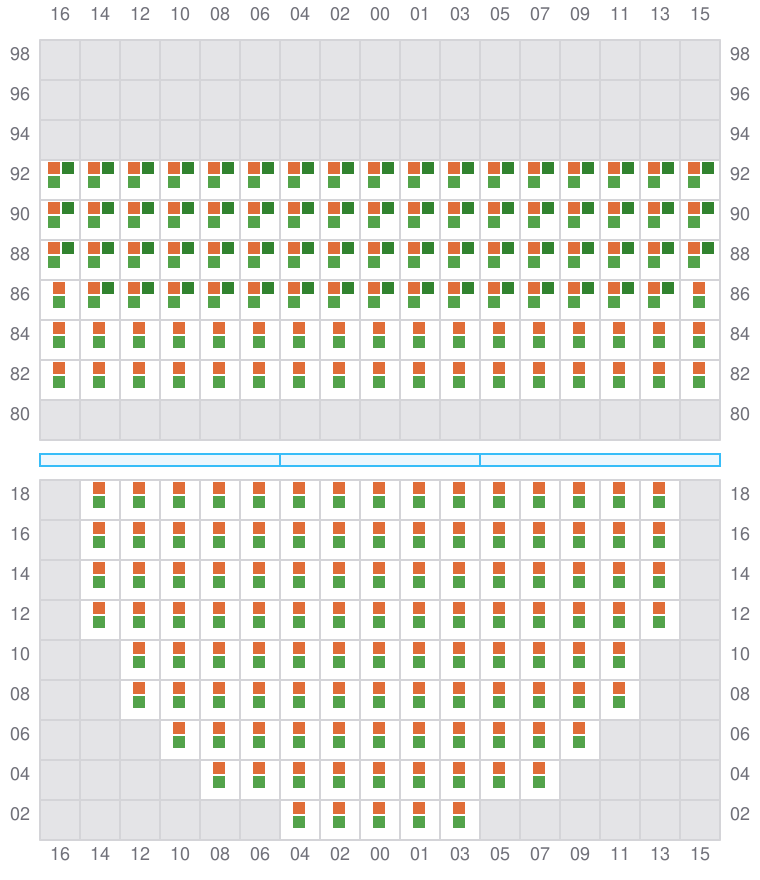

Bay 017 view and slots of MSC SURABAYA VIII

019

  • ←
  • → / ?

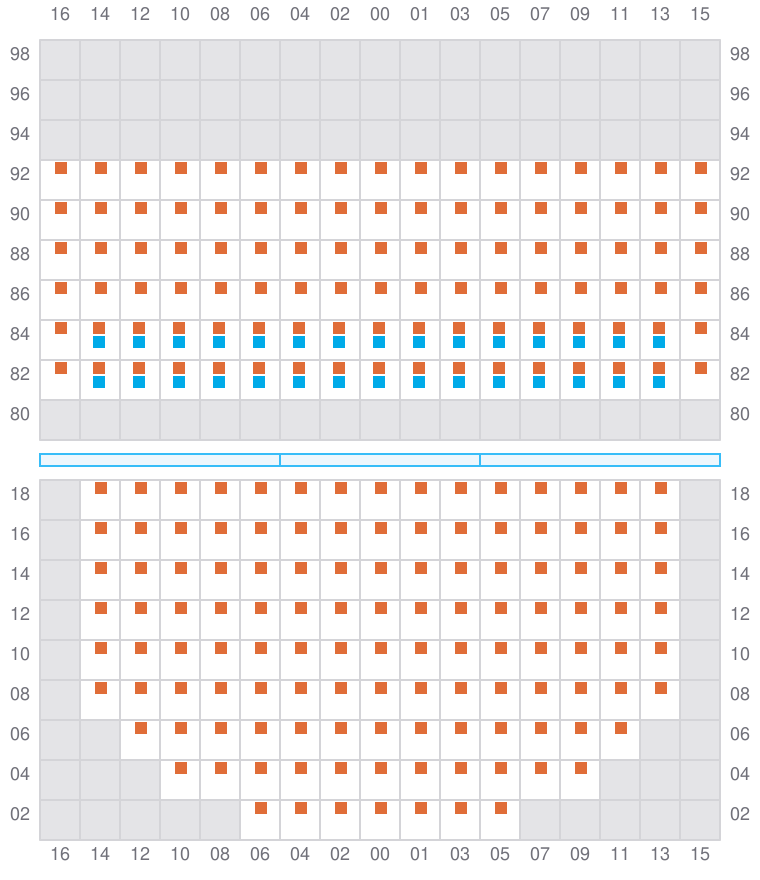

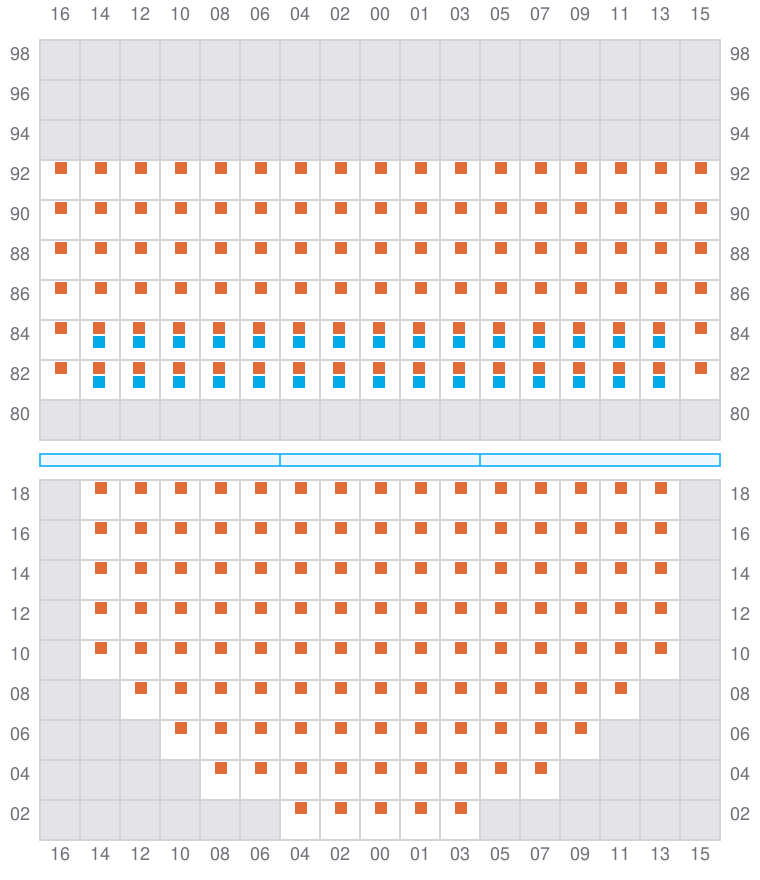

Bay 019 view and slots of MSC SURABAYA VIII

021 (022)

  • →
Bay 021 view and slots of MSC SURABAYA VIII

023

  • ←
  • → / ?
Bay 023 view and slots of MSC SURABAYA VIII

025 (026)

  • →

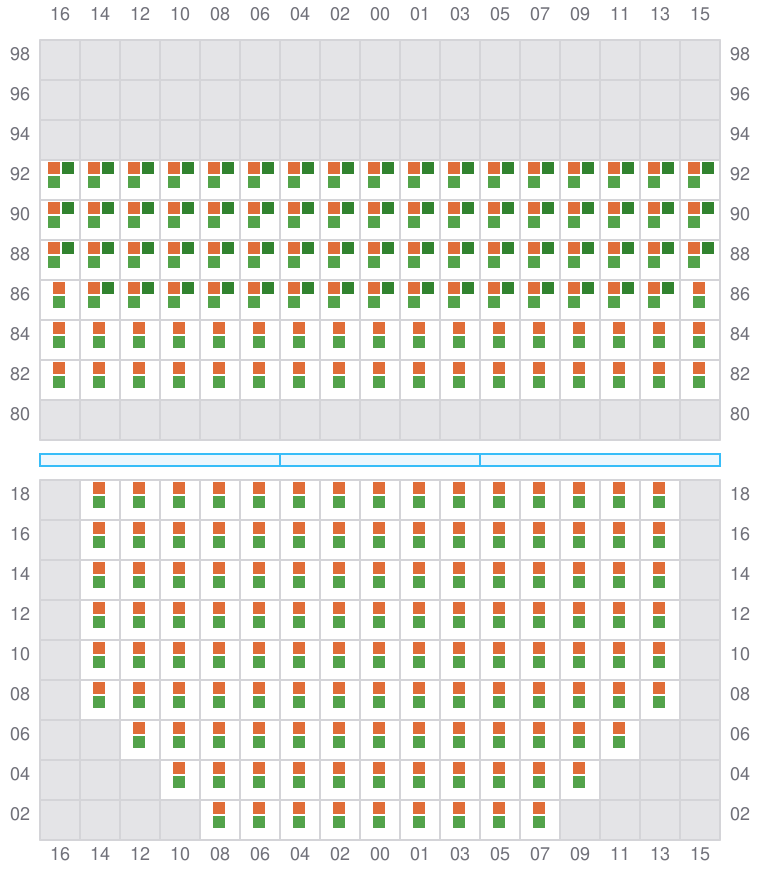

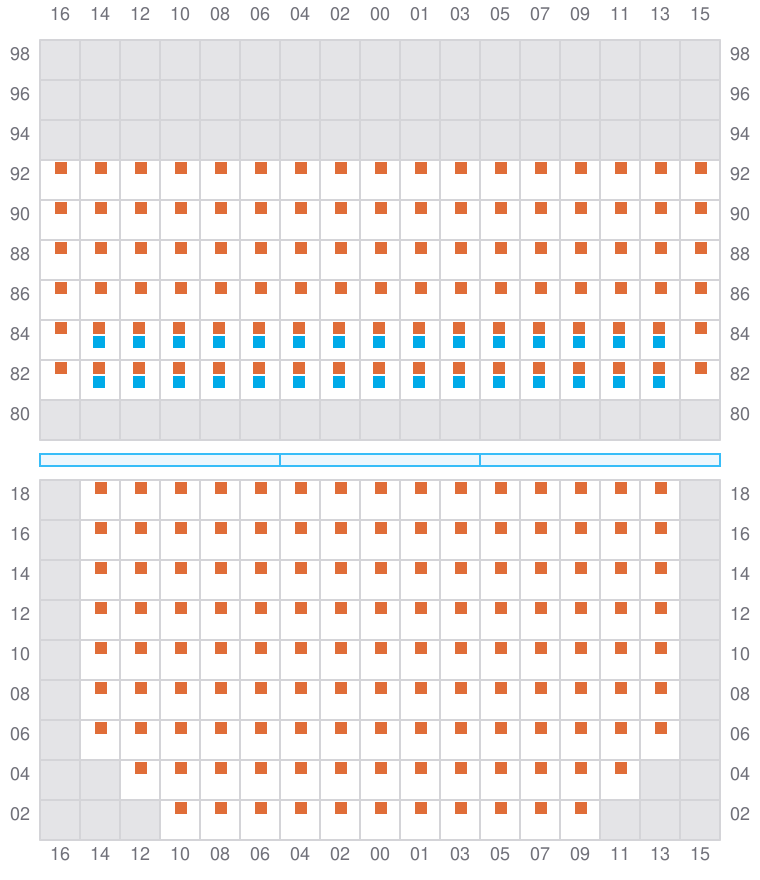

Bay 025 view and slots of MSC SURABAYA VIII

027

  • ←
  • → / ?
Bay 027 view and slots of MSC SURABAYA VIII

029 (030)

  • →
Bay 029 view and slots of MSC SURABAYA VIII

031

  • ←
  • → / ?
Bay 031 view and slots of MSC SURABAYA VIII

033 (034)

  • →
Bay 033 view and slots of MSC SURABAYA VIII

035

  • ←
  • → / ?
Bay 035 view and slots of MSC SURABAYA VIII

037 (038)

  • →

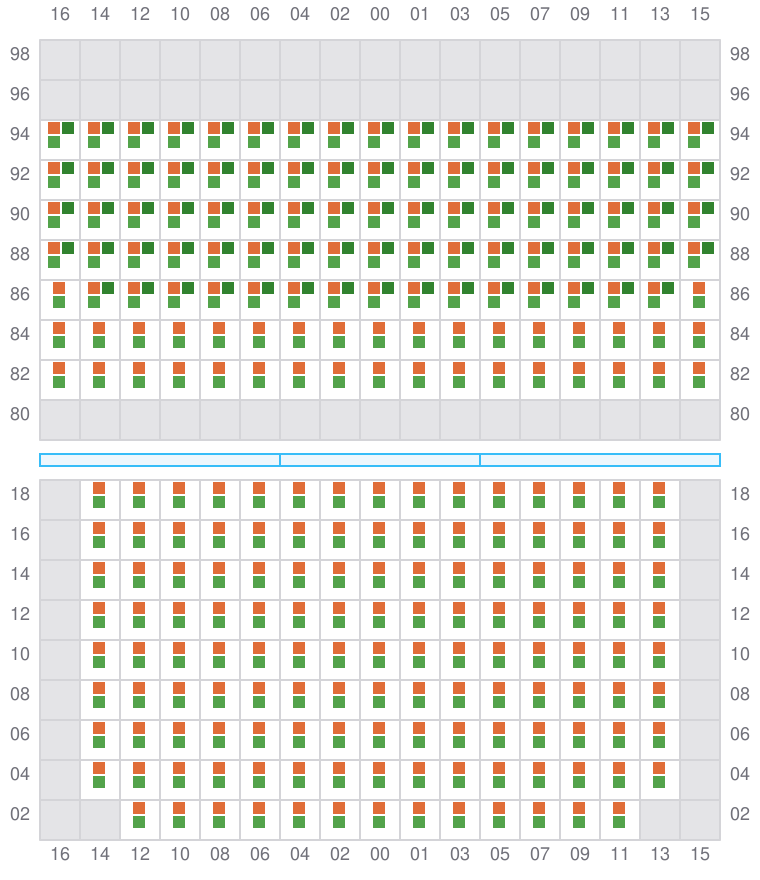

Bay 037 view and slots of MSC SURABAYA VIII

039

  • ←
  • → / ?

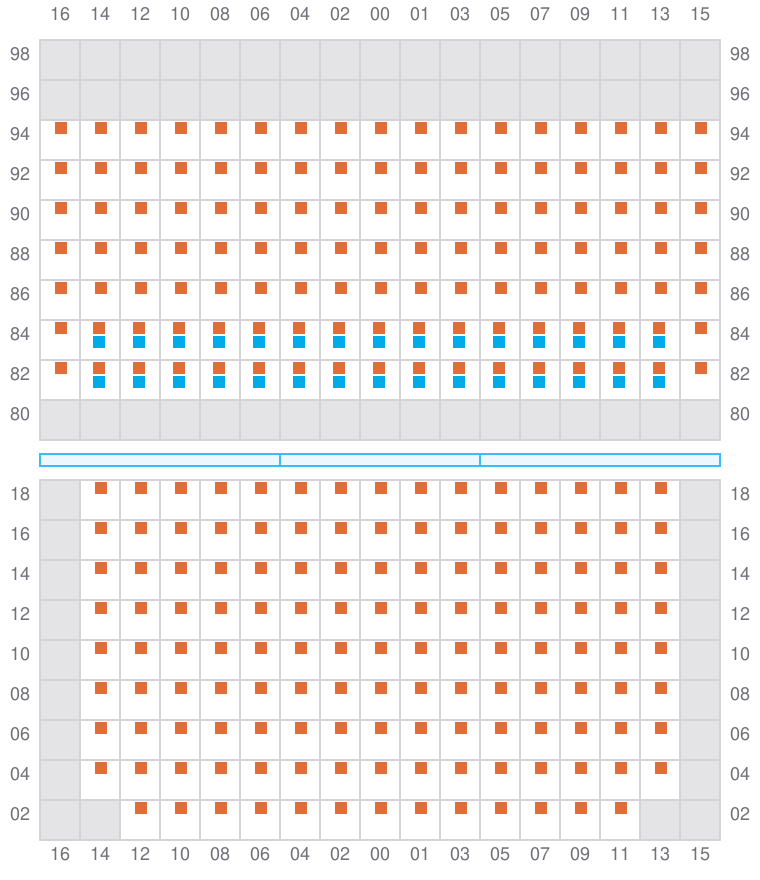

Bay 039 view and slots of MSC SURABAYA VIII

041 (042)

  • →
Bay 041 view and slots of MSC SURABAYA VIII

043

  • ←
  • → / ?
Bay 043 view and slots of MSC SURABAYA VIII

045 (046)

  • →
Bay 045 view and slots of MSC SURABAYA VIII

047

  • ←
  • → / ?

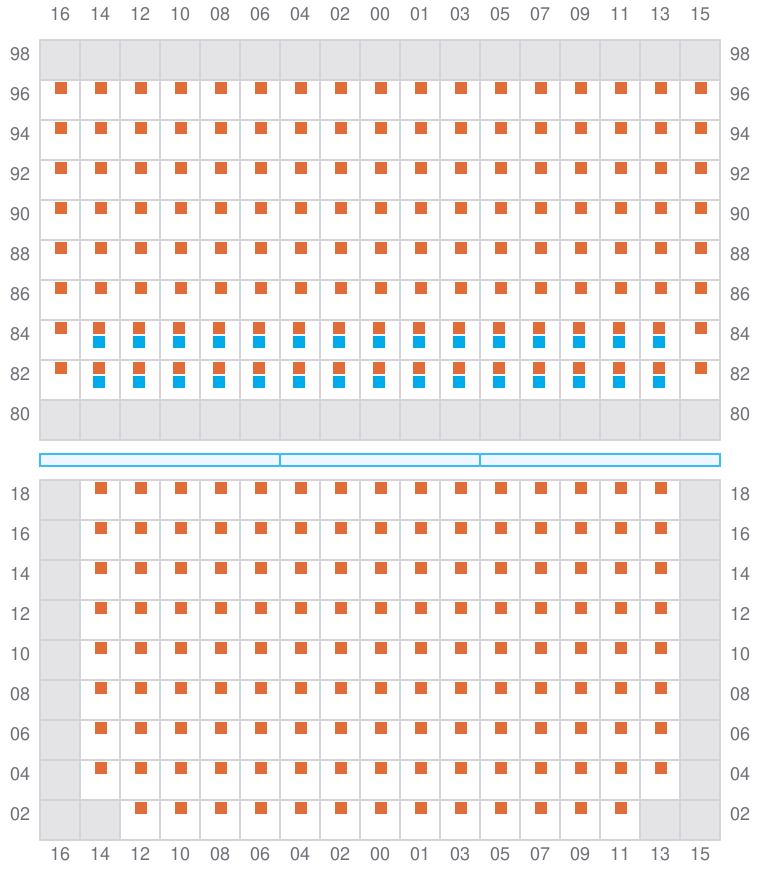

Bay 047 view and slots of MSC SURABAYA VIII

049 (050)

  • →
Bay 049 view and slots of MSC SURABAYA VIII

051

  • ←
  • →

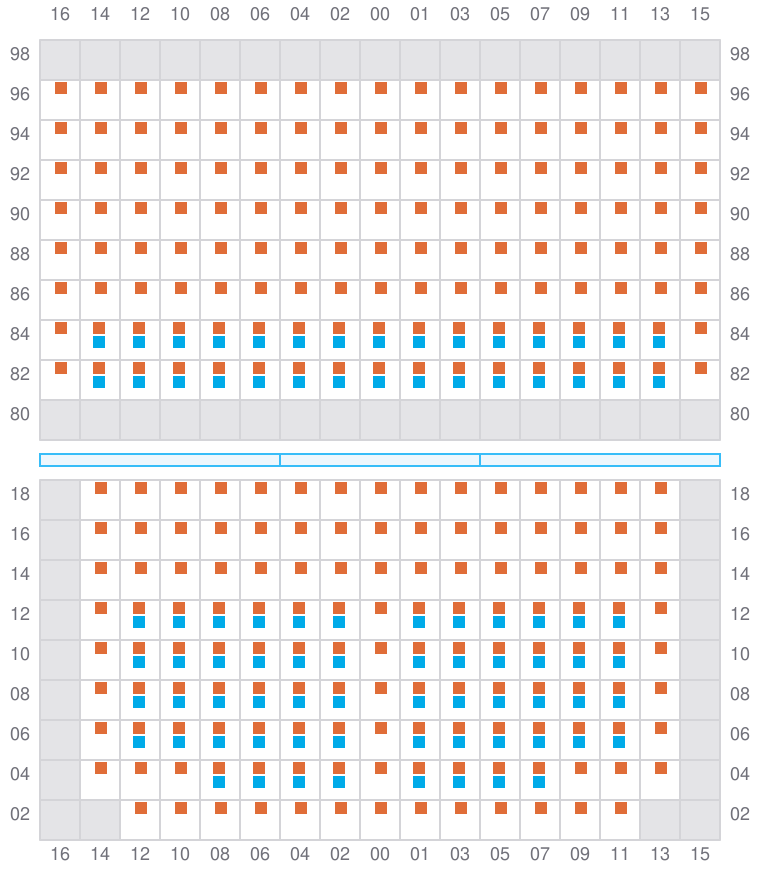

Bay 051 view and slots of MSC SURABAYA VIII

053 (054)

  • →

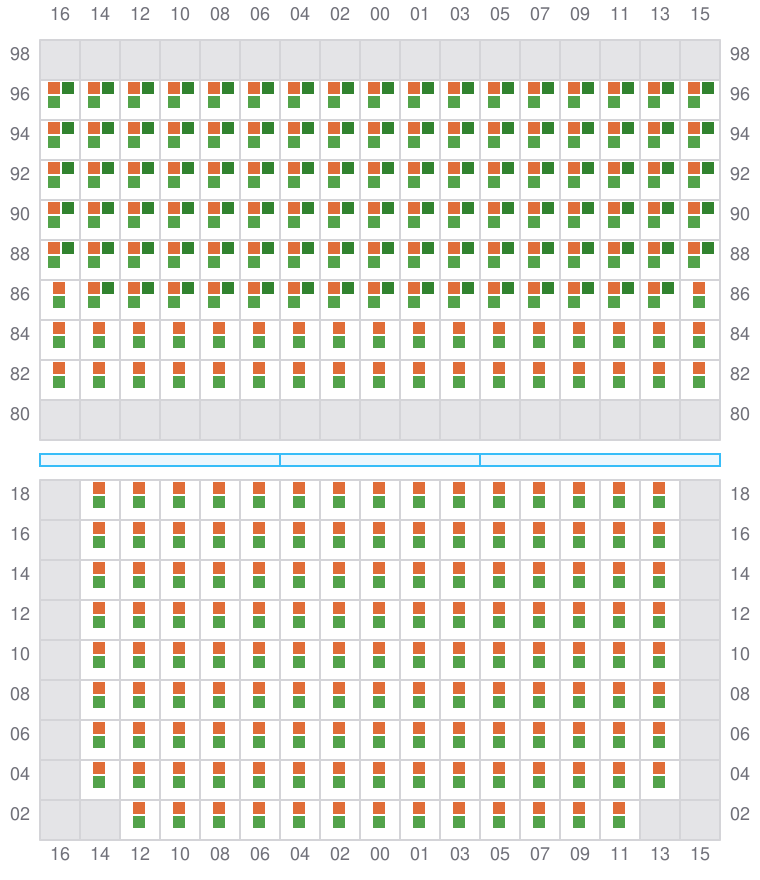

Bay 053 view and slots of MSC SURABAYA VIII

055

  • ←
  • → / ?

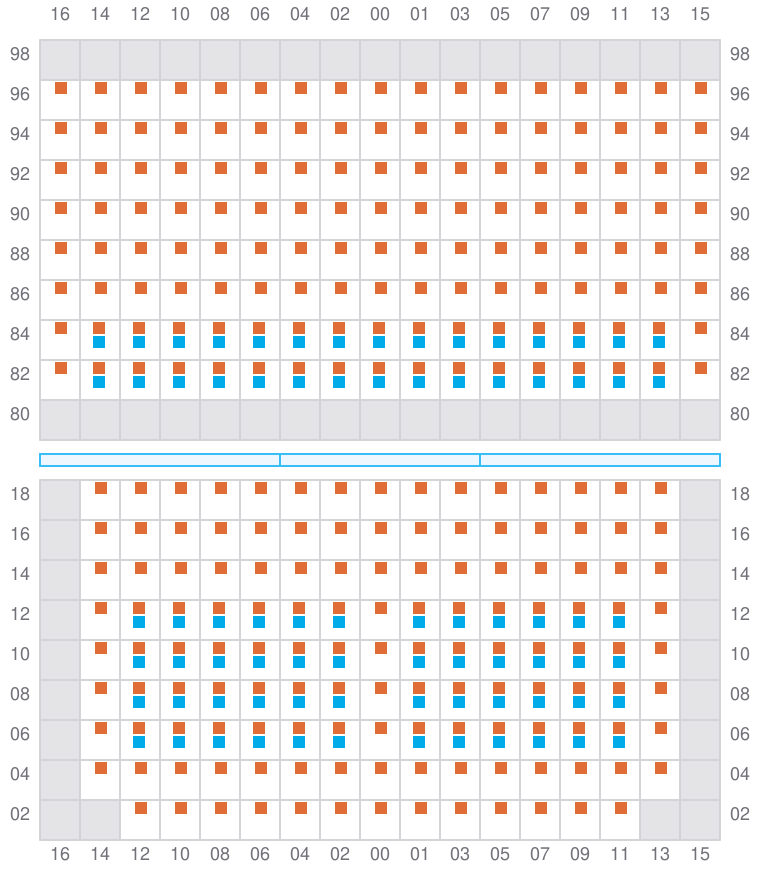

Bay 055 view and slots of MSC SURABAYA VIII

057 (058)

  • →

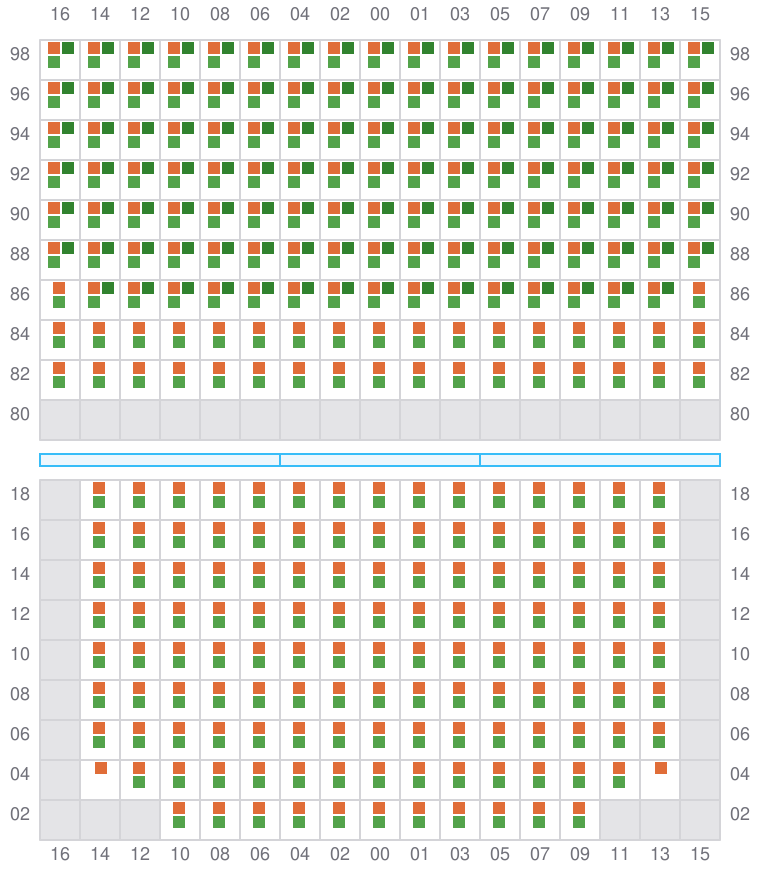

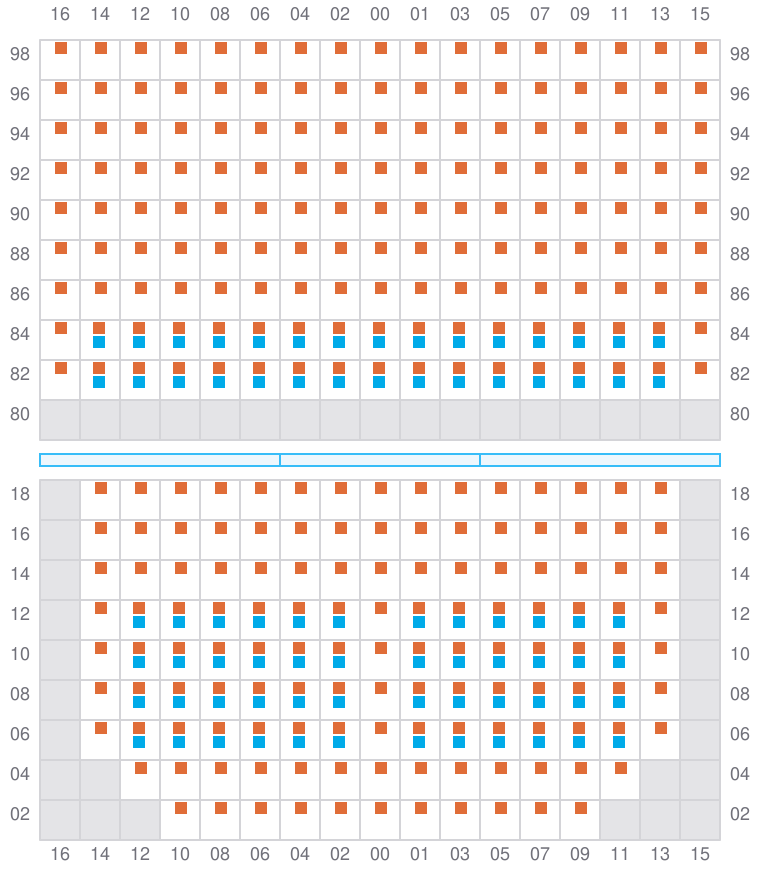

Bay 057 view and slots of MSC SURABAYA VIII

059

  • ←
  • →
Bay 059 view and slots of MSC SURABAYA VIII

061 (062)

  • →

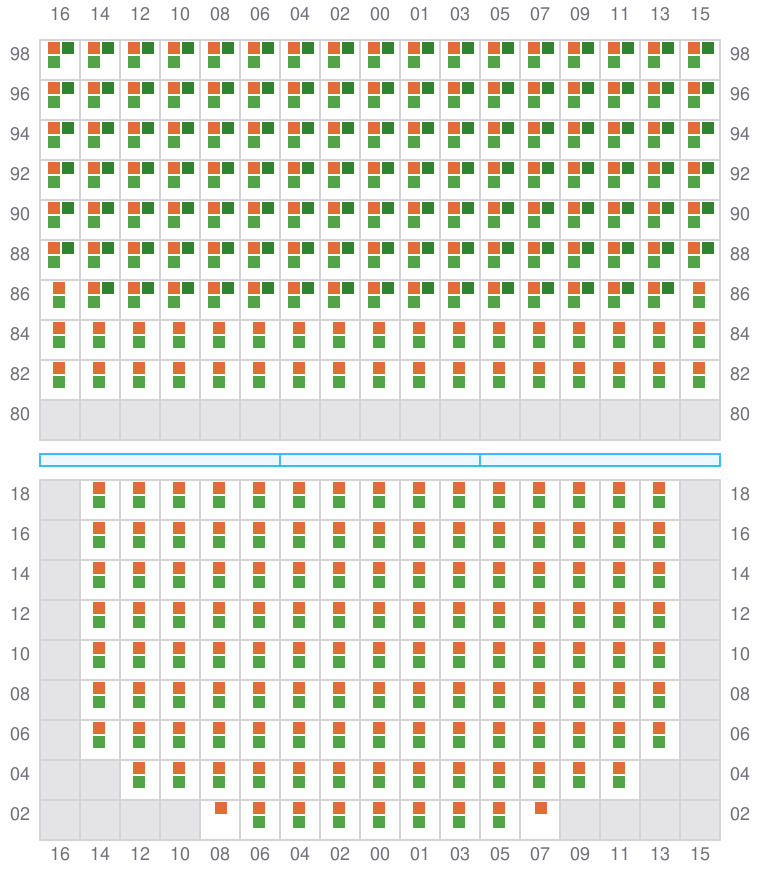

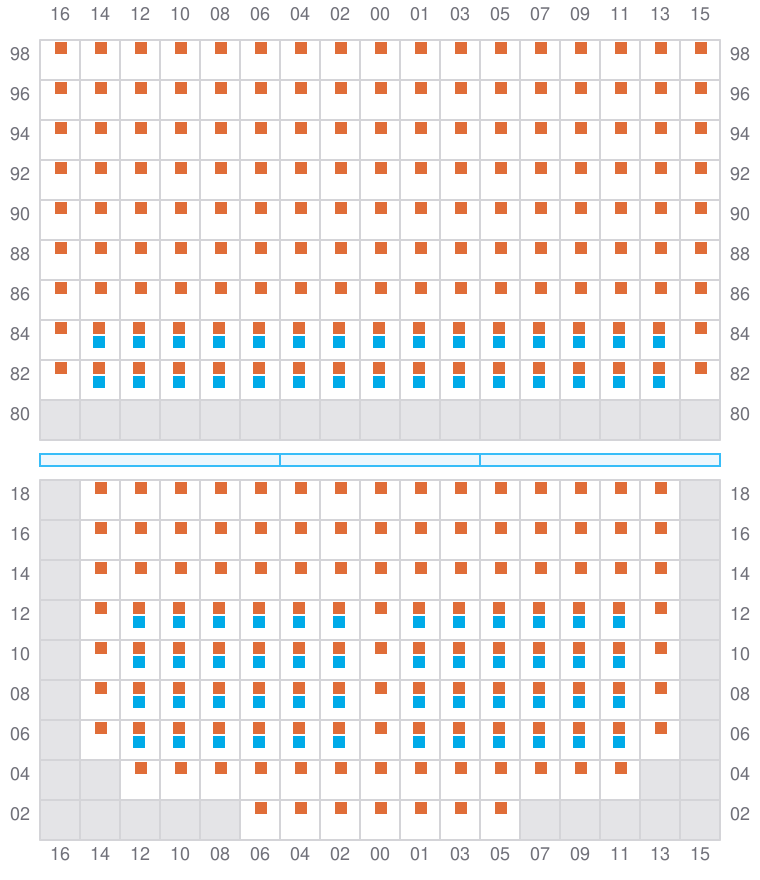

Bay 061 view and slots of MSC SURABAYA VIII

063

  • ←
  • →

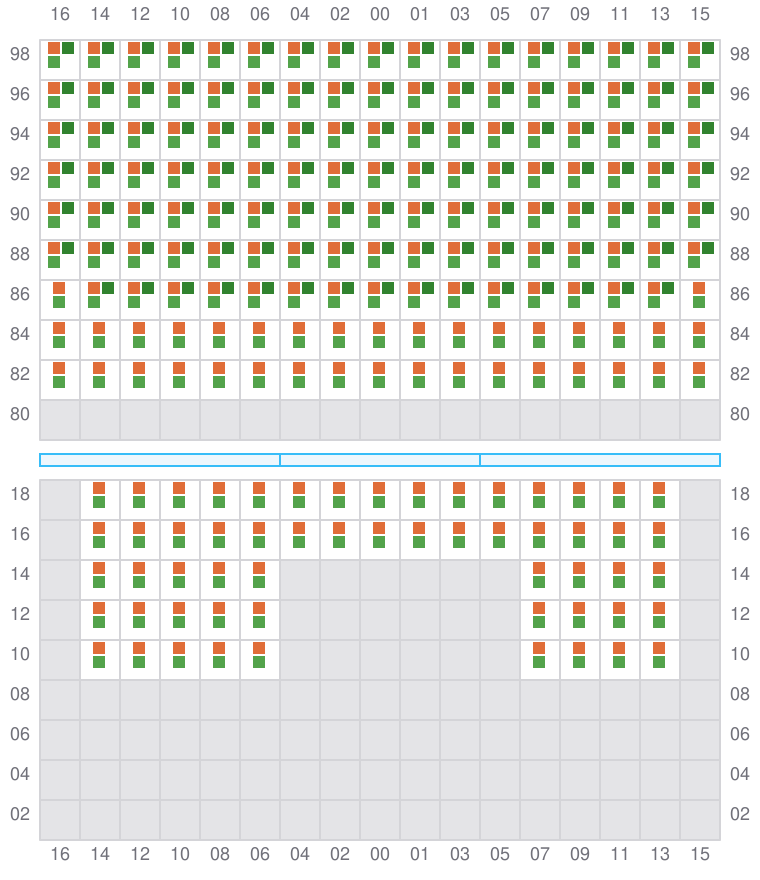

Bay 063 view and slots of MSC SURABAYA VIII

065 (066)

  • →

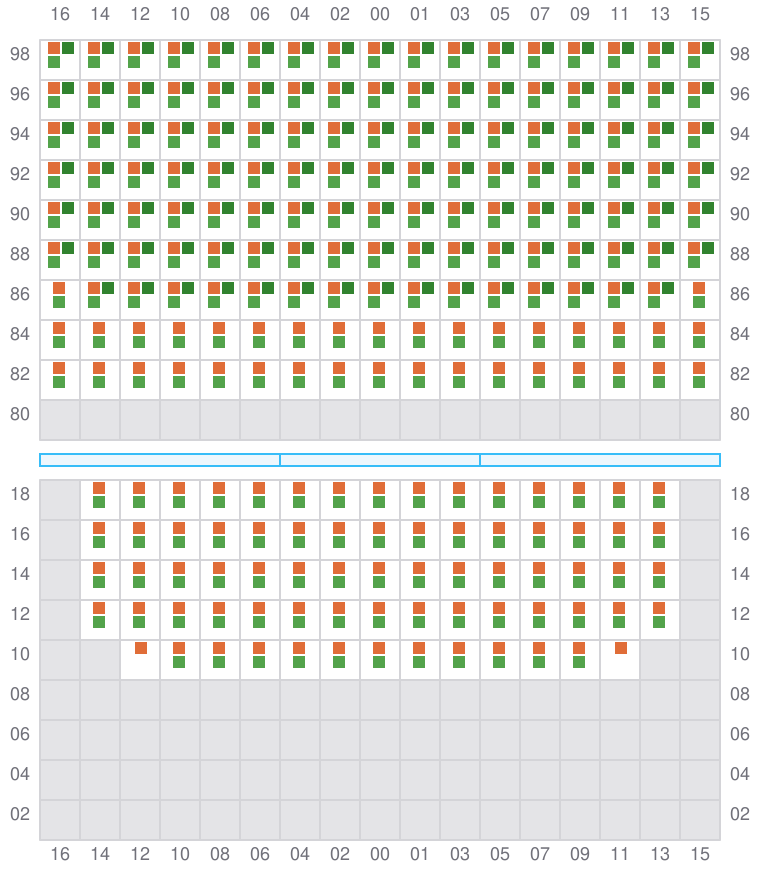

Bay 065 view and slots of MSC SURABAYA VIII

067

  • ←
  • → / ?

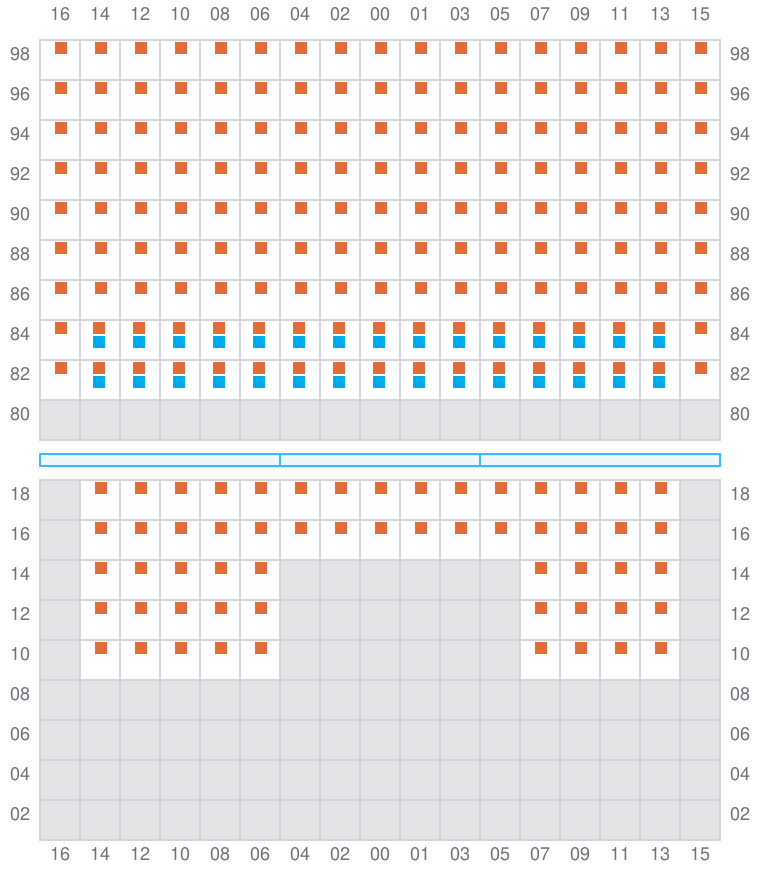

Bay 067 view and slots of MSC SURABAYA VIII

069 (070)

  • →
Bay 069 view and slots of MSC SURABAYA VIII

071

  • ←
  • → / ?

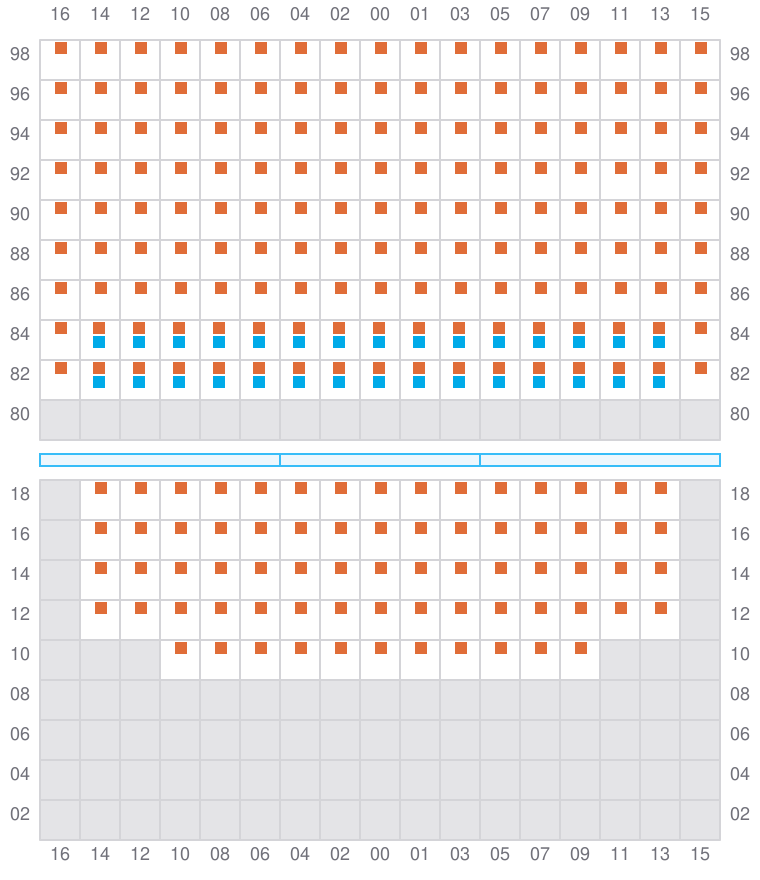

Bay 071 view and slots of MSC SURABAYA VIII

073 (074)

  • →

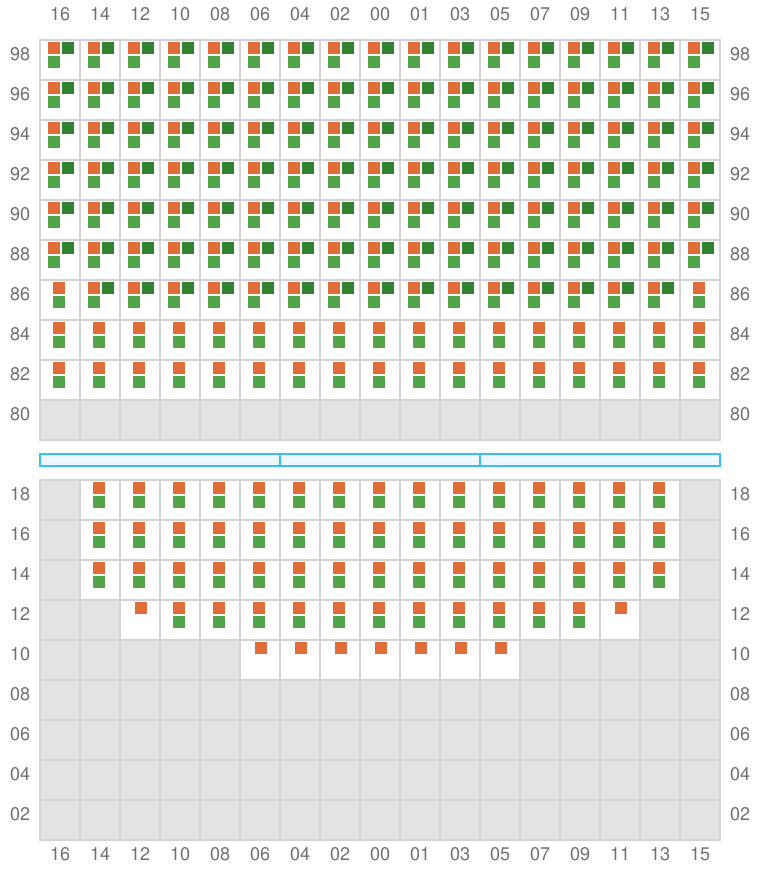

Bay 073 view and slots of MSC SURABAYA VIII

075

  • ←
  • → / ?

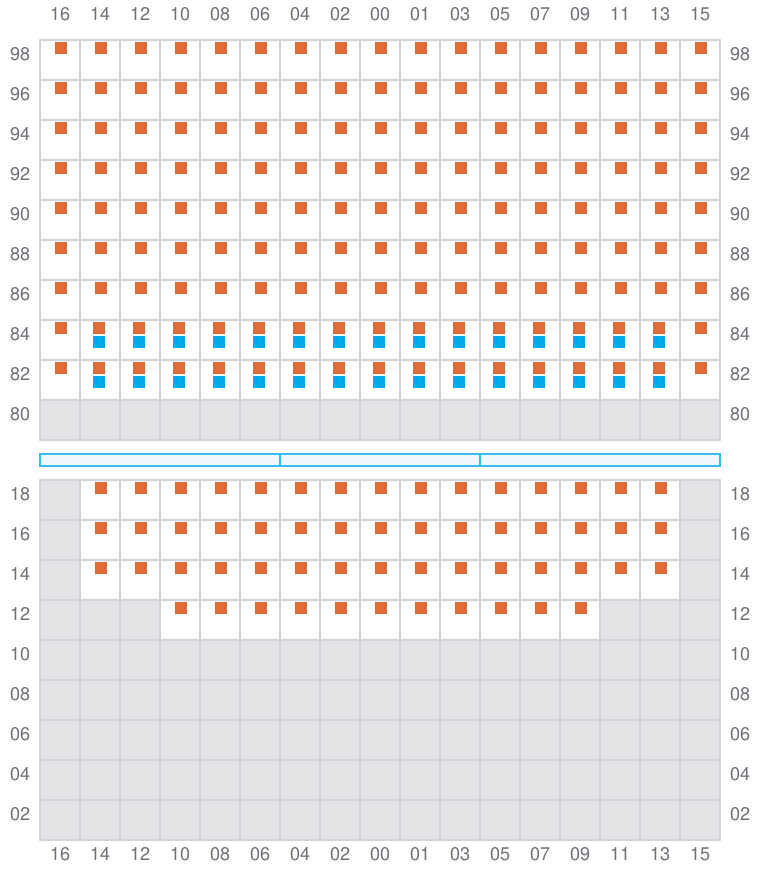

Bay 075 view and slots of MSC SURABAYA VIII

077 (078)

  • → / ?

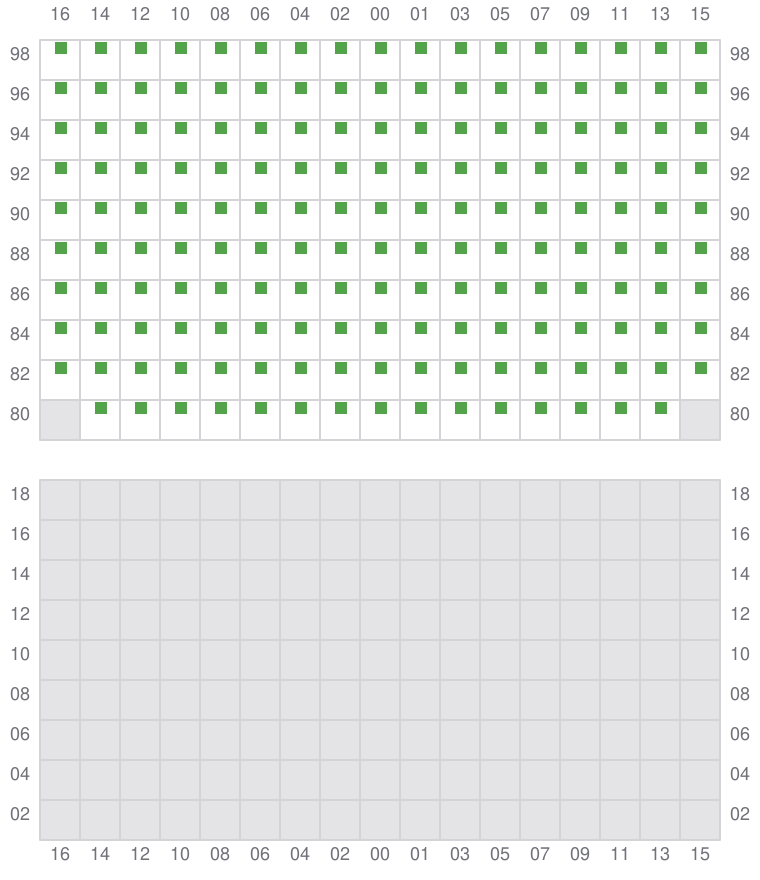

Bay 077 view and slots of MSC SURABAYA VIII
