MSC TALIA F
9308601 | CQIH9 | 9308601 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:MSC TALIA F
IMO Code:9308601
Call Sign:CQIH9
Line Operator:9308601
Class Name for Sister Ships:27R
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):130.49
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:962
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

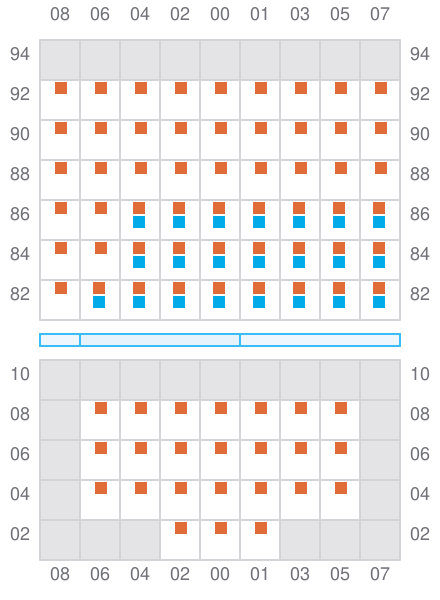

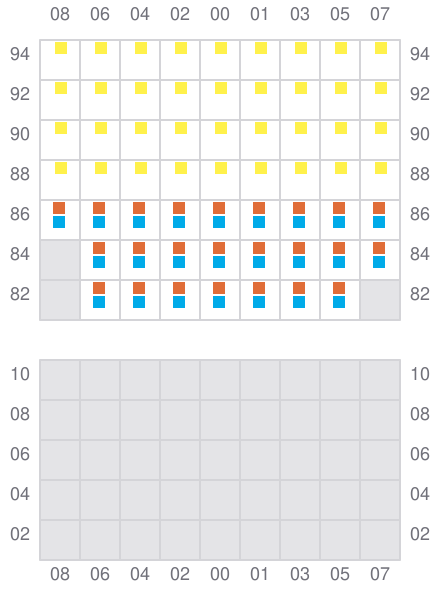

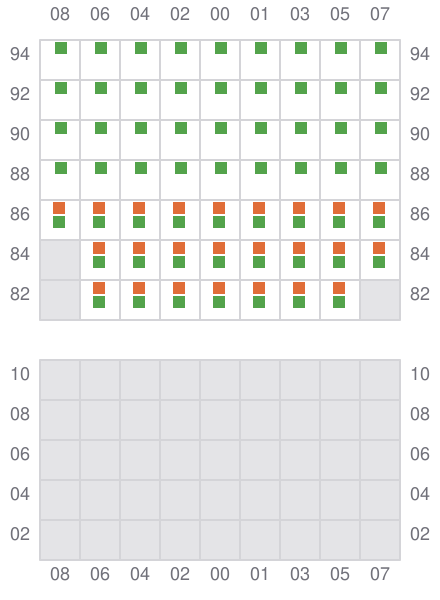

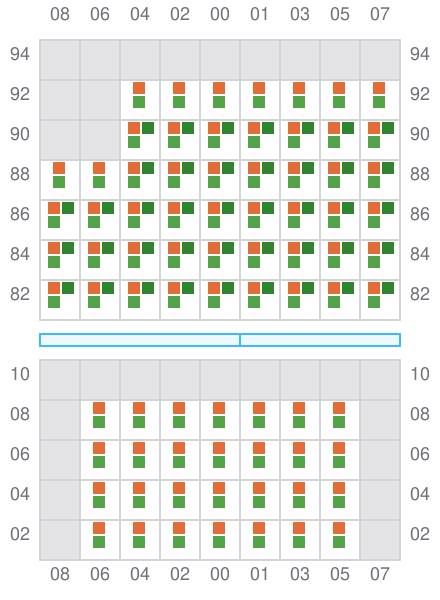

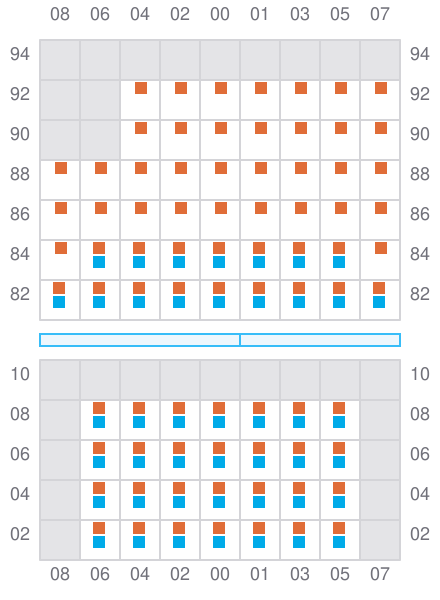

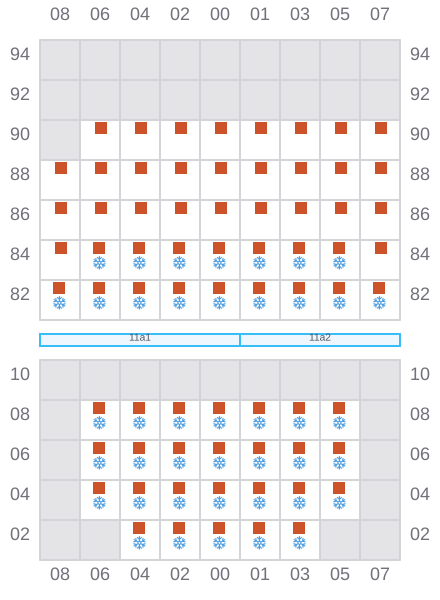

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

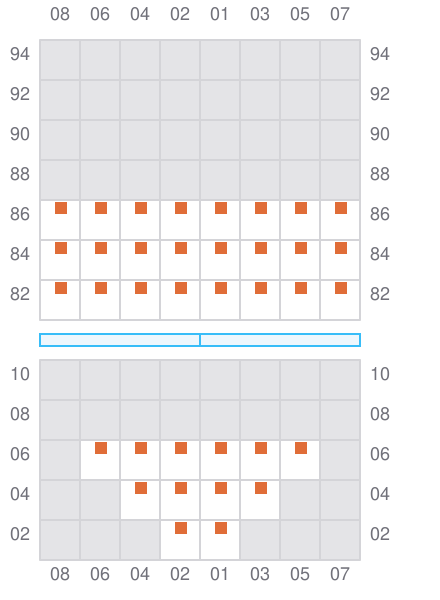

001
003 (004)
- →

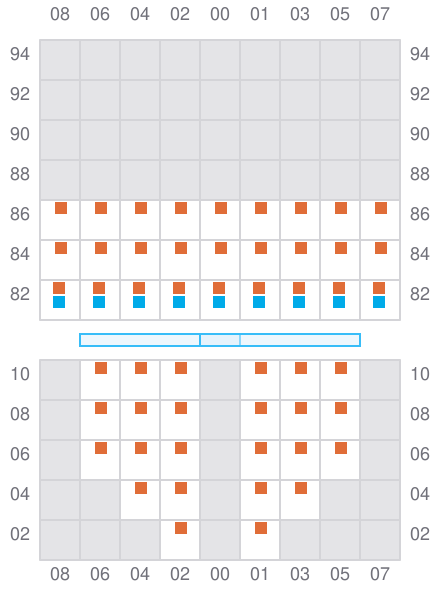

005
- ←
- → / ?
007 (008)
- →
- ? / ←

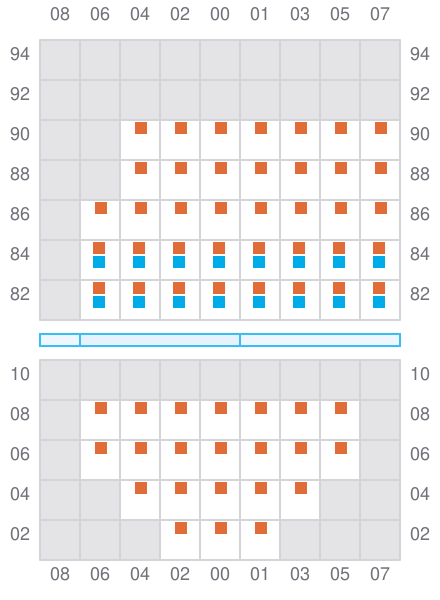

009
- ←
- → / ?

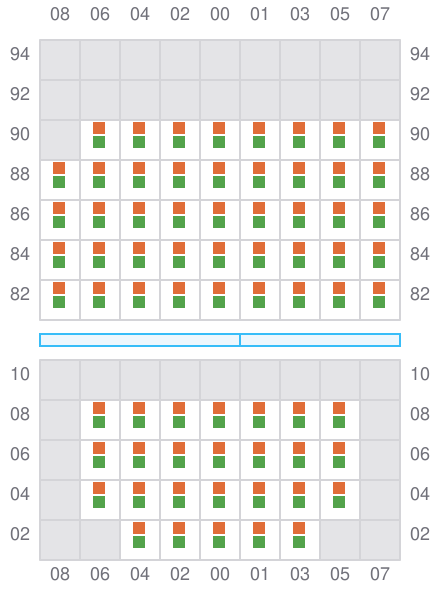

011 (012)
- →
013
- ←
- →

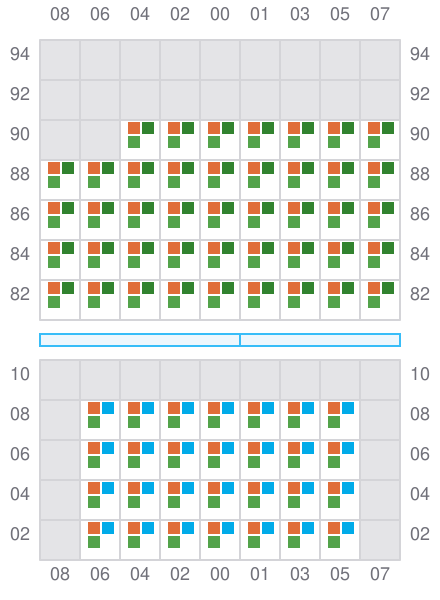

015 (016)
- →
- ←

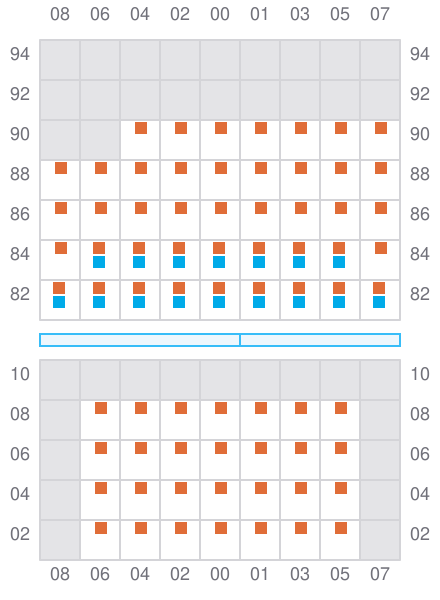

017
- ←
- → / ?
019 (020)
- →
021
- ←
- →

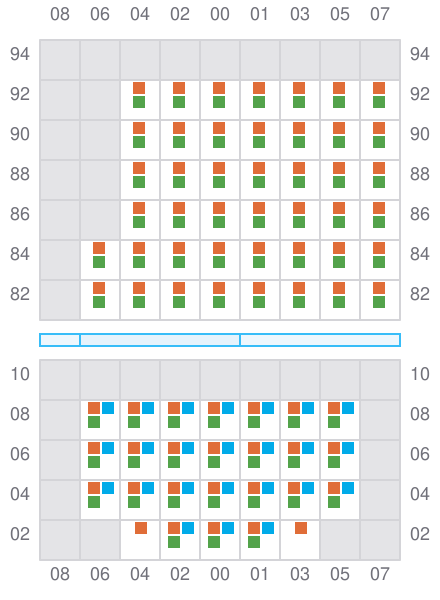

023 (024)
- →
- ? / ←
025
- ←
- → / ?
027 (028)
- → / ?
029
- ← / ?
- → / ?
