MSC TAMARA
9351579 | 3EOC | MSC by ************************** Last update: Wed Jun 21 2023

General Info

Ship Name:MSC TAMARA
IMO Code:9351579
Call Sign:3EOC
Line Operator:MSC
Class Name for Sister Ships:TMR
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,232

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

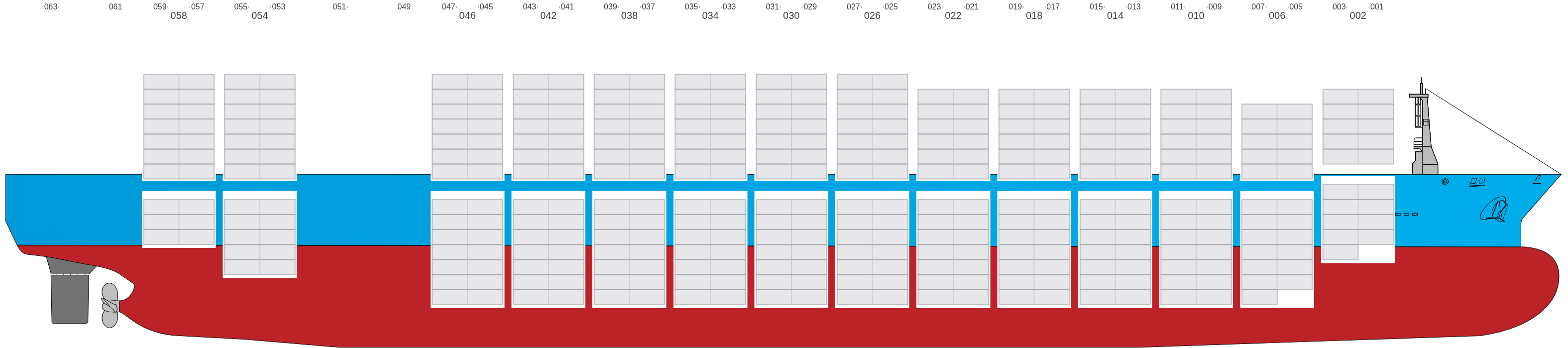

Side View

Side view of MSC TAMARA

Hatch-Covers View

Deck view of MSC TAMARA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

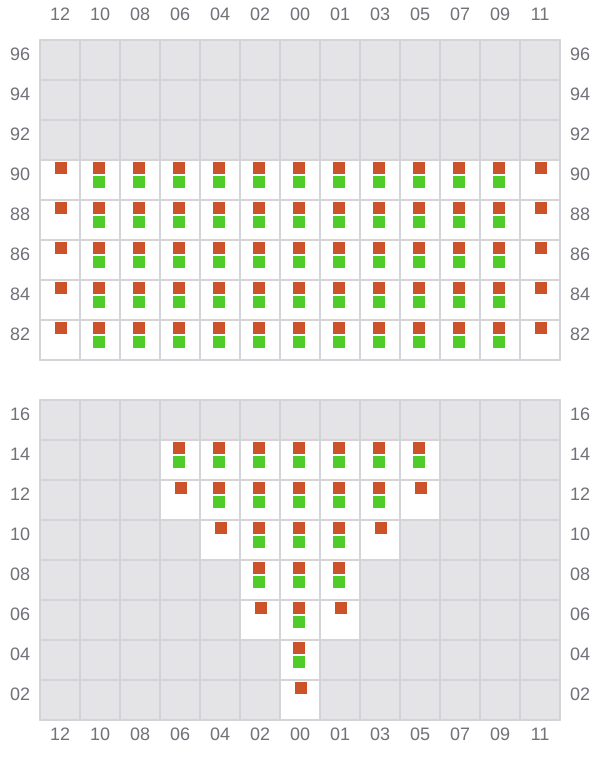

001

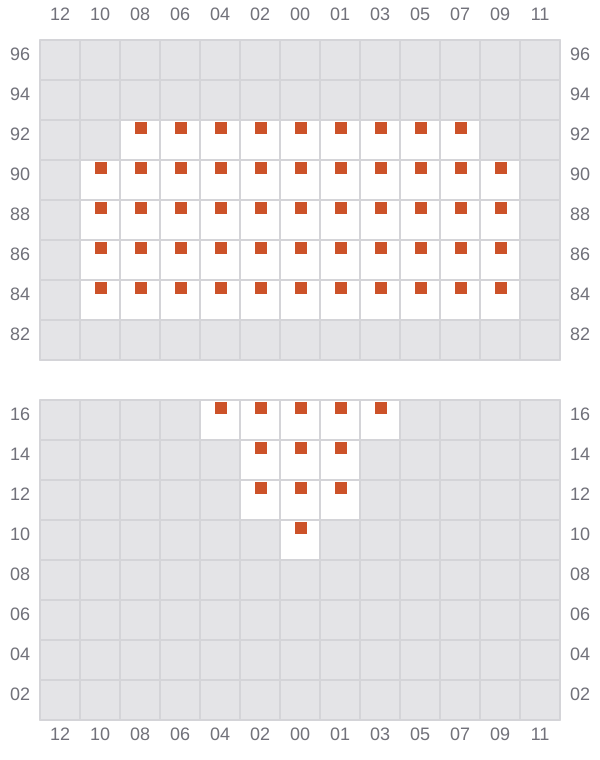

Bay 001 view and slots of MSC TAMARA

003 (002)

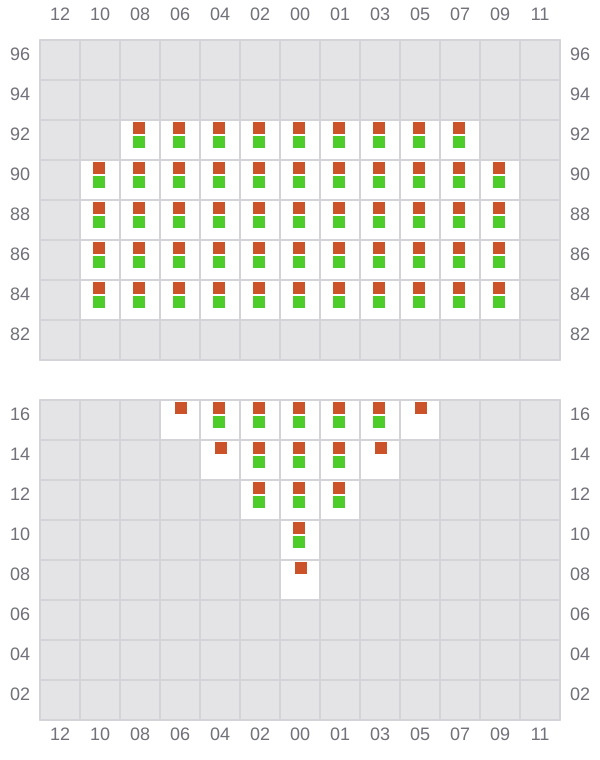

Bay 003 view and slots of MSC TAMARA

005

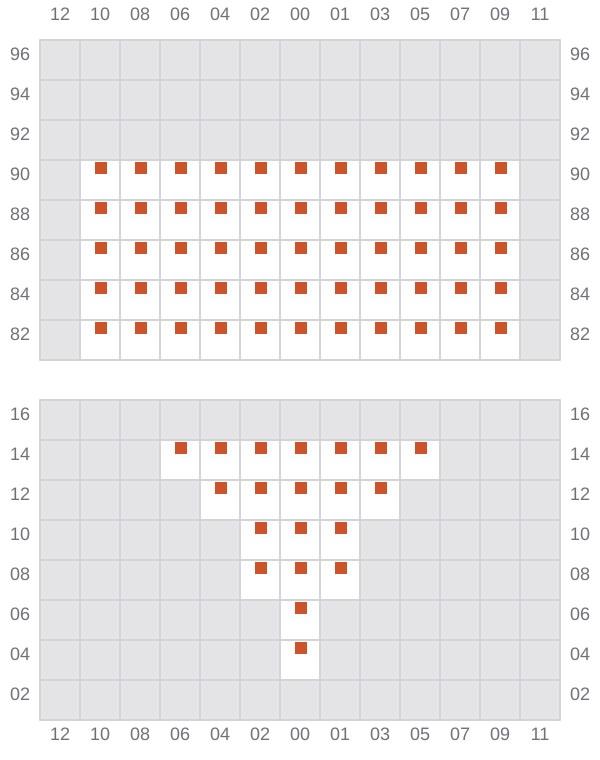

Bay 005 view and slots of MSC TAMARA

007 (006)

Bay 007 view and slots of MSC TAMARA

009

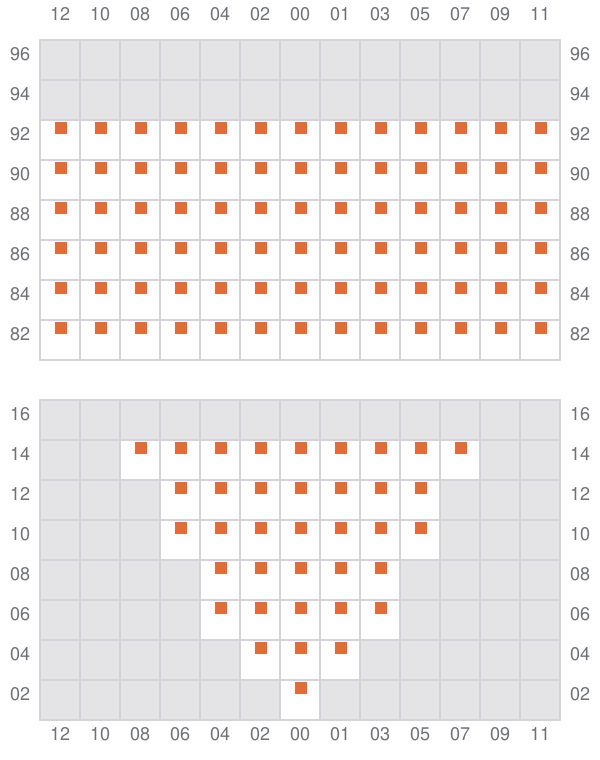

Bay 009 view and slots of MSC TAMARA

011 (010)

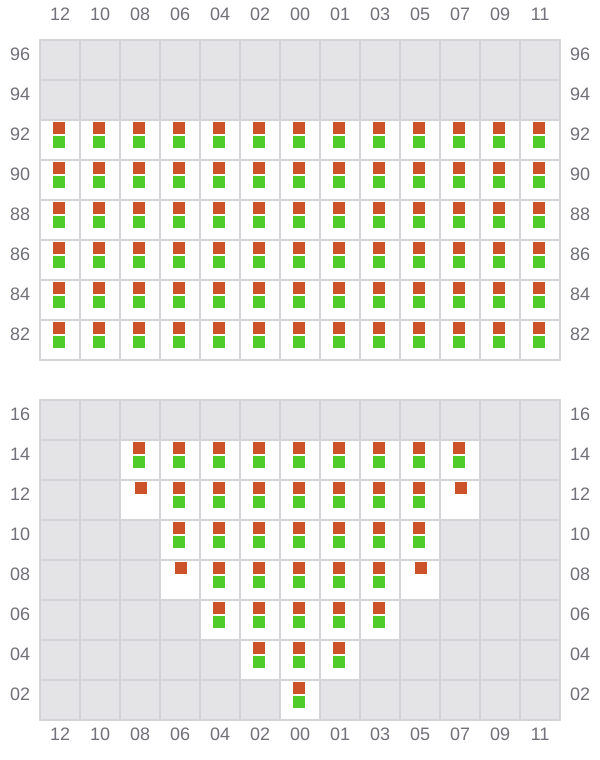

Bay 011 view and slots of MSC TAMARA

013

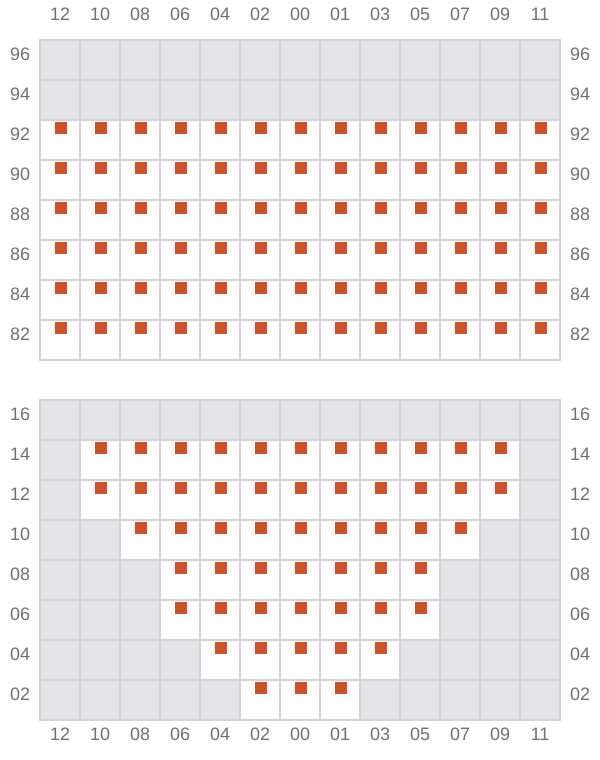

Bay 013 view and slots of MSC TAMARA

015 (014)

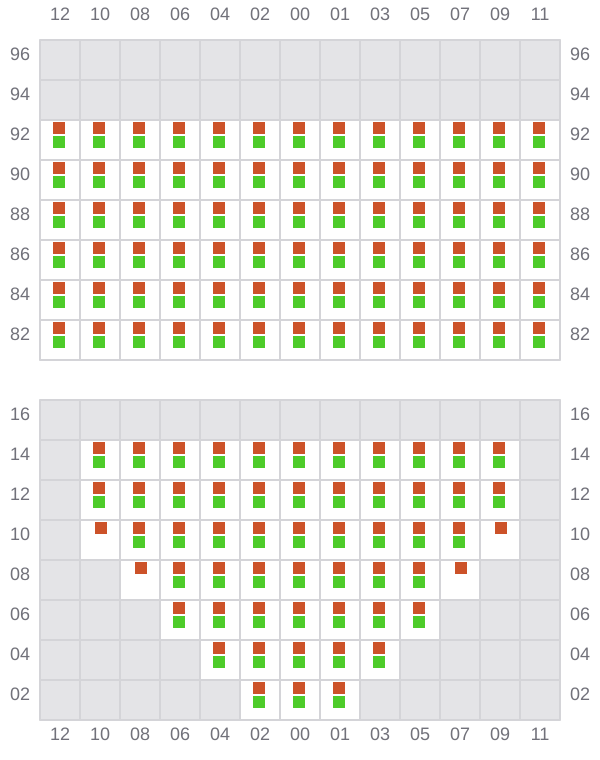

Bay 015 view and slots of MSC TAMARA

017

Bay 017 view and slots of MSC TAMARA

019 (018)

Bay 019 view and slots of MSC TAMARA

021

Bay 021 view and slots of MSC TAMARA

023 (022)

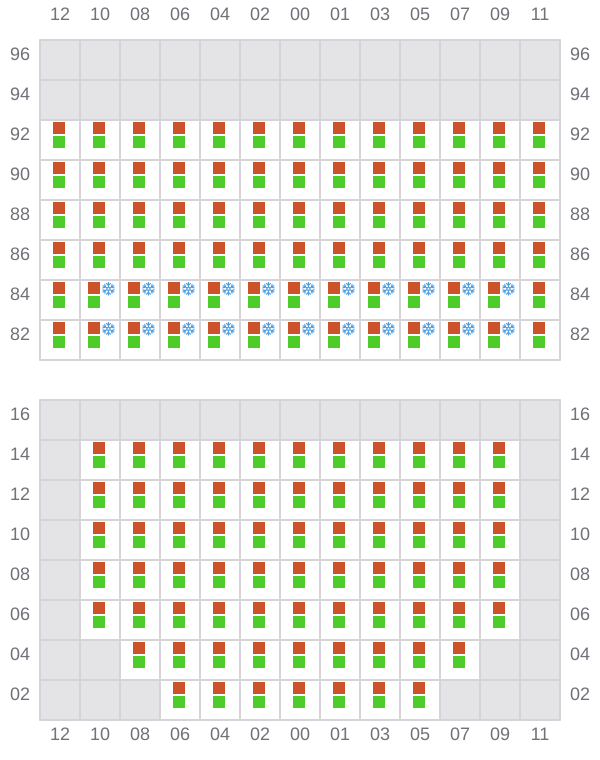

Bay 023 view and slots of MSC TAMARA

025

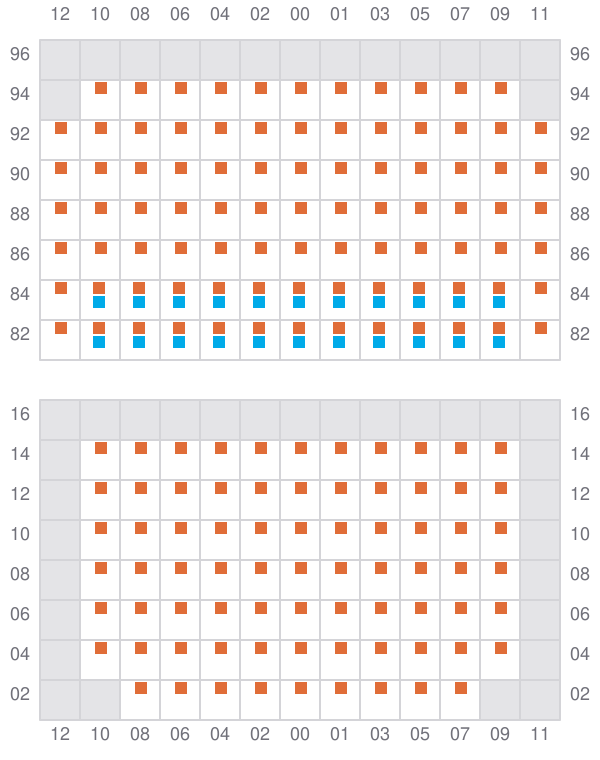

Bay 025 view and slots of MSC TAMARA

027 (026)

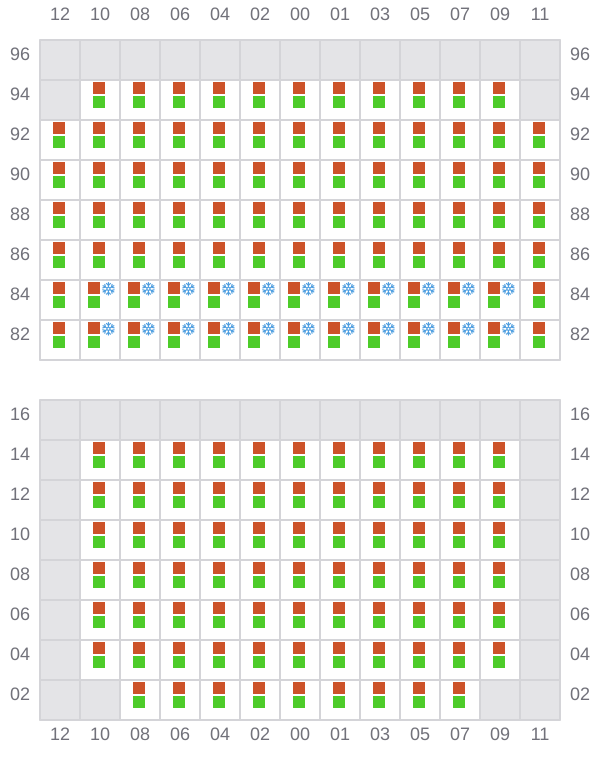

Bay 027 view and slots of MSC TAMARA

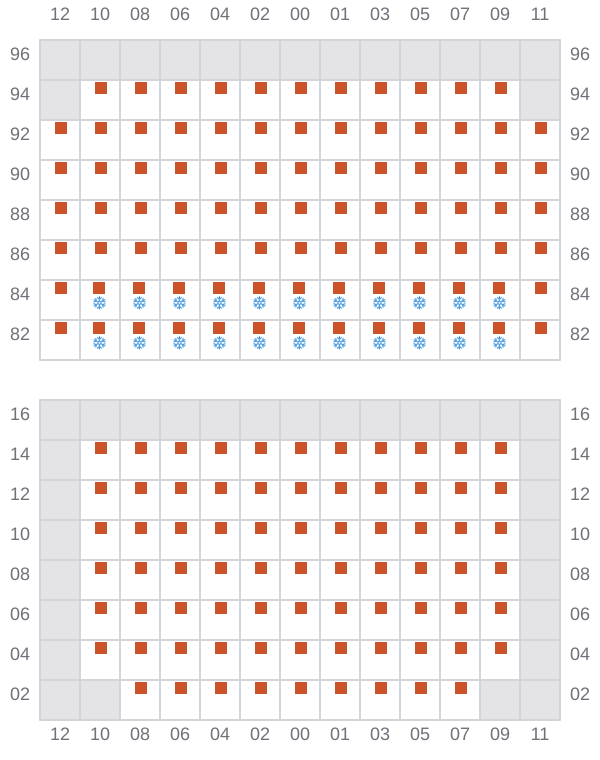

029

Bay 029 view and slots of MSC TAMARA

031 (030)

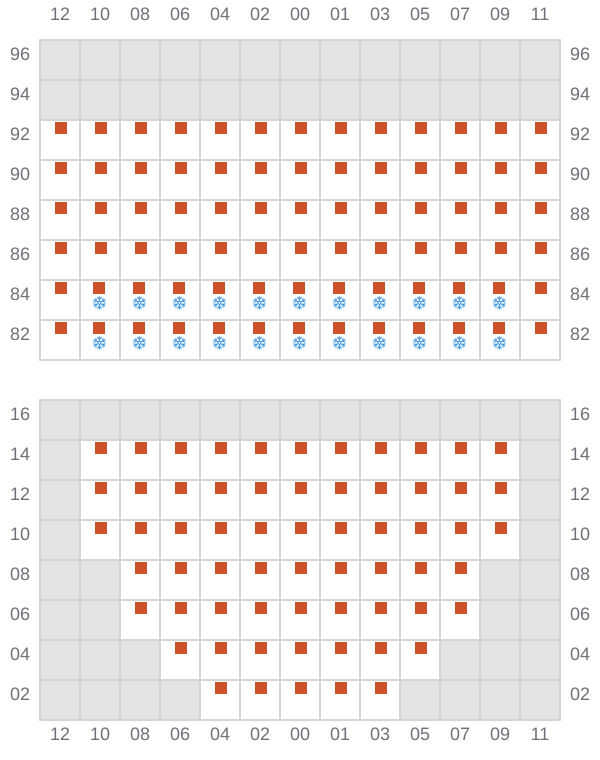

Bay 031 view and slots of MSC TAMARA

033

Bay 033 view and slots of MSC TAMARA

035 (034)

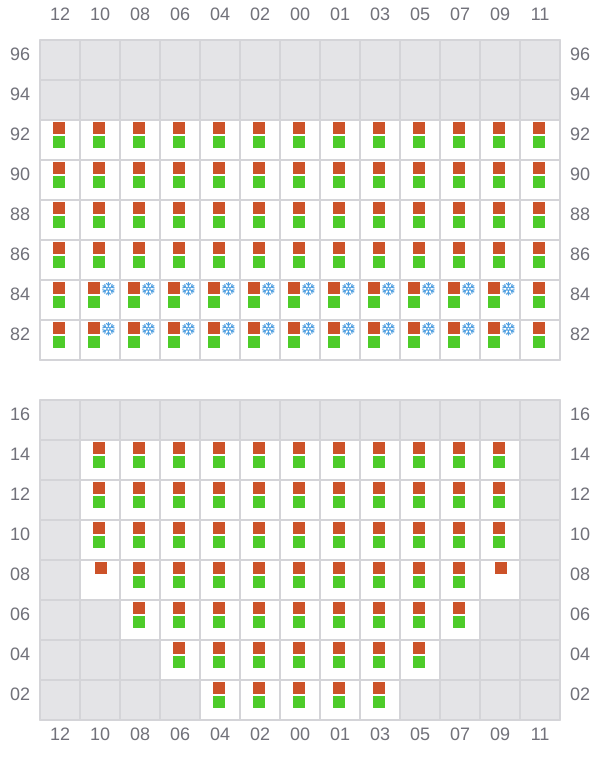

Bay 035 view and slots of MSC TAMARA

037

Bay 037 view and slots of MSC TAMARA

039 (038)

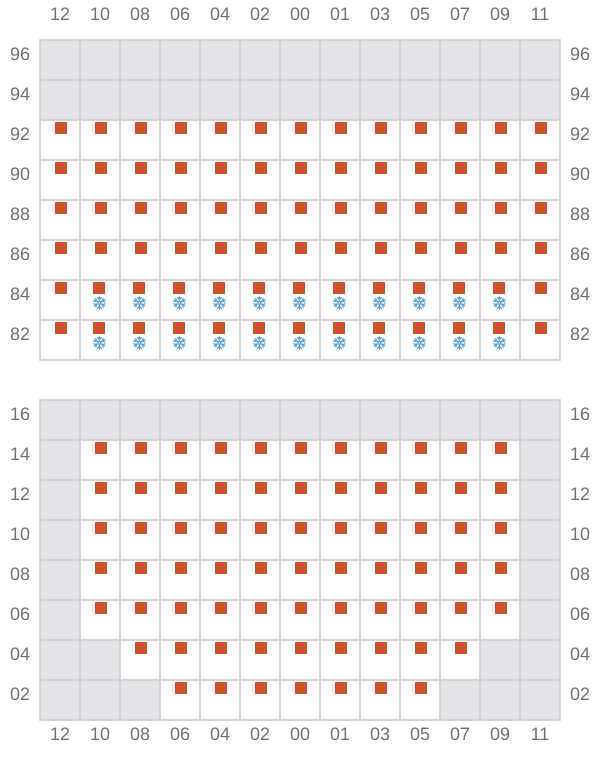

Bay 039 view and slots of MSC TAMARA

041

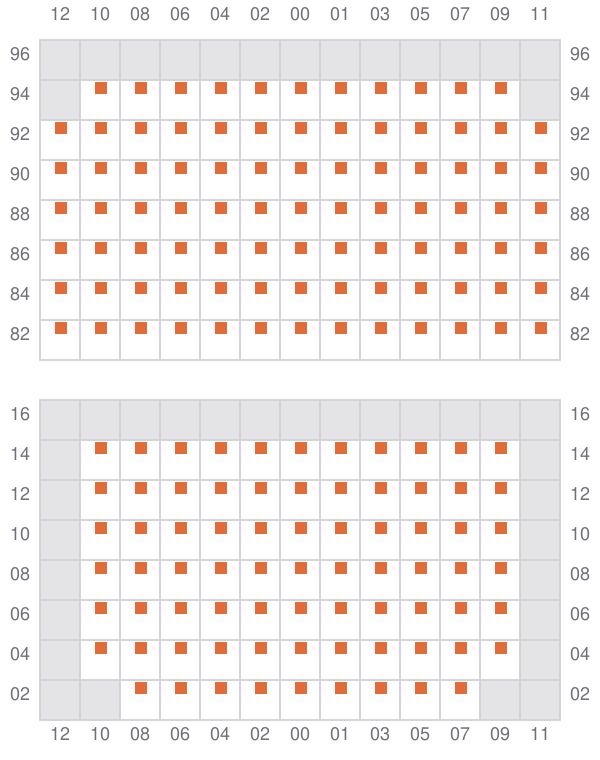

Bay 041 view and slots of MSC TAMARA

043 (042)

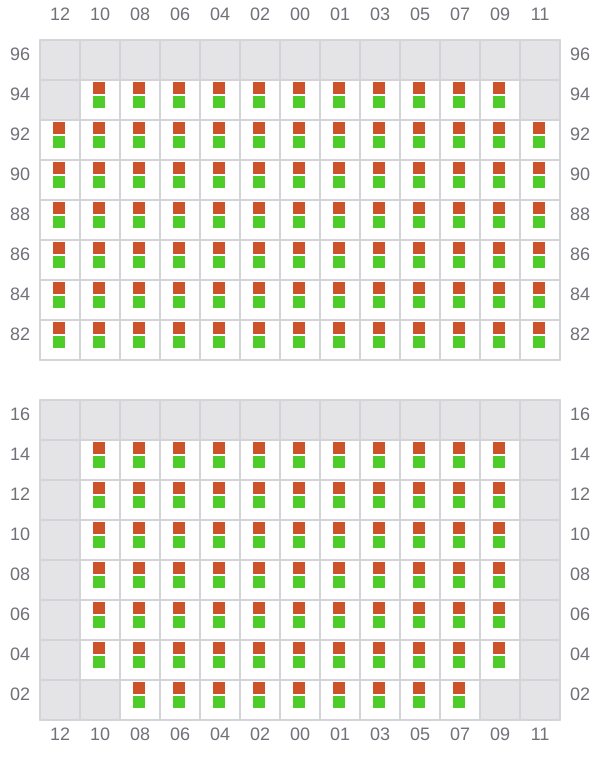

Bay 043 view and slots of MSC TAMARA

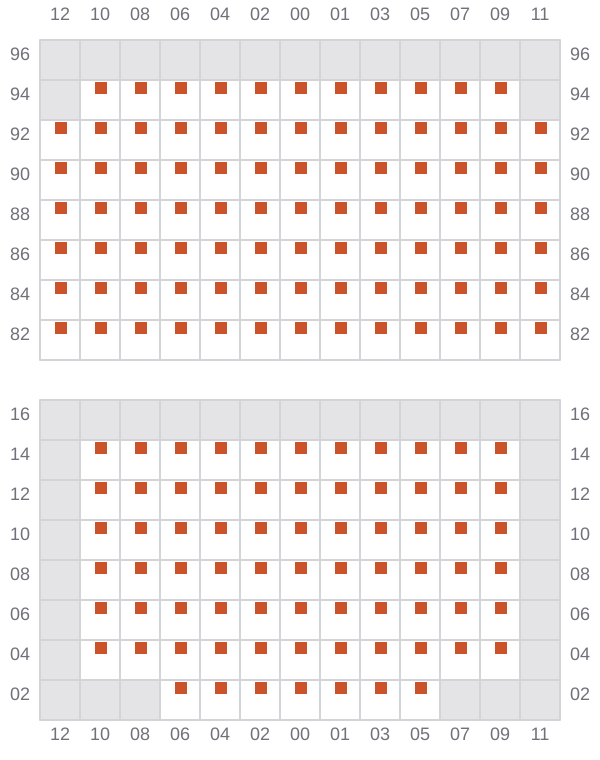

045

Bay 045 view and slots of MSC TAMARA

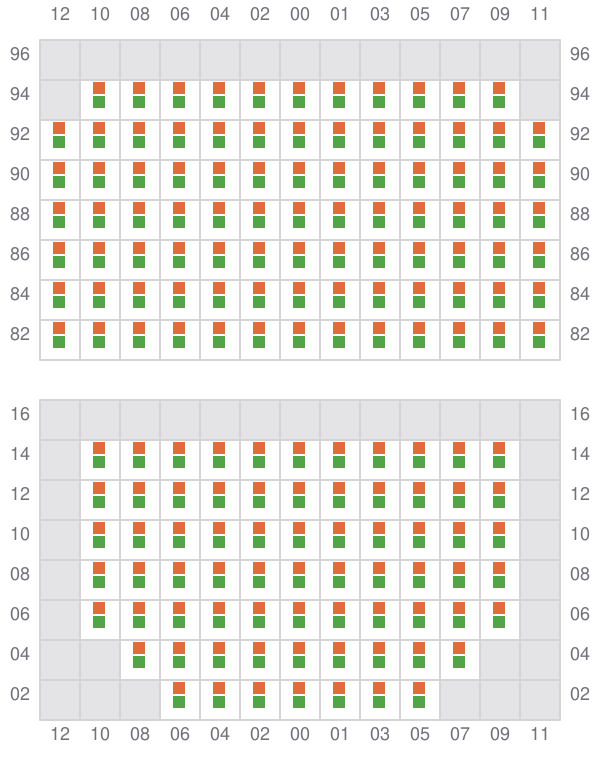

047 (046)

Bay 047 view and slots of MSC TAMARA

049

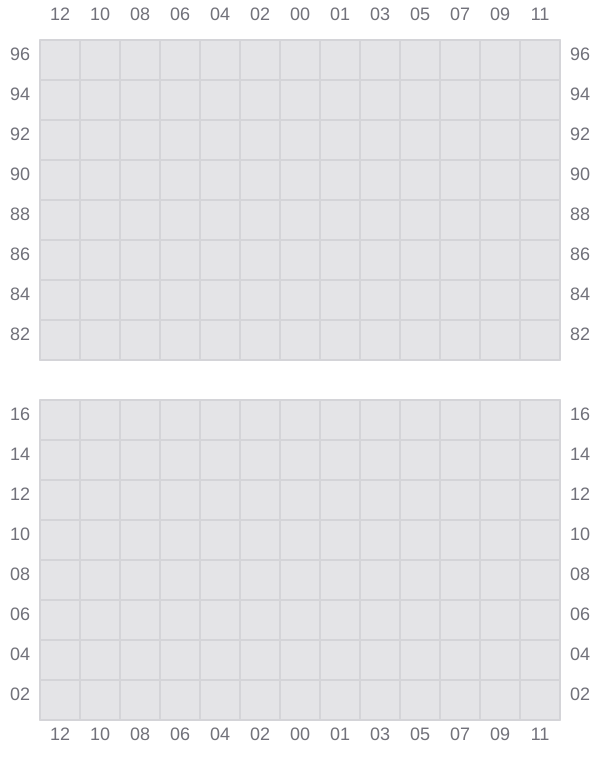

Bay 049 view and slots of MSC TAMARA

051 (050)

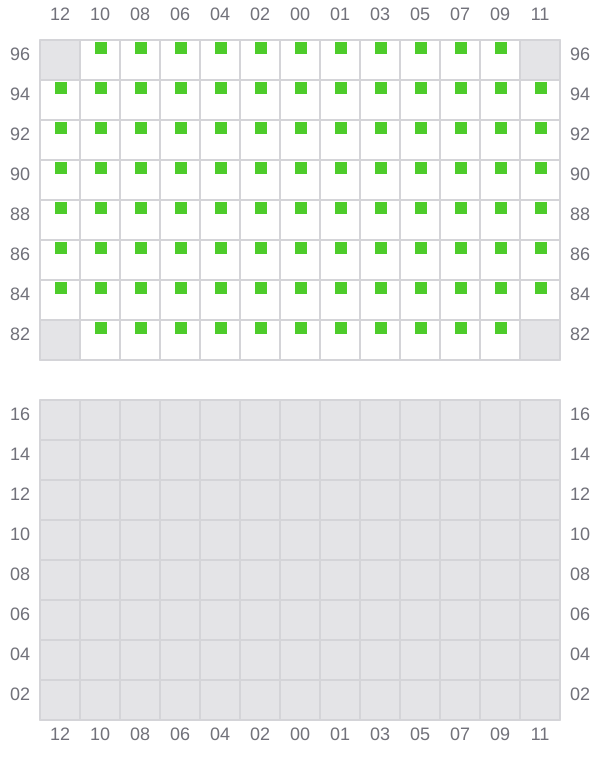

Bay 051 view and slots of MSC TAMARA

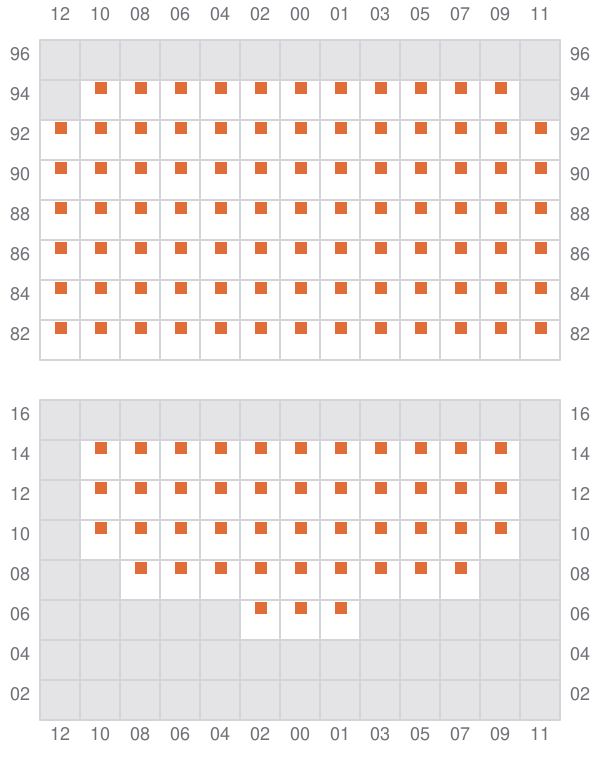

053

Bay 053 view and slots of MSC TAMARA

055 (054)

Bay 055 view and slots of MSC TAMARA

057

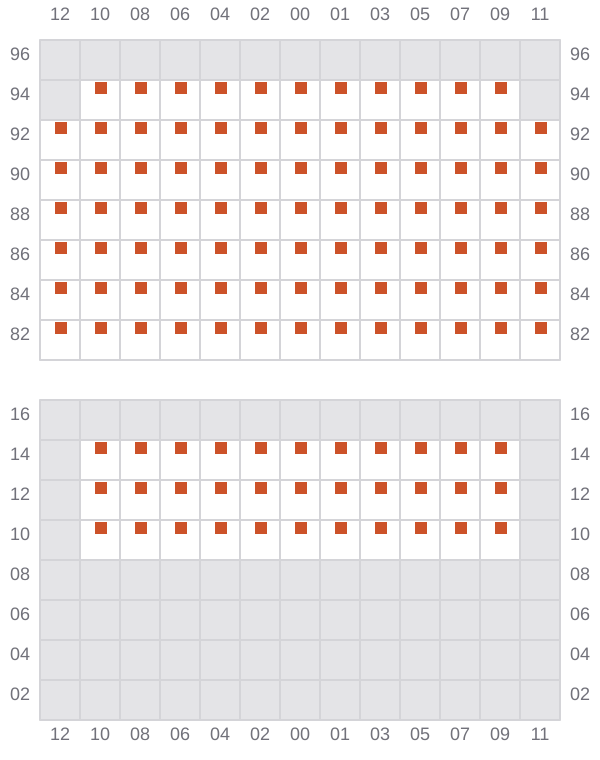

Bay 057 view and slots of MSC TAMARA

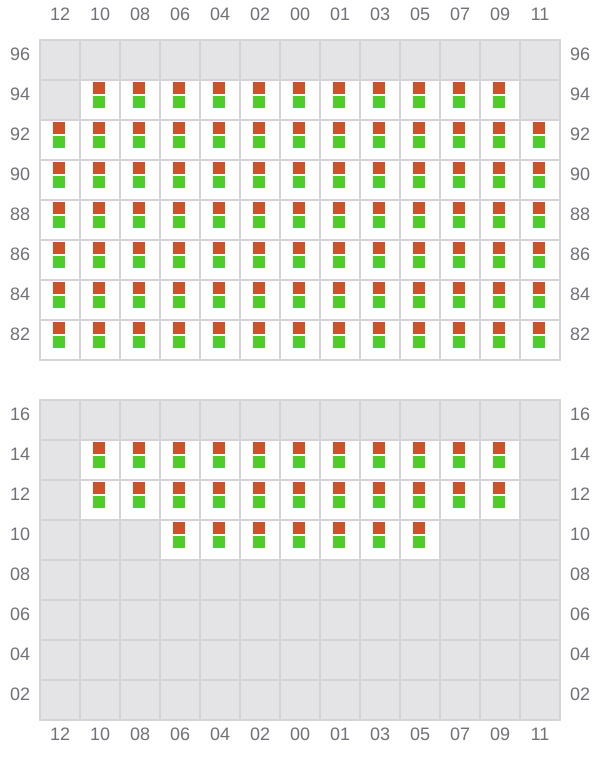

059 (058)

Bay 059 view and slots of MSC TAMARA

061

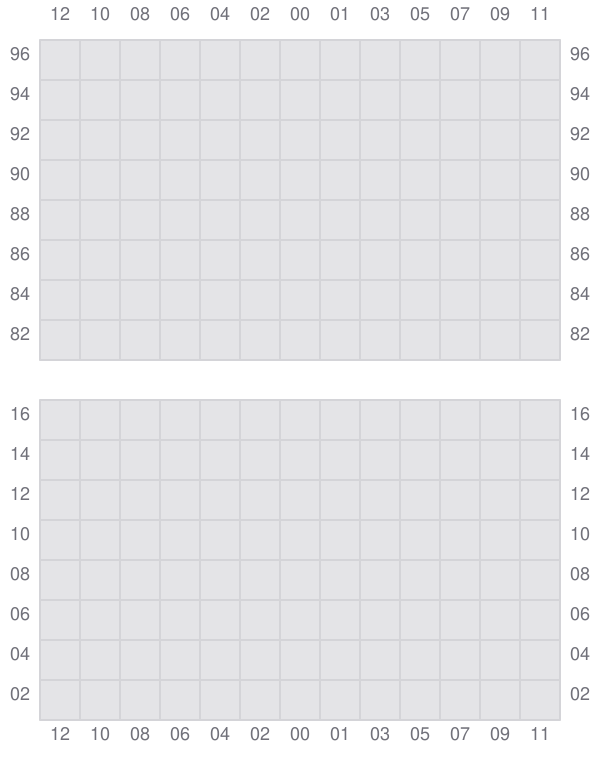

Bay 061 view and slots of MSC TAMARA

063 (062)

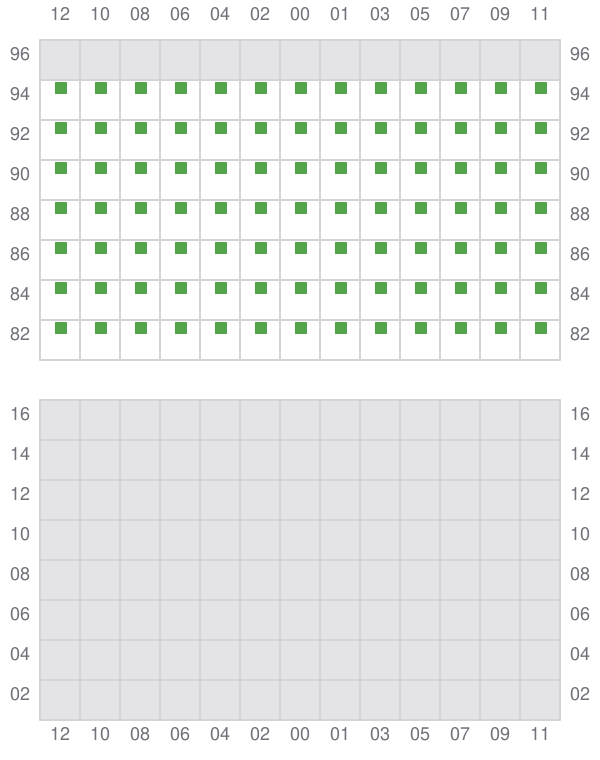

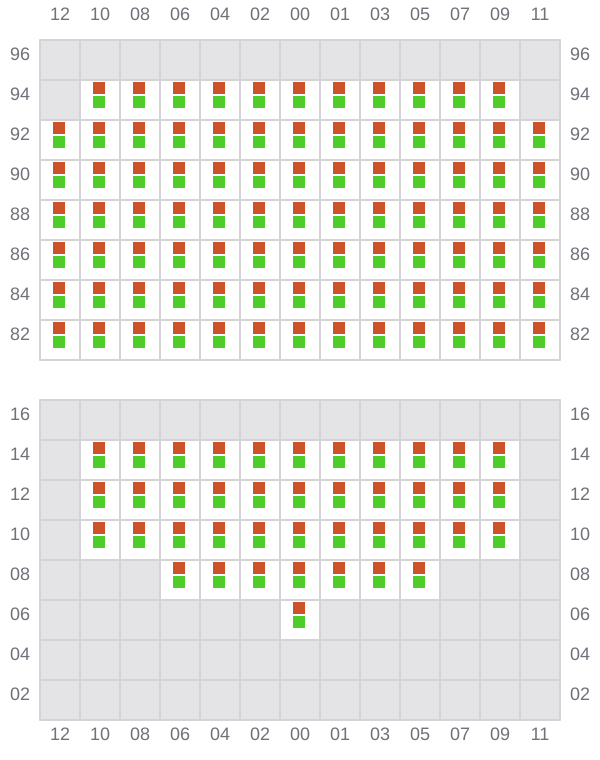

Bay 063 view and slots of MSC TAMARA
