MSC TAMISHKA F
9358905 | A8TT2 | 9358905 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:MSC TAMISHKA F
IMO Code:9358905
Call Sign:A8TT2
Line Operator:9358905
Class Name for Sister Ships:30C
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):161.00
LOA (Length Overall):161.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,304
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

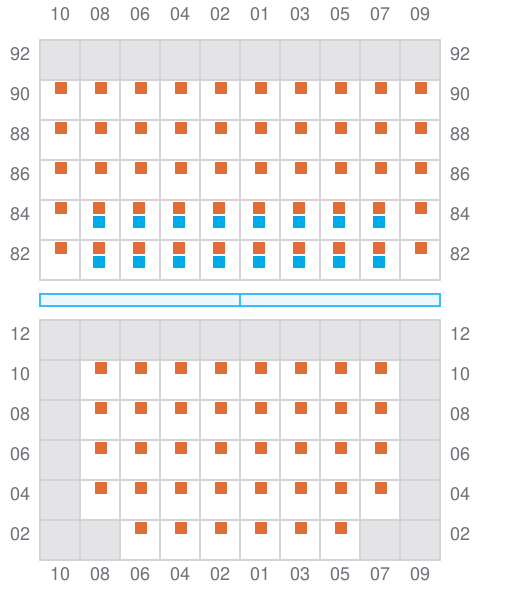

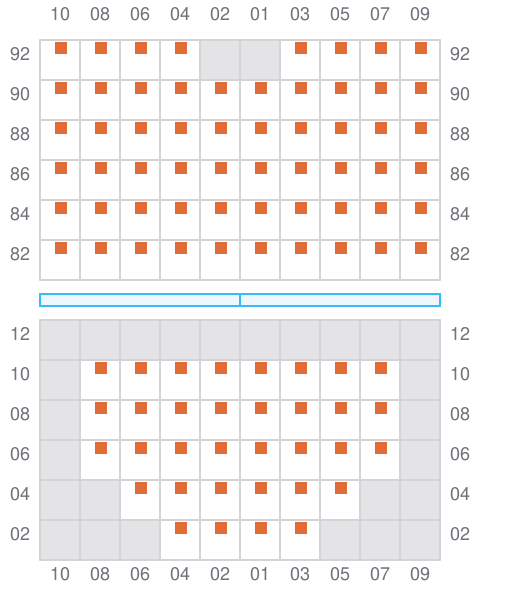

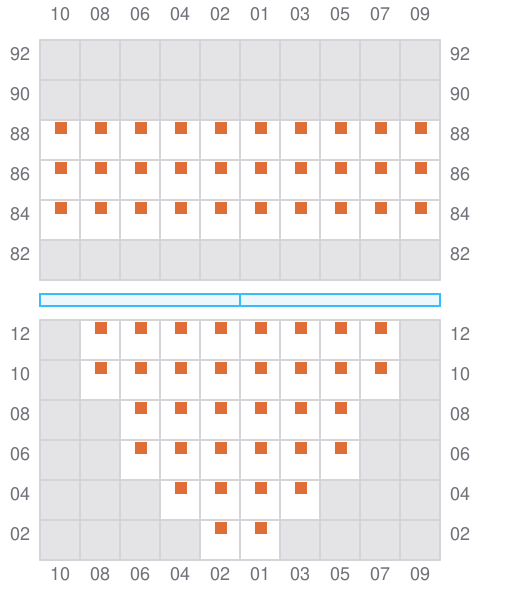

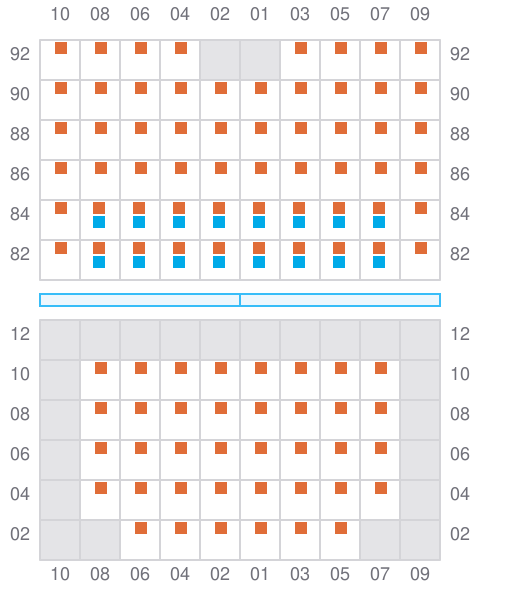

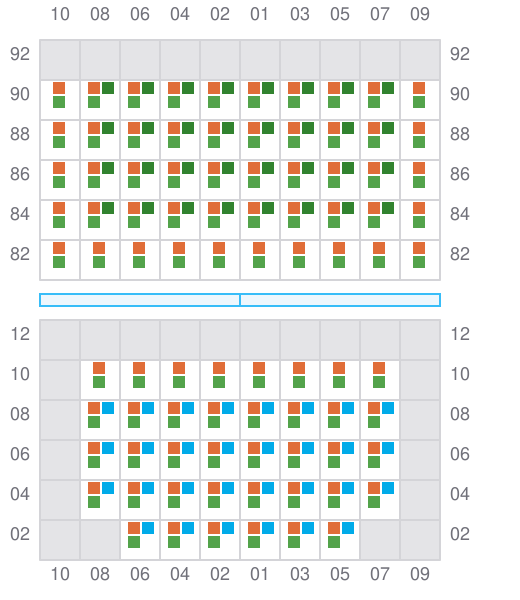

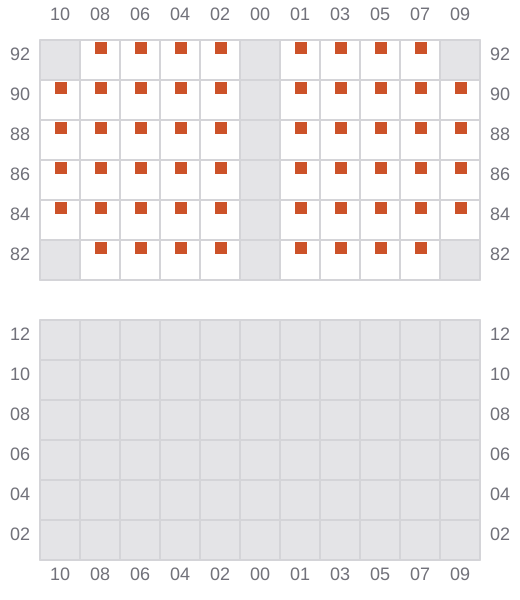

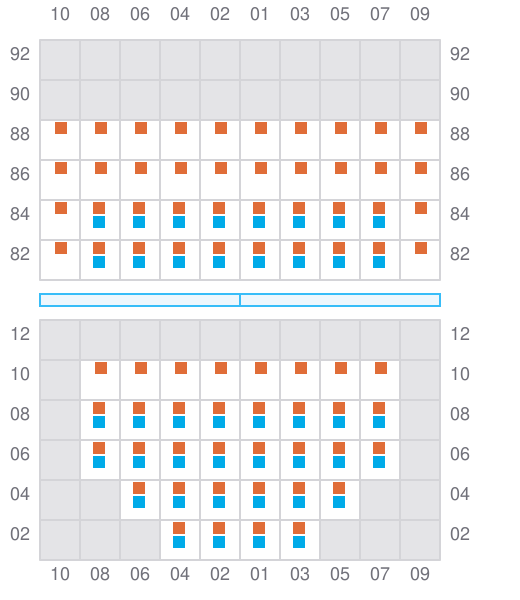

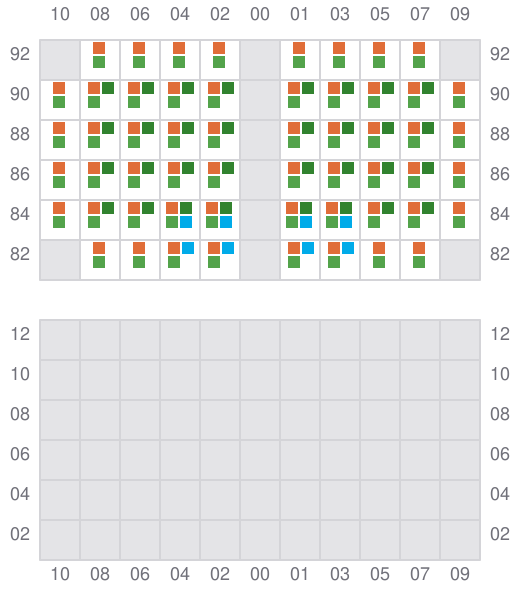

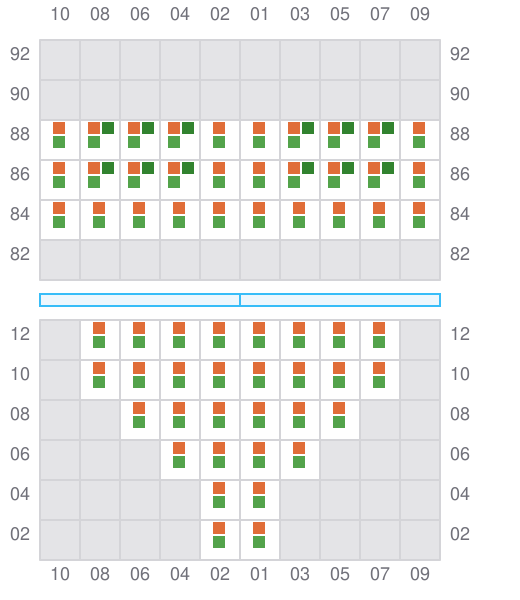

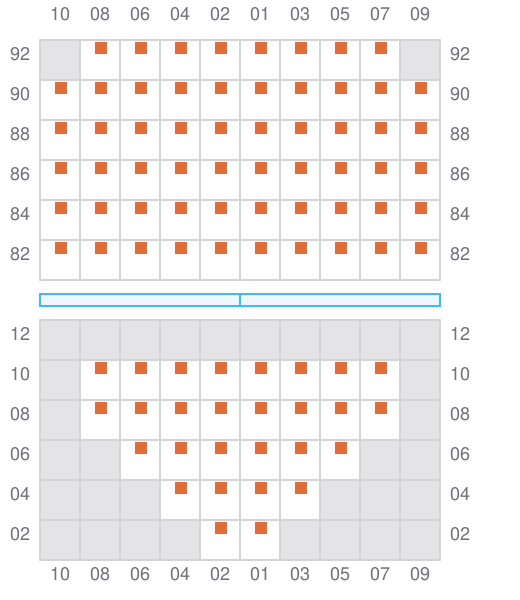

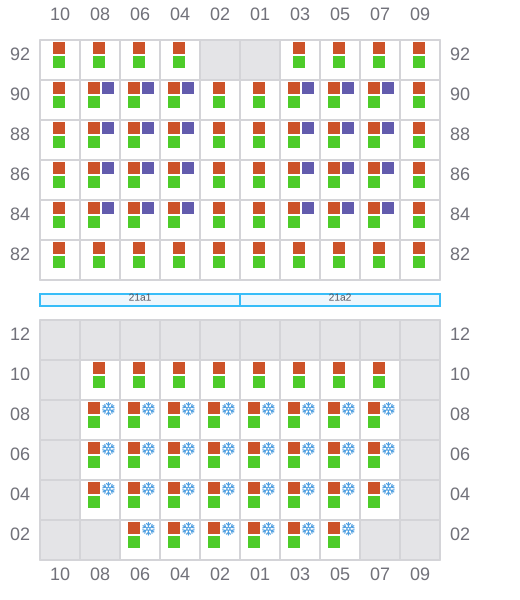

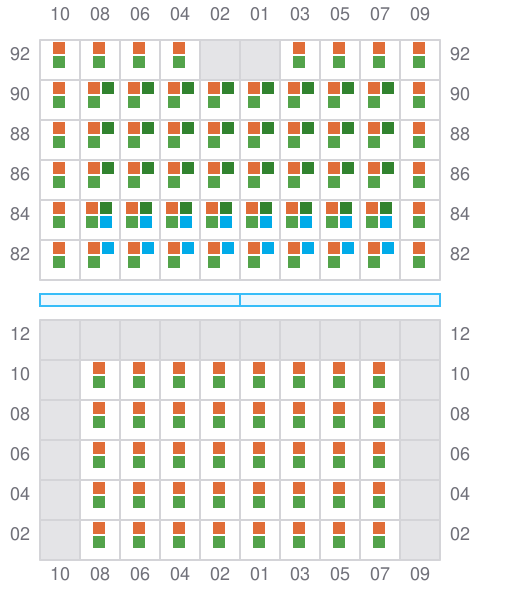

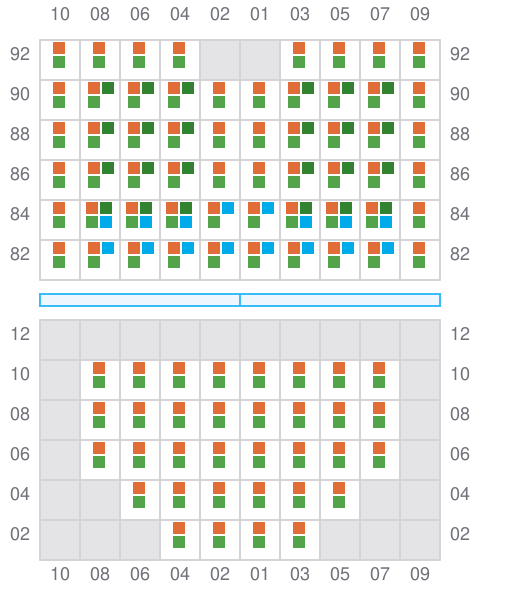

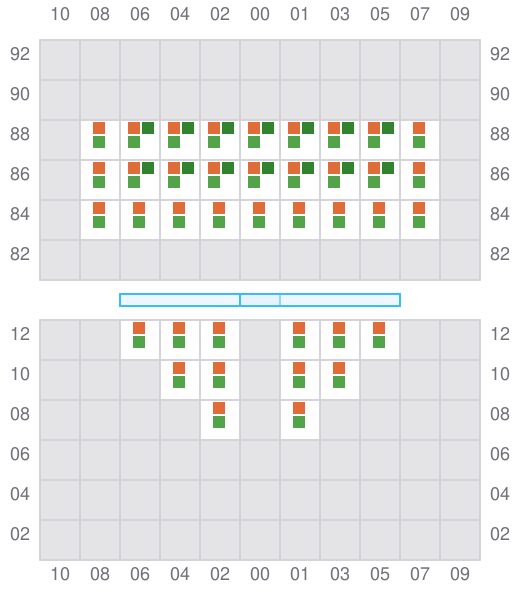

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

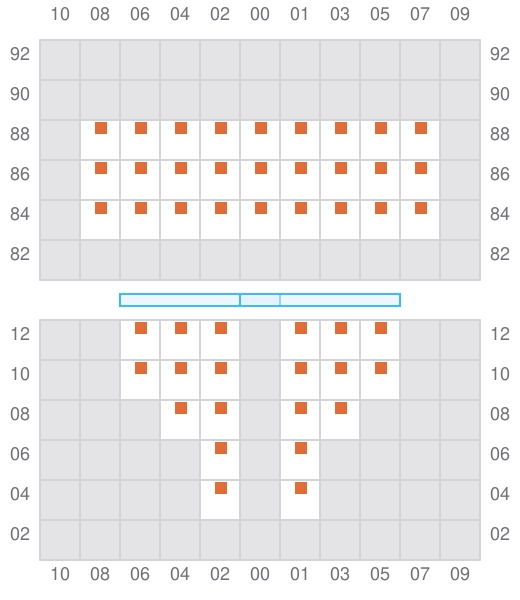

003
- ←
005 (006)
- →

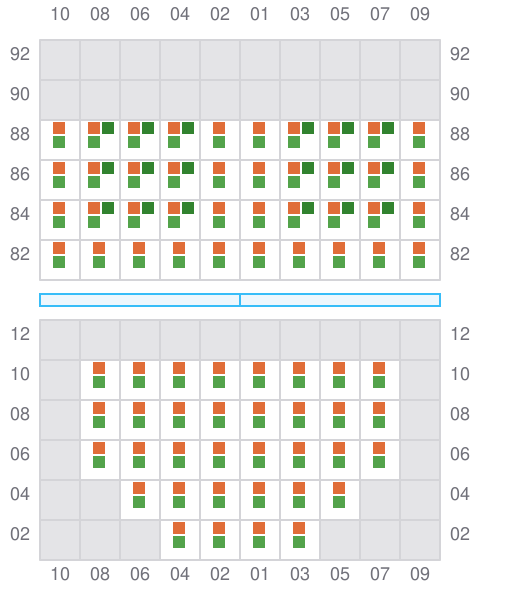

007
- ←
009 (010)
- →
011
- ←
- →
013 (014)
- →
- ? / ←
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- ? / →
021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
029
031 (032)
- → / ?
- ← / ?
033
- ← / ?
