MSC TAMPA
9317925 | 5LFN8 | 9317925 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MSC TAMPA
IMO Code:9317925
Call Sign:5LFN8
Line Operator:9317925
Class Name for Sister Ships:09I
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,044

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

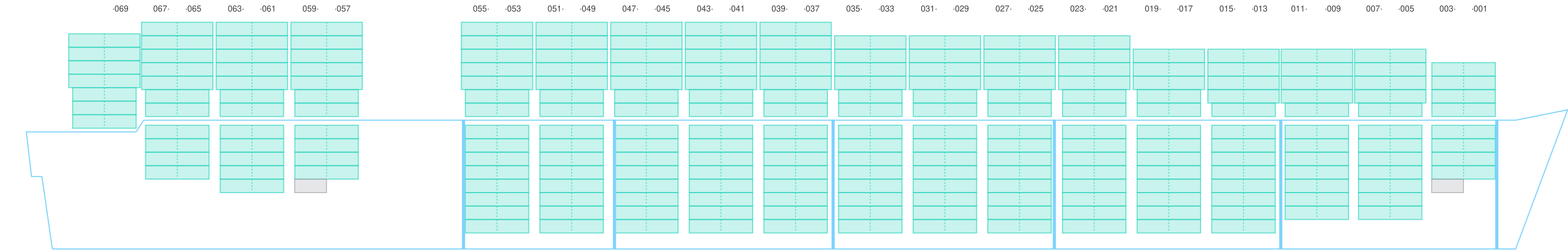

Side view of MSC TAMPA

Hatch-Covers View

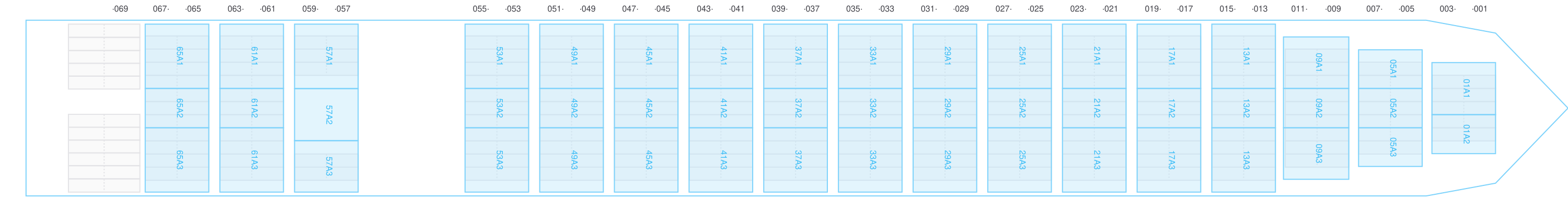

Deck view of MSC TAMPA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

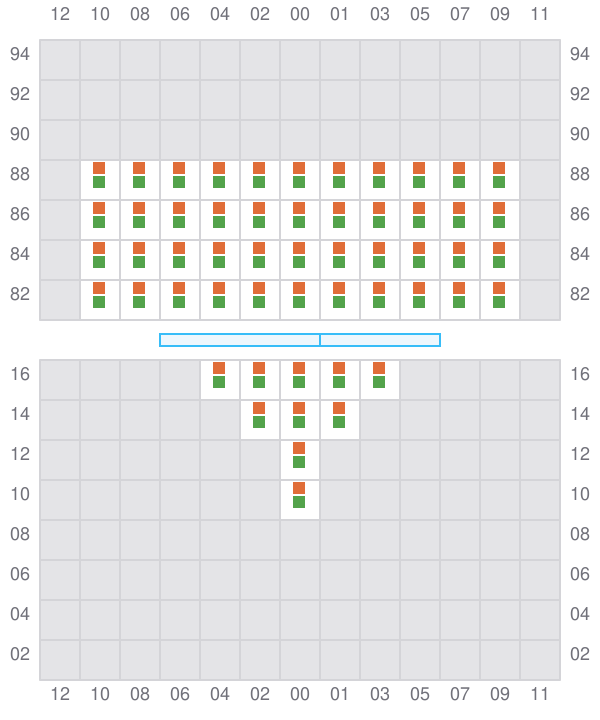

001 (002)

  • →
Bay 001 view and slots of MSC TAMPA

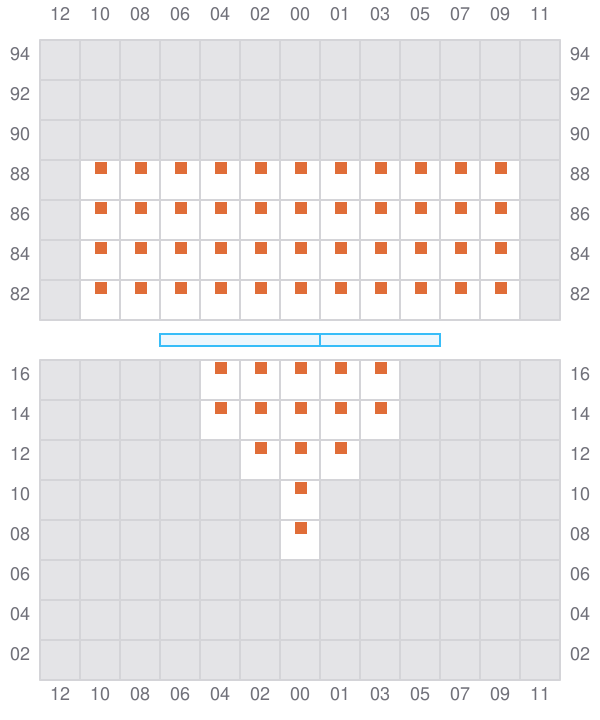

003

  • ←
Bay 003 view and slots of MSC TAMPA

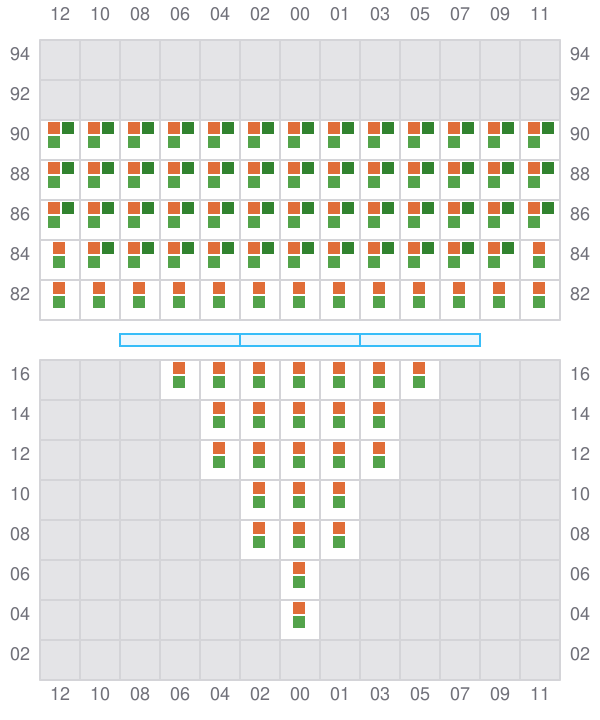

005 (006)

  • →
Bay 005 view and slots of MSC TAMPA

007

  • ←

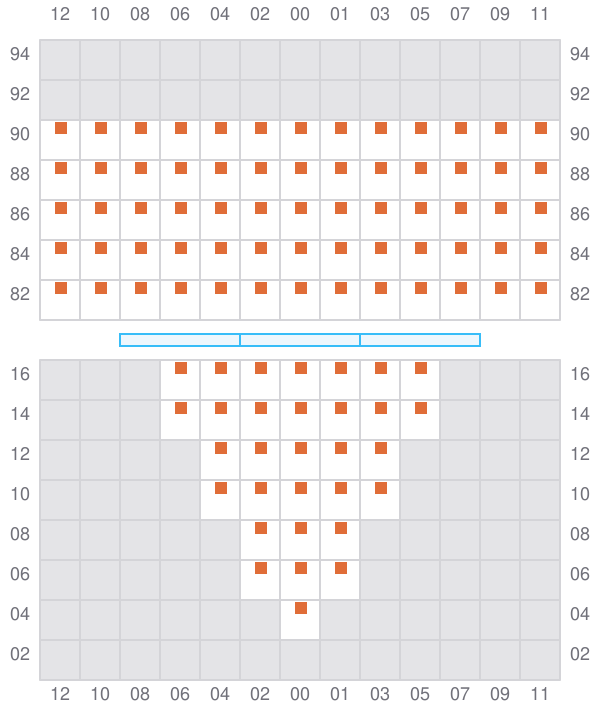

Bay 007 view and slots of MSC TAMPA

009 (010)

  • →

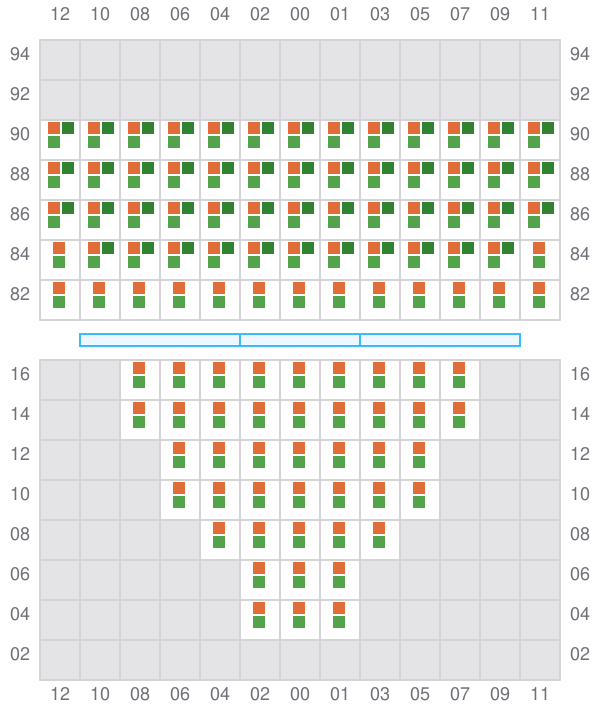

Bay 009 view and slots of MSC TAMPA

011

  • ←

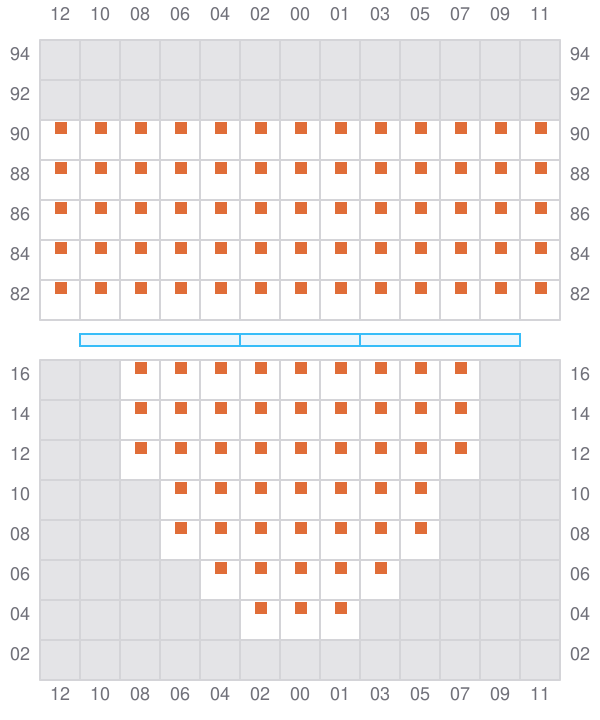

Bay 011 view and slots of MSC TAMPA

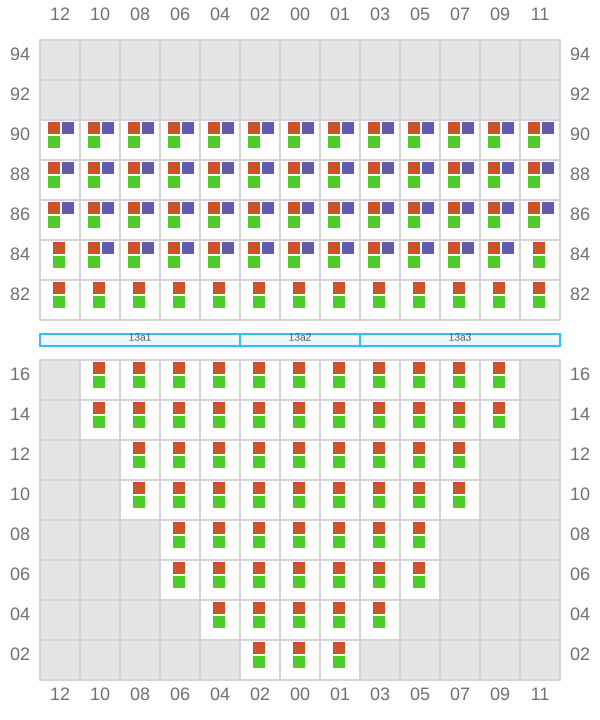

013 (014)

  • →
Bay 013 view and slots of MSC TAMPA

015

  • ←
  • → / ?

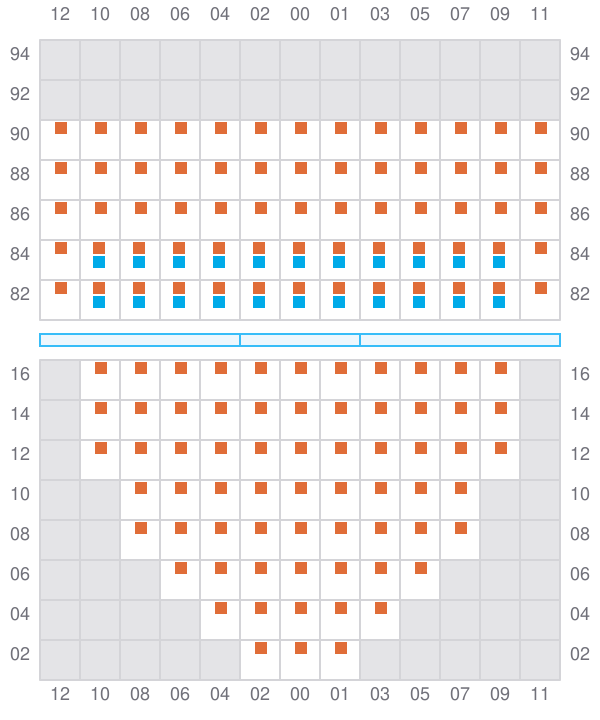

Bay 015 view and slots of MSC TAMPA

017 (018)

  • →

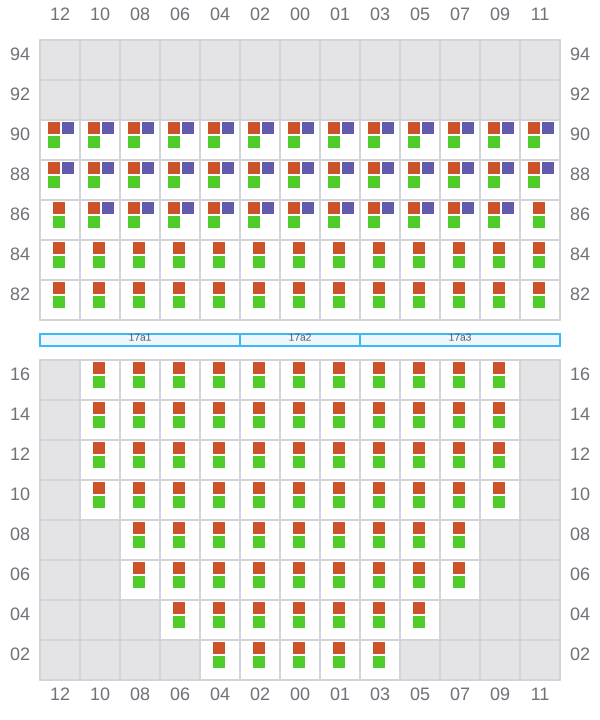

Bay 017 view and slots of MSC TAMPA

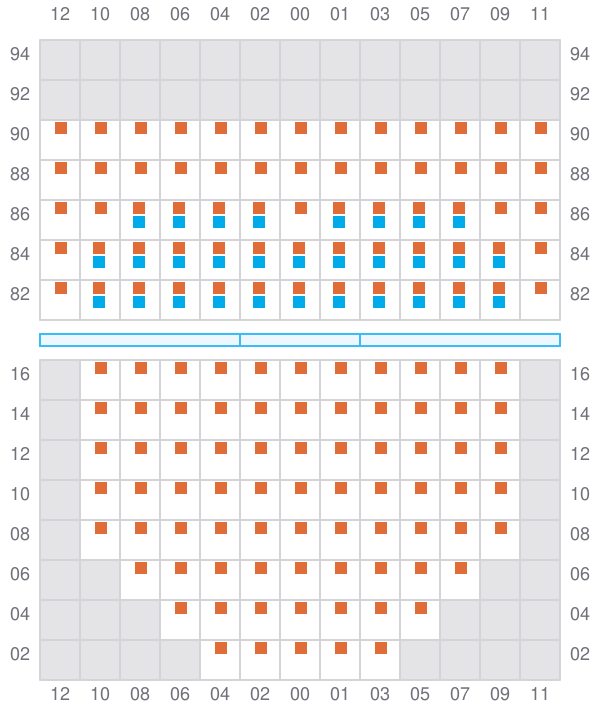

019

  • ←
  • → / ?
Bay 019 view and slots of MSC TAMPA

021 (022)

  • →

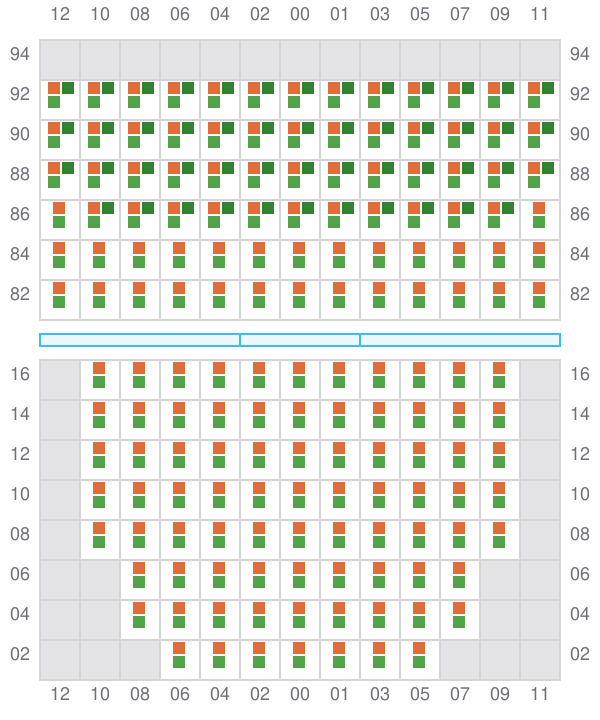

Bay 021 view and slots of MSC TAMPA

023

  • ←
  • → / ?

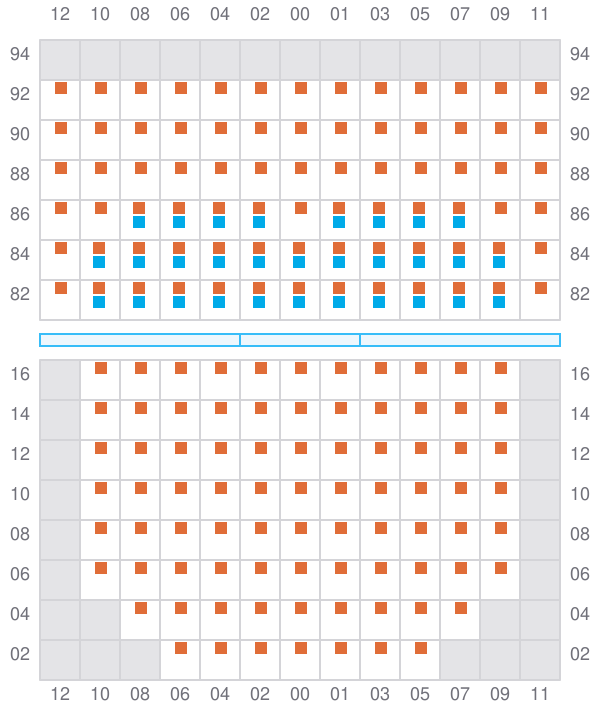

Bay 023 view and slots of MSC TAMPA

025 (026)

  • →
Bay 025 view and slots of MSC TAMPA

027

  • ←
  • →
Bay 027 view and slots of MSC TAMPA

029 (030)

  • →

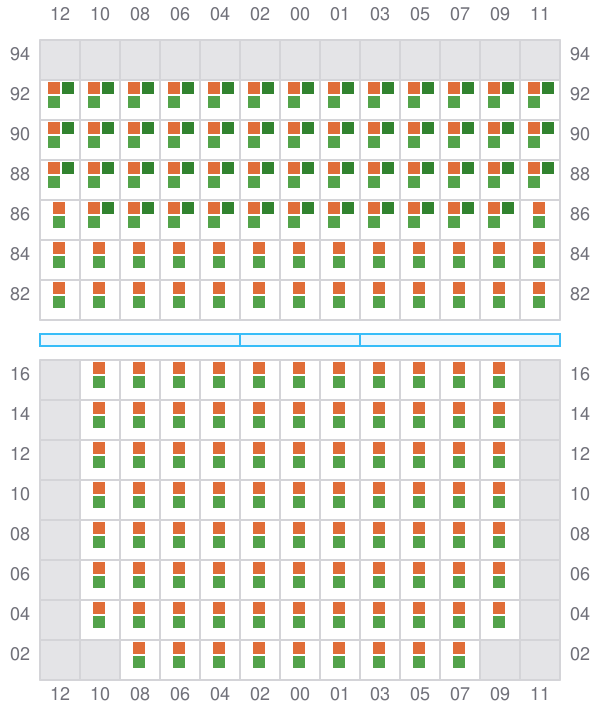

Bay 029 view and slots of MSC TAMPA

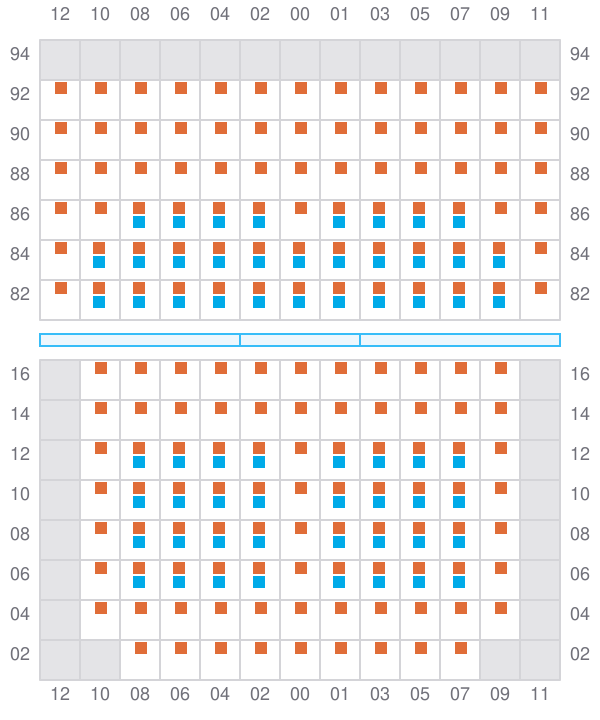

031

  • ←
  • →
Bay 031 view and slots of MSC TAMPA

033 (034)

  • →
Bay 033 view and slots of MSC TAMPA

035

  • ←
  • → / ?
Bay 035 view and slots of MSC TAMPA

037 (038)

  • →

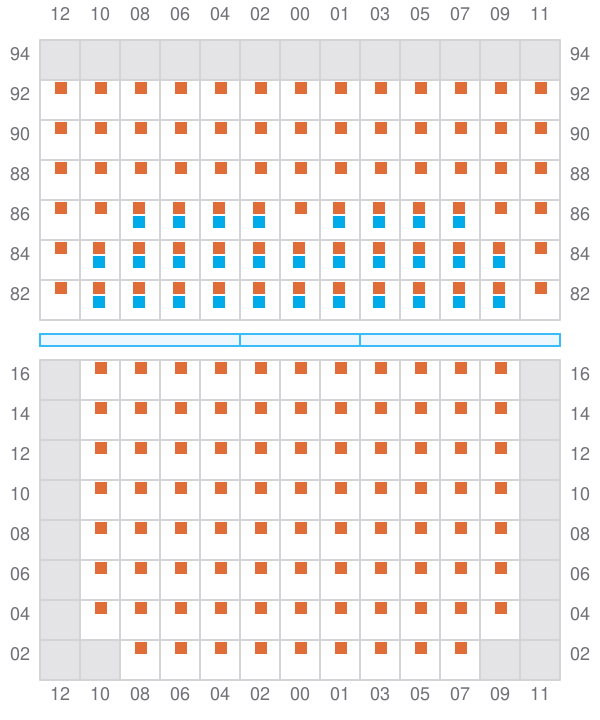

Bay 037 view and slots of MSC TAMPA

039

  • ←
  • →
Bay 039 view and slots of MSC TAMPA

041 (042)

  • →
Bay 041 view and slots of MSC TAMPA

043

  • ←
  • →
Bay 043 view and slots of MSC TAMPA

045 (046)

  • →

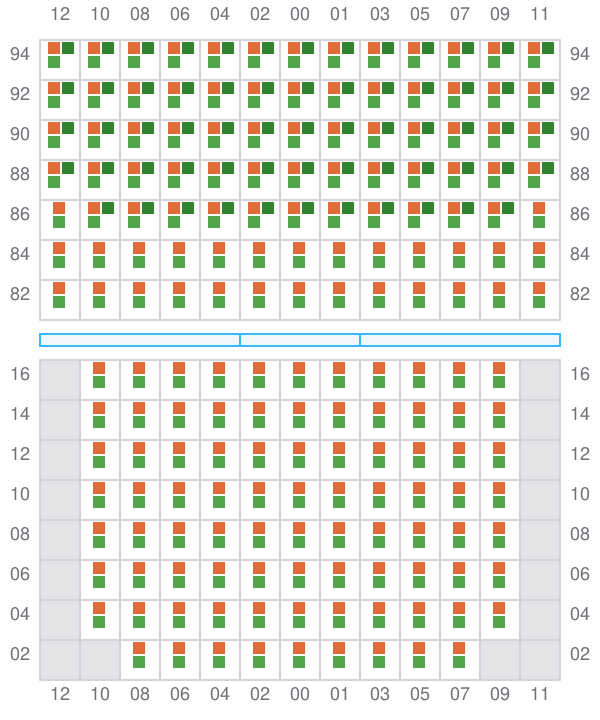

Bay 045 view and slots of MSC TAMPA

047

  • ←
  • →
Bay 047 view and slots of MSC TAMPA

049 (050)

  • →
Bay 049 view and slots of MSC TAMPA

051

  • ←
  • →

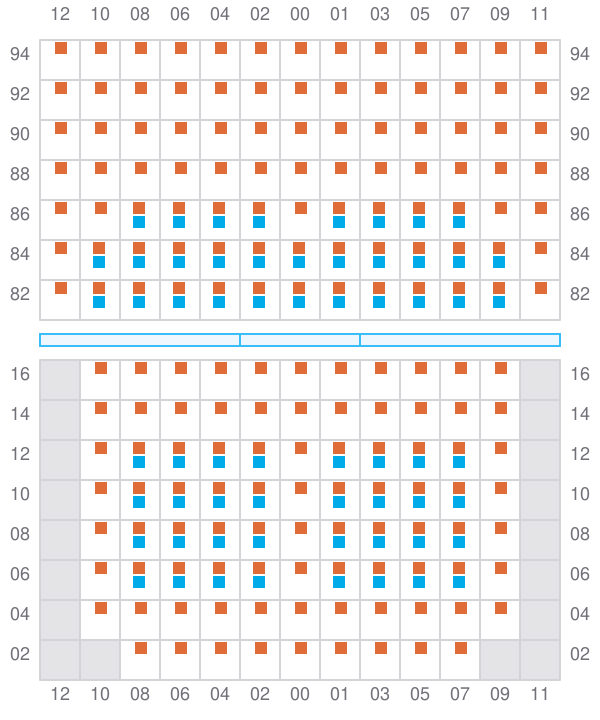

Bay 051 view and slots of MSC TAMPA

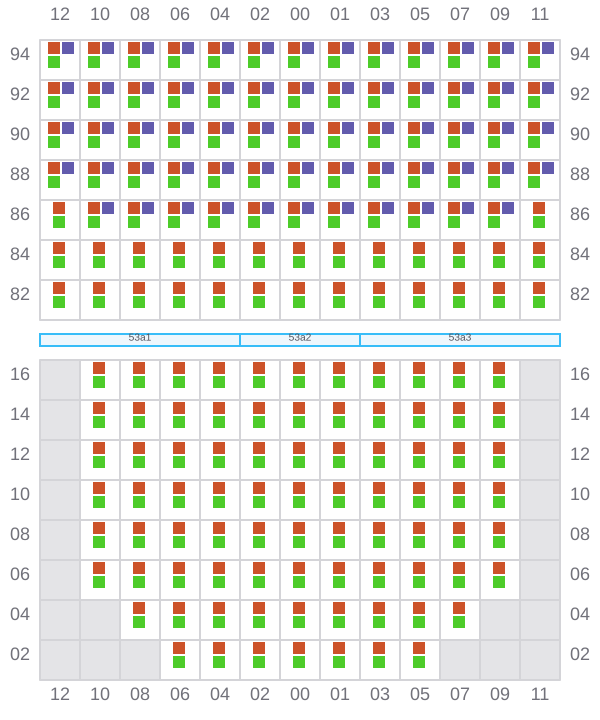

053 (054)

  • →
Bay 053 view and slots of MSC TAMPA

055

  • ←
  • →

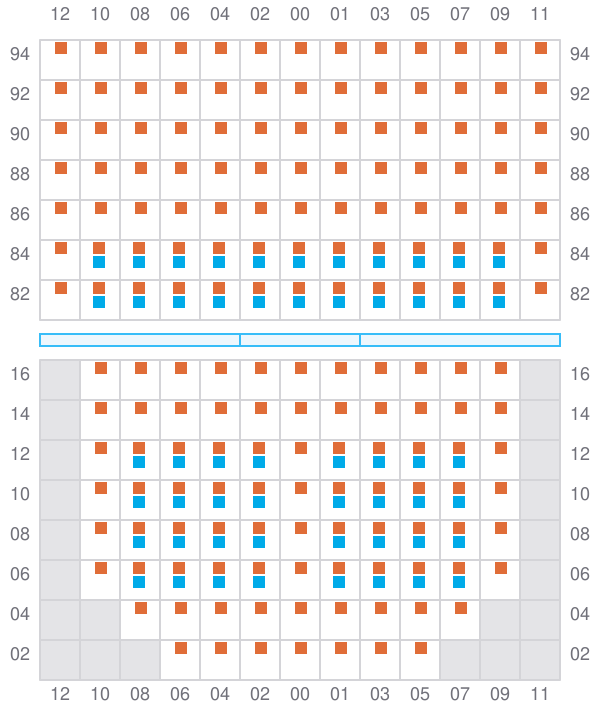

Bay 055 view and slots of MSC TAMPA

057 (058)

  • →

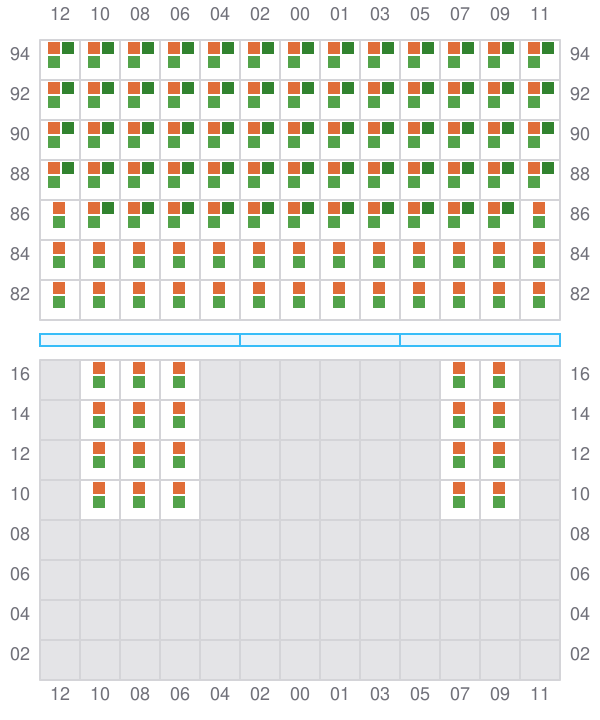

Bay 057 view and slots of MSC TAMPA

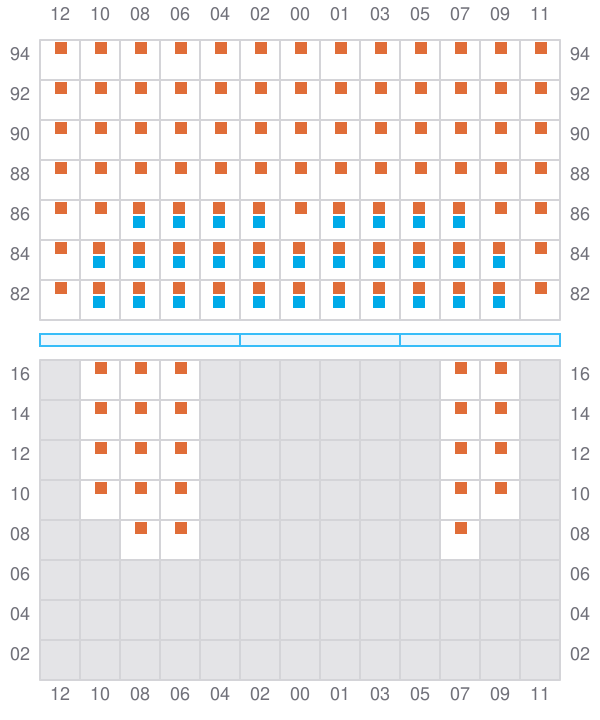

059

  • ←
  • → / ?
Bay 059 view and slots of MSC TAMPA

061 (062)

  • →

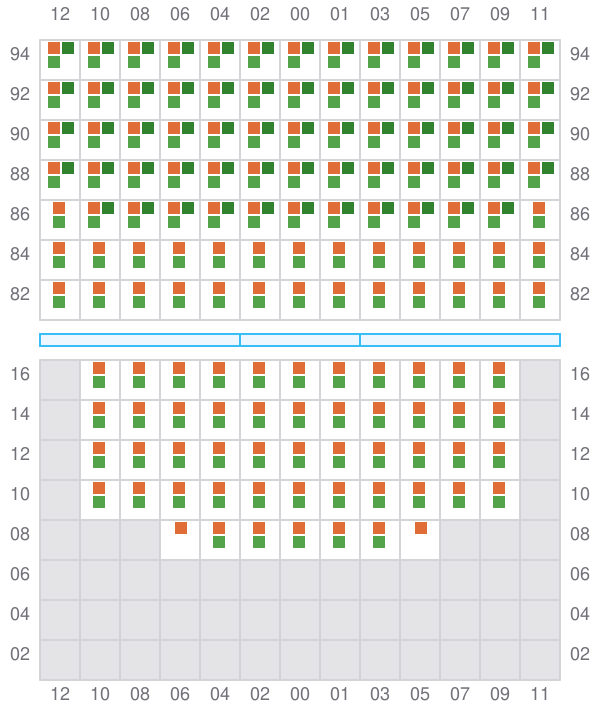

Bay 061 view and slots of MSC TAMPA

063

  • ←
  • → / ?

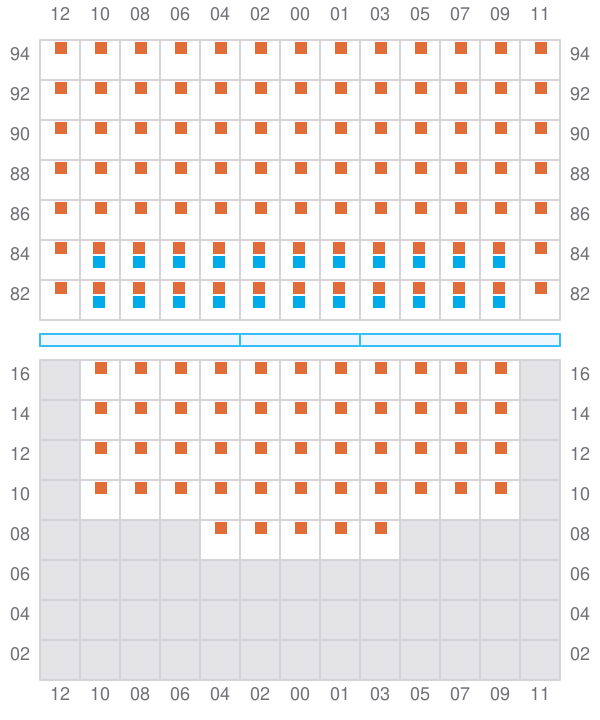

Bay 063 view and slots of MSC TAMPA

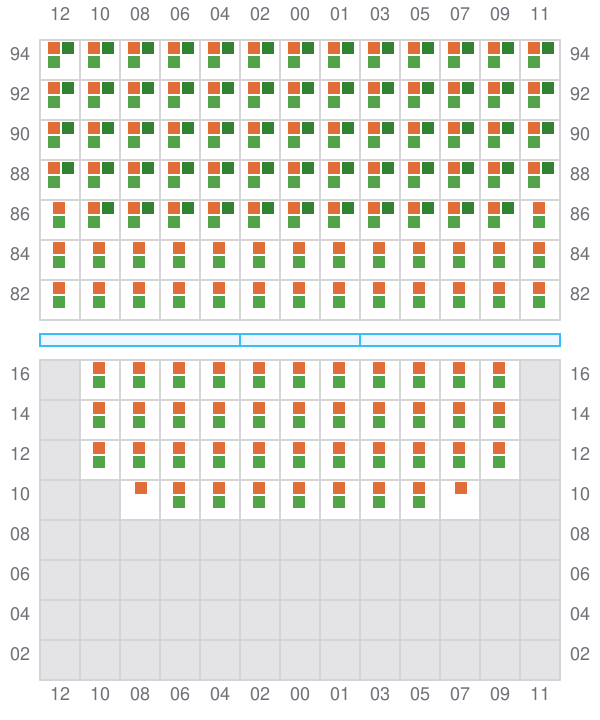

065 (066)

  • →
Bay 065 view and slots of MSC TAMPA

067

  • ←
  • → / ?
Bay 067 view and slots of MSC TAMPA

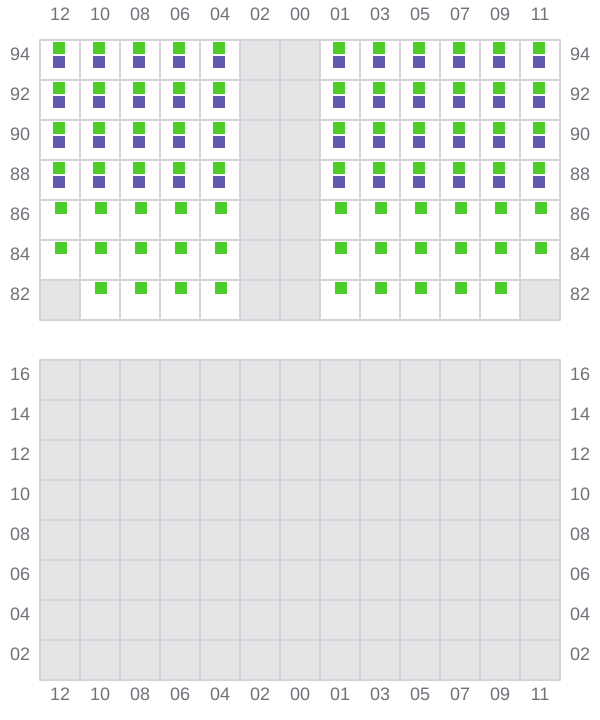

069 (070)

  • → / ?
Bay 069 view and slots of MSC TAMPA
