MSC TAMPICO V
9317937 | CQMD | MSC by ******************** Last update: Wed Jun 24 2026

General Info

Ship Name:MSC TAMPICO V
IMO Code:9317937
Call Sign:CQMD
Line Operator:MSC
Class Name for Sister Ships:MTAM
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):285.00
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:MSC TAMPICO

Size Summary

ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,048

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC TAMPICO V

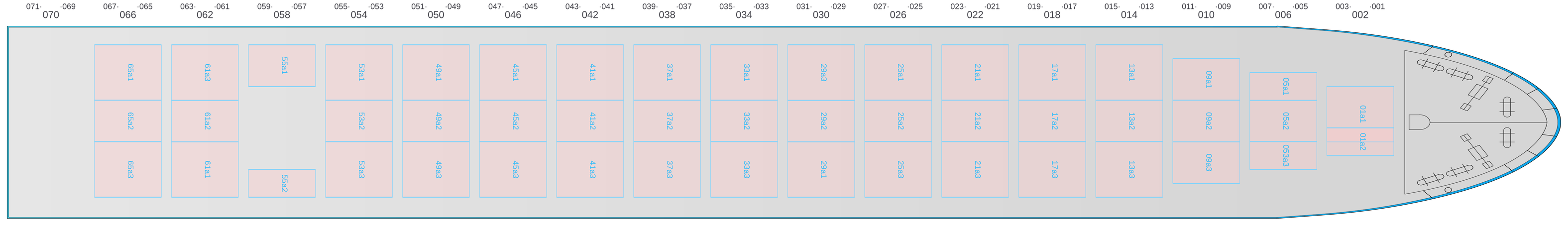

Hatch-Covers View

Deck view of MSC TAMPICO V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

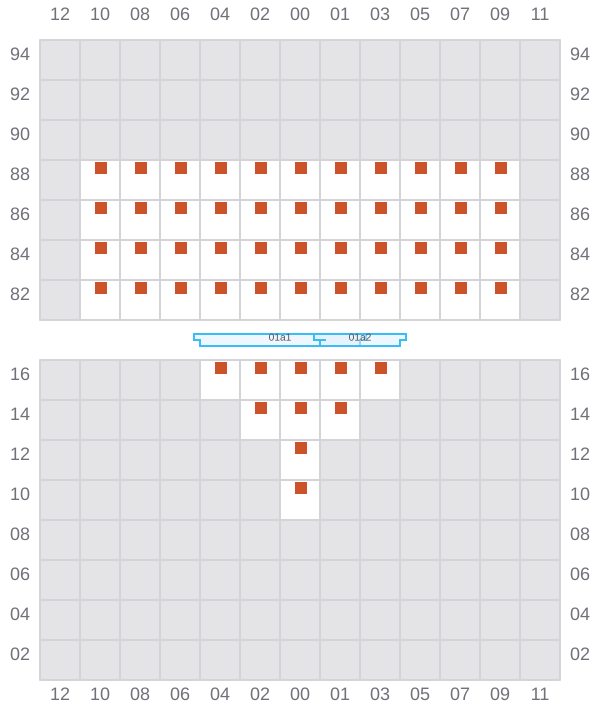

001

  • →
  • ✓
Bay 001 view and slots of MSC TAMPICO V

003 (002)

  • ←
  • ✓

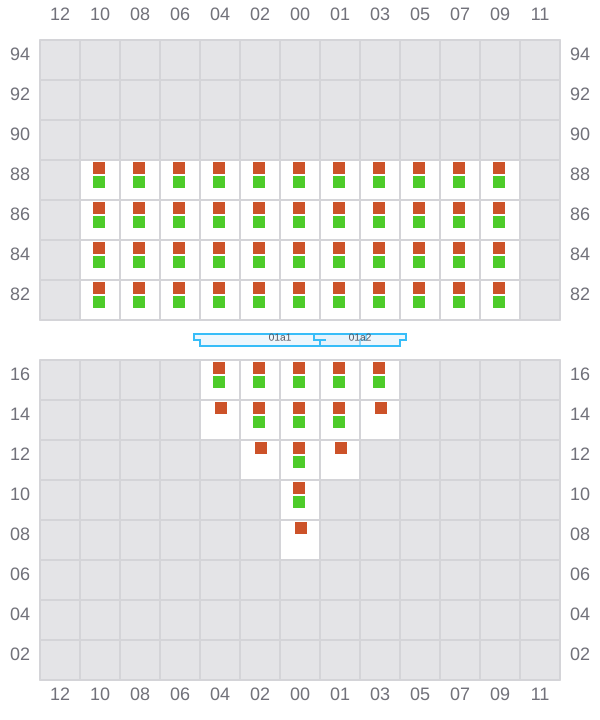

Bay 003 view and slots of MSC TAMPICO V

005

  • →
  • ✓

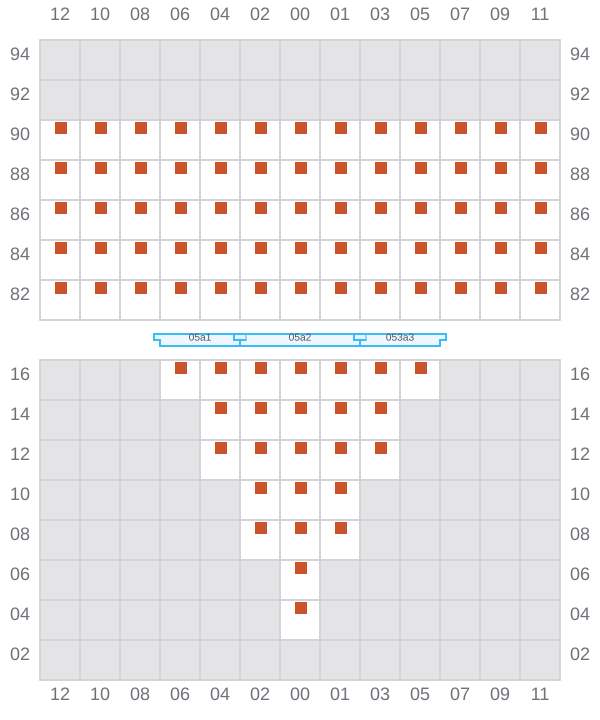

Bay 005 view and slots of MSC TAMPICO V

007 (006)

  • ←
  • ✓

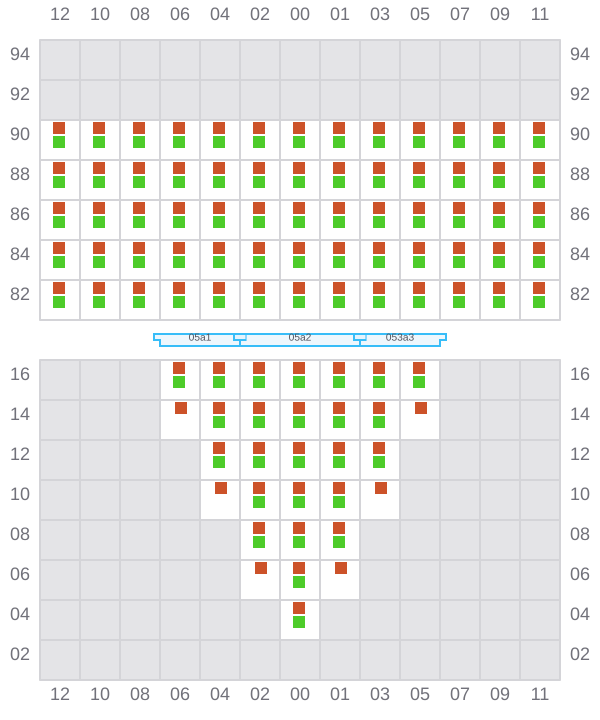

Bay 007 view and slots of MSC TAMPICO V

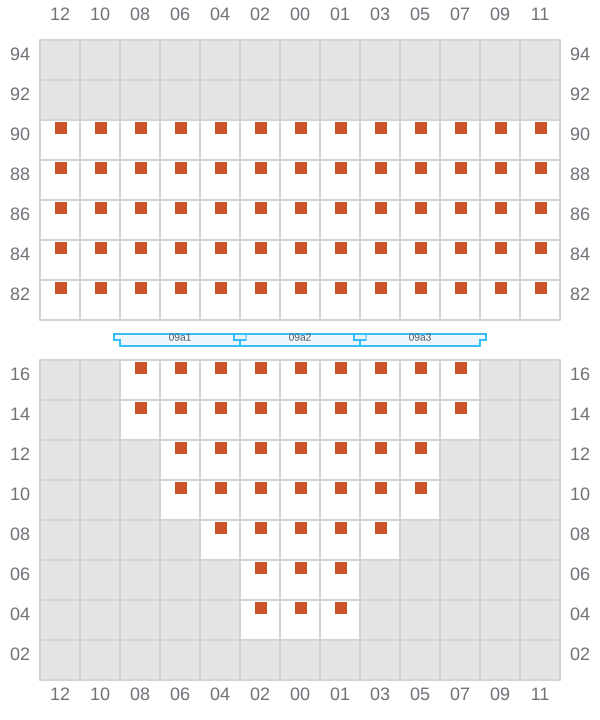

009

  • →
  • ✓
Bay 009 view and slots of MSC TAMPICO V

011 (010)

  • ←
  • ✓

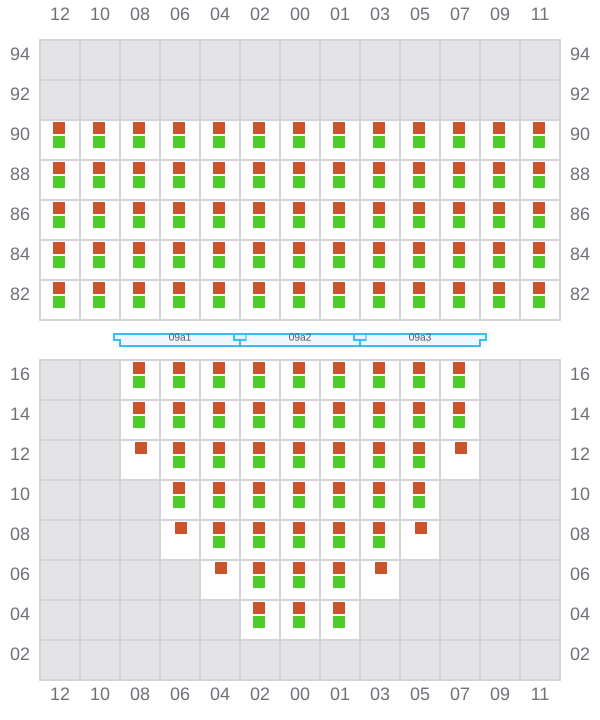

Bay 011 view and slots of MSC TAMPICO V

013

  • →
  • ✓

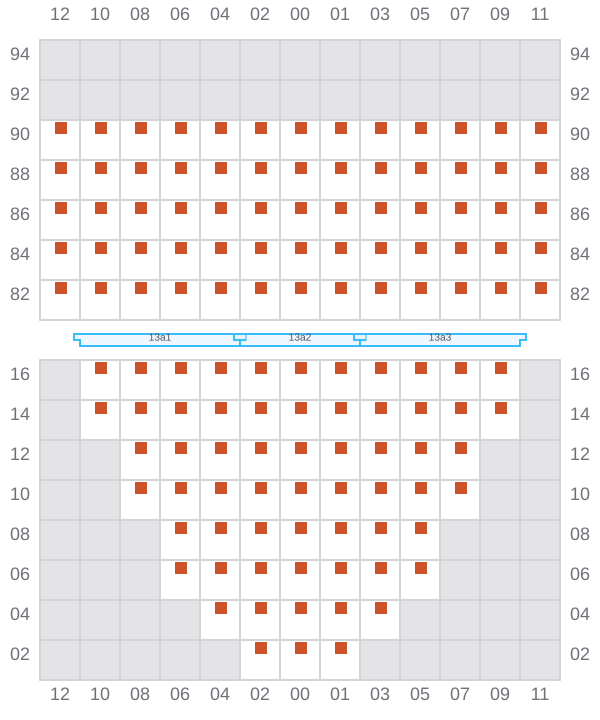

Bay 013 view and slots of MSC TAMPICO V

015 (014)

  • ←
  • ✓

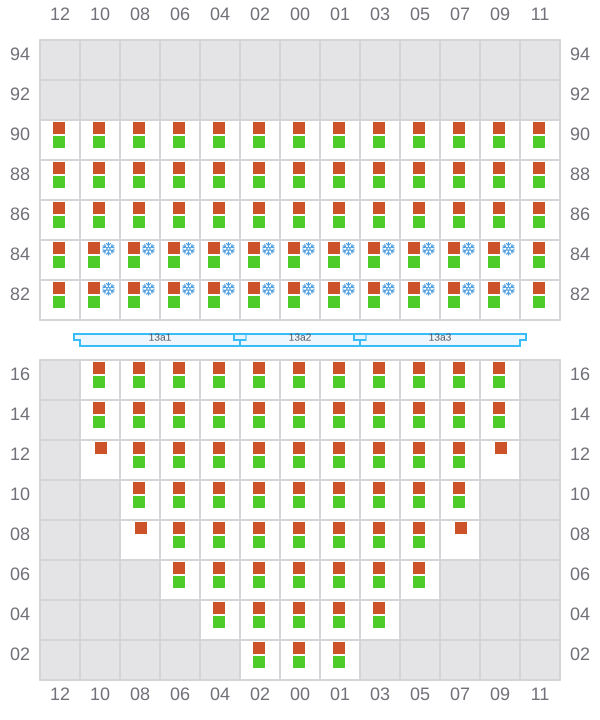

Bay 015 view and slots of MSC TAMPICO V

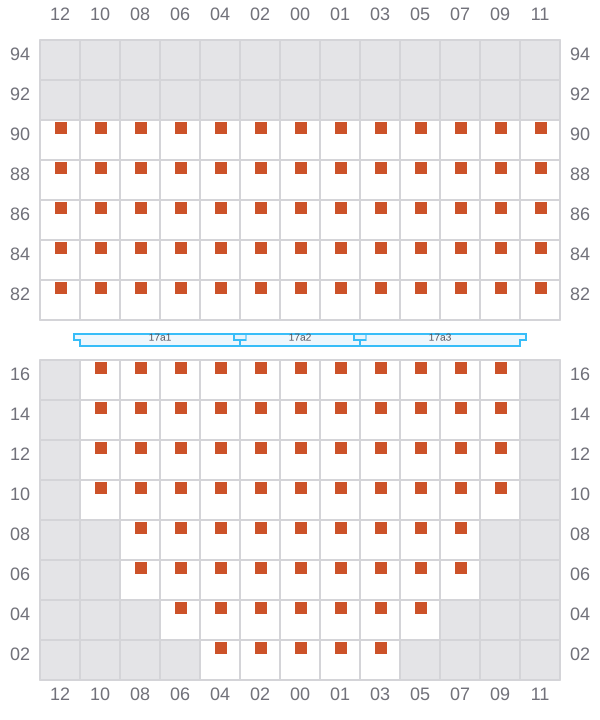

017

  • →
  • ✓
Bay 017 view and slots of MSC TAMPICO V

019 (018)

  • ←
  • ✓

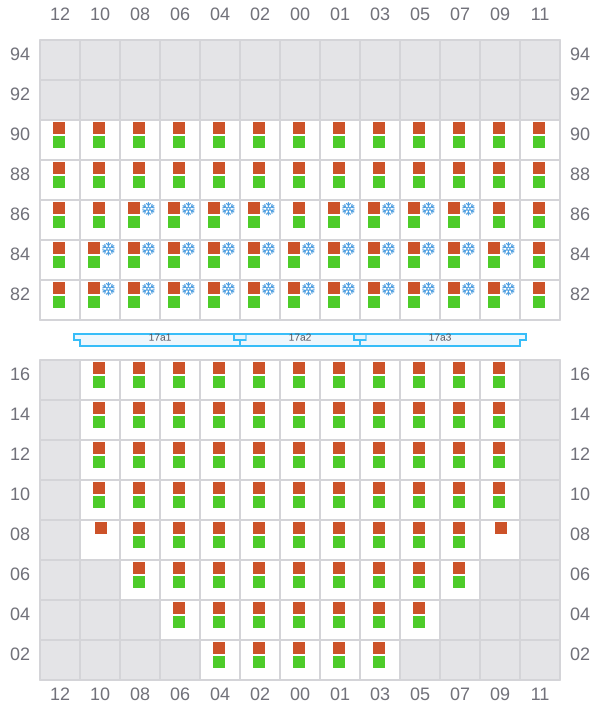

Bay 019 view and slots of MSC TAMPICO V

021

  • →
  • ✓
Bay 021 view and slots of MSC TAMPICO V

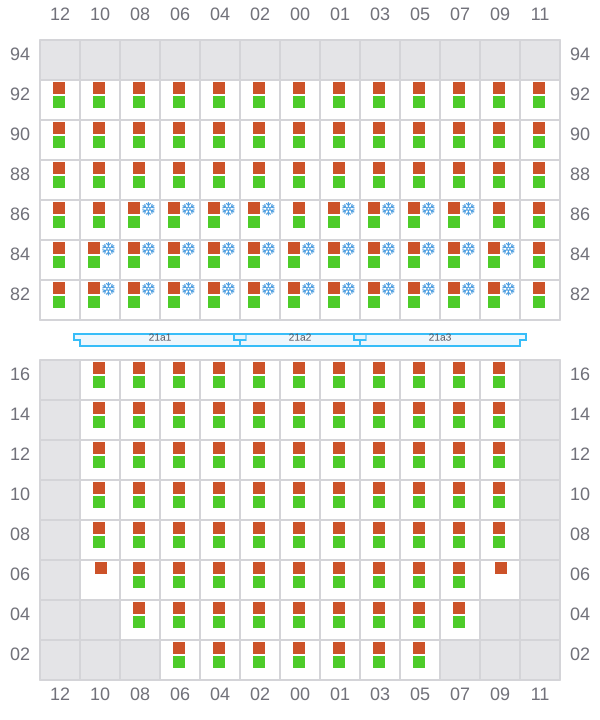

023 (022)

  • ←
  • ✓
Bay 023 view and slots of MSC TAMPICO V

025

  • →
  • ✓

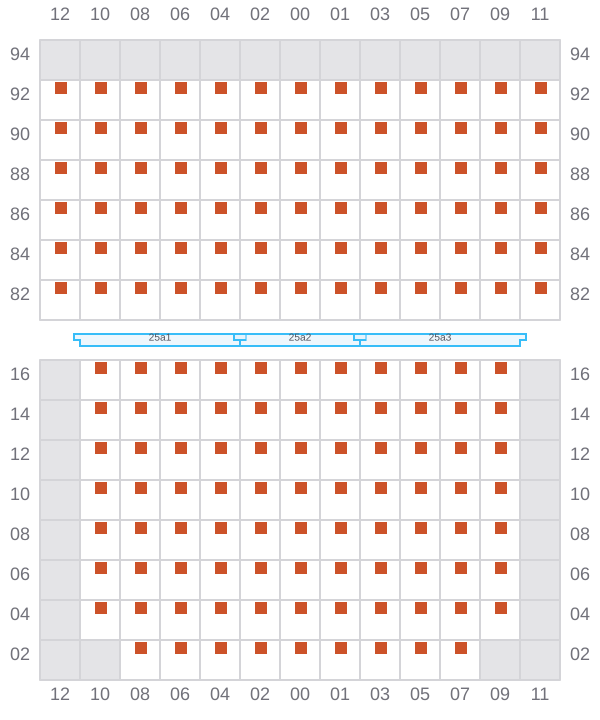

Bay 025 view and slots of MSC TAMPICO V

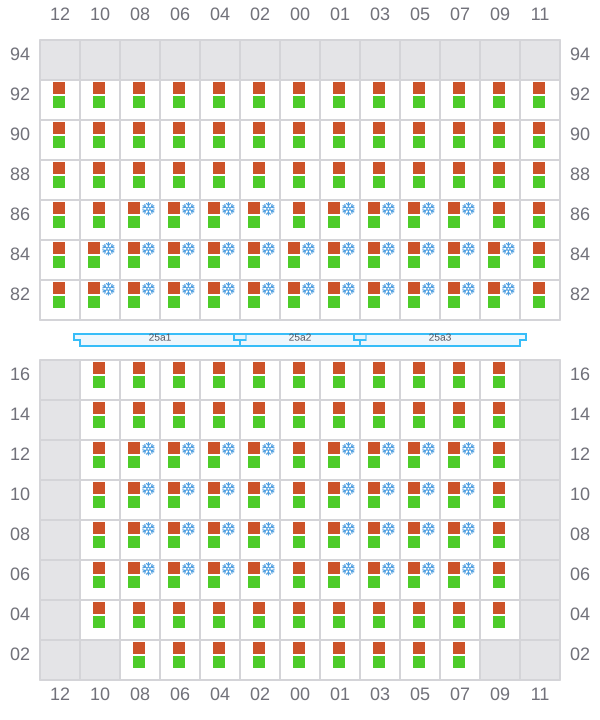

027 (026)

  • ←
  • ✓
Bay 027 view and slots of MSC TAMPICO V

029

  • →
  • ✓
Bay 029 view and slots of MSC TAMPICO V

031 (030)

  • ←
  • ✓
Bay 031 view and slots of MSC TAMPICO V

033

  • →
  • ✓

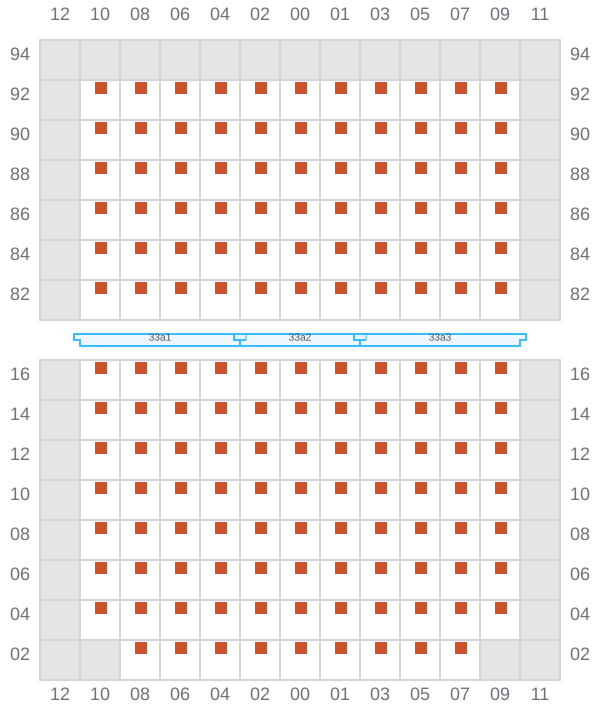

Bay 033 view and slots of MSC TAMPICO V

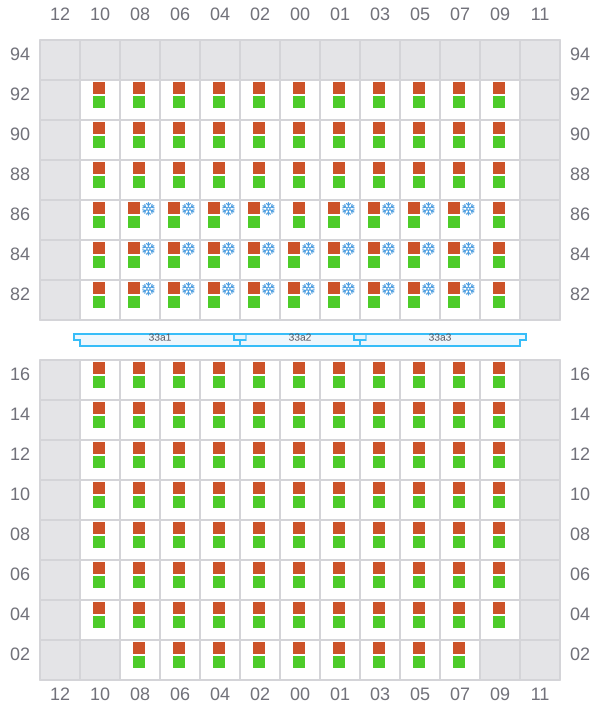

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC TAMPICO V

037

  • →
  • ✓
Bay 037 view and slots of MSC TAMPICO V

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC TAMPICO V

041

  • →
  • ✓
Bay 041 view and slots of MSC TAMPICO V

043 (042)

  • ←
  • ✓
Bay 043 view and slots of MSC TAMPICO V

045

  • →
  • ✓
Bay 045 view and slots of MSC TAMPICO V

047 (046)

  • ←
  • ✓
Bay 047 view and slots of MSC TAMPICO V

049

  • →
  • ✓
Bay 049 view and slots of MSC TAMPICO V

051 (050)

  • ←
  • ✓

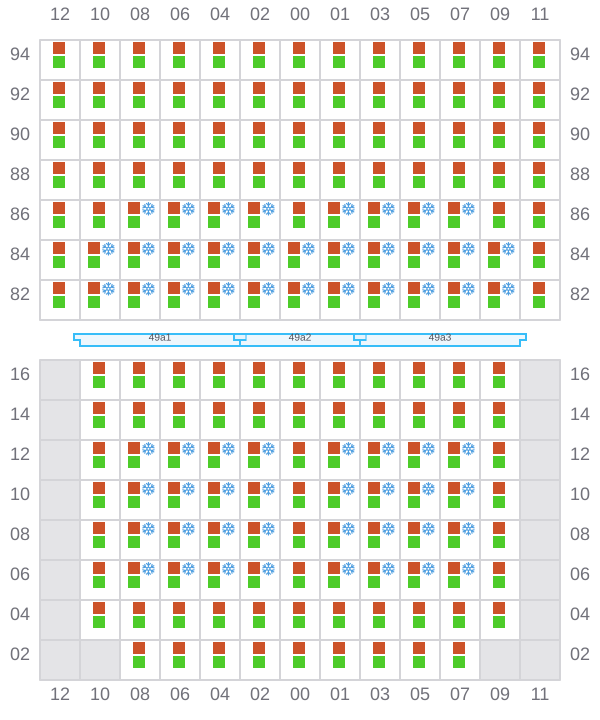

Bay 051 view and slots of MSC TAMPICO V

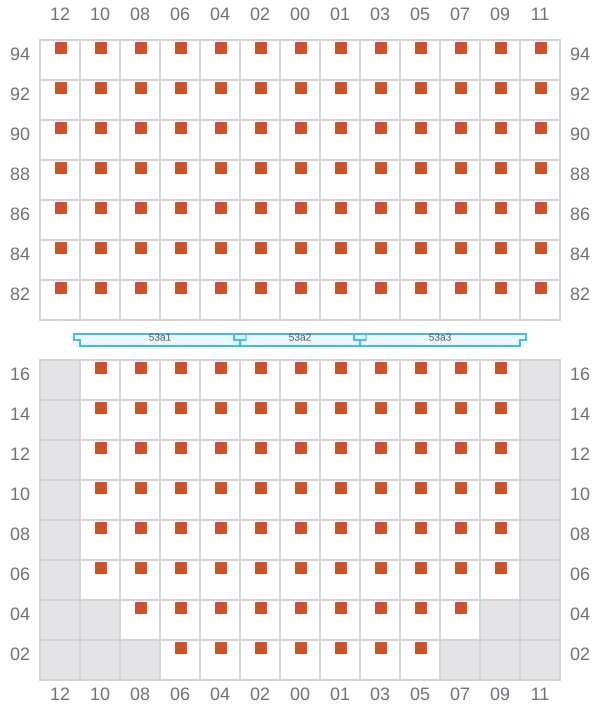

053

  • →
  • ✓
Bay 053 view and slots of MSC TAMPICO V

055 (054)

  • ←
  • ✓

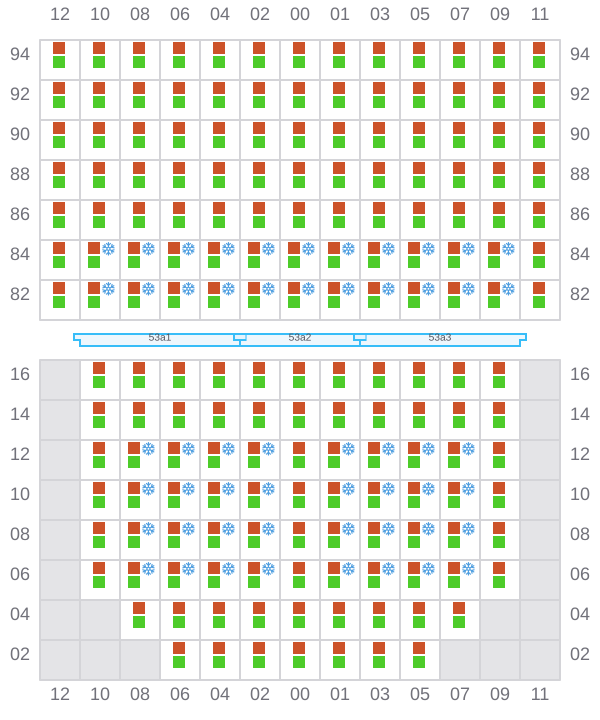

Bay 055 view and slots of MSC TAMPICO V

057

  • →
  • ✓

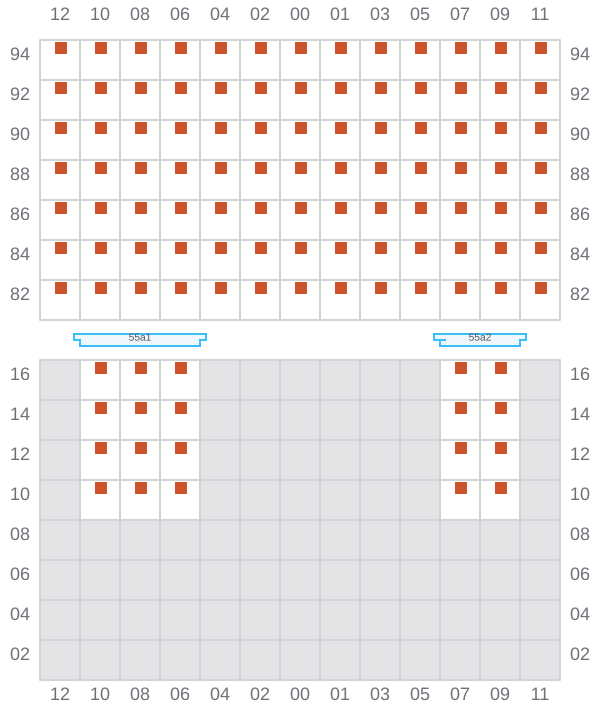

Bay 057 view and slots of MSC TAMPICO V

059 (058)

  • ←
  • ✓

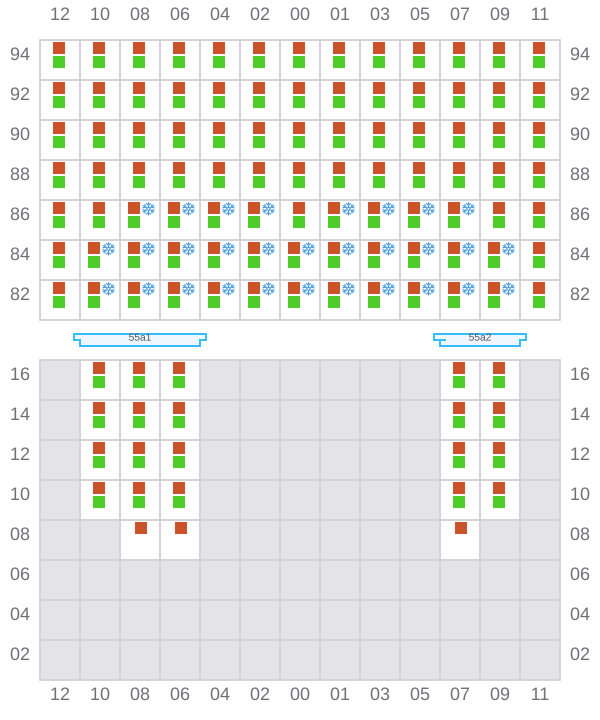

Bay 059 view and slots of MSC TAMPICO V

061

  • →
  • ✓

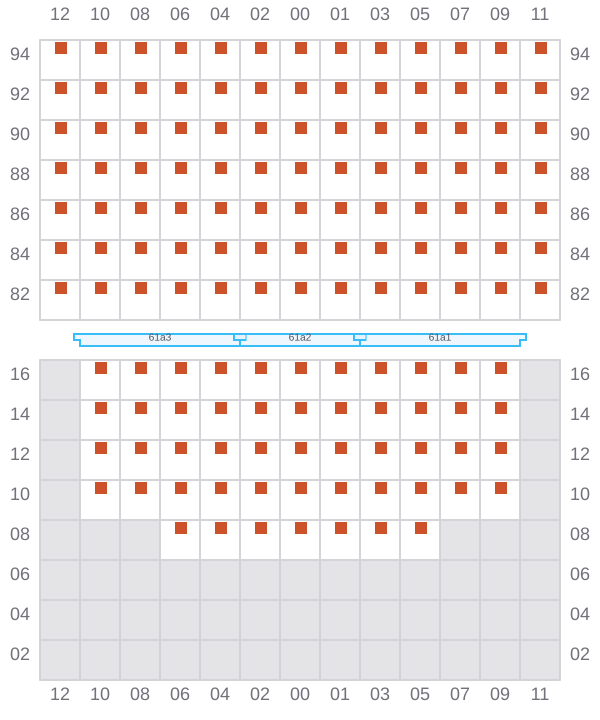

Bay 061 view and slots of MSC TAMPICO V

063 (062)

  • ←
  • ✓

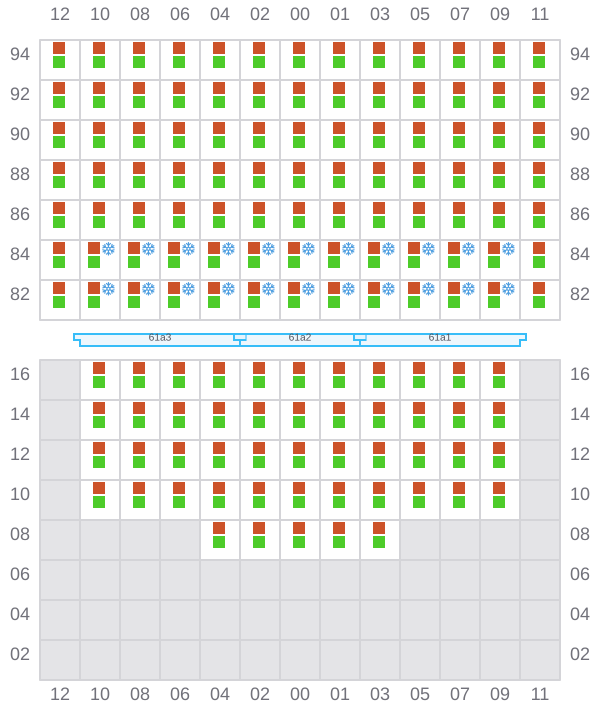

Bay 063 view and slots of MSC TAMPICO V

065

  • →
  • ✓

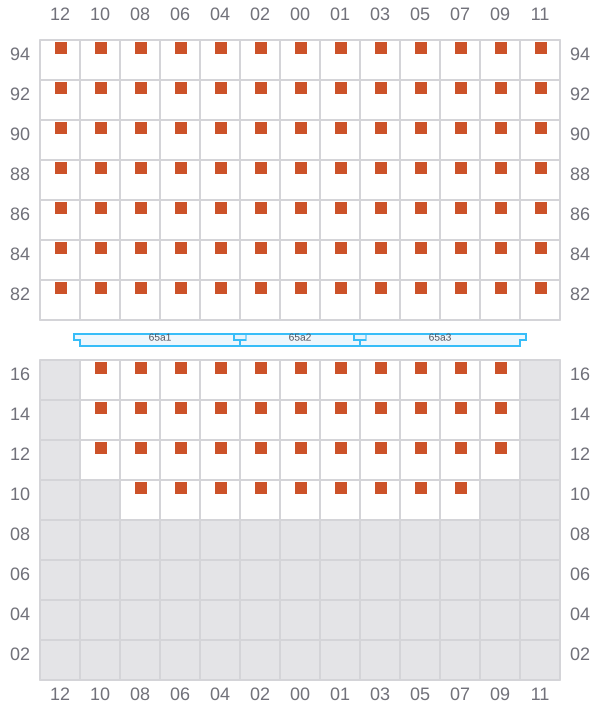

Bay 065 view and slots of MSC TAMPICO V

067 (066)

  • ←
  • ✓

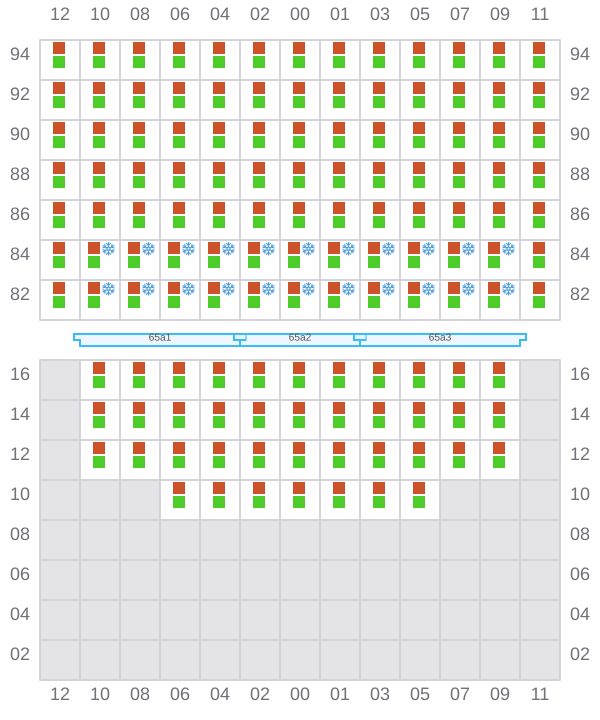

Bay 067 view and slots of MSC TAMPICO V

069

  • →
  • ✓

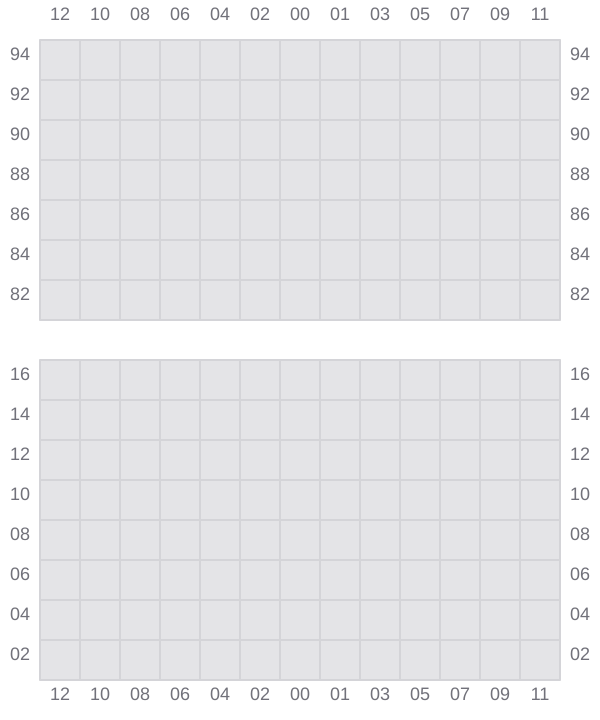

Bay 069 view and slots of MSC TAMPICO V

071 (070)

  • ←
  • ? / ?
  • ? / ?
  • ✓

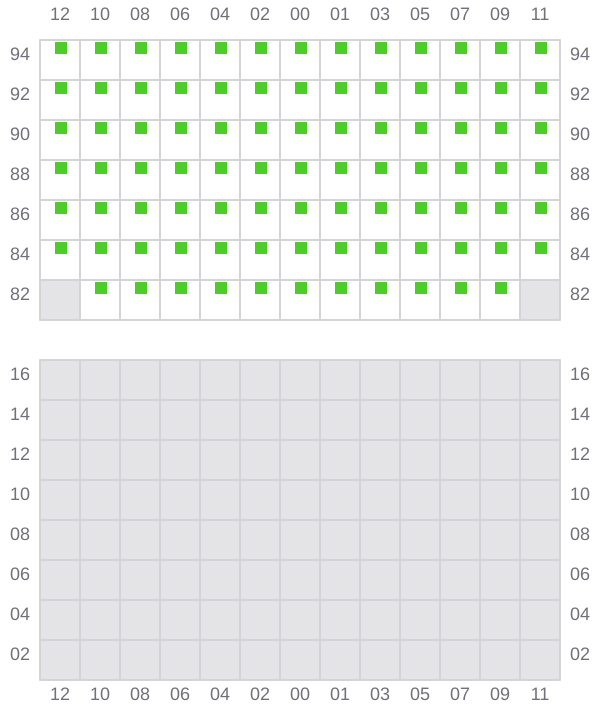

Bay 071 view and slots of MSC TAMPICO V
