MSC TARA III
9259381 | 5LCM6 | 9259381 by ********* Last update: Thu Jul 11 2024
General Info
Ship Name:MSC TARA III
IMO Code:9259381
Call Sign:5LCM6
Line Operator:9259381
Class Name for Sister Ships:MSL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):189.51
LOA (Length Overall):199.93
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,530
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

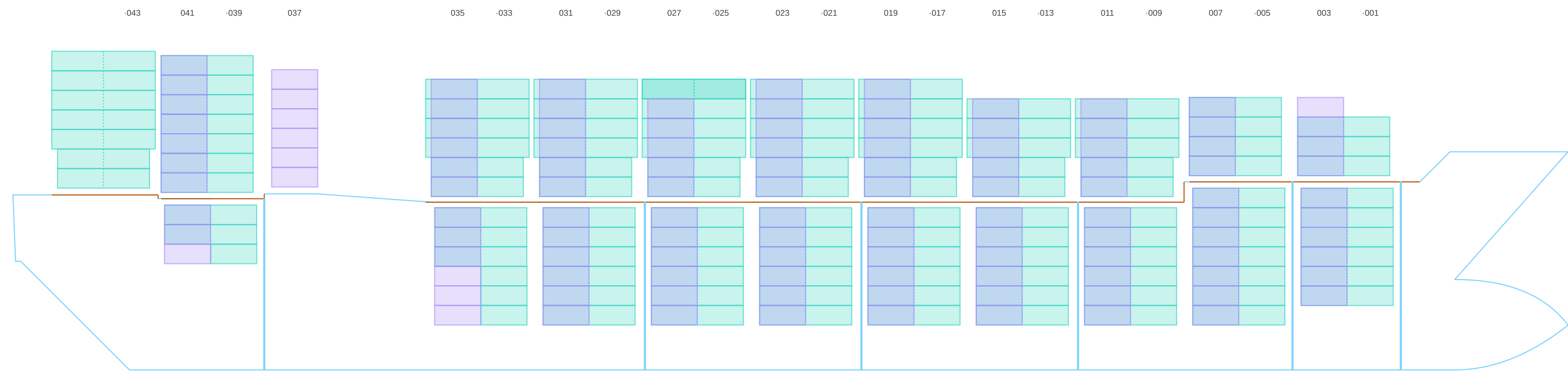

Side View
Hatch-Covers View

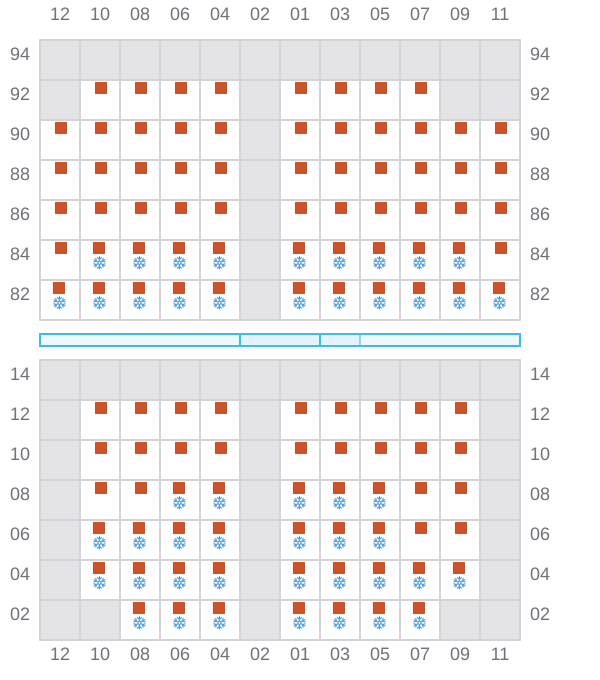

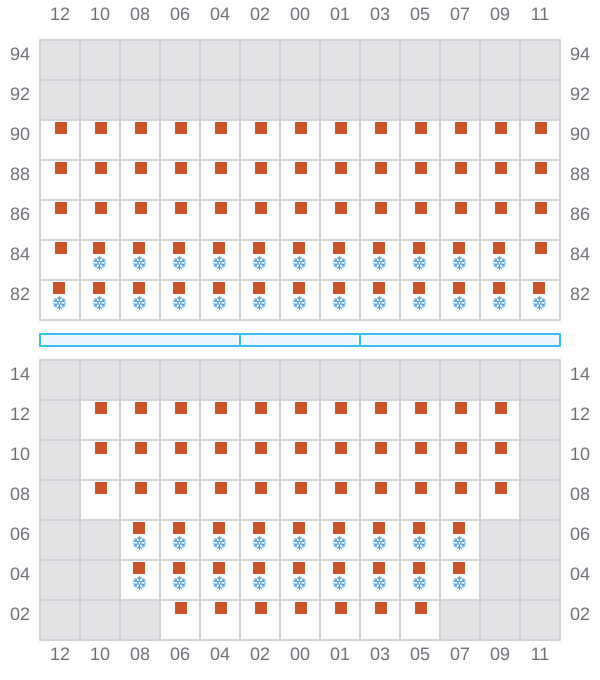

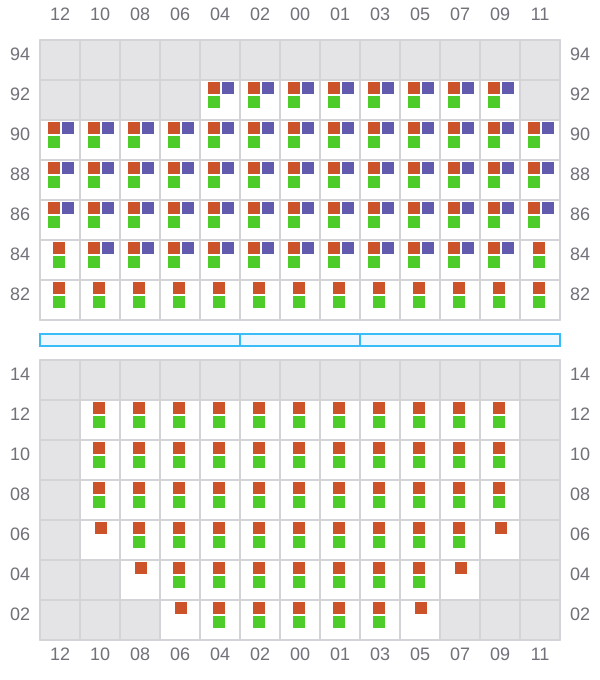

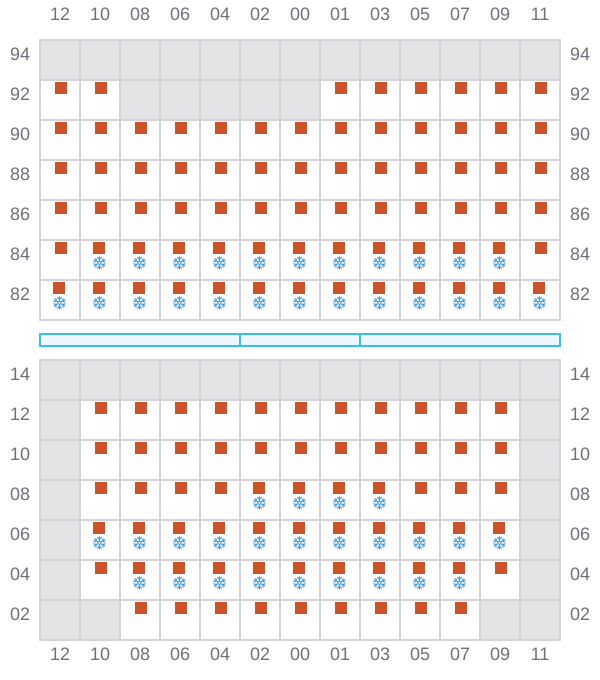

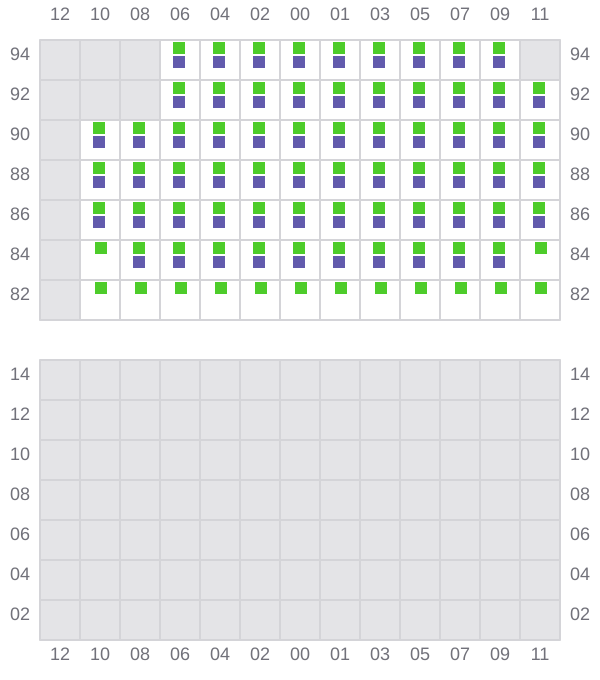

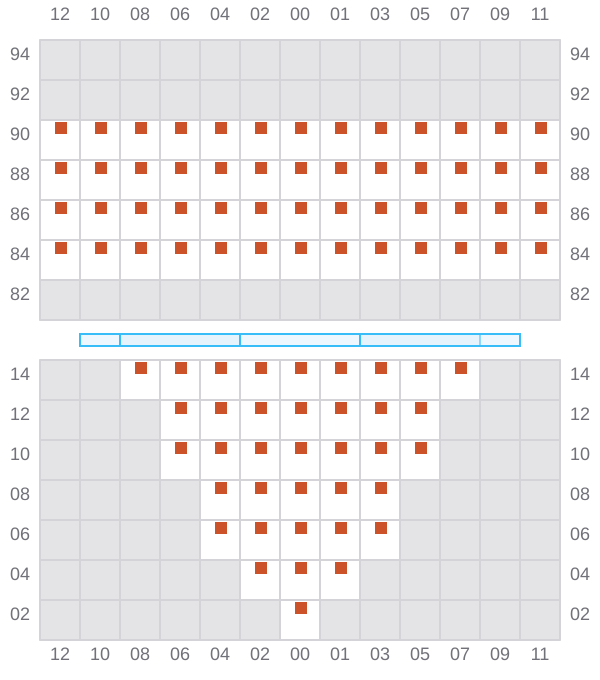

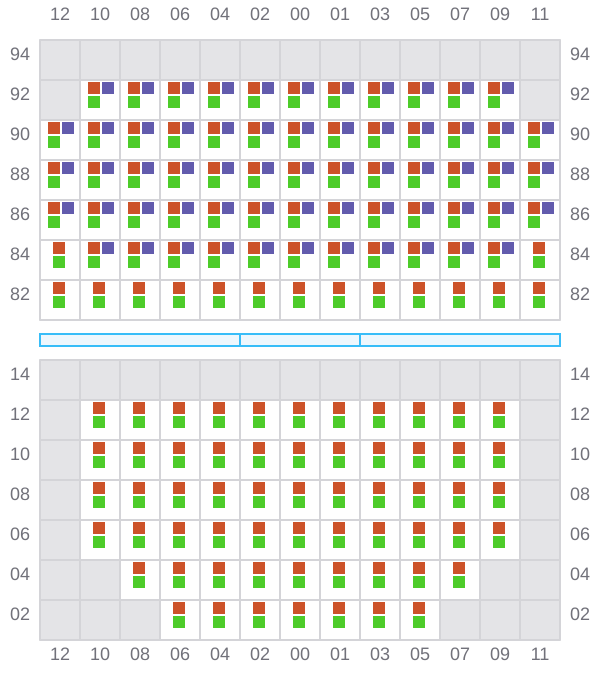

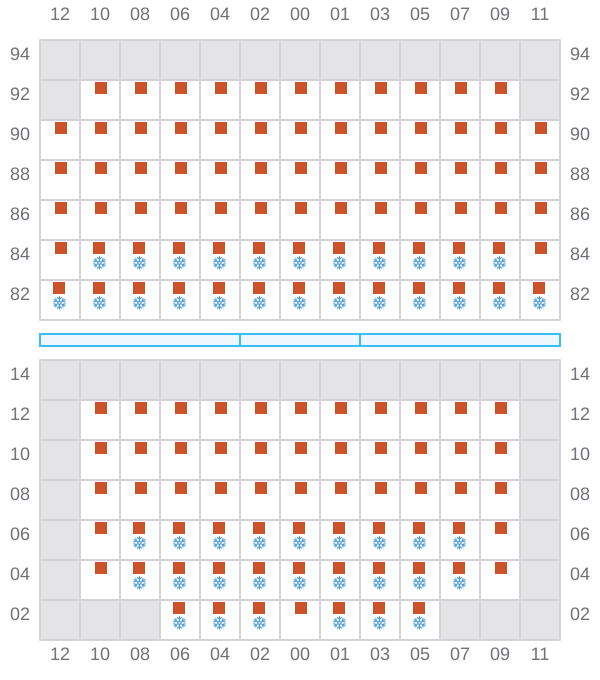

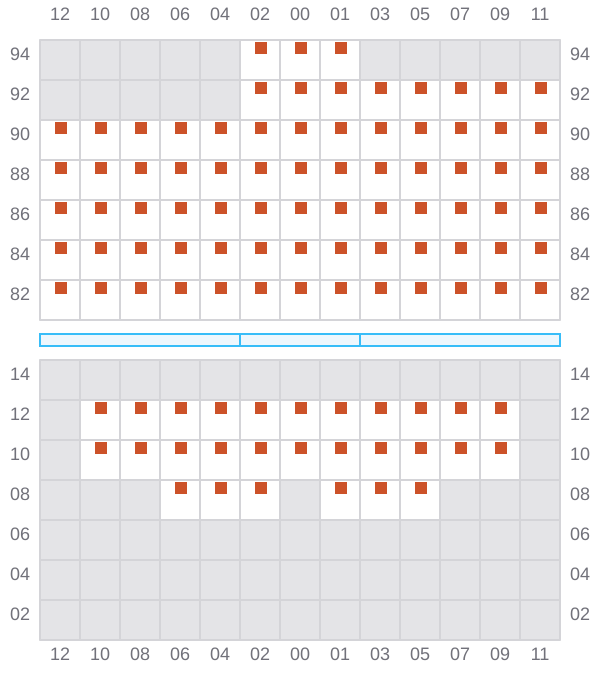

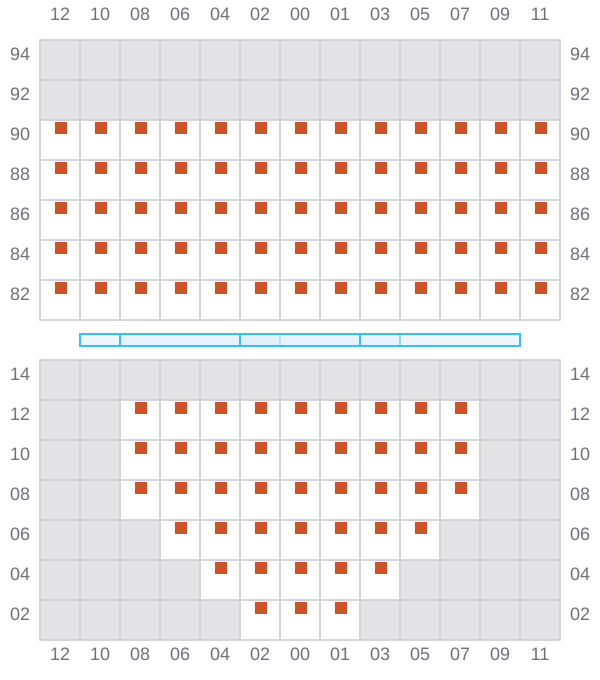

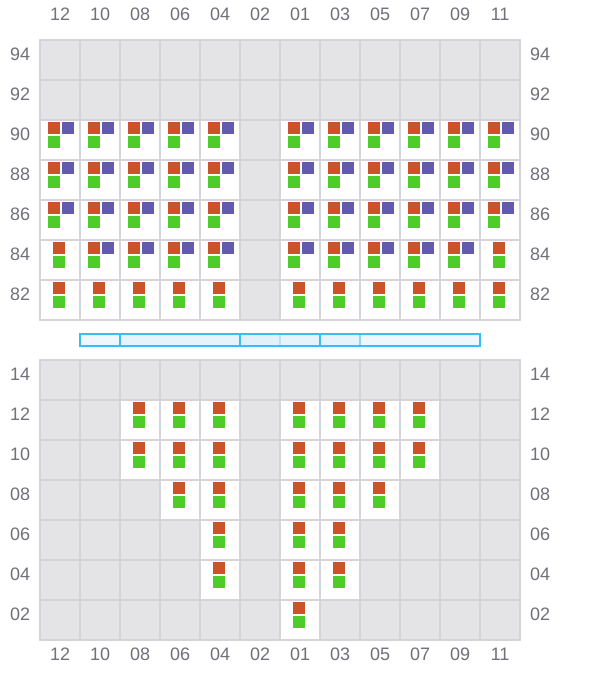

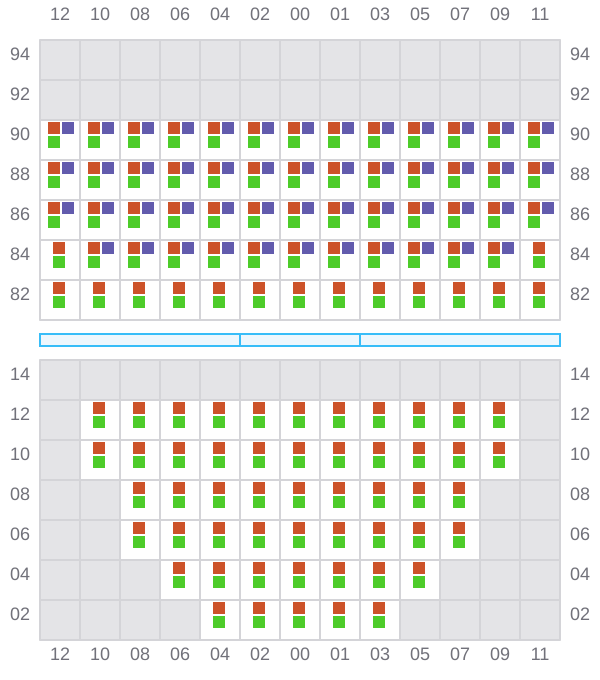

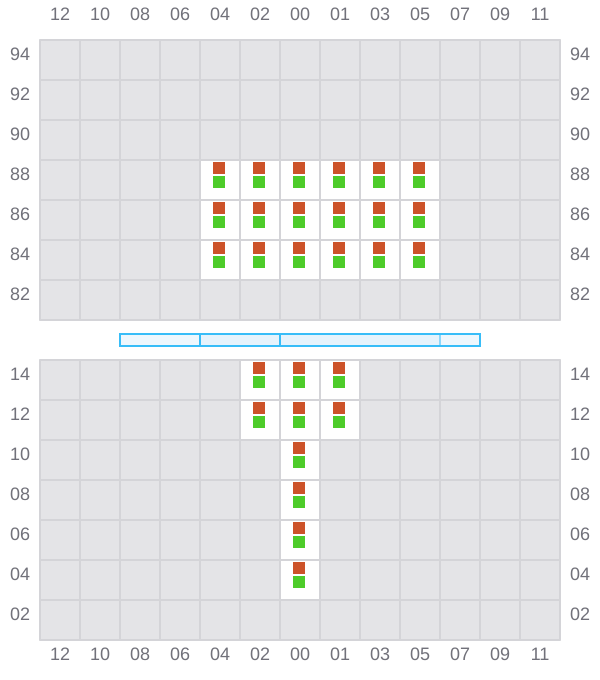

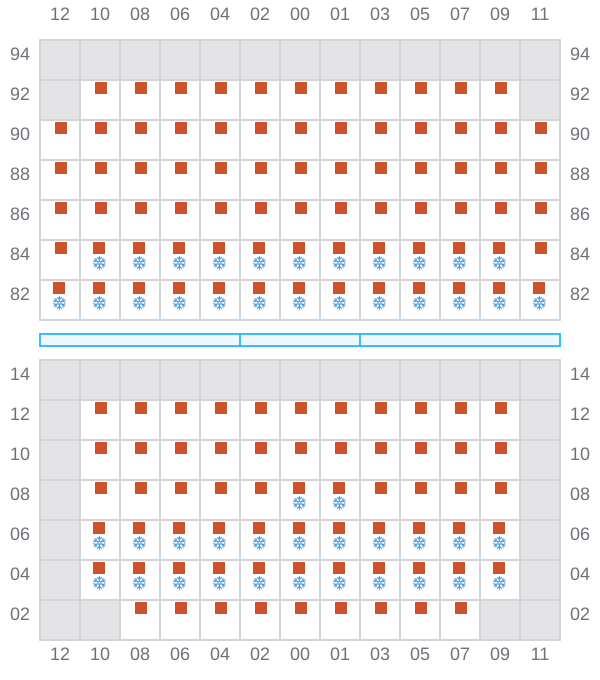

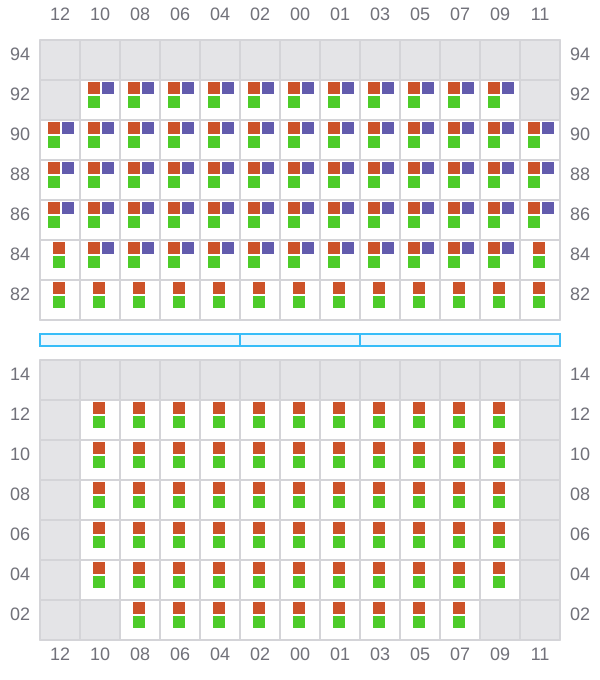

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →

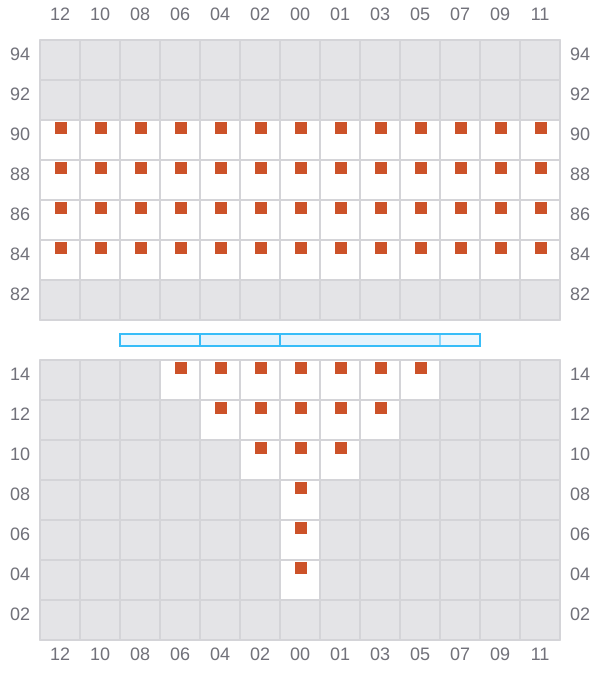

003

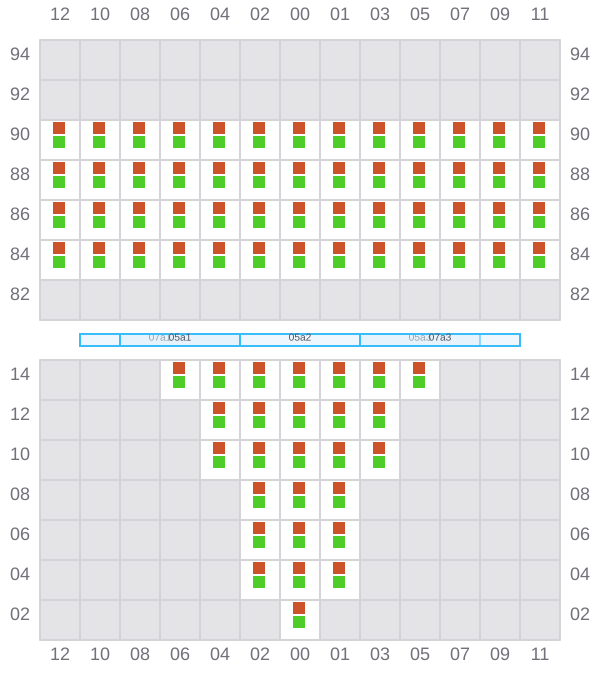

005 (006)
- →
007
009 (010)
- →
011
013 (014)
- →
- →
015
- →
017 (018)
- →
- →
019
- →
021 (022)
- →
- →
023
- →

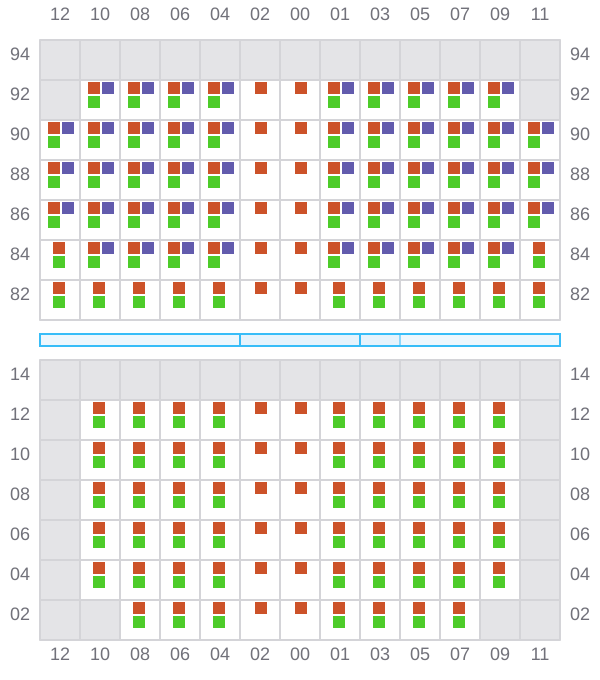

025 (026)
- →
- →
027
- →

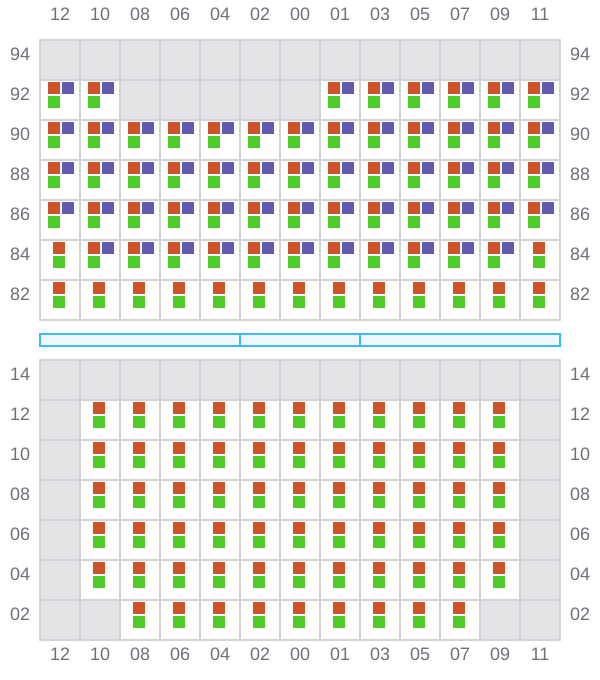

029 (030)
- →
- →
031
- →

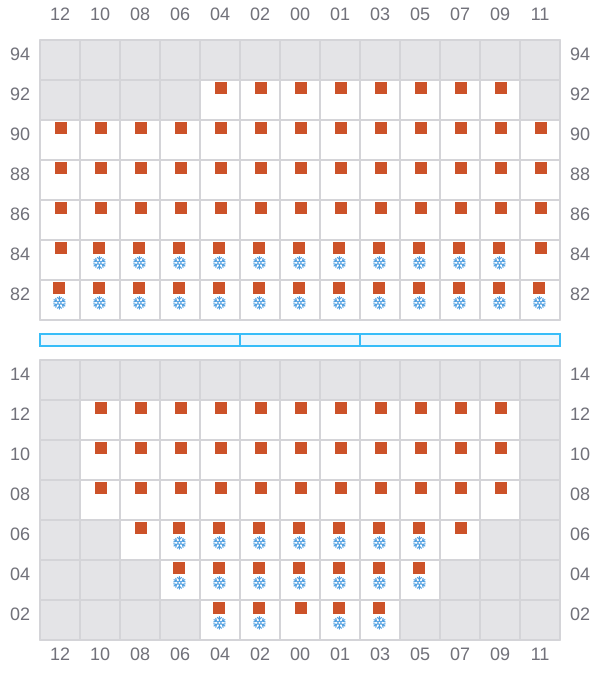

033 (034)
- →
- →

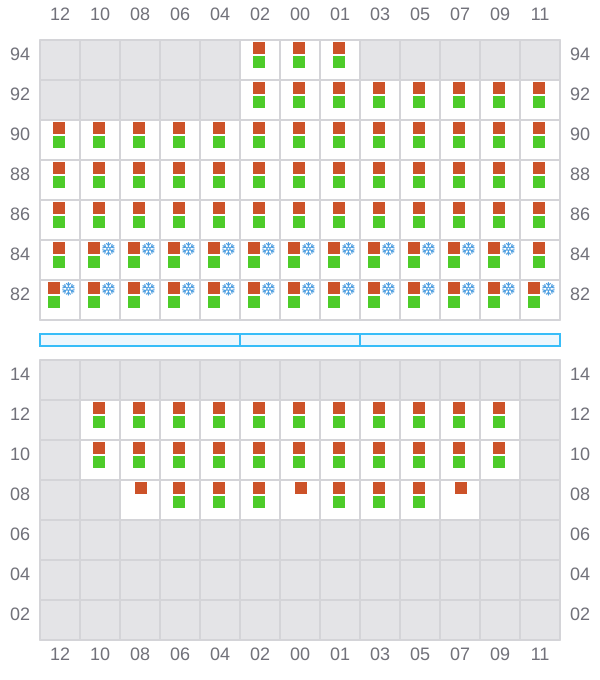

035
- →

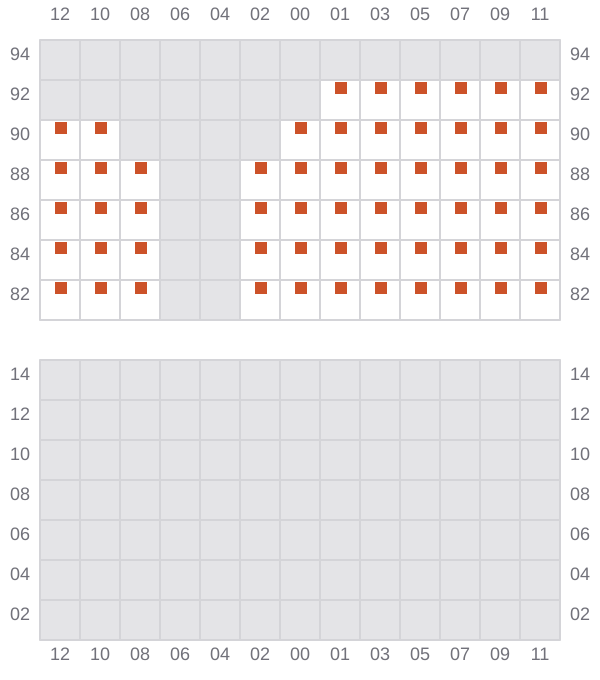

037
039 (040)
- →
- ← / ?
041
043 (044)
- → / ?
