MSC TASMAN VI
9189342 | V7FQ3 | MSC by ************************** Last update: Thu Nov 27 2025

General Info

Ship Name:MSC TASMAN VI
IMO Code:9189342
Call Sign:V7FQ3
Line Operator:MSC
Class Name for Sister Ships:8BF
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:TASMAN

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,814

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

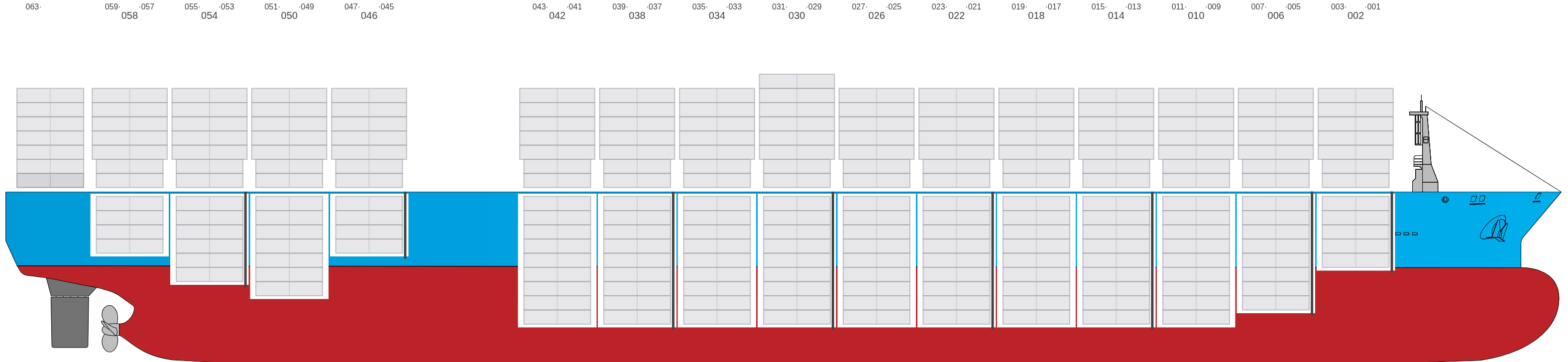

Side view of MSC TASMAN VI

Hatch-Covers View

Deck view of MSC TASMAN VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

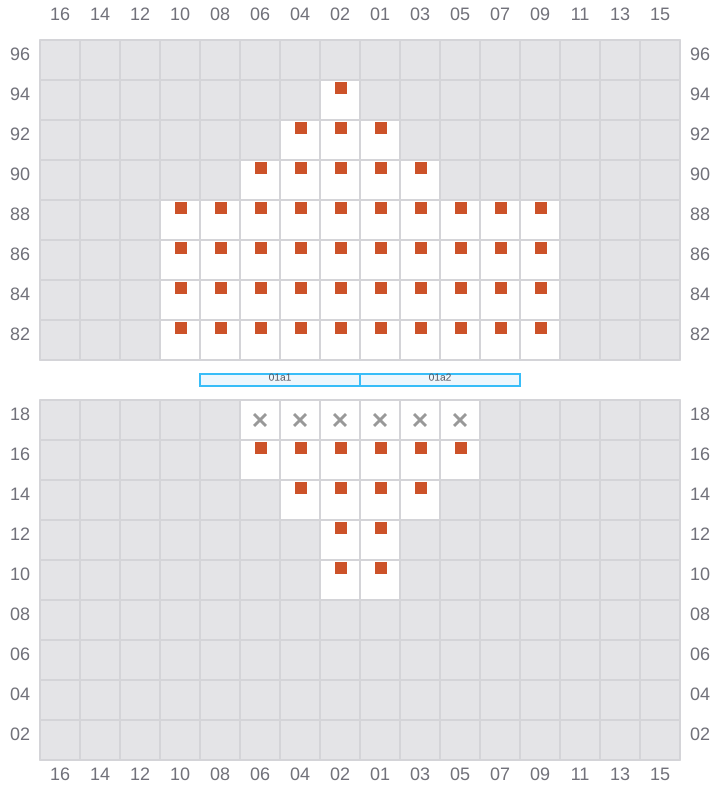

Bay 001 view and slots of MSC TASMAN VI

003 (002)

  • ←

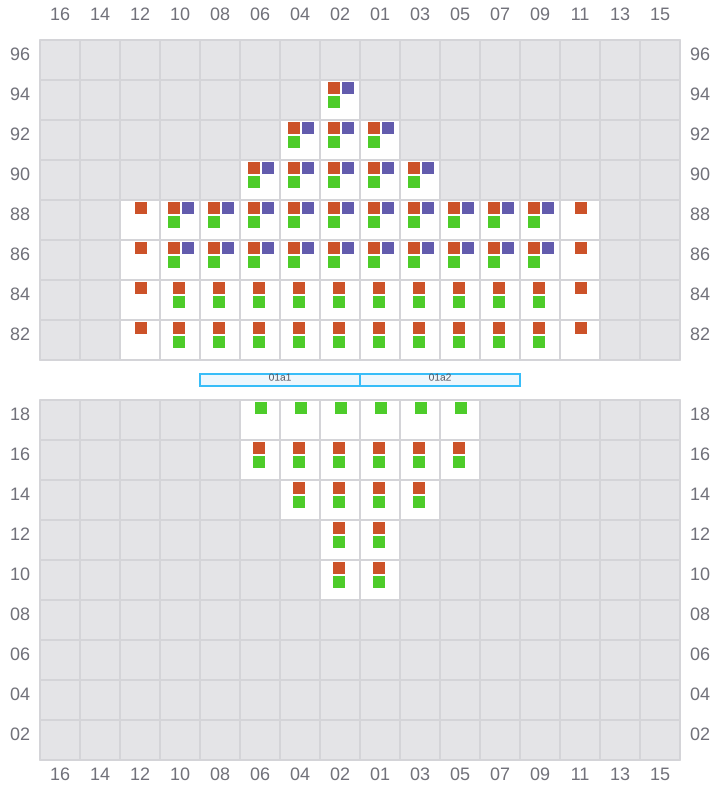

Bay 003 view and slots of MSC TASMAN VI

005

  • →

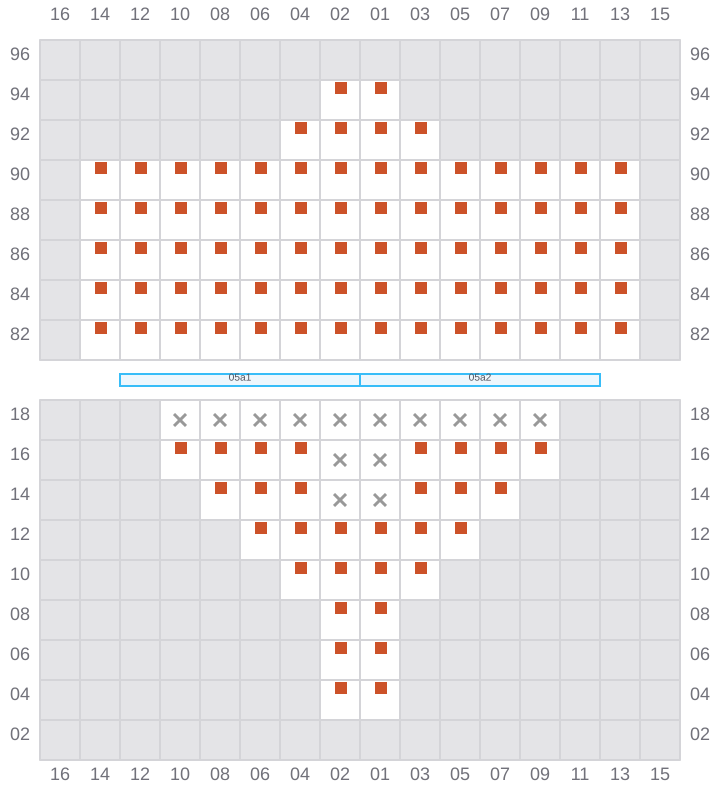

Bay 005 view and slots of MSC TASMAN VI

007 (006)

  • ←

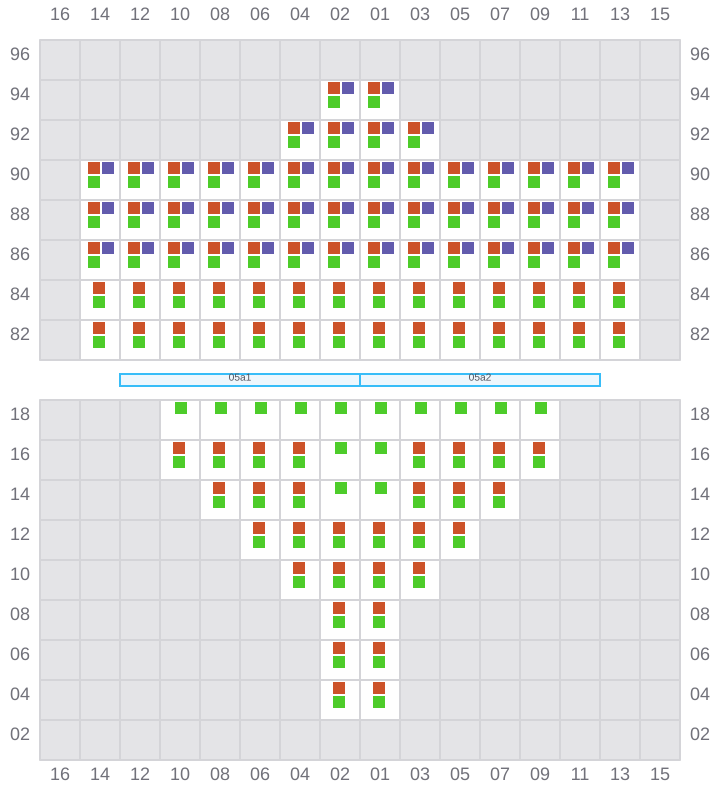

Bay 007 view and slots of MSC TASMAN VI

009

  • →

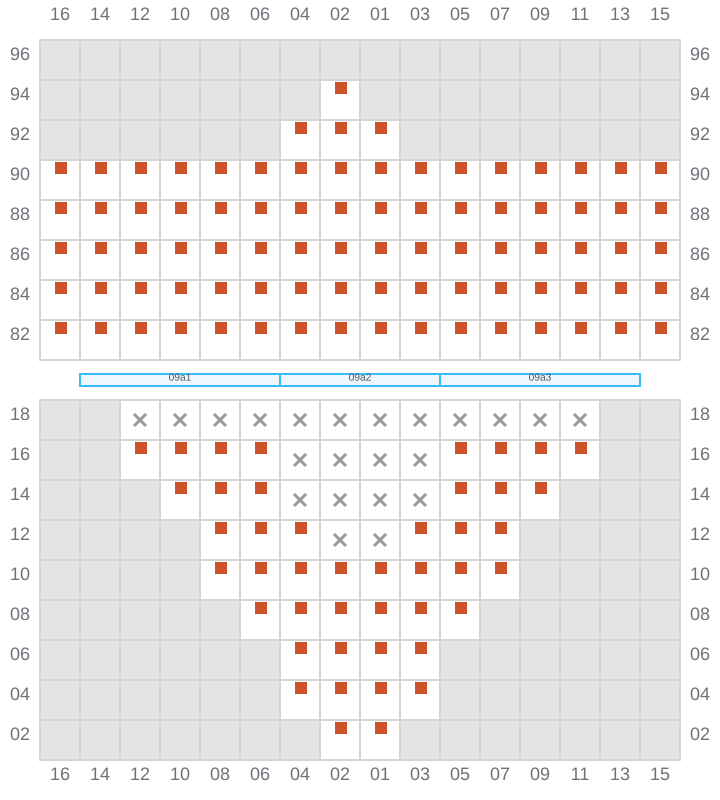

Bay 009 view and slots of MSC TASMAN VI

011 (010)

  • ←
  • → / ?

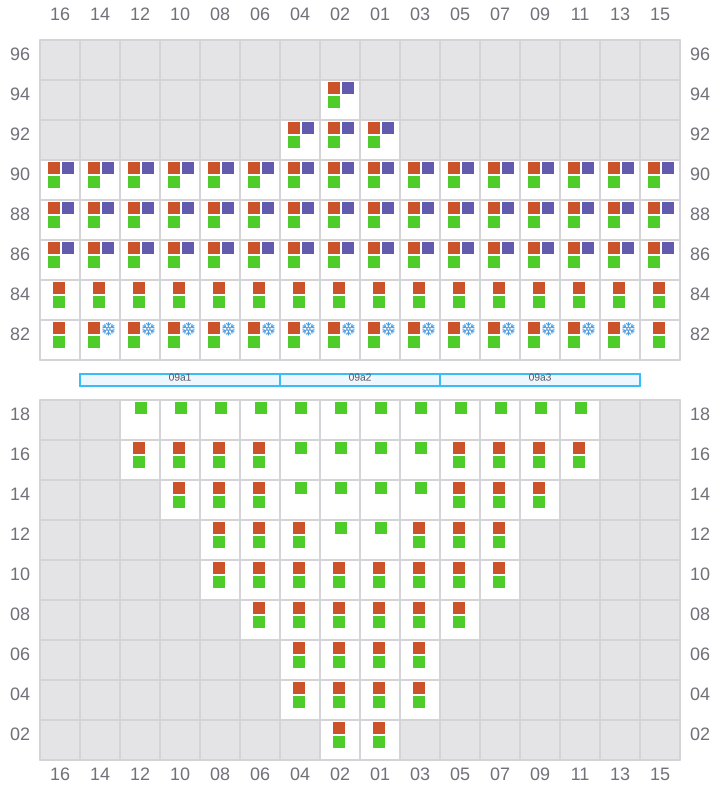

Bay 011 view and slots of MSC TASMAN VI

013

  • →

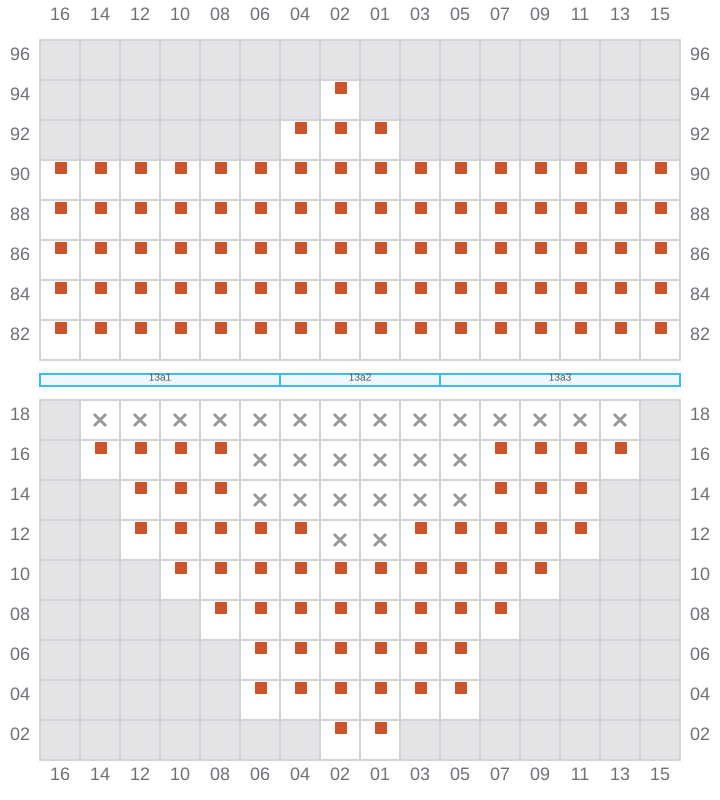

Bay 013 view and slots of MSC TASMAN VI

015 (014)

  • ←
  • → / ?

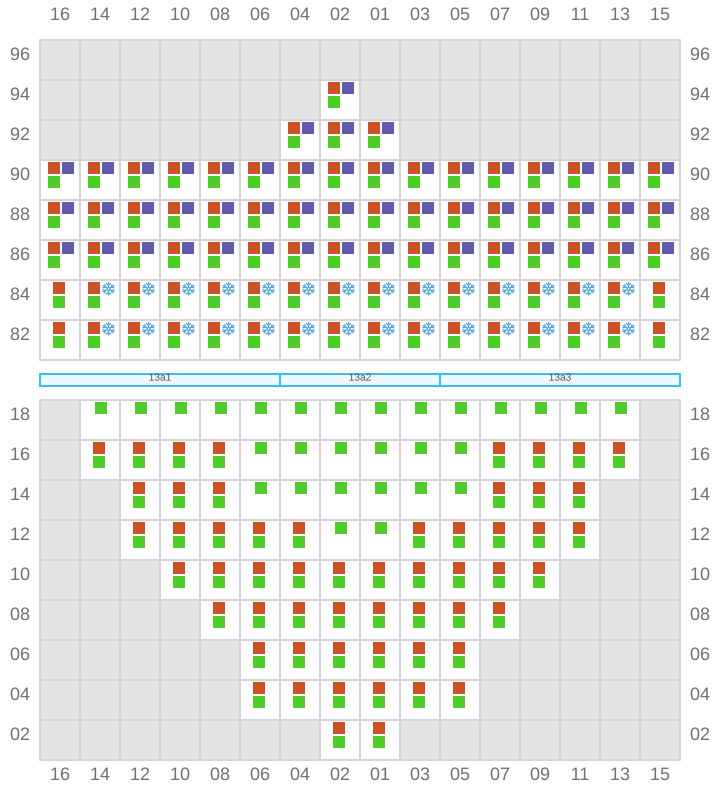

Bay 015 view and slots of MSC TASMAN VI

017

  • →
Bay 017 view and slots of MSC TASMAN VI

019 (018)

  • ←
  • → / ?
Bay 019 view and slots of MSC TASMAN VI

021

  • →

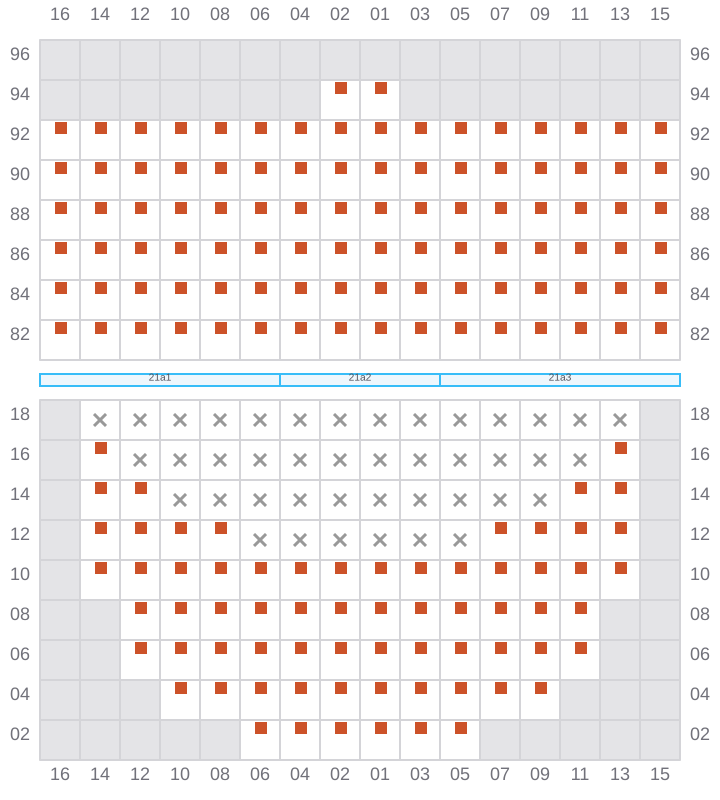

Bay 021 view and slots of MSC TASMAN VI

023 (022)

  • ←
  • → / ?

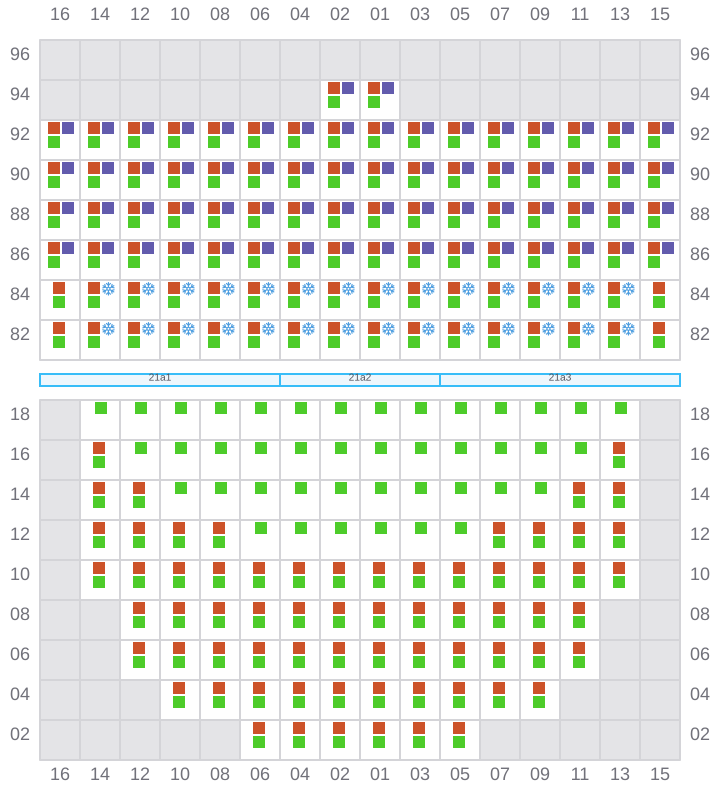

Bay 023 view and slots of MSC TASMAN VI

025

  • →
  • → / ?

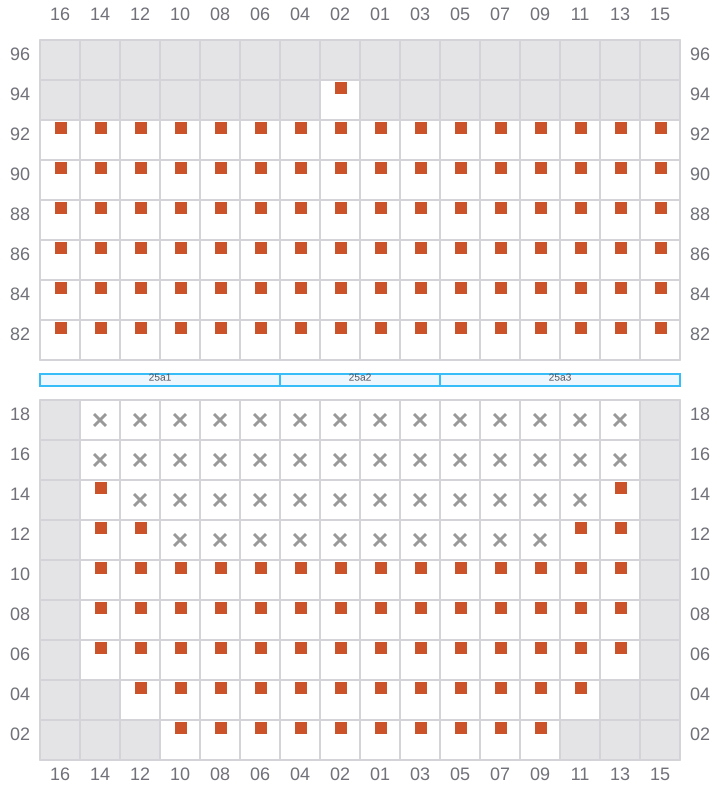

Bay 025 view and slots of MSC TASMAN VI

027 (026)

  • ←
  • →

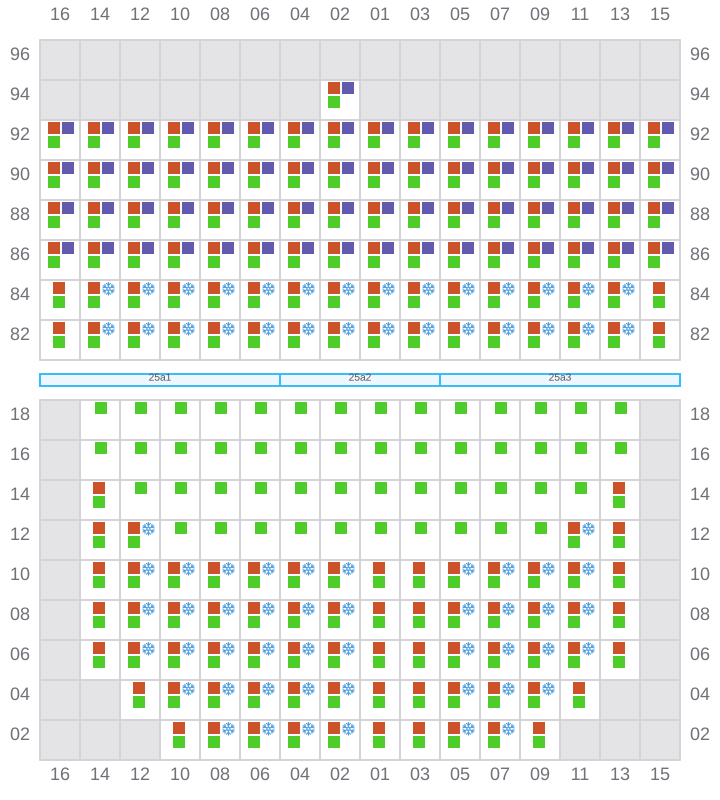

Bay 027 view and slots of MSC TASMAN VI

029

  • →

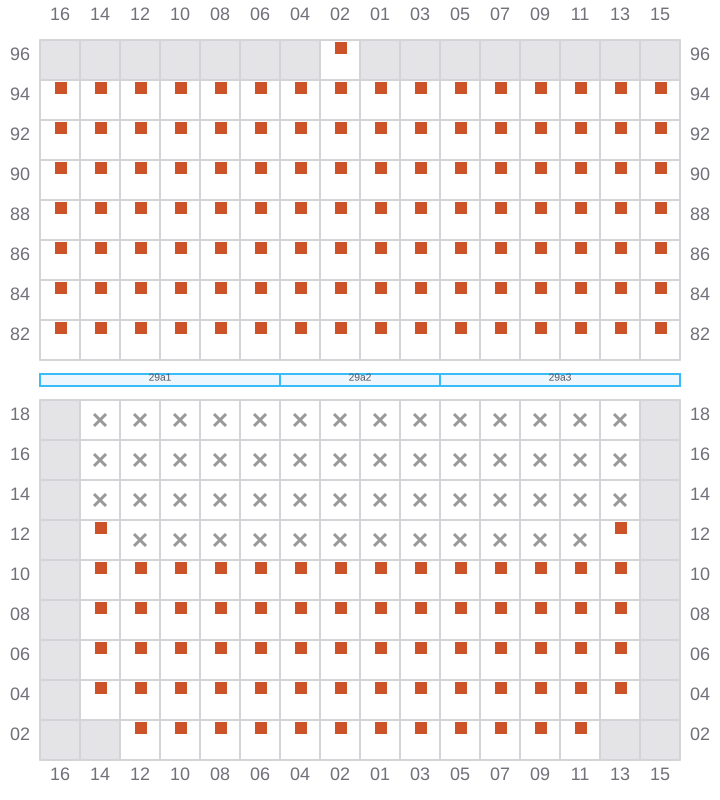

Bay 029 view and slots of MSC TASMAN VI

031 (030)

  • ←
  • → / ?

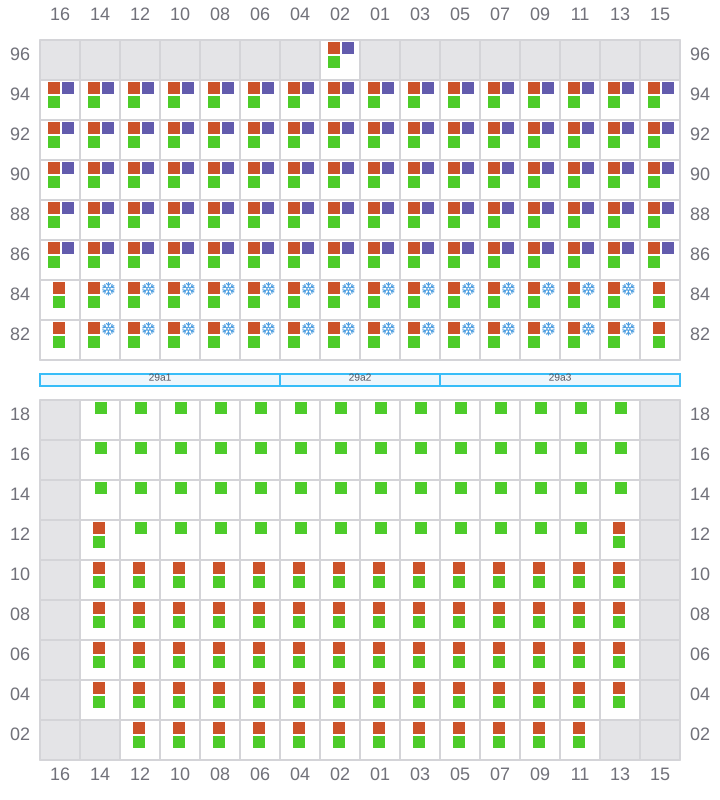

Bay 031 view and slots of MSC TASMAN VI

033

  • →
Bay 033 view and slots of MSC TASMAN VI

035 (034)

  • ←
  • →

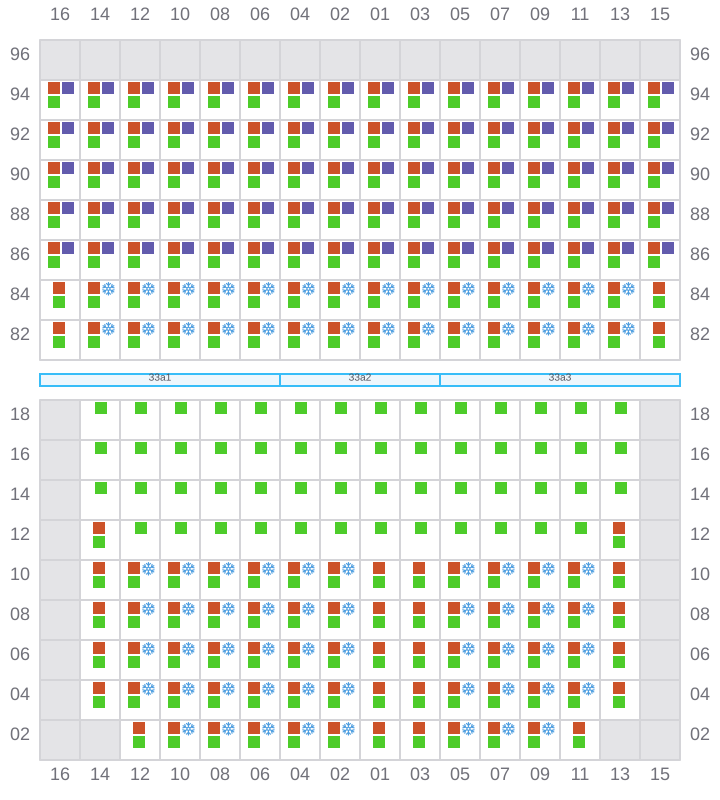

Bay 035 view and slots of MSC TASMAN VI

037

  • →

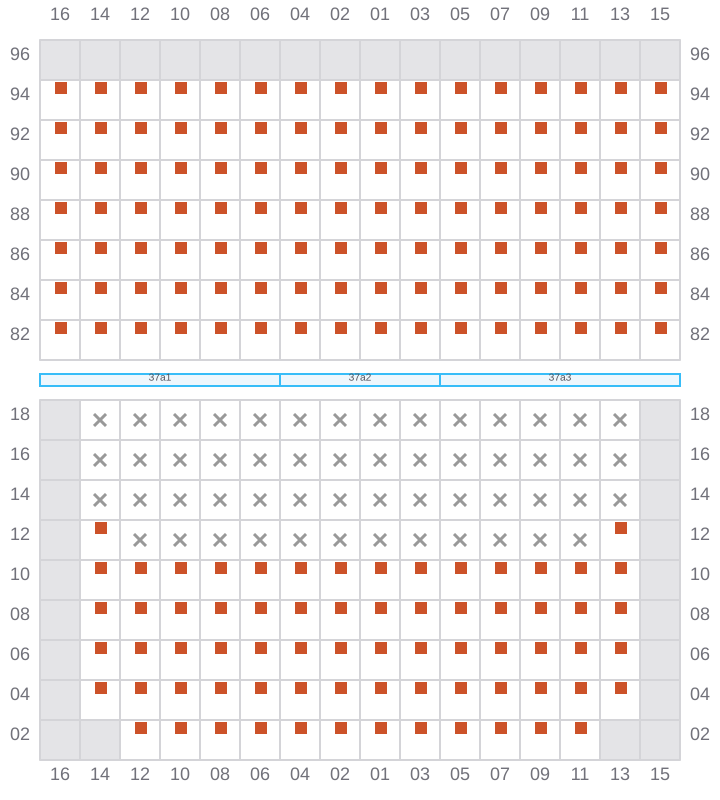

Bay 037 view and slots of MSC TASMAN VI

039 (038)

  • ←
  • → / ?

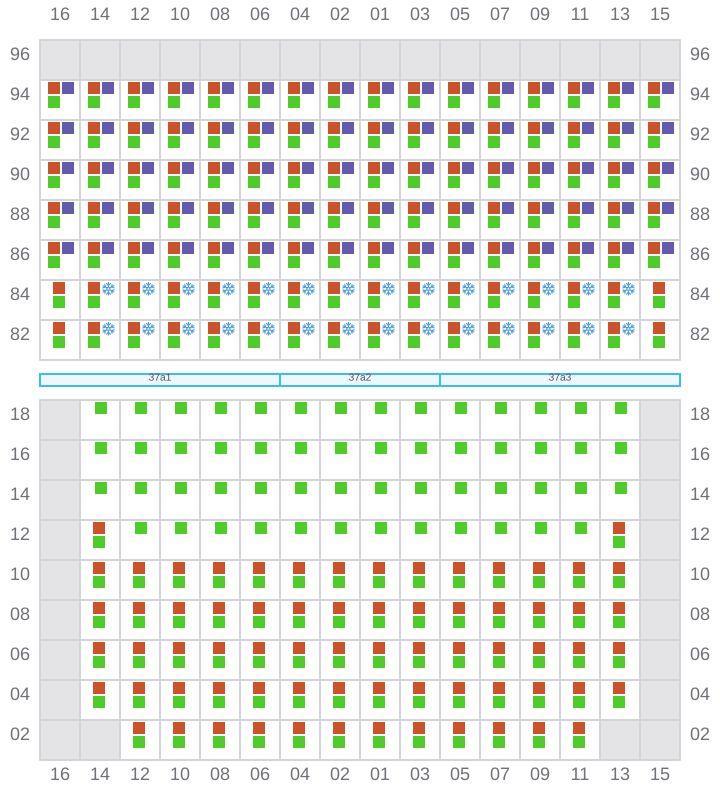

Bay 039 view and slots of MSC TASMAN VI

041

  • →
Bay 041 view and slots of MSC TASMAN VI

043 (042)

  • ←
  • → / ?

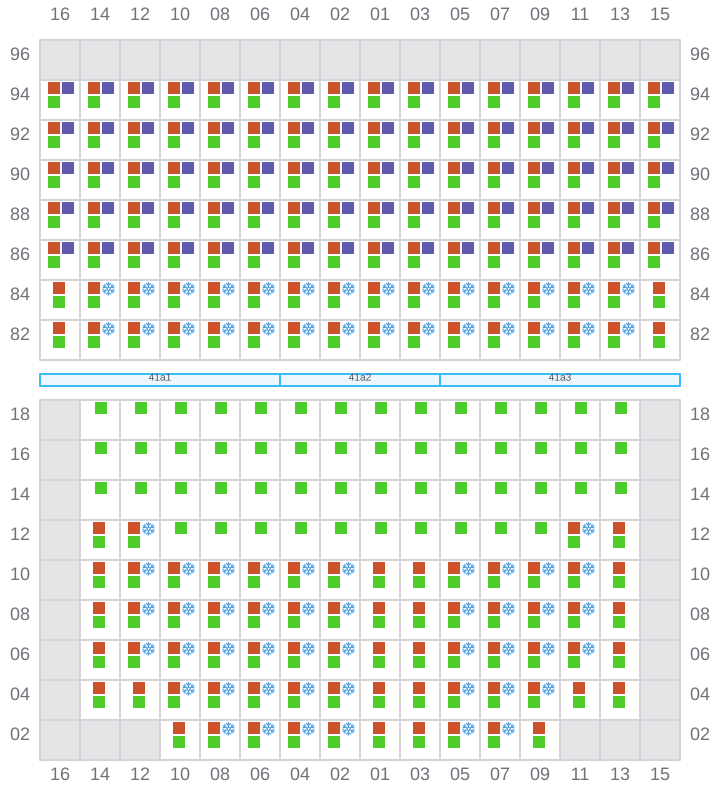

Bay 043 view and slots of MSC TASMAN VI

045

  • →

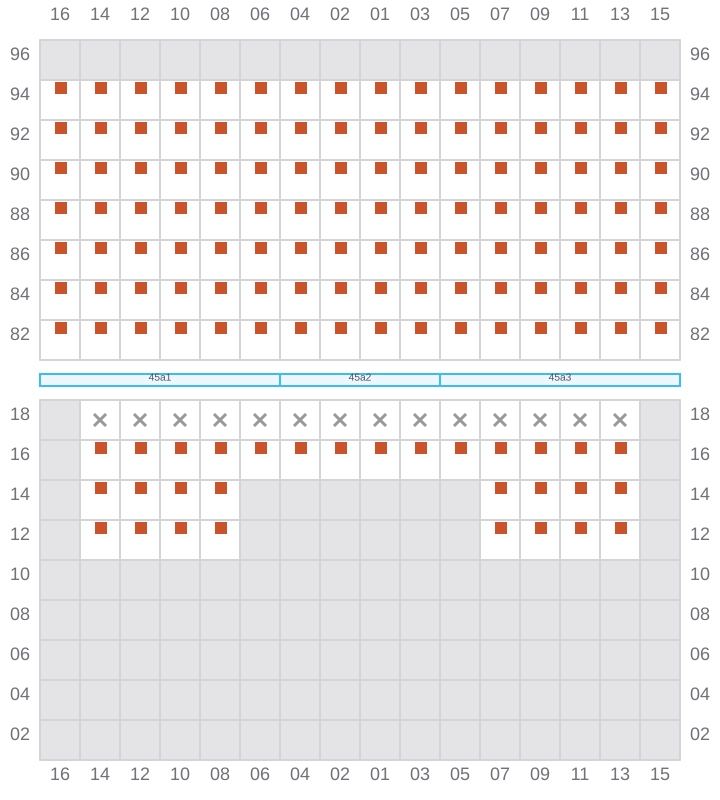

Bay 045 view and slots of MSC TASMAN VI

047 (046)

  • ←

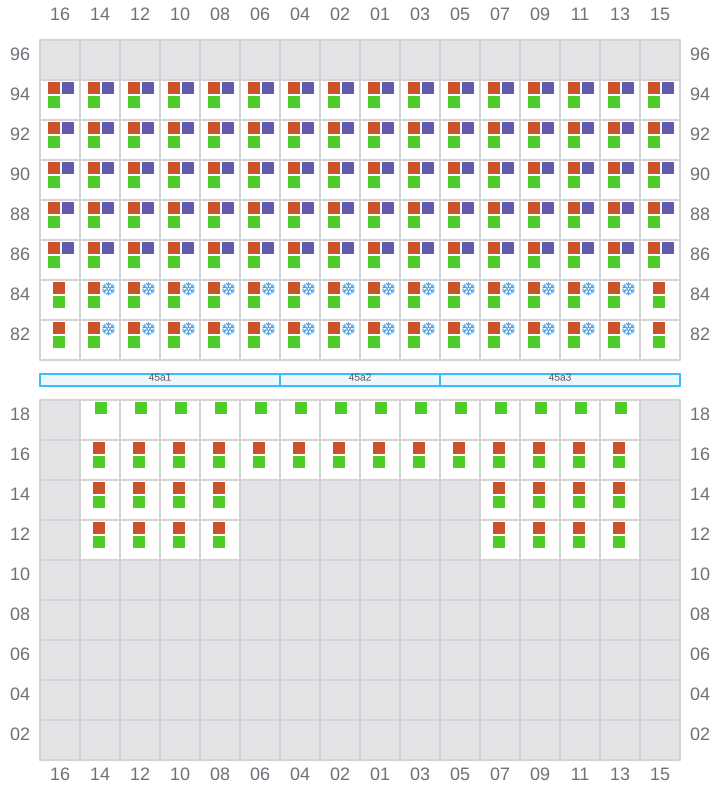

Bay 047 view and slots of MSC TASMAN VI

049

  • →

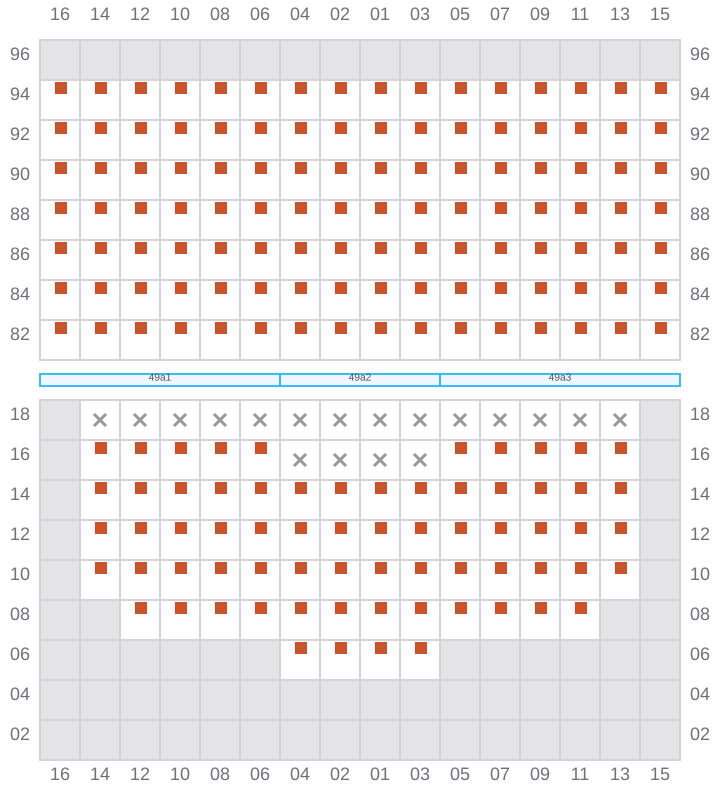

Bay 049 view and slots of MSC TASMAN VI

051 (050)

  • ←
  • → / ?

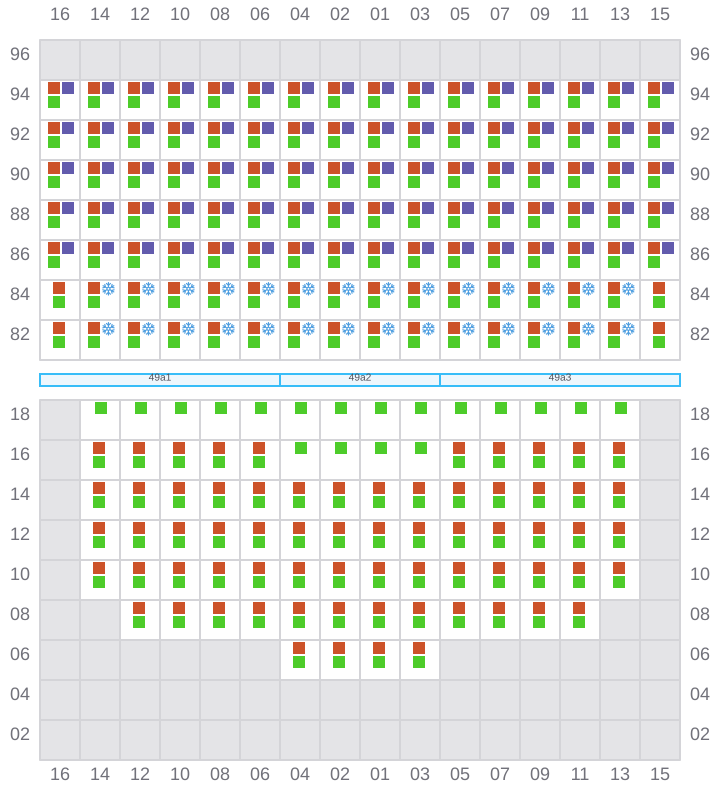

Bay 051 view and slots of MSC TASMAN VI

053

  • →

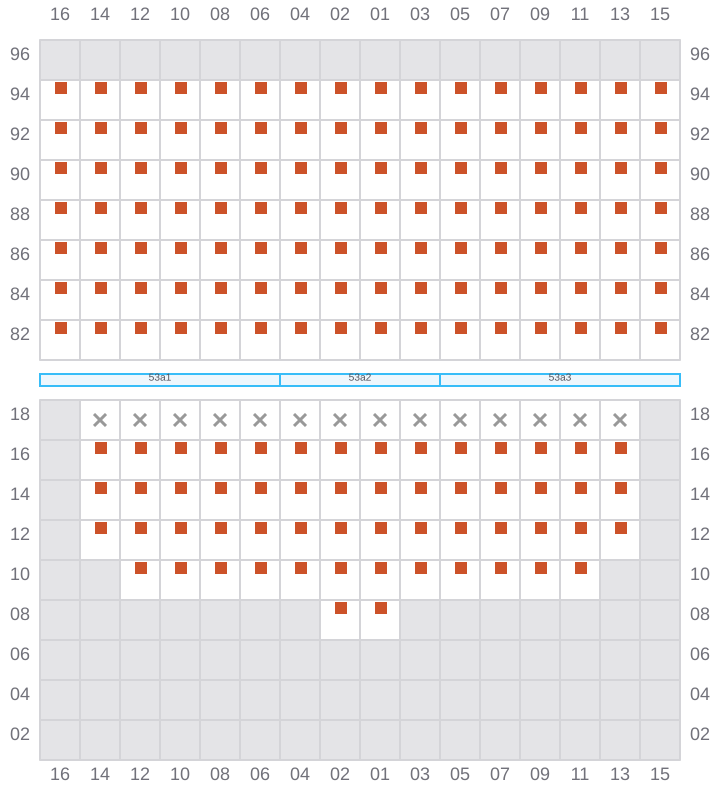

Bay 053 view and slots of MSC TASMAN VI

055 (054)

  • ←
  • → / ?

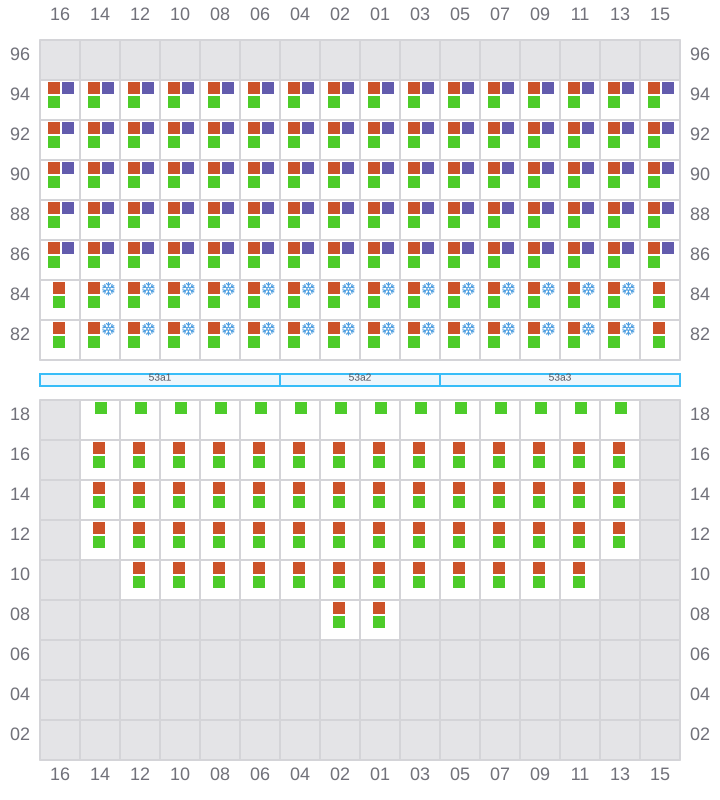

Bay 055 view and slots of MSC TASMAN VI

057

  • →

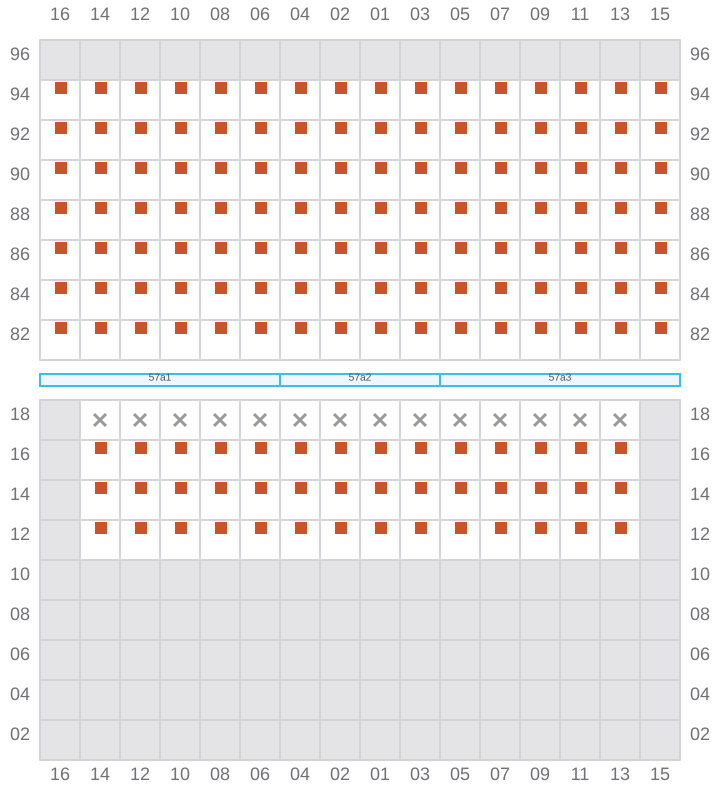

Bay 057 view and slots of MSC TASMAN VI

059 (058)

  • ←
  • → / ?

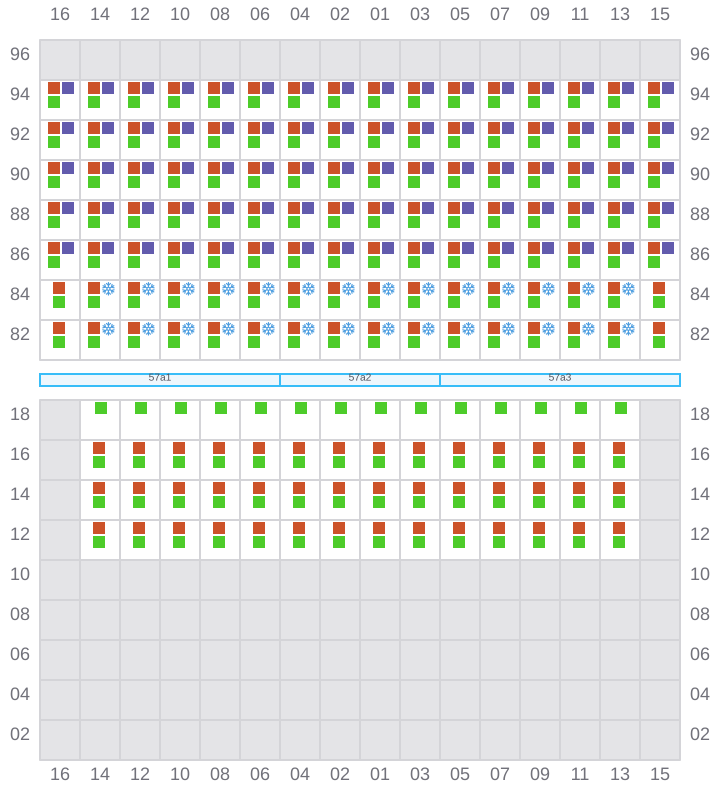

Bay 059 view and slots of MSC TASMAN VI

061

  • → / ?

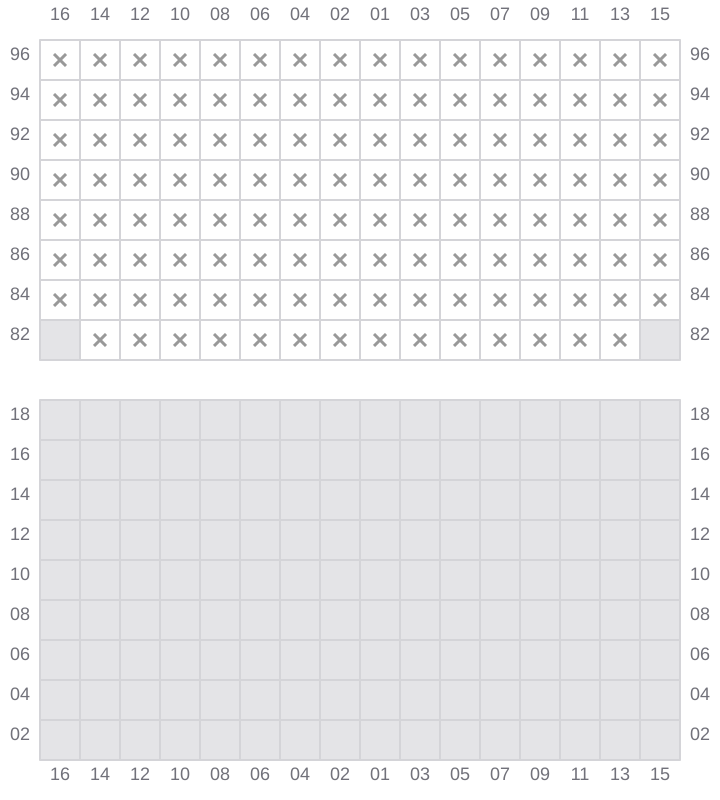

Bay 061 view and slots of MSC TASMAN VI

063 (062)

  • ← / ?

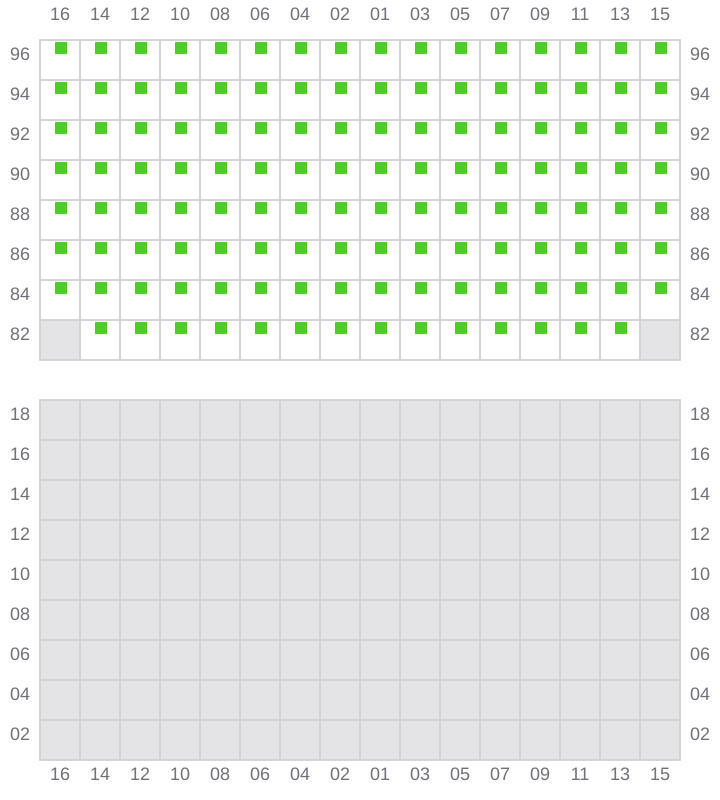

Bay 063 view and slots of MSC TASMAN VI
