MSC TASMANIA
9008574 | HPCF | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC TASMANIA
IMO Code:9008574
Call Sign:HPCF
Line Operator:MSC
Class Name for Sister Ships:TAS
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:78
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,550
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

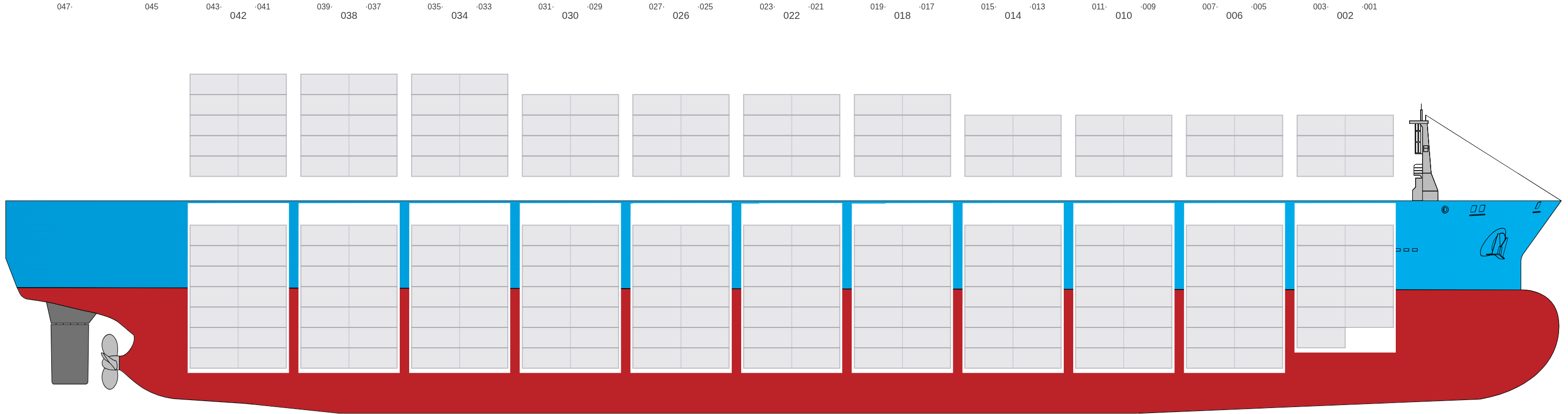

Side View
![Side view of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-sideView.png?v=1687461291557)

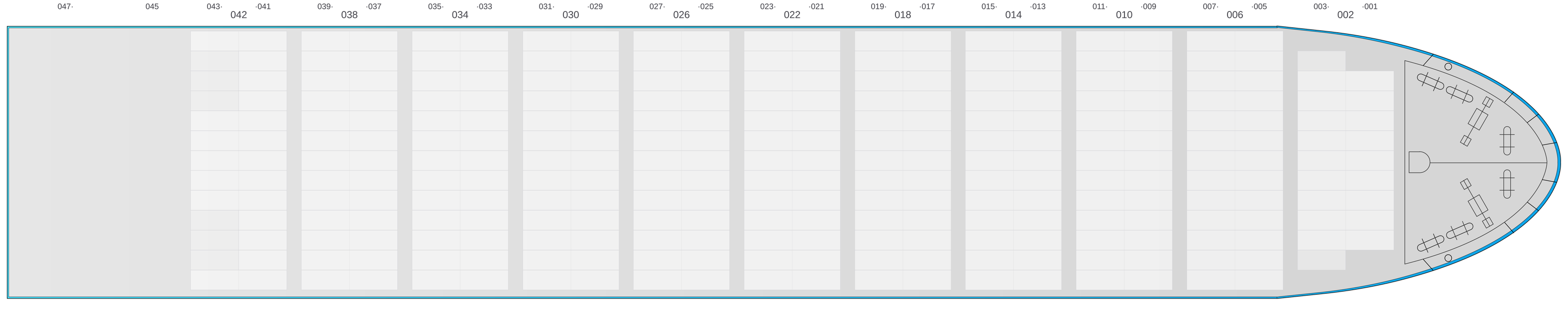

Hatch-Covers View
![Deck view of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-deckView.png?v=1687461291557)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

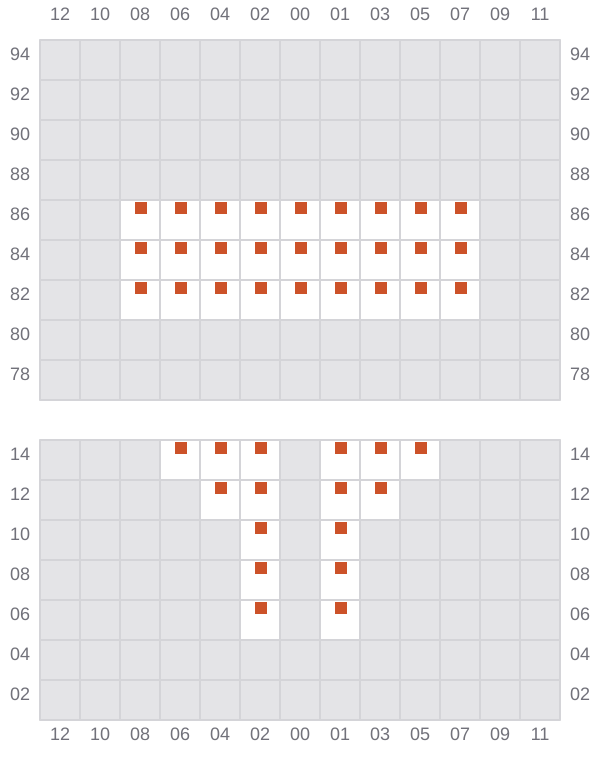

001
- →
![Bay 001 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b001.png?v=1687461291557)

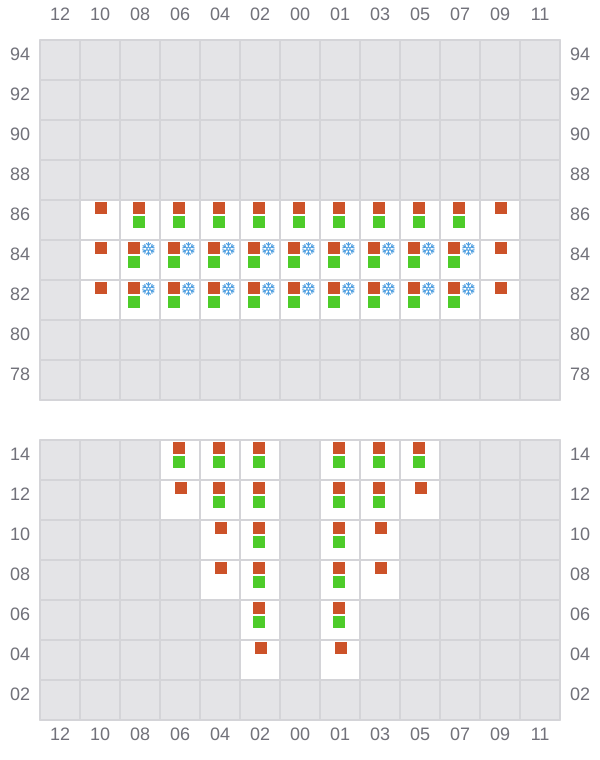

003 (002)
- ←
![Bay 003 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b003.png?v=1687461291557)

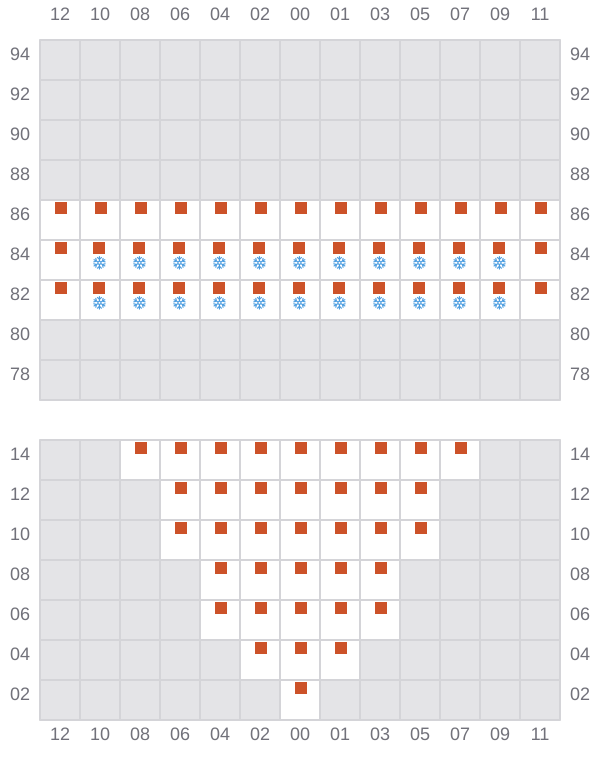

005
- →
![Bay 005 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b005.png?v=1687461291557)

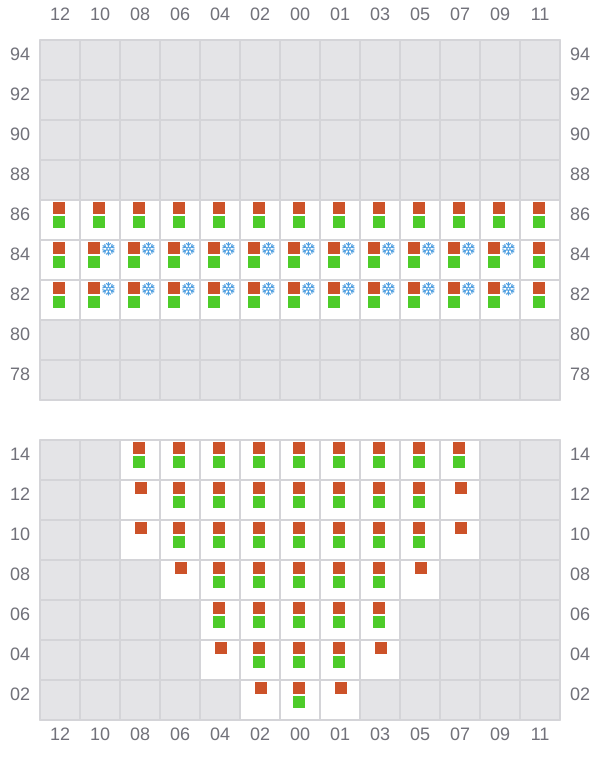

007 (006)
- ←
![Bay 007 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b007.png?v=1687461291557)

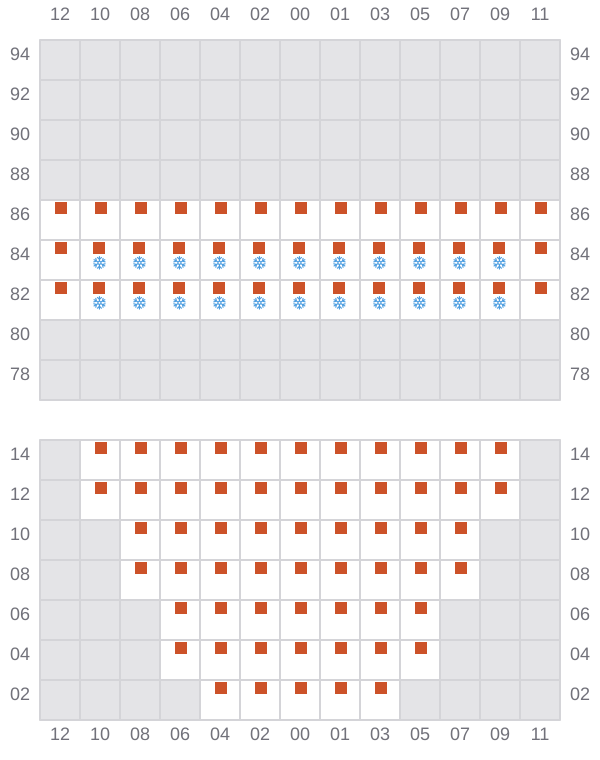

009
- →
![Bay 009 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b009.png?v=1687461291557)

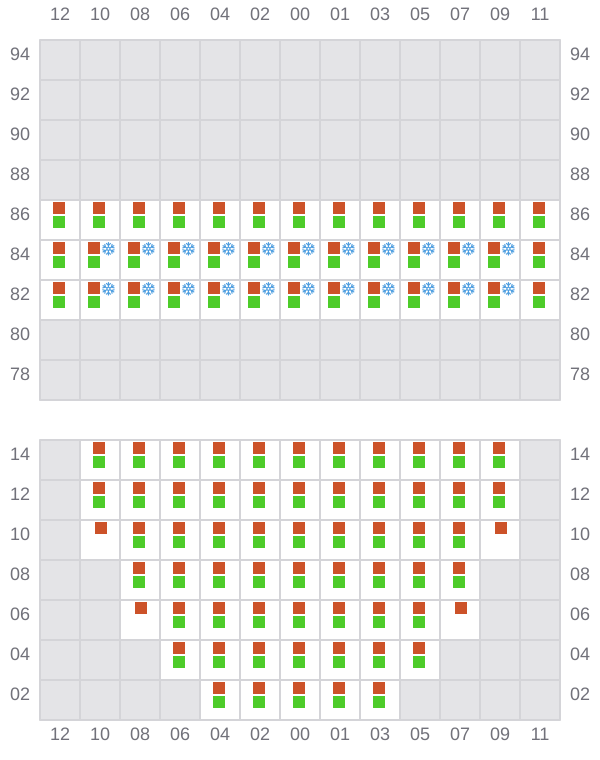

011 (010)
- ←
![Bay 011 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b011.png?v=1687461291557)

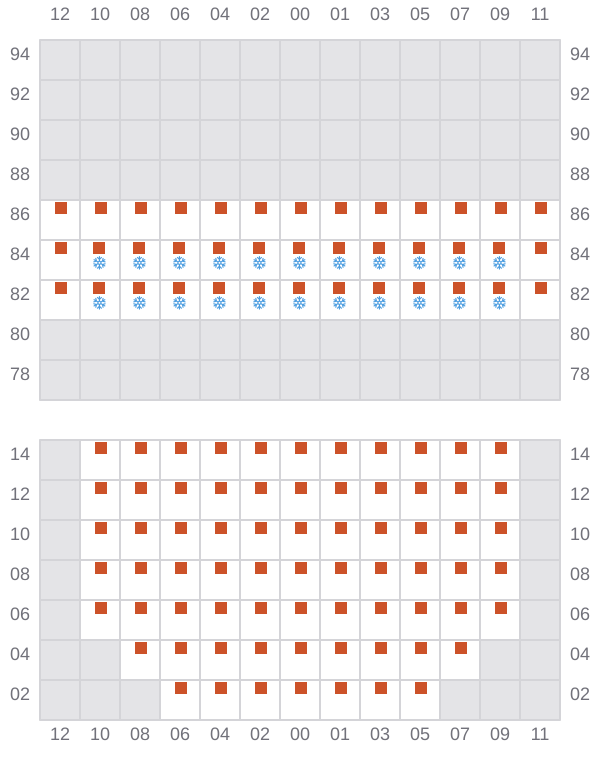

013
- →
![Bay 013 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b013.png?v=1687461291557)
015 (014)
- ←
![Bay 015 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b015.png?v=1687461291557)
017
- →
![Bay 017 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b017.png?v=1687461291557)
019 (018)
- ←
![Bay 019 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b019.png?v=1687461291557)
021
- →
![Bay 021 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b021.png?v=1687461291557)
023 (022)
- ←
![Bay 023 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b023.png?v=1687461291557)
025
- →
![Bay 025 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b025.png?v=1687461291557)
027 (026)
- ←
![Bay 027 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b027.png?v=1687461291557)

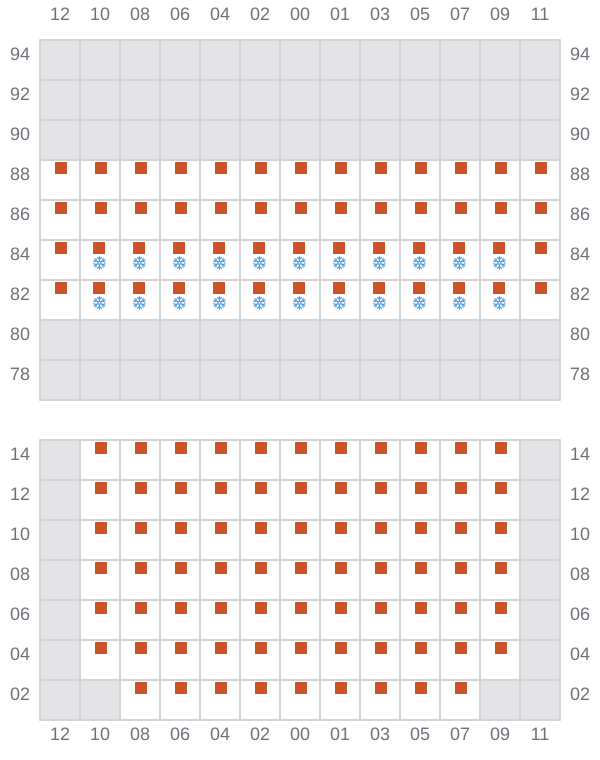

029
- →
![Bay 029 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b029.png?v=1687461291557)

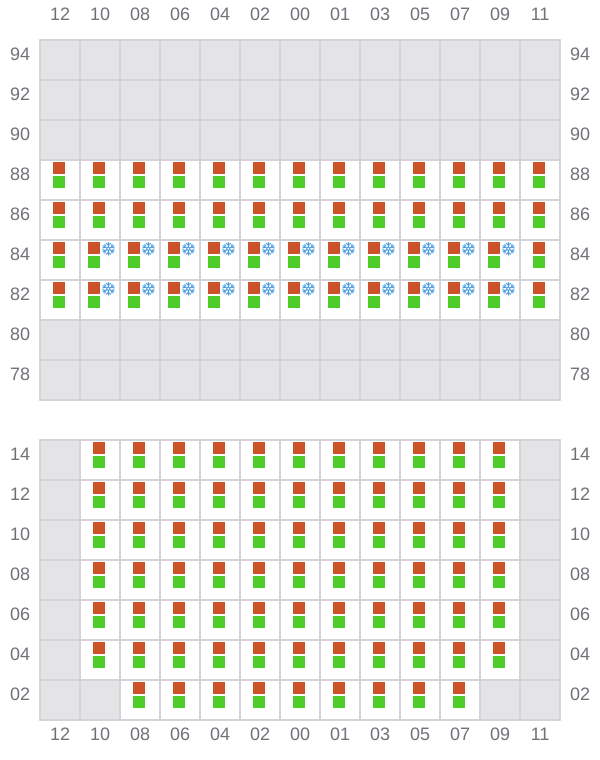

031 (030)
- ←
![Bay 031 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b031.png?v=1687461291557)

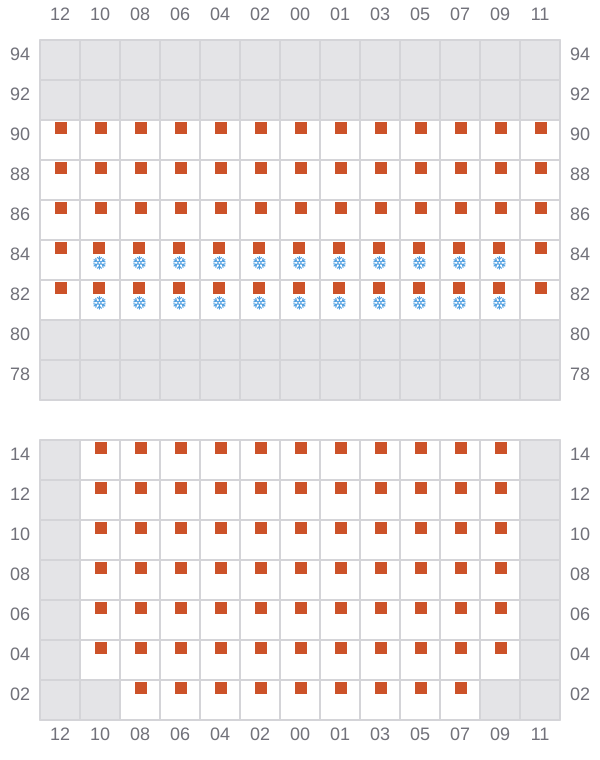

033
- →
![Bay 033 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b033.png?v=1687461291557)

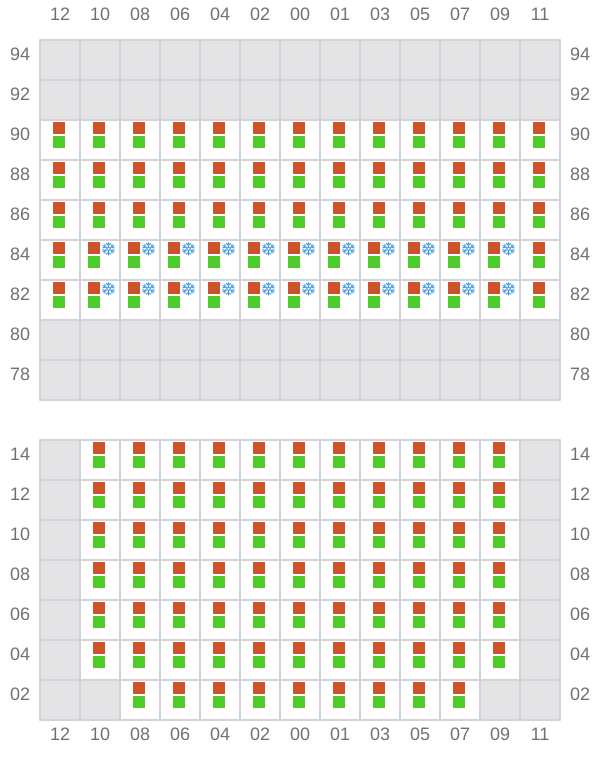

035 (034)
- ←
![Bay 035 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b035.png?v=1687461291557)

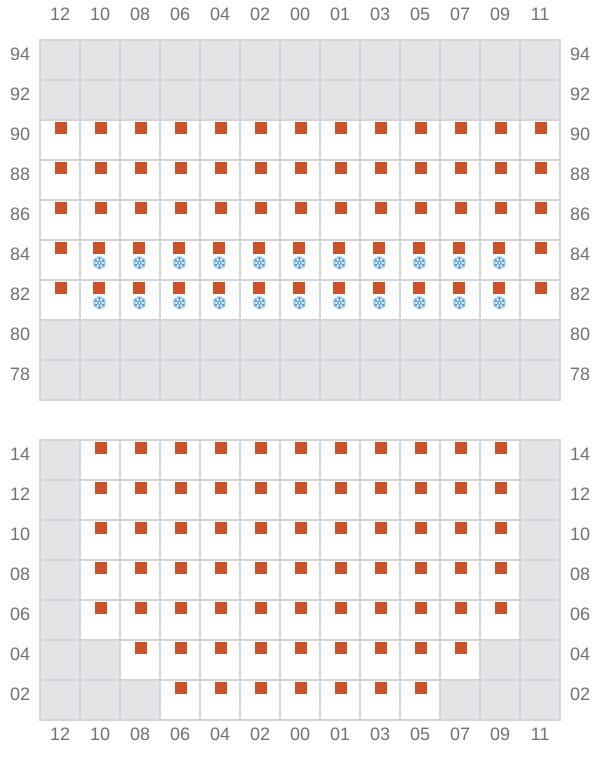

037
- →
![Bay 037 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b037.png?v=1687461291557)
039 (038)
- ←
![Bay 039 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b039.png?v=1687461291557)

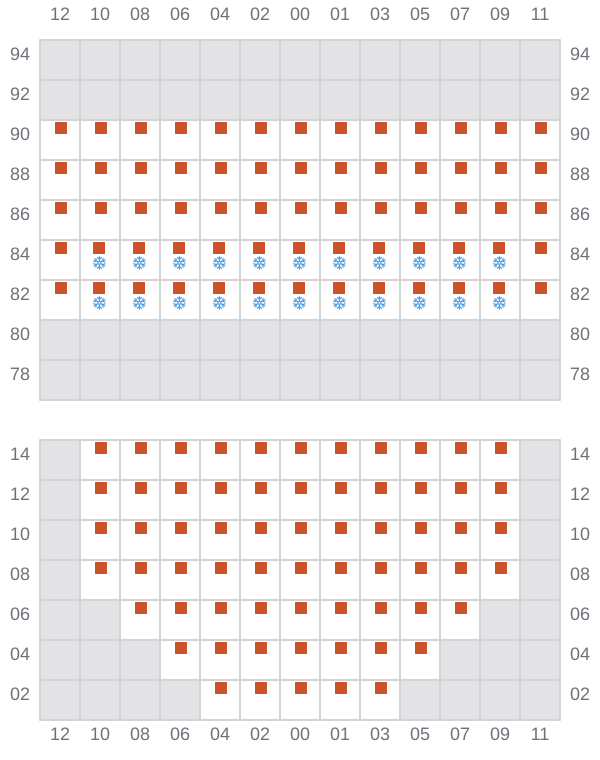

041
- →
![Bay 041 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b041.png?v=1687461291557)

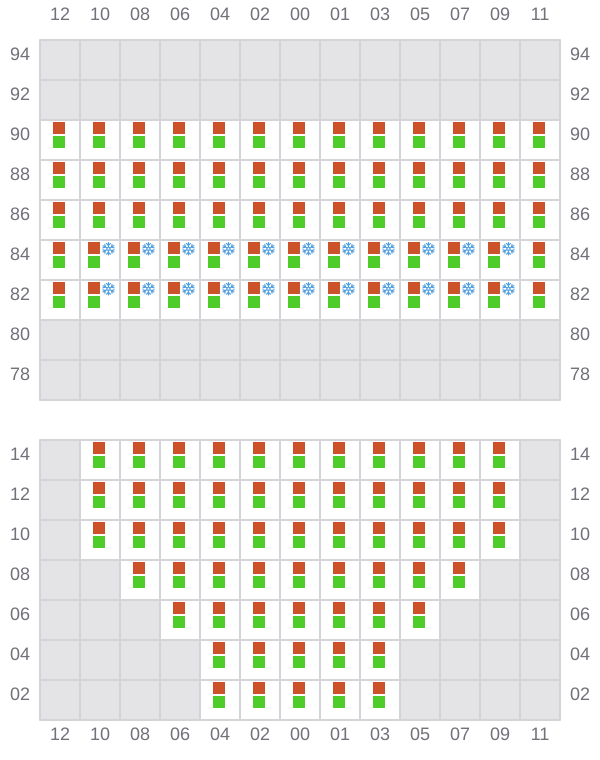

043 (042)
- ←
![Bay 043 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b043.png?v=1687461291557)

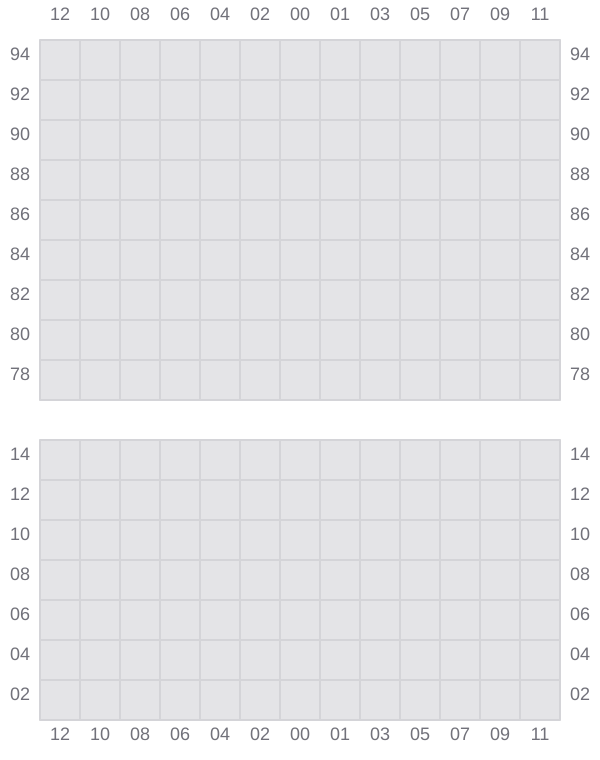

045
![Bay 045 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b045.png?v=1687461291557)

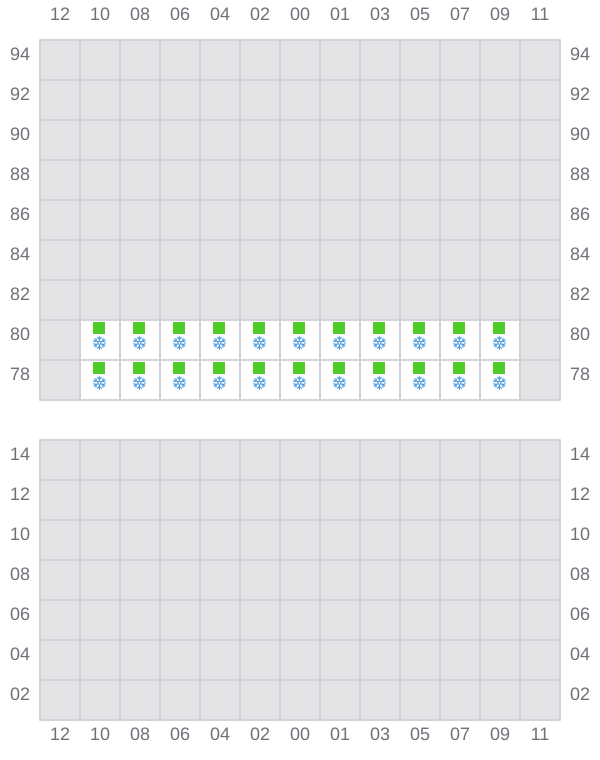

047 (046)
- ← / ?
![Bay 047 view and slots of MSC TASMANIA](/vessel-images/f3257799-4c3f-47af-8563-9ee48b484367-b047.png?v=1687461291557)
