MSC TIGER F
9248928 | 3EQK4 | 9248928 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:MSC TIGER F
IMO Code:9248928
Call Sign:3EQK4
Line Operator:9248928
Class Name for Sister Ships:37D
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,200
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

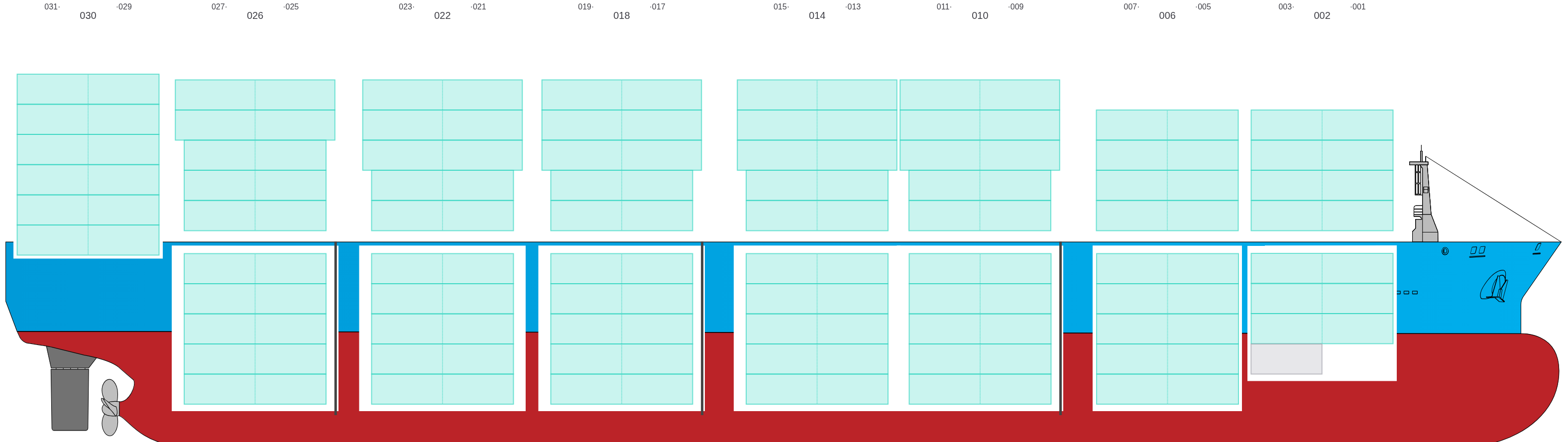

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- → / ?

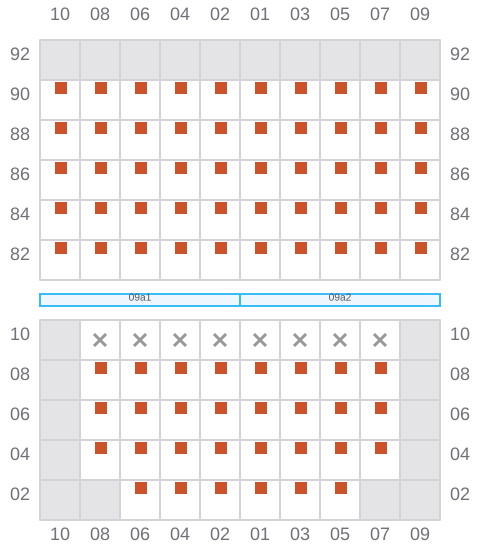

009 (010)
- →
- ← / ?
011
- ←

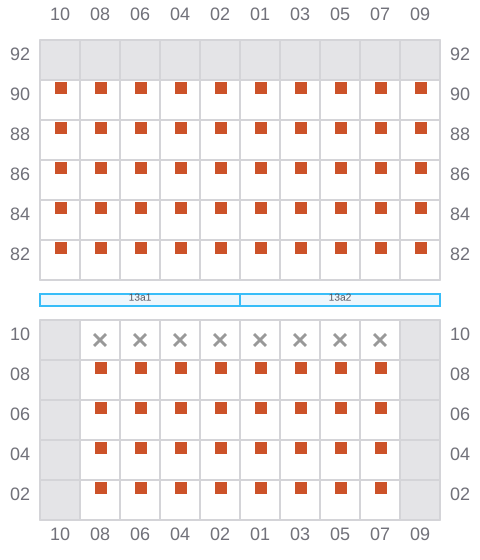

013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- →

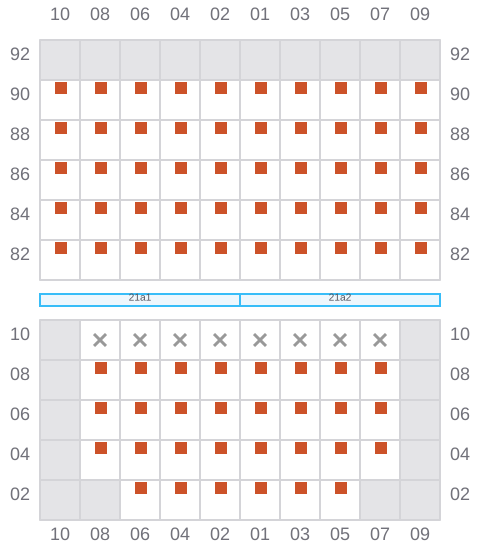

021 (022)
- →
- ? / ←
023
- ←
- → / ?

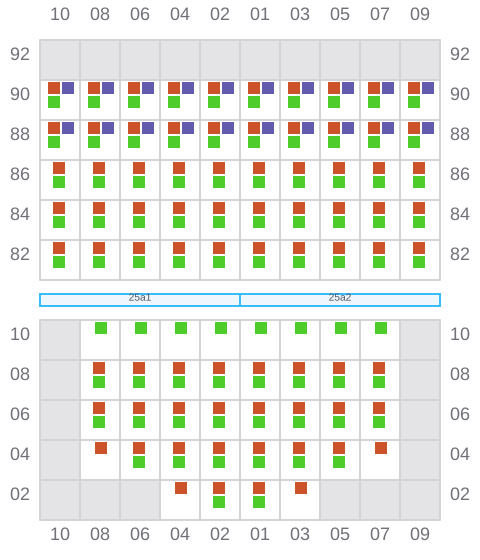

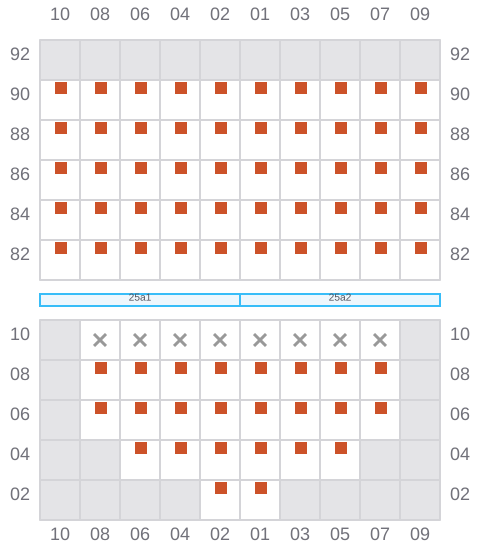

025 (026)
- →
- ← / ?
027
- ←

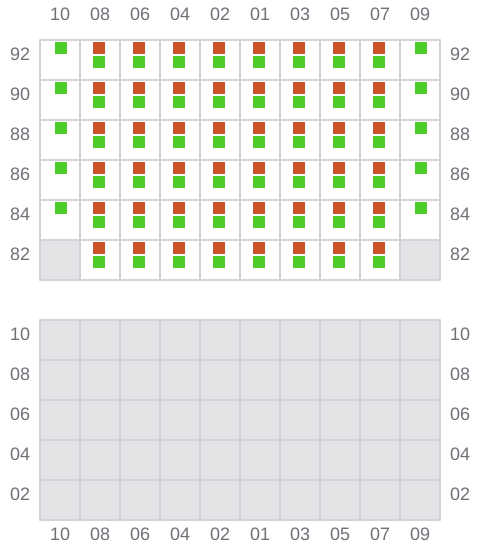

029 (030)
- → / ?

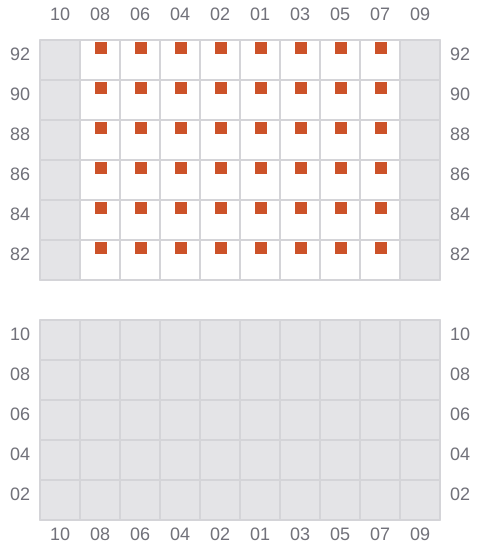

031
- ← / ?
- → / ?
