MSC TINA
9762340 | D5NB7 | MSC by ************************** Last update: Wed Jun 21 2023
General Info
Ship Name:MSC TINA
IMO Code:9762340
Call Sign:D5NB7
Line Operator:MSC
Class Name for Sister Ships:TIN
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,029
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

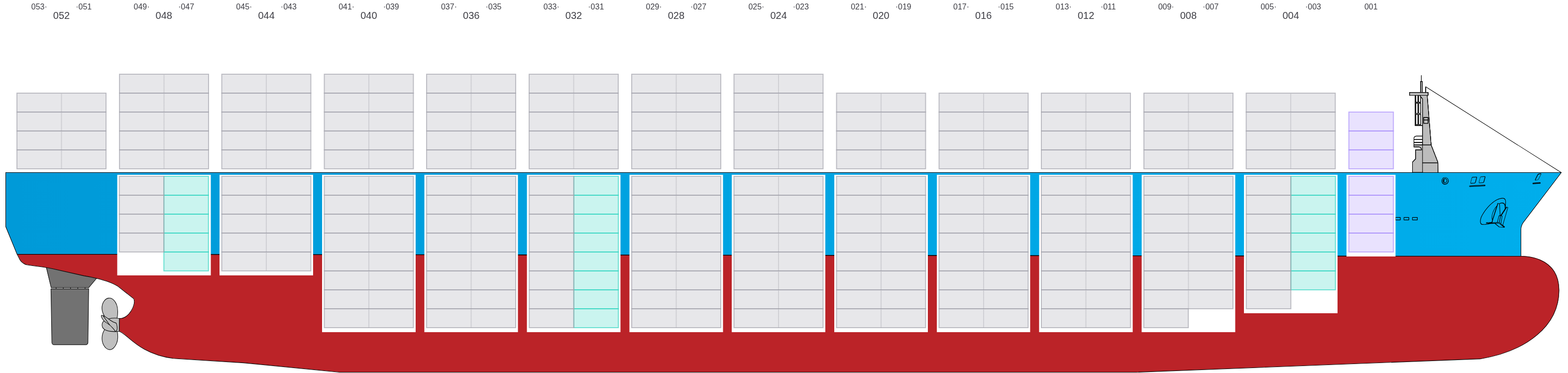

Side View
![Side view of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-sideView.png?v=1687375016700)

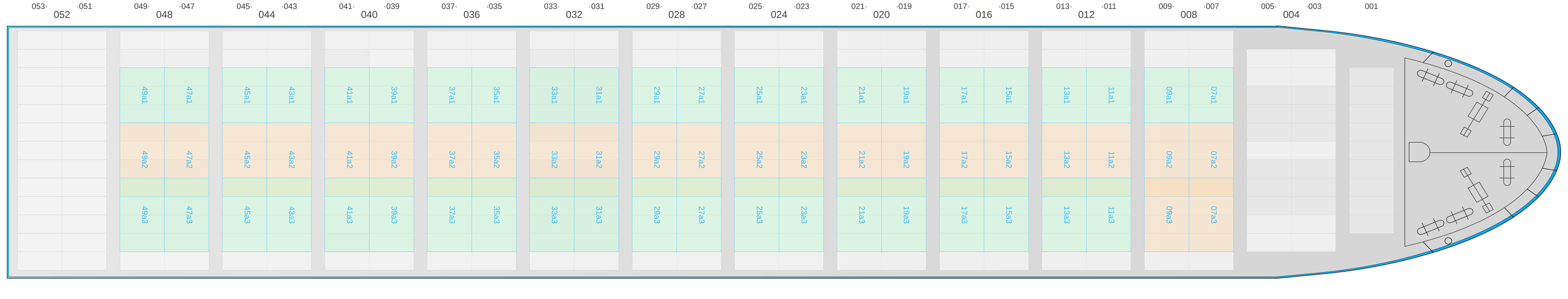

Hatch-Covers View
![Deck view of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-deckView.png?v=1687375016700)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

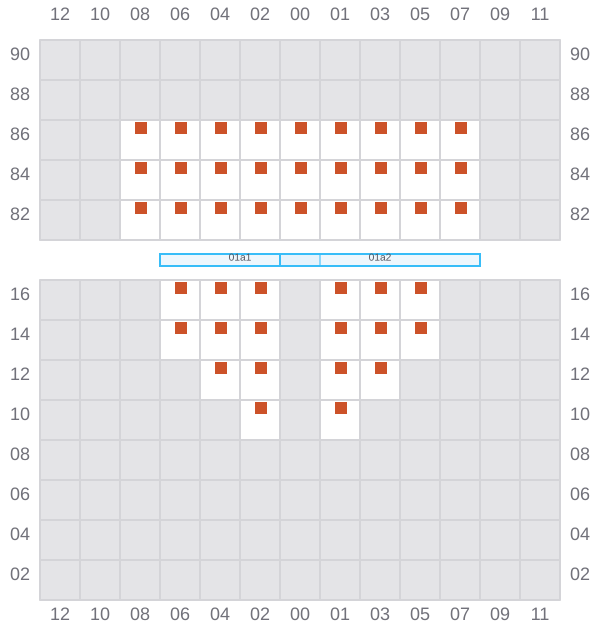

001
![Bay 001 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b001.png?v=1687375016700)

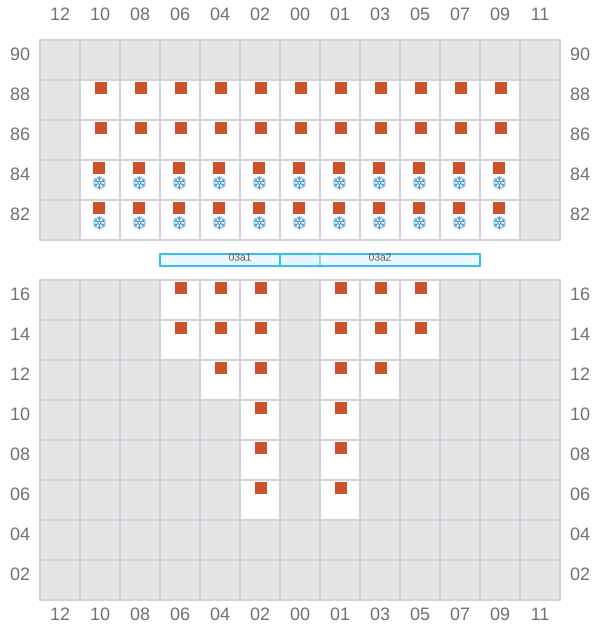

003
- →
![Bay 003 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b003.png?v=1687375016700)

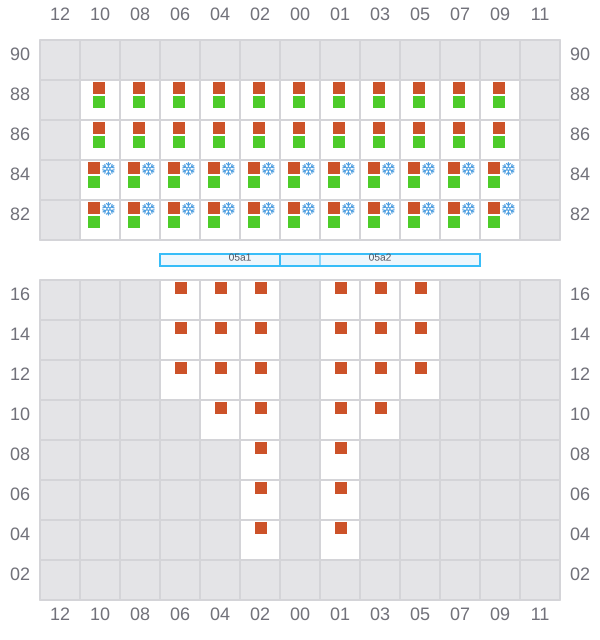

005 (004)
- ←
![Bay 005 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b005.png?v=1687375016700)
007
- →
![Bay 007 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b007.png?v=1687375016700)
009 (008)
- ←
![Bay 009 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b009.png?v=1687375016700)

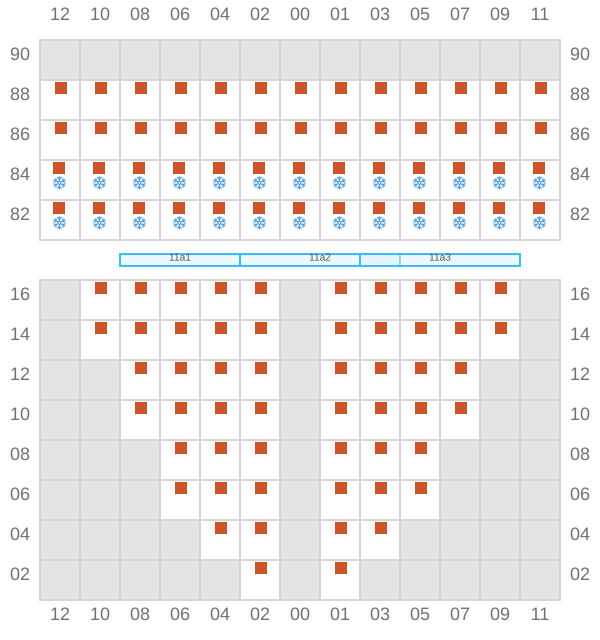

011
- →
![Bay 011 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b011.png?v=1687375016700)
013 (012)
- ←
![Bay 013 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b013.png?v=1687375016700)
015
- →
![Bay 015 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b015.png?v=1687375016700)
017 (016)
- ←
![Bay 017 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b017.png?v=1687375016700)
019
- →
![Bay 019 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b019.png?v=1687375016700)
021 (020)
- ←
![Bay 021 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b021.png?v=1687375016700)
023
- →
![Bay 023 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b023.png?v=1687375016700)

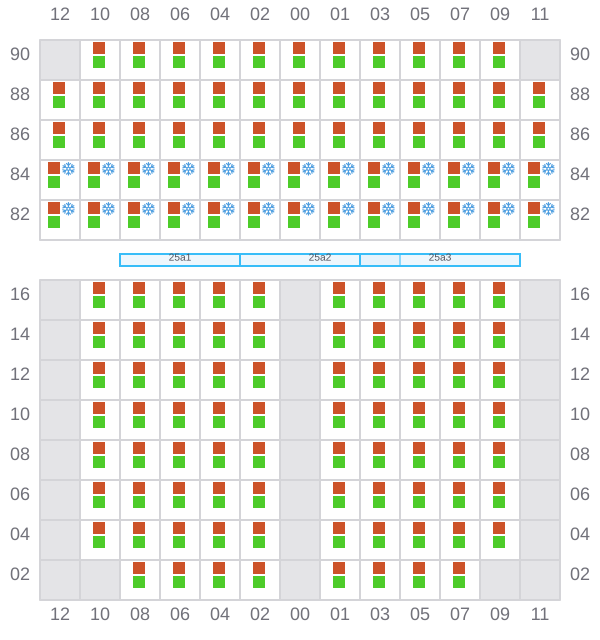

025 (024)
- ←
![Bay 025 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b025.png?v=1687375016700)
027
- →
![Bay 027 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b027.png?v=1687375016700)
029 (028)
- ←
![Bay 029 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b029.png?v=1687375016700)
031
- →
![Bay 031 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b031.png?v=1687375016700)

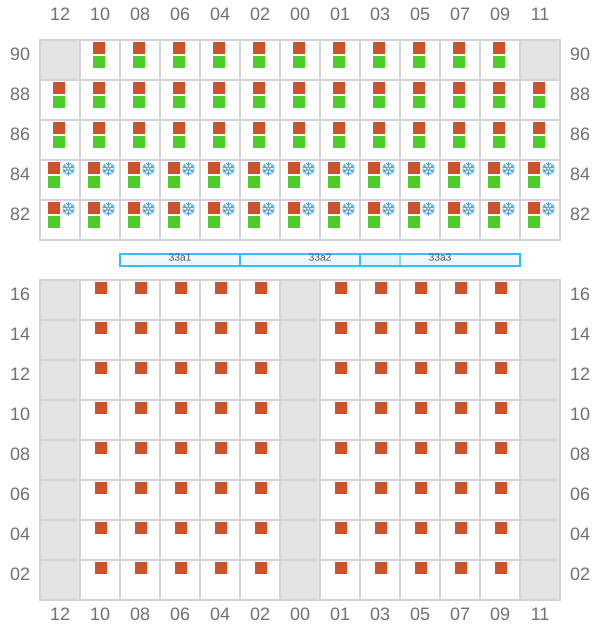

033 (032)
- ←
![Bay 033 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b033.png?v=1687375016700)
035
- →
![Bay 035 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b035.png?v=1687375016700)
037 (036)
- ←
![Bay 037 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b037.png?v=1687375016700)
039
- →
![Bay 039 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b039.png?v=1687375016700)
041 (040)
- ←
![Bay 041 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b041.png?v=1687375016700)
043
- →
![Bay 043 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b043.png?v=1687375016700)
045 (044)
- ←
![Bay 045 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b045.png?v=1687375016700)
047
- →
![Bay 047 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b047.png?v=1687375016700)
049 (048)
- ←
![Bay 049 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b049.png?v=1687375016700)

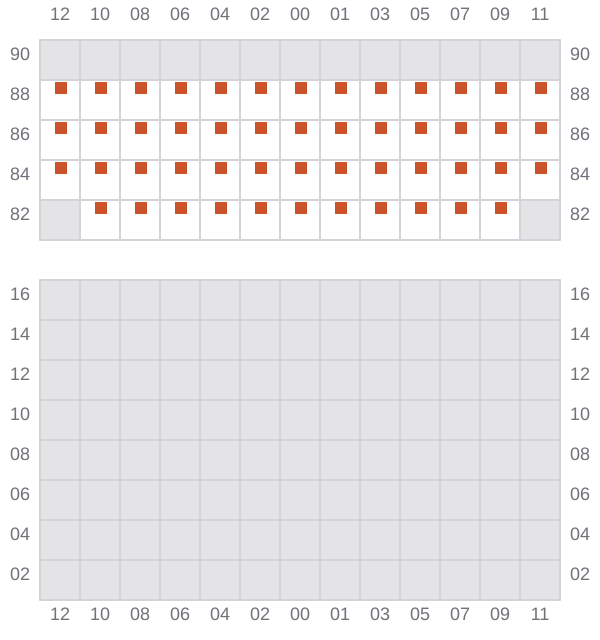

051
- → / ?
![Bay 051 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b051.png?v=1687375016700)

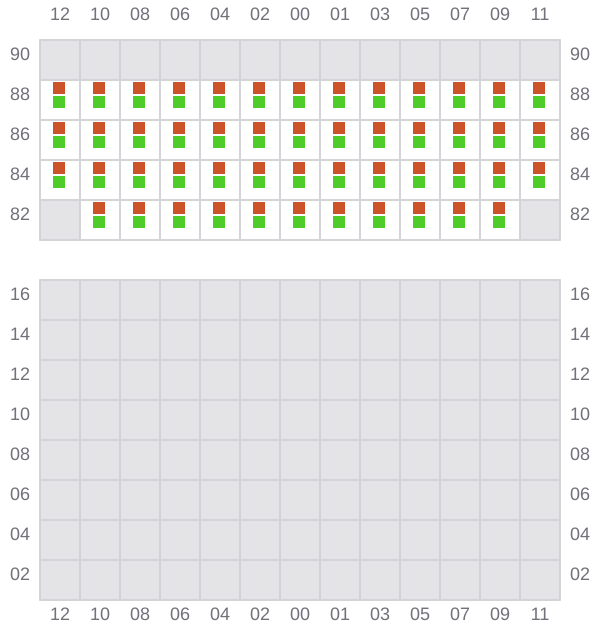

053 (052)
- ← / ?
![Bay 053 view and slots of MSC TINA](/vessel-images/61fc4c71-658b-4aea-a578-eaf2785f4259-b053.png?v=1687375016700)
