MSC TOKYO
9318046 | A8IE8 | 9318046 by ********* Last update: Wed Jun 05 2024
General Info
Ship Name:MSC TOKYO
IMO Code:9318046
Call Sign:A8IE8
Line Operator:9318046
Class Name for Sister Ships:ER TOKYO
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):319.00
LOA (Length Overall):334.08
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,214
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

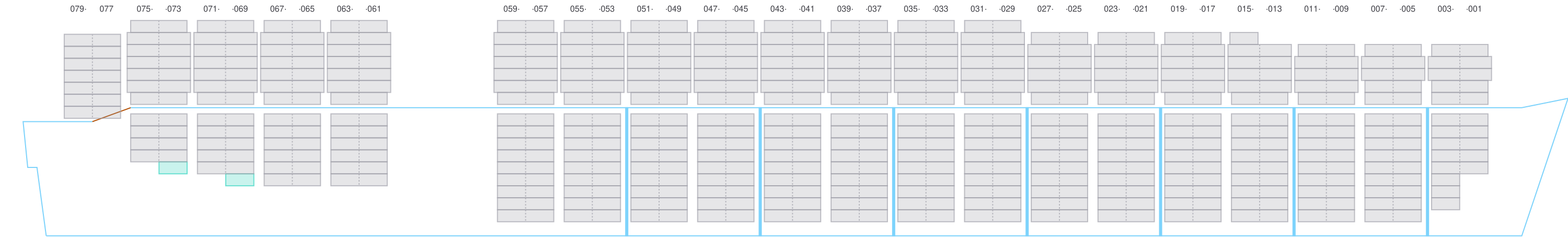

Side View

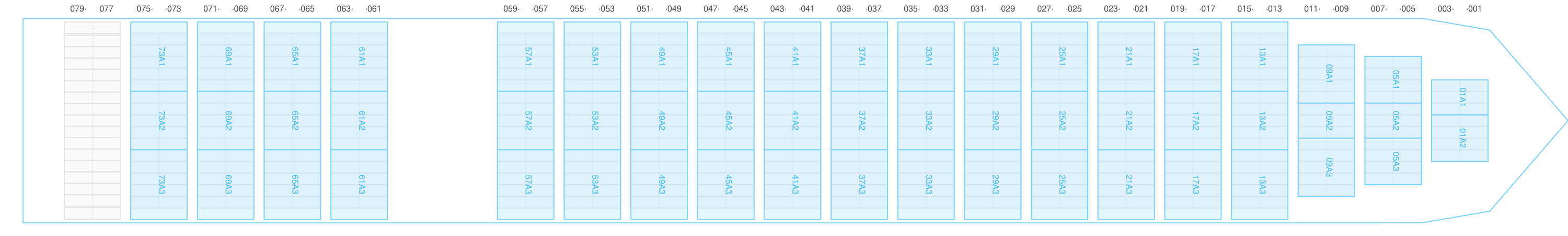

Hatch-Covers View

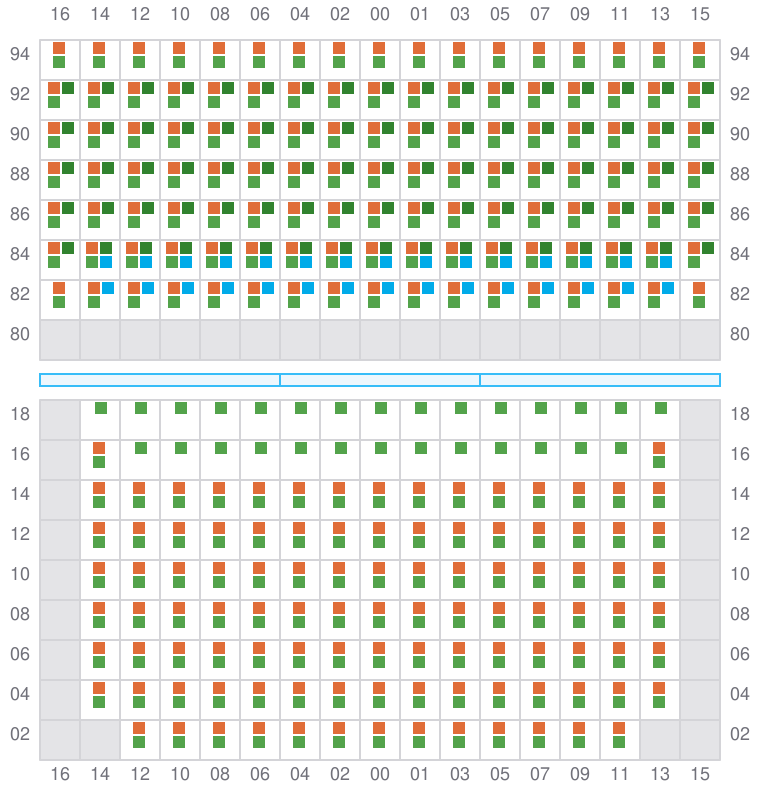

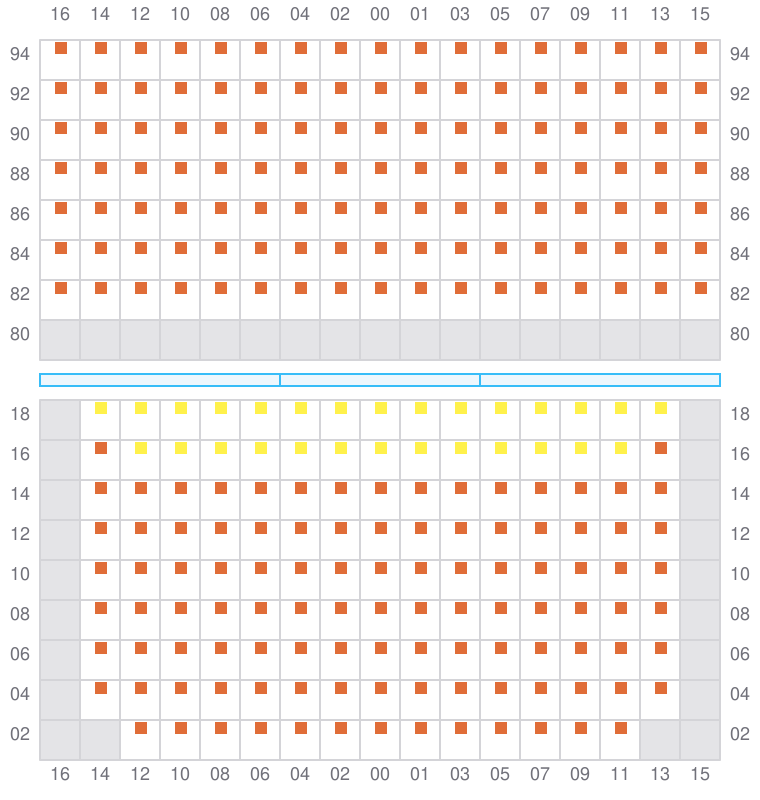

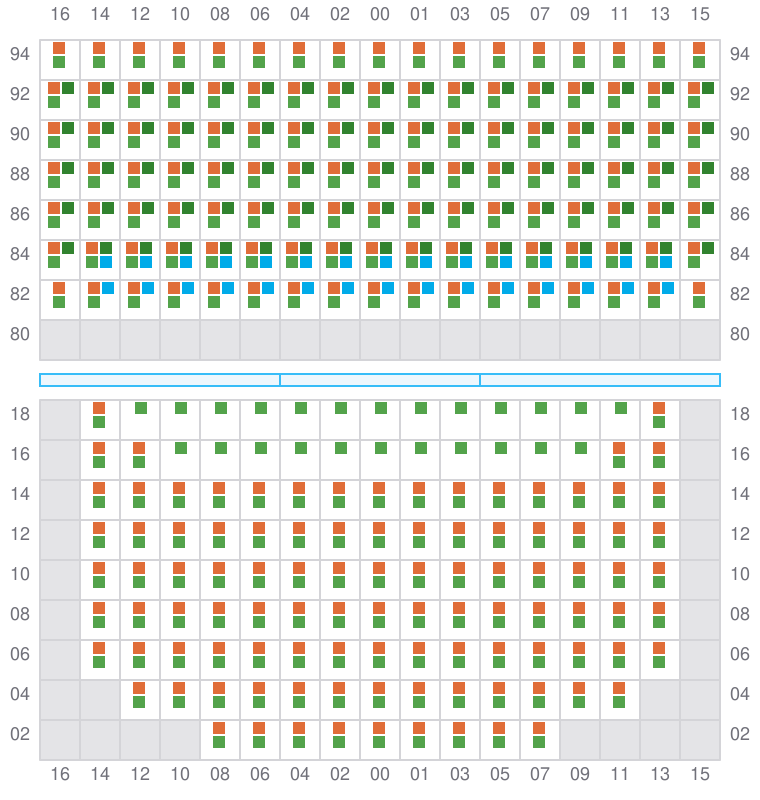

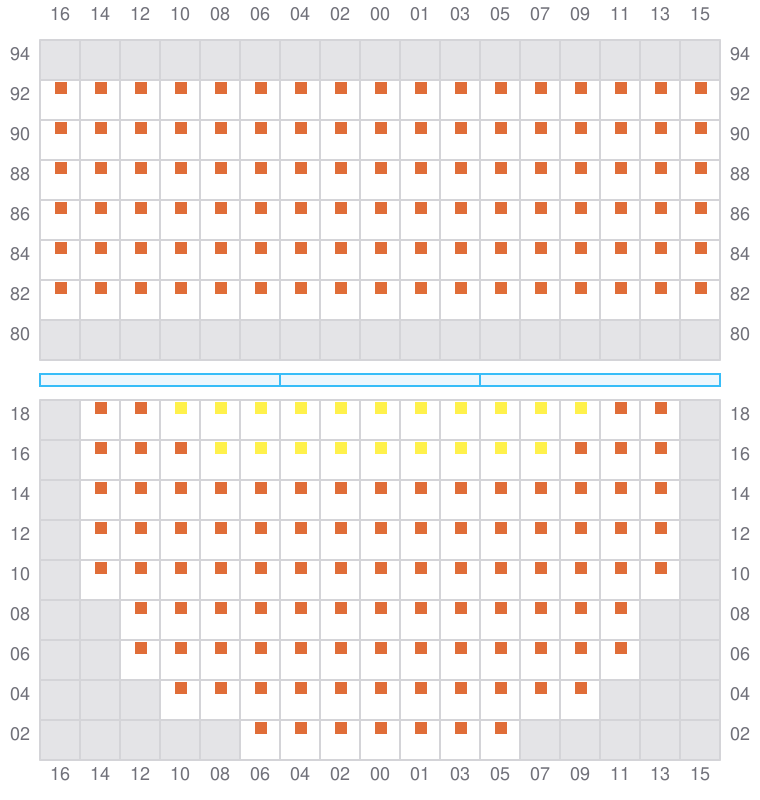

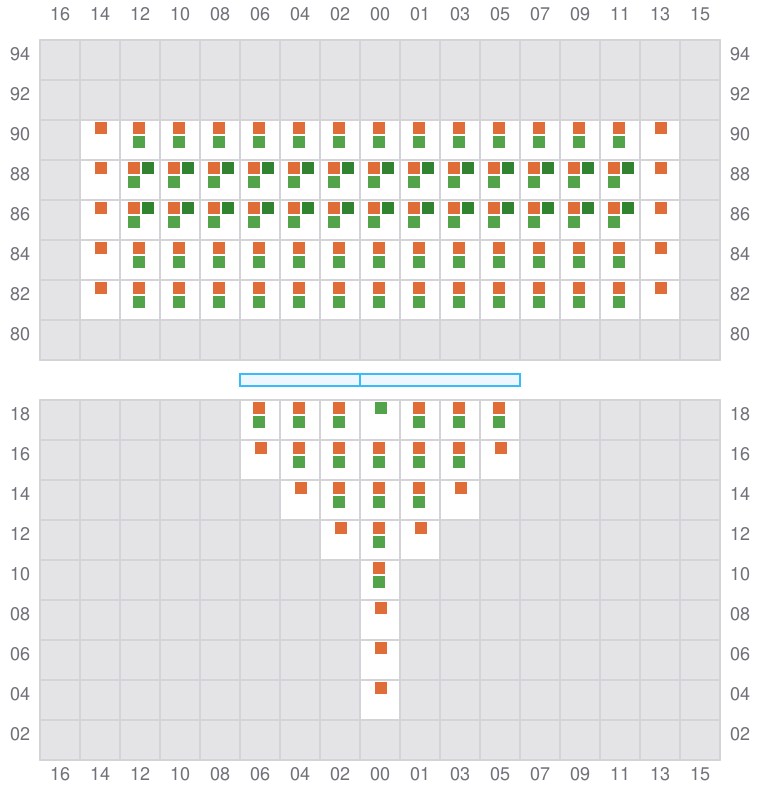

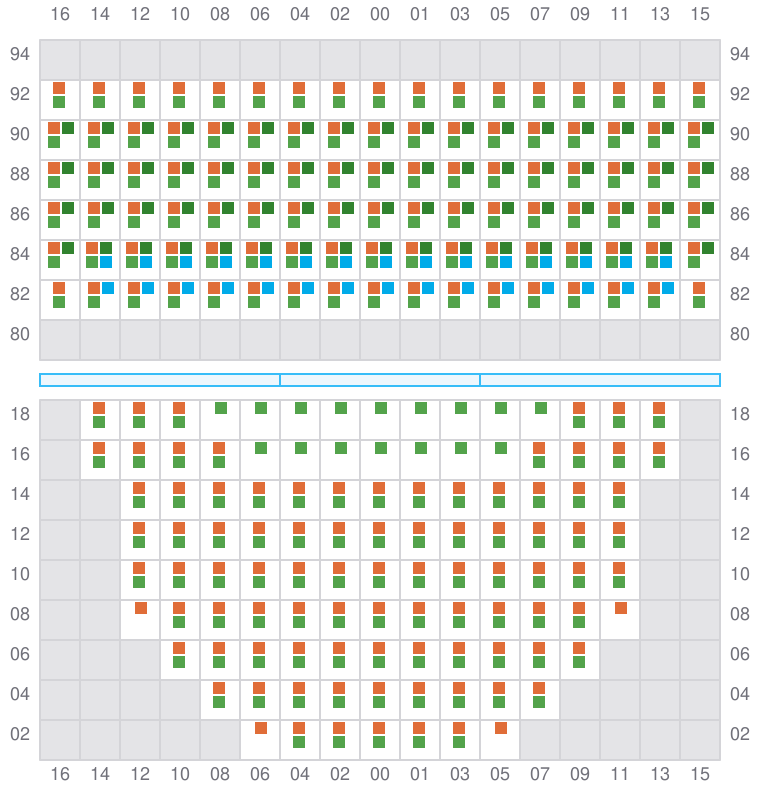

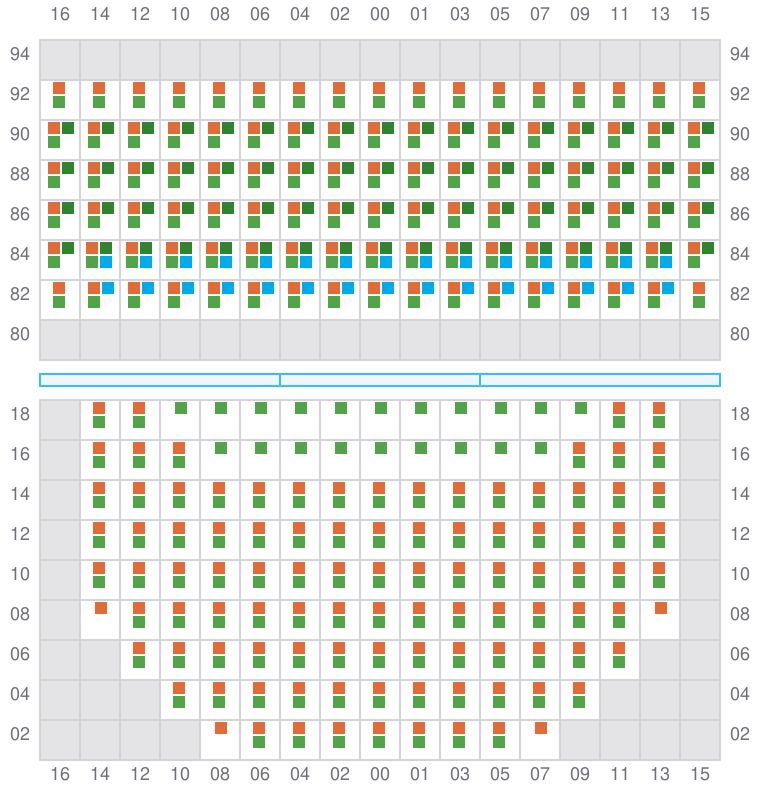

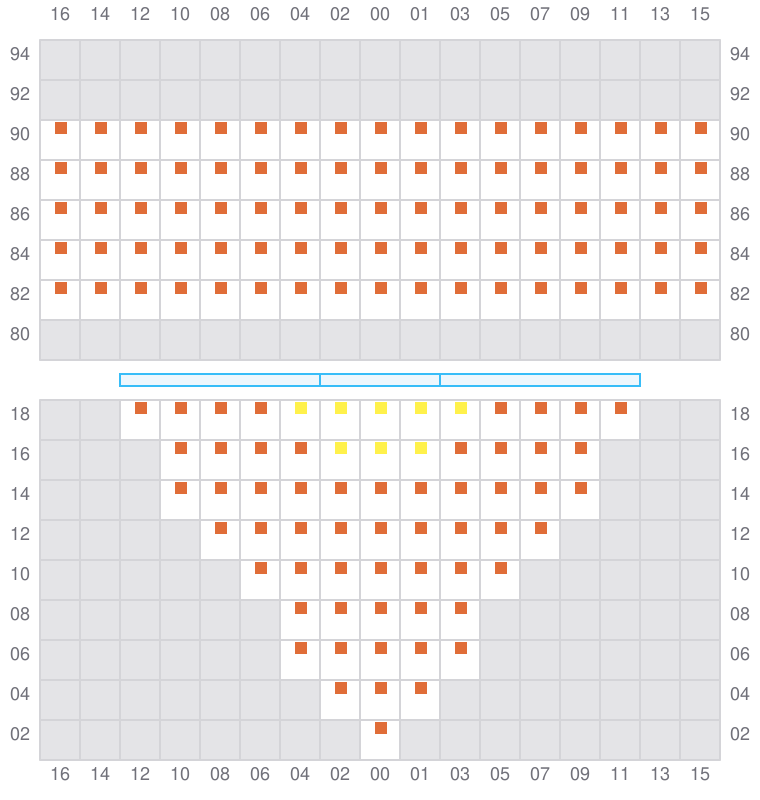

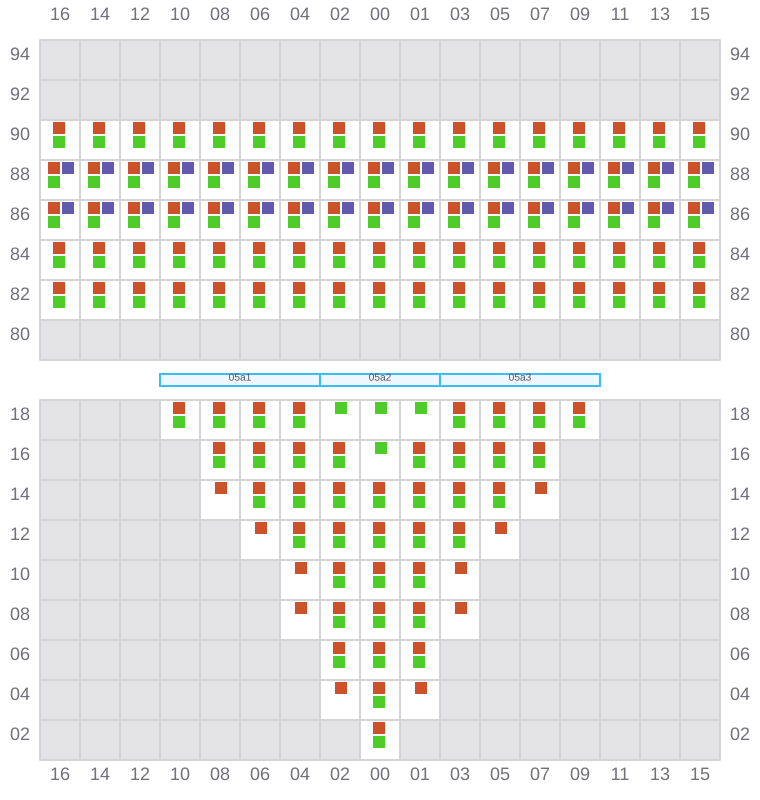

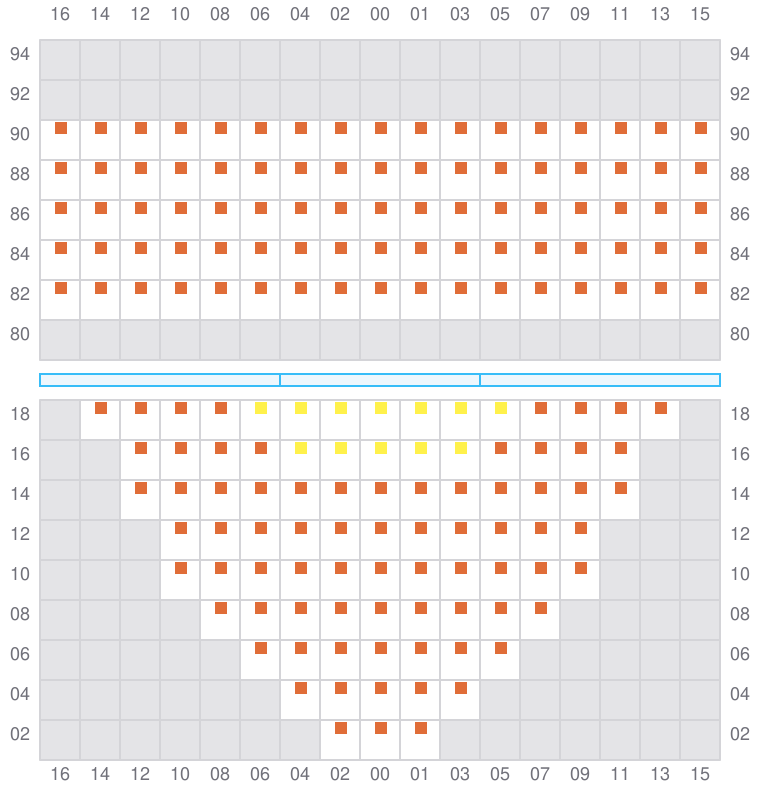

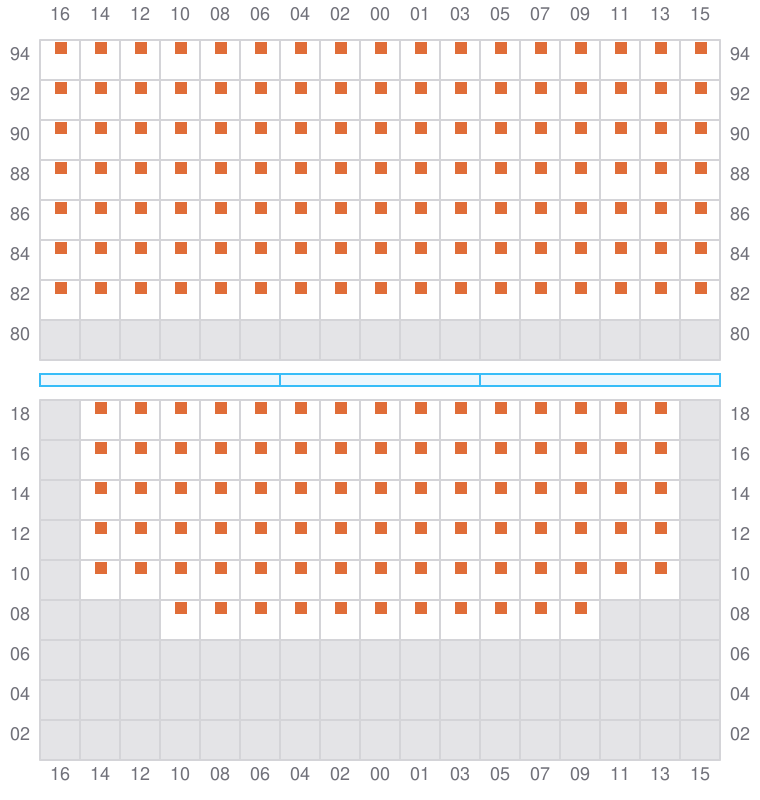

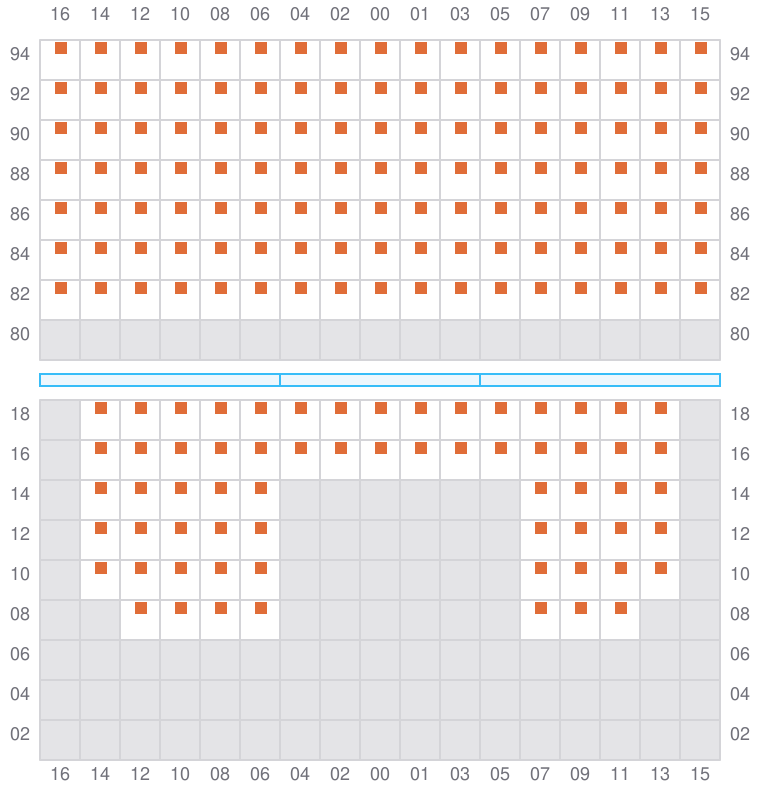

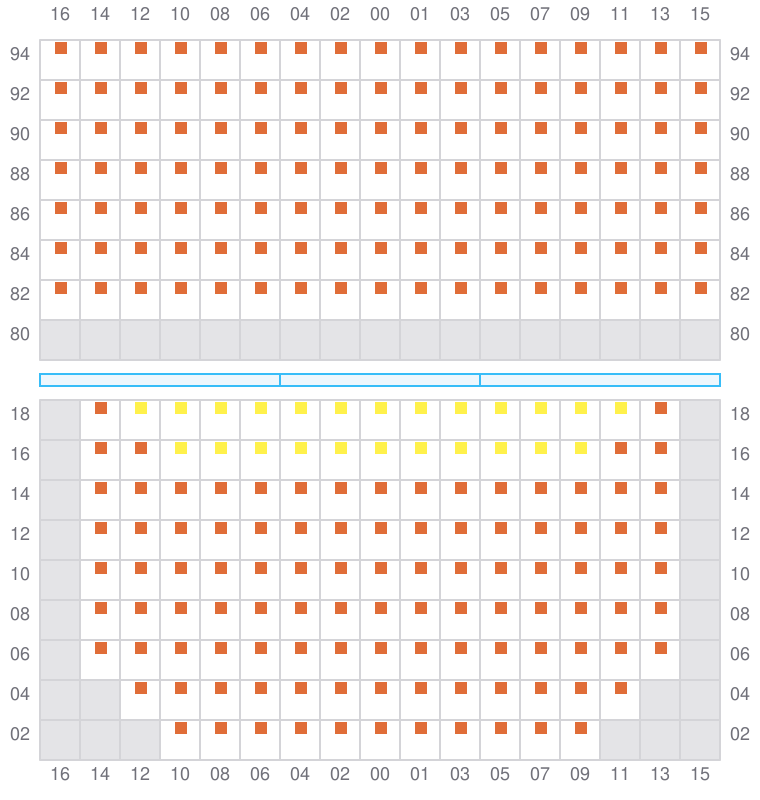

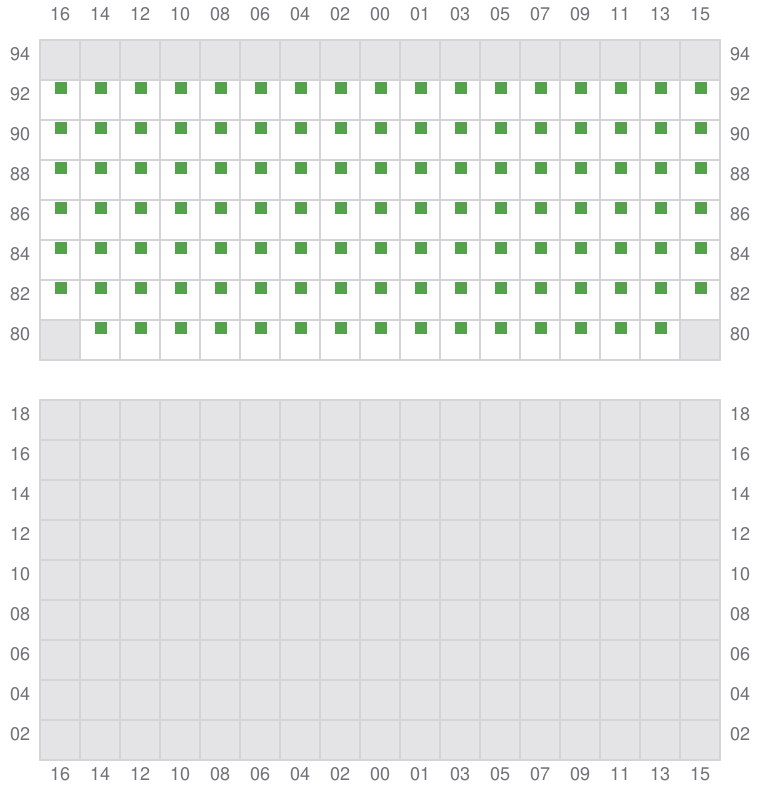

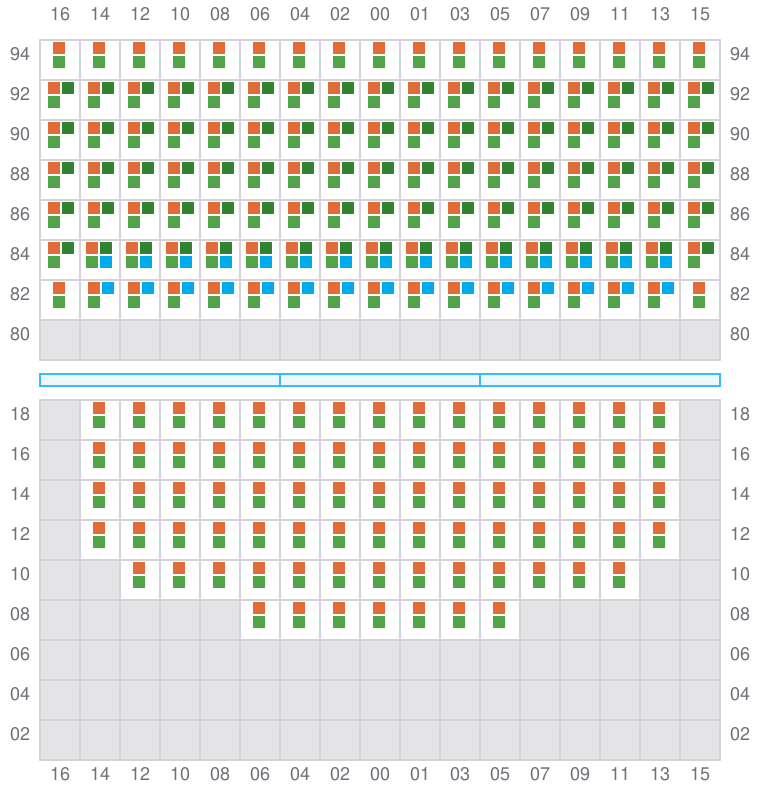

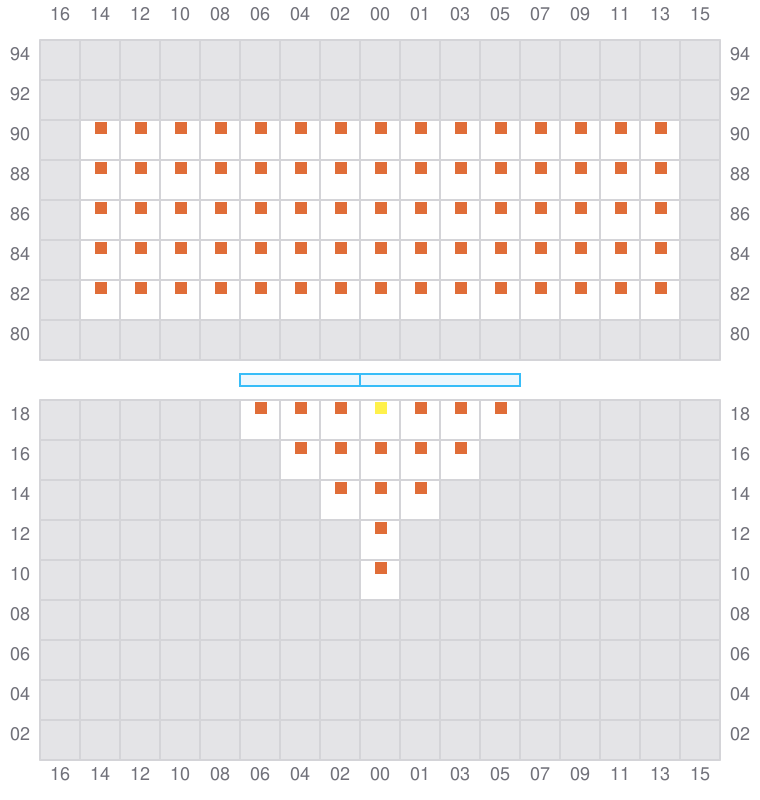

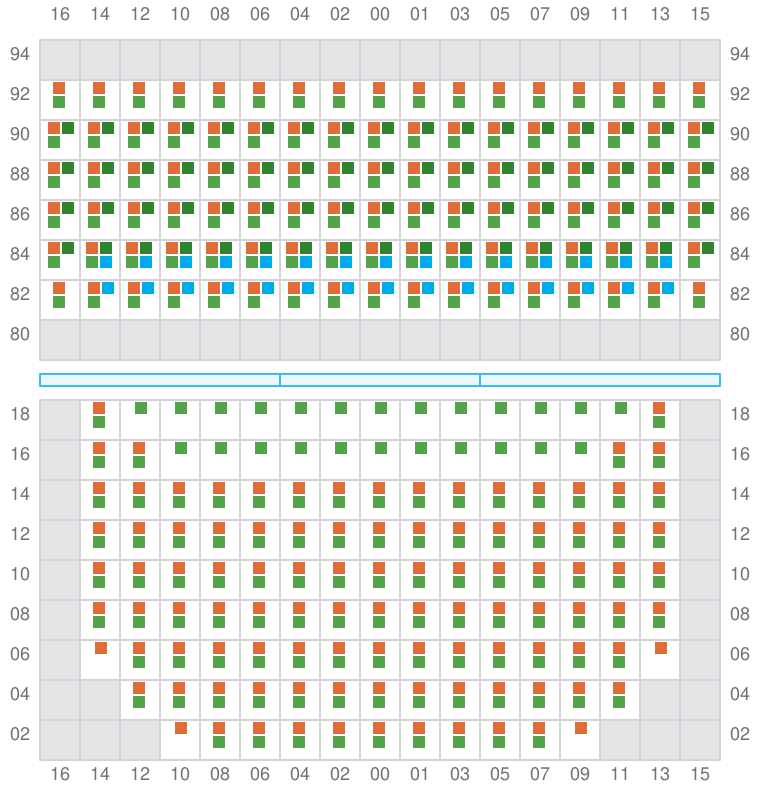

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →

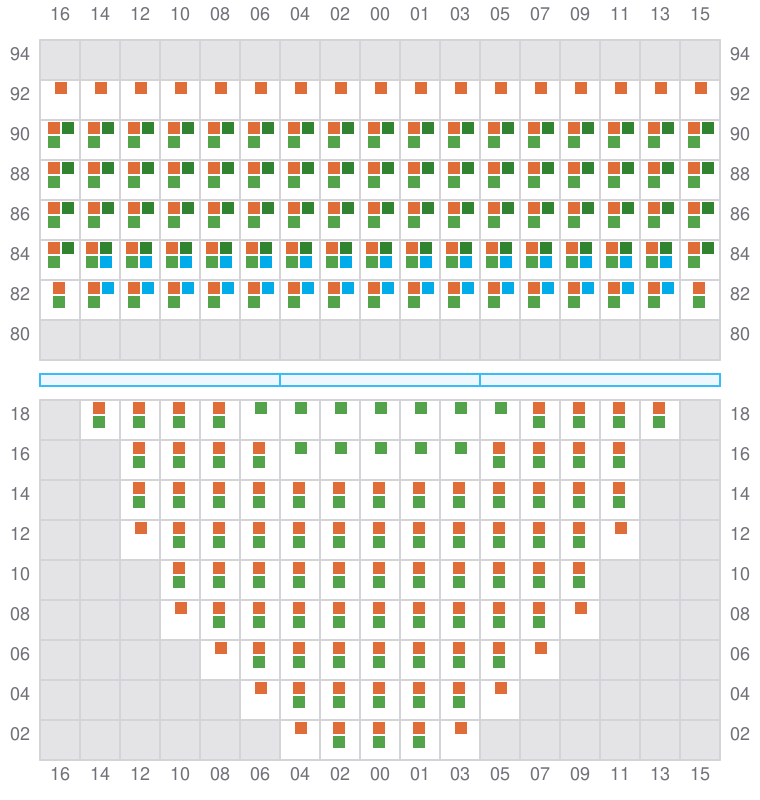

015 (014)
- ←

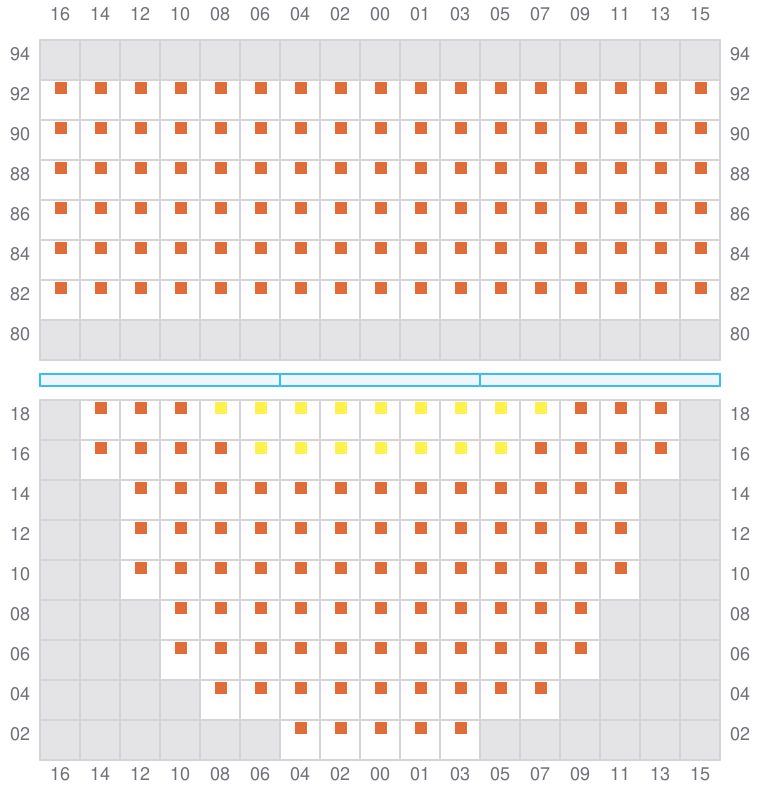

017
- →
019 (018)
- ←
021
- →
023 (022)
- ←

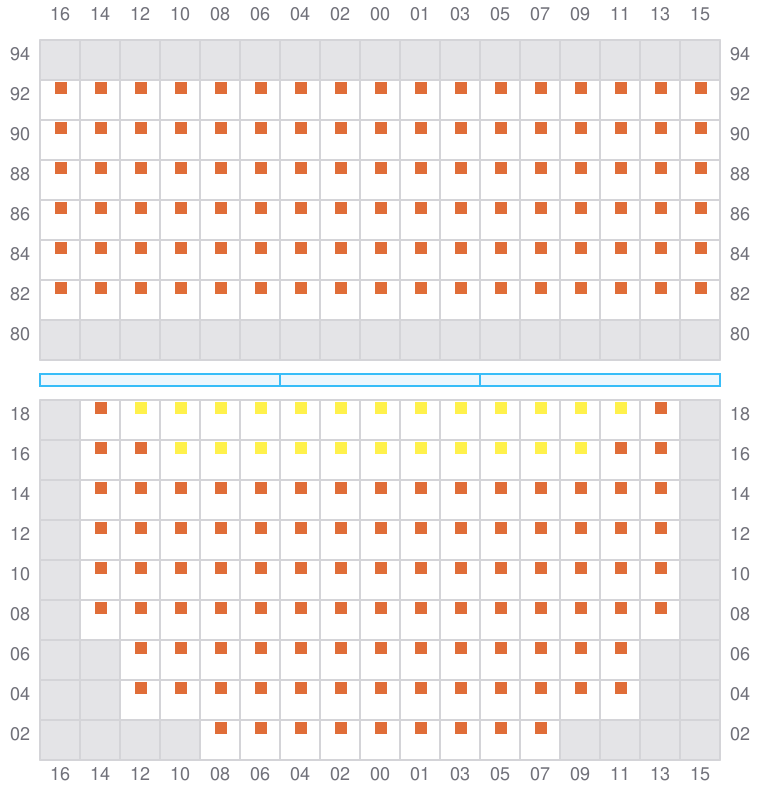

025
- →
027 (026)
- ←
029
- →

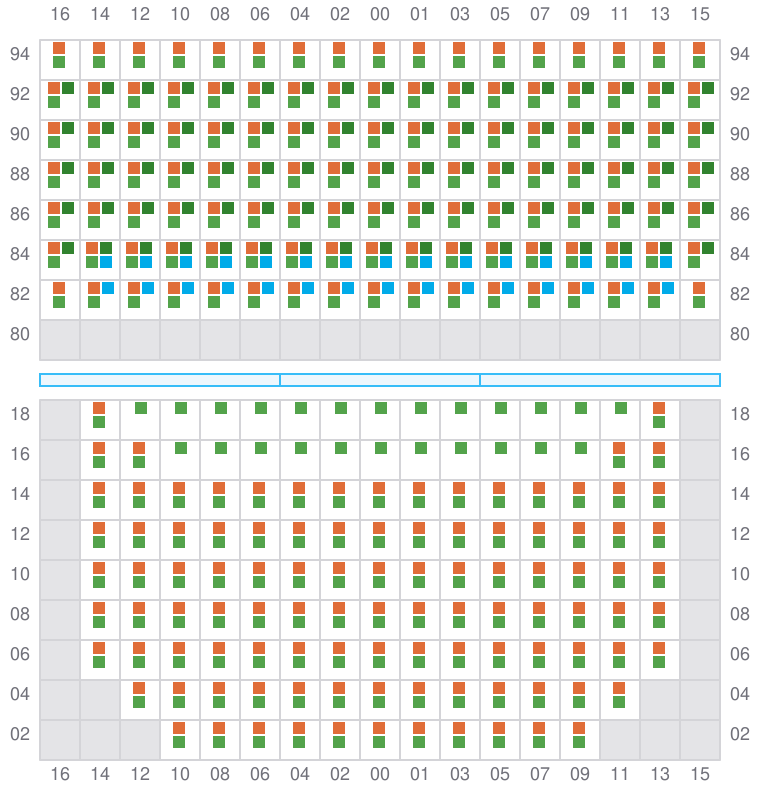

031 (030)
- ←
033
- →
035 (034)
- ←

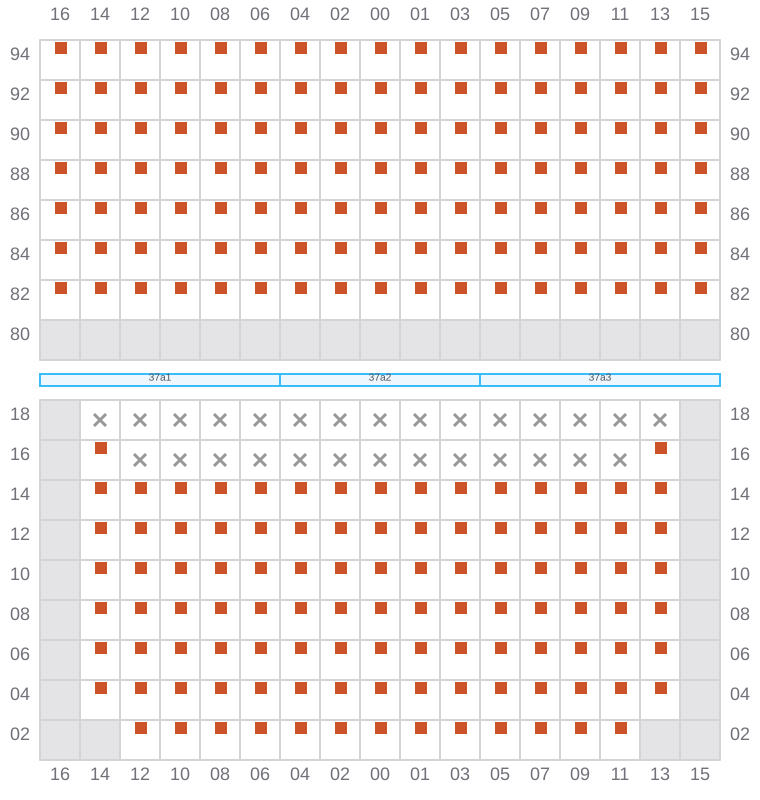

037
- →
039 (038)
- ←
041
- →

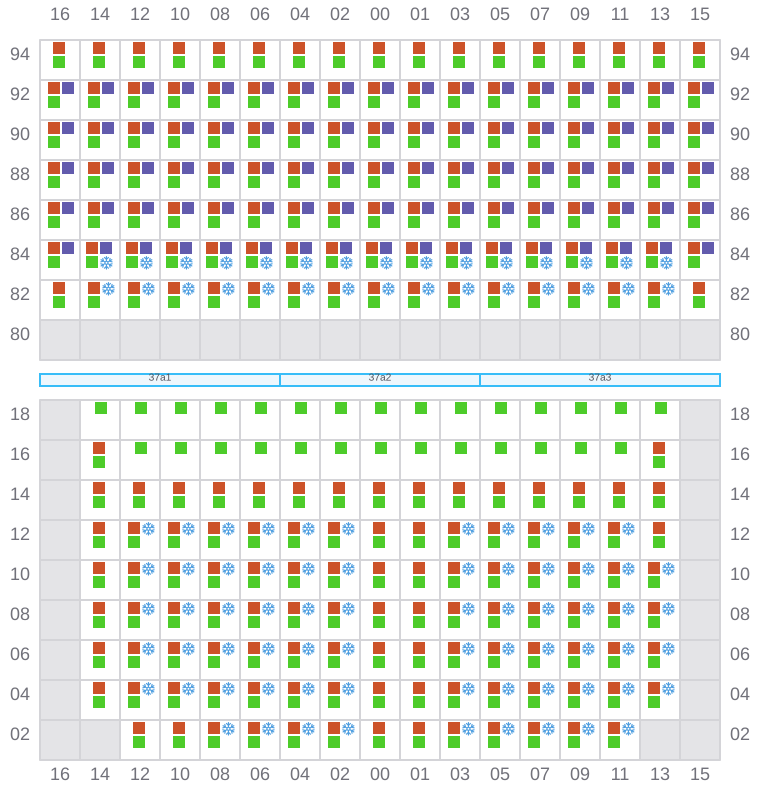

043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←

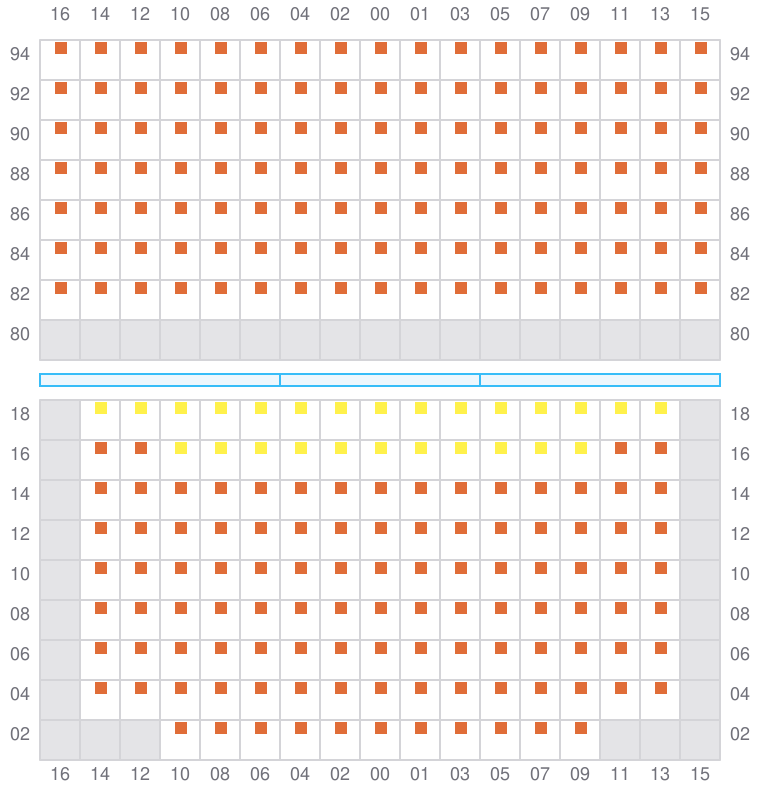

053
- →

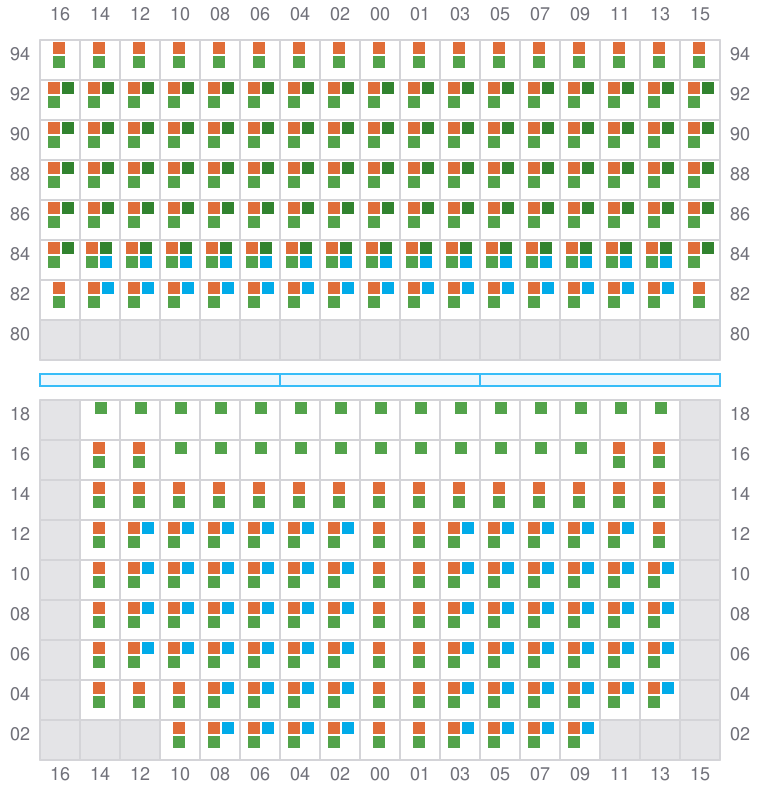

055 (054)
- ←
057
- →
059 (058)
- ←
061
- →

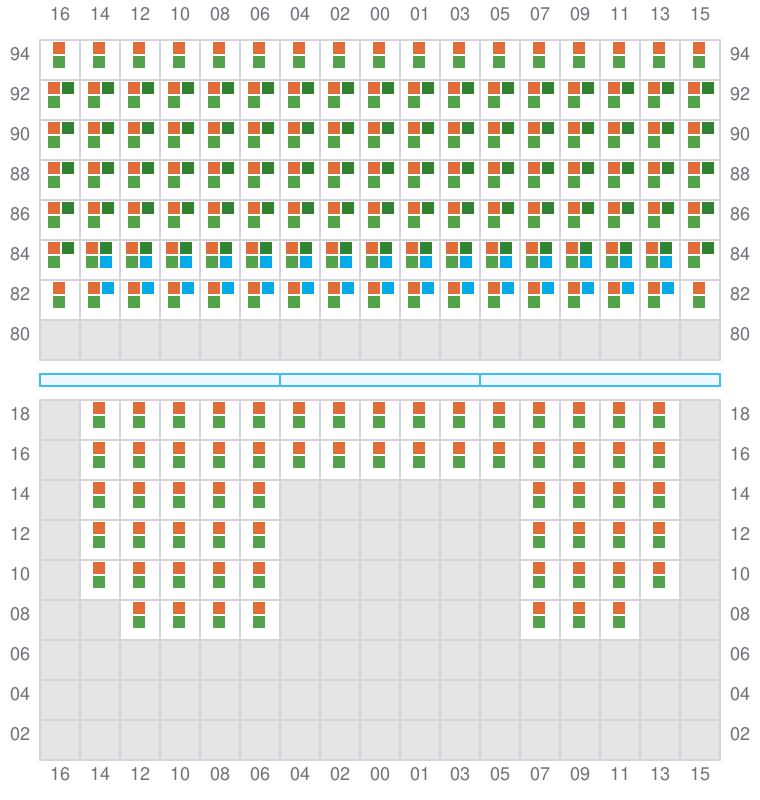

063 (062)
- ←
065
- →
067 (066)
- ←

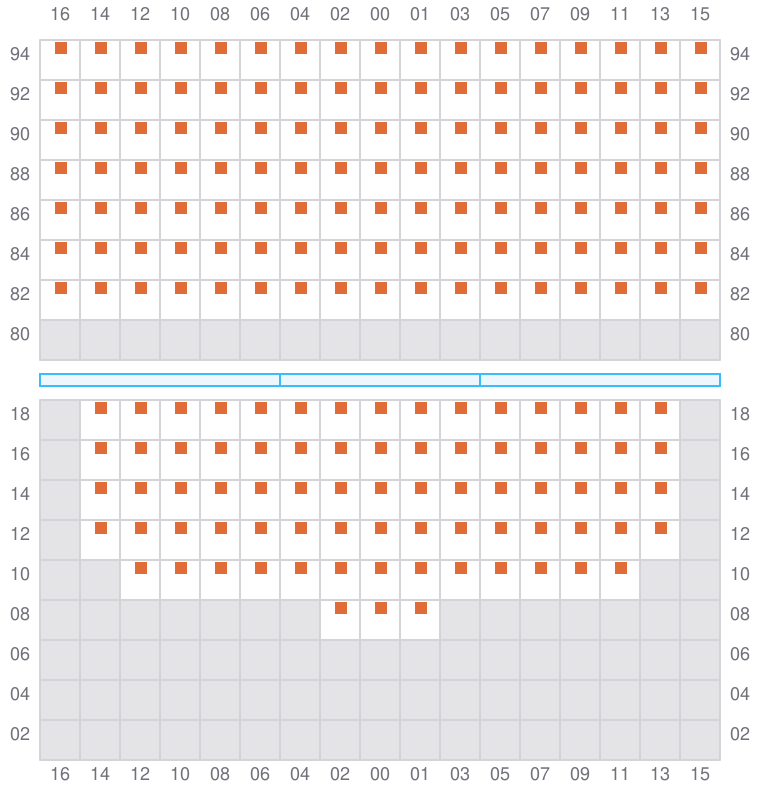

069
- →

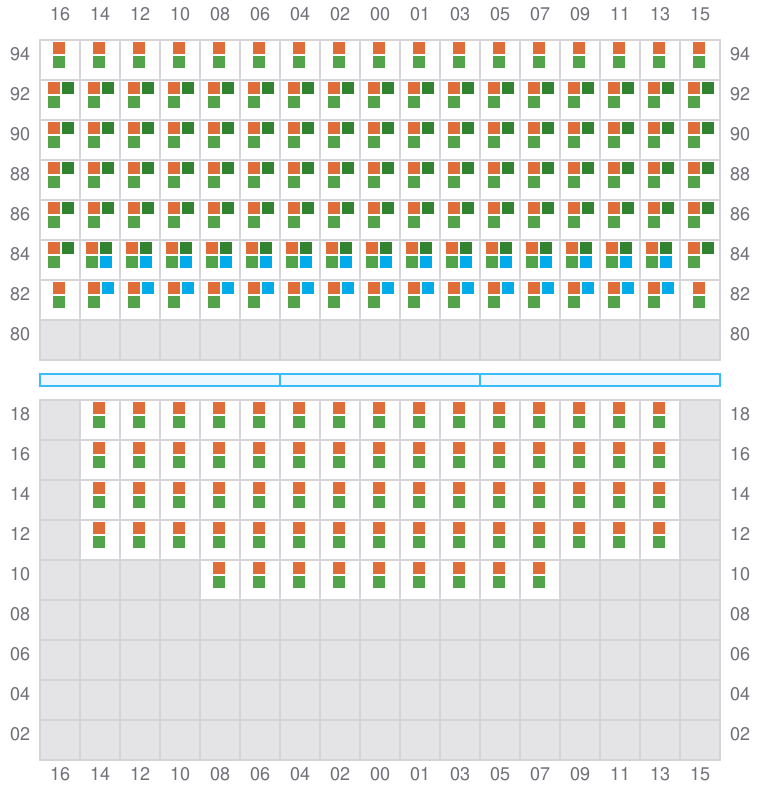

071 (070)
- ←

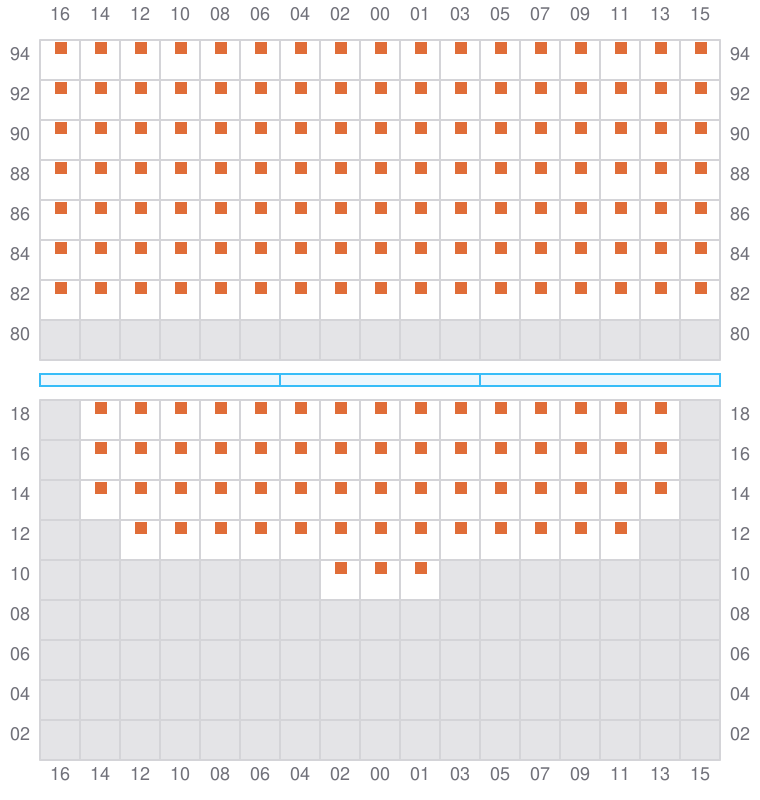

073
- →

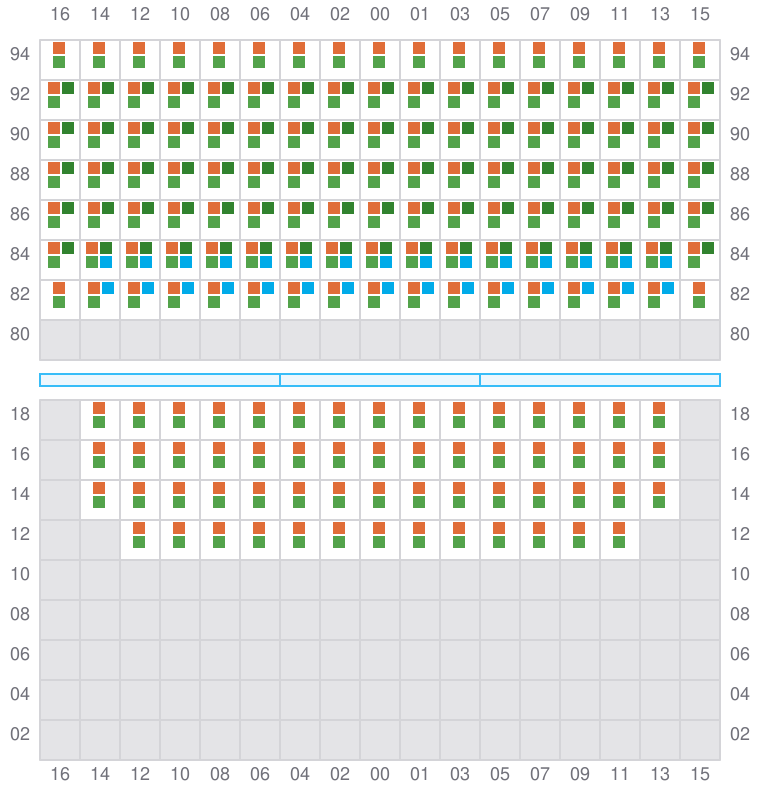

075 (074)
- ←
077
079 (078)
- ← / ?
