MSC TRACY V
9295177 | 5LHB7 | MSC by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:MSC TRACY V
IMO Code:9295177
Call Sign:5LHB7
Line Operator:MSC
Class Name for Sister Ships:MTV
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,092
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

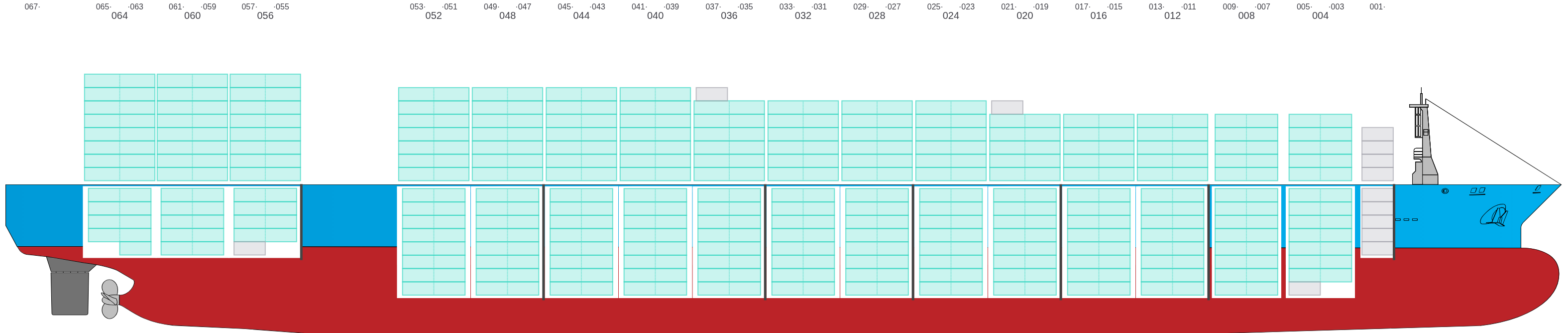

Side View
![Side view of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-sideView.png?v=1687546191058)

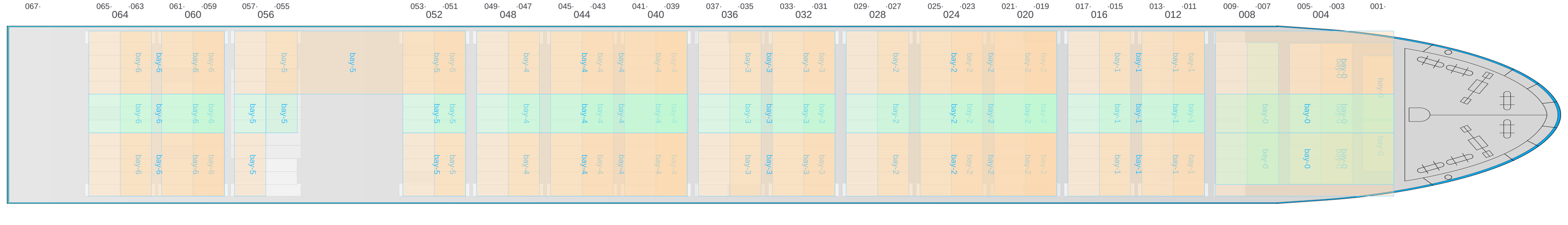

Hatch-Covers View
![Deck view of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-deckView.png?v=1687546191058)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

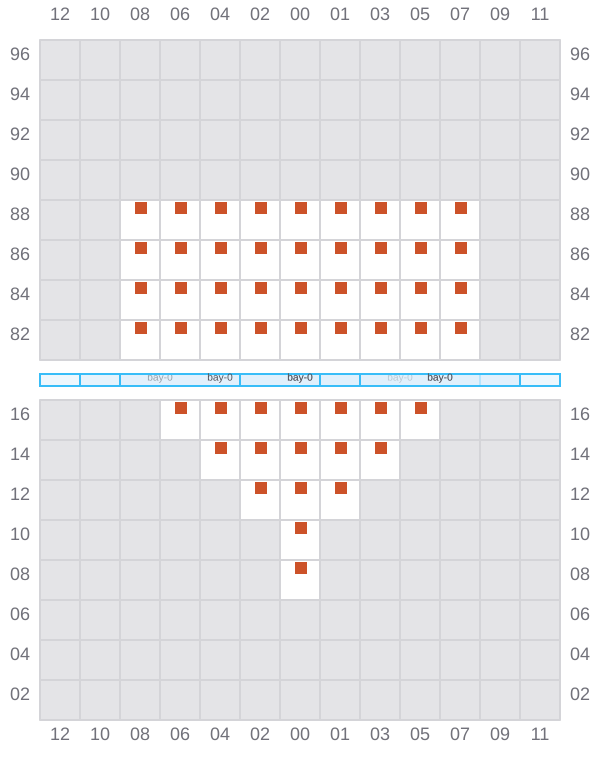

001
- ←
![Bay 001 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b001.png?v=1687546191058)

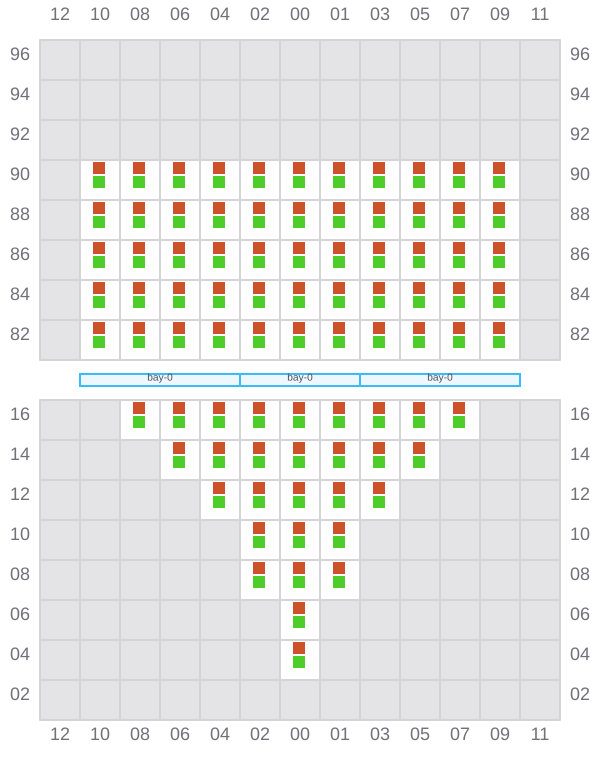

003 (004)
- →
![Bay 003 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b003.png?v=1687546191058)

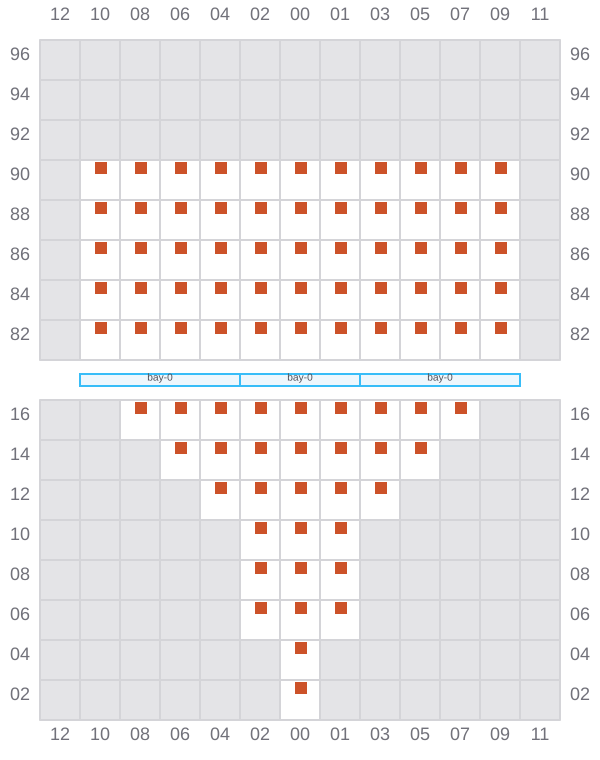

005
- ←
![Bay 005 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b005.png?v=1687546191058)

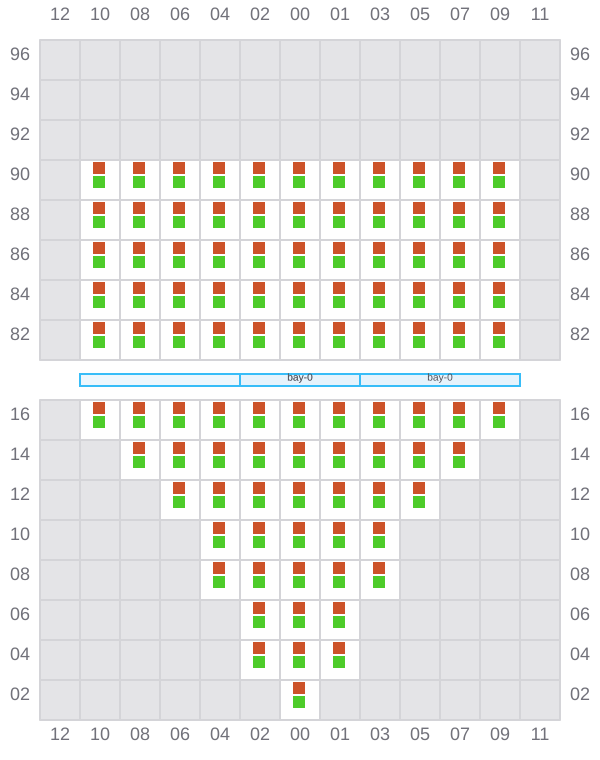

007 (008)
- →
![Bay 007 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b007.png?v=1687546191058)

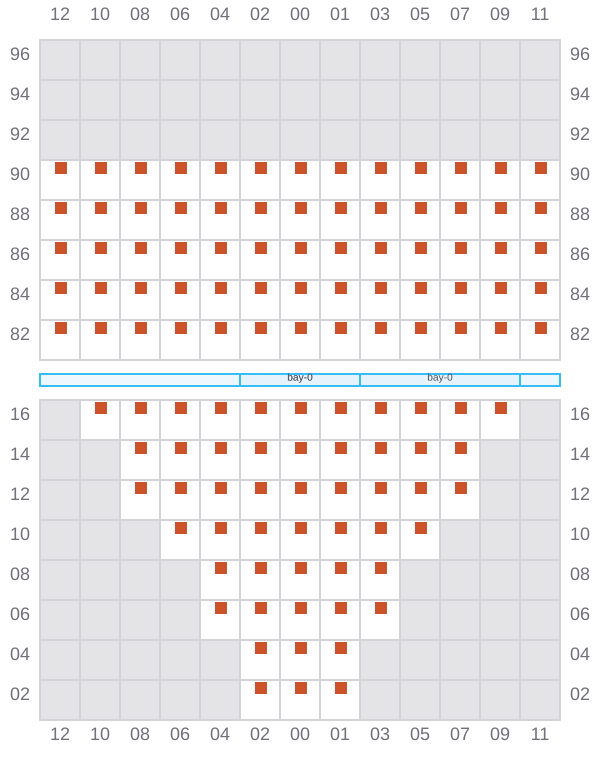

009
- ←
![Bay 009 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b009.png?v=1687546191058)

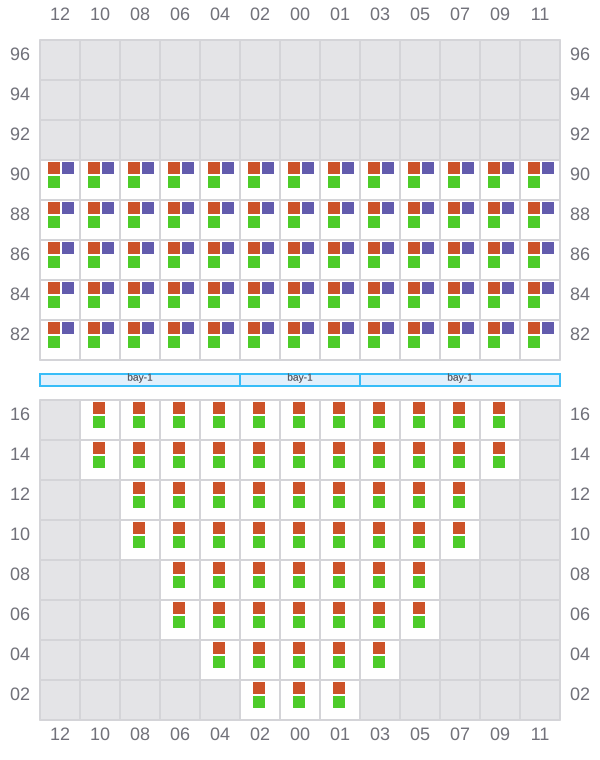

011 (012)
- →
![Bay 011 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b011.png?v=1687546191058)

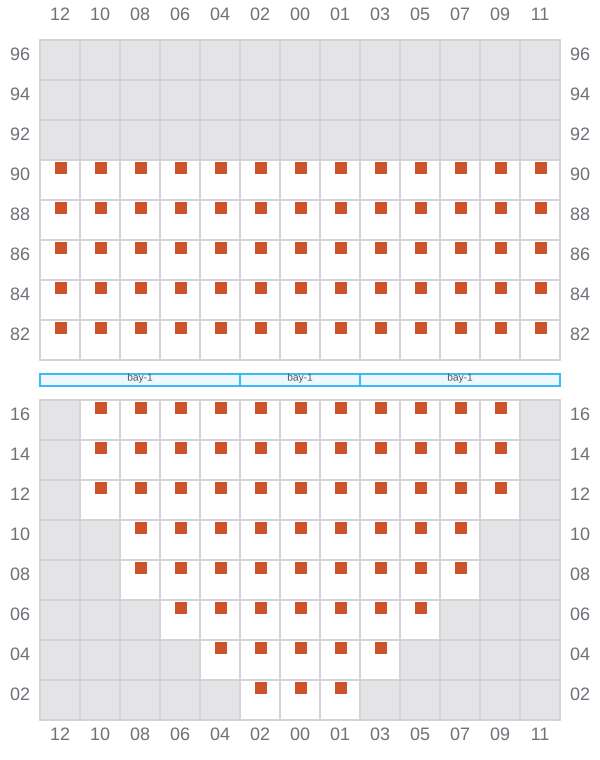

013
- ←
![Bay 013 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b013.png?v=1687546191058)

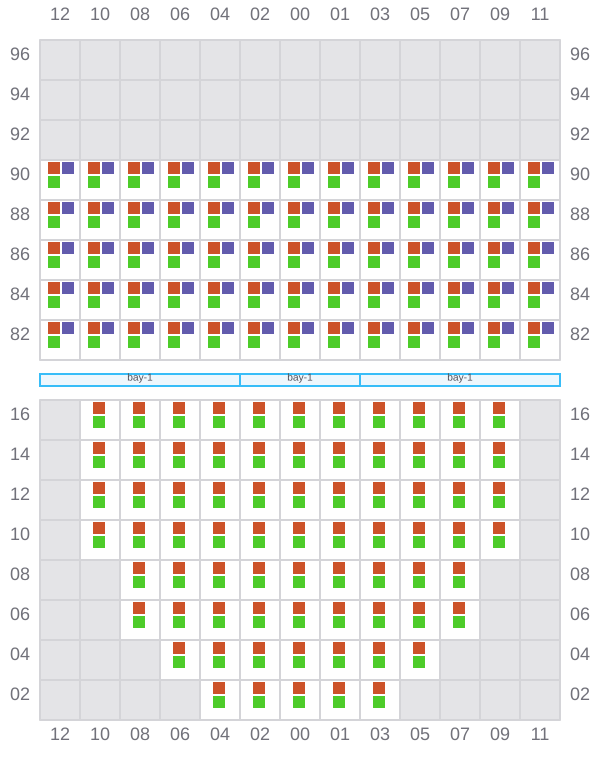

015 (016)
- →
![Bay 015 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b015.png?v=1687546191058)

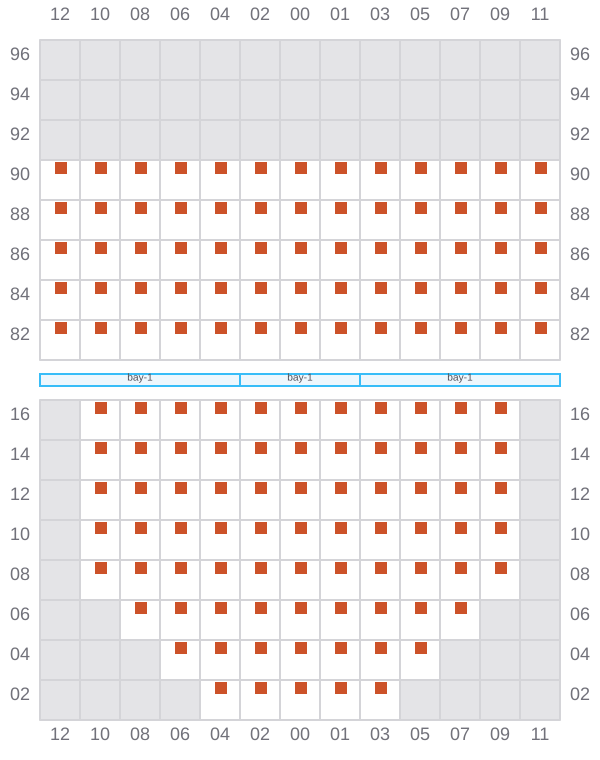

017
- ←
![Bay 017 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b017.png?v=1687546191058)

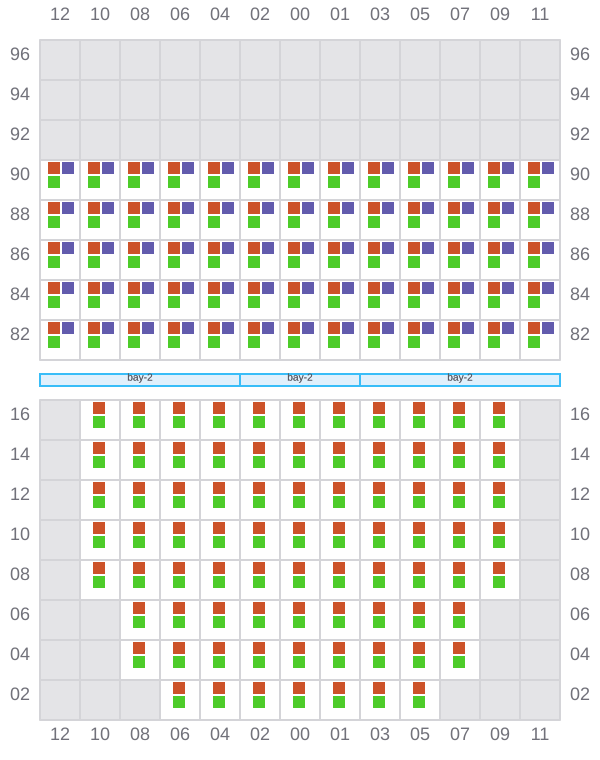

019 (020)
- →
![Bay 019 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b019.png?v=1687546191058)

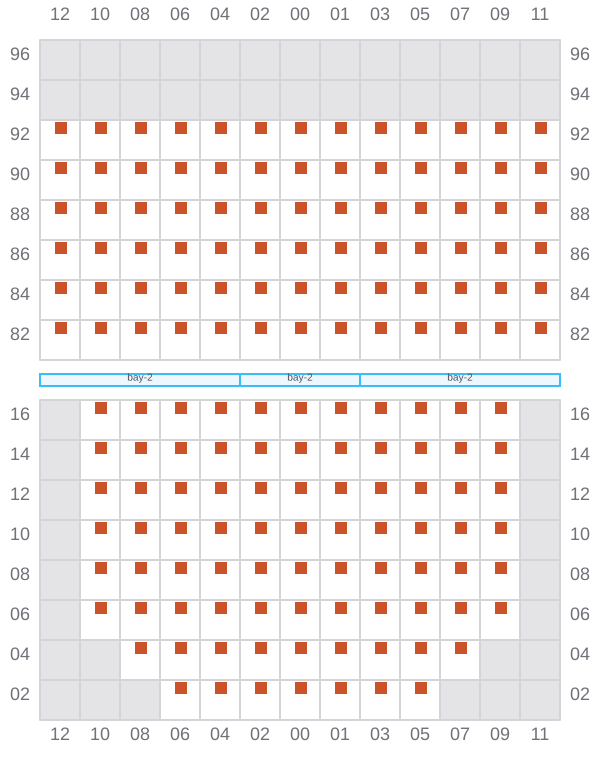

021
- ←
![Bay 021 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b021.png?v=1687546191058)
023 (024)
- →
![Bay 023 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b023.png?v=1687546191058)
025
- ←
![Bay 025 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b025.png?v=1687546191058)

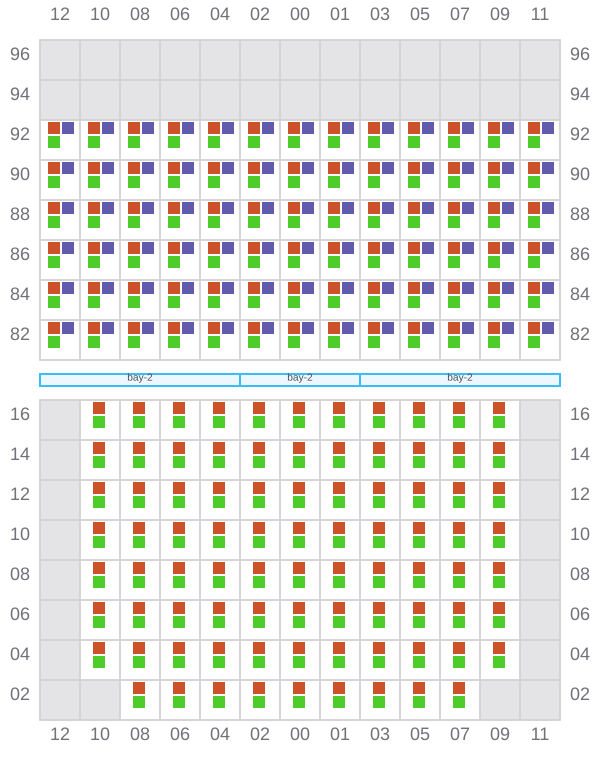

027 (028)
- →
![Bay 027 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b027.png?v=1687546191058)

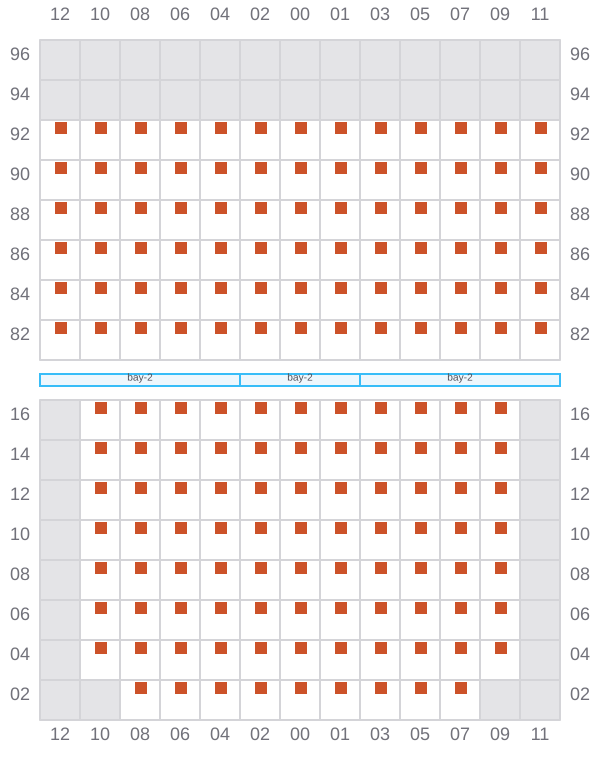

029
- ←
![Bay 029 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b029.png?v=1687546191058)

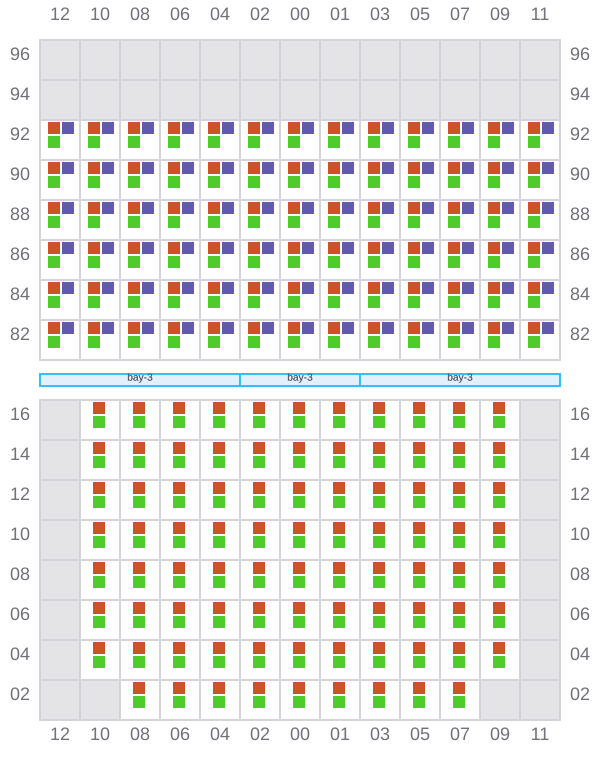

031 (032)
- →
![Bay 031 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b031.png?v=1687546191058)

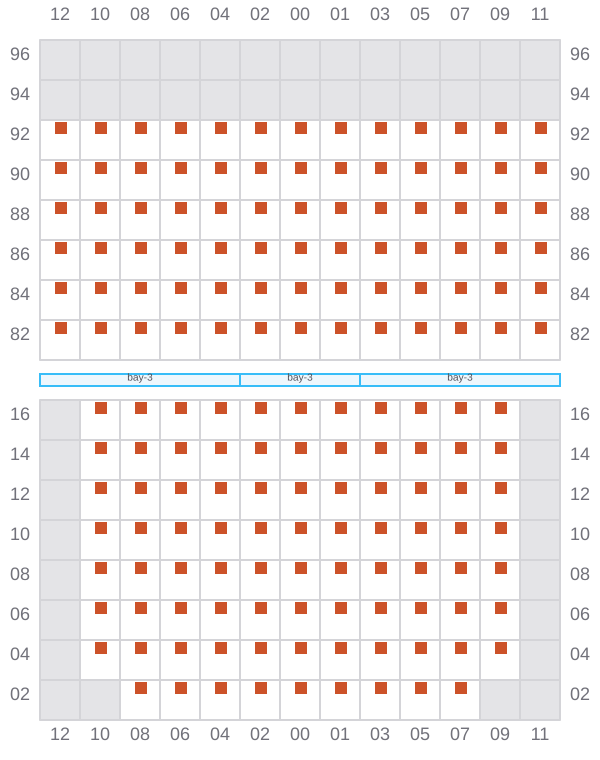

033
- ←
![Bay 033 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b033.png?v=1687546191058)

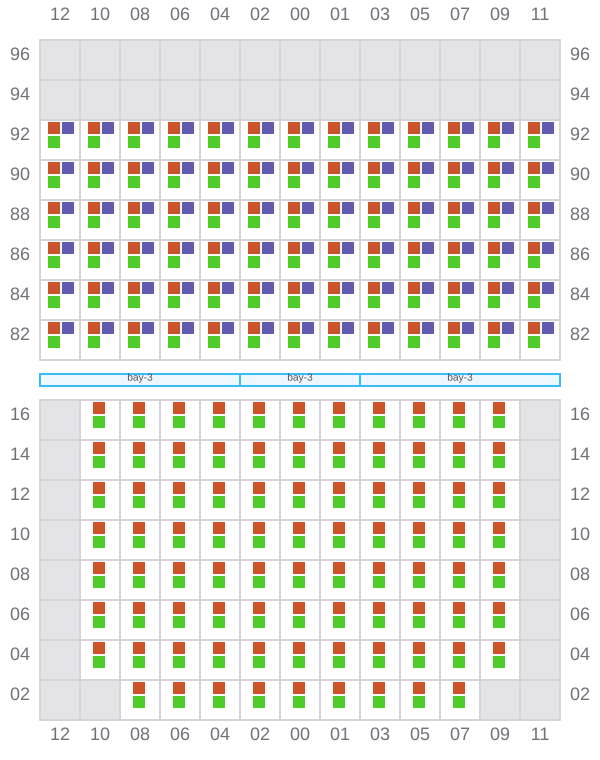

035 (036)
- →
![Bay 035 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b035.png?v=1687546191058)
037
- ←
![Bay 037 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b037.png?v=1687546191058)

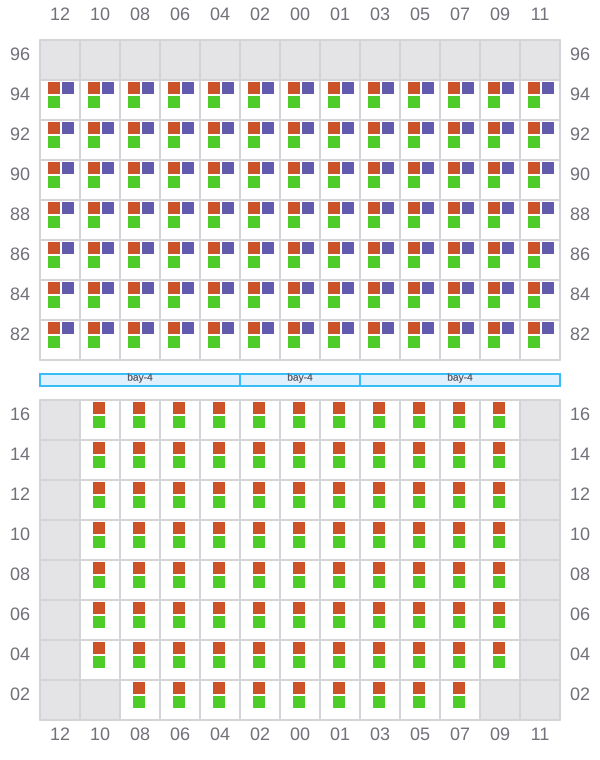

039 (040)
- →
![Bay 039 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b039.png?v=1687546191058)
041
- ←
![Bay 041 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b041.png?v=1687546191058)

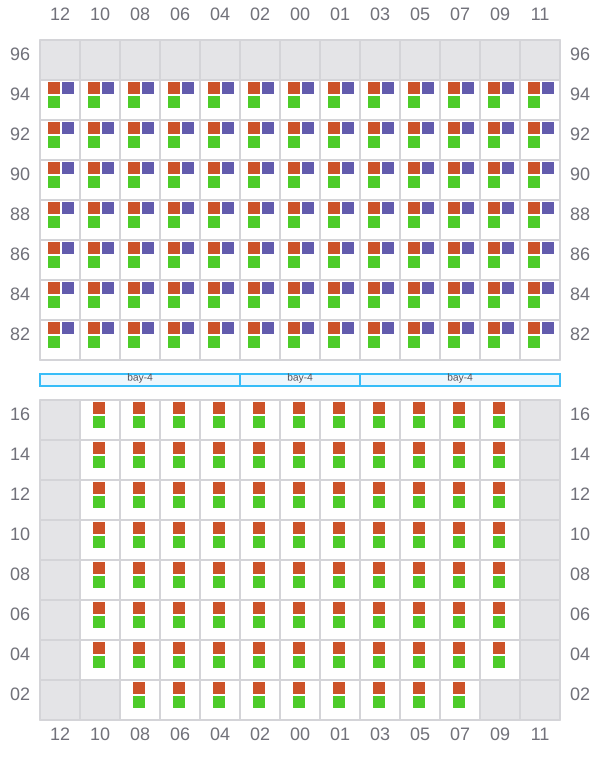

043 (044)
- →
![Bay 043 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b043.png?v=1687546191058)

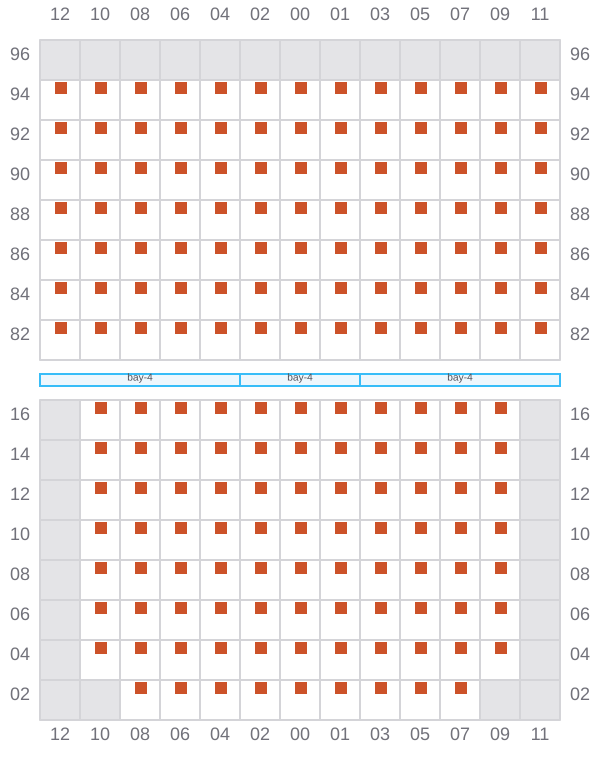

045
- ←
![Bay 045 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b045.png?v=1687546191058)
047 (048)
- →
![Bay 047 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b047.png?v=1687546191058)
049
- ←
![Bay 049 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b049.png?v=1687546191058)

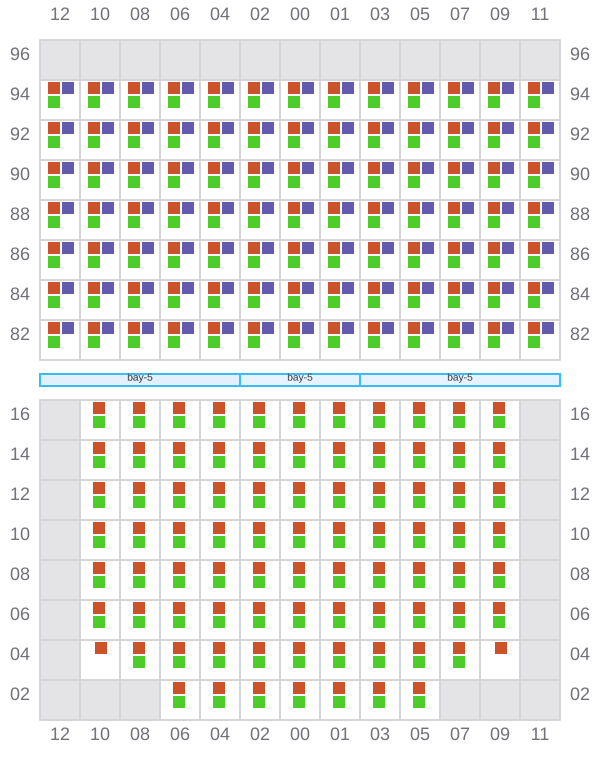

051 (052)
- →
![Bay 051 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b051.png?v=1687546191058)

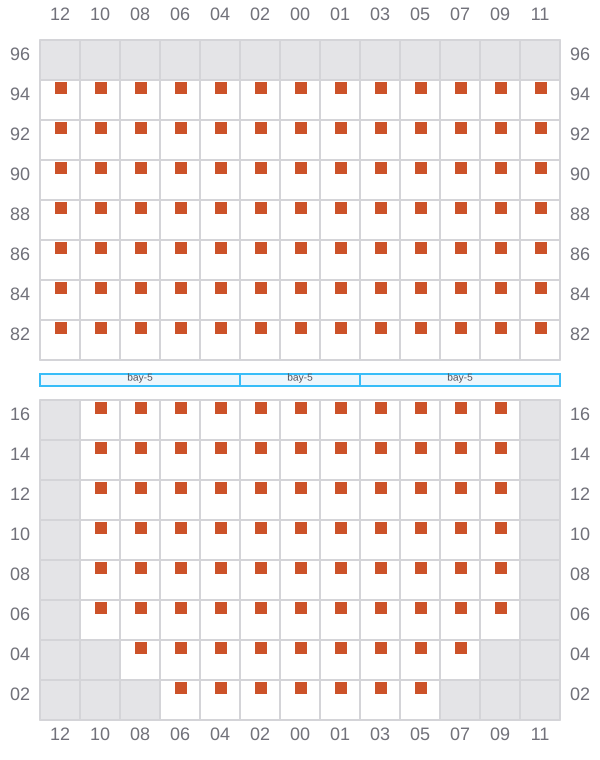

053
- ←
![Bay 053 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b053.png?v=1687546191058)

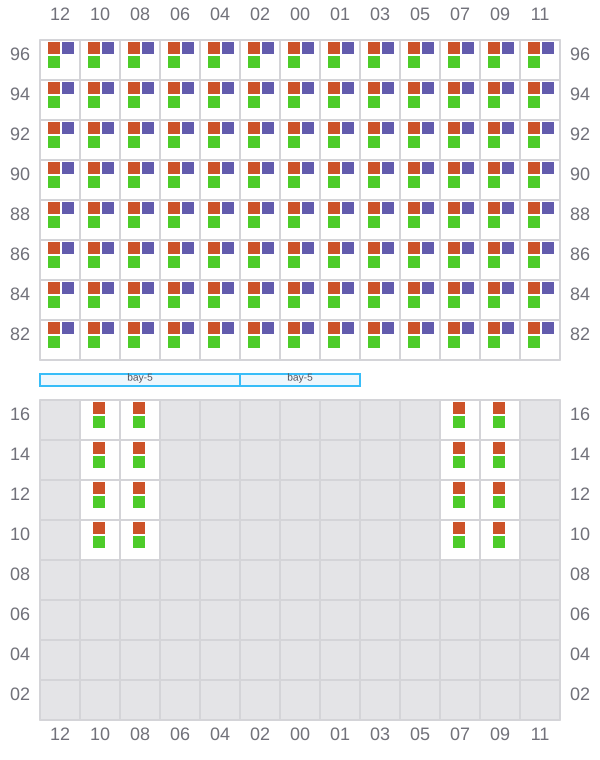

055 (056)
- →
![Bay 055 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b055.png?v=1687546191058)

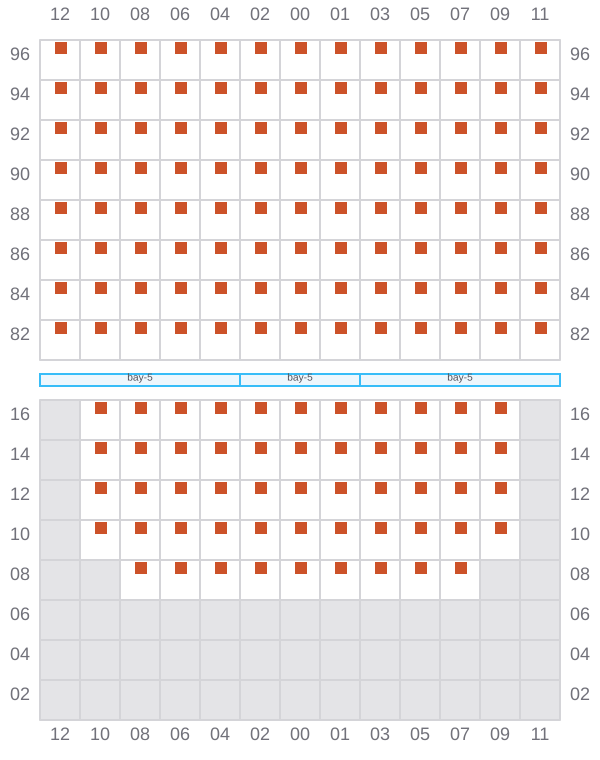

057
- ←
![Bay 057 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b057.png?v=1687546191058)

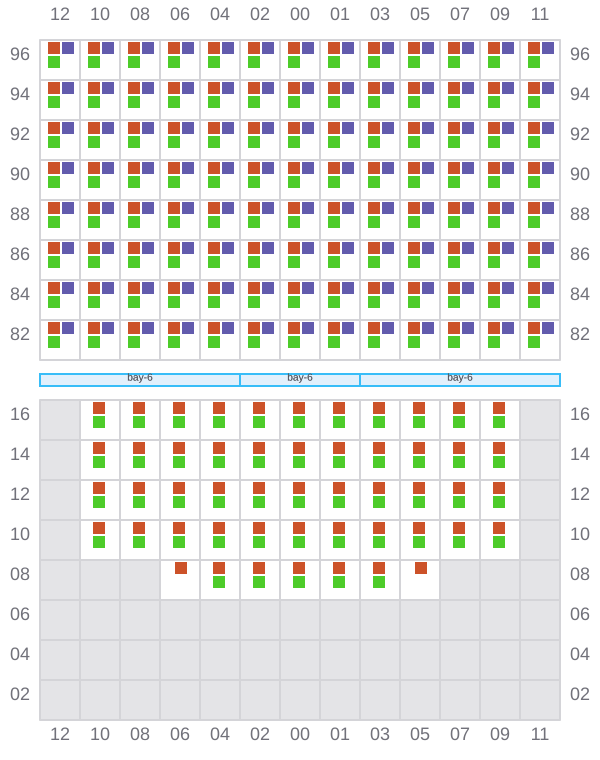

059 (060)
- →
![Bay 059 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b059.png?v=1687546191058)
061
- ←
![Bay 061 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b061.png?v=1687546191058)

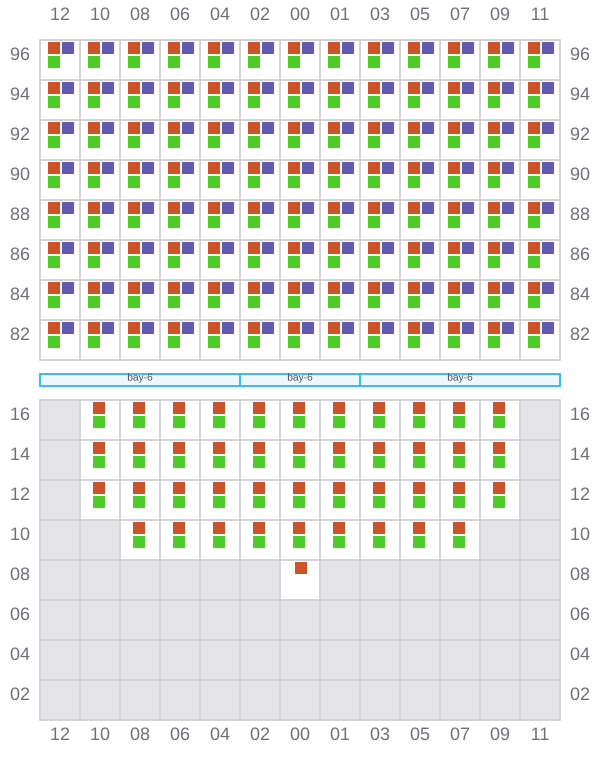

063 (064)
- →
![Bay 063 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b063.png?v=1687546191058)

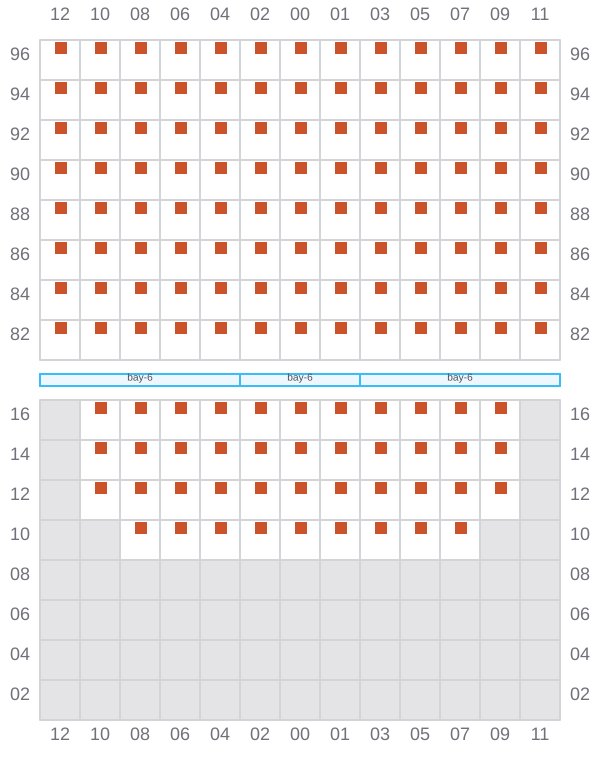

065
- ←
![Bay 065 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b065.png?v=1687546191058)

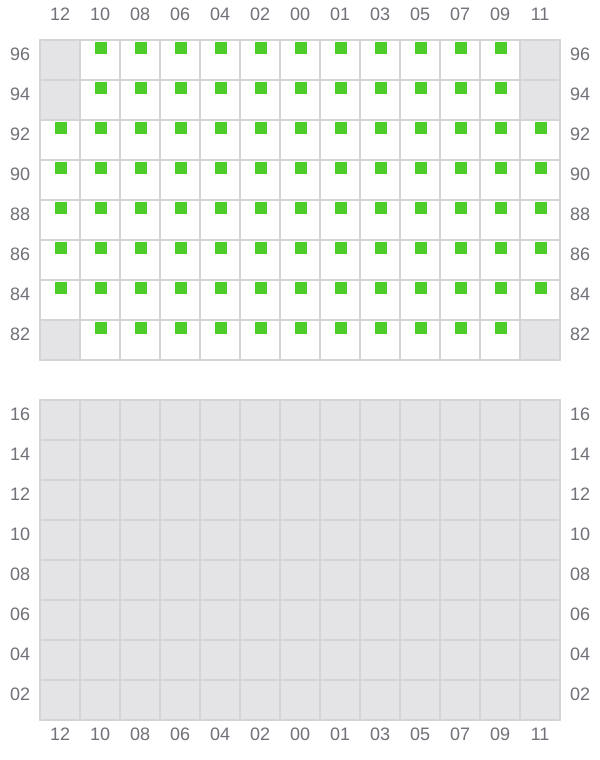

067 (066)
- ← / ?
![Bay 067 view and slots of MSC TRACY V](/vessel-images/b62965f1-b8ac-4832-8834-d2d6b906b51d-b067.png?v=1687546191058)
