MSC TRADER II
9230775 | 5LBQ9 | NEPTUNE PACIFIC LINE by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:MSC TRADER II
IMO Code:9230775
Call Sign:5LBQ9
Line Operator:NEPTUNE PACIFIC LINE
Class Name for Sister Ships:B170
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):171.94
LOA (Length Overall):184.70
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

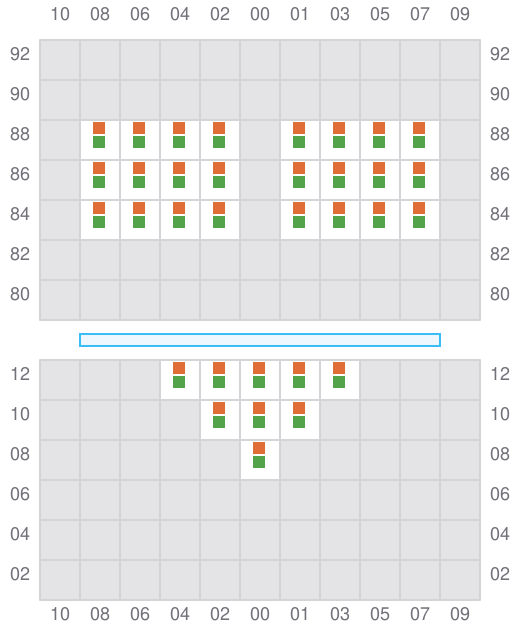

001 (002)
- →

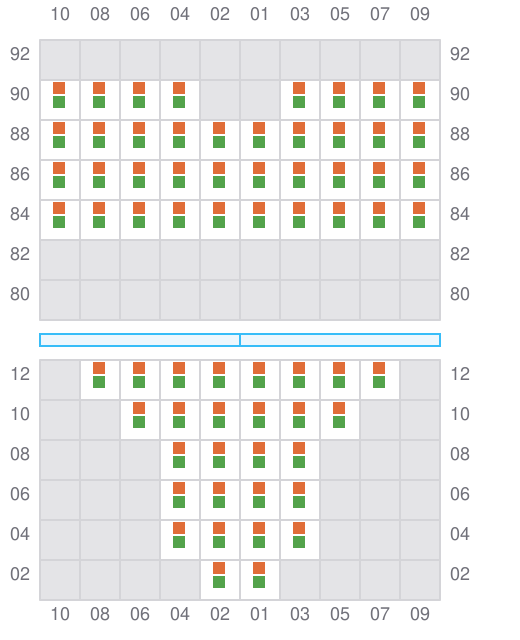

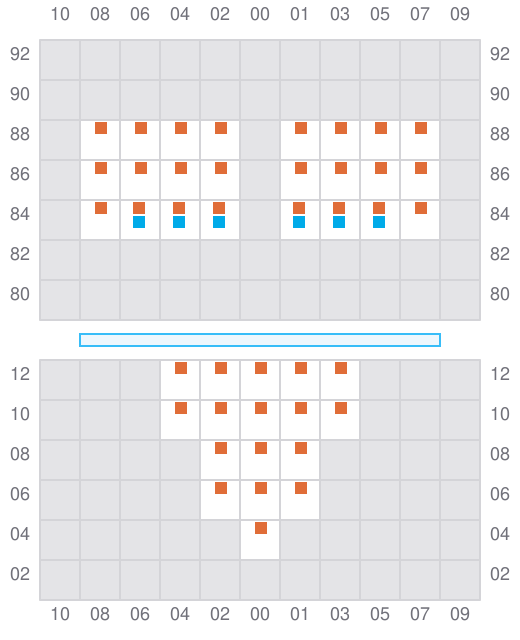

003
- ←
- → / ?
005 (006)
- →
- ← / ?

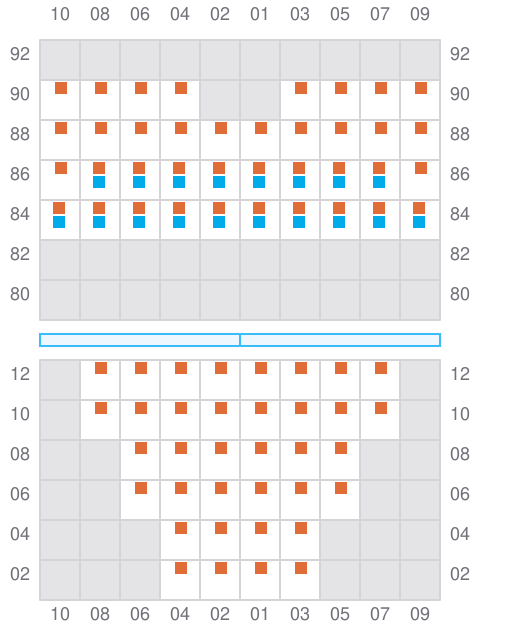

007
- ←
- → / ?

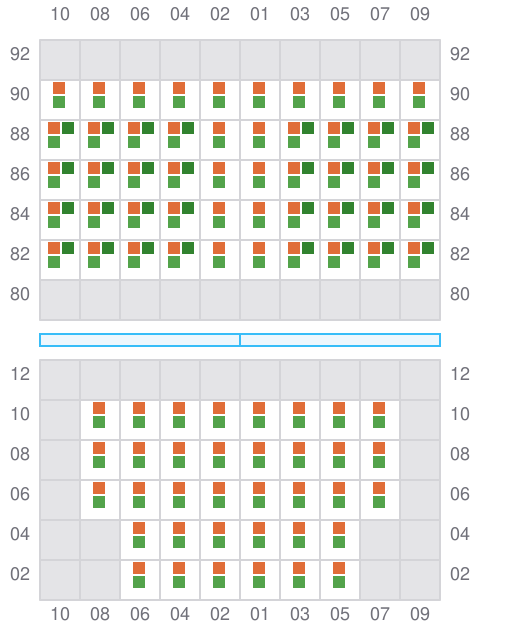

009 (010)
- →
011
- ←
- → / ?

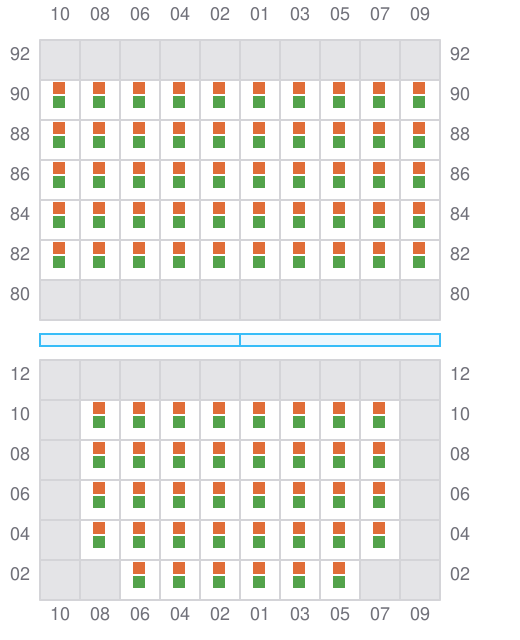

013 (014)
- →

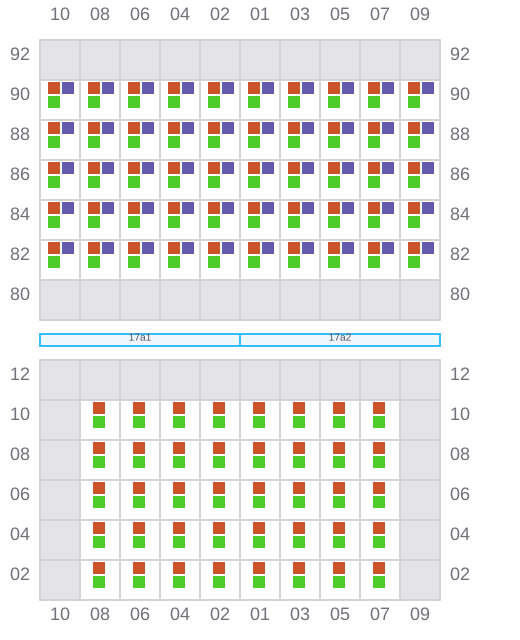

015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?

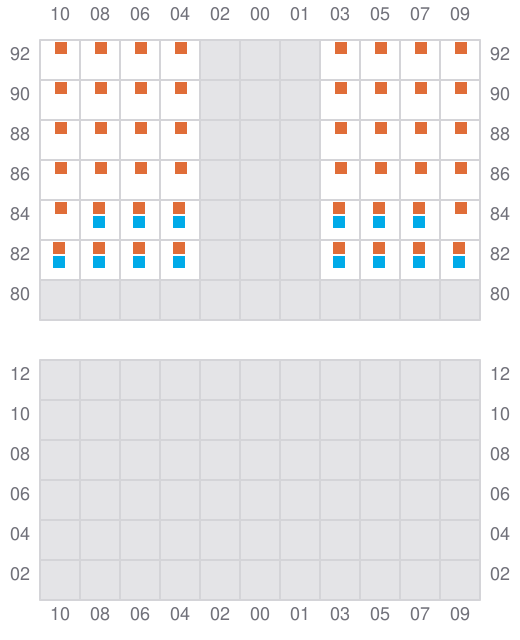

021
- → / ?
023 (024)
- →
- ← / ?
025
- ←
- → / ?

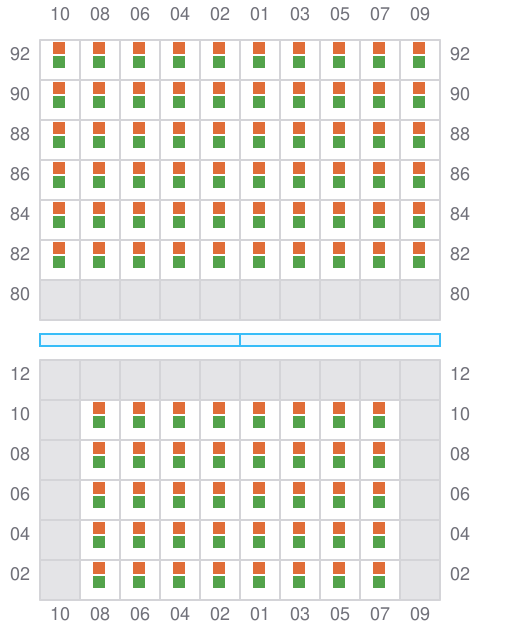

027 (028)
- →
029
- ←
- → / ?
031 (032)
- →

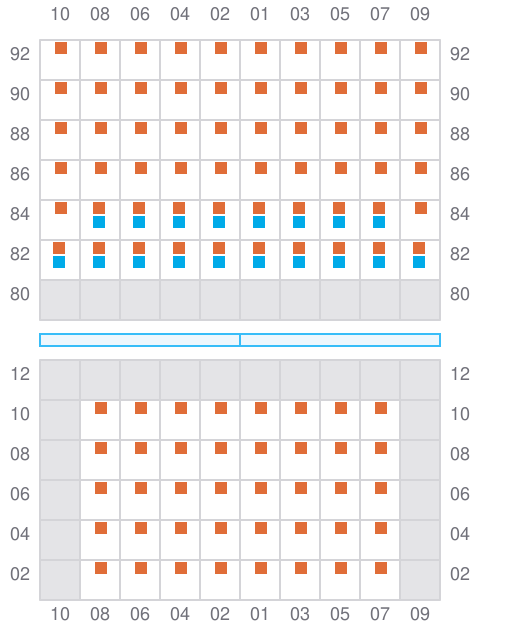

033
- ←
- → / ?

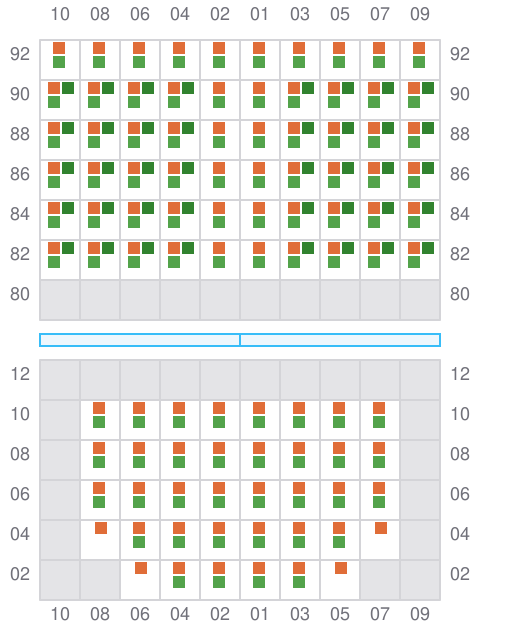

035 (036)
- →

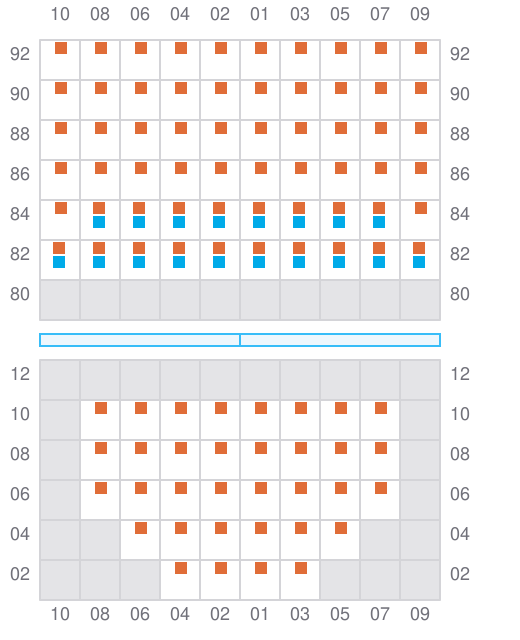

037
- ←
- → / ?

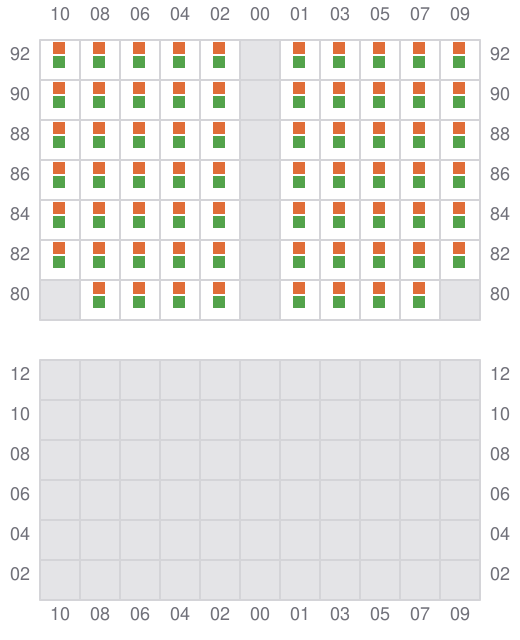

039 (040)
- → / ?

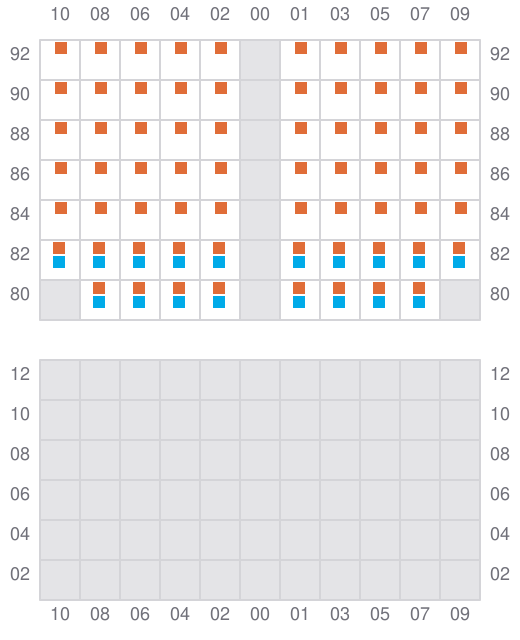

041
- ← / ?
- → / ?
