MSC TUXPAN
9289972 | CQMN | 9289972 by ********* Last update: Fri Jun 28 2024
General Info
Ship Name:MSC TUXPAN
IMO Code:9289972
Call Sign:CQMN
Line Operator:9289972
Class Name for Sister Ships:MSL
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.05
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:7,348
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

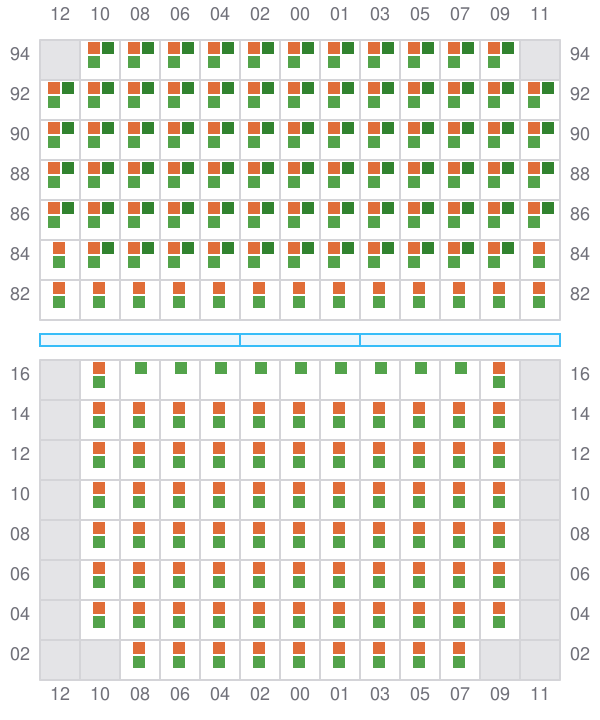

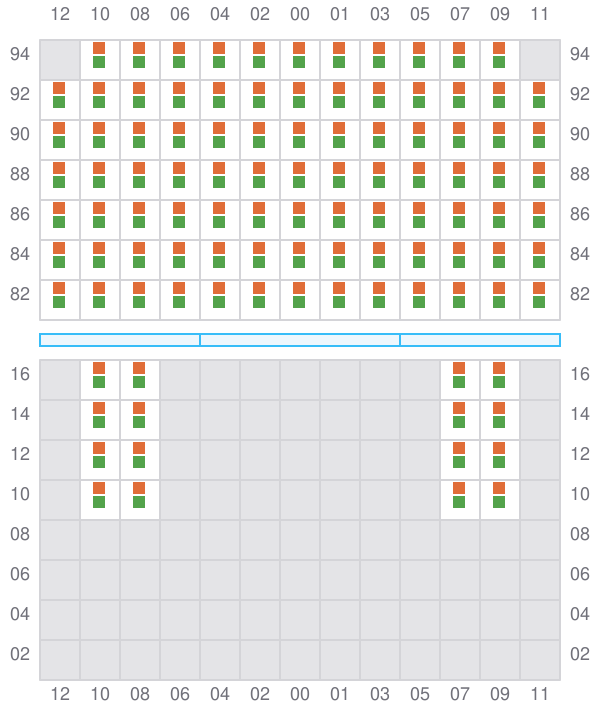

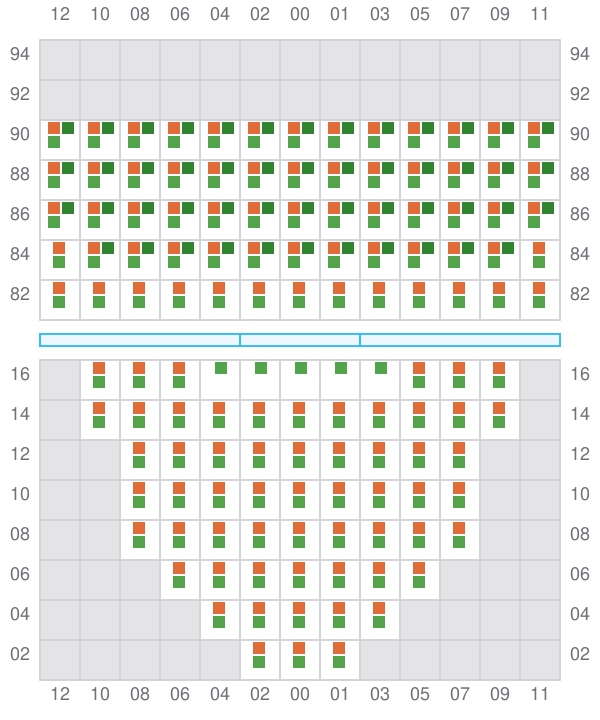

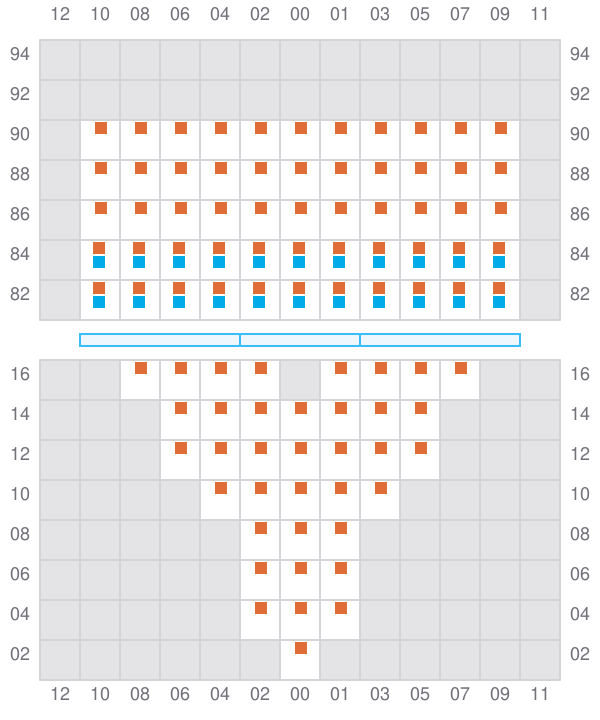

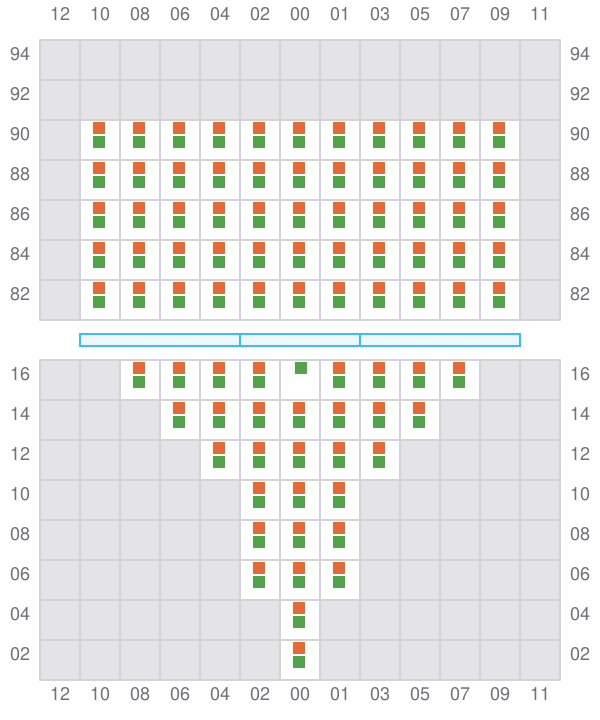

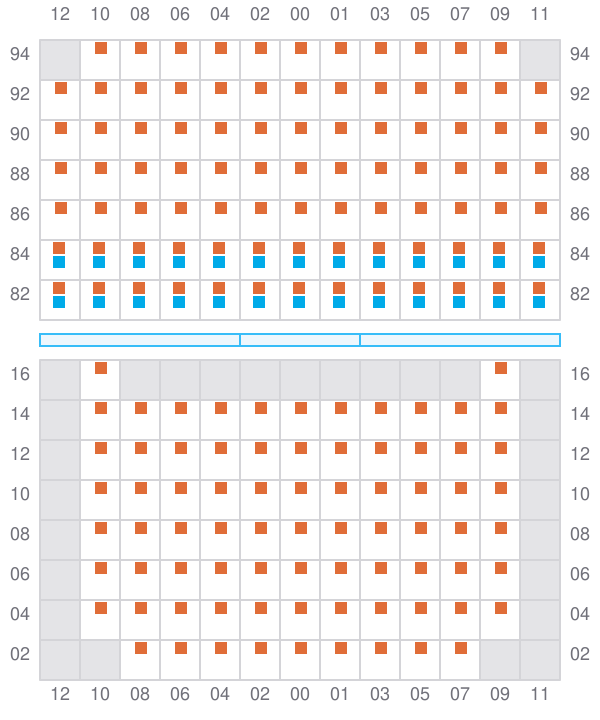

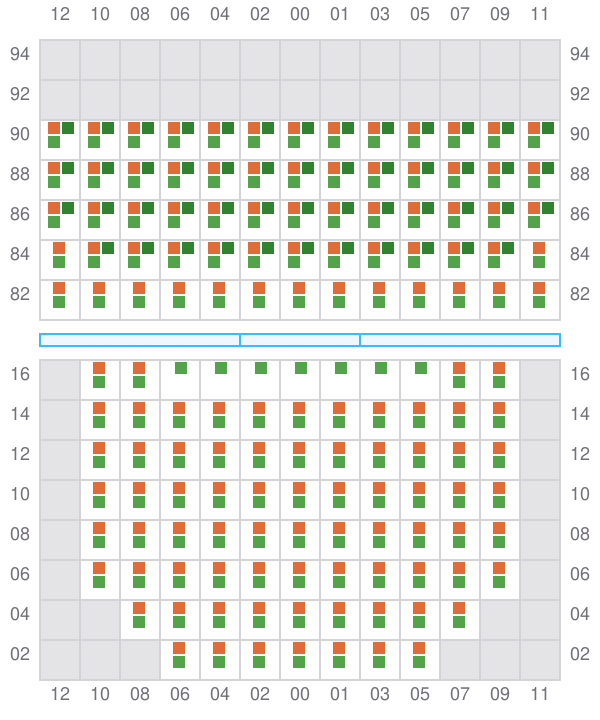

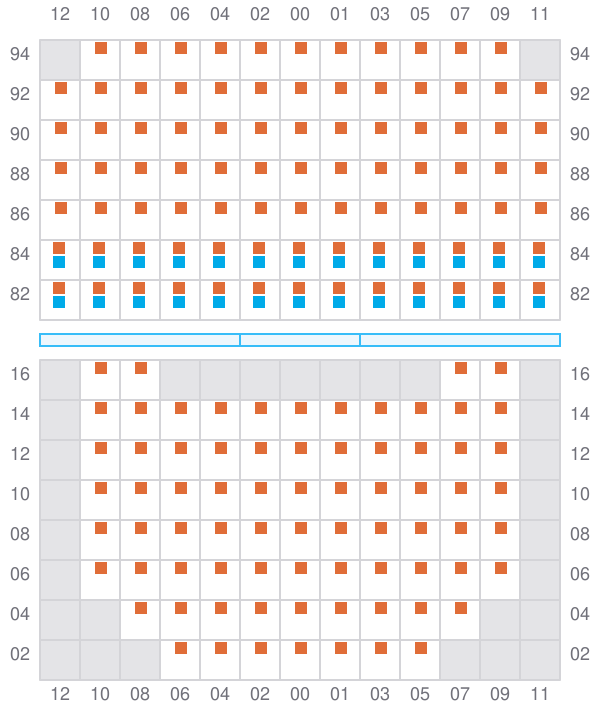

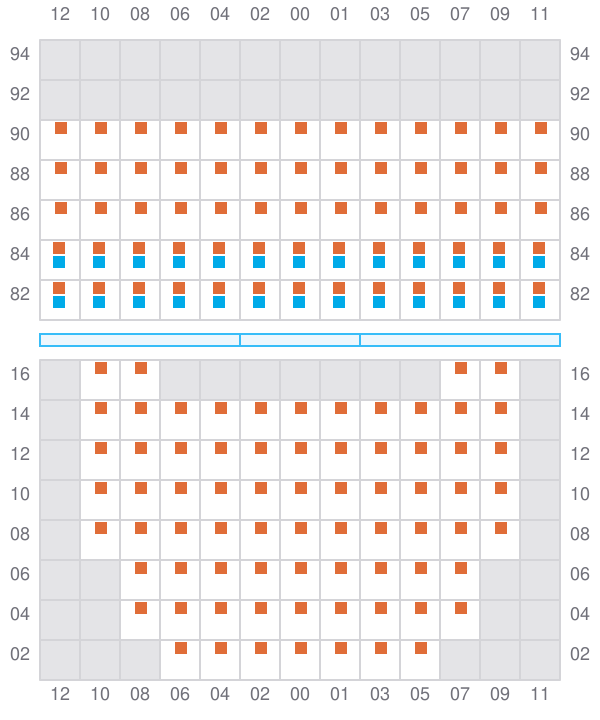

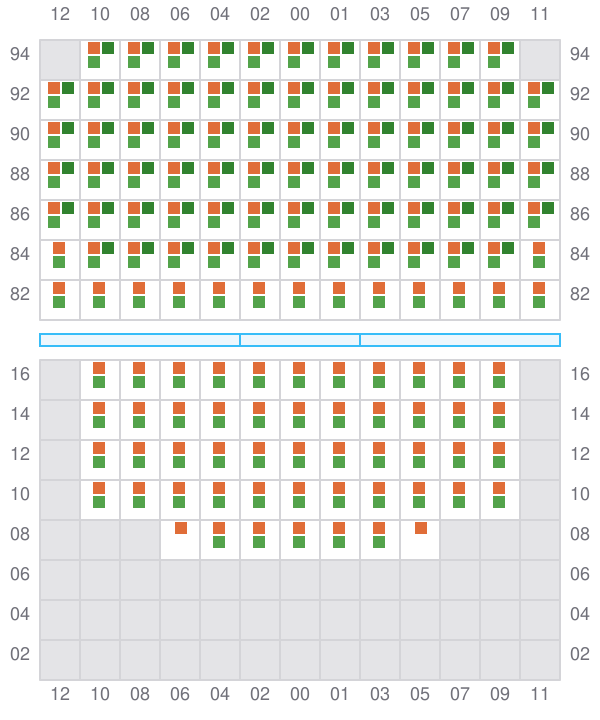

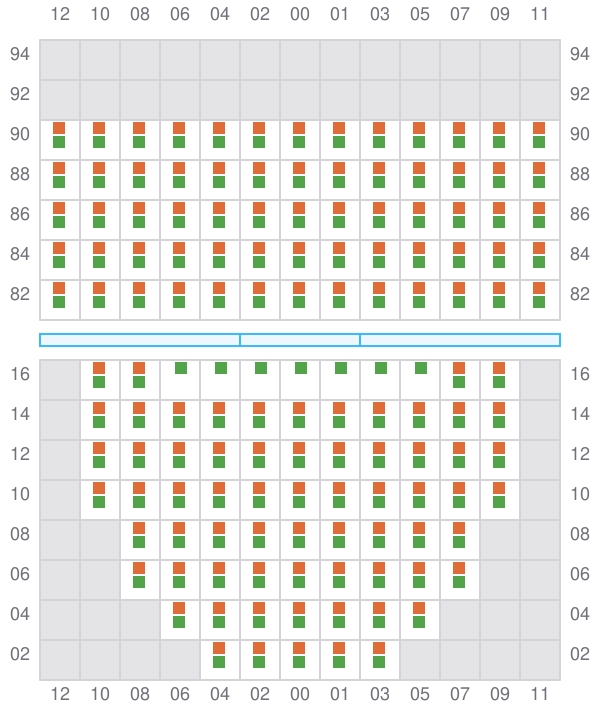

ISO Bays
Legend
- 20'
- 40'
- 45'

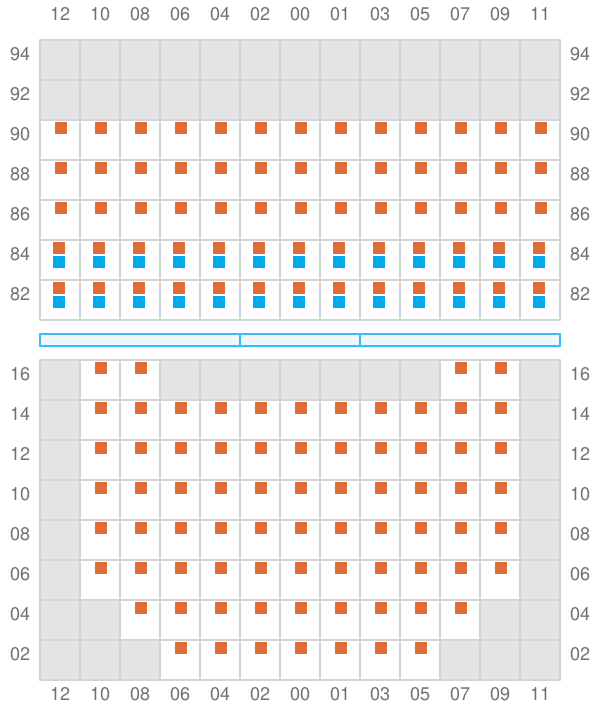

- Reefer
- Restricted slot

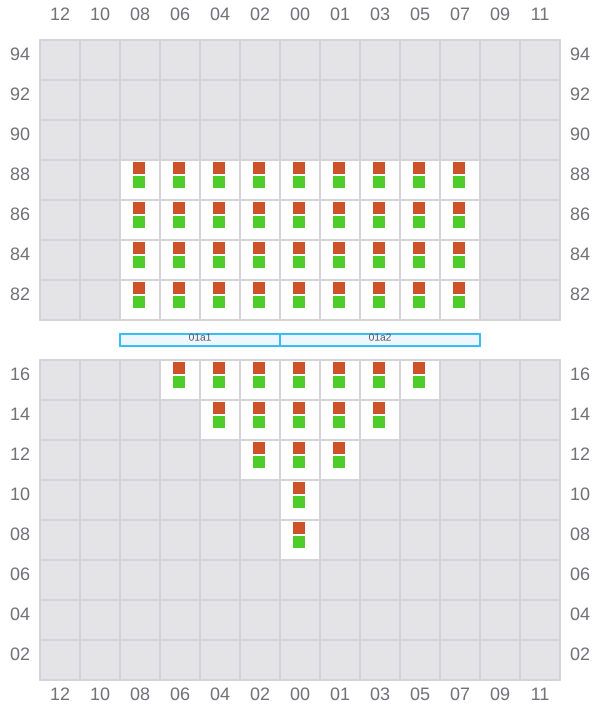

001 (002)
- →

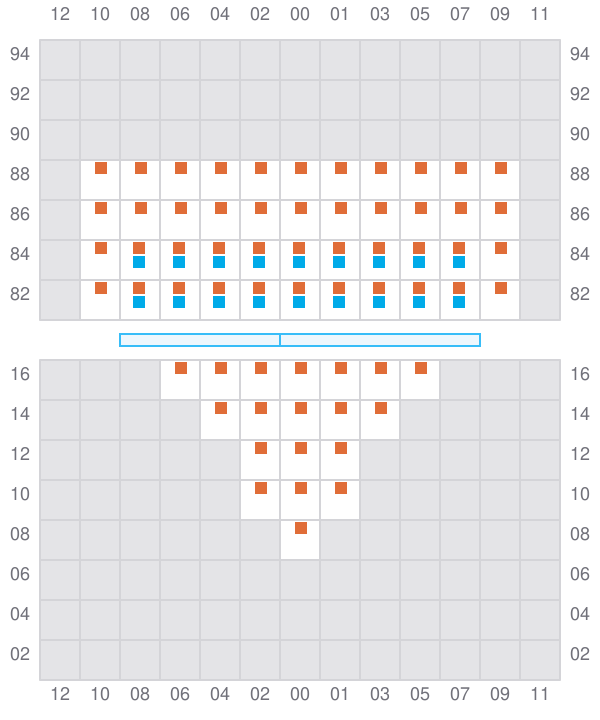

003
- → / ?
005 (006)
- →
007
- → / ?

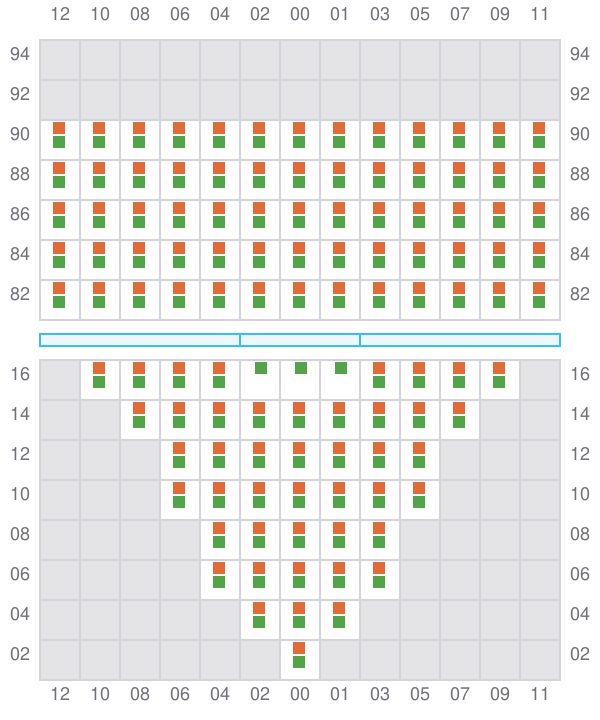

009 (010)
- →

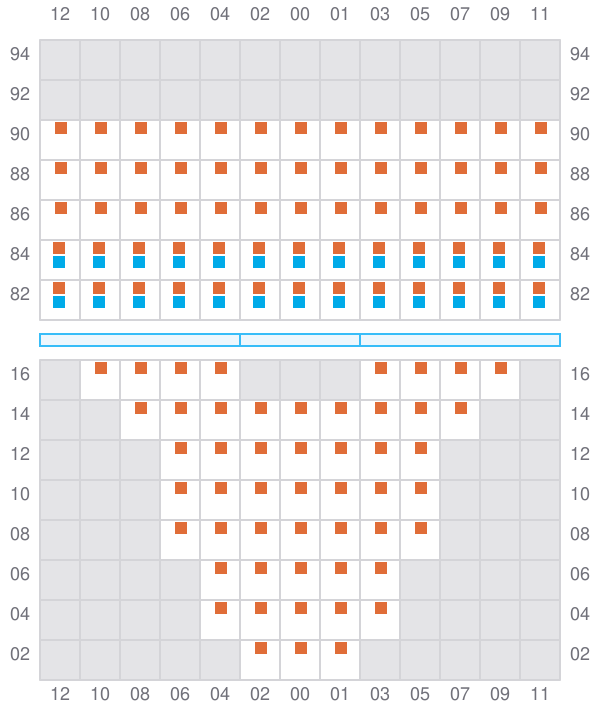

011
- → / ?
013 (014)
- →

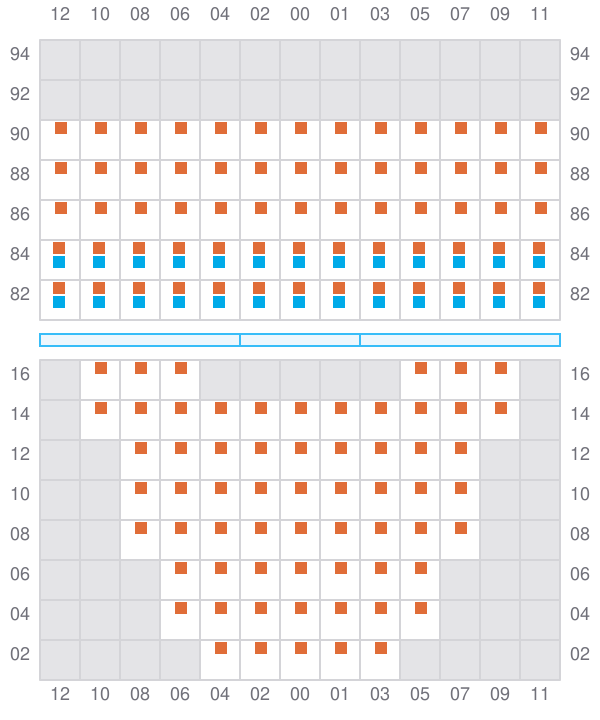

015
- → / ?

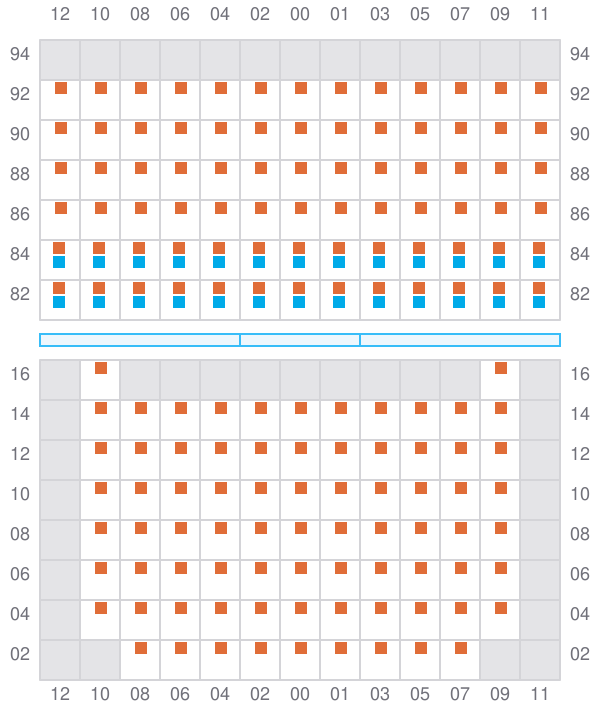

017 (018)
- →
019
- → / ?
021 (022)
- →
023
- → / ?

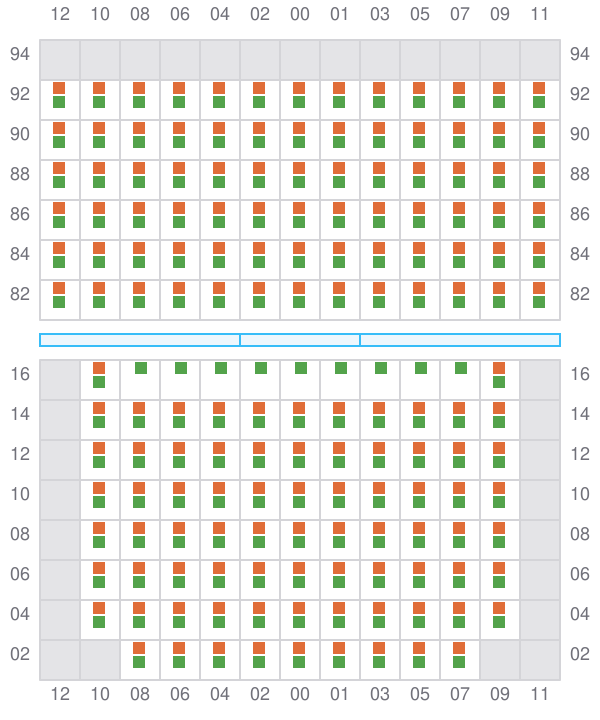

025 (026)
- →
027
- → / ?
029 (030)
- →
031
- → / ?
033 (034)
- →
035
- → / ?
037 (038)
- →
039
- → / ?

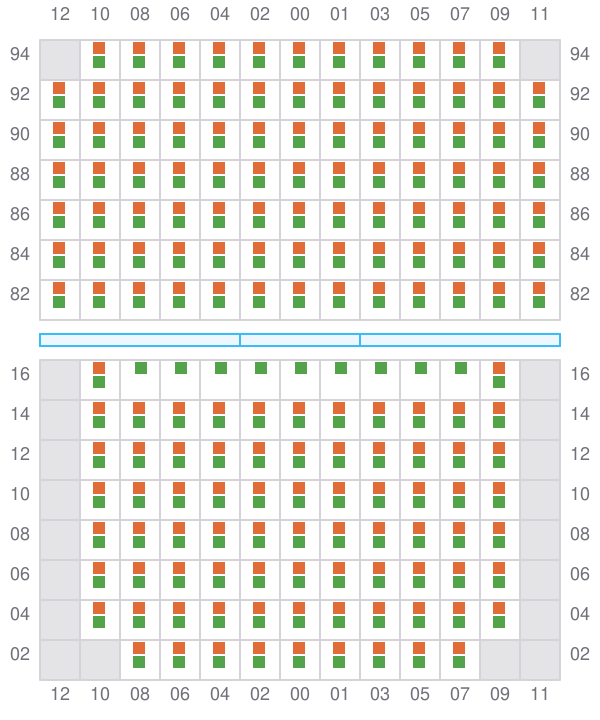

041 (042)
- →
043
- → / ?
045 (046)
- →
047
- → / ?
049 (050)
- →
051
- → / ?

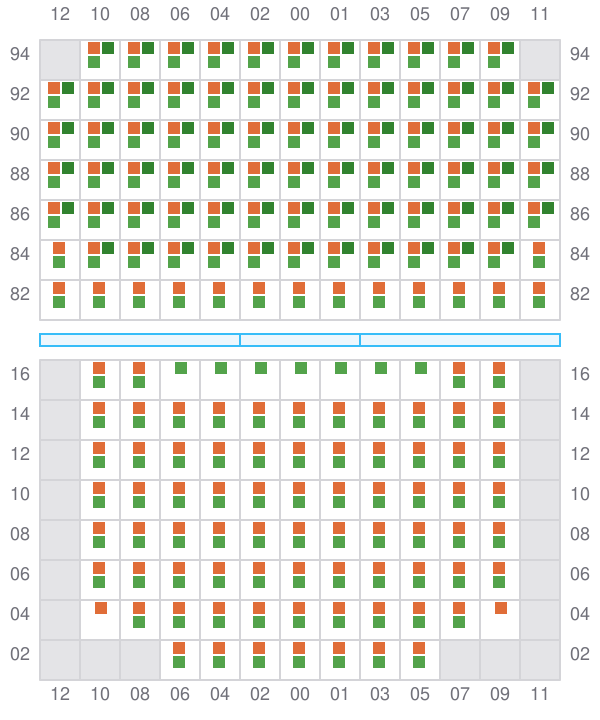

053 (054)
- →
055
- → / ?

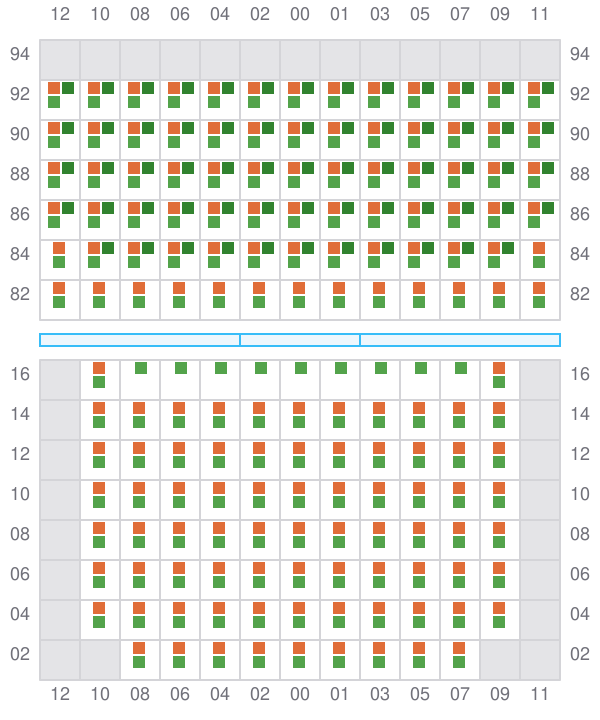

057 (058)
- →

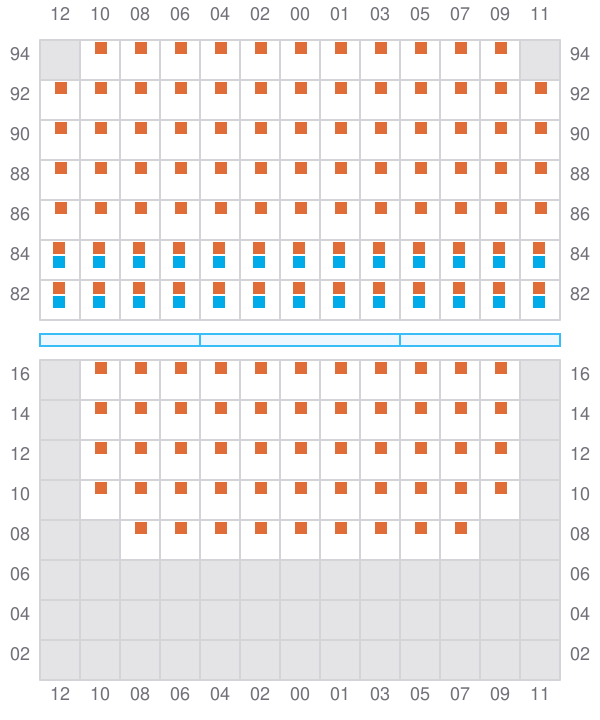

059
- → / ?
061 (062)
- →

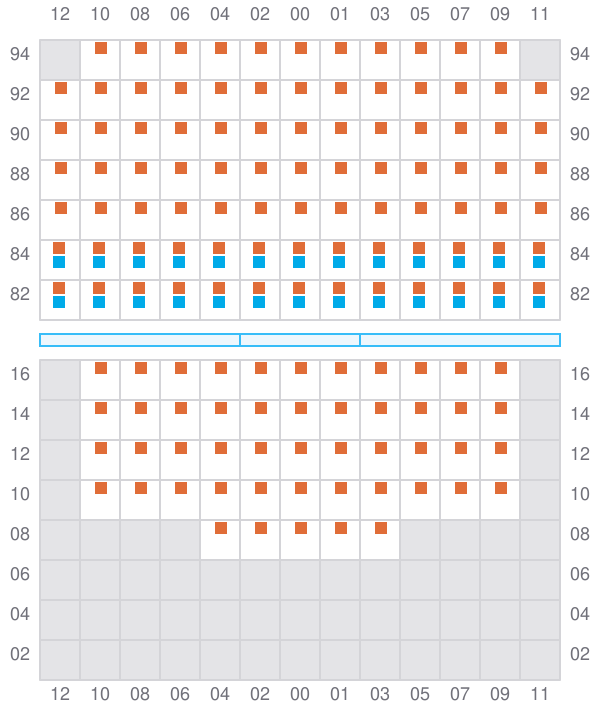

063
- → / ?

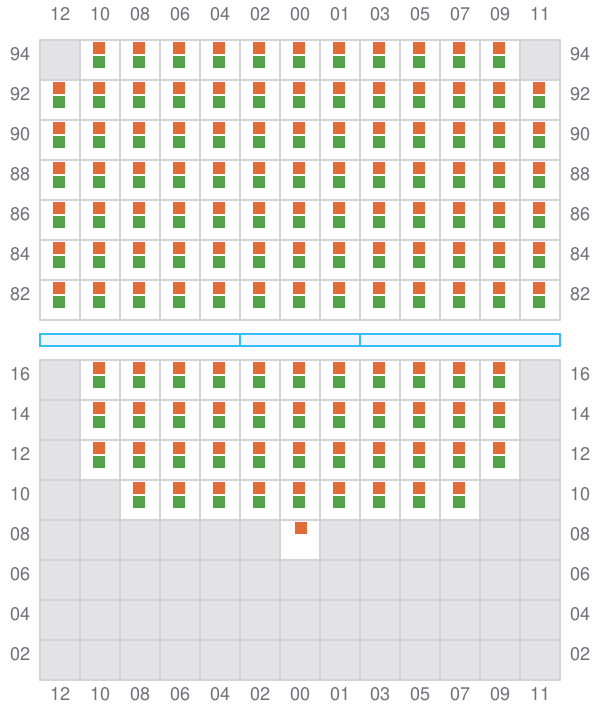

065 (066)
- →

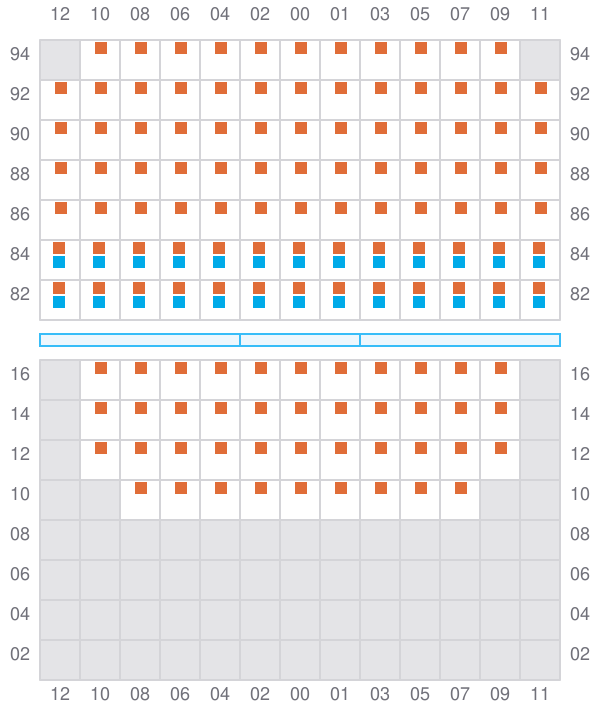

067
- → / ?

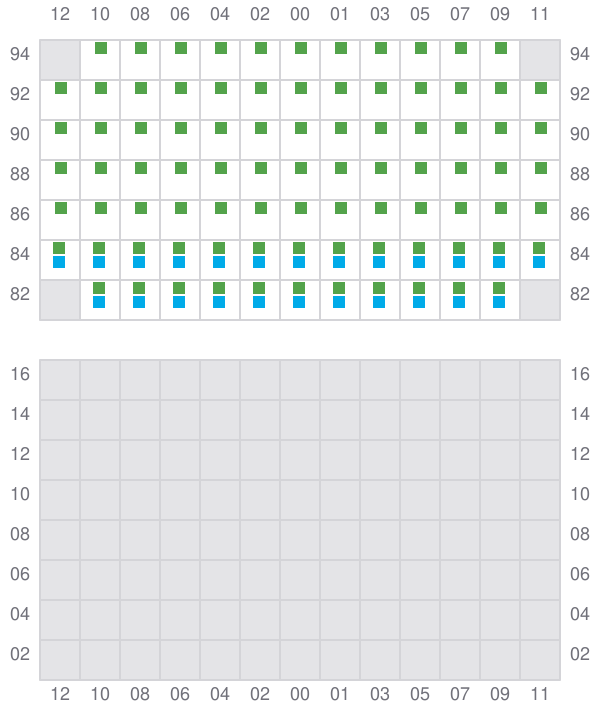

069 (070)
- → / ?
- → / ?
