MSC ULSAN III
9305001 | 3FFN5 | 9305001 by ********* Last update: Thu Jul 11 2024

General Info

Ship Name:MSC ULSAN III
IMO Code:9305001
Call Sign:3FFN5
Line Operator:9305001
Class Name for Sister Ships:MSL
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):205.28
LOA (Length Overall):215.08
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,702

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

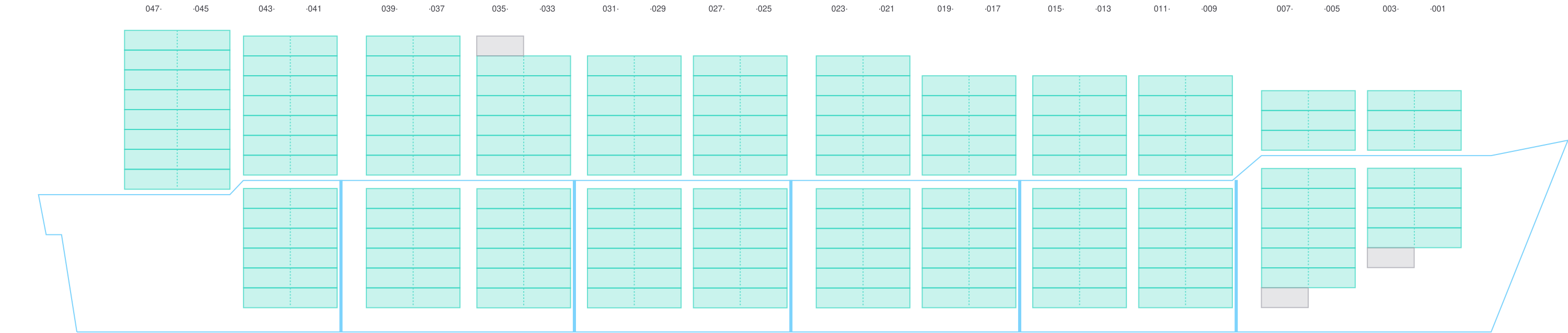

Side View

Side view of MSC ULSAN III

Hatch-Covers View

Deck view of MSC ULSAN III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

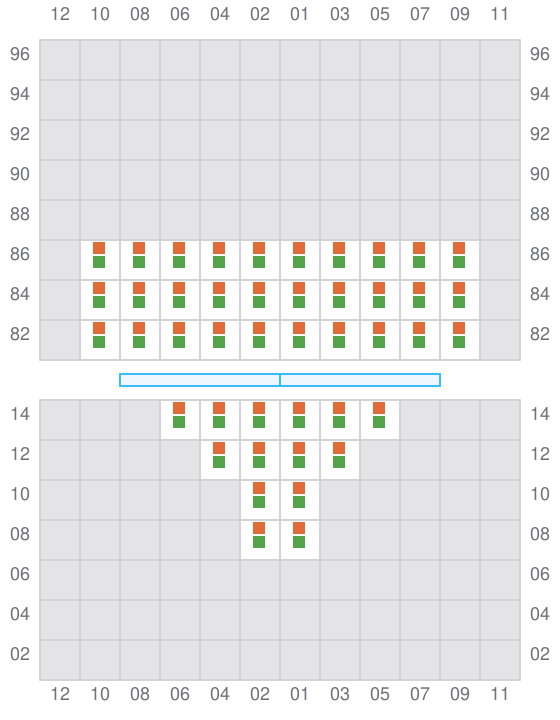

Bay 001 view and slots of MSC ULSAN III

003

  • ←
  • → / ?

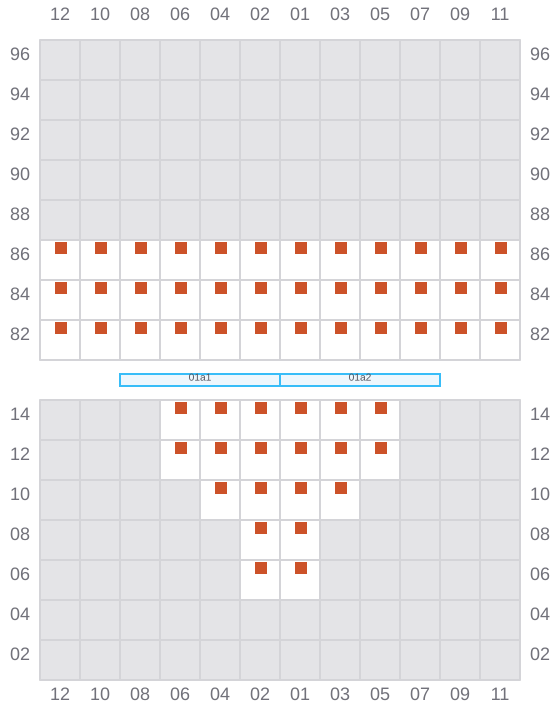

Bay 003 view and slots of MSC ULSAN III

005 (006)

  • →

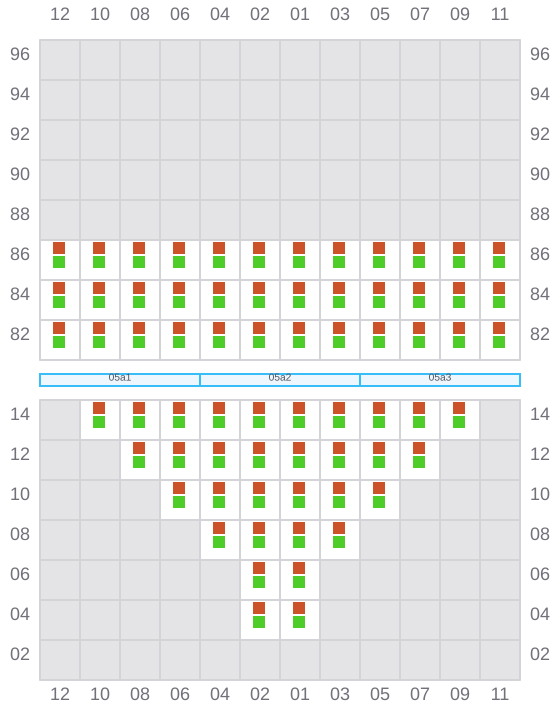

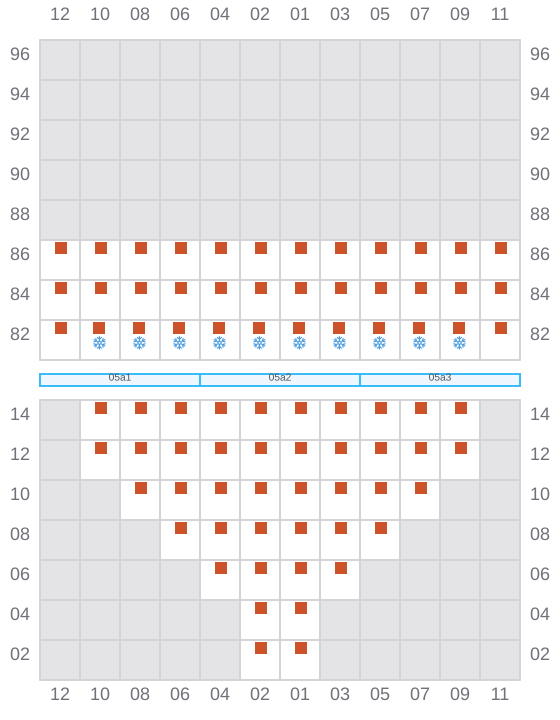

Bay 005 view and slots of MSC ULSAN III

007

  • ←
  • → / ?
Bay 007 view and slots of MSC ULSAN III

009 (010)

  • →
  • ← / ?

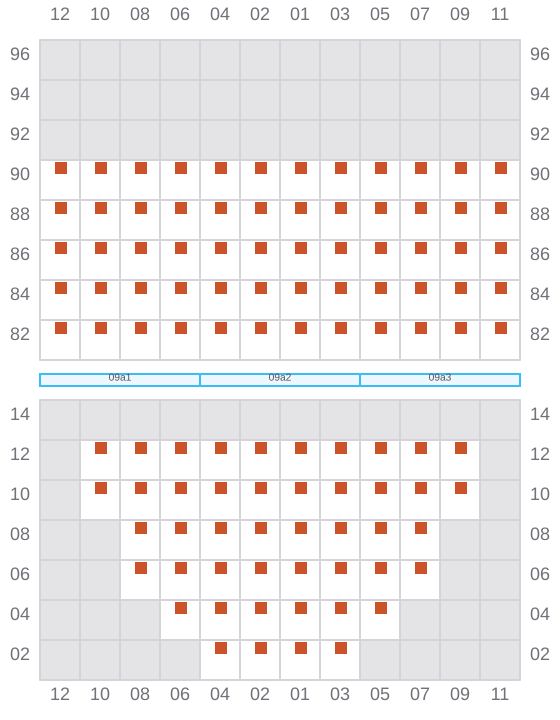

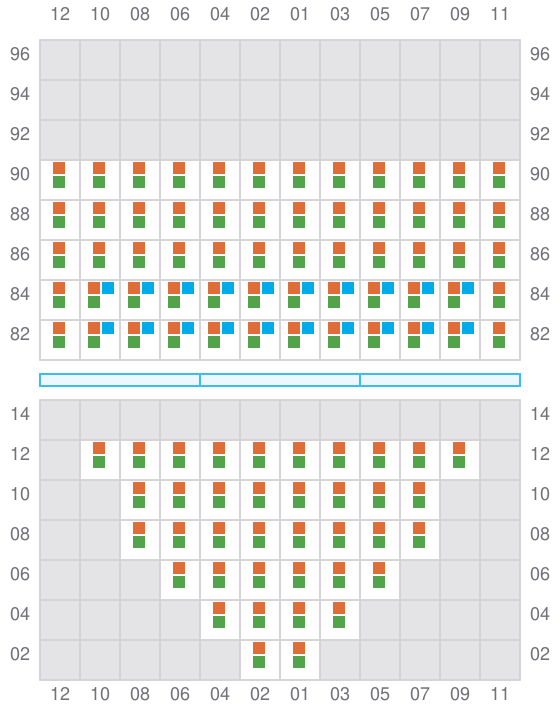

Bay 009 view and slots of MSC ULSAN III

011

  • ←
  • → / ?
Bay 011 view and slots of MSC ULSAN III

013 (014)

  • →

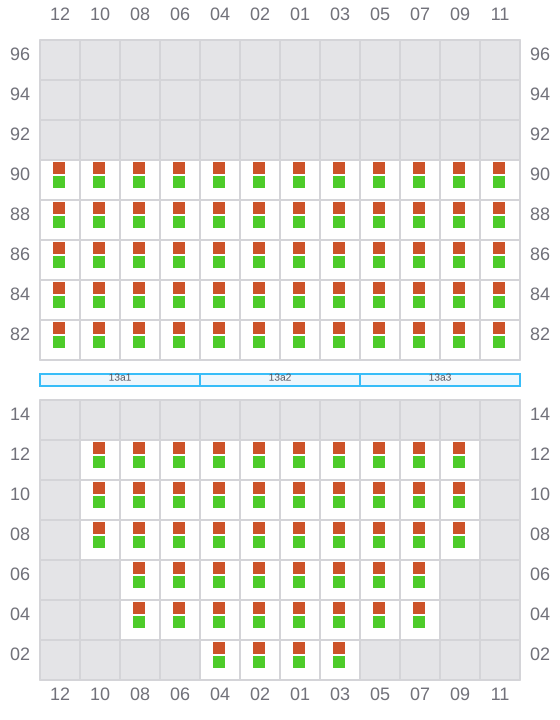

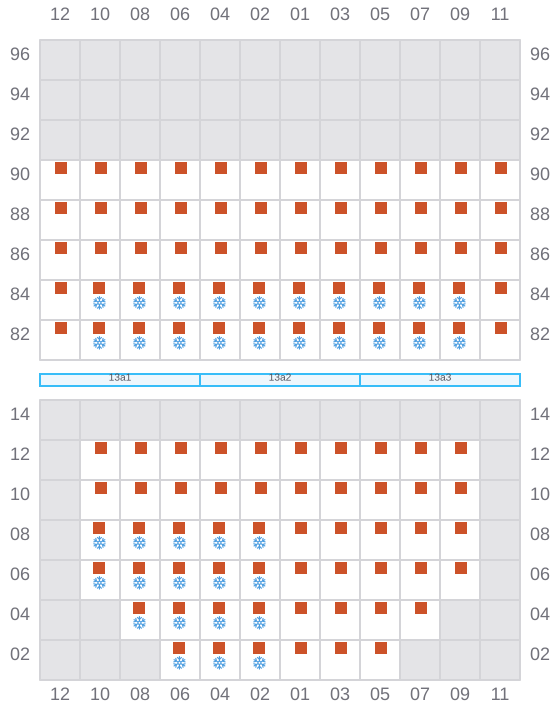

Bay 013 view and slots of MSC ULSAN III

015

  • ←
  • →
Bay 015 view and slots of MSC ULSAN III

017 (018)

  • →
  • ←

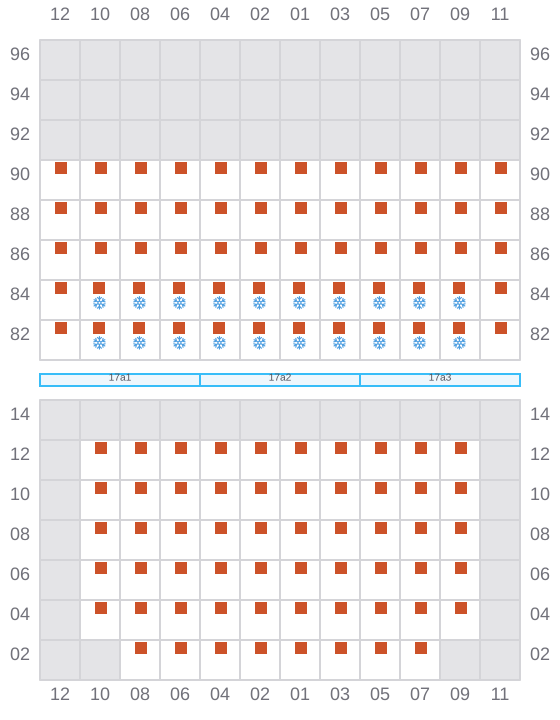

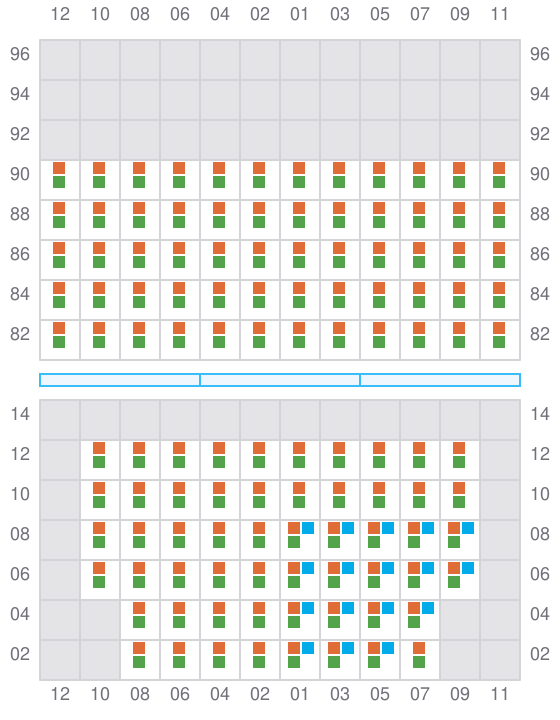

Bay 017 view and slots of MSC ULSAN III

019

  • ←
  • → / ?
Bay 019 view and slots of MSC ULSAN III

021 (022)

  • →
  • ← / ?

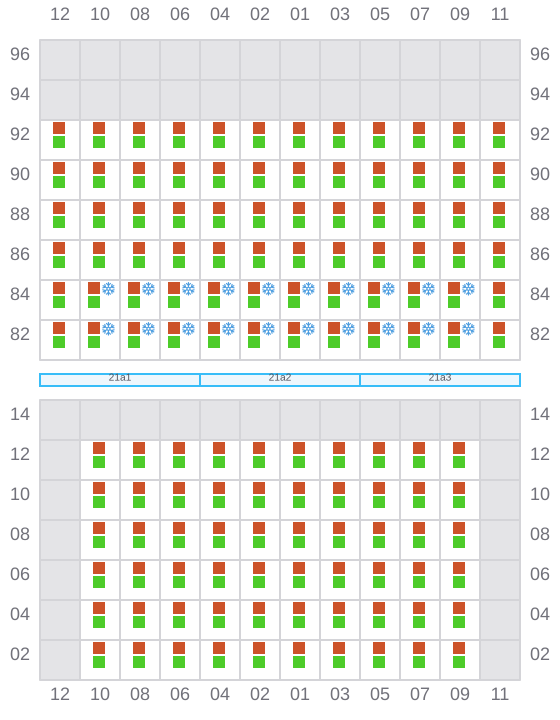

Bay 021 view and slots of MSC ULSAN III

023

  • ←
  • → / ?

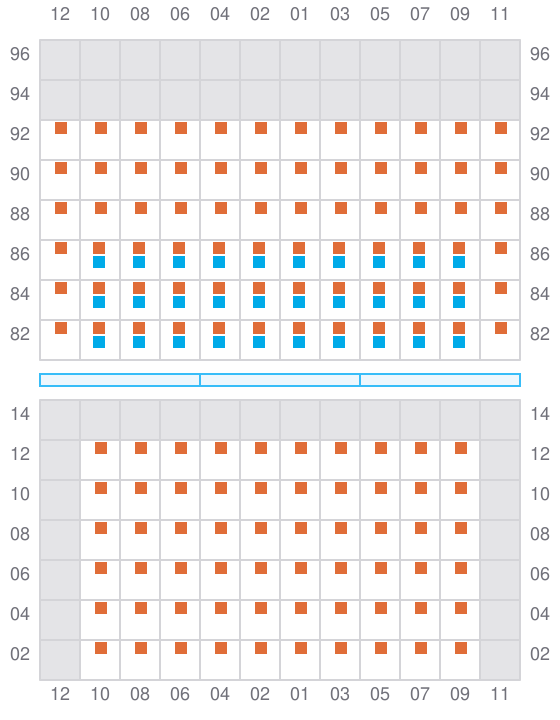

Bay 023 view and slots of MSC ULSAN III

025 (026)

  • →
  • ← / ?

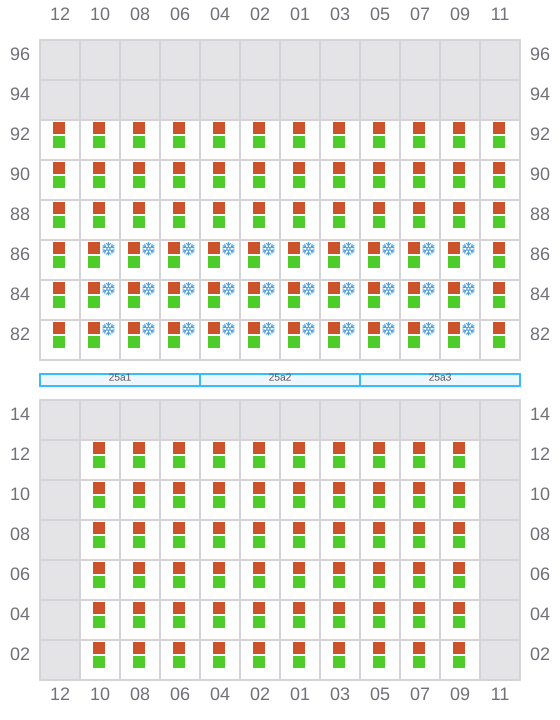

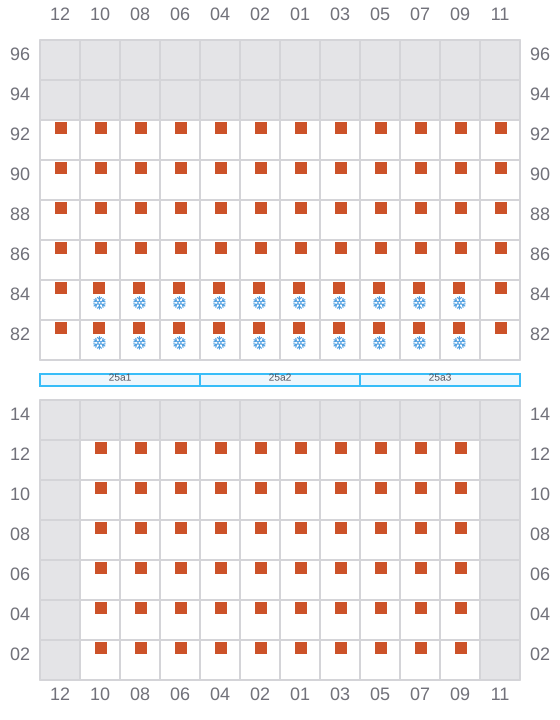

Bay 025 view and slots of MSC ULSAN III

027

  • ←
  • → / ?
Bay 027 view and slots of MSC ULSAN III

029 (030)

  • →
  • ← / ?

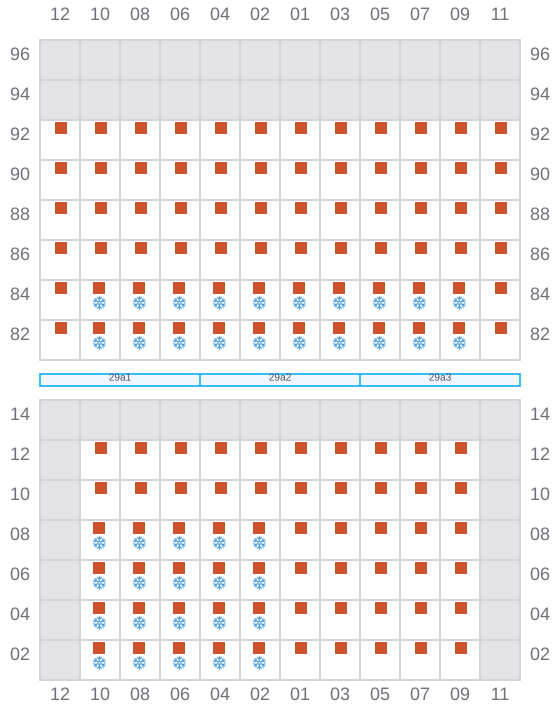

Bay 029 view and slots of MSC ULSAN III

031

  • ←
  • →
Bay 031 view and slots of MSC ULSAN III

033 (034)

  • →
  • ←

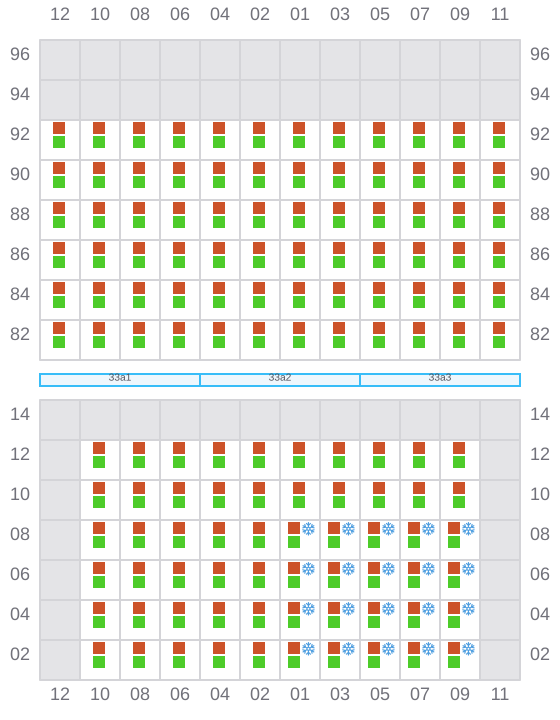

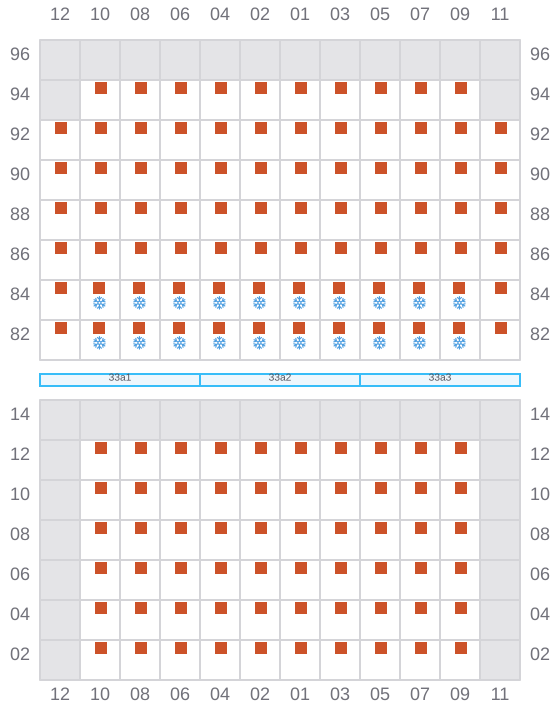

Bay 033 view and slots of MSC ULSAN III

035

  • ←
  • → / ?
Bay 035 view and slots of MSC ULSAN III

037 (038)

  • →
  • ←

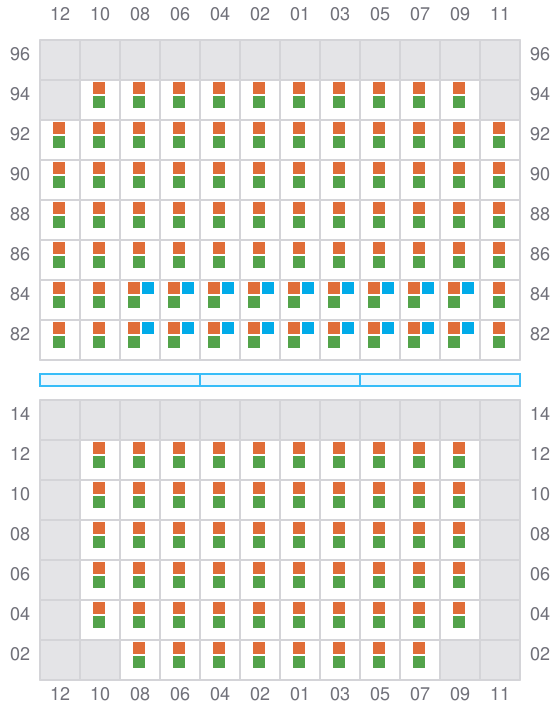

Bay 037 view and slots of MSC ULSAN III

039

  • ←
  • → / ?

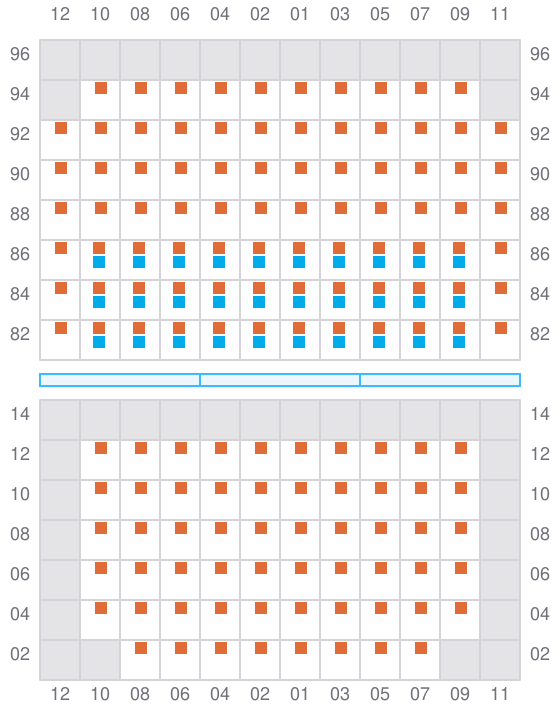

Bay 039 view and slots of MSC ULSAN III

041 (042)

  • →
  • ← / ?

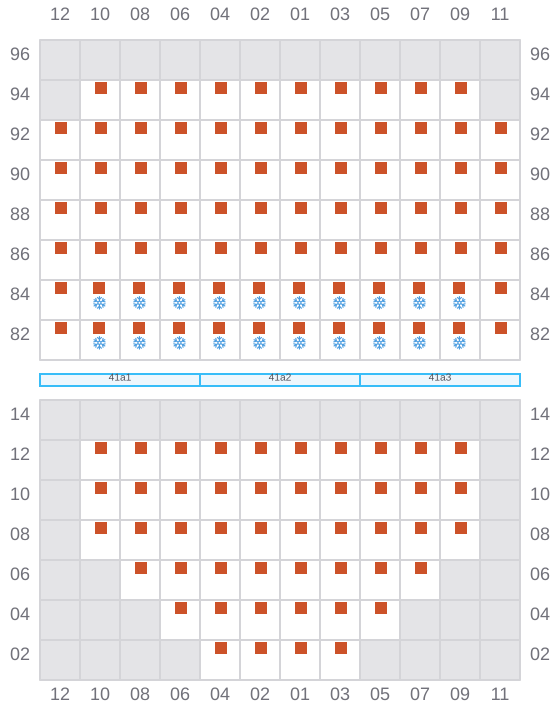

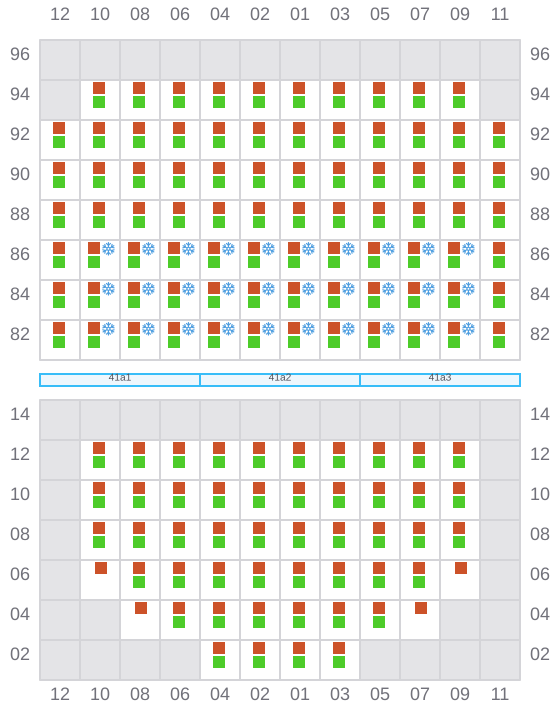

Bay 041 view and slots of MSC ULSAN III

043

  • ←
  • → / ?
Bay 043 view and slots of MSC ULSAN III

045 (046)

  • → / ?
  • ← / ?

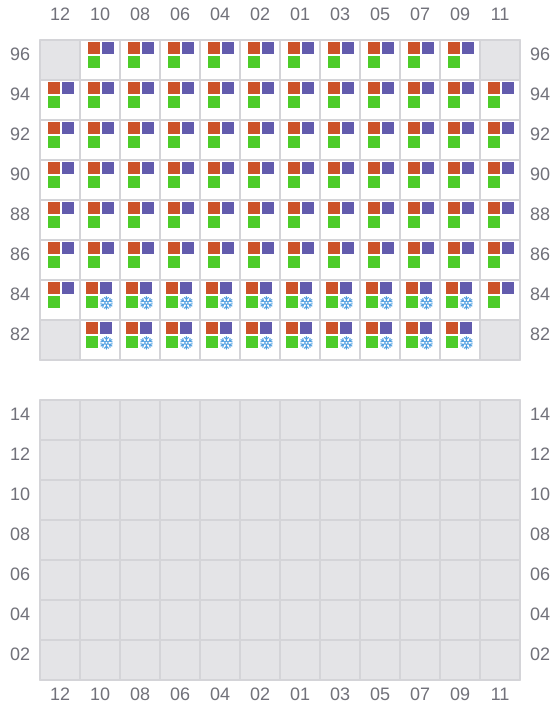

Bay 045 view and slots of MSC ULSAN III

047

  • ← / ?
  • → / ?

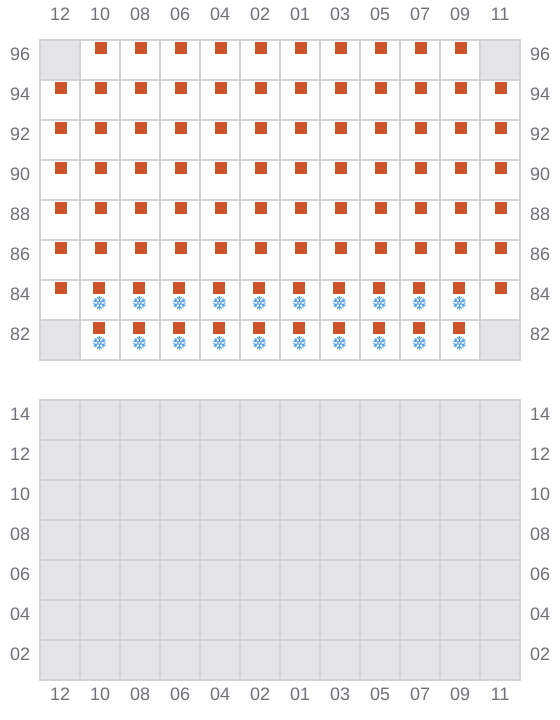

Bay 047 view and slots of MSC ULSAN III
