MSC UNIFIC VI
9168843 | 5LLJ5 | 9168843 by ********* Last update: Tue Apr 30 2024

General Info

Ship Name:MSC UNIFIC VI
IMO Code:9168843
Call Sign:5LLJ5
Line Operator:9168843
Class Name for Sister Ships:EVER UNIFIC
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,652

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

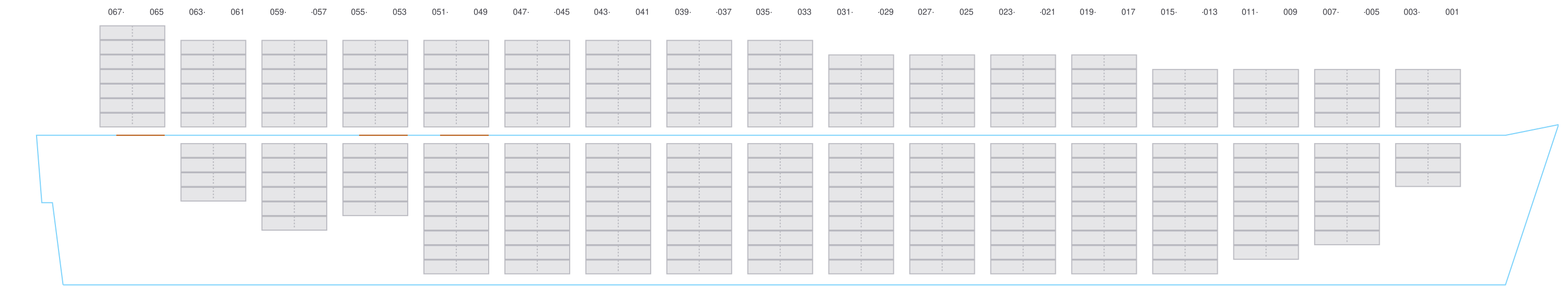

Side View

Side view of MSC UNIFIC VI

Hatch-Covers View

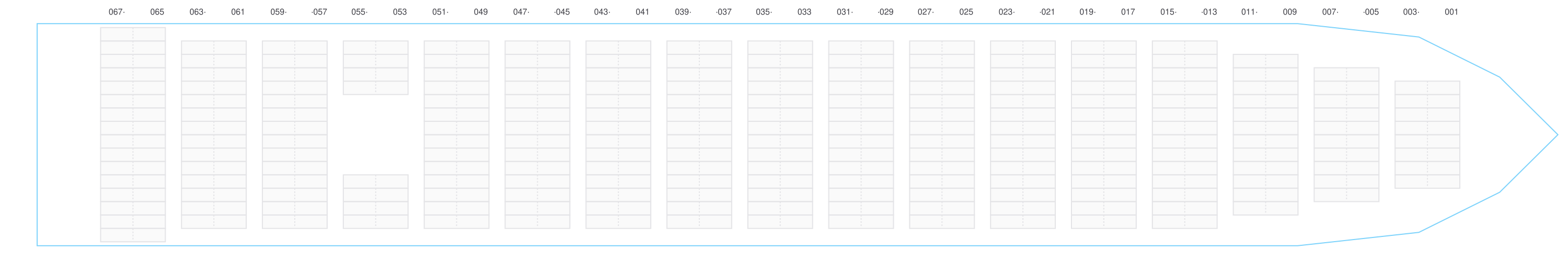

Deck view of MSC UNIFIC VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • ? / →
Bay 001 view and slots of MSC UNIFIC VI

003 (002)

  • ←

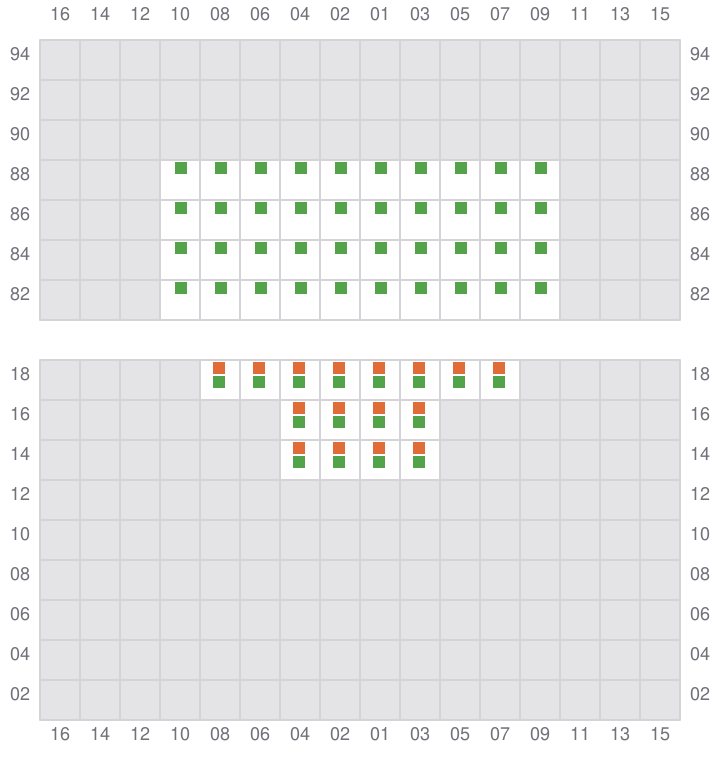

Bay 003 view and slots of MSC UNIFIC VI

005

  • →
Bay 005 view and slots of MSC UNIFIC VI

007 (006)

  • ←
Bay 007 view and slots of MSC UNIFIC VI

009

  • ? / →
Bay 009 view and slots of MSC UNIFIC VI

011 (010)

  • ←
Bay 011 view and slots of MSC UNIFIC VI

013

  • →
Bay 013 view and slots of MSC UNIFIC VI

015 (014)

  • ←
Bay 015 view and slots of MSC UNIFIC VI

017

  • ? / →
Bay 017 view and slots of MSC UNIFIC VI

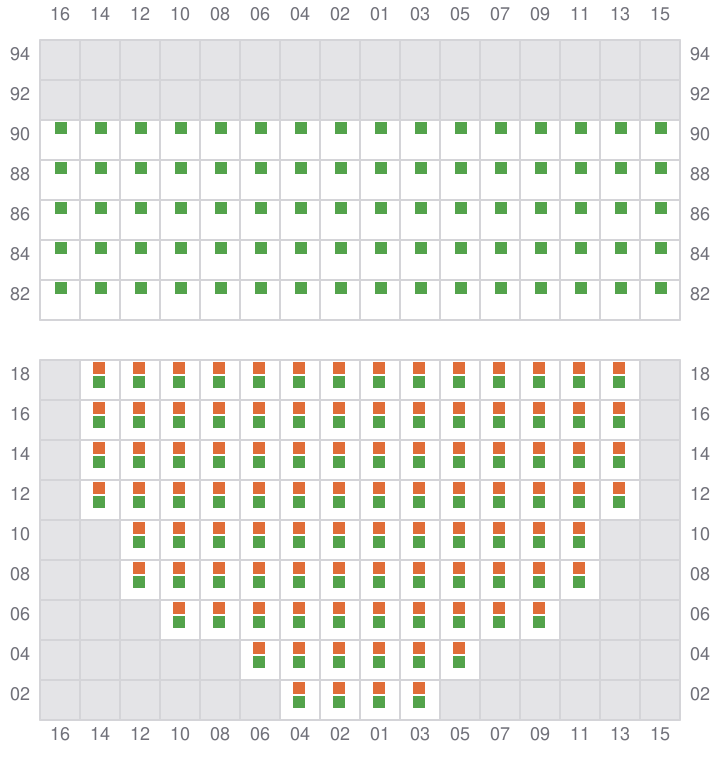

019 (018)

  • ←
Bay 019 view and slots of MSC UNIFIC VI

021

  • →
Bay 021 view and slots of MSC UNIFIC VI

023 (022)

  • ←
Bay 023 view and slots of MSC UNIFIC VI

025

  • ? / →

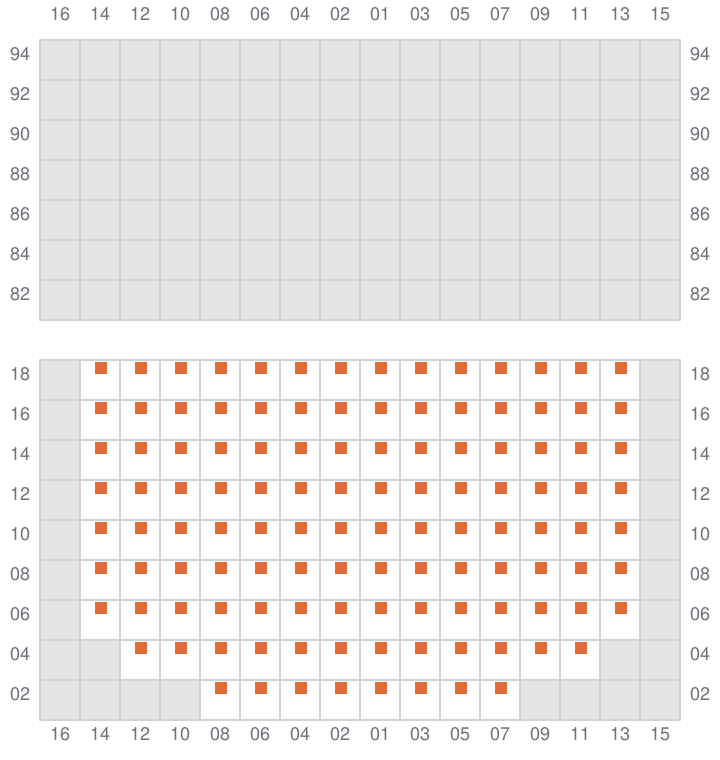

Bay 025 view and slots of MSC UNIFIC VI

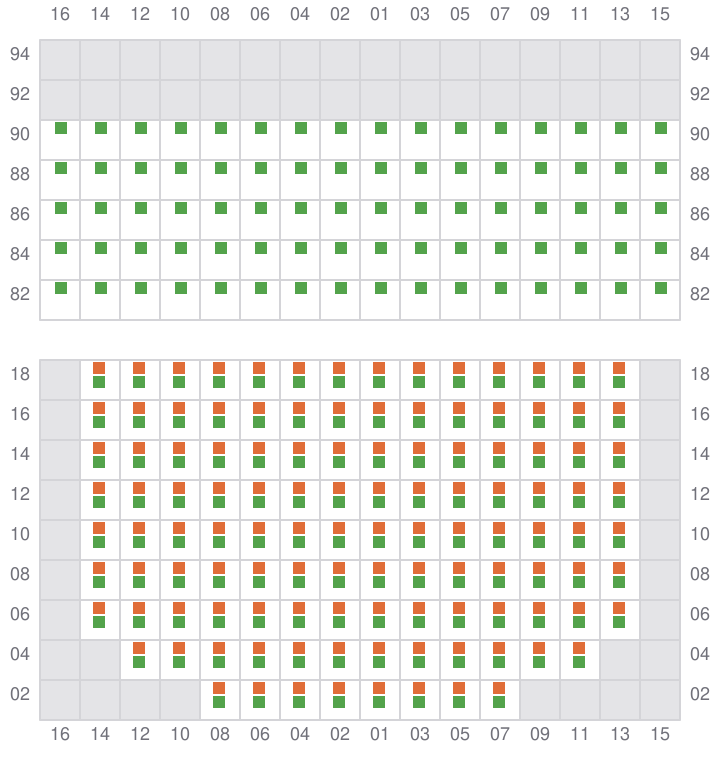

027 (026)

  • ←
Bay 027 view and slots of MSC UNIFIC VI

029

  • →
Bay 029 view and slots of MSC UNIFIC VI

031 (030)

  • ←
Bay 031 view and slots of MSC UNIFIC VI

033

  • ? / →
Bay 033 view and slots of MSC UNIFIC VI

035 (034)

  • ←
Bay 035 view and slots of MSC UNIFIC VI

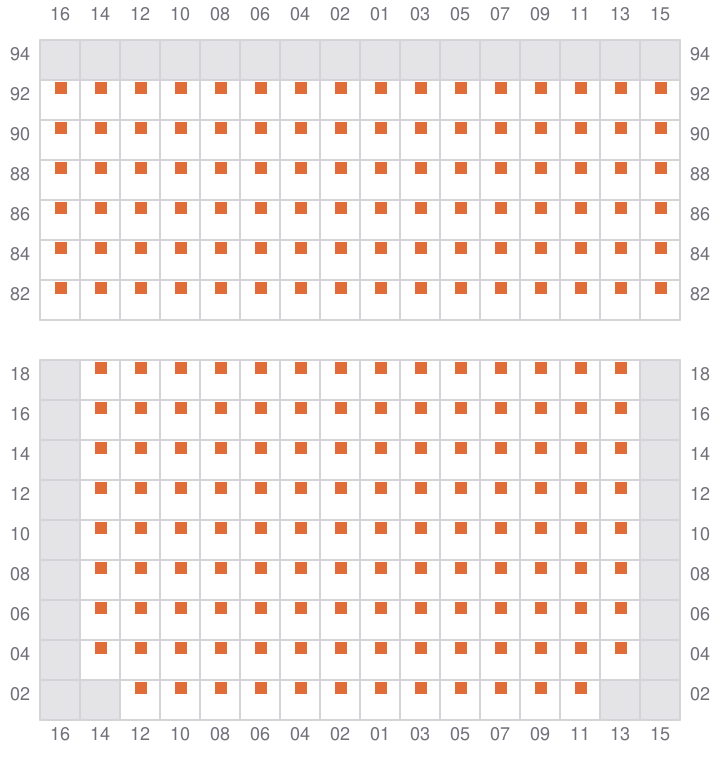

037

  • →
Bay 037 view and slots of MSC UNIFIC VI

039 (038)

  • ←
Bay 039 view and slots of MSC UNIFIC VI

041

  • ? / →
Bay 041 view and slots of MSC UNIFIC VI

043 (042)

  • ←

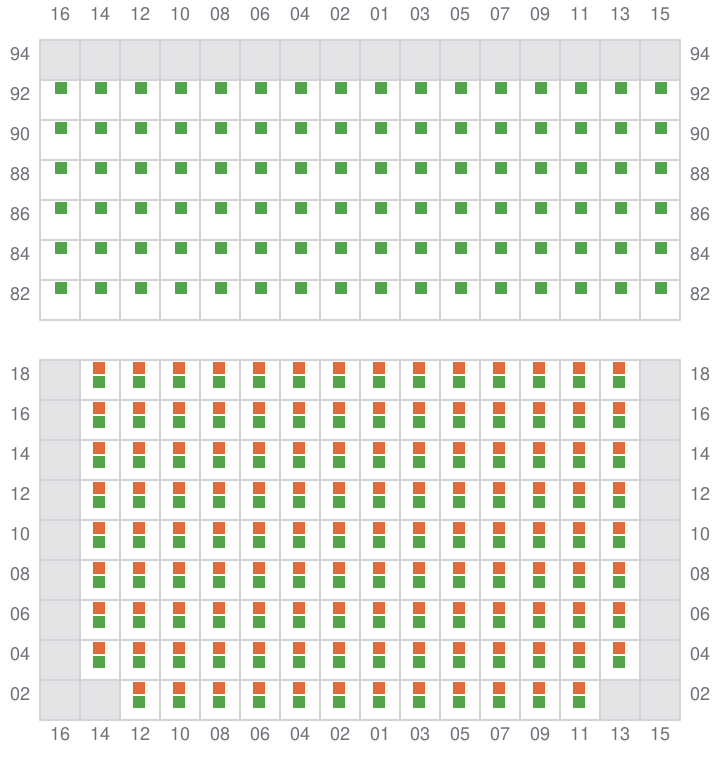

Bay 043 view and slots of MSC UNIFIC VI

045

  • →

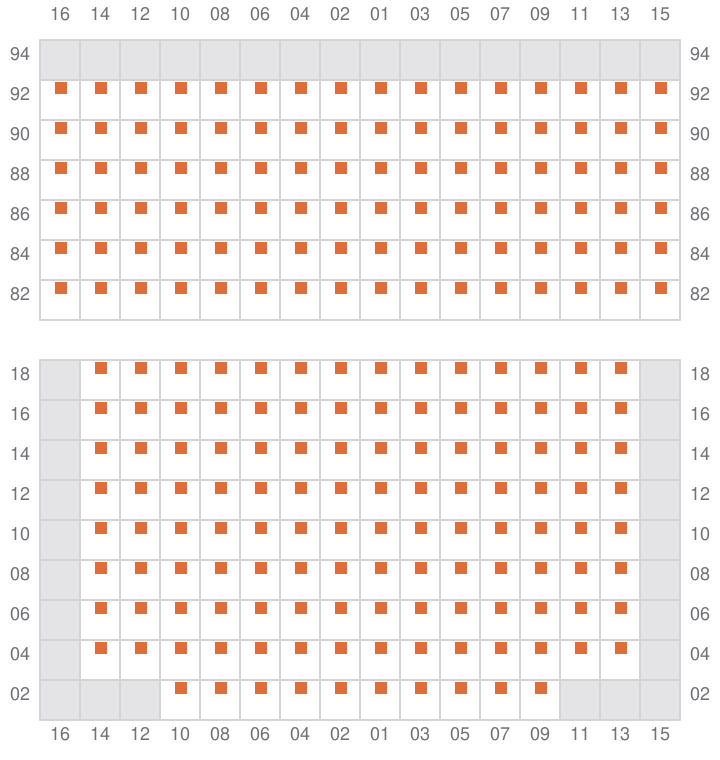

Bay 045 view and slots of MSC UNIFIC VI

047 (046)

  • ←

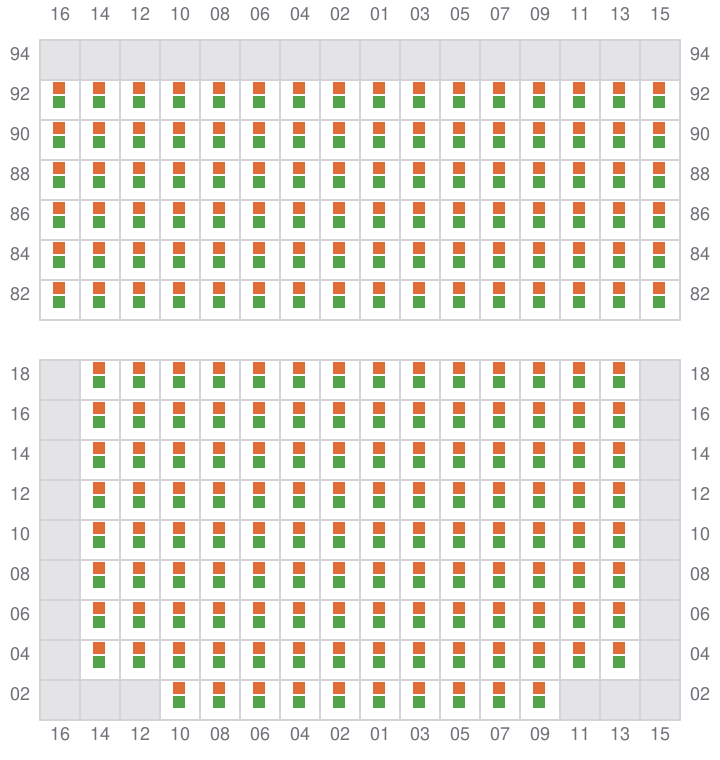

Bay 047 view and slots of MSC UNIFIC VI

049

Bay 049 view and slots of MSC UNIFIC VI

051 (050)

  • ←

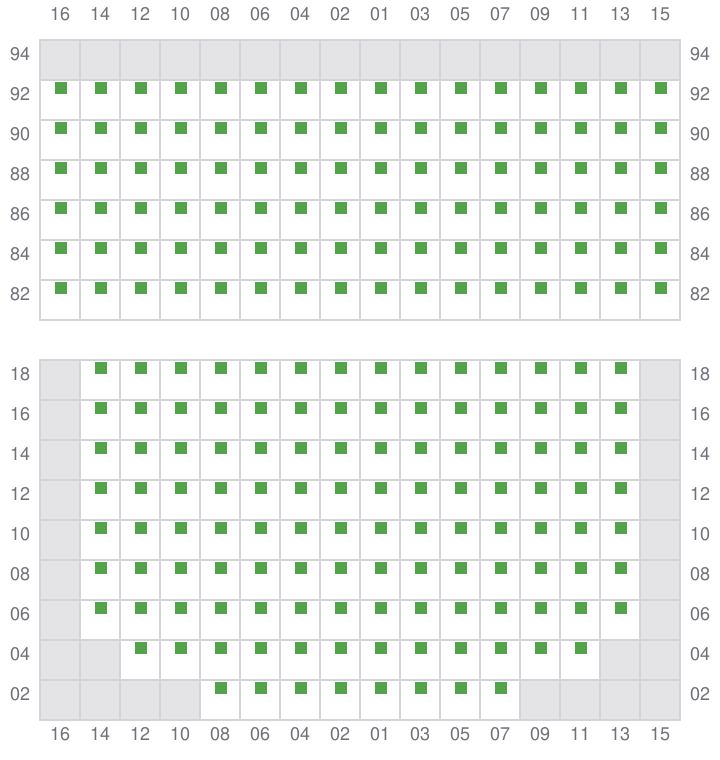

Bay 051 view and slots of MSC UNIFIC VI

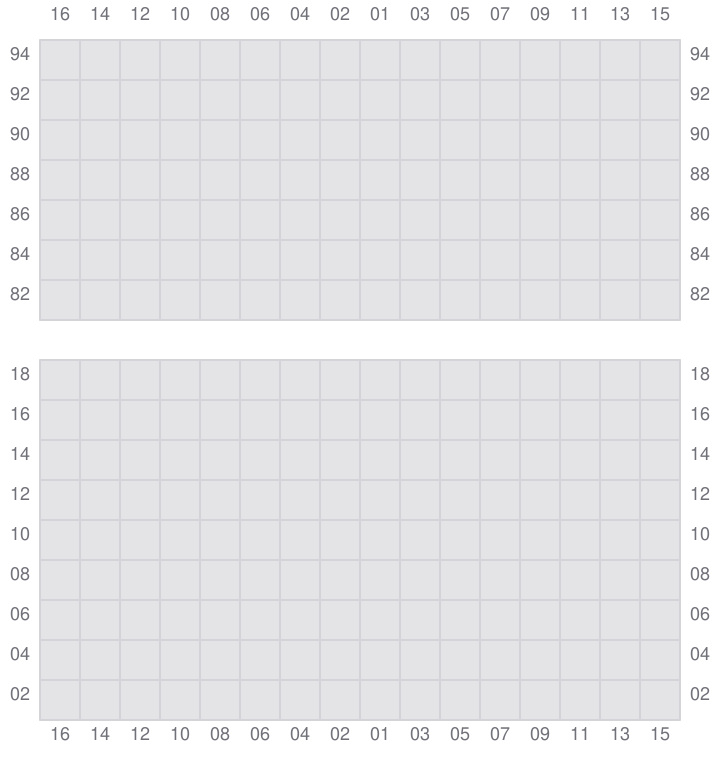

053

Bay 053 view and slots of MSC UNIFIC VI

055 (054)

  • ←
Bay 055 view and slots of MSC UNIFIC VI

057

  • →

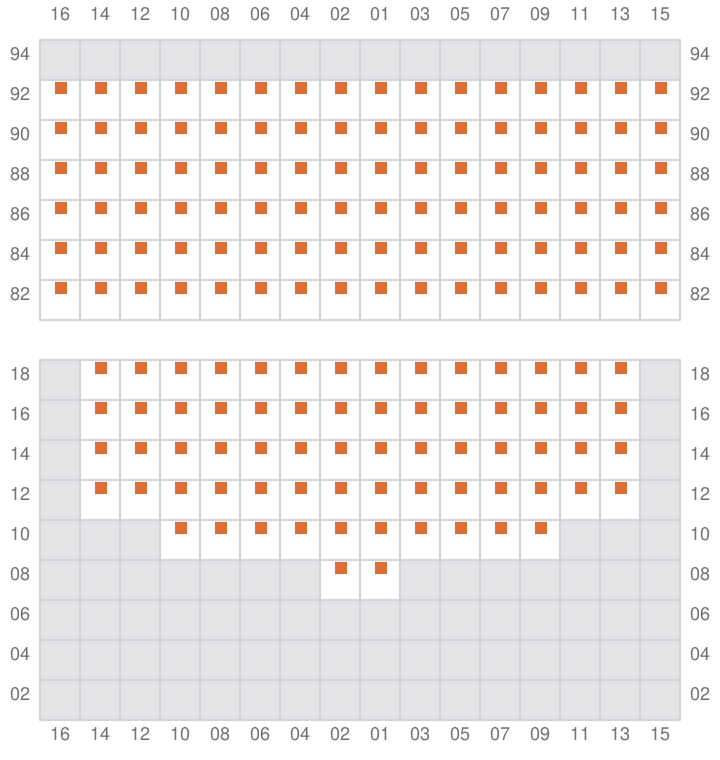

Bay 057 view and slots of MSC UNIFIC VI

059 (058)

  • ←
Bay 059 view and slots of MSC UNIFIC VI

061

  • ? / →
Bay 061 view and slots of MSC UNIFIC VI

063 (062)

  • ←
Bay 063 view and slots of MSC UNIFIC VI

065

Bay 065 view and slots of MSC UNIFIC VI

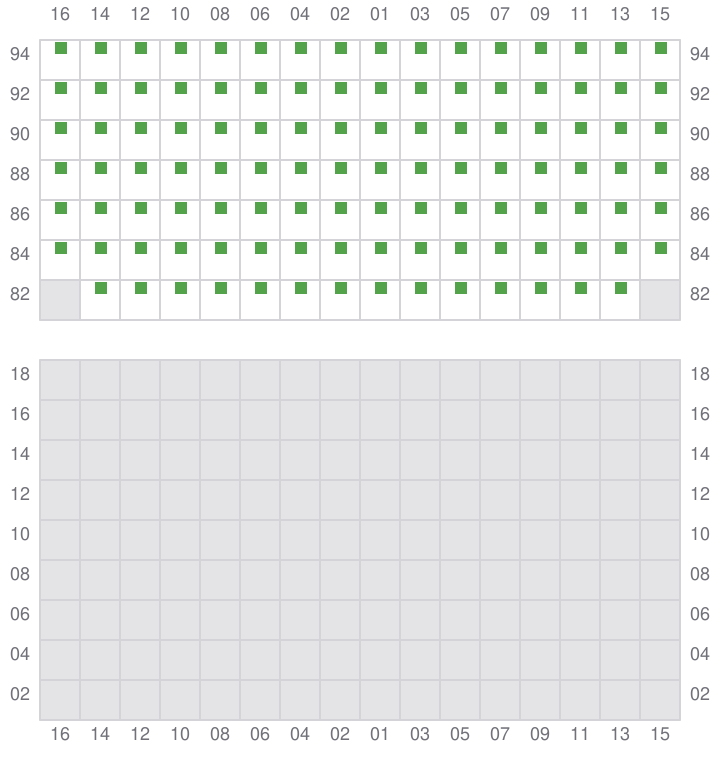

067 (066)

  • ← / ?
Bay 067 view and slots of MSC UNIFIC VI
