MSC UNITED VIII
9302619 | A8HZ4 | MSC by ************************** Last update: Wed Jun 21 2023

General Info

Ship Name:MSC UNITED VIII

IMO Code:9302619

Call Sign:A8HZ4

Line Operator:MSC

Class Name for Sister Ships:UNT

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:079

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,238

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

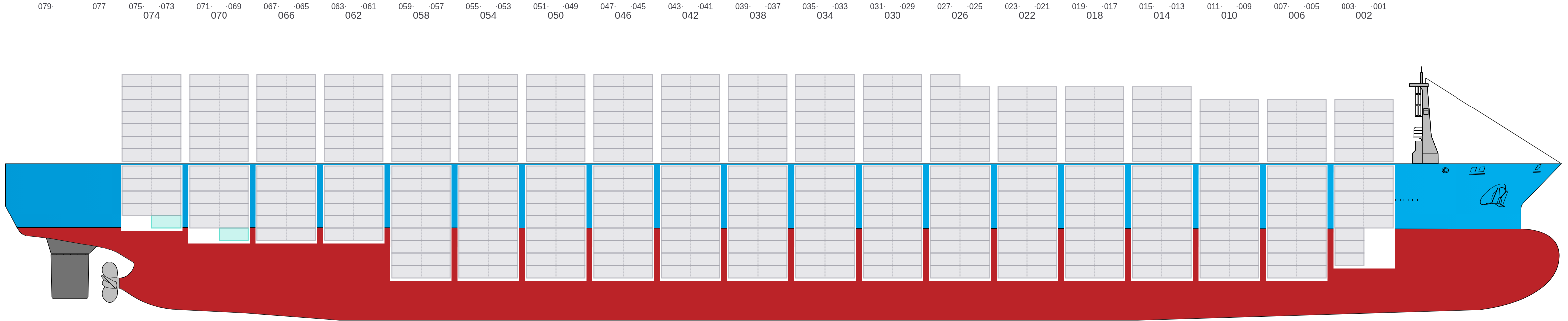

Side View

Side view of MSC UNITED VIII

Hatch-Covers View

Deck view of MSC UNITED VIII

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

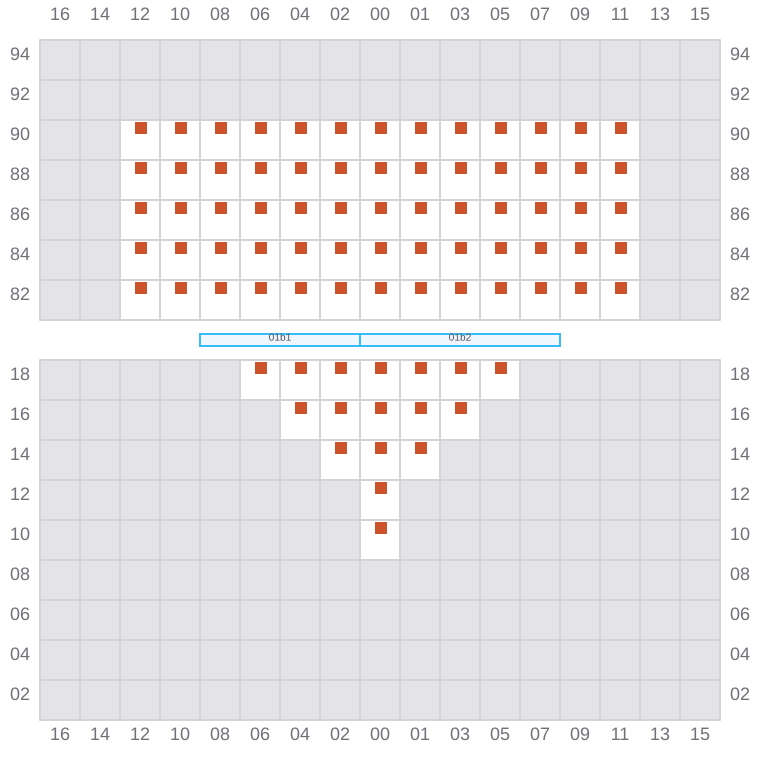

Bay 001 view and slots of MSC UNITED VIII

003 (002)

←

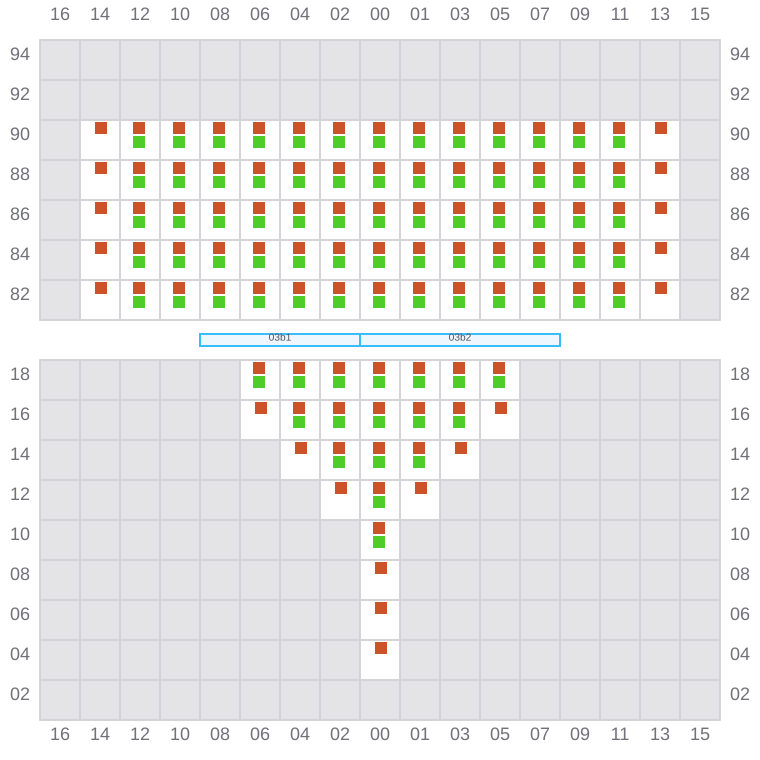

Bay 003 view and slots of MSC UNITED VIII

005

→

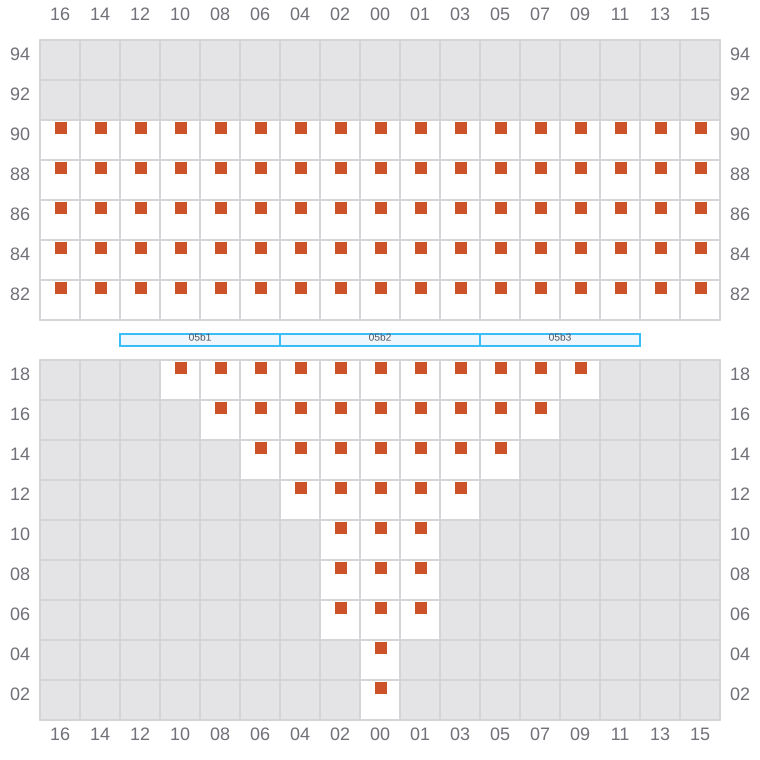

Bay 005 view and slots of MSC UNITED VIII

007 (006)

←

Bay 007 view and slots of MSC UNITED VIII

009

→

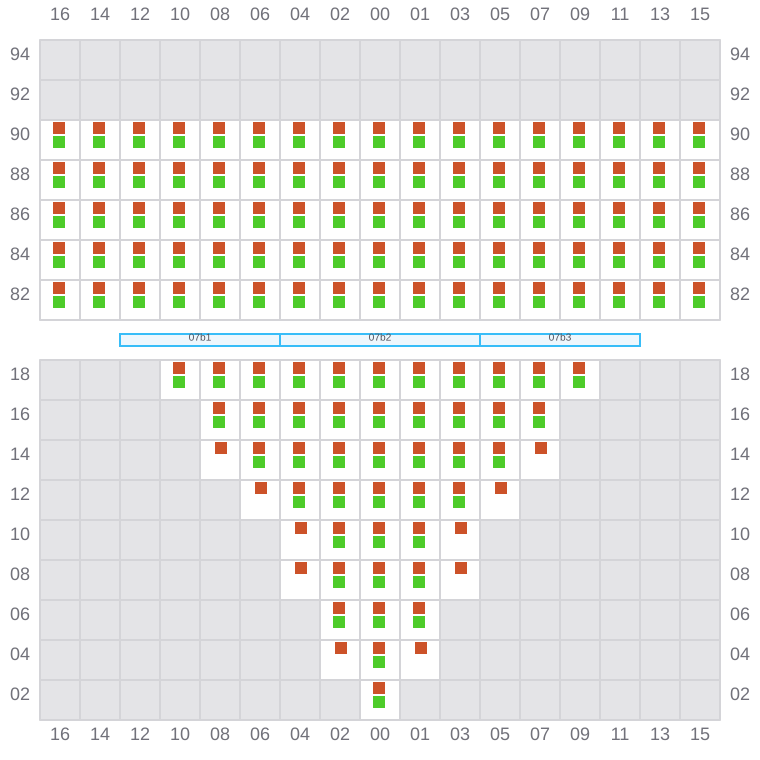

Bay 009 view and slots of MSC UNITED VIII

011 (010)

←

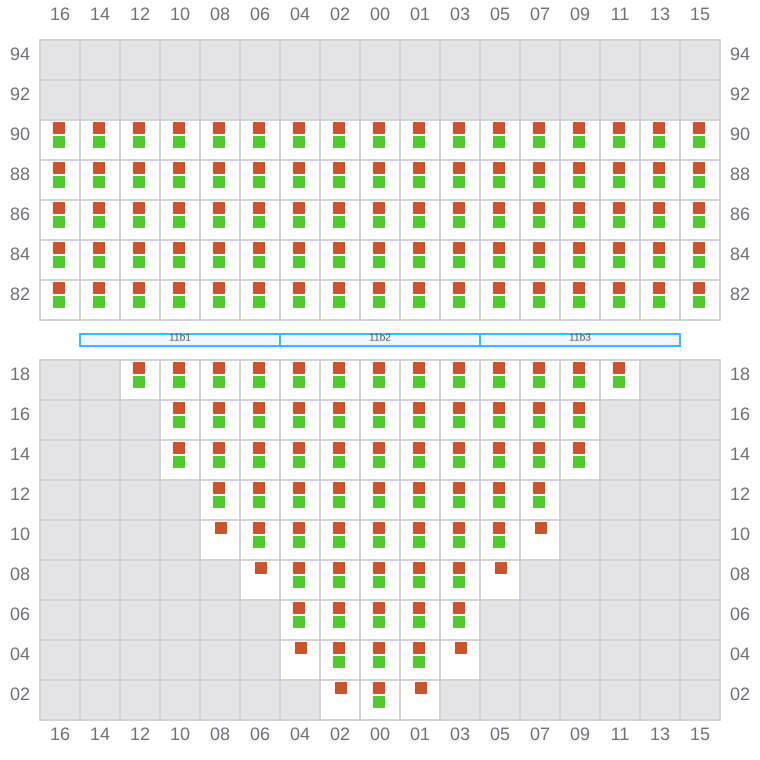

Bay 011 view and slots of MSC UNITED VIII

013

→

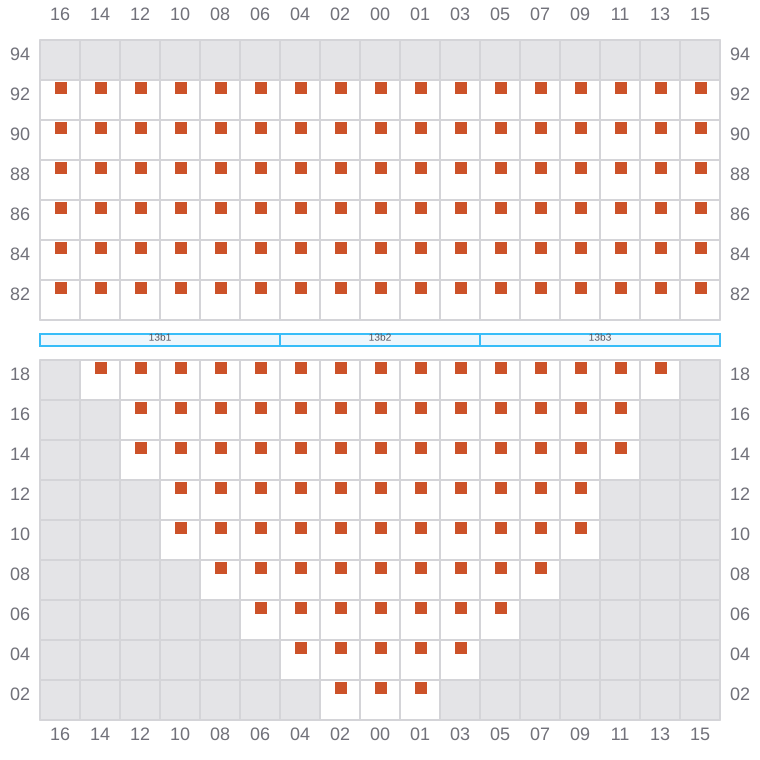

Bay 013 view and slots of MSC UNITED VIII

015 (014)

←

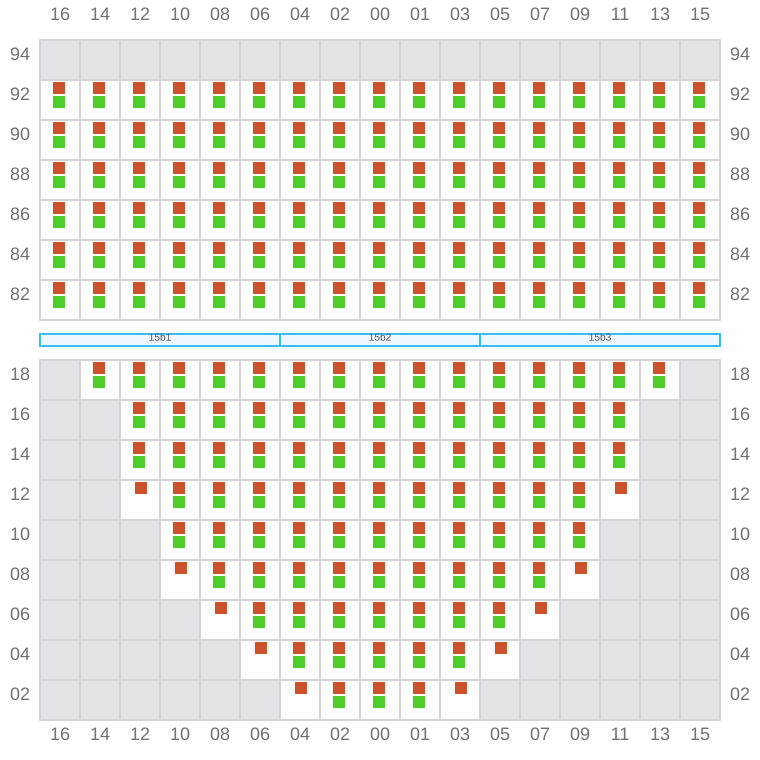

Bay 015 view and slots of MSC UNITED VIII

017

→

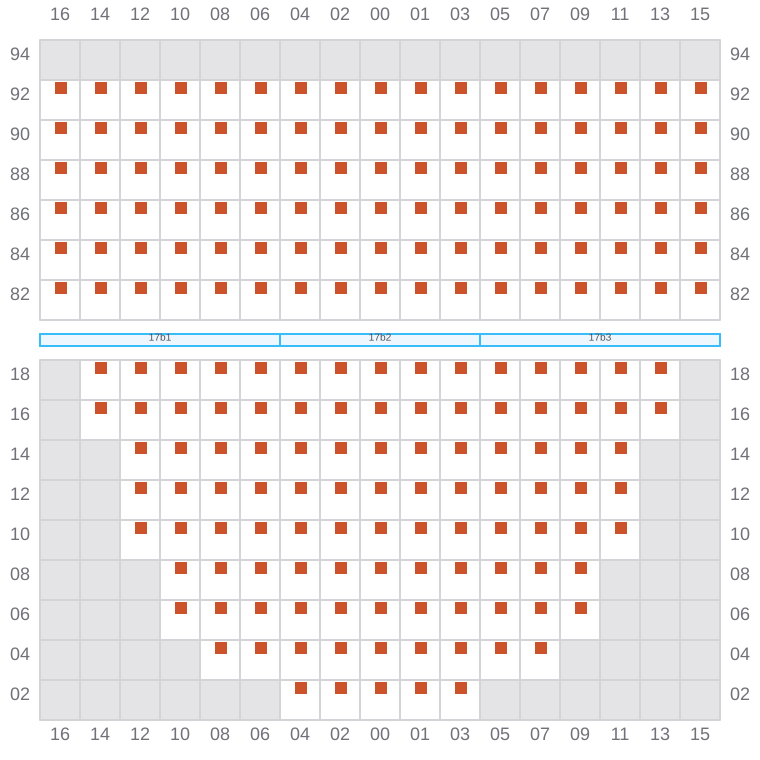

Bay 017 view and slots of MSC UNITED VIII

019 (018)

←

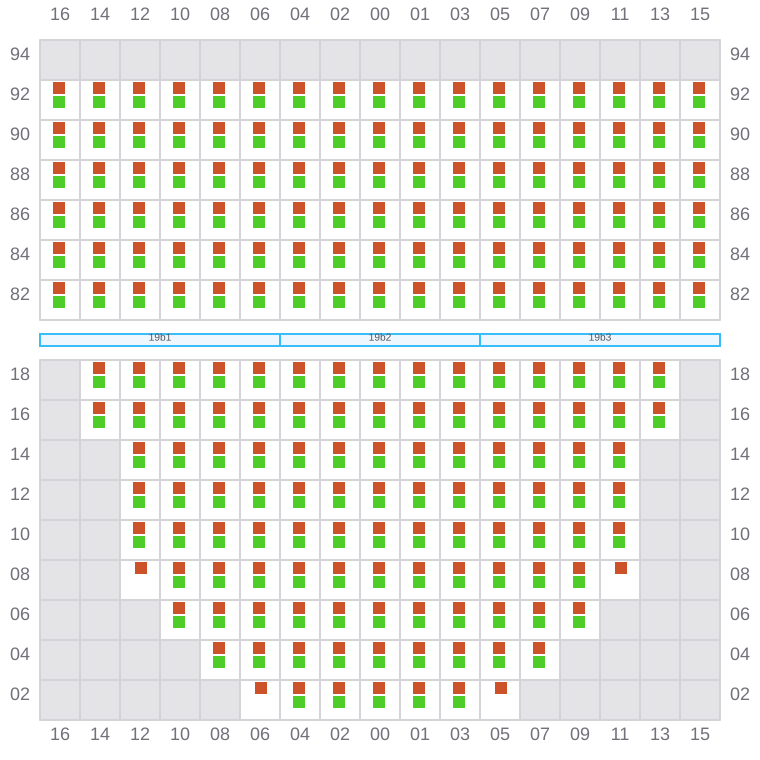

Bay 019 view and slots of MSC UNITED VIII

021

→

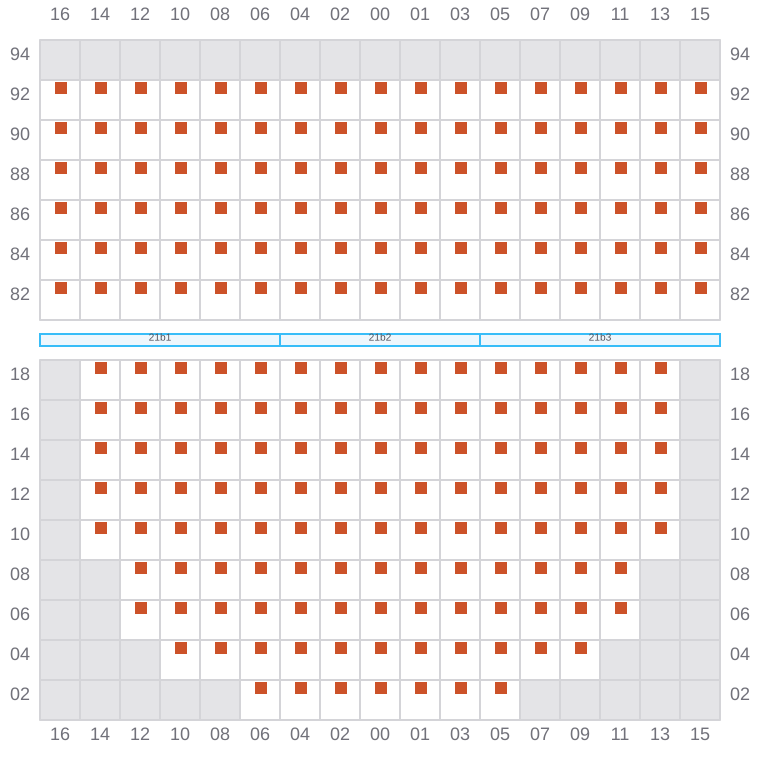

Bay 021 view and slots of MSC UNITED VIII

023 (022)

←

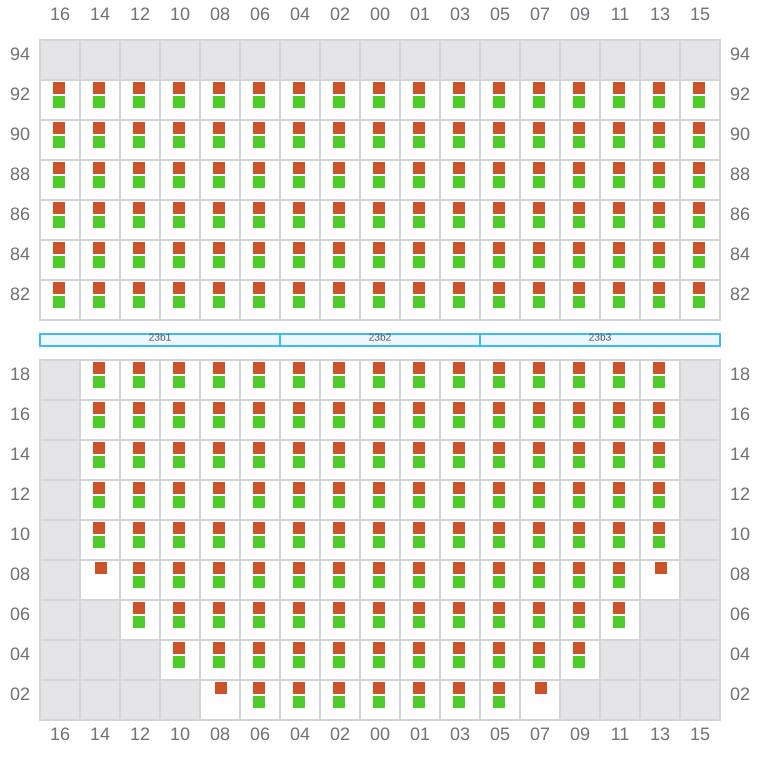

Bay 023 view and slots of MSC UNITED VIII

025

→

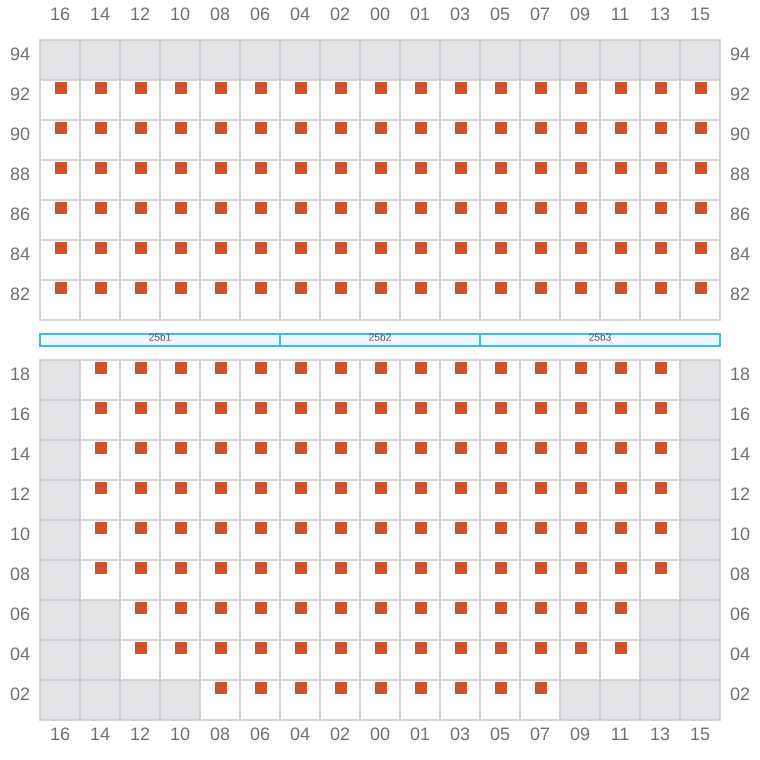

Bay 025 view and slots of MSC UNITED VIII

027 (026)

←

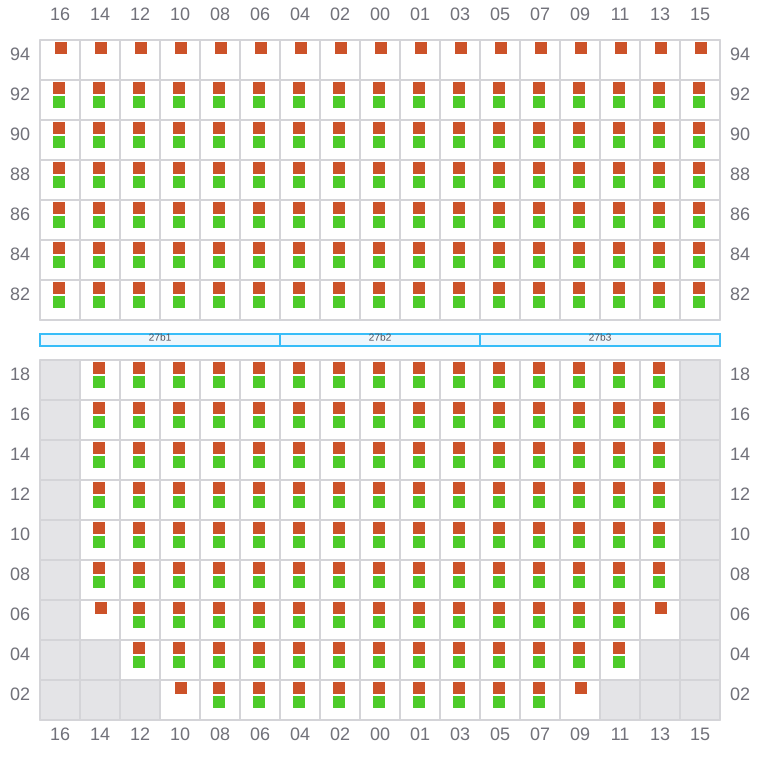

Bay 027 view and slots of MSC UNITED VIII

029

→

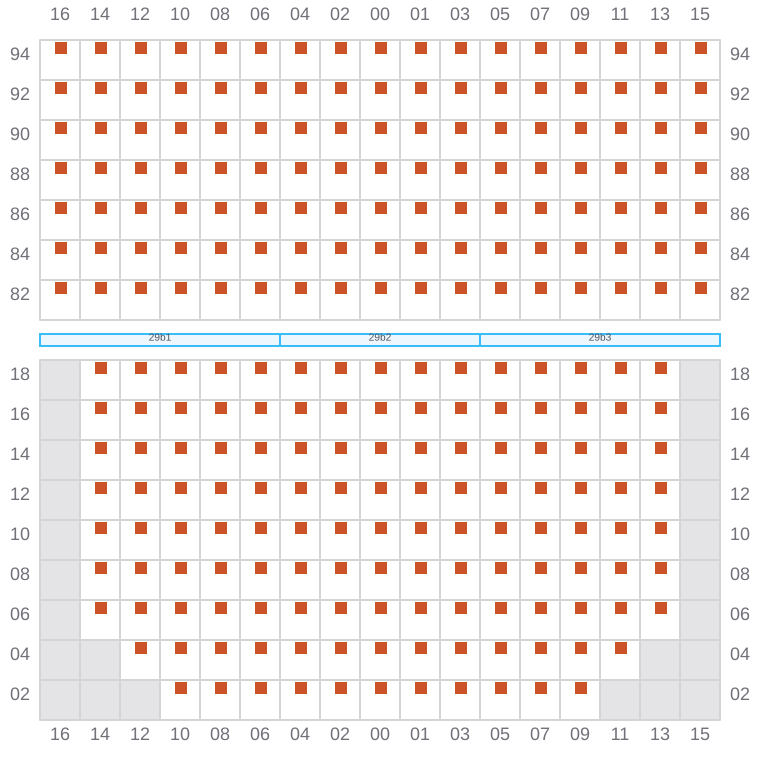

Bay 029 view and slots of MSC UNITED VIII

031 (030)

←

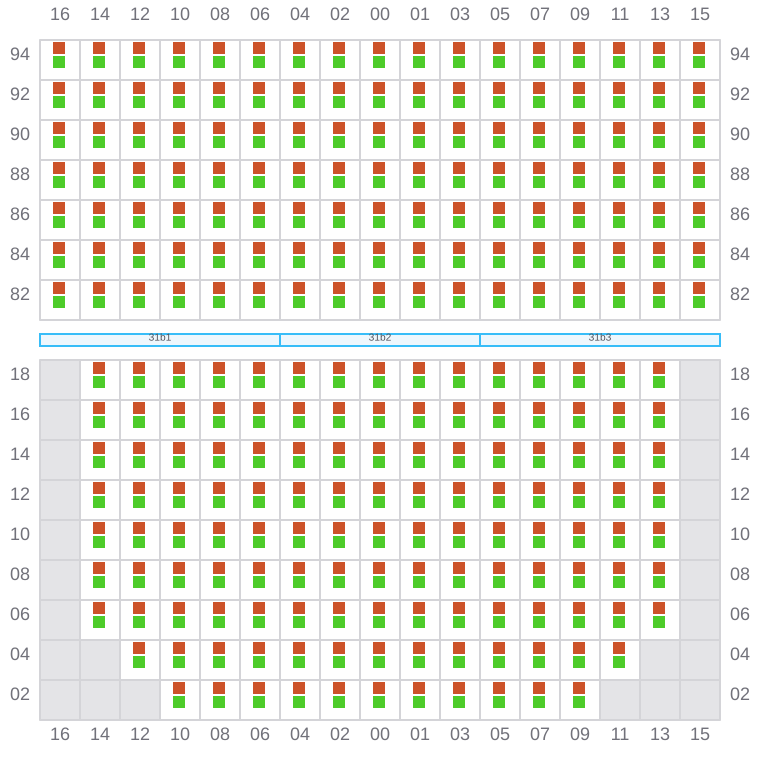

Bay 031 view and slots of MSC UNITED VIII

033

→

Bay 033 view and slots of MSC UNITED VIII

035 (034)

←

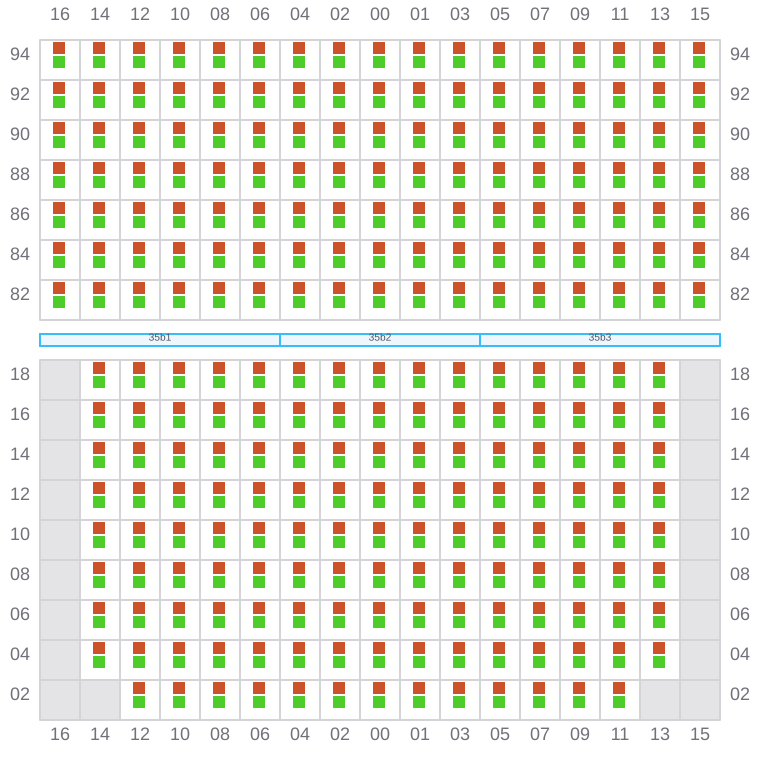

Bay 035 view and slots of MSC UNITED VIII

037

→

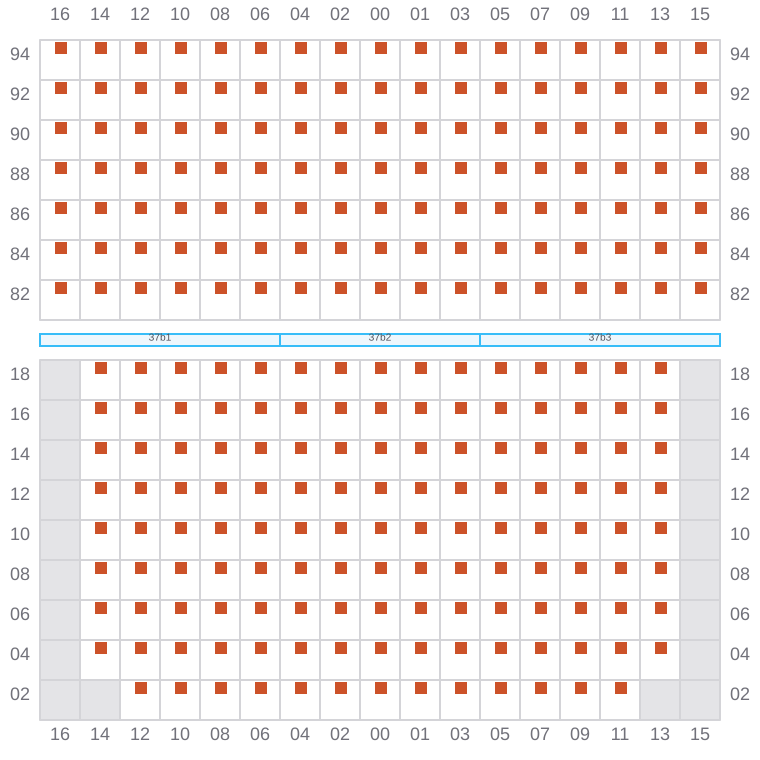

Bay 037 view and slots of MSC UNITED VIII

039 (038)

←

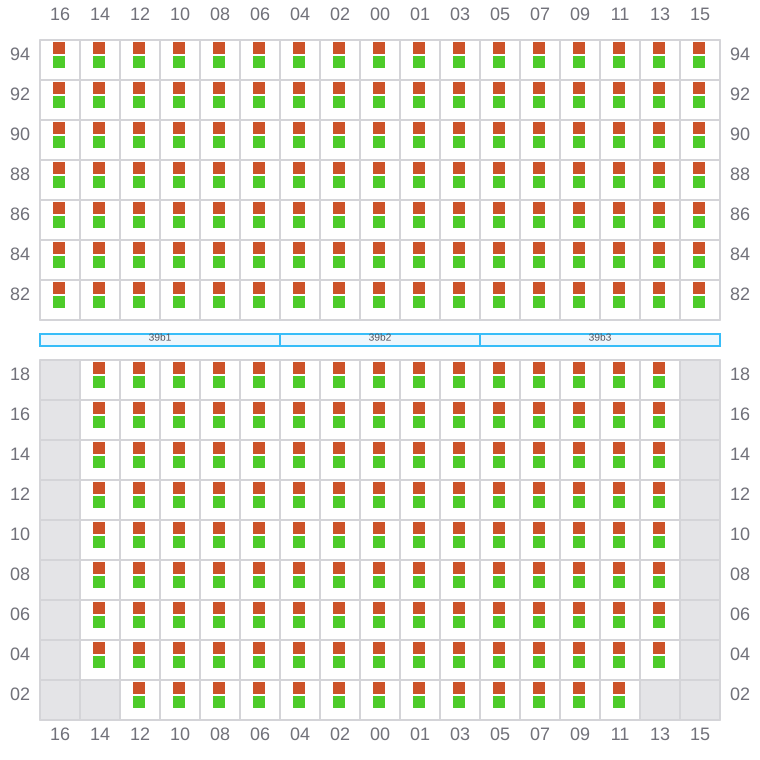

Bay 039 view and slots of MSC UNITED VIII

041

→

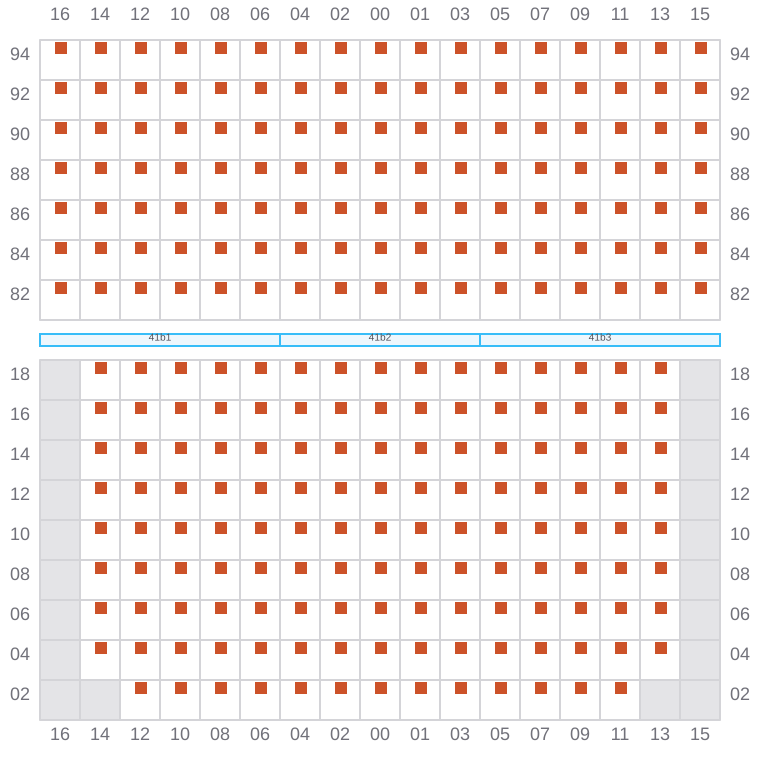

Bay 041 view and slots of MSC UNITED VIII

043 (042)

←

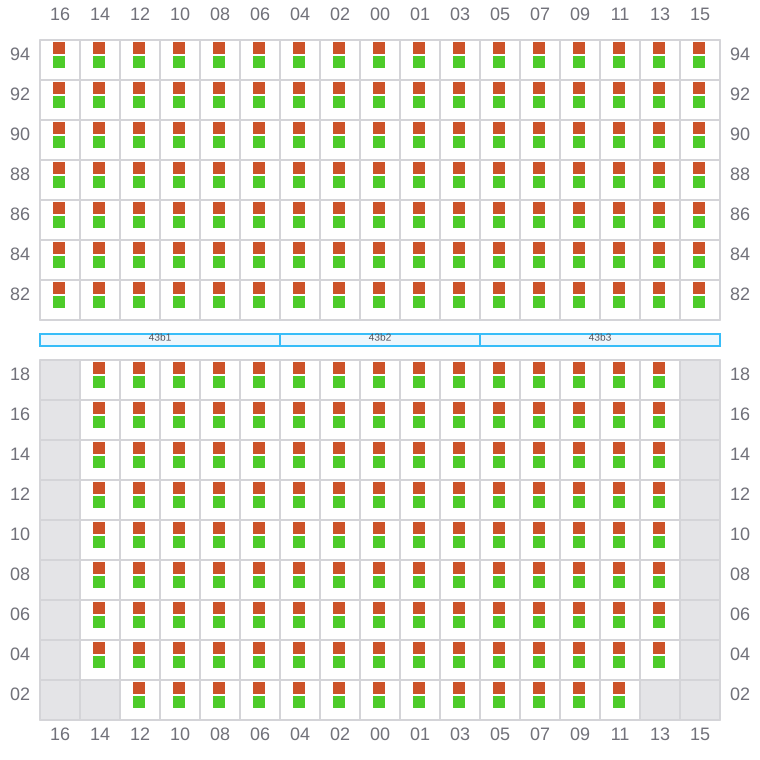

Bay 043 view and slots of MSC UNITED VIII

045

→

Bay 045 view and slots of MSC UNITED VIII

047 (046)

←

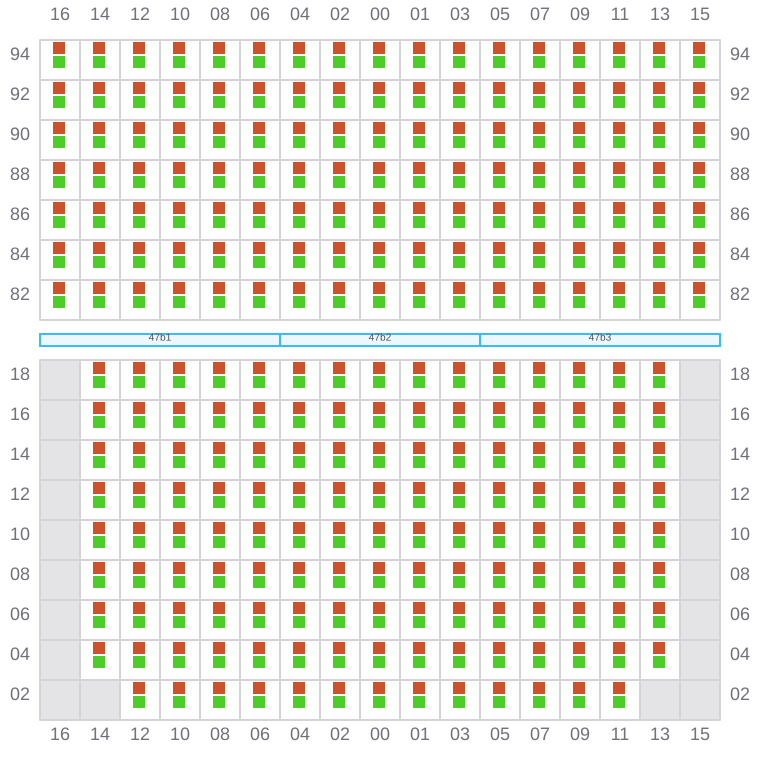

Bay 047 view and slots of MSC UNITED VIII

049

→

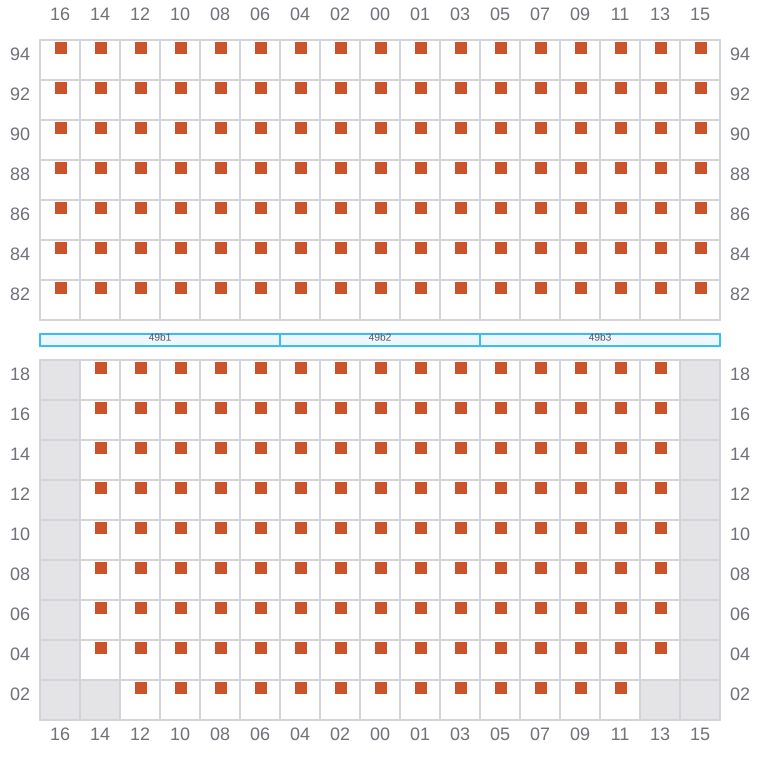

Bay 049 view and slots of MSC UNITED VIII

051 (050)

←

Bay 051 view and slots of MSC UNITED VIII

053

→

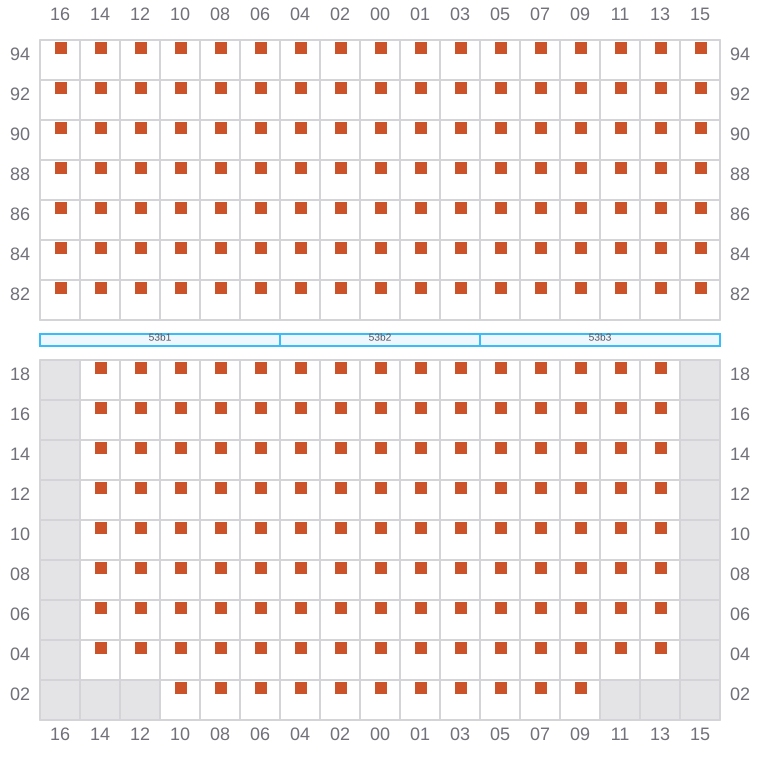

Bay 053 view and slots of MSC UNITED VIII

055 (054)

←

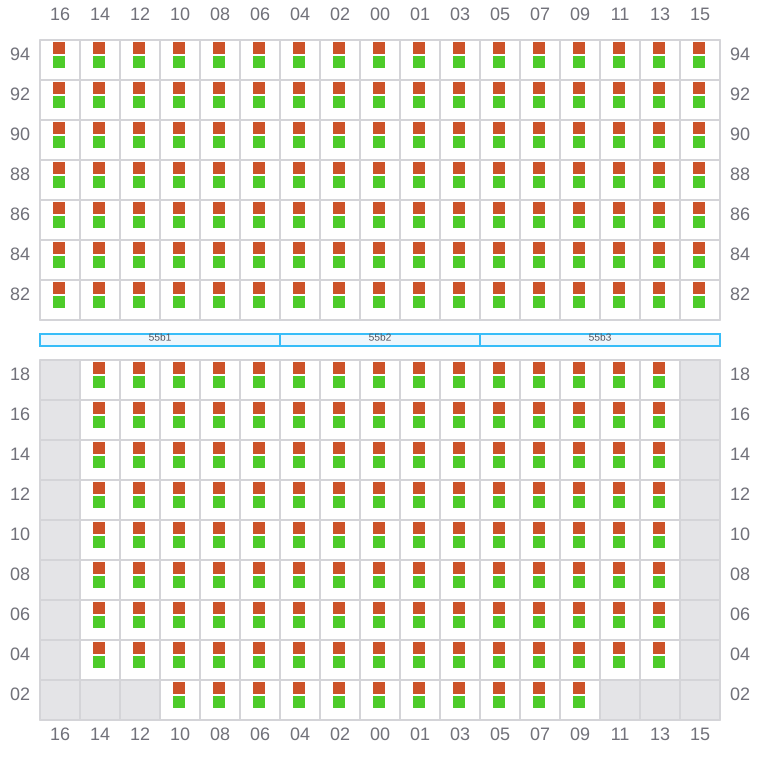

Bay 055 view and slots of MSC UNITED VIII

057

→

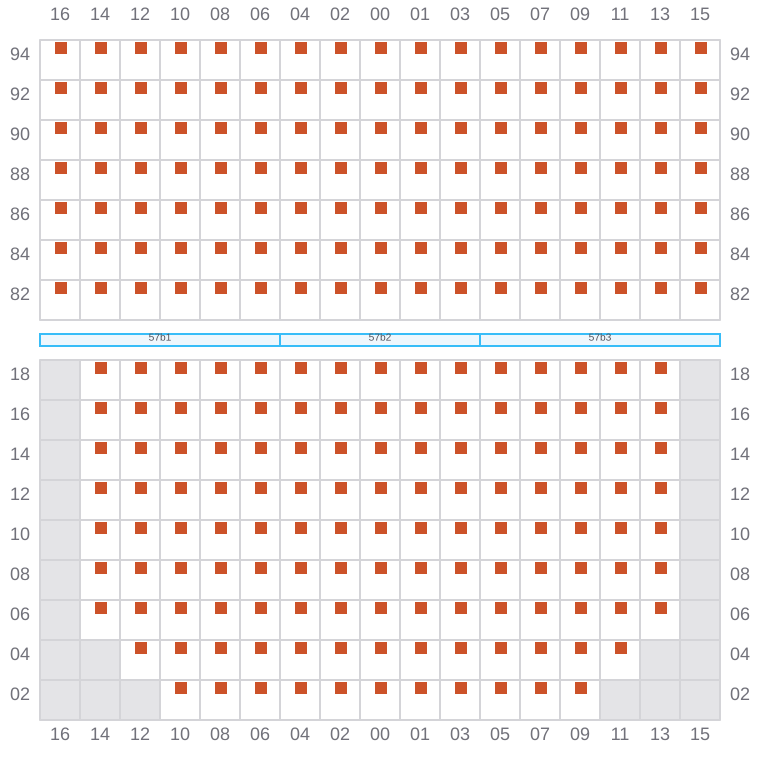

Bay 057 view and slots of MSC UNITED VIII

059 (058)

←

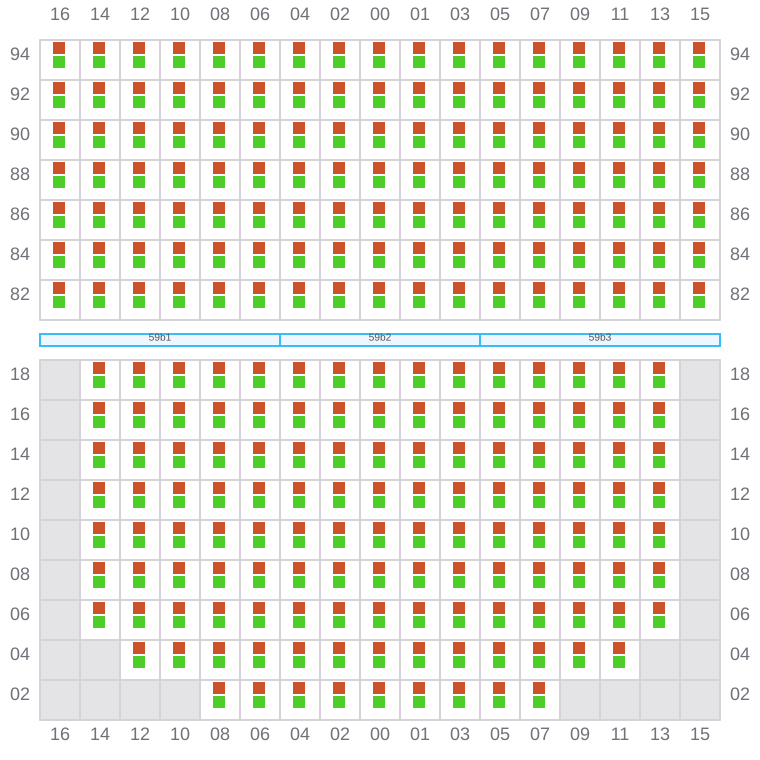

Bay 059 view and slots of MSC UNITED VIII

061

→

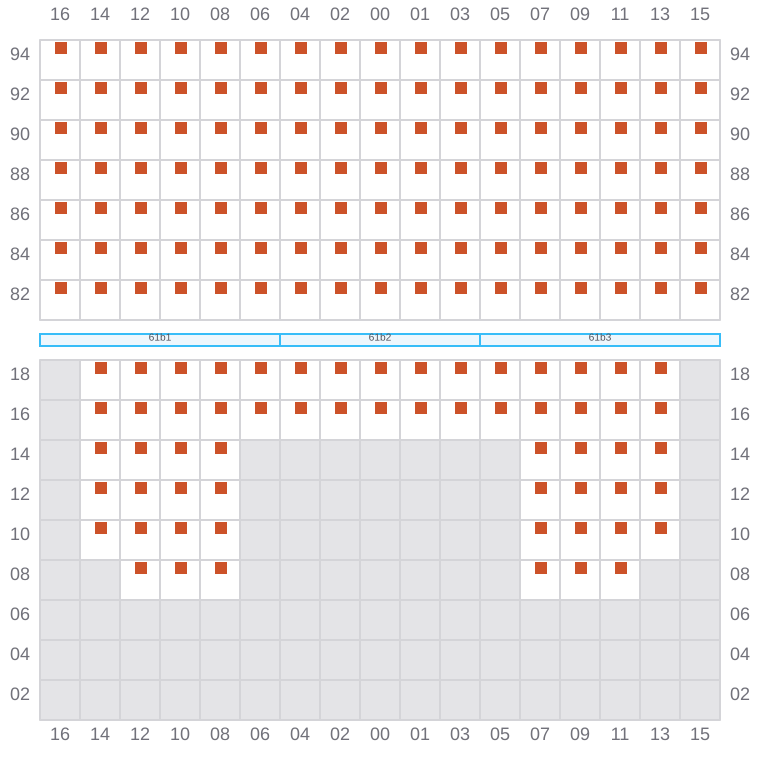

Bay 061 view and slots of MSC UNITED VIII

063 (062)

←

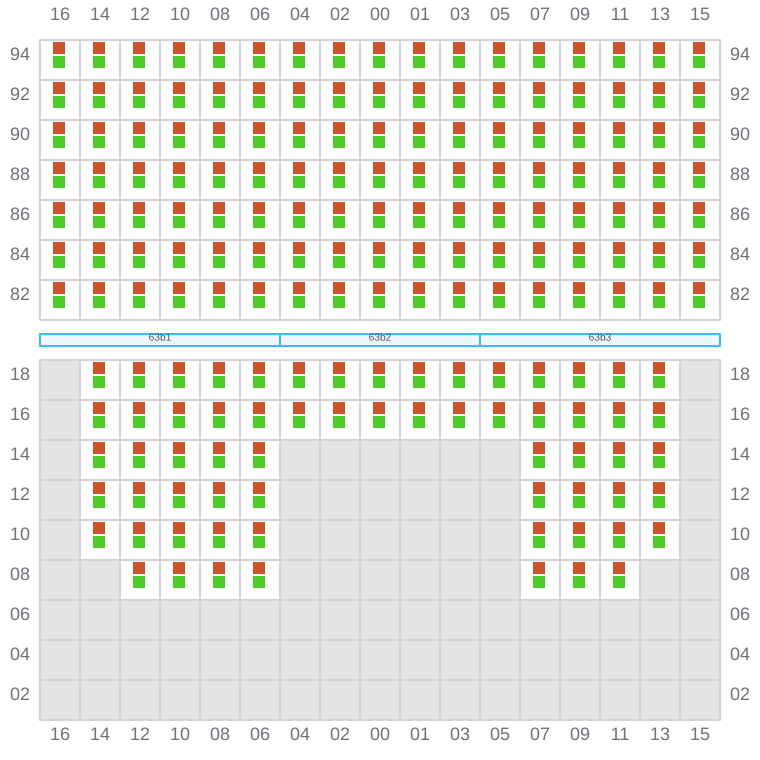

Bay 063 view and slots of MSC UNITED VIII

065

→

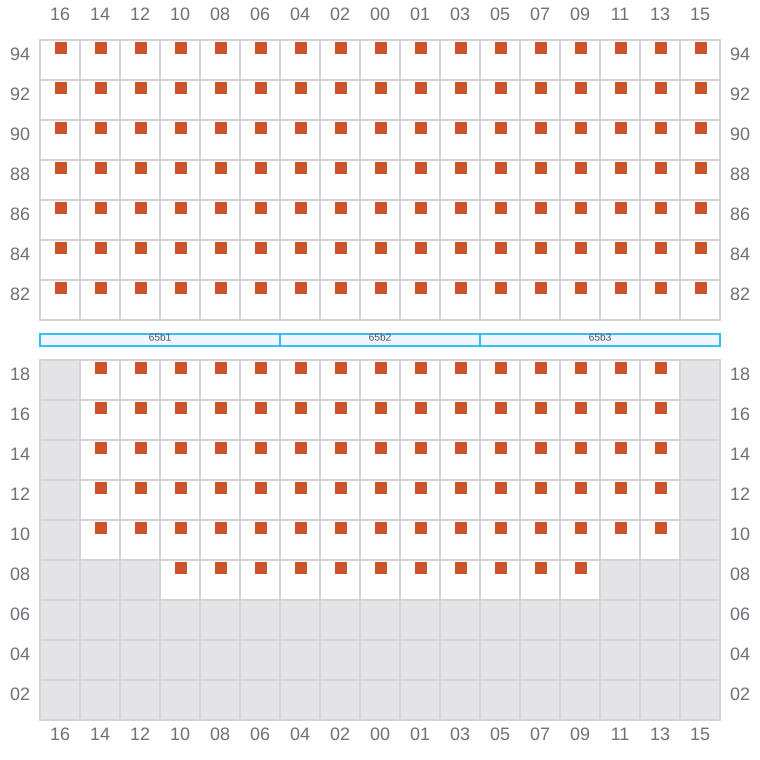

Bay 065 view and slots of MSC UNITED VIII

067 (066)

←

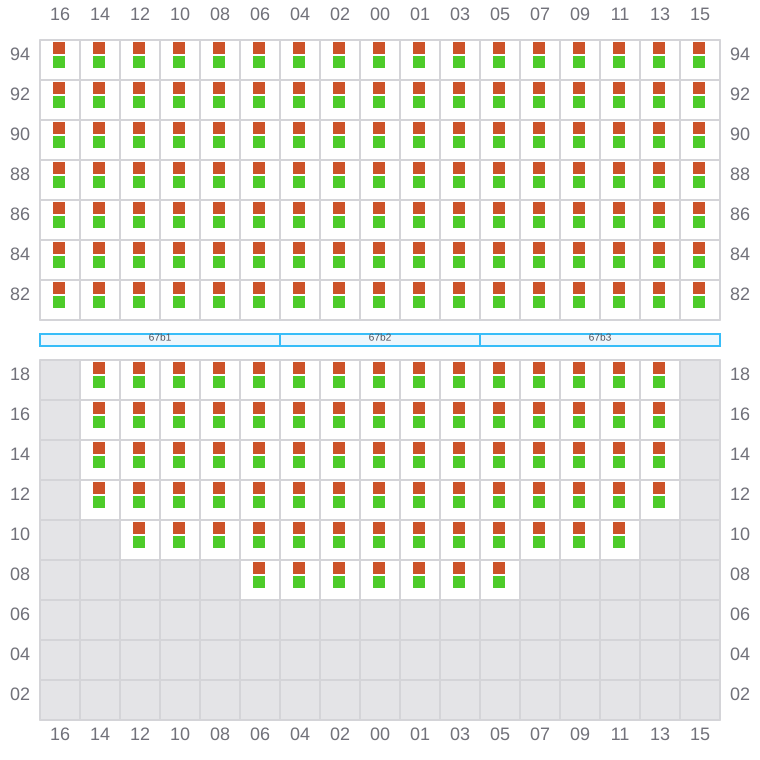

Bay 067 view and slots of MSC UNITED VIII

069

→

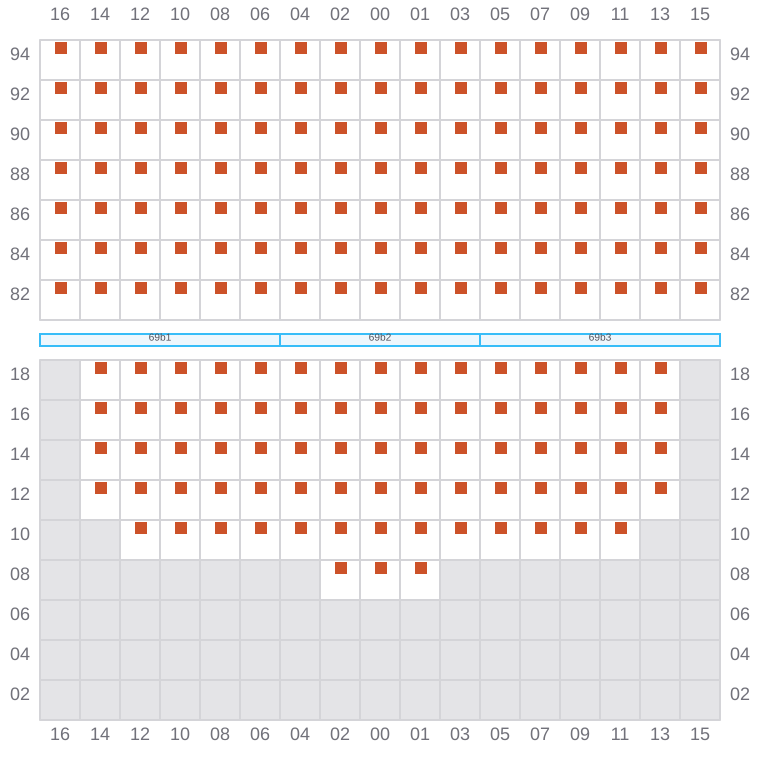

Bay 069 view and slots of MSC UNITED VIII

071 (070)

←

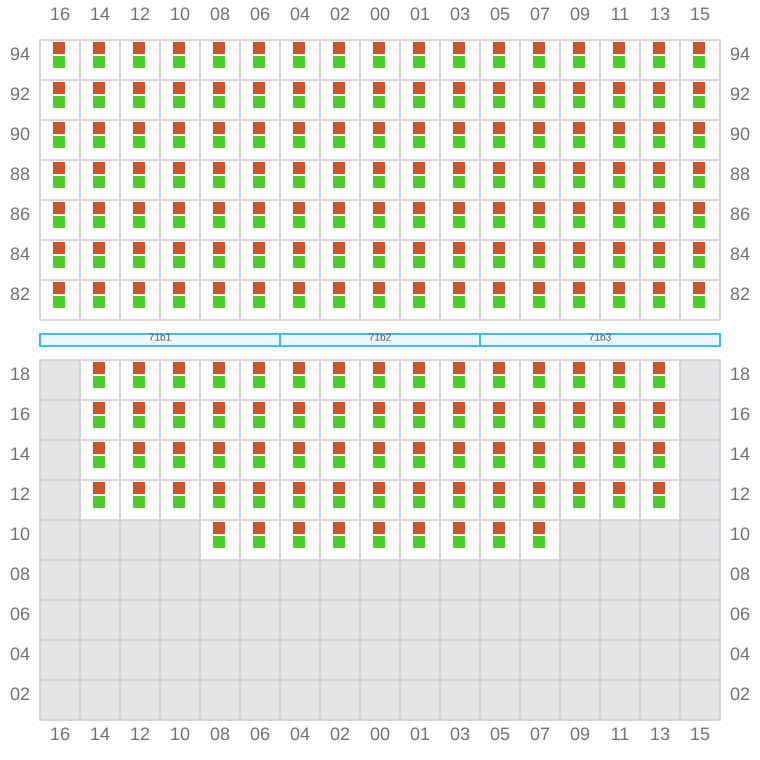

Bay 071 view and slots of MSC UNITED VIII

073

→

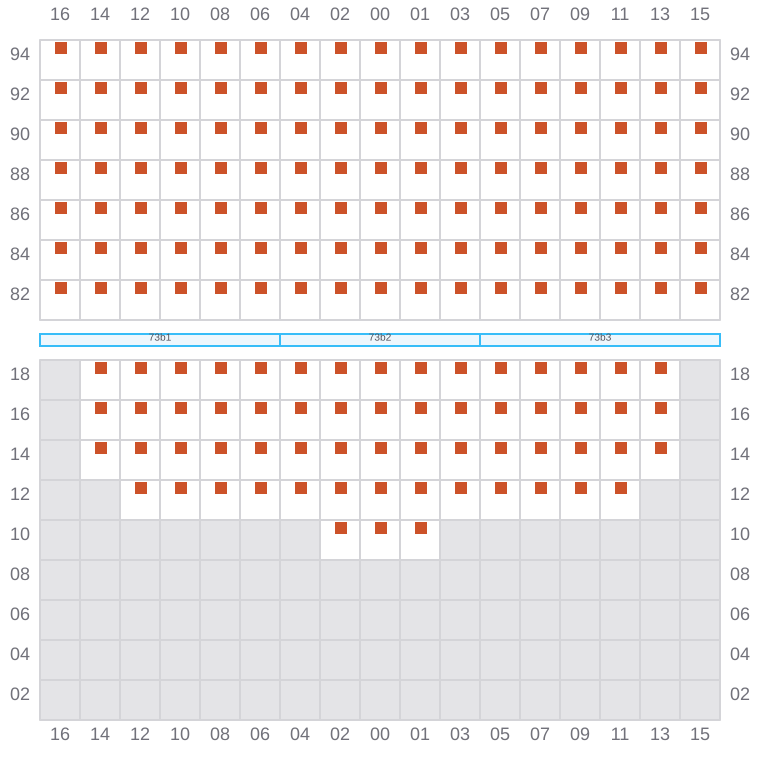

Bay 073 view and slots of MSC UNITED VIII

075 (074)

←

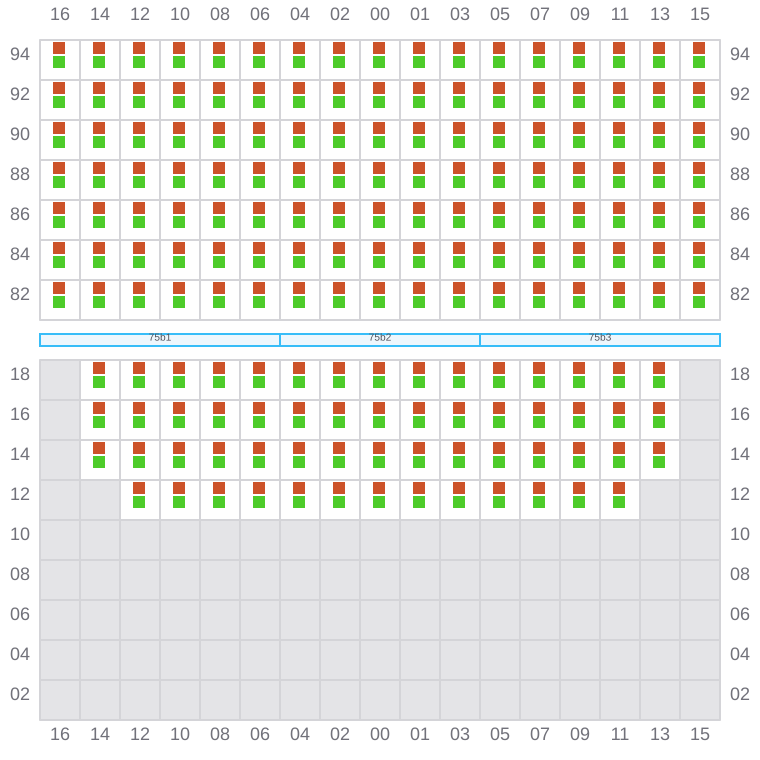

Bay 075 view and slots of MSC UNITED VIII

077

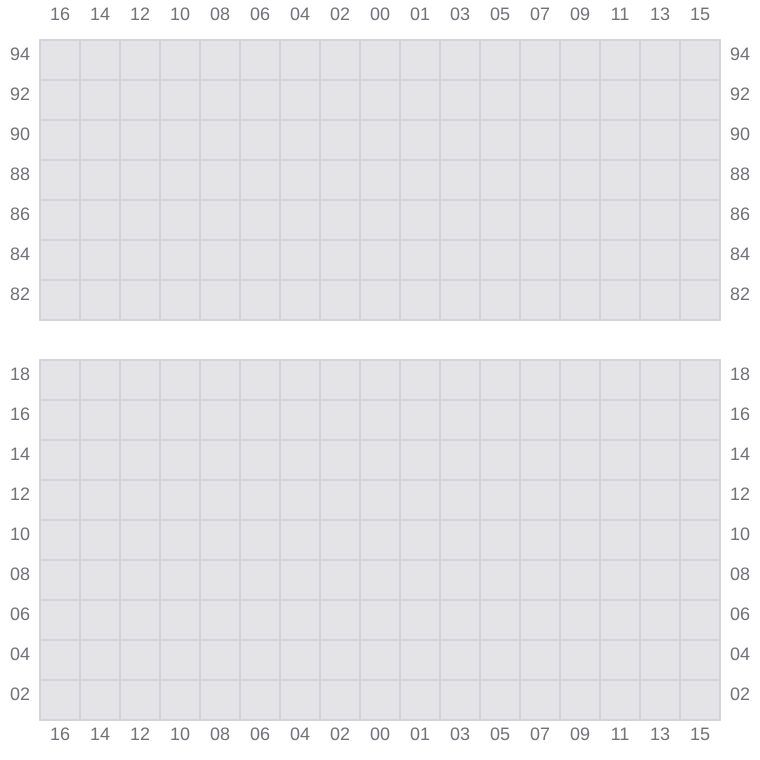

Bay 077 view and slots of MSC UNITED VIII

079 (078)

^← / _?

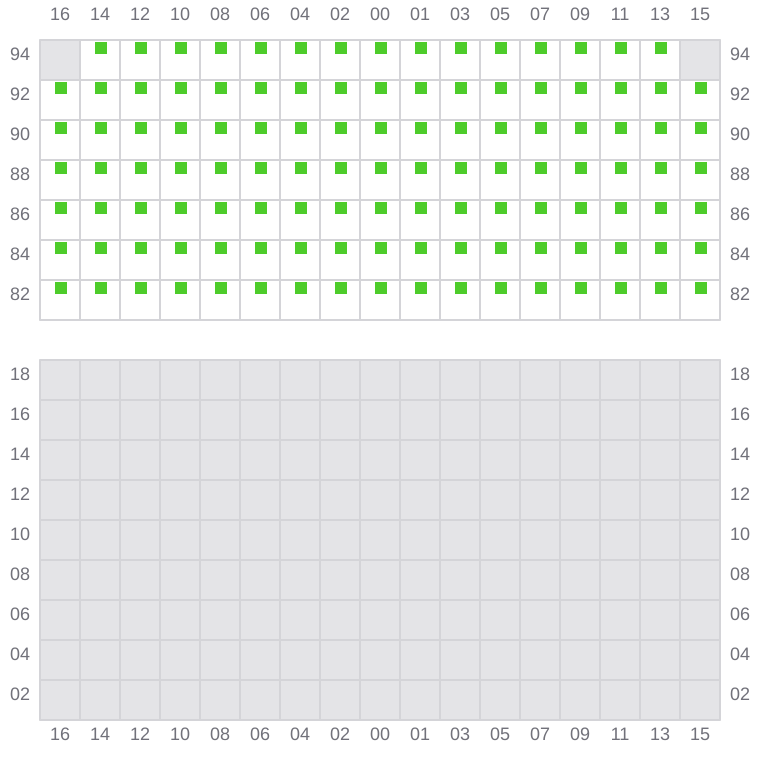

Bay 079 view and slots of MSC UNITED VIII
