MSC VALERIA
9461439 | 3FFK4 | MSC by ************************** Last update: Sat May 27 2023
General Info
Ship Name:MSC VALERIA
IMO Code:9461439
Call Sign:3FFK4
Line Operator:MSC
Class Name for Sister Ships:VALR
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,274
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

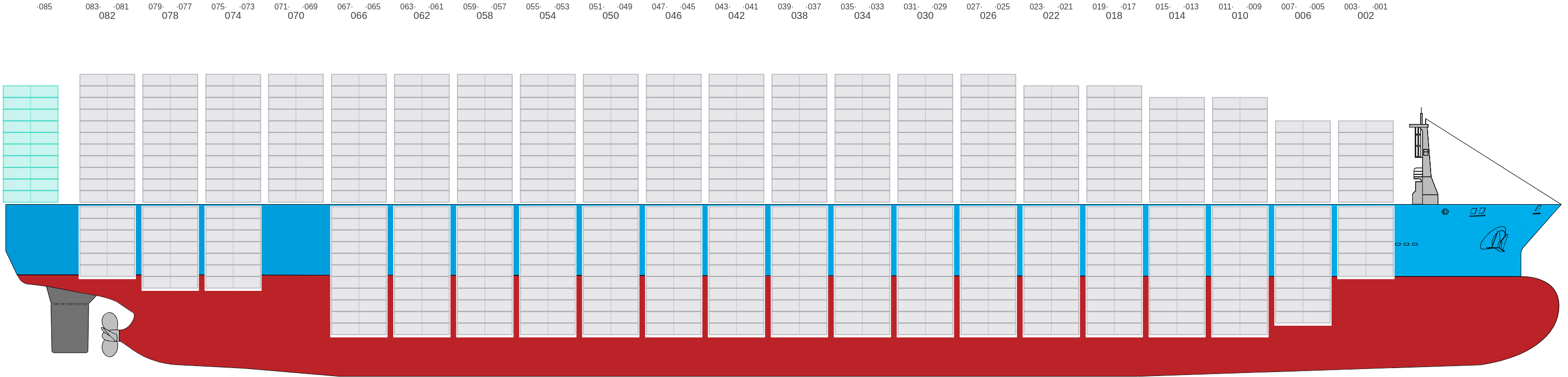

Side View
![Side view of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-sideView.png?v=1685222836707)

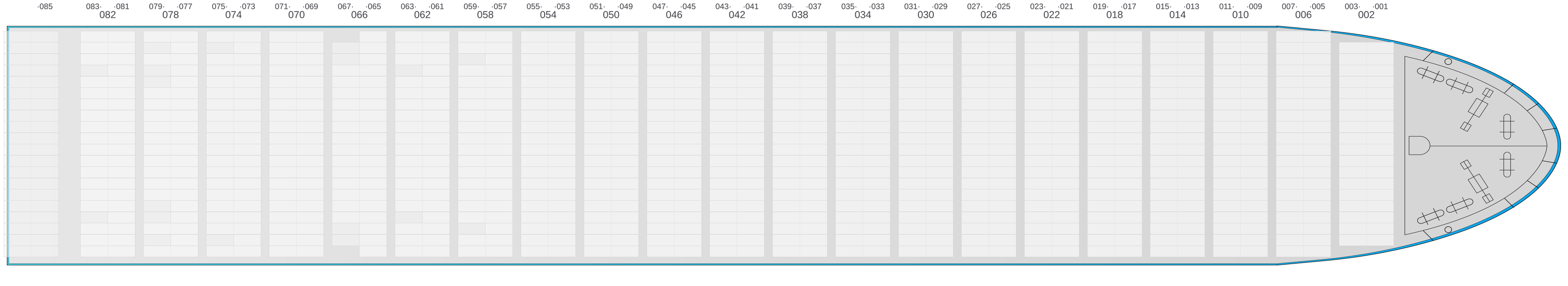

Hatch-Covers View
![Deck view of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-deckView.png?v=1685222836707)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

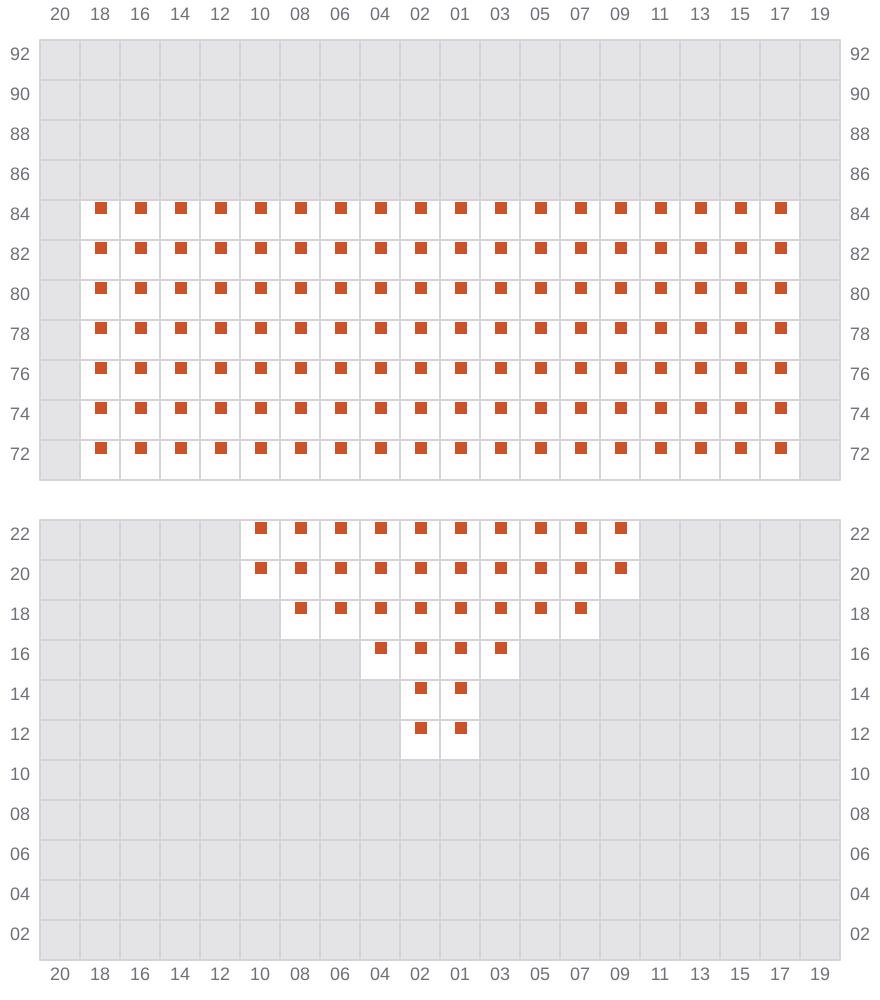

001
- →
![Bay 001 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b001.png?v=1685222836707)

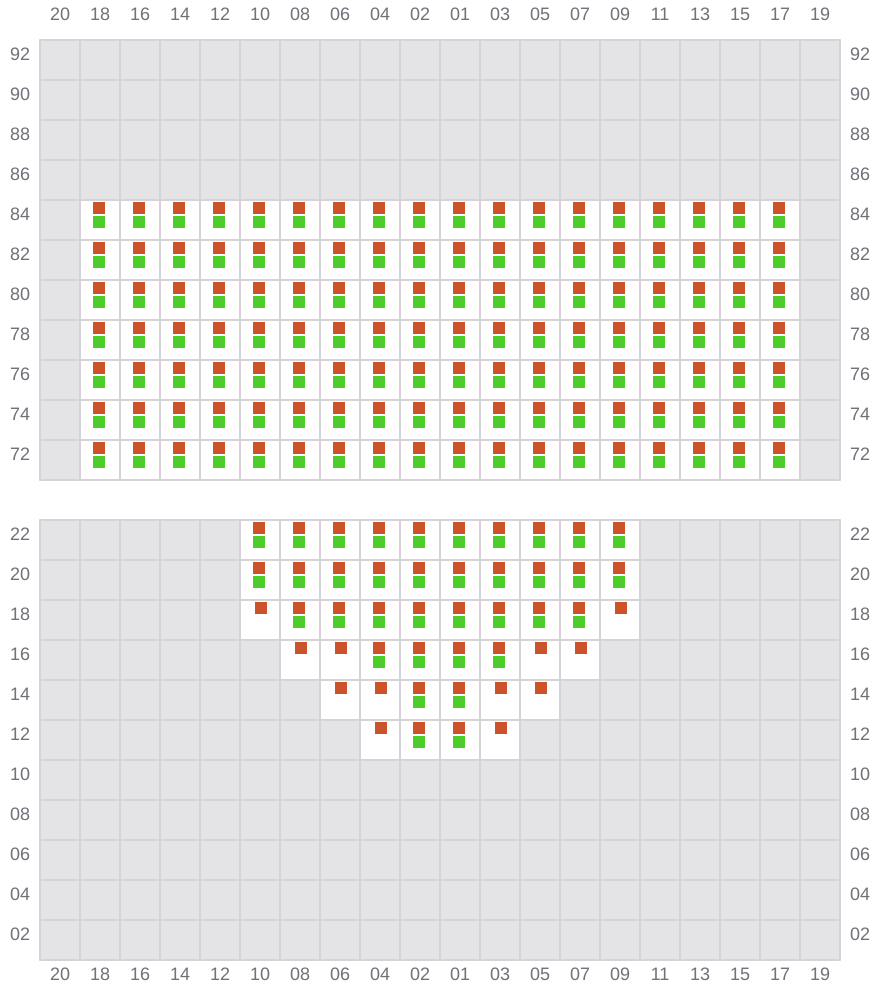

003 (002)
- ←
![Bay 003 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b003.png?v=1685222836707)

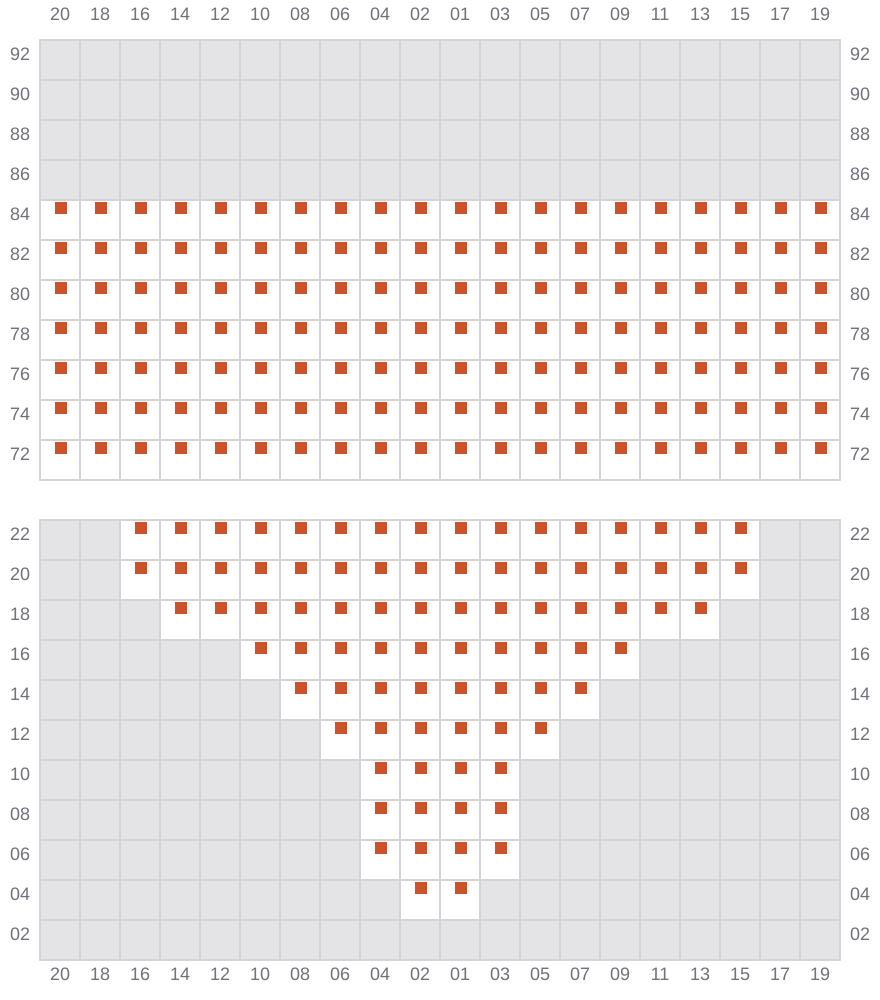

005
- →
![Bay 005 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b005.png?v=1685222836707)

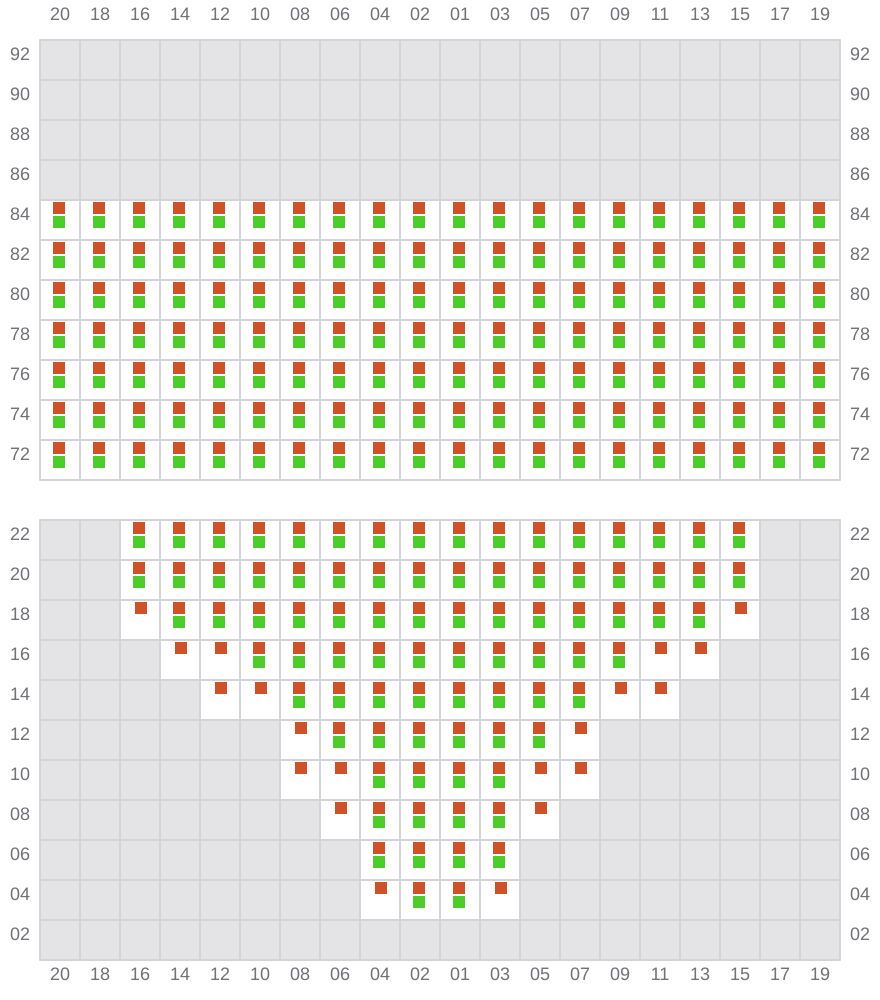

007 (006)
- ←
![Bay 007 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b007.png?v=1685222836707)

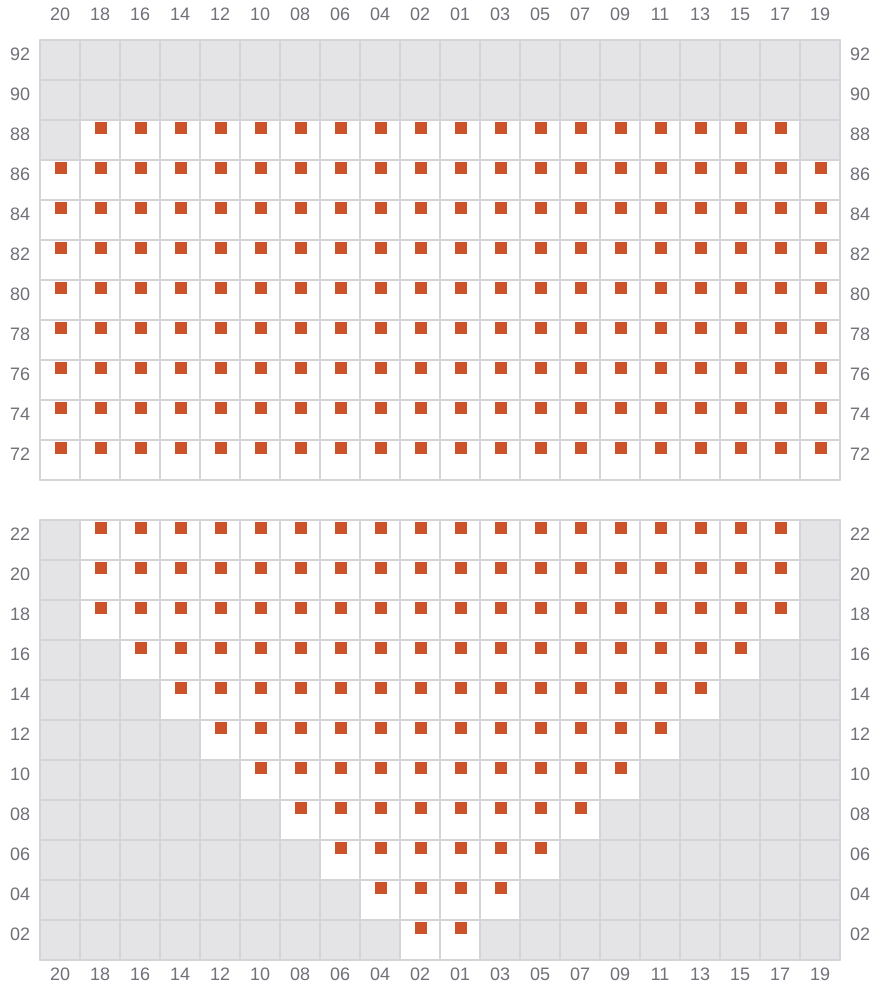

009
- →
![Bay 009 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b009.png?v=1685222836707)

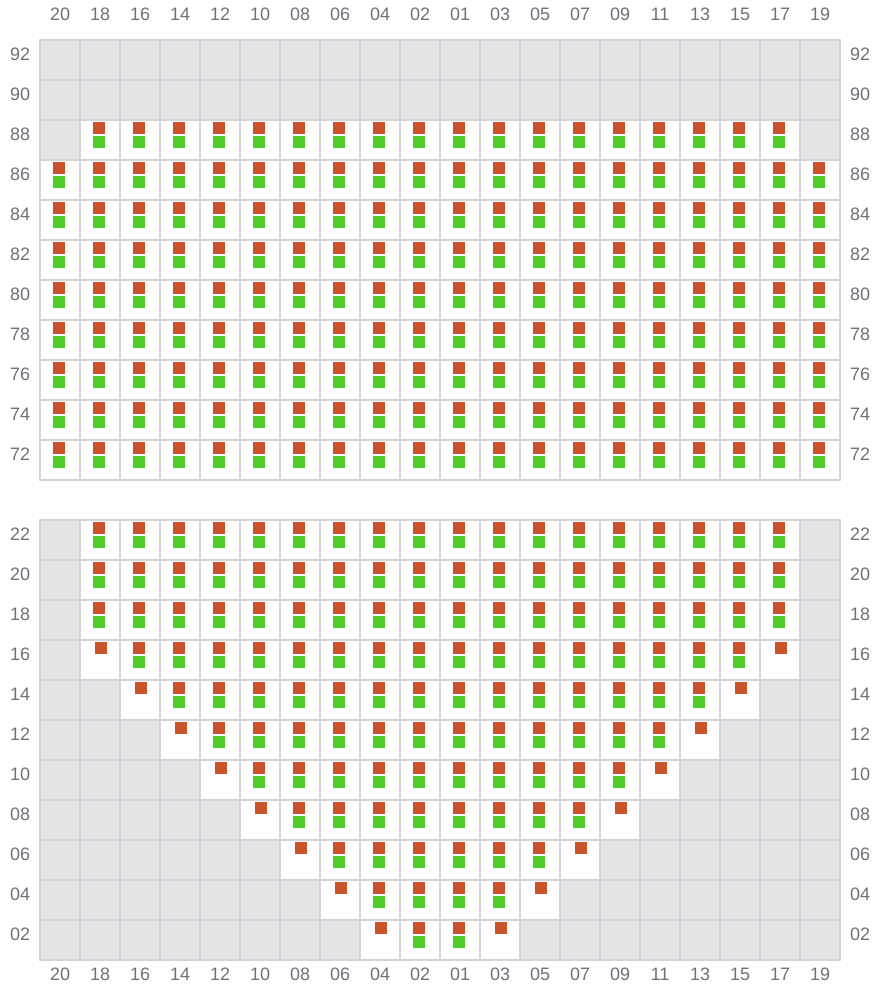

011 (010)
- ←
![Bay 011 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b011.png?v=1685222836707)

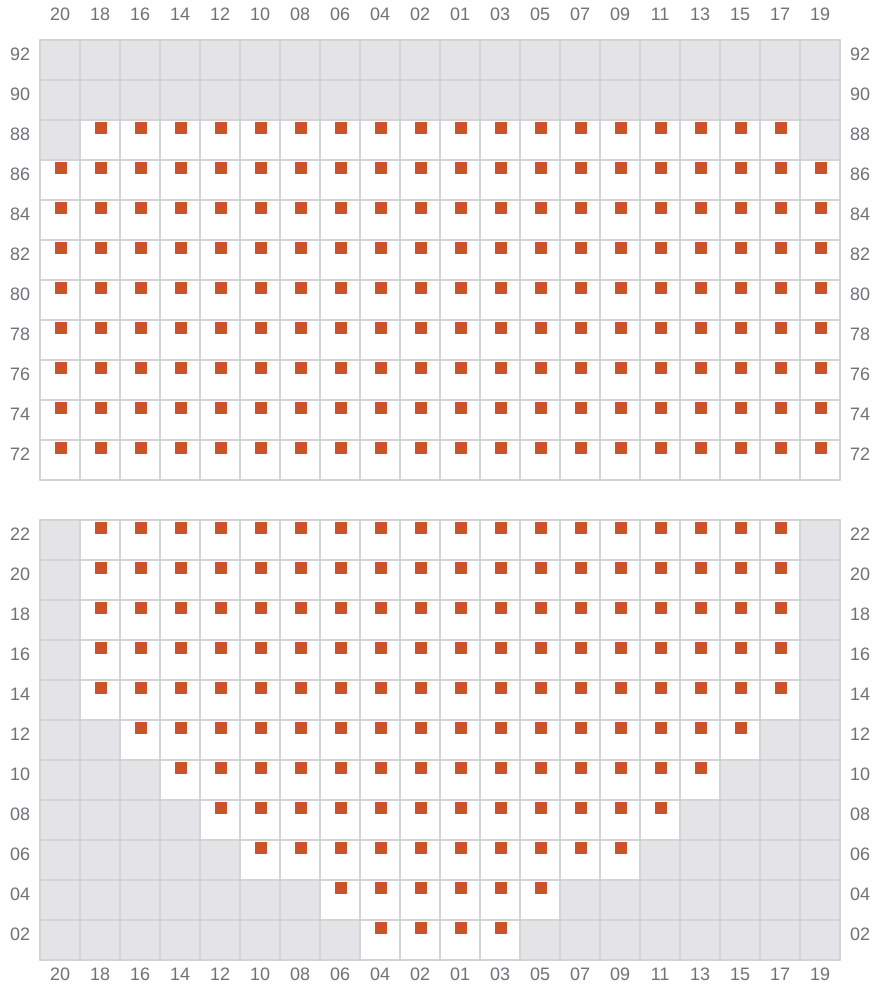

013
- →
![Bay 013 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b013.png?v=1685222836707)

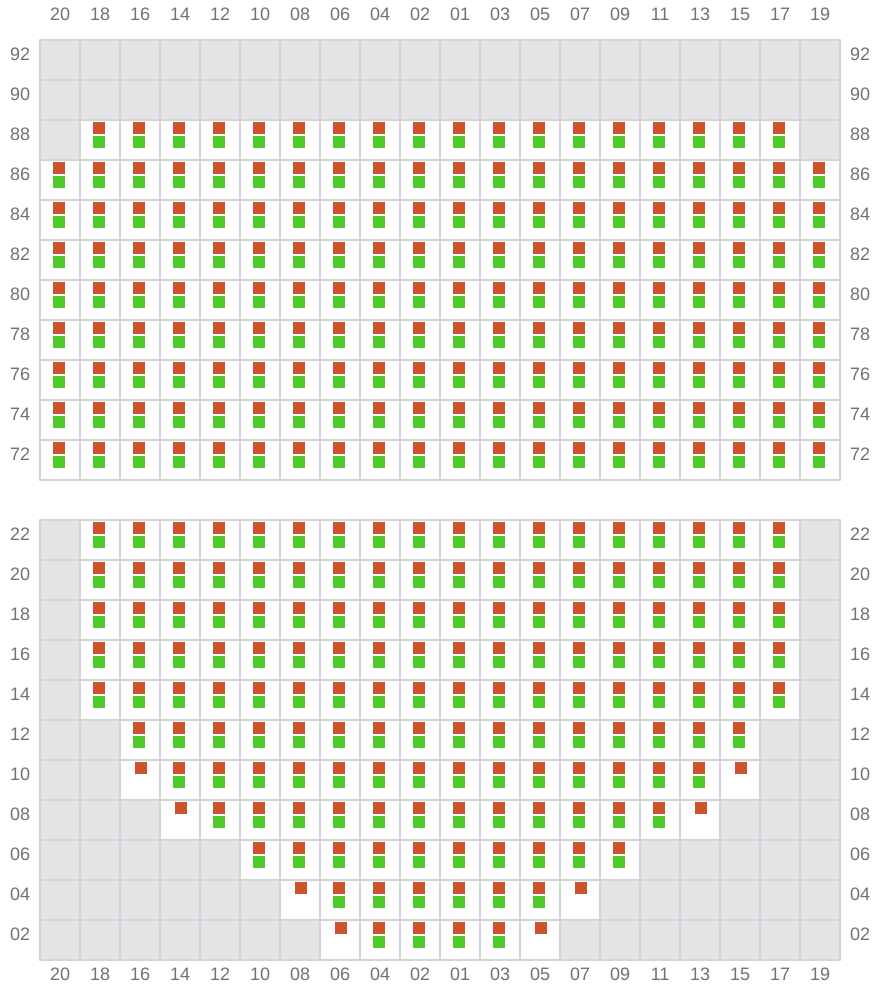

015 (014)
- ←
![Bay 015 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b015.png?v=1685222836707)

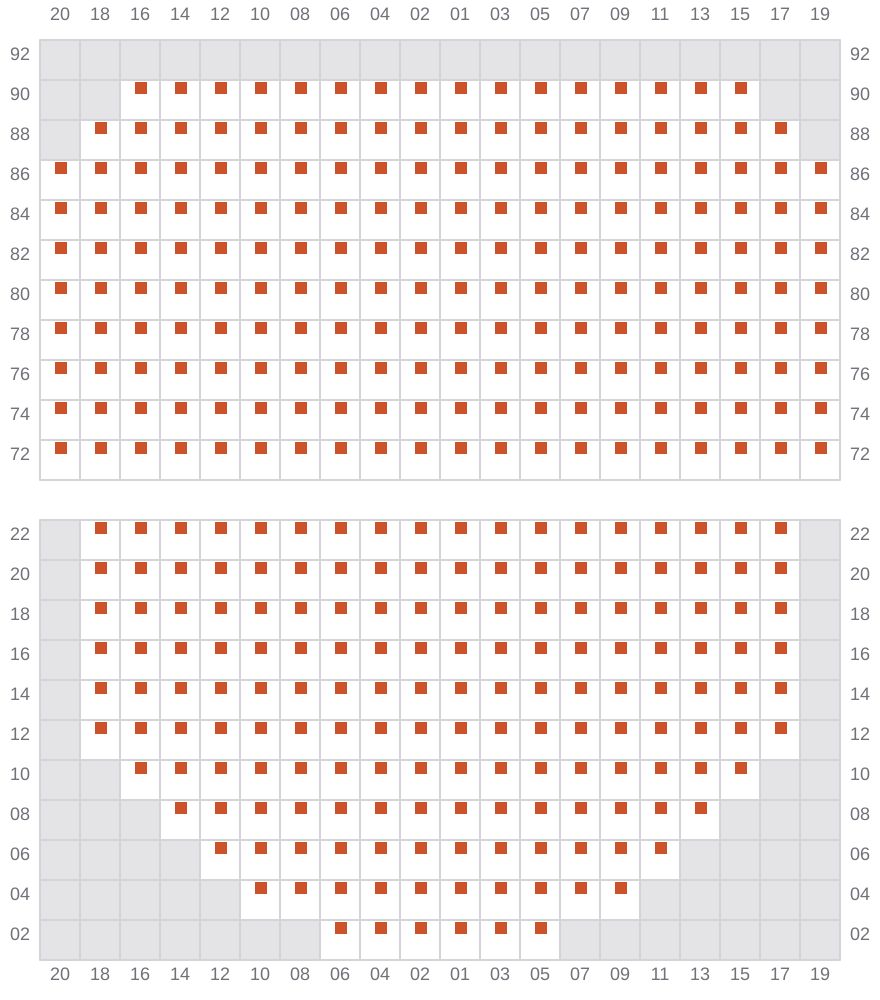

017
- →
![Bay 017 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b017.png?v=1685222836707)

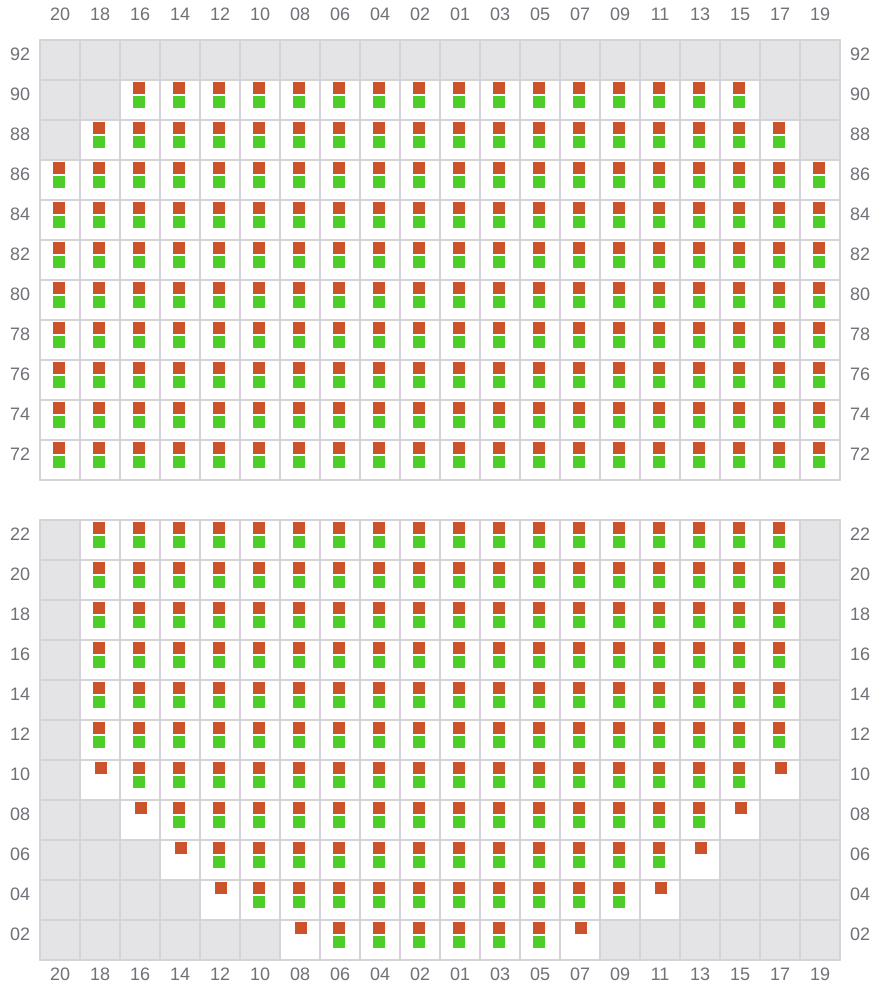

019 (018)
- ←
![Bay 019 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b019.png?v=1685222836707)

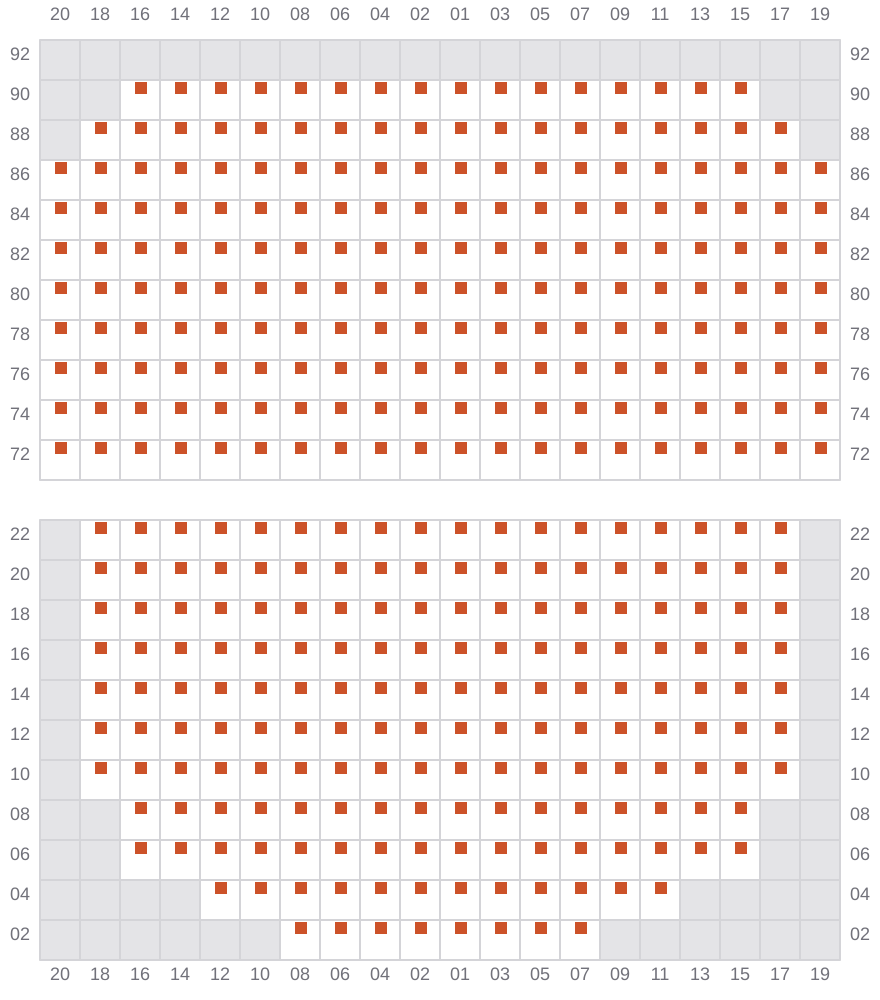

021
- →
![Bay 021 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b021.png?v=1685222836707)

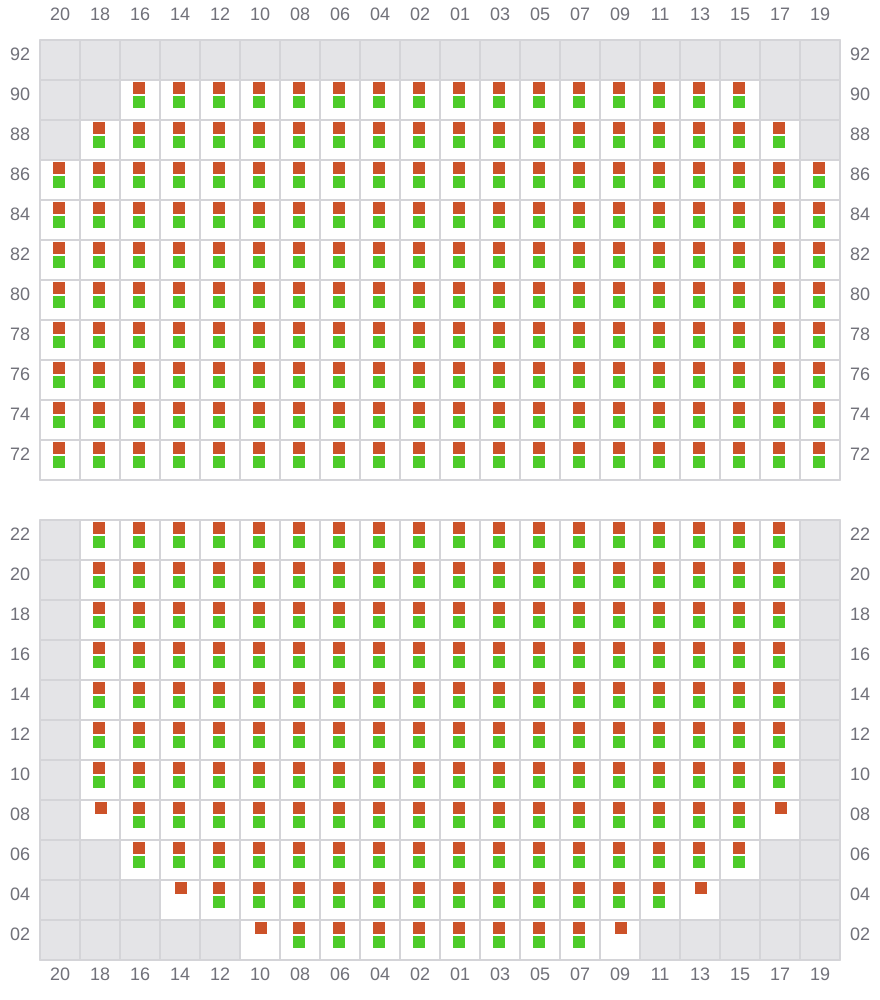

023 (022)
- ←
![Bay 023 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b023.png?v=1685222836707)
025
- →
![Bay 025 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b025.png?v=1685222836707)

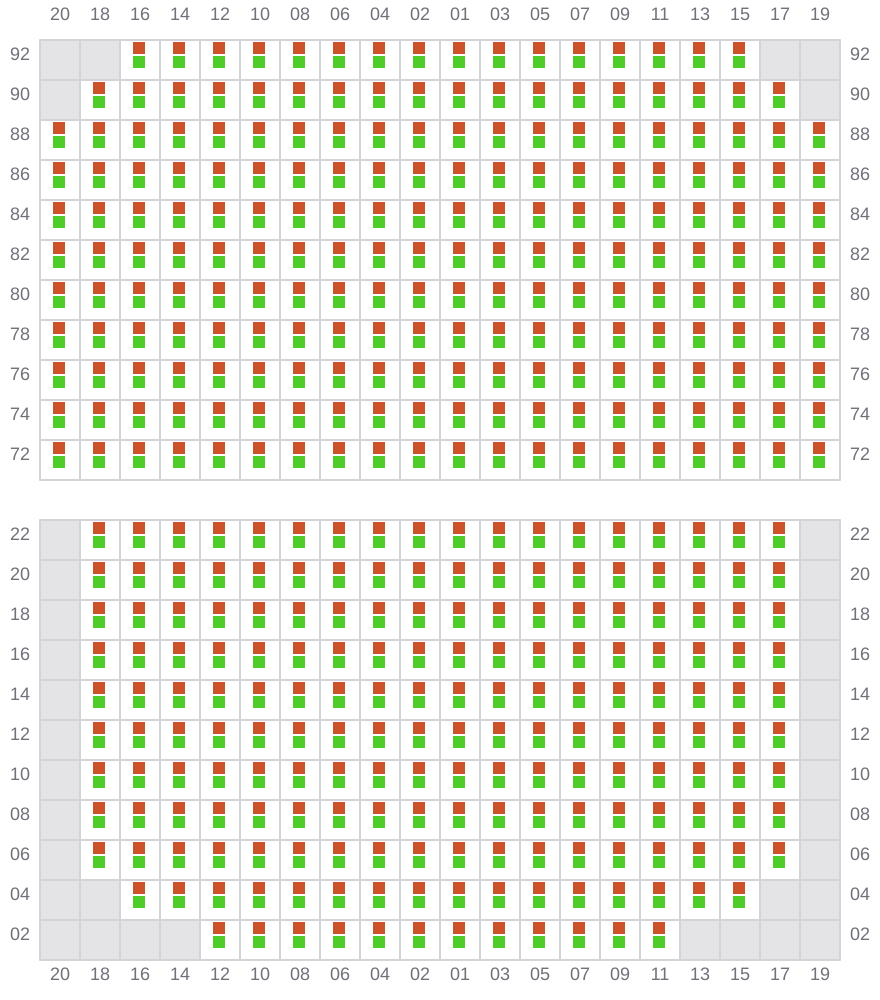

027 (026)
- ←
![Bay 027 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b027.png?v=1685222836707)
029
- →
![Bay 029 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b029.png?v=1685222836707)

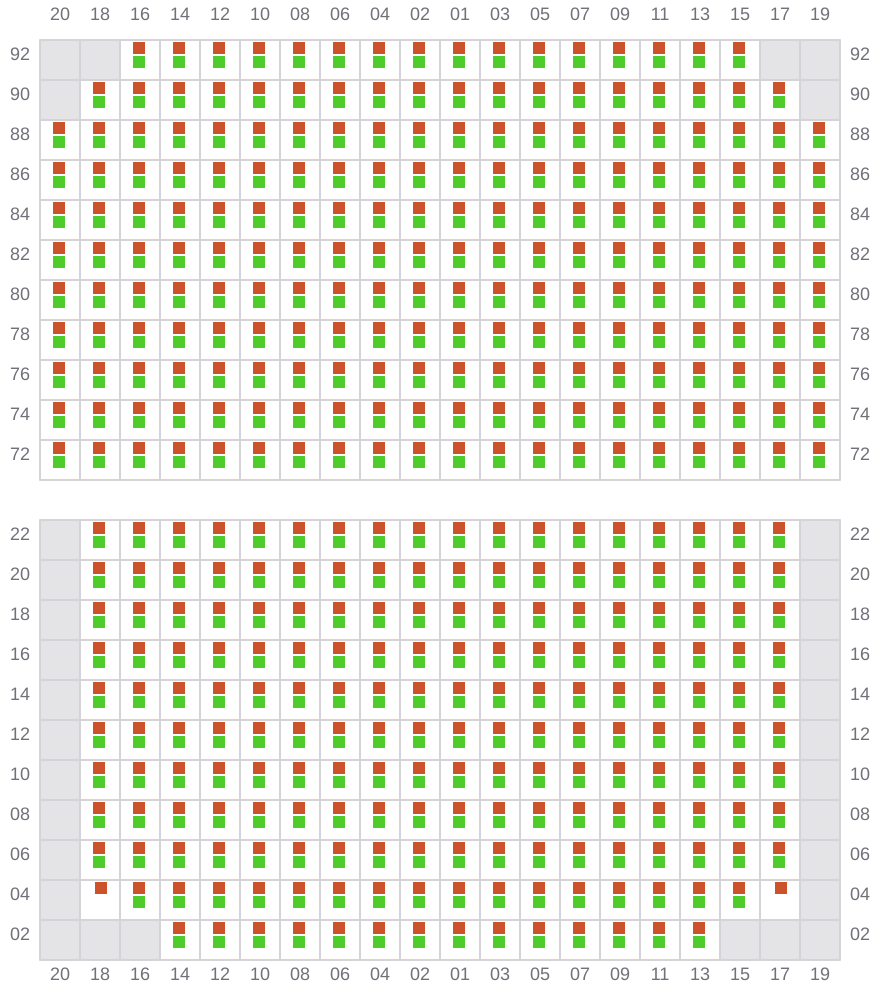

031 (030)
- ←
![Bay 031 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b031.png?v=1685222836707)
033
- →
![Bay 033 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b033.png?v=1685222836707)
035 (034)
- ←
![Bay 035 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b035.png?v=1685222836707)

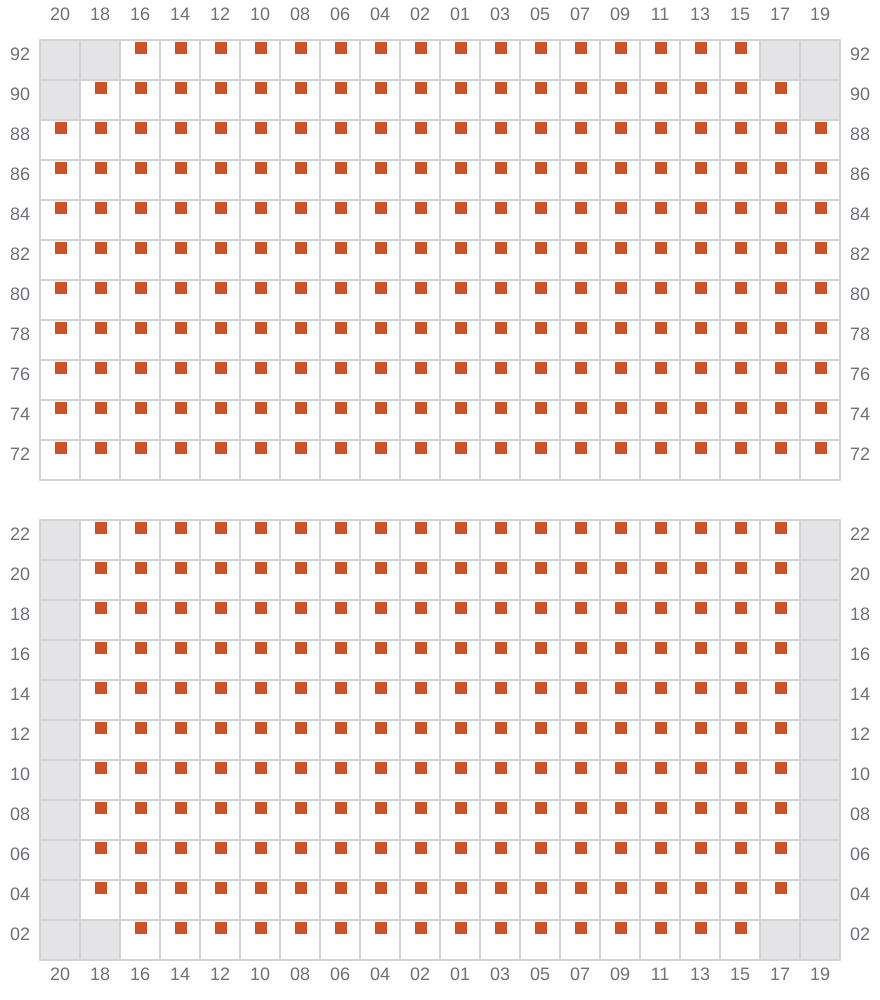

037
- →
![Bay 037 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b037.png?v=1685222836707)
039 (038)
- ←
![Bay 039 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b039.png?v=1685222836707)
041
- →
![Bay 041 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b041.png?v=1685222836707)
043 (042)
- ←
![Bay 043 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b043.png?v=1685222836707)
045
- →
![Bay 045 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b045.png?v=1685222836707)

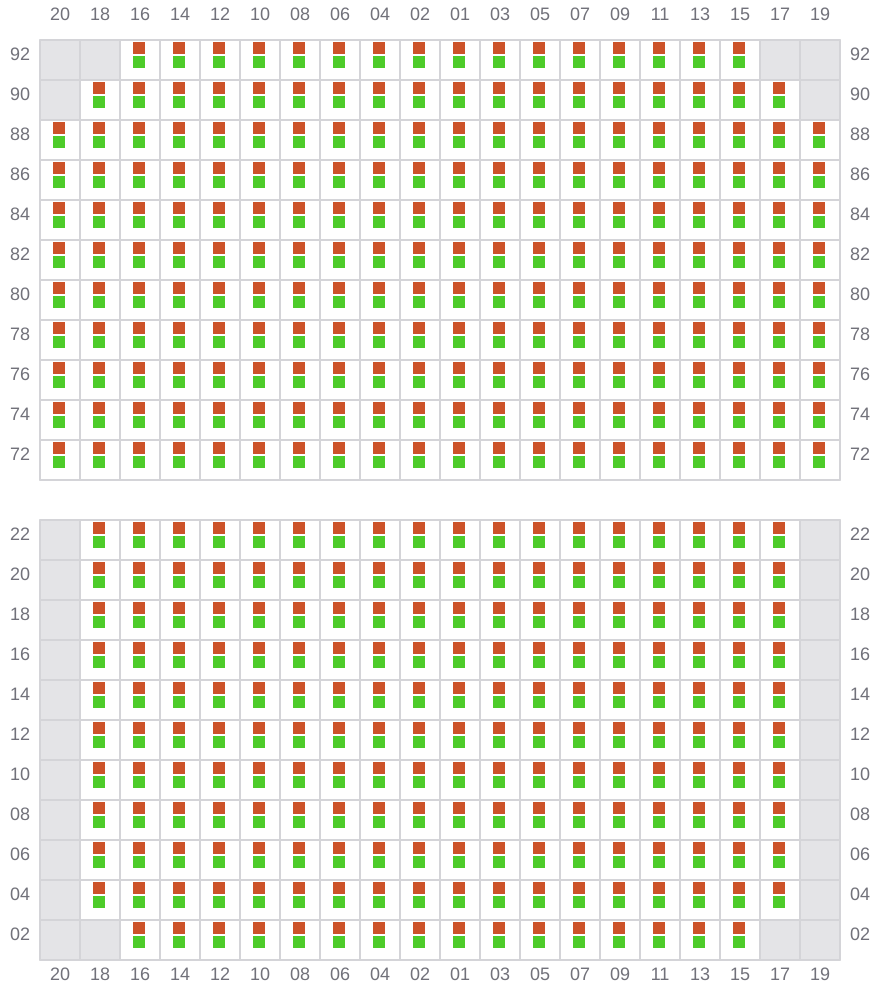

047 (046)
- ←
![Bay 047 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b047.png?v=1685222836707)
049
- →
![Bay 049 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b049.png?v=1685222836707)
051 (050)
- ←
![Bay 051 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b051.png?v=1685222836707)
053
- →
![Bay 053 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b053.png?v=1685222836707)
055 (054)
- ←
![Bay 055 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b055.png?v=1685222836707)
057
- →
![Bay 057 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b057.png?v=1685222836707)

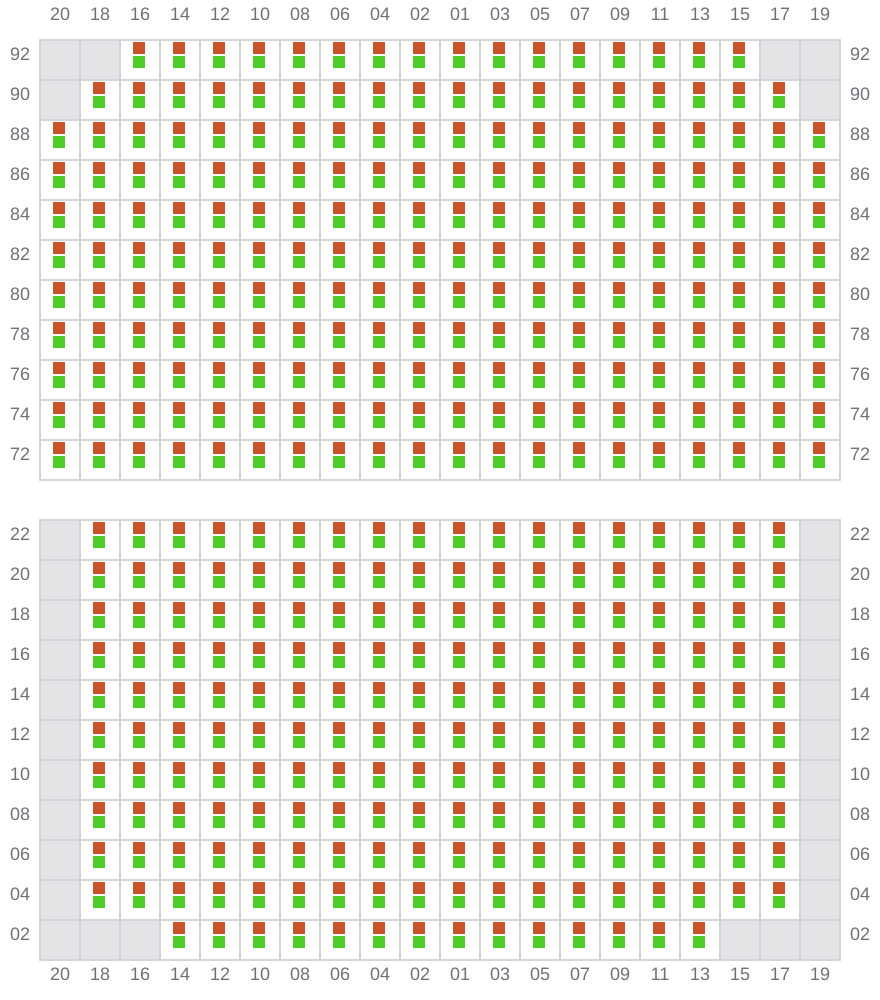

059 (058)
- ←
![Bay 059 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b059.png?v=1685222836707)

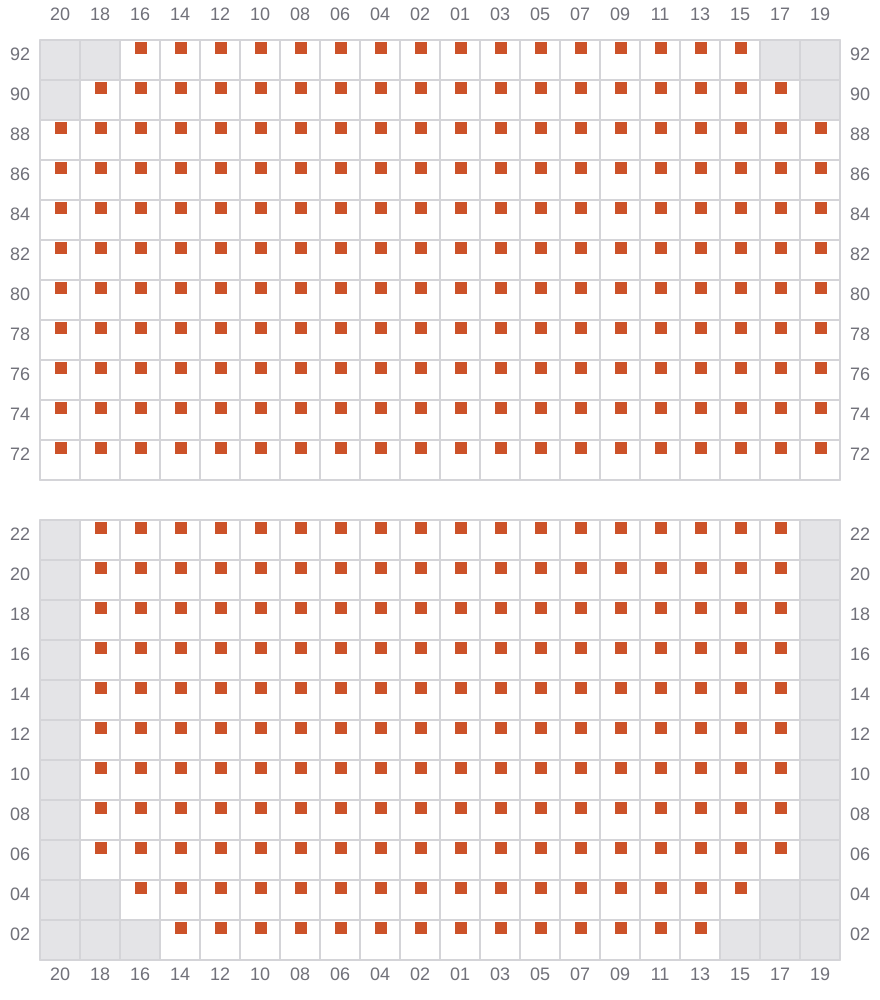

061
- →
![Bay 061 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b061.png?v=1685222836707)
063 (062)
- ←
![Bay 063 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b063.png?v=1685222836707)

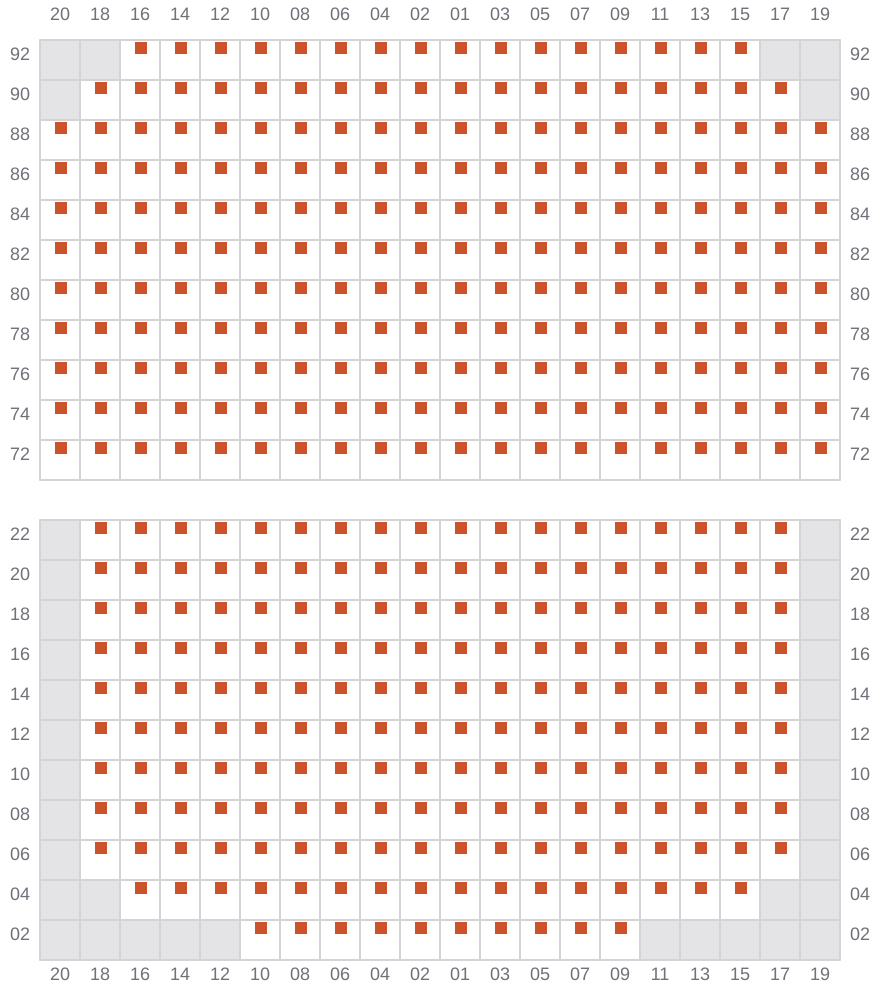

065
- →
![Bay 065 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b065.png?v=1685222836707)

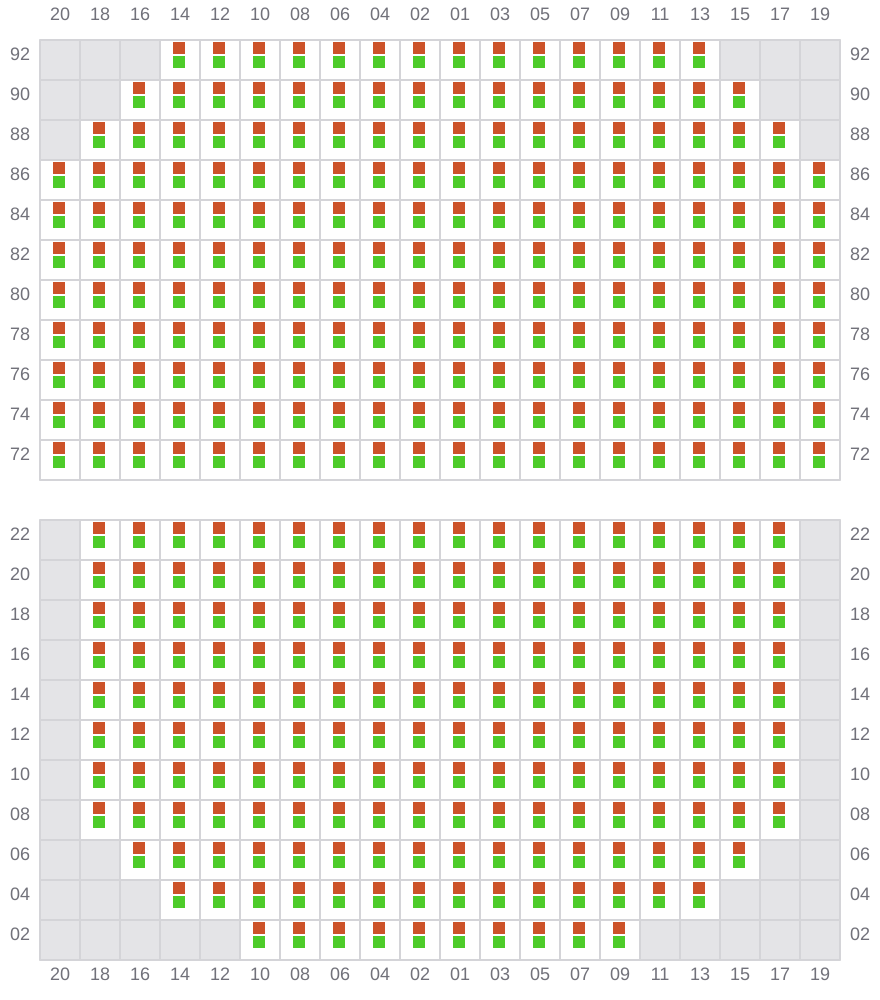

067 (066)
- ←
![Bay 067 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b067.png?v=1685222836707)

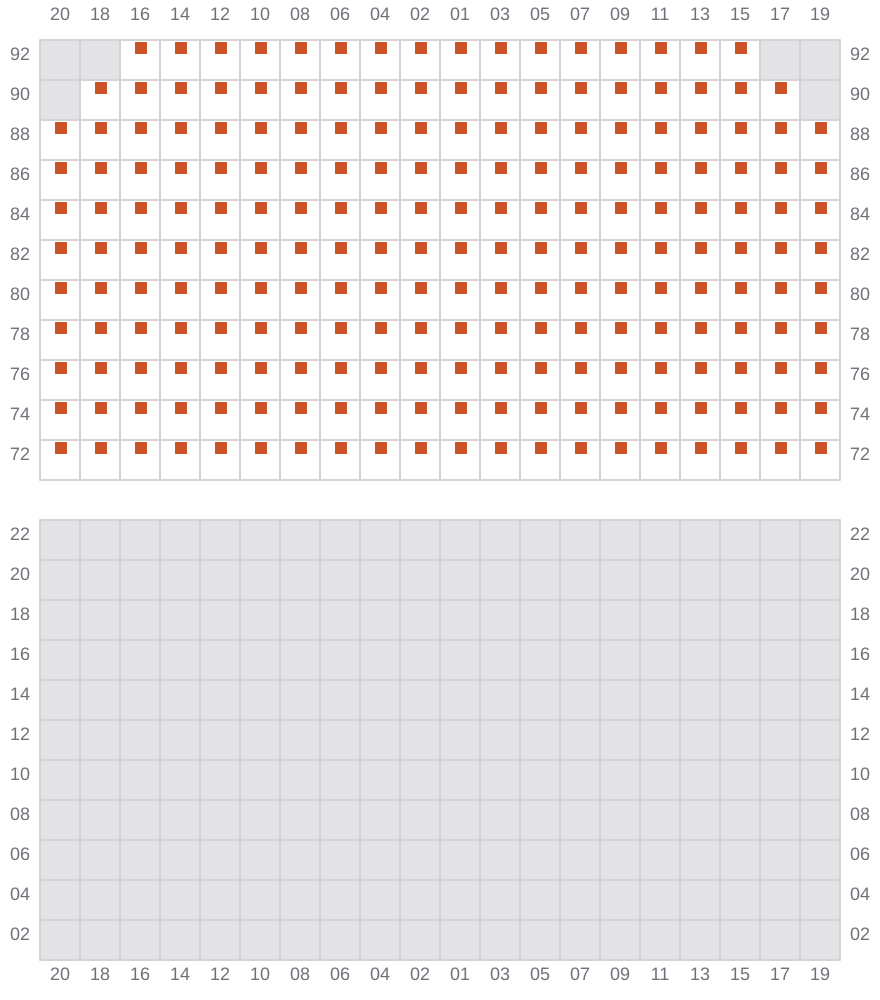

069
- → / ?
![Bay 069 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b069.png?v=1685222836707)

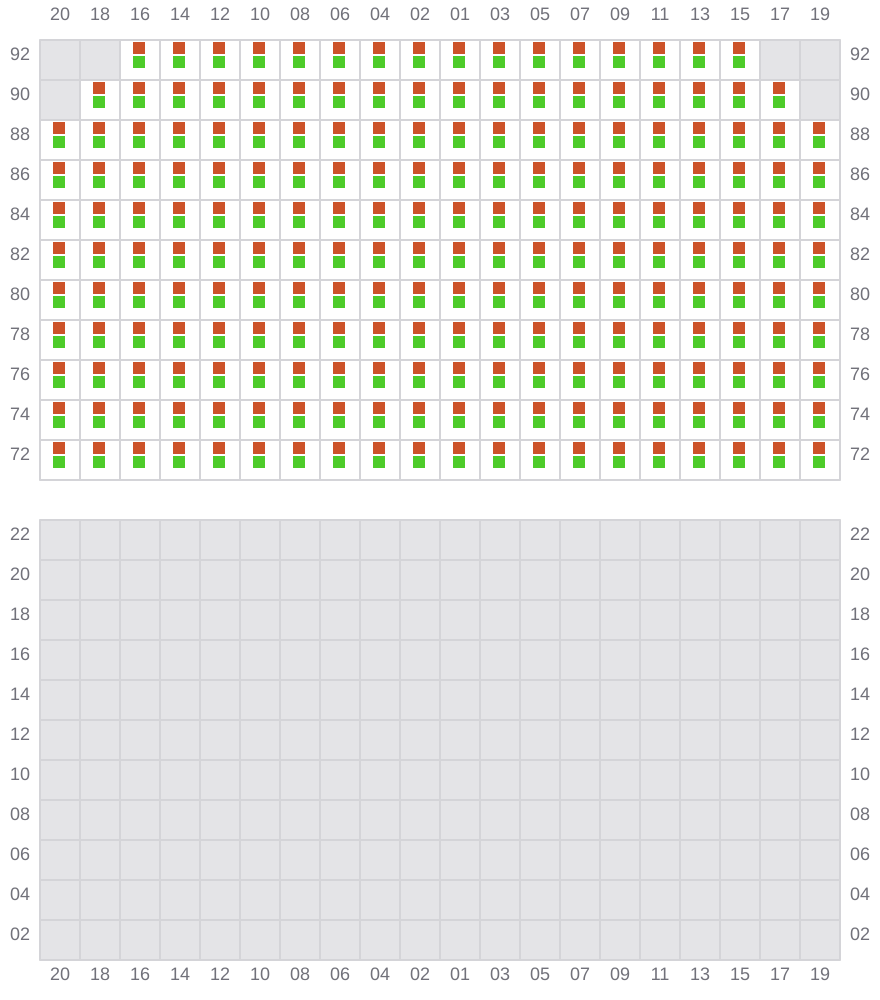

071 (070)
- ← / ?
![Bay 071 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b071.png?v=1685222836707)

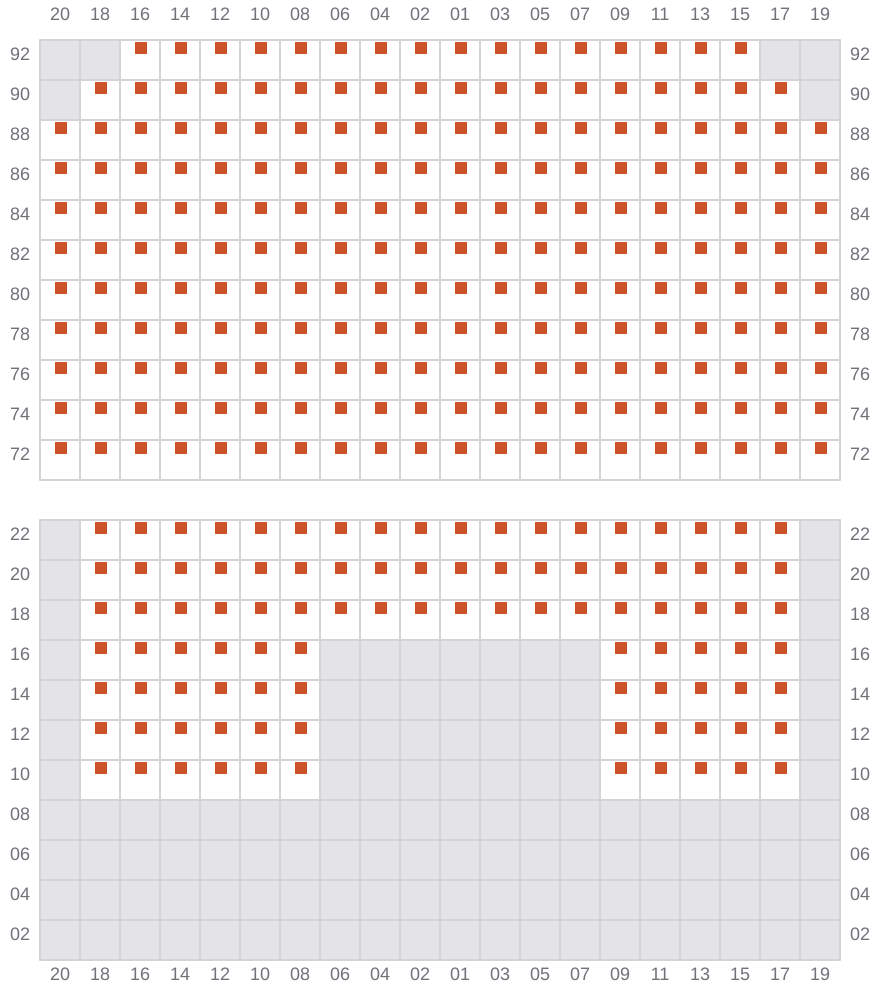

073
- →
![Bay 073 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b073.png?v=1685222836707)

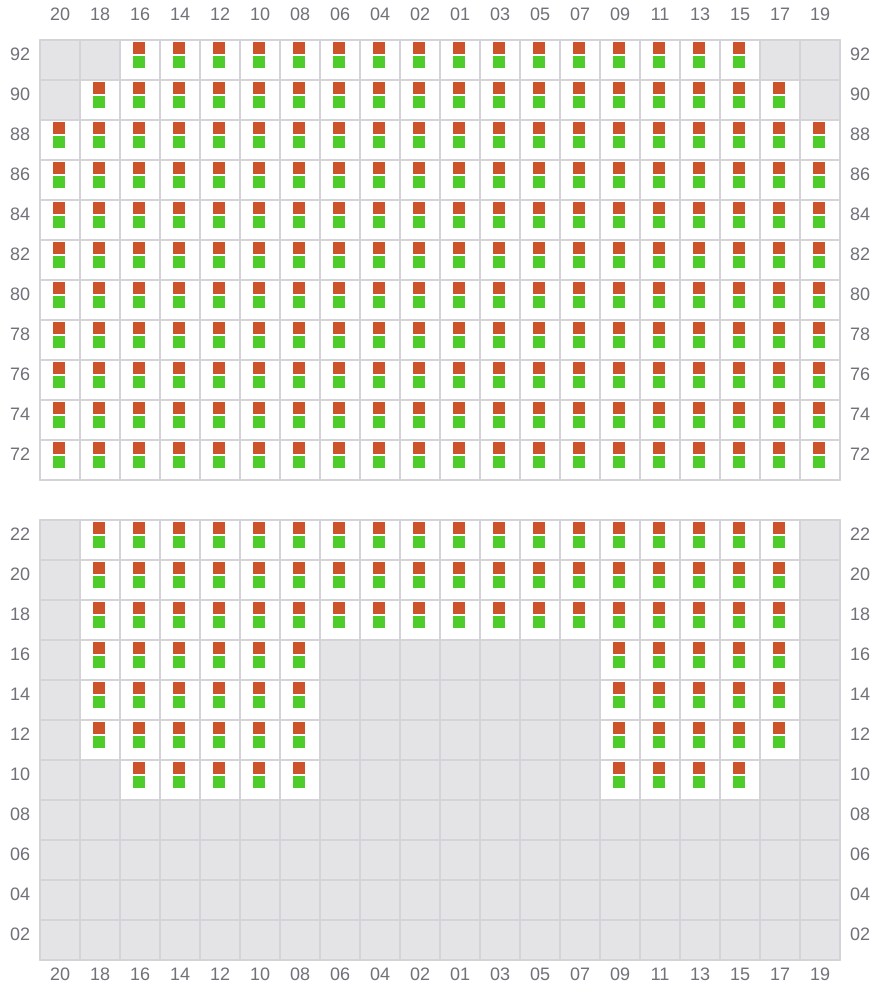

075 (074)
- ←
![Bay 075 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b075.png?v=1685222836707)

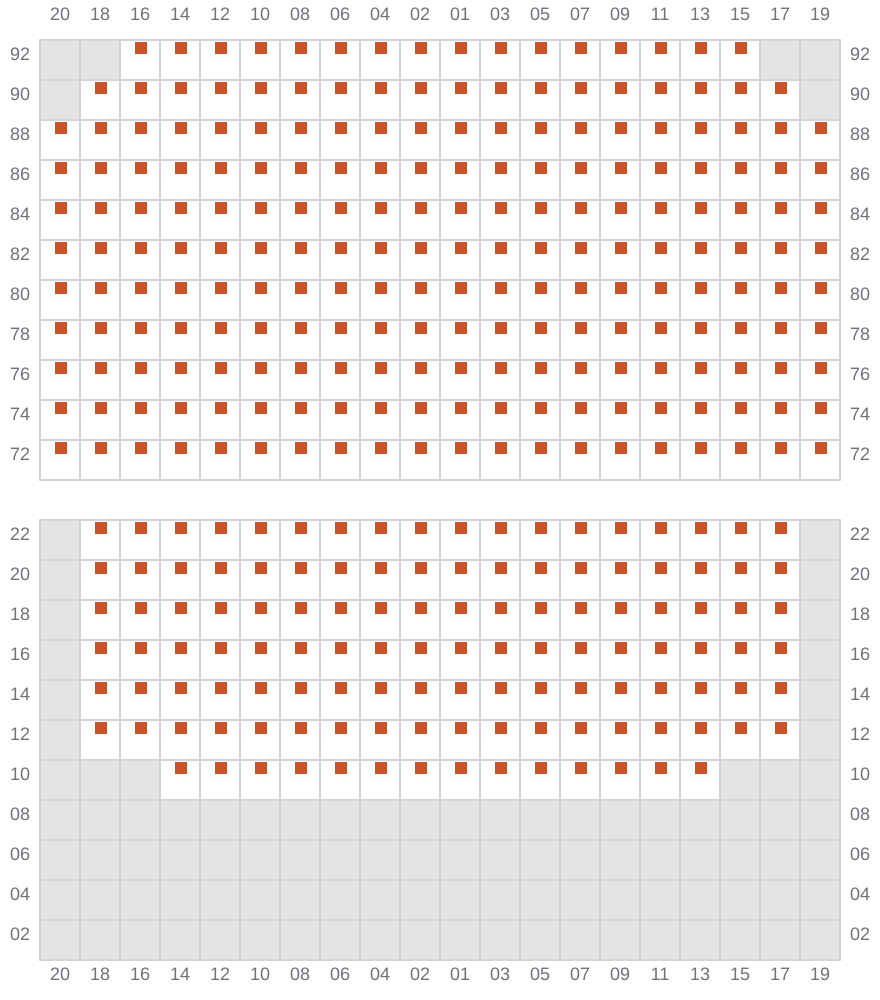

077
- →
![Bay 077 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b077.png?v=1685222836707)

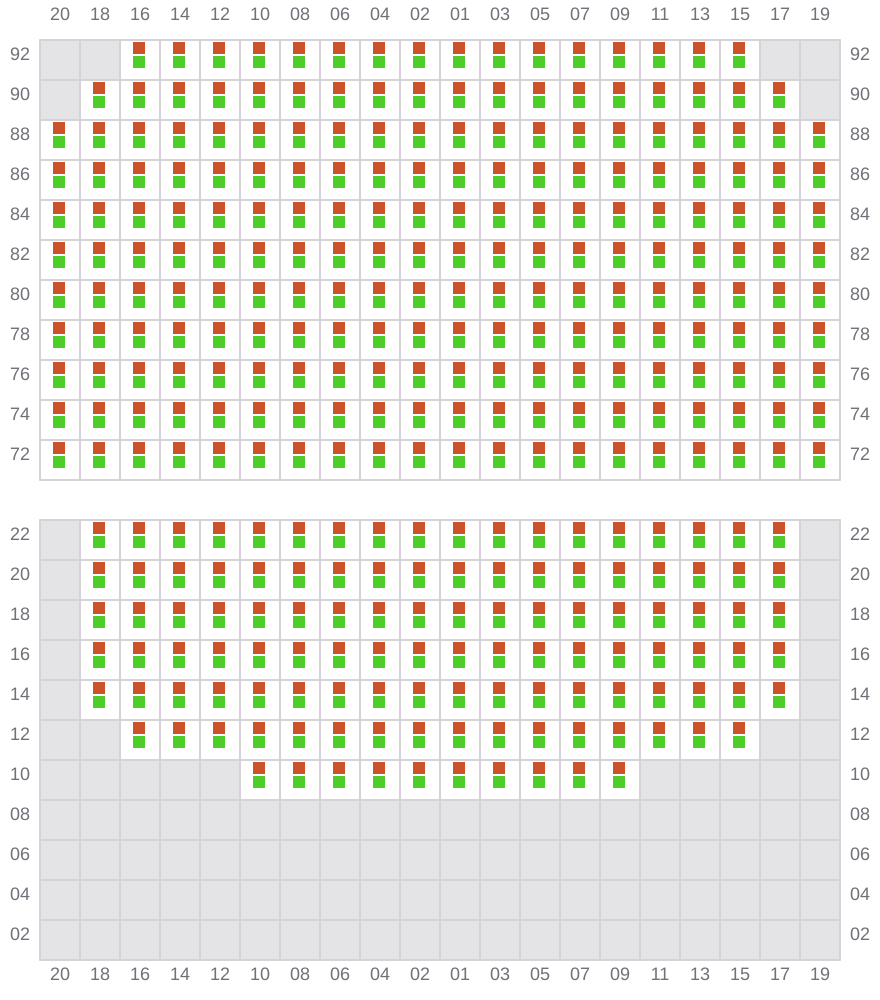

079 (078)
- ←
![Bay 079 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b079.png?v=1685222836707)

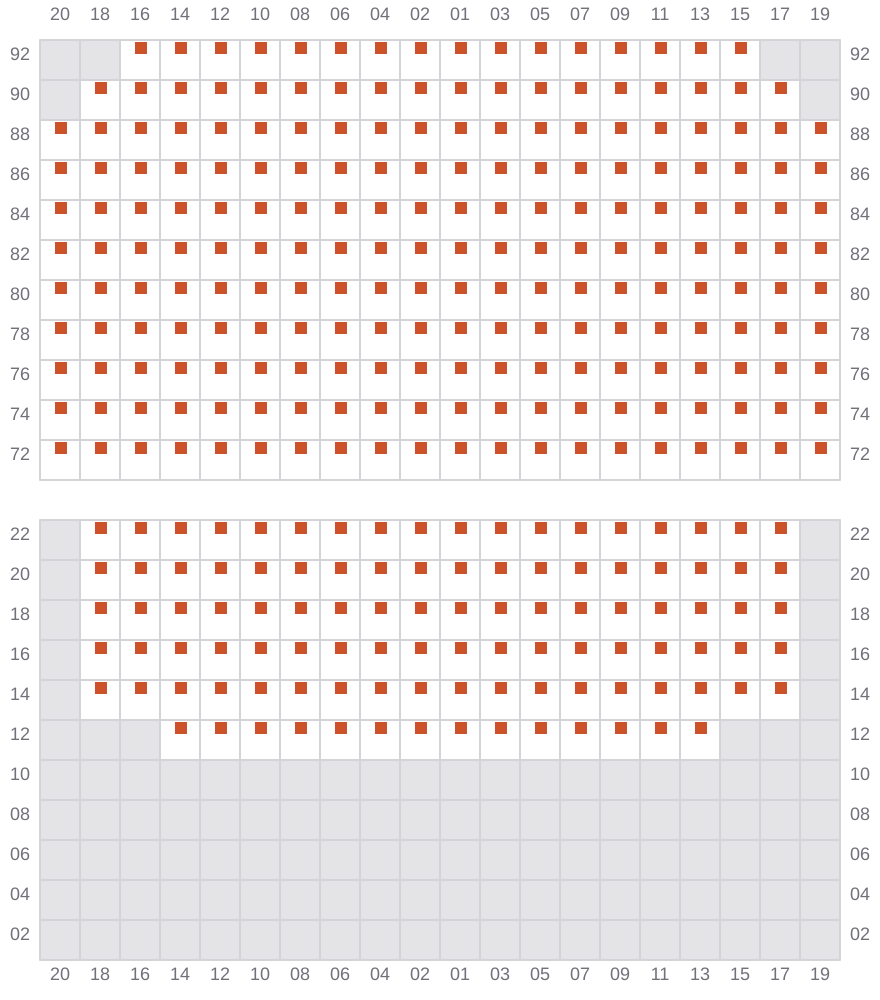

081
- →
![Bay 081 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b081.png?v=1685222836707)

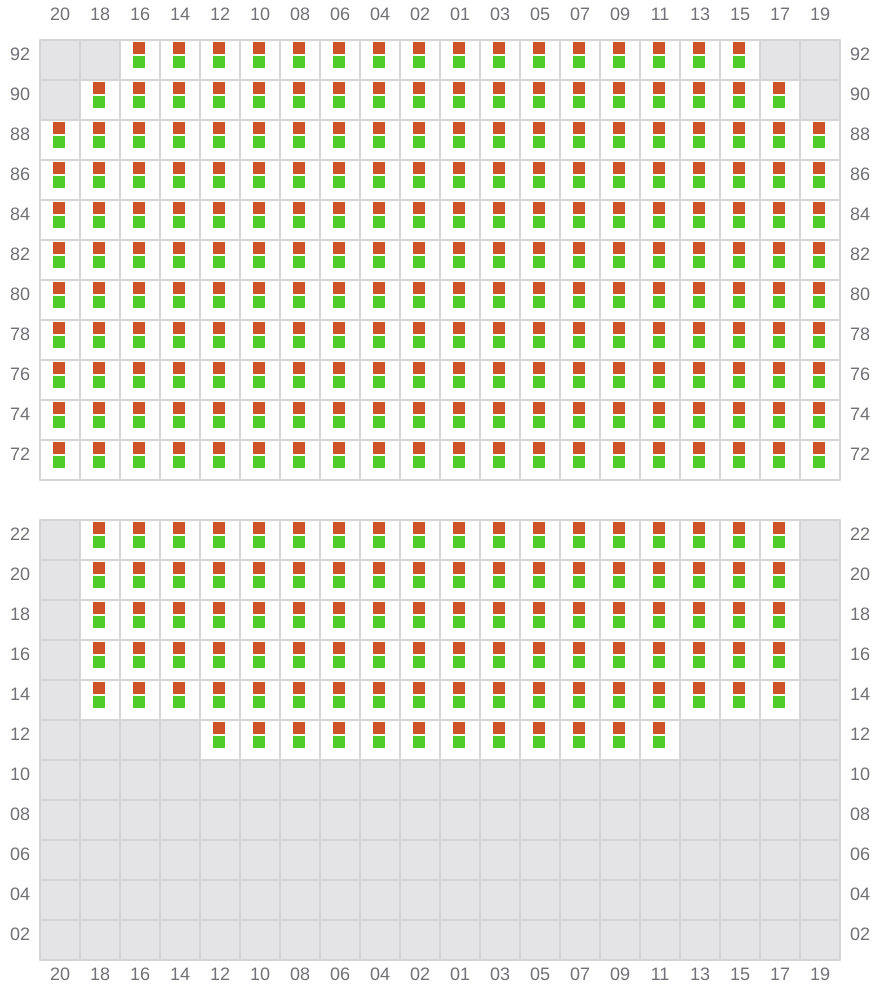

083 (082)
- ←
![Bay 083 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b083.png?v=1685222836707)

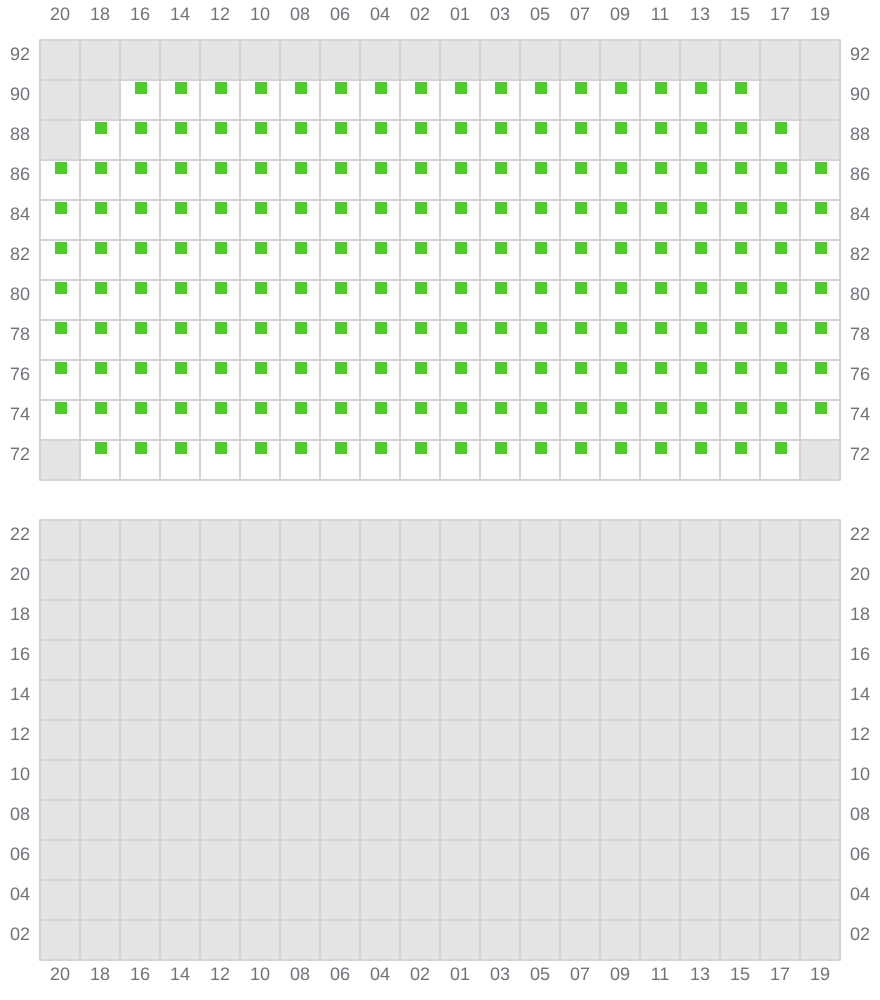

085 (086)
- → / ?
![Bay 085 view and slots of MSC VALERIA](/vessel-images/52575c7c-8dc0-48bd-a120-d7e0631a0487-b085.png?v=1685222836707)
