MSC VERA F
9235610 | D5LP3 | 9235610 by ********* Last update: Fri Jul 19 2024

General Info

Ship Name:MSC VERA F
IMO Code:9235610
Call Sign:D5LP3
Line Operator:9235610
Class Name for Sister Ships:CMA
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,165

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

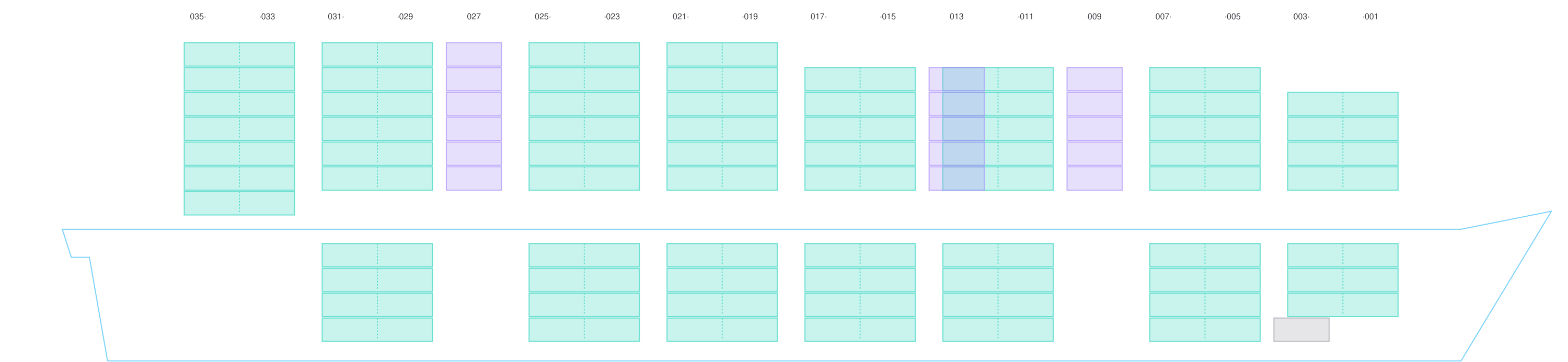

Side view of MSC VERA F

Hatch-Covers View

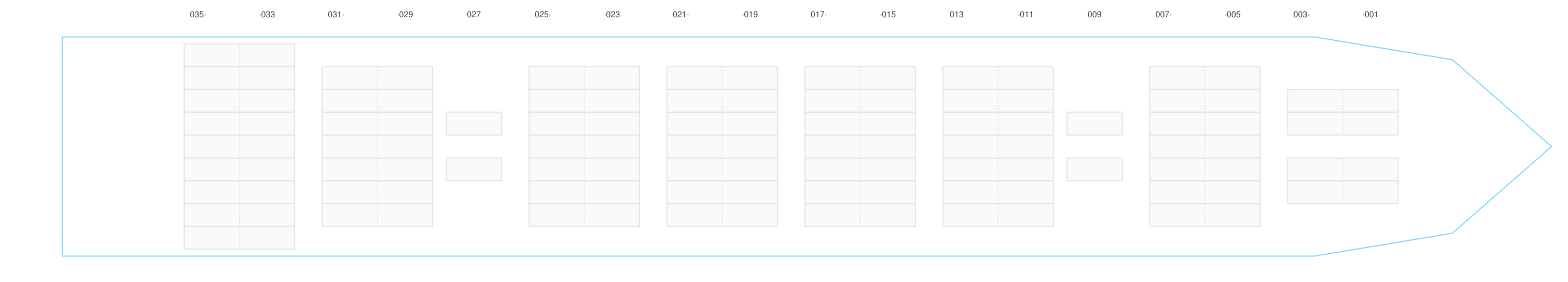

Deck view of MSC VERA F

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

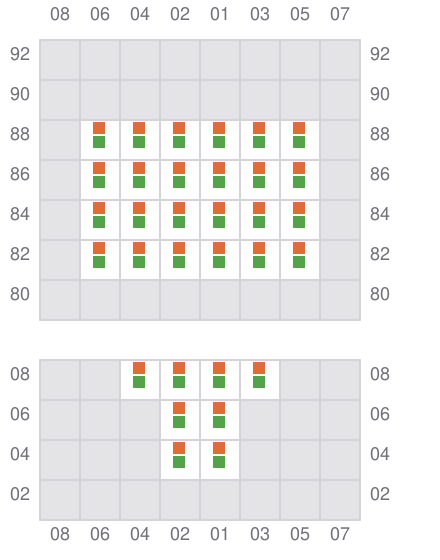

Bay 001 view and slots of MSC VERA F

003

  • ←

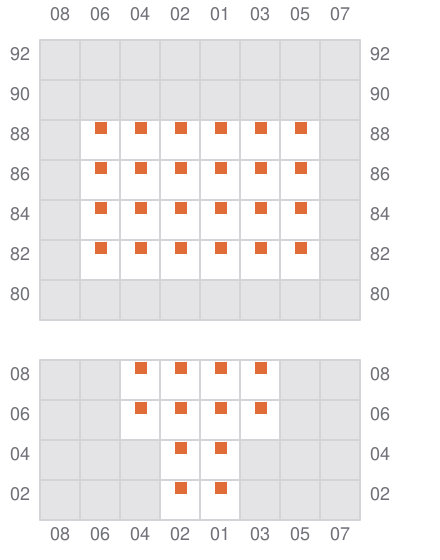

Bay 003 view and slots of MSC VERA F

005 (006)

  • →

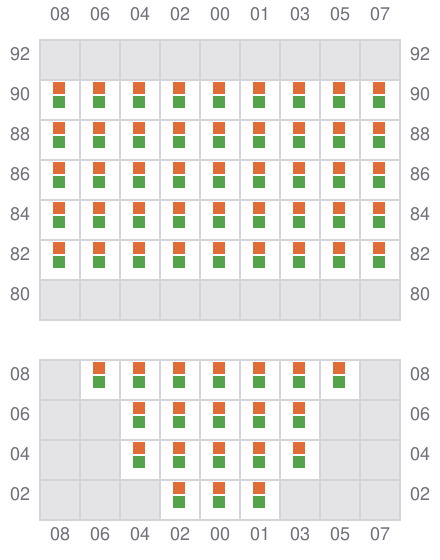

Bay 005 view and slots of MSC VERA F

007

  • ←

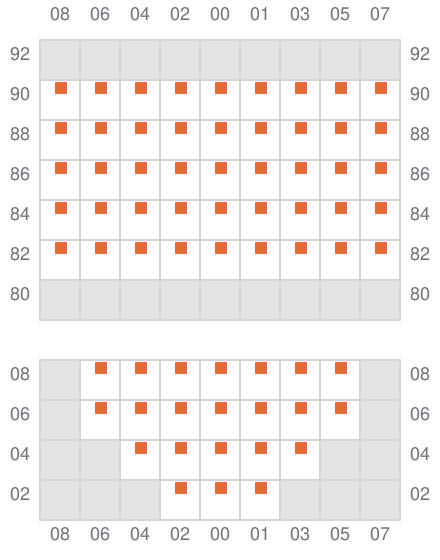

Bay 007 view and slots of MSC VERA F

009

Bay 009 view and slots of MSC VERA F

011 (012)

  • →

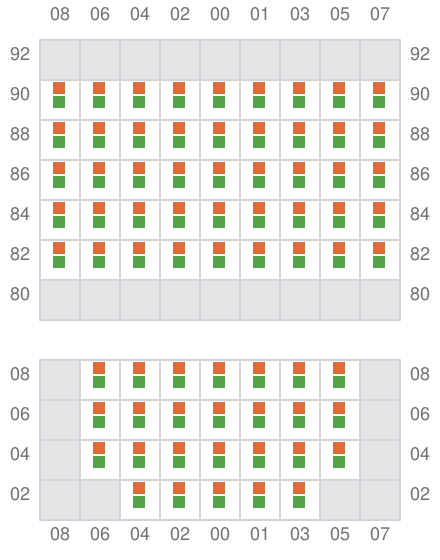

Bay 011 view and slots of MSC VERA F

013

  • ? / ←

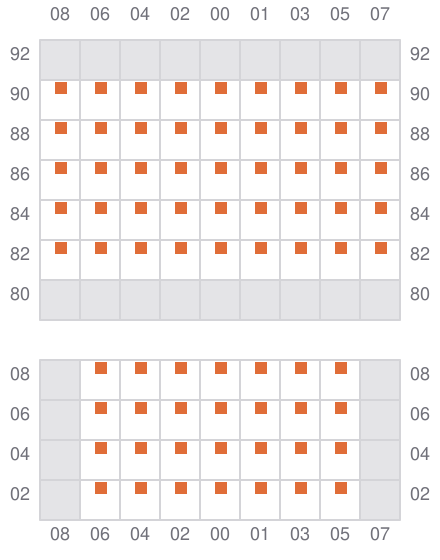

Bay 013 view and slots of MSC VERA F

015 (016)

  • →

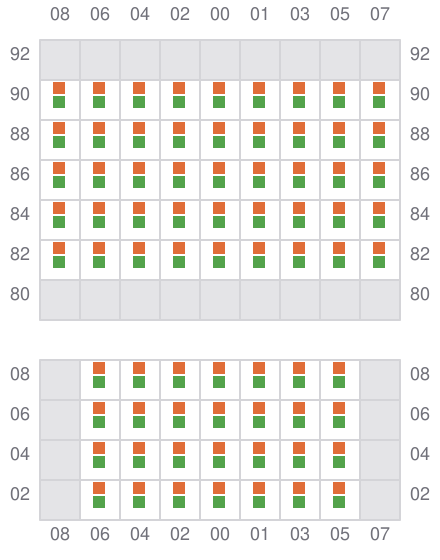

Bay 015 view and slots of MSC VERA F

017

  • ←
Bay 017 view and slots of MSC VERA F

019 (020)

  • →
Bay 019 view and slots of MSC VERA F

021

  • ←

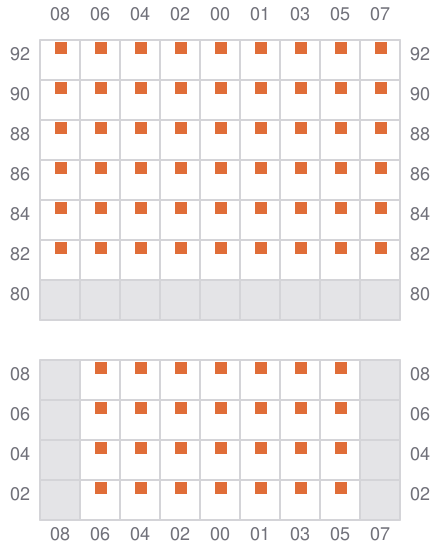

Bay 021 view and slots of MSC VERA F

023 (024)

  • →
Bay 023 view and slots of MSC VERA F

025

  • ←
Bay 025 view and slots of MSC VERA F

027

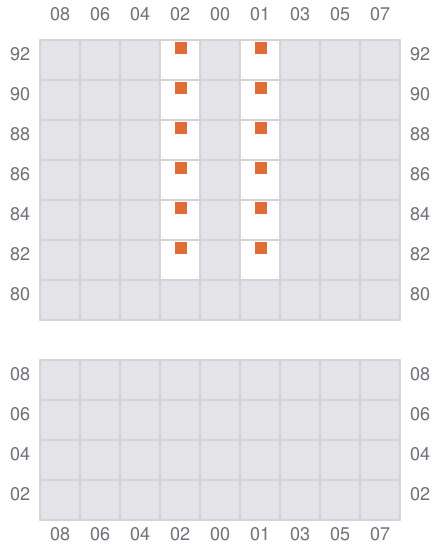

Bay 027 view and slots of MSC VERA F

029 (030)

  • →

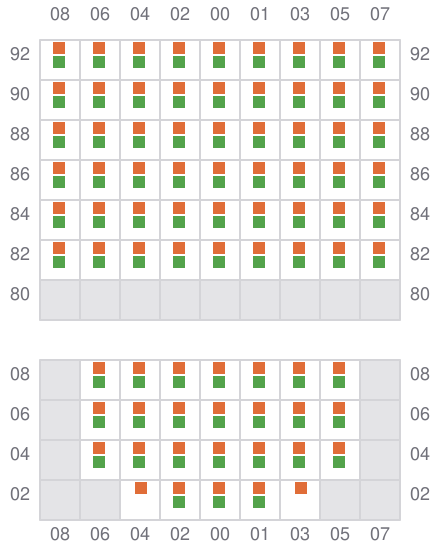

Bay 029 view and slots of MSC VERA F

031

  • ←

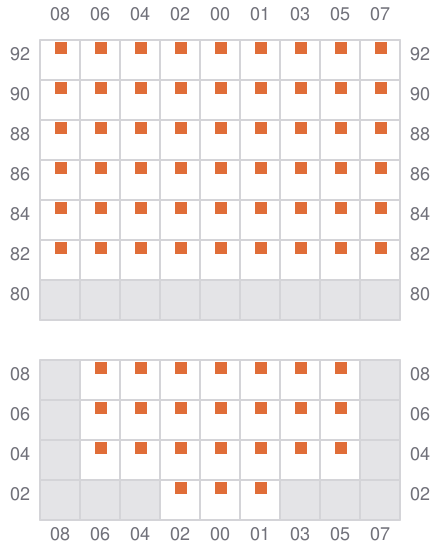

Bay 031 view and slots of MSC VERA F

033 (034)

  • → / ?

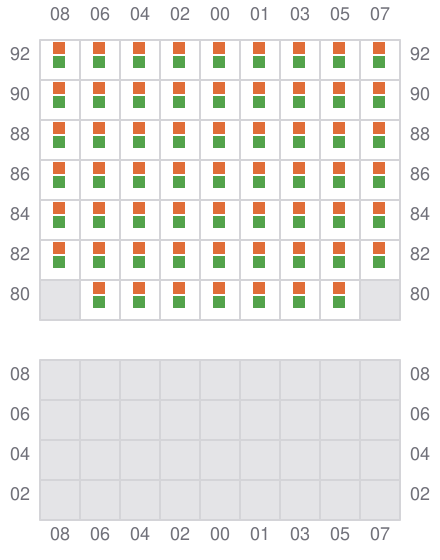

Bay 033 view and slots of MSC VERA F

035

  • ← / ?

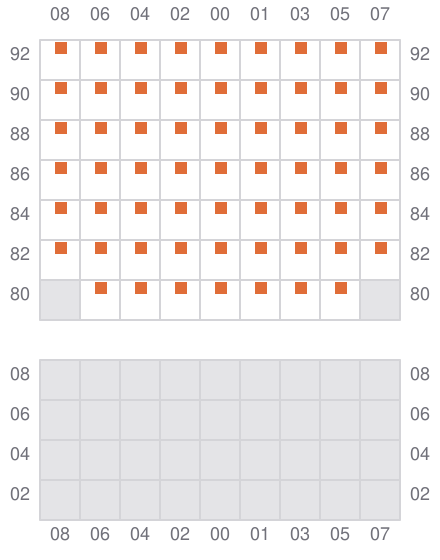

Bay 035 view and slots of MSC VERA F
