MSC VIDHI
9238739 | D5GE2 | MSC by ************************** Last update: Sun May 28 2023
General Info
Ship Name:MSC VIDHI
IMO Code:9238739
Call Sign:D5GE2
Line Operator:MSC
Class Name for Sister Ships:MVID
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,770
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-sideView.png?v=1685306869280)
Hatch-Covers View
![Deck view of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-deckView.png?v=1685306869280)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

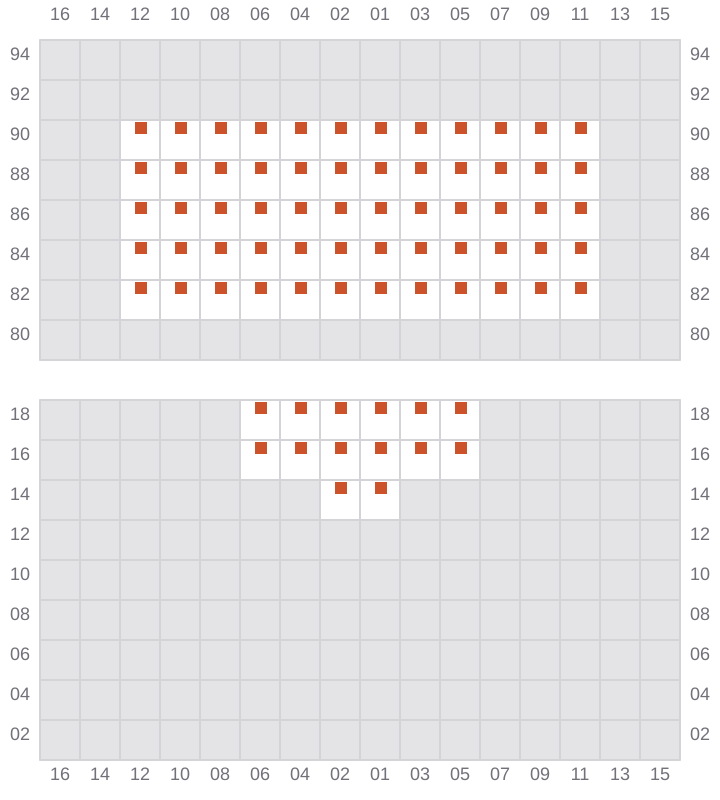

001
- →
![Bay 001 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b001.png?v=1685306869280)

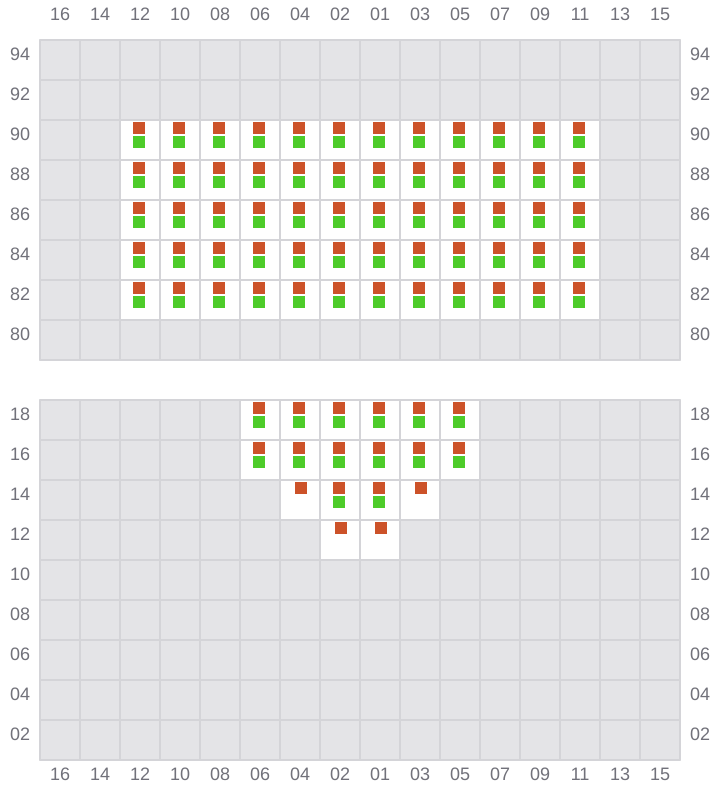

003 (002)
- ←
![Bay 003 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b003.png?v=1685306869280)

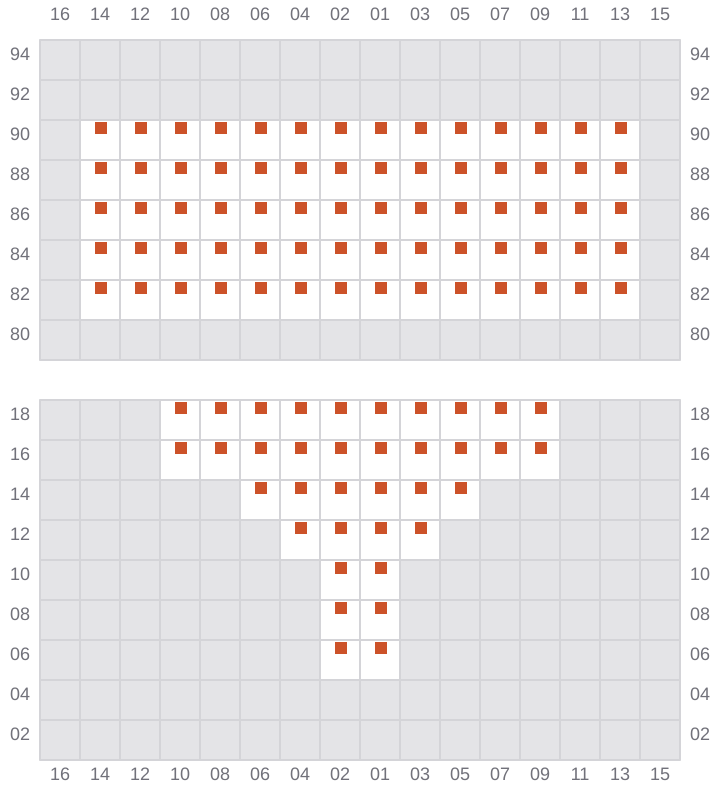

005
- →
![Bay 005 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b005.png?v=1685306869280)

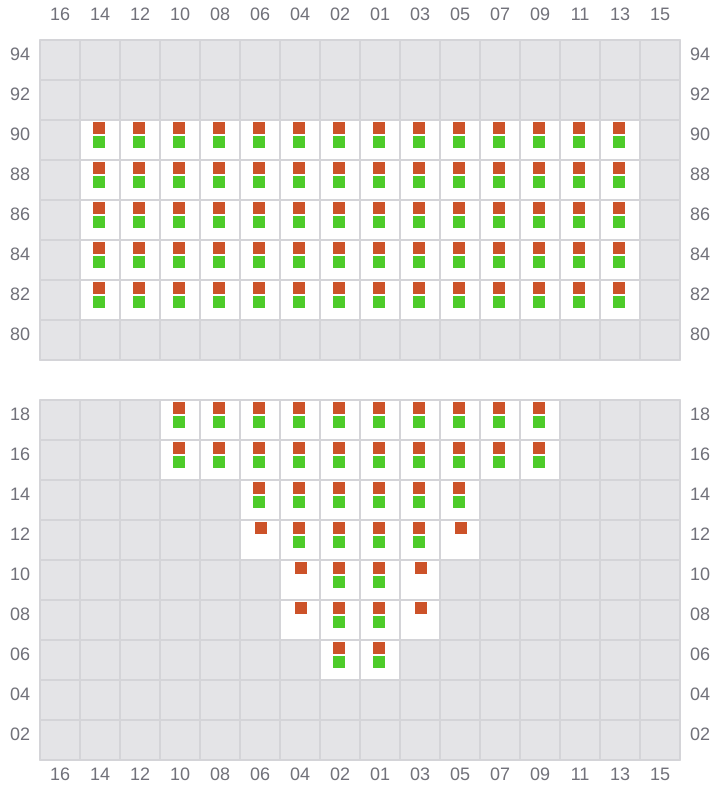

007 (006)
- ←
![Bay 007 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b007.png?v=1685306869280)

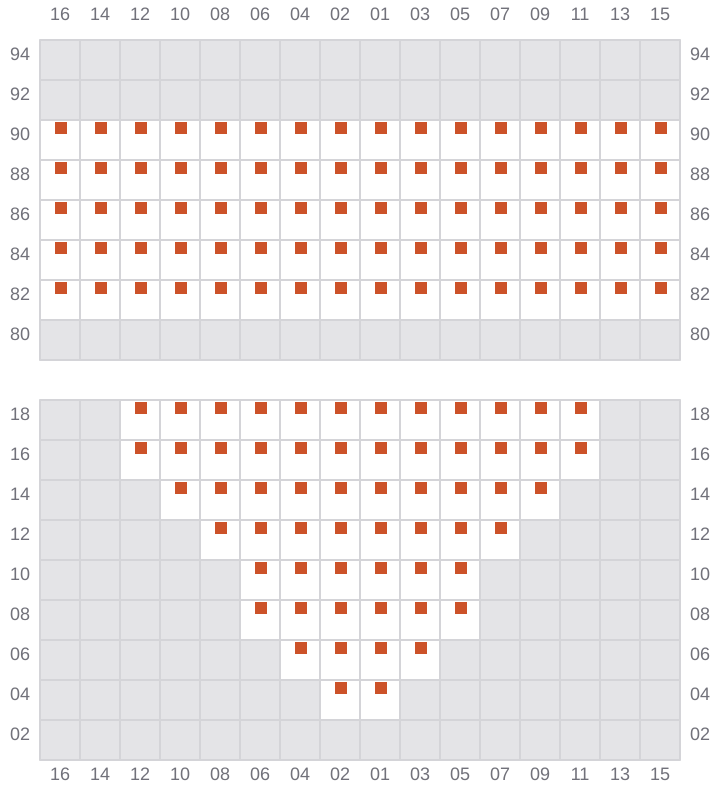

009
- →
![Bay 009 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b009.png?v=1685306869280)

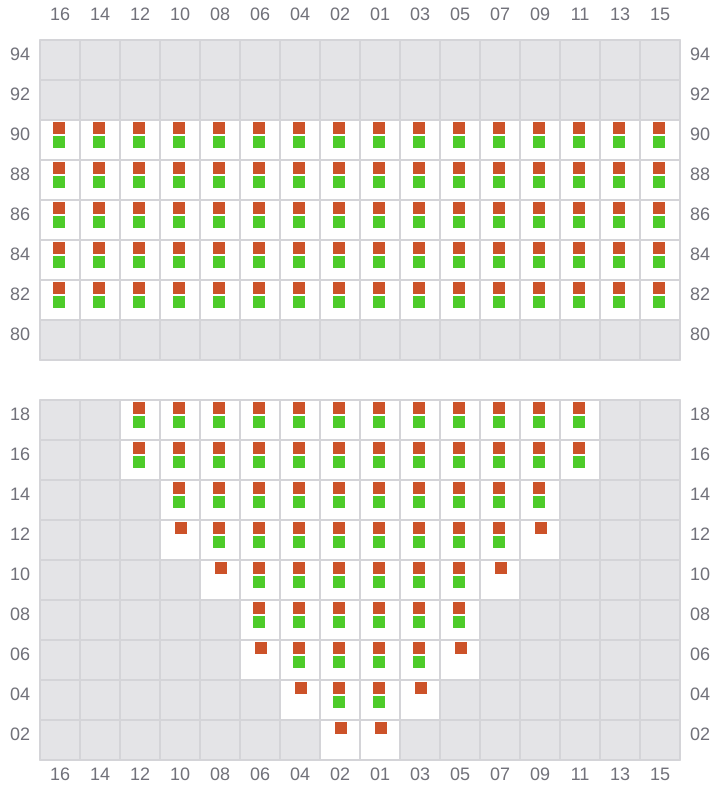

011 (010)
- ←
![Bay 011 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b011.png?v=1685306869280)

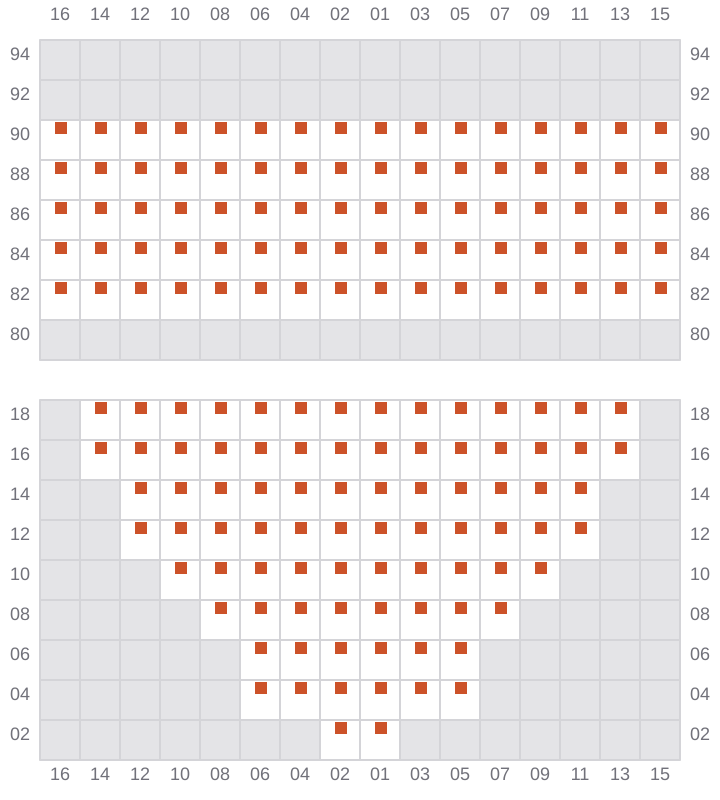

013
- →
![Bay 013 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b013.png?v=1685306869280)

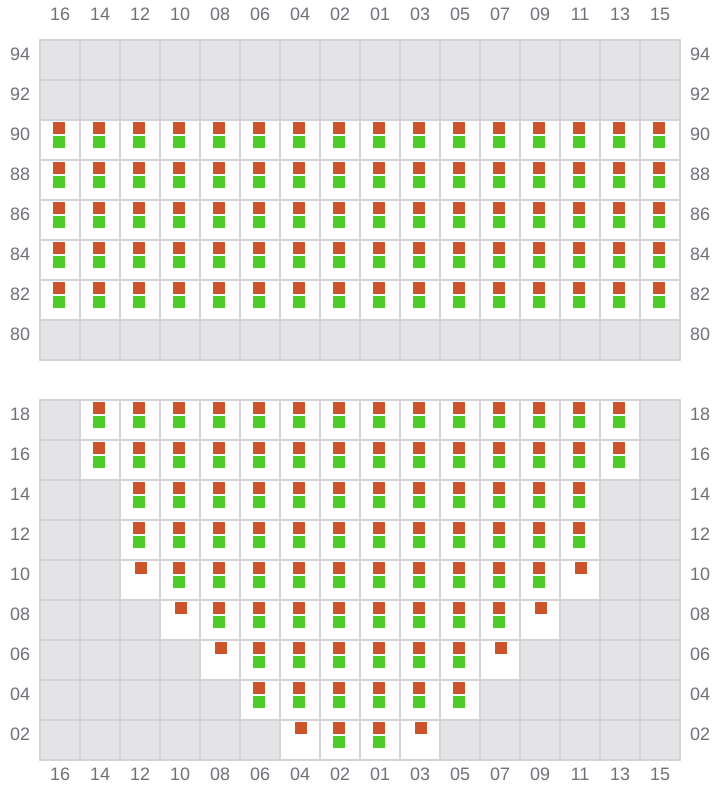

015 (014)
- ←
![Bay 015 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b015.png?v=1685306869280)

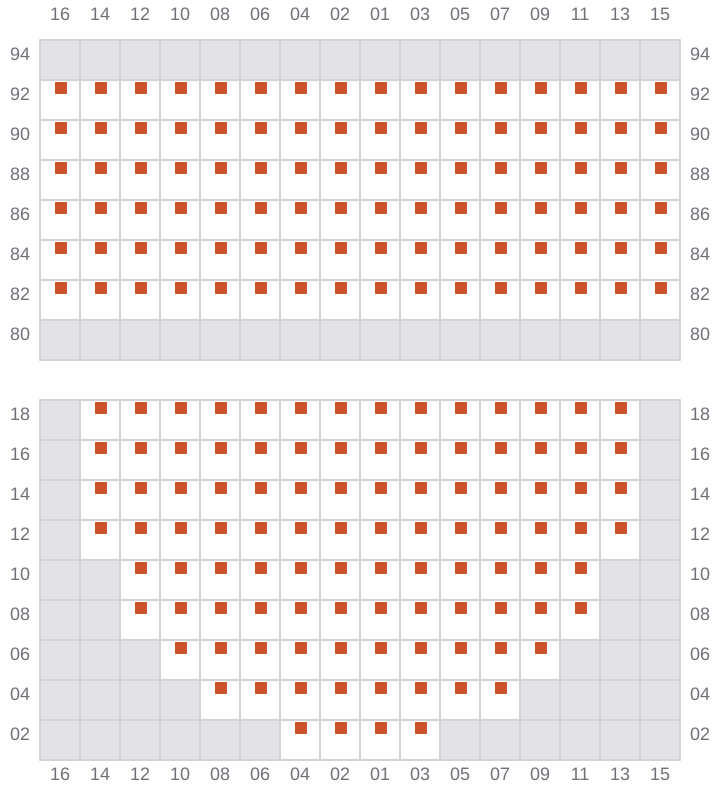

017
- →
![Bay 017 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b017.png?v=1685306869280)

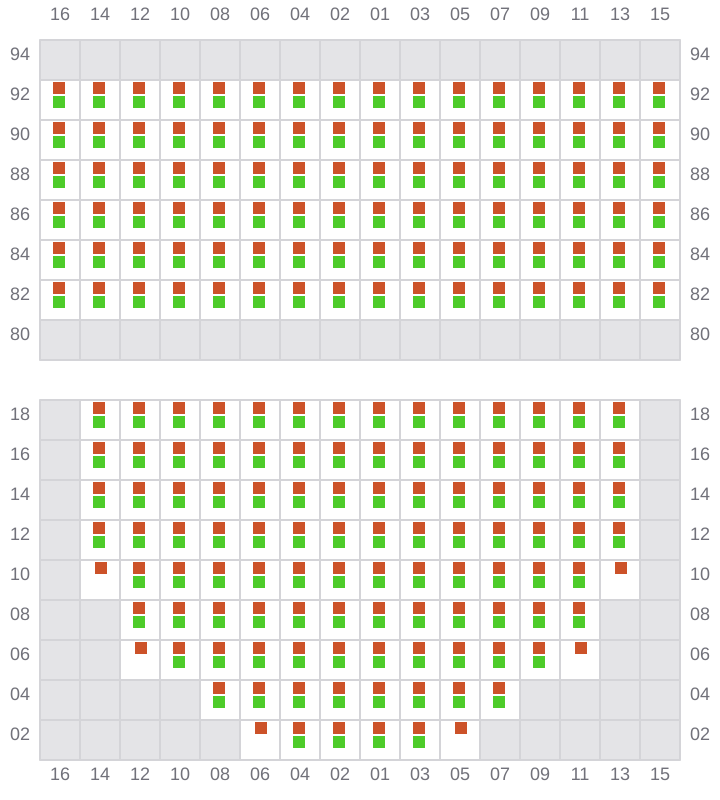

019 (018)
- ←
![Bay 019 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b019.png?v=1685306869280)
021
- →
![Bay 021 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b021.png?v=1685306869280)

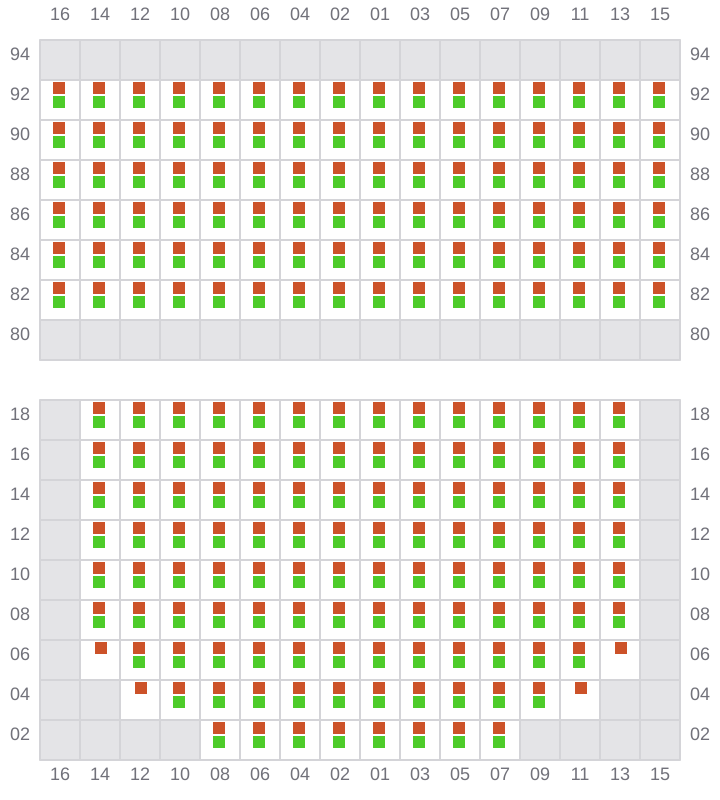

023 (022)
- ←
![Bay 023 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b023.png?v=1685306869280)

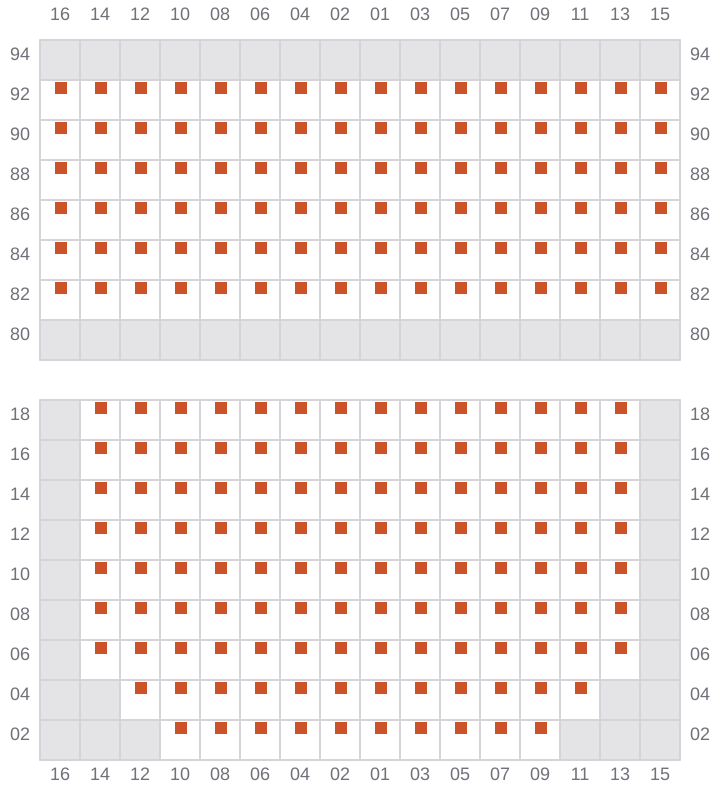

025
- →
![Bay 025 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b025.png?v=1685306869280)

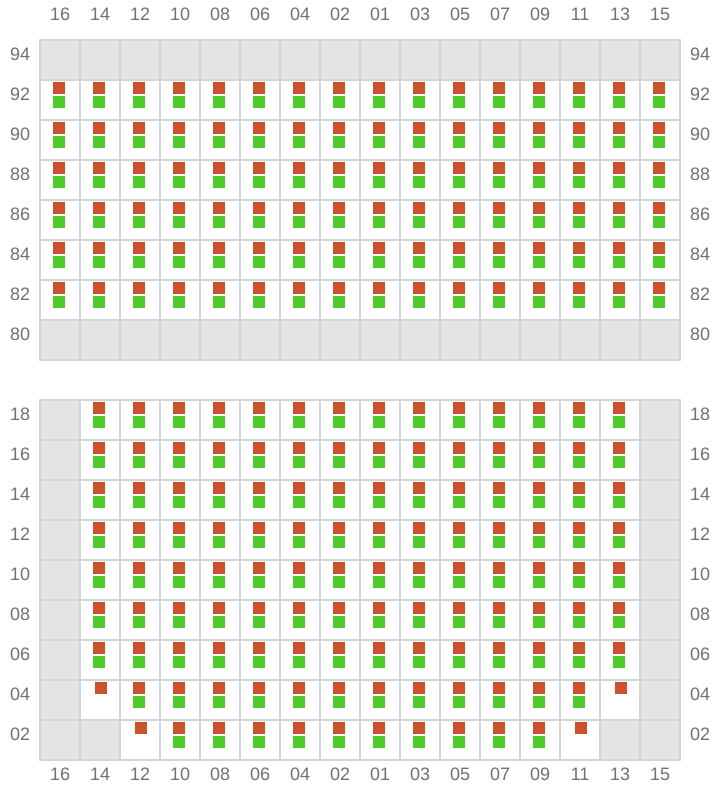

027 (026)
- ←
![Bay 027 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b027.png?v=1685306869280)
029
- →
![Bay 029 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b029.png?v=1685306869280)
031 (030)
- ←
![Bay 031 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b031.png?v=1685306869280)
033
- →
![Bay 033 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b033.png?v=1685306869280)
035 (034)
- ←
![Bay 035 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b035.png?v=1685306869280)

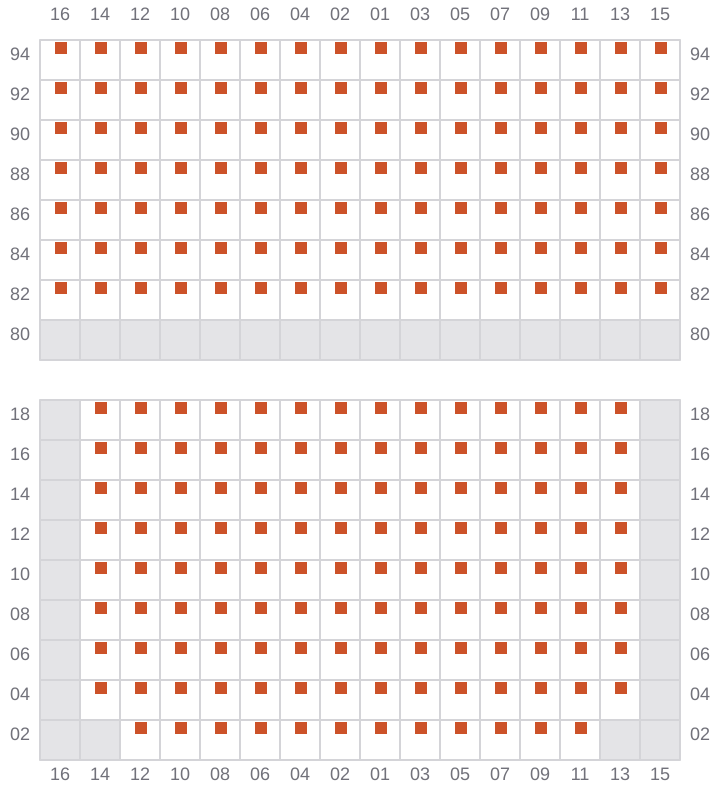

037
- →
![Bay 037 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b037.png?v=1685306869280)

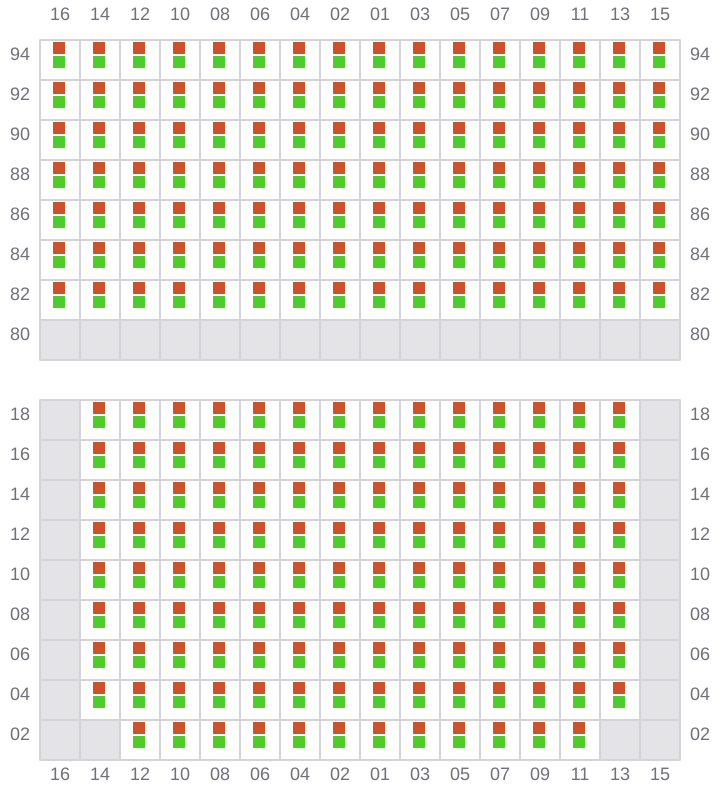

039 (038)
- ←
![Bay 039 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b039.png?v=1685306869280)

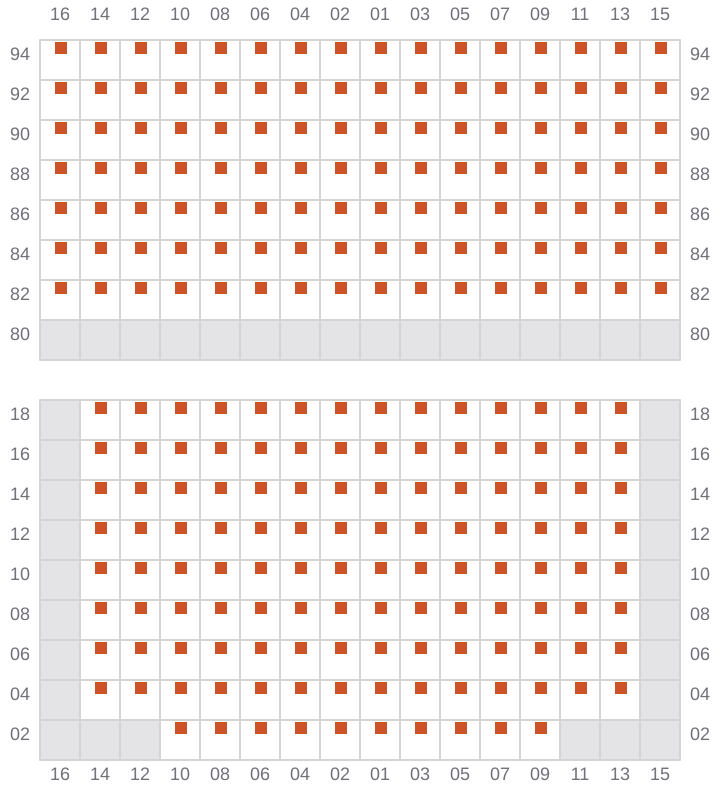

041
- →
![Bay 041 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b041.png?v=1685306869280)
043 (042)
- ←
![Bay 043 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b043.png?v=1685306869280)

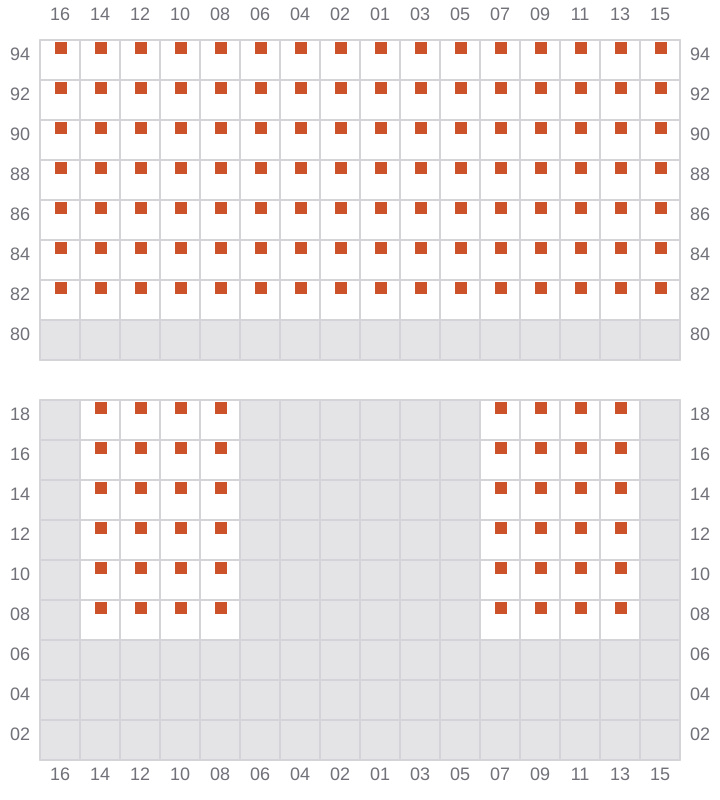

045
- →
![Bay 045 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b045.png?v=1685306869280)

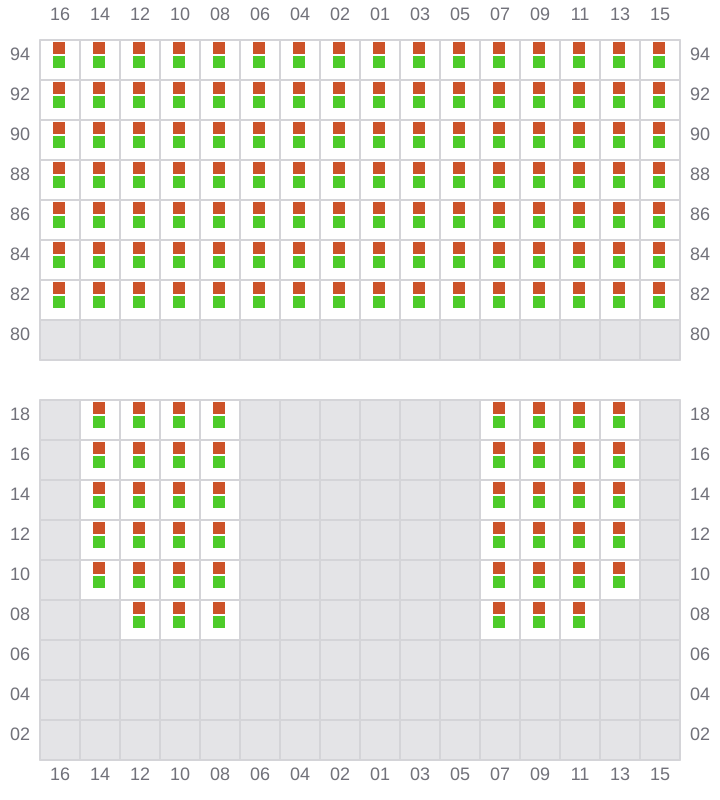

047 (046)
- ←
![Bay 047 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b047.png?v=1685306869280)
049
- →
![Bay 049 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b049.png?v=1685306869280)
051 (050)
- ←
![Bay 051 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b051.png?v=1685306869280)
053
- →
![Bay 053 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b053.png?v=1685306869280)

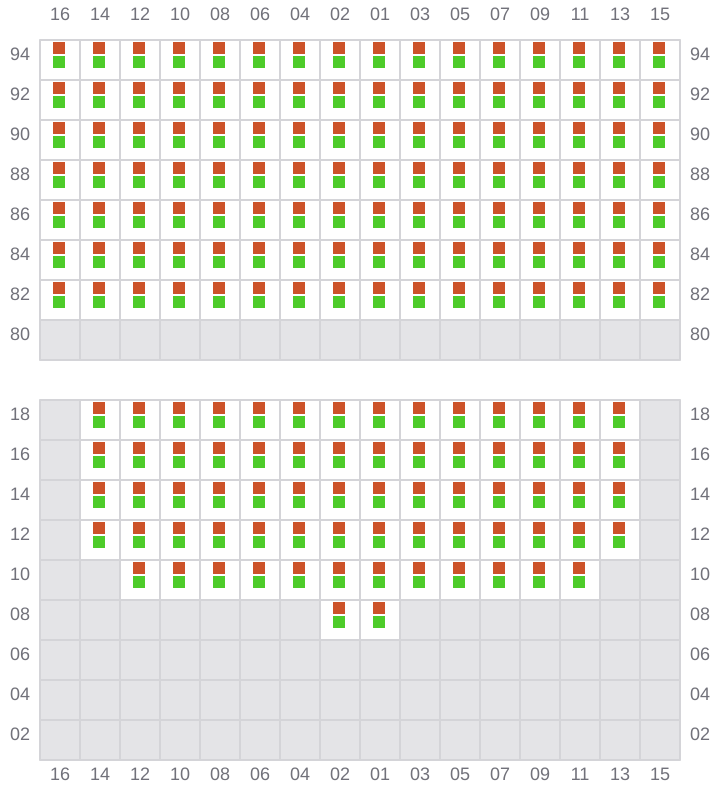

055 (054)
- ←
![Bay 055 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b055.png?v=1685306869280)
057
- →
![Bay 057 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b057.png?v=1685306869280)

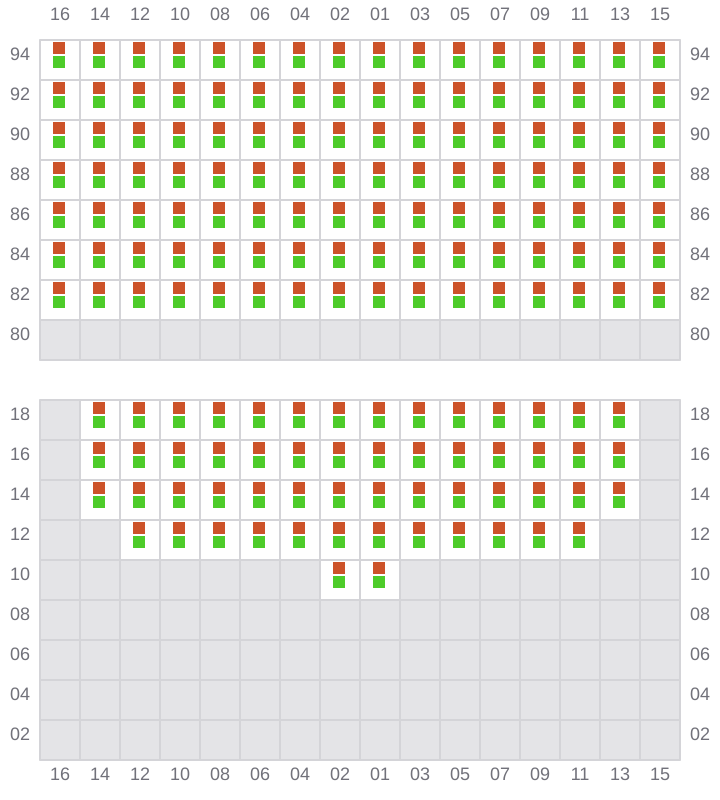

059 (058)
- ←
![Bay 059 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b059.png?v=1685306869280)

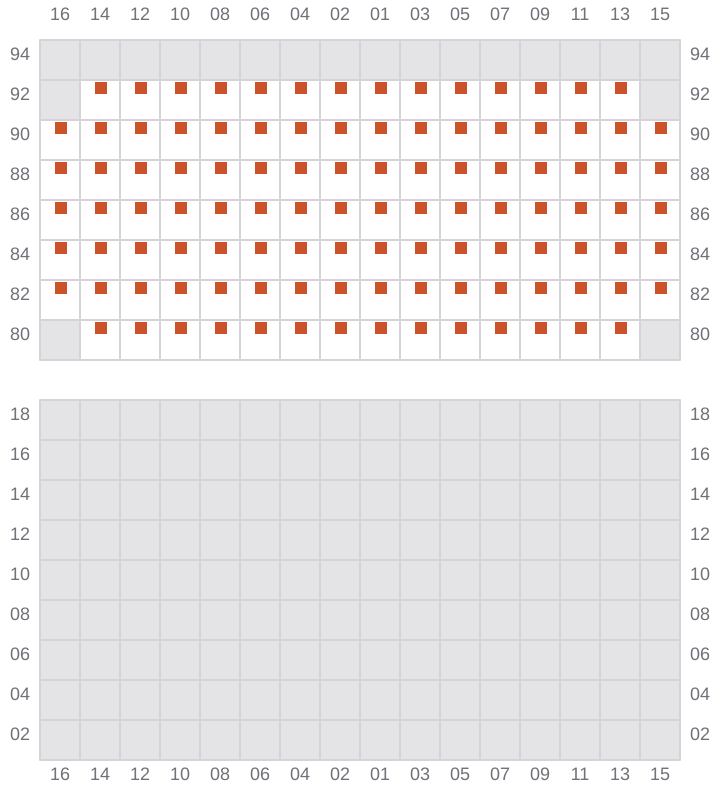

061
- → / ?
![Bay 061 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b061.png?v=1685306869280)

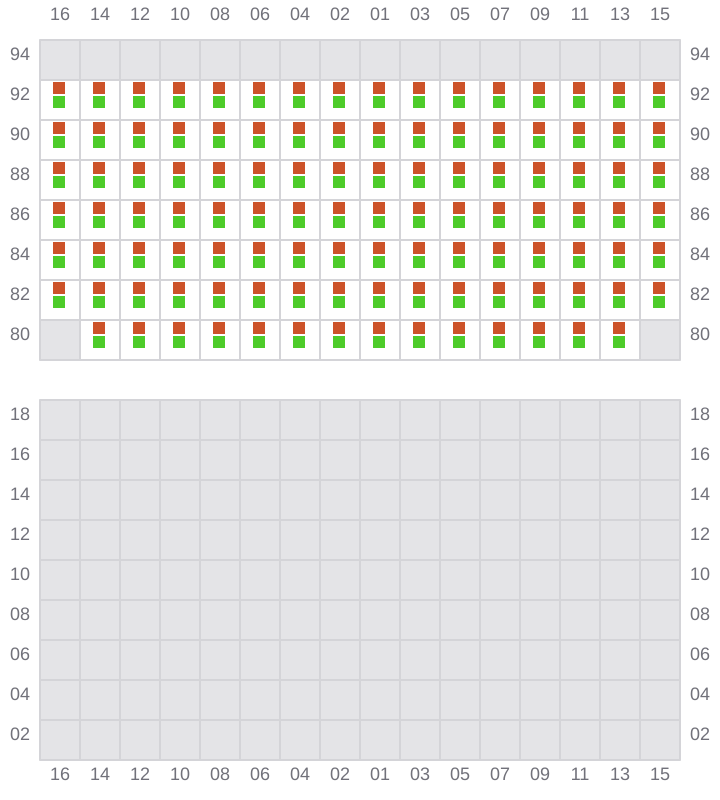

063 (062)
- ← / ?
![Bay 063 view and slots of MSC VIDHI](/vessel-images/8238bf59-6ec8-4cc3-8b92-275f723e21e0-b063.png?v=1685306869280)
