MSC VITTORIA
9299551 | 3EHF3 | 9299551 by ********* Last update: Wed Jun 05 2024
General Info
Ship Name:MSC VITTORIA
IMO Code:9299551
Call Sign:3EHF3
Line Operator:9299551
Class Name for Sister Ships:MSC VITTORIA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):309.20
LOA (Length Overall):324.84
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:11,449
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

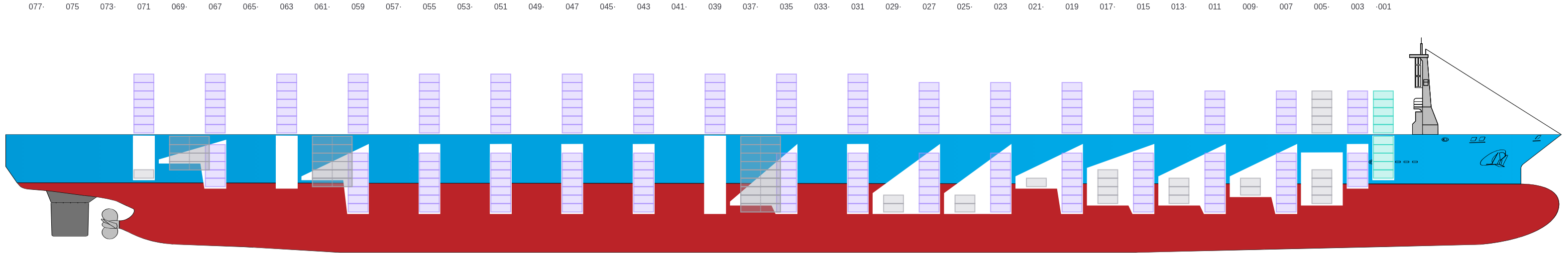

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

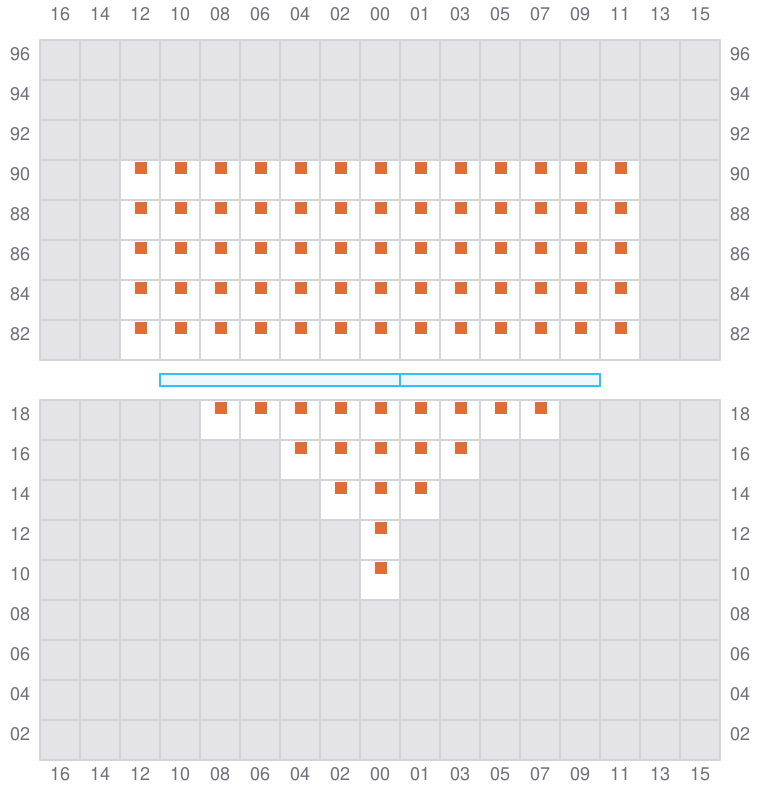

001
- →

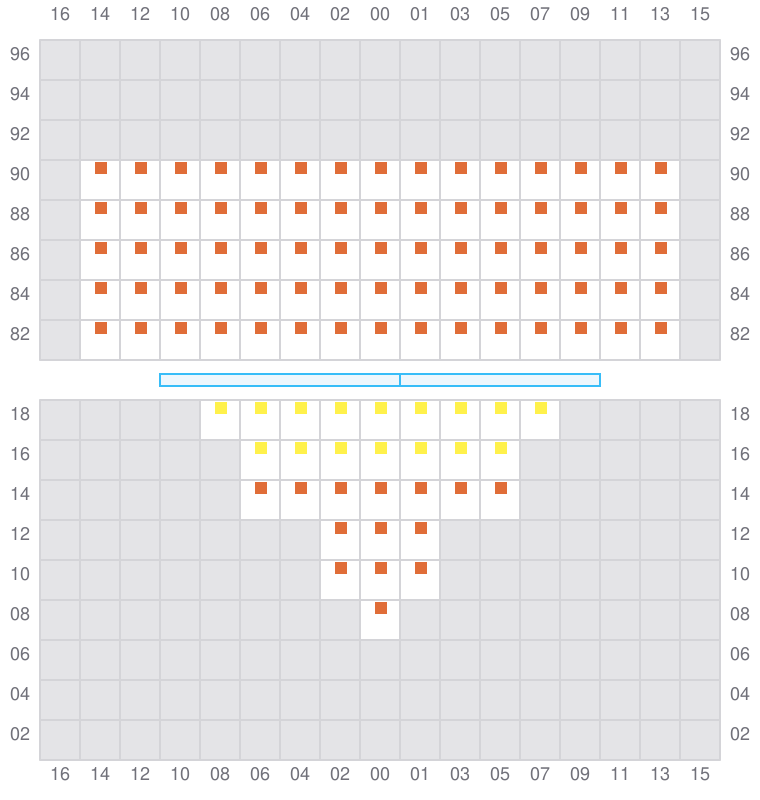

003

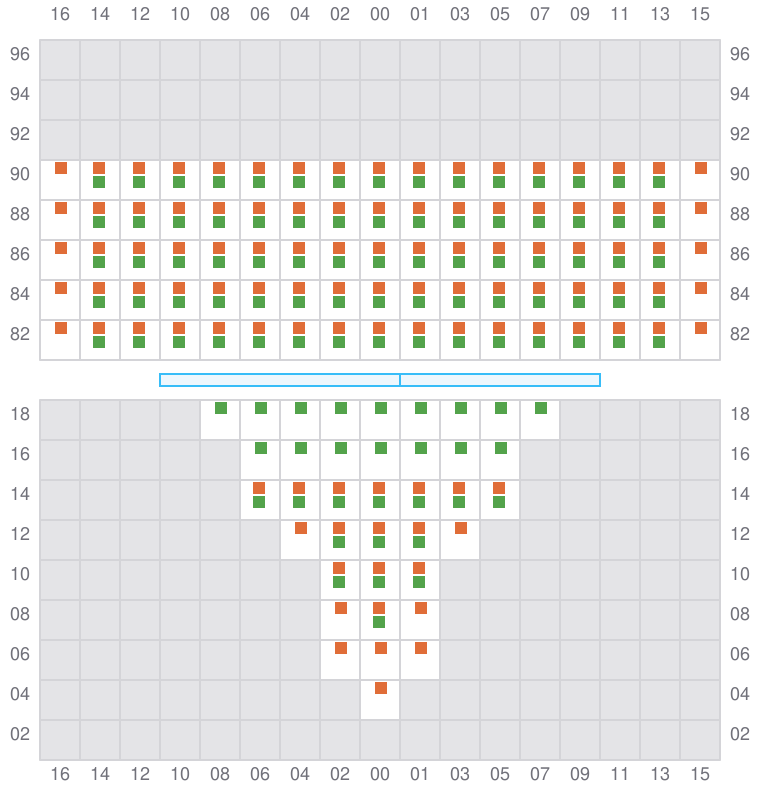

005 (004)
- ←

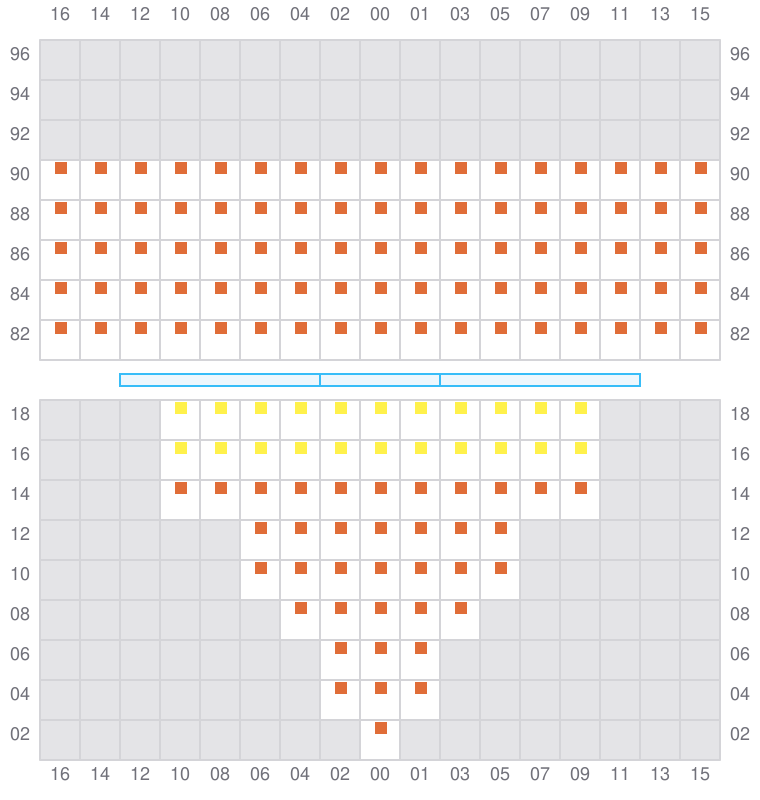

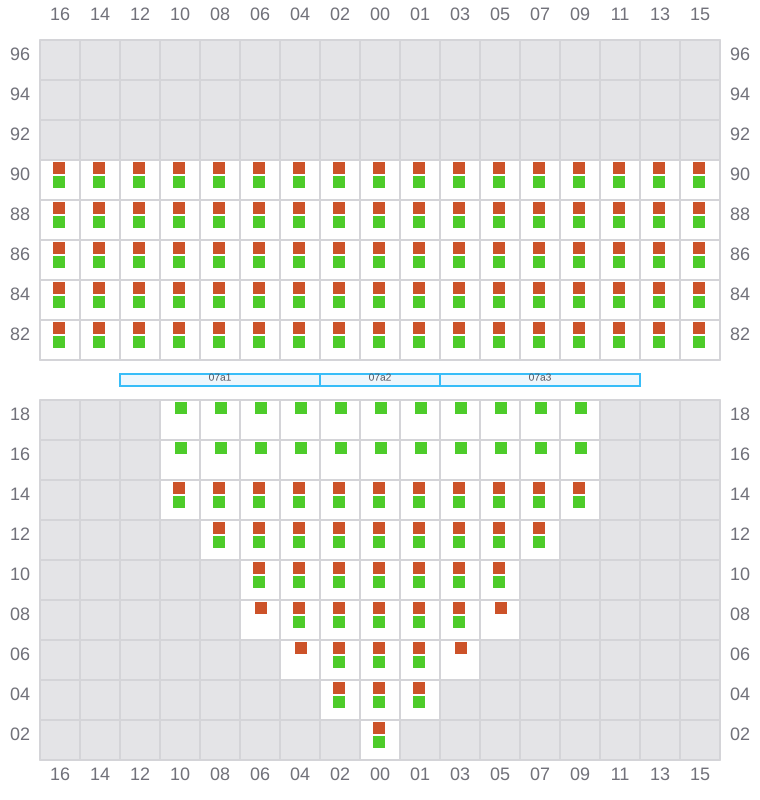

007
009 (008)
- ←

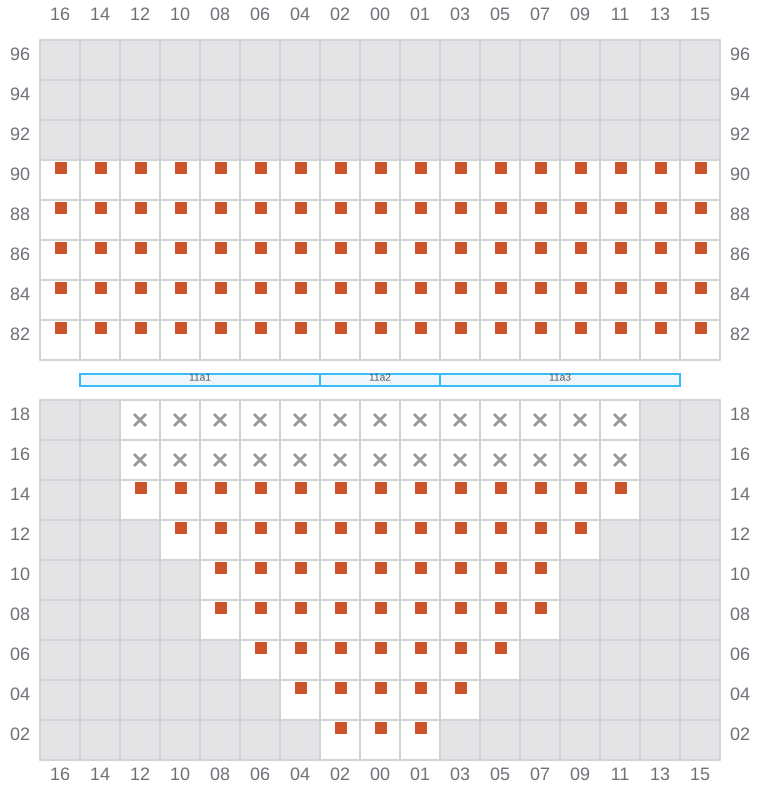

011

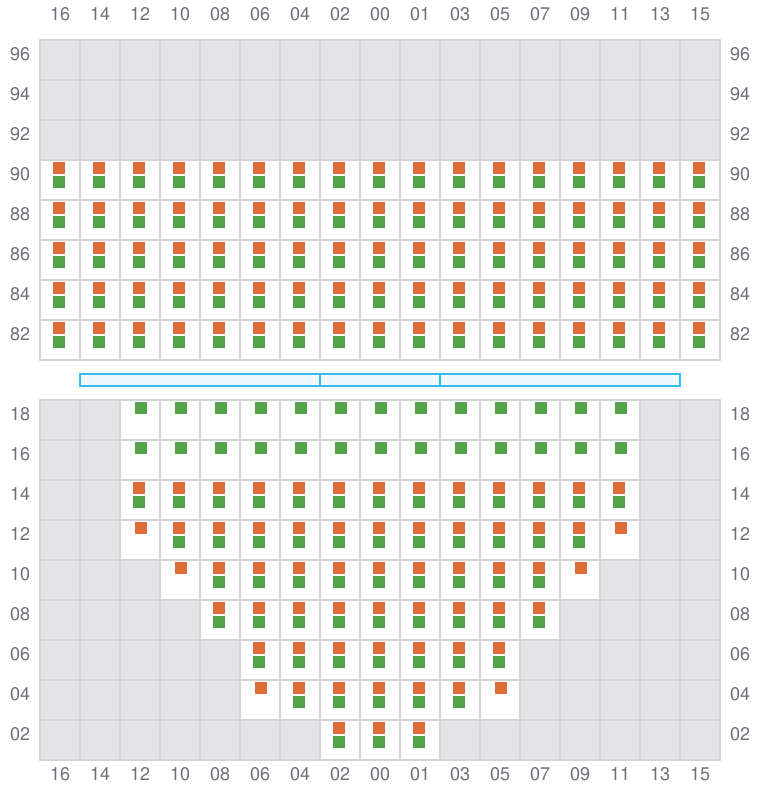

013 (012)
- ←

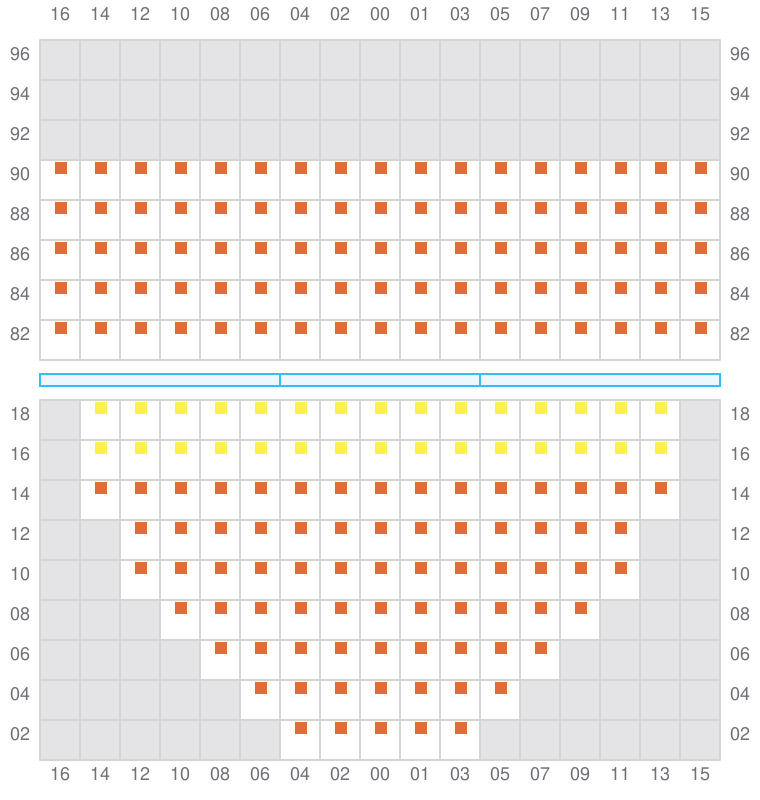

015
017 (016)
- ←

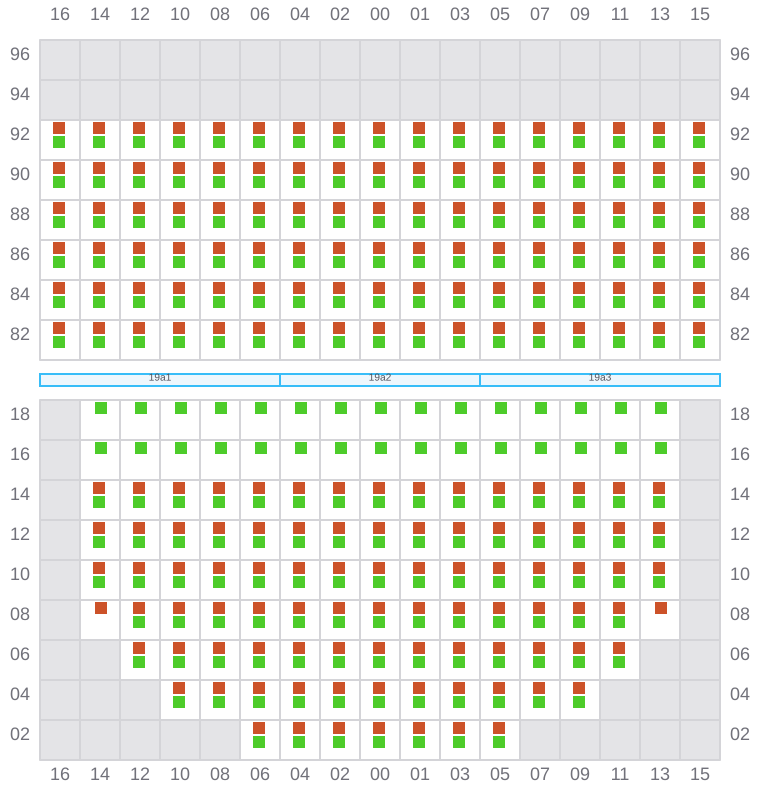

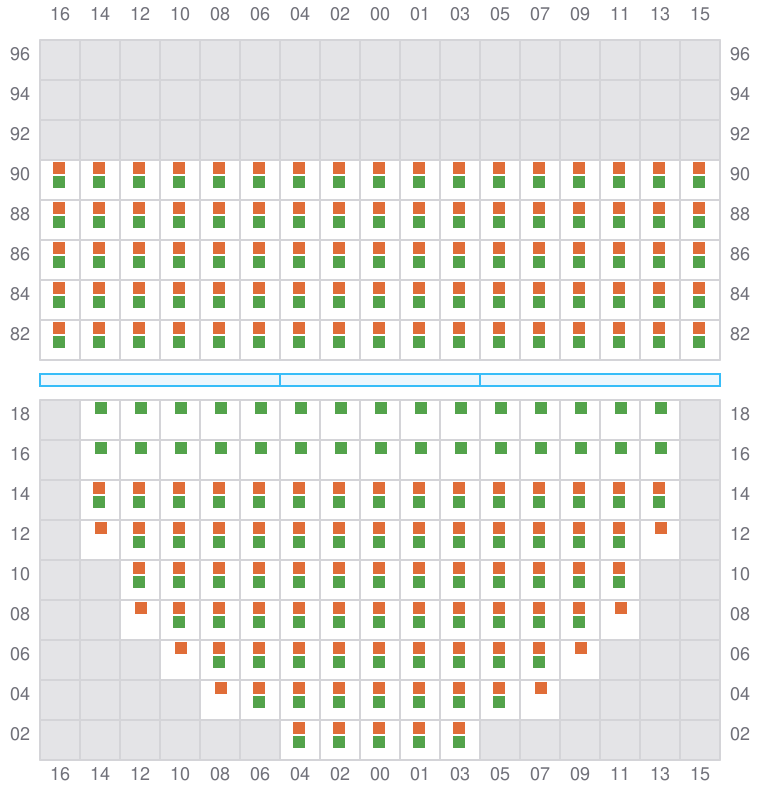

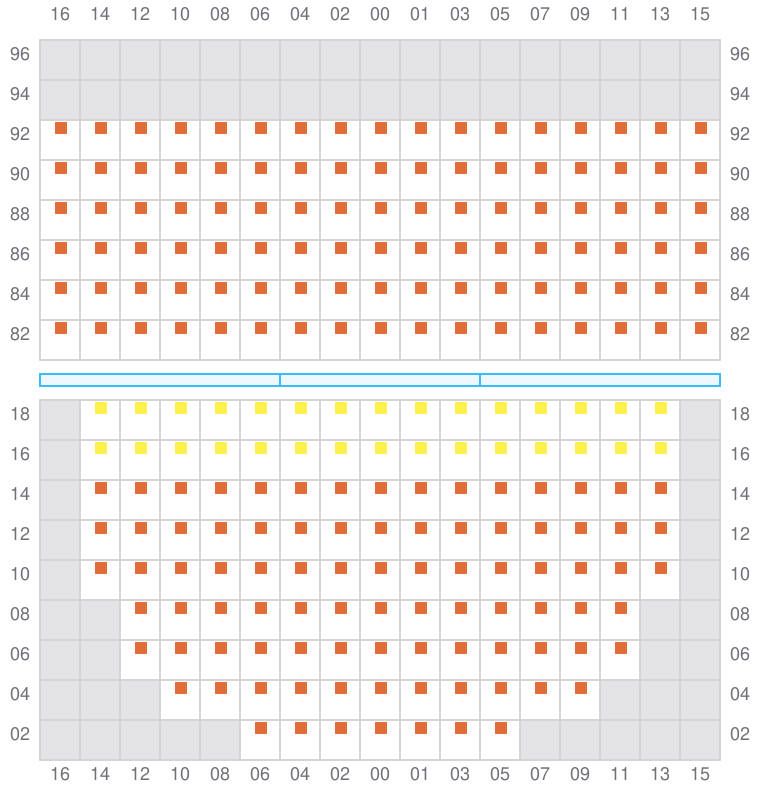

019
021 (020)
- ←

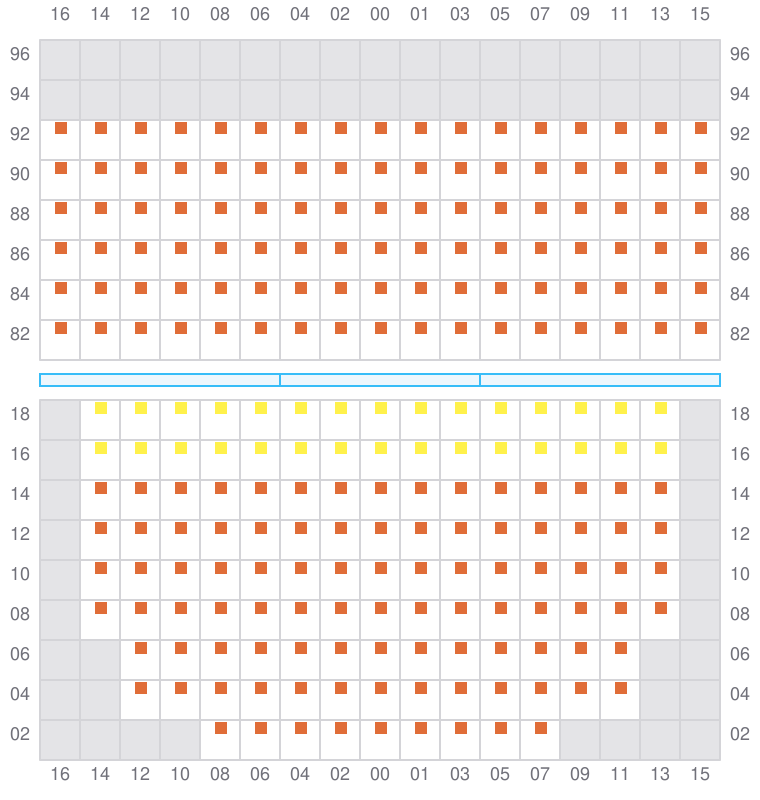

023

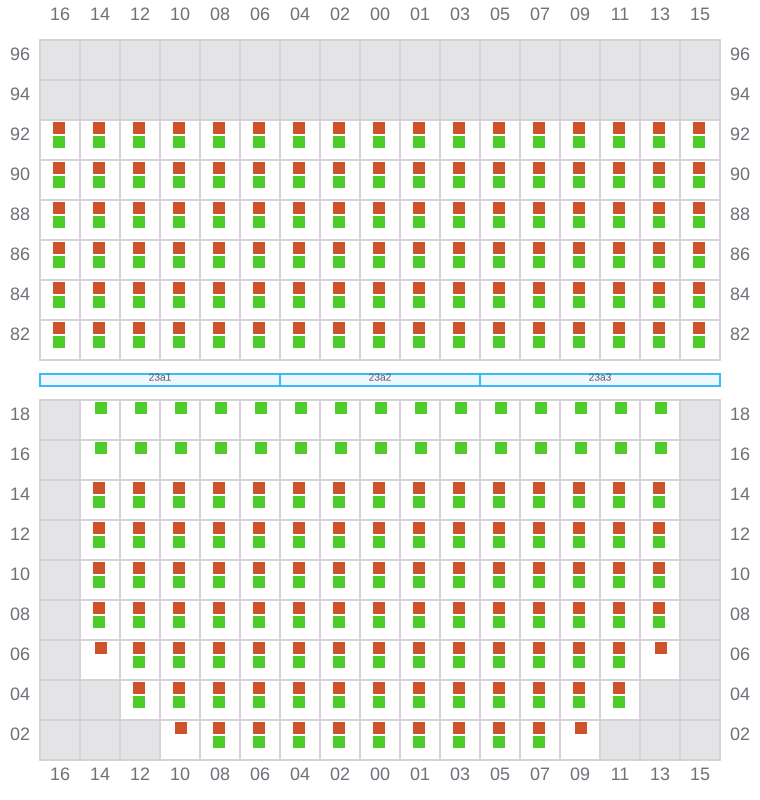

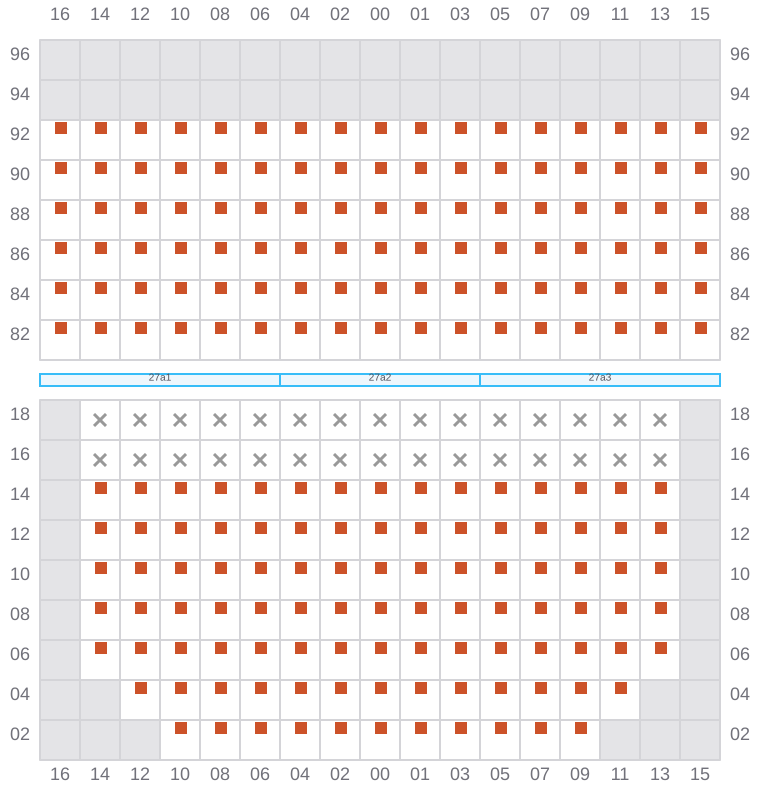

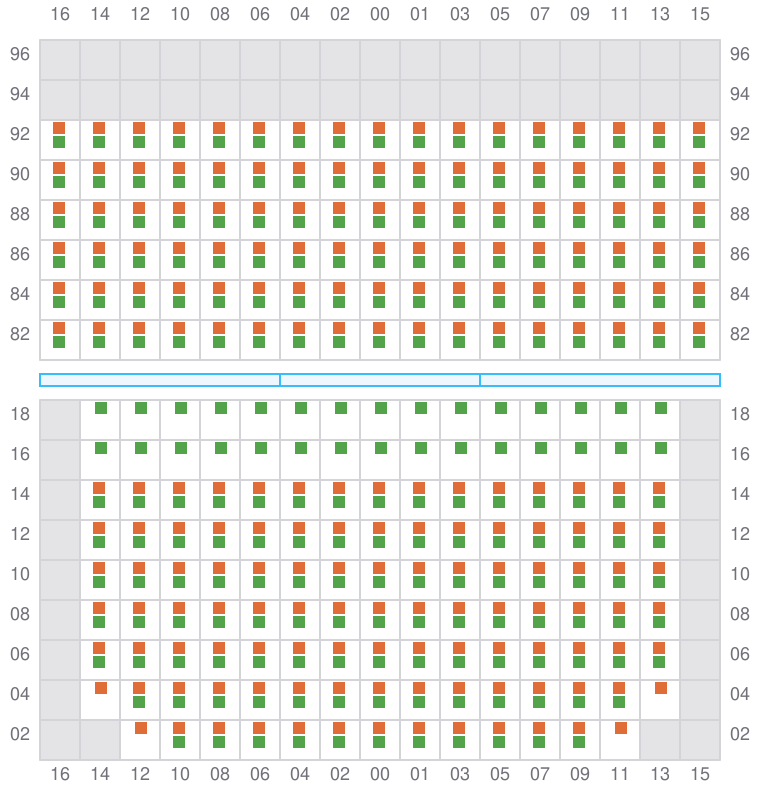

025 (024)
- ←
027
029 (028)
- ←
031
033 (032)
- ←
035

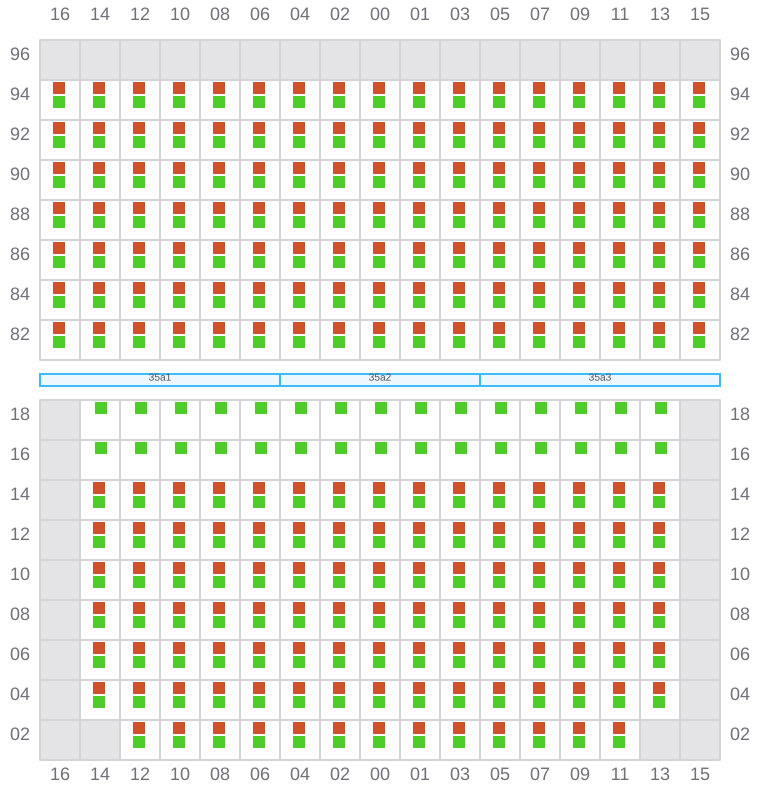

037 (036)
- ←

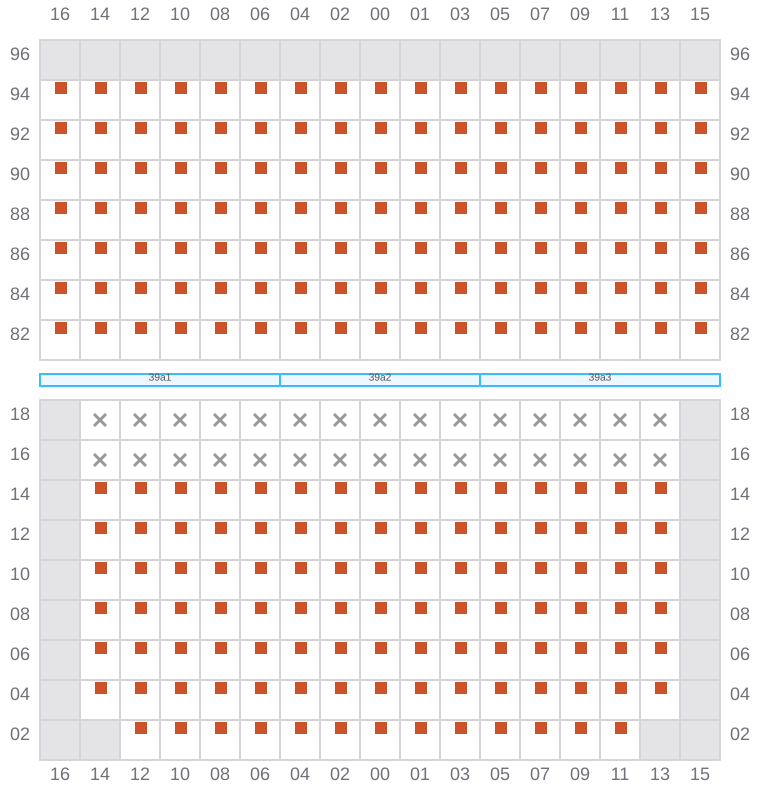

039
- ? / ←
041 (040)
- ←

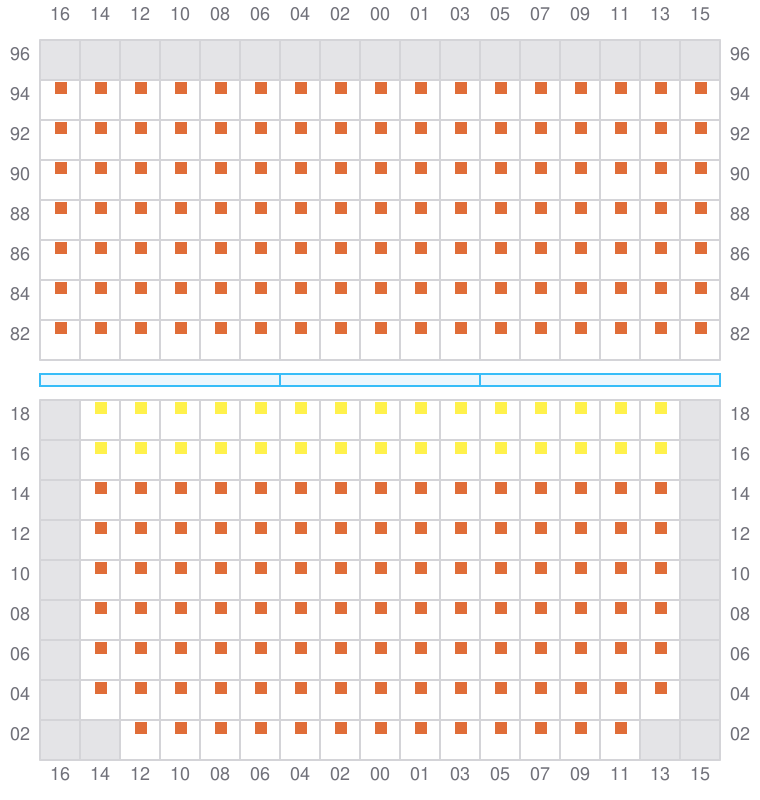

043

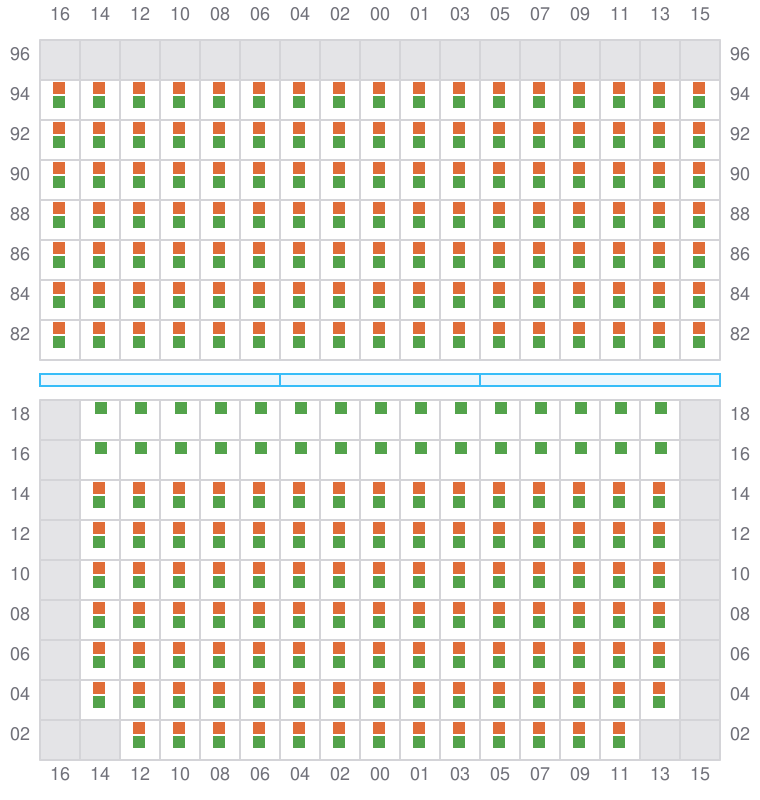

045 (044)
- ←

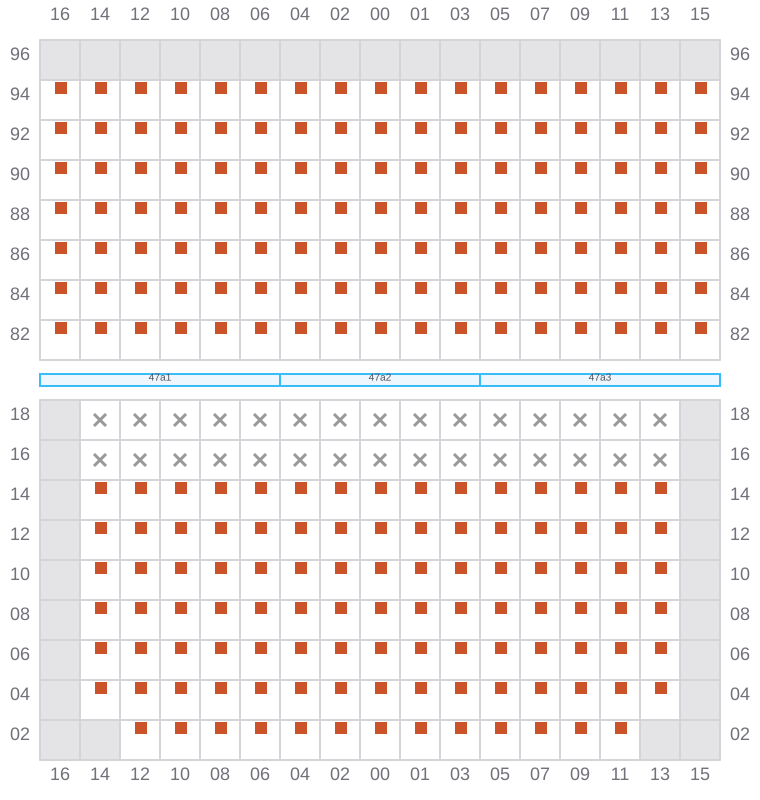

047
049 (048)
- ←
051
053 (052)
- ←

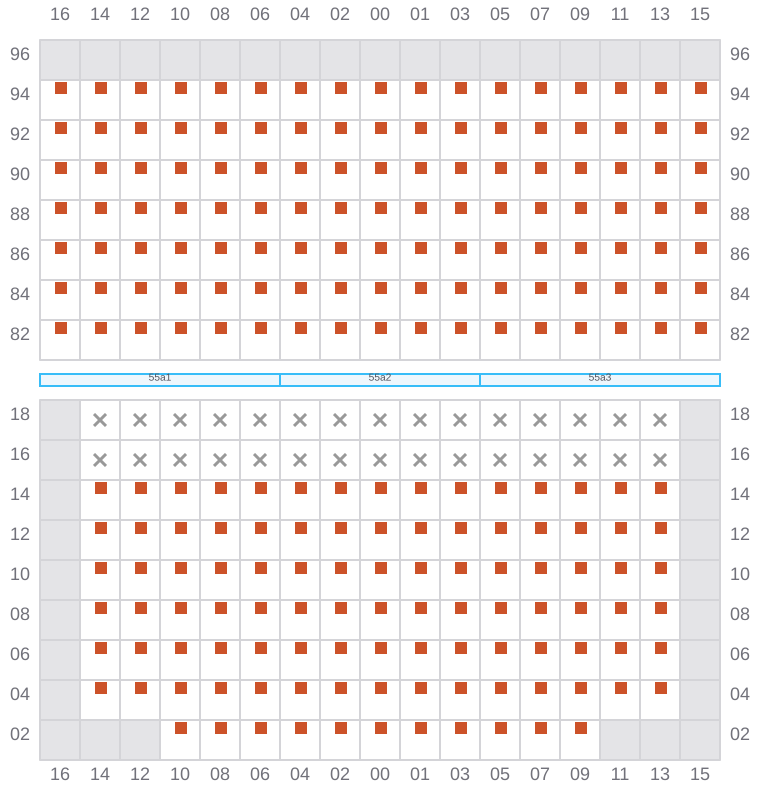

055

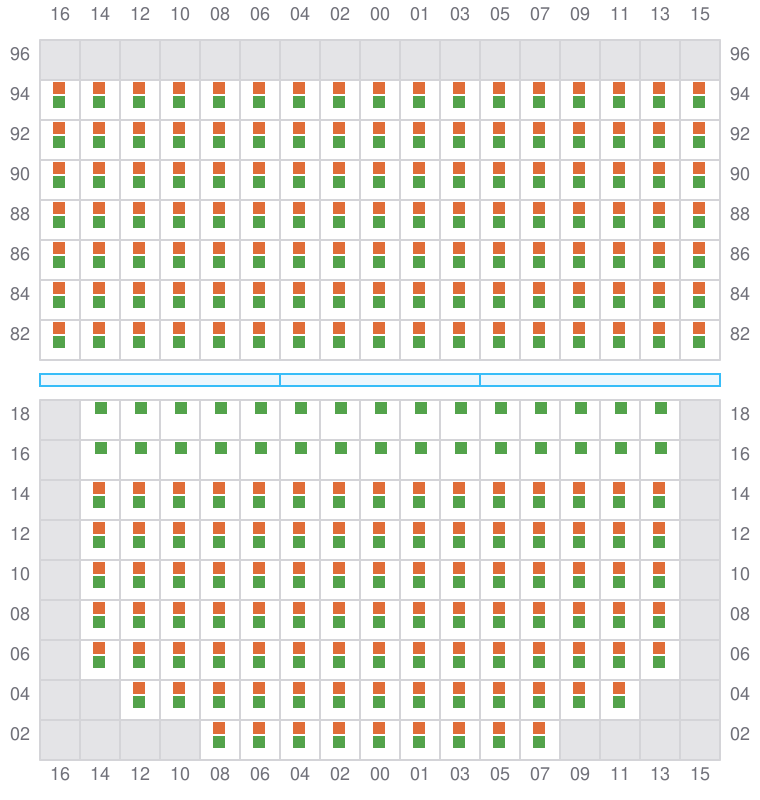

057 (056)
- ←

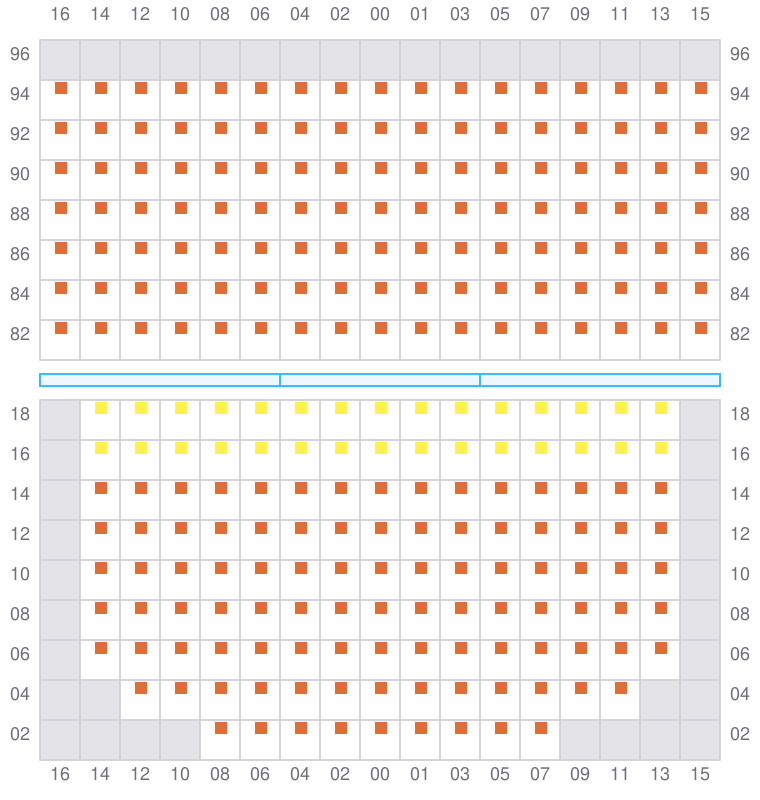

059

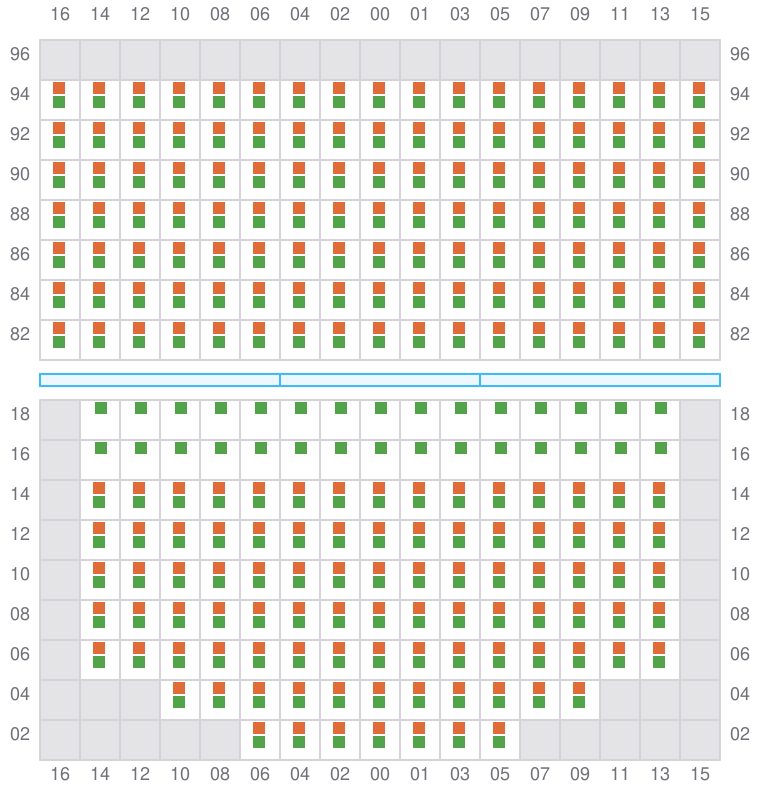

061 (060)
- ←

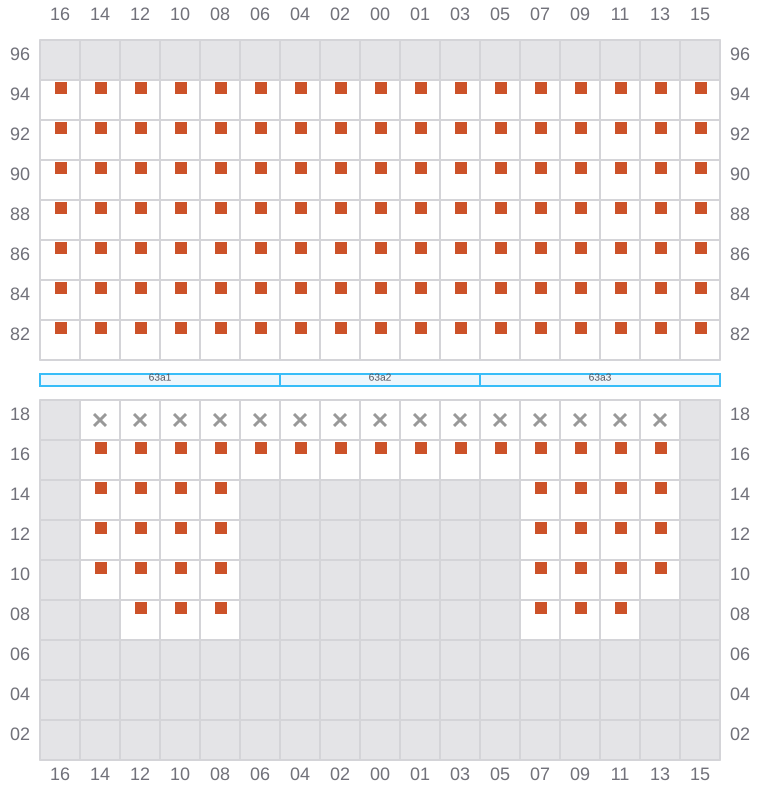

063
- ? / ←

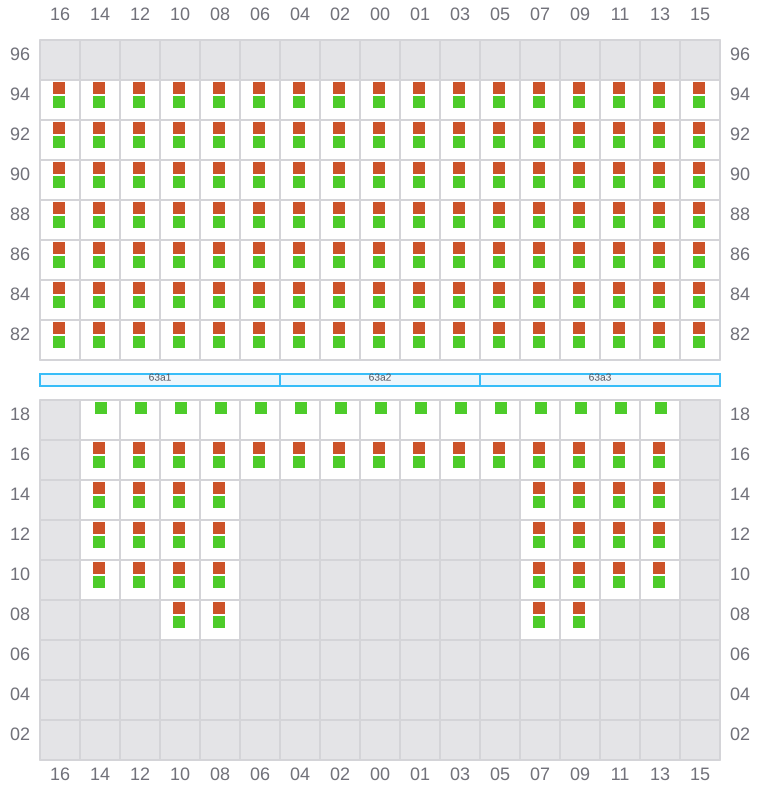

065 (064)
- ←

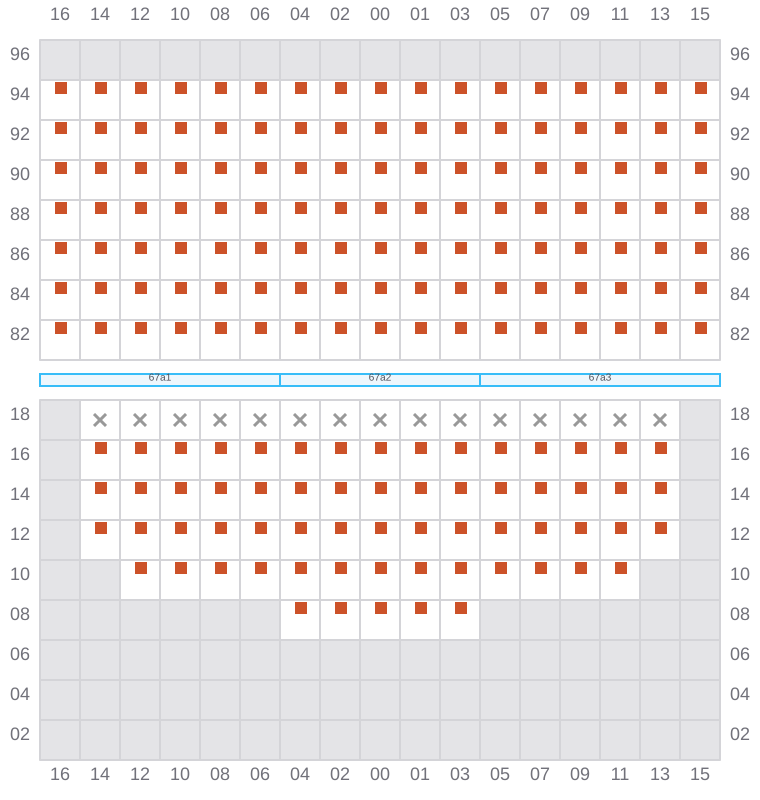

067

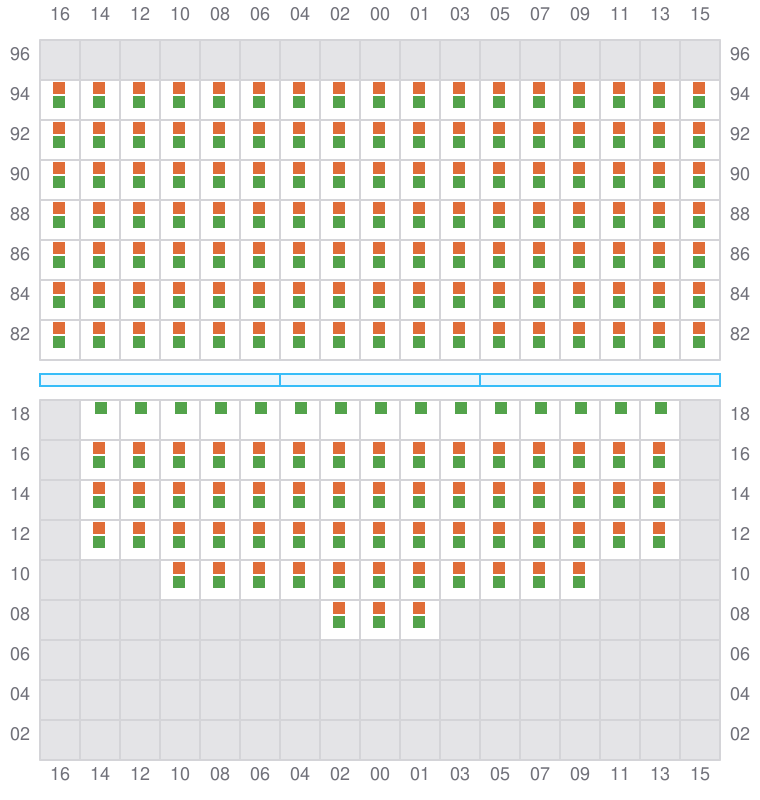

069 (068)
- ←

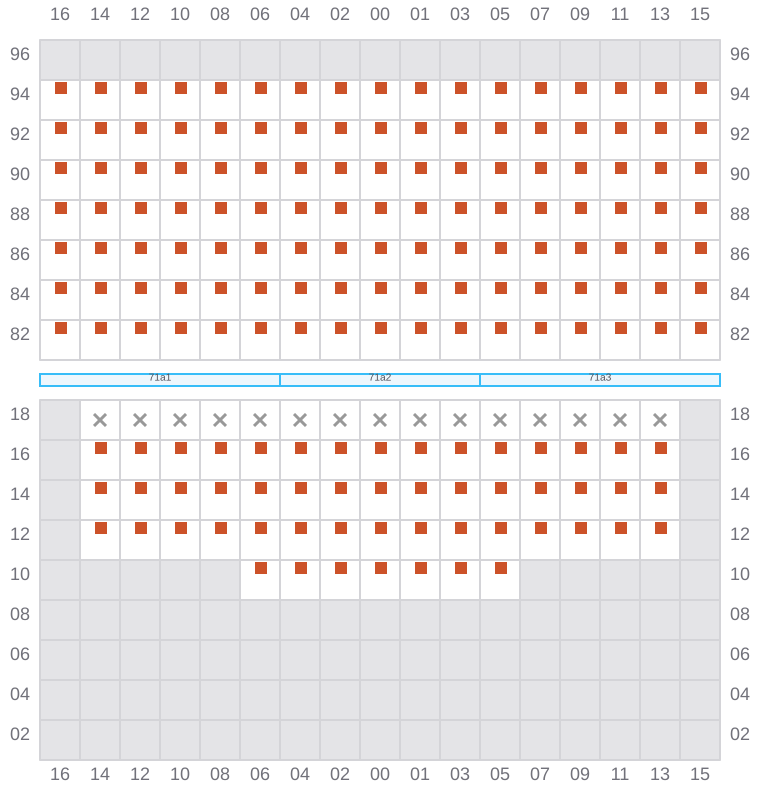

071
- ? / ←

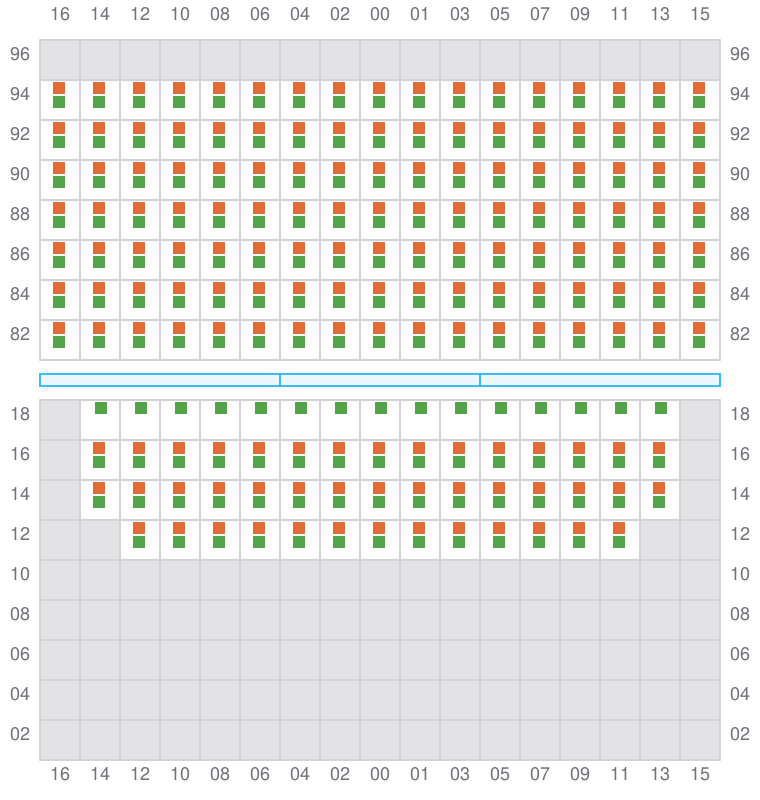

073 (072)
- ←

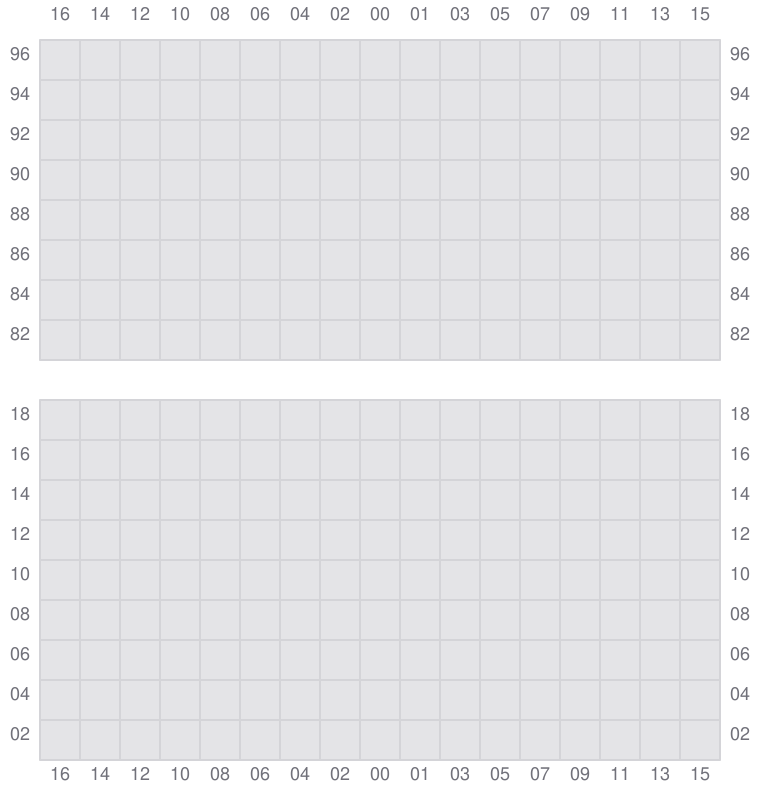

075
077 (076)
- ← / ?
