MSC VIVIANA
9777216 | D5ND7 | MSC by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:MSC VIVIANA
IMO Code:9777216
Call Sign:D5ND7
Line Operator:MSC
Class Name for Sister Ships:VIV
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,738
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

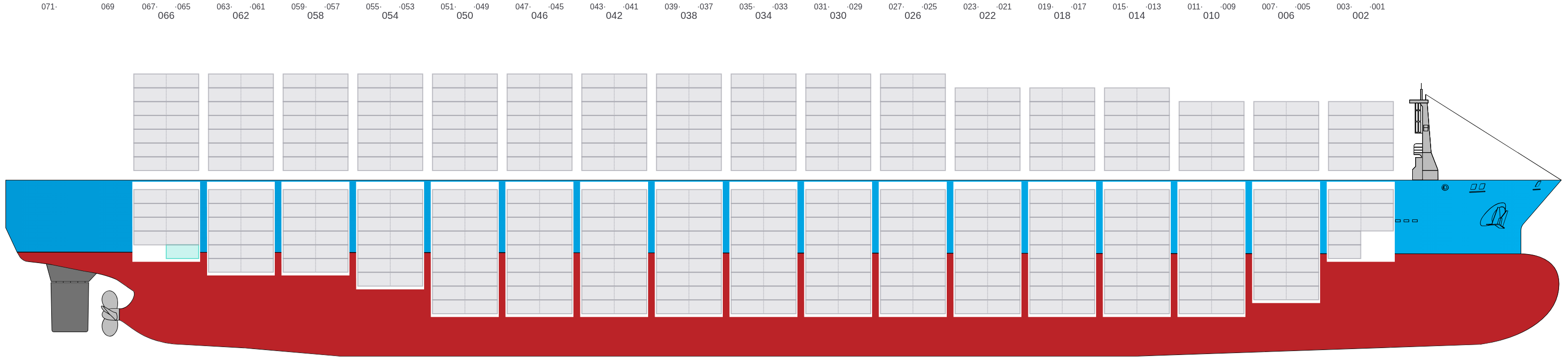

Side View
Hatch-Covers View

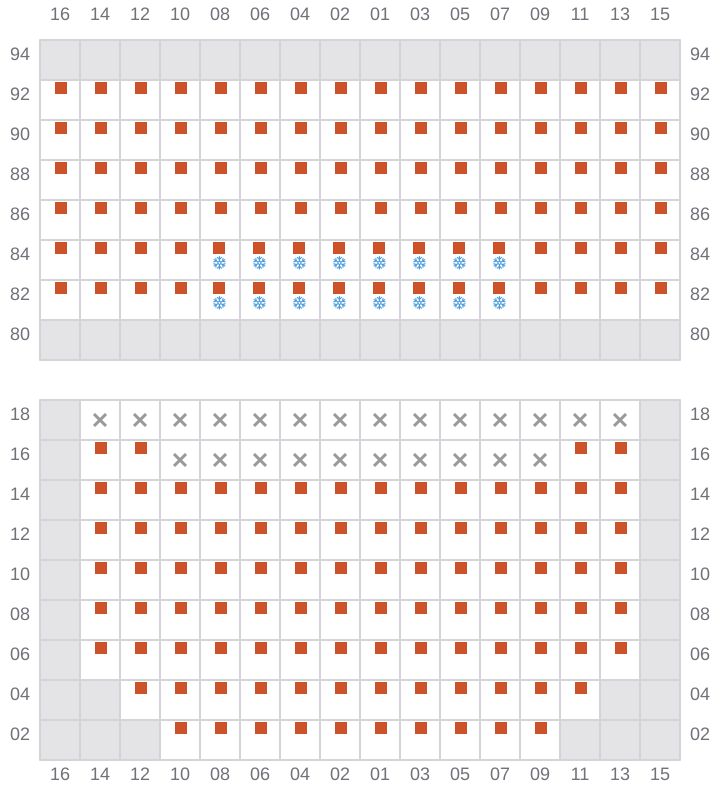

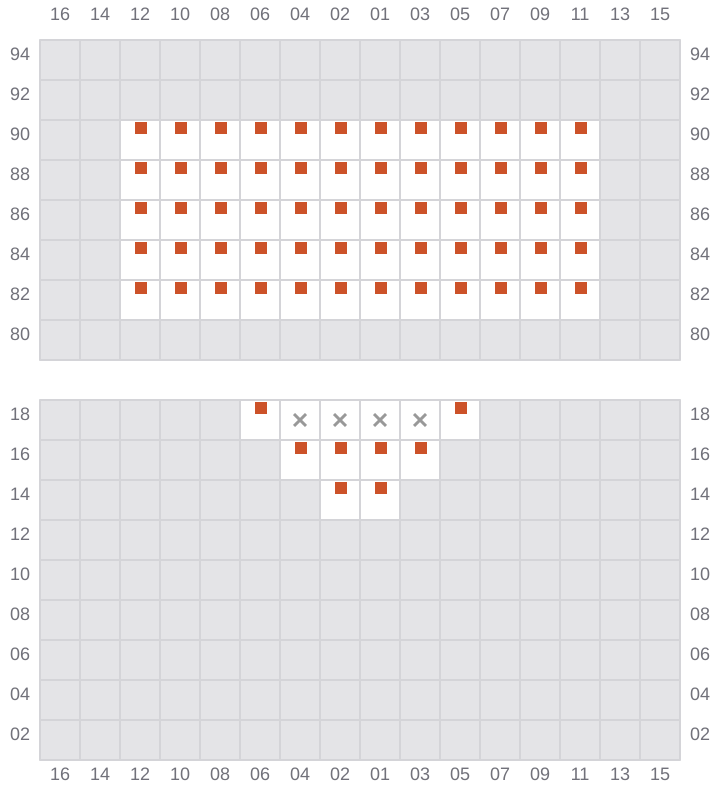

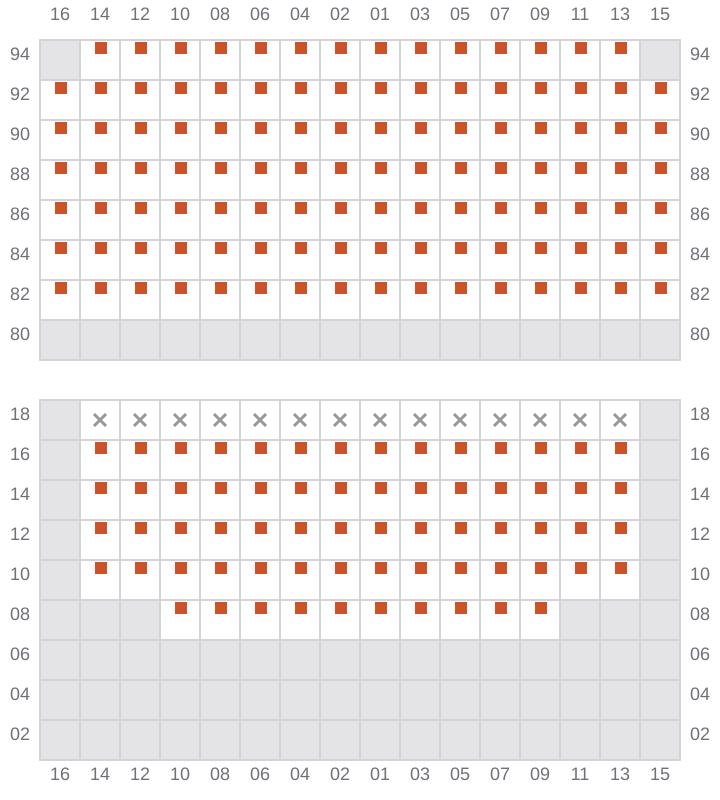

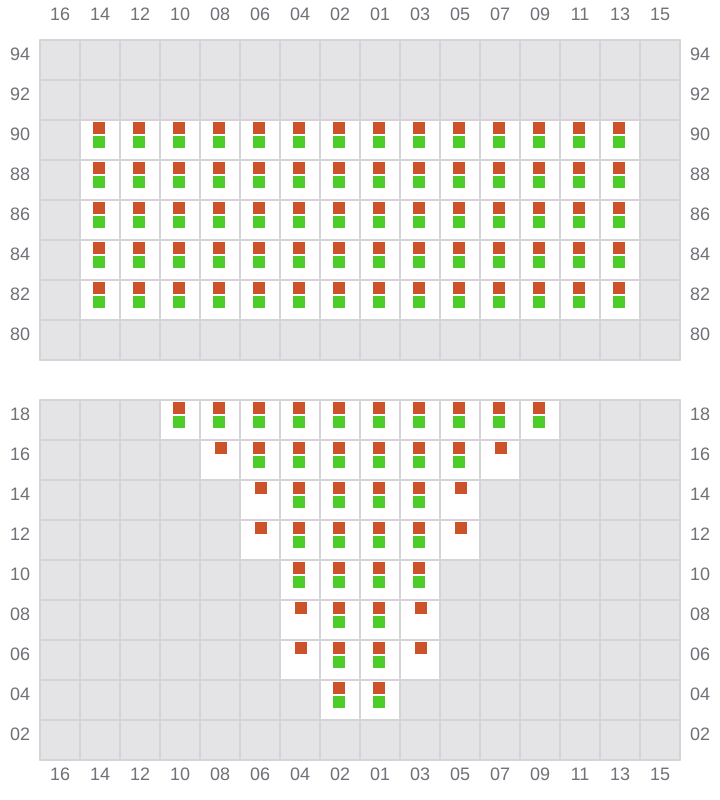

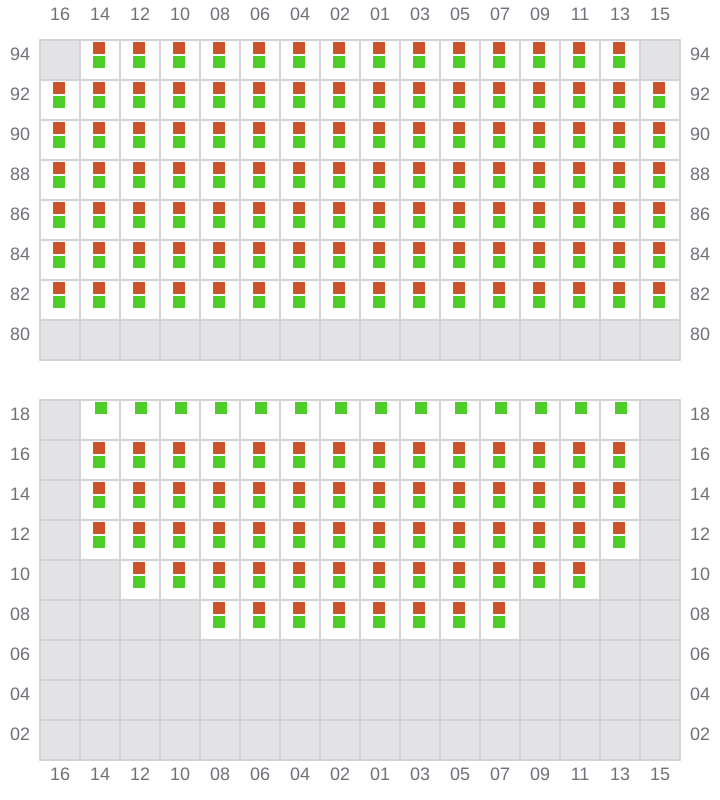

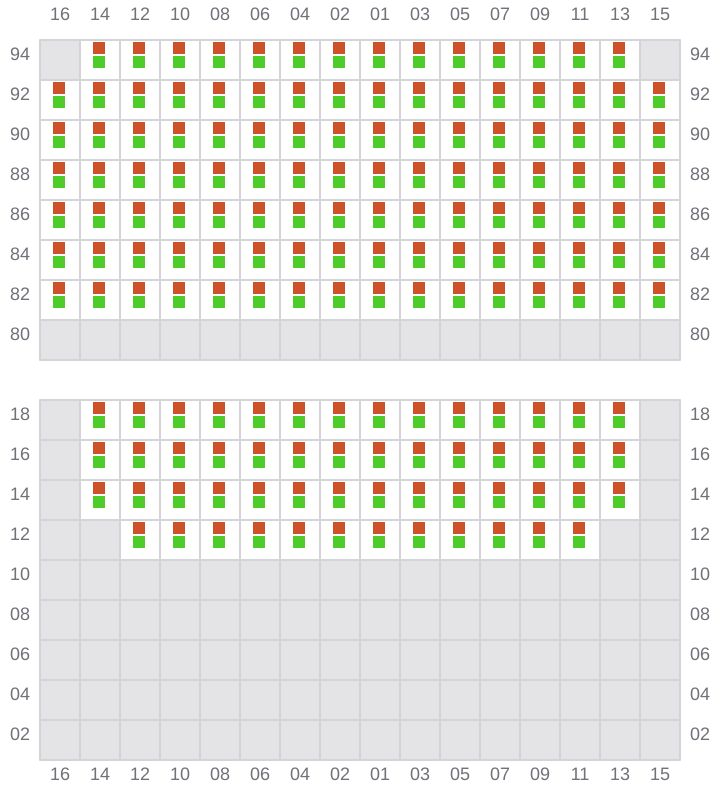

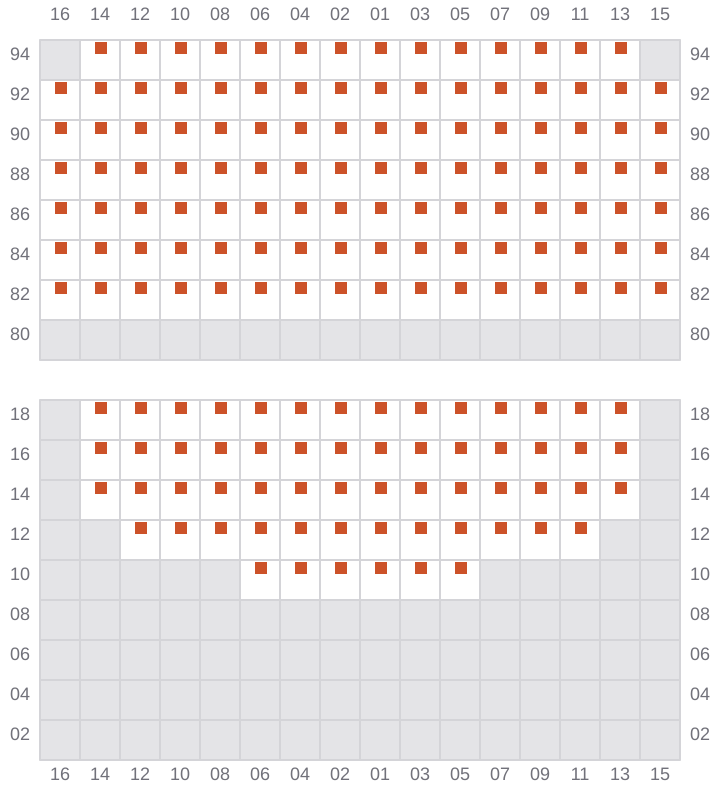

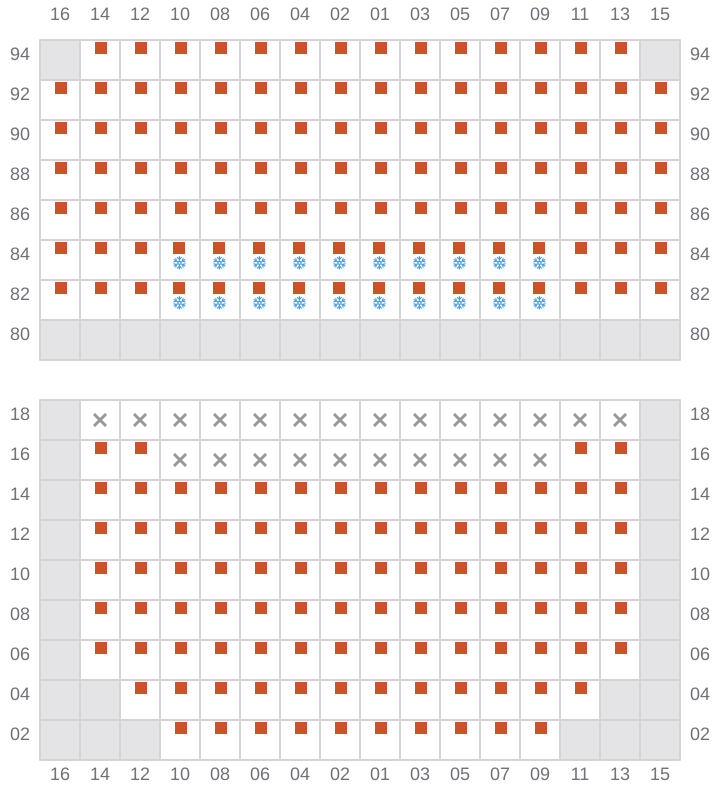

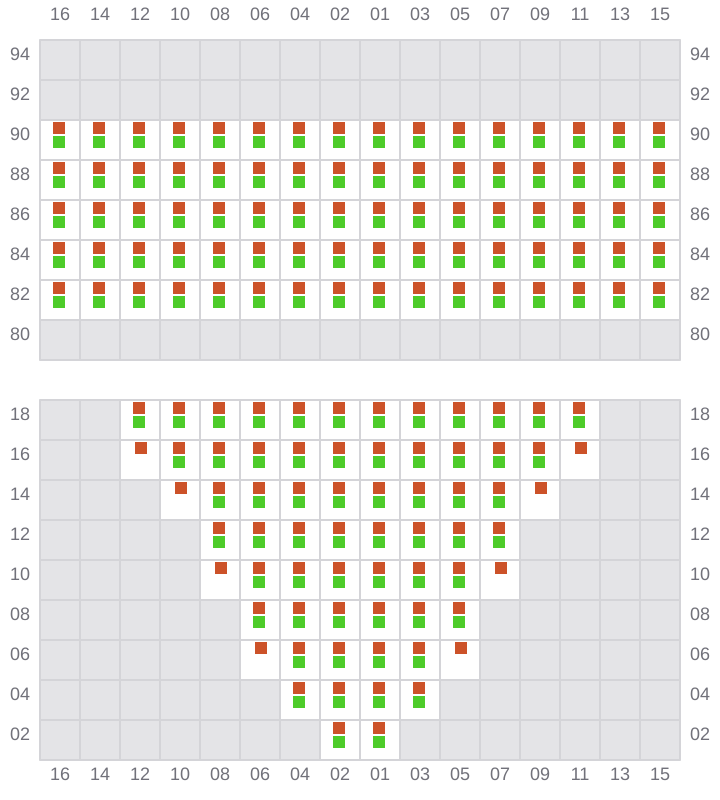

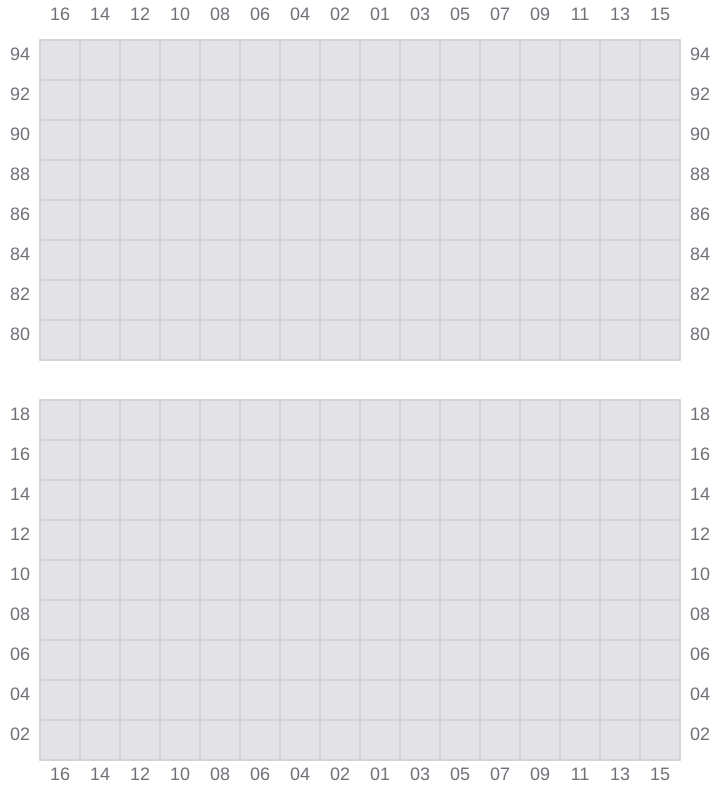

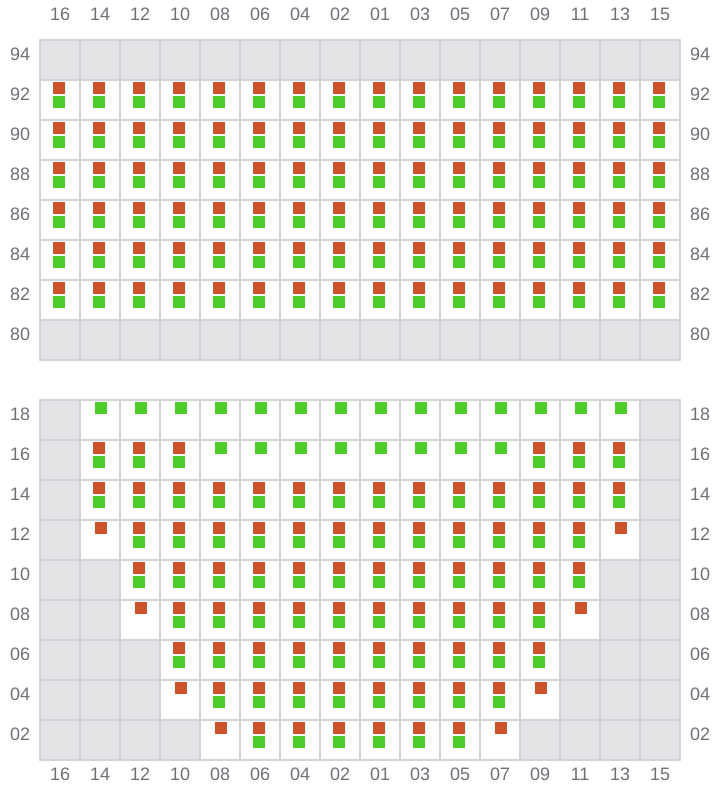

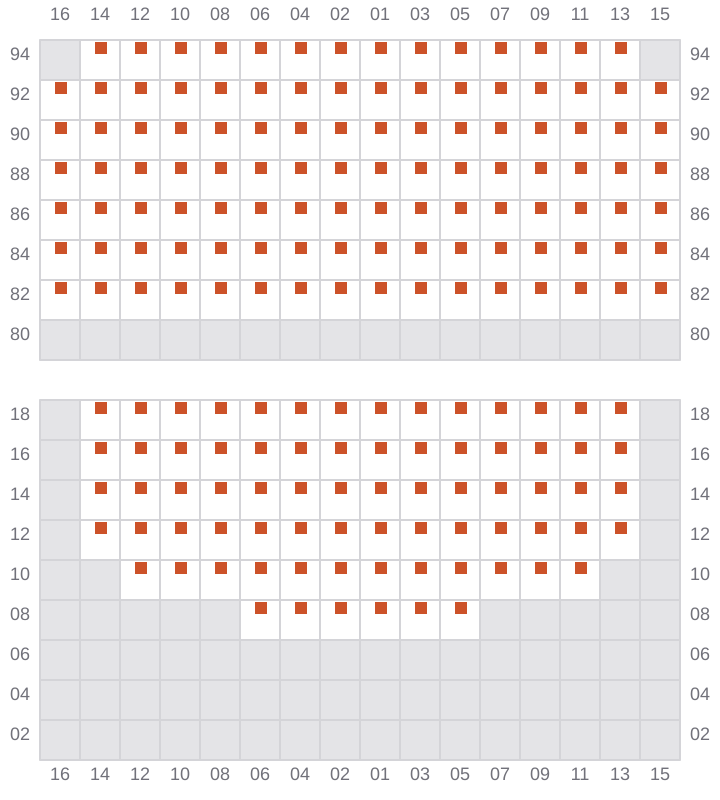

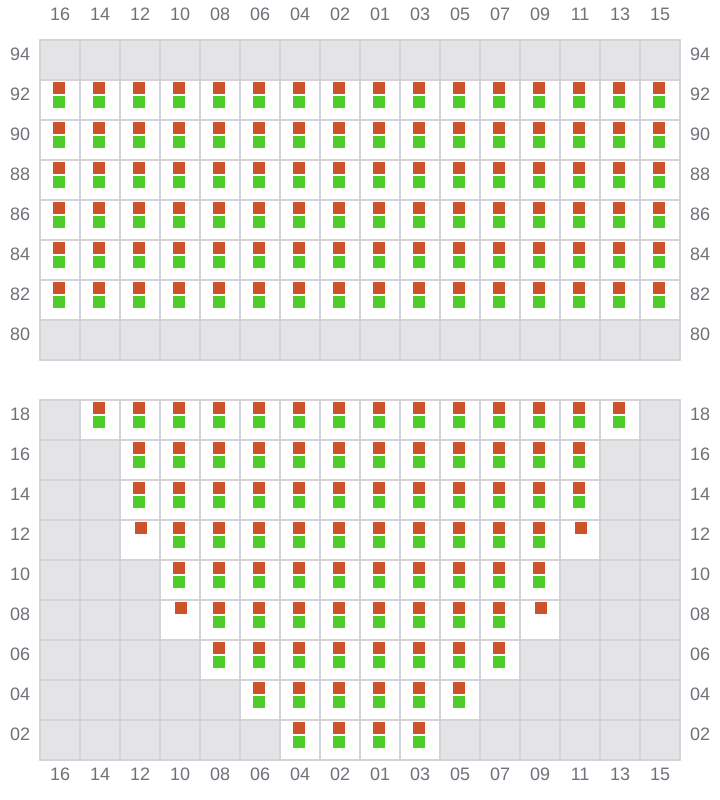

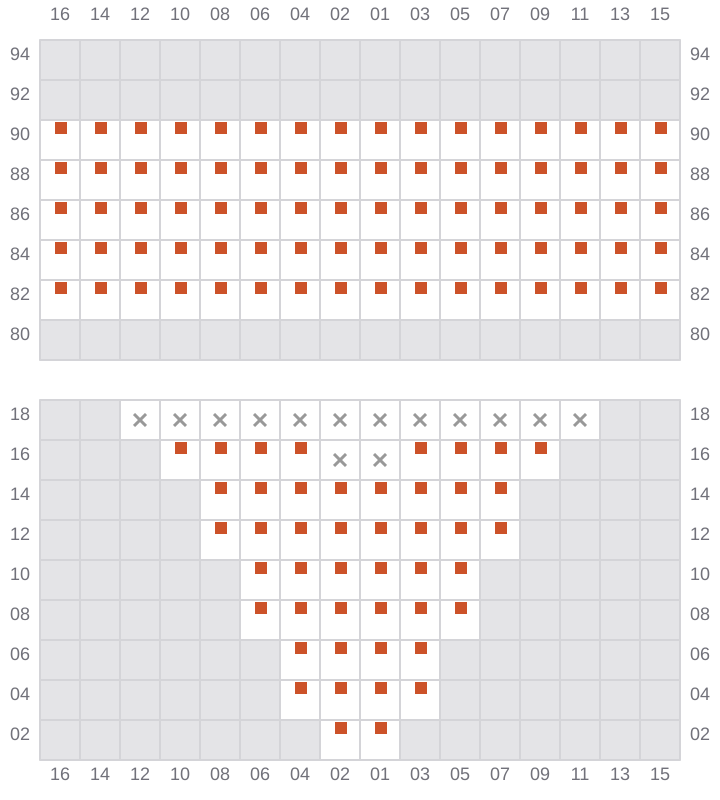

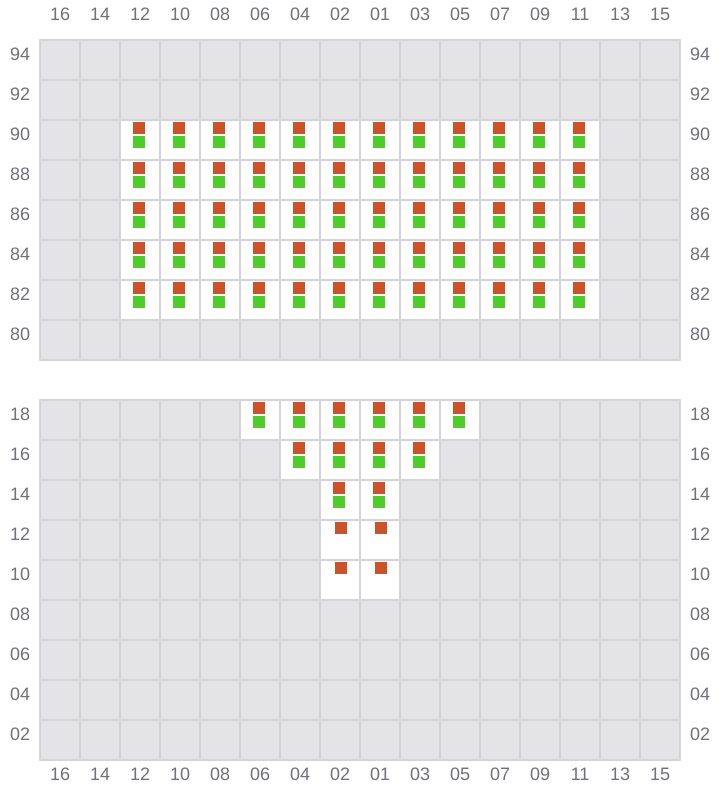

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←

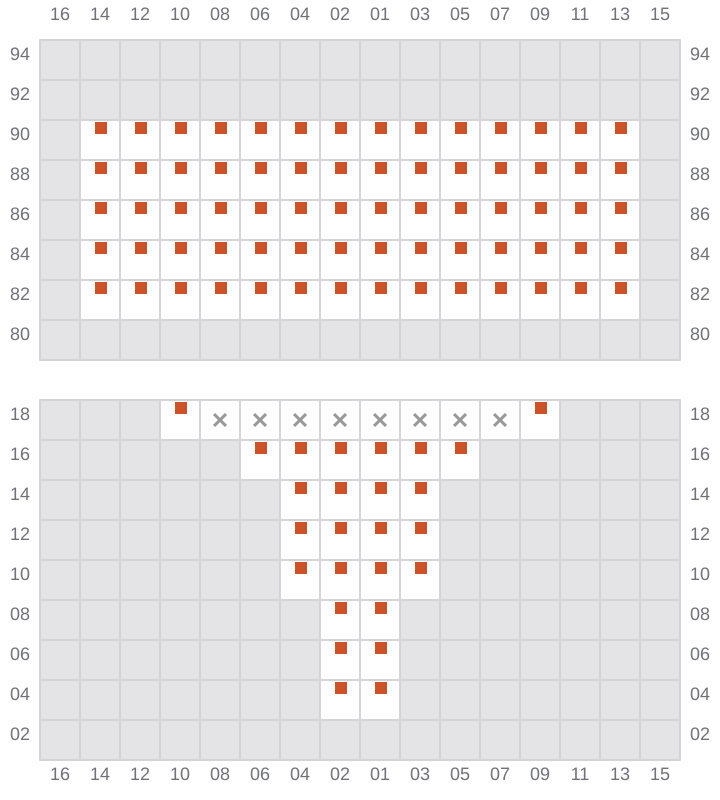

005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←

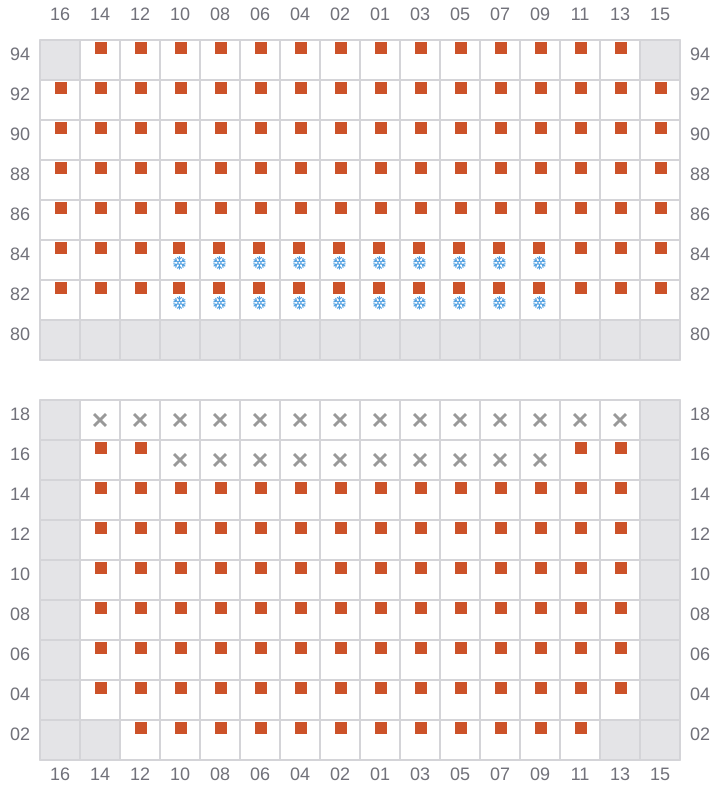

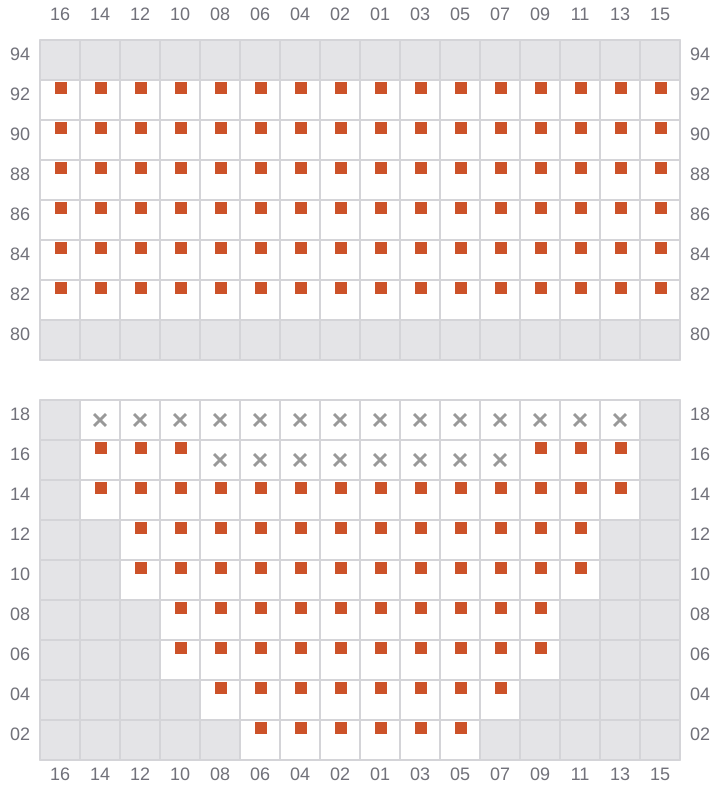

017
- →
019 (018)
- ←
021
- →

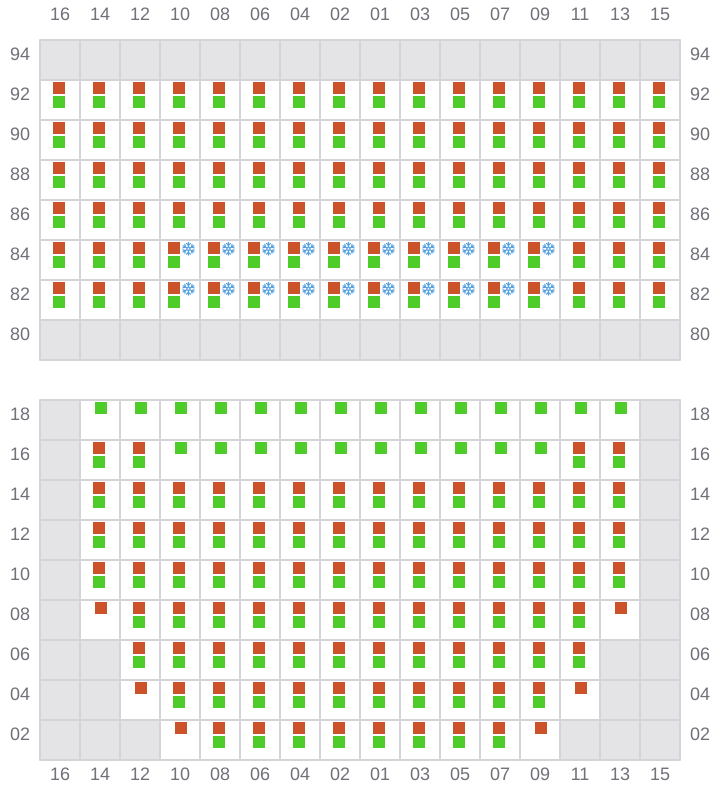

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←

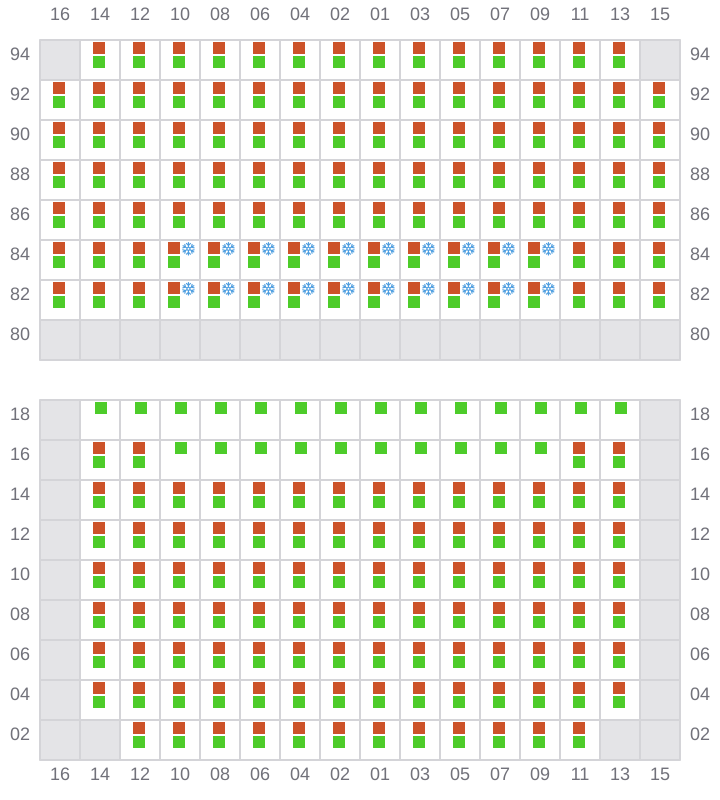

033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←

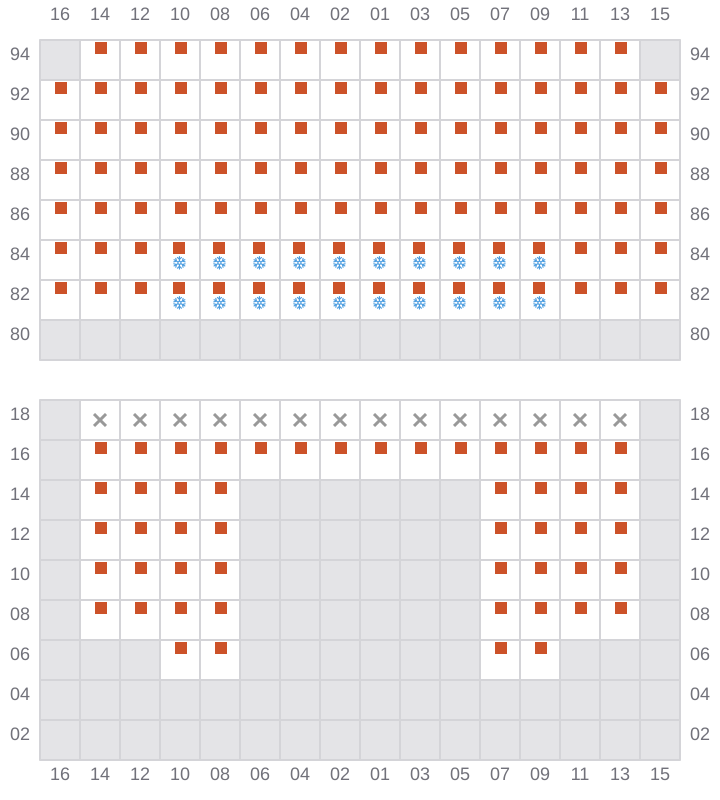

053
- →
055 (054)
- ←
057
- →
059 (058)
- ←
061
- →
063 (062)
- ←

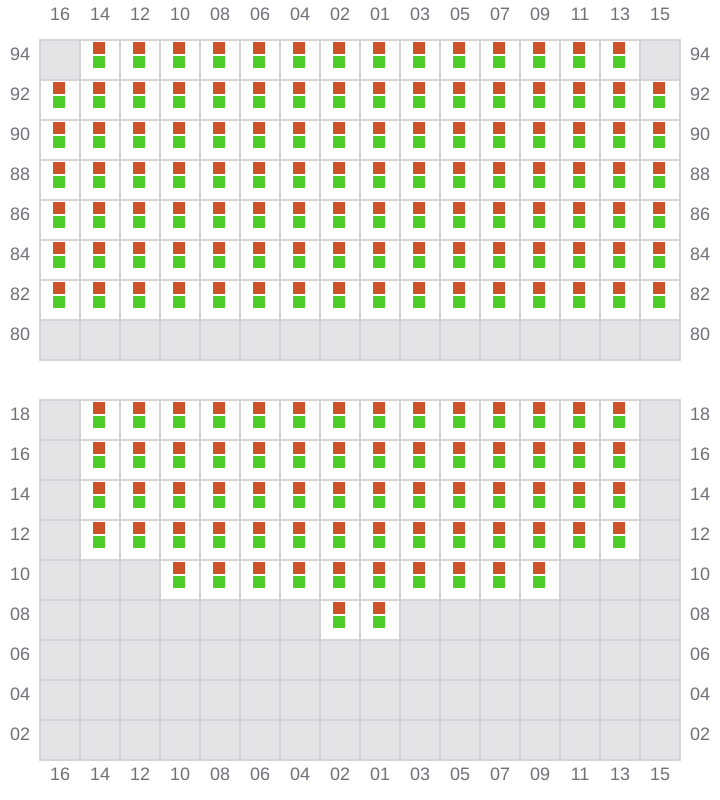

065
- →
067 (066)
- ←
069

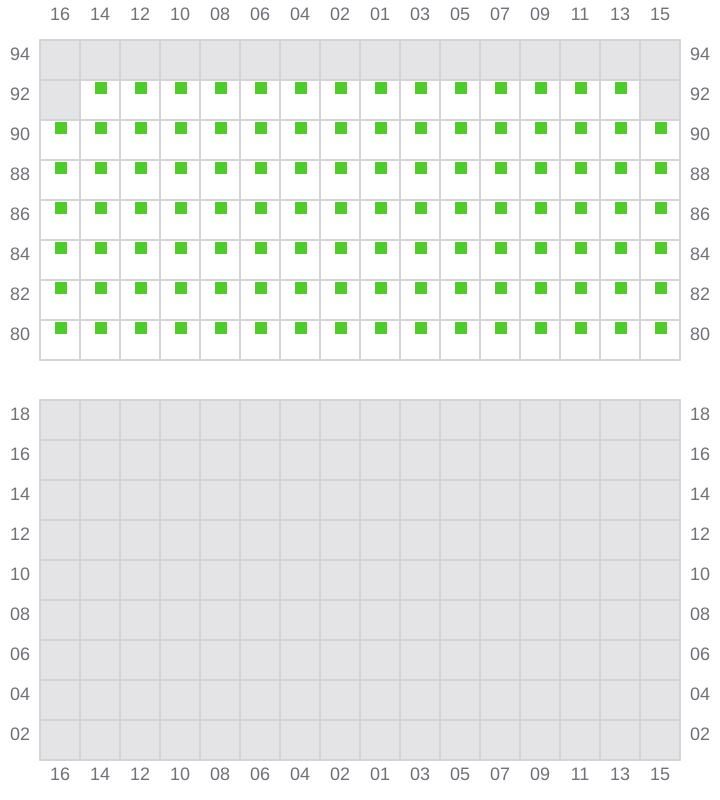

071 (070)
- ← / ?
