MSC WEST V
9409041 | 5BQU6 | MSC SHIPMANAGEMENT LTD by ************************** Last update: Wed Jan 14 2026

General Info

Ship Name:MSC WEST V
IMO Code:9409041
Call Sign:5BQU6
Line Operator:MSC SHIPMANAGEMENT LTD
Class Name for Sister Ships:MVW
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):246.00
LOA (Length Overall):261.49
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,228

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

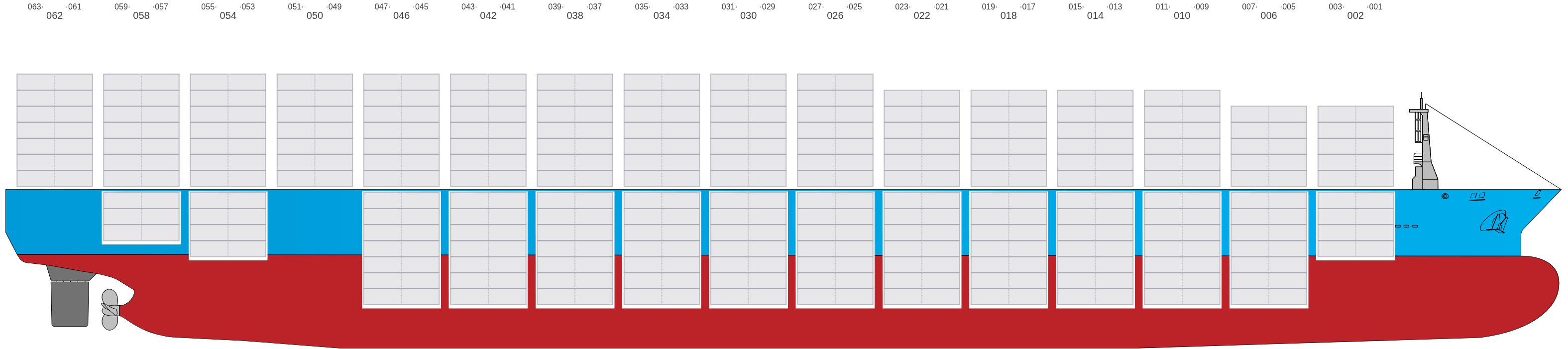

Side view of MSC WEST V

Hatch-Covers View

Deck view of MSC WEST V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

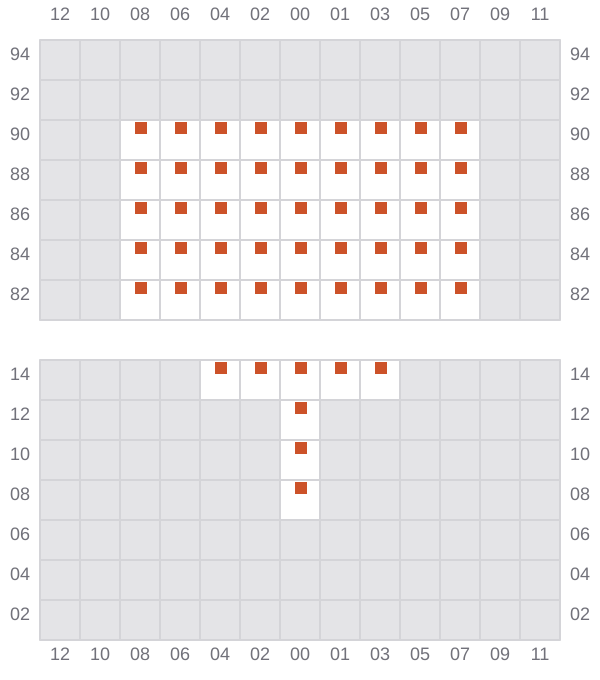

Bay 001 view and slots of MSC WEST V

003 (002)

  • ←
  • ✓

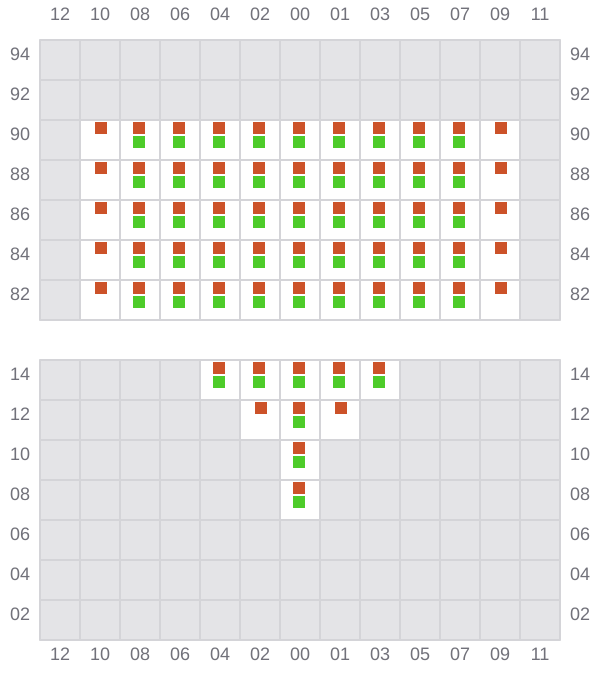

Bay 003 view and slots of MSC WEST V

005

  • →
  • ✓

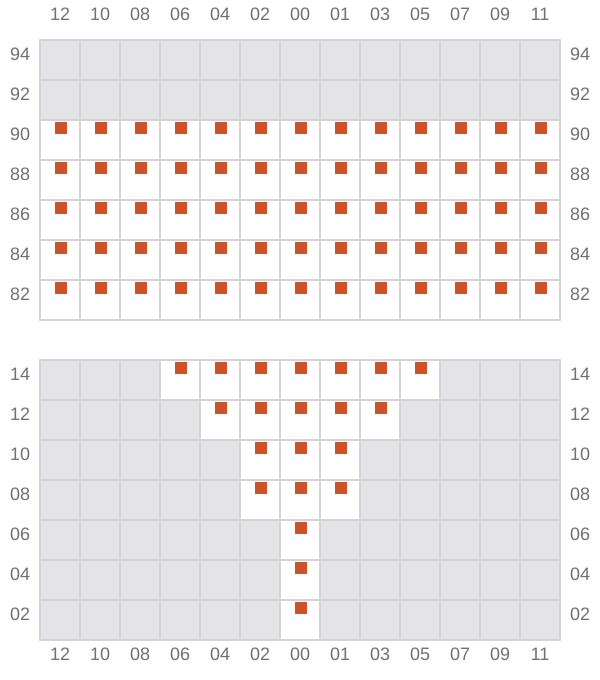

Bay 005 view and slots of MSC WEST V

007 (006)

  • ←
  • ✓
Bay 007 view and slots of MSC WEST V

009

  • →
  • ✓

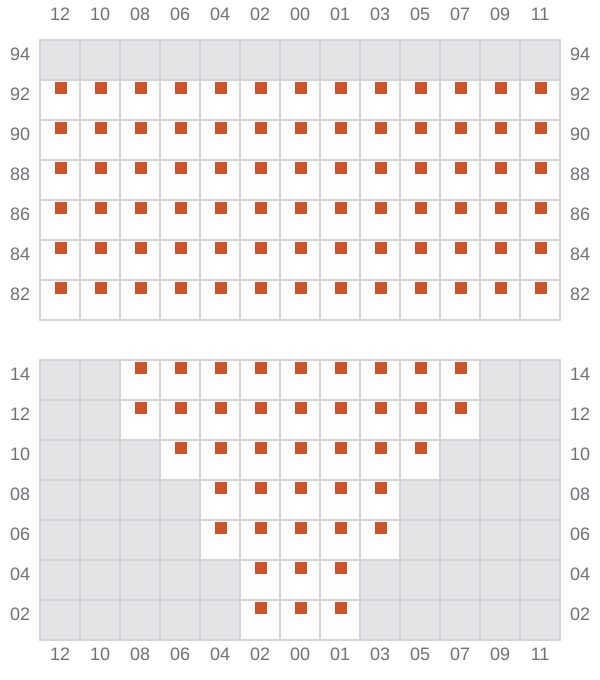

Bay 009 view and slots of MSC WEST V

011 (010)

  • ←
  • ✓

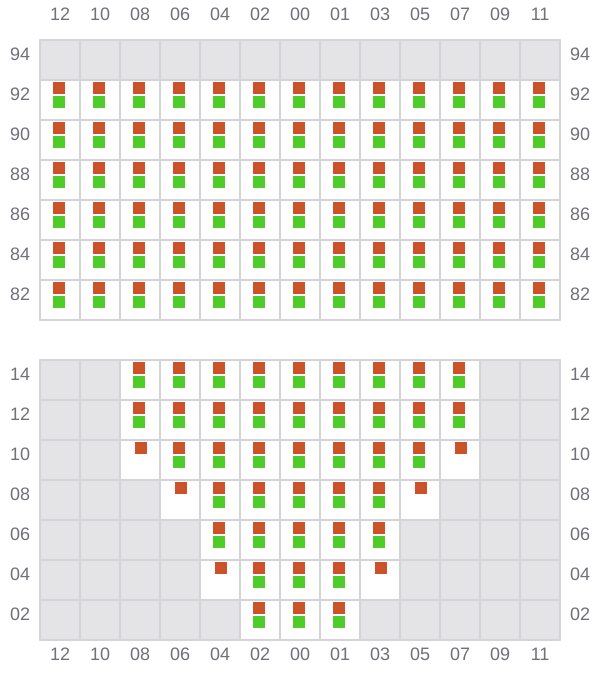

Bay 011 view and slots of MSC WEST V

013

  • →
  • ✓
Bay 013 view and slots of MSC WEST V

015 (014)

  • ←
  • ✓
Bay 015 view and slots of MSC WEST V

017

  • →
  • ✓

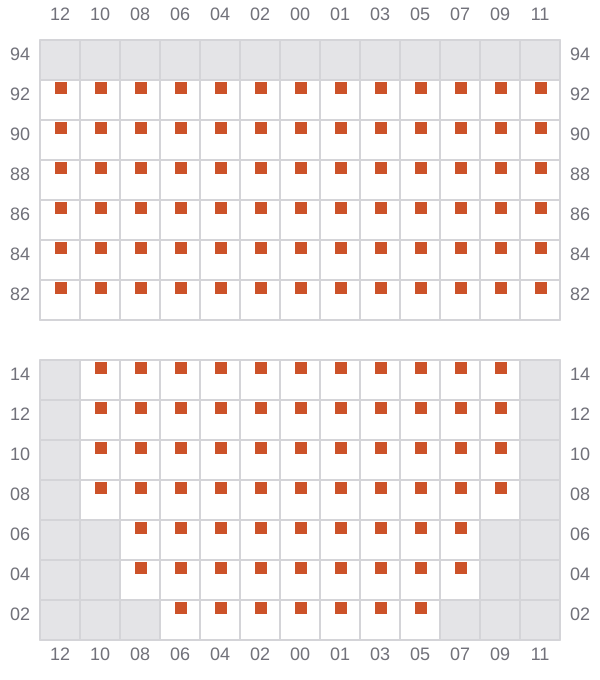

Bay 017 view and slots of MSC WEST V

019 (018)

  • ←
  • ✓
Bay 019 view and slots of MSC WEST V

021

  • →
  • ✓

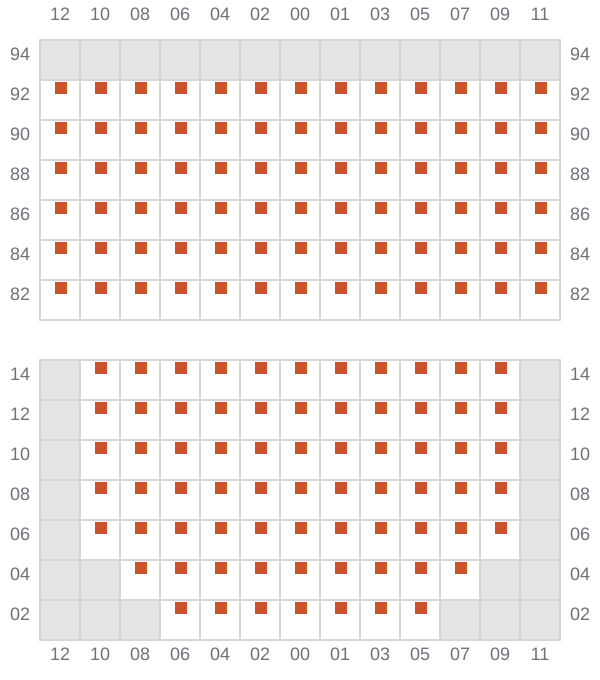

Bay 021 view and slots of MSC WEST V

023 (022)

  • ←
  • ✓

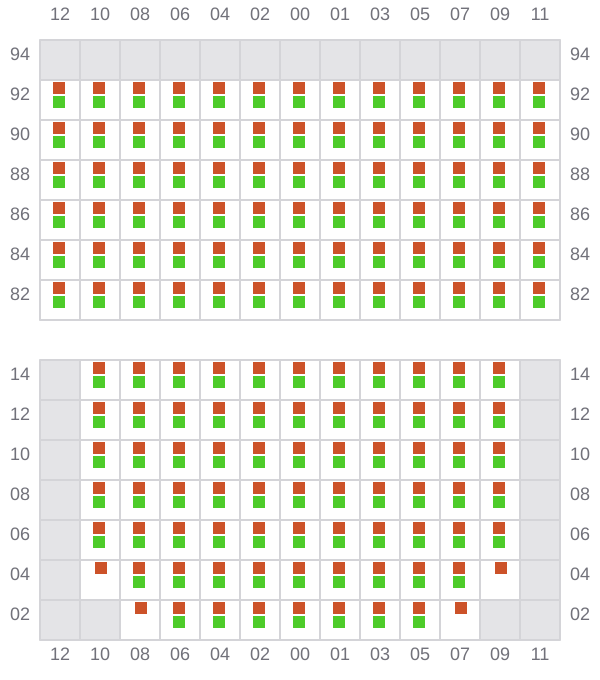

Bay 023 view and slots of MSC WEST V

025

  • →
  • ✓
Bay 025 view and slots of MSC WEST V

027 (026)

  • ←
  • ✓
Bay 027 view and slots of MSC WEST V

029

  • →
  • ✓

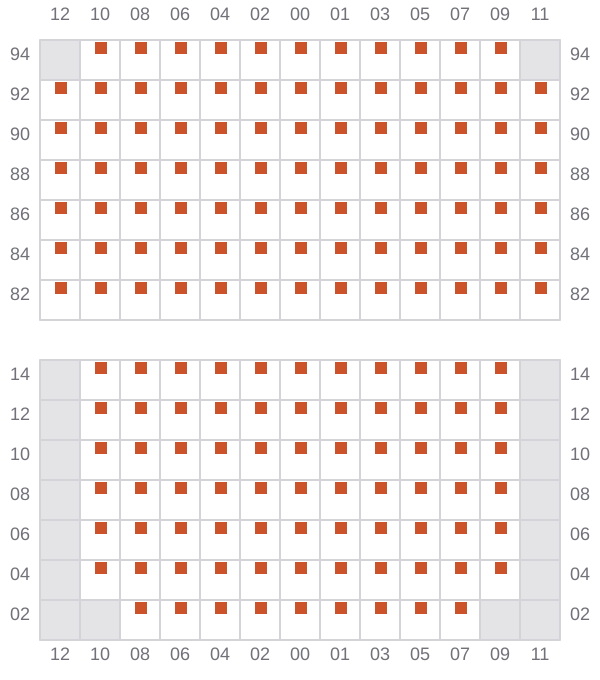

Bay 029 view and slots of MSC WEST V

031 (030)

  • ←
  • ✓
Bay 031 view and slots of MSC WEST V

033

  • →
  • ✓
Bay 033 view and slots of MSC WEST V

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC WEST V

037

  • →
  • ✓
Bay 037 view and slots of MSC WEST V

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC WEST V

041

  • →
  • ✓
Bay 041 view and slots of MSC WEST V

043 (042)

  • ←
  • ✓

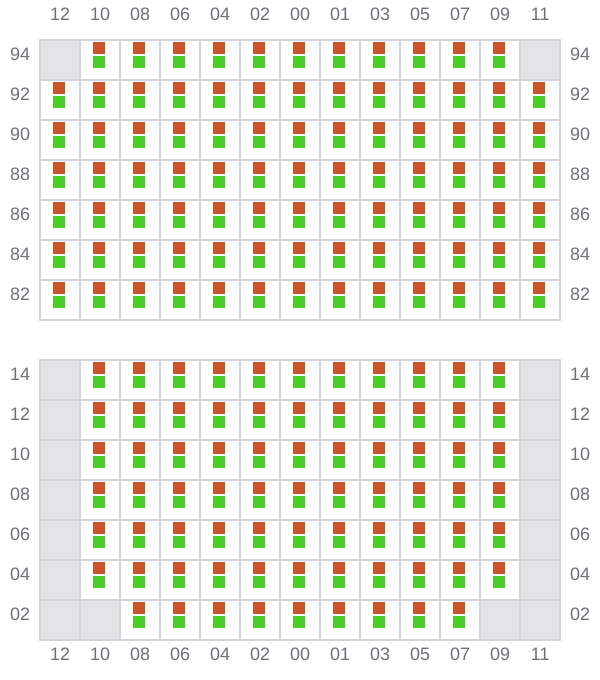

Bay 043 view and slots of MSC WEST V

045

  • →
  • ? / ?
  • ? / ?
  • ✓

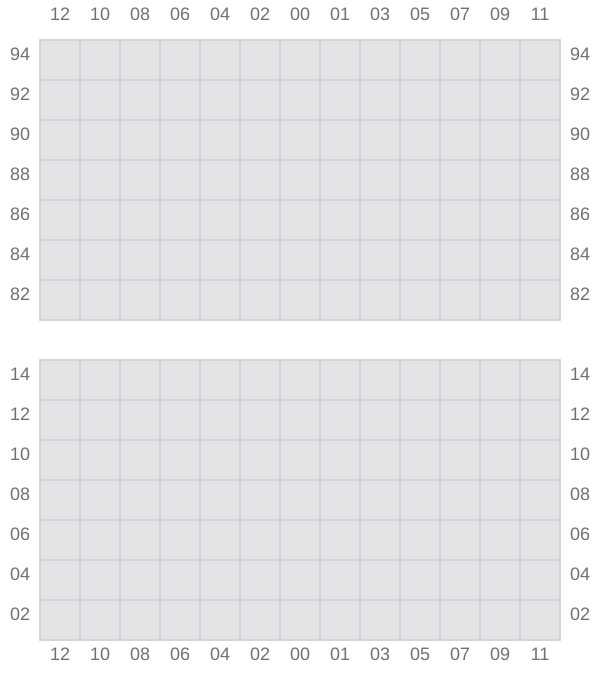

Bay 045 view and slots of MSC WEST V

047 (046)

  • ←
  • ✓
Bay 047 view and slots of MSC WEST V

049

  • →
  • ✓
Bay 049 view and slots of MSC WEST V

051 (050)

  • ←
  • ? / ?
  • ? / ?
  • ✓

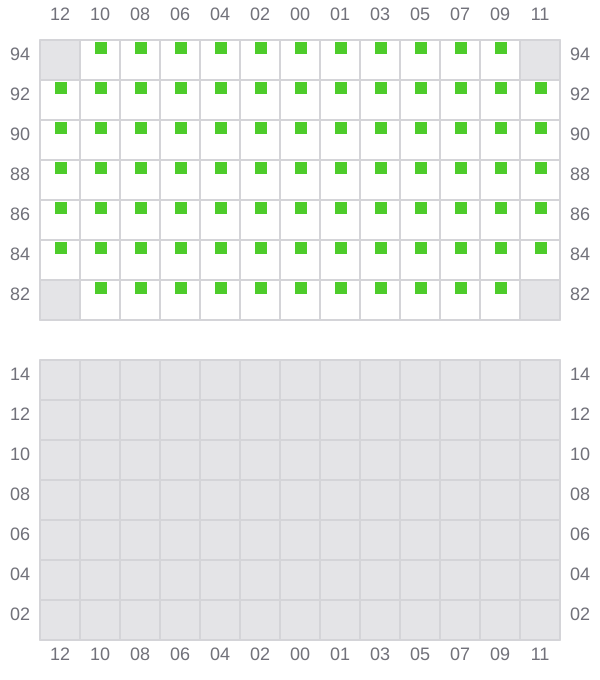

Bay 051 view and slots of MSC WEST V

053

  • →
  • ✓

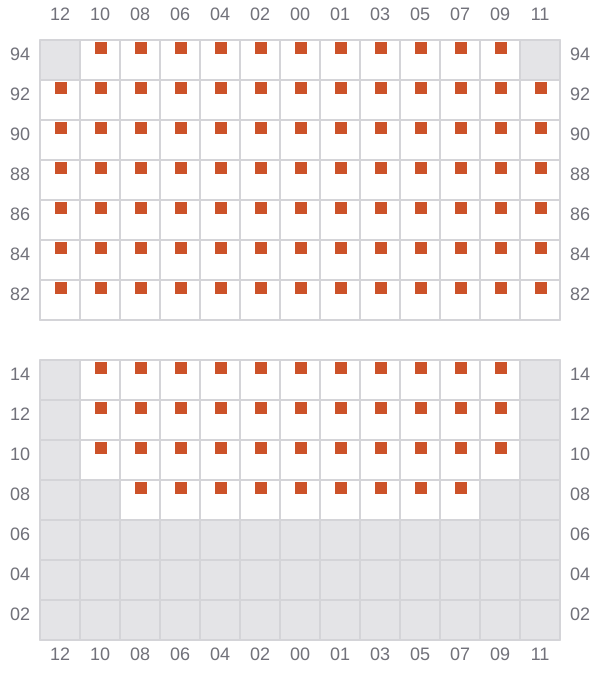

Bay 053 view and slots of MSC WEST V

055 (054)

  • ←
  • ✓
Bay 055 view and slots of MSC WEST V

057

  • →
  • ✓
Bay 057 view and slots of MSC WEST V

059 (058)

  • ←
  • ✓

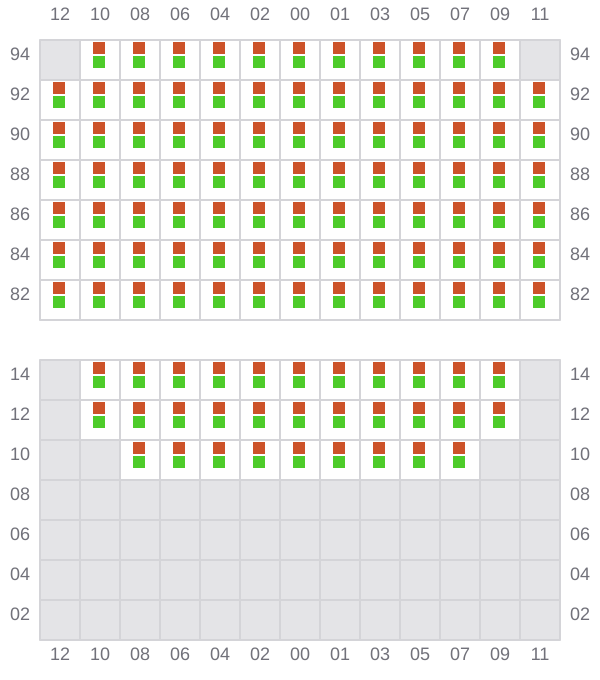

Bay 059 view and slots of MSC WEST V

061

  • →
  • ✓
Bay 061 view and slots of MSC WEST V

063 (062)

  • ←
  • ? / ?
  • ? / ?
  • ✓

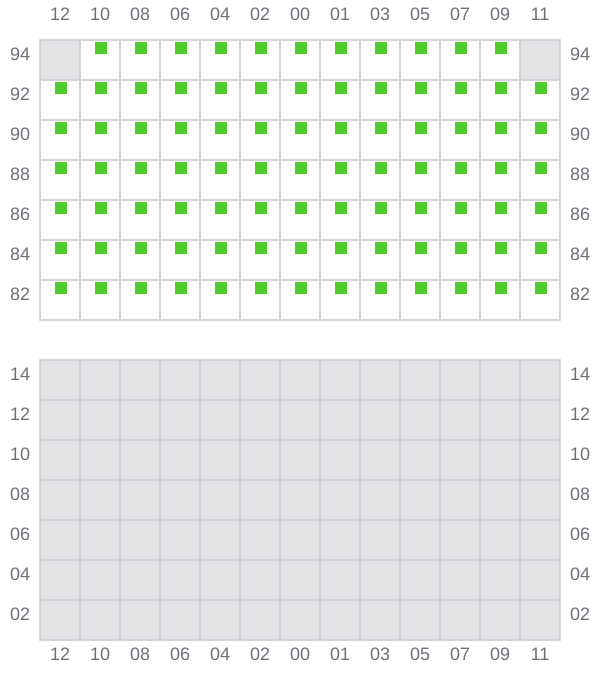

Bay 063 view and slots of MSC WEST V
