MSC YAMUNA VI
9288409 | CRXT | MAERSK by ********* Last update: Thu Apr 04 2024

General Info

Ship Name:MSC YAMUNA VI
IMO Code:9288409
Call Sign:CRXT
Line Operator:MAERSK
Class Name for Sister Ships:APL
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45, 48
LPP (LBP):262.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,914

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

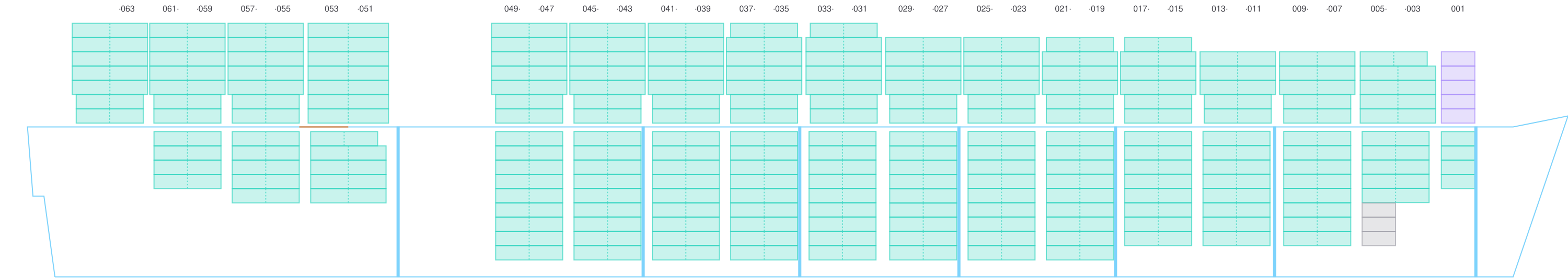

Side View

Side view of MSC YAMUNA VI

Hatch-Covers View

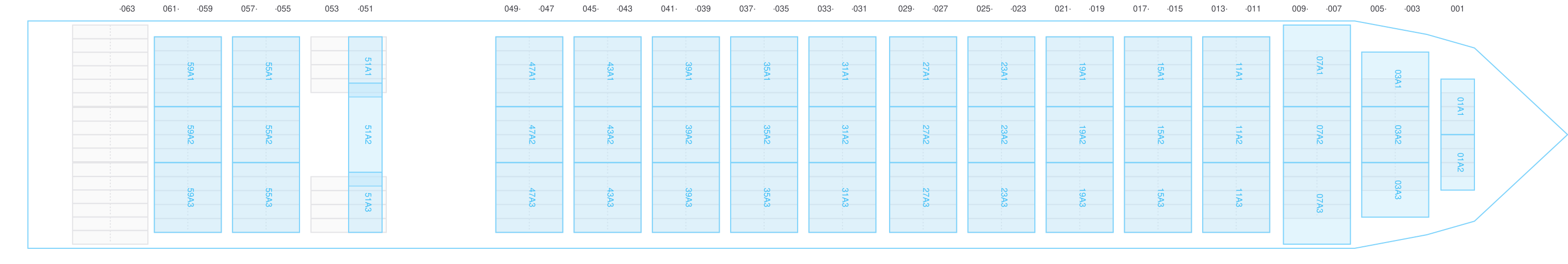

Deck view of MSC YAMUNA VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • 48'
  • Reefer
  • Restricted slot

001

  • ? / →
Bay 001 view and slots of MSC YAMUNA VI

003 (004)

  • →
Bay 003 view and slots of MSC YAMUNA VI

005

  • ←
  • → / ?

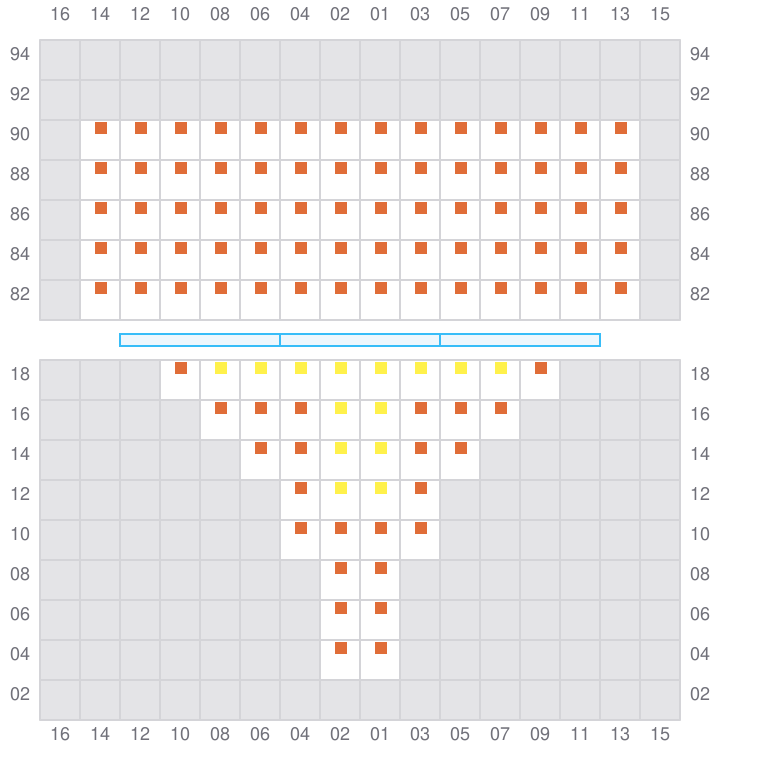

Bay 005 view and slots of MSC YAMUNA VI

007 (008)

  • →
Bay 007 view and slots of MSC YAMUNA VI

009

  • ←
  • → / ?

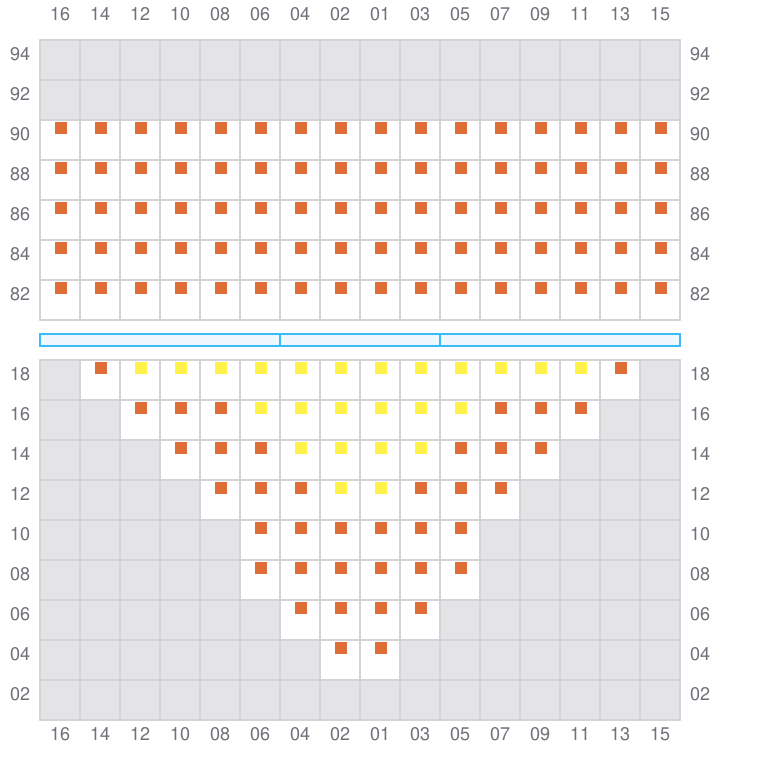

Bay 009 view and slots of MSC YAMUNA VI

011 (012)

  • →
Bay 011 view and slots of MSC YAMUNA VI

013

  • ←
  • → / ?
Bay 013 view and slots of MSC YAMUNA VI

015 (016)

  • →
Bay 015 view and slots of MSC YAMUNA VI

017

  • ←
  • → / ?
Bay 017 view and slots of MSC YAMUNA VI

019 (020)

  • →
Bay 019 view and slots of MSC YAMUNA VI

021

  • ←
  • → / ?
Bay 021 view and slots of MSC YAMUNA VI

023 (024)

  • →
Bay 023 view and slots of MSC YAMUNA VI

025

  • ←
  • → / ?
Bay 025 view and slots of MSC YAMUNA VI

027 (028)

  • →
Bay 027 view and slots of MSC YAMUNA VI

029

  • ←
  • → / ?
Bay 029 view and slots of MSC YAMUNA VI

031 (032)

  • →
Bay 031 view and slots of MSC YAMUNA VI

033

  • ←
  • → / ?

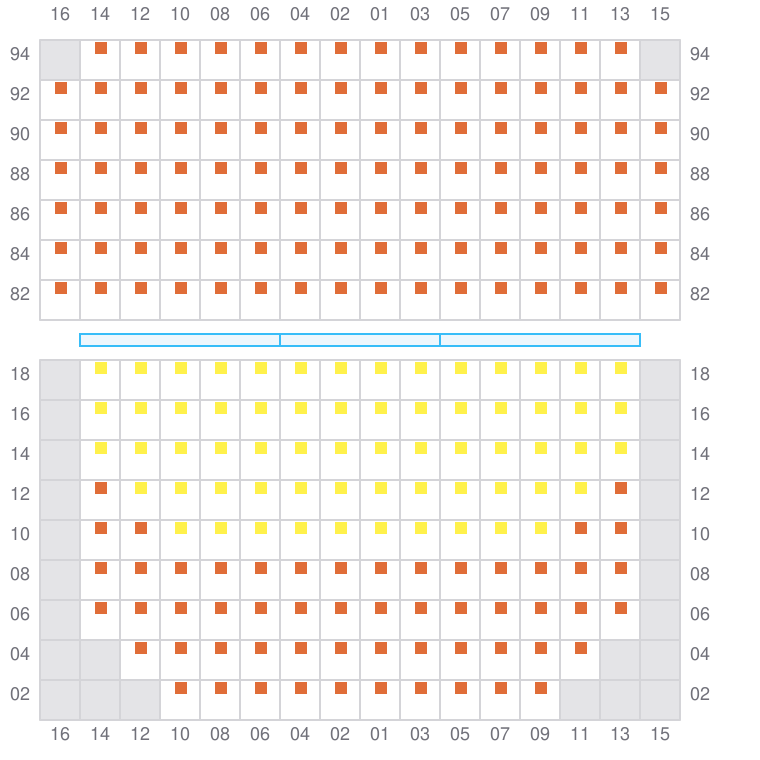

Bay 033 view and slots of MSC YAMUNA VI

035 (036)

  • →
Bay 035 view and slots of MSC YAMUNA VI

037

  • ←
  • → / ?

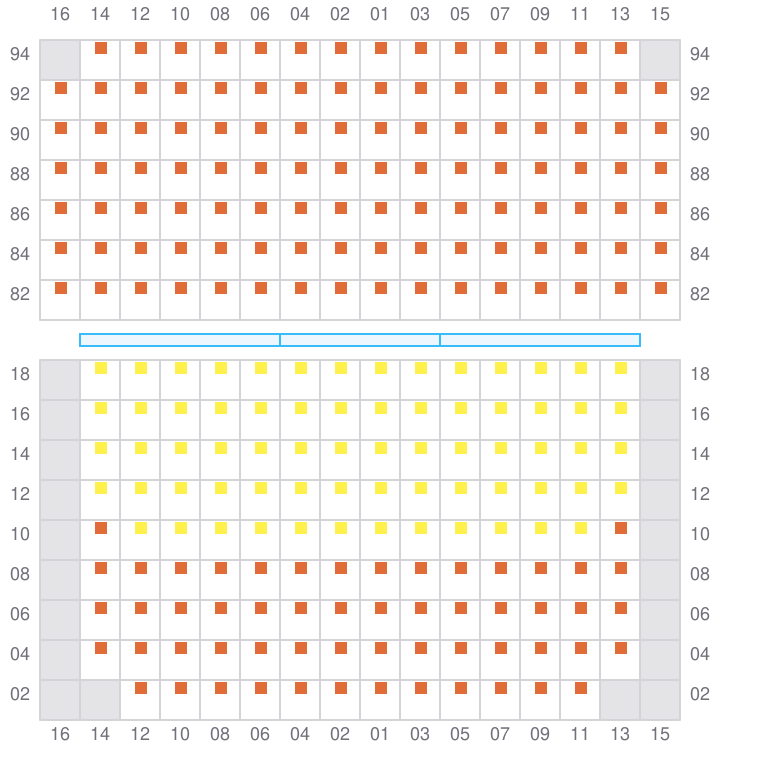

Bay 037 view and slots of MSC YAMUNA VI

039 (040)

  • →
Bay 039 view and slots of MSC YAMUNA VI

041

  • ←
  • → / ?
Bay 041 view and slots of MSC YAMUNA VI

043 (044)

  • →
Bay 043 view and slots of MSC YAMUNA VI

045

  • ←
  • → / ?

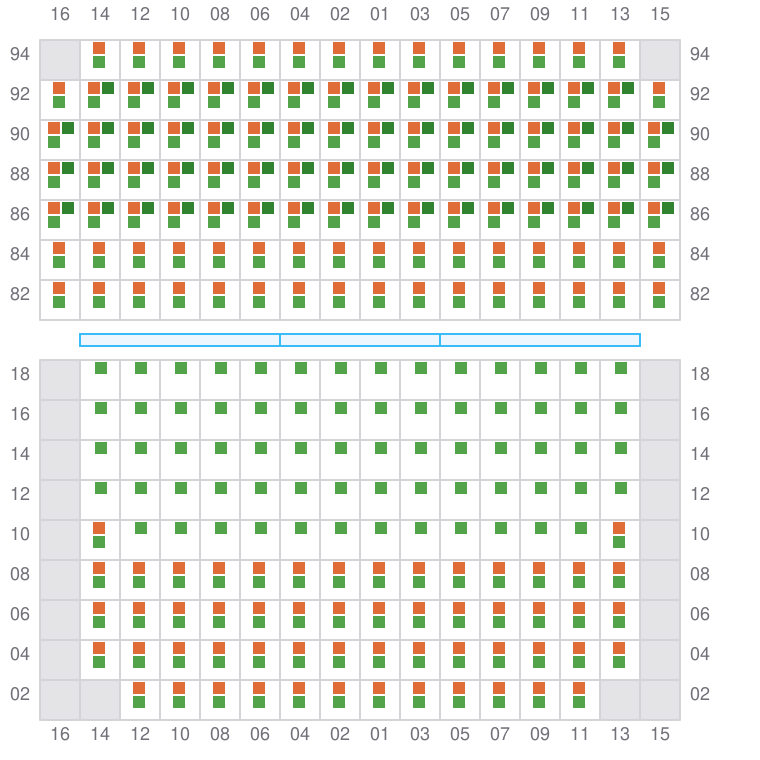

Bay 045 view and slots of MSC YAMUNA VI

047 (048)

  • →
  • ? / →
Bay 047 view and slots of MSC YAMUNA VI

049

  • ←
  • →
Bay 049 view and slots of MSC YAMUNA VI

051 (052)

  • →
  • → / ?

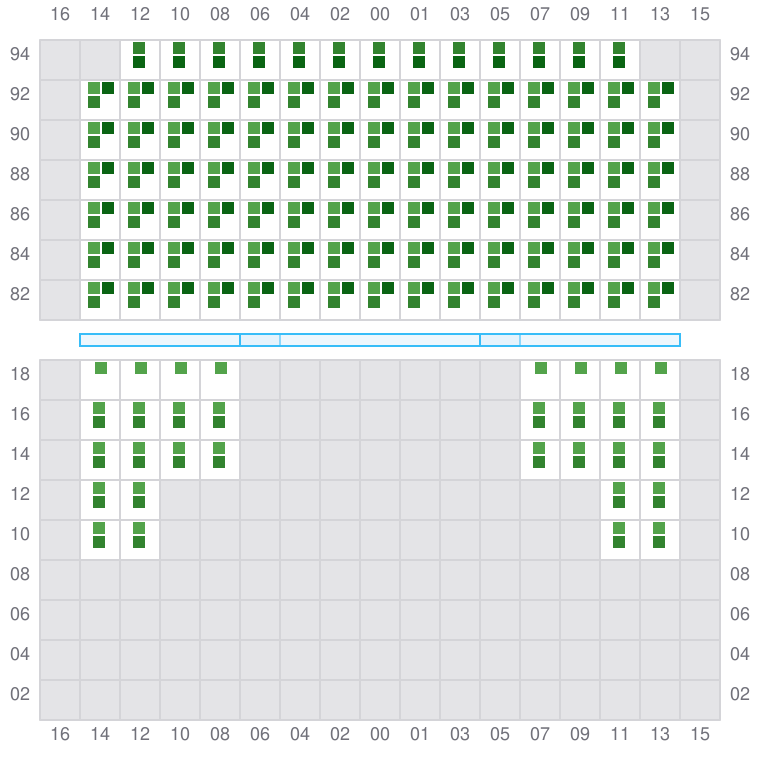

Bay 051 view and slots of MSC YAMUNA VI

053

Bay 053 view and slots of MSC YAMUNA VI

055 (056)

  • →
  • ? / →
Bay 055 view and slots of MSC YAMUNA VI

057

  • ←
  • →

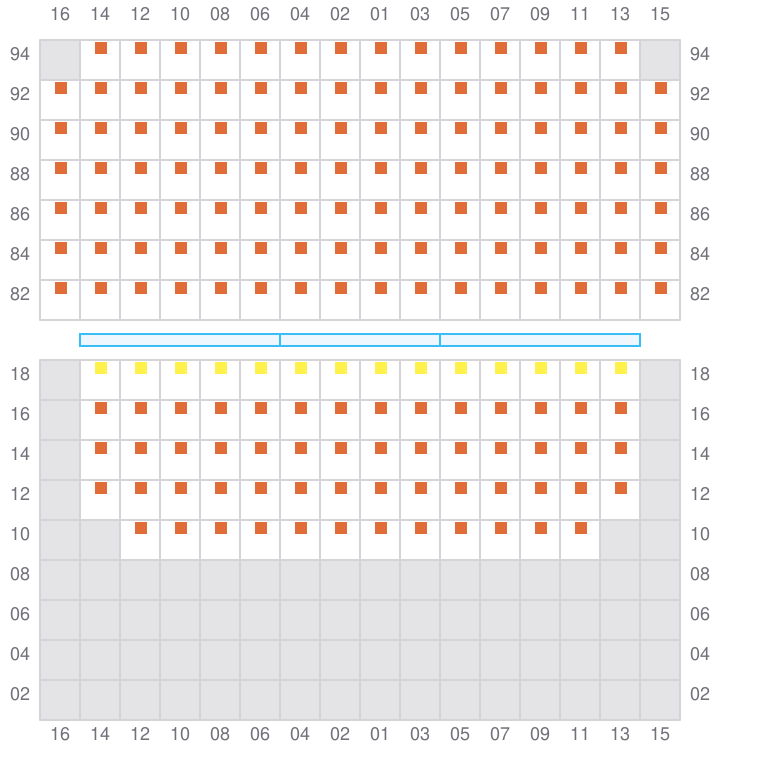

Bay 057 view and slots of MSC YAMUNA VI

059 (060)

  • →
  • ? / →

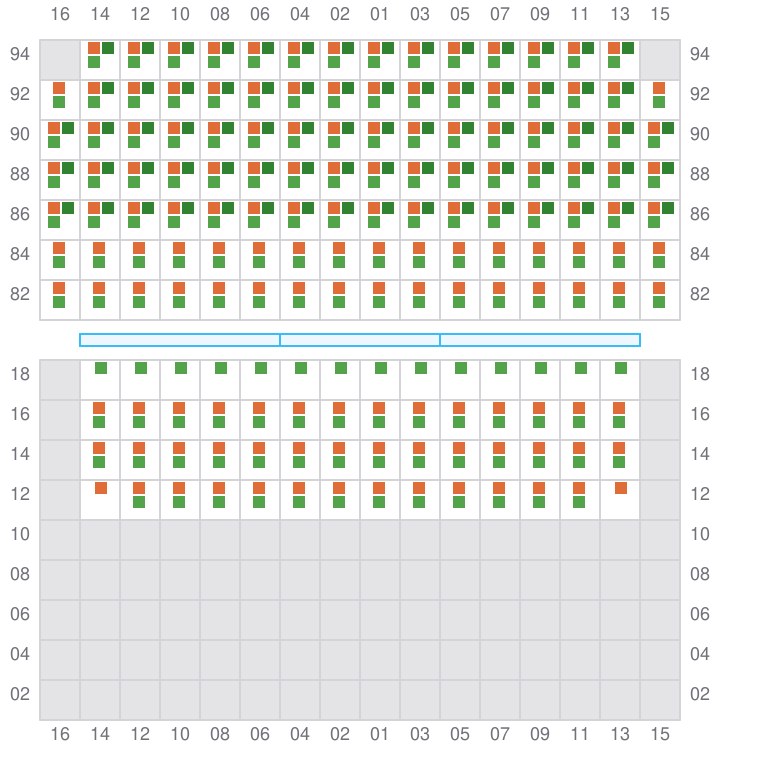

Bay 059 view and slots of MSC YAMUNA VI

061

  • ←
  • →

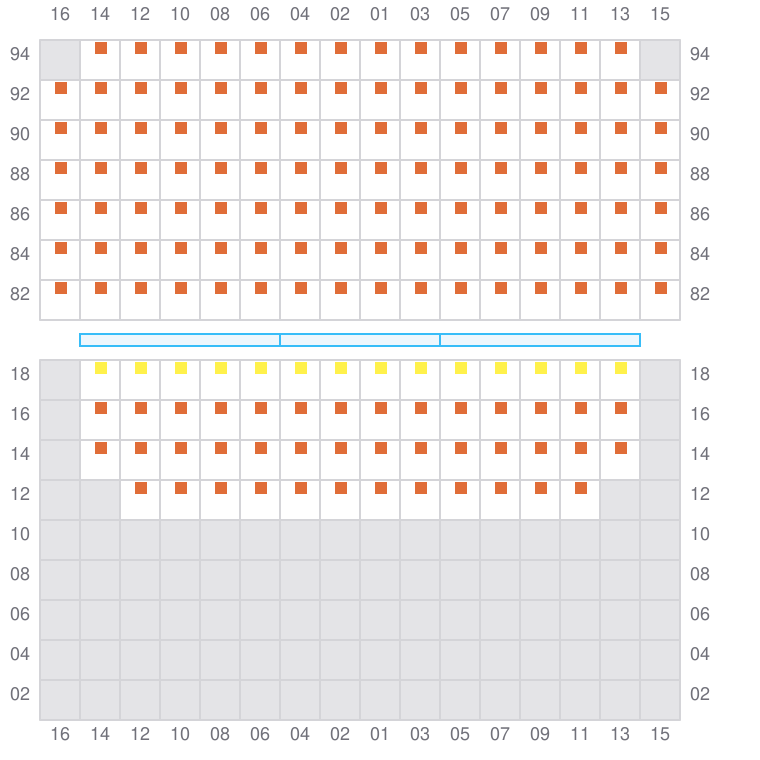

Bay 061 view and slots of MSC YAMUNA VI

063 (064)

  • → / ?
  • ← / ?
Bay 063 view and slots of MSC YAMUNA VI
