MSC YOSHEEN
9322011 | 5BNG2 | CMA by *********************** Last update: Thu Jan 23 2025
General Info
Ship Name:MSC YOSHEEN
IMO Code:9322011
Call Sign:5BNG2
Line Operator:CMA
Class Name for Sister Ships:CNEV
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,721
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

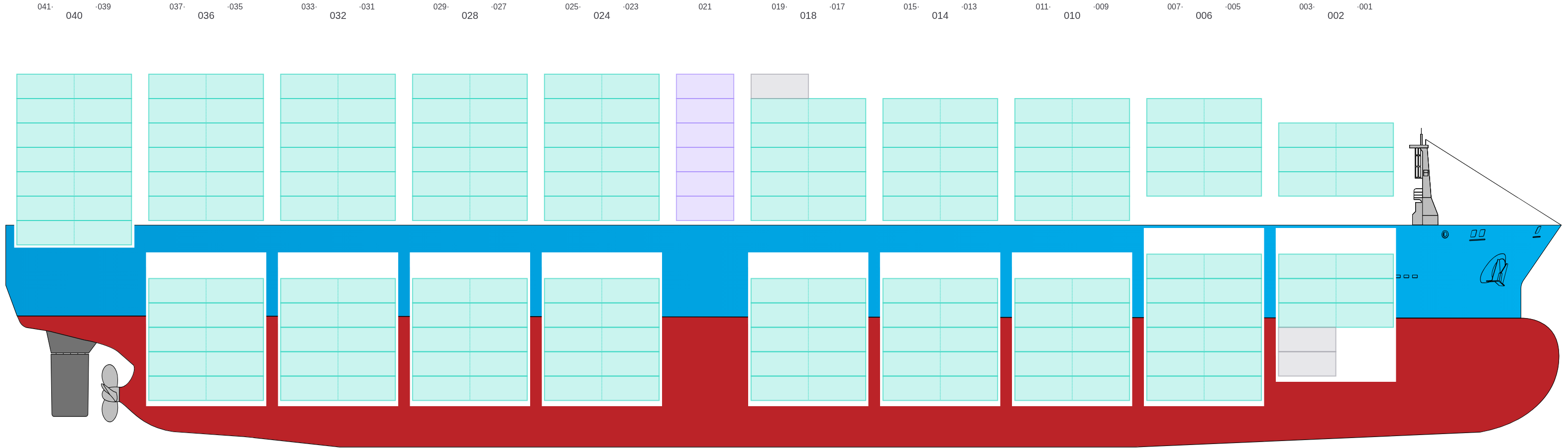

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
003
- ←
- →
005 (006)
- →
- →
007
- ←
- →
009 (010)
- →
- ← / ?
- →
011
- ←
- →
013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →
017 (018)
- →
- → / ?
- →
019
- ←
- → / ?
- →
021
- → / ?
023 (024)
- →
- →
025
- ←
- →
027 (028)
- →
- ← / ?
- →
029
- ←
- →
031 (032)
- →
- →

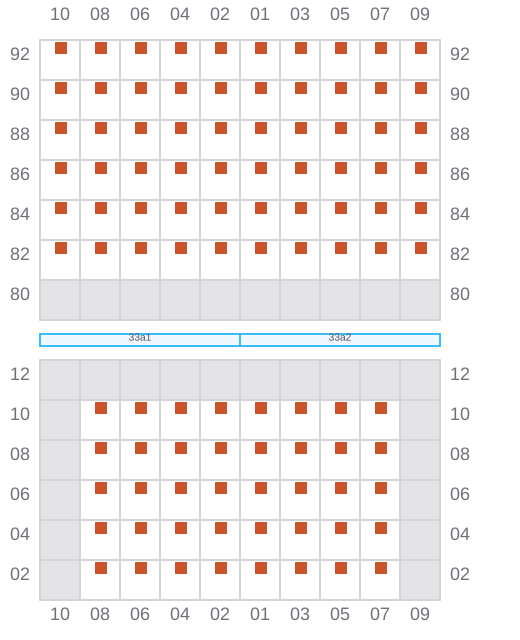

033
- ←
- →

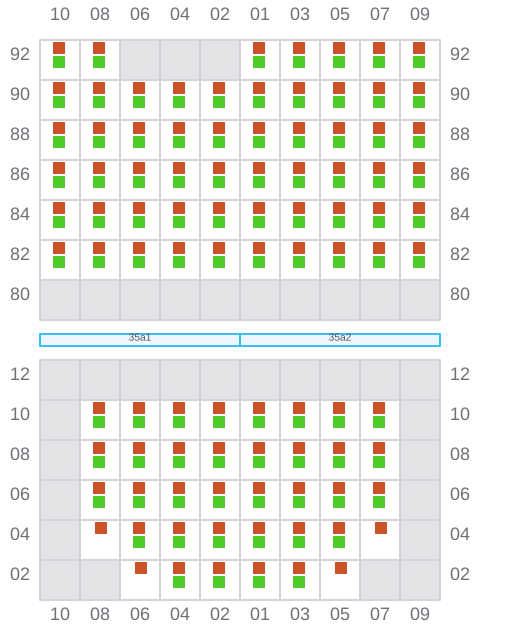

035 (036)
- →
- ← / ?
- →
037
- ←
- →
039 (040)
- → / ?
- → / ?
- → / ?
041
- ← / ?
- → / ?
- → / ?
