MSC YURIDA III
9344564 | 5LBL9 | 9344564 by ********* Last update: Thu Apr 11 2024

General Info

Ship Name:MSC YURIDA III
IMO Code:9344564
Call Sign:5LBL9
Line Operator:9344564
Class Name for Sister Ships:CMA CGM AUCKLAND
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,672

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

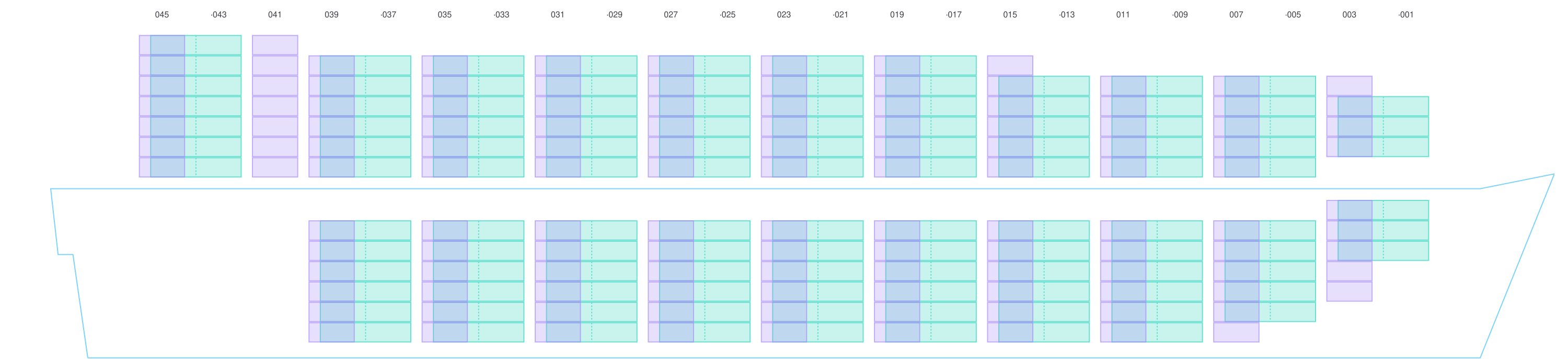

Side View

Side view of MSC YURIDA III

Hatch-Covers View

Deck view of MSC YURIDA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

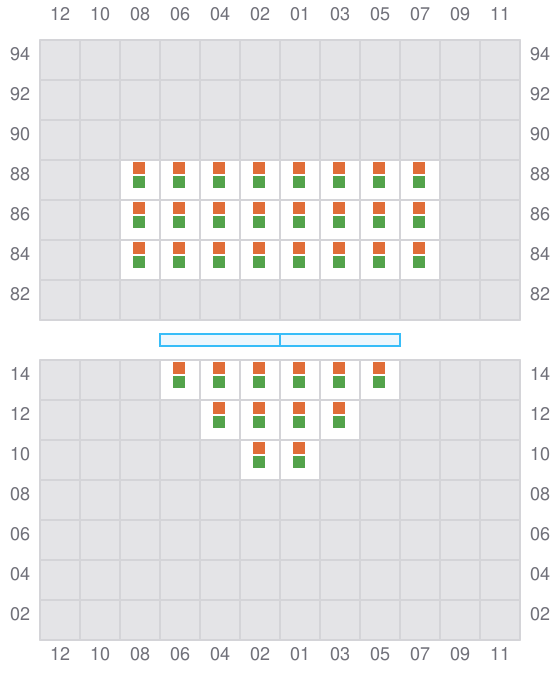

Bay 001 view and slots of MSC YURIDA III

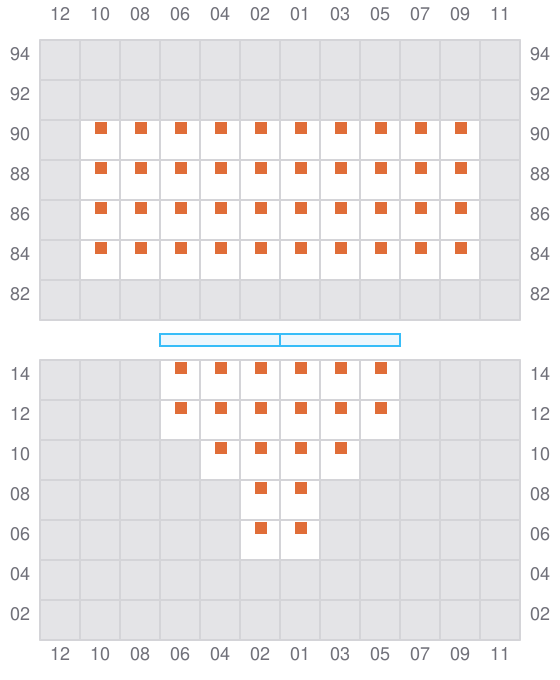

003

Bay 003 view and slots of MSC YURIDA III

005 (006)

  • →

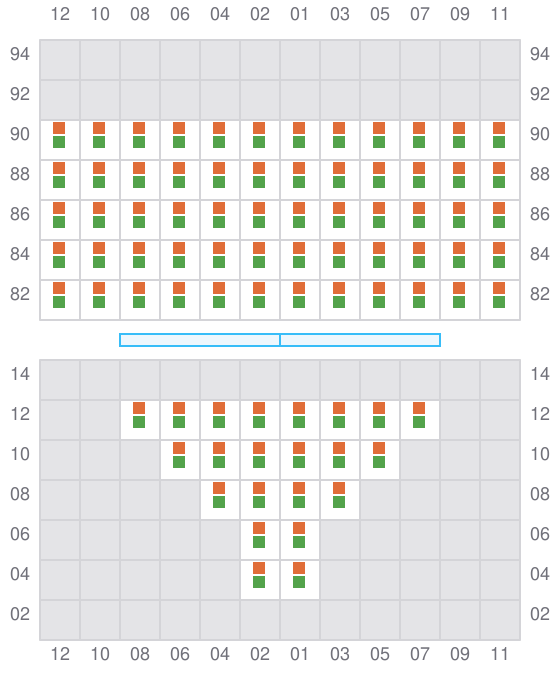

Bay 005 view and slots of MSC YURIDA III

007

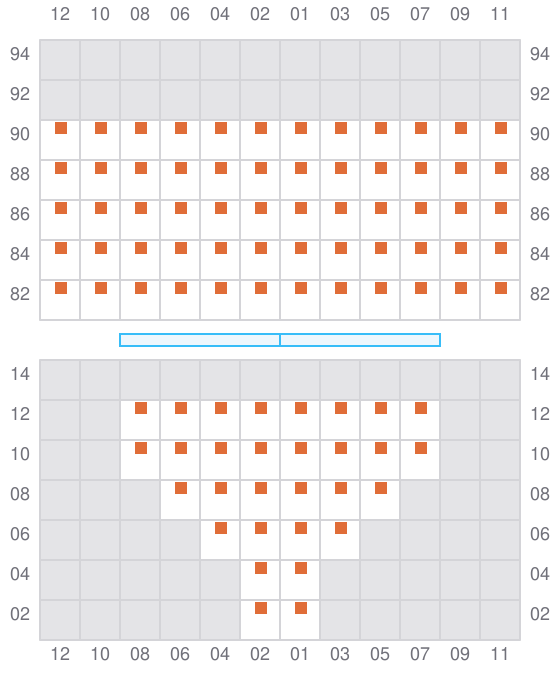

Bay 007 view and slots of MSC YURIDA III

009 (010)

  • →

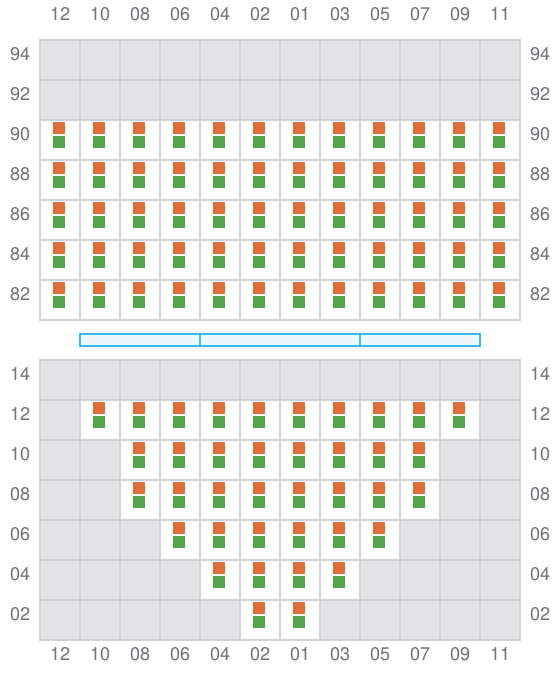

Bay 009 view and slots of MSC YURIDA III

011

Bay 011 view and slots of MSC YURIDA III

013 (014)

  • →
Bay 013 view and slots of MSC YURIDA III

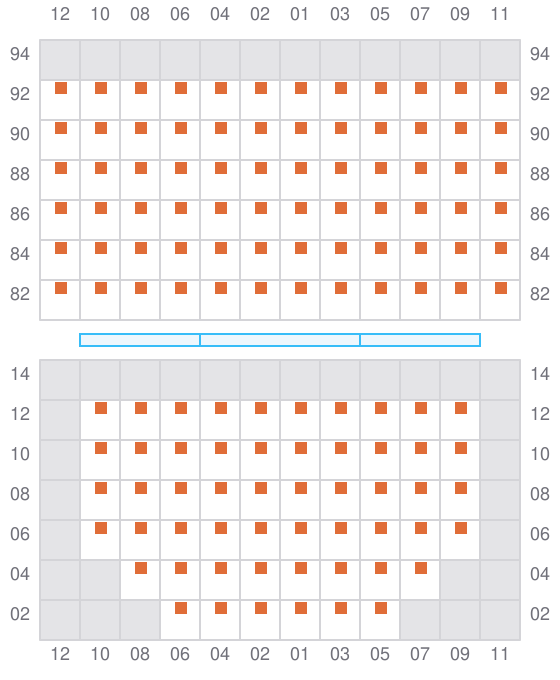

015

Bay 015 view and slots of MSC YURIDA III

017 (018)

  • →
Bay 017 view and slots of MSC YURIDA III

019

Bay 019 view and slots of MSC YURIDA III

021 (022)

  • →
Bay 021 view and slots of MSC YURIDA III

023

Bay 023 view and slots of MSC YURIDA III

025 (026)

  • →
Bay 025 view and slots of MSC YURIDA III

027

Bay 027 view and slots of MSC YURIDA III

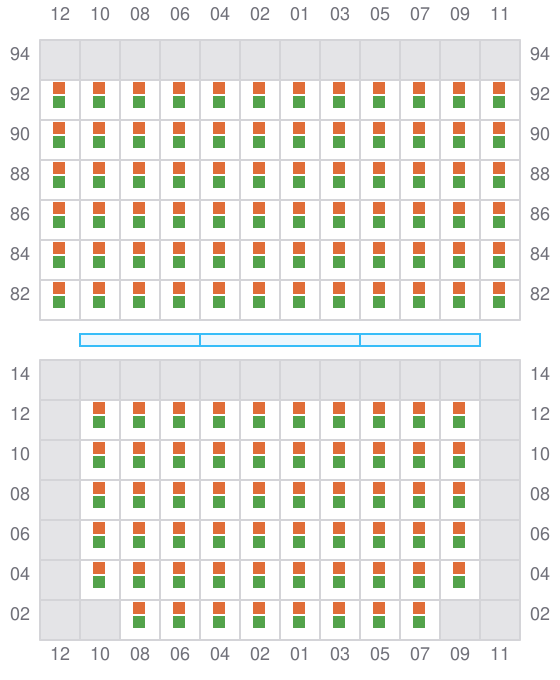

029 (030)

  • →
Bay 029 view and slots of MSC YURIDA III

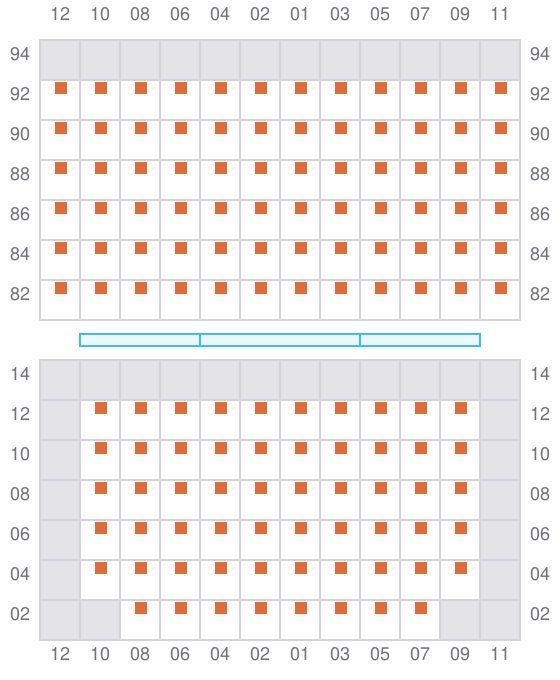

031

Bay 031 view and slots of MSC YURIDA III

033 (034)

  • →
Bay 033 view and slots of MSC YURIDA III

035

Bay 035 view and slots of MSC YURIDA III

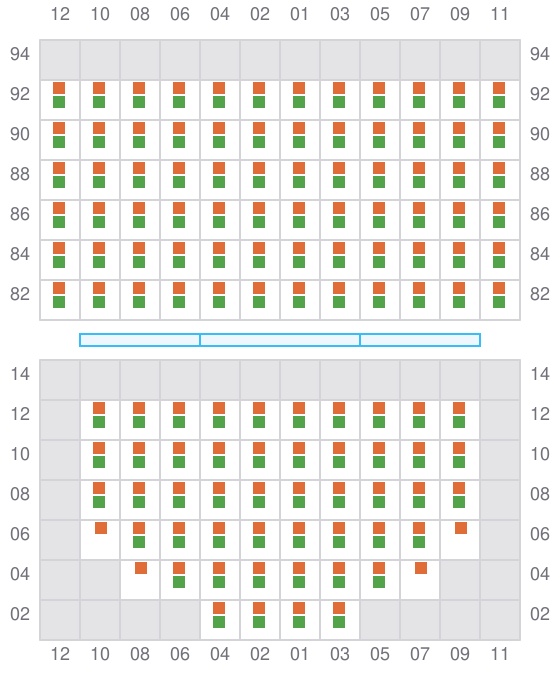

037 (038)

  • →
Bay 037 view and slots of MSC YURIDA III

039

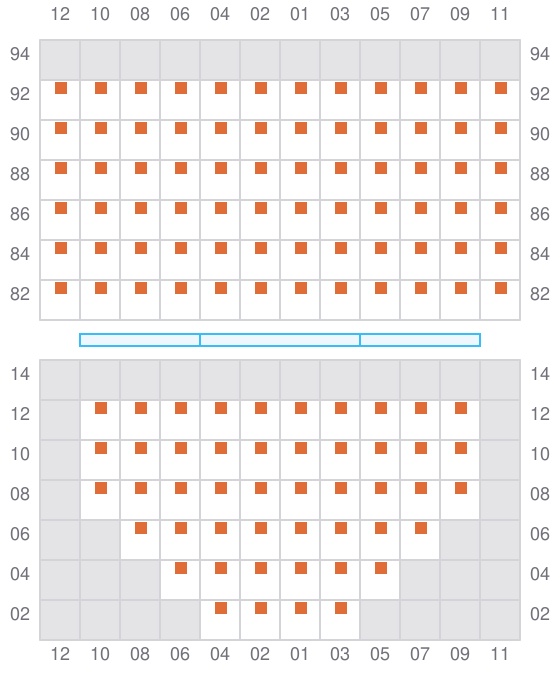

Bay 039 view and slots of MSC YURIDA III

041

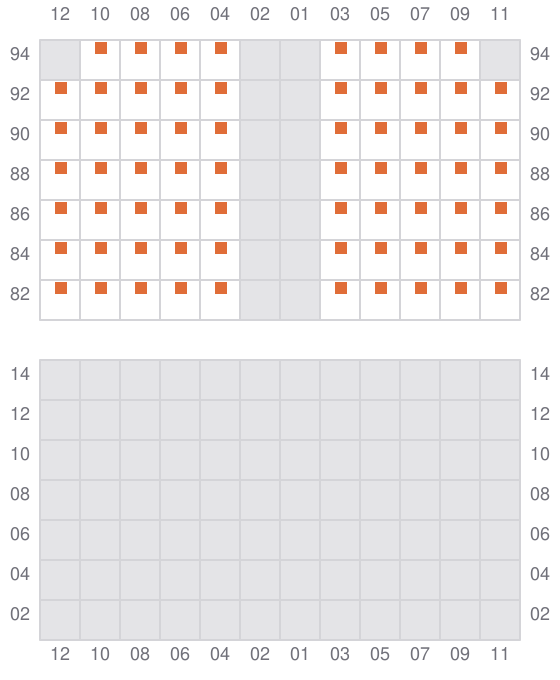

Bay 041 view and slots of MSC YURIDA III

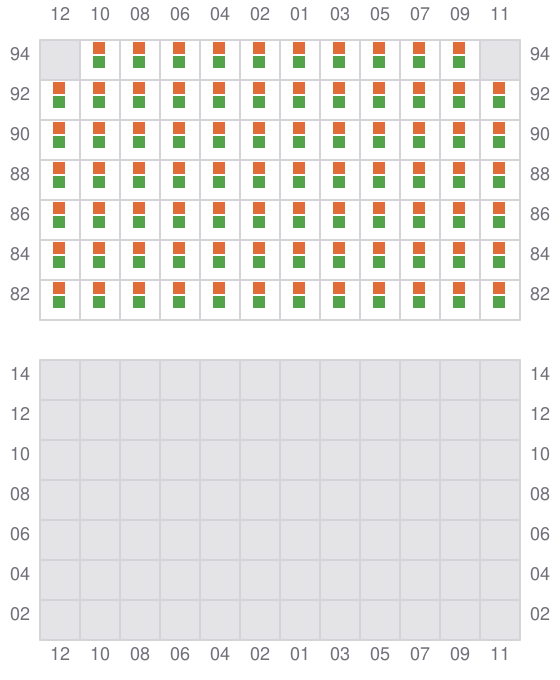

043 (044)

  • → / ?
Bay 043 view and slots of MSC YURIDA III

045

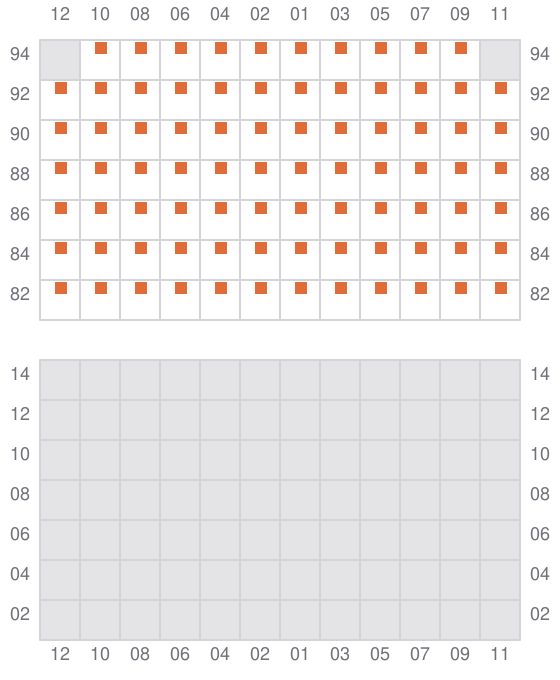

Bay 045 view and slots of MSC YURIDA III
