MSC ZLATA R
9227314 | D5GE5 | 9227314 by ********* Last update: Fri Mar 15 2024

General Info

Ship Name:MSC ZLATA R
IMO Code:9227314
Call Sign:D5GE5
Line Operator:9227314
Class Name for Sister Ships:93D
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:065
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,112

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

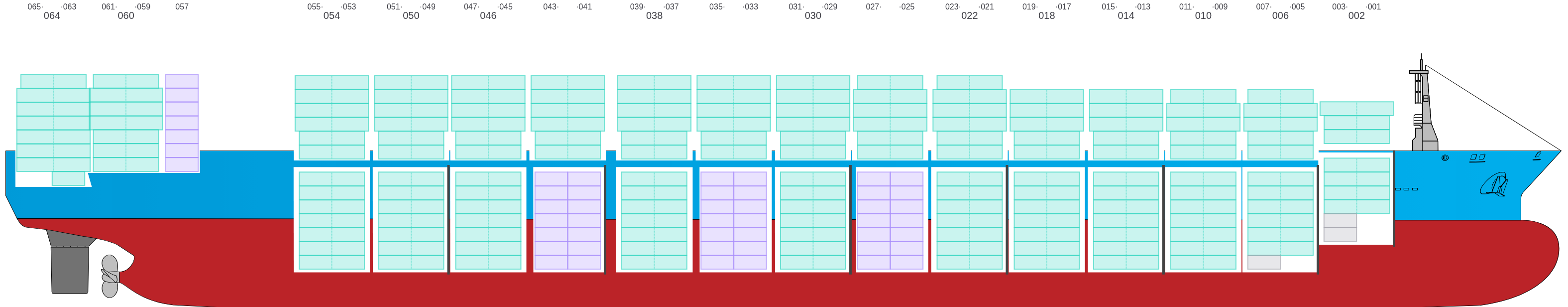

Side view of MSC ZLATA R

Hatch-Covers View

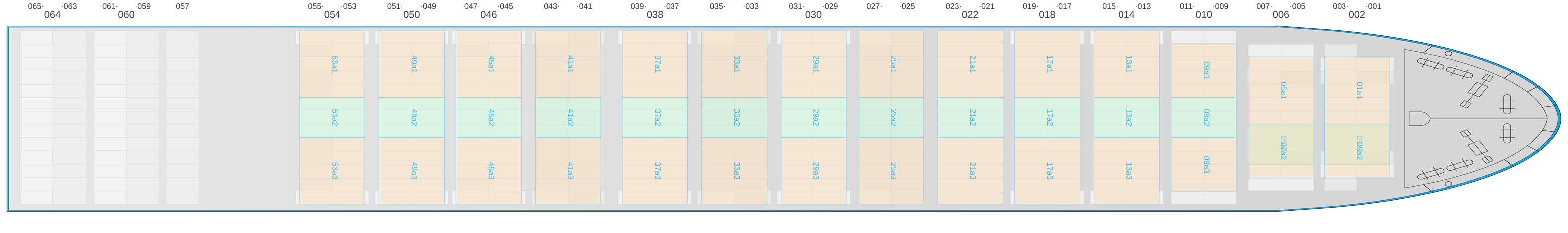

Deck view of MSC ZLATA R

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?

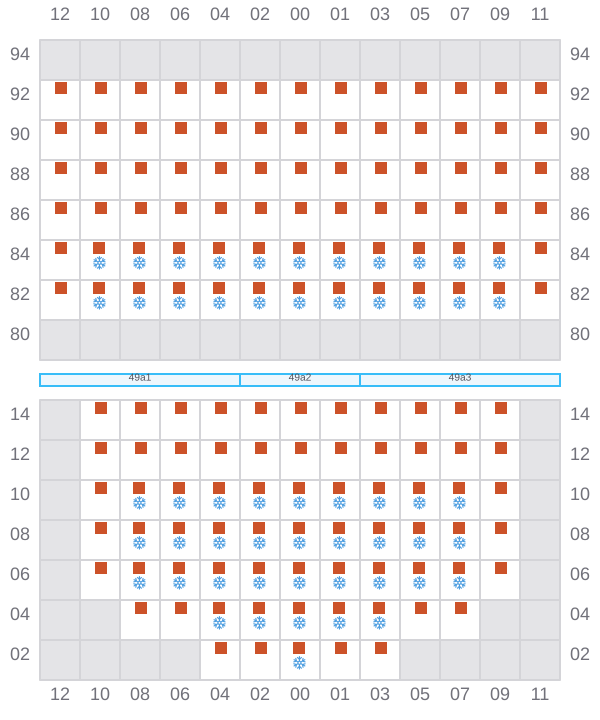

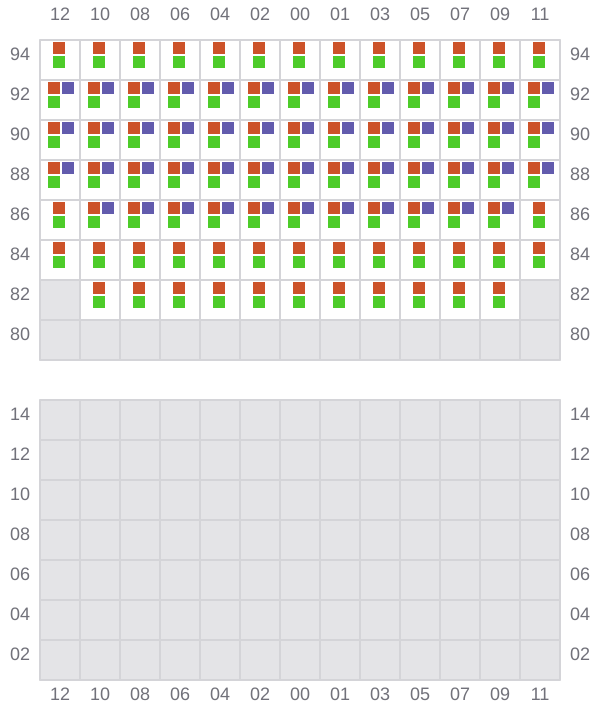

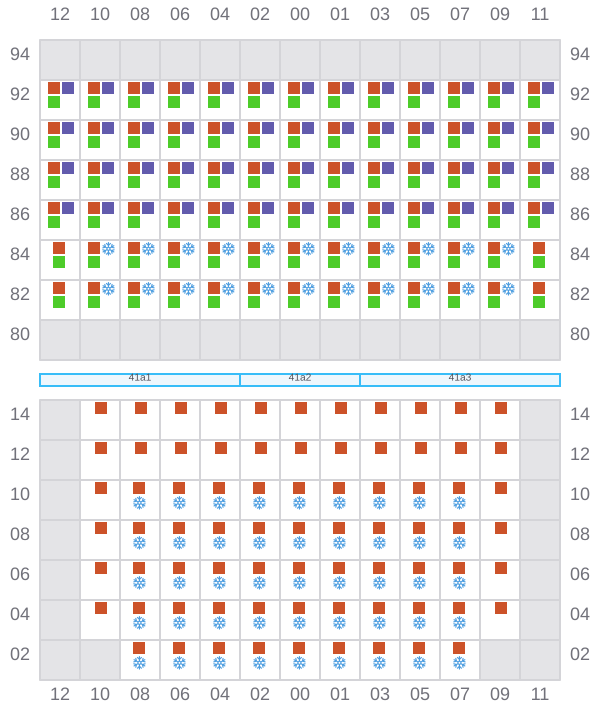

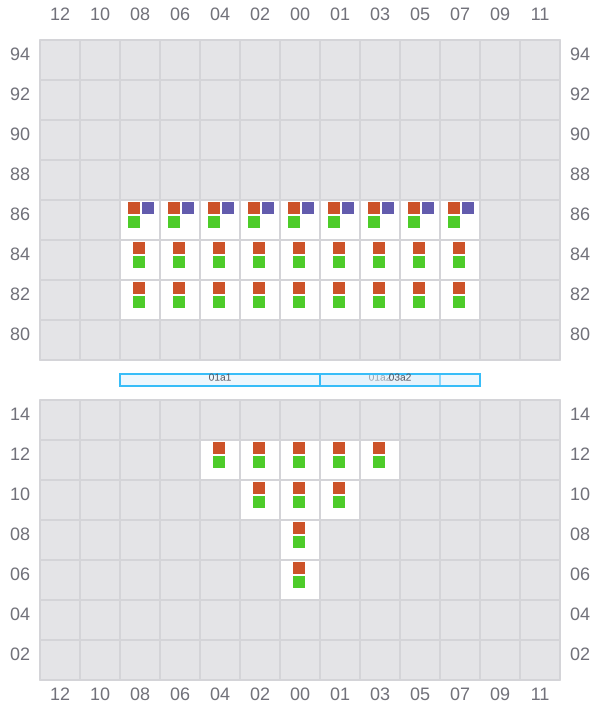

Bay 001 view and slots of MSC ZLATA R

003

  • ←
  • → / ?

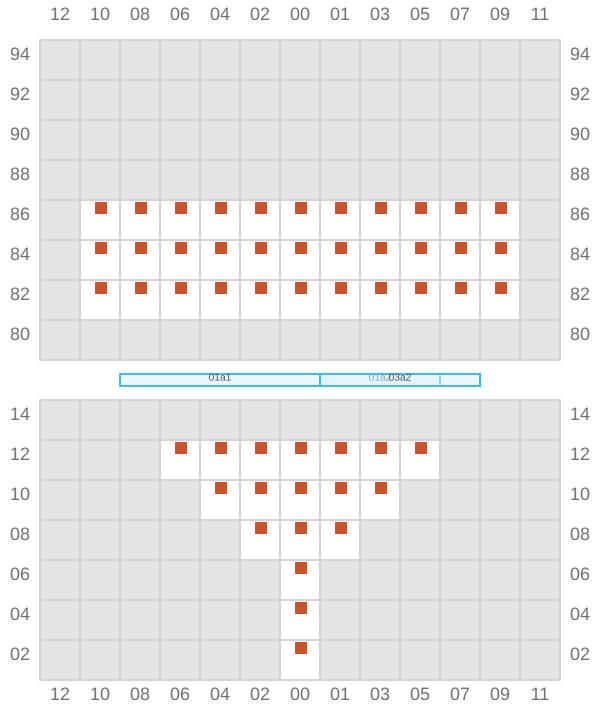

Bay 003 view and slots of MSC ZLATA R

005 (006)

  • →
  • ← / ?
  • → / ←

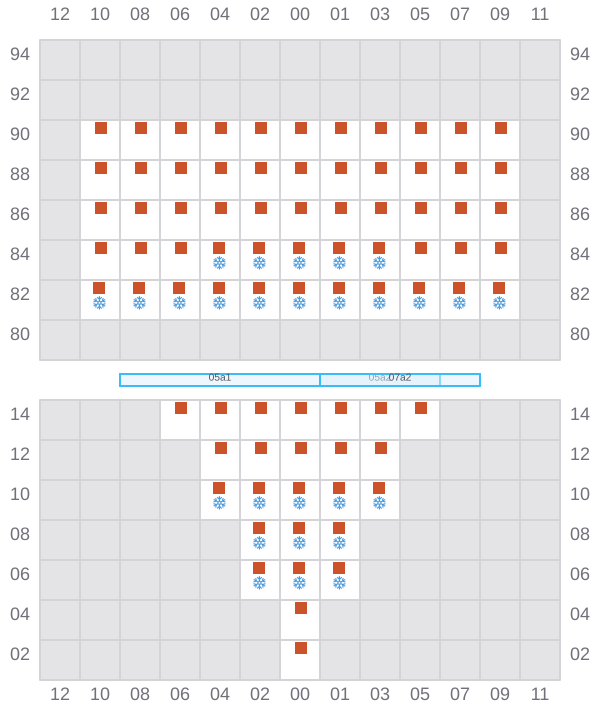

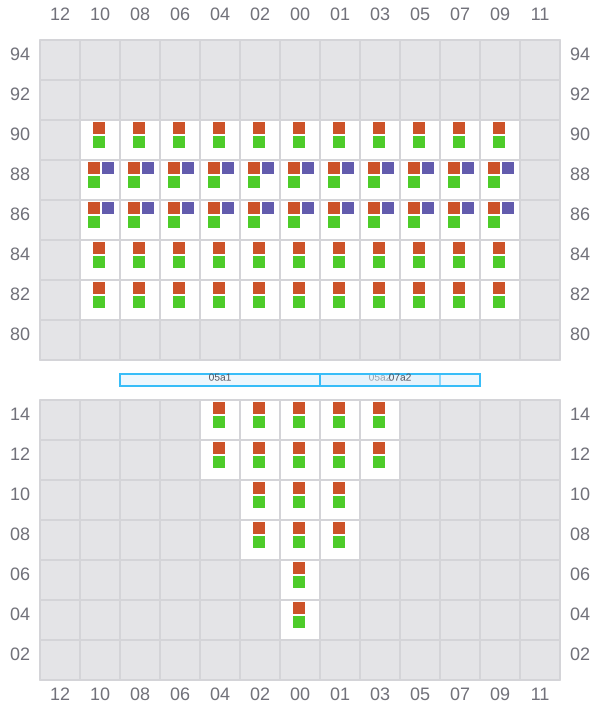

Bay 005 view and slots of MSC ZLATA R

007

  • ←
  • →
  • ←
Bay 007 view and slots of MSC ZLATA R

009 (010)

  • →
  • ←
  • →

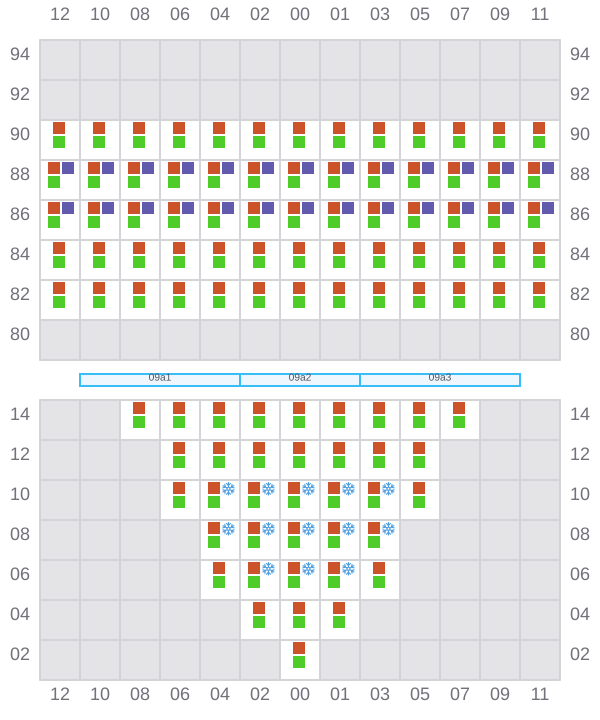

Bay 009 view and slots of MSC ZLATA R

011

  • ←
  • →
  • ←

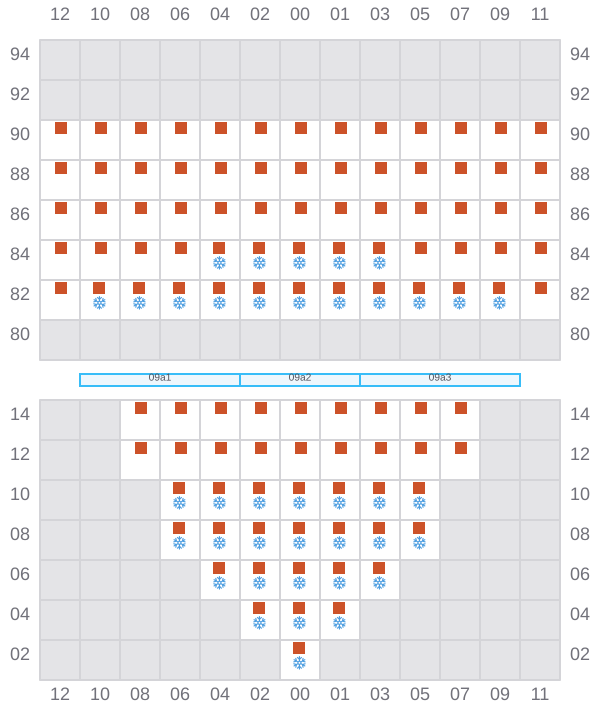

Bay 011 view and slots of MSC ZLATA R

013 (014)

  • →
  • ← / ?
  • → / ←

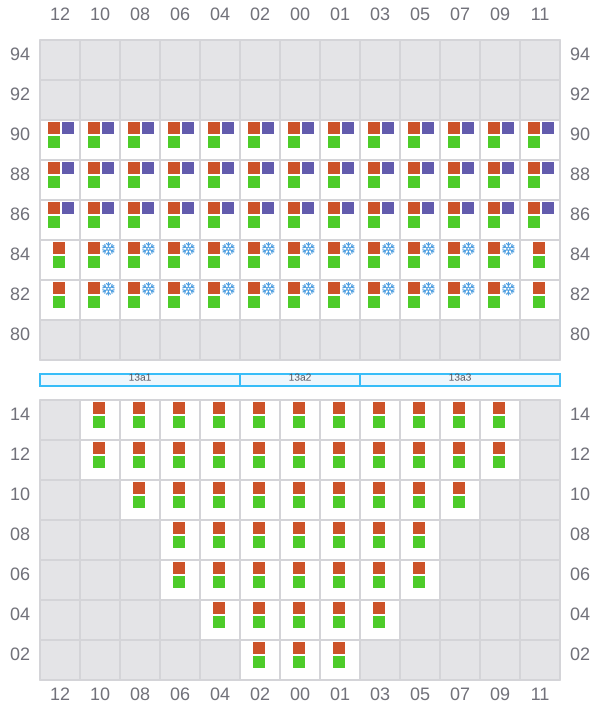

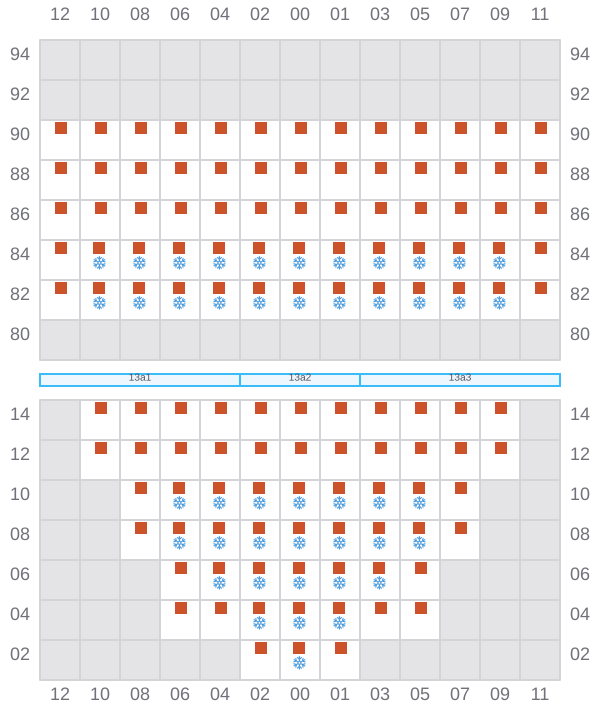

Bay 013 view and slots of MSC ZLATA R

015

  • ←
  • →
  • ←
Bay 015 view and slots of MSC ZLATA R

017 (018)

  • →
  • ←
  • →

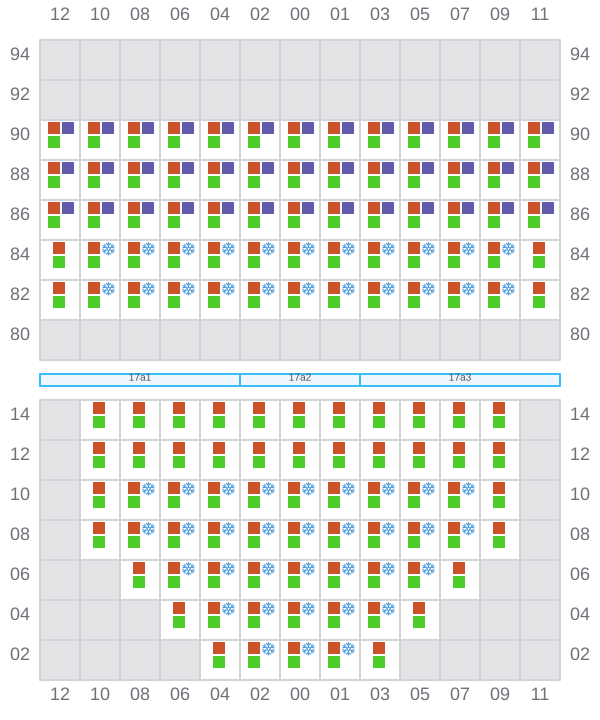

Bay 017 view and slots of MSC ZLATA R

019

  • ←
  • →
  • ←

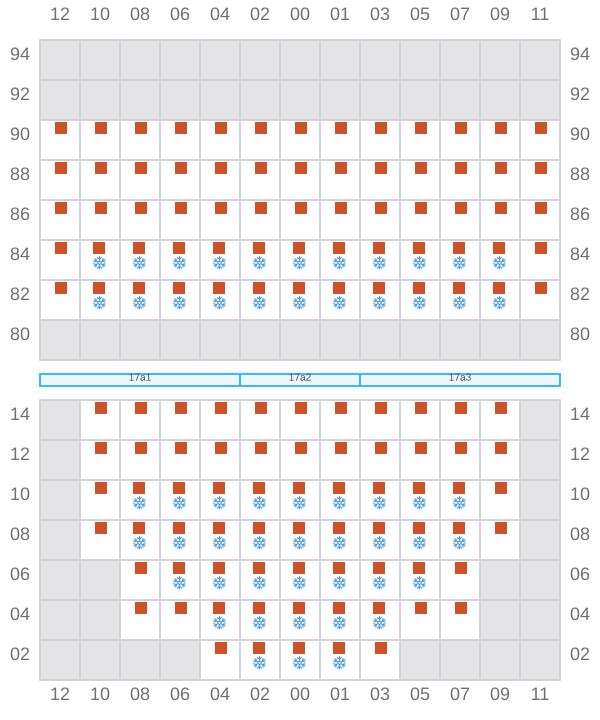

Bay 019 view and slots of MSC ZLATA R

021 (022)

  • →
  • ← / ?
  • → / ←

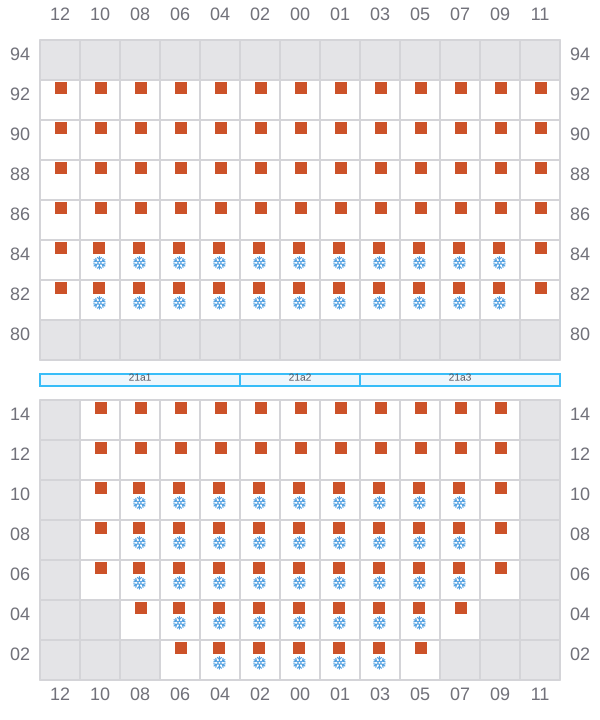

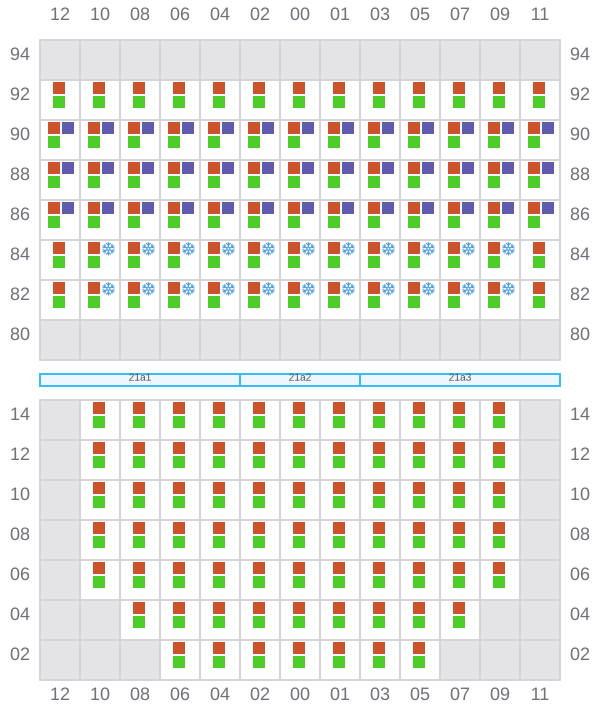

Bay 021 view and slots of MSC ZLATA R

023

  • ←
  • →
  • ←
Bay 023 view and slots of MSC ZLATA R

025 (026)

  • → / ?
  • ←
  • →

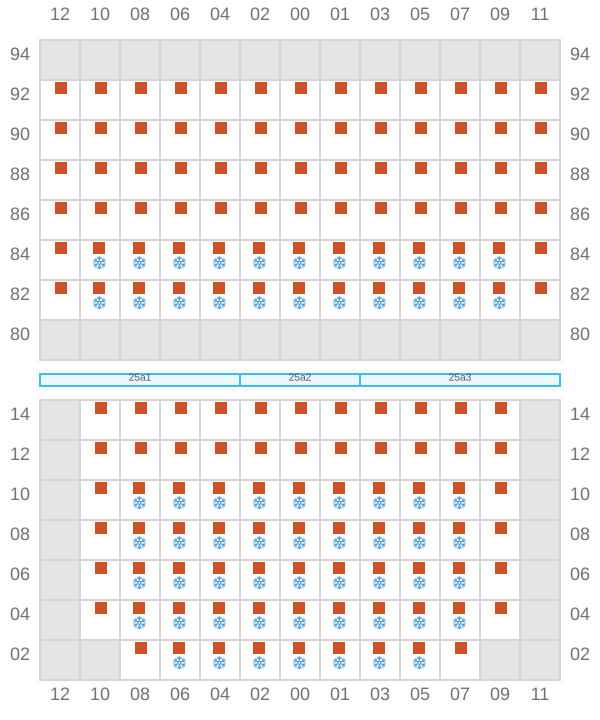

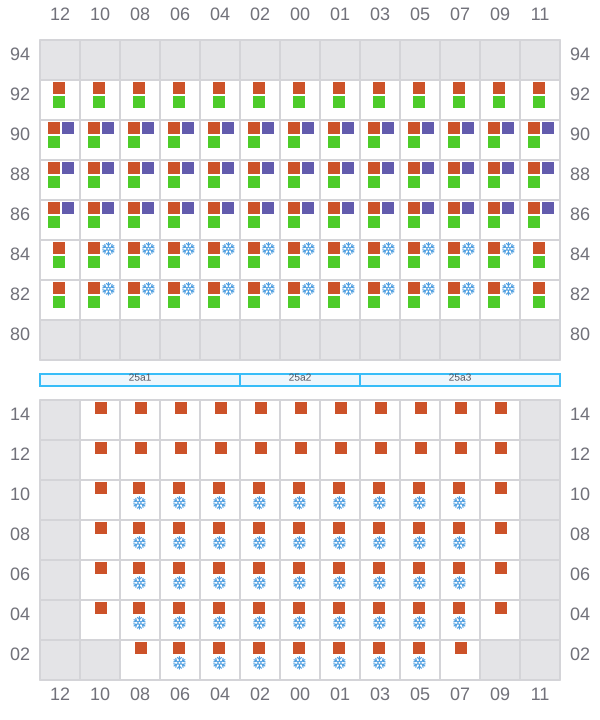

Bay 025 view and slots of MSC ZLATA R

027

  • ← / ?
  • →
  • ←
Bay 027 view and slots of MSC ZLATA R

029 (030)

  • →
  • ←
  • →

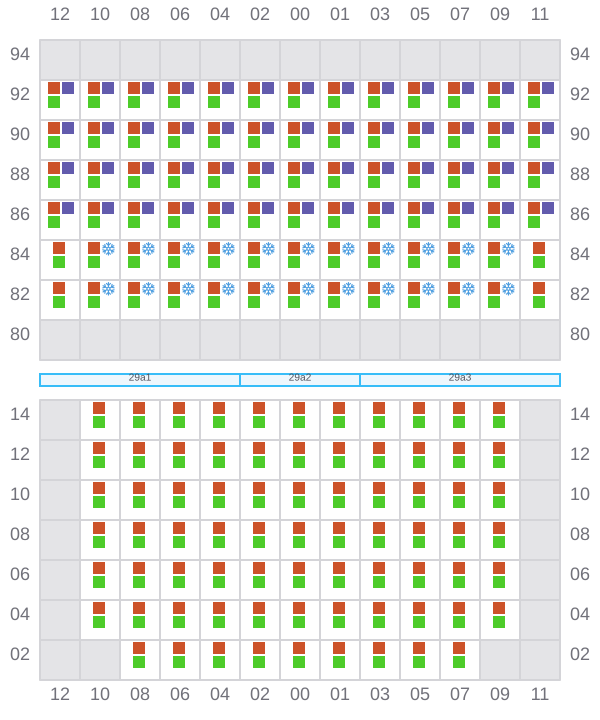

Bay 029 view and slots of MSC ZLATA R

031

  • ←
  • →
  • ←
Bay 031 view and slots of MSC ZLATA R

033 (034)

  • → / ?
  • ←
  • →

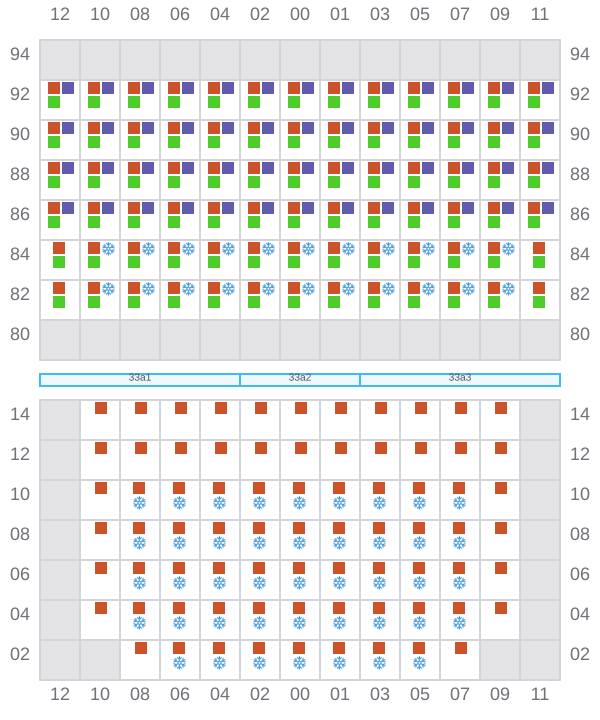

Bay 033 view and slots of MSC ZLATA R

035

  • ← / ?
  • →
  • ←
Bay 035 view and slots of MSC ZLATA R

037 (038)

  • →
  • ←
  • →

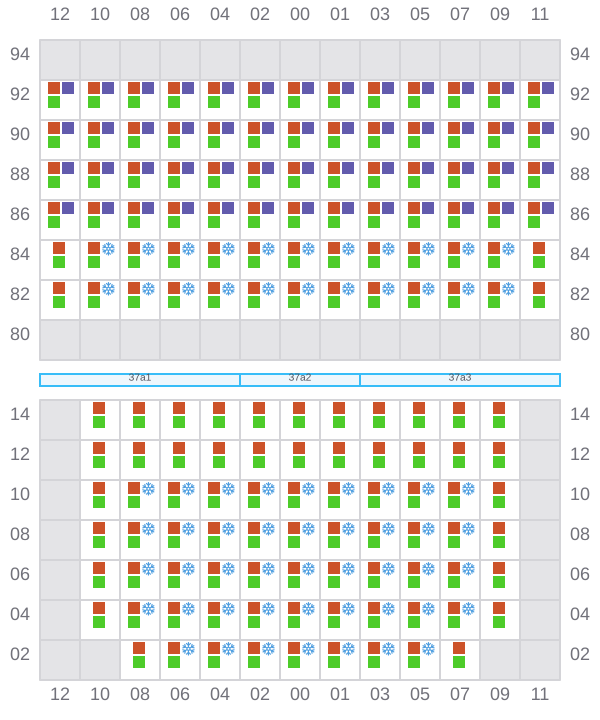

Bay 037 view and slots of MSC ZLATA R

039

  • ←
  • →
  • ←
Bay 039 view and slots of MSC ZLATA R

041 (042)

  • → / ?
  • ←
  • →
Bay 041 view and slots of MSC ZLATA R

043

  • ← / ?
  • →
  • ←
Bay 043 view and slots of MSC ZLATA R

045 (046)

  • →
  • ←
  • →

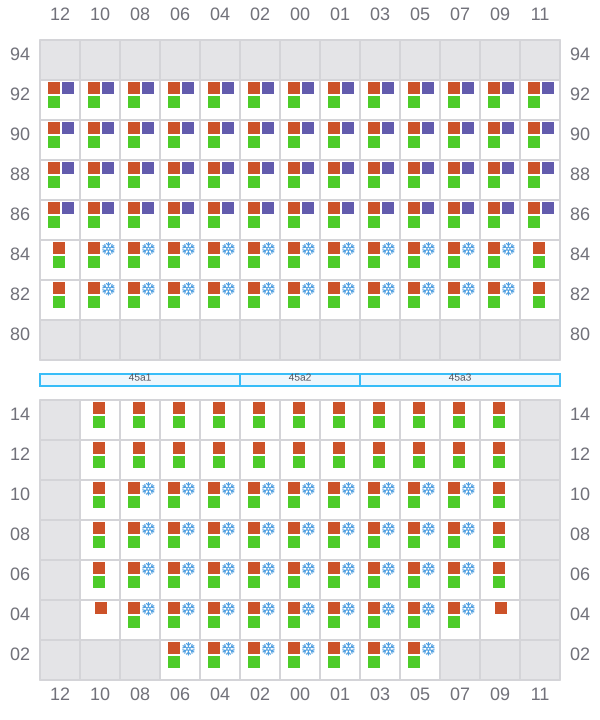

Bay 045 view and slots of MSC ZLATA R

047

  • ←
  • →
  • ←

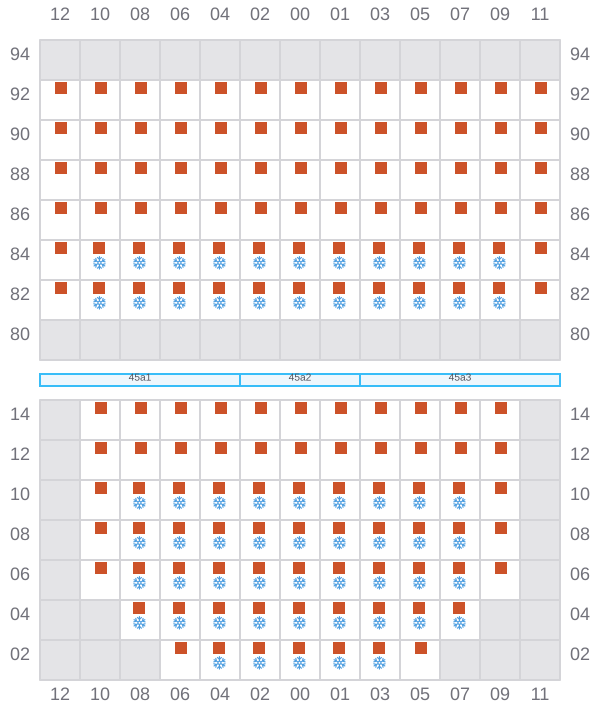

Bay 047 view and slots of MSC ZLATA R

049 (050)

  • →
  • ← / ?
  • → / ←

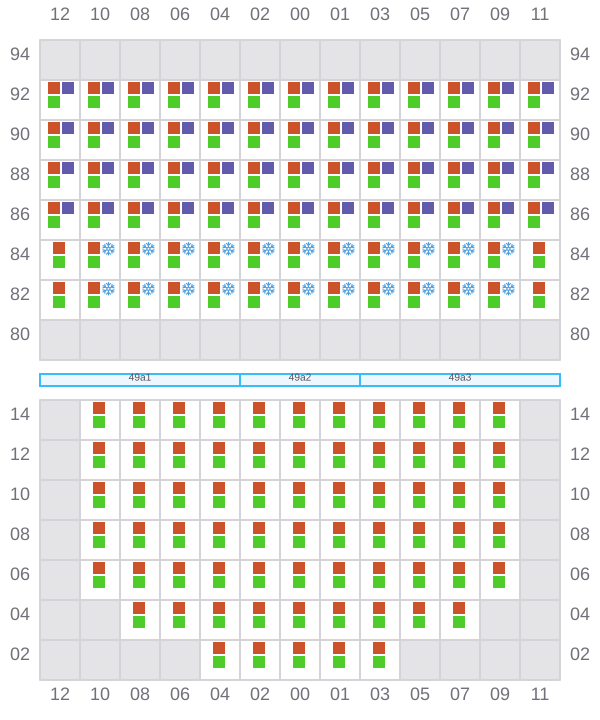

Bay 049 view and slots of MSC ZLATA R

051

  • ←
  • →
  • ←
Bay 051 view and slots of MSC ZLATA R

053 (054)

  • →
  • ←
  • →
Bay 053 view and slots of MSC ZLATA R

055

  • ←
  • →
  • ←

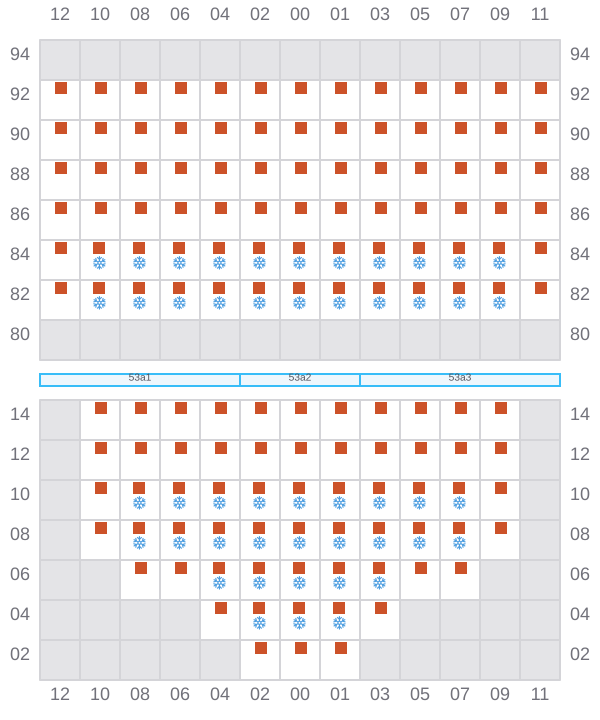

Bay 055 view and slots of MSC ZLATA R

057

  • → / ?
  • ← / ?

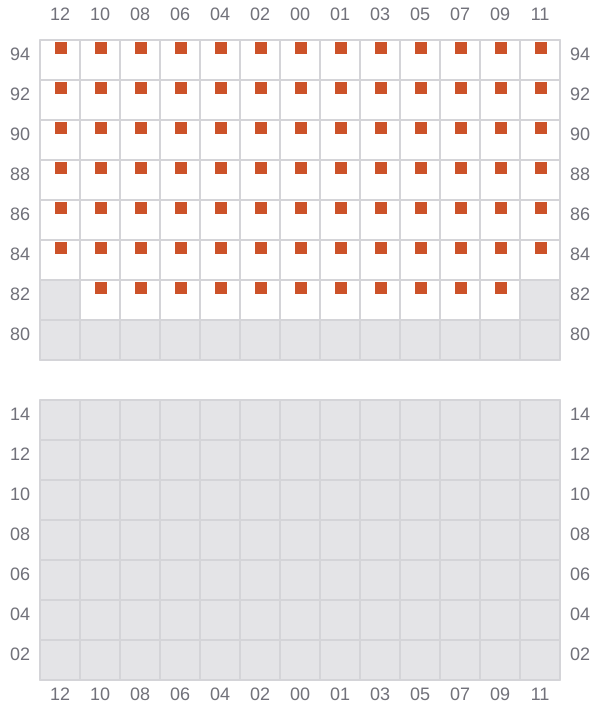

Bay 057 view and slots of MSC ZLATA R

059 (060)

  • → / ?
  • ← / ?
  • → / ?
Bay 059 view and slots of MSC ZLATA R

061

  • ← / ?
  • → / ?
  • ← / ?
Bay 061 view and slots of MSC ZLATA R

063 (064)

  • → / ?
  • ← / ?
  • → / ?
Bay 063 view and slots of MSC ZLATA R

065

  • ← / ?
  • ← / ?
  • → / ?

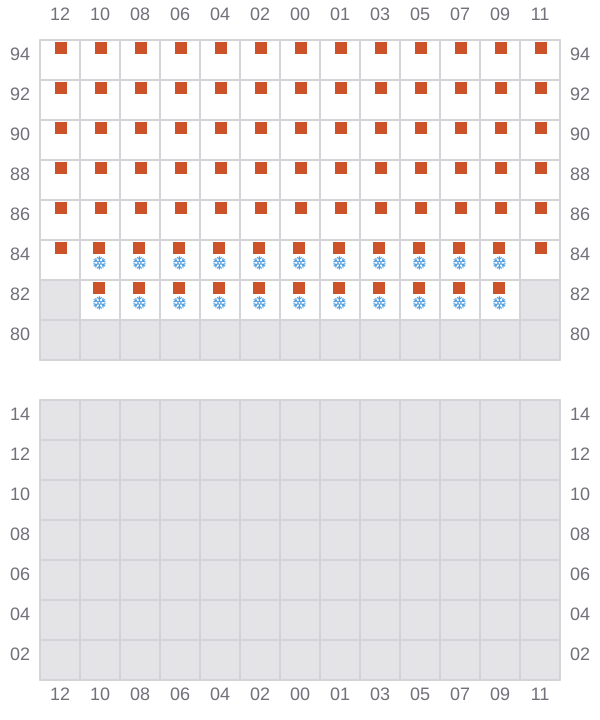

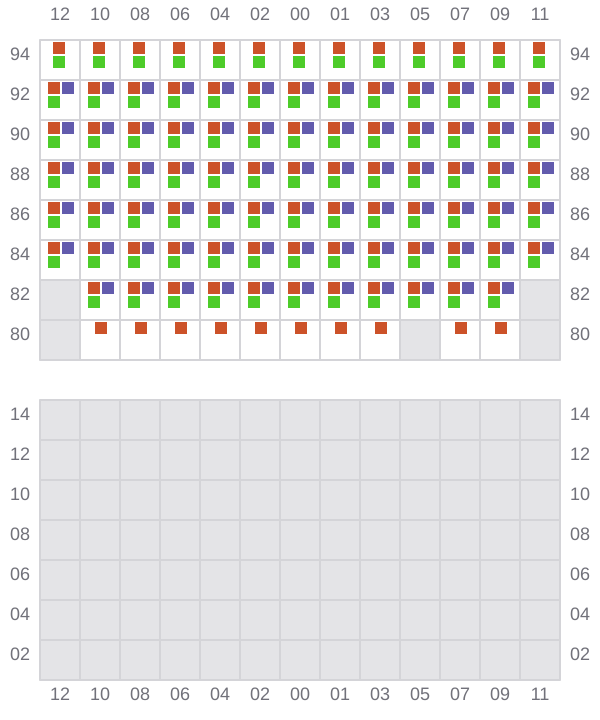

Bay 065 view and slots of MSC ZLATA R
