MTT HAIPHONG
9255529 | 9M3108 | 9255529 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:MTT HAIPHONG
IMO Code:9255529
Call Sign:9M3108
Line Operator:9255529
Class Name for Sister Ships:7W6
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,068
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

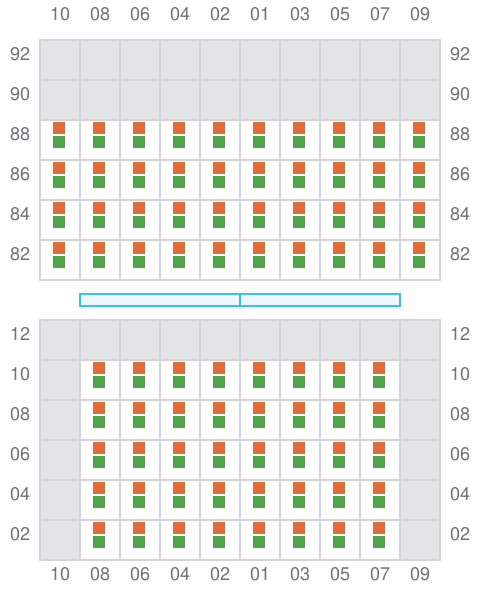

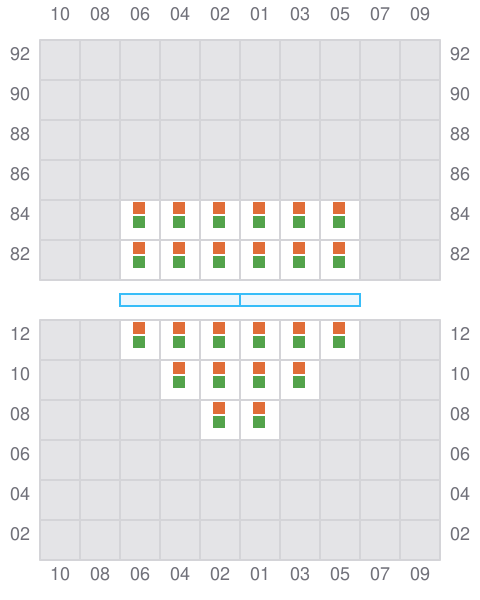

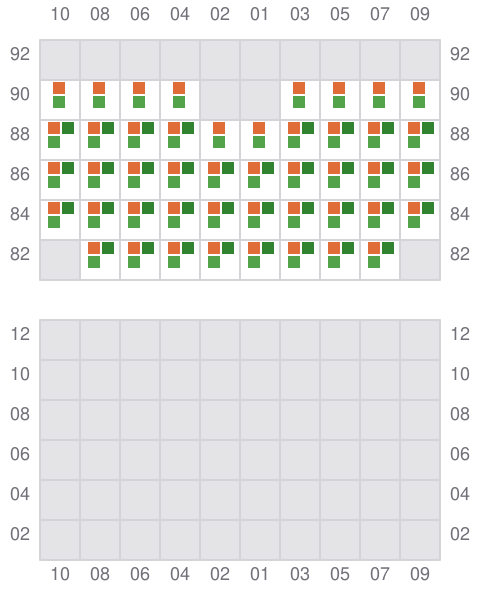

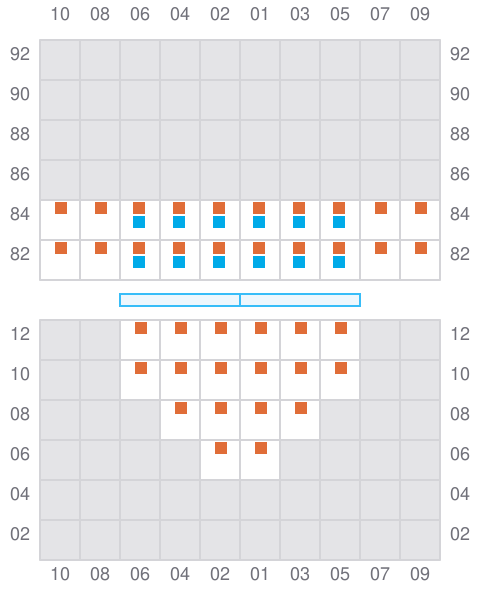

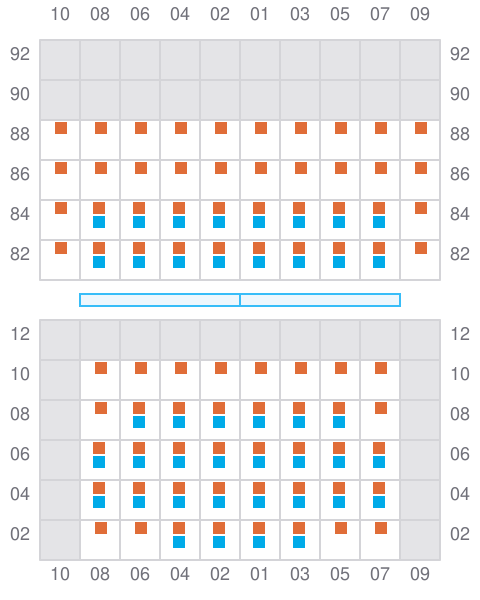

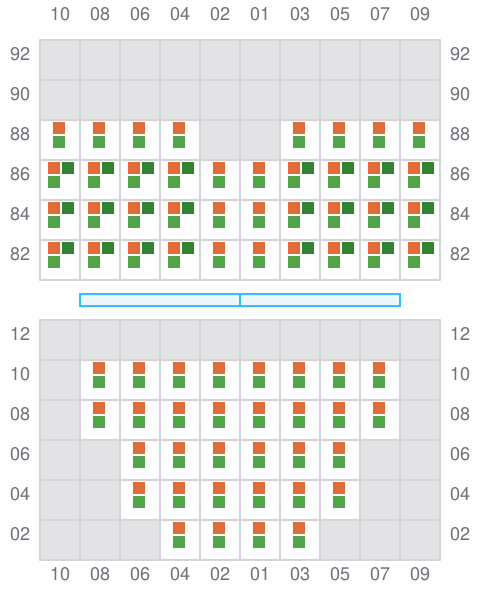

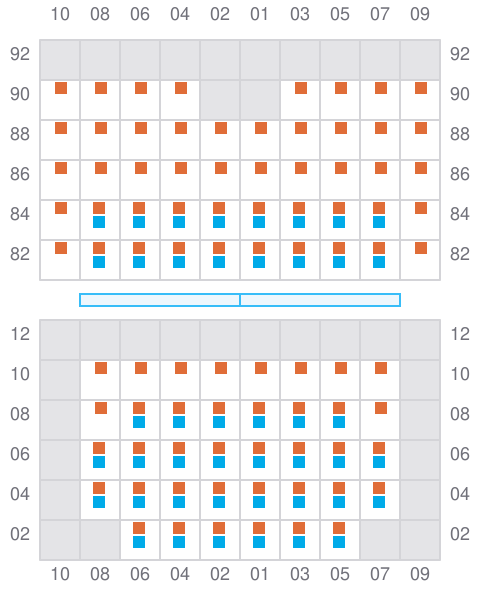

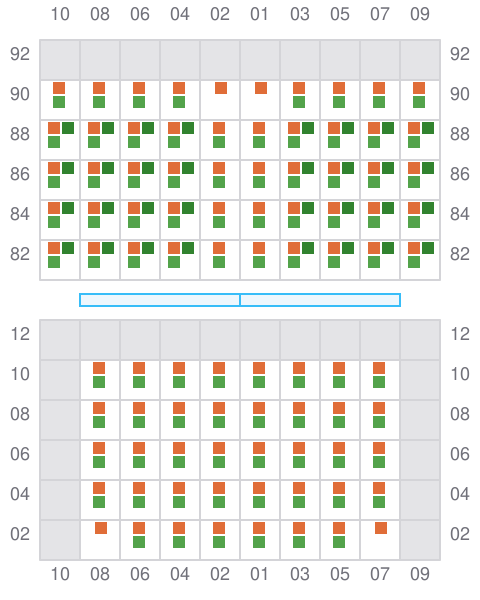

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←
- → / ?
005 (006)
- →

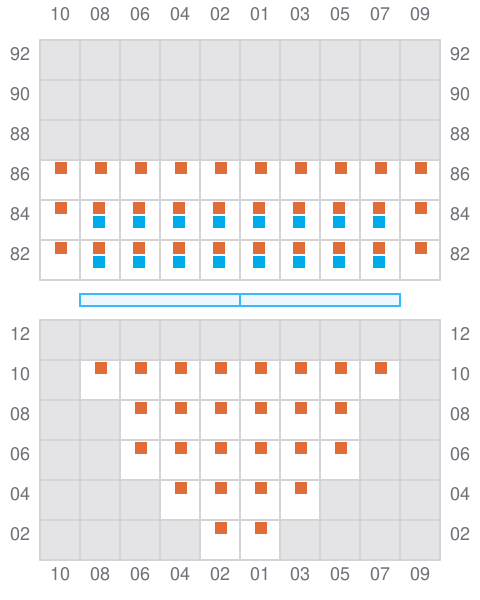

007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →

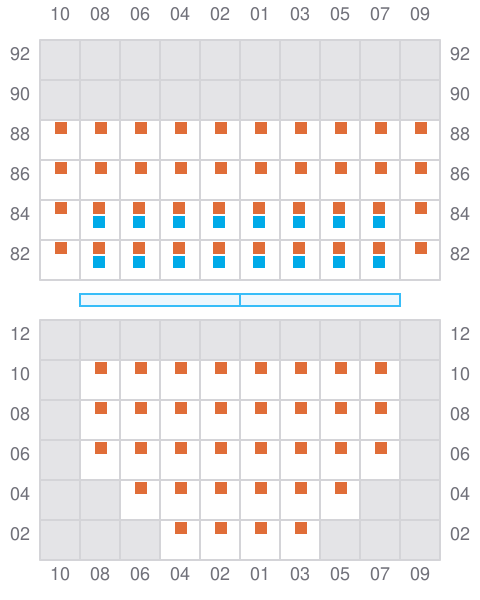

019
- ←
- →
021 (022)
- →
023
- ←
- →
025 (026)
- →

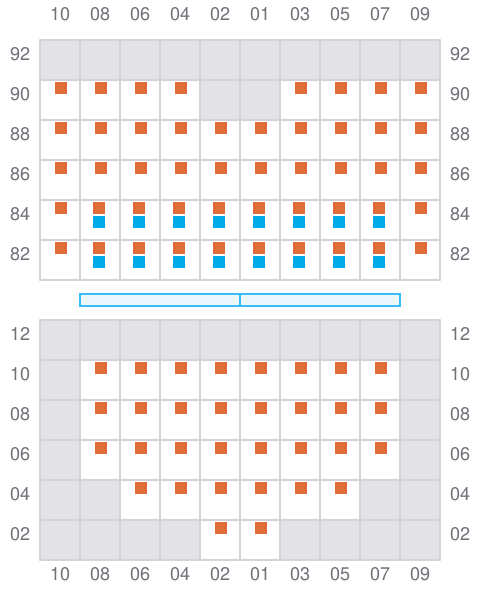

027
- ←
- → / ?
029 (030)
- → / ?

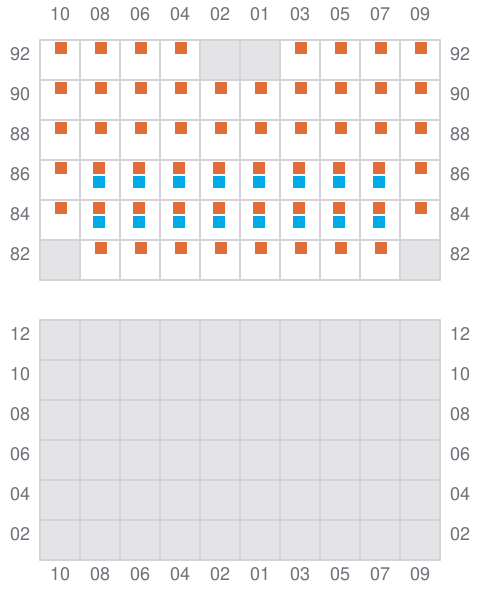

031
- ← / ?
- → / ?
