MUSE
9296470 | C6UJ3 | 9296470 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:MUSE
IMO Code:9296470
Call Sign:C6UJ3
Line Operator:9296470
Class Name for Sister Ships:3U6
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):108.50
LOA (Length Overall):115.30
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:546
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

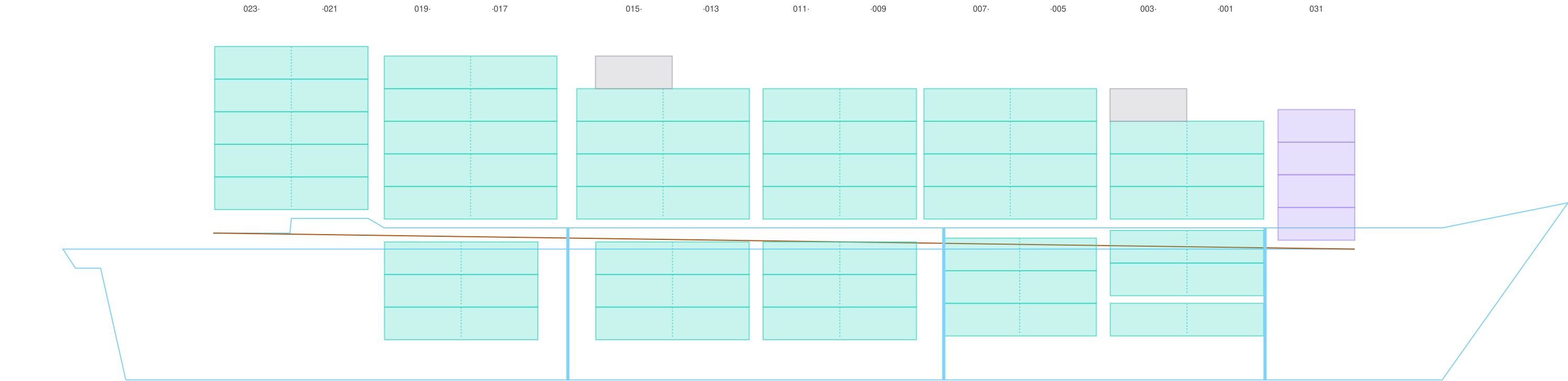

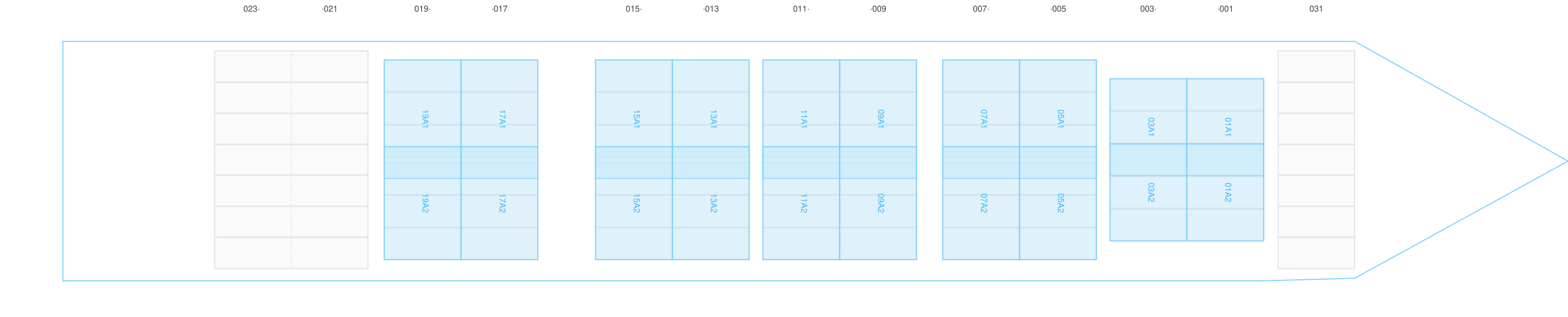

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

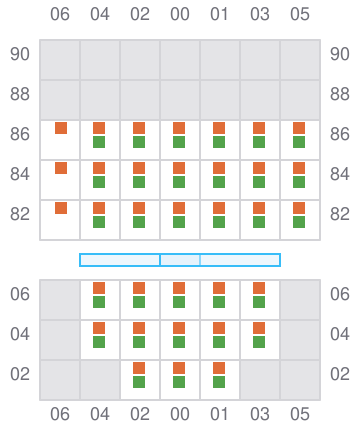

001 (002)
- →

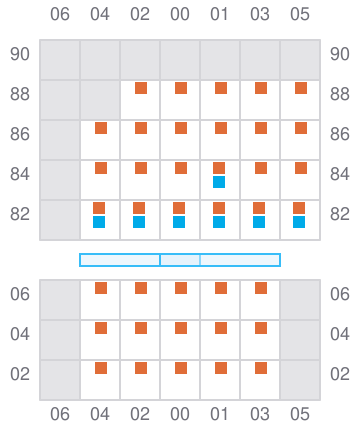

003
- ←
- → / ?
005 (006)
- →
- ← / ?

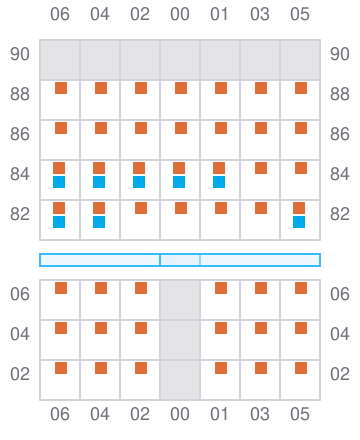

007
- ←
- → / ?

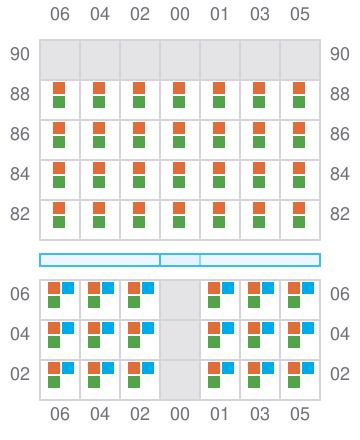

009 (010)
- →
- ? / ←

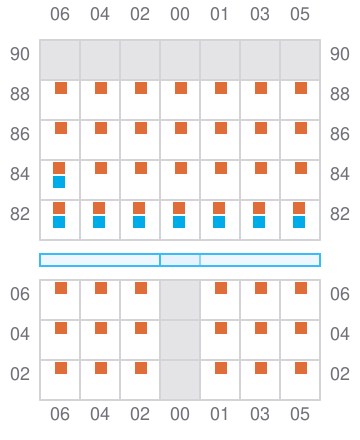

011
- ←
- → / ?

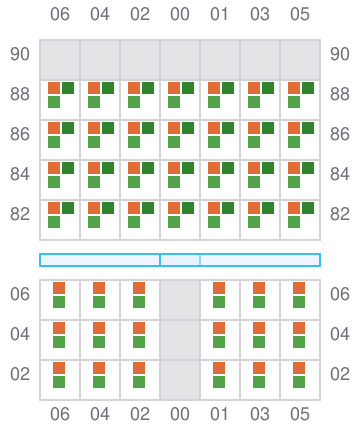

013 (014)
- →
015
- ←
- →

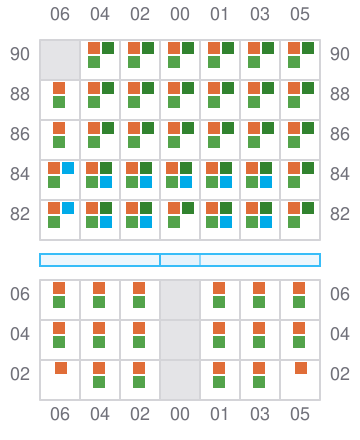

017 (018)
- →
- ← / ?

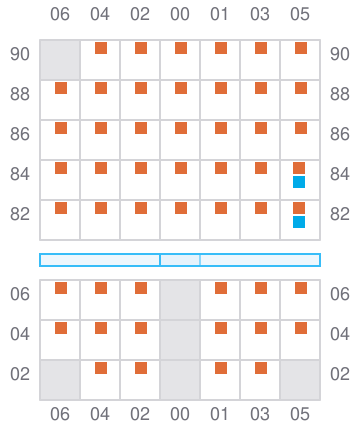

019
- ←
- → / ?

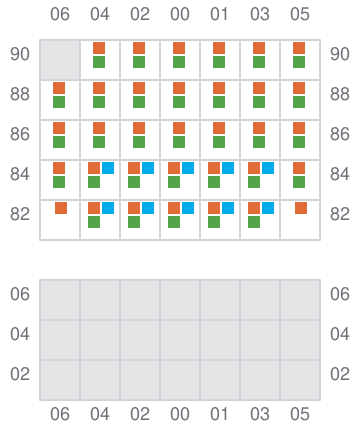

021 (022)
- → / ?
- ← / ?

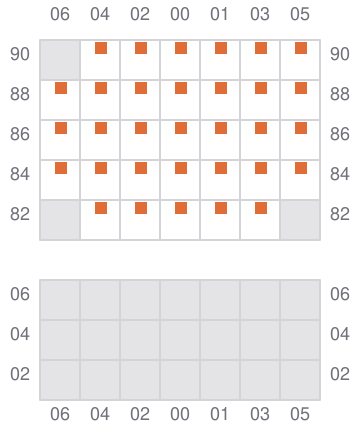

023
- ← / ?
025
027
029

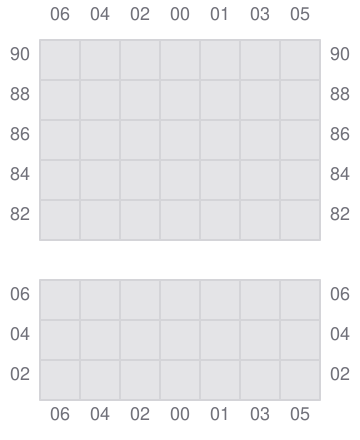

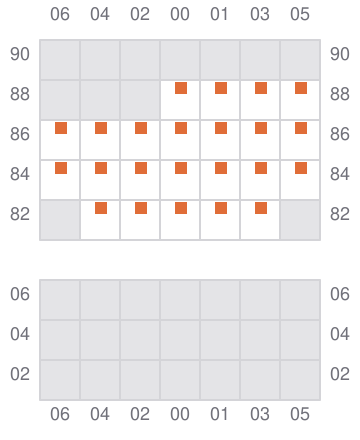

031
