MYS FLORA
9433286 | UBHW2 | 9433286 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:MYS FLORA
IMO Code:9433286
Call Sign:UBHW2
Line Operator:9433286
Class Name for Sister Ships:PLR
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,550
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

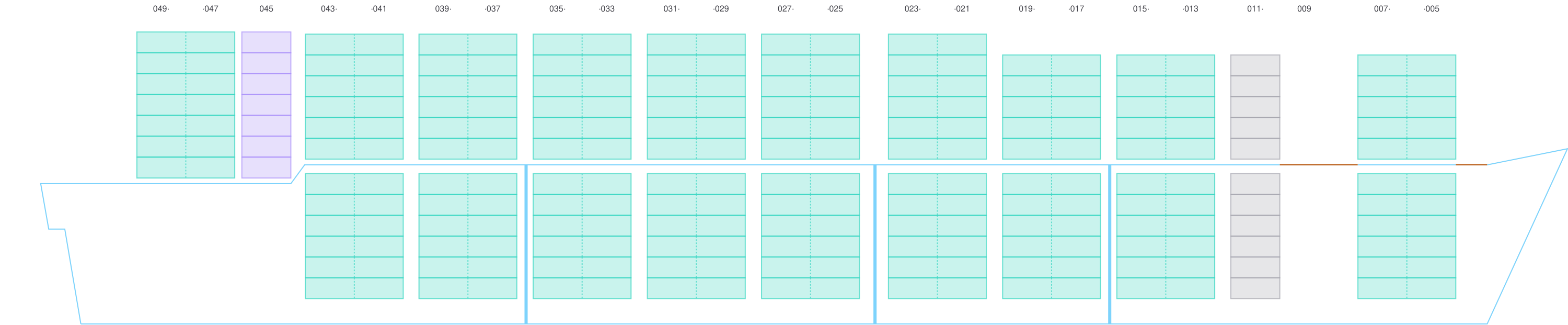

Side View

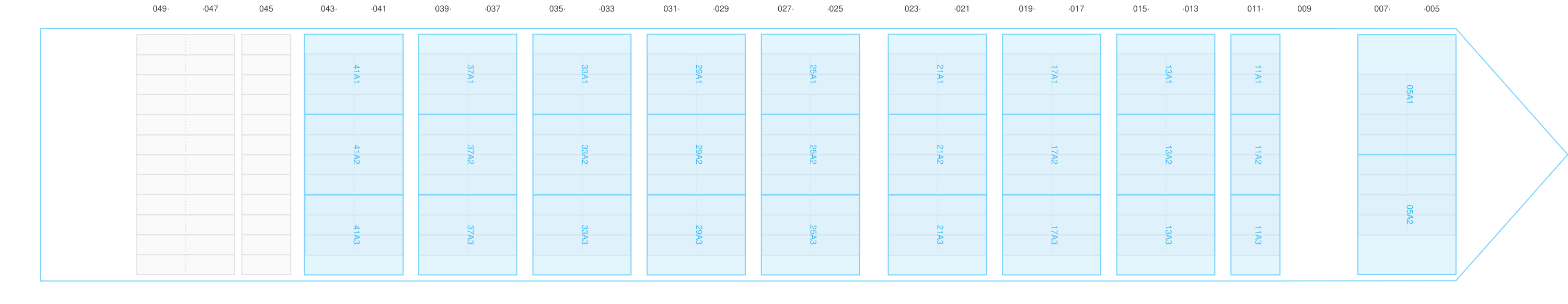

Hatch-Covers View

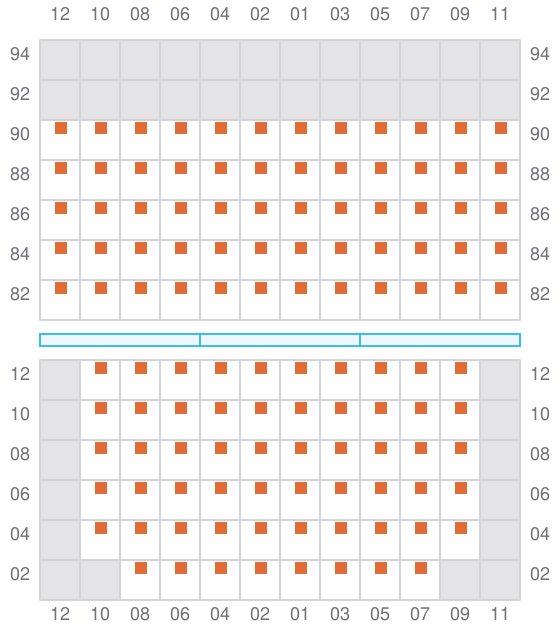

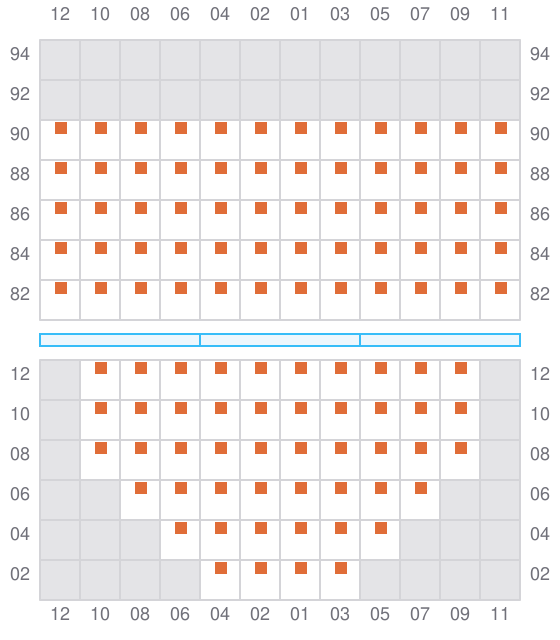

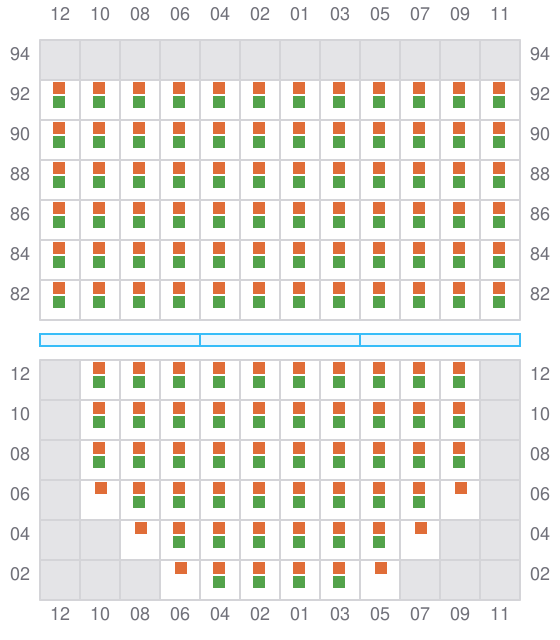

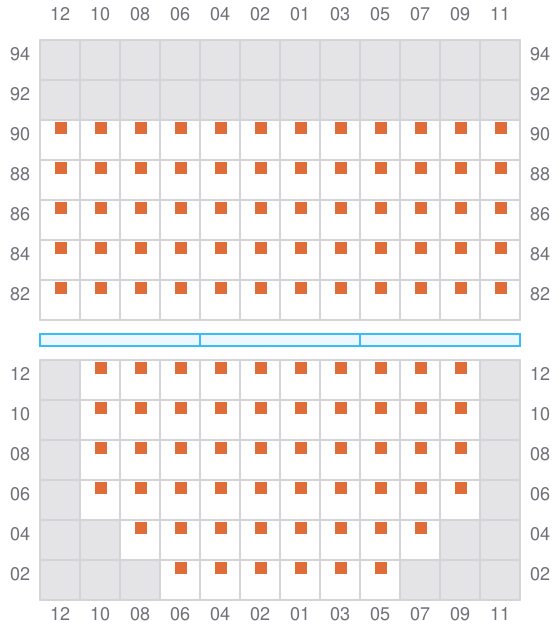

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

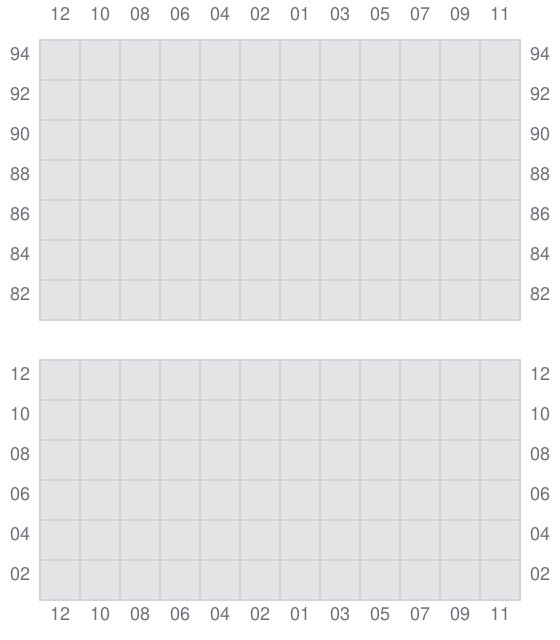

001
003

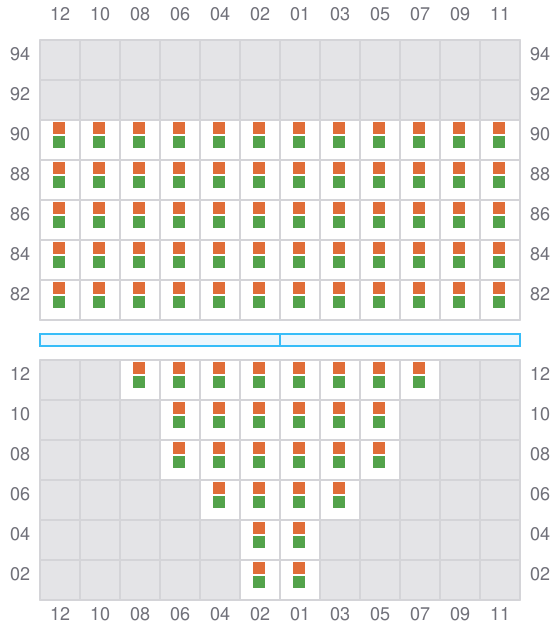

005 (006)
- →

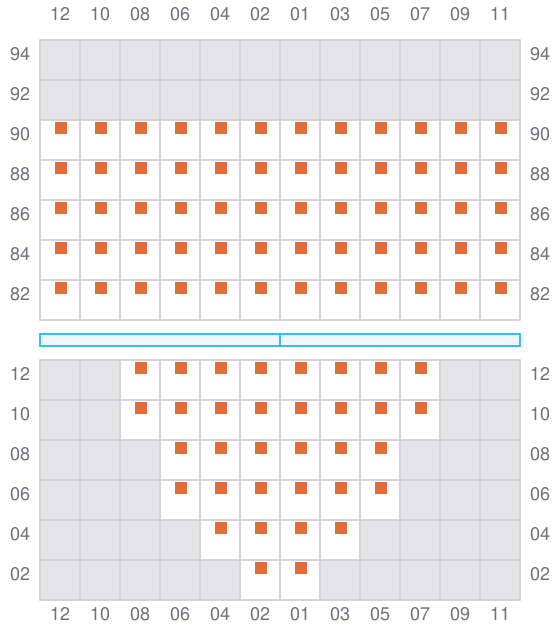

007
- ←
- → / ?
009
011
- ←
- → / ?

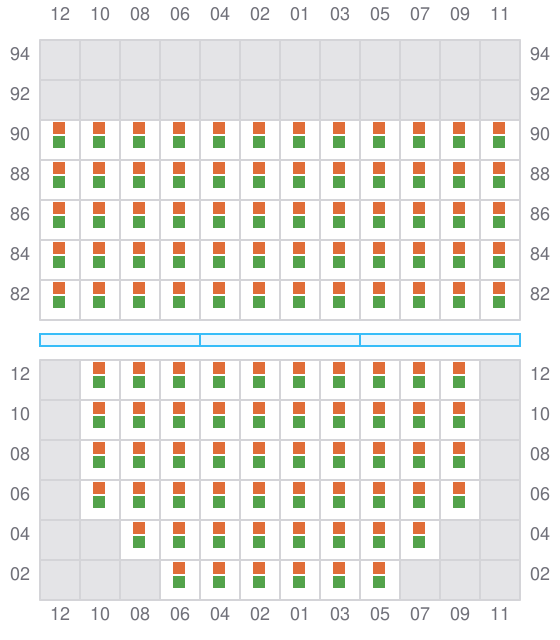

013 (014)
- →
015
- ←
- → / ?

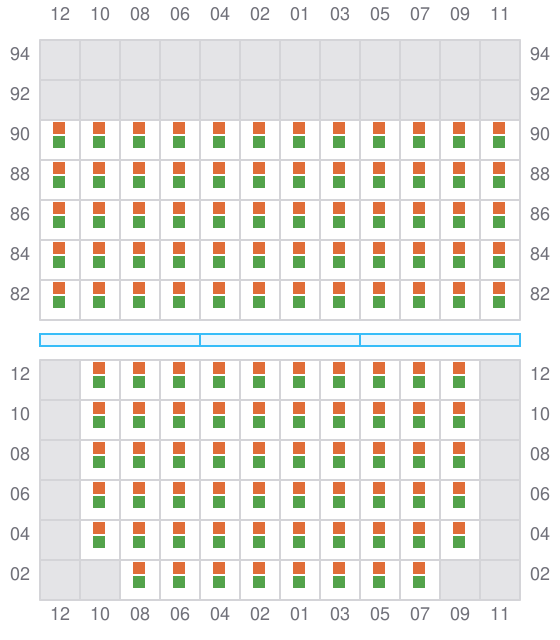

017 (018)
- →
019
- ←
- → / ?
021 (022)
- →

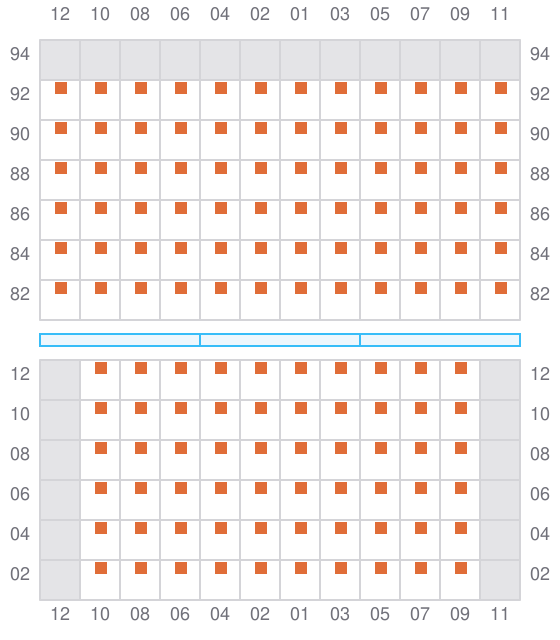

023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?
029 (030)
- →

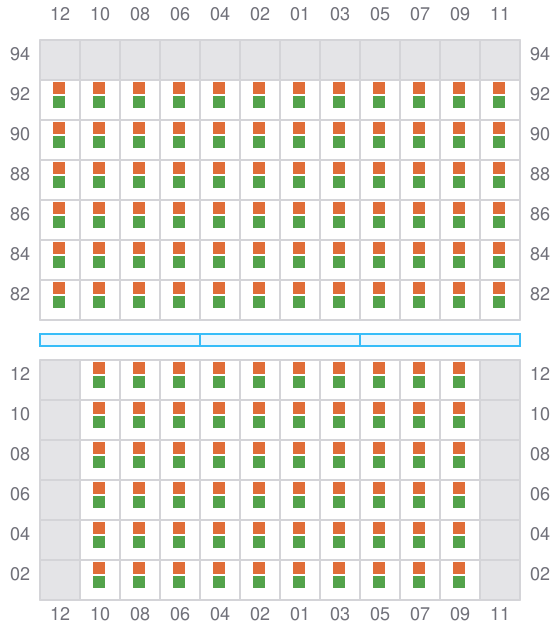

031
- ←
- → / ?

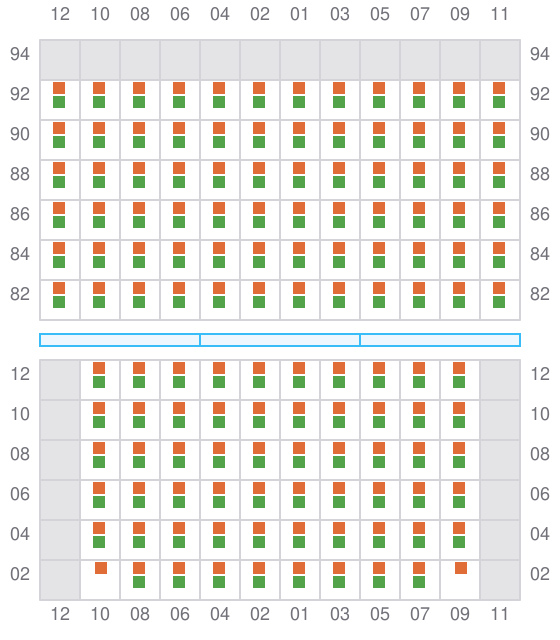

033 (034)
- →

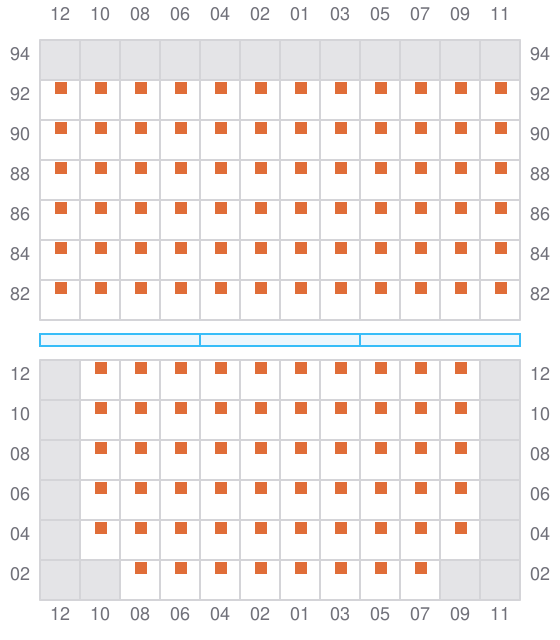

035
- ←
- → / ?
037 (038)
- →

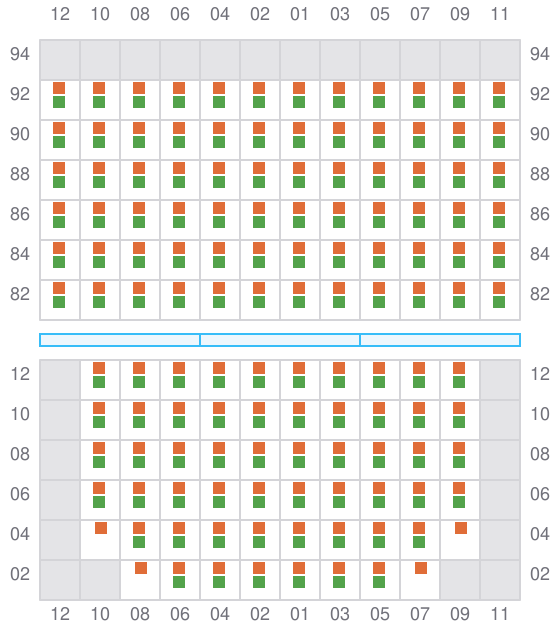

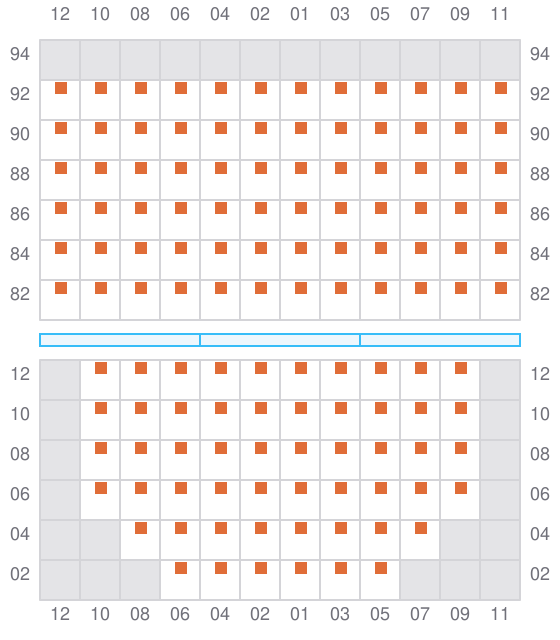

039
- ←
- → / ?
041 (042)
- →

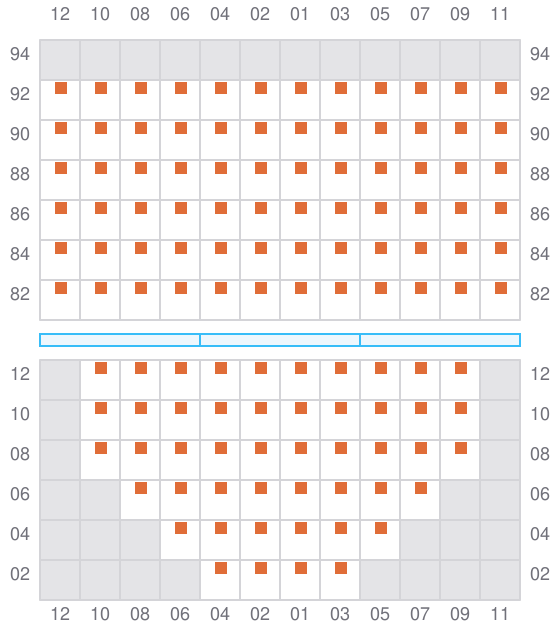

043
- ←
- → / ?
045

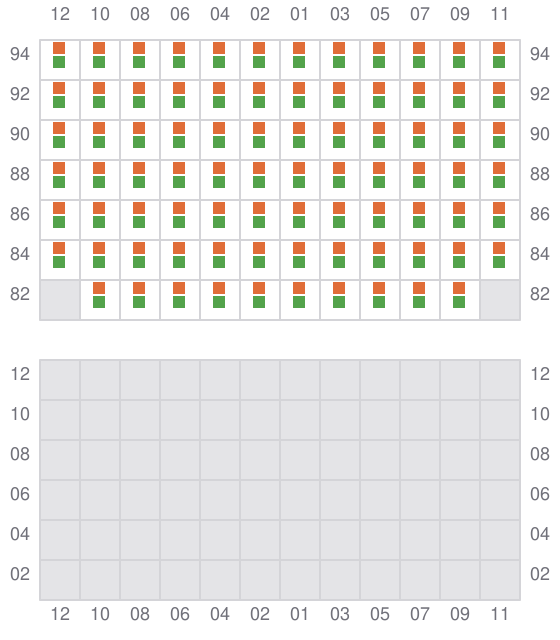

047 (048)
- → / ?

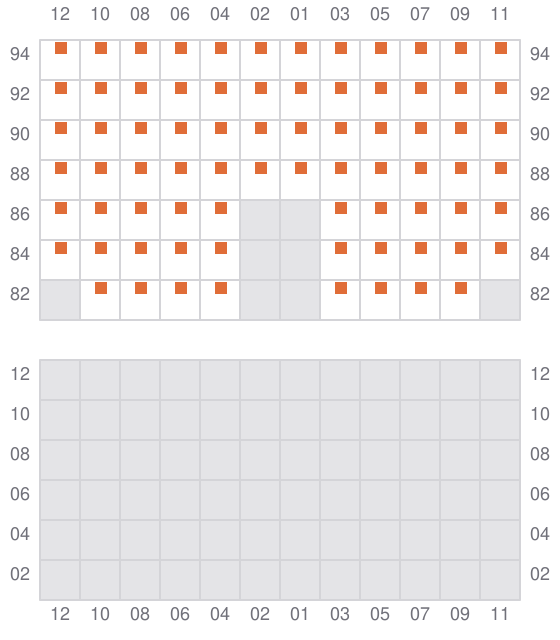

049
- ← / ?
- → / ?
