NAGOYA TOWER
9233844 | D5DG5 | 9233844 by ********* Last update: Mon May 06 2024

General Info

Ship Name:NAGOYA TOWER

IMO Code:9233844

Call Sign:D5DG5

Line Operator:9233844

Class Name for Sister Ships:NAGOYATOWER

Year Built:2003

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):244.80

LOA (Length Overall):260.05

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:061

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,253

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

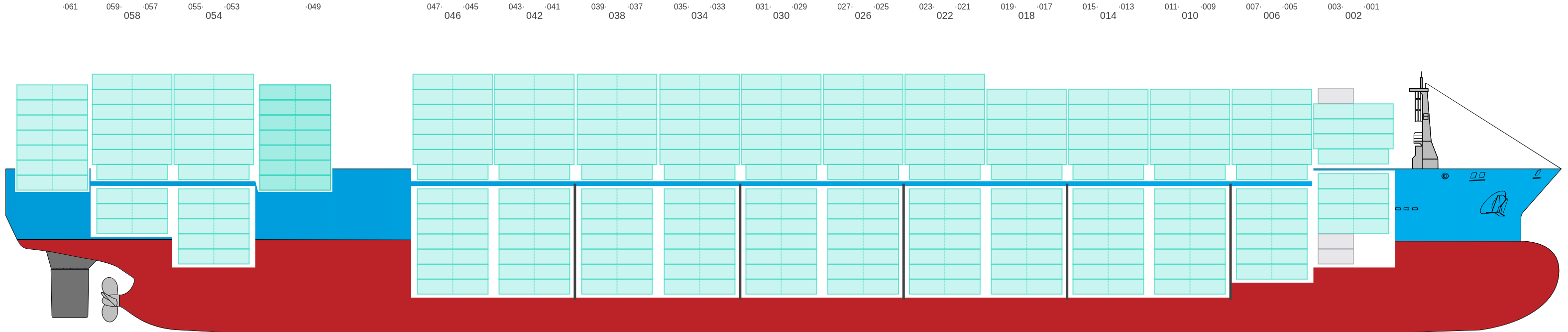

Side view of NAGOYA TOWER

Hatch-Covers View

Deck view of NAGOYA TOWER

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

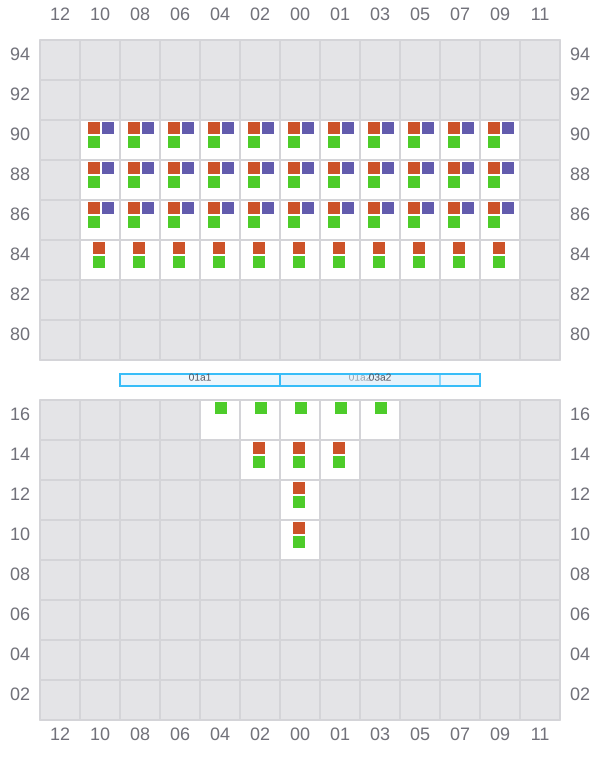

Bay 001 view and slots of NAGOYA TOWER

003

←

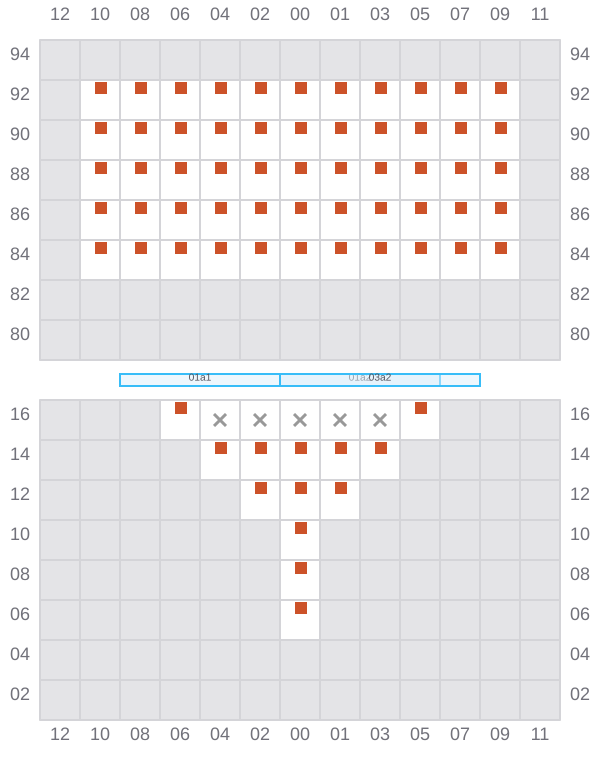

Bay 003 view and slots of NAGOYA TOWER

005 (006)

→

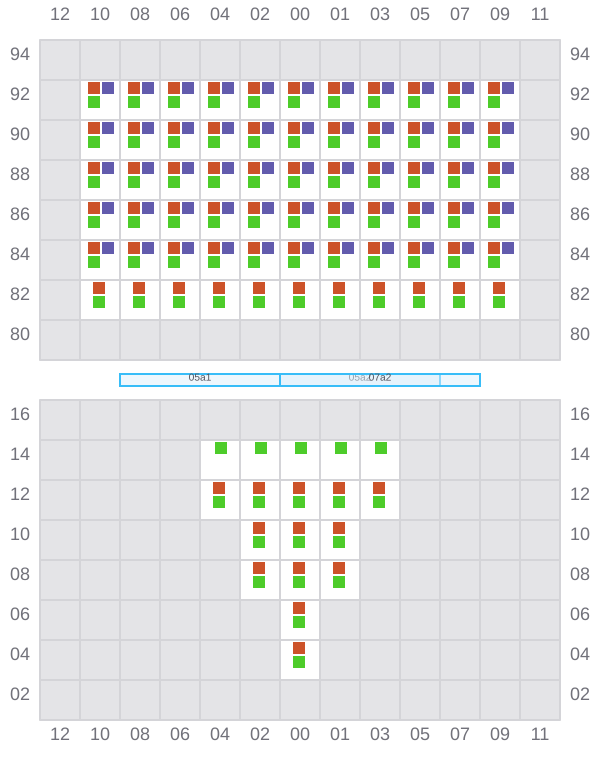

Bay 005 view and slots of NAGOYA TOWER

007

←
^→ / _?

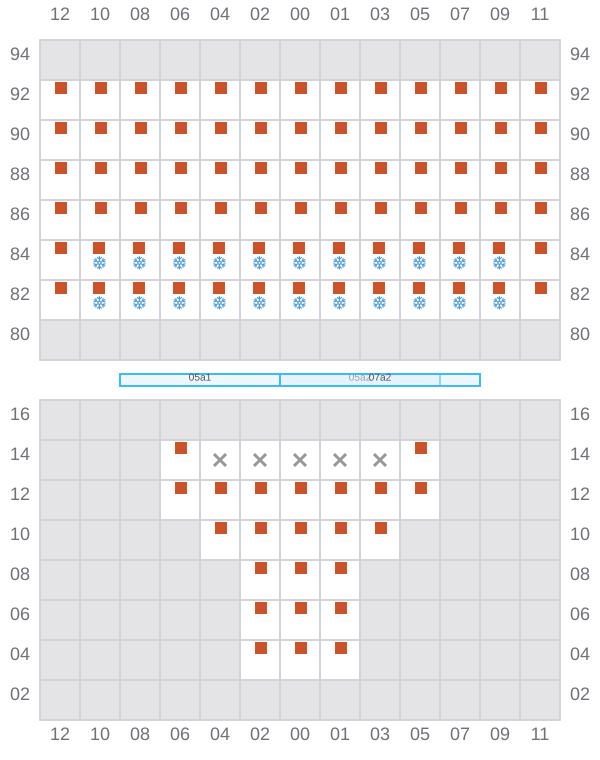

Bay 007 view and slots of NAGOYA TOWER

009 (010)

→

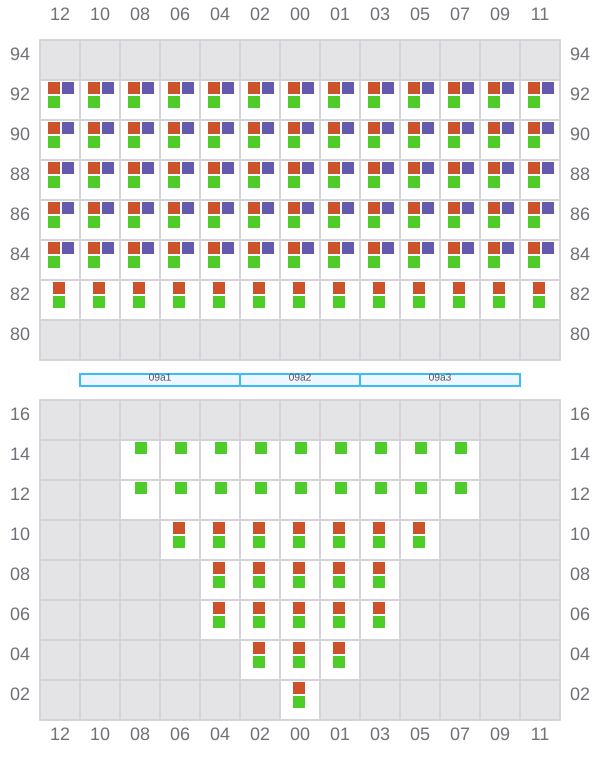

Bay 009 view and slots of NAGOYA TOWER

011

←
^→ / _?

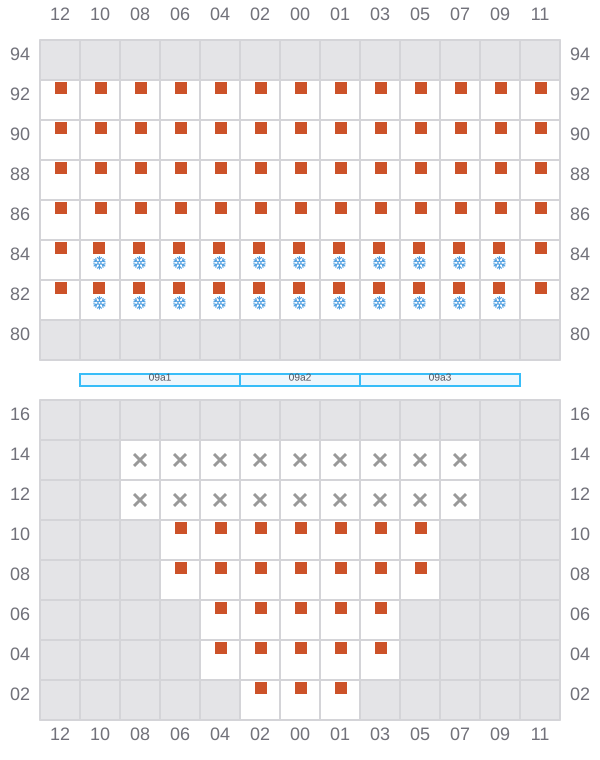

Bay 011 view and slots of NAGOYA TOWER

013 (014)

→

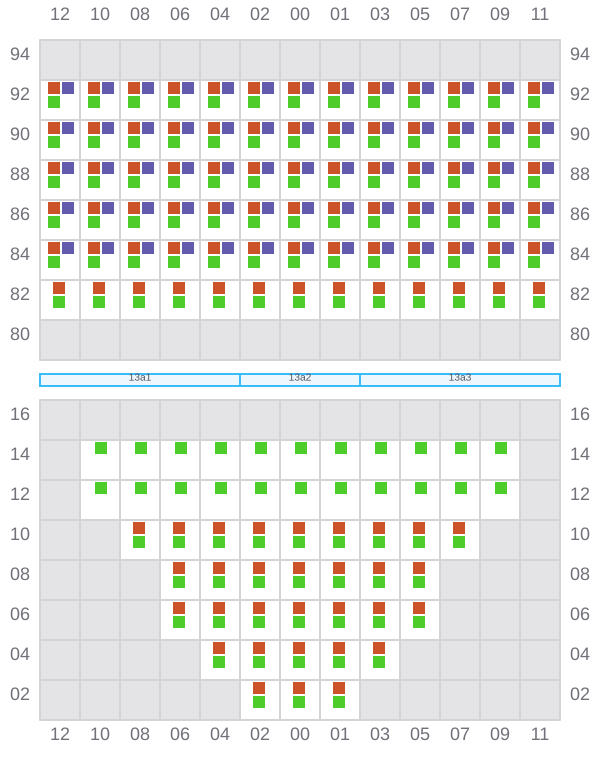

Bay 013 view and slots of NAGOYA TOWER

015

←
^→ / _?

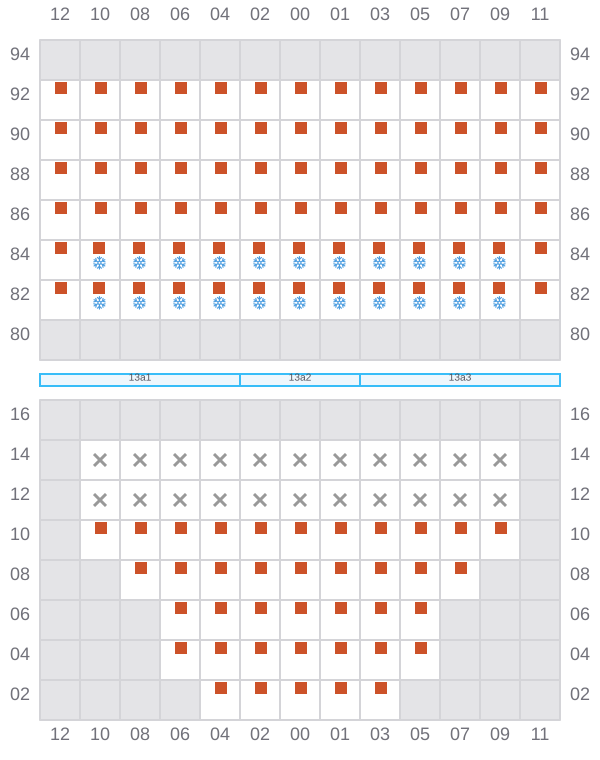

Bay 015 view and slots of NAGOYA TOWER

017 (018)

→

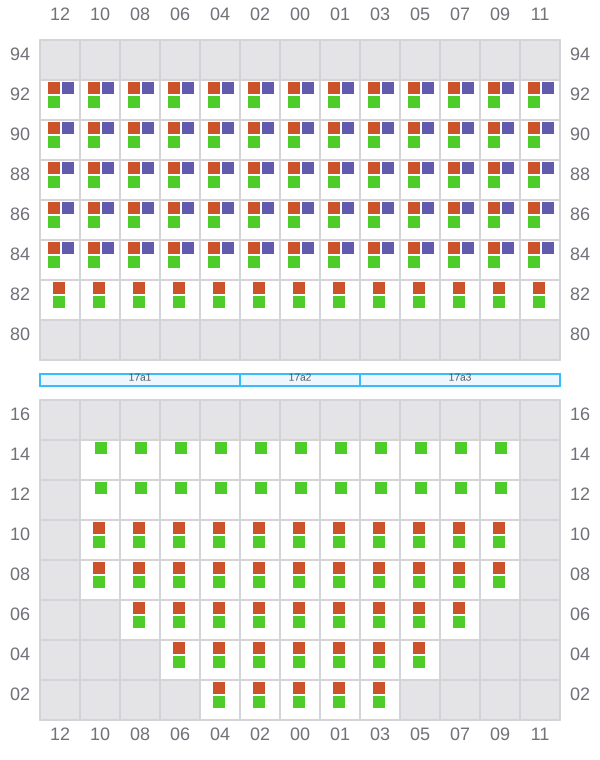

Bay 017 view and slots of NAGOYA TOWER

019

←
^→ / _?

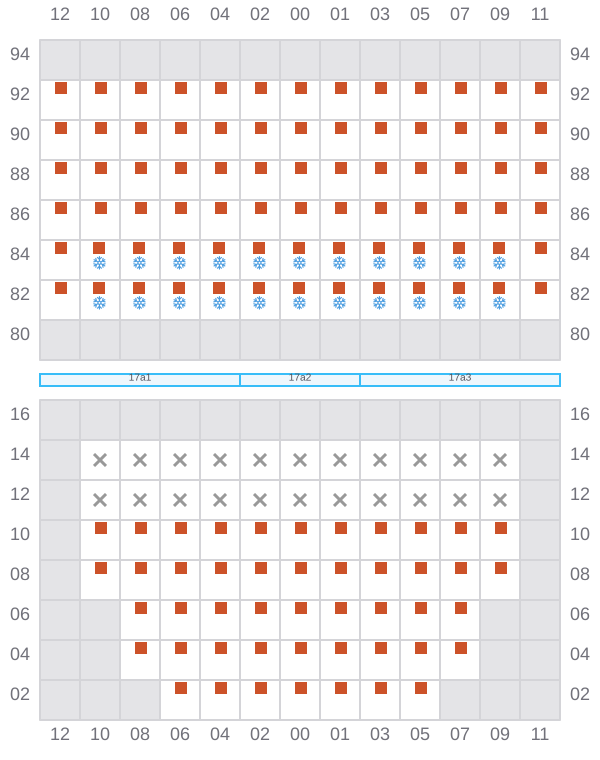

Bay 019 view and slots of NAGOYA TOWER

021 (022)

→

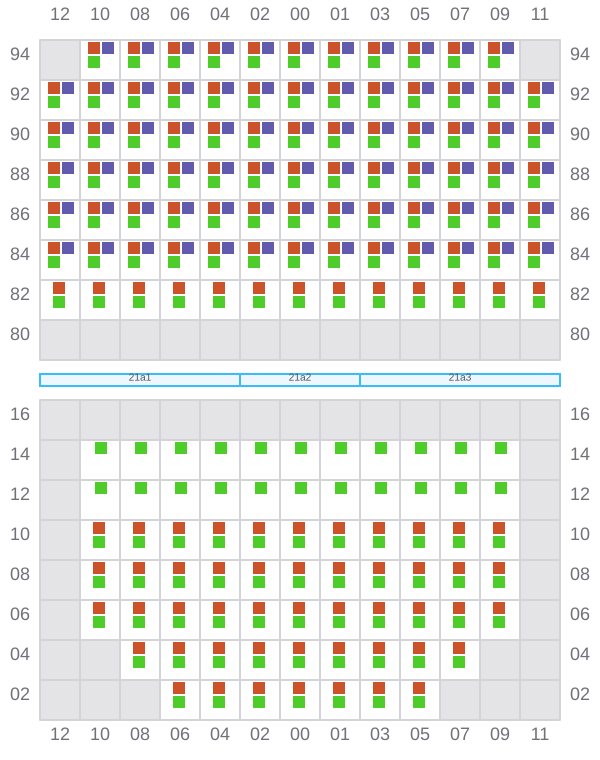

Bay 021 view and slots of NAGOYA TOWER

023

←
^→ / _?

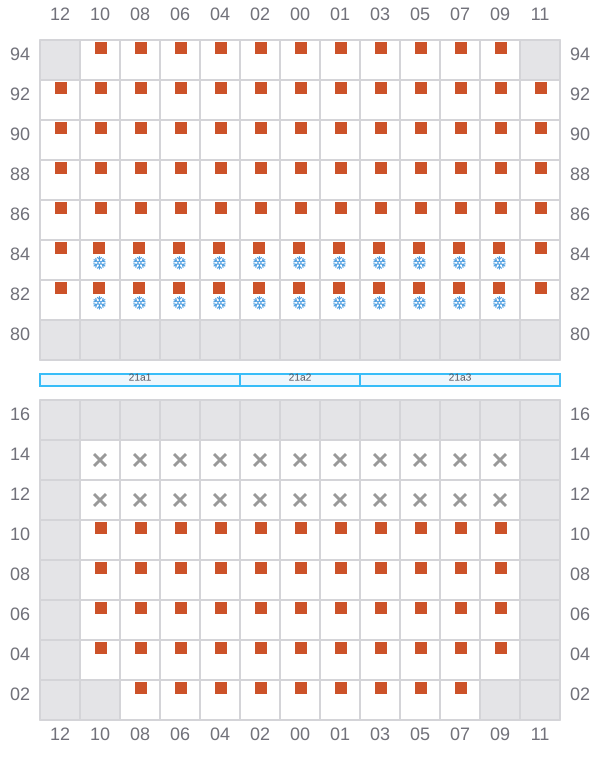

Bay 023 view and slots of NAGOYA TOWER

025 (026)

→

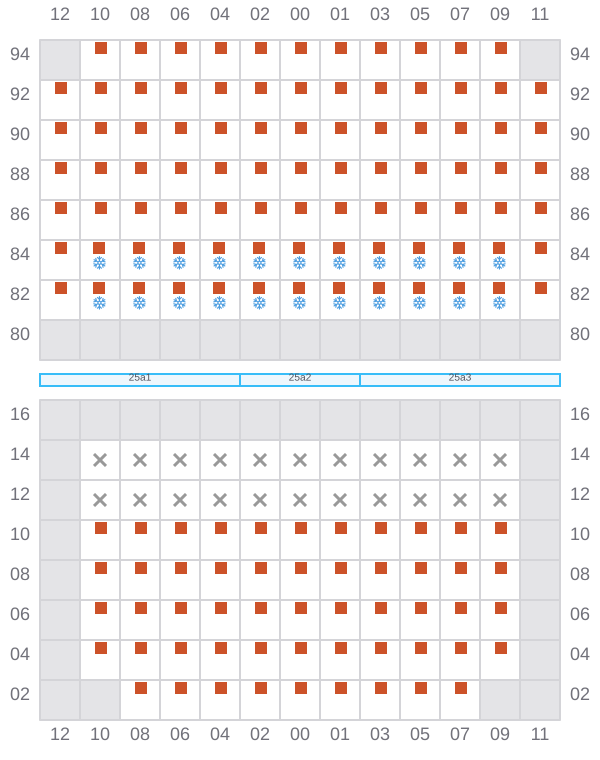

Bay 025 view and slots of NAGOYA TOWER

027

←
^→ / _?

Bay 027 view and slots of NAGOYA TOWER

029 (030)

→

Bay 029 view and slots of NAGOYA TOWER

031

←
^→ / _?

Bay 031 view and slots of NAGOYA TOWER

033 (034)

→

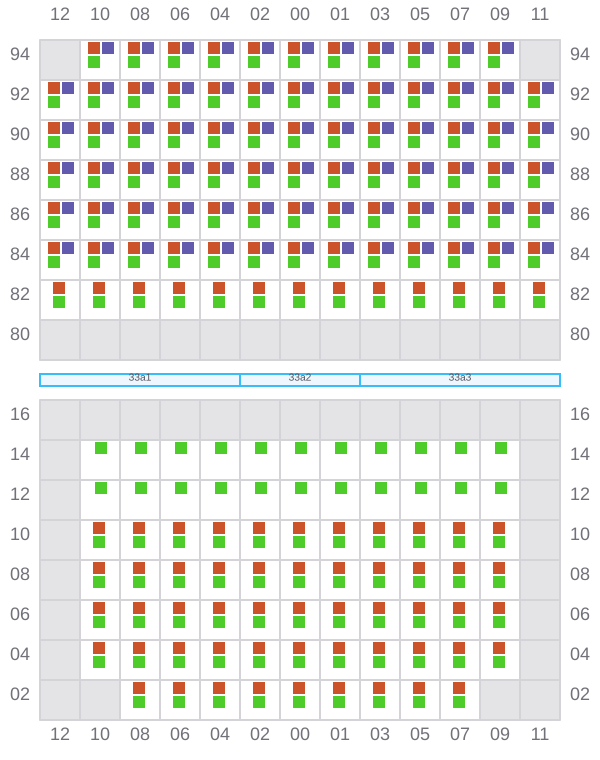

Bay 033 view and slots of NAGOYA TOWER

035

←
→

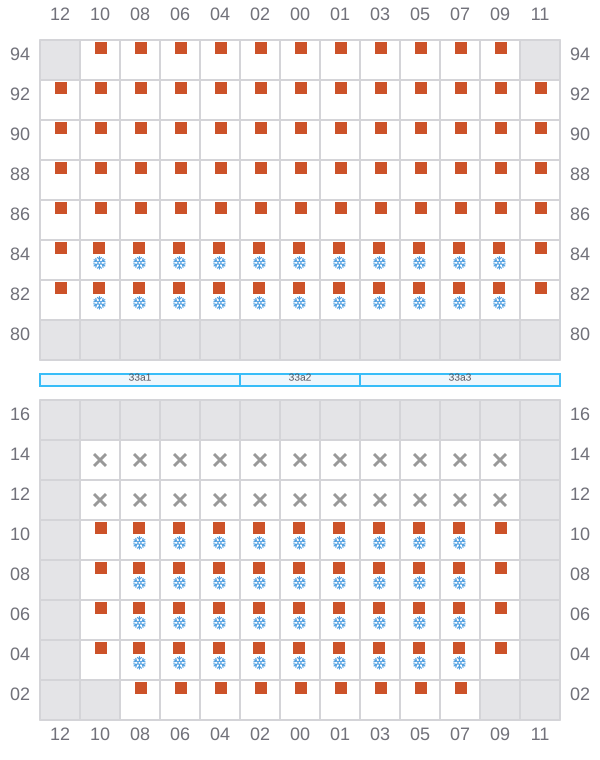

Bay 035 view and slots of NAGOYA TOWER

037 (038)

→

Bay 037 view and slots of NAGOYA TOWER

039

←
→

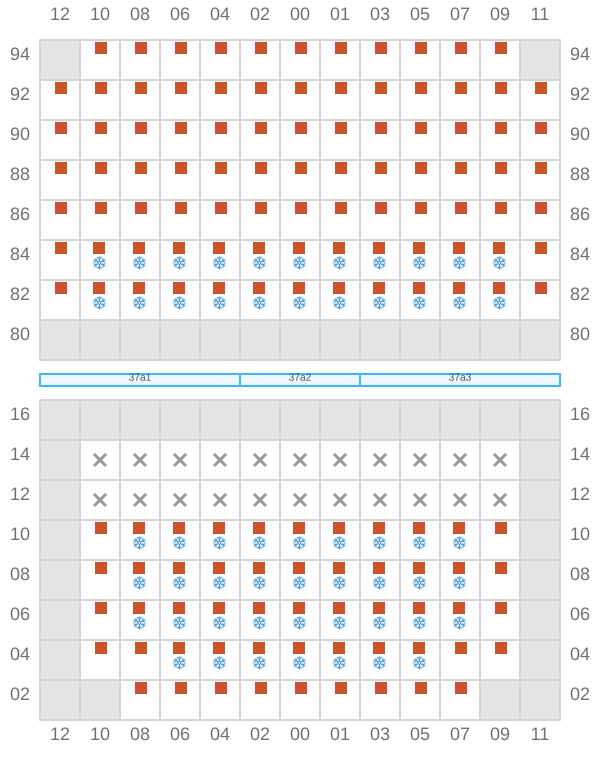

Bay 039 view and slots of NAGOYA TOWER

041 (042)

→

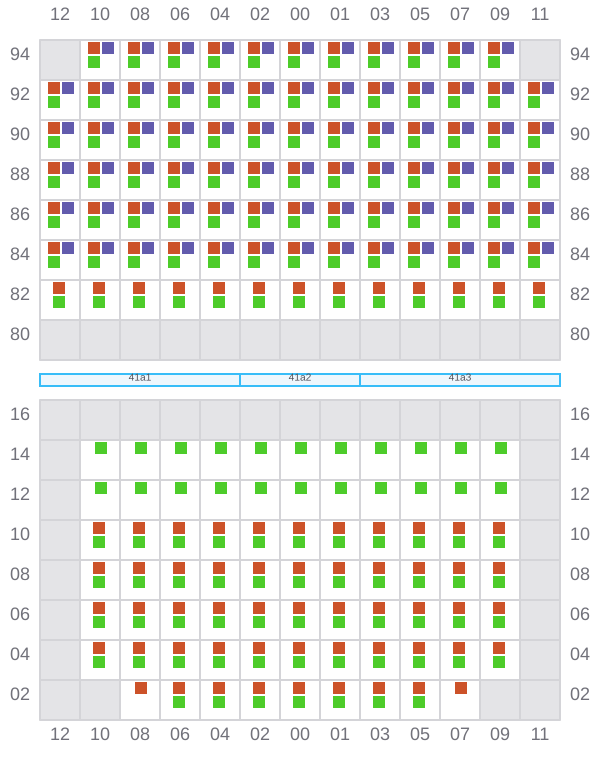

Bay 041 view and slots of NAGOYA TOWER

043

←
^→ / _?

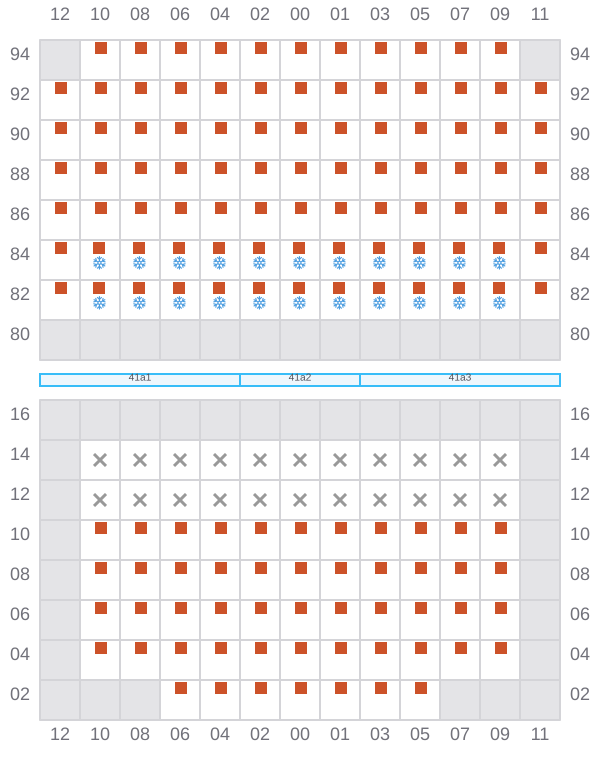

Bay 043 view and slots of NAGOYA TOWER

045 (046)

→

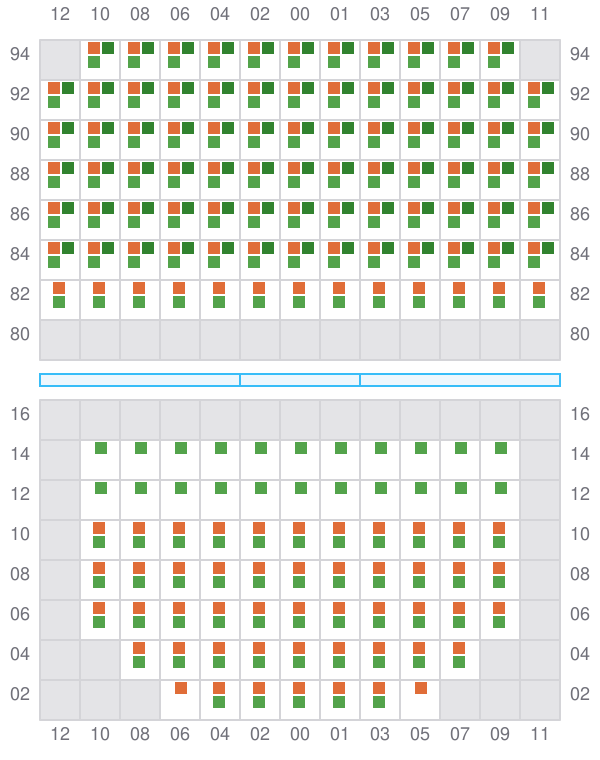

Bay 045 view and slots of NAGOYA TOWER

047

←
^→ / _?

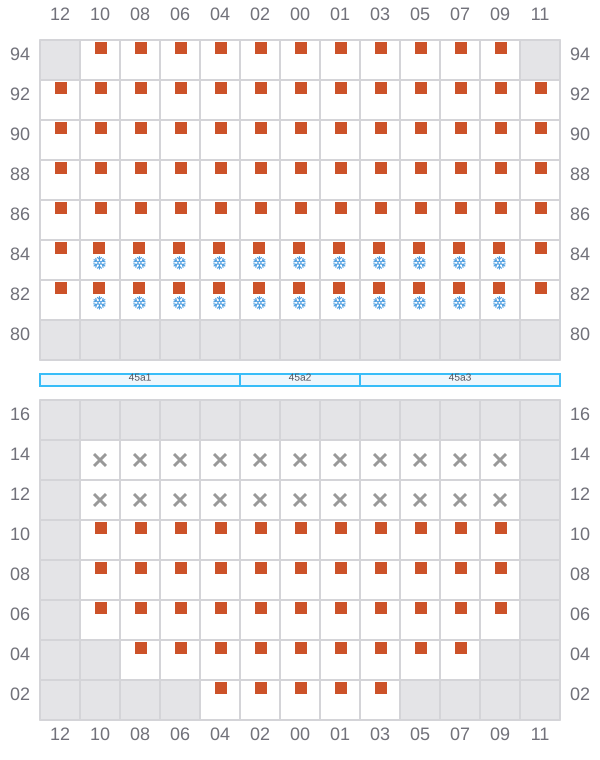

Bay 047 view and slots of NAGOYA TOWER

049 (050)

^→ / _?
^← / _?

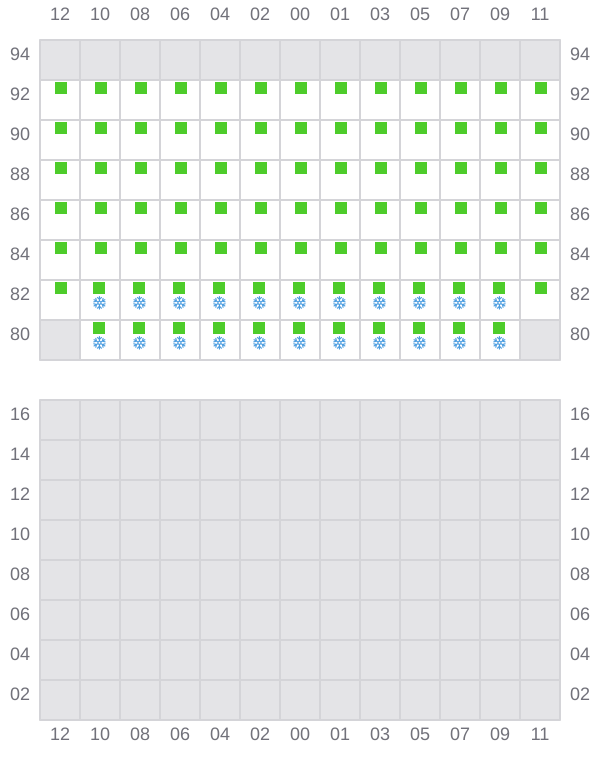

Bay 049 view and slots of NAGOYA TOWER

051

Bay 051 view and slots of NAGOYA TOWER

053 (054)

→
^← / _?

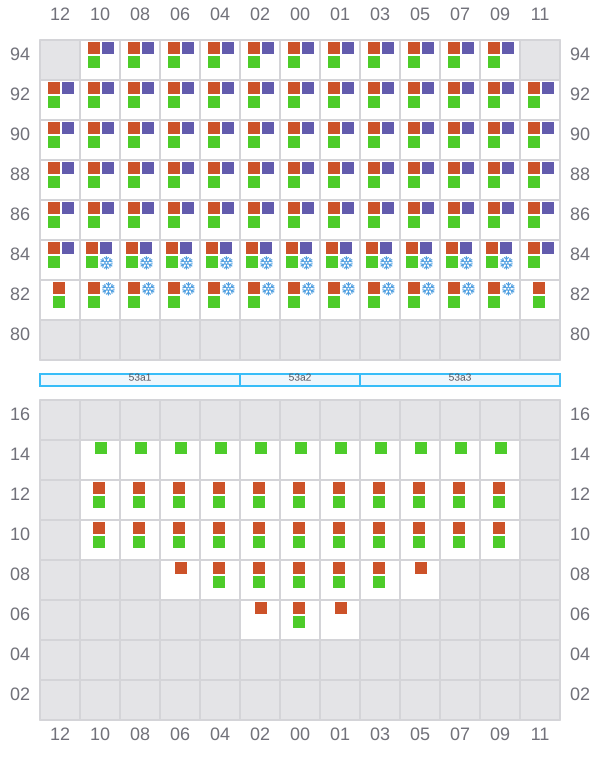

Bay 053 view and slots of NAGOYA TOWER

055

←

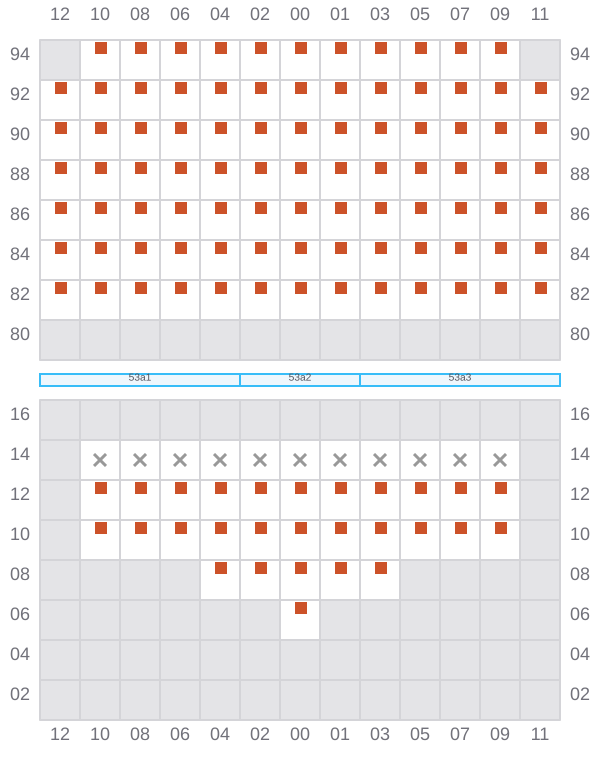

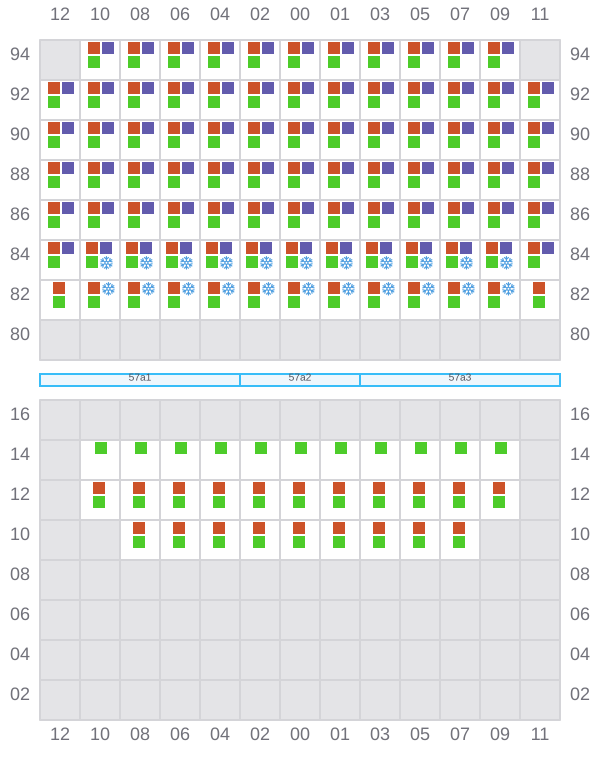

Bay 055 view and slots of NAGOYA TOWER

057 (058)

→
^← / _?

Bay 057 view and slots of NAGOYA TOWER

059

←

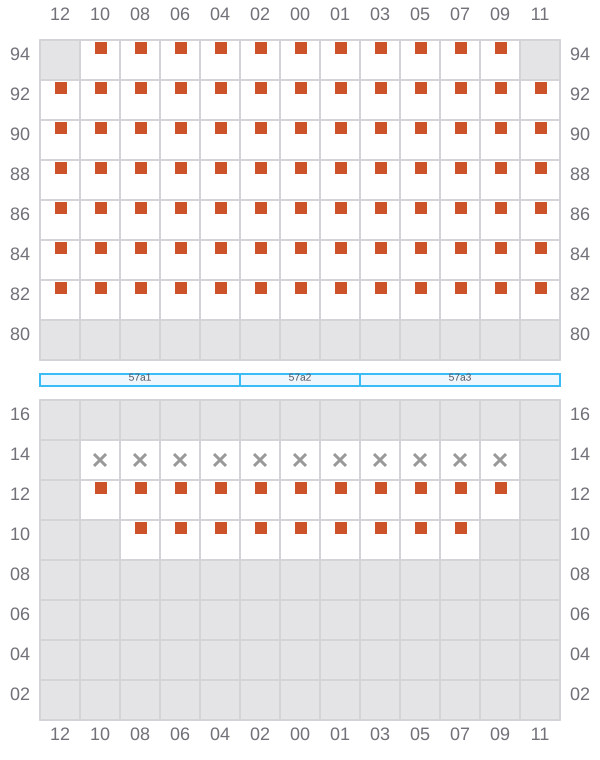

Bay 059 view and slots of NAGOYA TOWER

061 (062)

^→ / _?
^← / _?

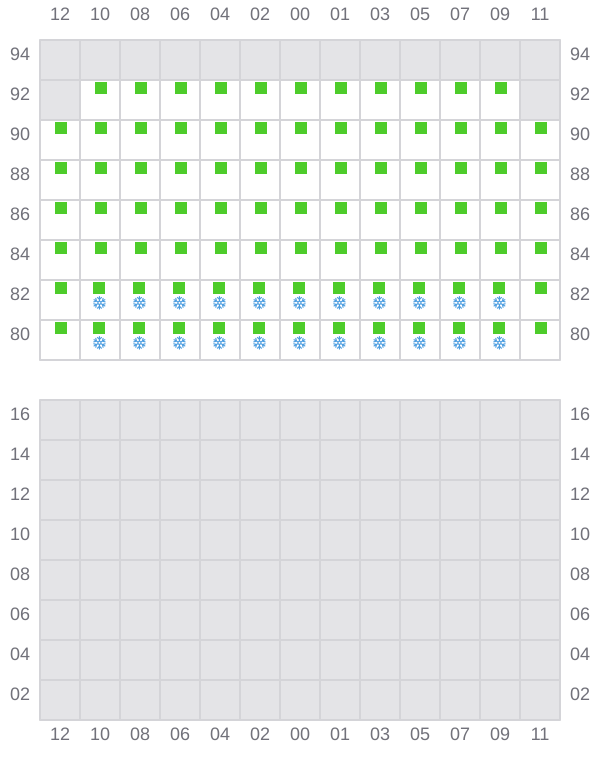

Bay 061 view and slots of NAGOYA TOWER
