NAJADE
9326706 | A8LL4 | WHL by ******************** Last update: Wed Apr 30 2025
General Info
Ship Name:NAJADE
IMO Code:9326706
Call Sign:A8LL4
Line Operator:WHL
Class Name for Sister Ships:NAJA
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):205.28
LOA (Length Overall):215.45
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,704
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

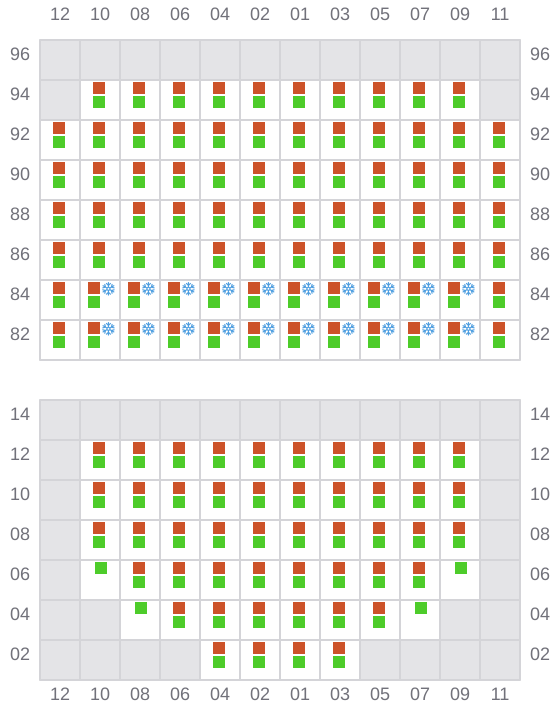

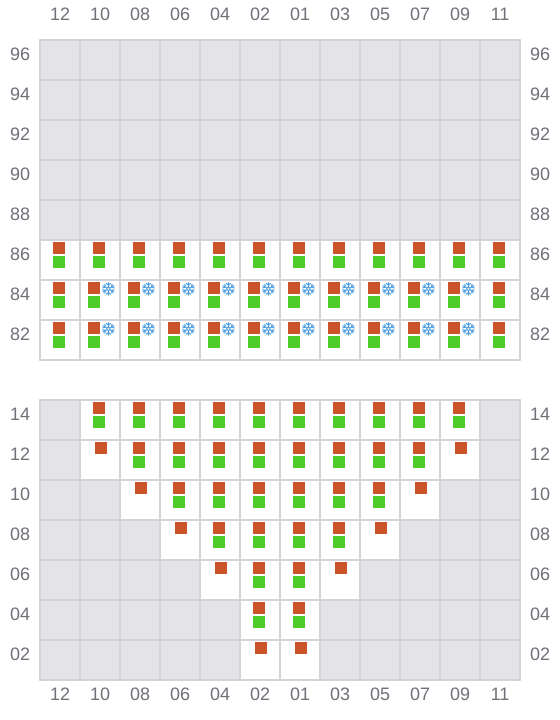

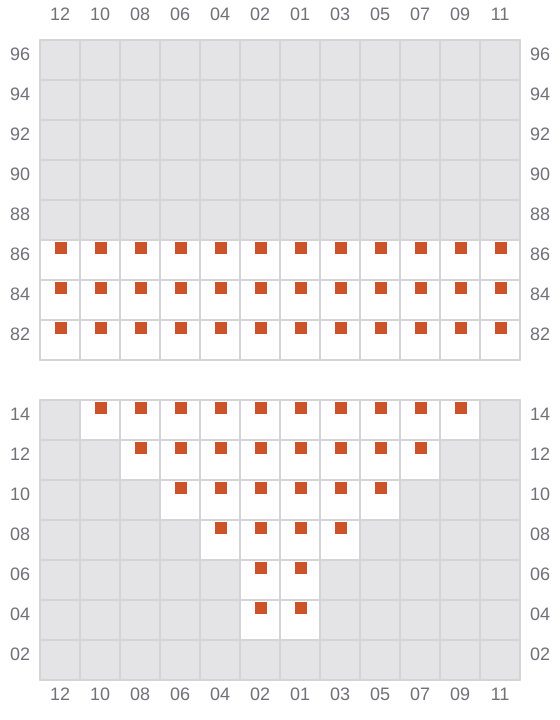

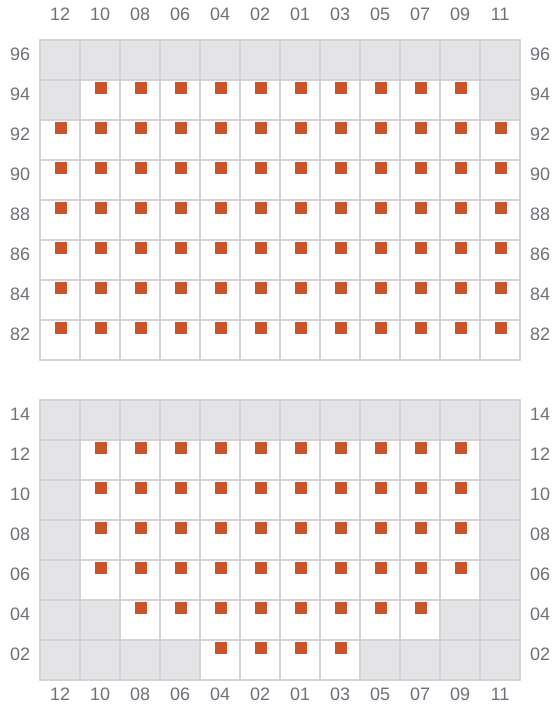

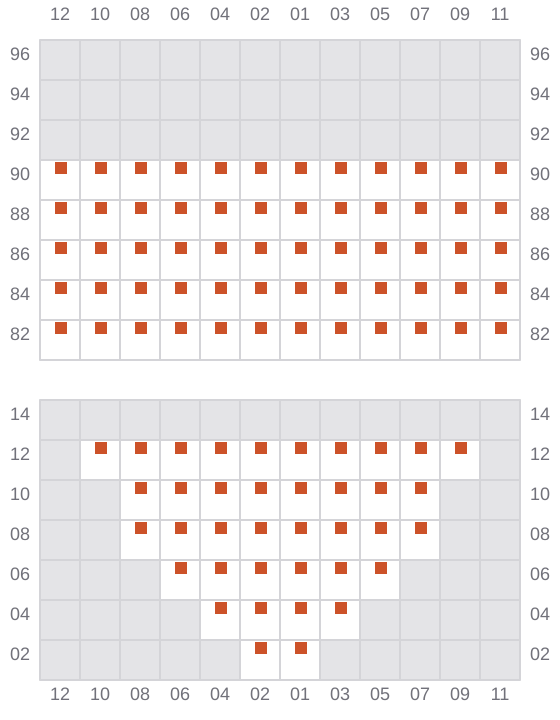

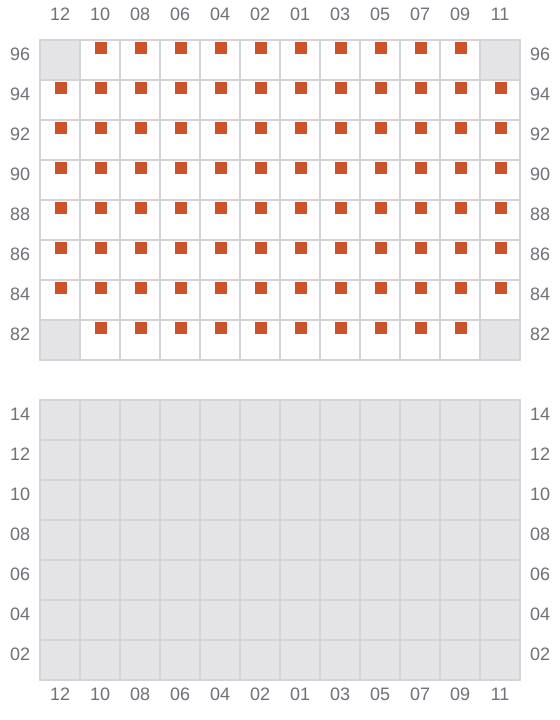

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

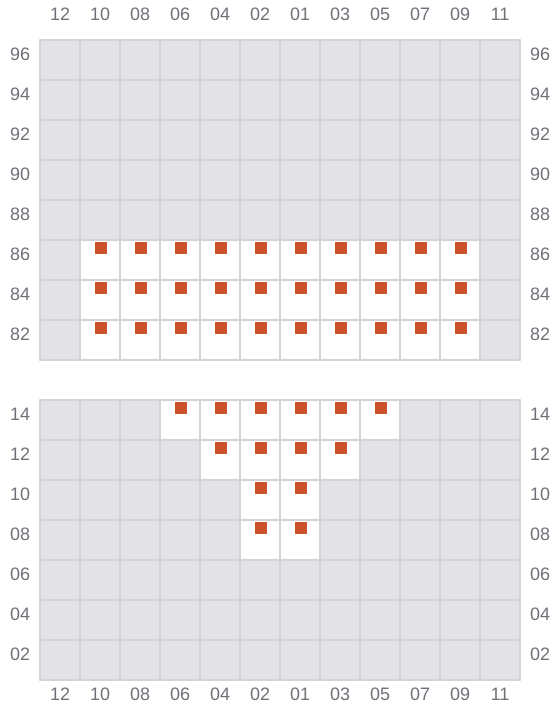

001
- →
003 (002)
- ←

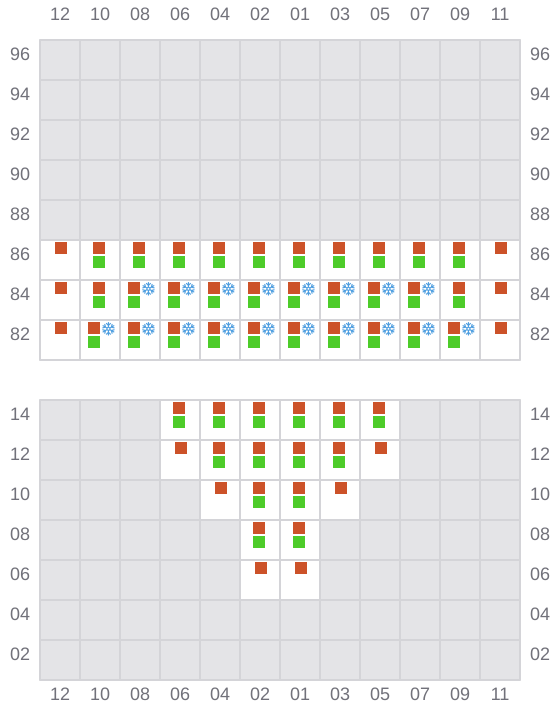

005
- →
007 (006)
- ←
009
- →

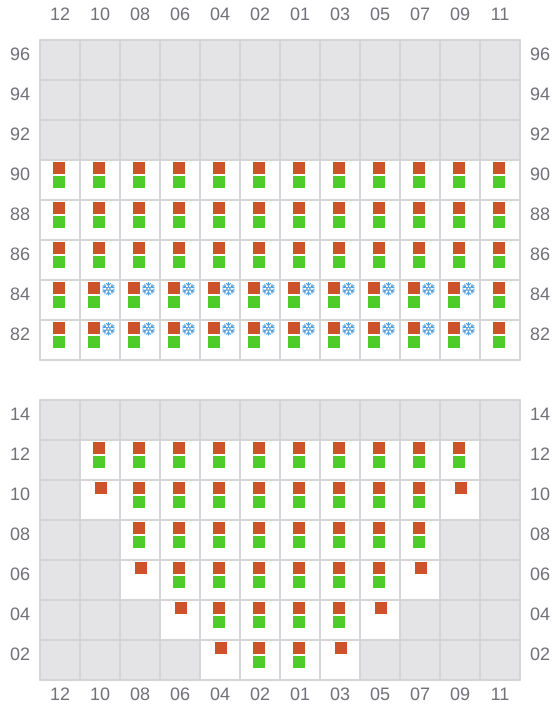

011 (010)
- ←

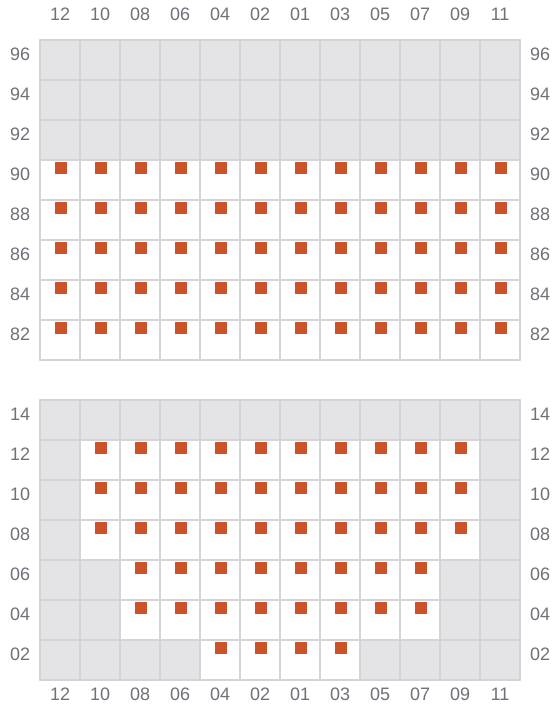

013
- →

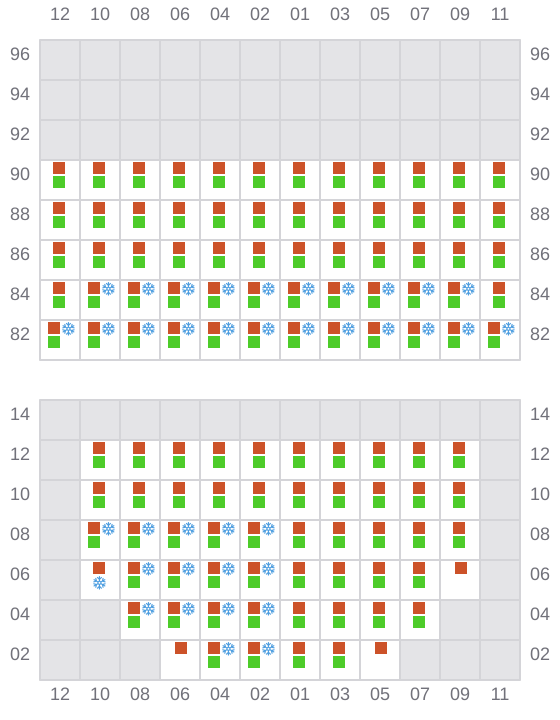

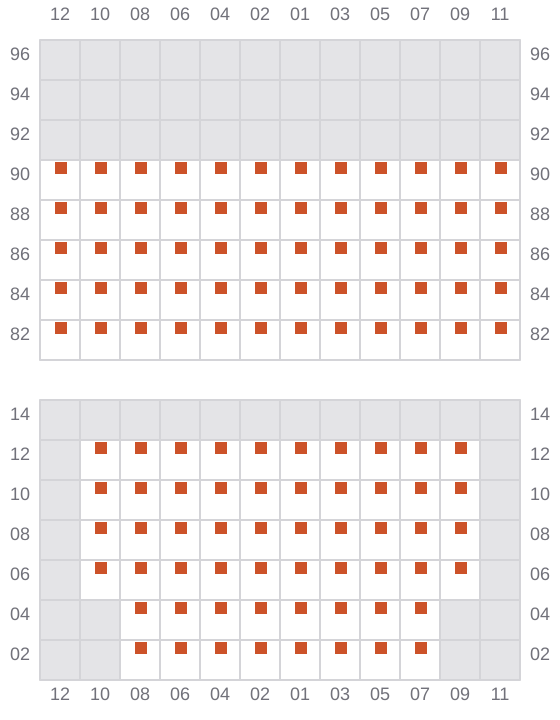

015 (014)
- ←

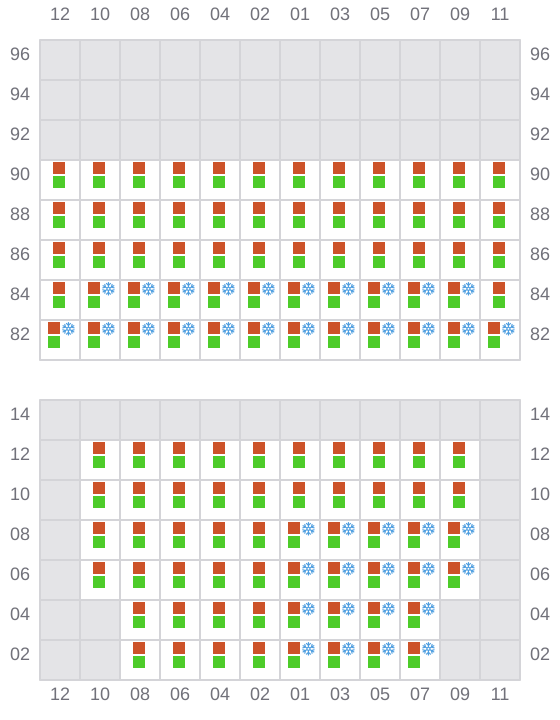

017
- →
019 (018)
- ←
021
- →

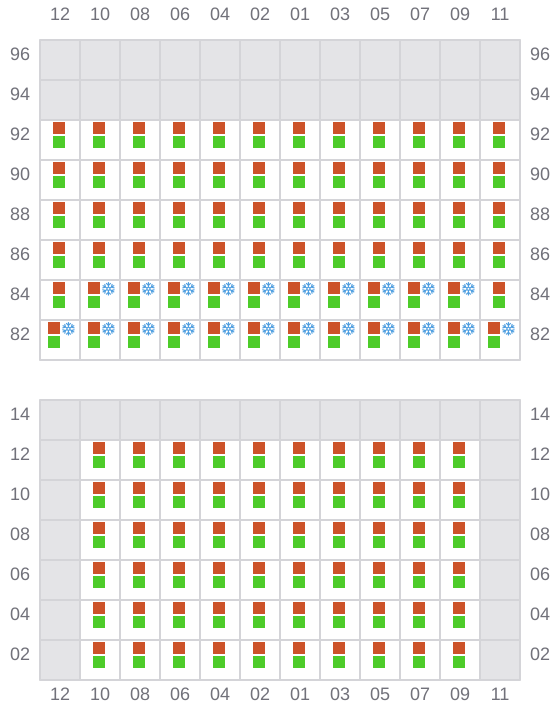

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

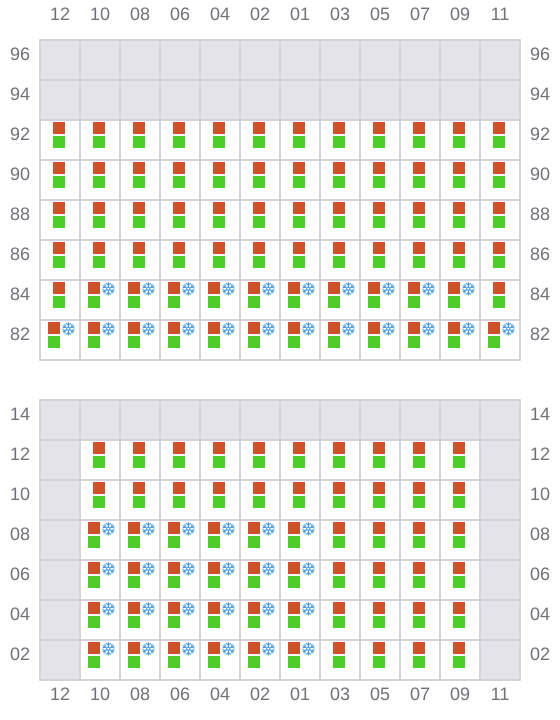

031 (030)
- ←
033
- →

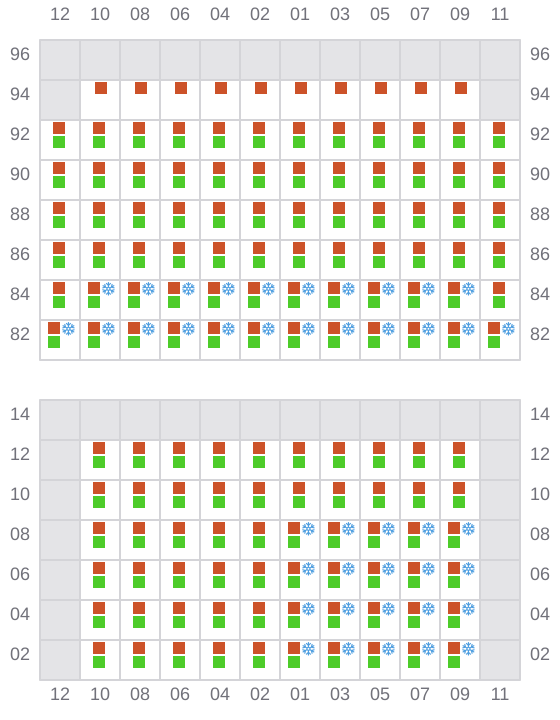

035 (034)
- ←

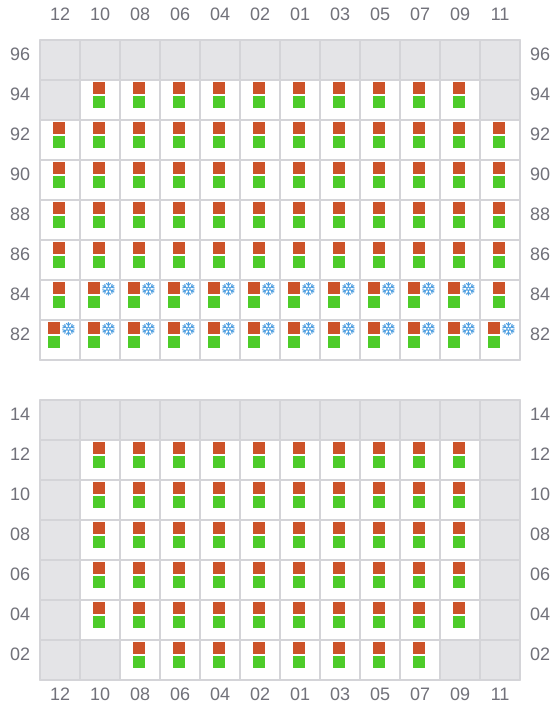

037
- →

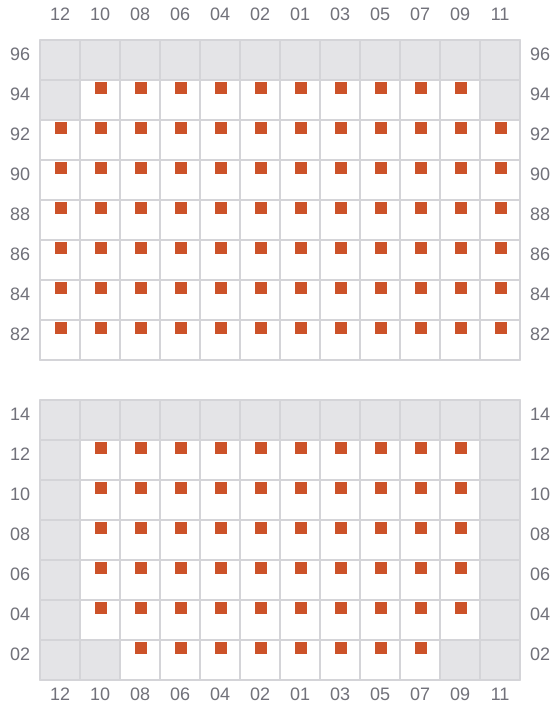

039 (038)
- ←
041
- →
043 (042)
- ←

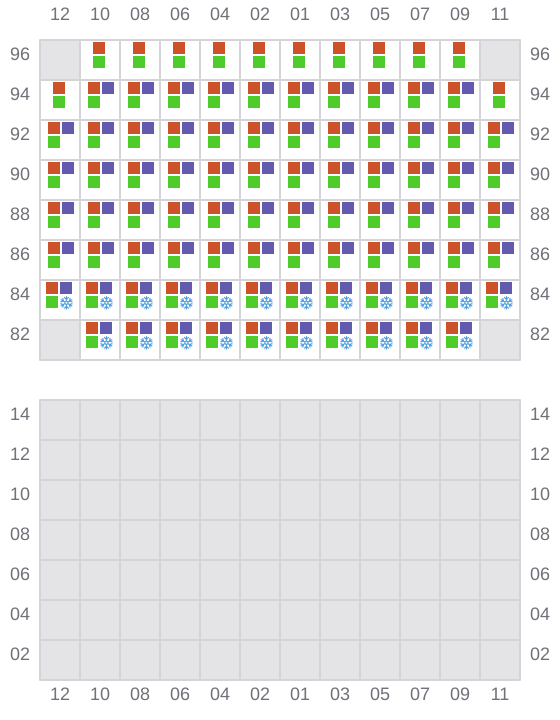

045
- →

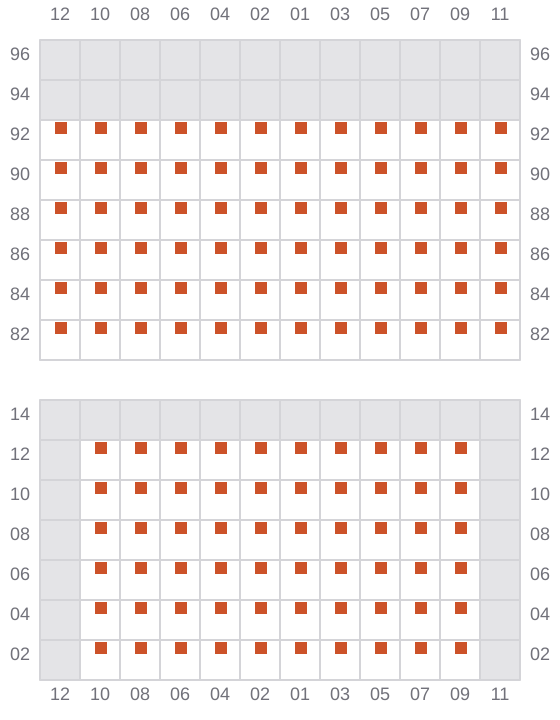

047 (046)
- ←
