NAVIOS CYAN
1072684 | A8OD2 | NAVIOS CONTAINERS MANAGEMENT by ********** Last update: Wed Jun 10 2026
General Info
Ship Name:NAVIOS CYAN
IMO Code:1072684
Call Sign:A8OD2
Line Operator:NAVIOS CONTAINERS MANAGEMENT
Class Name for Sister Ships:
Year Built:2026
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):259.50
LOA (Length Overall):272.08
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,899
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

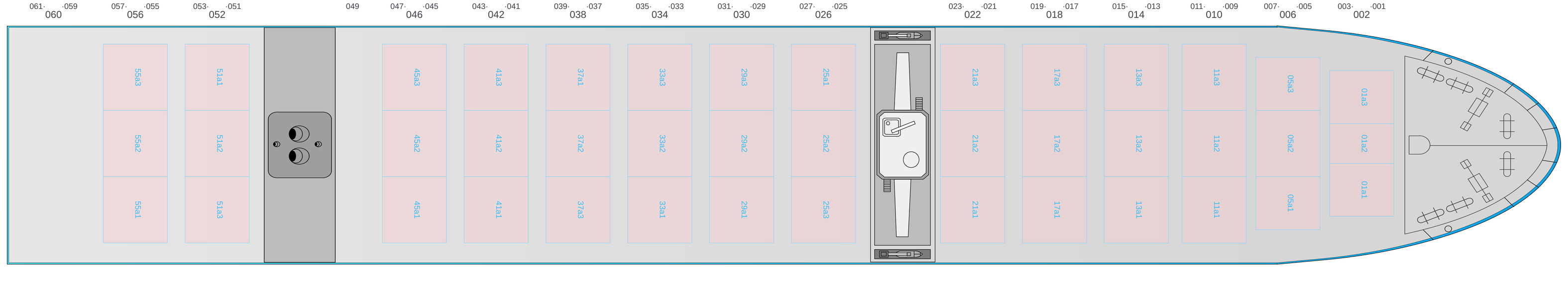

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

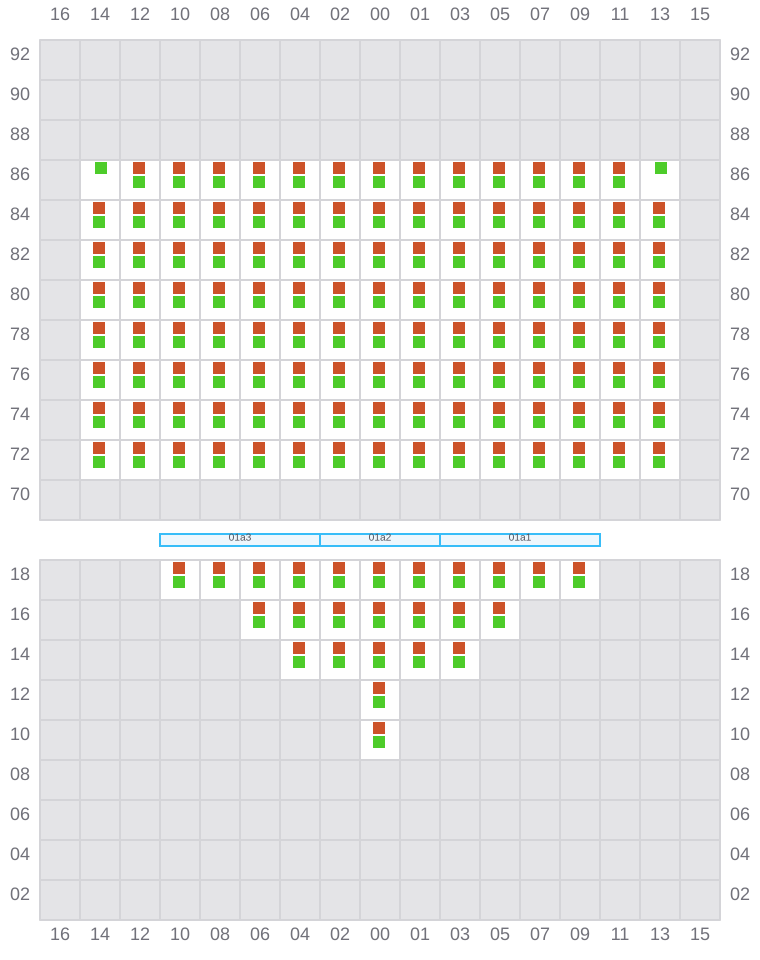

001 (002)
- →
- → / ?
- → / ?

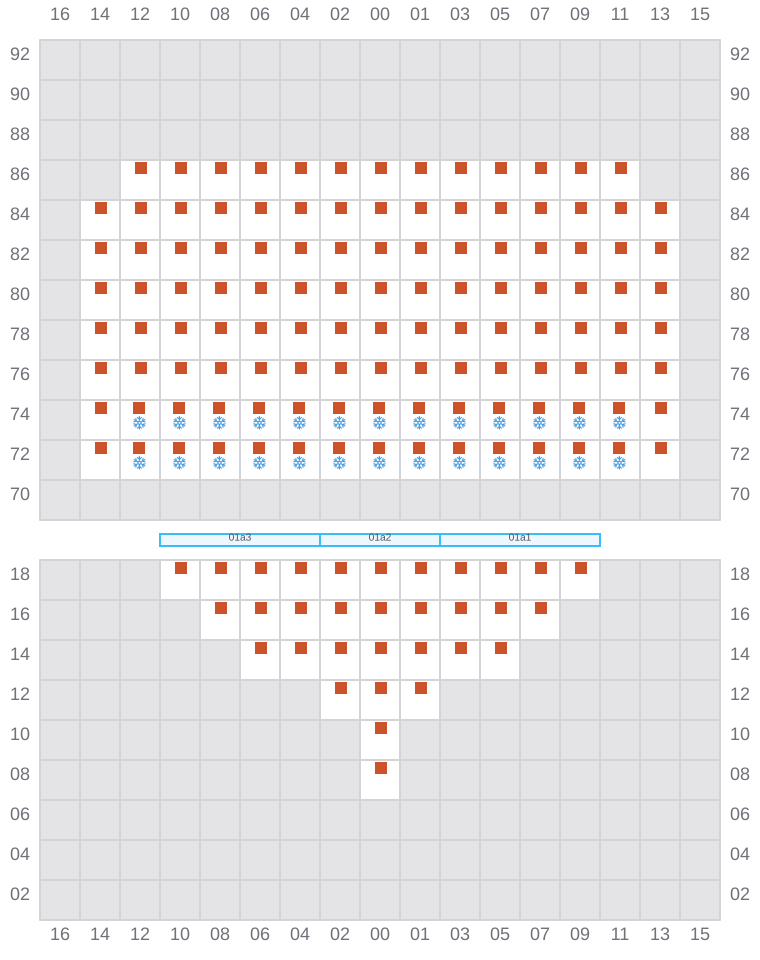

003
- ←
- → / ?
- → / ?

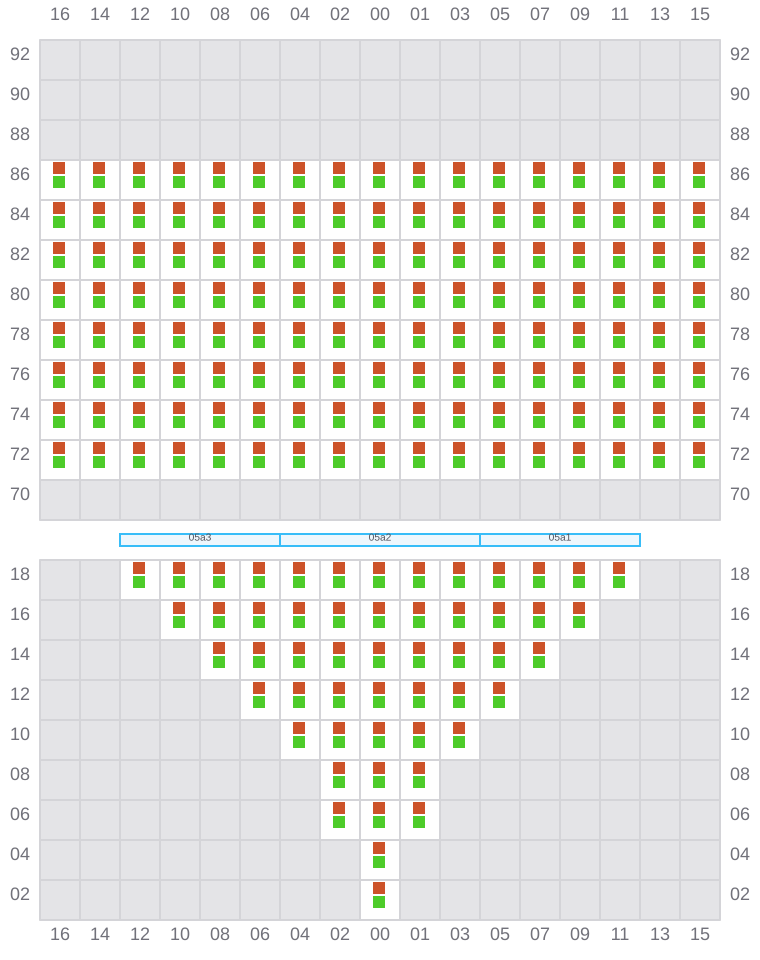

005 (006)
- →
- → / ?
- → / ?

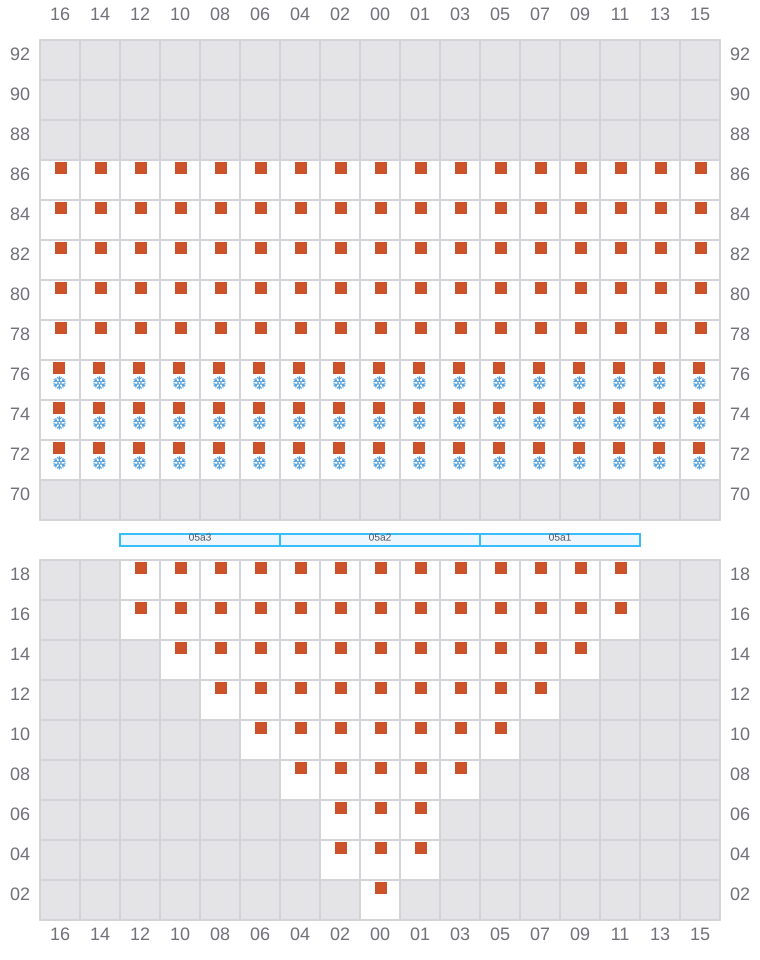

007
- ←
- → / ?
- → / ?

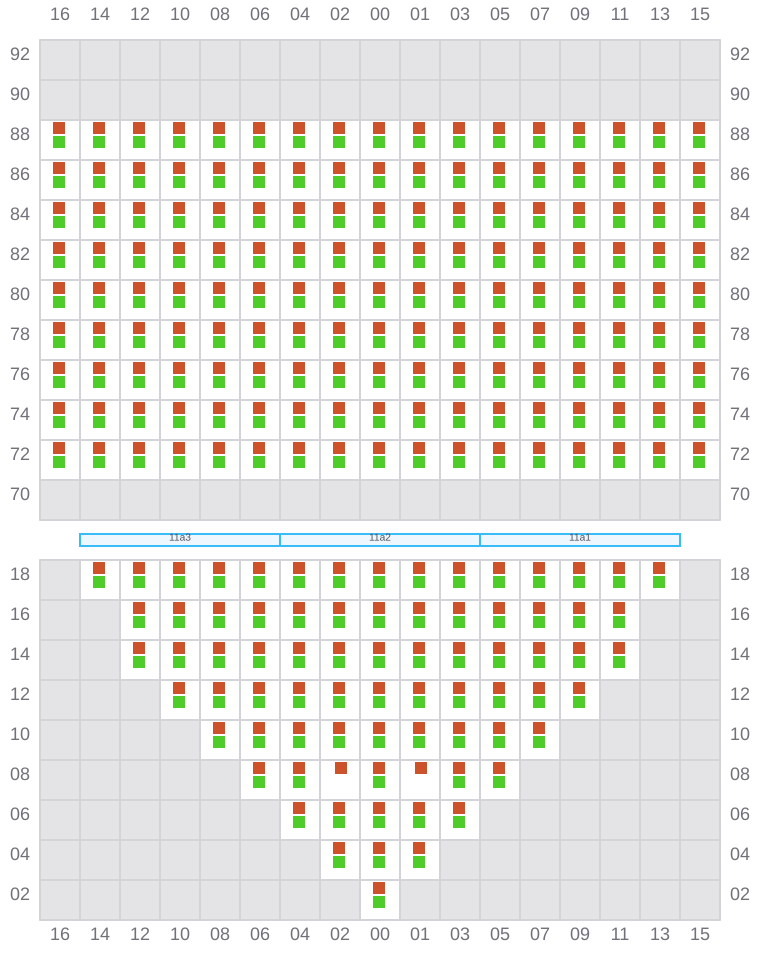

009 (010)
- →

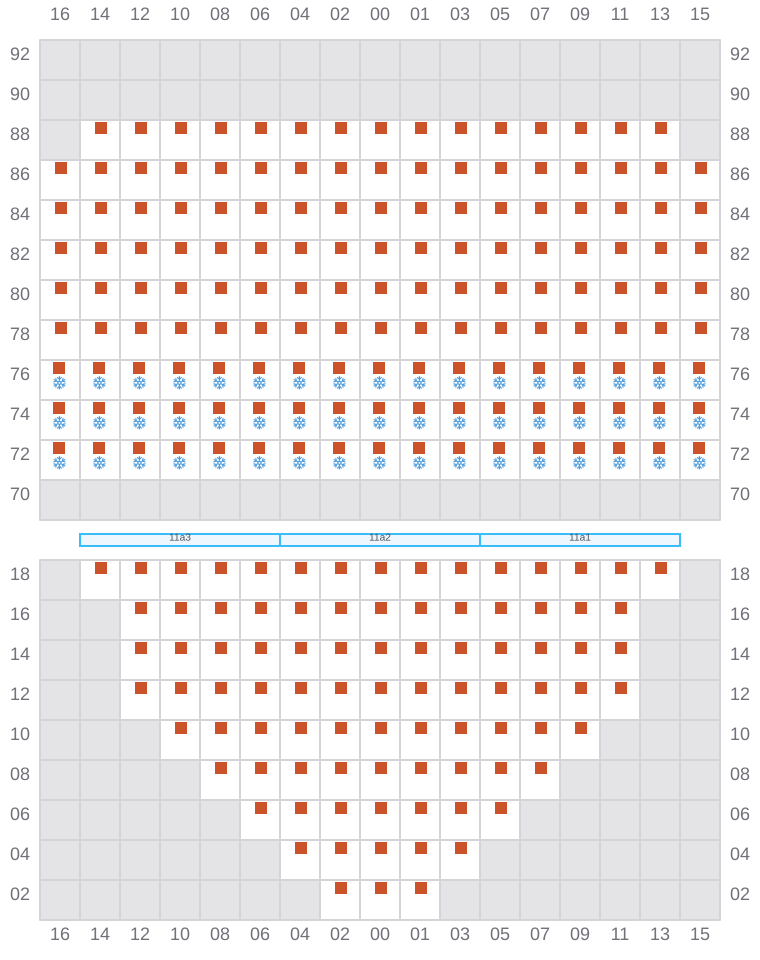

011
- ←
- → / ?
- → / ?

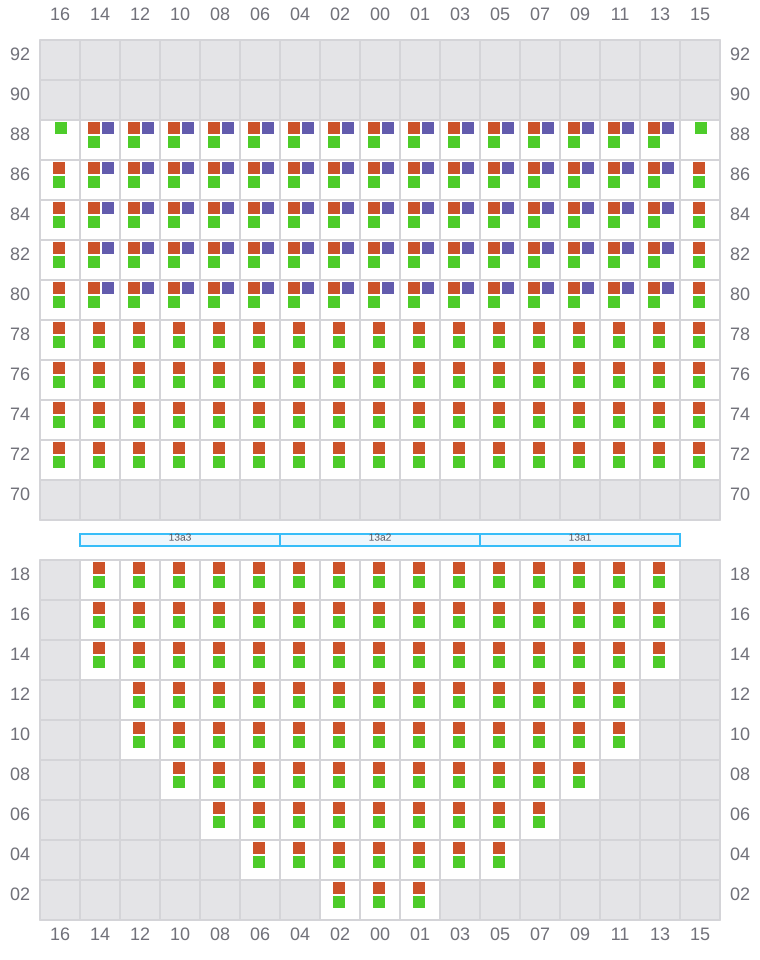

013 (014)
- →
- → / ?

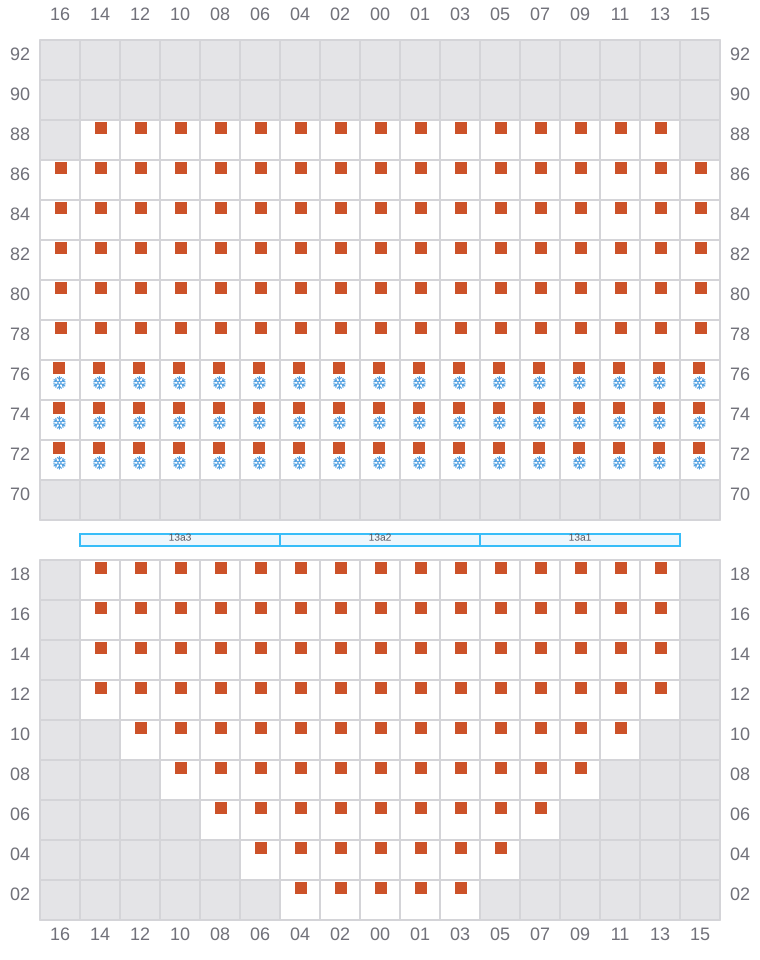

015
- ←
- → / ?
- → / ?

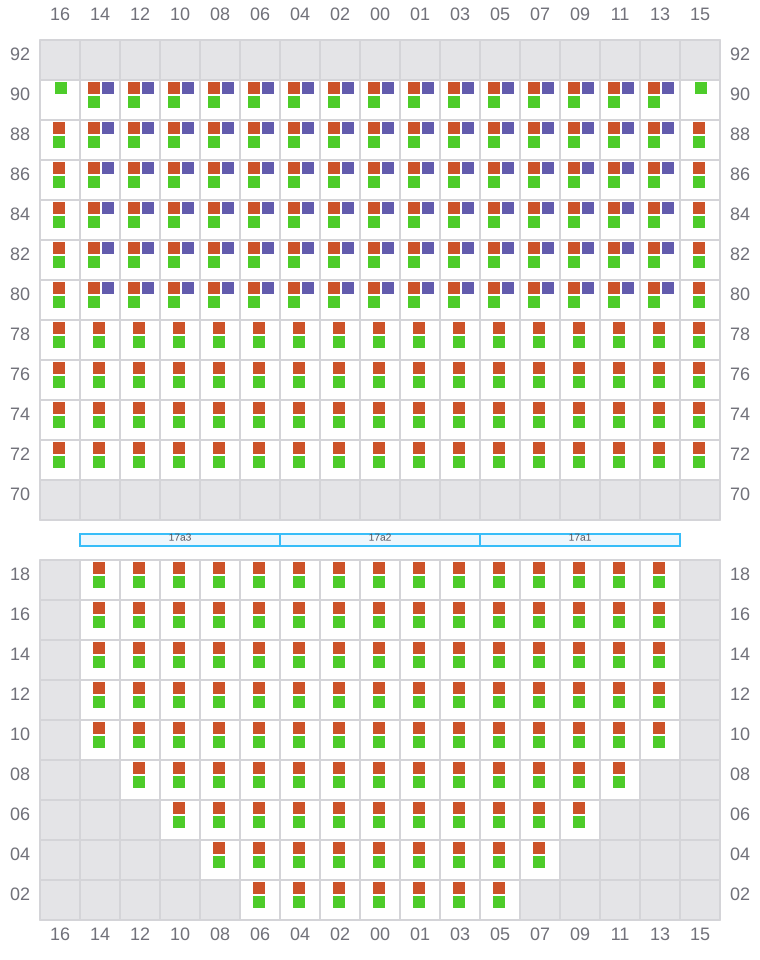

017 (018)
- →
- → / ?
- → / ?

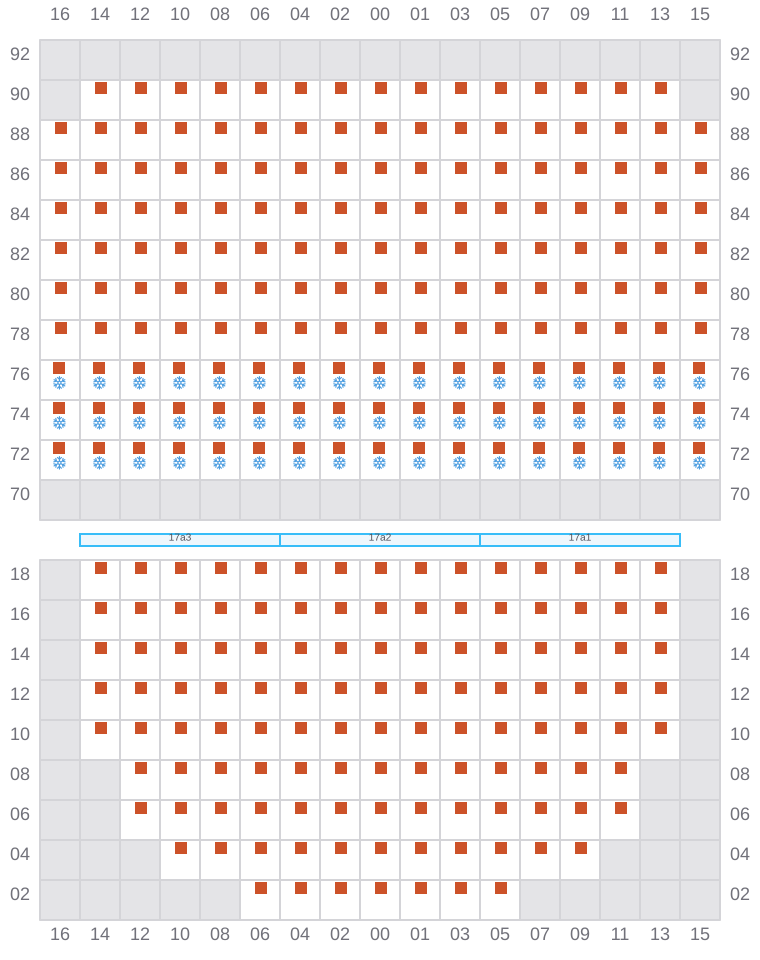

019
- ←

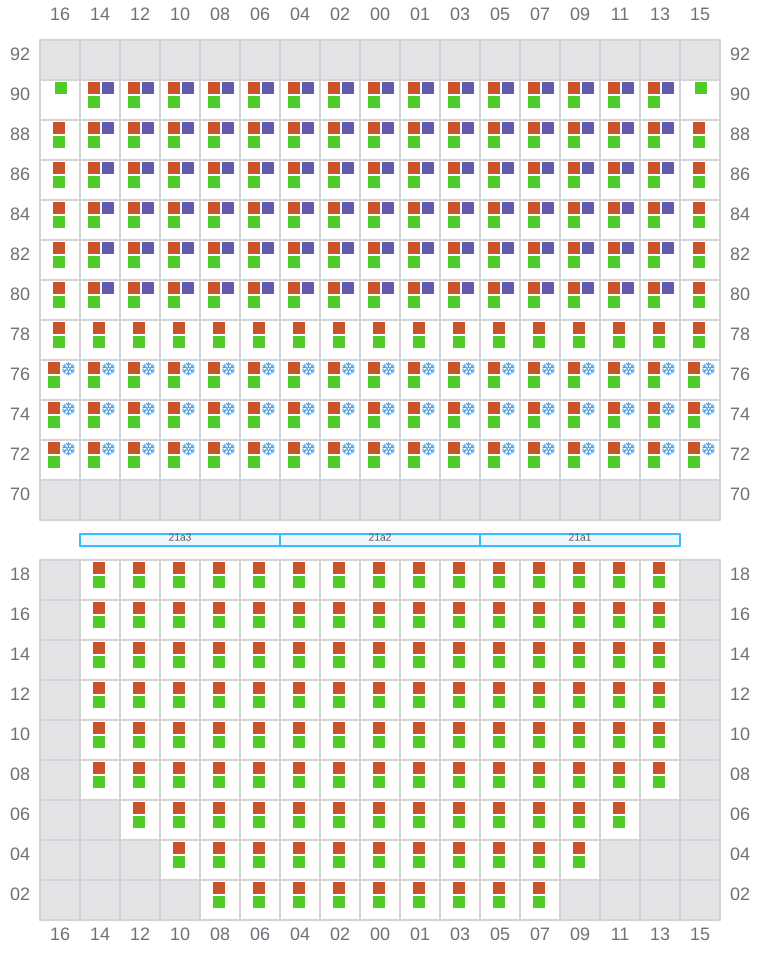

021 (022)
- →
- → / ?

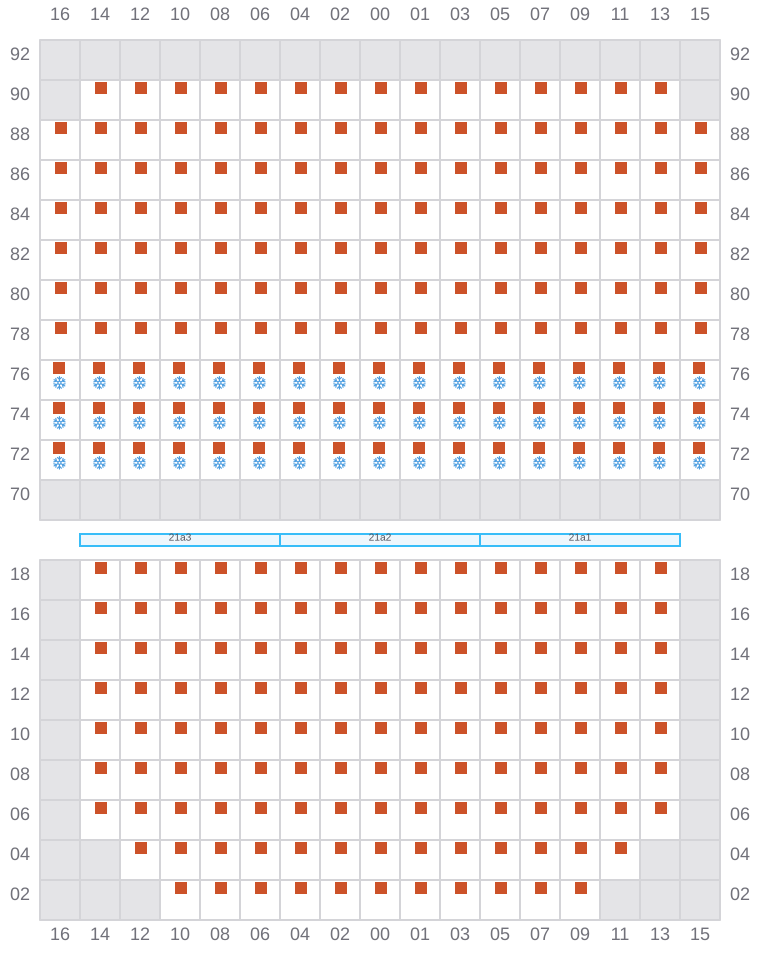

023
- ←
- → / ?
- → / ?

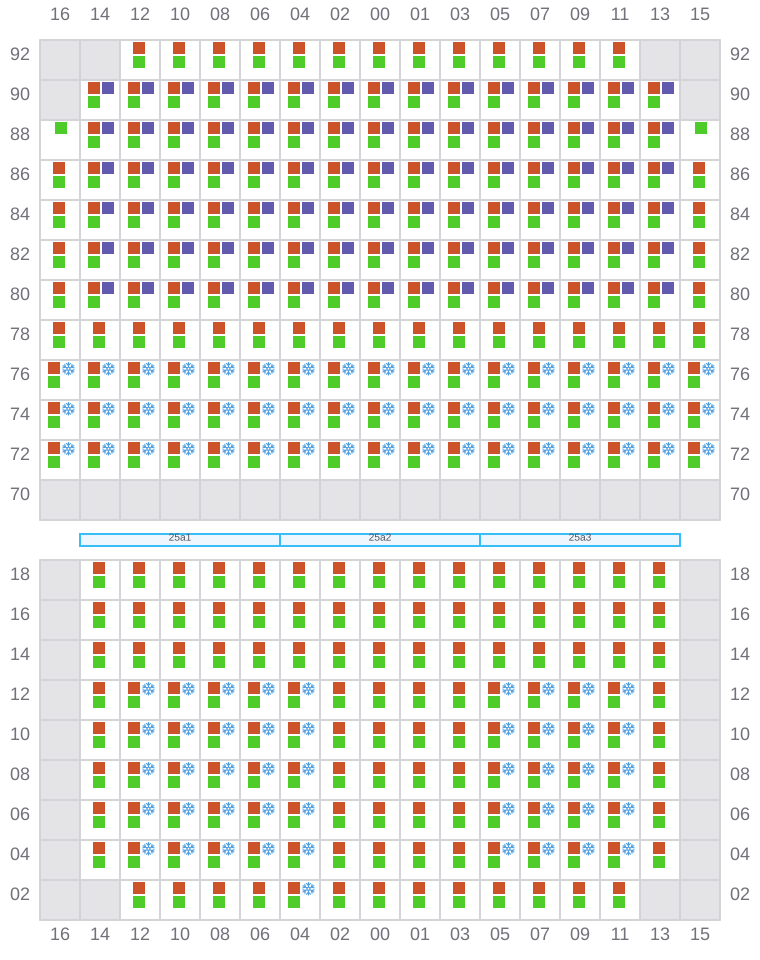

025 (026)
- →
- →
- → / ?

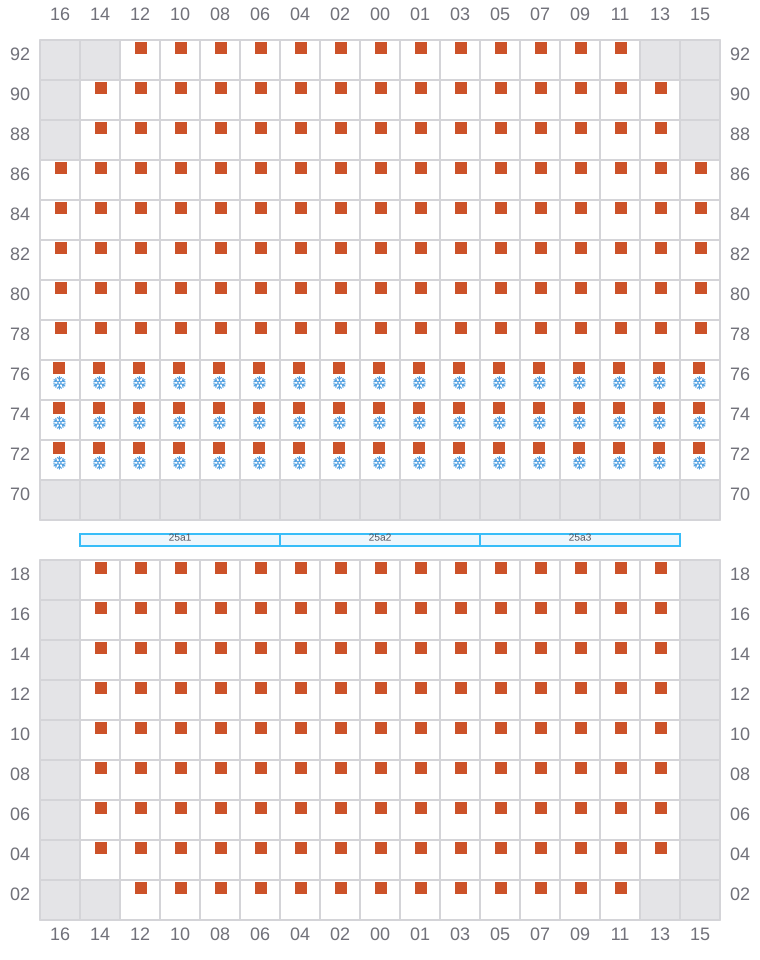

027
- ←
- → / ?

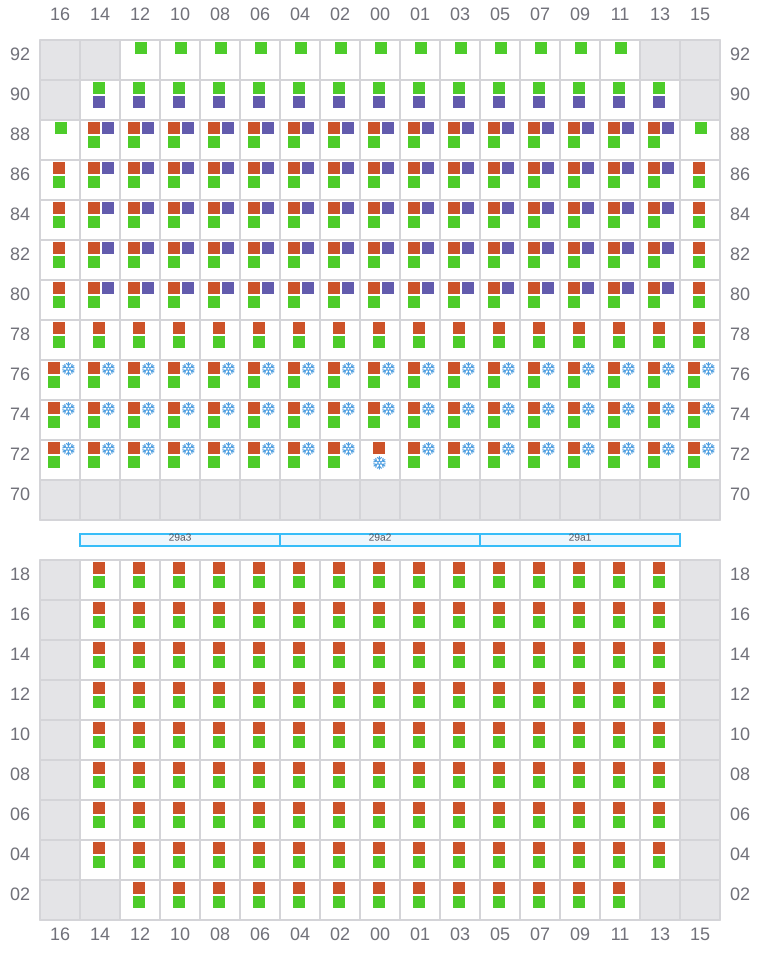

029 (030)
- →
- → / ?
- → / ?

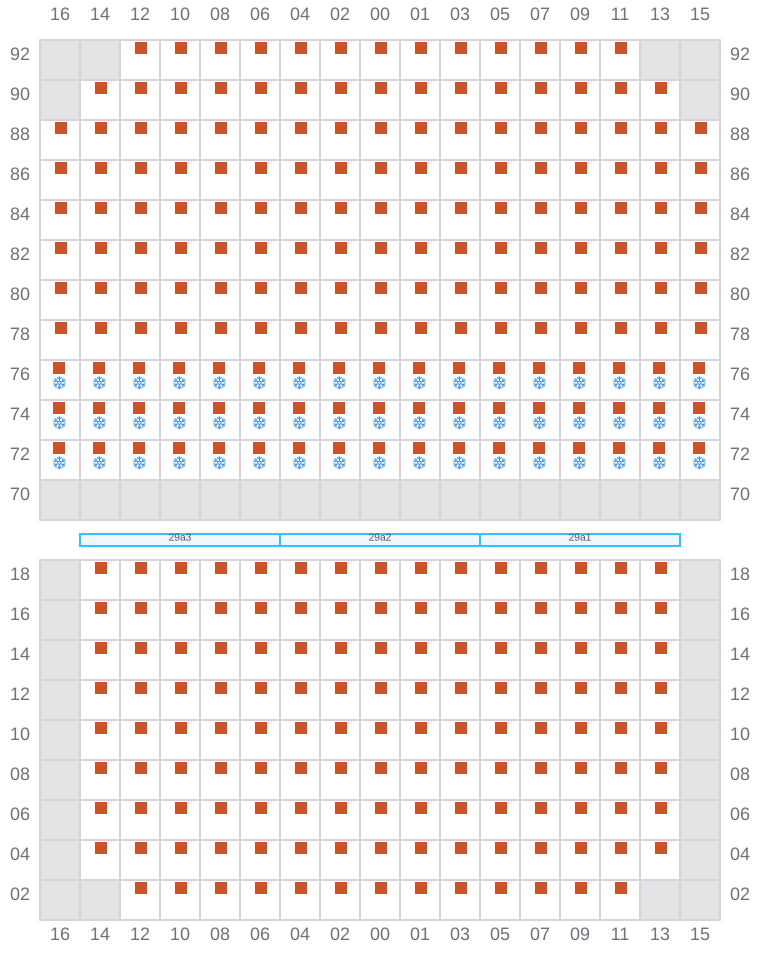

031
- ←
- → / ?

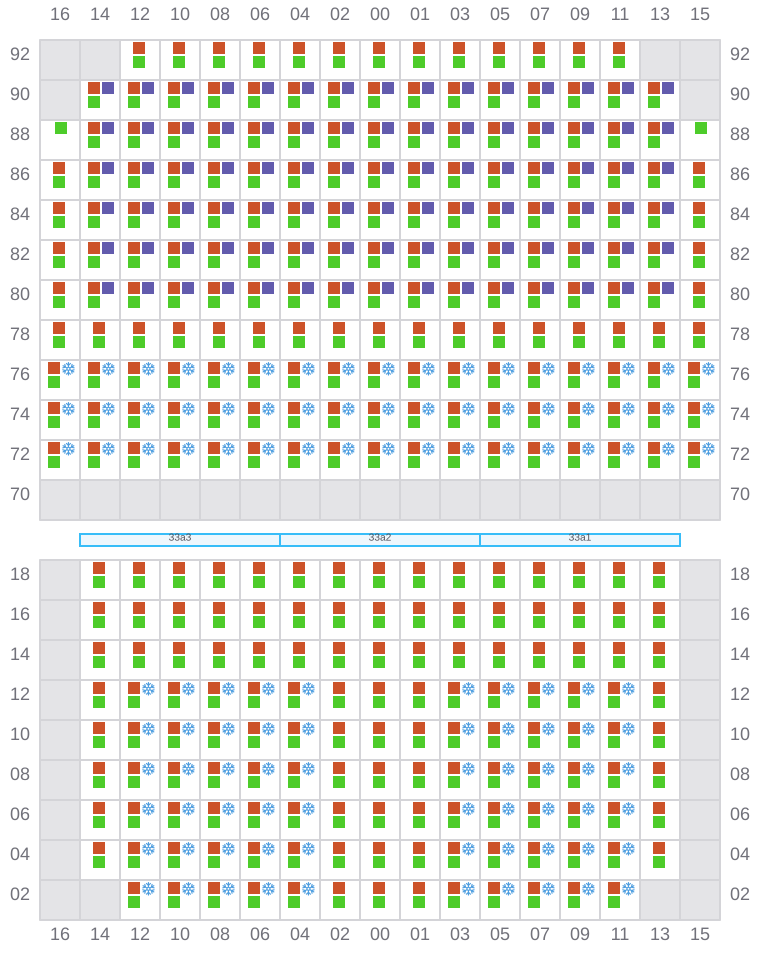

033 (034)
- →
- →
- →

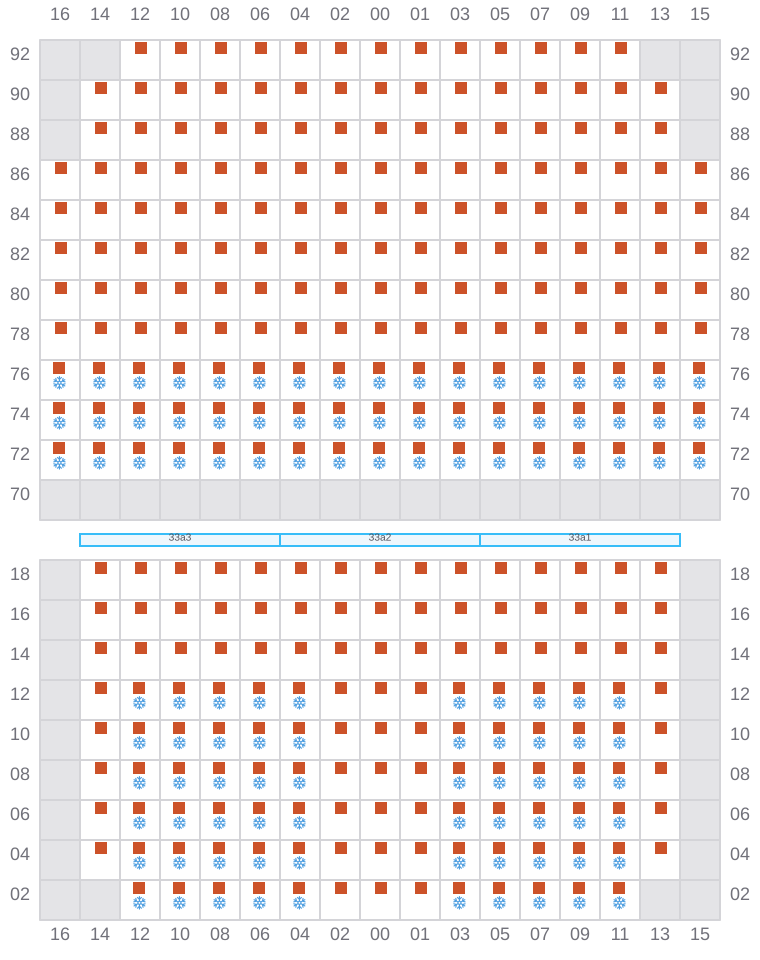

035
- ←
- → / ?
- → / ?

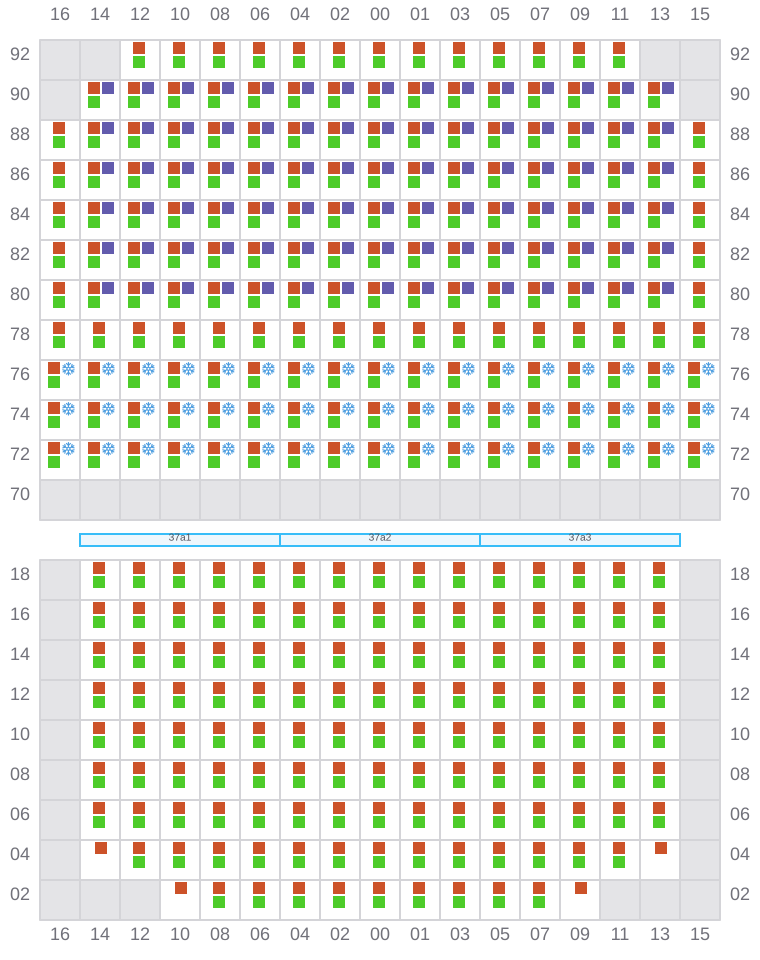

037 (038)
- →
- → / ?
- → / ?

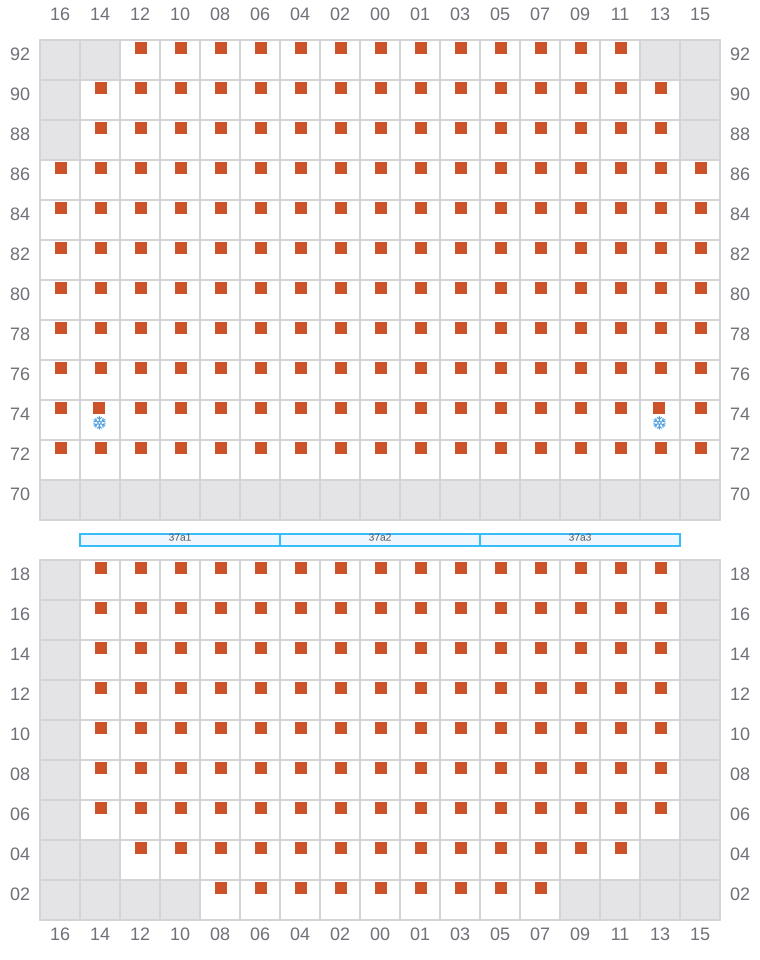

039
- ←
- → / ?
- → / ?

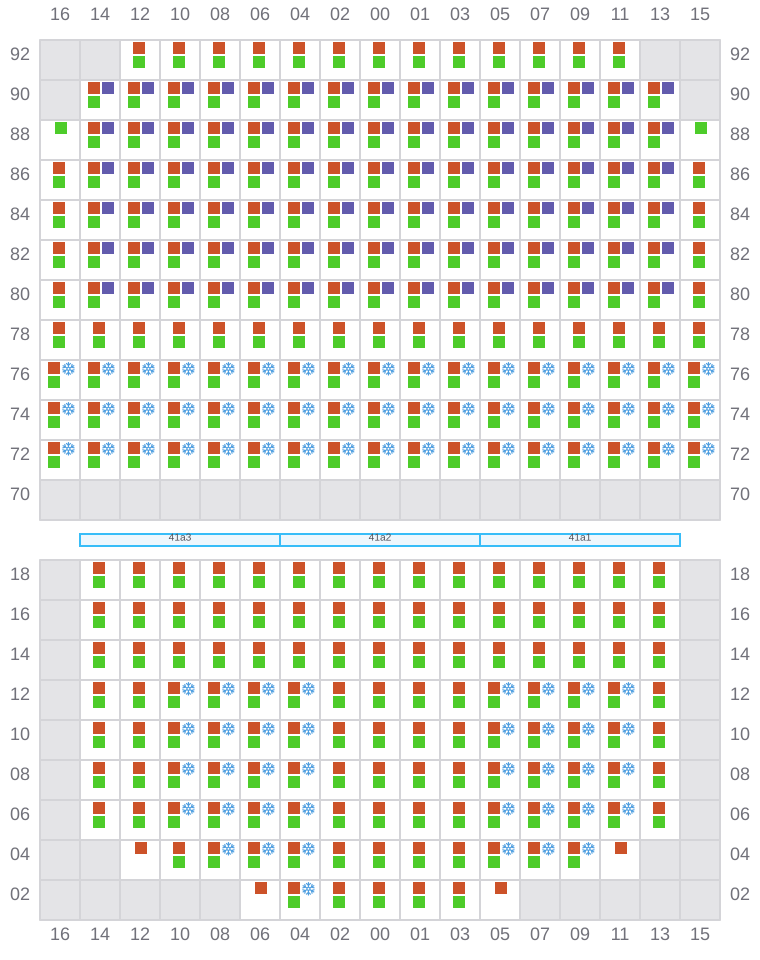

041 (042)
- →
- →
- →

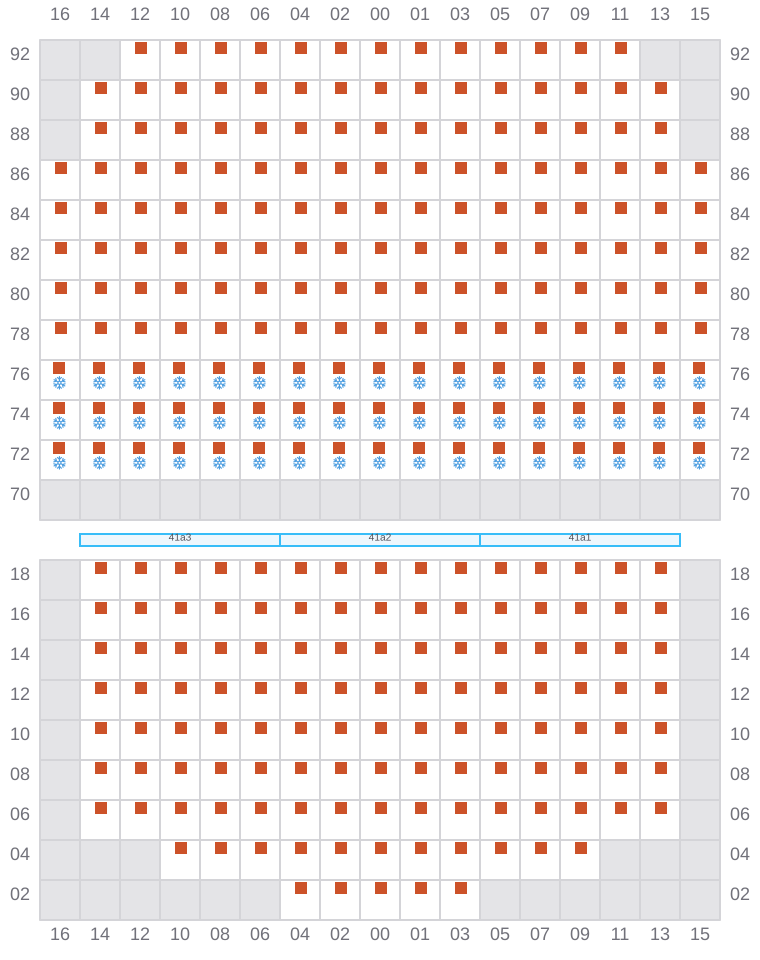

043
- ←
- →
- → / ?

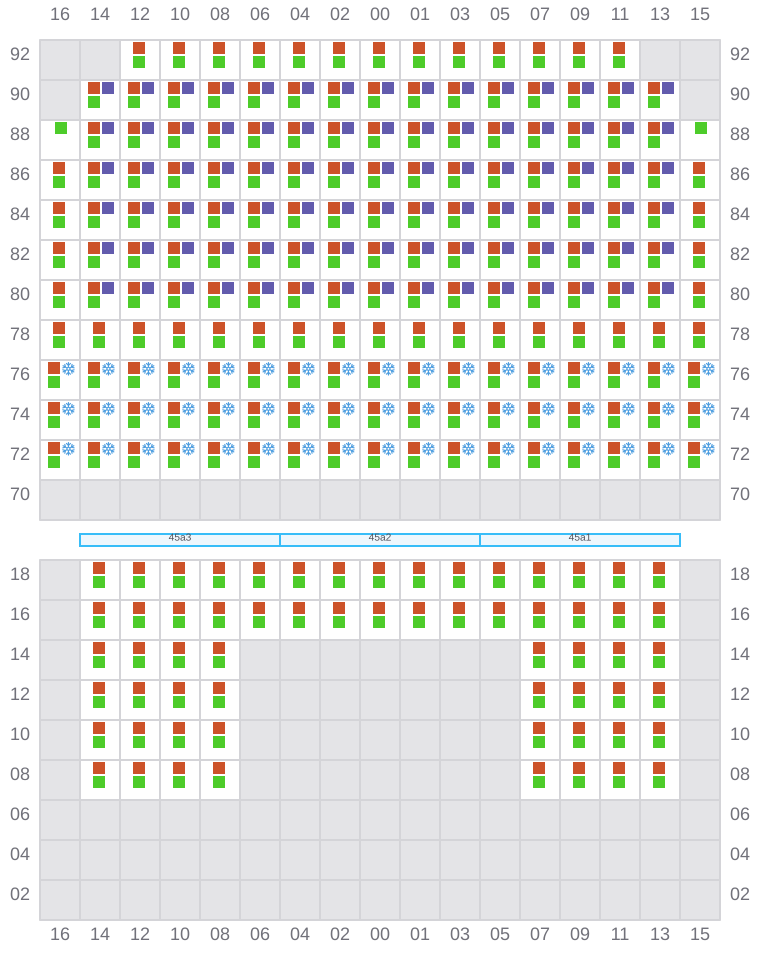

045 (046)
- →
- → / ?
- →

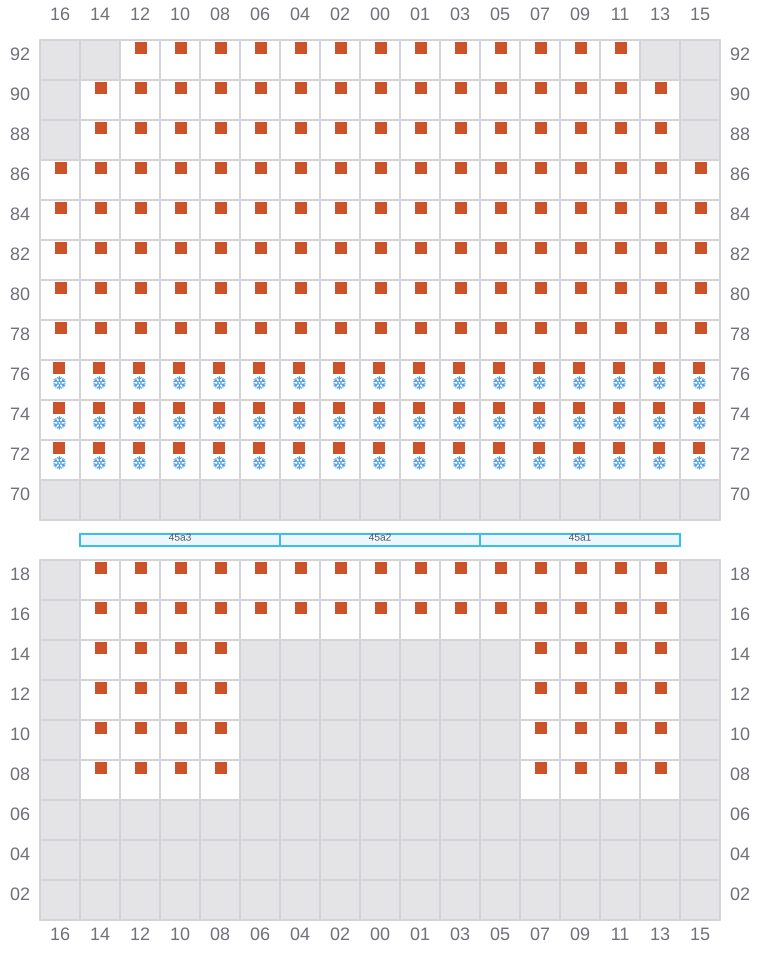

047
- ←
- ? / →

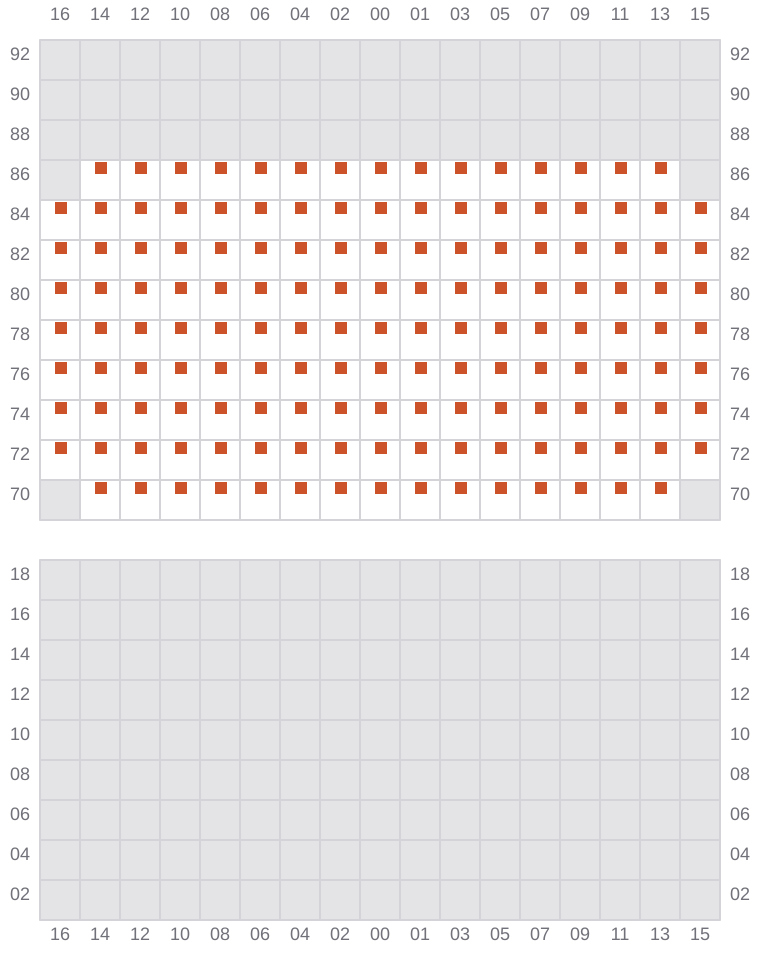

049

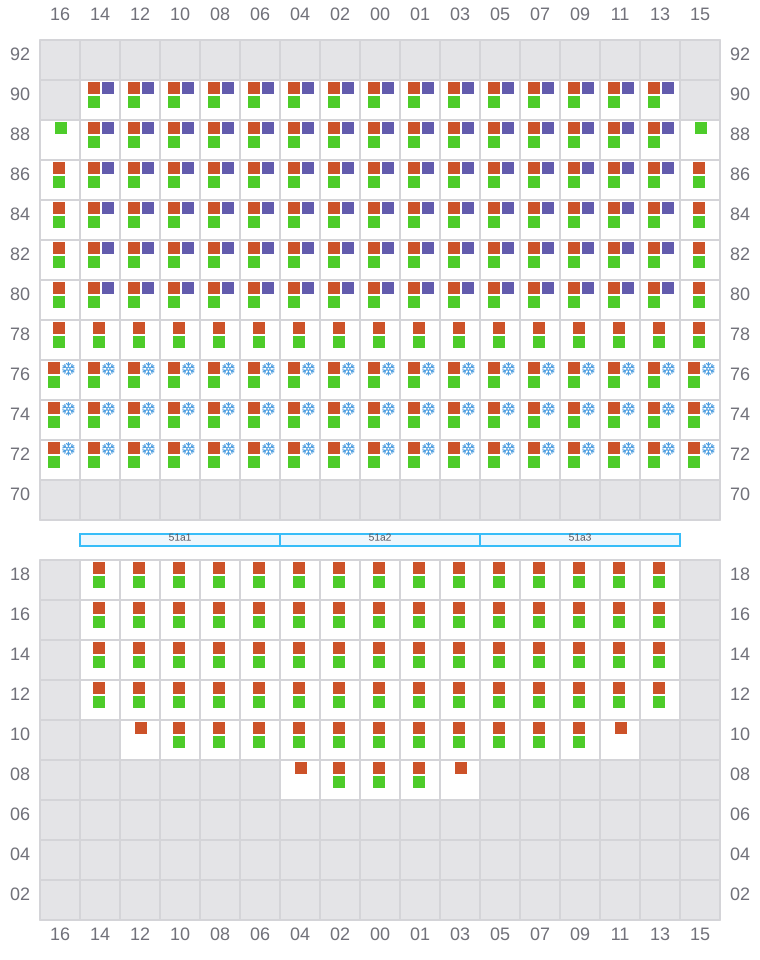

051 (052)
- →
- ← / ?
- → / ?

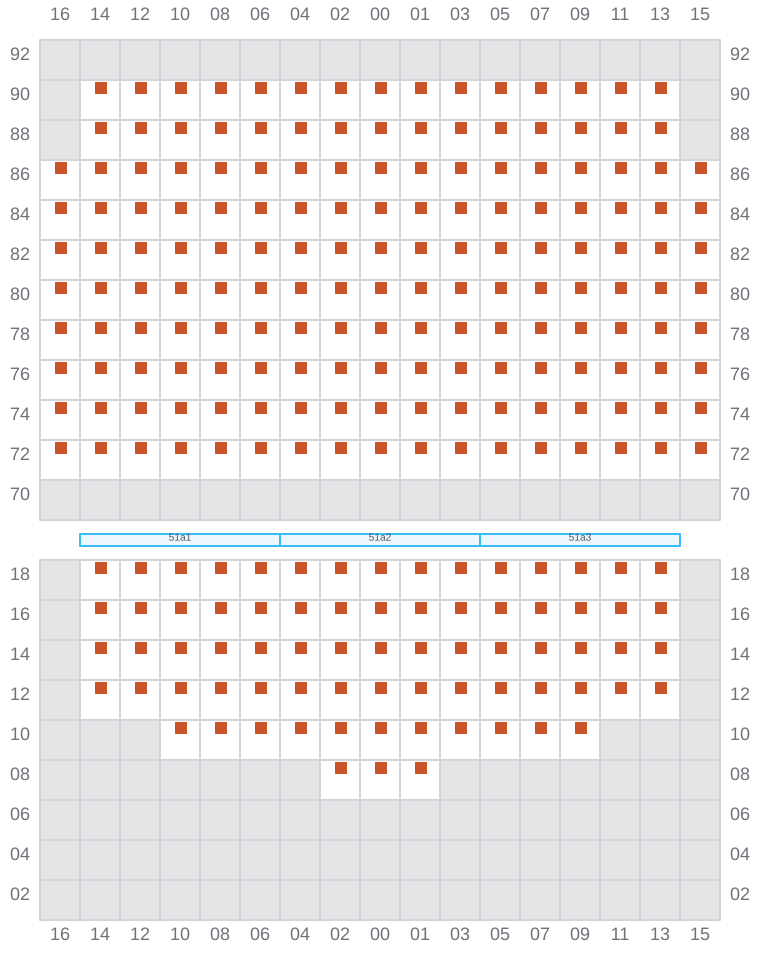

053
- ←
- ← / ?

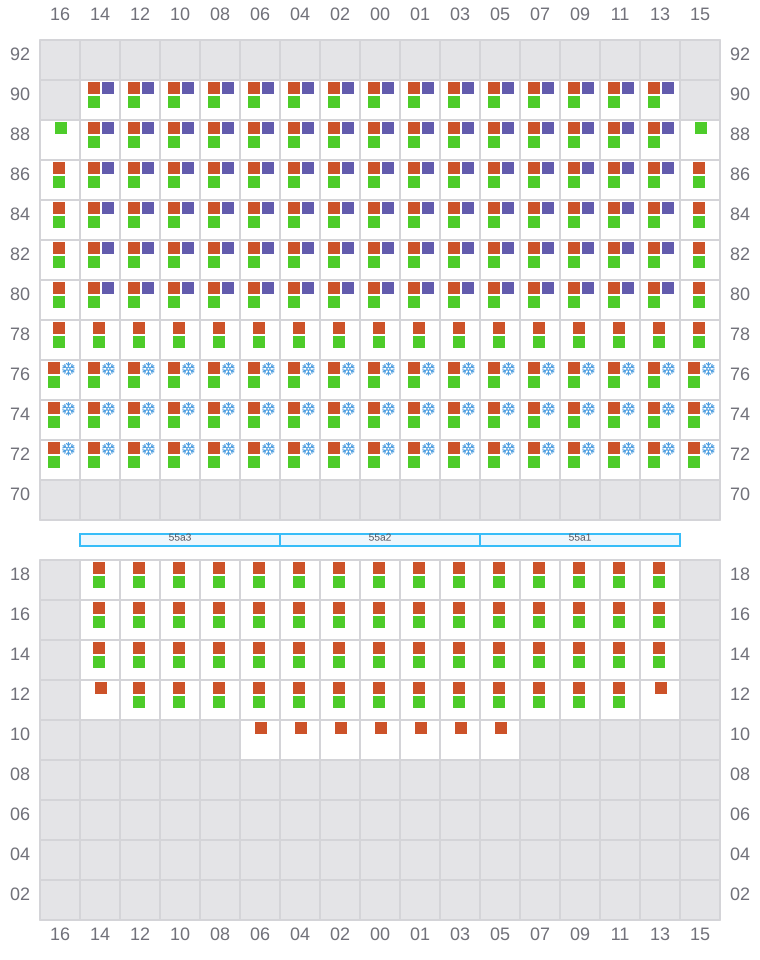

055 (056)
- →
- ←
- →

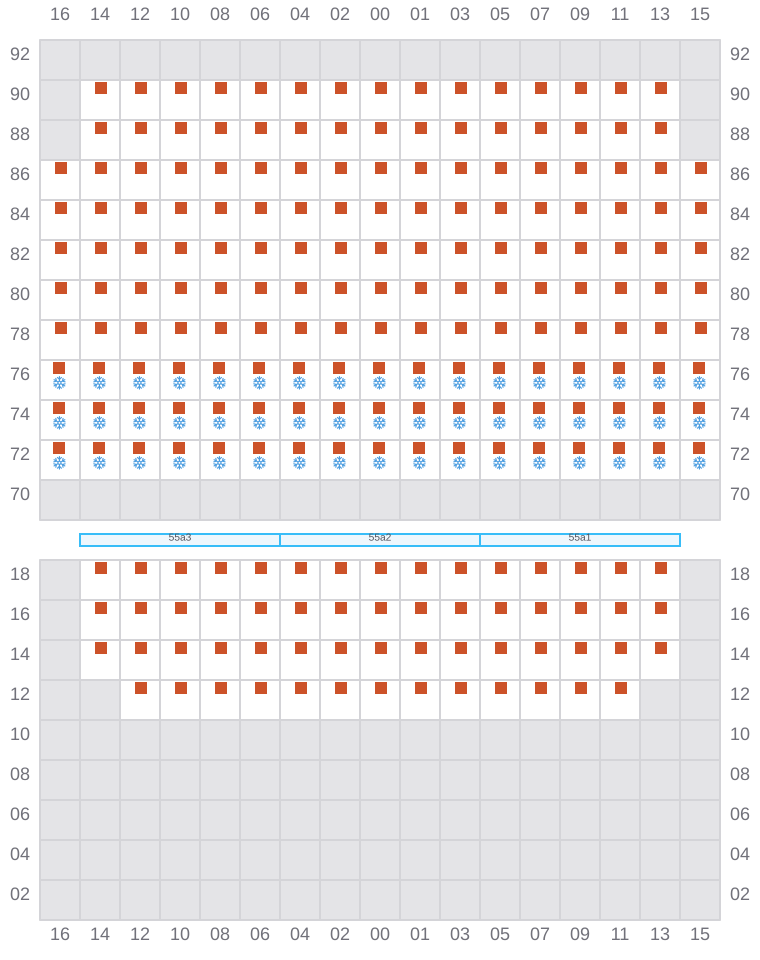

057
- ←
- ← / ?
- → / ?

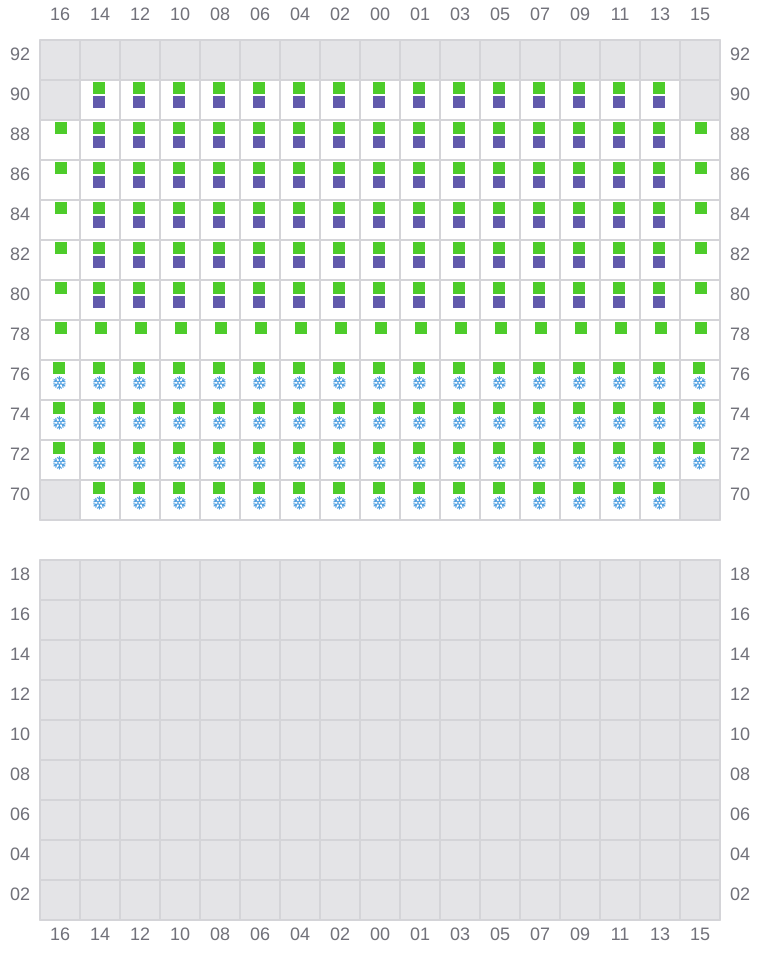

059 (060)
- →
- ← / ?
- → / ?

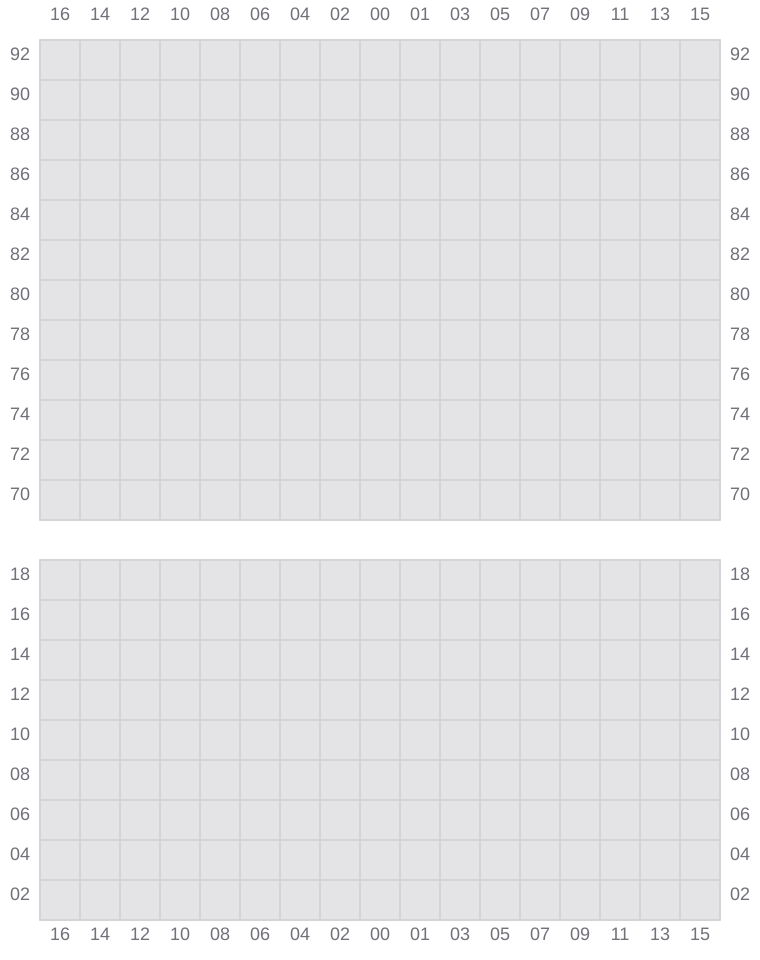

061
- ←
