NAVIOS LAPIS
9431680 | V7SG8 | 9431680 by ********* Last update: Wed May 08 2024
General Info
Ship Name:NAVIOS LAPIS
IMO Code:9431680
Call Sign:V7SG8
Line Operator:9431680
Class Name for Sister Ships:HANJIN MILANO
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,267
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

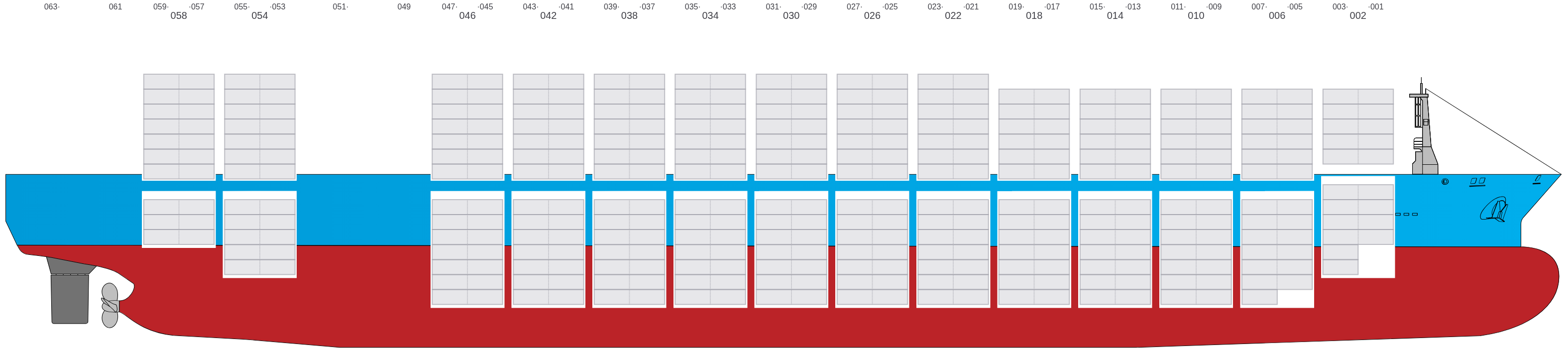

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

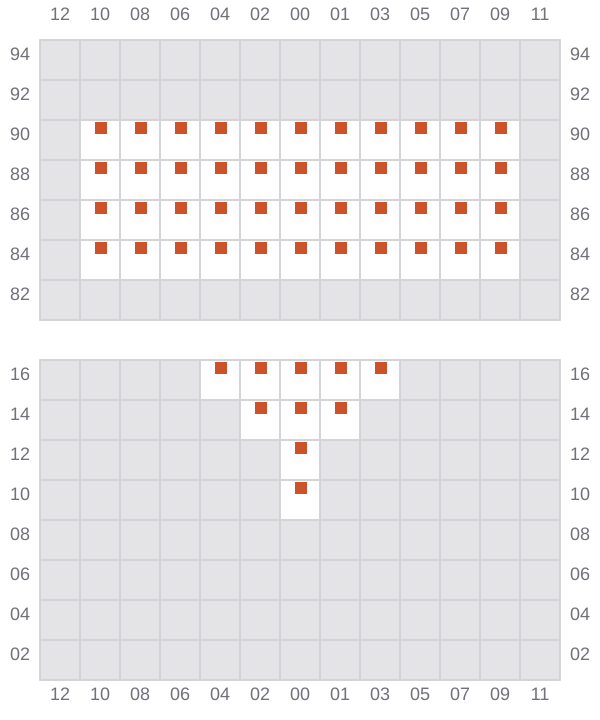

001
- →

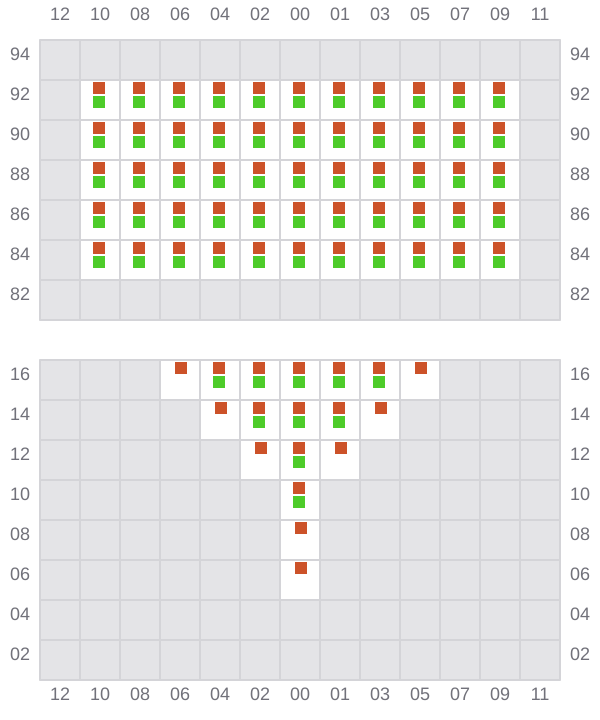

003 (002)
- ←

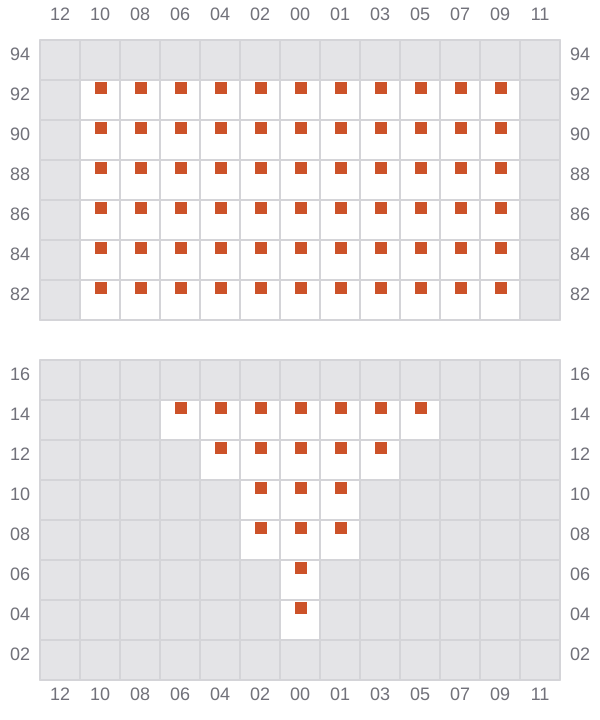

005
- →

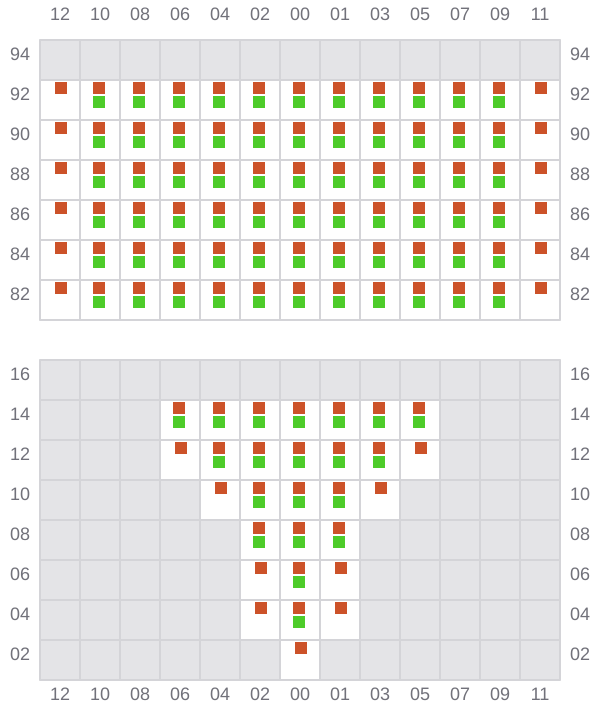

007 (006)
- ←

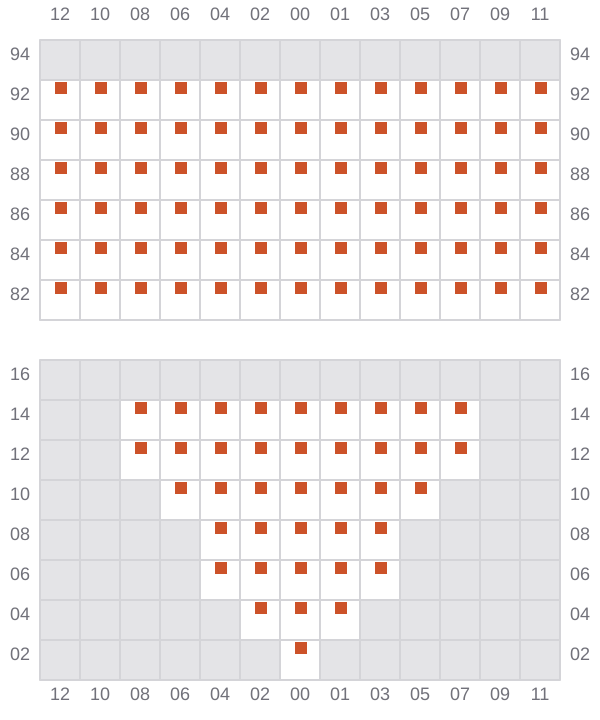

009
- →
011 (010)
- ←

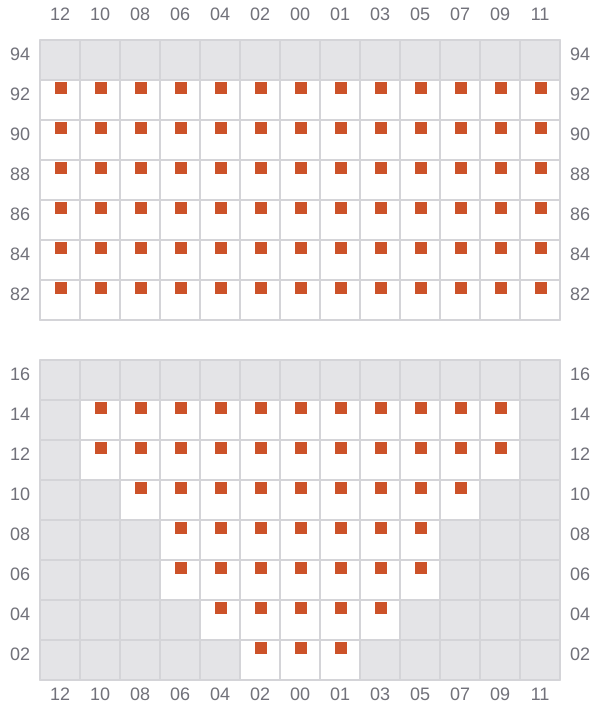

013
- →

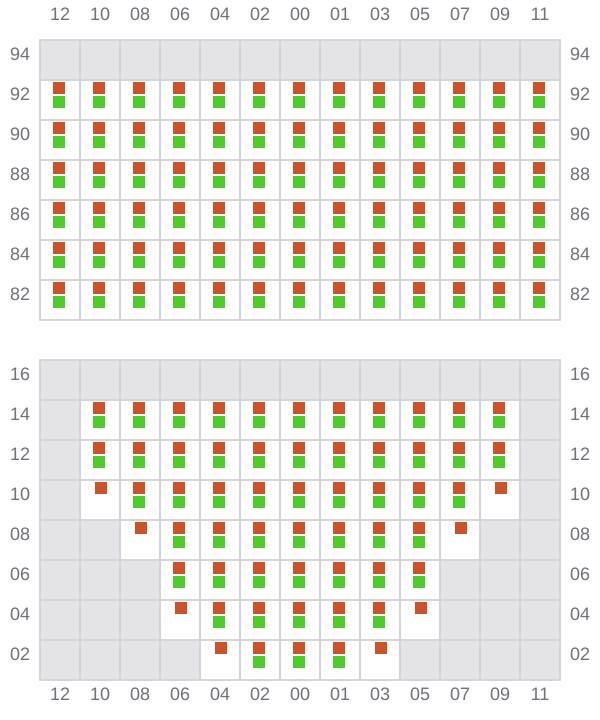

015 (014)
- ←
017
- →
019 (018)
- ←
021
- →

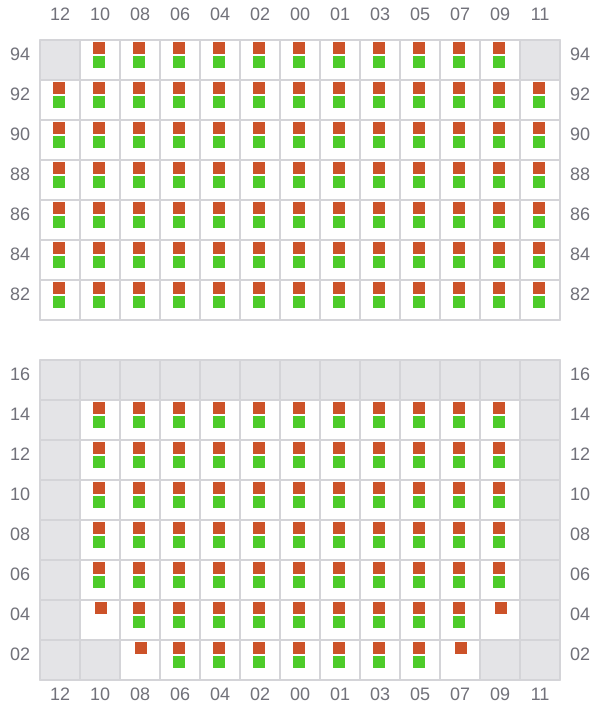

023 (022)
- ←
025
- →
027 (026)
- ←

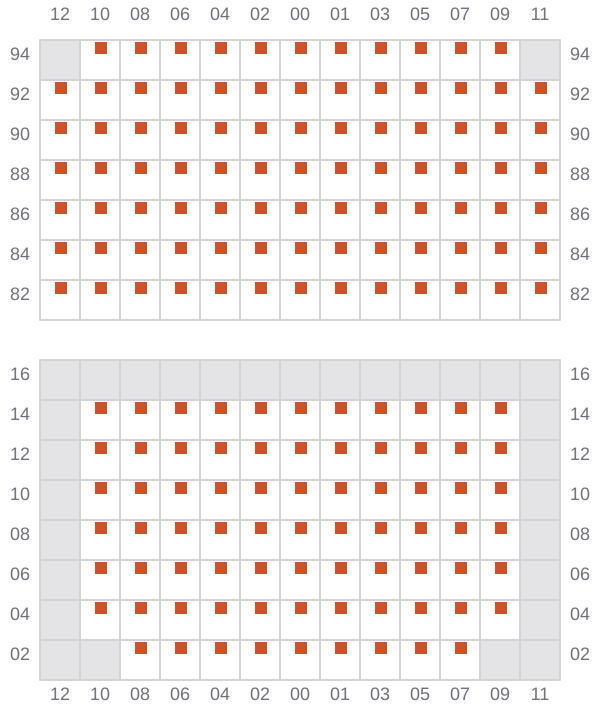

029
- →
031 (030)
- ←
033
- →

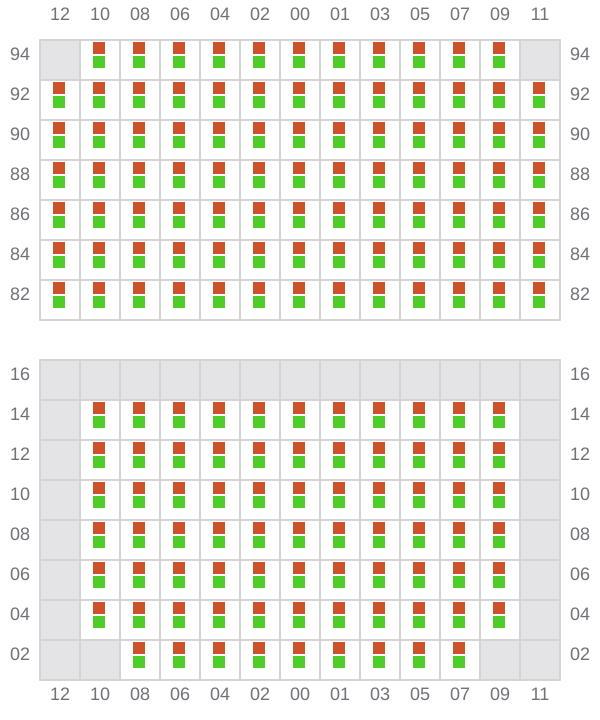

035 (034)
- ←
037
- →
039 (038)
- ←
041
- →

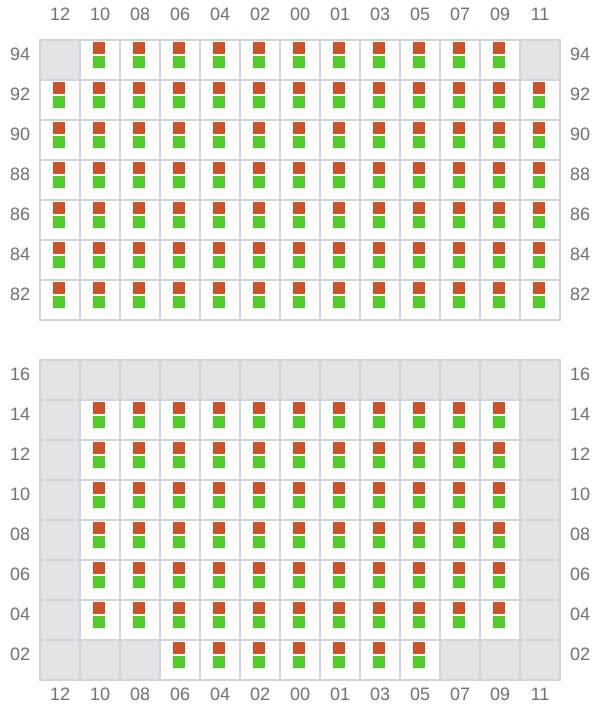

043 (042)
- ←

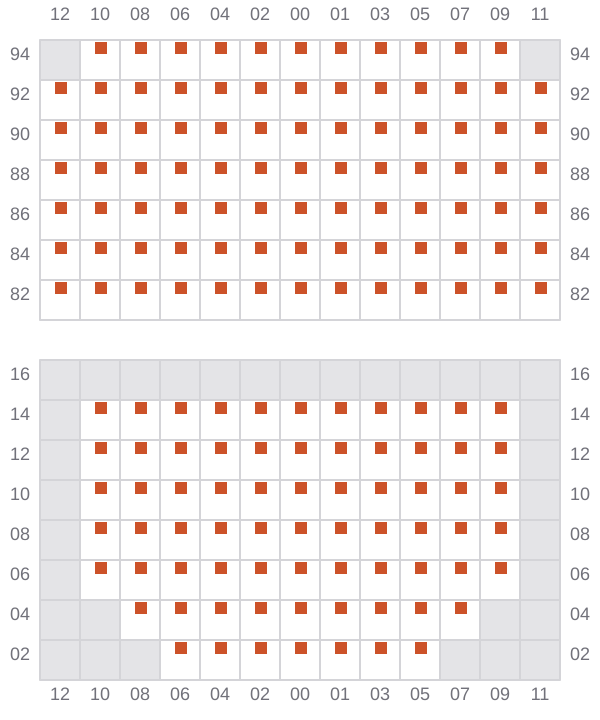

045
- →

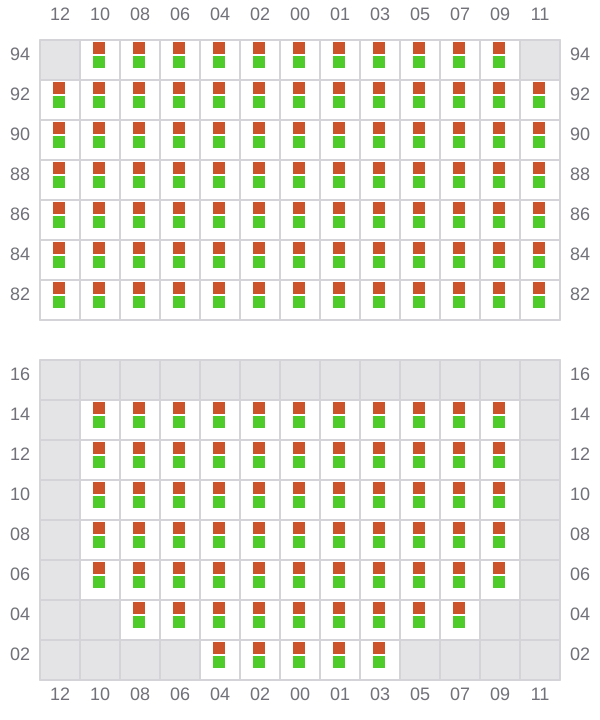

047 (046)
- ←

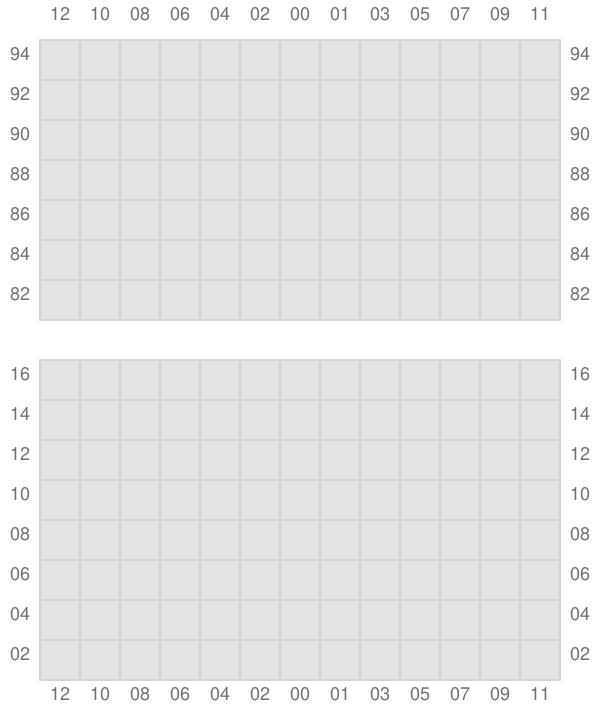

049

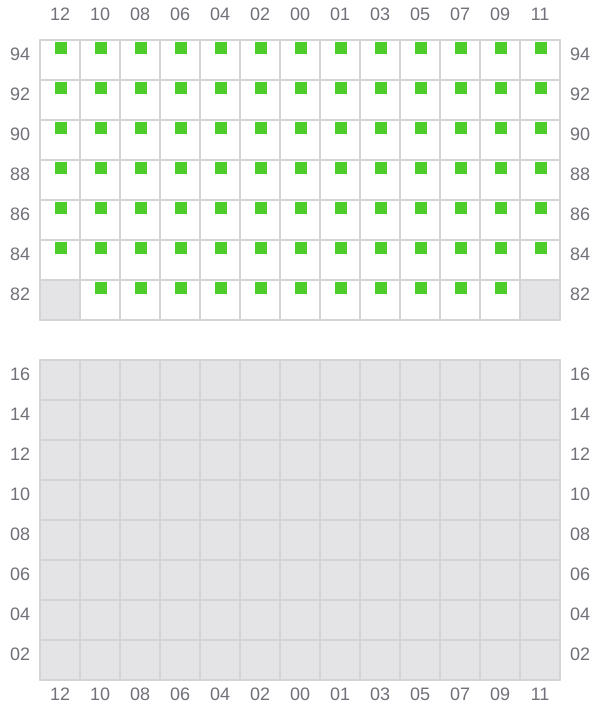

051 (050)
- ← / ?

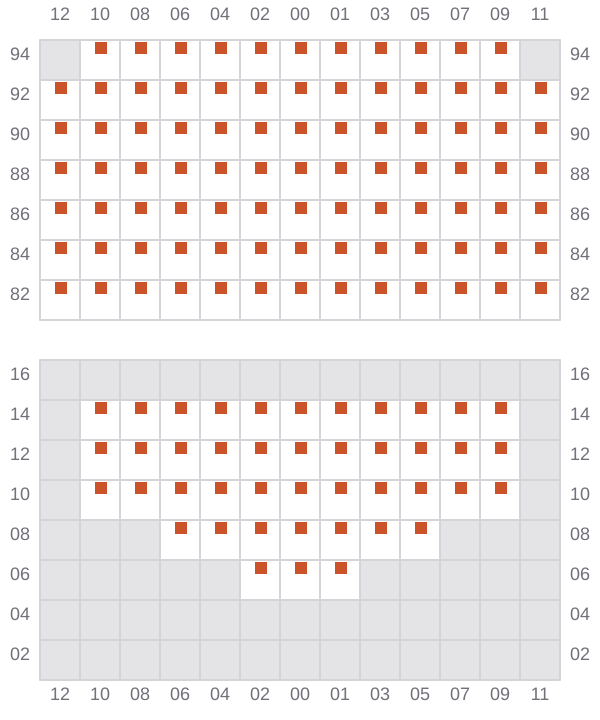

053
- →

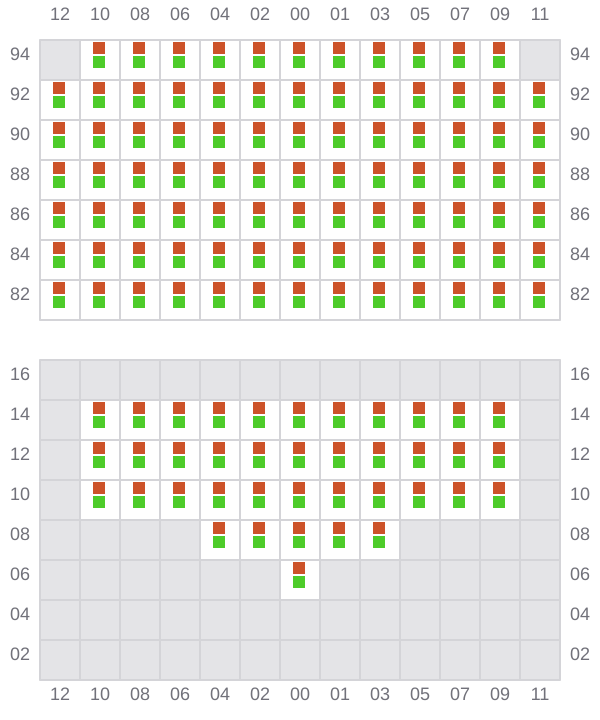

055 (054)
- ←

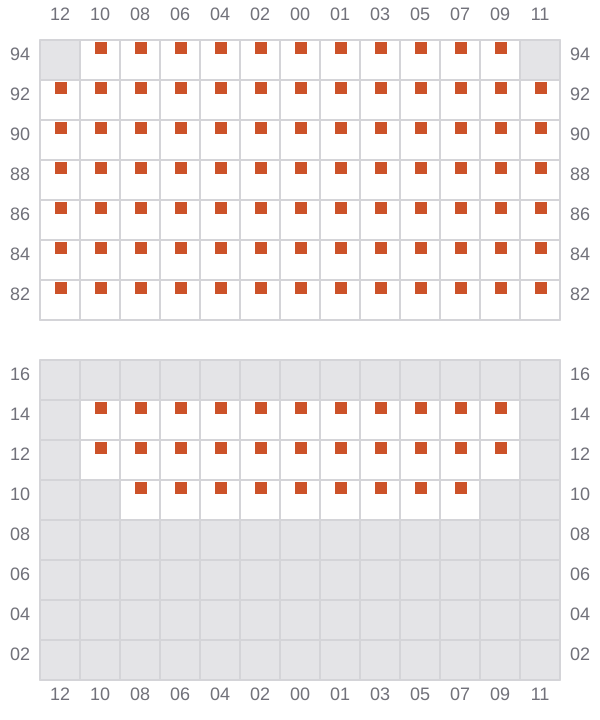

057
- →

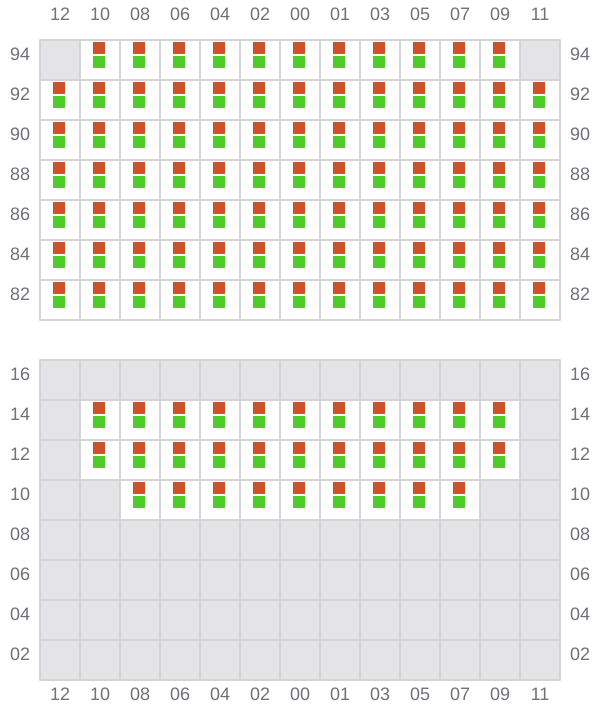

059 (058)
- ←

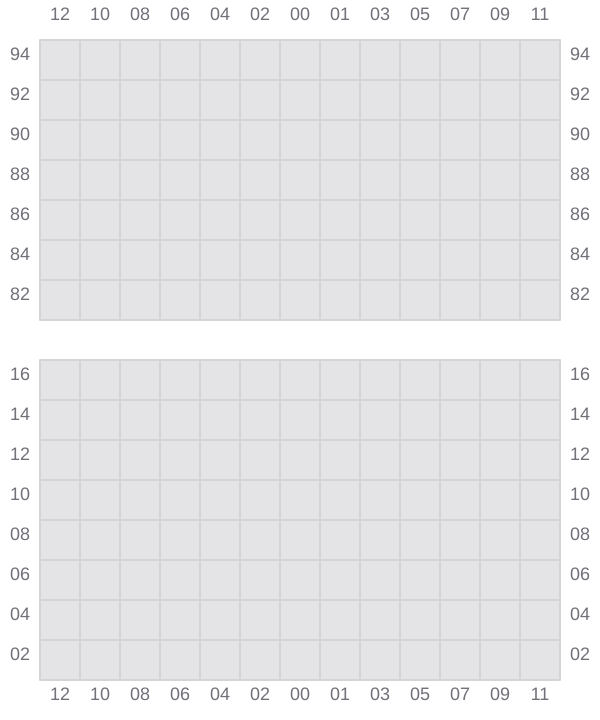

061

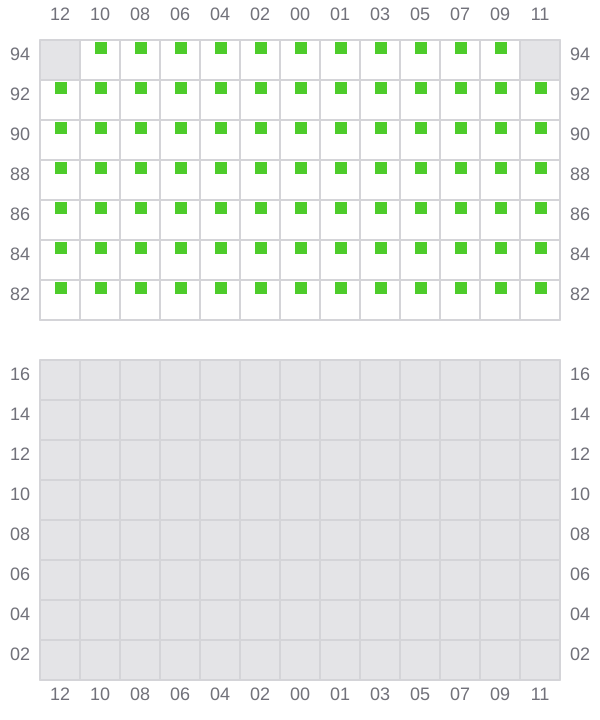

063 (062)
- ← / ?
