NEW YORK EXPRESS
9501332 | DIXJ2 | HLC by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:NEW YORK EXPRESS

IMO Code:9501332

Call Sign:DIXJ2

Line Operator:HLC

Class Name for Sister Ships:NYEX

Year Built:2012

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):353.00

LOA (Length Overall):366.50

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:085

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:82

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,169

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

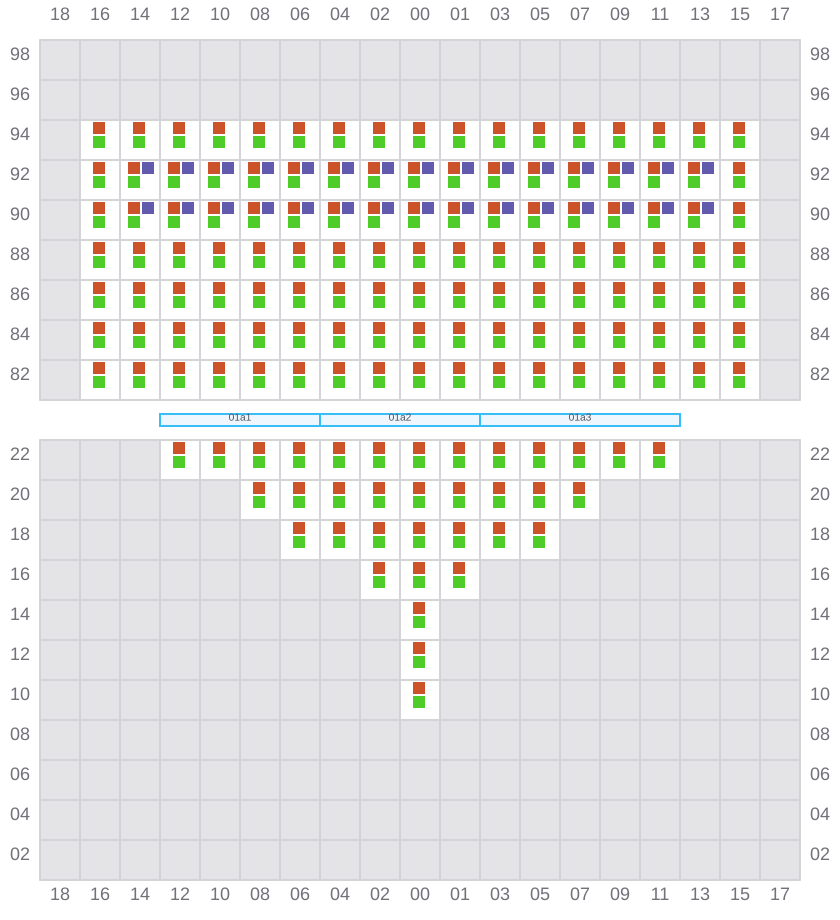

Bay 001 view and slots of NEW YORK EXPRESS

003

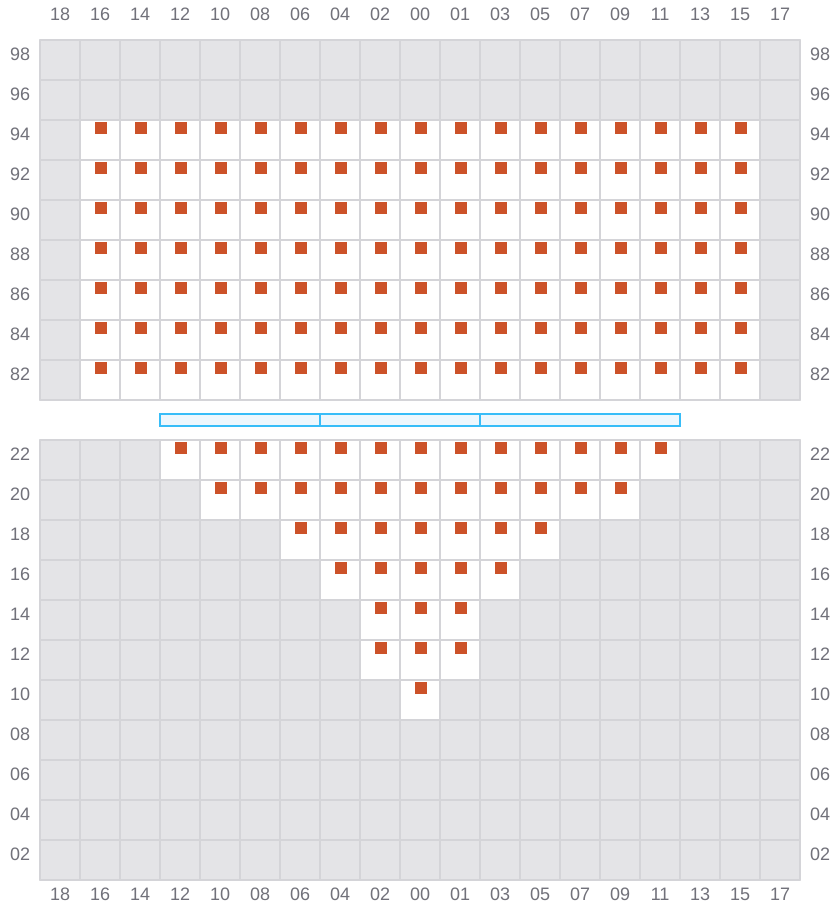

Bay 003 view and slots of NEW YORK EXPRESS

005 (006)

→
^→ / _?
→

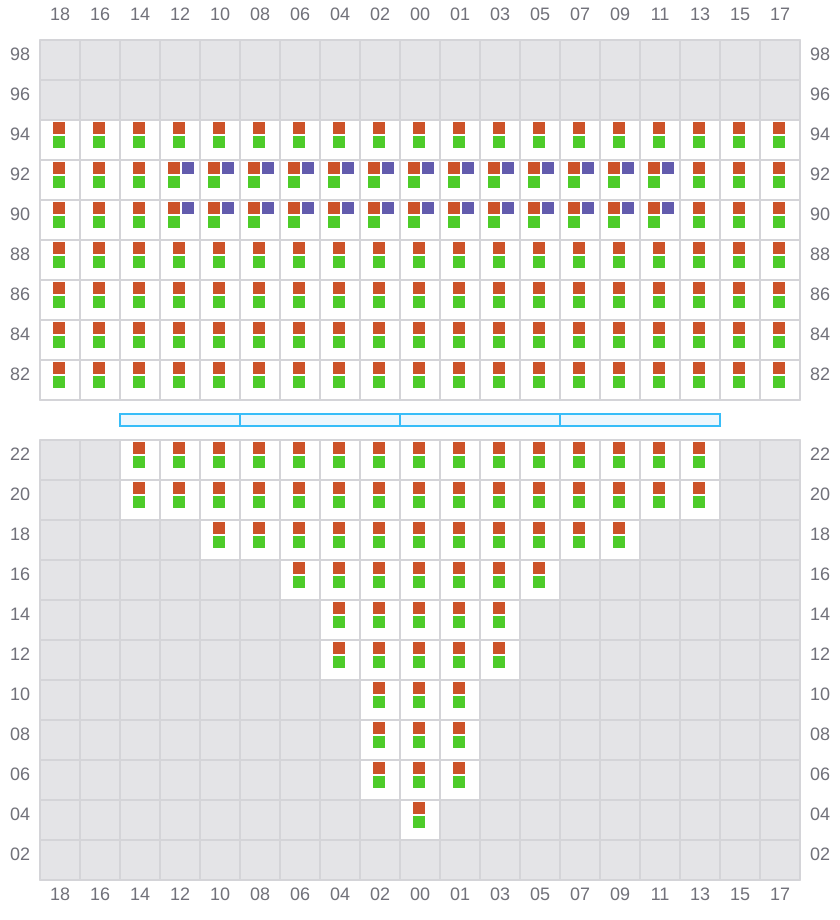

Bay 005 view and slots of NEW YORK EXPRESS

007

←
^→ / _?
→

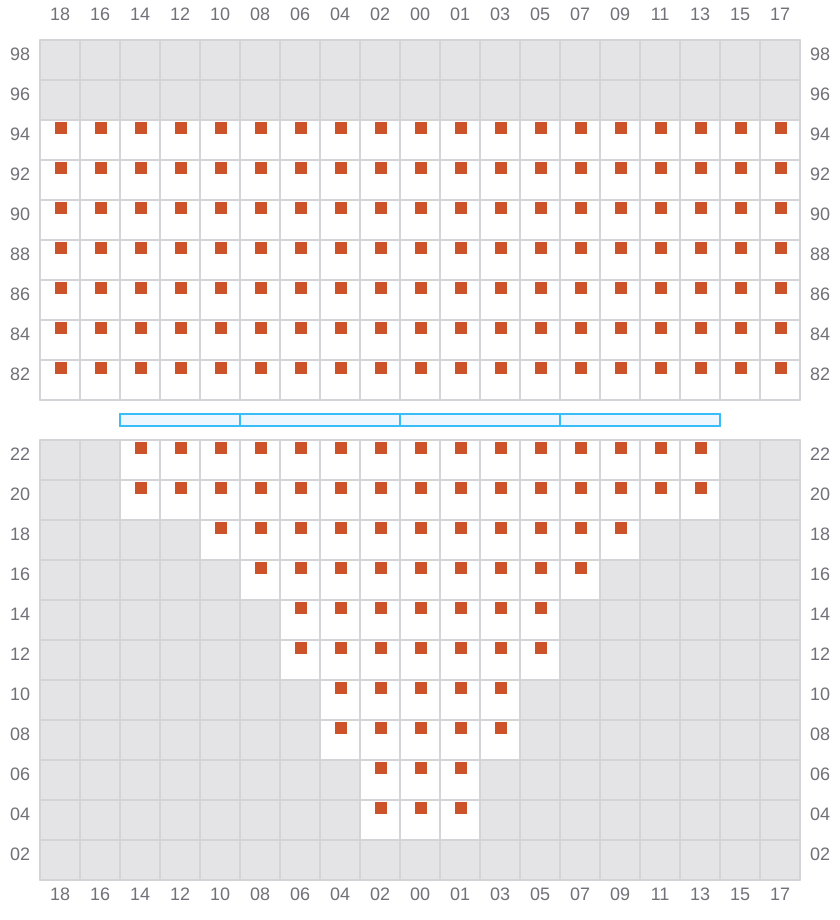

Bay 007 view and slots of NEW YORK EXPRESS

009 (010)

→
^→ / _?
→

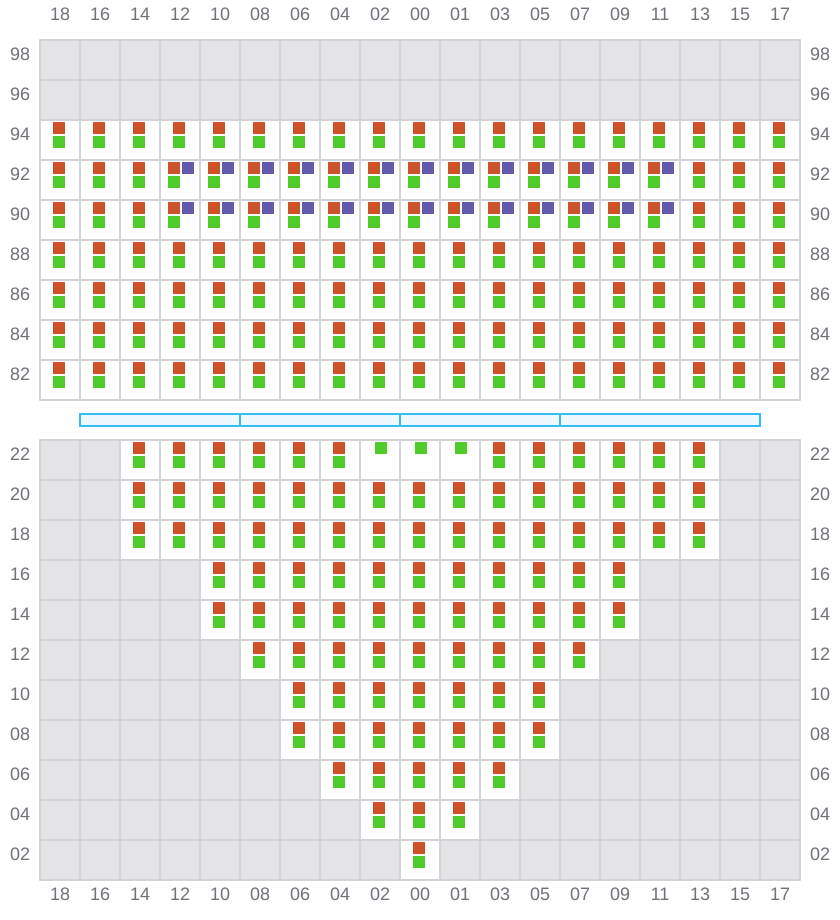

Bay 009 view and slots of NEW YORK EXPRESS

011

←
^→ / _?
→

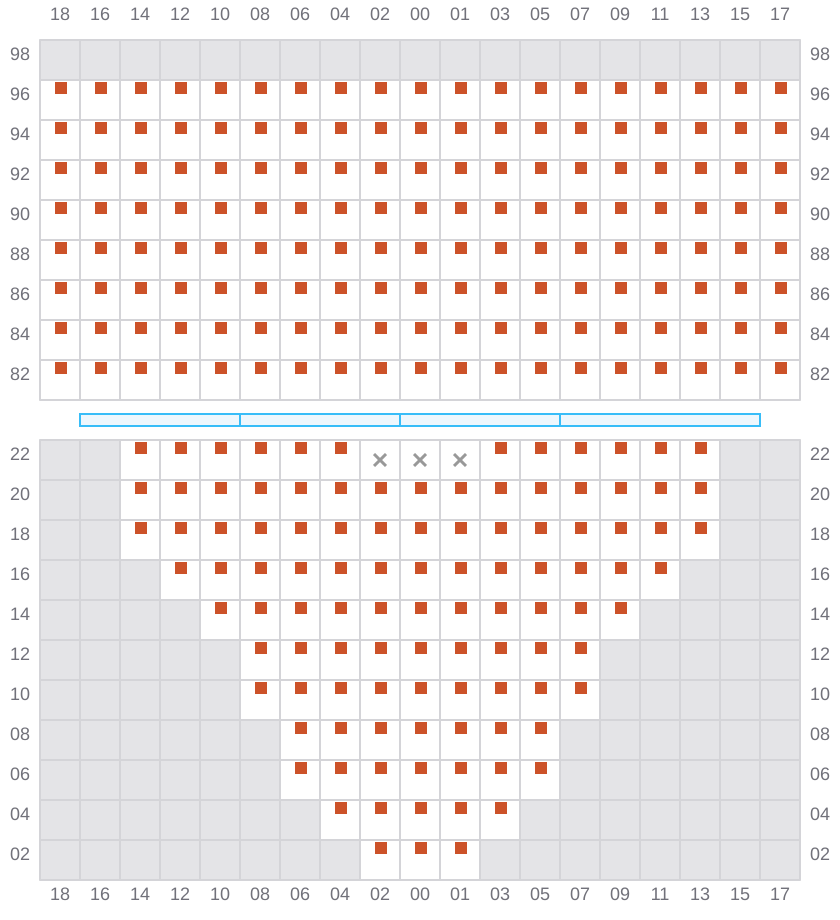

Bay 011 view and slots of NEW YORK EXPRESS

013 (014)

→
^→ / _?
→

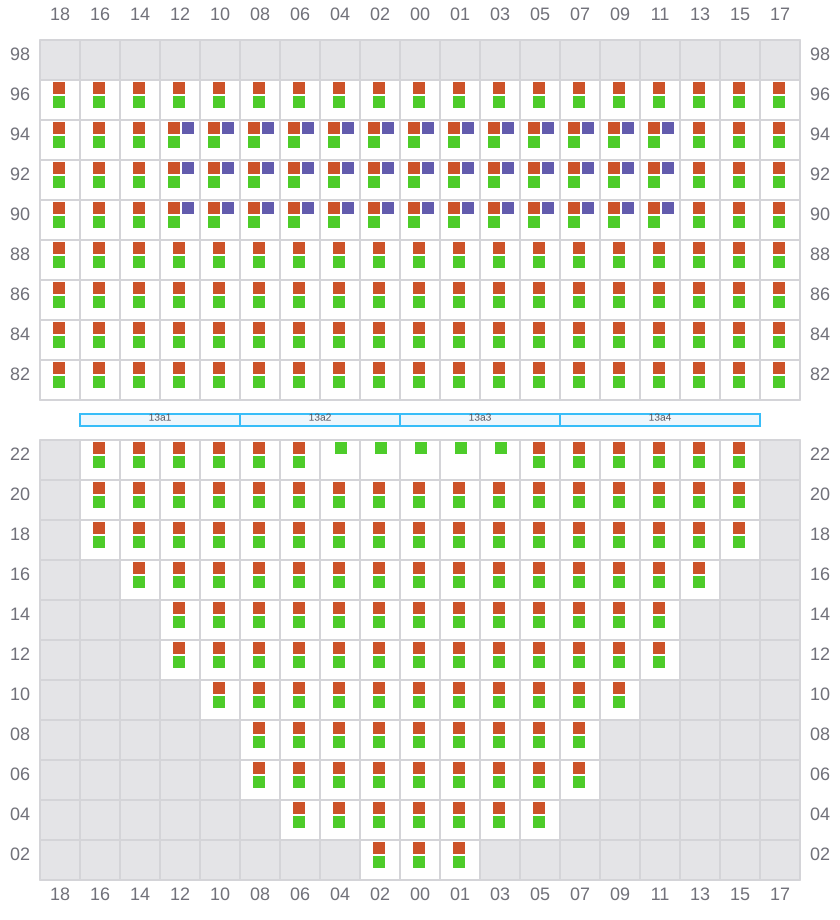

Bay 013 view and slots of NEW YORK EXPRESS

015

←
^→ / _?
→

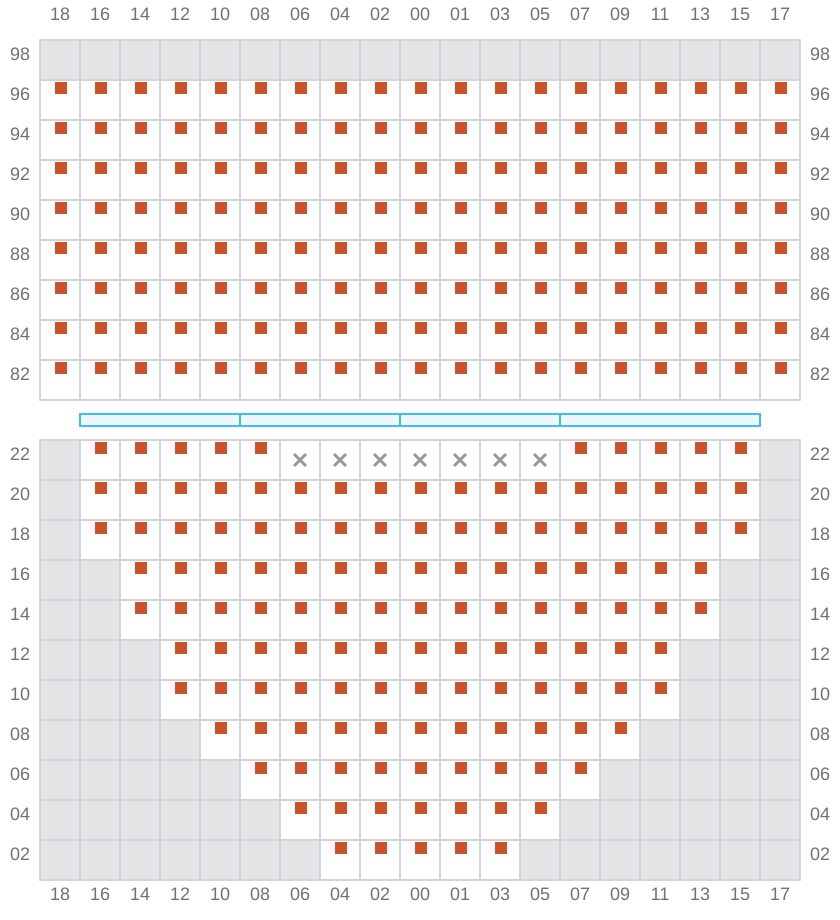

Bay 015 view and slots of NEW YORK EXPRESS

017 (018)

→
^→ / _?
→

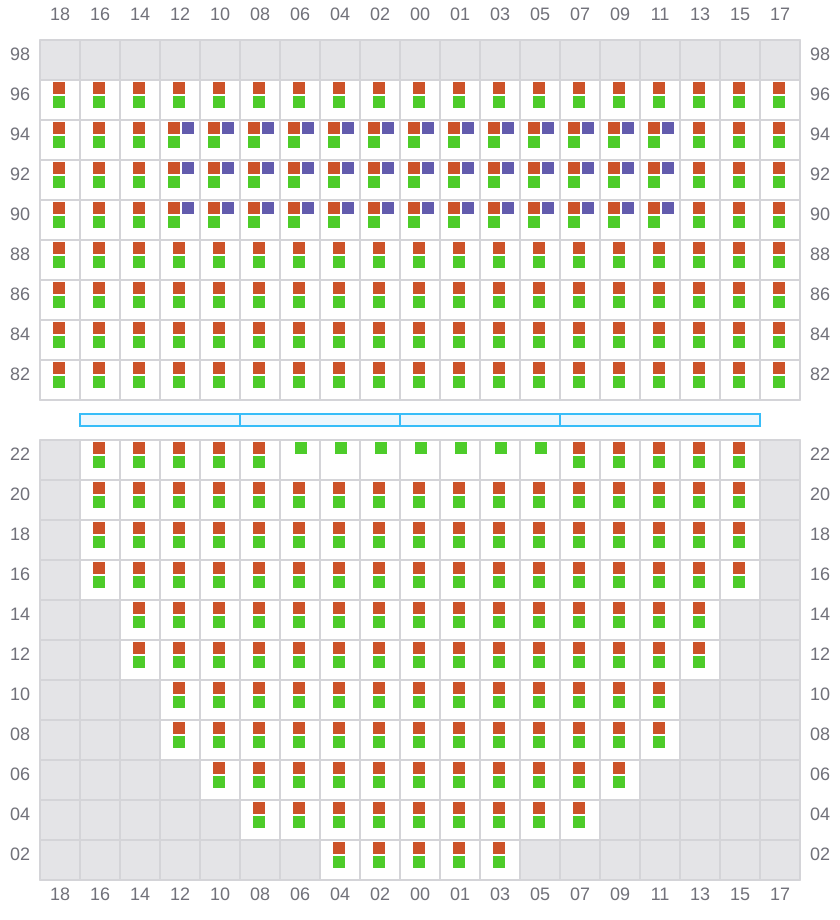

Bay 017 view and slots of NEW YORK EXPRESS

019

←
^→ / _?
→

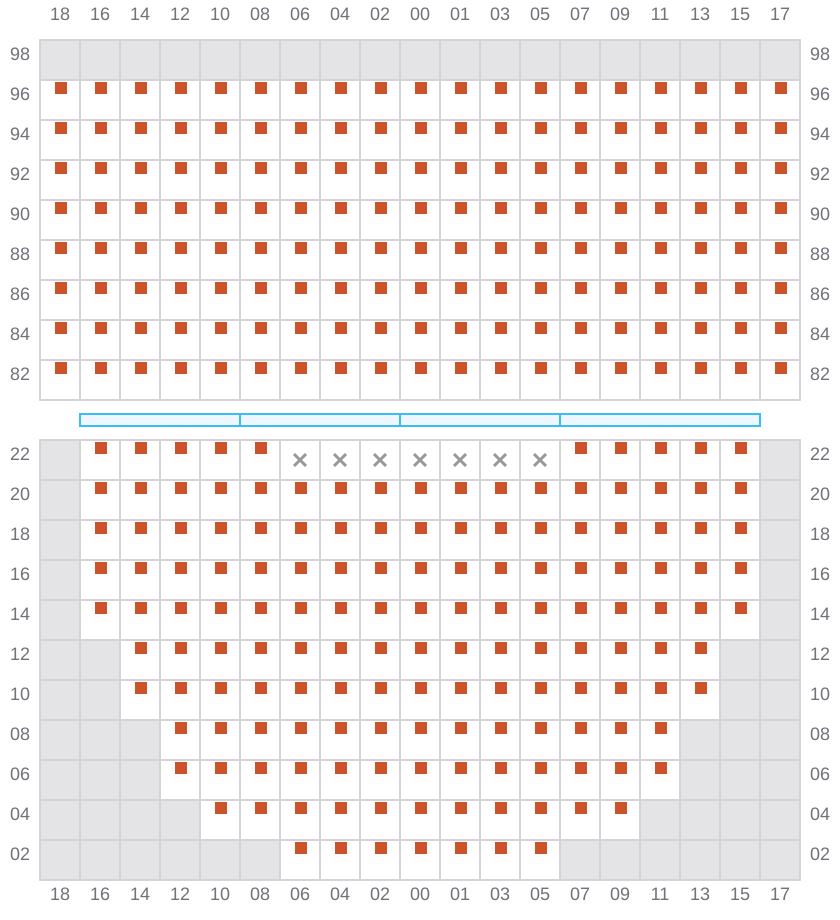

Bay 019 view and slots of NEW YORK EXPRESS

021 (022)

→
^→ / _?
→

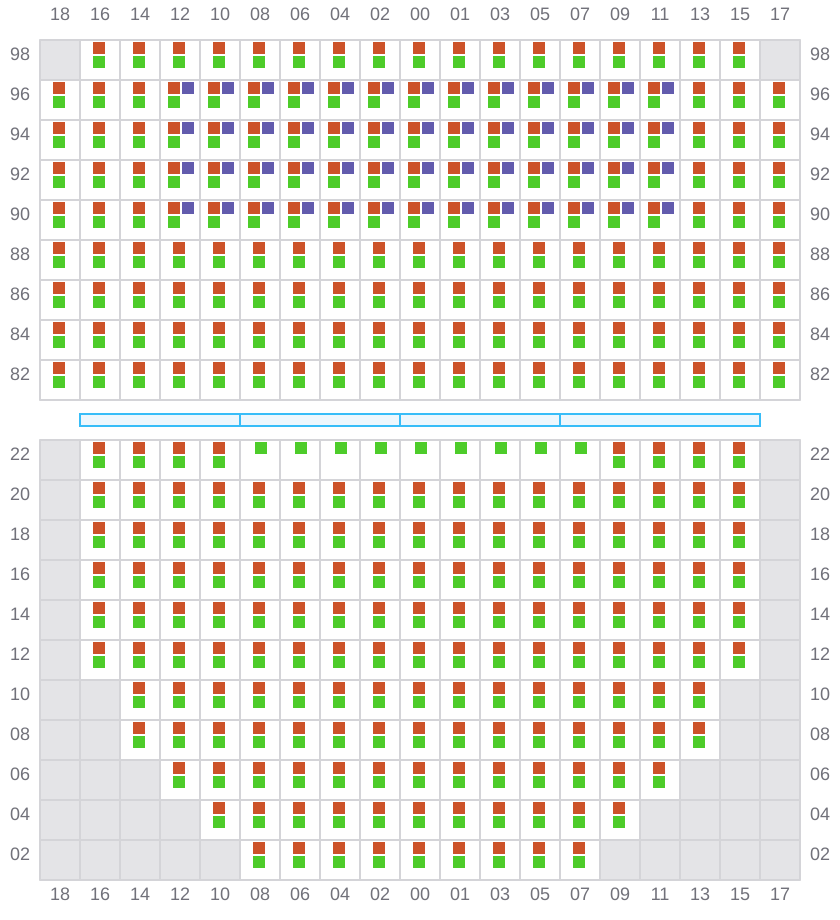

Bay 021 view and slots of NEW YORK EXPRESS

023

←
^→ / _?
→

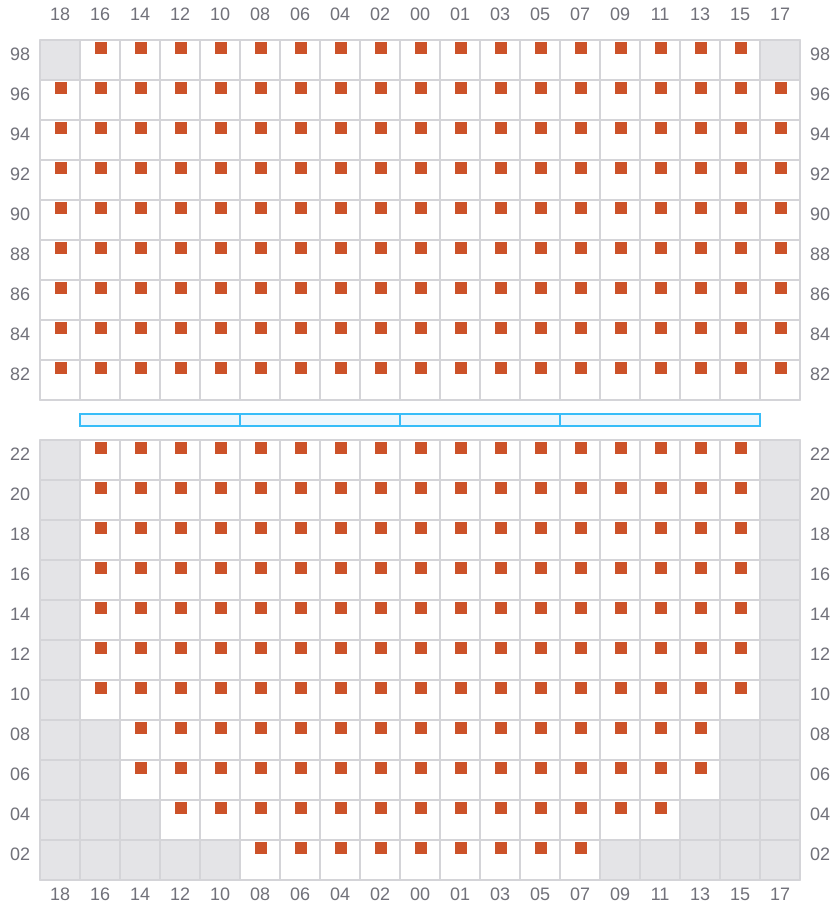

Bay 023 view and slots of NEW YORK EXPRESS

025 (026)

→
^→ / _?
→

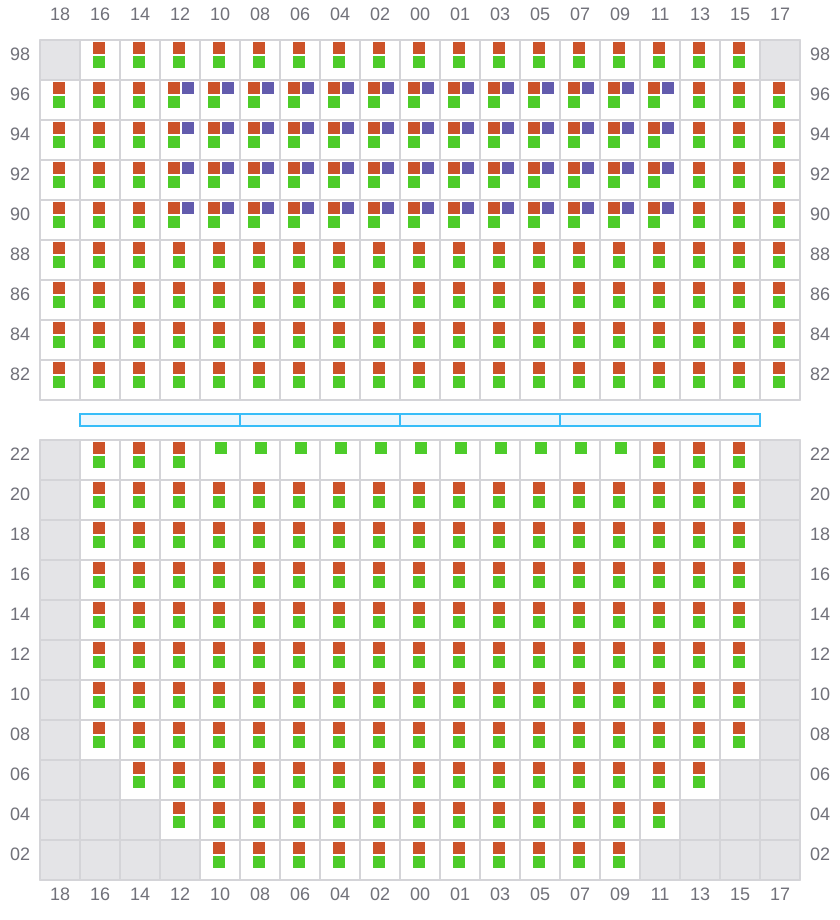

Bay 025 view and slots of NEW YORK EXPRESS

027

←
^→ / _?
→

Bay 027 view and slots of NEW YORK EXPRESS

029 (030)

→
^→ / _?
→

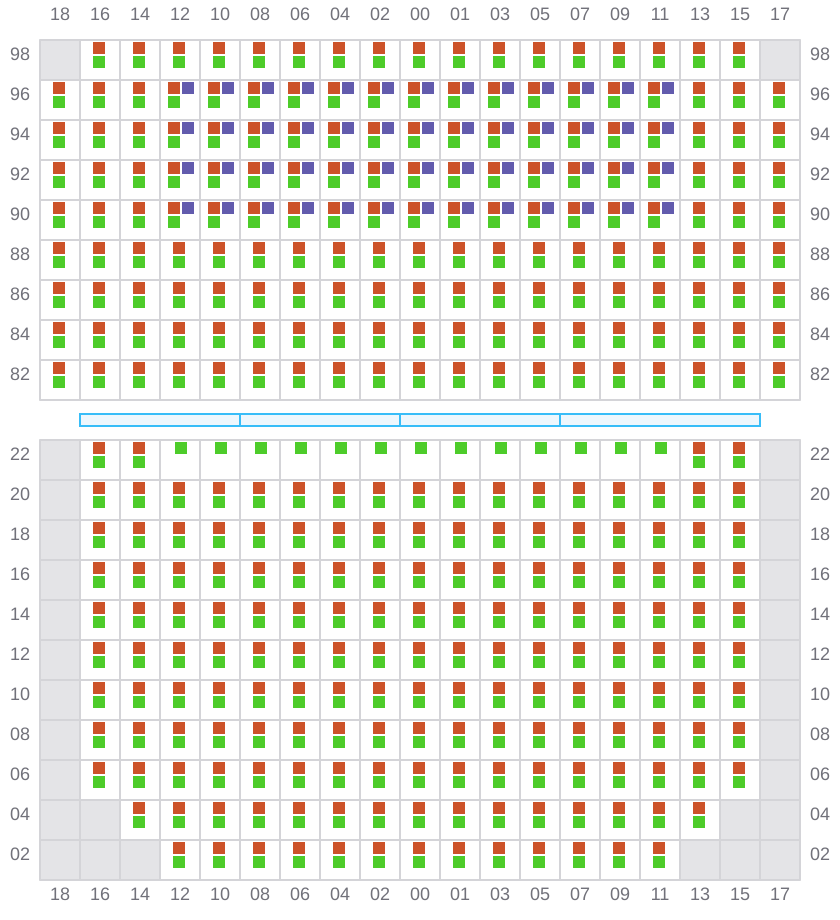

Bay 029 view and slots of NEW YORK EXPRESS

031

←
^→ / _?
→

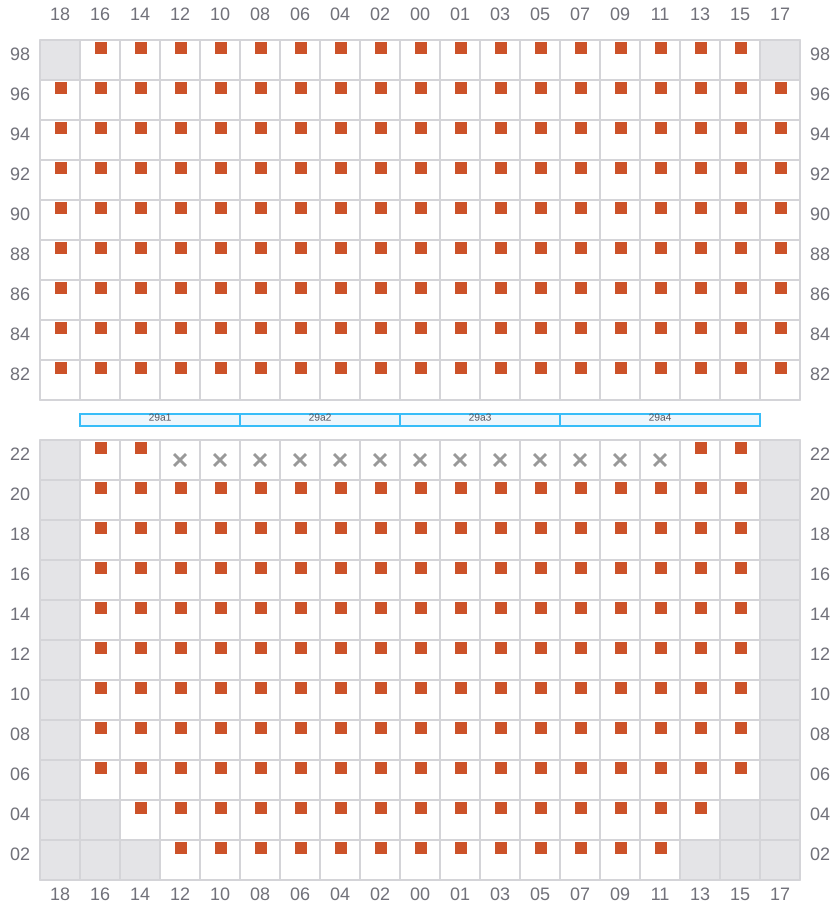

Bay 031 view and slots of NEW YORK EXPRESS

033 (034)

→
^→ / _?
→

Bay 033 view and slots of NEW YORK EXPRESS

035

←
^→ / _?
→

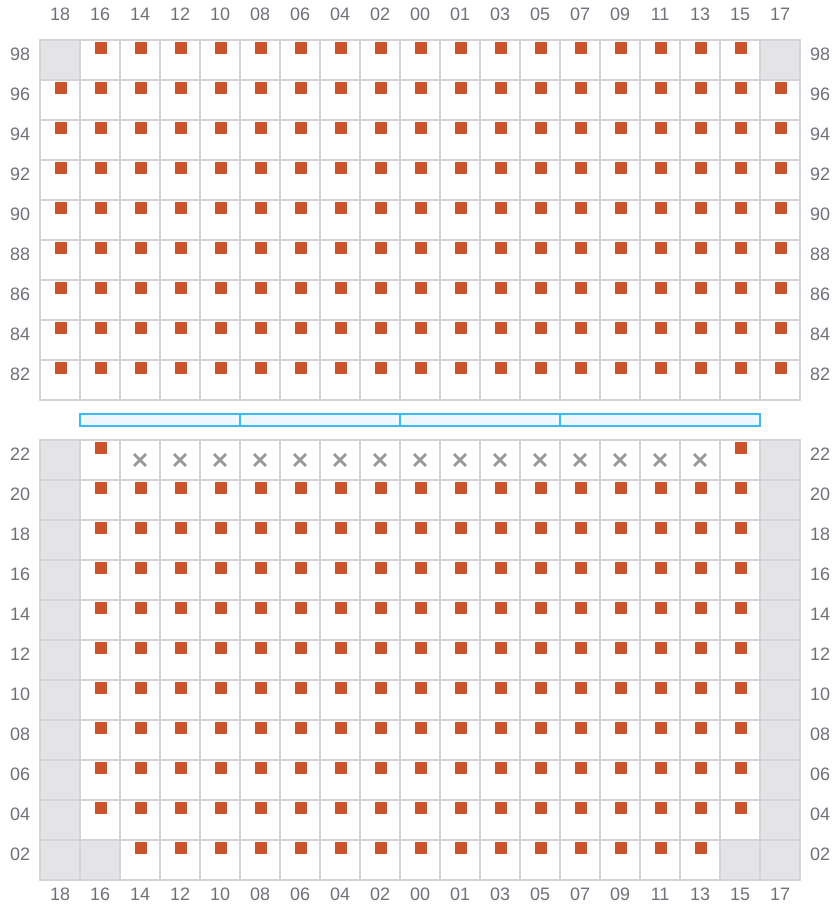

Bay 035 view and slots of NEW YORK EXPRESS

037 (038)

→
^→ / _?
→

Bay 037 view and slots of NEW YORK EXPRESS

039

←
^→ / _?
→

Bay 039 view and slots of NEW YORK EXPRESS

041 (042)

→
^→ / _?
→

Bay 041 view and slots of NEW YORK EXPRESS

043

←
^→ / _?
→

Bay 043 view and slots of NEW YORK EXPRESS

045 (046)

→
^→ / _?
→

Bay 045 view and slots of NEW YORK EXPRESS

047

←
^→ / _?
→

Bay 047 view and slots of NEW YORK EXPRESS

049 (050)

→
^→ / _?
→

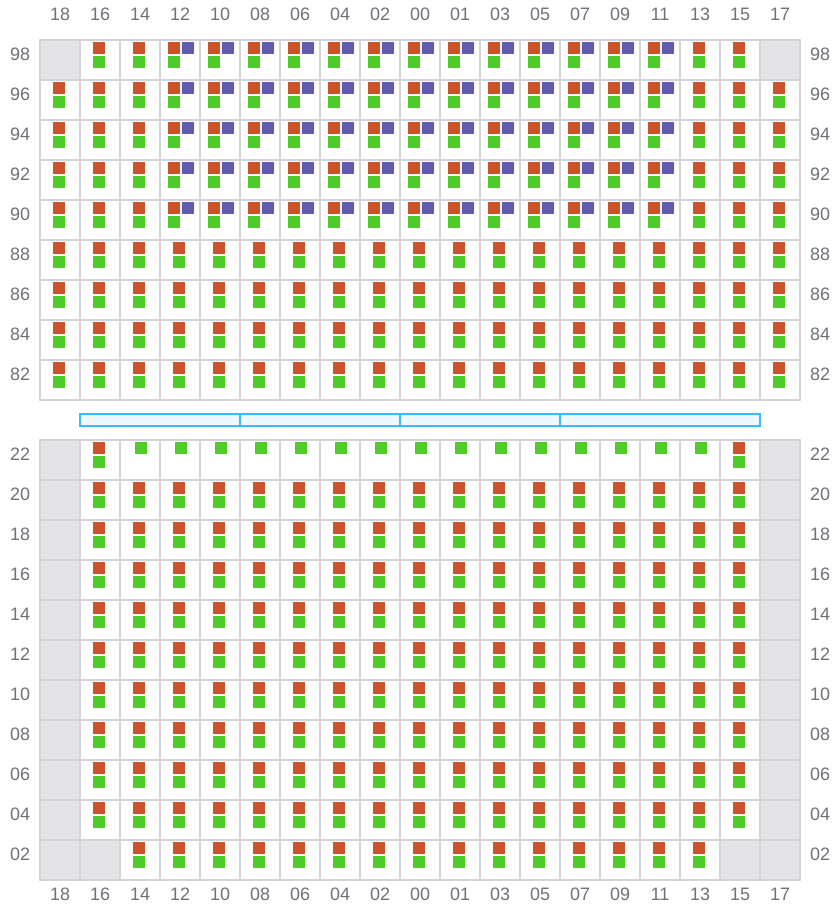

Bay 049 view and slots of NEW YORK EXPRESS

051

←
^→ / _?
→

Bay 051 view and slots of NEW YORK EXPRESS

053 (054)

→
^→ / _?
→

Bay 053 view and slots of NEW YORK EXPRESS

055

←
^→ / _?
→

Bay 055 view and slots of NEW YORK EXPRESS

057 (058)

→
^→ / _?
→

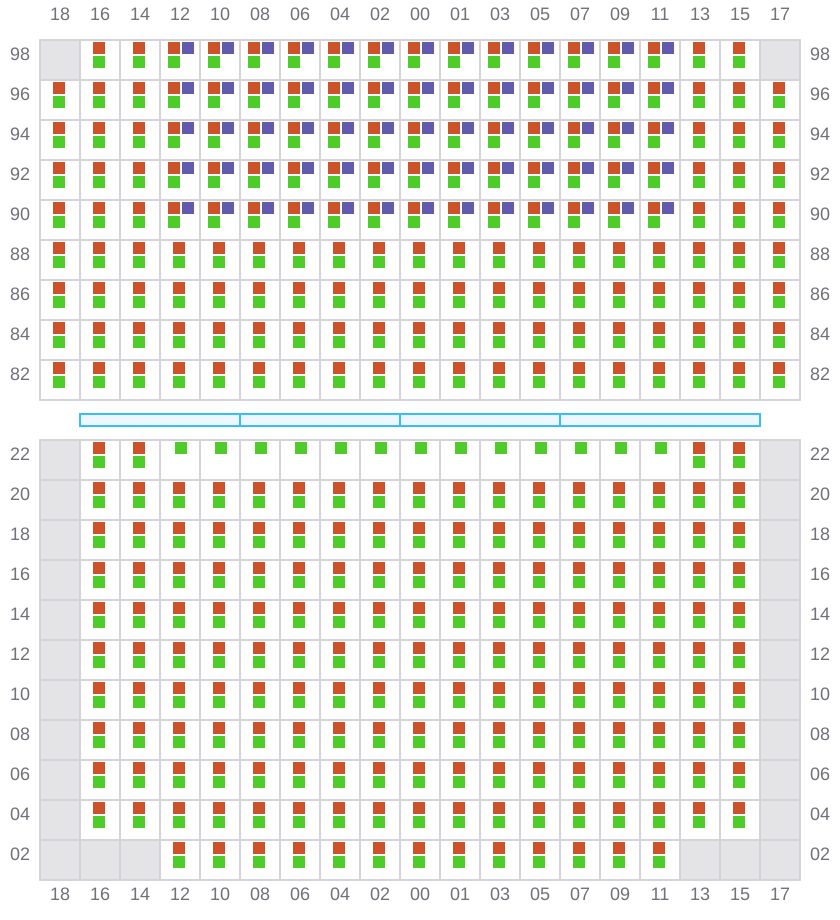

Bay 057 view and slots of NEW YORK EXPRESS

059

←
^→ / _?
→

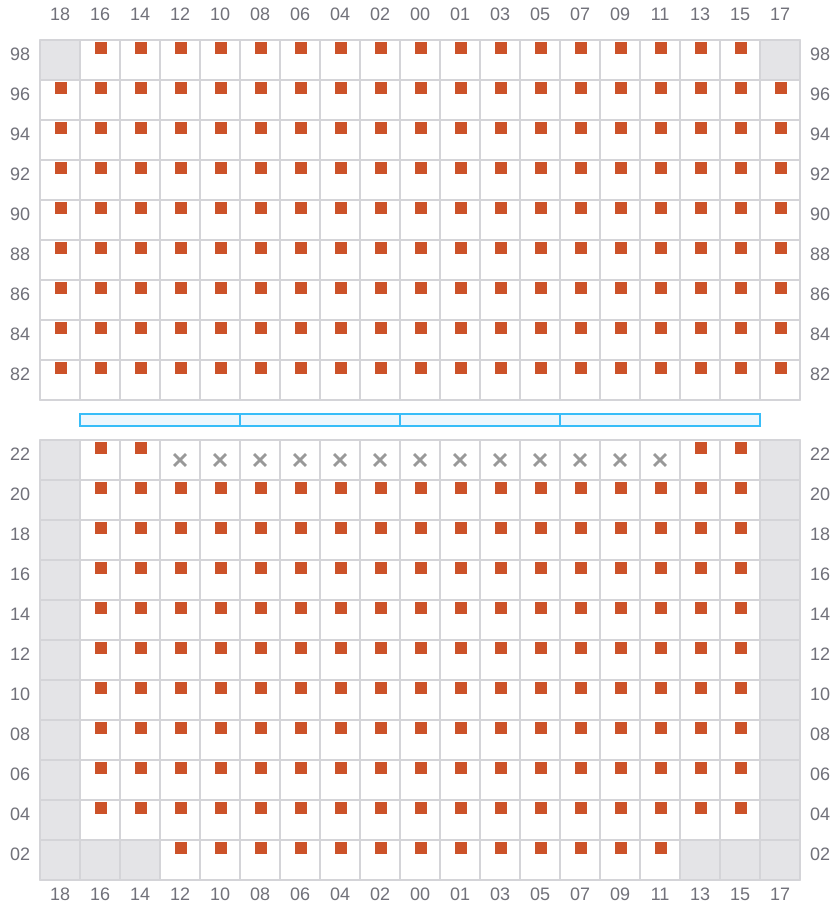

Bay 059 view and slots of NEW YORK EXPRESS

061 (062)

→
^→ / _?
→

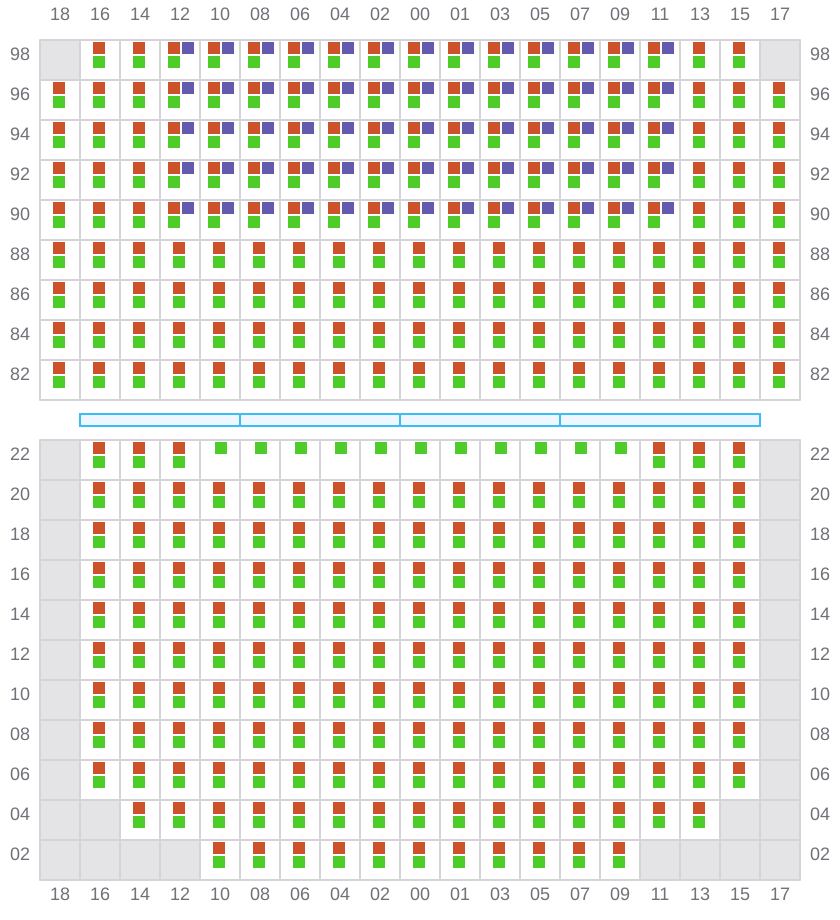

Bay 061 view and slots of NEW YORK EXPRESS

063

←
^→ / _?
→

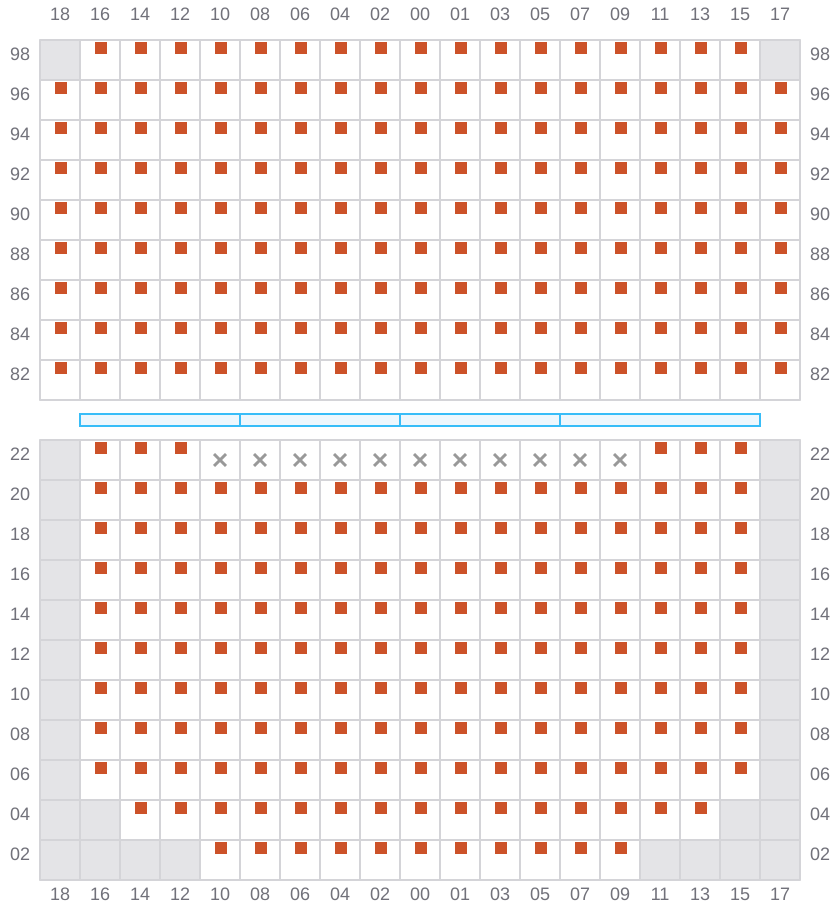

Bay 063 view and slots of NEW YORK EXPRESS

065 (066)

→
^→ / _?
→

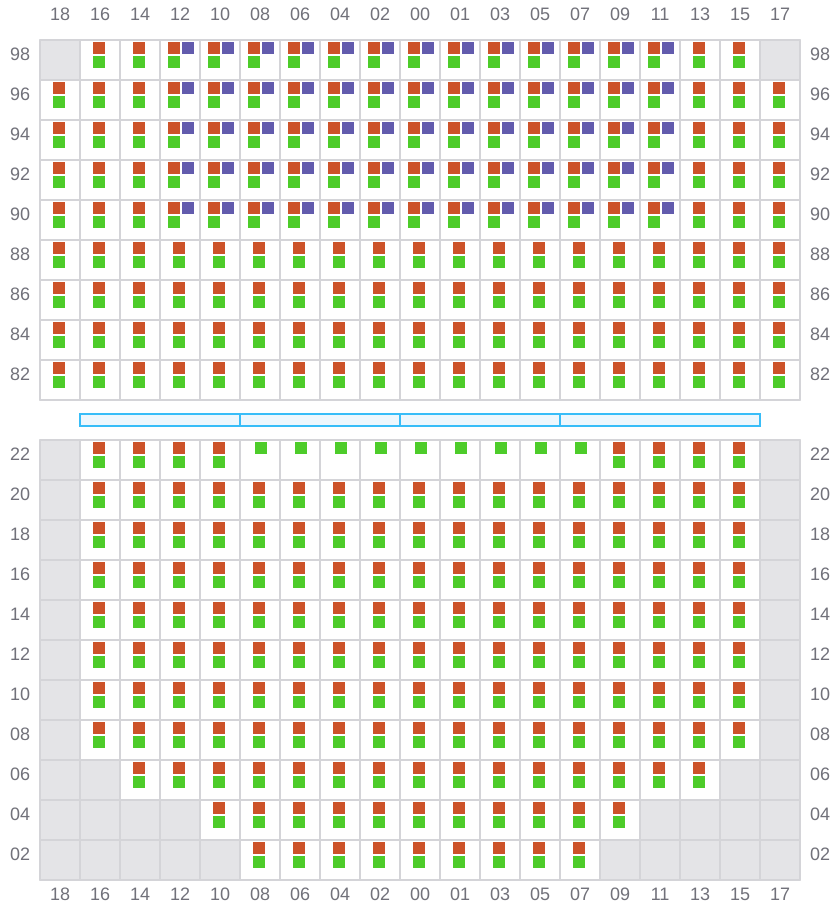

Bay 065 view and slots of NEW YORK EXPRESS

067

←
^→ / _?
→

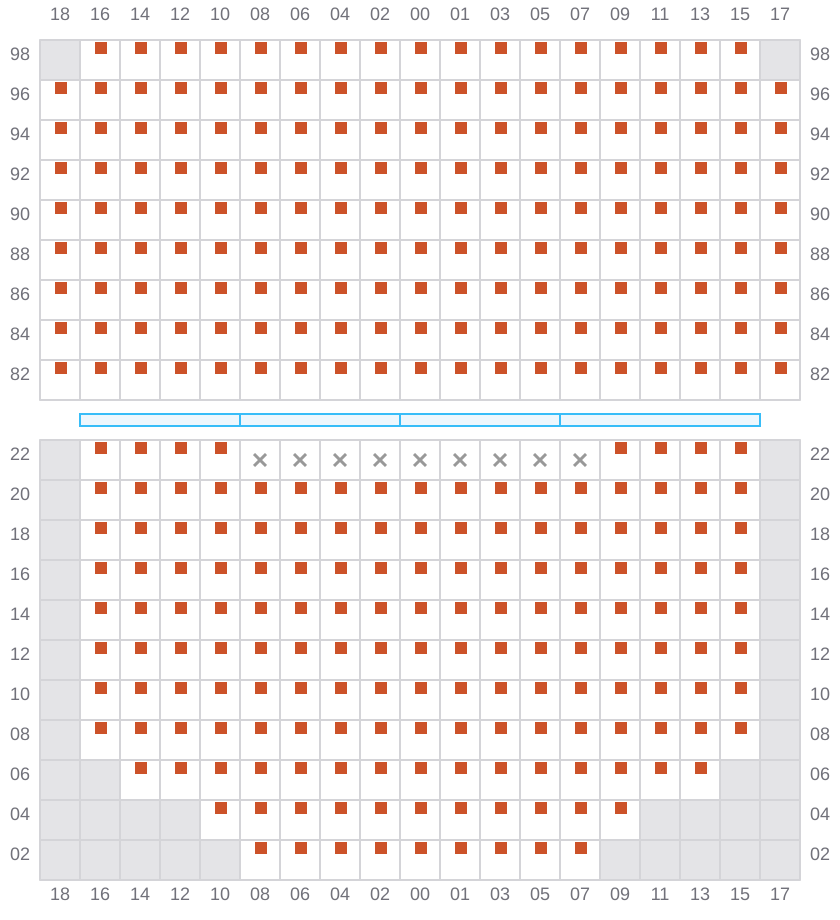

Bay 067 view and slots of NEW YORK EXPRESS

069 (070)

→
^→ / _?
→

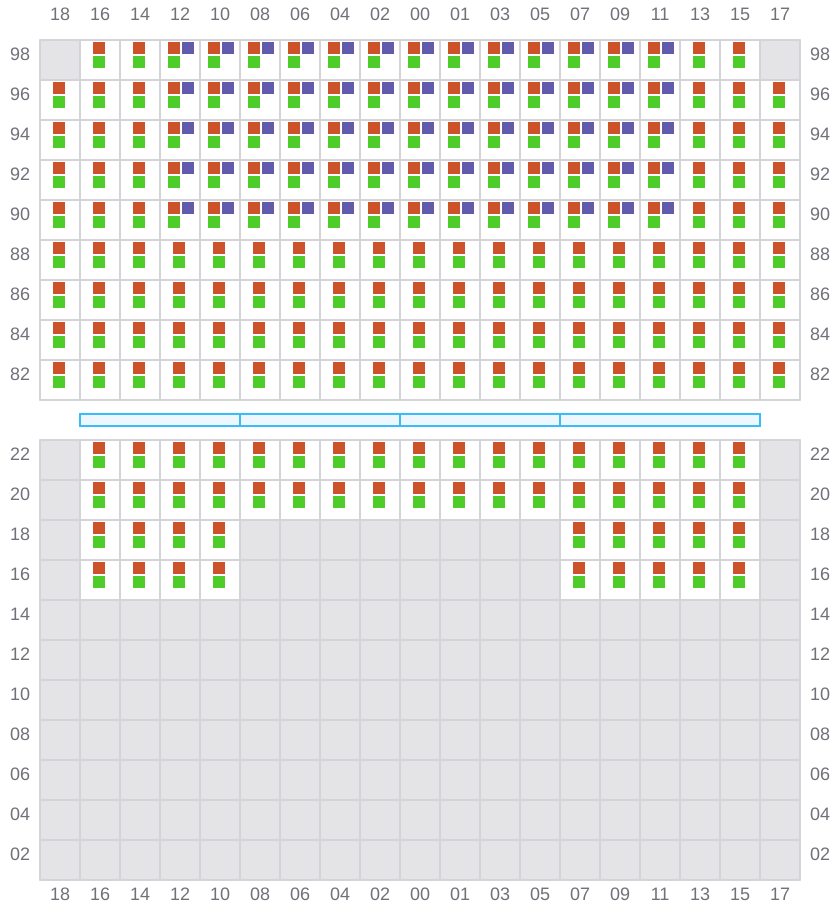

Bay 069 view and slots of NEW YORK EXPRESS

071

←
^→ / _?
→

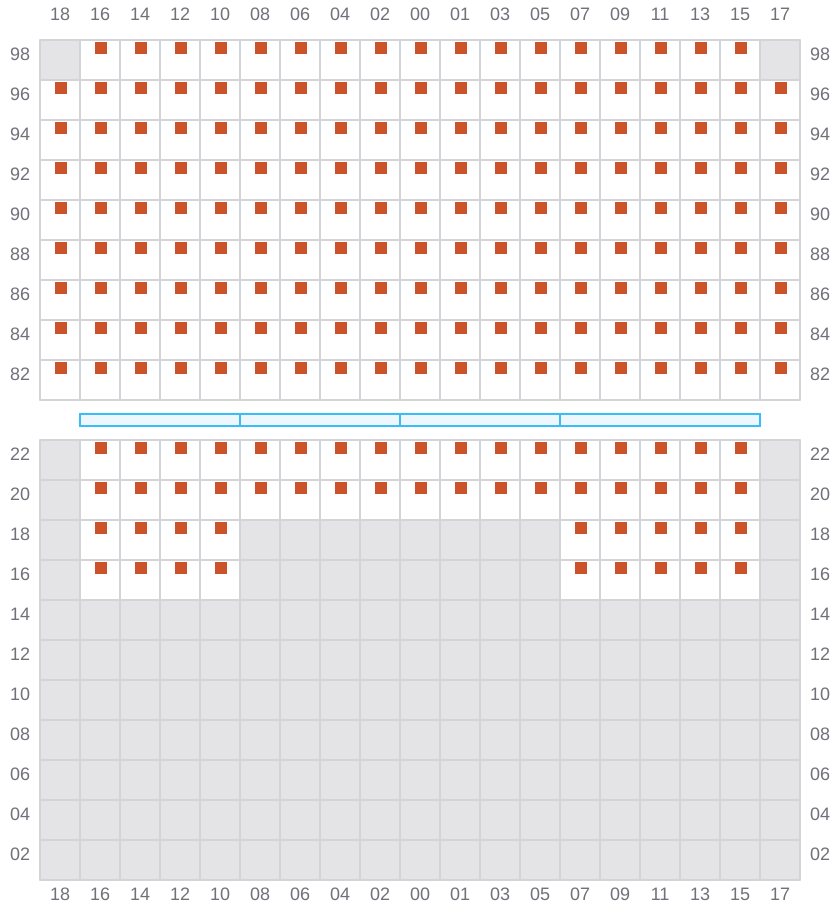

Bay 071 view and slots of NEW YORK EXPRESS

073 (074)

→
^→ / _?
→

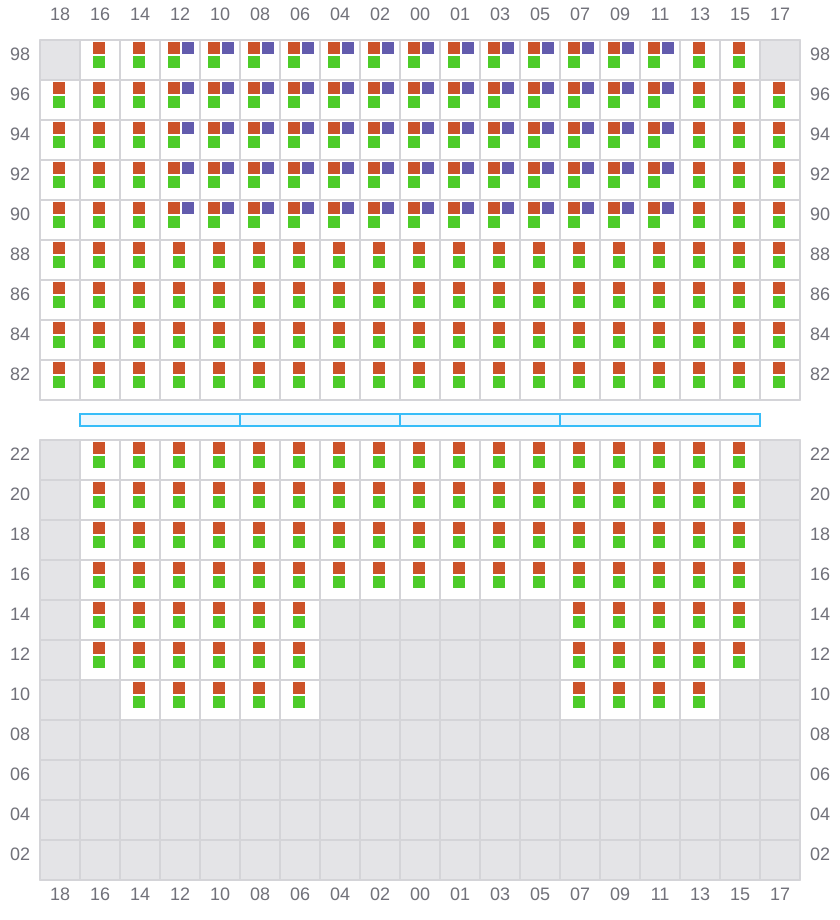

Bay 073 view and slots of NEW YORK EXPRESS

075

←
^→ / _?
→

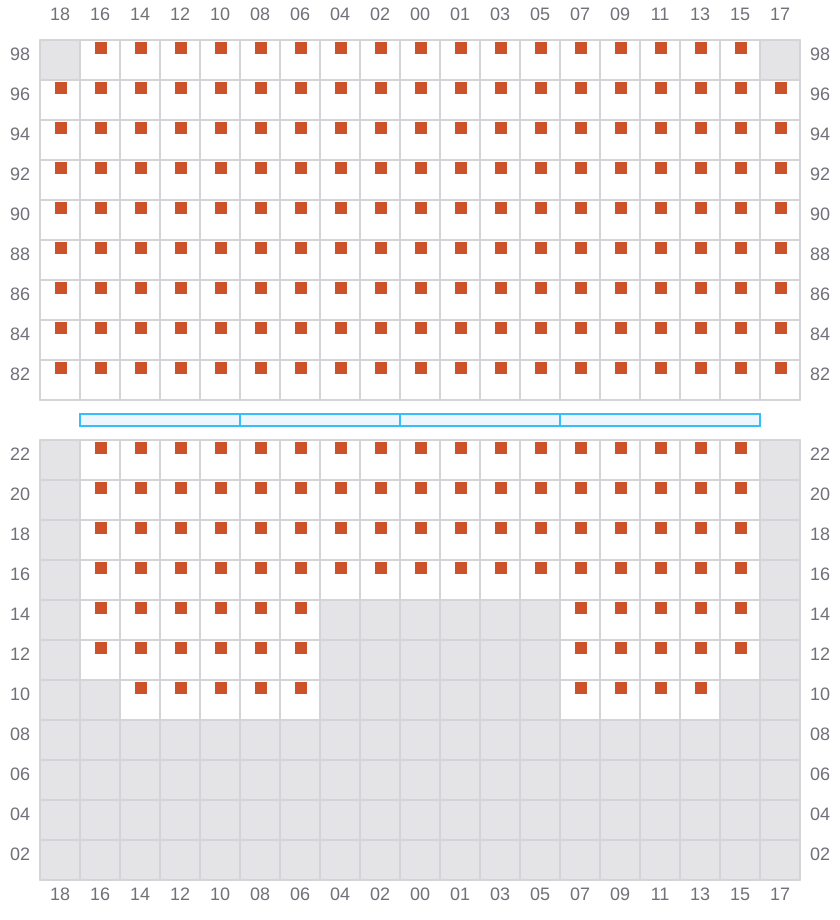

Bay 075 view and slots of NEW YORK EXPRESS

077 (078)

→
^→ / _?
→

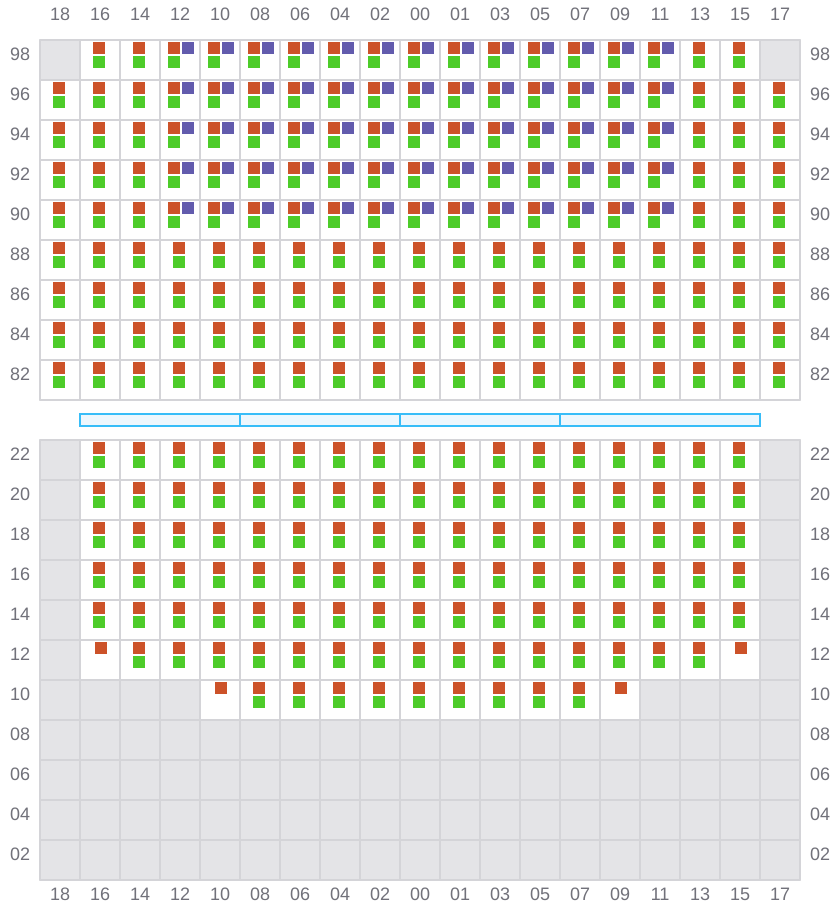

Bay 077 view and slots of NEW YORK EXPRESS

079

←
^→ / _?
→

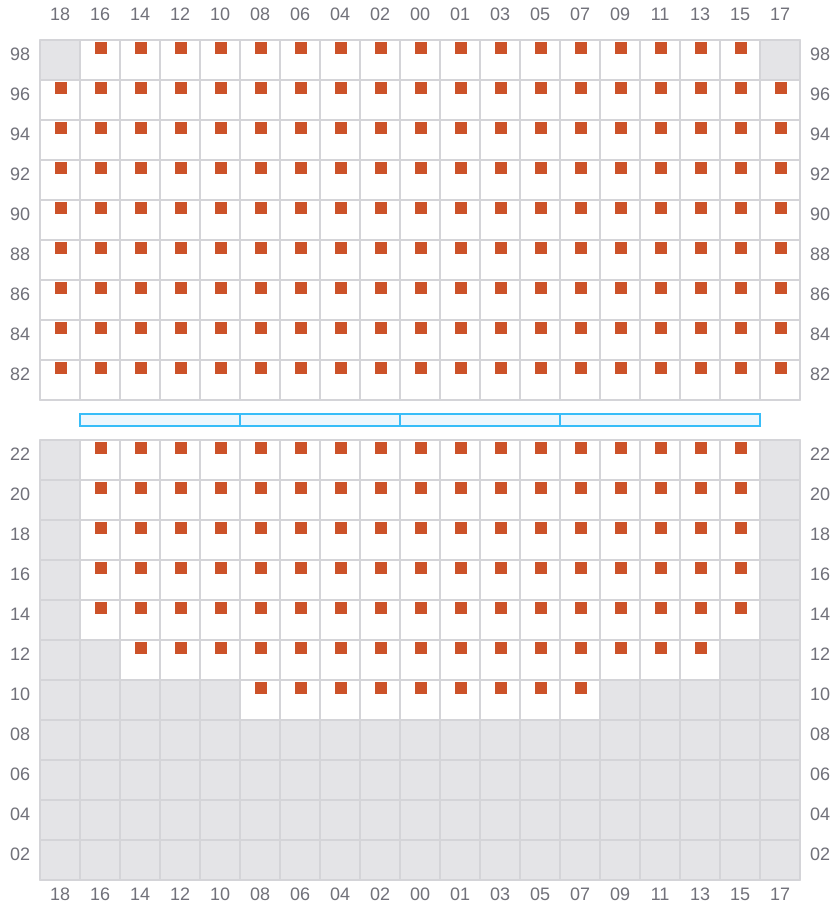

Bay 079 view and slots of NEW YORK EXPRESS

081 (082)

→
^→ / _?
→

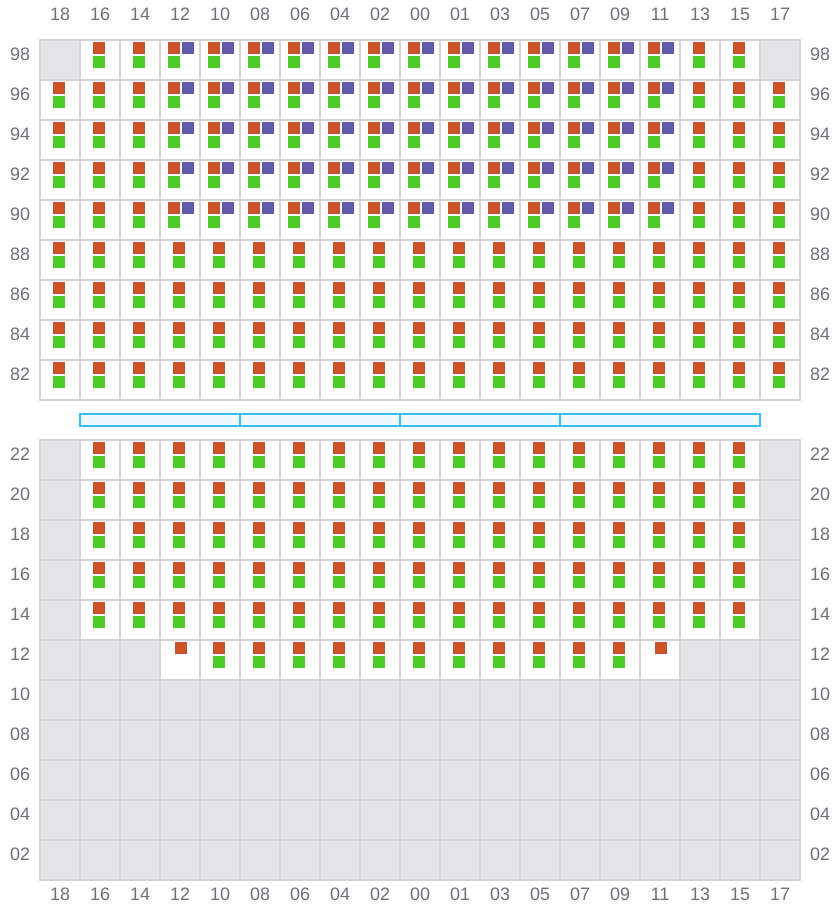

Bay 081 view and slots of NEW YORK EXPRESS

083

←
^→ / _?
→

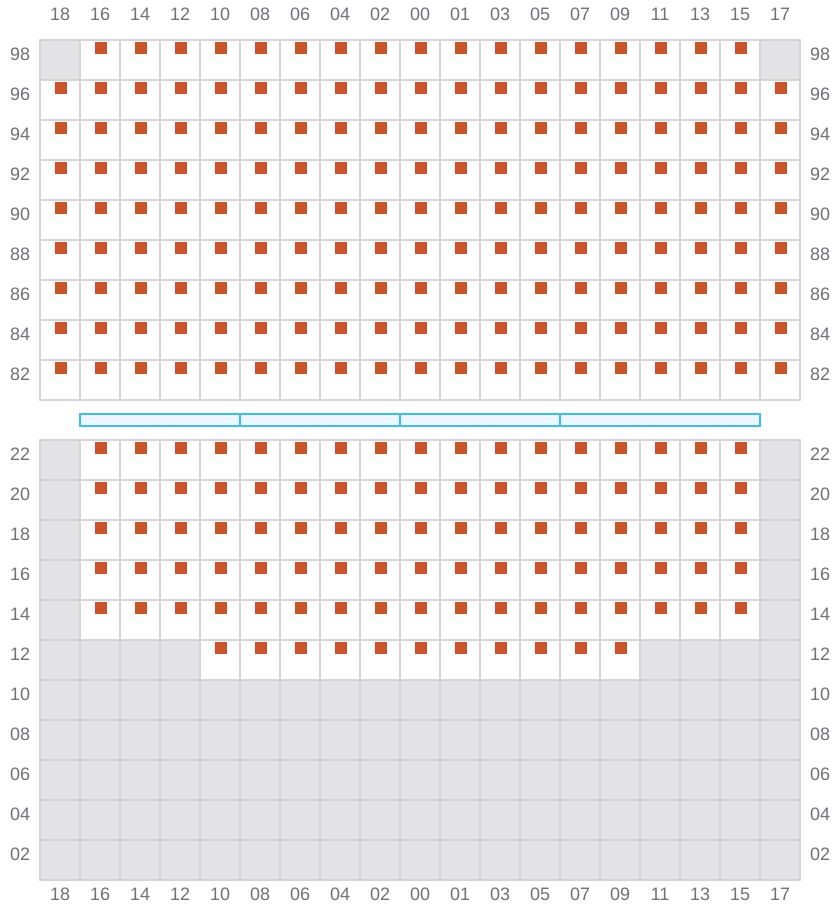

Bay 083 view and slots of NEW YORK EXPRESS

085 (086)

^→ / _?
^→ / _?

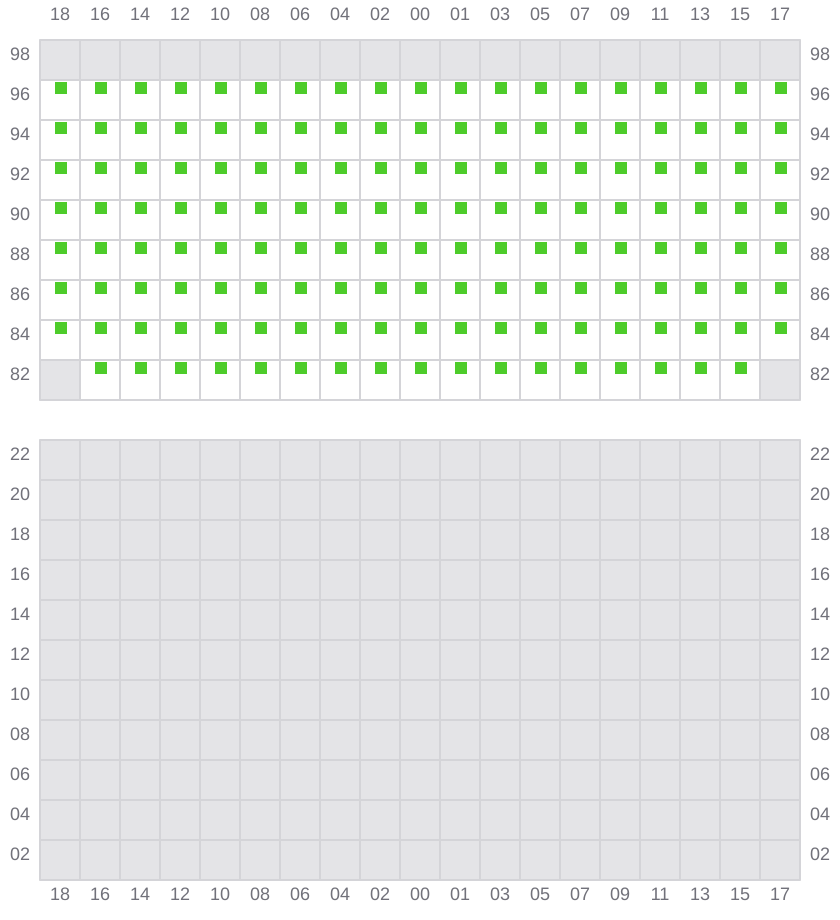

Bay 085 view and slots of NEW YORK EXPRESS
