NEWNEW MOON
9178276 | D5NN4 | 9178276 by ********* Last update: Thu Jun 27 2024
General Info
Ship Name:NEWNEW MOON
IMO Code:9178276
Call Sign:D5NN4
Line Operator:9178276
Class Name for Sister Ships:MSL
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):185.50
LOA (Length Overall):195.60
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,201
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

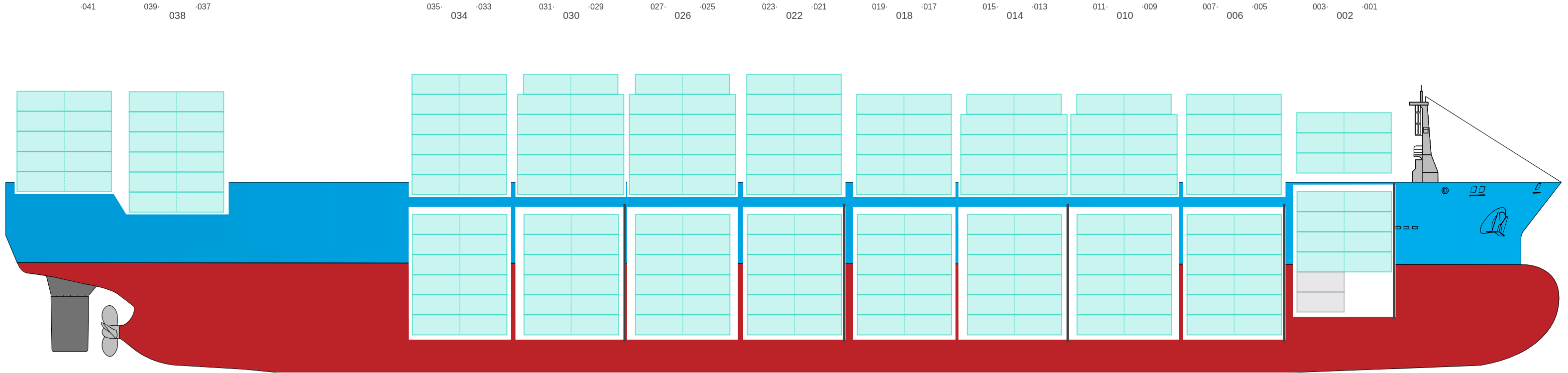

Side View
Hatch-Covers View

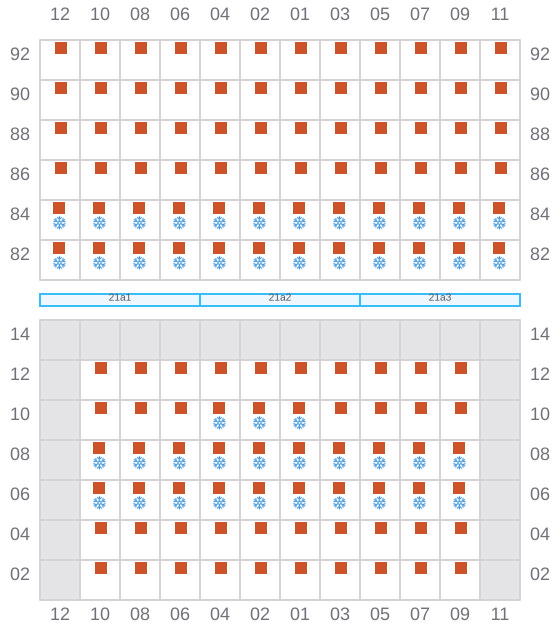

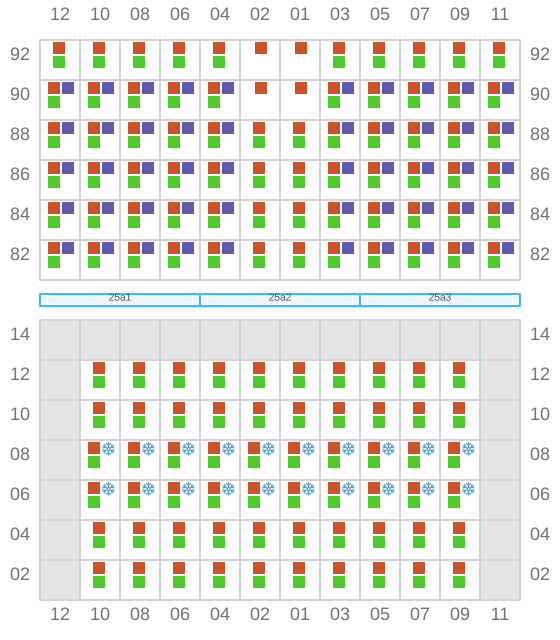

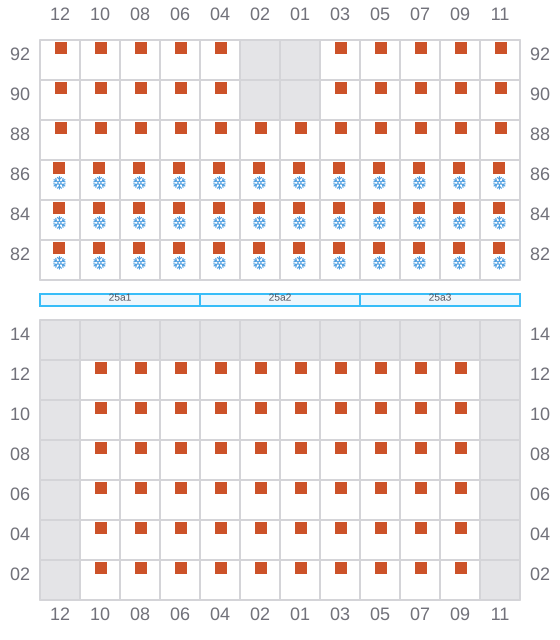

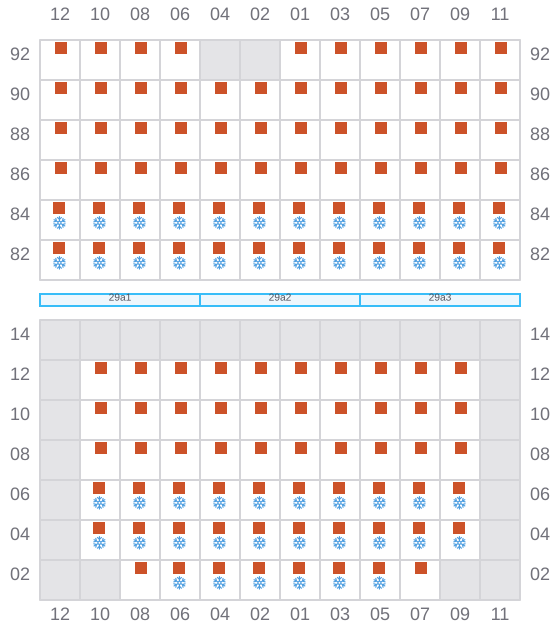

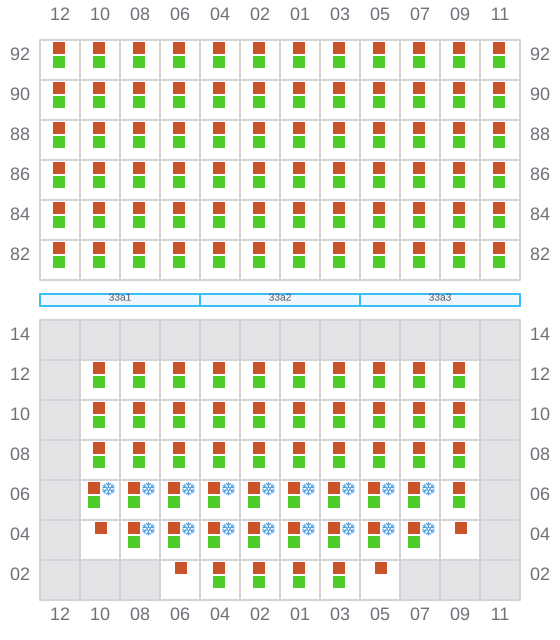

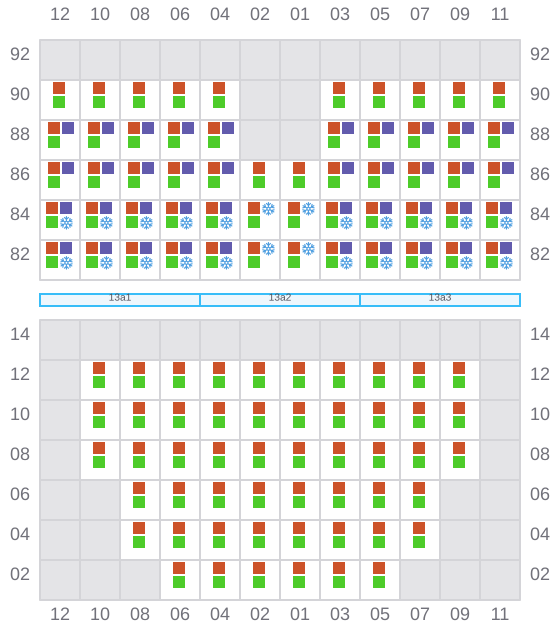

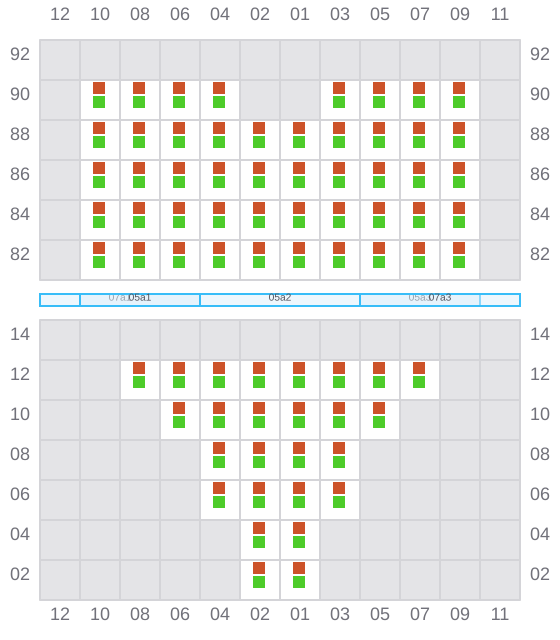

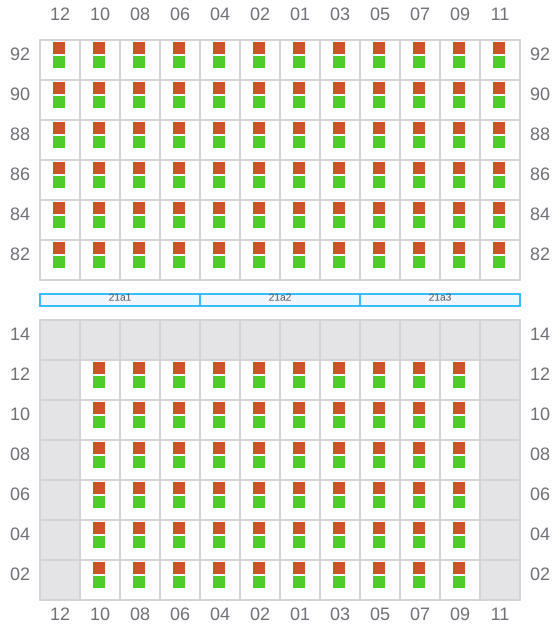

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

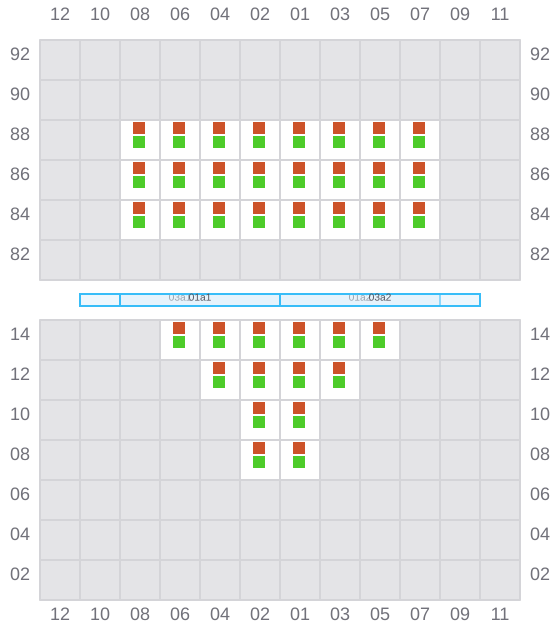

001 (002)
- →

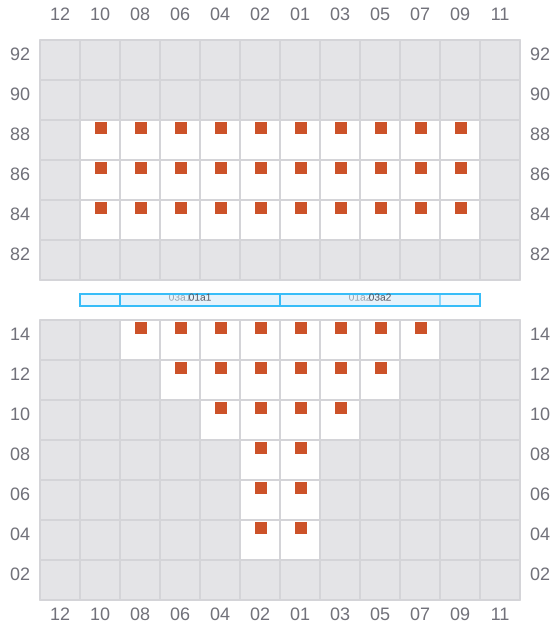

003
- ←
- ? / →
005 (006)
- →
007
- ←
- →

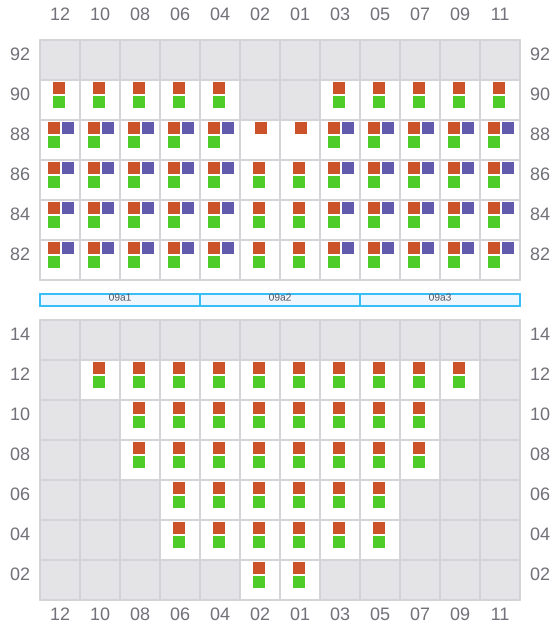

009 (010)
- →
- ? / ←

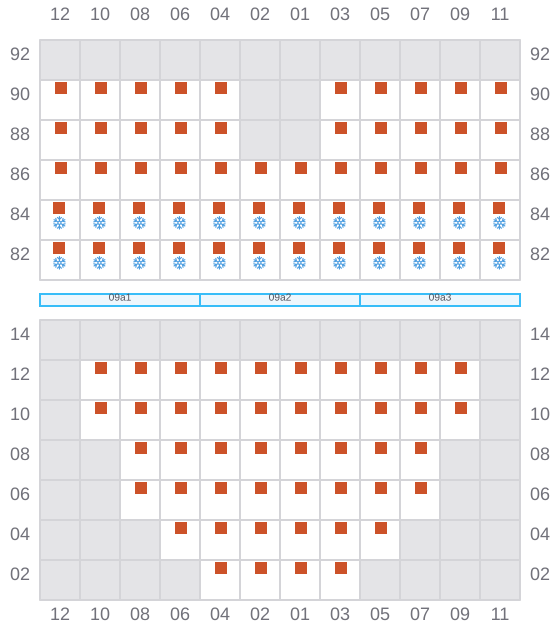

011
- ←
- → / ?
013 (014)
- →
- ← / ?

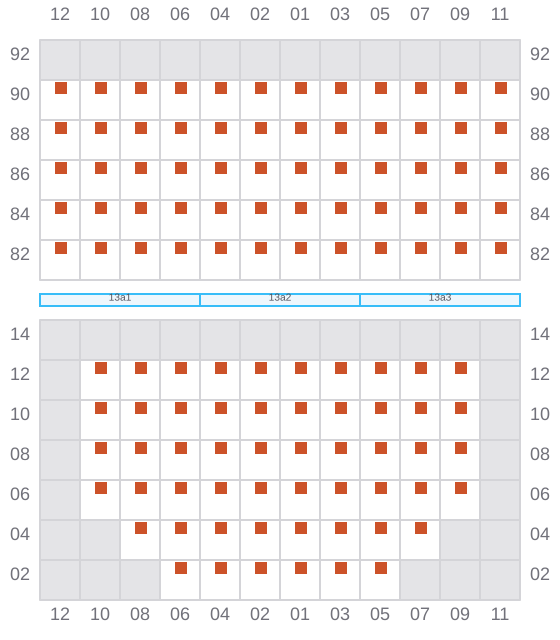

015
- ←
- → / ?

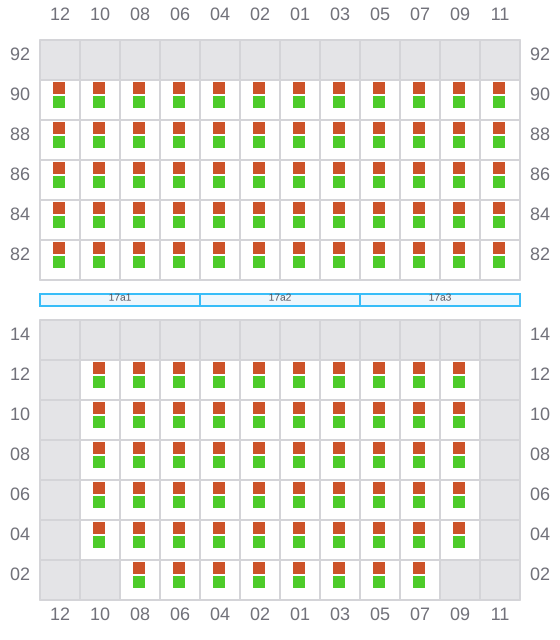

017 (018)
- →
- ? / ←

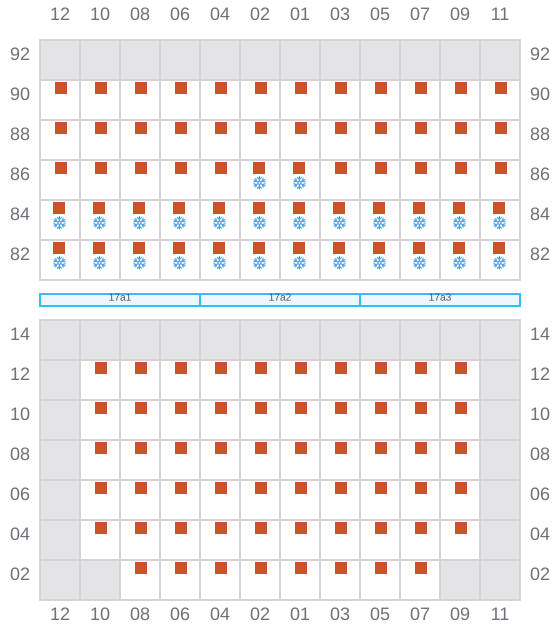

019
- ←
- →
021 (022)
- →
023
- ←
- →
025 (026)
- →
- ? / ←
027
- ←
- →

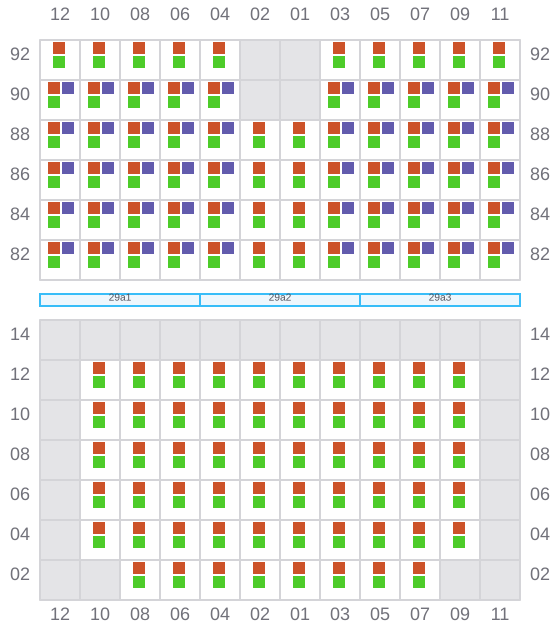

029 (030)
- →
031
- ←
- →
033 (034)
- →
- ? / ←

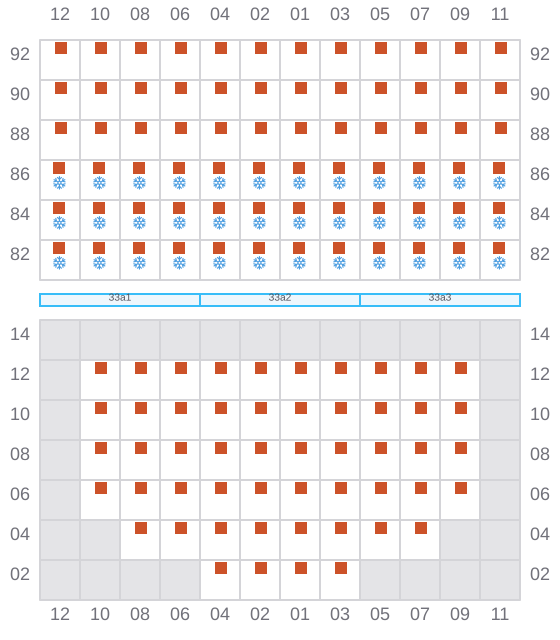

035
- ←
- → / ?

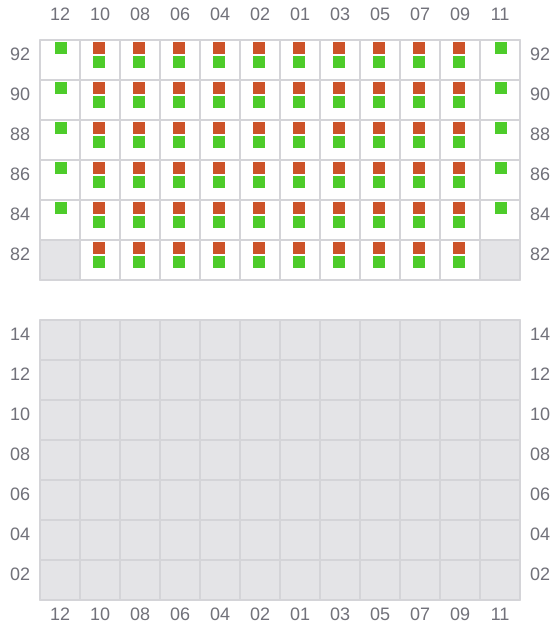

037 (038)
- → / ?
- ← / ?

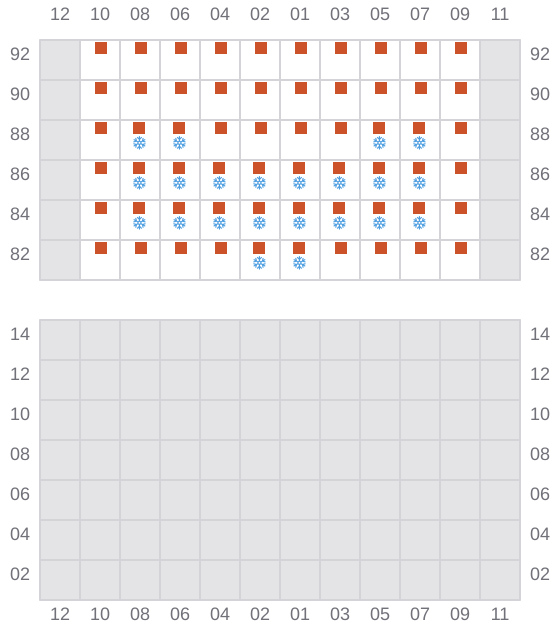

039
- ← / ?
- → / ?

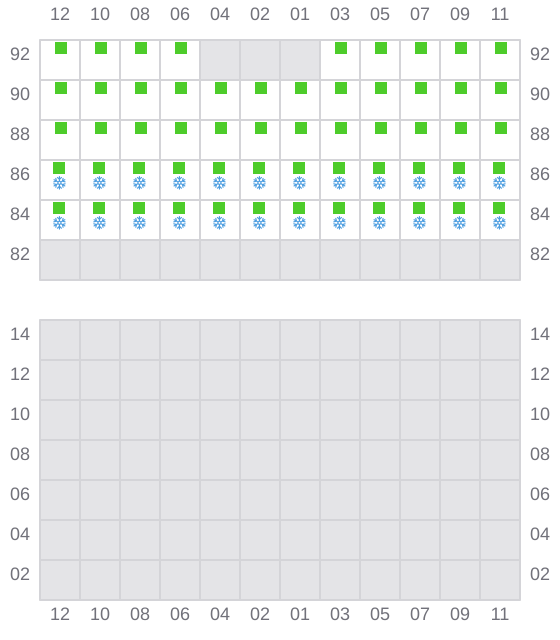

041 (042)
- → / ?
- ← / ?
