NIKOLAS
9203526 | 3FIJ | 9203526 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:NIKOLAS
IMO Code:9203526
Call Sign:3FIJ
Line Operator:9203526
Class Name for Sister Ships:63D
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,515
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-sideView.png?v=1710194049835)
Hatch-Covers View
![Deck view of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-deckView.png?v=1710194049835)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

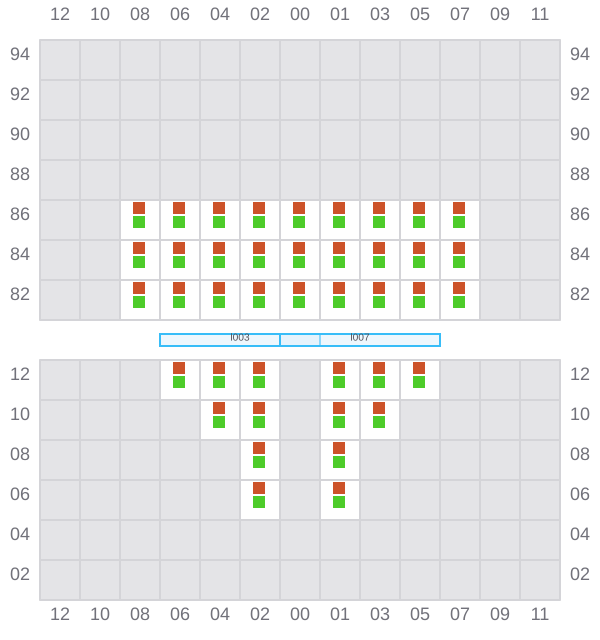

001 (002)
- →
![Bay 001 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b001.png?v=1710194049835)

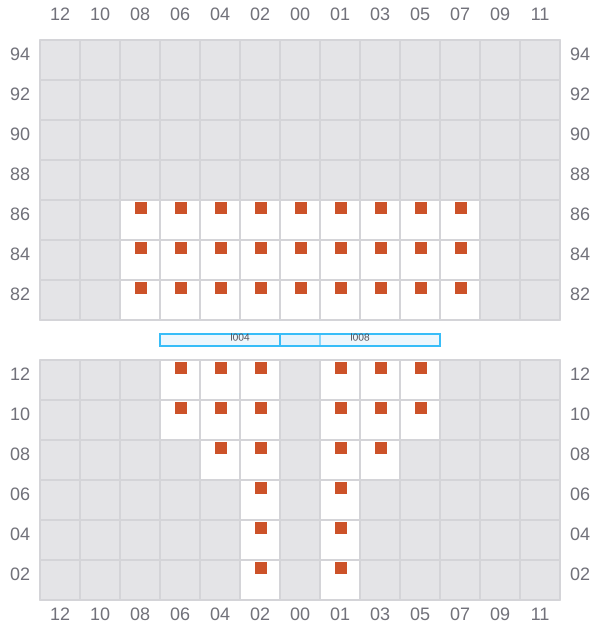

003
- ←
![Bay 003 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b003.png?v=1710194049835)

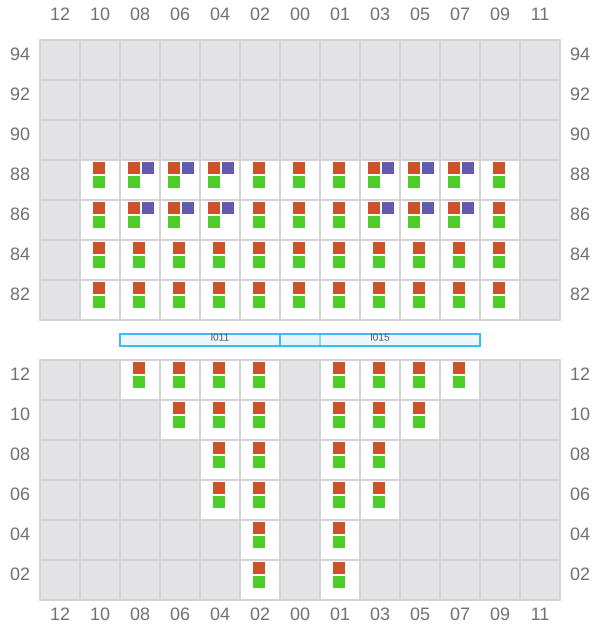

005 (006)
- →
![Bay 005 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b005.png?v=1710194049835)

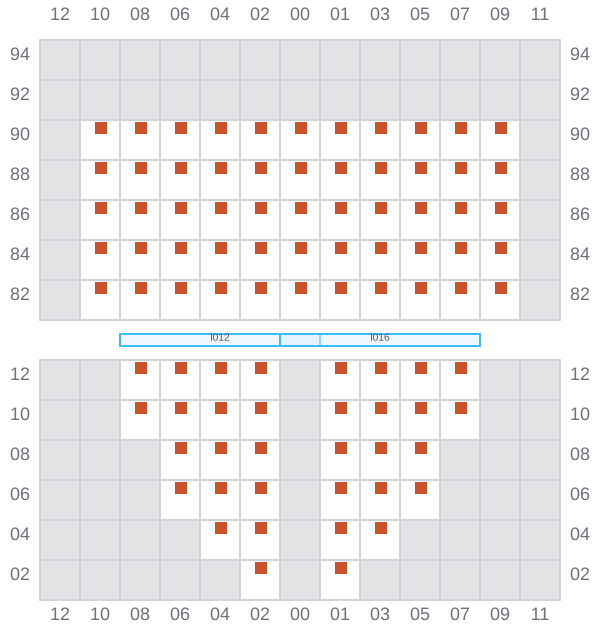

007
- ←
![Bay 007 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b007.png?v=1710194049835)
009 (010)
- →
- ← / ?
![Bay 009 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b009.png?v=1710194049835)
011
- ←
- → / ?
![Bay 011 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b011.png?v=1710194049835)

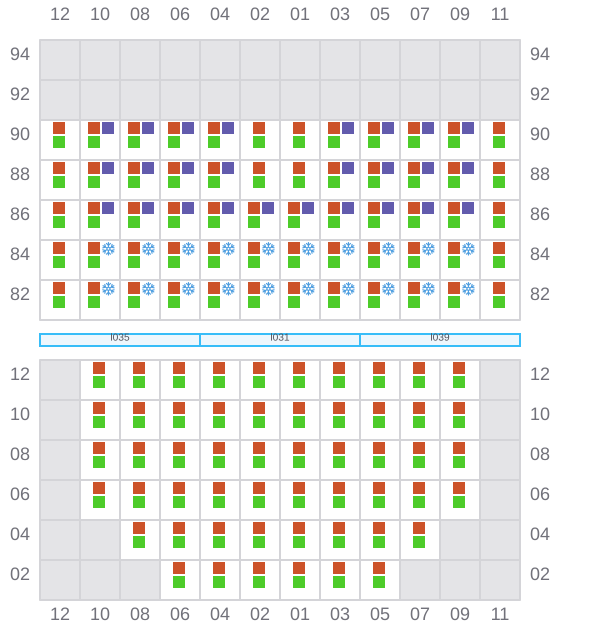

013 (014)
- →
- ← / ?
![Bay 013 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b013.png?v=1710194049835)
015
- ←
- → / ?
![Bay 015 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b015.png?v=1710194049835)
017 (018)
- →
- ← / ?
![Bay 017 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b017.png?v=1710194049835)

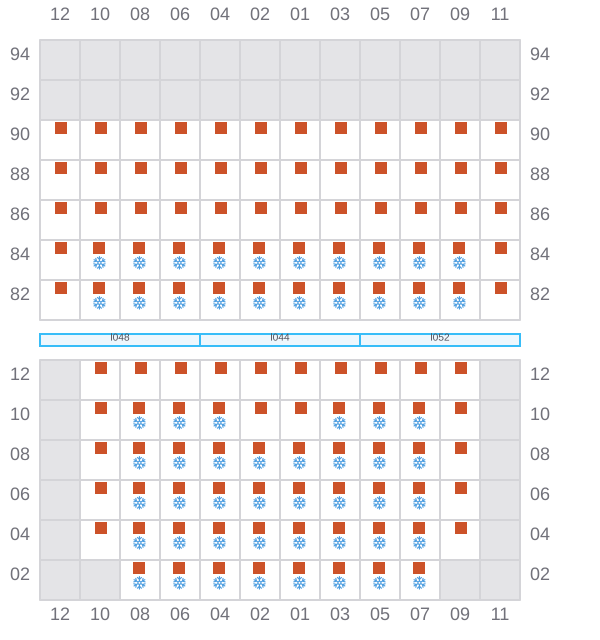

019
- ←
- →
![Bay 019 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b019.png?v=1710194049835)

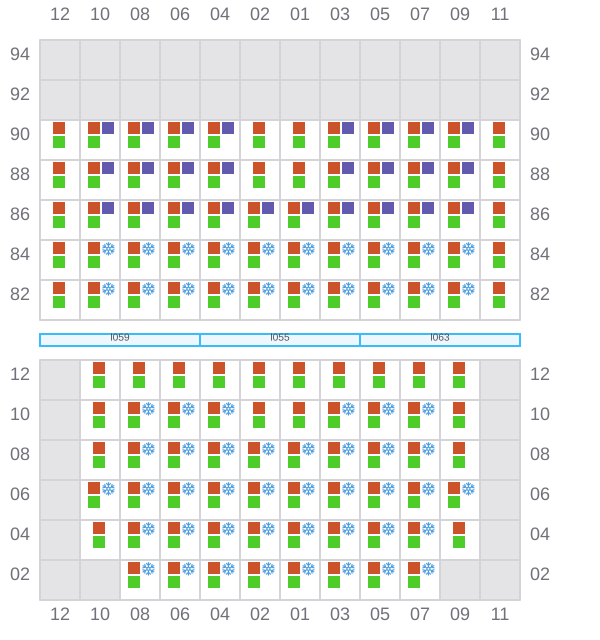

021 (022)
- →
- ←
![Bay 021 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b021.png?v=1710194049835)

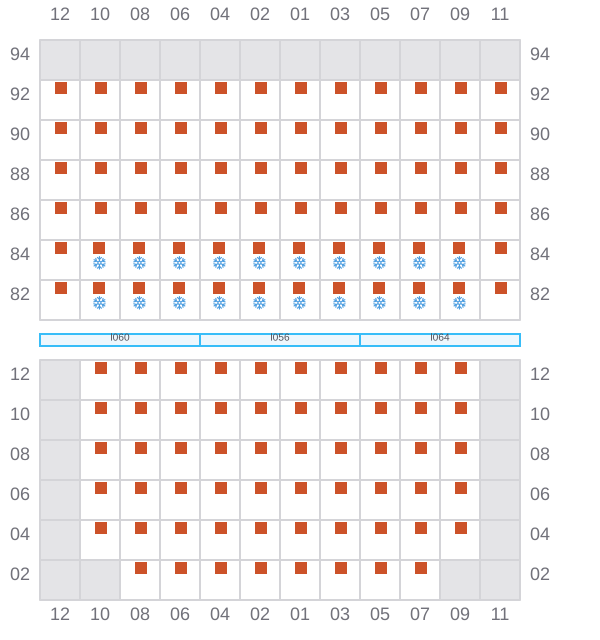

023
- ←
- → / ?
![Bay 023 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b023.png?v=1710194049835)

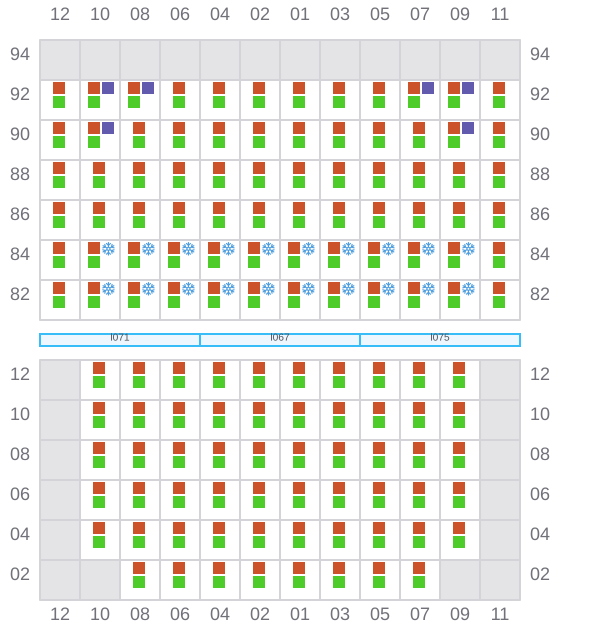

025 (026)
- →
- ← / ?
![Bay 025 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b025.png?v=1710194049835)
027
- ←
- → / ?
![Bay 027 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b027.png?v=1710194049835)
029 (030)
- →
- ← / ?
![Bay 029 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b029.png?v=1710194049835)
031
- ←
- → / ?
![Bay 031 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b031.png?v=1710194049835)

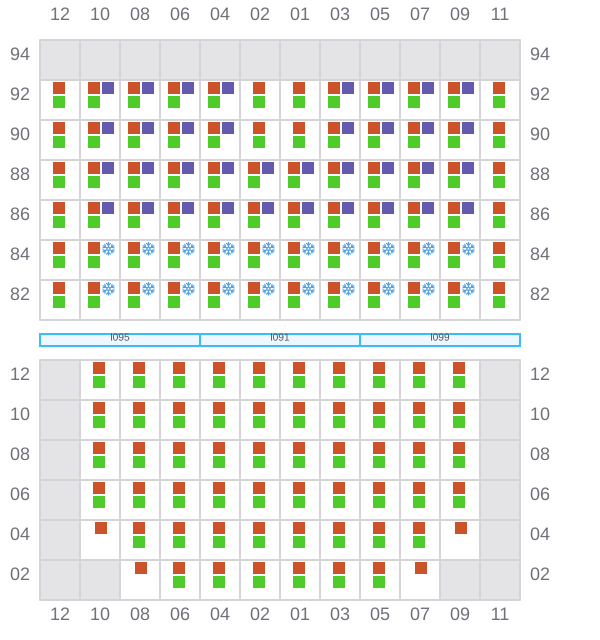

033 (034)
- →
- ← / ?
![Bay 033 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b033.png?v=1710194049835)

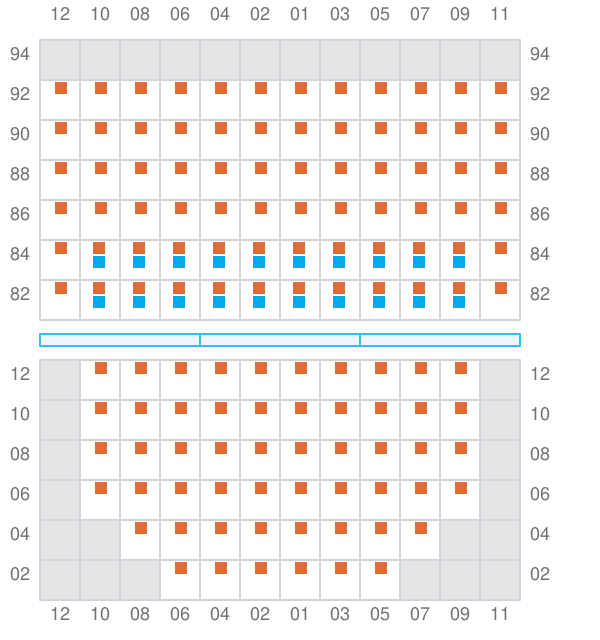

035
- ←
- → / ?
![Bay 035 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b035.png?v=1710194049835)

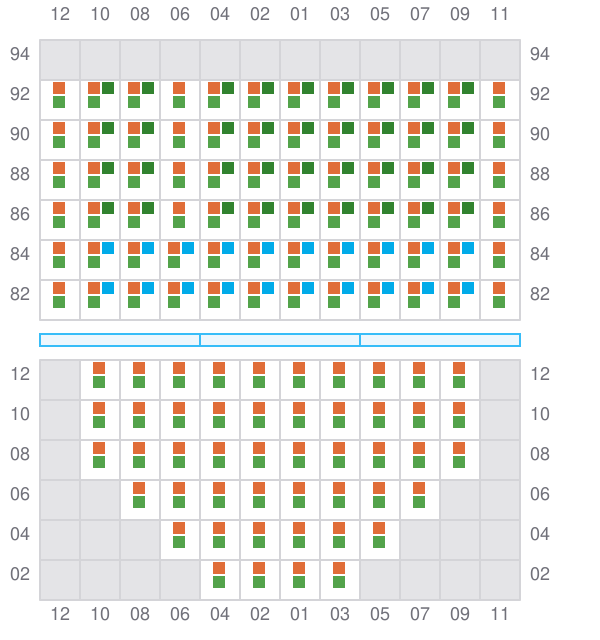

037 (038)
- →
- ← / ?
![Bay 037 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b037.png?v=1710194049835)
039
- ←
- → / ?
![Bay 039 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b039.png?v=1710194049835)

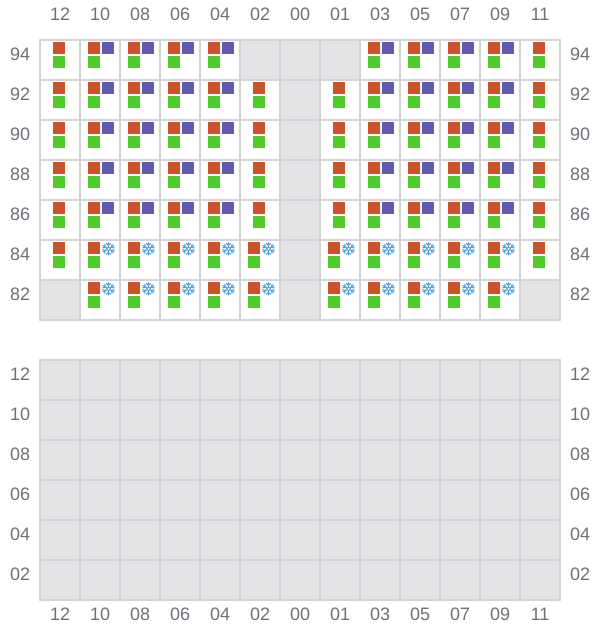

041 (042)
- → / ?
- ← / ?
![Bay 041 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b041.png?v=1710194049835)

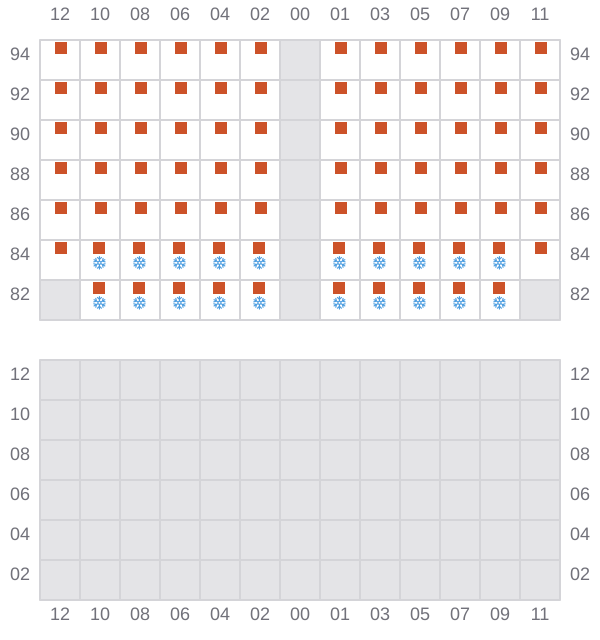

043
- ← / ?
- → / ?
![Bay 043 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b043.png?v=1710194049835)

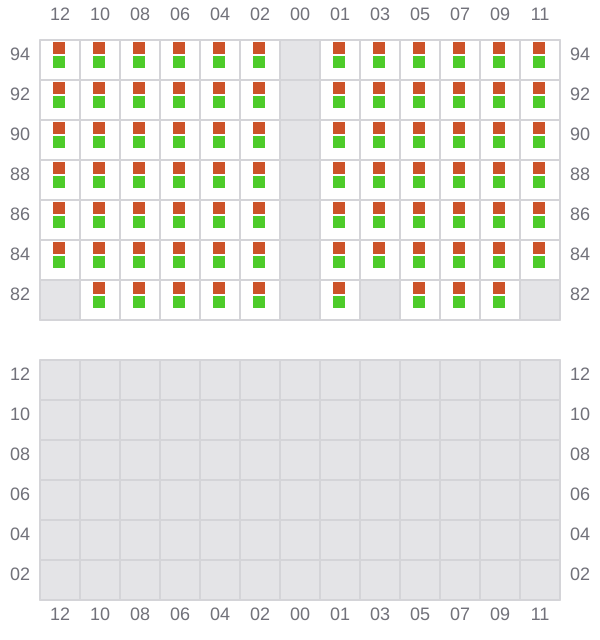

045 (046)
- → / ?
![Bay 045 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b045.png?v=1710194049835)

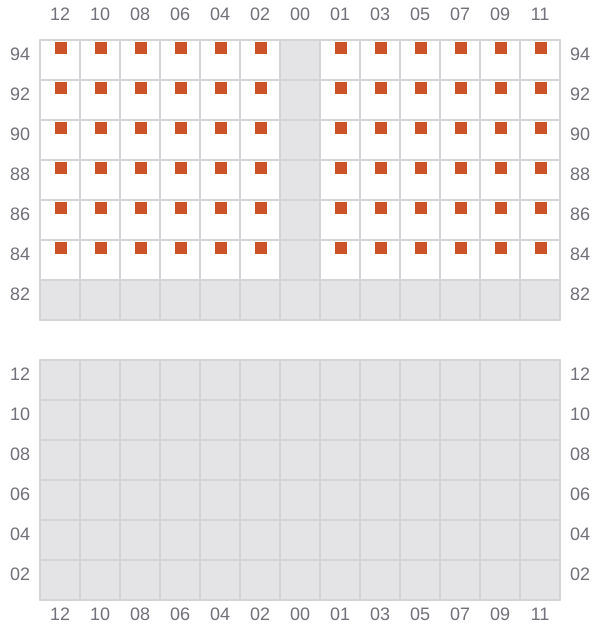

047
- ← / ?
![Bay 047 view and slots of NIKOLAS](/vessel-images/534f88d0-b021-4659-bd2d-9cf8af5d0edb-b047.png?v=1710194049835)
