NORDIA
9423035 | V2HY4 | HDS by ******************** Last update: Thu Mar 27 2025
General Info
Ship Name:NORDIA
IMO Code:9423035
Call Sign:V2HY4
Line Operator:HDS
Class Name for Sister Ships:NORD
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):218.22
LOA (Length Overall):228.62
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:BFAD ATLANTIC
40' Bays Location:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,426
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

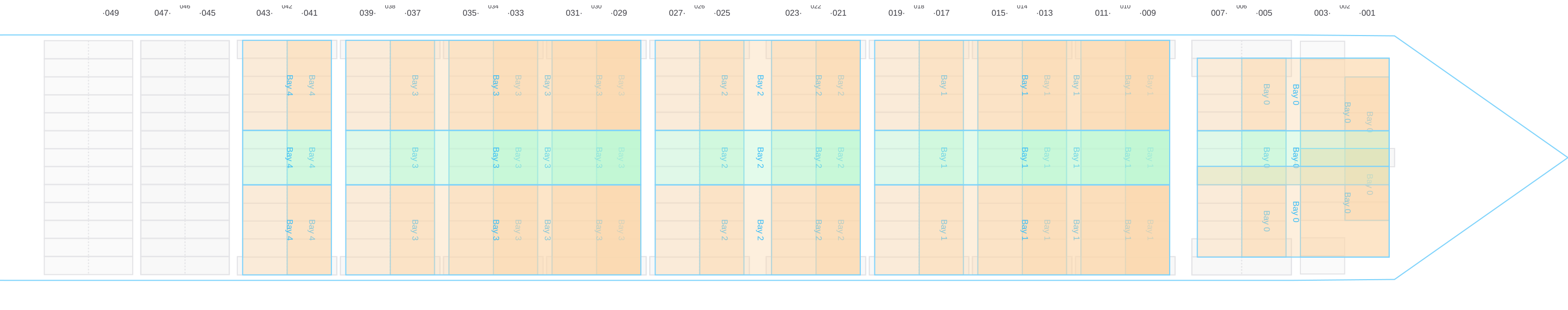

Hatch-Covers View

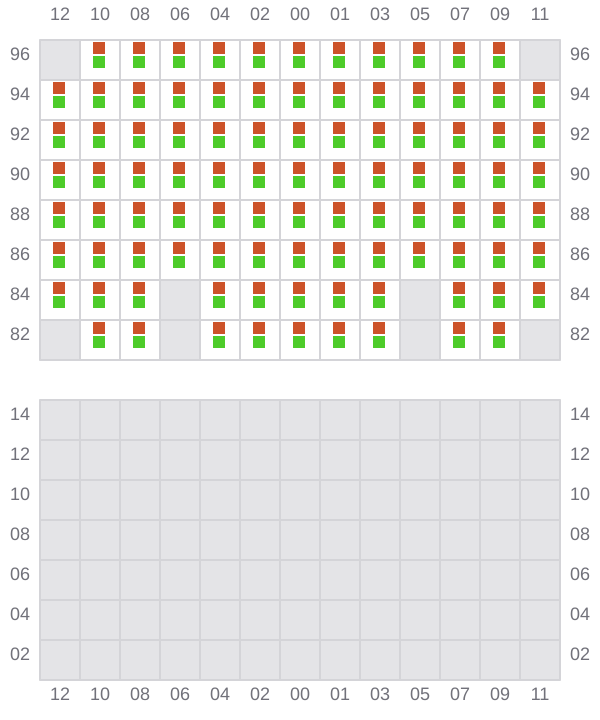

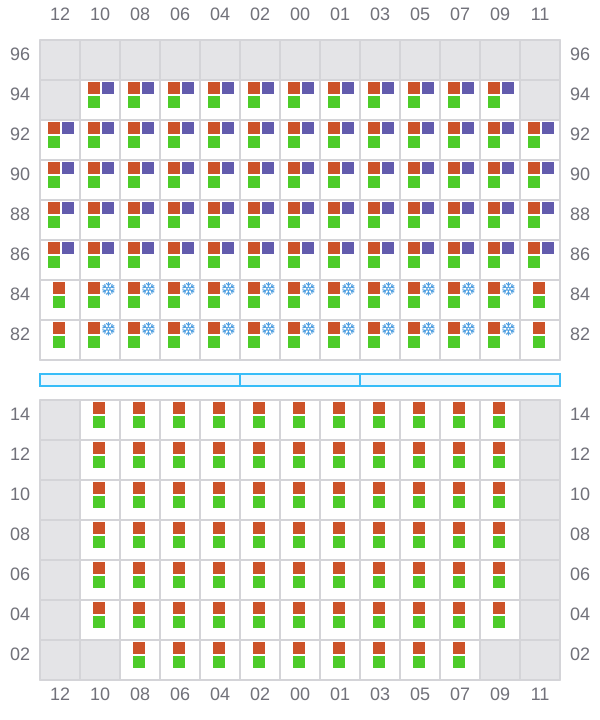

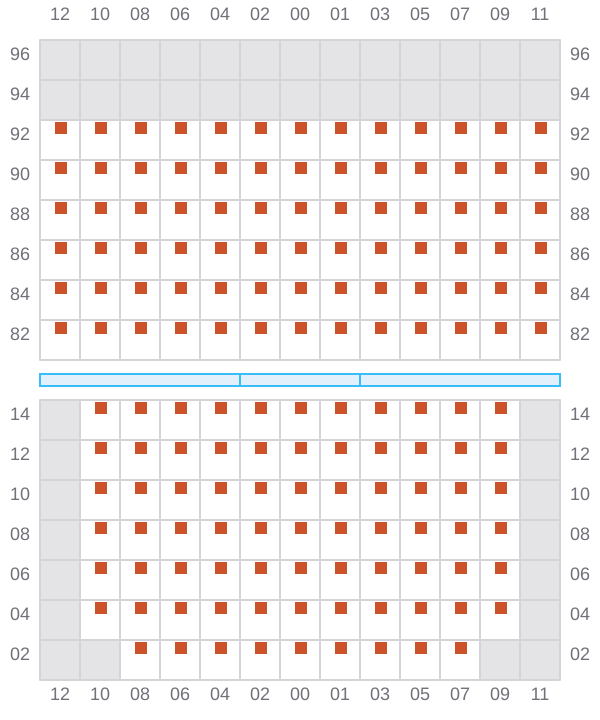

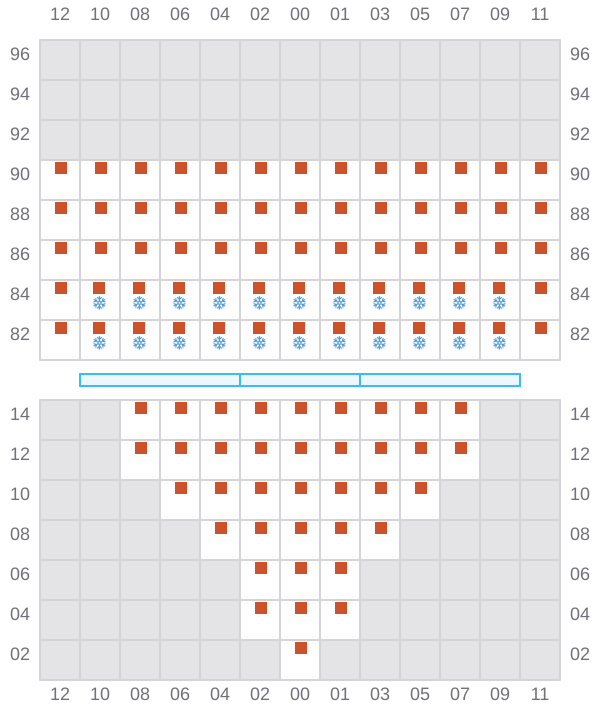

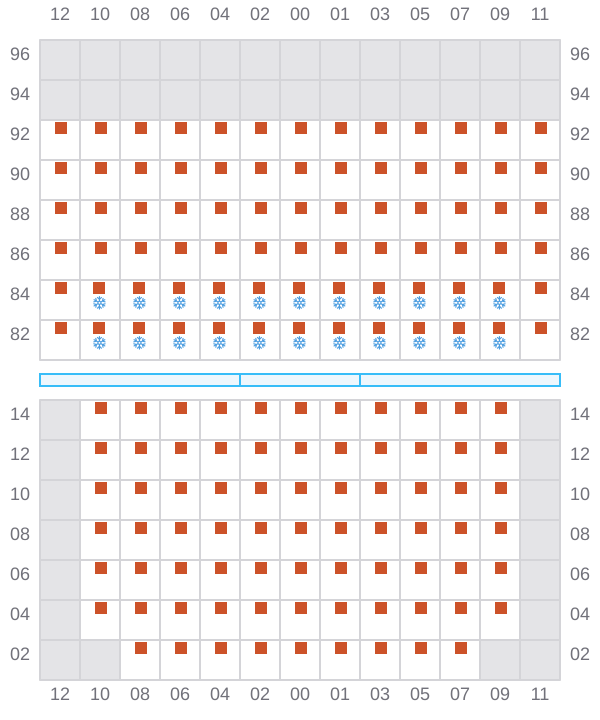

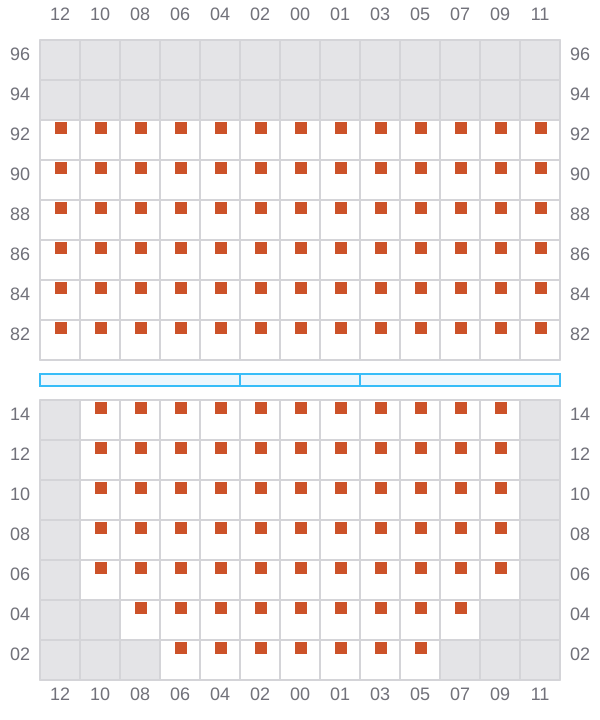

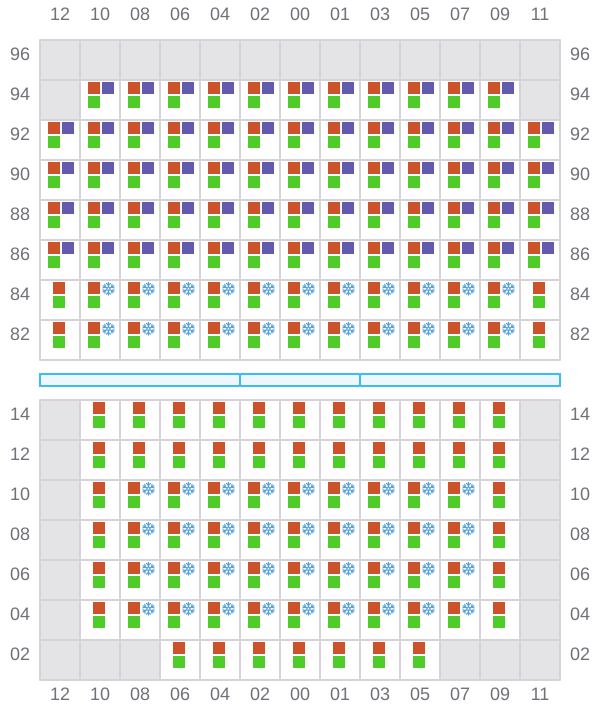

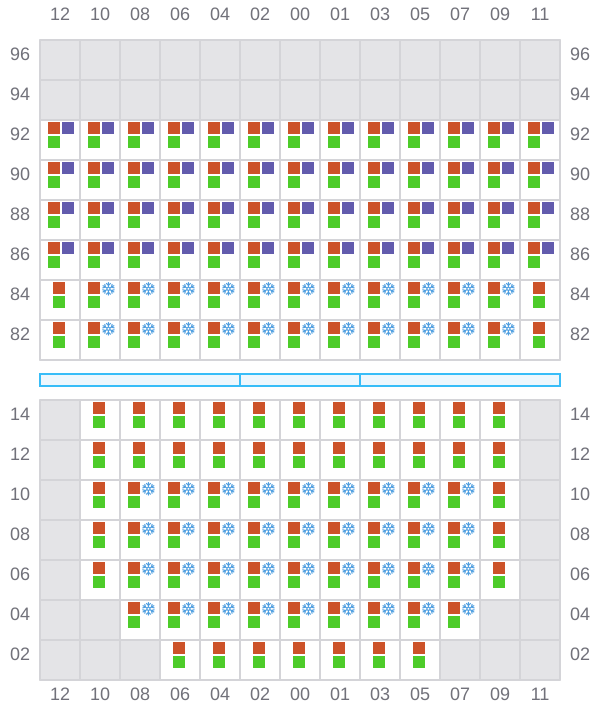

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

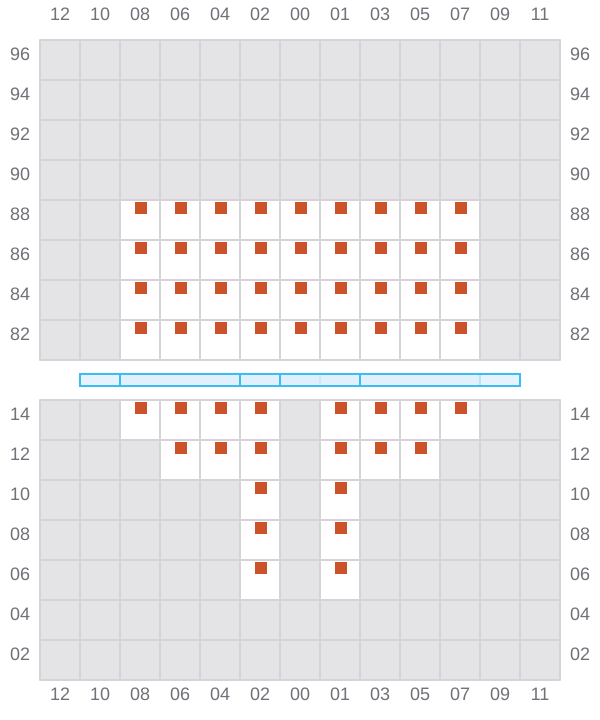

001
- →
003 (002)
- ←

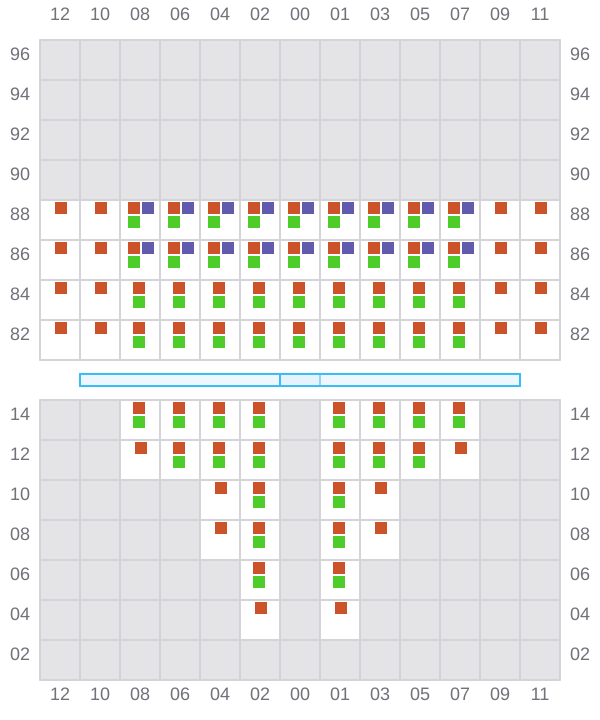

005
- →
- ← / ?
007 (006)
- ←

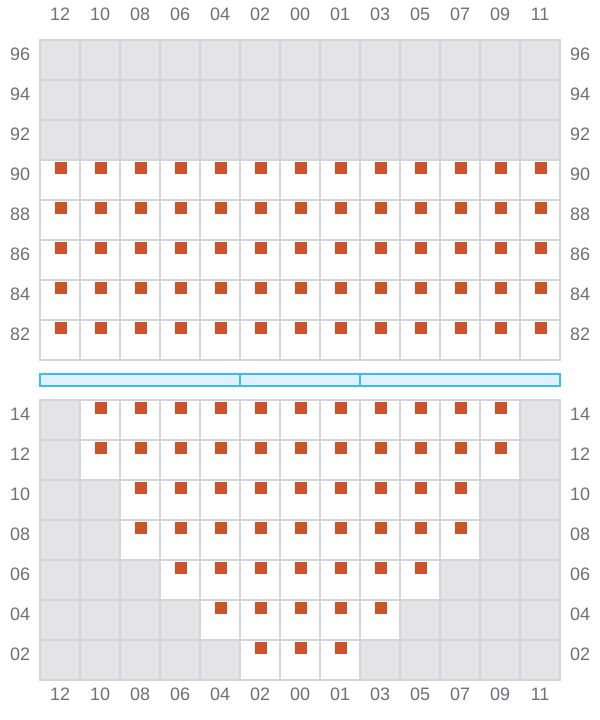

009
- →

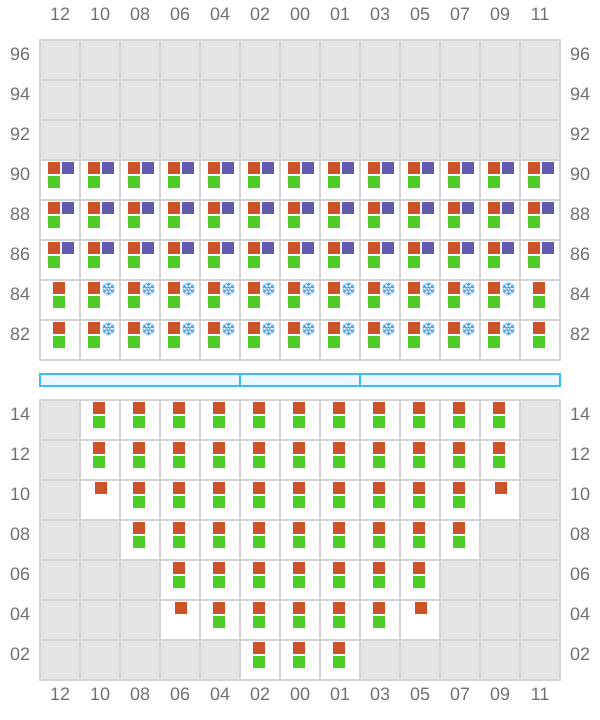

011 (010)
- ←
- → / ?
013
- →
- ← / ?
015 (014)
- ←
017
- →
019 (018)
- ←
- →
021
- →
023 (022)
- ←
- → / ?
025
- →
- ← / ?
027 (026)
- ←
- → / ?
029
- →
- ← / ?
031 (030)
- ←
- →
033
- →
- ← / ?
035 (034)
- ←
- → / ?
037
- →
- ← / ?
039 (038)
- ←
- →

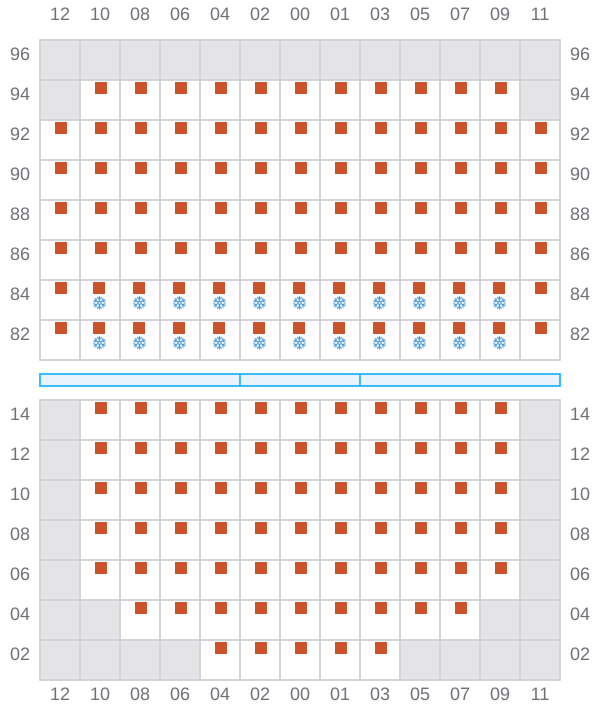

041
- →
- ← / ?

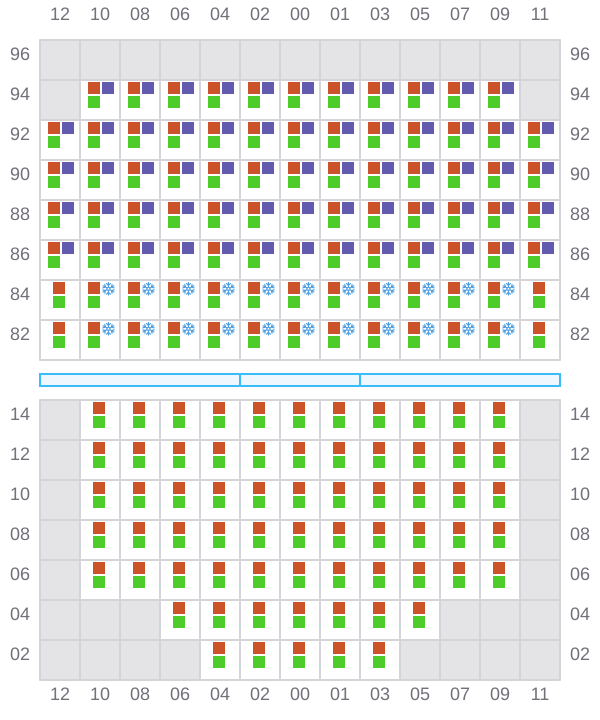

043 (042)
- ←
- → / ?

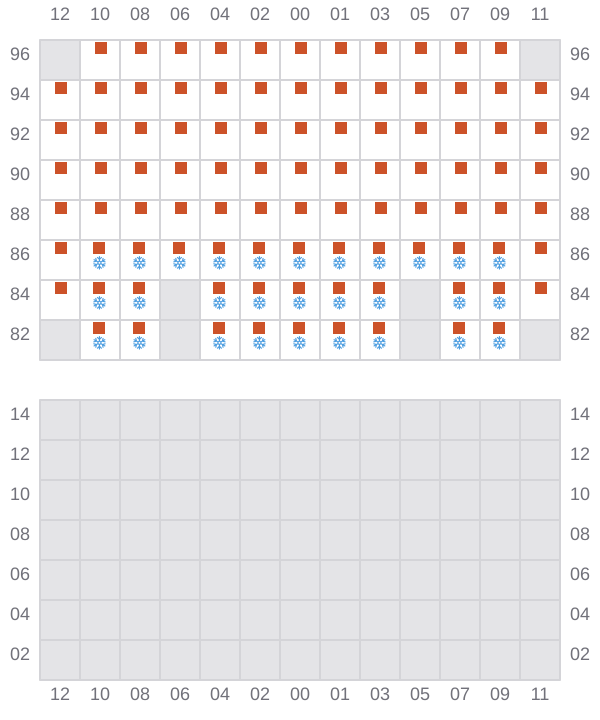

045
- → / ?
- ← / ?
047 (046)
- ← / ?

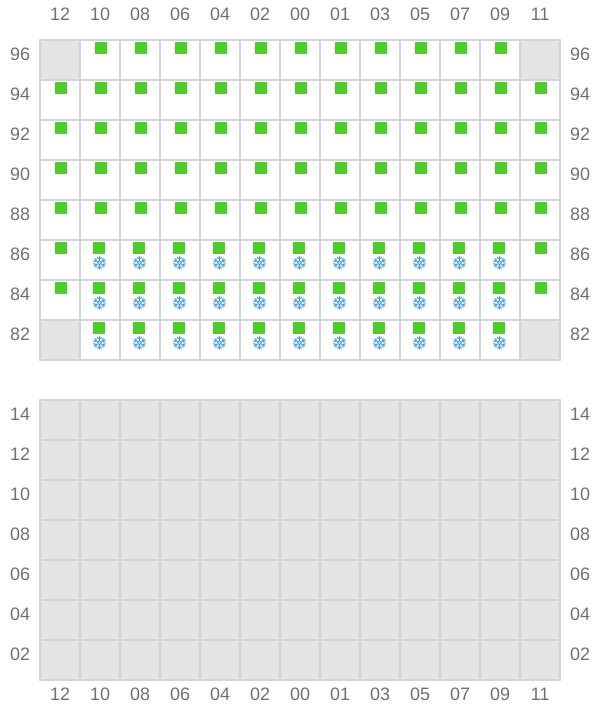

049 (050)
- → / ?
- → / ?
