NORDICA
9483695 | PCSK | 9483695 by ********* Last update: Thu Jul 25 2024
General Info
Ship Name:NORDICA
IMO Code:9483695
Call Sign:PCSK
Line Operator:9483695
Class Name for Sister Ships:FDWE
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):142.37
LOA (Length Overall):151.72
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,036
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

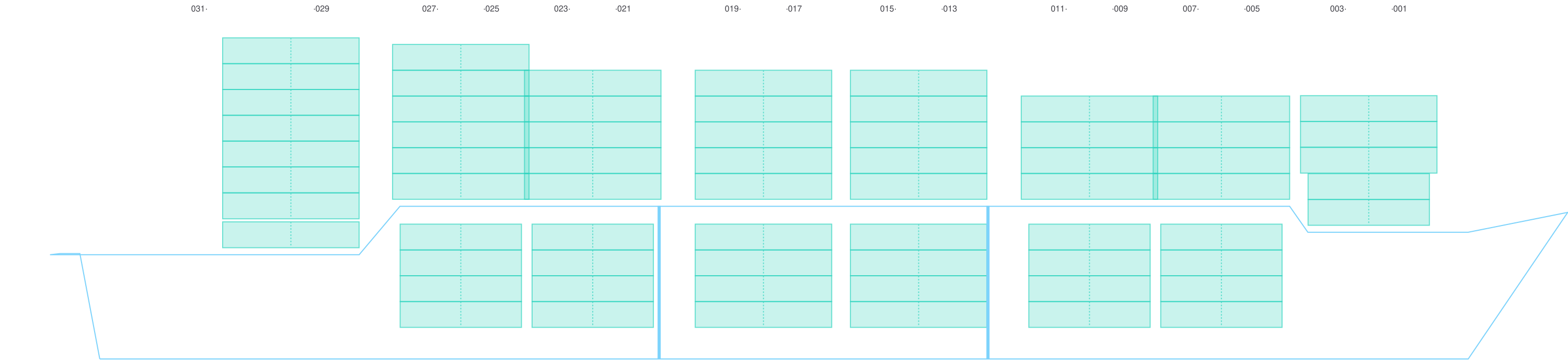

Side View
![Side view of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-sideView.png?v=1721930200311)

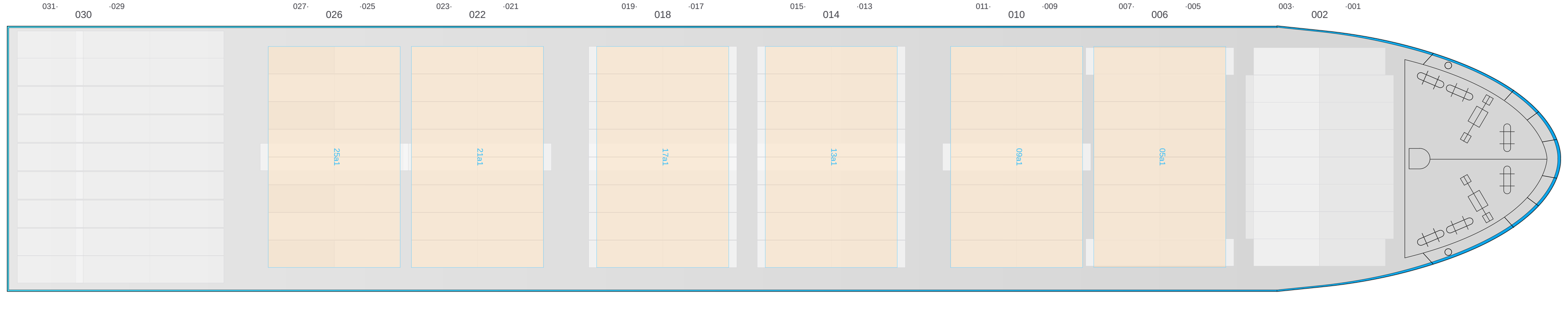

Hatch-Covers View
![Deck view of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-deckView.png?v=1721930200311)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- → / ?
- → / ?
![Bay 001 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b001.png?v=1721930200311)
003
- ← / ?
- → / ?
- → / ?
![Bay 003 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b003.png?v=1721930200311)

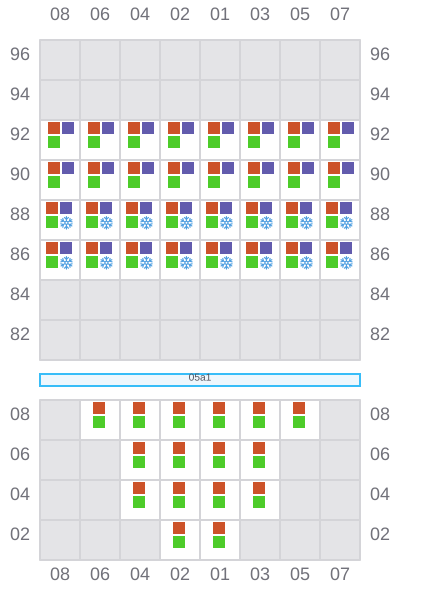

005 (006)
- →
- ← / ?
- →
![Bay 005 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b005.png?v=1721930200311)
007
- ←
- →
![Bay 007 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b007.png?v=1721930200311)
009 (010)
- →
- →
![Bay 009 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b009.png?v=1721930200311)

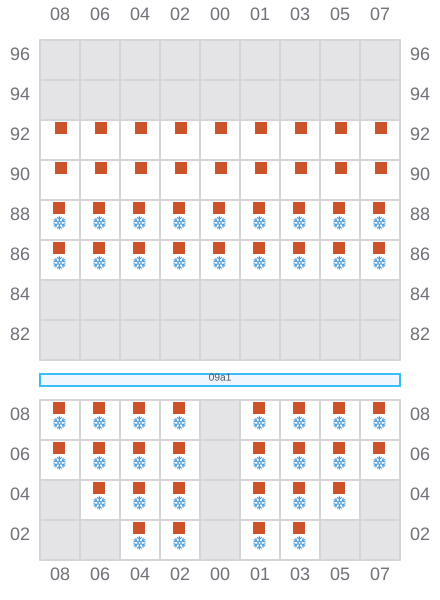

011
- ←
- →
- →
![Bay 011 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b011.png?v=1721930200311)
013 (014)
- →
- ←
- →
![Bay 013 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b013.png?v=1721930200311)

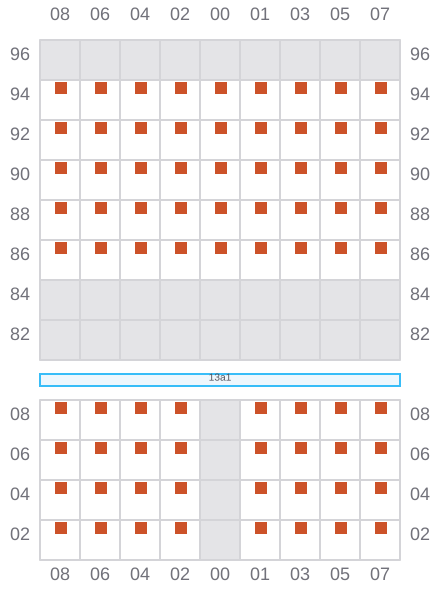

015
- ←
- →
![Bay 015 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b015.png?v=1721930200311)

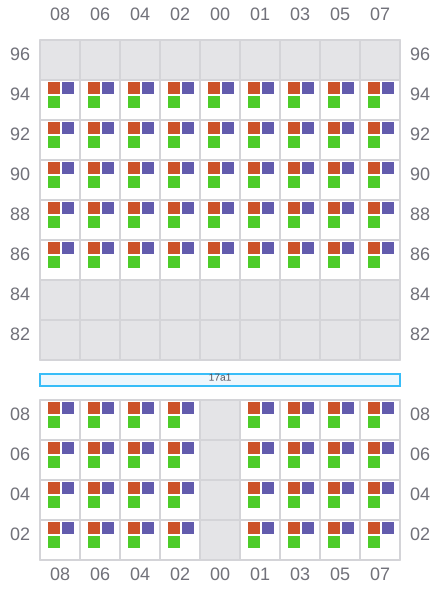

017 (018)
- →
- →
![Bay 017 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b017.png?v=1721930200311)

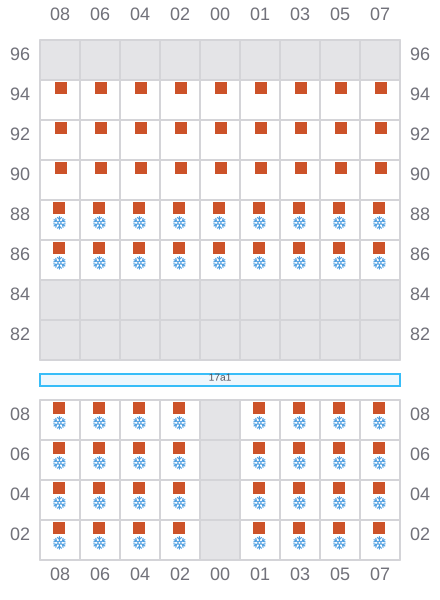

019
- ←
- →
- →
![Bay 019 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b019.png?v=1721930200311)

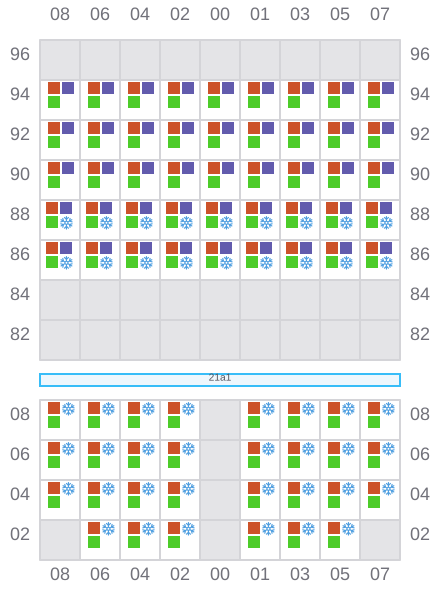

021 (022)
- →
- ←
- →
![Bay 021 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b021.png?v=1721930200311)
023
- ←
- →
![Bay 023 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b023.png?v=1721930200311)

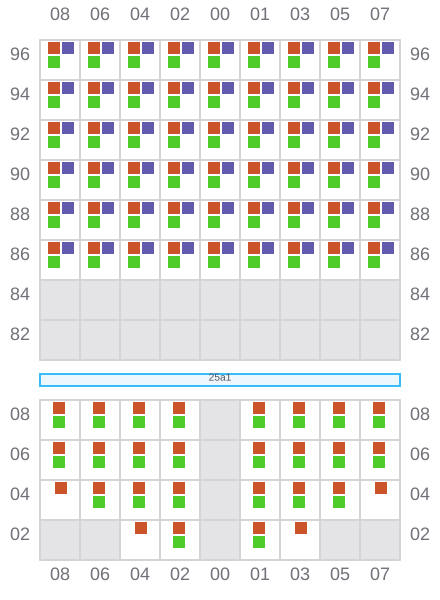

025 (026)
- →
- →
![Bay 025 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b025.png?v=1721930200311)
027
- ←
- → / ?
- →
![Bay 027 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b027.png?v=1721930200311)

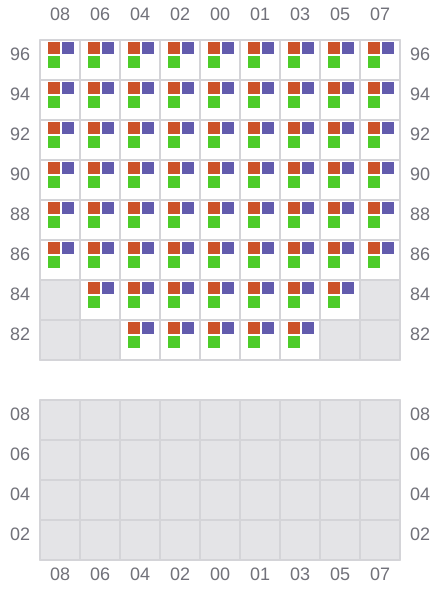

029 (030)
- → / ?
- → / ?
![Bay 029 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b029.png?v=1721930200311)
031
- ← / ?
- → / ?
- → / ?
![Bay 031 view and slots of NORDICA](/vessel-images/a18efd4d-058b-4afd-96e9-d82354e81f4f-b031.png?v=1721930200311)
