NORDLEOPARD
9626261 | 5BEM4 | 9626261 by ********* Last update: Fri Jun 28 2024
General Info
Ship Name:NORDLEOPARD
IMO Code:9626261
Call Sign:5BEM4
Line Operator:9626261
Class Name for Sister Ships:MCC
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,758
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-sideView.png?v=1719604347672)

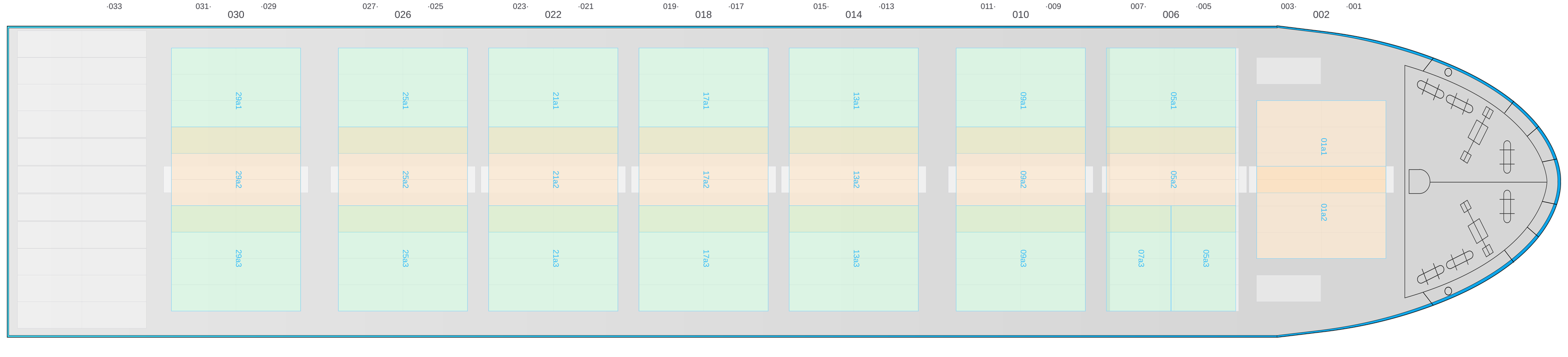

Hatch-Covers View
![Deck view of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-deckView.png?v=1719604347672)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

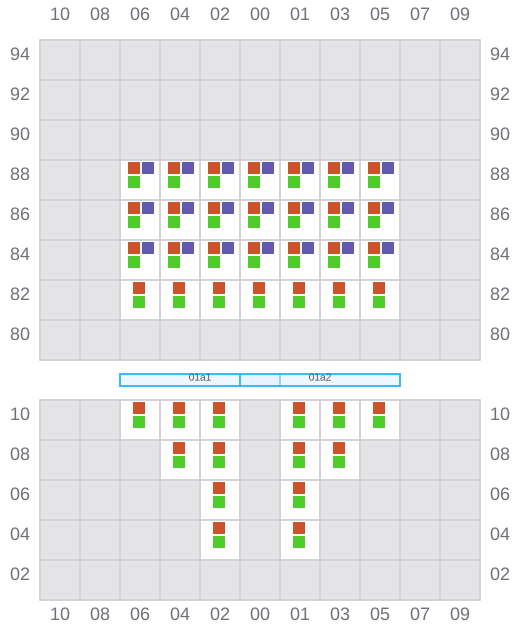

001 (002)
- →
![Bay 001 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b001.png?v=1719604347672)

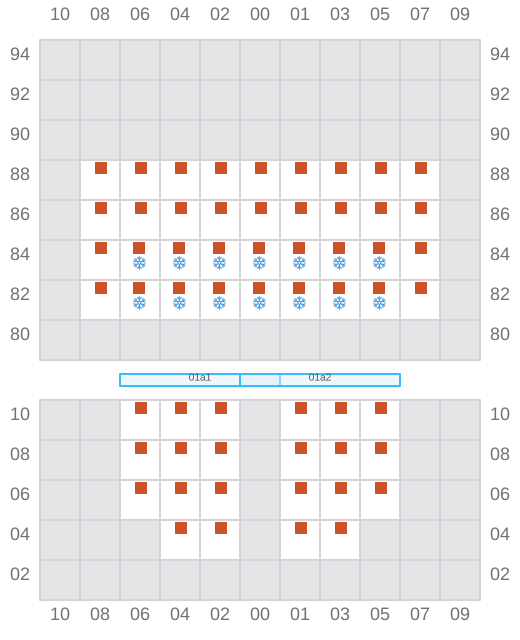

003
- ←
- → / ?
![Bay 003 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b003.png?v=1719604347672)

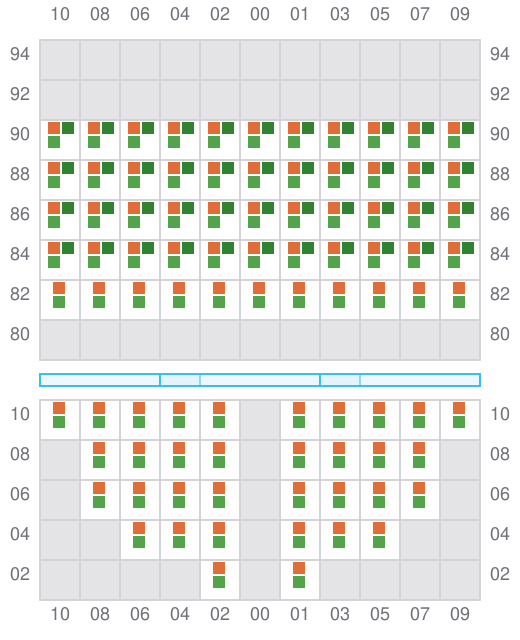

005 (006)
- →
![Bay 005 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b005.png?v=1719604347672)

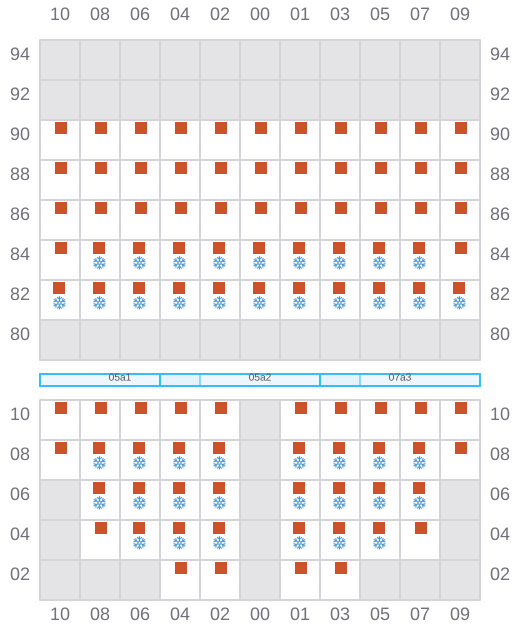

007
- ←
- → / ?
![Bay 007 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b007.png?v=1719604347672)

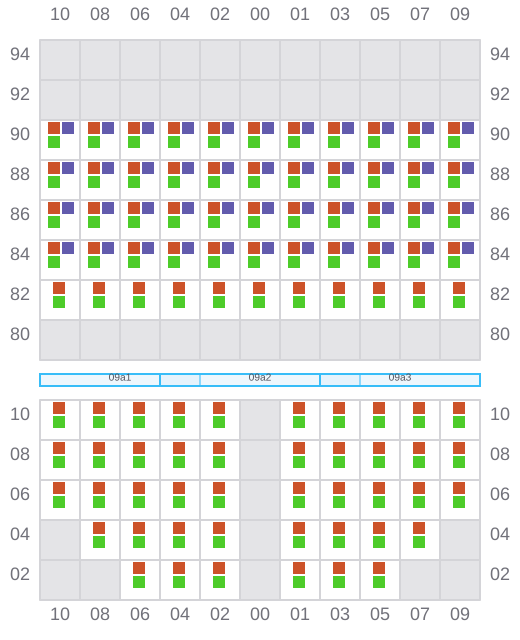

009 (010)
- →
![Bay 009 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b009.png?v=1719604347672)

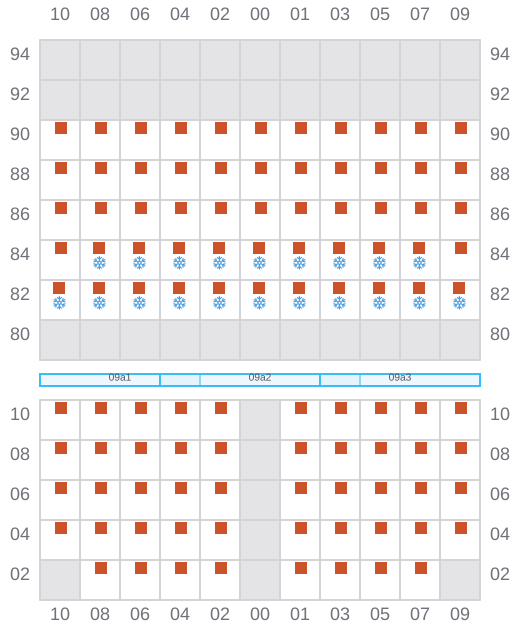

011
- ←
- →
![Bay 011 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b011.png?v=1719604347672)

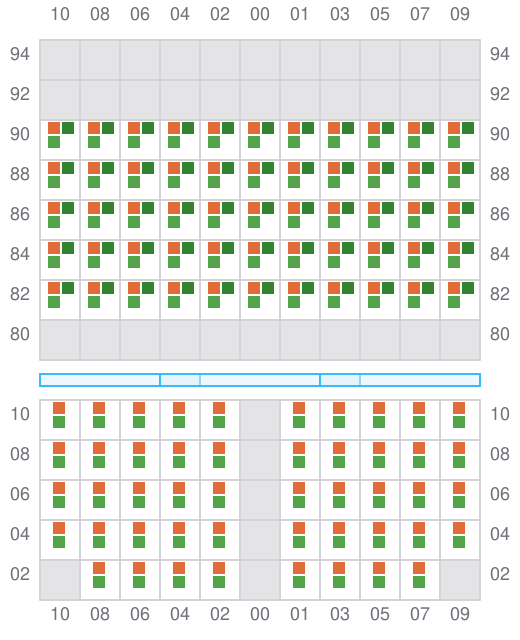

013 (014)
- →
- ← / ?
![Bay 013 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b013.png?v=1719604347672)

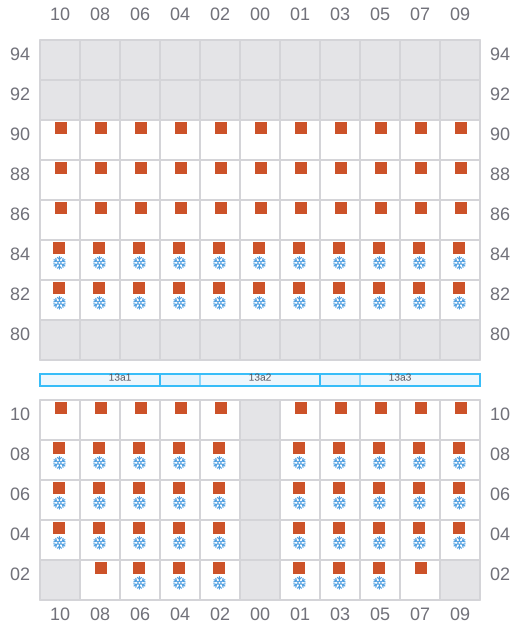

015
- ←
- →
![Bay 015 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b015.png?v=1719604347672)
017 (018)
- →
![Bay 017 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b017.png?v=1719604347672)

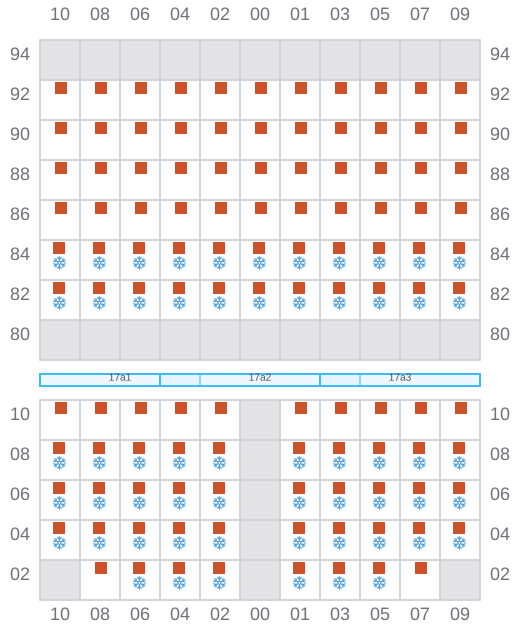

019
- ←
- →
![Bay 019 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b019.png?v=1719604347672)

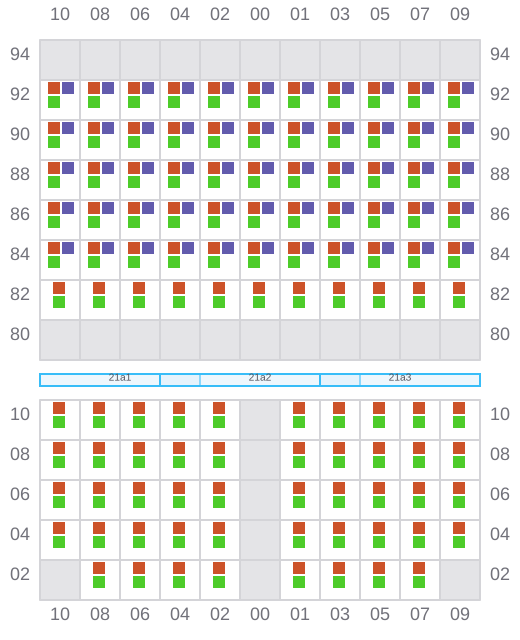

021 (022)
- →
![Bay 021 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b021.png?v=1719604347672)

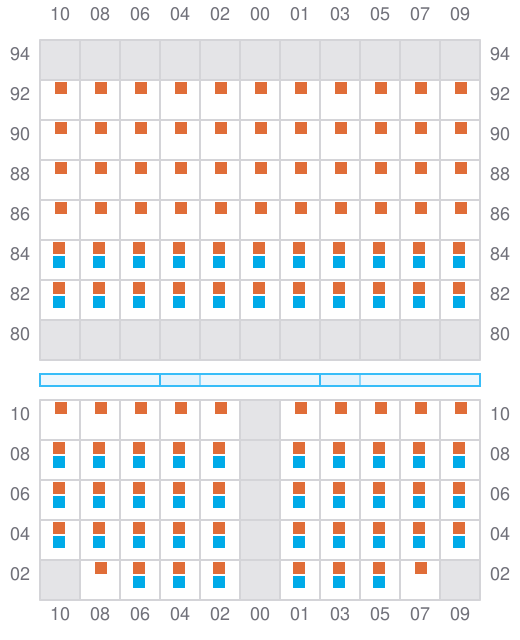

023
- ←
- →
![Bay 023 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b023.png?v=1719604347672)

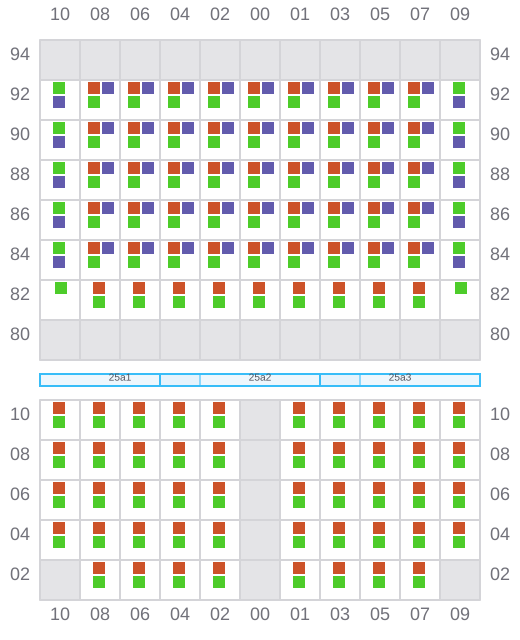

025 (026)
- →
![Bay 025 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b025.png?v=1719604347672)

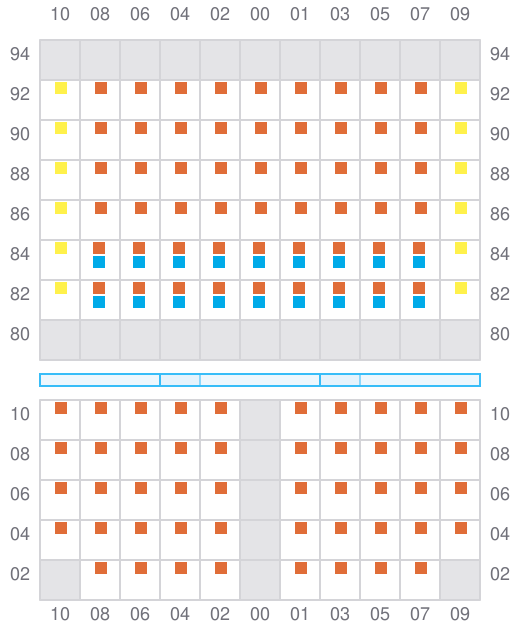

027
- ←
- → / ?
![Bay 027 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b027.png?v=1719604347672)

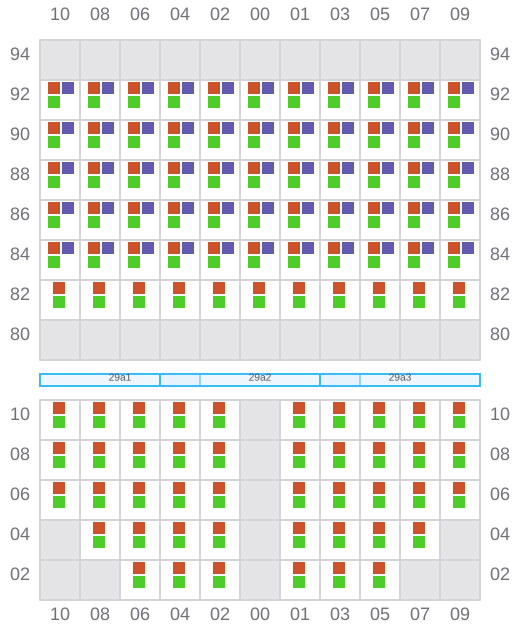

029 (030)
- →
![Bay 029 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b029.png?v=1719604347672)

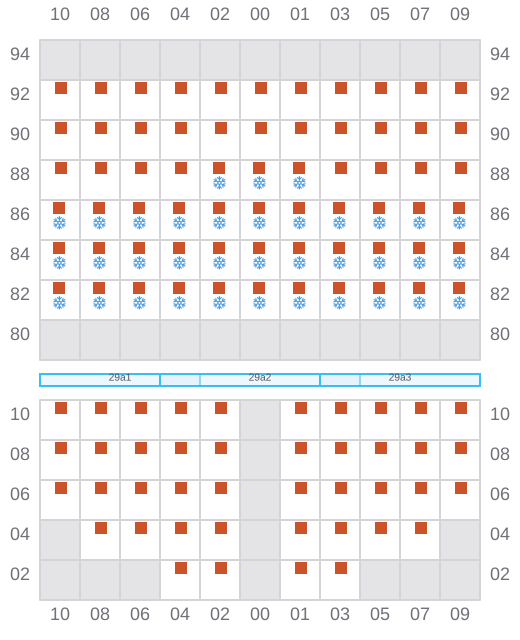

031
- ←
- →
![Bay 031 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b031.png?v=1719604347672)

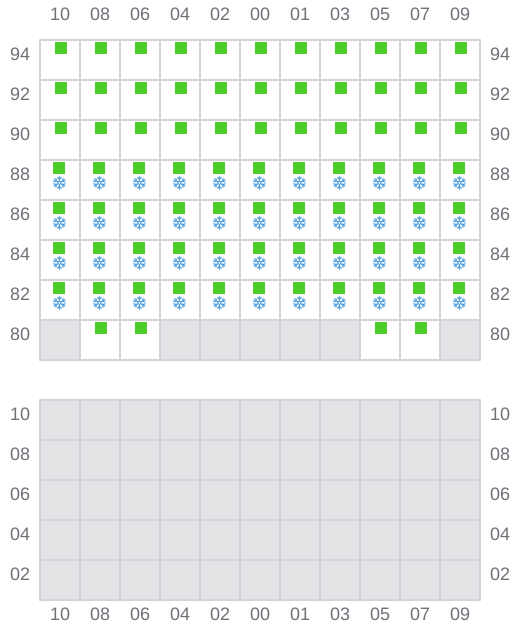

033 (034)
- → / ?
![Bay 033 view and slots of NORDLEOPARD](/vessel-images/2fca02c1-223d-454b-afda-8c004a68166d-b033.png?v=1719604347672)
