NORTHERN DECENCY
9253296 | A8CI9 | 9253296 by ********* Last update: Tue May 21 2024

General Info

Ship Name:NORTHERN DECENCY
IMO Code:9253296
Call Sign:A8CI9
Line Operator:9253296
Class Name for Sister Ships:POTOMAC BRIDGE
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.55
LOA (Length Overall):259.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,963

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of NORTHERN DECENCY

Hatch-Covers View

Deck view of NORTHERN DECENCY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
Bay 001 view and slots of NORTHERN DECENCY

003 (002)

  • ←

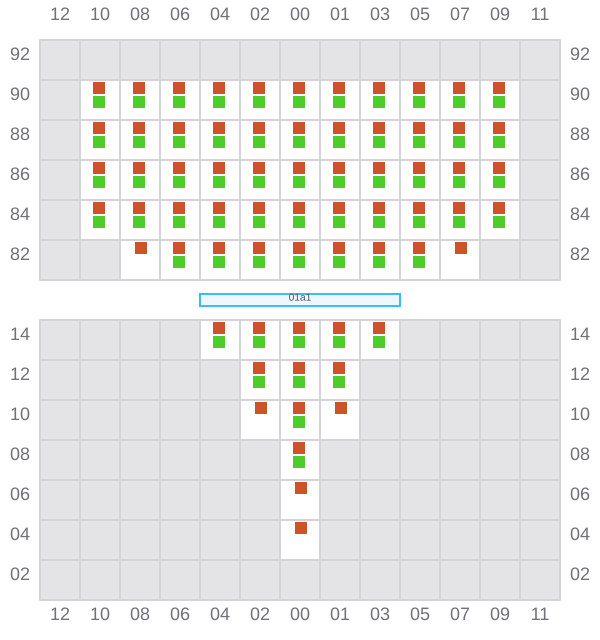

Bay 003 view and slots of NORTHERN DECENCY

005

  • →

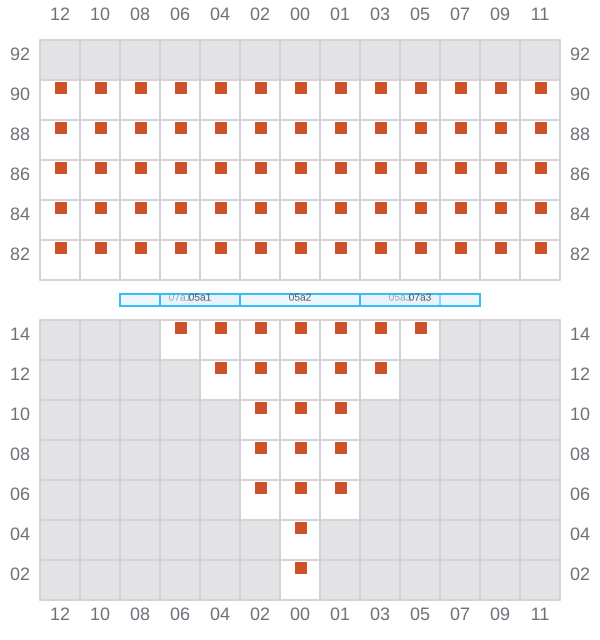

Bay 005 view and slots of NORTHERN DECENCY

007 (006)

  • ←
Bay 007 view and slots of NORTHERN DECENCY

009

  • →

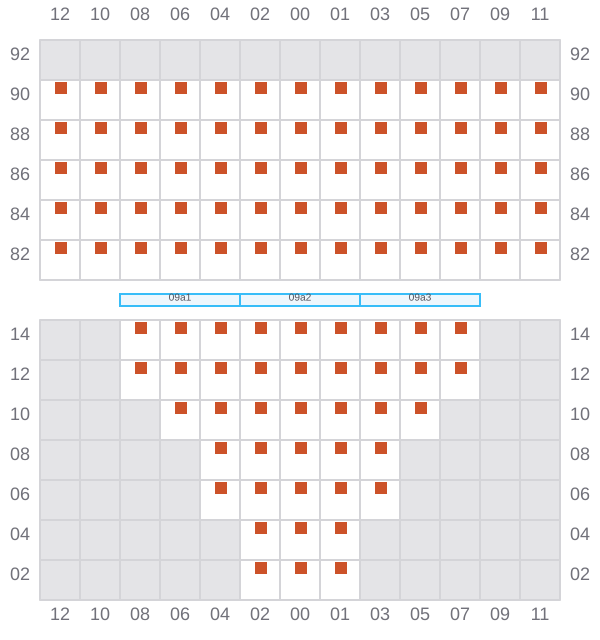

Bay 009 view and slots of NORTHERN DECENCY

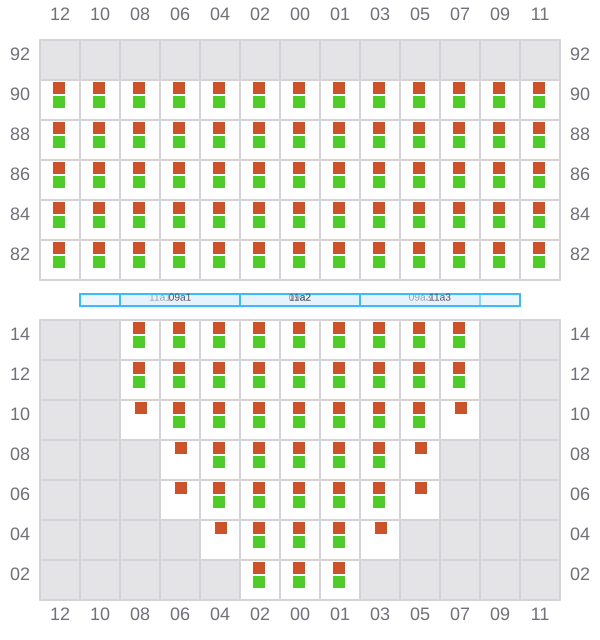

011 (010)

  • ←
Bay 011 view and slots of NORTHERN DECENCY

013

  • →

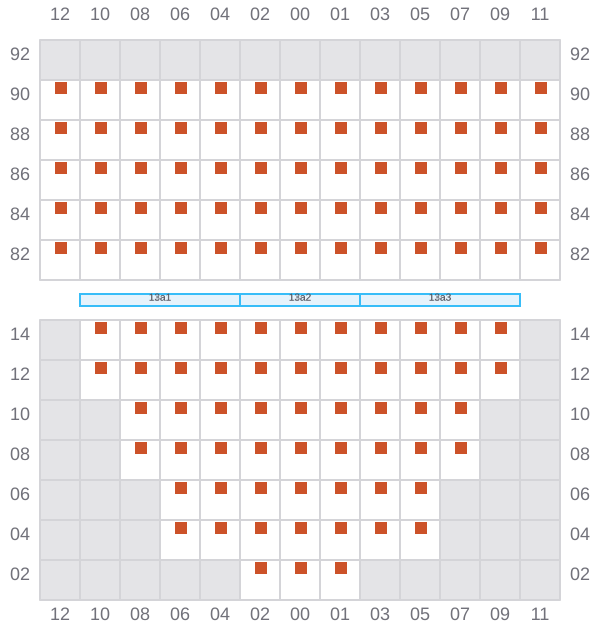

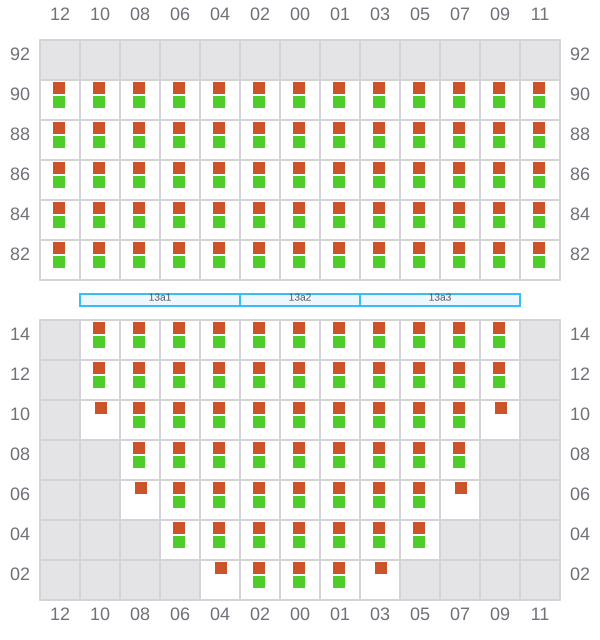

Bay 013 view and slots of NORTHERN DECENCY

015 (014)

  • ←
Bay 015 view and slots of NORTHERN DECENCY

017

  • →

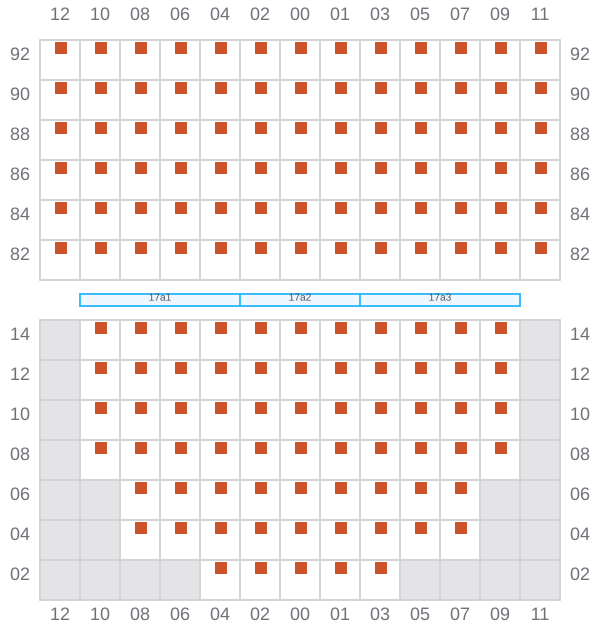

Bay 017 view and slots of NORTHERN DECENCY

019 (018)

  • ←

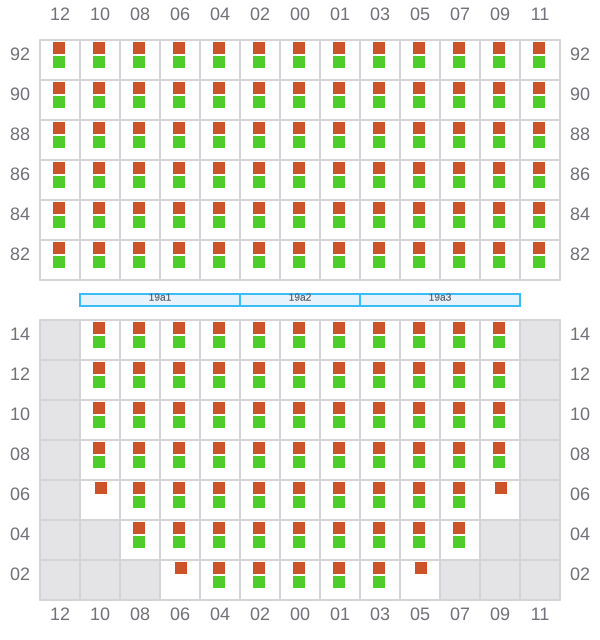

Bay 019 view and slots of NORTHERN DECENCY

021

  • →
Bay 021 view and slots of NORTHERN DECENCY

023 (022)

  • ←
Bay 023 view and slots of NORTHERN DECENCY

025

  • →
Bay 025 view and slots of NORTHERN DECENCY

027 (026)

  • ←
Bay 027 view and slots of NORTHERN DECENCY

029

  • →
Bay 029 view and slots of NORTHERN DECENCY

031 (030)

  • ←
Bay 031 view and slots of NORTHERN DECENCY

033

  • →

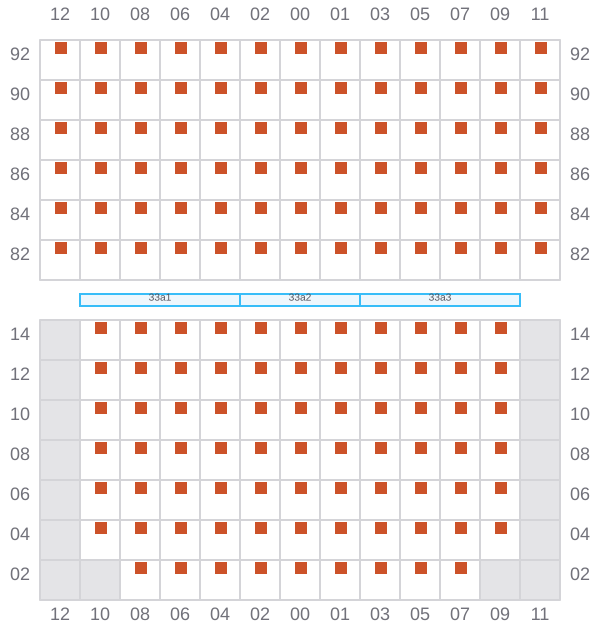

Bay 033 view and slots of NORTHERN DECENCY

035 (034)

  • ←
Bay 035 view and slots of NORTHERN DECENCY

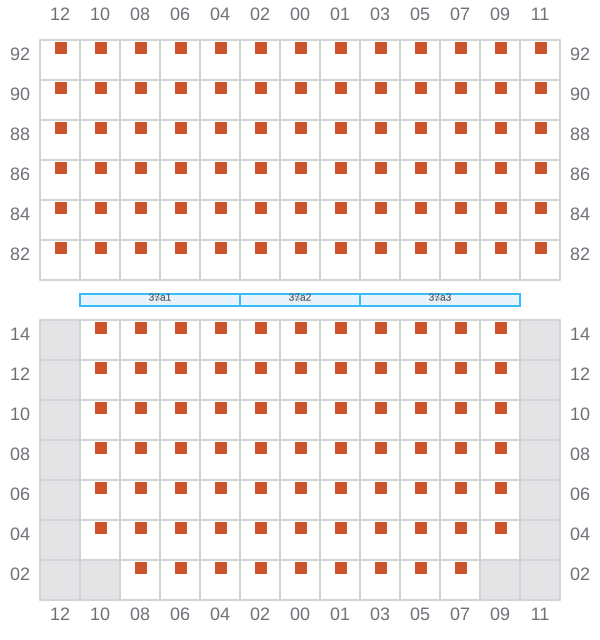

037

  • →
Bay 037 view and slots of NORTHERN DECENCY

039 (038)

  • ←
Bay 039 view and slots of NORTHERN DECENCY

041

  • →
Bay 041 view and slots of NORTHERN DECENCY

043 (042)

  • ←
Bay 043 view and slots of NORTHERN DECENCY

045

  • →

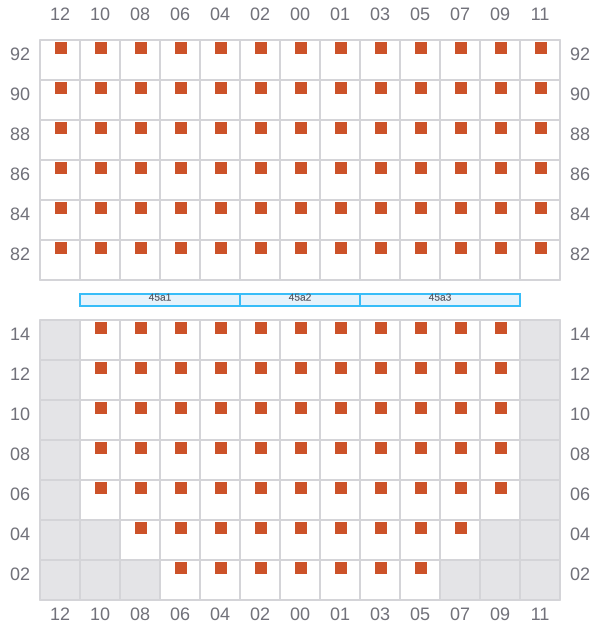

Bay 045 view and slots of NORTHERN DECENCY

047 (046)

  • ←

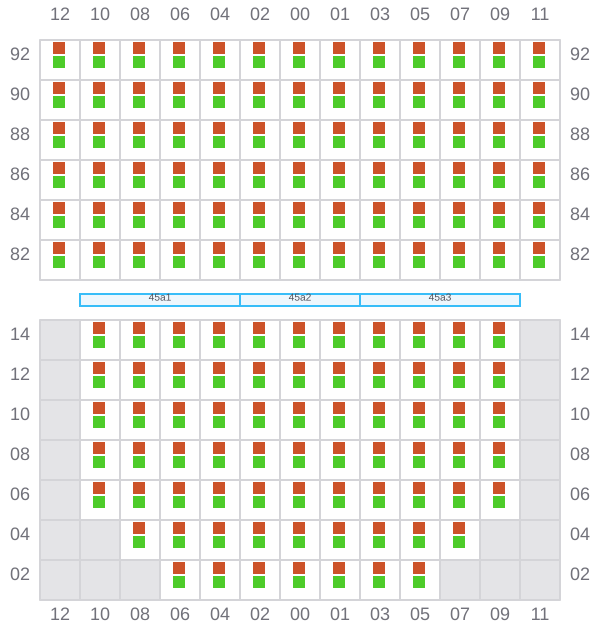

Bay 047 view and slots of NORTHERN DECENCY

049

  • → / ?

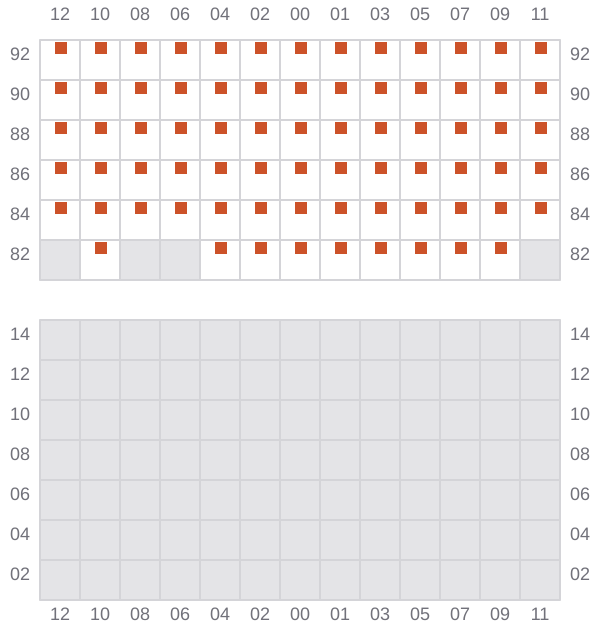

Bay 049 view and slots of NORTHERN DECENCY

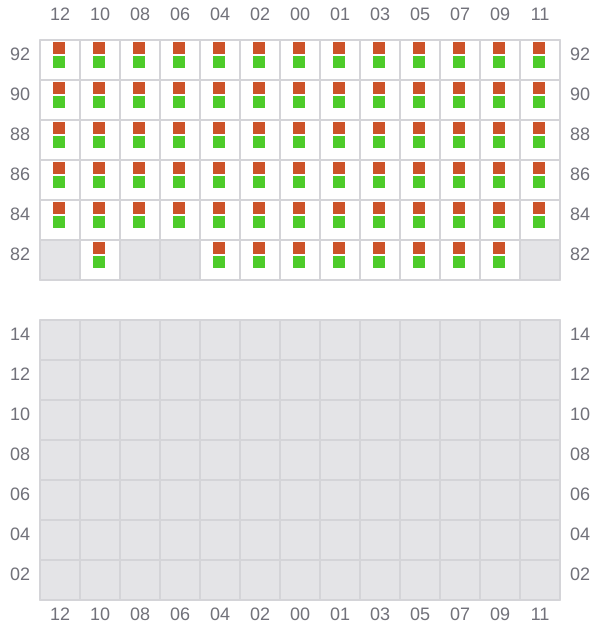

051 (050)

  • ← / ?
Bay 051 view and slots of NORTHERN DECENCY

053

  • →

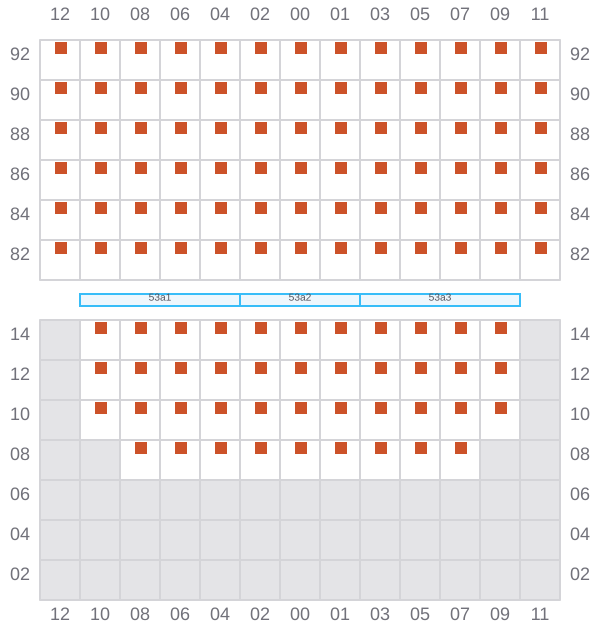

Bay 053 view and slots of NORTHERN DECENCY

055 (054)

  • ←
Bay 055 view and slots of NORTHERN DECENCY

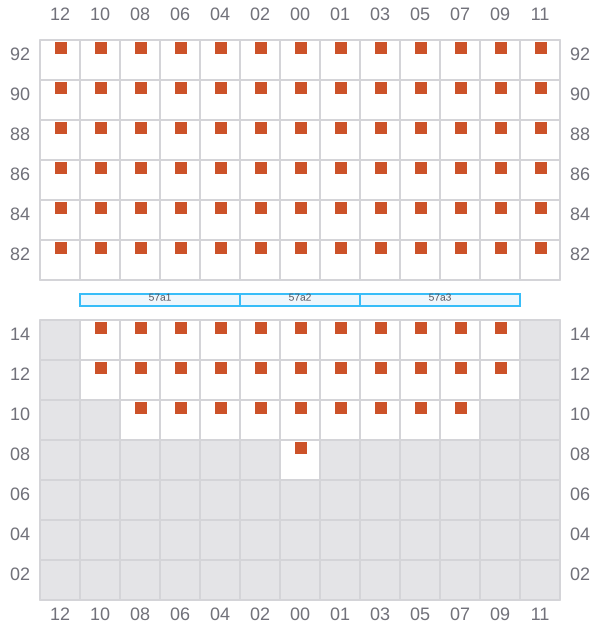

057

  • →
Bay 057 view and slots of NORTHERN DECENCY

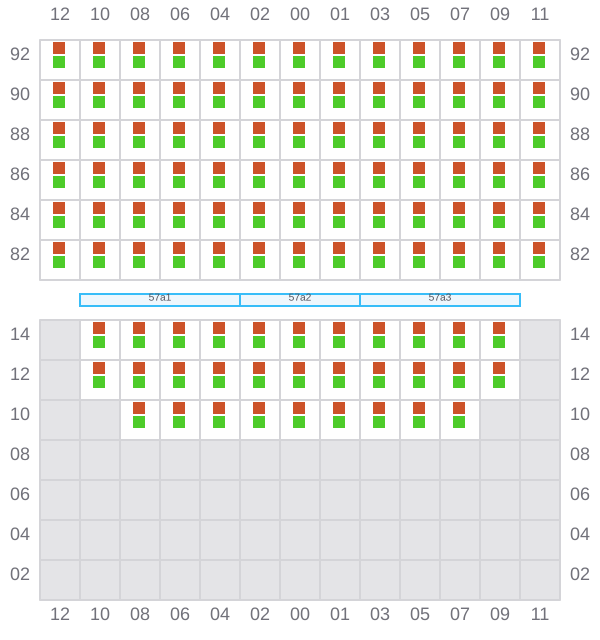

059 (058)

  • ←
  • → / ?
Bay 059 view and slots of NORTHERN DECENCY

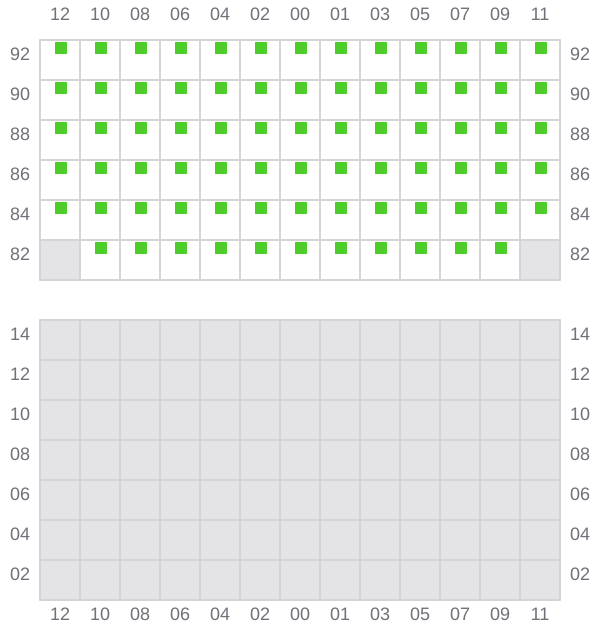

061 (062)

  • → / ?
Bay 061 view and slots of NORTHERN DECENCY
