NORTHERN DEFENDER
9329643 | V2HG6 | MSC by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:NORTHERN DEFENDER
IMO Code:9329643
Call Sign:V2HG6
Line Operator:MSC
Class Name for Sister Ships:NDF
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):214.20
LOA (Length Overall):231.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:055
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,704

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

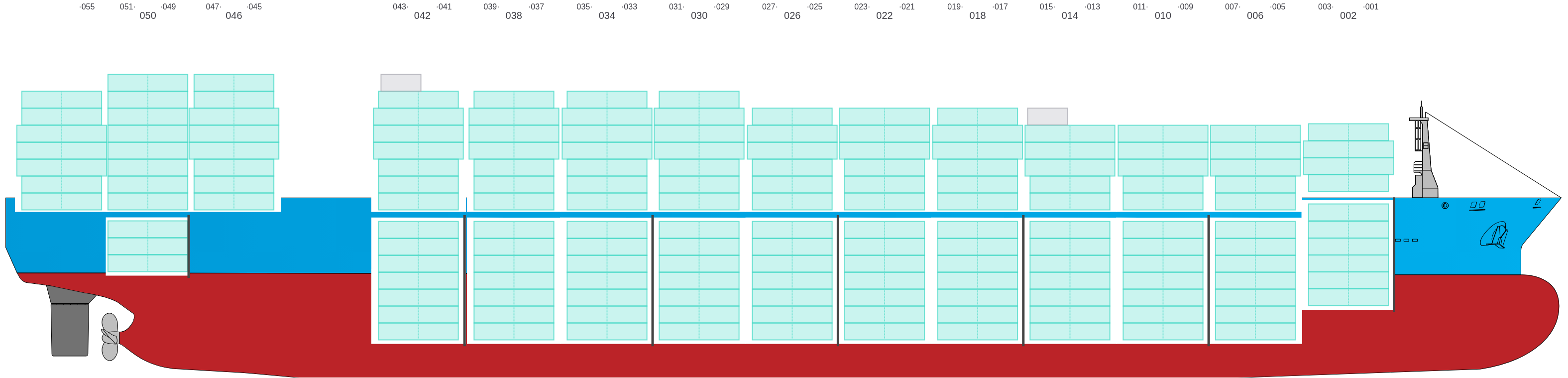

Side View

Side view of NORTHERN DEFENDER

Hatch-Covers View

Deck view of NORTHERN DEFENDER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

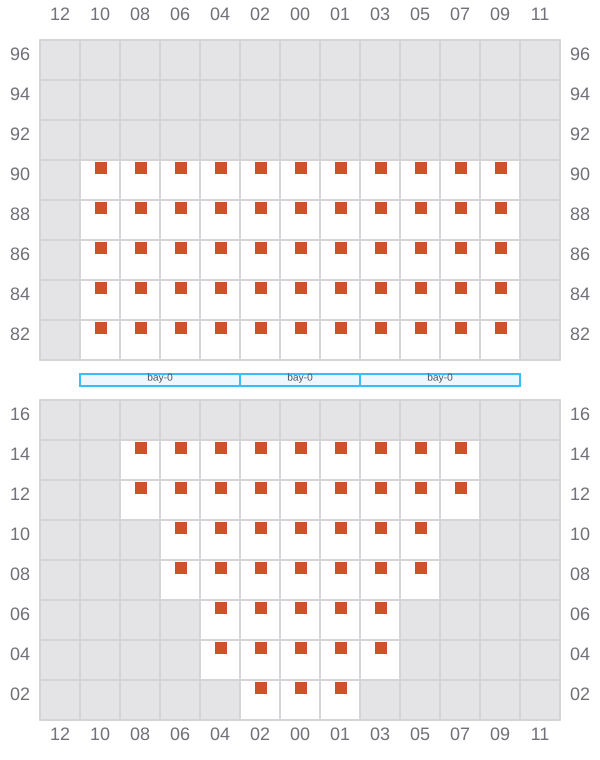

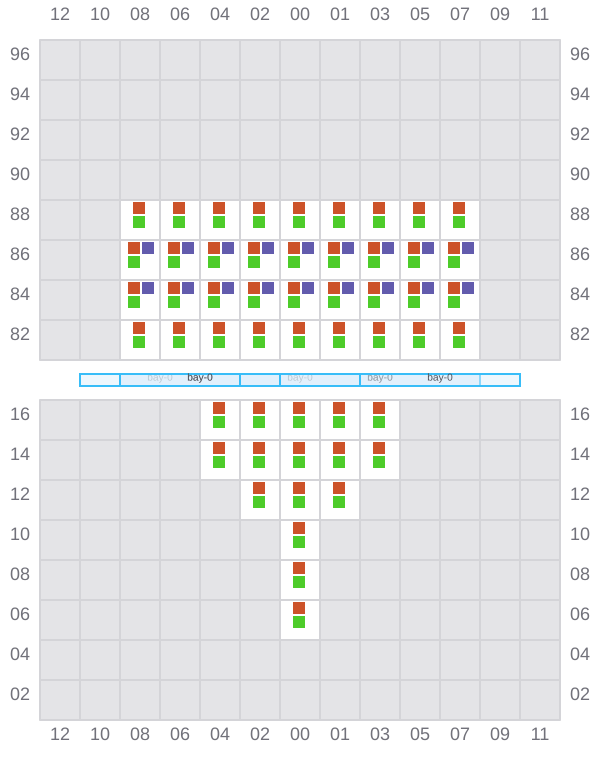

001 (002)

  • →
Bay 001 view and slots of NORTHERN DEFENDER

003

  • ←

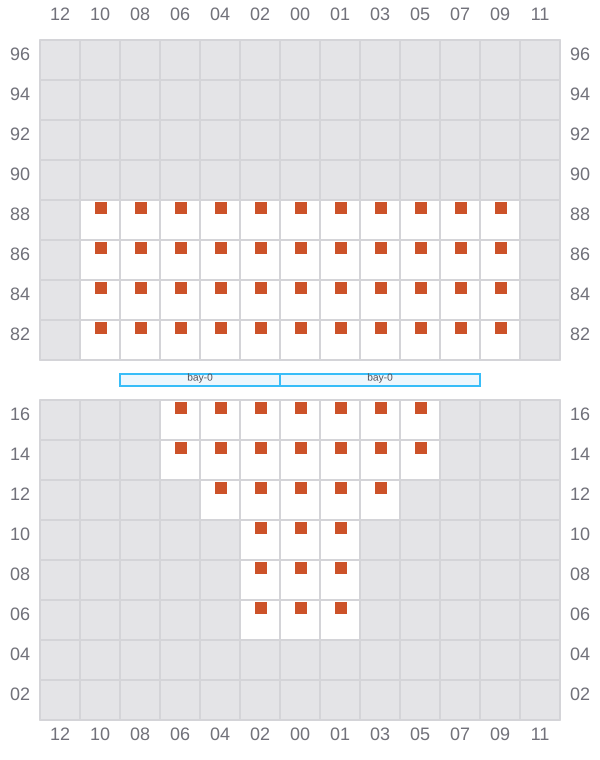

Bay 003 view and slots of NORTHERN DEFENDER

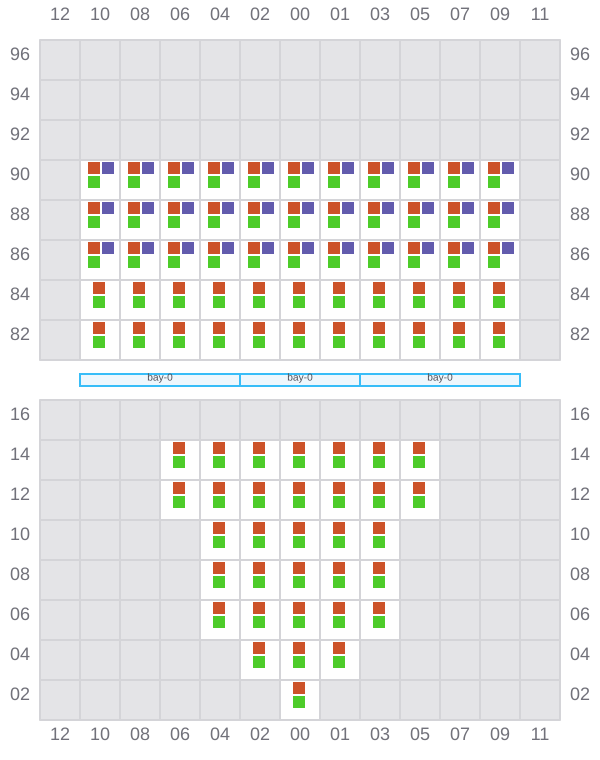

005 (006)

  • →
Bay 005 view and slots of NORTHERN DEFENDER

007

  • ←
Bay 007 view and slots of NORTHERN DEFENDER

009 (010)

  • →

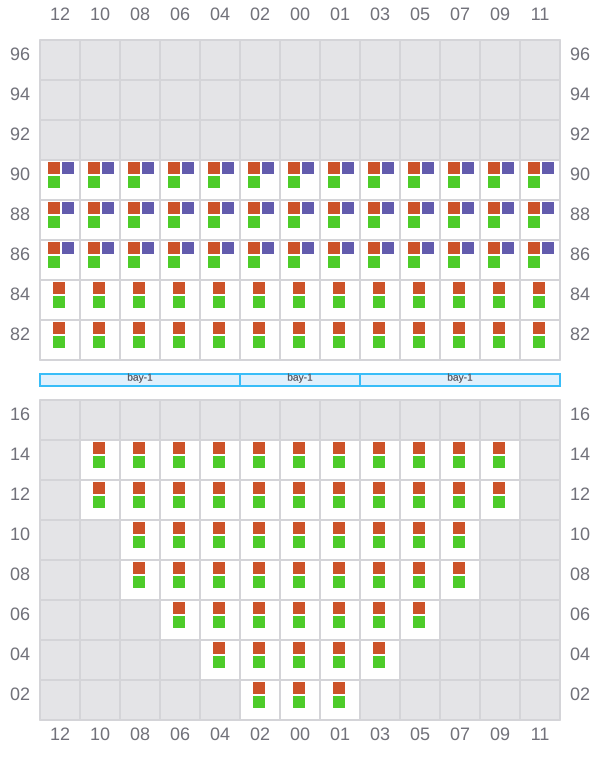

Bay 009 view and slots of NORTHERN DEFENDER

011

  • ←
  • → / ?

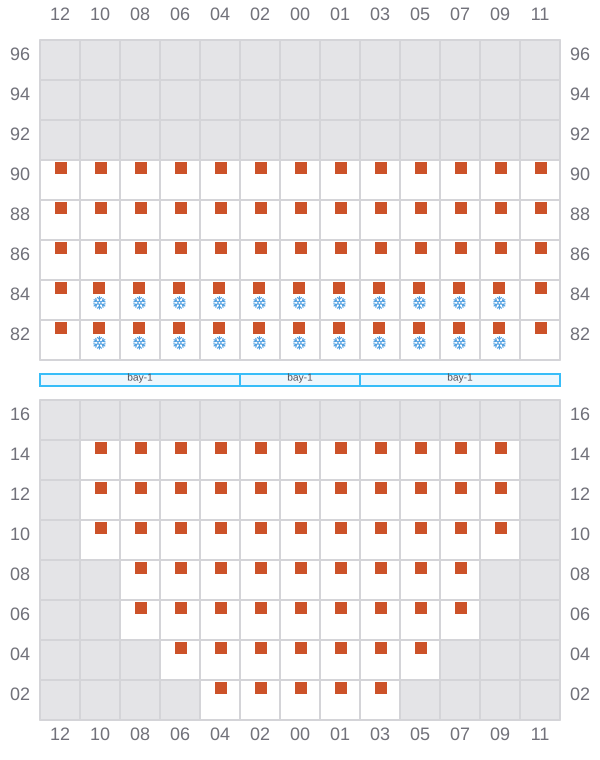

Bay 011 view and slots of NORTHERN DEFENDER

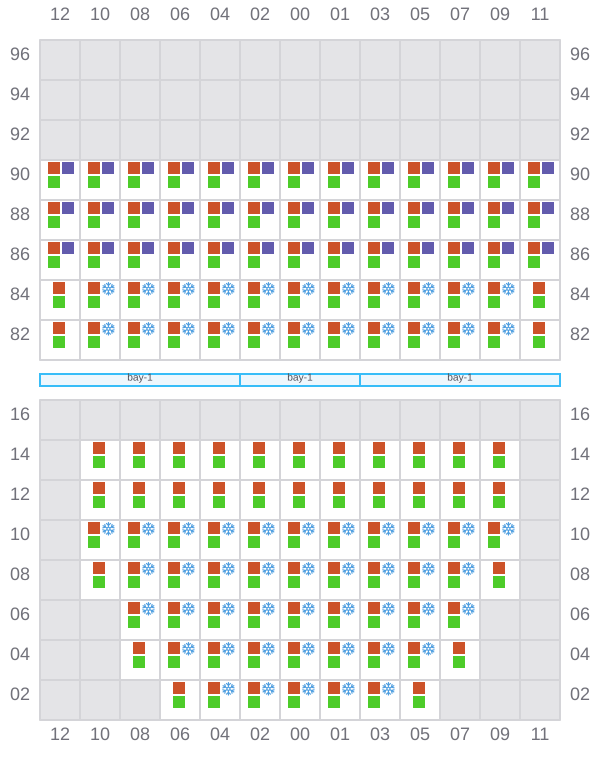

013 (014)

  • →
  • ←
Bay 013 view and slots of NORTHERN DEFENDER

015

  • ←

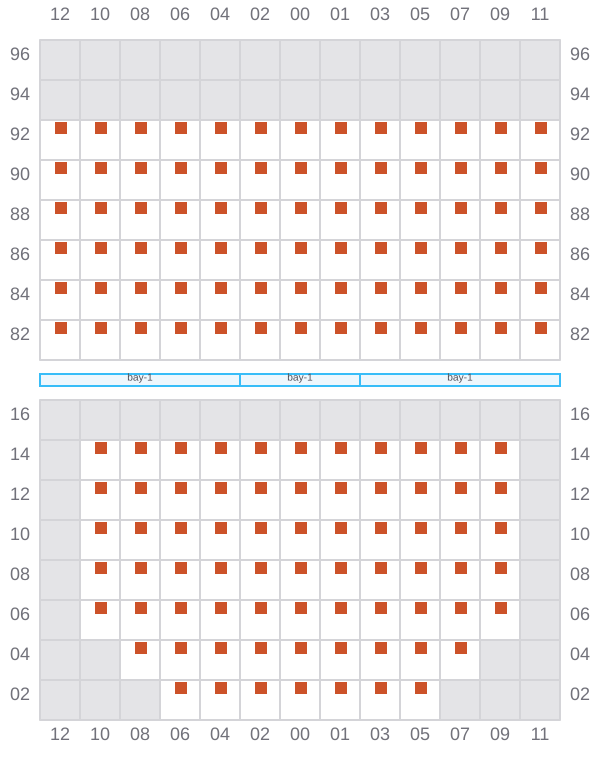

Bay 015 view and slots of NORTHERN DEFENDER

017 (018)

  • →

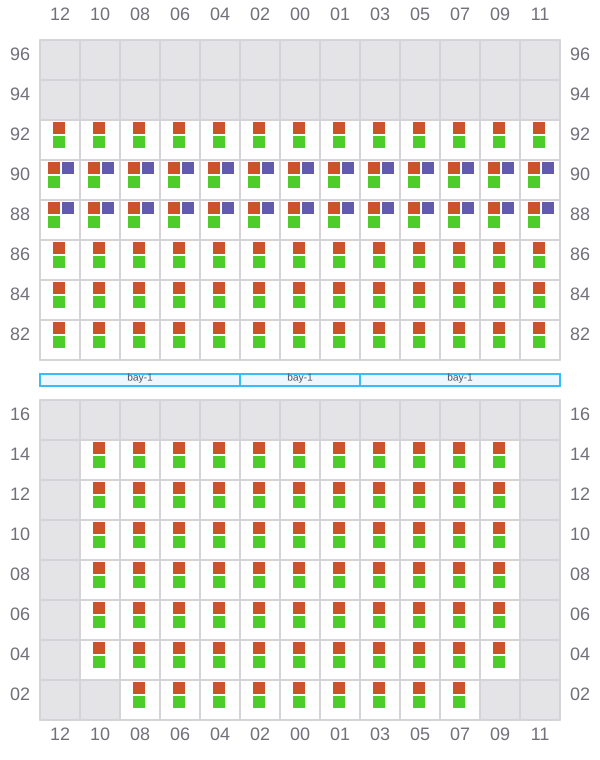

Bay 017 view and slots of NORTHERN DEFENDER

019

  • ←
  • → / ?
Bay 019 view and slots of NORTHERN DEFENDER

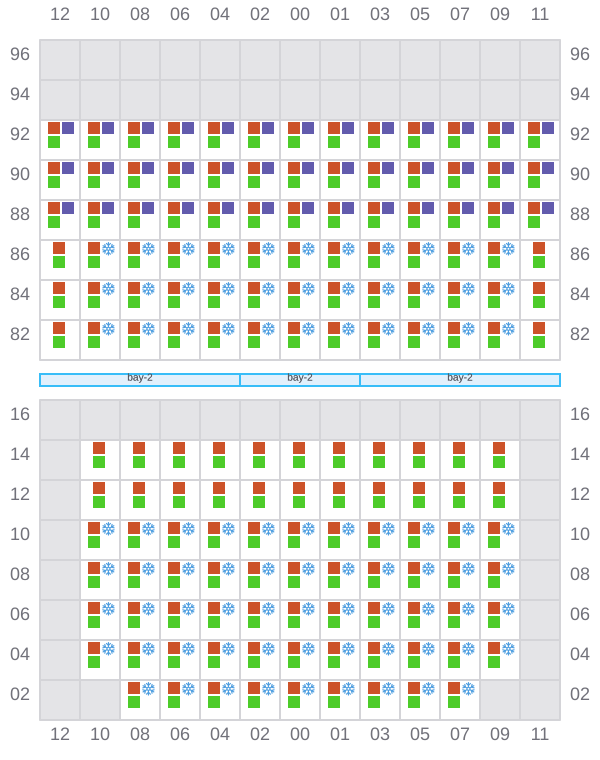

021 (022)

  • →
  • ←
Bay 021 view and slots of NORTHERN DEFENDER

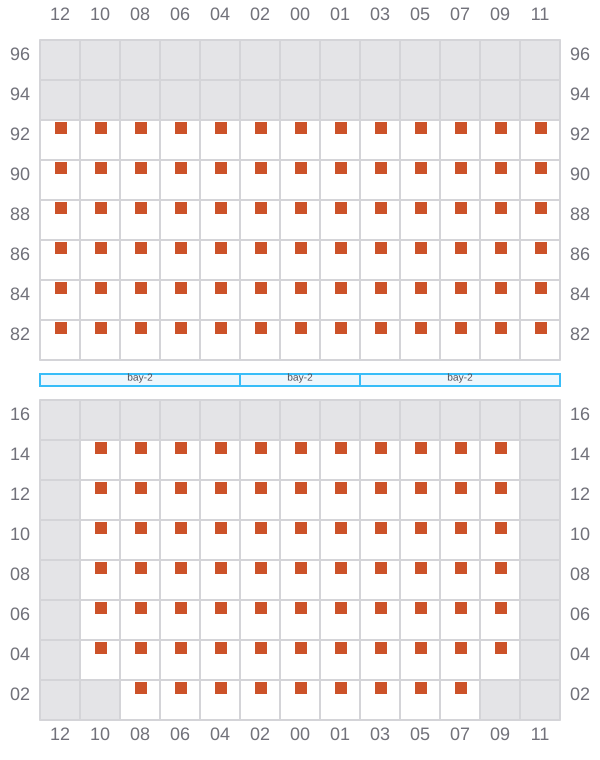

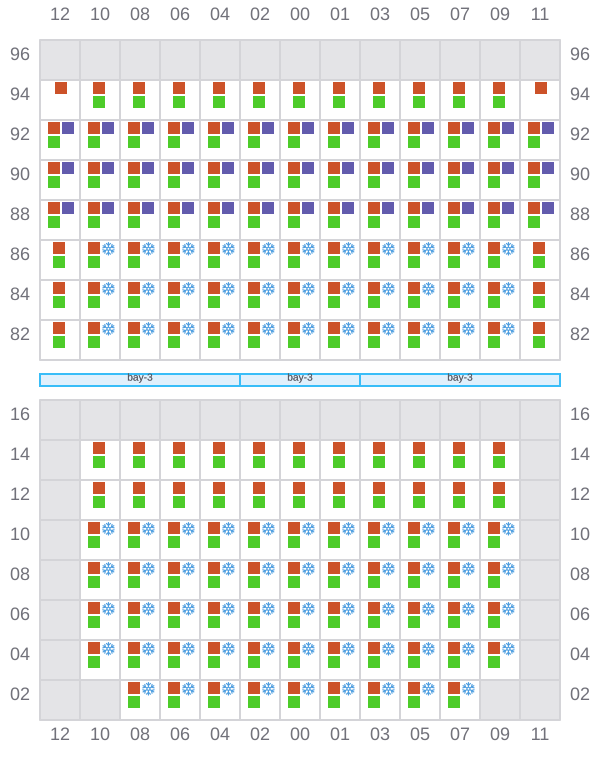

023

  • ←
Bay 023 view and slots of NORTHERN DEFENDER

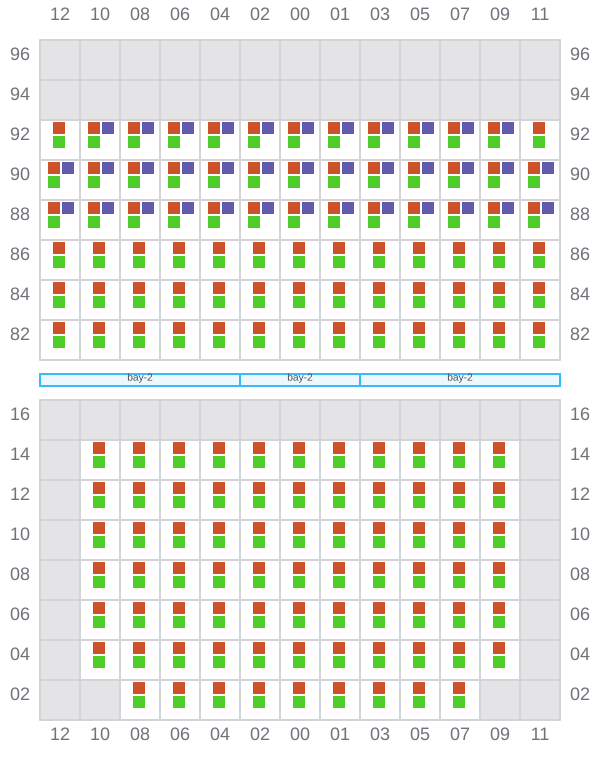

025 (026)

  • →
Bay 025 view and slots of NORTHERN DEFENDER

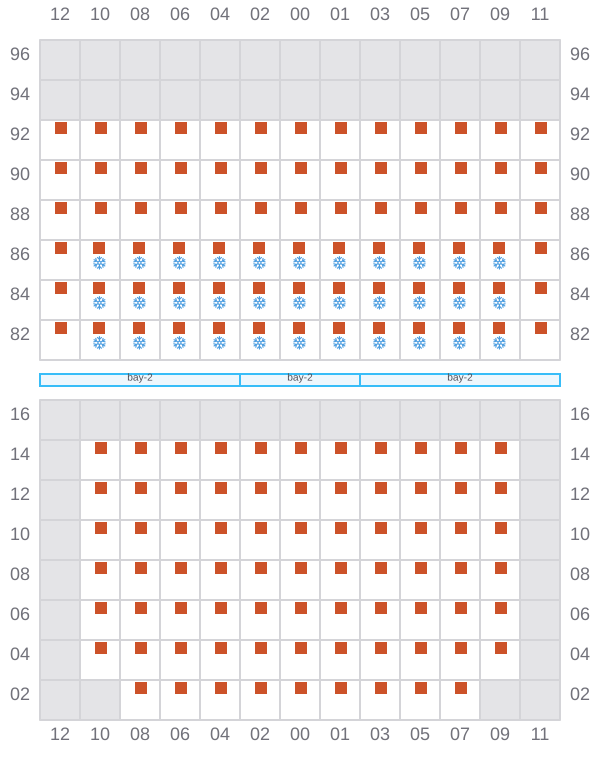

027

  • ←
  • → / ?
Bay 027 view and slots of NORTHERN DEFENDER

029 (030)

  • →
  • ←
Bay 029 view and slots of NORTHERN DEFENDER

031

  • ←

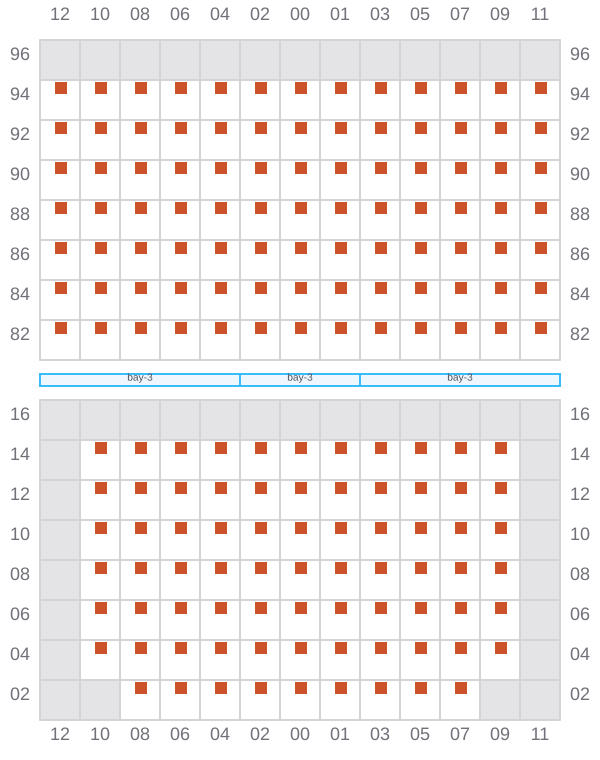

Bay 031 view and slots of NORTHERN DEFENDER

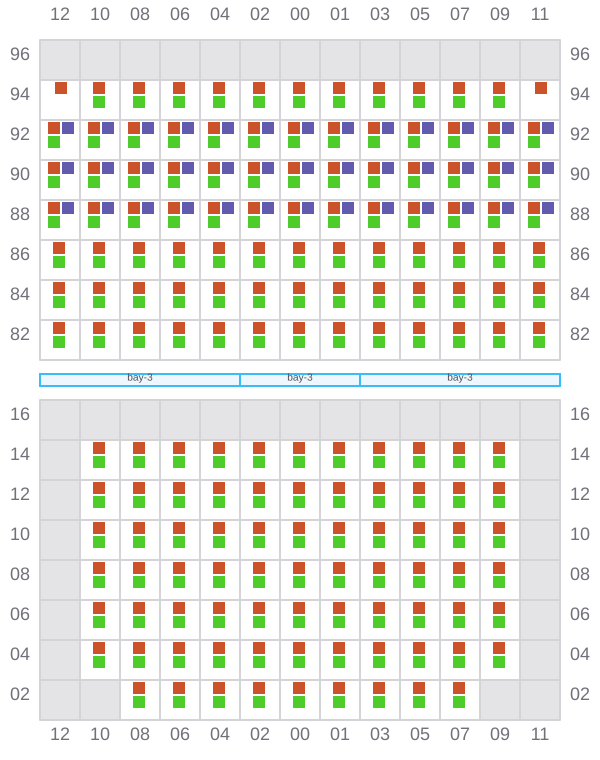

033 (034)

  • →
Bay 033 view and slots of NORTHERN DEFENDER

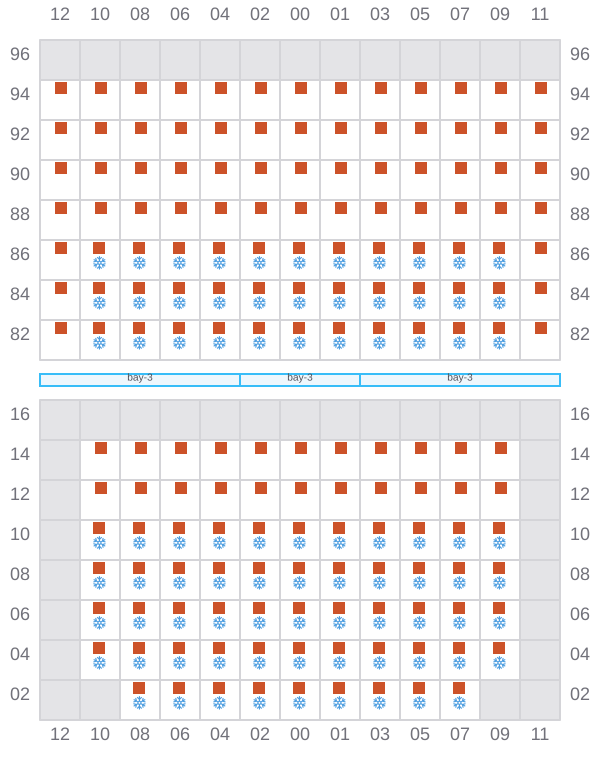

035

  • ←
  • →
Bay 035 view and slots of NORTHERN DEFENDER

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of NORTHERN DEFENDER

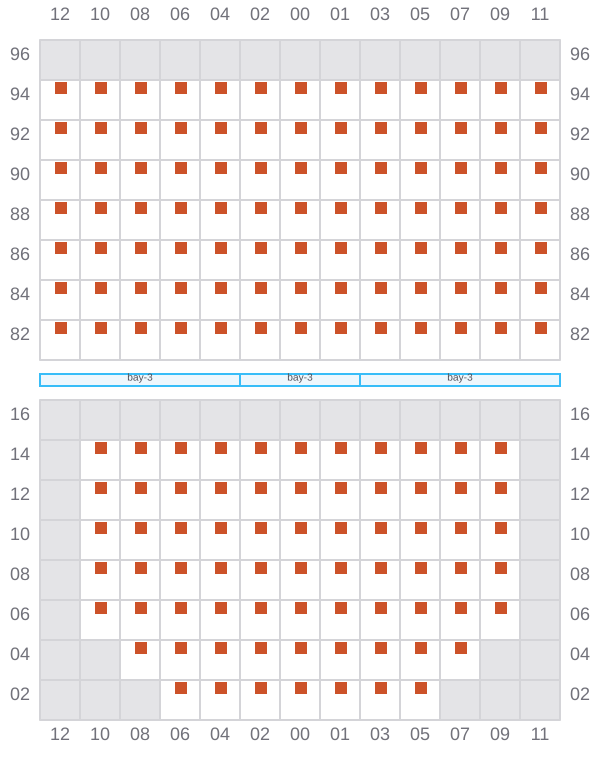

039

  • ←
Bay 039 view and slots of NORTHERN DEFENDER

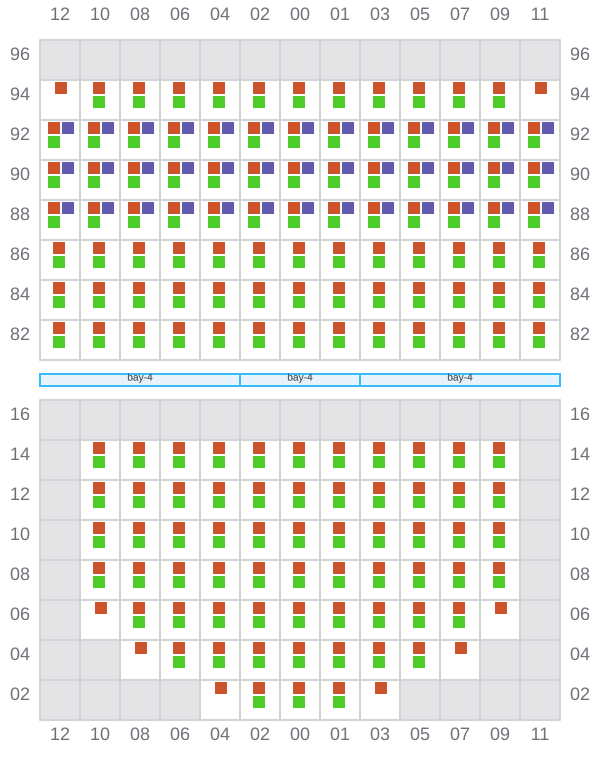

041 (042)

  • →
Bay 041 view and slots of NORTHERN DEFENDER

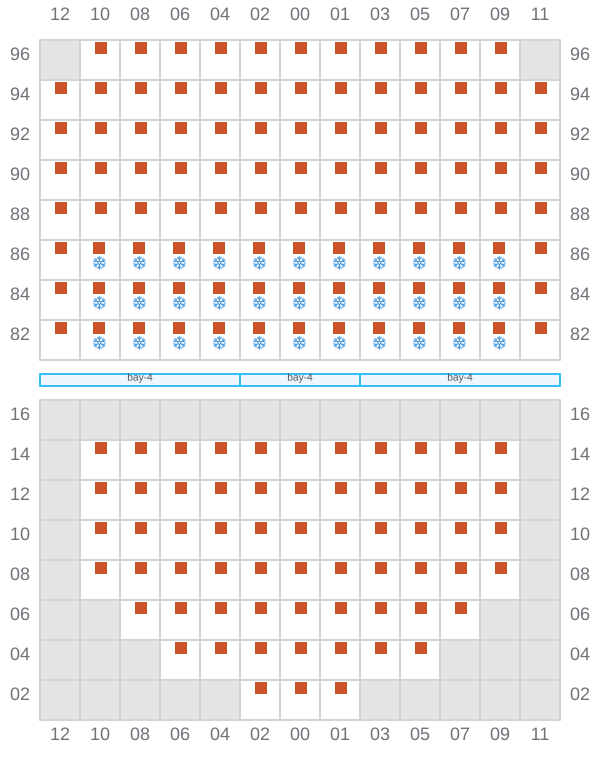

043

  • ←
  • → / ?
Bay 043 view and slots of NORTHERN DEFENDER

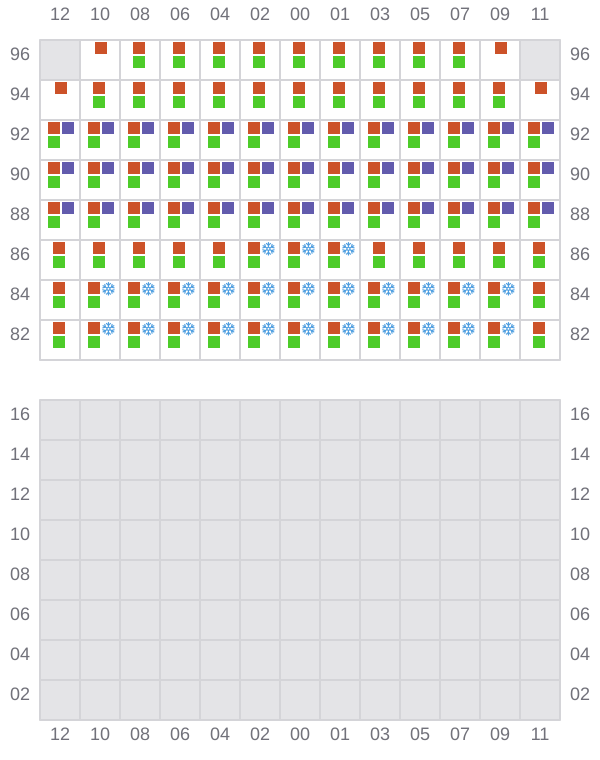

045 (046)

  • → / ?
  • → / ?
Bay 045 view and slots of NORTHERN DEFENDER

047

  • ← / ?

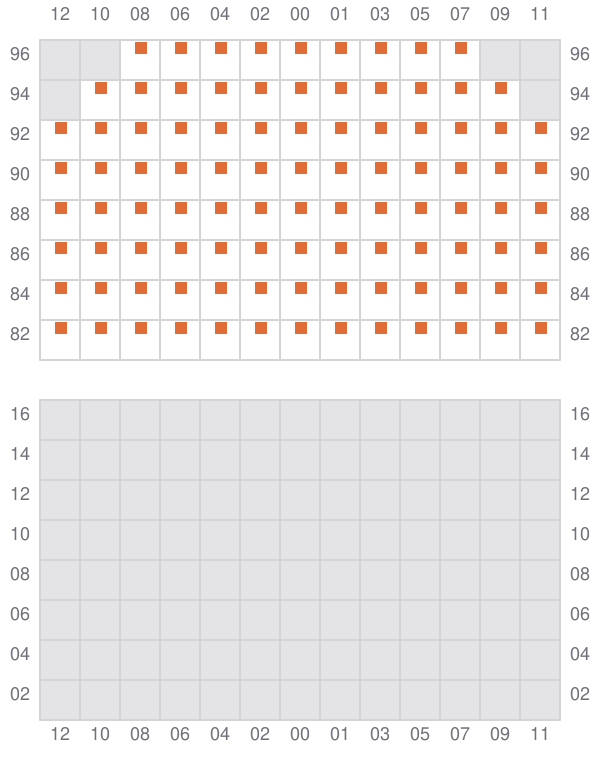

Bay 047 view and slots of NORTHERN DEFENDER

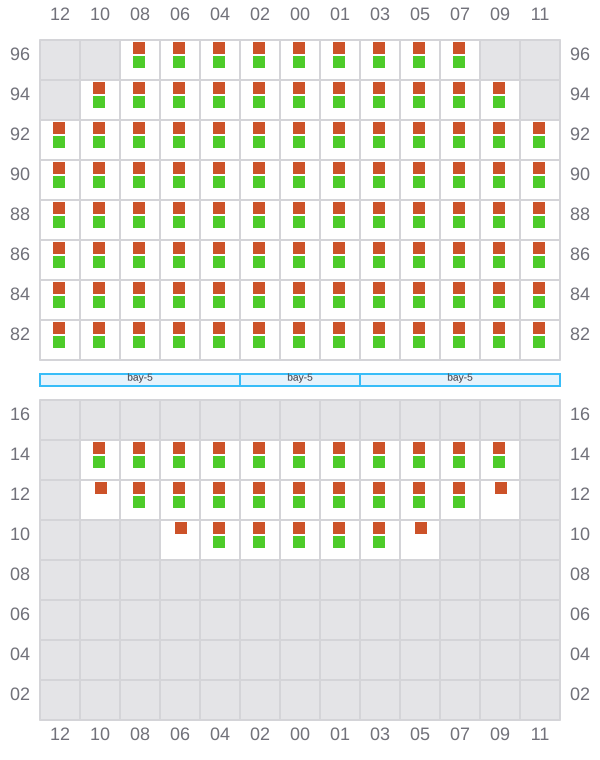

049 (050)

  • →
Bay 049 view and slots of NORTHERN DEFENDER

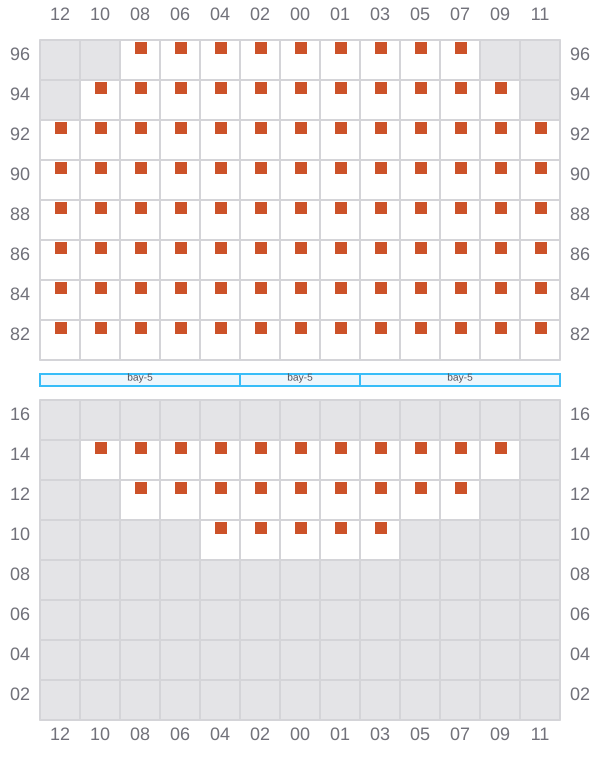

051

  • ←
Bay 051 view and slots of NORTHERN DEFENDER

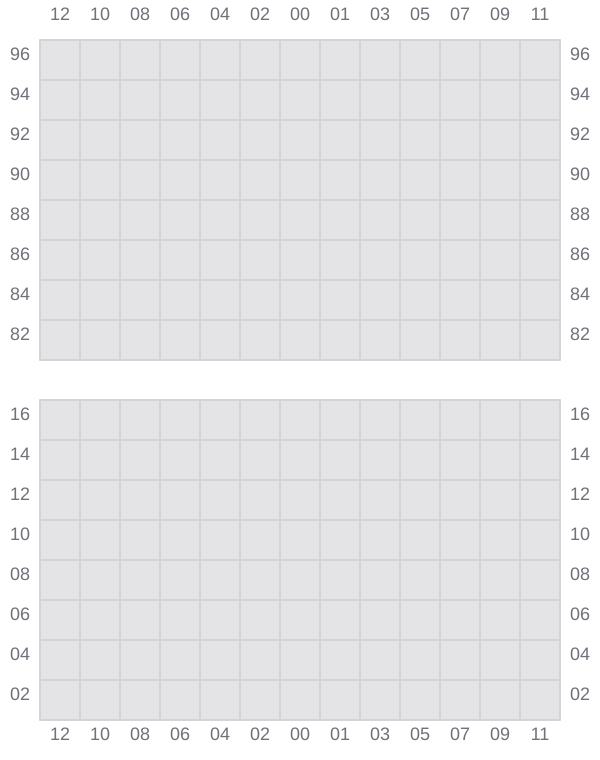

053

Bay 053 view and slots of NORTHERN DEFENDER

055 (056)

  • → / ?

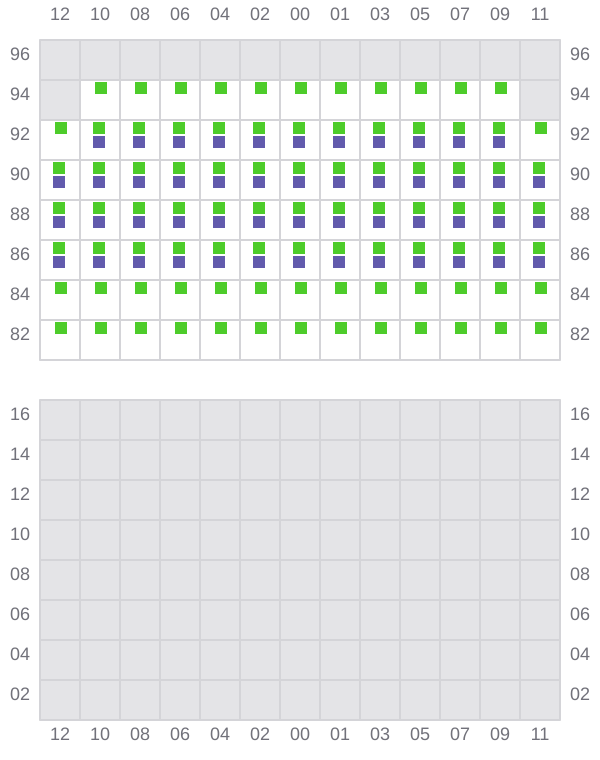

Bay 055 view and slots of NORTHERN DEFENDER
