NORTHERN JUVENILE
9450349 | CQIQ4 | MSC by ************************** Last update: Sun Jun 18 2023

General Info

Ship Name:NORTHERN JUVENILE
IMO Code:9450349
Call Sign:CQIQ4
Line Operator:MSC
Class Name for Sister Ships:JUV
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,411

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

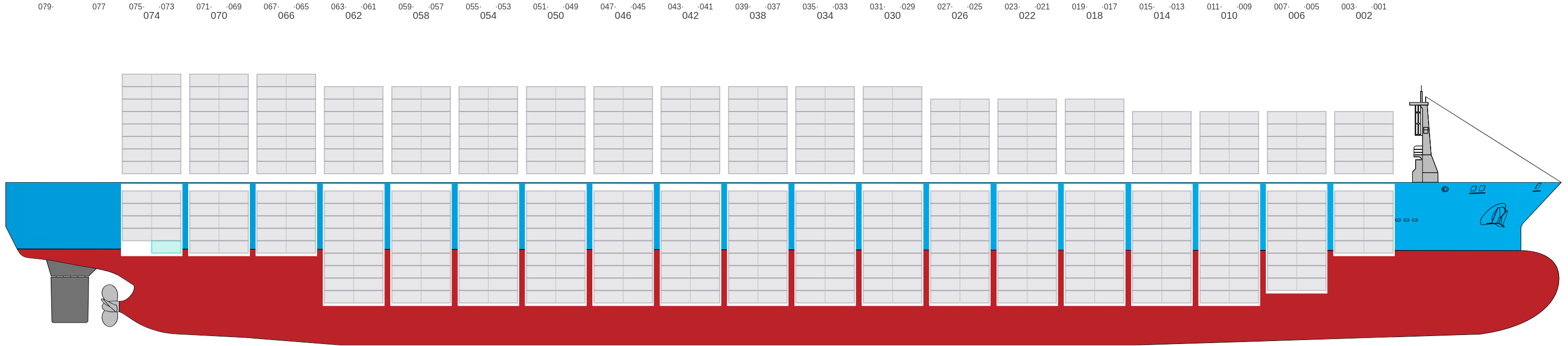

Side View

Side view of NORTHERN JUVENILE

Hatch-Covers View

Deck view of NORTHERN JUVENILE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

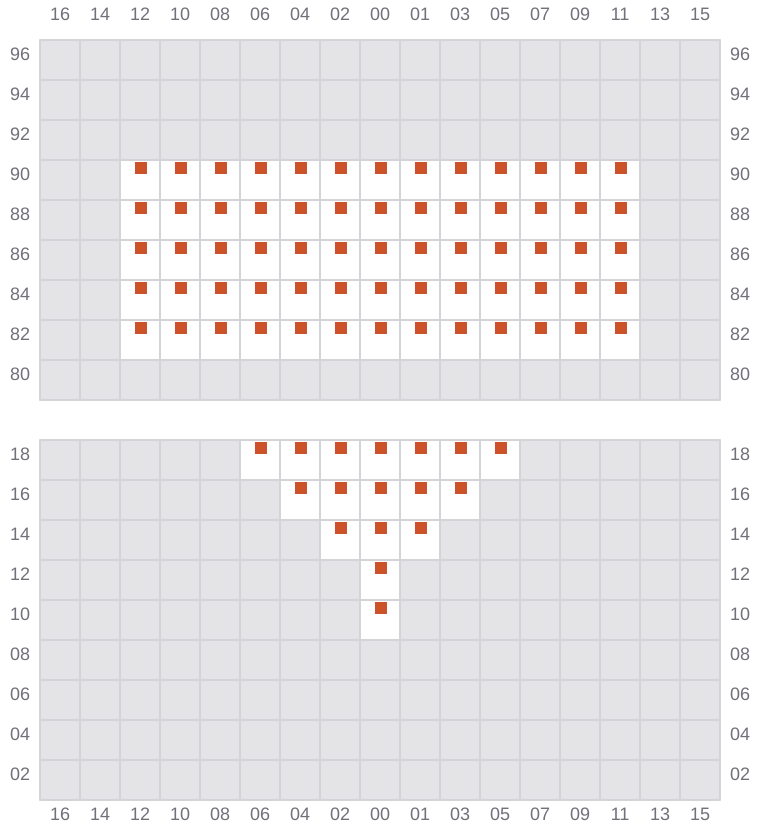

Bay 001 view and slots of NORTHERN JUVENILE

003 (002)

  • ←

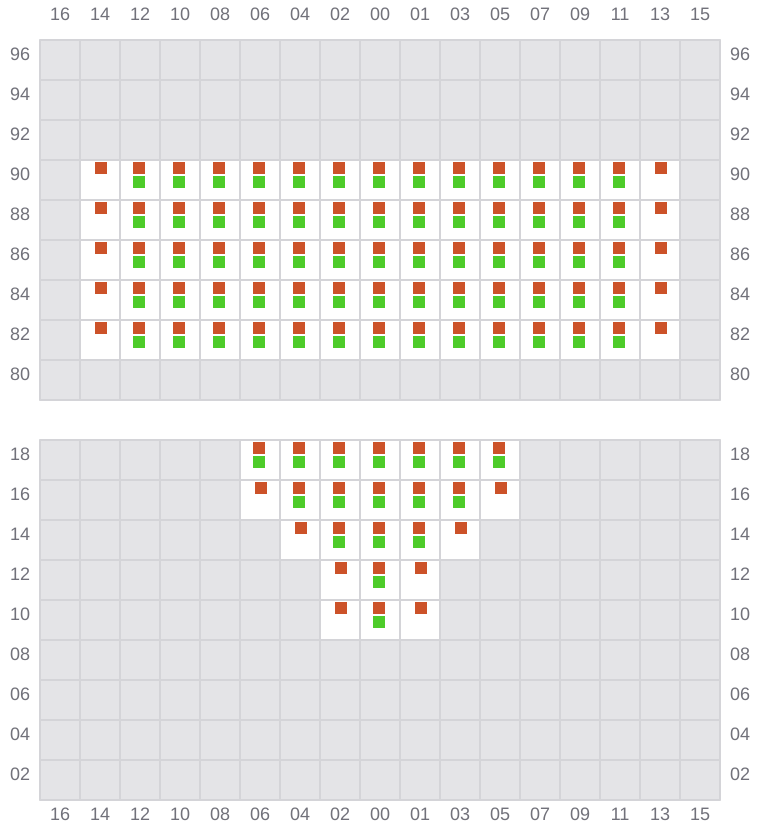

Bay 003 view and slots of NORTHERN JUVENILE

005

  • →

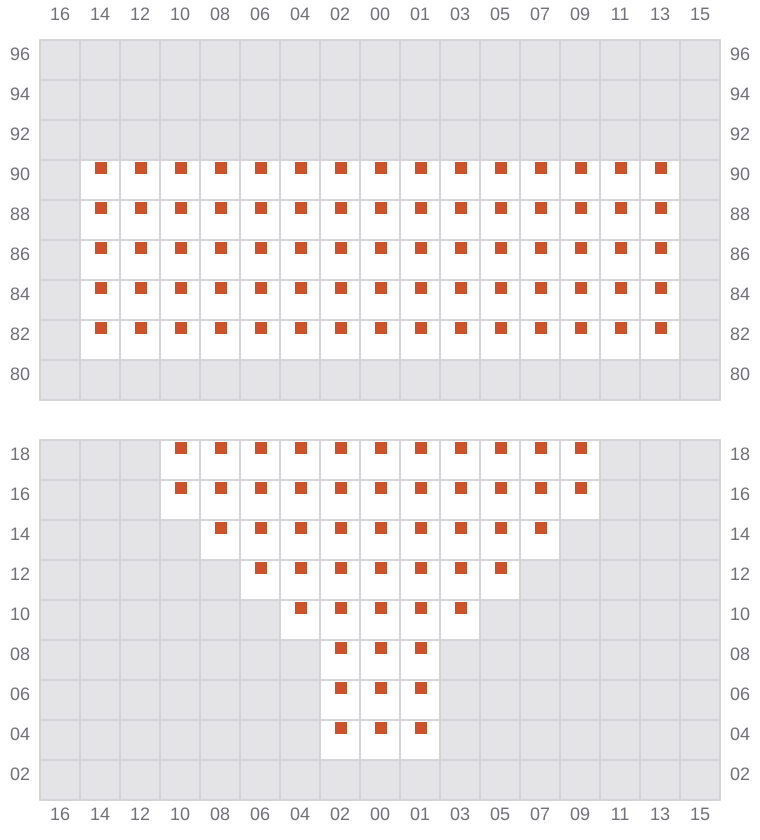

Bay 005 view and slots of NORTHERN JUVENILE

007 (006)

  • ←
Bay 007 view and slots of NORTHERN JUVENILE

009

  • →
Bay 009 view and slots of NORTHERN JUVENILE

011 (010)

  • ←
Bay 011 view and slots of NORTHERN JUVENILE

013

  • →

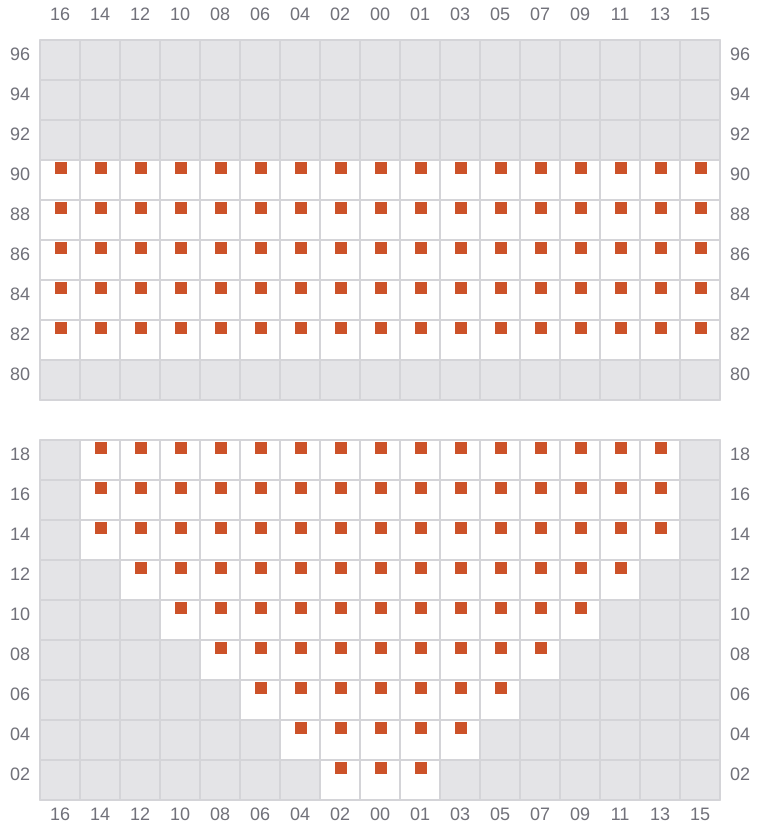

Bay 013 view and slots of NORTHERN JUVENILE

015 (014)

  • ←
Bay 015 view and slots of NORTHERN JUVENILE

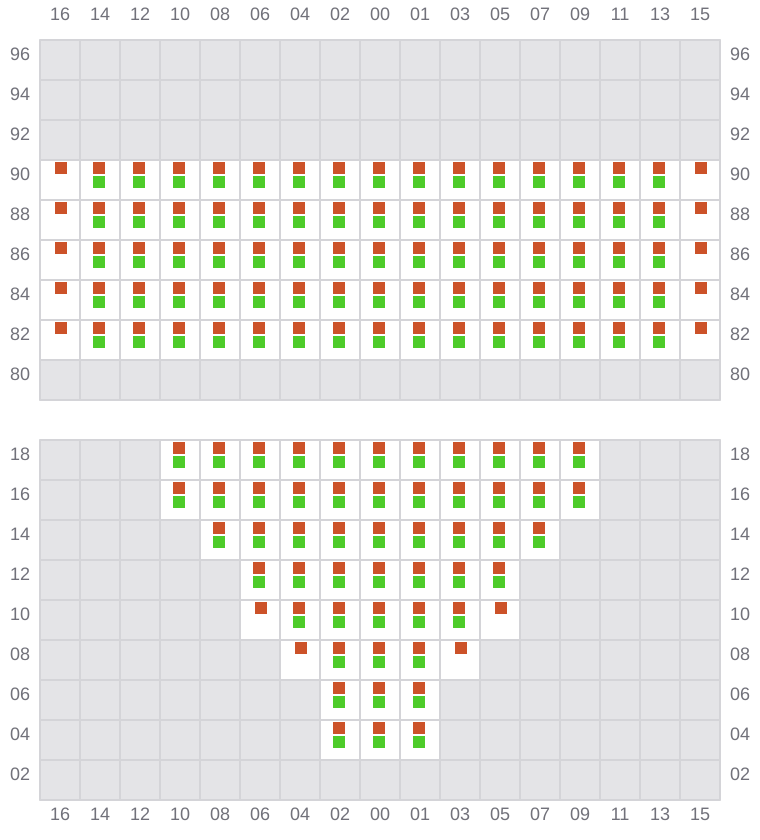

017

  • →

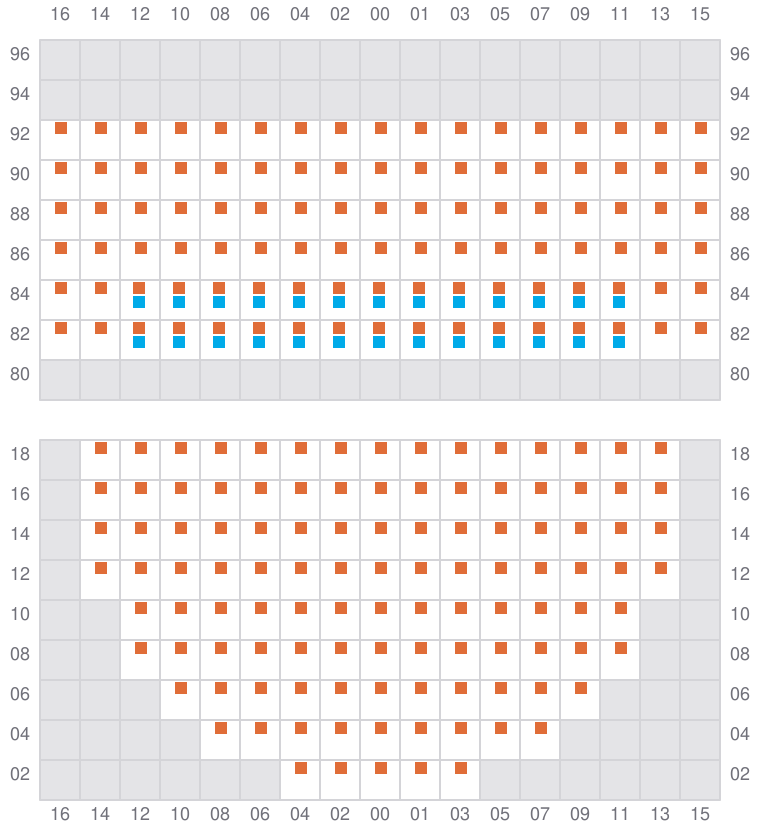

Bay 017 view and slots of NORTHERN JUVENILE

019 (018)

  • ←

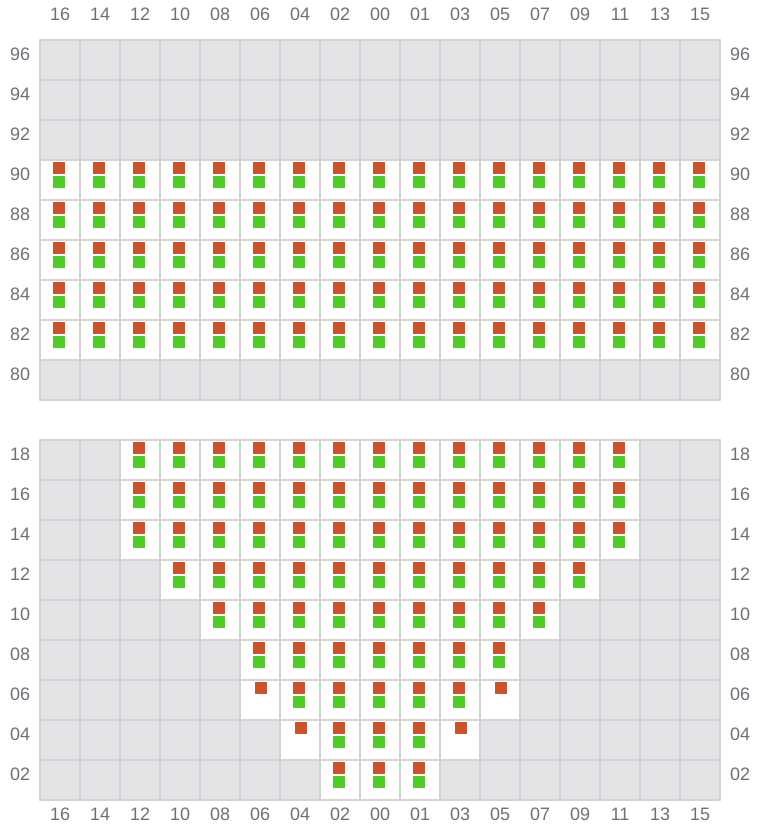

Bay 019 view and slots of NORTHERN JUVENILE

021

  • →

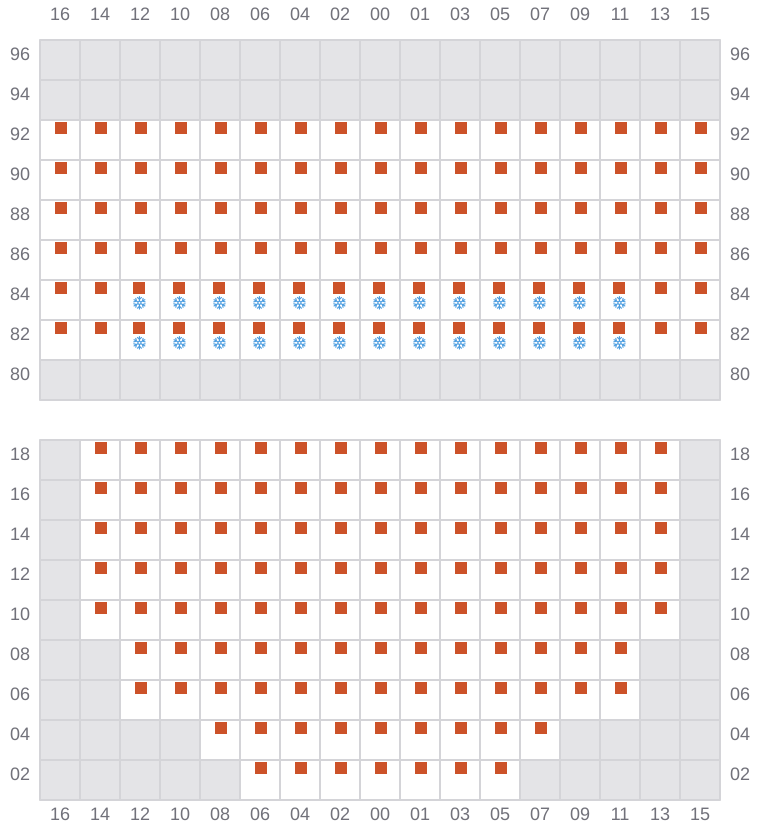

Bay 021 view and slots of NORTHERN JUVENILE

023 (022)

  • ←

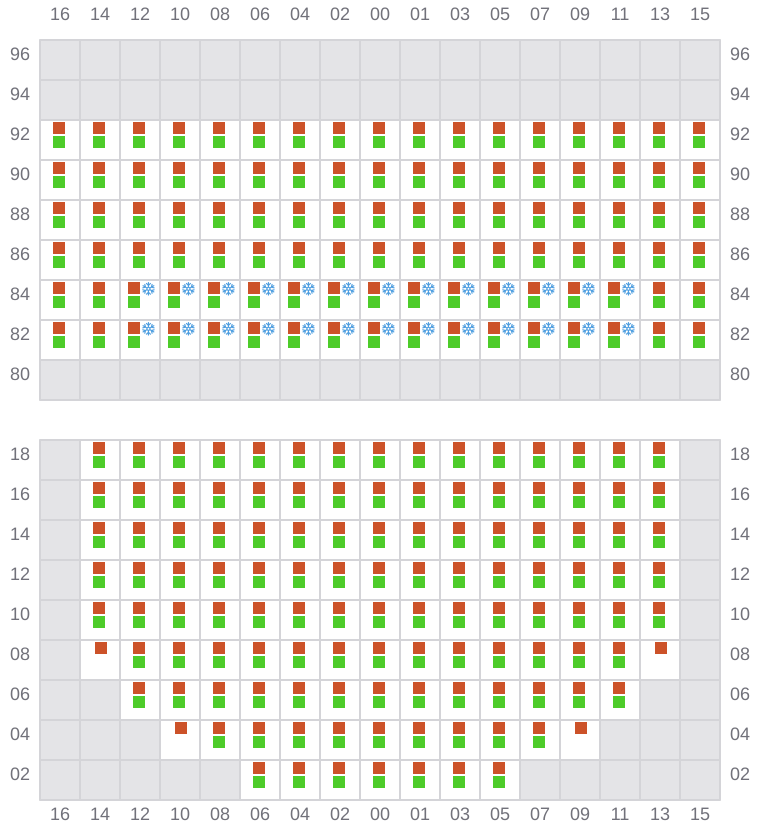

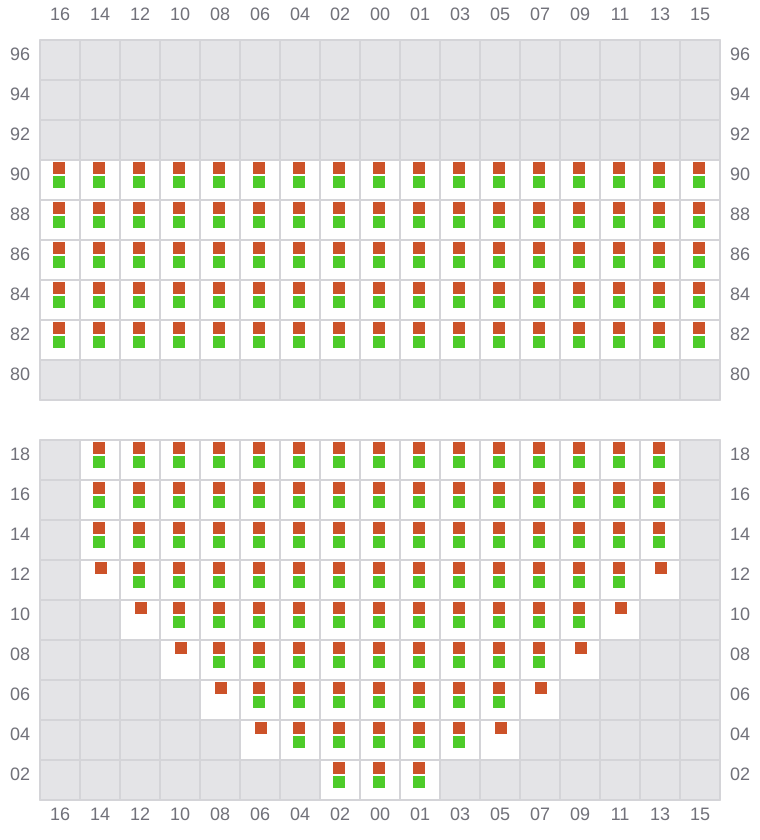

Bay 023 view and slots of NORTHERN JUVENILE

025

  • →
Bay 025 view and slots of NORTHERN JUVENILE

027 (026)

  • ←

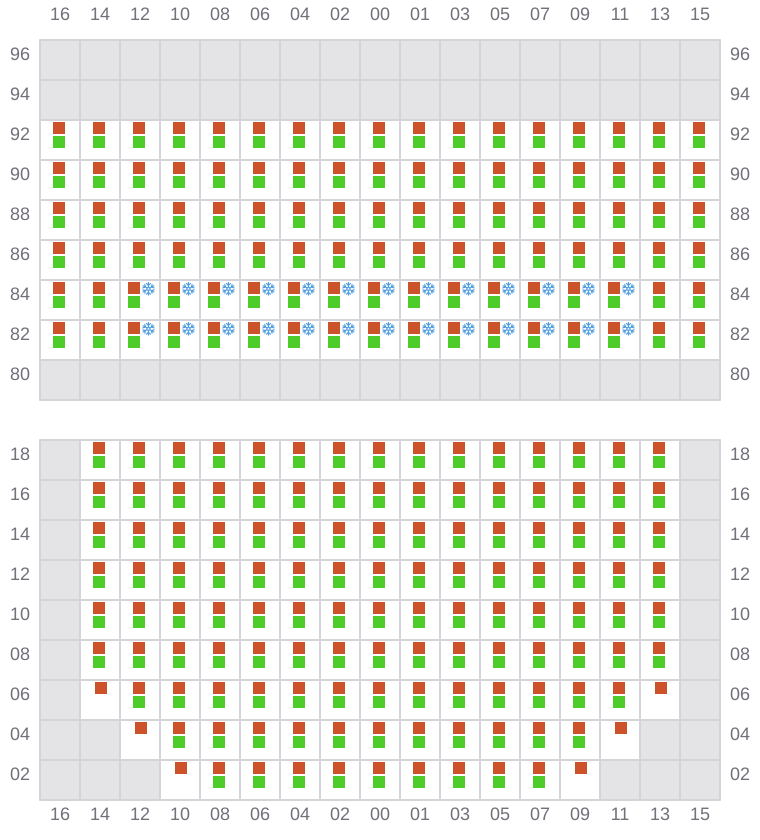

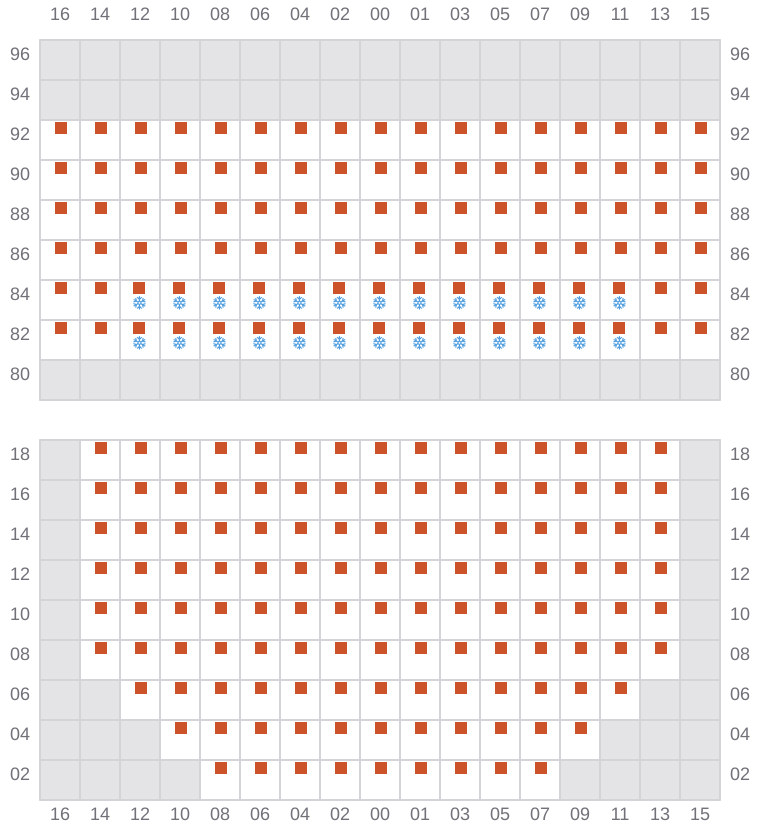

Bay 027 view and slots of NORTHERN JUVENILE

029

  • →

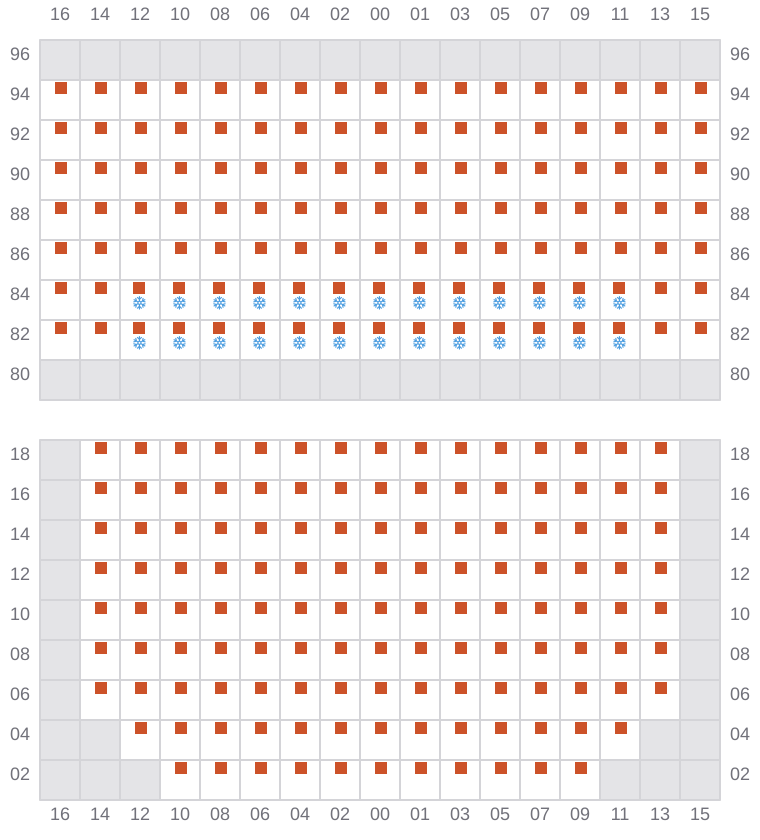

Bay 029 view and slots of NORTHERN JUVENILE

031 (030)

  • ←

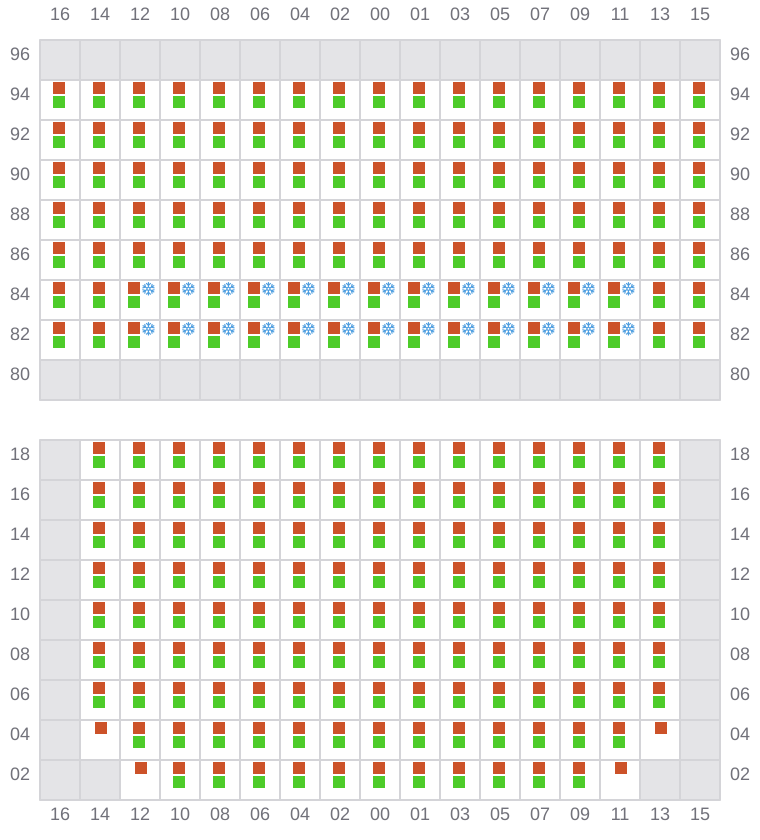

Bay 031 view and slots of NORTHERN JUVENILE

033

  • →
Bay 033 view and slots of NORTHERN JUVENILE

035 (034)

  • ←
Bay 035 view and slots of NORTHERN JUVENILE

037

  • →
Bay 037 view and slots of NORTHERN JUVENILE

039 (038)

  • ←
Bay 039 view and slots of NORTHERN JUVENILE

041

  • →

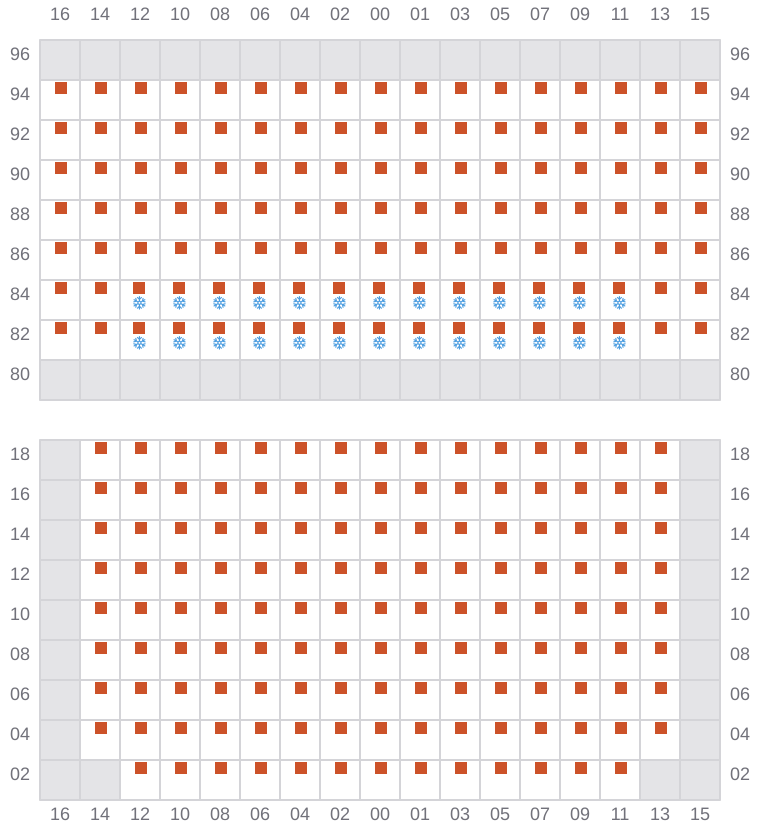

Bay 041 view and slots of NORTHERN JUVENILE

043 (042)

  • ←
Bay 043 view and slots of NORTHERN JUVENILE

045

  • →
Bay 045 view and slots of NORTHERN JUVENILE

047 (046)

  • ←
Bay 047 view and slots of NORTHERN JUVENILE

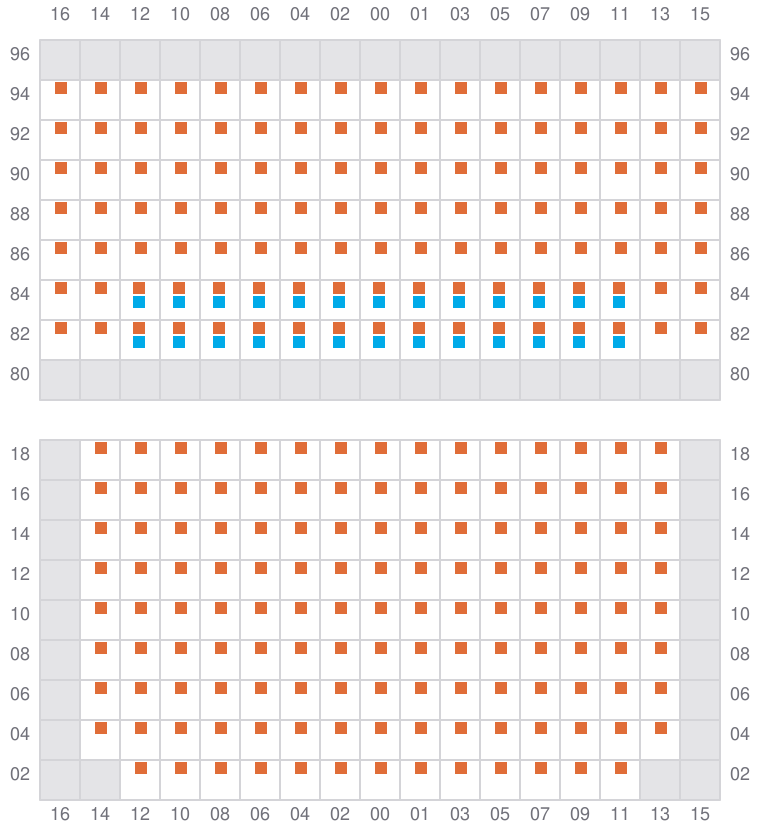

049

  • →
Bay 049 view and slots of NORTHERN JUVENILE

051 (050)

  • ←

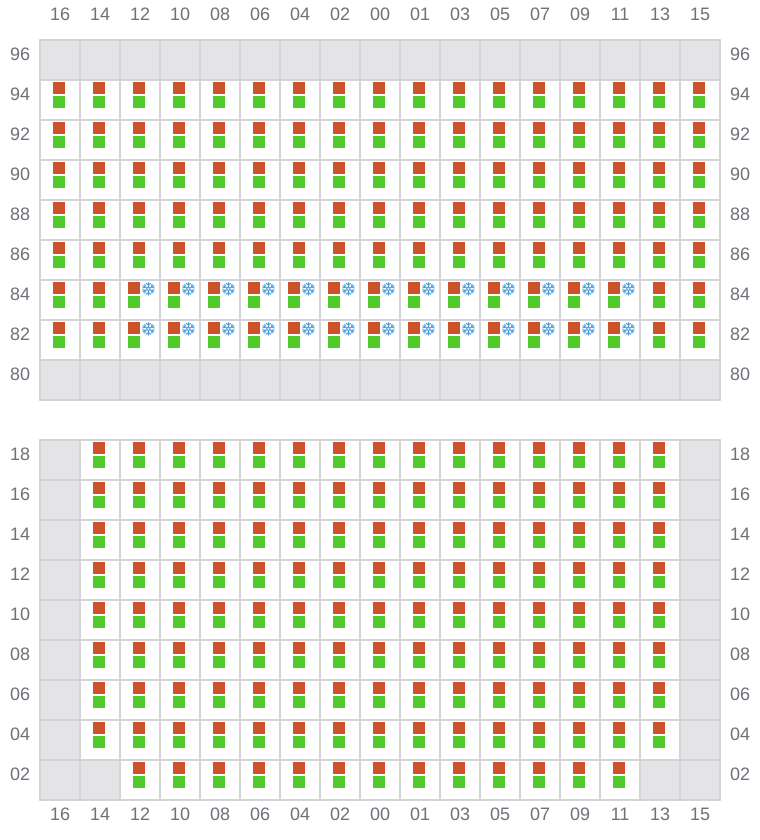

Bay 051 view and slots of NORTHERN JUVENILE

053

  • →
Bay 053 view and slots of NORTHERN JUVENILE

055 (054)

  • ←
Bay 055 view and slots of NORTHERN JUVENILE

057

  • →

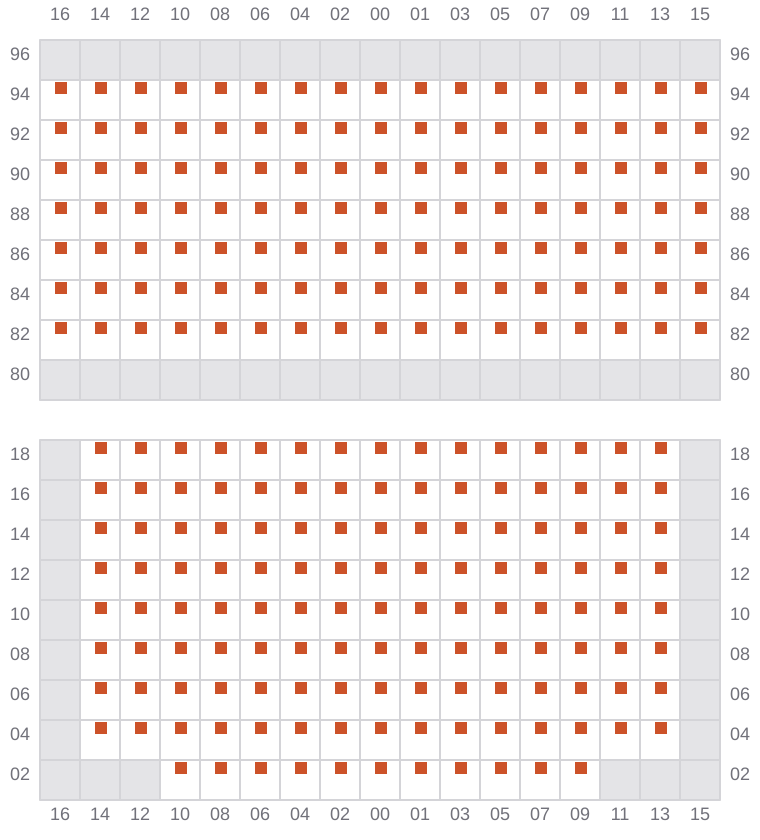

Bay 057 view and slots of NORTHERN JUVENILE

059 (058)

  • ←
Bay 059 view and slots of NORTHERN JUVENILE

061

  • →

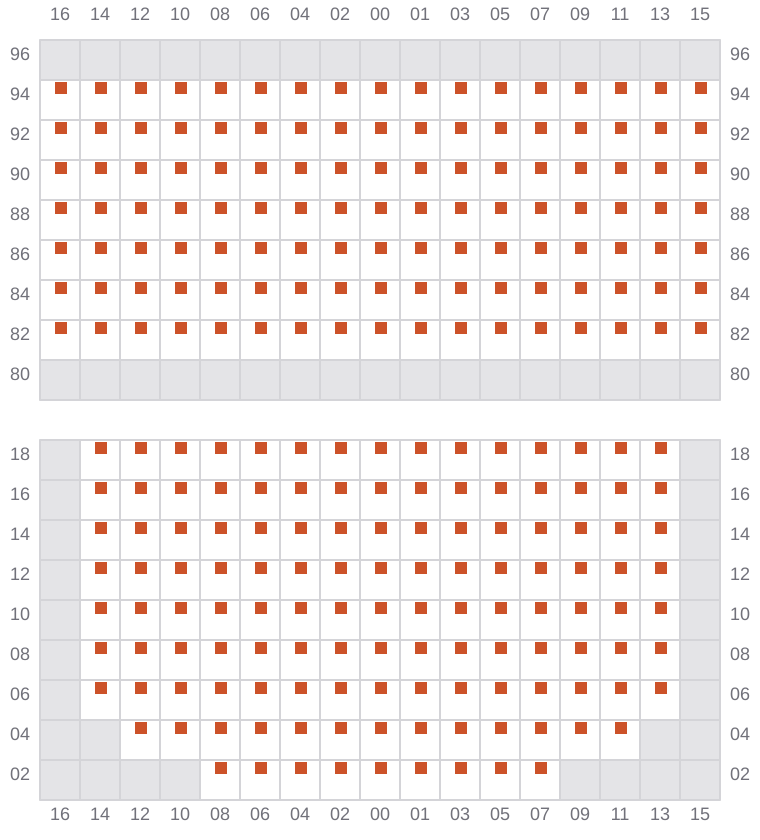

Bay 061 view and slots of NORTHERN JUVENILE

063 (062)

  • ←

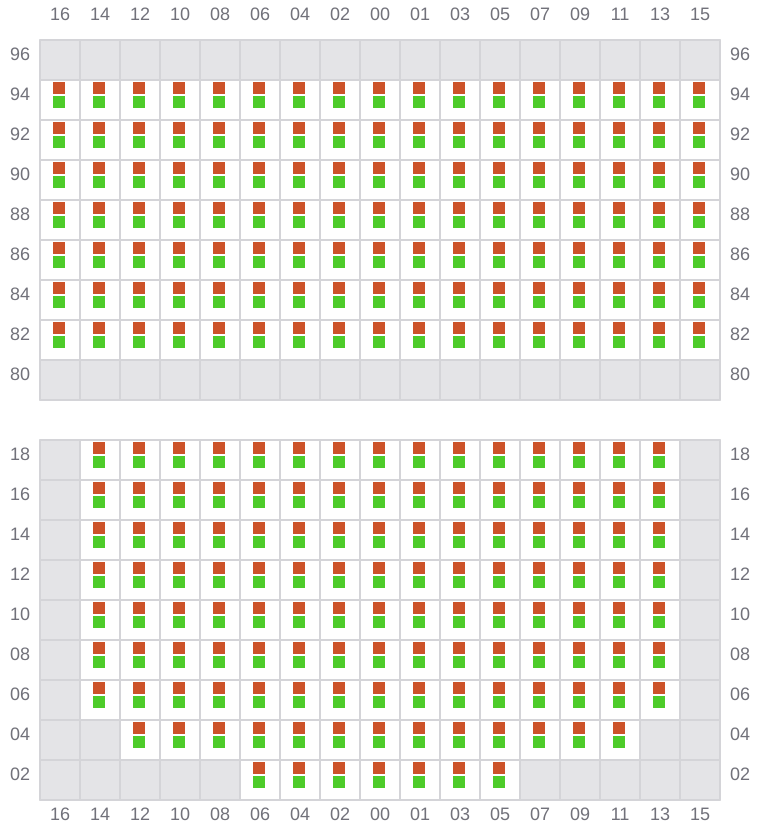

Bay 063 view and slots of NORTHERN JUVENILE

065

  • →

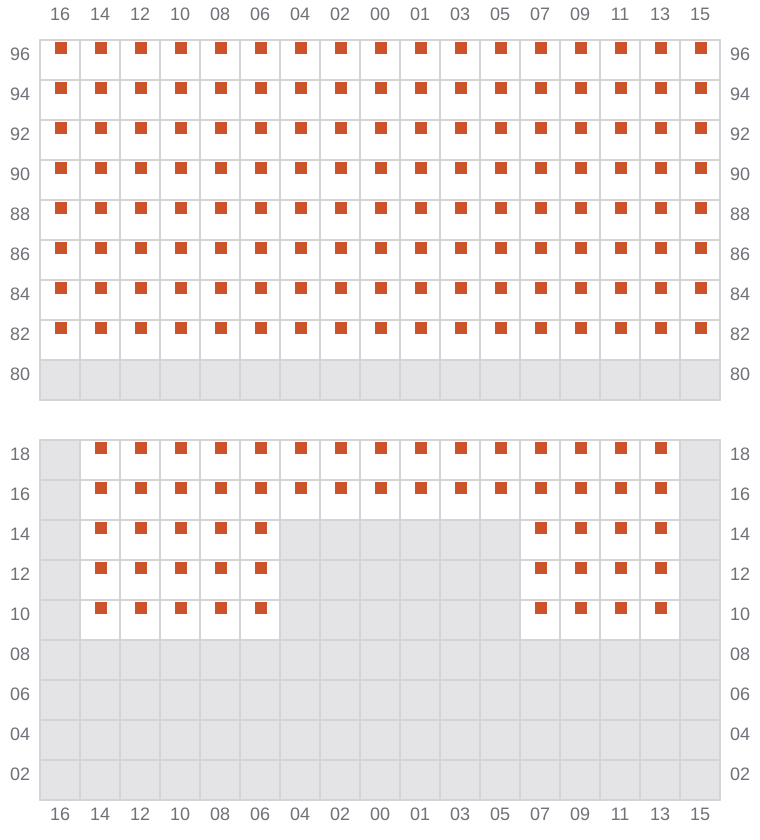

Bay 065 view and slots of NORTHERN JUVENILE

067 (066)

  • ←

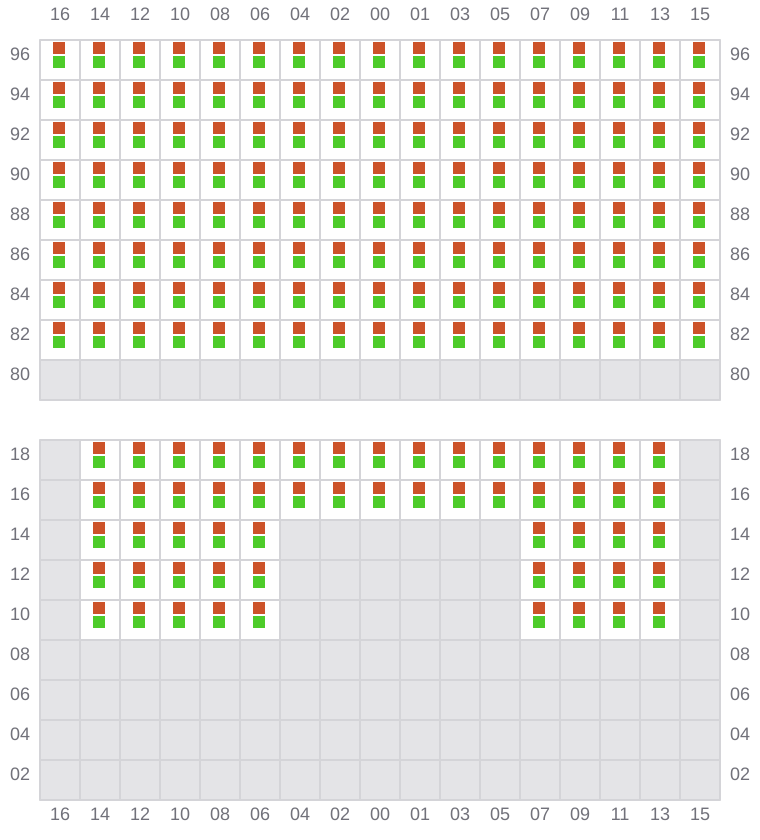

Bay 067 view and slots of NORTHERN JUVENILE

069

  • →

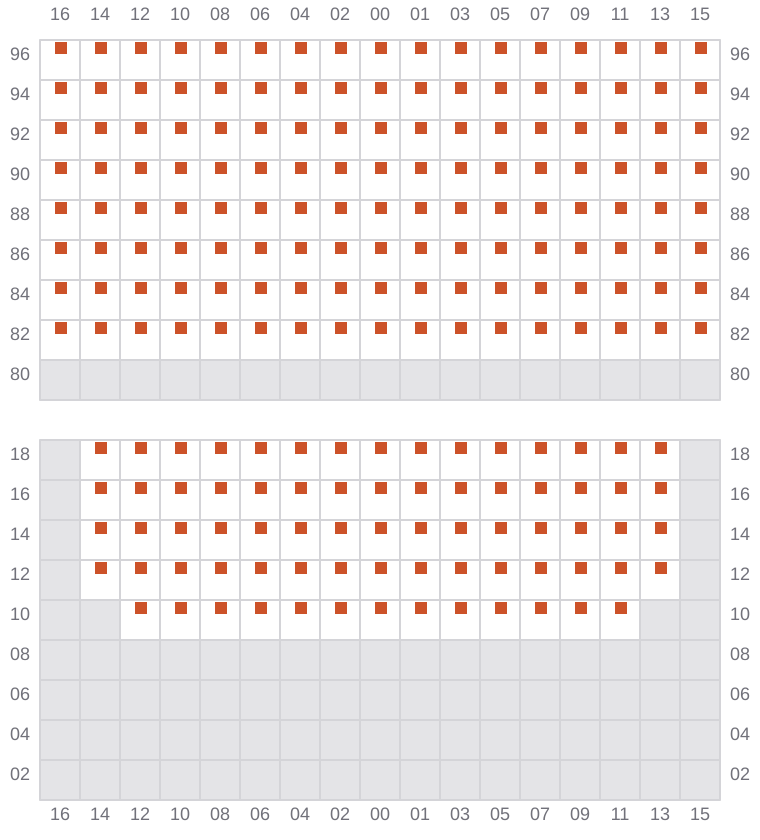

Bay 069 view and slots of NORTHERN JUVENILE

071 (070)

  • ←

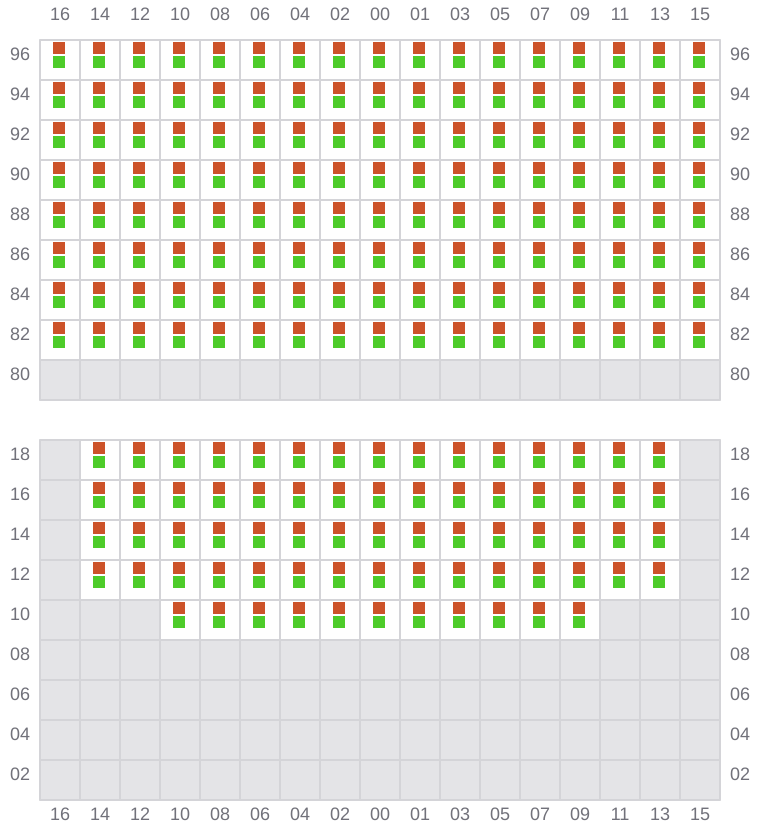

Bay 071 view and slots of NORTHERN JUVENILE

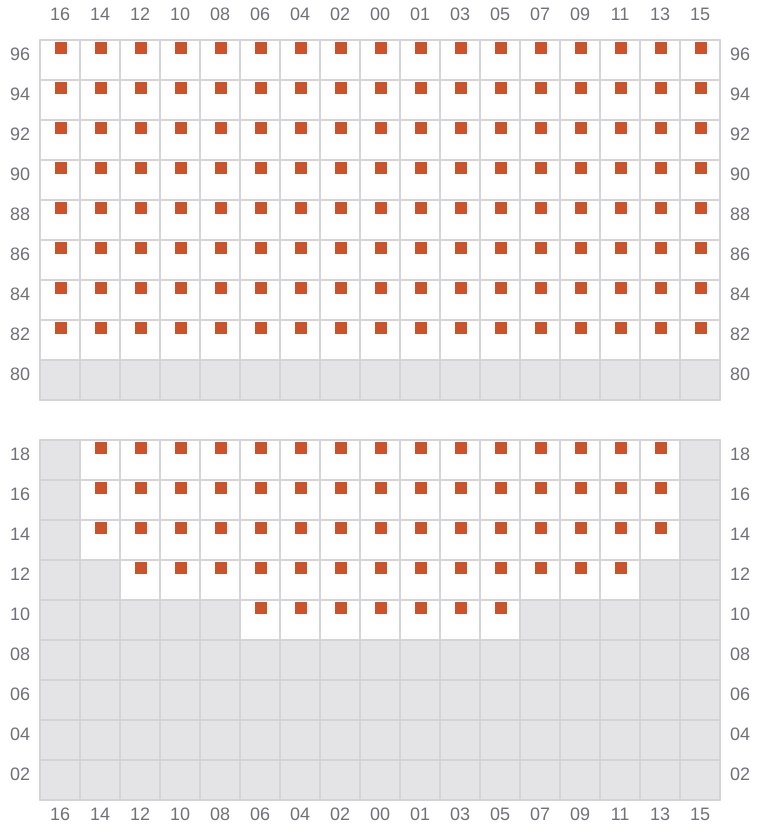

073

  • →
Bay 073 view and slots of NORTHERN JUVENILE

075 (074)

  • ←

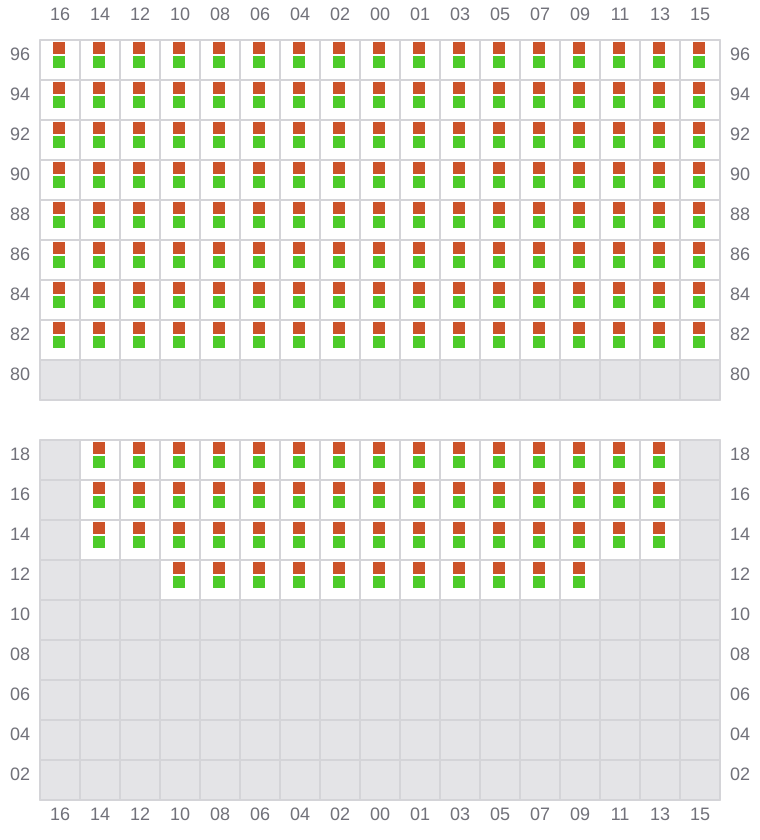

Bay 075 view and slots of NORTHERN JUVENILE

077

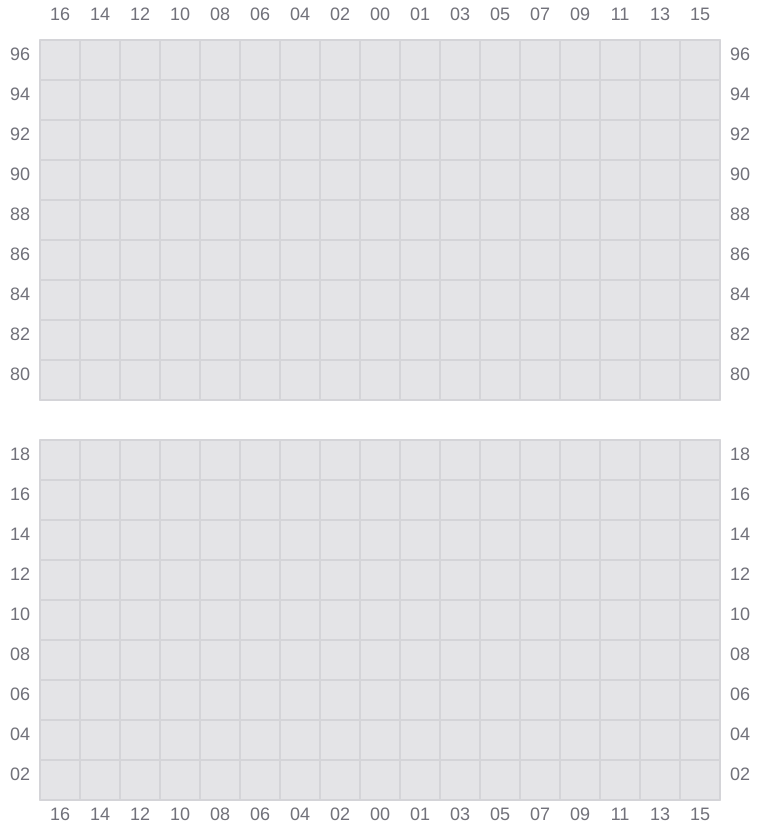

Bay 077 view and slots of NORTHERN JUVENILE

079 (078)

  • ← / ?
Bay 079 view and slots of NORTHERN JUVENILE
