NORTHERN MONUMENT
9252577 | CQAX6 | MSK by ************************** Last update: Sun Jun 25 2023

General Info

Ship Name:NORTHERN MONUMENT
IMO Code:9252577
Call Sign:CQAX6
Line Operator:MSK
Class Name for Sister Ships:NMN
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.56
LOA (Length Overall):299.99
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,700

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

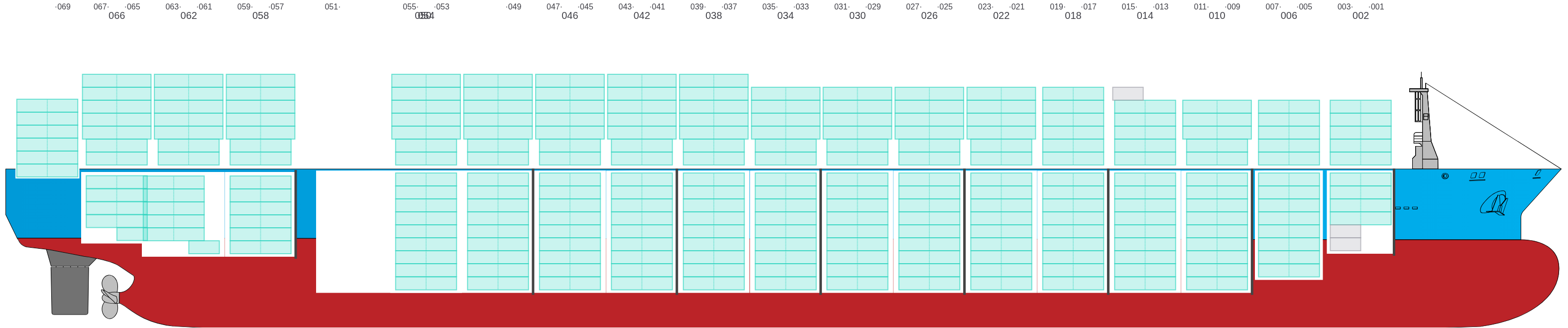

Side view of NORTHERN MONUMENT

Hatch-Covers View

Deck view of NORTHERN MONUMENT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

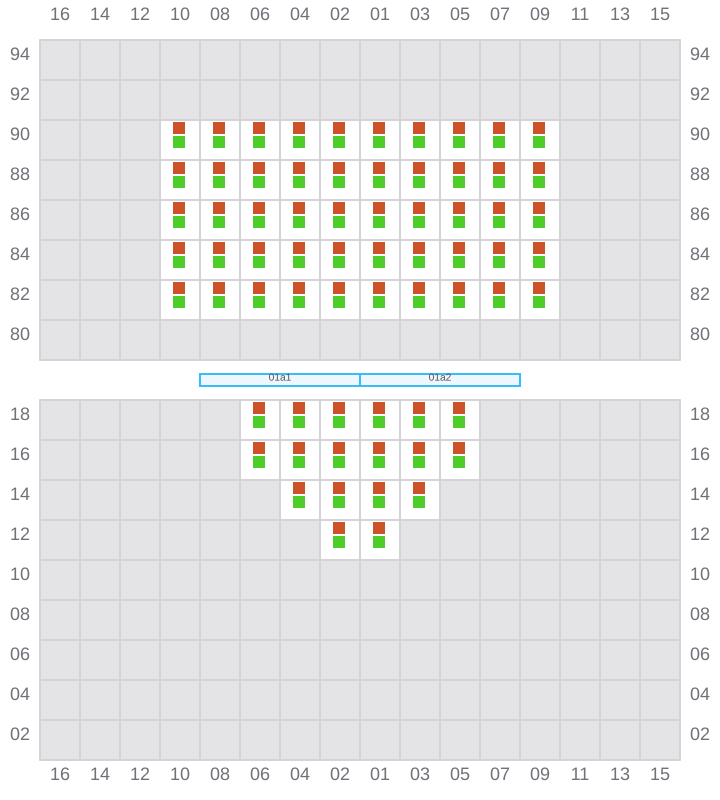

001 (002)

  • →
Bay 001 view and slots of NORTHERN MONUMENT

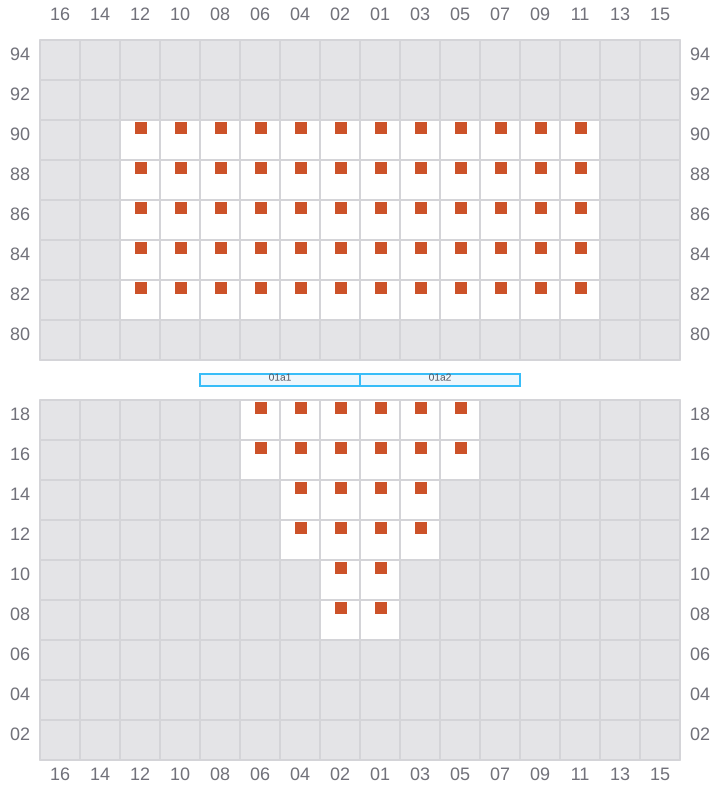

003

  • ←
Bay 003 view and slots of NORTHERN MONUMENT

005 (006)

  • →

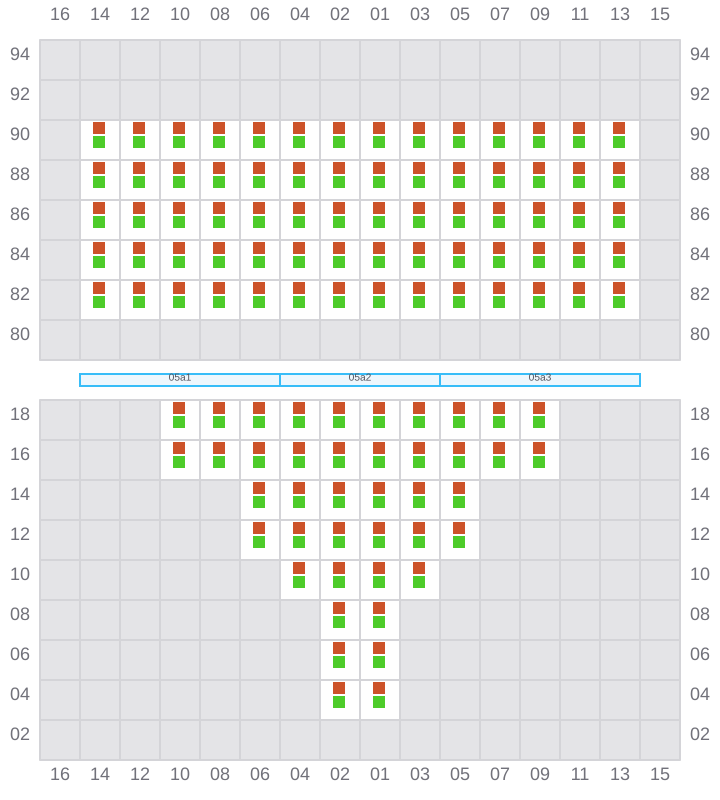

Bay 005 view and slots of NORTHERN MONUMENT

007

  • ←

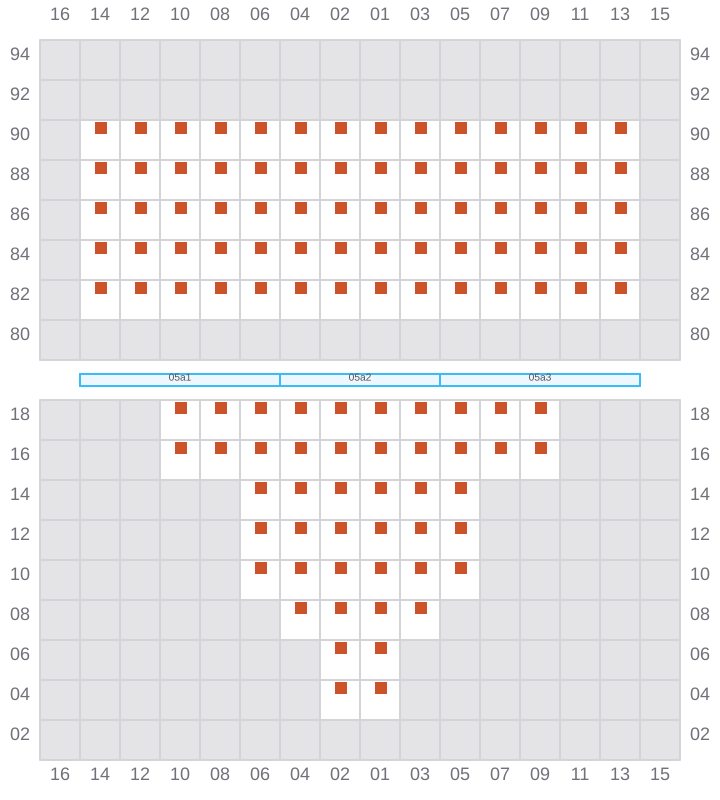

Bay 007 view and slots of NORTHERN MONUMENT

009 (010)

  • →

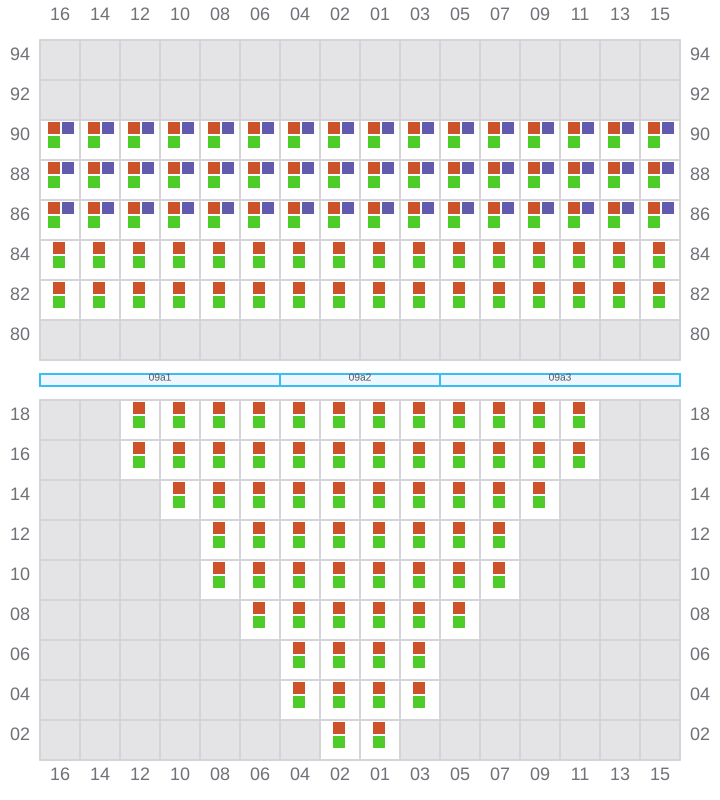

Bay 009 view and slots of NORTHERN MONUMENT

011

  • ←

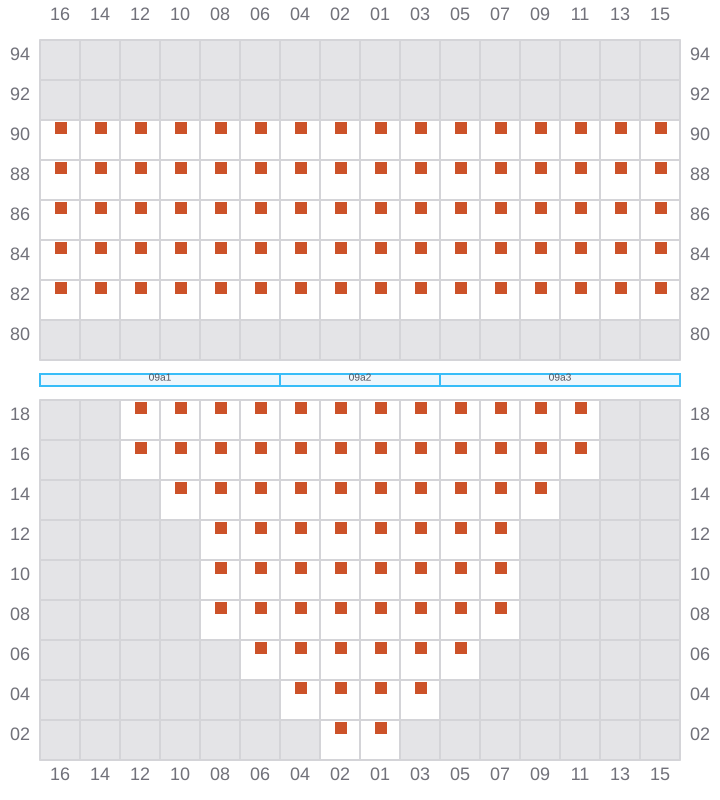

Bay 011 view and slots of NORTHERN MONUMENT

013 (014)

  • →
Bay 013 view and slots of NORTHERN MONUMENT

015

  • ←

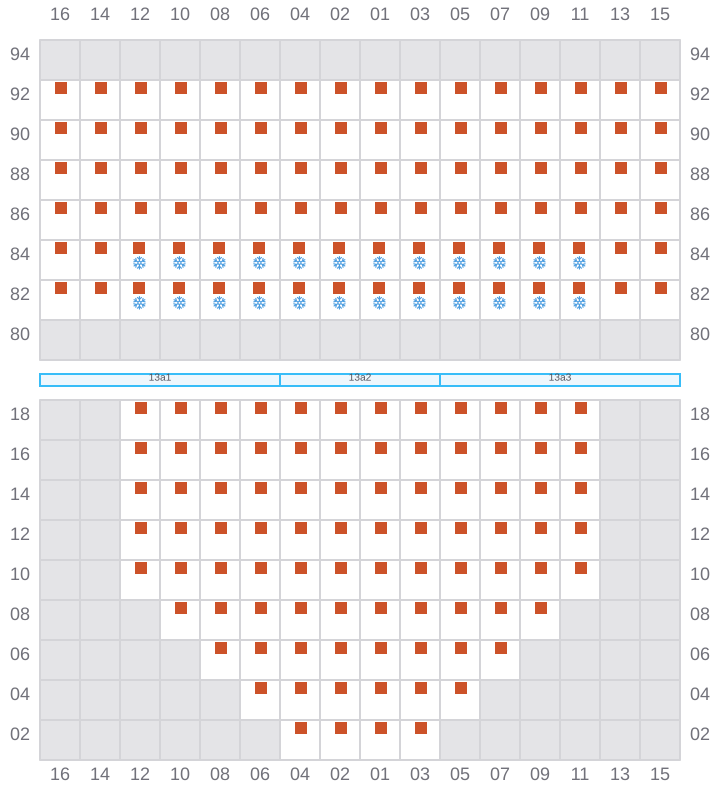

Bay 015 view and slots of NORTHERN MONUMENT

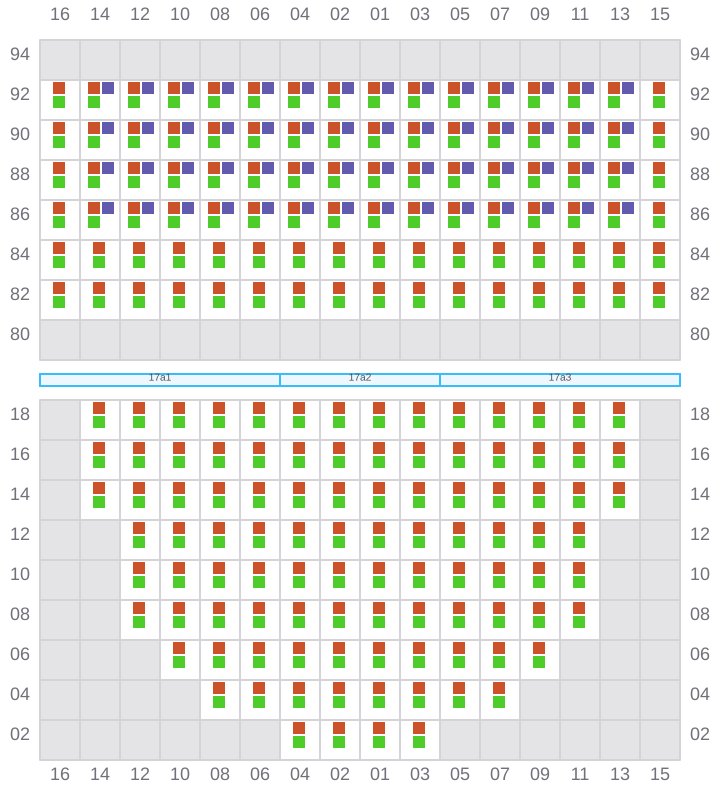

017 (018)

  • →
Bay 017 view and slots of NORTHERN MONUMENT

019

  • ←

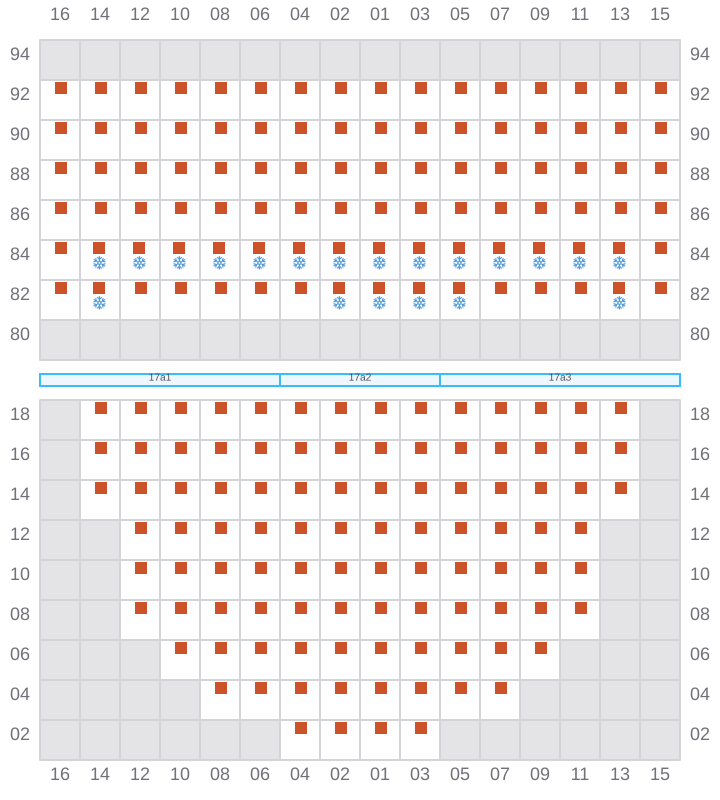

Bay 019 view and slots of NORTHERN MONUMENT

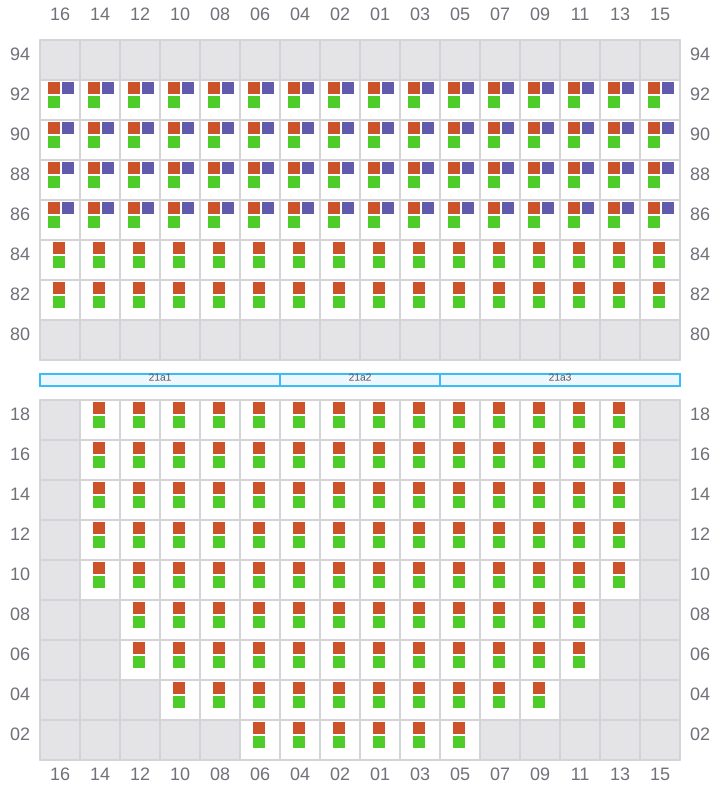

021 (022)

  • →
Bay 021 view and slots of NORTHERN MONUMENT

023

  • ←
  • → / ?

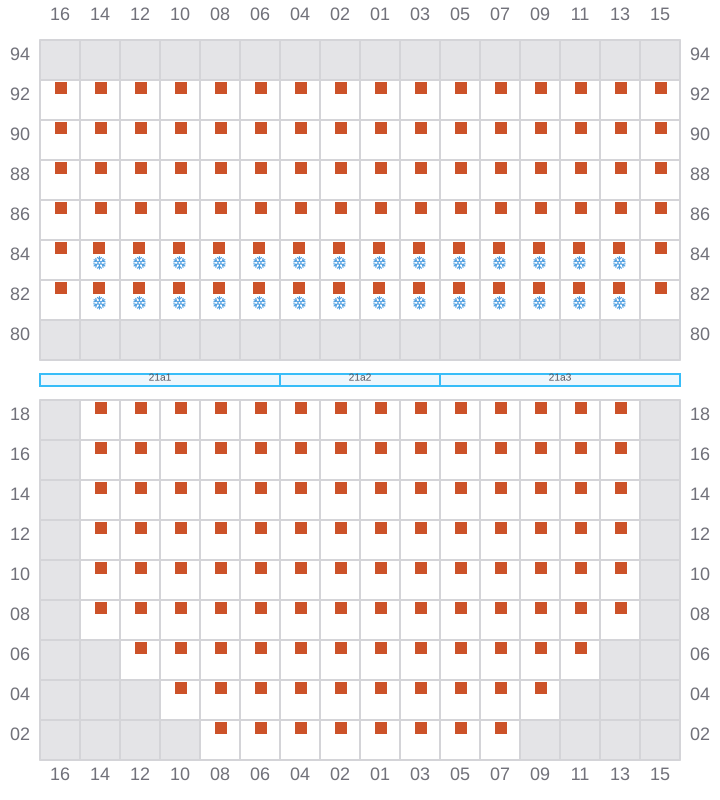

Bay 023 view and slots of NORTHERN MONUMENT

025 (026)

  • →

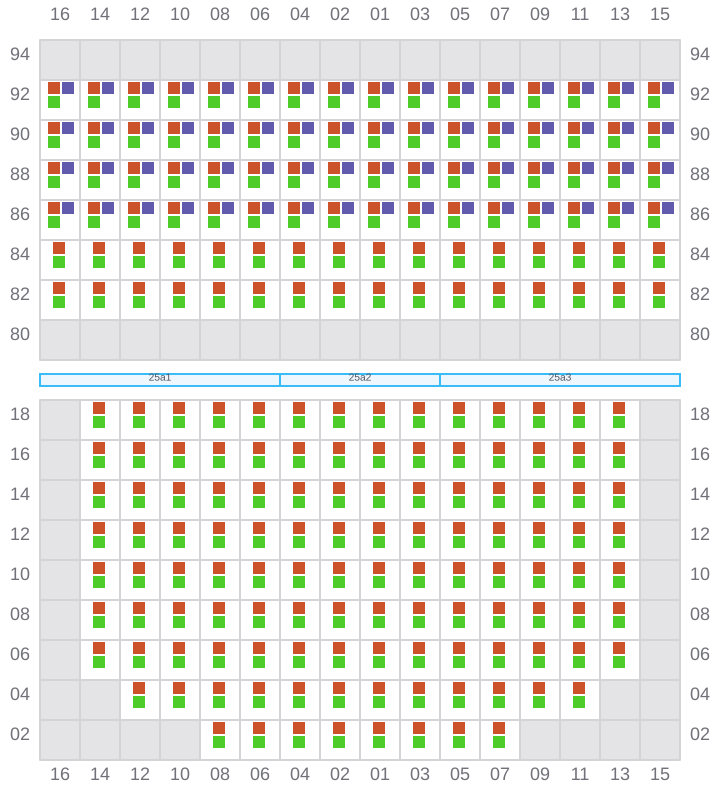

Bay 025 view and slots of NORTHERN MONUMENT

027

  • ←
  • → / ?

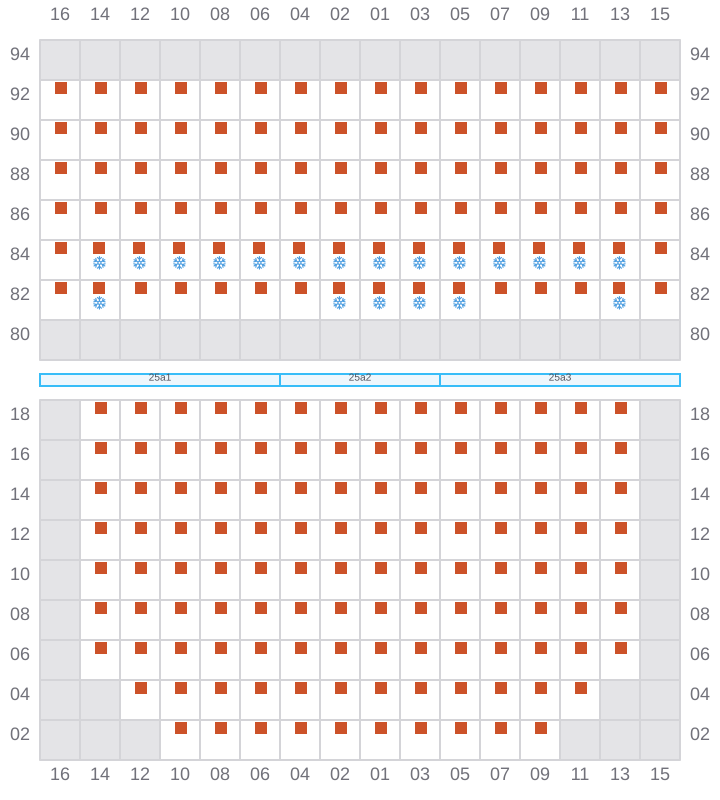

Bay 027 view and slots of NORTHERN MONUMENT

029 (030)

  • →

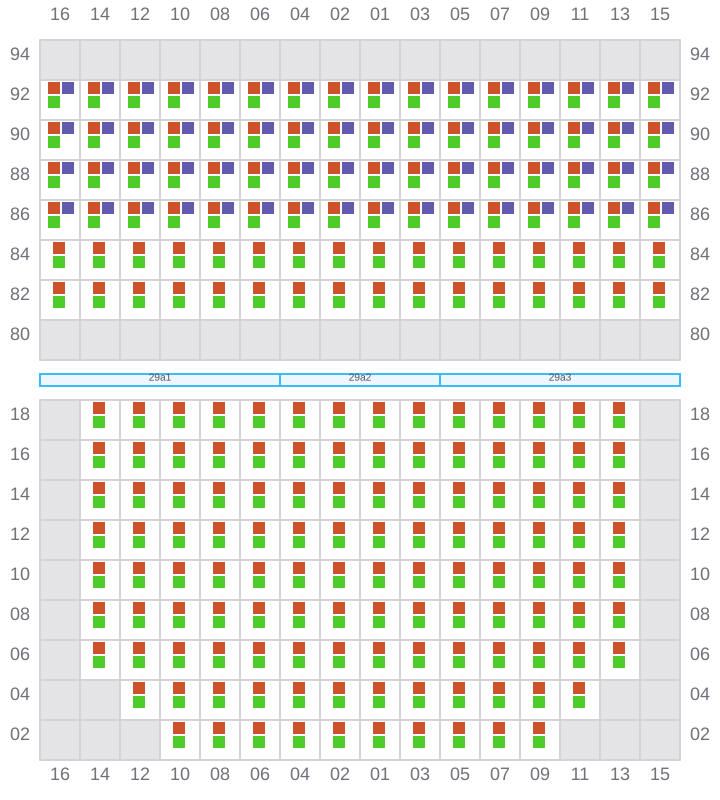

Bay 029 view and slots of NORTHERN MONUMENT

031

  • ←
  • → / ?
Bay 031 view and slots of NORTHERN MONUMENT

033 (034)

  • →

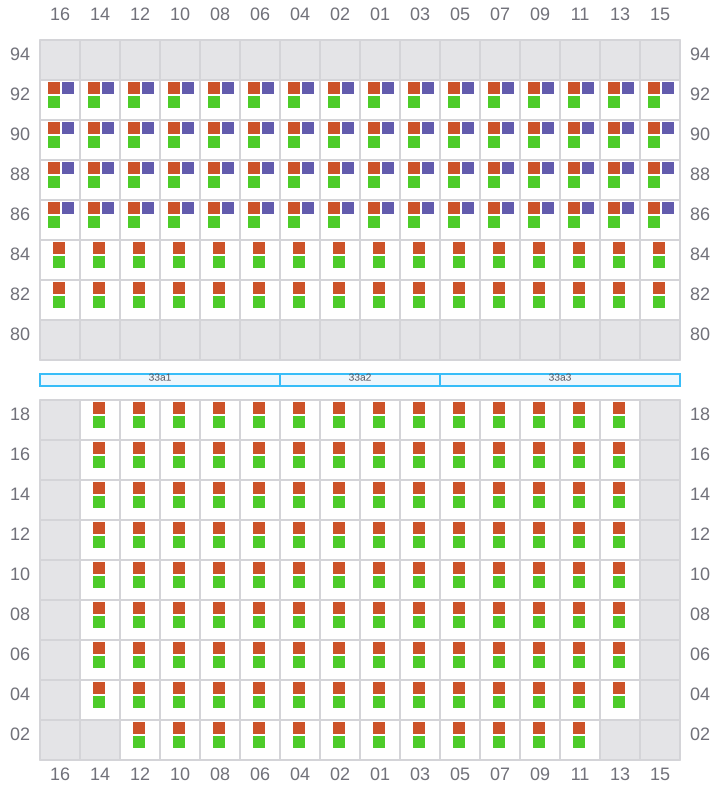

Bay 033 view and slots of NORTHERN MONUMENT

035

  • ←
  • →

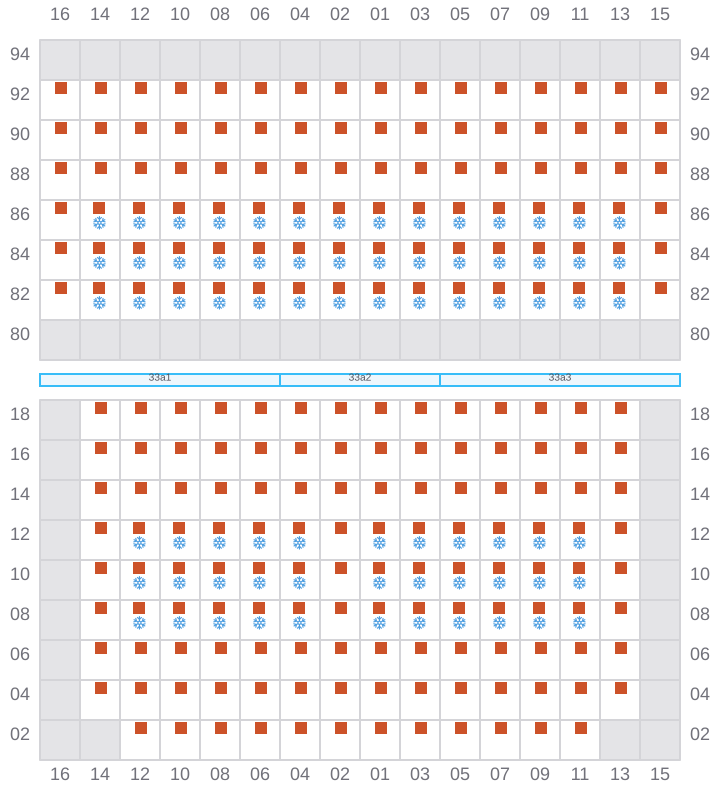

Bay 035 view and slots of NORTHERN MONUMENT

037 (038)

  • →
Bay 037 view and slots of NORTHERN MONUMENT

039

  • ←
  • →
Bay 039 view and slots of NORTHERN MONUMENT

041 (042)

  • →

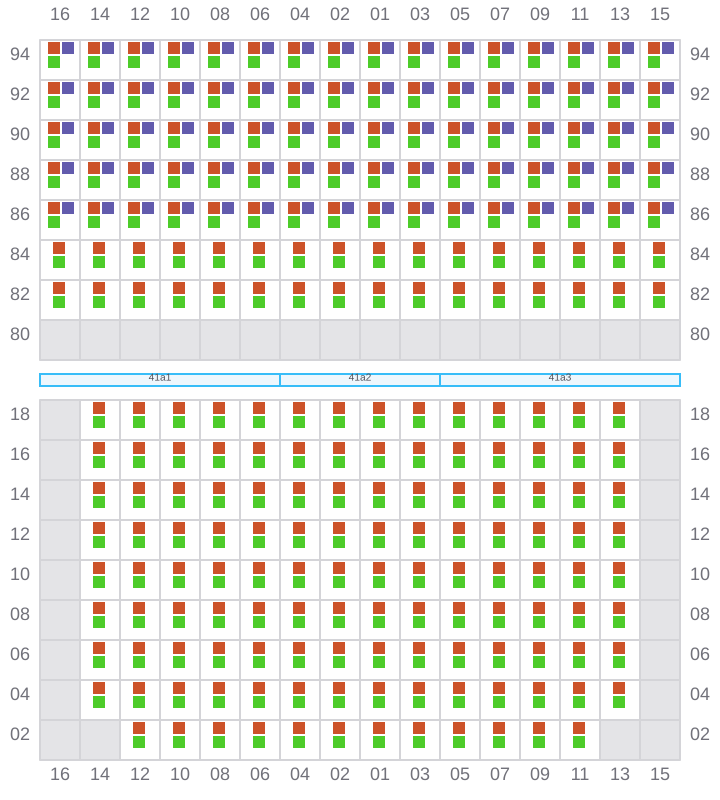

Bay 041 view and slots of NORTHERN MONUMENT

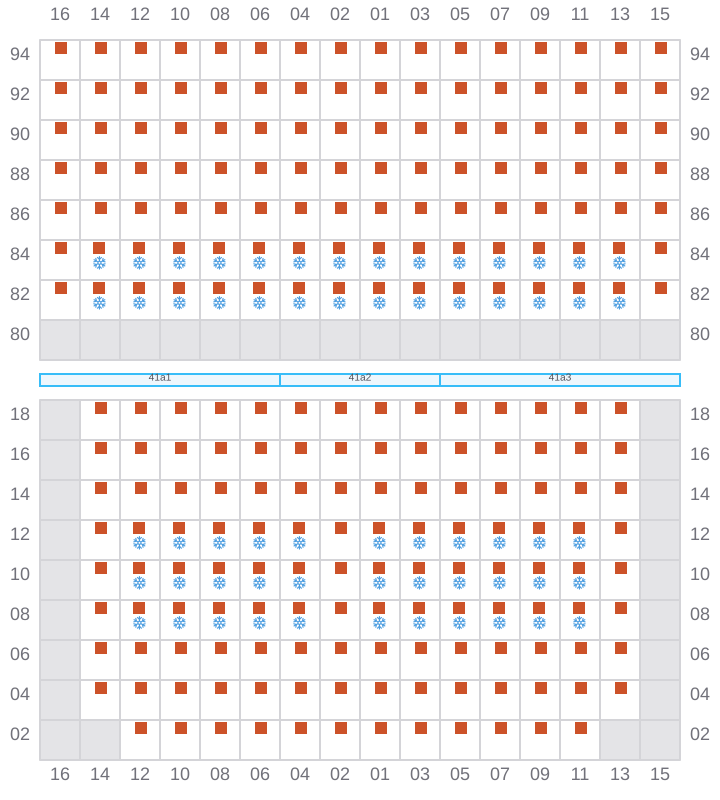

043

  • ←
  • →
Bay 043 view and slots of NORTHERN MONUMENT

045 (046)

  • →
Bay 045 view and slots of NORTHERN MONUMENT

047

  • ←
  • →

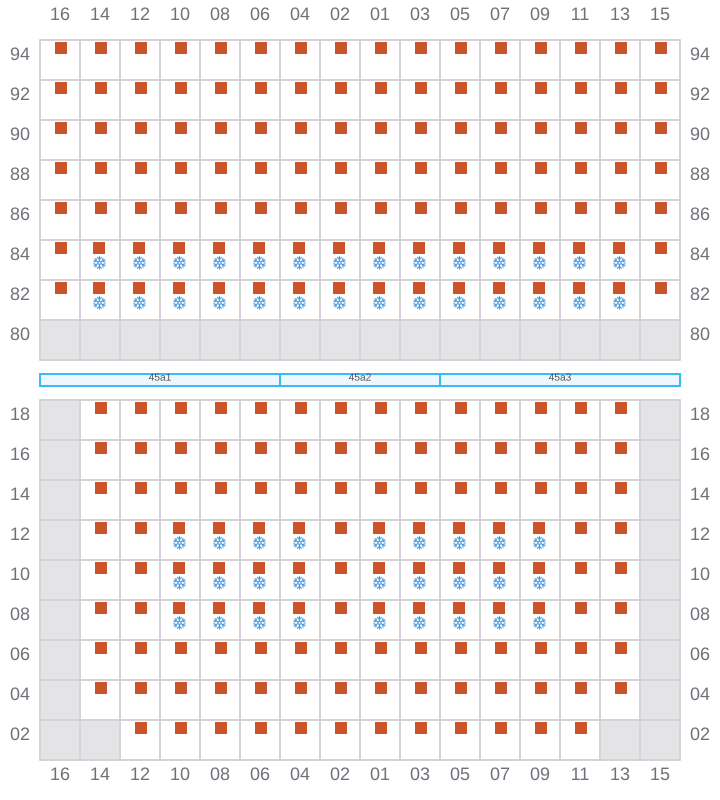

Bay 047 view and slots of NORTHERN MONUMENT

049 (050)

  • →
Bay 049 view and slots of NORTHERN MONUMENT

051

  • ←
  • →
Bay 051 view and slots of NORTHERN MONUMENT

053 (054)

  • →

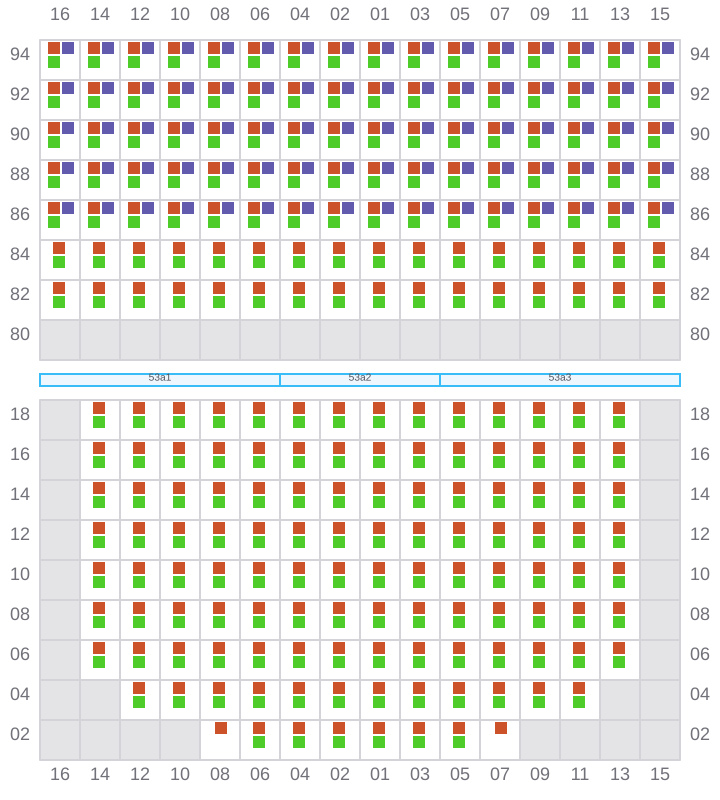

Bay 053 view and slots of NORTHERN MONUMENT

055

  • ←
  • → / ?

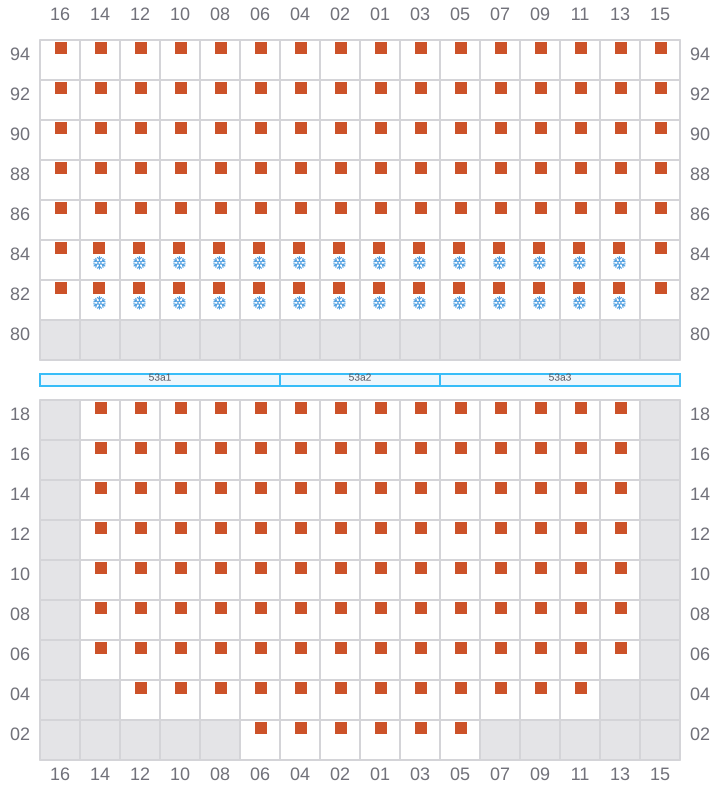

Bay 055 view and slots of NORTHERN MONUMENT

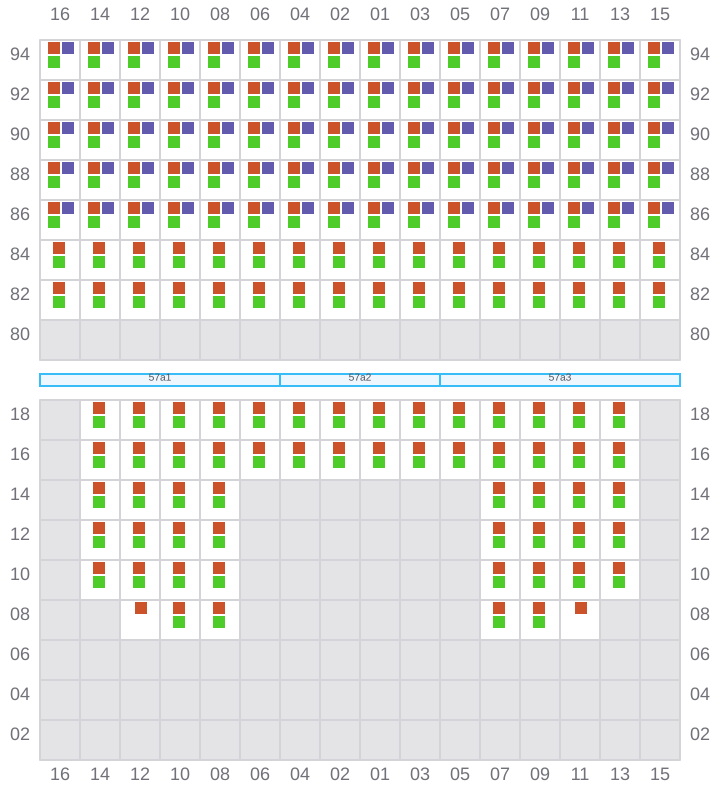

057 (058)

  • →
Bay 057 view and slots of NORTHERN MONUMENT

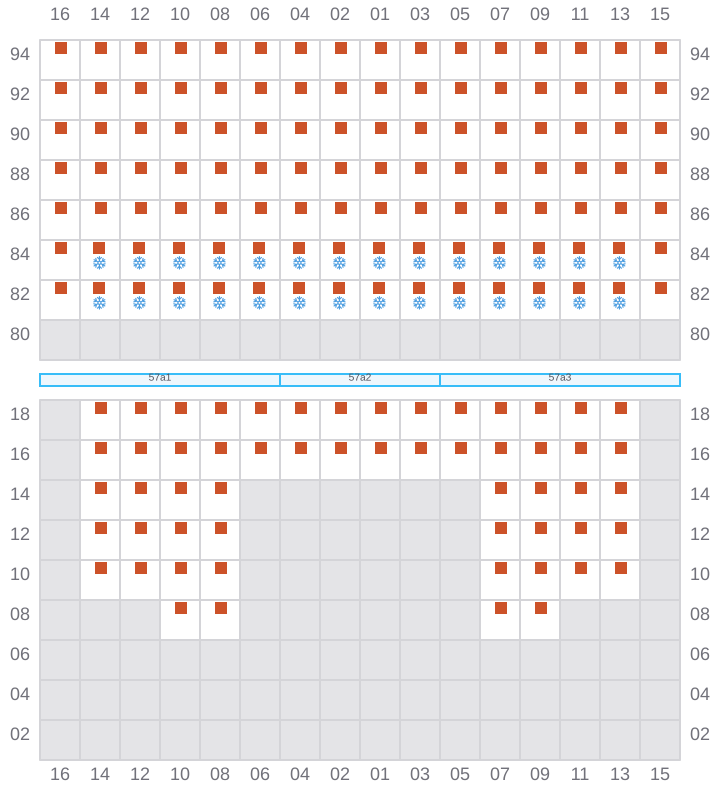

059

  • ←
  • → / ?
Bay 059 view and slots of NORTHERN MONUMENT

061 (062)

  • →

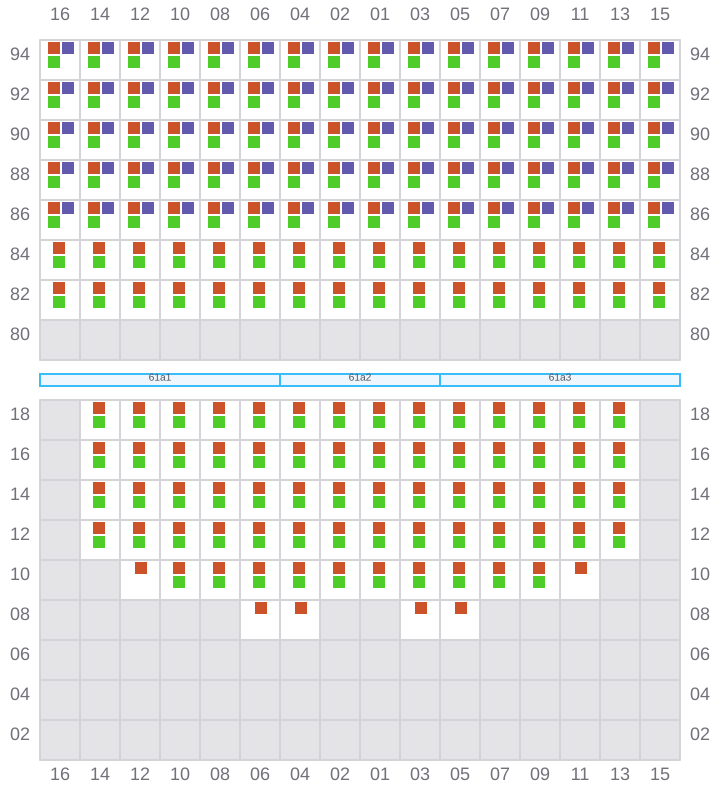

Bay 061 view and slots of NORTHERN MONUMENT

063

  • ←
  • → / ?

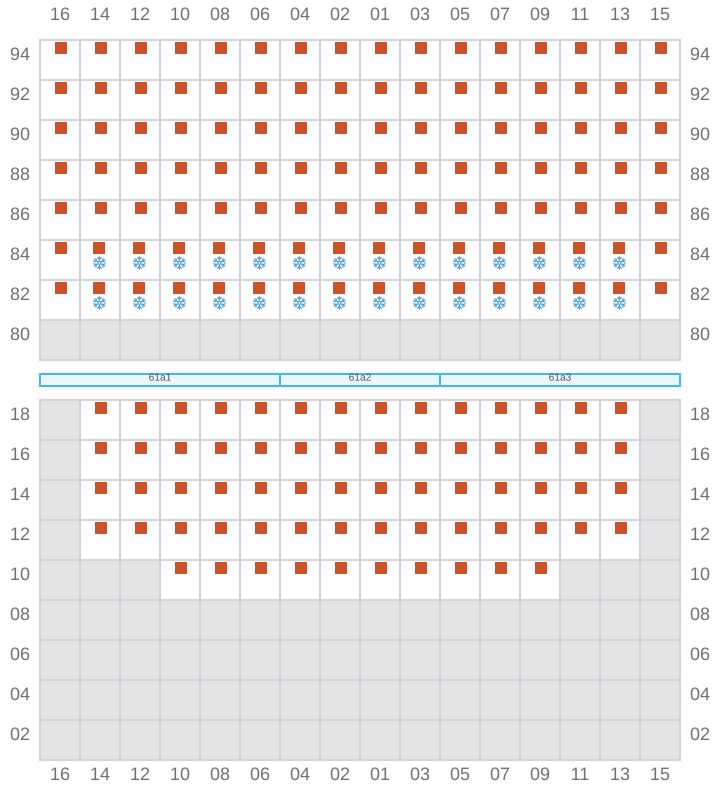

Bay 063 view and slots of NORTHERN MONUMENT

065 (066)

  • →
Bay 065 view and slots of NORTHERN MONUMENT

067

  • ←
  • → / ?

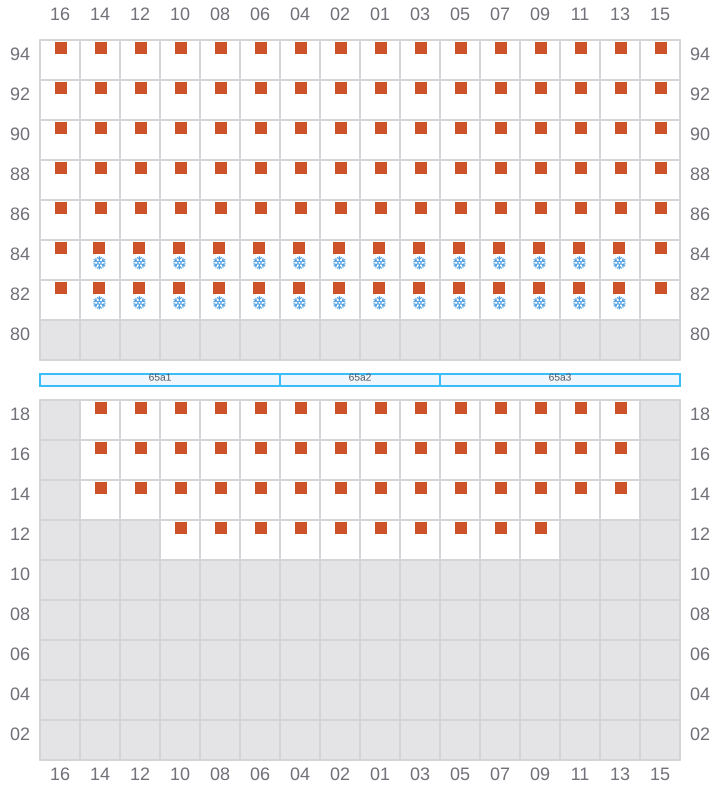

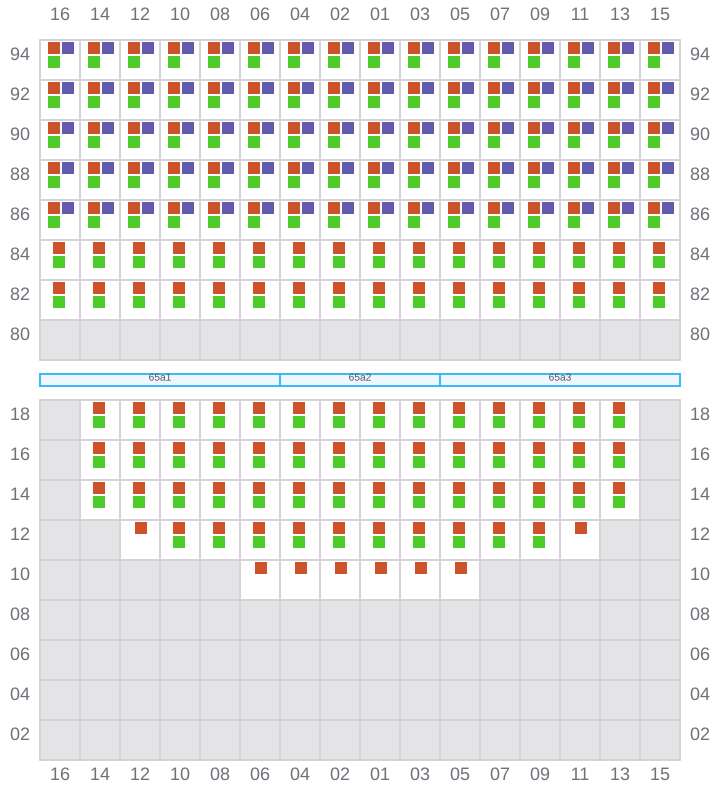

Bay 067 view and slots of NORTHERN MONUMENT

069 (070)

  • → / ?

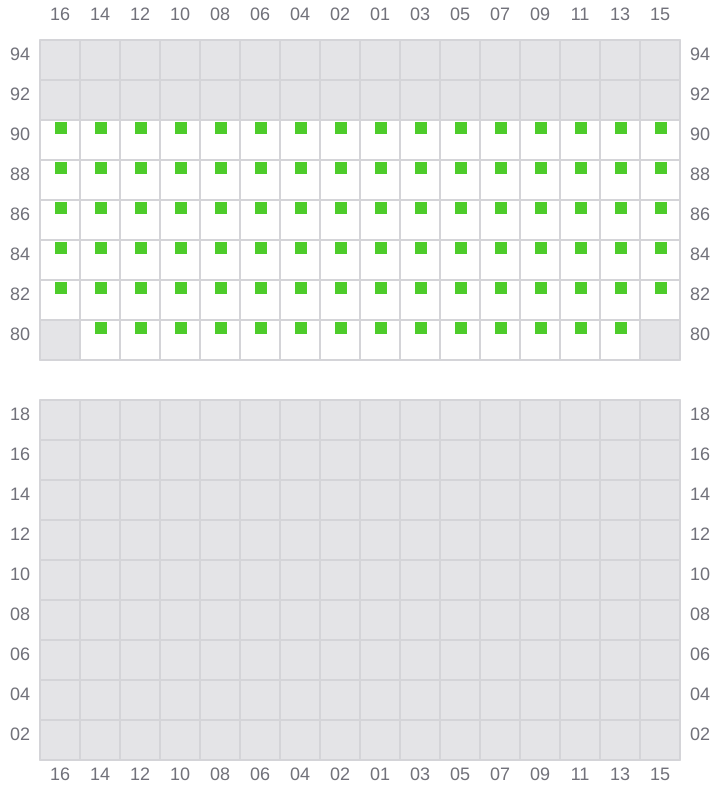

Bay 069 view and slots of NORTHERN MONUMENT
