NYK CONSTELLATION
9337626 | 3FCZ6 | NYK by *********************** Last update: Fri Jan 24 2025

General Info

Ship Name:NYK CONSTELLATION
IMO Code:9337626
Call Sign:3FCZ6
Line Operator:NYK
Class Name for Sister Ships:NCON
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):285.79
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,888

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

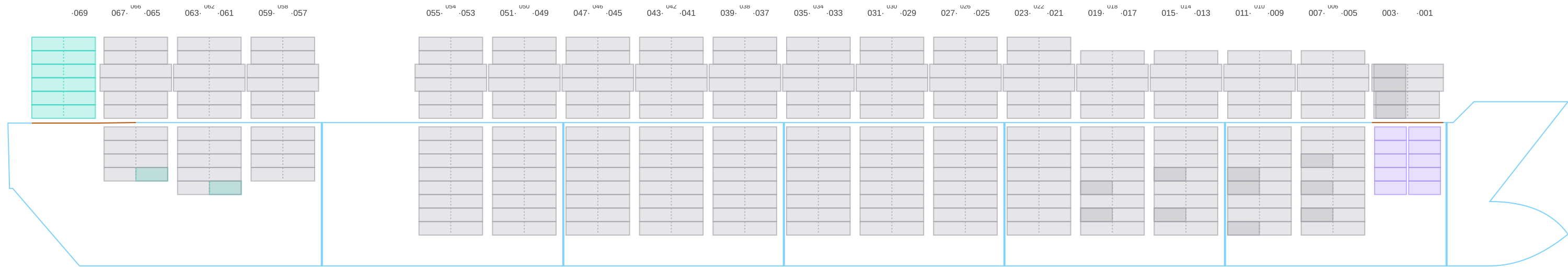

Side View

Side view of NYK CONSTELLATION

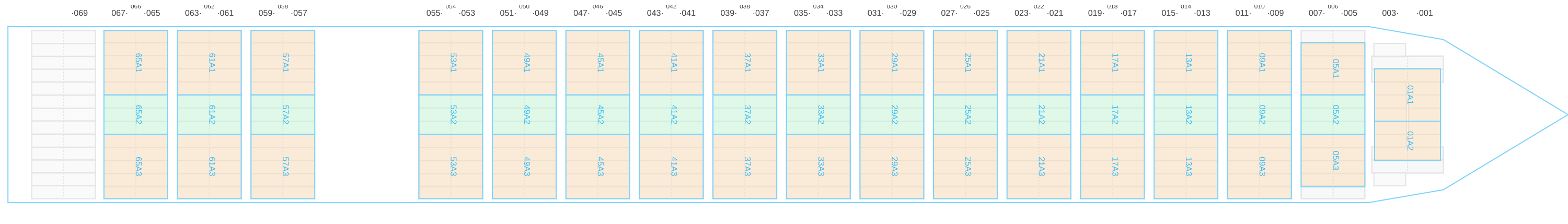

Hatch-Covers View

Deck view of NYK CONSTELLATION

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • → / ?
  • →

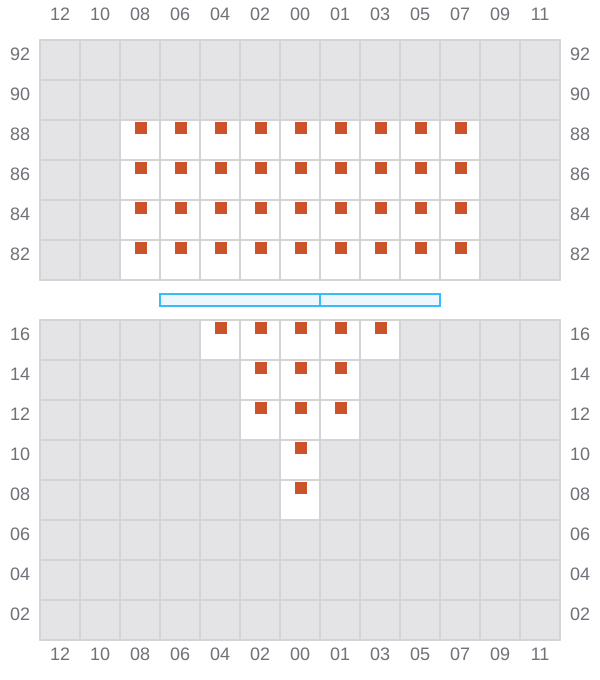

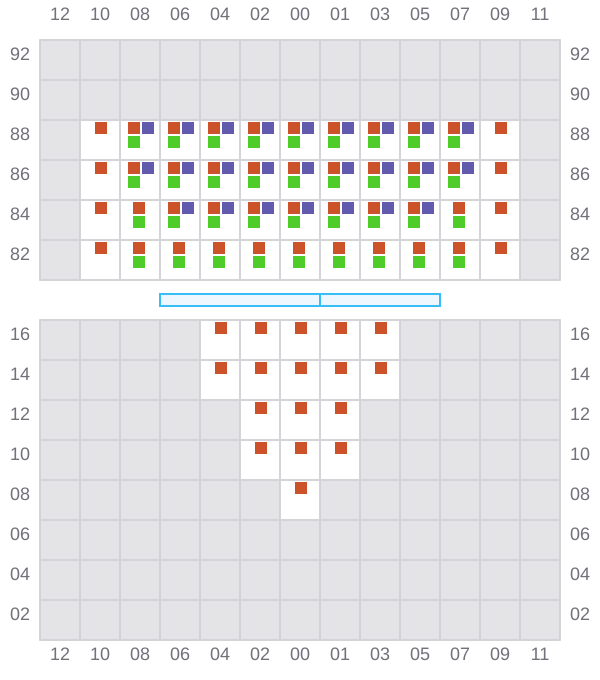

Bay 001 view and slots of NYK CONSTELLATION

003 (002)

  • ← / ?
  • →
Bay 003 view and slots of NYK CONSTELLATION

005

  • →
  • →
Bay 005 view and slots of NYK CONSTELLATION

007 (006)

  • ←
  • →

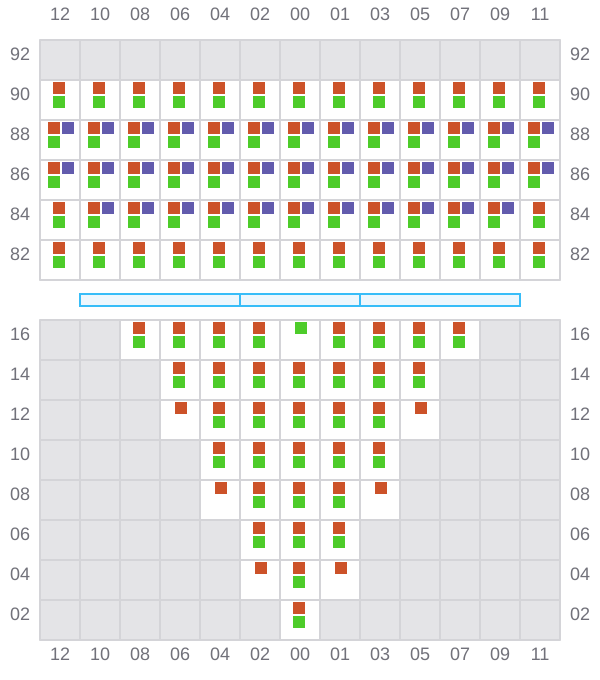

Bay 007 view and slots of NYK CONSTELLATION

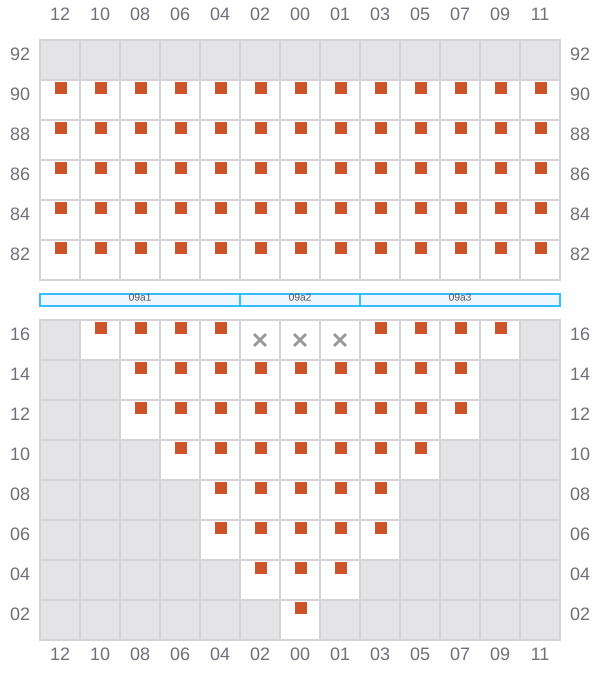

009

  • →
  • ? / →
Bay 009 view and slots of NYK CONSTELLATION

011 (010)

  • ←
  • →
Bay 011 view and slots of NYK CONSTELLATION

013

  • →
  • ← / ?
  • →

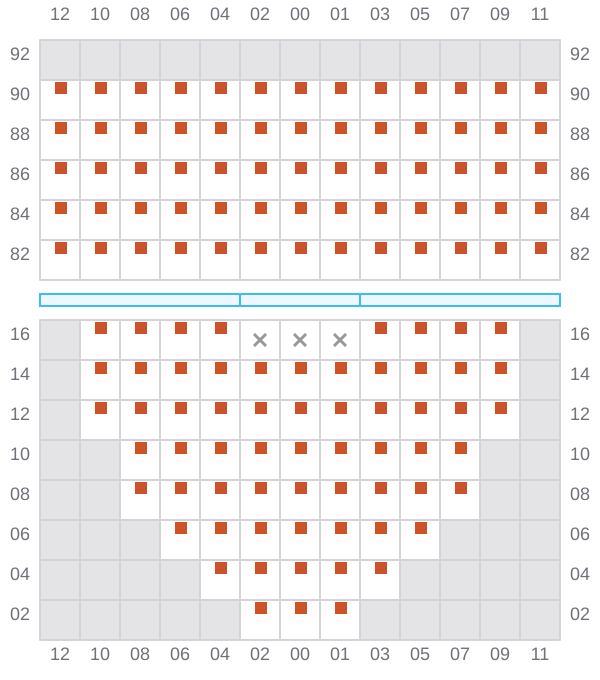

Bay 013 view and slots of NYK CONSTELLATION

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of NYK CONSTELLATION

017

  • →
  • ← / ?
  • →
Bay 017 view and slots of NYK CONSTELLATION

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of NYK CONSTELLATION

021

  • →
  • ← / ?
  • →
Bay 021 view and slots of NYK CONSTELLATION

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of NYK CONSTELLATION

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of NYK CONSTELLATION

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of NYK CONSTELLATION

029

  • →
  • ← / ?
  • →
Bay 029 view and slots of NYK CONSTELLATION

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of NYK CONSTELLATION

033

  • →
  • ← / ?
  • →
Bay 033 view and slots of NYK CONSTELLATION

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of NYK CONSTELLATION

037

  • →
  • ← / ?
  • →
Bay 037 view and slots of NYK CONSTELLATION

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of NYK CONSTELLATION

041

  • →
  • ← / ?
  • →

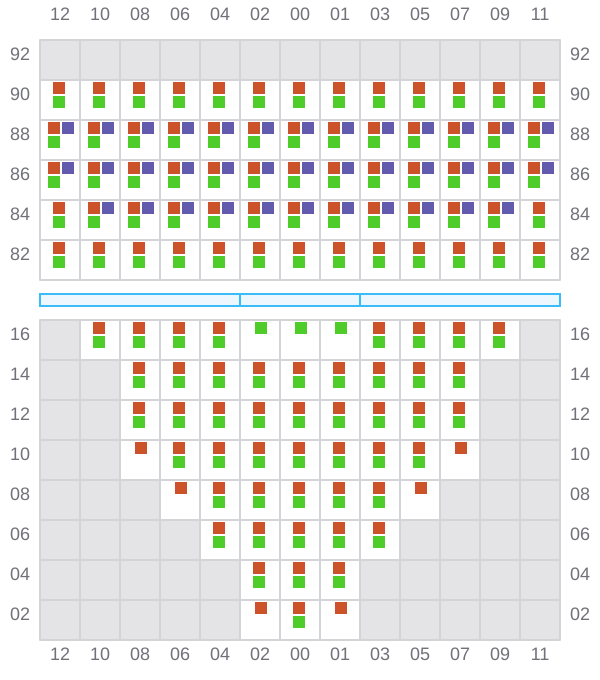

Bay 041 view and slots of NYK CONSTELLATION

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of NYK CONSTELLATION

045

  • →
  • ← / ?
  • →

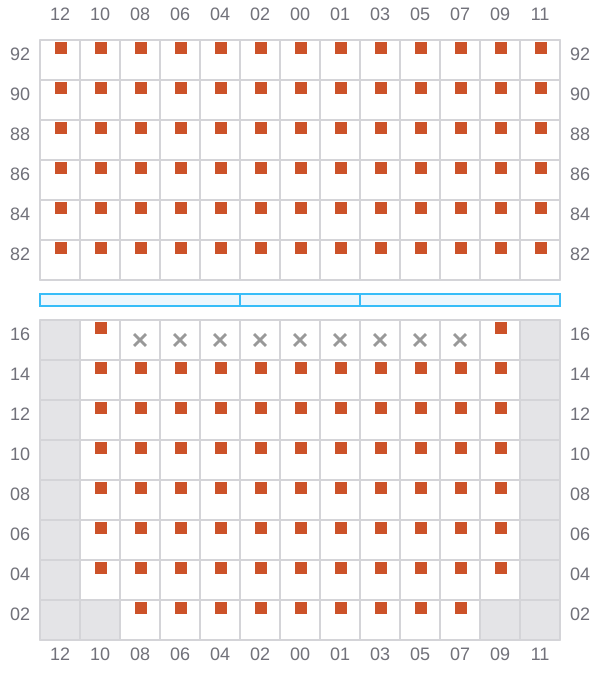

Bay 045 view and slots of NYK CONSTELLATION

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of NYK CONSTELLATION

049

  • →
  • ← / ?
  • →
Bay 049 view and slots of NYK CONSTELLATION

051 (050)

  • ←
  • → / ?
  • →

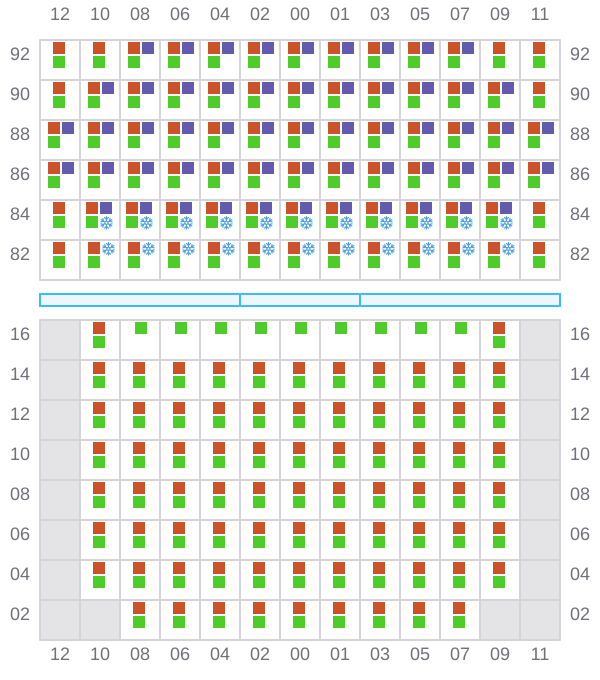

Bay 051 view and slots of NYK CONSTELLATION

053

  • →
  • ← / ?
  • →
Bay 053 view and slots of NYK CONSTELLATION

055 (054)

  • ←
  • → / ?
  • →

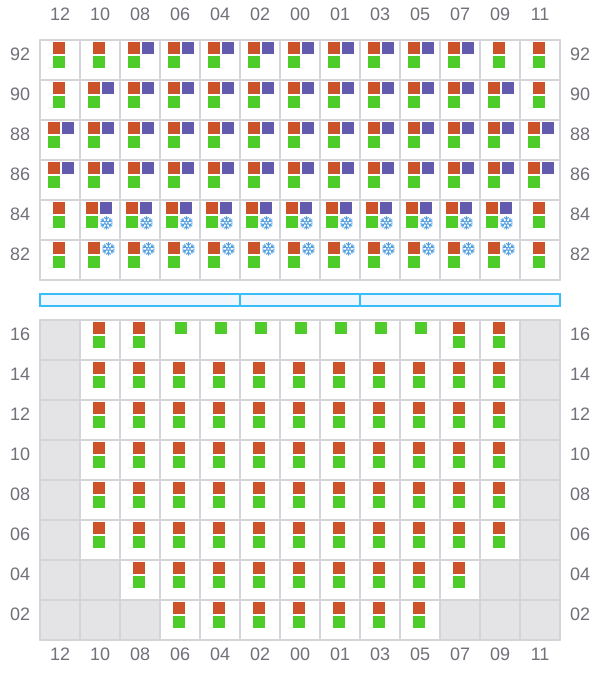

Bay 055 view and slots of NYK CONSTELLATION

057

  • →
  • ← / ?
  • →

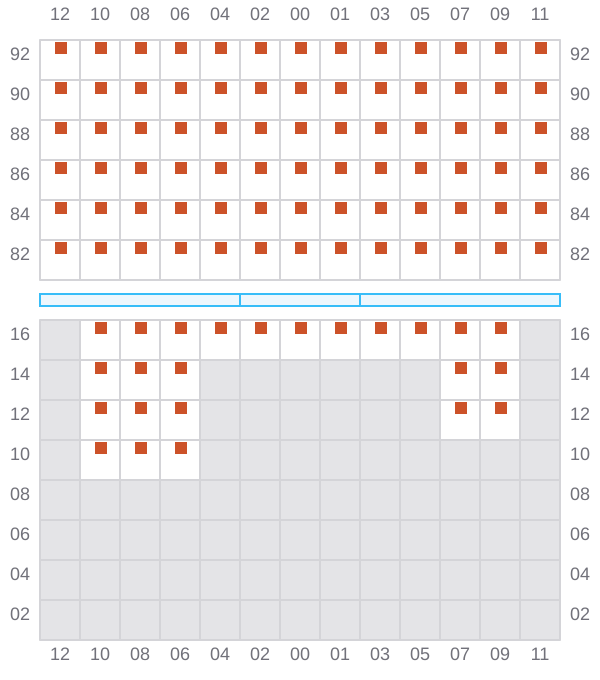

Bay 057 view and slots of NYK CONSTELLATION

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of NYK CONSTELLATION

061

  • →
  • ← / ?
  • →

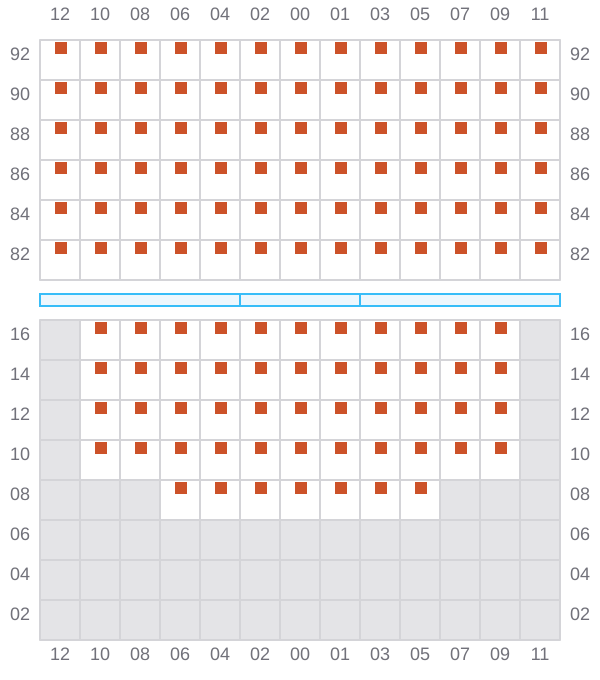

Bay 061 view and slots of NYK CONSTELLATION

063 (062)

  • ←
  • → / ?
  • →

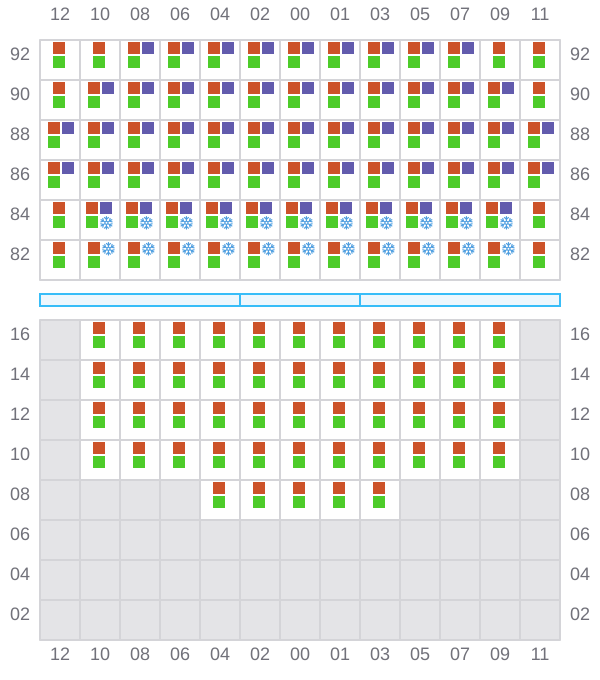

Bay 063 view and slots of NYK CONSTELLATION

065

  • →
  • ← / ?
  • →

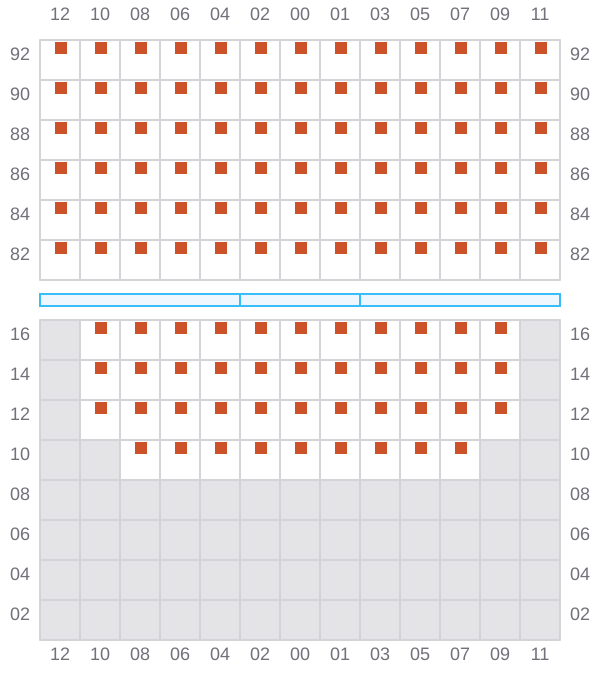

Bay 065 view and slots of NYK CONSTELLATION

067 (066)

  • ←
  • → / ?
  • →

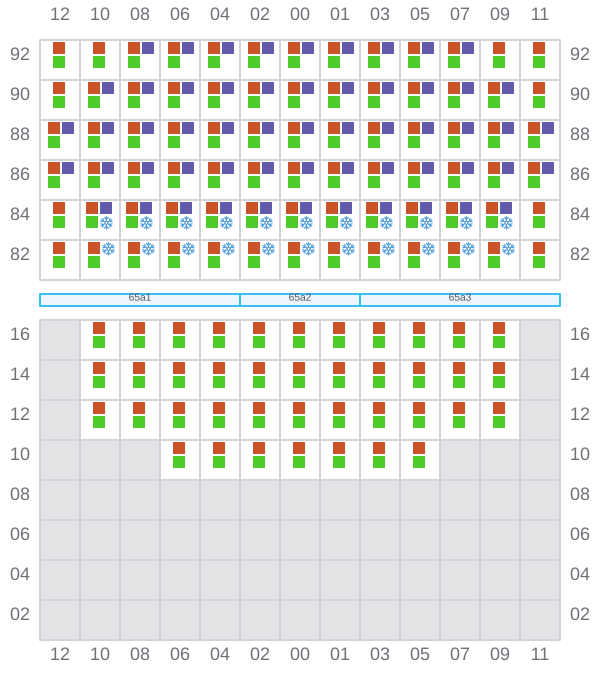

Bay 067 view and slots of NYK CONSTELLATION

069 (070)

  • → / ?
  • ← / ?
  • → / ?

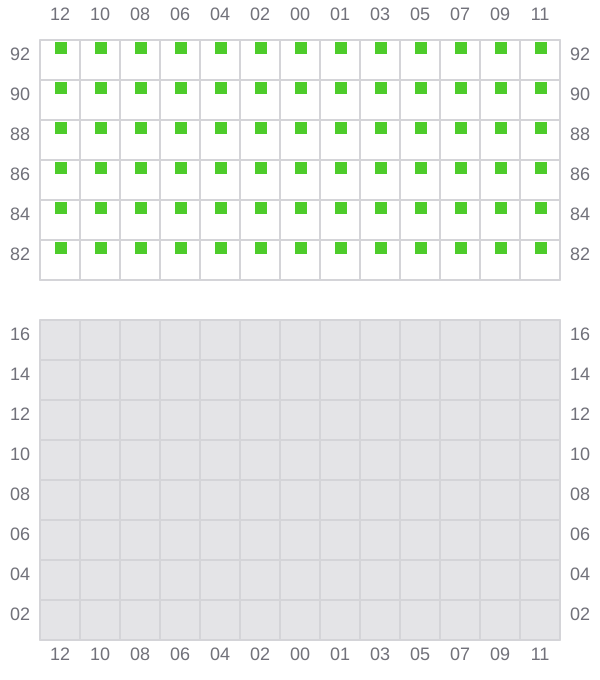

Bay 069 view and slots of NYK CONSTELLATION
