NYK SILVIA
9419656 | V7A5587 | 9419656 by ********* Last update: Fri Jul 12 2024
General Info
Ship Name:NYK SILVIA
IMO Code:9419656
Call Sign:V7A5587
Line Operator:9419656
Class Name for Sister Ships:CMA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,672
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

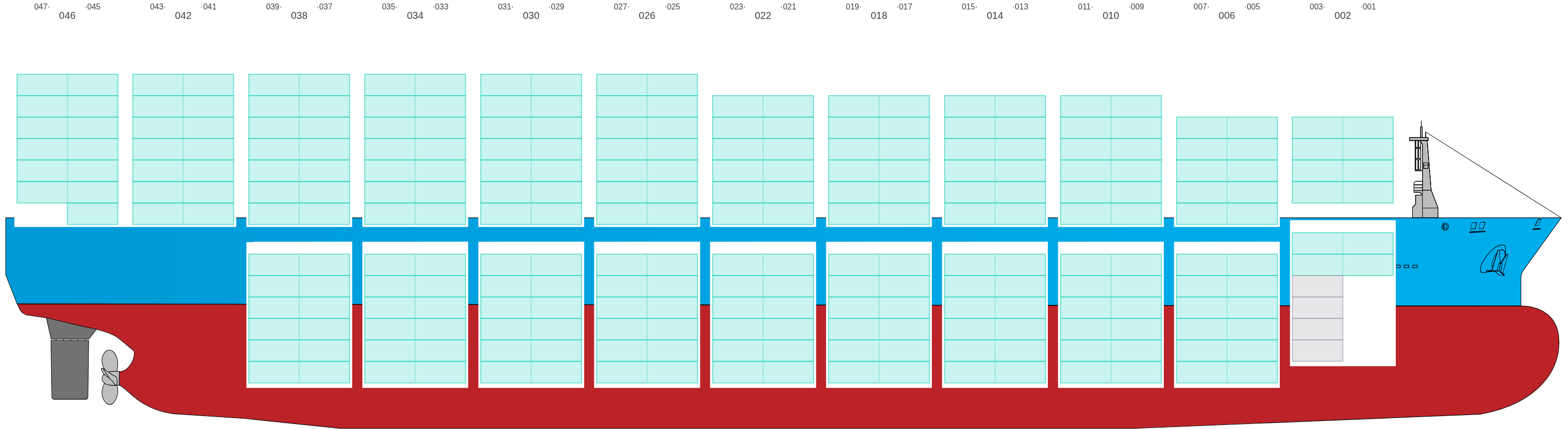

Side View
![Side view of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-sideView.png?v=1720803485912)
Hatch-Covers View
![Deck view of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-deckView.png?v=1720803485912)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

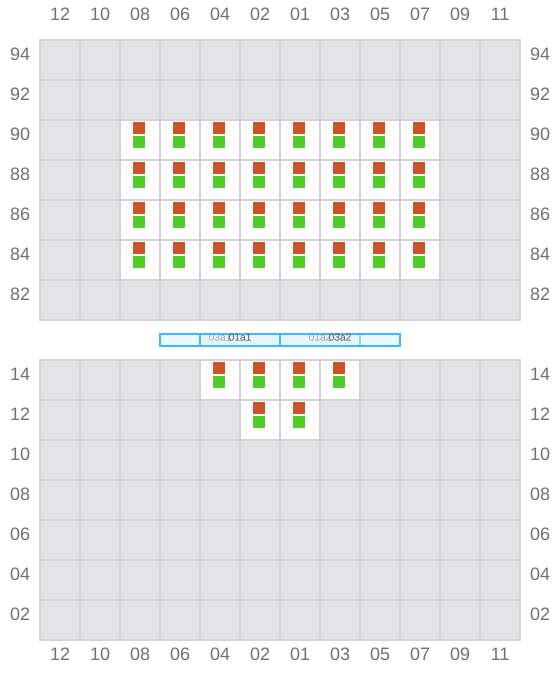

001 (002)
- →
![Bay 001 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b001.png?v=1720803485912)

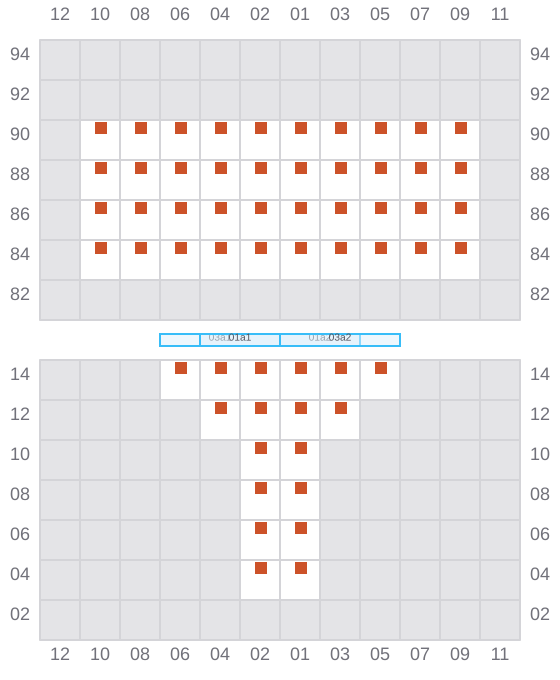

003
- ←
![Bay 003 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b003.png?v=1720803485912)

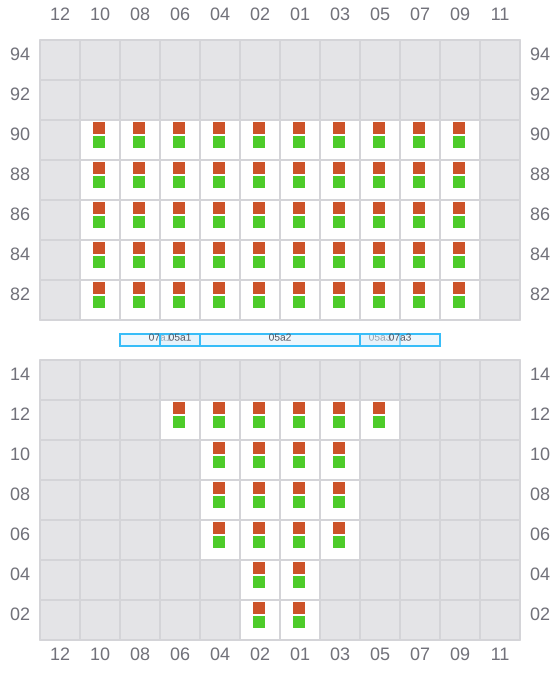

005 (006)
- →
![Bay 005 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b005.png?v=1720803485912)

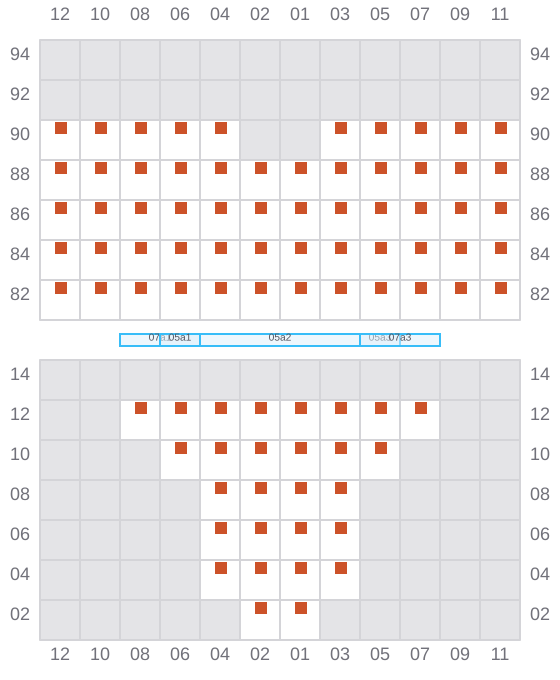

007
- ←
![Bay 007 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b007.png?v=1720803485912)

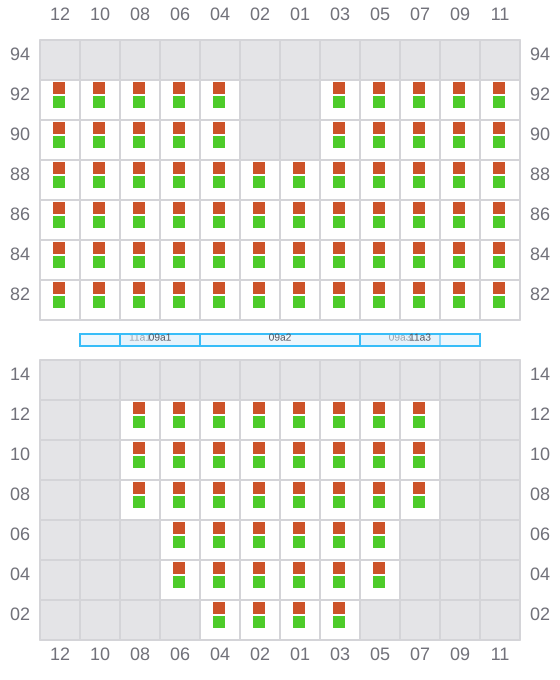

009 (010)
- →
![Bay 009 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b009.png?v=1720803485912)

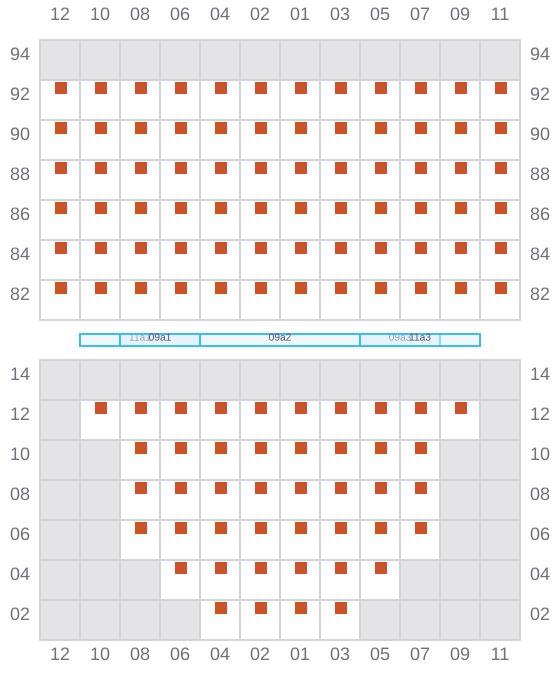

011
- ←
![Bay 011 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b011.png?v=1720803485912)

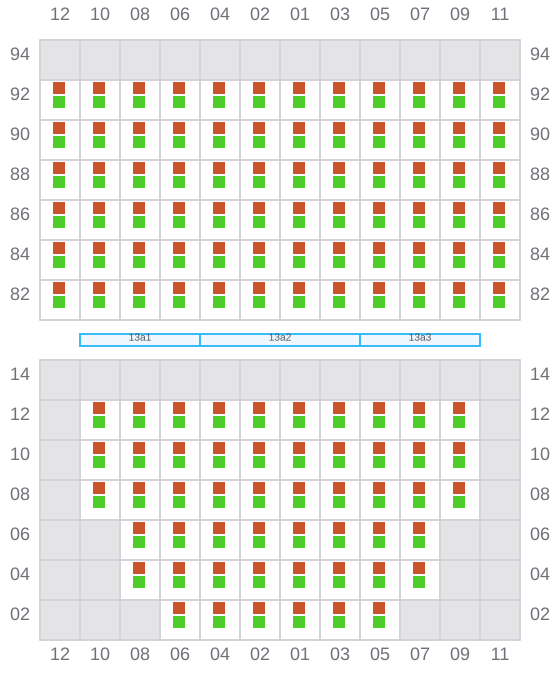

013 (014)
- →
![Bay 013 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b013.png?v=1720803485912)
015
- ←
![Bay 015 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b015.png?v=1720803485912)

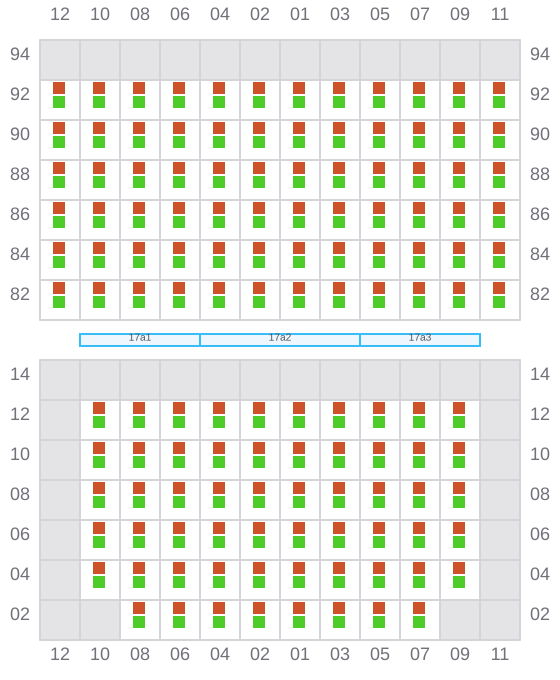

017 (018)
- →
![Bay 017 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b017.png?v=1720803485912)

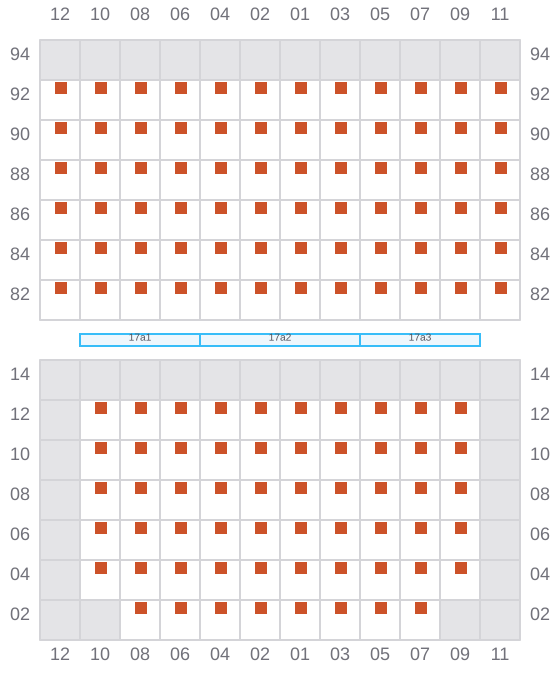

019
- ←
![Bay 019 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b019.png?v=1720803485912)
021 (022)
- →
![Bay 021 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b021.png?v=1720803485912)

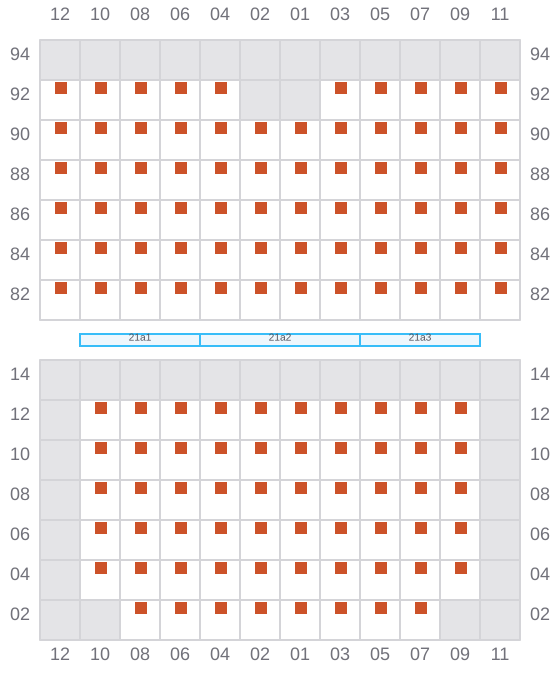

023
- ←
![Bay 023 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b023.png?v=1720803485912)

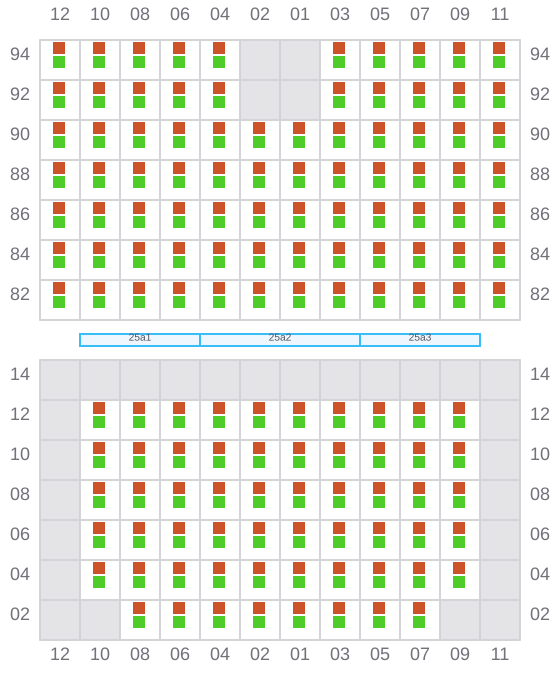

025 (026)
- →
![Bay 025 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b025.png?v=1720803485912)

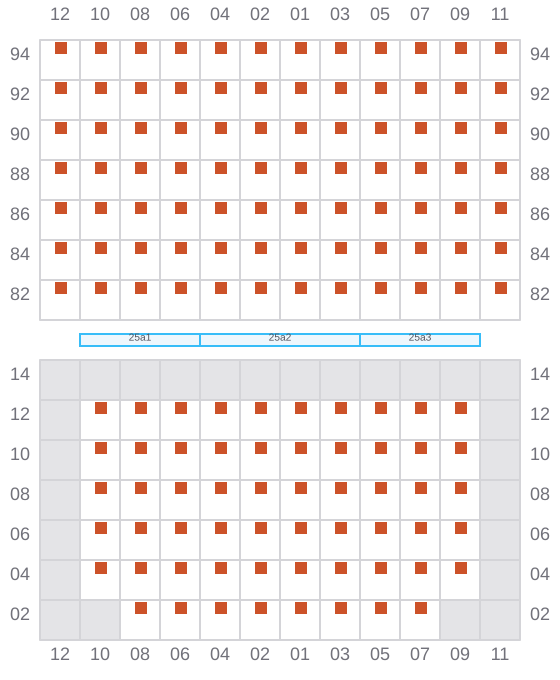

027
- ←
![Bay 027 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b027.png?v=1720803485912)

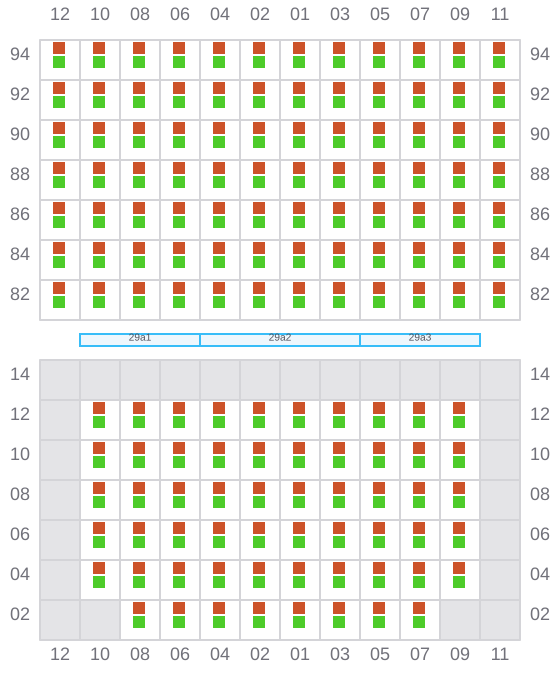

029 (030)
- →
![Bay 029 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b029.png?v=1720803485912)

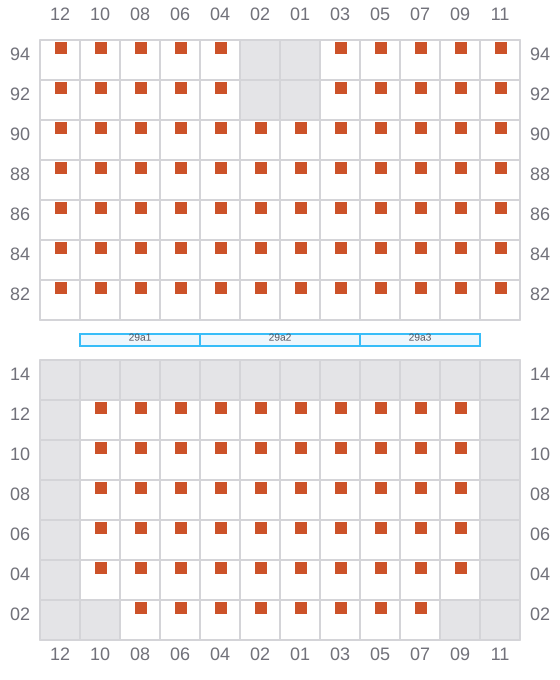

031
- ←
![Bay 031 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b031.png?v=1720803485912)

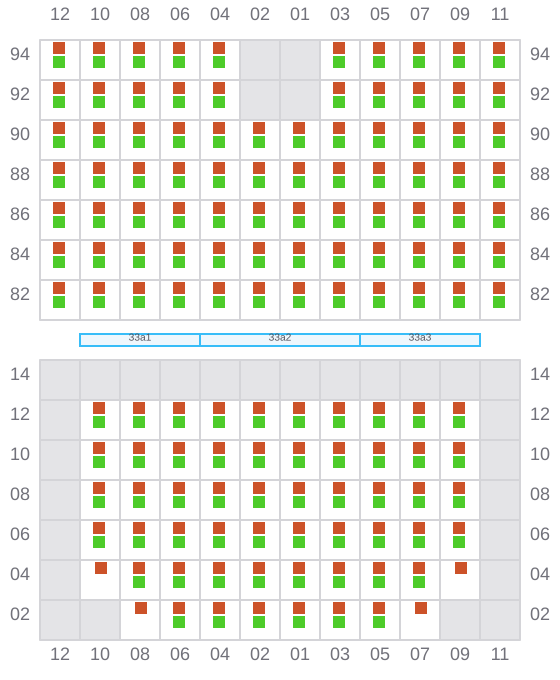

033 (034)
- →
![Bay 033 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b033.png?v=1720803485912)

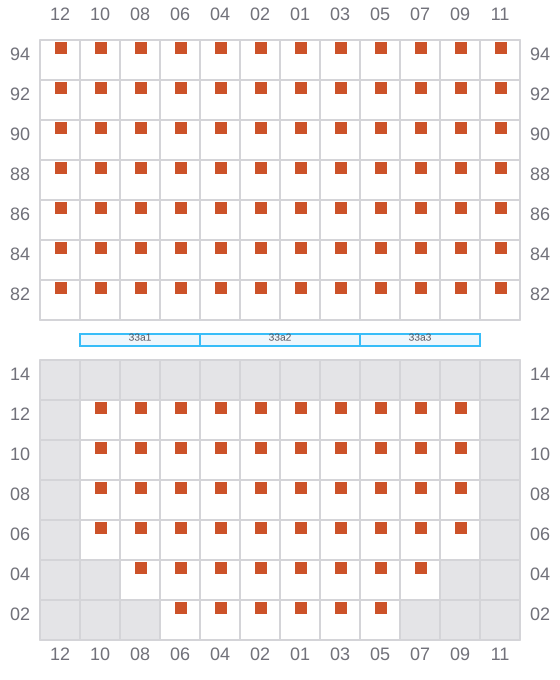

035
- ←
![Bay 035 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b035.png?v=1720803485912)

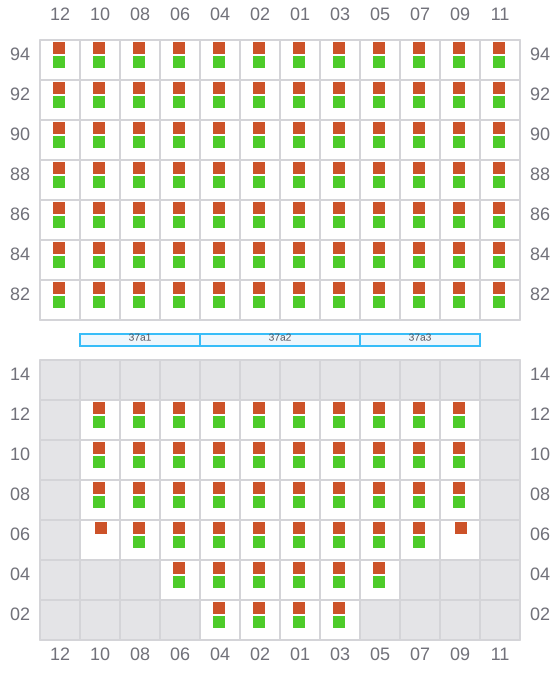

037 (038)
- →
![Bay 037 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b037.png?v=1720803485912)

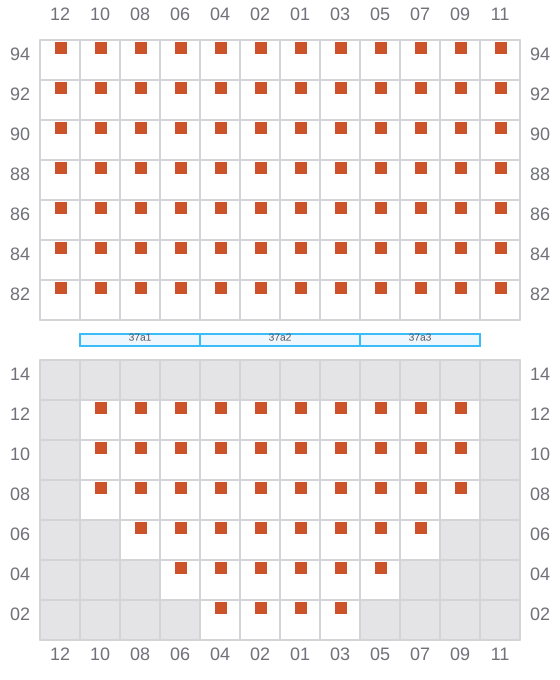

039
- ←
![Bay 039 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b039.png?v=1720803485912)

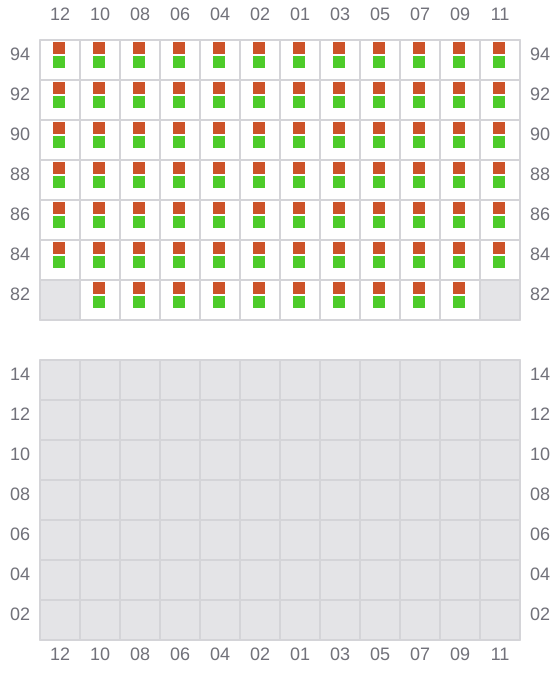

041 (042)
- → / ?
![Bay 041 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b041.png?v=1720803485912)

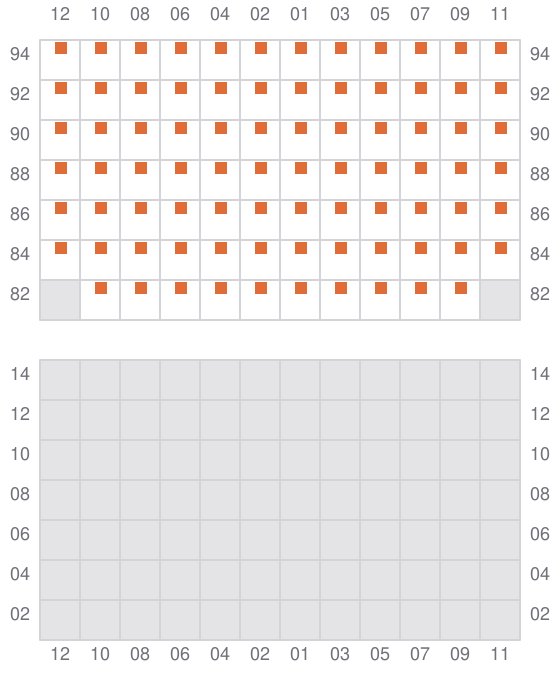

043
- ← / ?
![Bay 043 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b043.png?v=1720803485912)

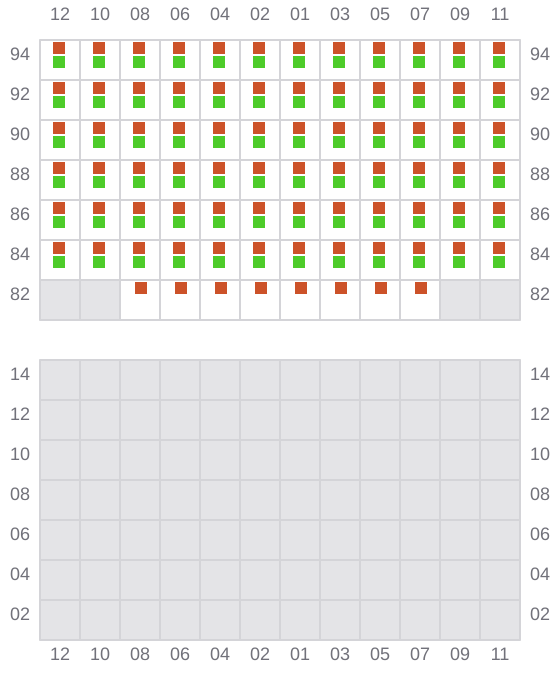

045 (046)
- → / ?
![Bay 045 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b045.png?v=1720803485912)

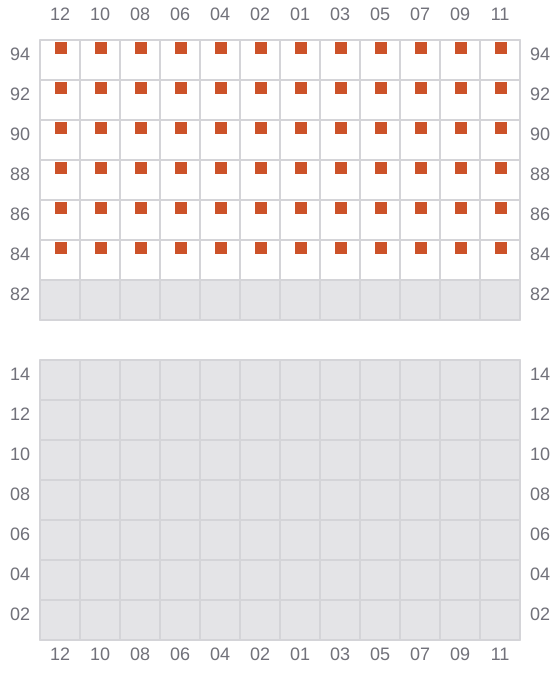

047
- ← / ?
![Bay 047 view and slots of NYK SILVIA](/vessel-images/2600d159-8f9f-4da7-b61a-6046b5c5e0ed-b047.png?v=1720803485912)
