OAKLAND EXPRESS
9667174 | D5QZ4 | EVG by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:OAKLAND EXPRESS

IMO Code:9667174

Call Sign:D5QZ4

Line Operator:EVG

Class Name for Sister Ships:ETDX

Year Built:2014

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):352.00

LOA (Length Overall):368.50

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:THALASSA DOXA

Size Summary

ISO Bays:085

Max ISO Row:20

Center Line Row:No

Max Above ISO Tier:98

Min Above ISO Tier:82

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,802

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

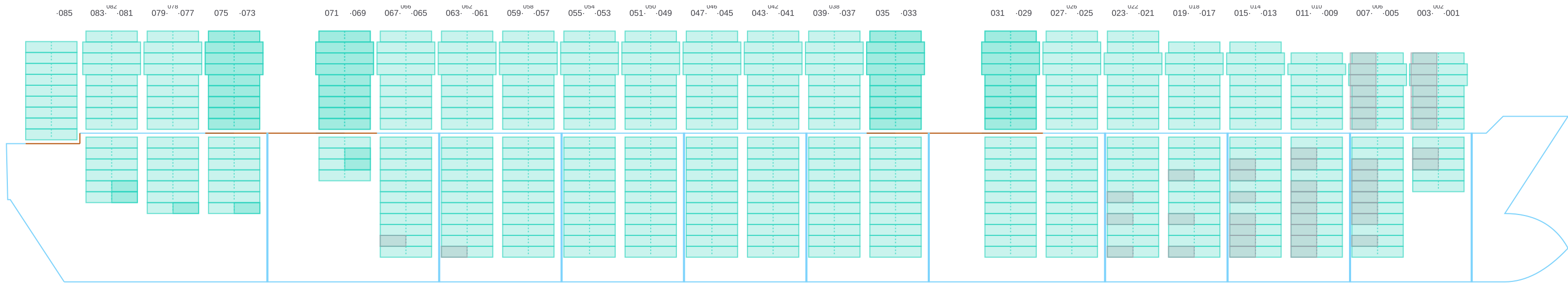

Side View

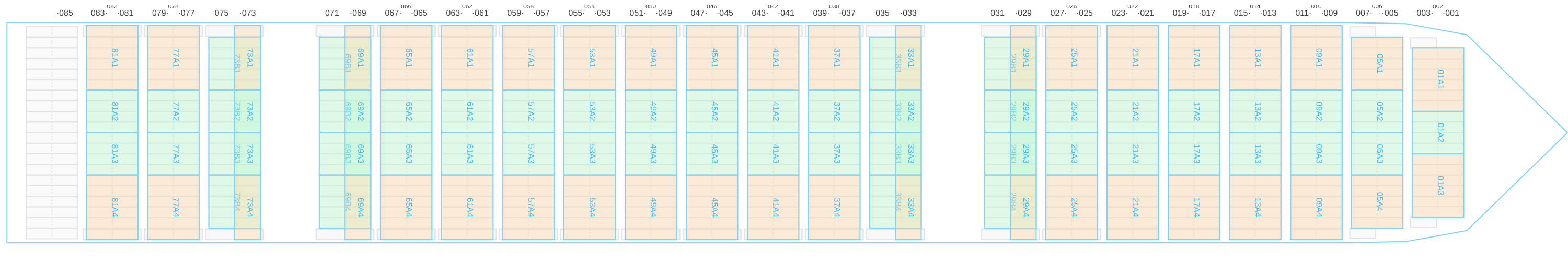

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→
^→ / _?
→

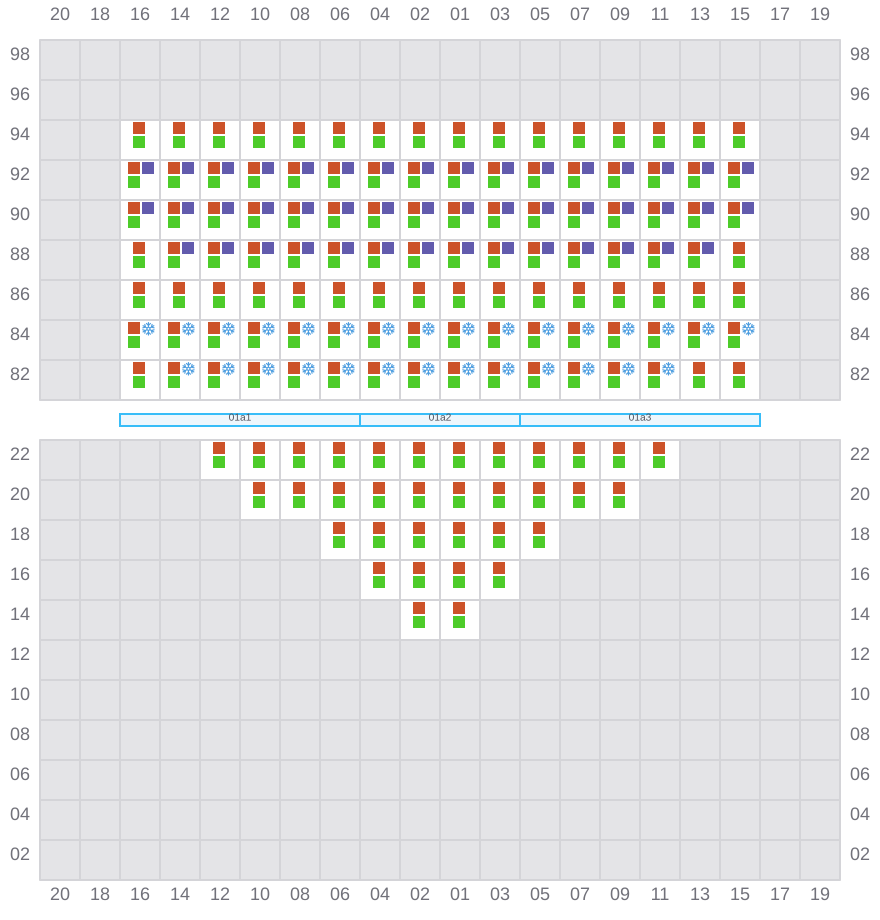

Bay 001 view and slots of OAKLAND EXPRESS

003

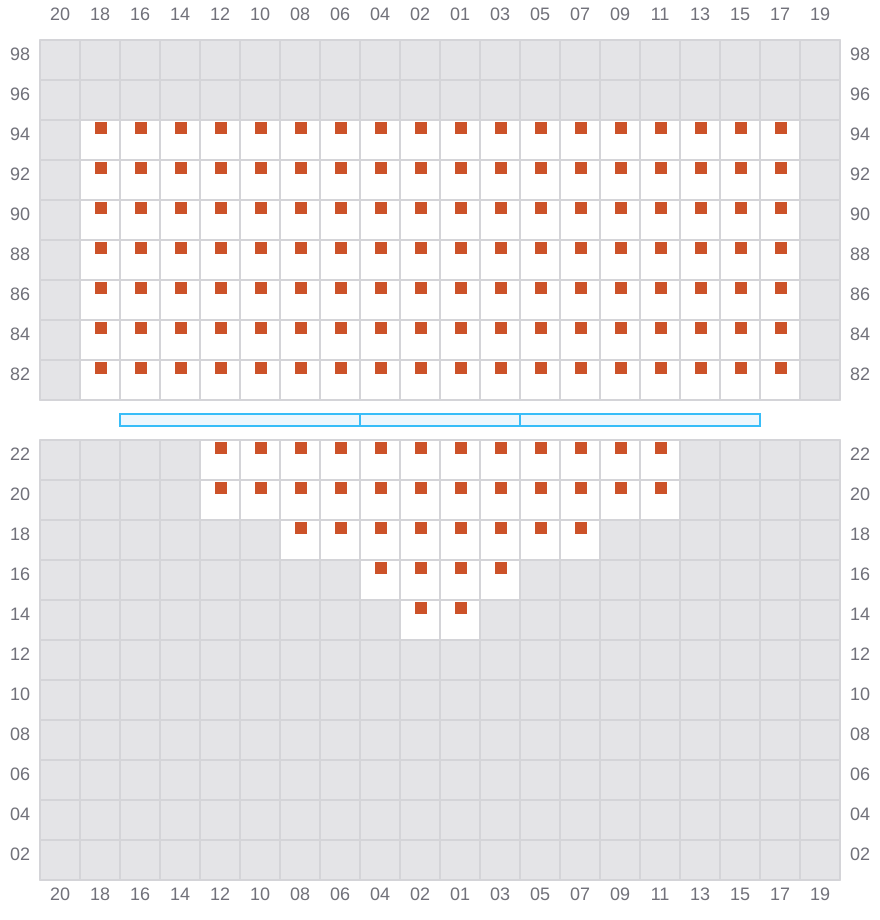

Bay 003 view and slots of OAKLAND EXPRESS

005 (006)

→
^→ / _?
→

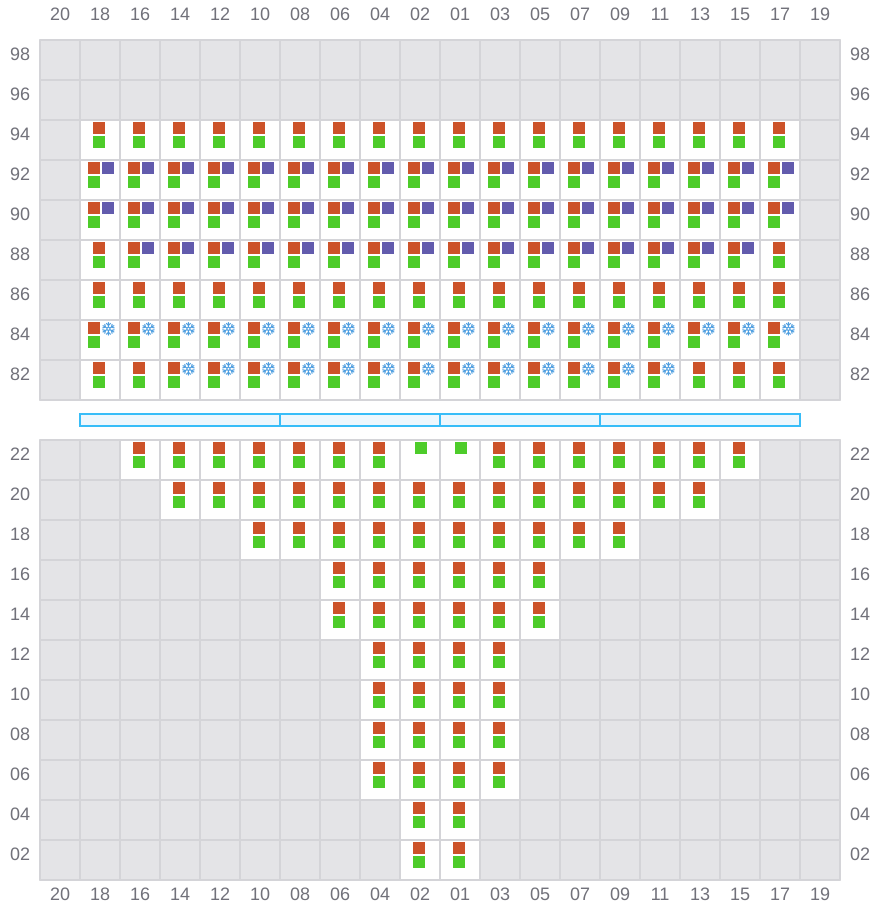

Bay 005 view and slots of OAKLAND EXPRESS

007

←
^→ / _?
→

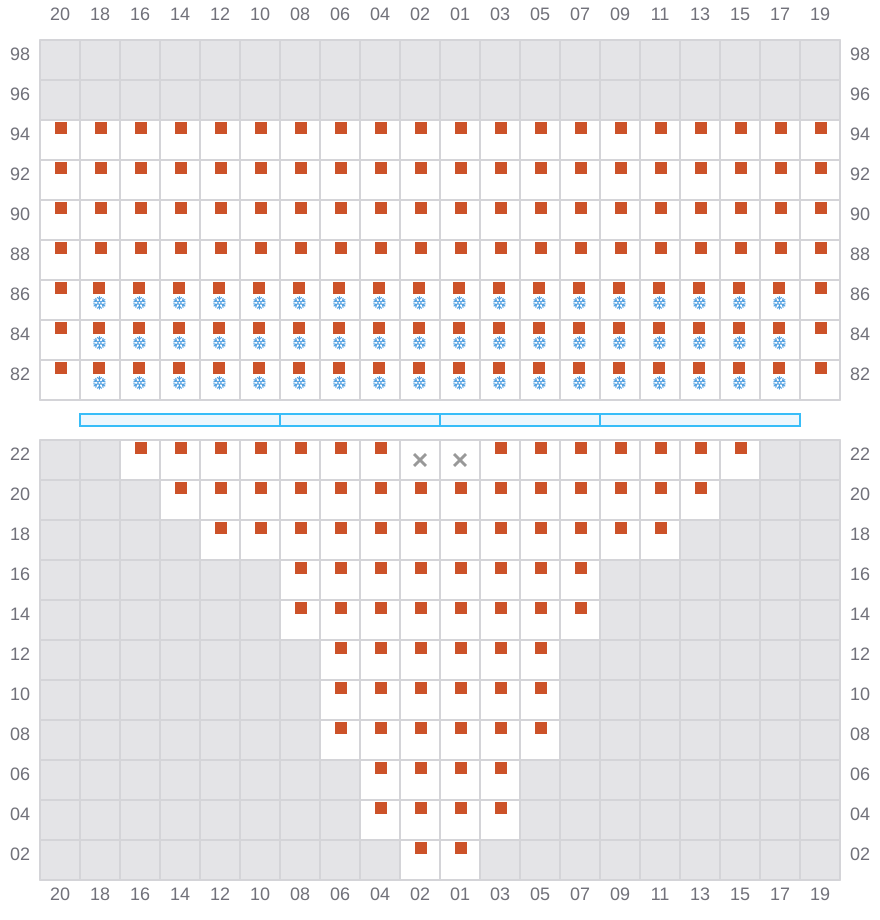

Bay 007 view and slots of OAKLAND EXPRESS

009 (010)

→
^→ / _?
→

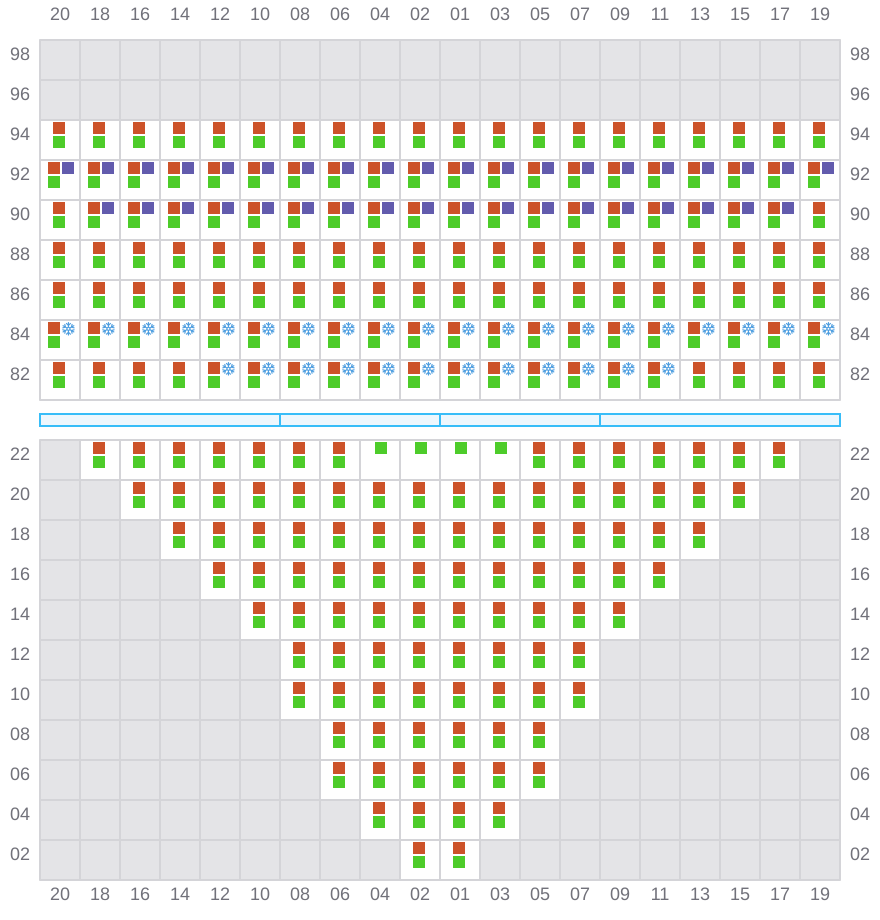

Bay 009 view and slots of OAKLAND EXPRESS

011

←
^→ / _?
→

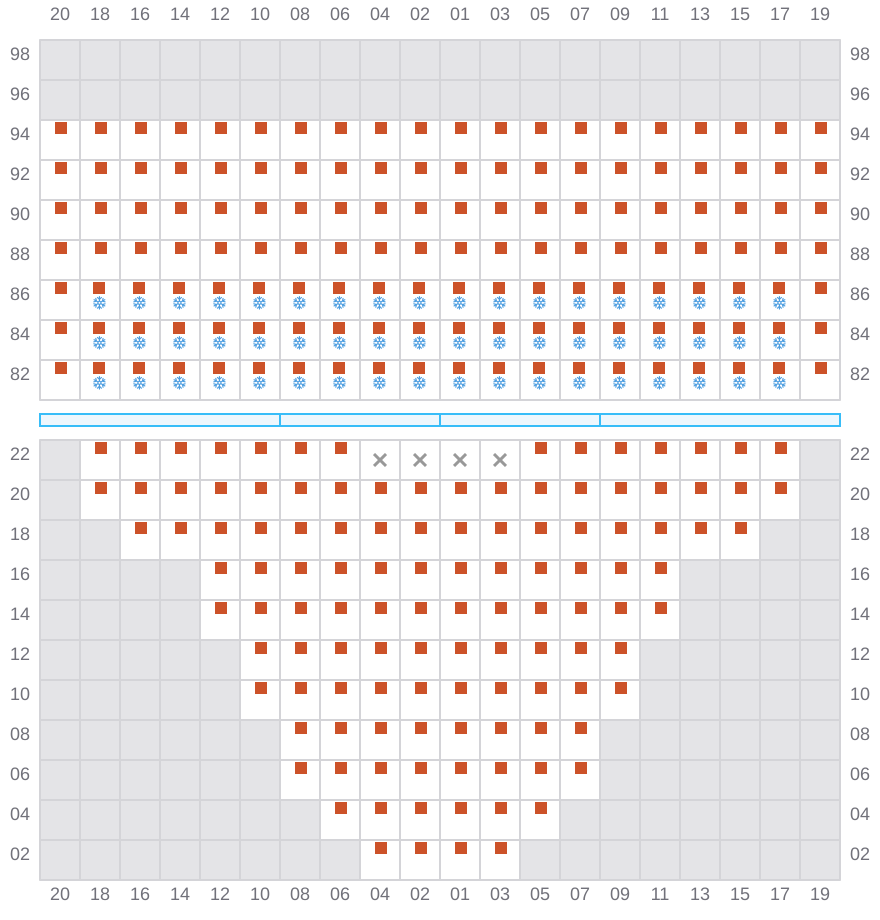

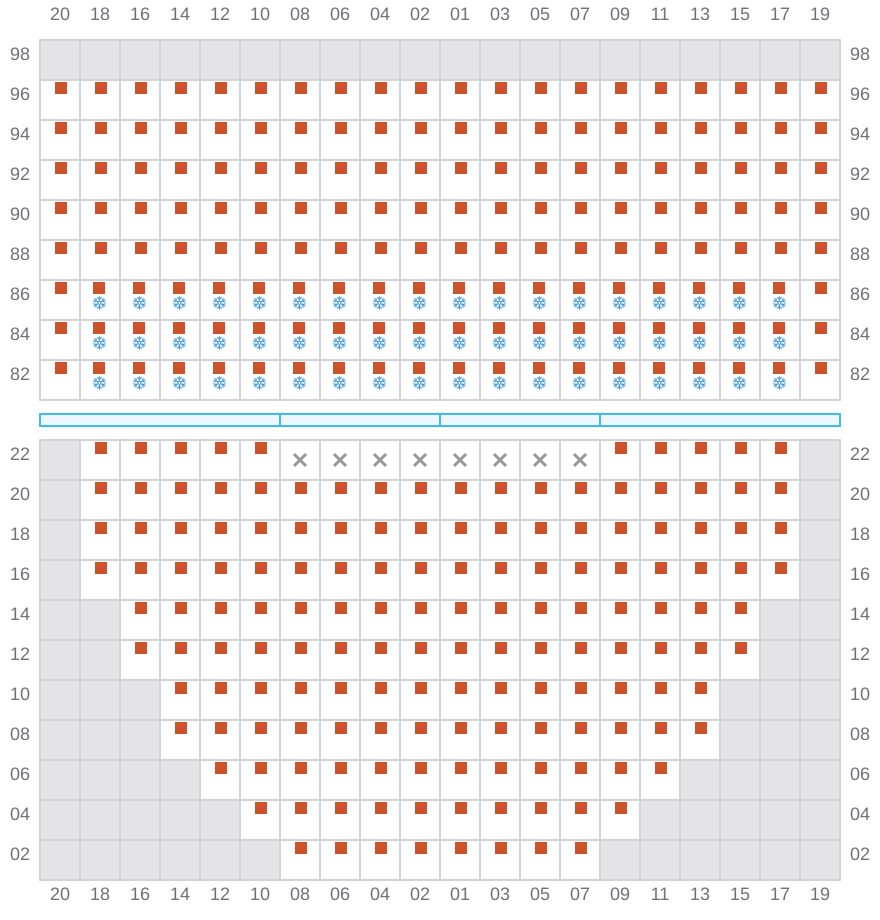

Bay 011 view and slots of OAKLAND EXPRESS

013 (014)

→
^→ / _?
→

Bay 013 view and slots of OAKLAND EXPRESS

015

←
^→ / _?
→

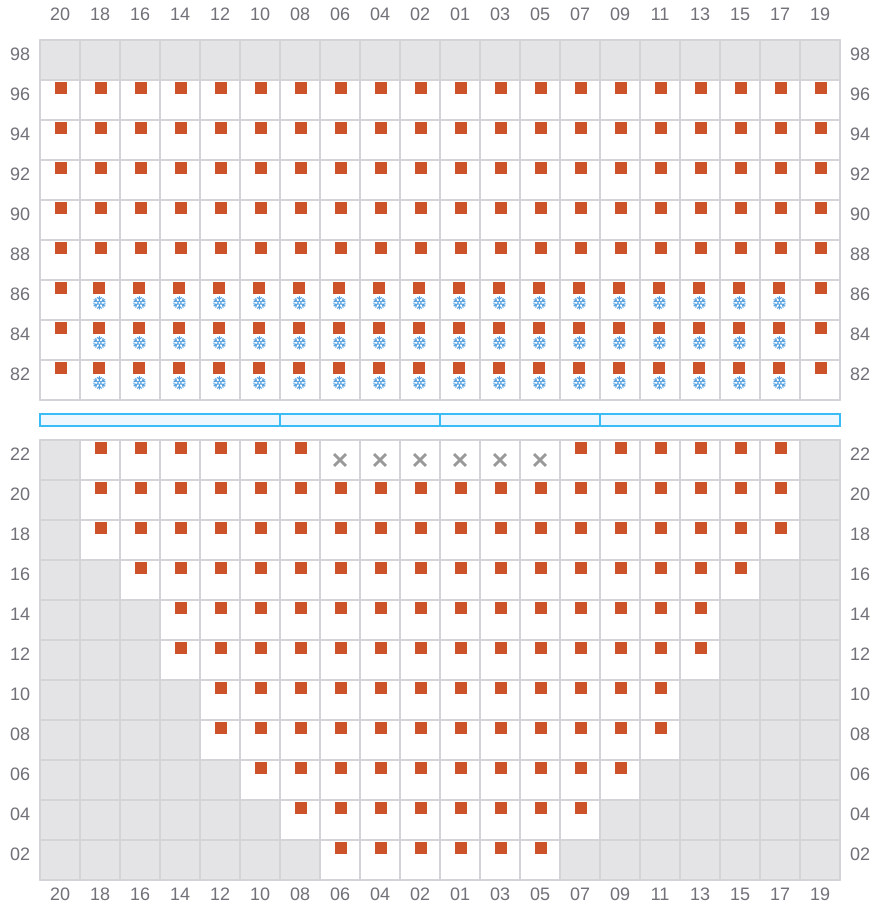

Bay 015 view and slots of OAKLAND EXPRESS

017 (018)

→
^→ / _?
→

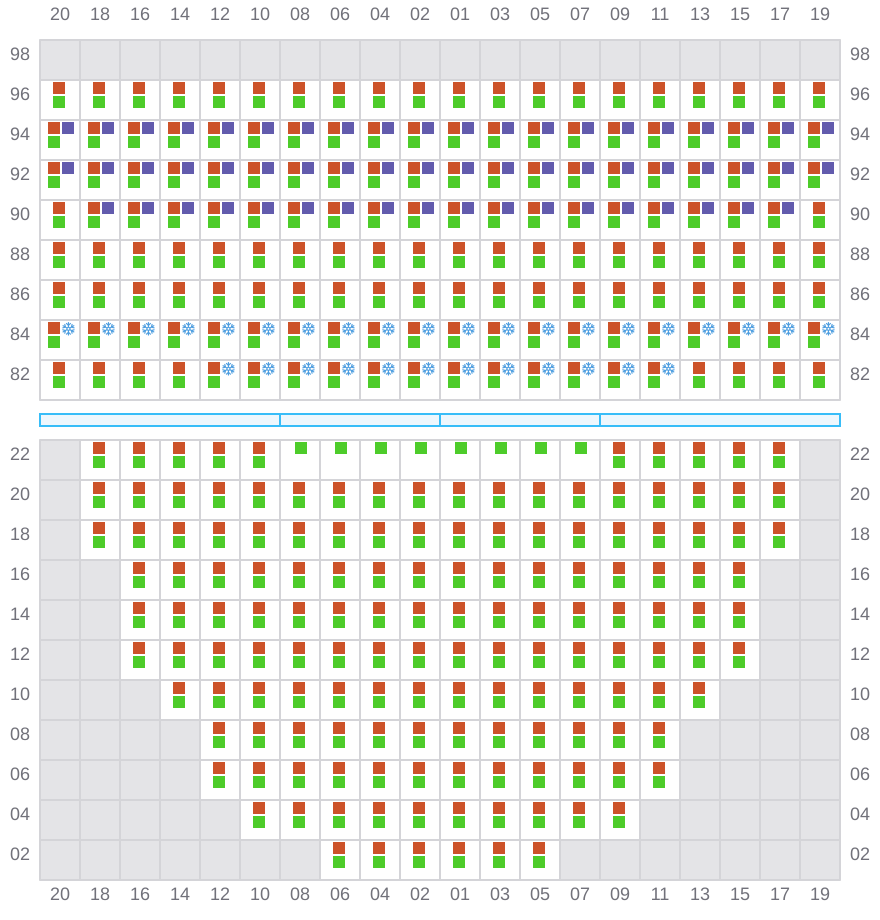

Bay 017 view and slots of OAKLAND EXPRESS

019

←
^→ / _?
→

Bay 019 view and slots of OAKLAND EXPRESS

021 (022)

→
^→ / _?
→

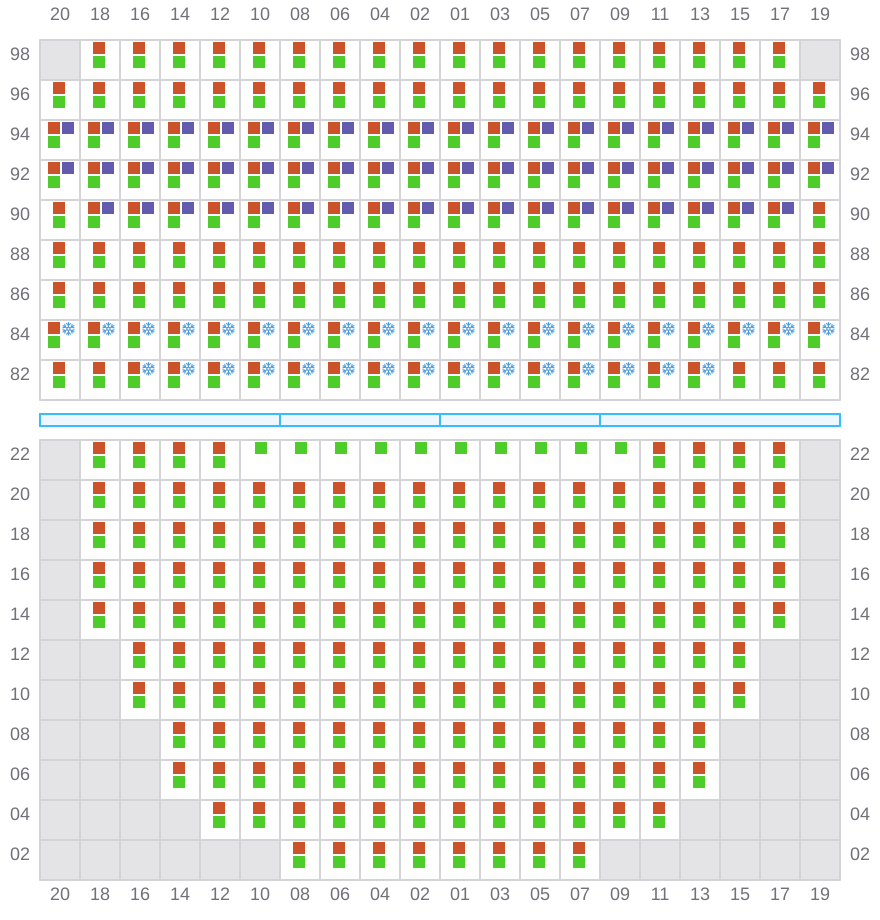

Bay 021 view and slots of OAKLAND EXPRESS

023

←
^→ / _?
→

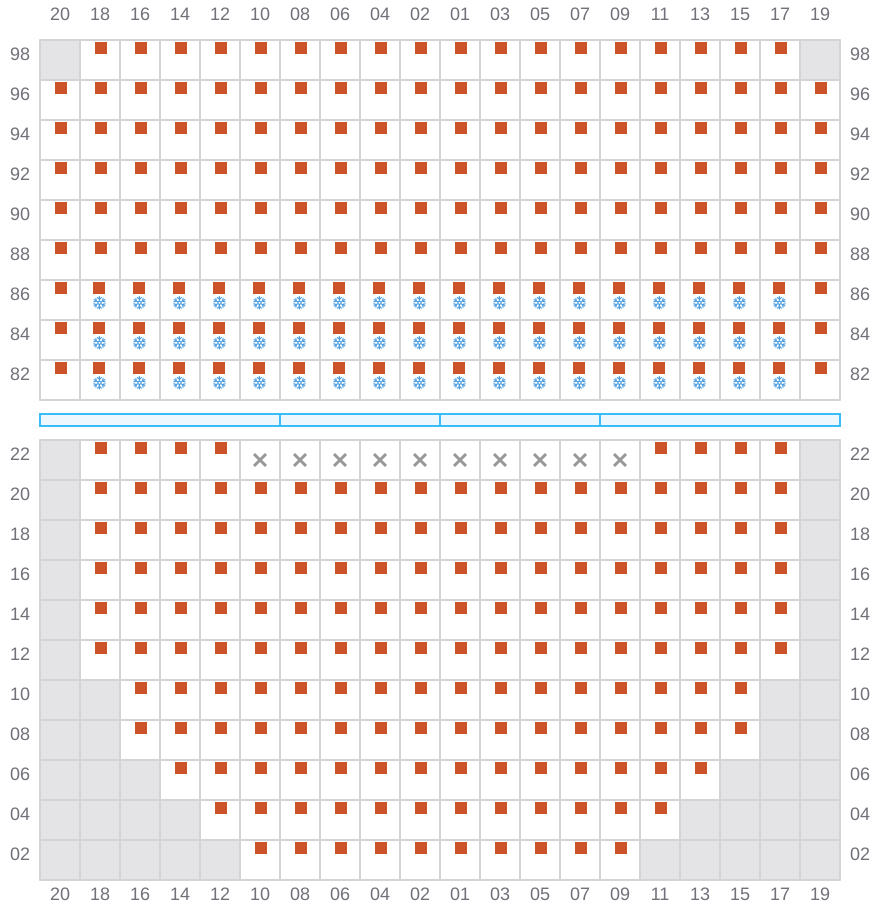

Bay 023 view and slots of OAKLAND EXPRESS

025 (026)

→
^→ / _?
→

Bay 025 view and slots of OAKLAND EXPRESS

027

←
^→ / _?
→

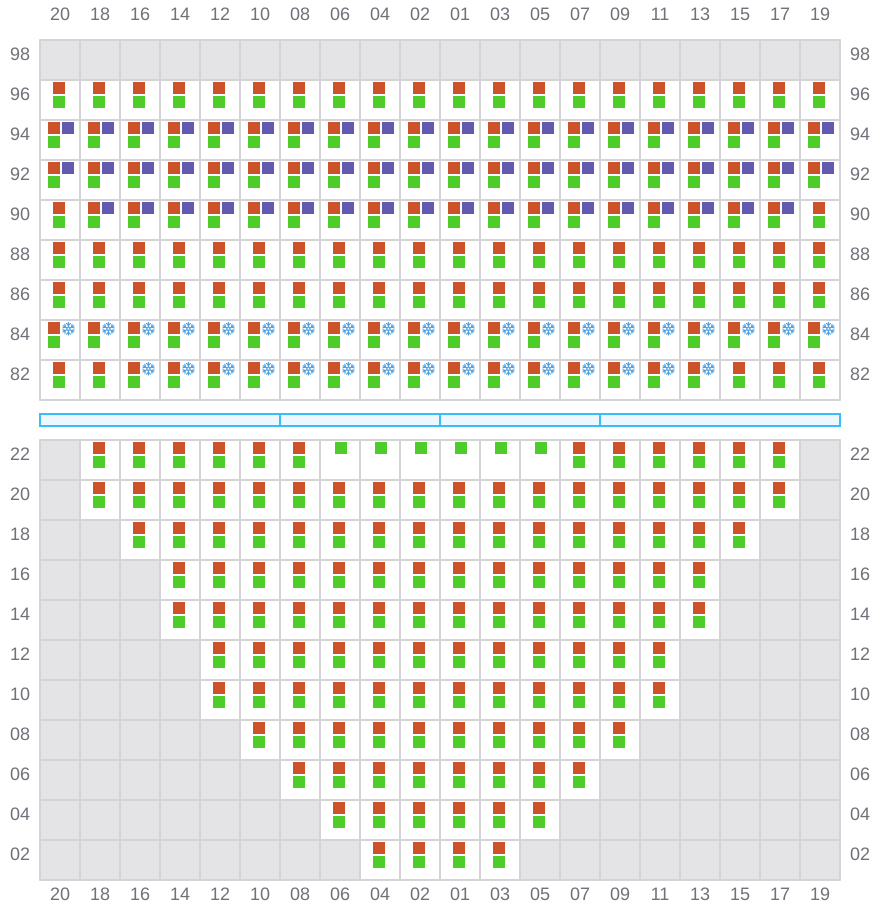

Bay 027 view and slots of OAKLAND EXPRESS

029 (030)

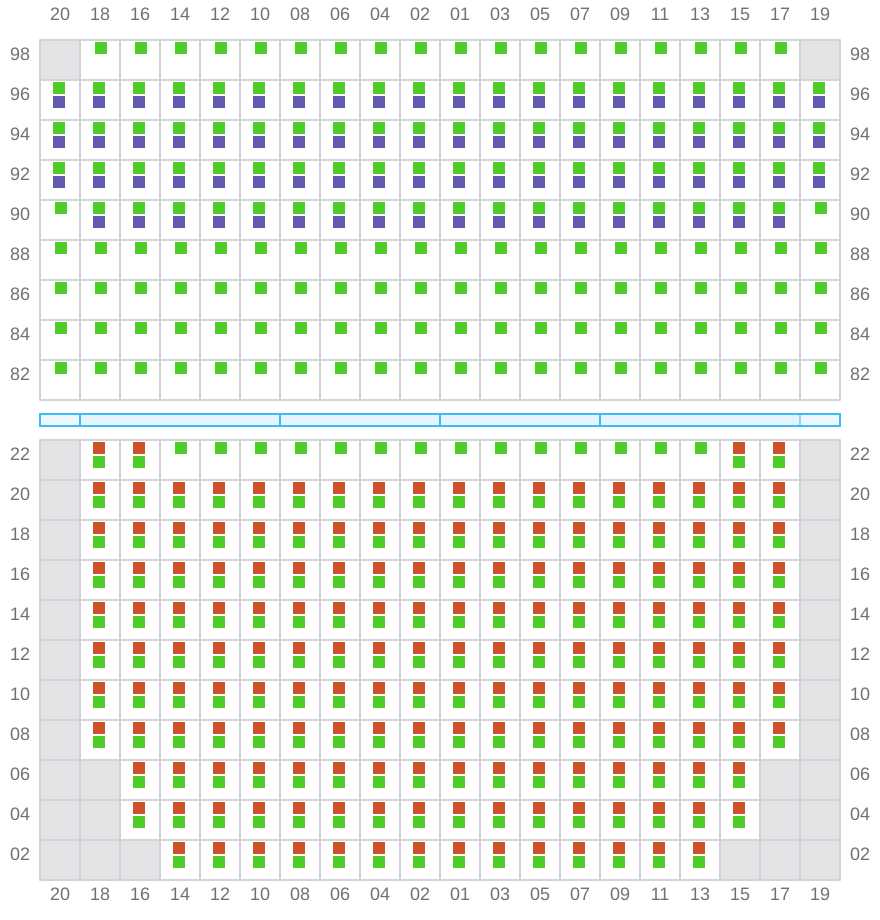

Bay 029 view and slots of OAKLAND EXPRESS

031

^? / _←
^? / _→

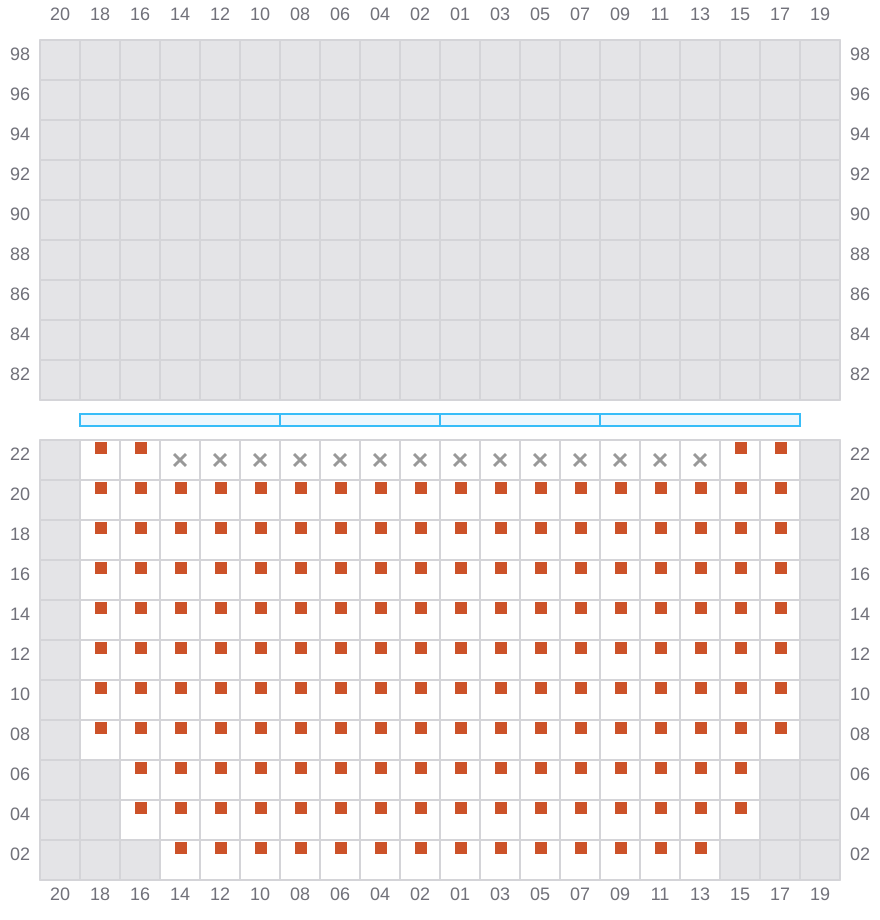

Bay 031 view and slots of OAKLAND EXPRESS

033 (034)

→
^→ / _?
→

Bay 033 view and slots of OAKLAND EXPRESS

035

^? / _←
^? / _→

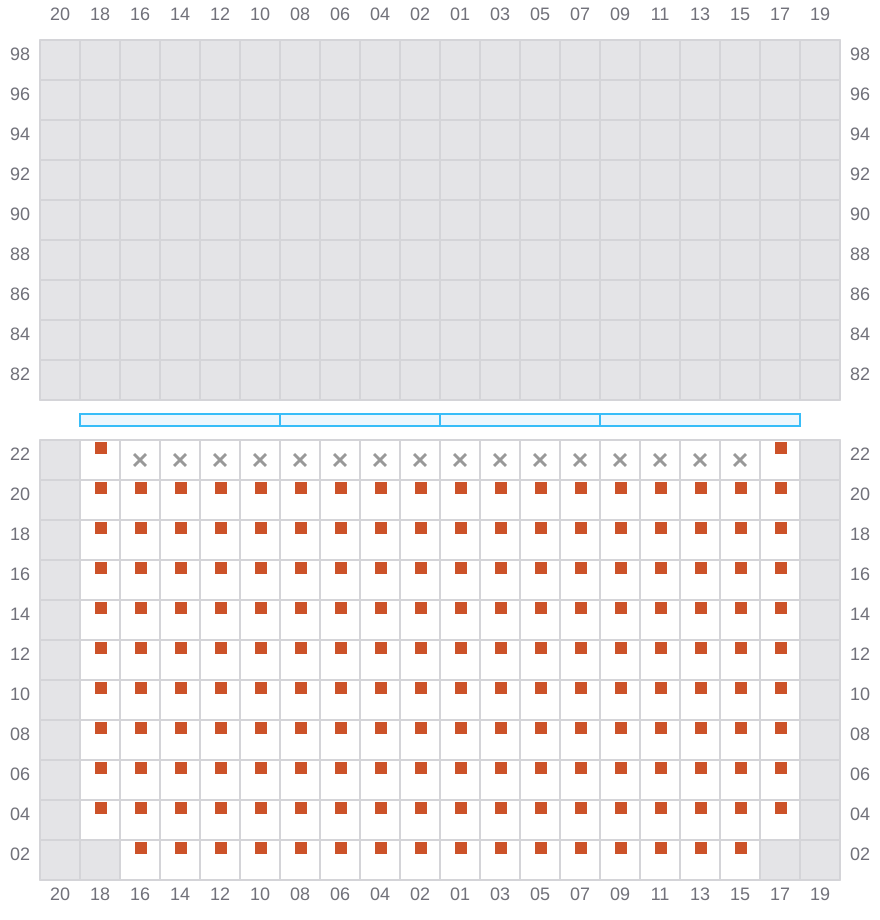

Bay 035 view and slots of OAKLAND EXPRESS

037 (038)

Bay 037 view and slots of OAKLAND EXPRESS

039

←
^→ / _?
→

Bay 039 view and slots of OAKLAND EXPRESS

041 (042)

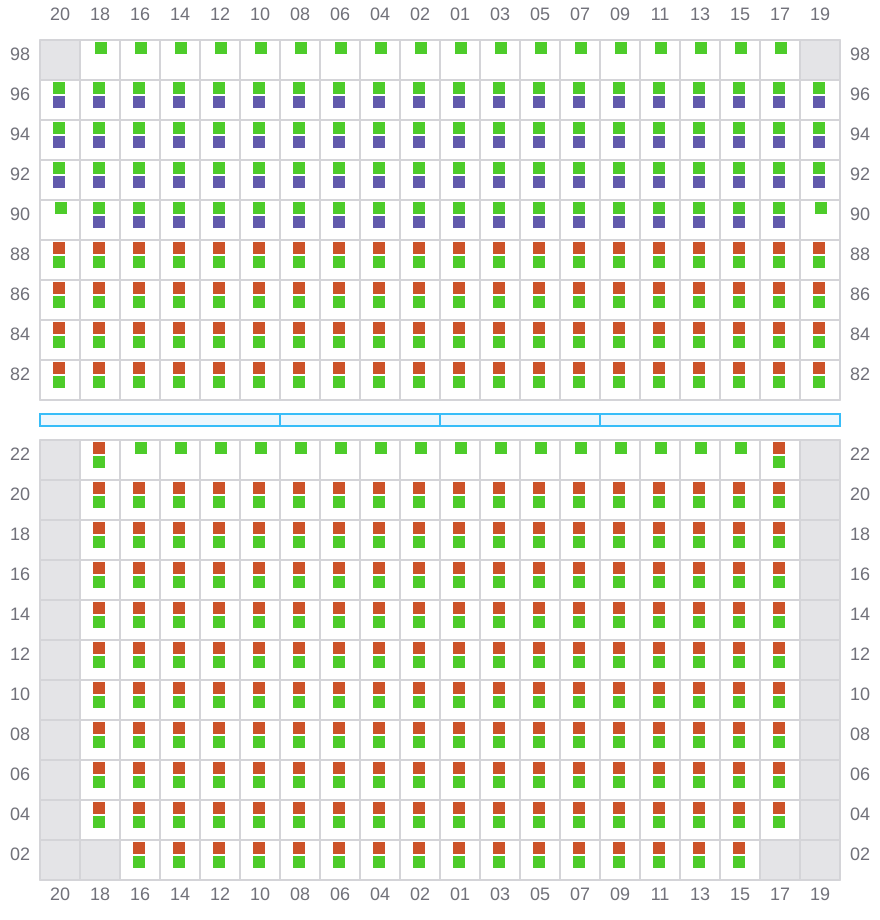

Bay 041 view and slots of OAKLAND EXPRESS

043

←
^→ / _?
→

Bay 043 view and slots of OAKLAND EXPRESS

045 (046)

Bay 045 view and slots of OAKLAND EXPRESS

047

←
^→ / _?
→

Bay 047 view and slots of OAKLAND EXPRESS

049 (050)

→
^→ / _?
→

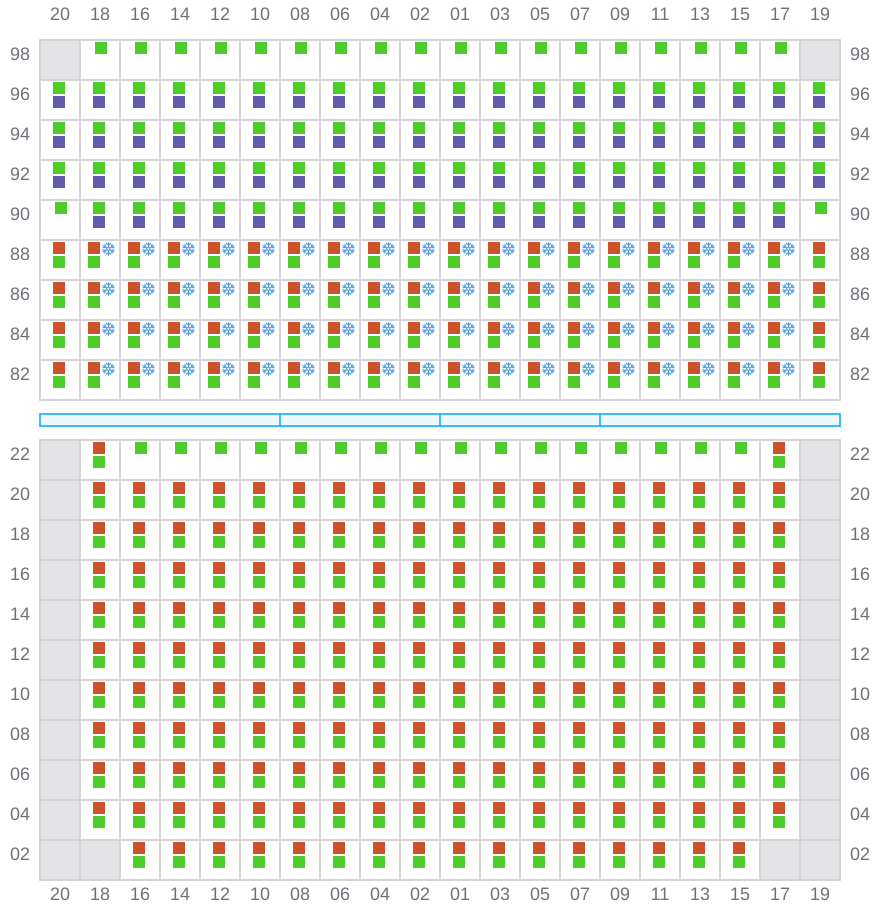

Bay 049 view and slots of OAKLAND EXPRESS

051

←
^→ / _?
→

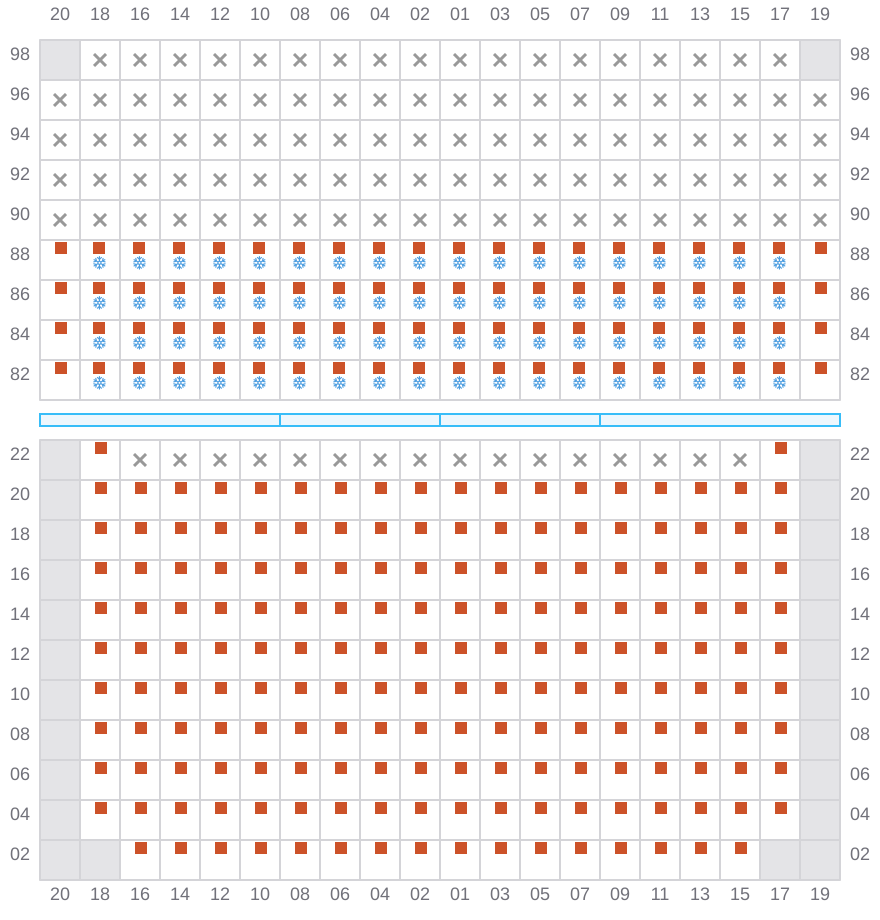

Bay 051 view and slots of OAKLAND EXPRESS

053 (054)

→
^→ / _?
→

Bay 053 view and slots of OAKLAND EXPRESS

055

←
^→ / _?
→

Bay 055 view and slots of OAKLAND EXPRESS

057 (058)

→
^→ / _?
→

Bay 057 view and slots of OAKLAND EXPRESS

059

←
^→ / _?
→

Bay 059 view and slots of OAKLAND EXPRESS

061 (062)

→
^→ / _?
→

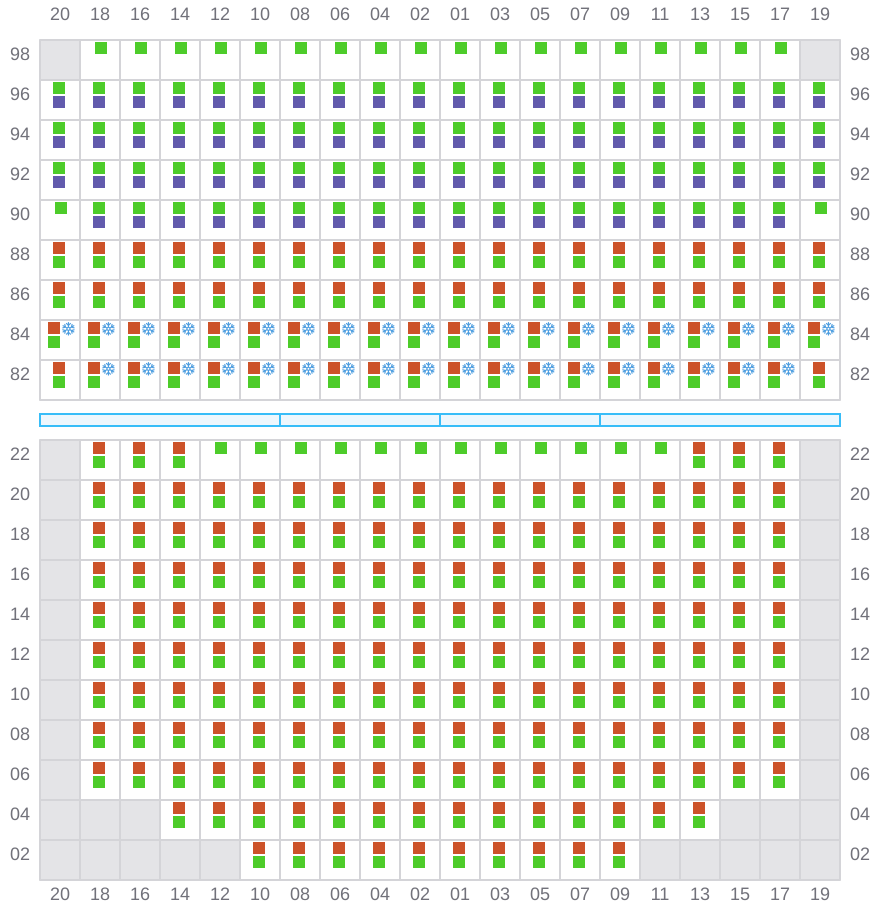

Bay 061 view and slots of OAKLAND EXPRESS

063

←
^→ / _?
→

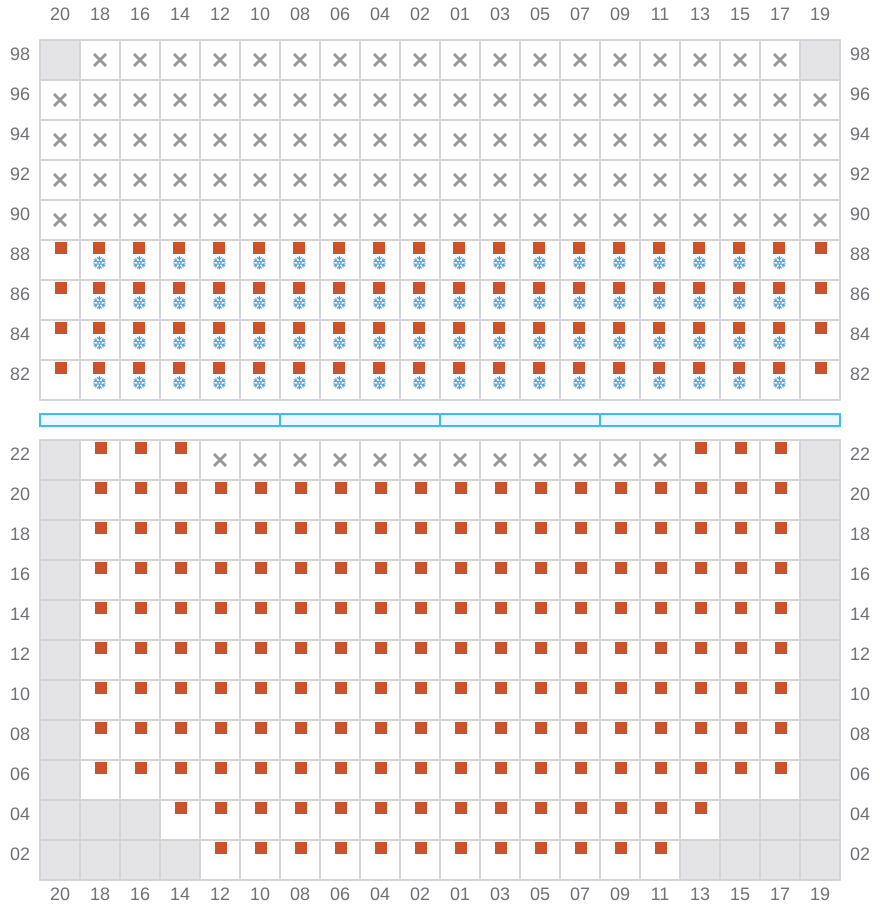

Bay 063 view and slots of OAKLAND EXPRESS

065 (066)

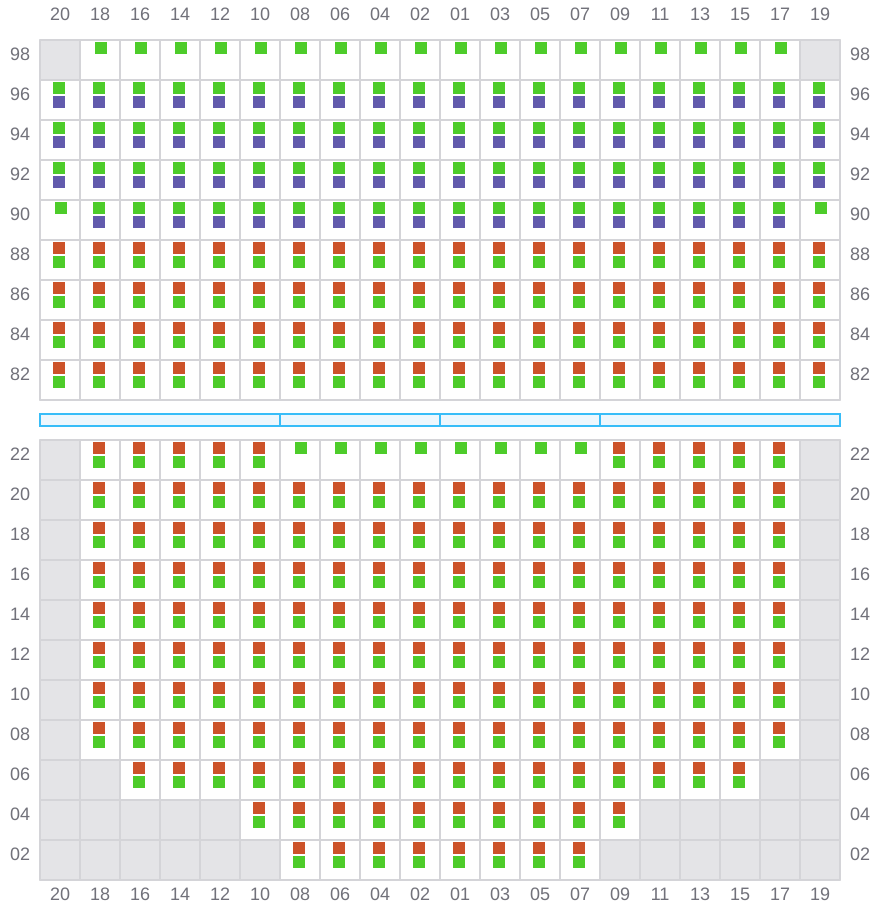

Bay 065 view and slots of OAKLAND EXPRESS

067

←
^→ / _?
→

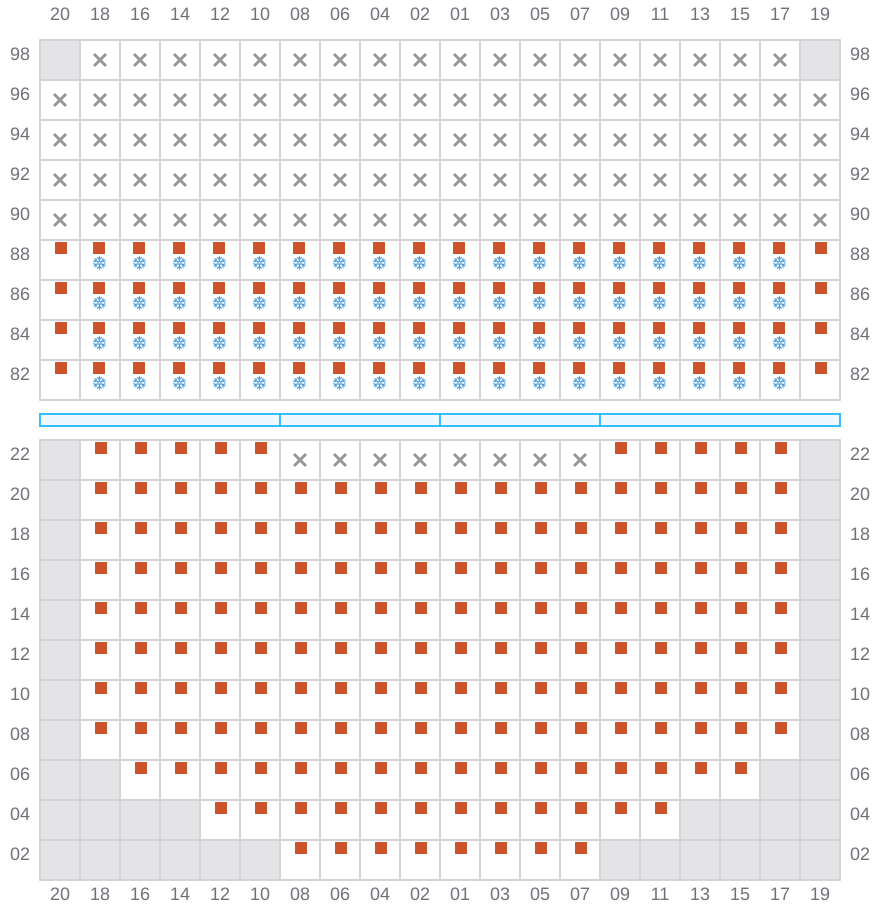

Bay 067 view and slots of OAKLAND EXPRESS

069 (070)

→
^→ / _?
→

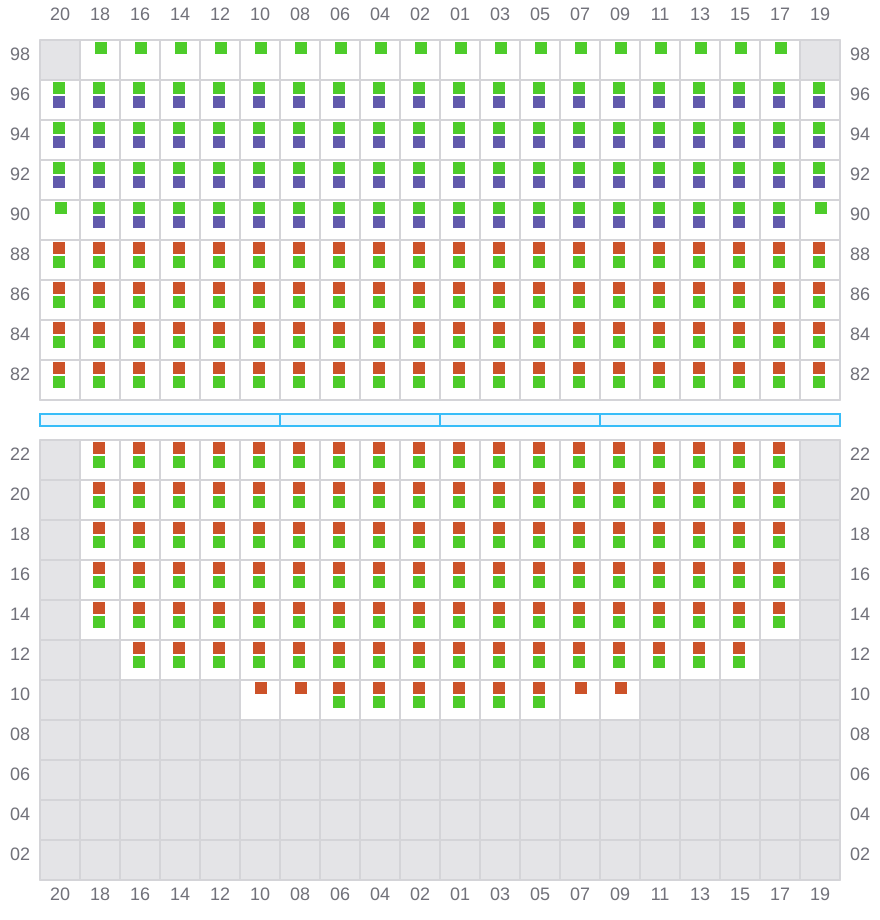

Bay 069 view and slots of OAKLAND EXPRESS

071

^? / _←
^? / _→

Bay 071 view and slots of OAKLAND EXPRESS

073 (074)

→
^← / _?
→

Bay 073 view and slots of OAKLAND EXPRESS

075

^? / _←
^? / _→

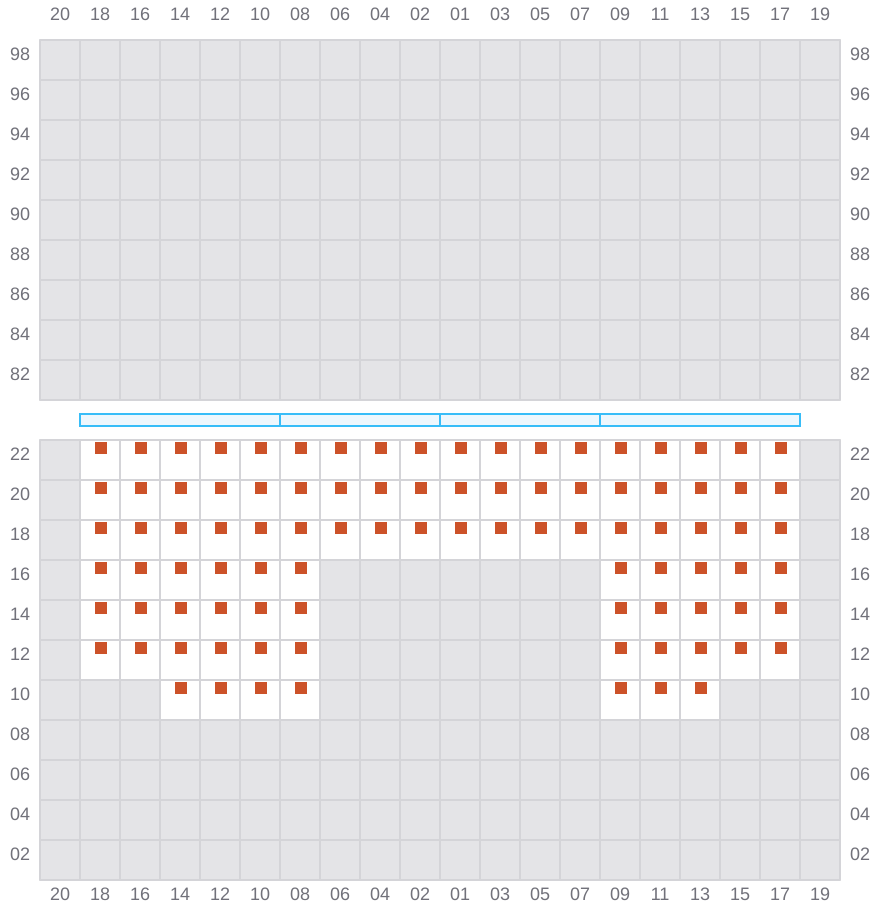

Bay 075 view and slots of OAKLAND EXPRESS

077 (078)

Bay 077 view and slots of OAKLAND EXPRESS

079

←
^← / _?
→

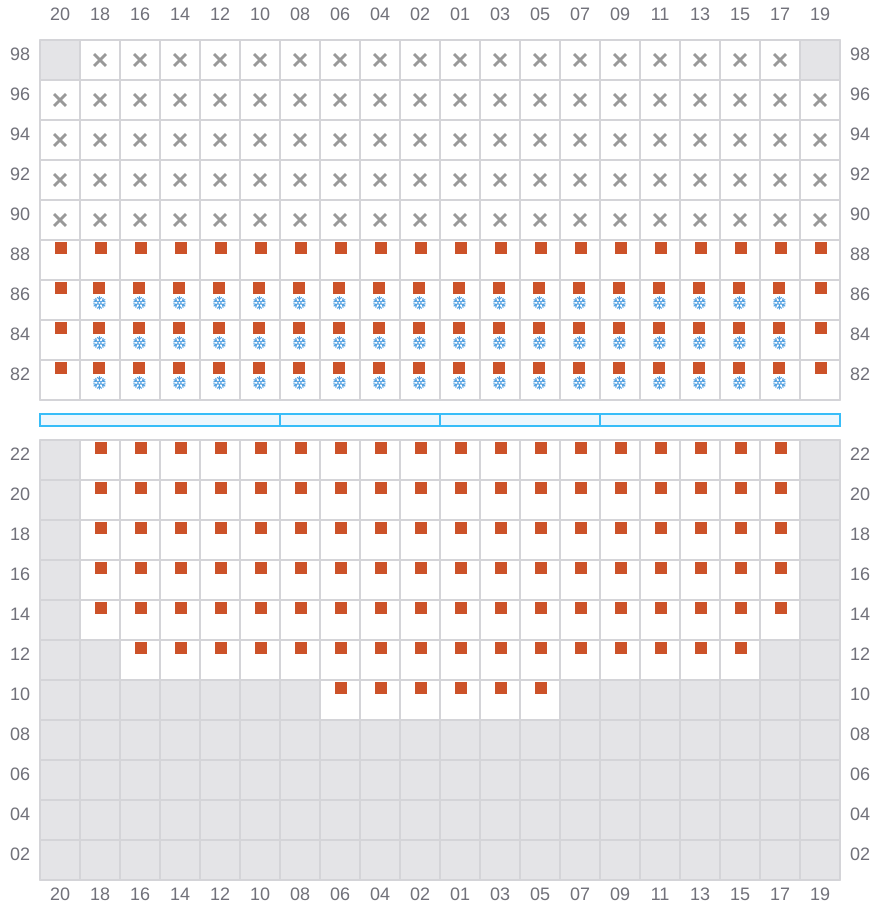

Bay 079 view and slots of OAKLAND EXPRESS

081 (082)

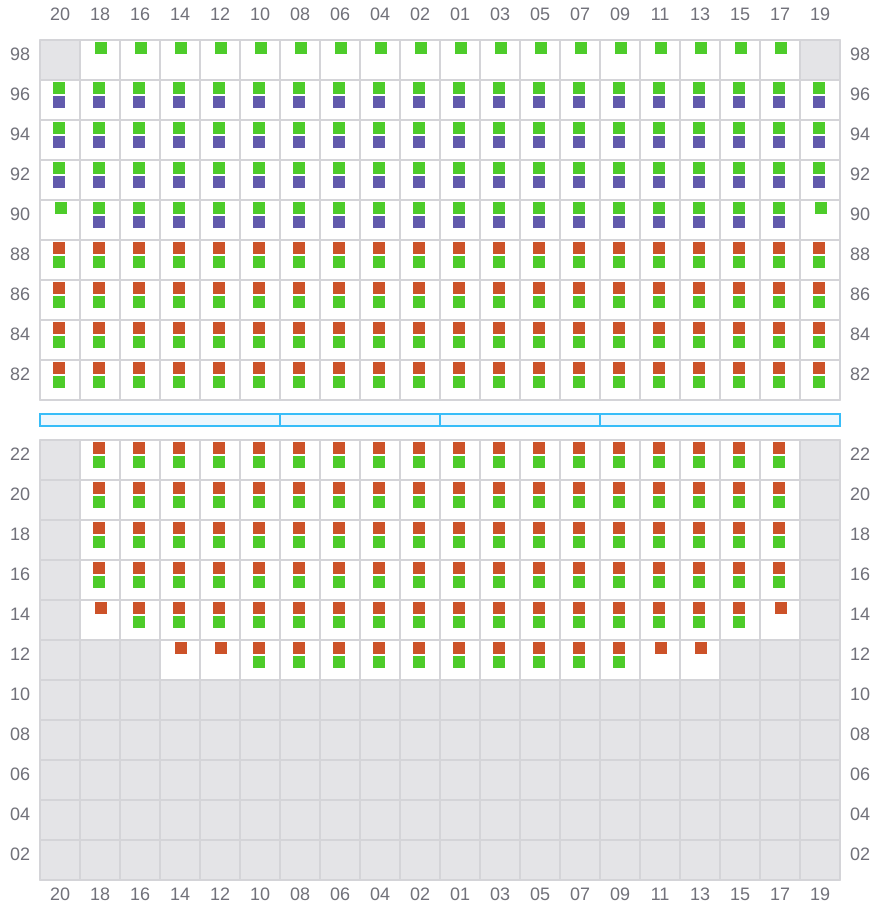

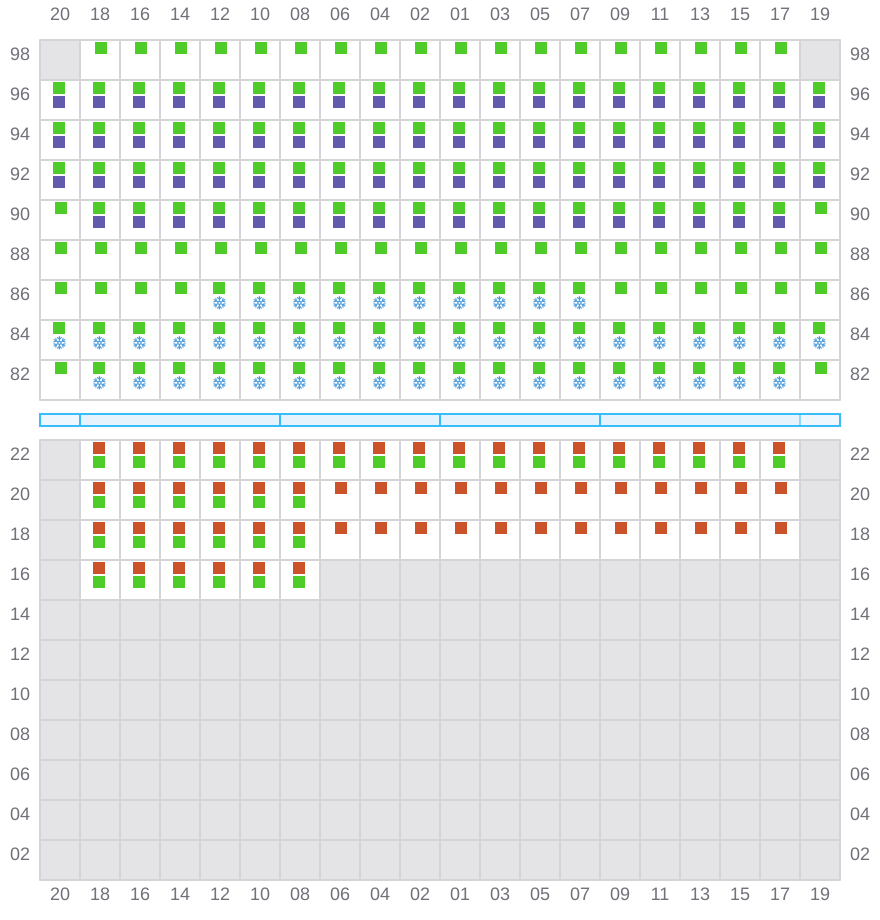

Bay 081 view and slots of OAKLAND EXPRESS

083

←
^← / _?
→

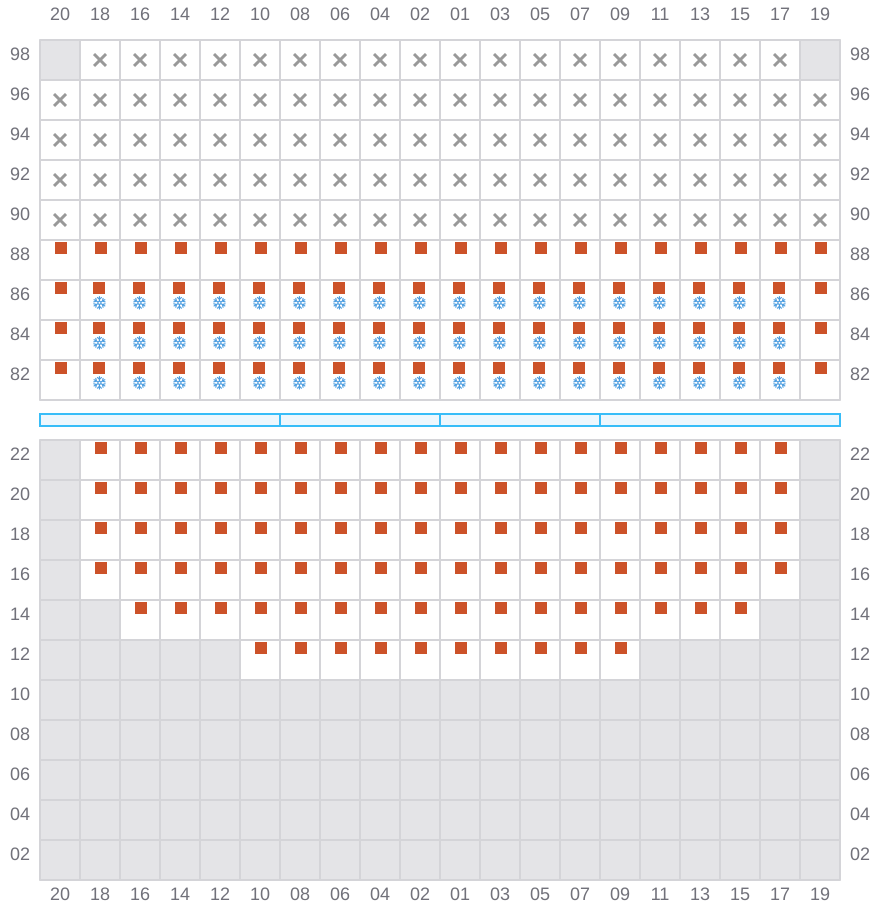

Bay 083 view and slots of OAKLAND EXPRESS

085 (086)

^→ / _?
^→ / _?

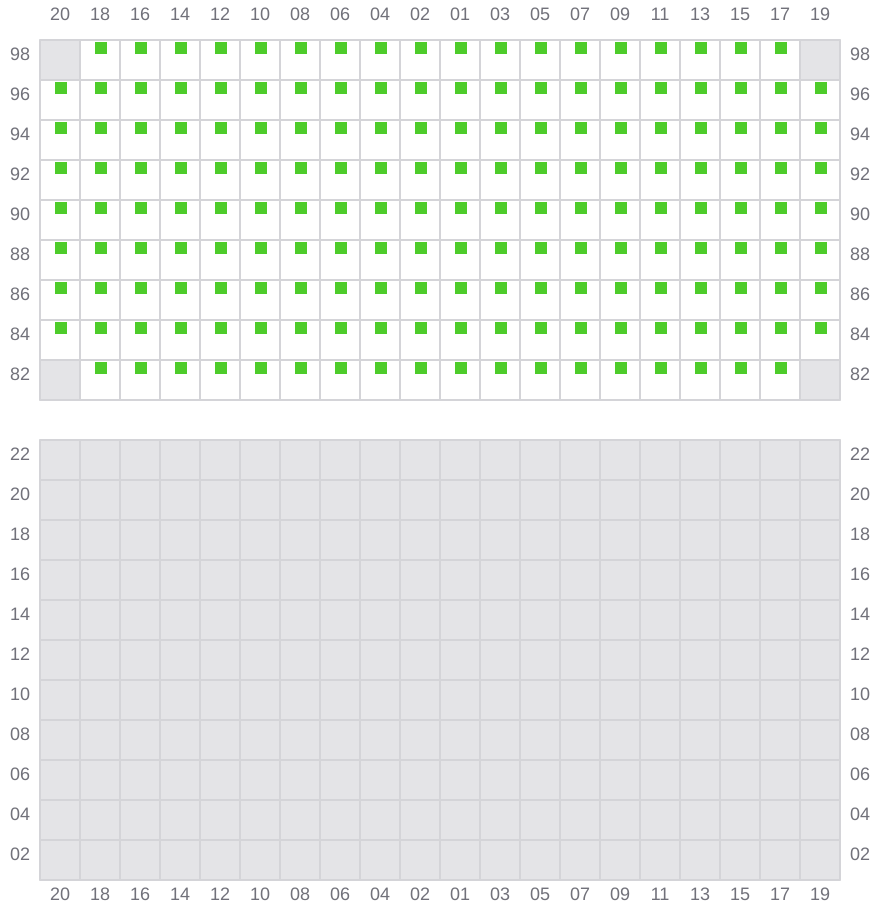

Bay 085 view and slots of OAKLAND EXPRESS
